Sharp HT-DV30H Operating Manual

Download

DVD CINEMA DVD CINÉMA DVD-CINE

低音砲揚聲系統

MODEL MODÈLE MODELO

HT-DV30H

OPERATION MANUAL MODE D’EMPLOI MANUAL DE MANEJO

HT-DV30H DVD Cinema consisting of HT-DV30H (main unit) and CP-DV30H (speaker system).

HT-DV30H DVD Cinema constitué de HT-DV30H (appareil principal) et CP-DV30H (enceinte).

El Cine en DVD HT-DV30H que consiste en HT-DV30H (unidad principal) y CP-DV30H (altavoz).

HT-DV30H DVD

組成。

影院由

HT-DV30H

（主機）和

CP-DV30H

（揚聲器系統）

Note:

This product is not compatible with MTP and AAC file systems.

ENGLISH

FRANÇAIS

ESPAÑOL

Please refer to pages E-1 to E-62. Se reporter aux pages F-1 à F-62.

Consulte las páginas S-1 a S-62.

HT-DV30H

ENGLISH

Special Notes

WARNINGS



When the ON/STAND-BY button is set at STAND-BY position, mains voltage is still present inside the unit. When the ON/ STAND-BY button is set at STAND-BY position, the unit may be brought into operation by the timer mode or remote control.



This unit contains no user serviceable parts. Never remove covers unless qualified to do so. This unit contains dangerous voltages, always remove mains plug from the socket before any service operation and when not in use for a long period.



To prevent fire or shock hazard, do not expose this appliance to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.



Do not turn the volume on to full at switch on. Listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.

CAUTIONS



This product is classified as a CLASS 1 LASER PRODUCT.



This unit contains a low power laser device. To ensure continued safety do not remove any cover or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

NOTES



Important Instruction

Unauthorised copying, broadcast, public display, transmission,

public performance and rental (regardless of whether or not such activities are for profit) of disc contents are prohibited by law.



This system is equipped with copy protection technology that

causes substantial degradation of images when the contents of a disc are copied to a video tape.

Copy Protection:

This unit supports Macrovision copy protection. On DVD discs that include a copy protection code, if the contents of

the DVD disc are copied using a VCR, the copy protection code prevents the videotape copy from playing normally.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and 4,907,093, licensed for limited viewing uses only.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorised by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and world wide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, the double-D symbol, Audistry and the sound shell logo are trademarks of Dolby Laboratories.

“HDMI, the HDMI logo and High-Deﬁnition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.”

DivX

, DivX® Certiﬁed and associated logos are trademarks of

DivX®-Networks, Inc. and are used under license.

E-1

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and 4,907,093, licensed for limited viewing uses only.

Introduction

Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product.

Accessories

Please confirm that the following accessories are included.

HT-DV30H

ENGLISH

Special Note

Supply of this product does not convey a license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), revenue-generating streaming applications (via Internet, intranets and/or other networks), other revenuegenerating content distribution systems (pay-audio or audio-ondemand applications and the like) or on revenue-generating physical media (compact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http://mp3licensing.com MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

Remote control 1 “AA” size batteries (UM/SUM-3,

R6, HP-7 or similar) 2

FM aerial 1 USB cable 1

HDMI cable 1

General Information

E-2

HT-DV30H

ENGLISH



General Information

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 8

Description of discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 10



Preparation for Use

System installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 13

Connecting to a conventional TV/monitor . . . . . . . . . . . . . . . . 14

Audio connection to other equipment . . . . . . . . . . . . . . . . . . . 15

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Changing the set up menu . . . . . . . . . . . . . . . . . . . . . . . . 17 - 23



Basic Operation

General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Setting the clock (Remote Control only). . . . . . . . . . . . . . . . . . 25

Enjoying surround sound (sound mode) . . . . . . . . . . . . . 26 - 29



DVD Operation

Playing a disc

Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 - 31

Various disc functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 - 32

To resume playback after stopping (resume play) . . . . . . . . . 32

DVD mode operation indicators . . . . . . . . . . . . . . . . . . . . . . . . 32

General Information

Basic operation

To locate the beginning of a chapter track (skip) . . . . . . . . . . 33

Fast forward/Fast reverse (search) . . . . . . . . . . . . . . . . . . . . . . 33

To start playback from the desired point (direct play) . . . . . . 34

Useful operation

Still picture/Frame advance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Slow motion play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

To change the angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

To zoom images (zoom) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

To play the contents between the specified points repeatedly

(A-B repeat) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

To select a subtitle or audio language from the disc menu . . 36

Page

To play in the desired order (programmed play) . . . . . . . . . . . 37

To play repeatedly (repeat play) . . . . . . . . . . . . . . . . . . . . . . . . 38

To change the display on TV screen. . . . . . . . . . . . . . . . . . . . . 38

To change the display on main unit . . . . . . . . . . . . . . . . . 38 - 39

To change the subtitle language . . . . . . . . . . . . . . . . . . . . . . . . 39

To change the audio language (audio output) . . . . . . . . . . . . 39



CD, CD-R and CD-RW Operation

Listening to a CD or MP3/WMA disc . . . . . . . . . . . . . . . . . . . . 40

Advanced CD or MP3/WMA disc playback . . . . . . . . . . . . . . . 41

DivX and JPEG disc operation

Playback on the DivX and JPEG menu screen. . . . . . . . . . . . . 42

Zoom function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Rotating a picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43



USB Memory Playback

Playback on USB memory device . . . . . . . . . . . . . . . . . . . . . . 44

To remove USB memory device . . . . . . . . . . . . . . . . . . . . 44 - 45

Advanced USB playback . . . . . . . . . . . . . . . . . . . . . . . . . . 45 - 46



Radio Operation

Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 - 47



Advanced Features

Using the Radio Data System (RDS) . . . . . . . . . . . . . . . . 48 - 52

Timer and sleep operation (Remote Control only). . . . . . 53 - 56

Headphone connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Enhancing your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57



References

Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 - 60

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 - 62

Page

E-3

Precautions



General



Please ensure that the equipment is positioned in a well-ventilated area and ensure that there is at least 10 cm (4") of free space along the sides, top and back of the equipment.

10 cm (4")



Use the unit on a firm, level surface free from vibration.



Keep the unit away from direct sunlight, strong magnetic fields, excessive dust, humidity and electronic/electrical equipment (home computers, facsimiles, etc.) which generate electrical noise.



Do not place anything on top of the unit.



Do not expose the unit to moisture, to temperatures higher than 60˚C (140˚F) or to extremely low temperatures.



If your system does not work properly, disconnect the AC power lead from the wall socket. Plug the AC power lead back in, and then turn on your system.



In case of an electrical storm, unplug the unit for safety.



Hold the AC power plug by the head when removing it from the wall socket, as pulling the lead can damage internal wires.



The AC power plug is used as a disconnect device and shall always remain readily operable.



Do not remove the outer cover, as this may result in electric shock. Refer internal service to your local SHARP service facility.



The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc.

10 cm (4")



No naked flame sources, such as lighted candles, should be placed on the apparatus.



Attention should be drawn to the environmental aspects of battery disposal.



This unit should only be used within the range of 5˚C - 35˚C (41˚F - 95˚F).



The apparatus is designed for use in moderate climates.

Warning:

The voltage used must be the same as that specified on this unit. Using this product with a higher voltage other than that which is specified is dangerous and may result in a fire or other type of accident causing damage. SHARP will not be held responsible for any damage resulting from use of this unit with a voltage other than that which is specified.



Cooling fan

This unit is ﬁtted with a cooling fan at the rear for improved cooling. Do not cover the opening in this section with any obstacles.

Cooling fan

Caution:

The unit will get warm whilst being used. Do not touch the warm areas of the unit for prolonged periods to avoid injury.



Volume control

The sound level at a given volume setting depends on speaker efficiency, location, and various other factors. It is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch on. Listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.

HT-DV30H

ENGLISH

General Information

E-4

HT-DV30H

ENGLISH

Controls and indicators

2 3



Front panel

1. CD Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

2. On/Stand-by Button . . . . . . . . . . . . . . . . 24, 30, 37, 46, 55, 59

3. Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

4. DVD/CD/USB Play/Pause Button . . . . . . . . . . . 31, 35, 40, 44

5. Disc or USB Stop Button . . . . . . . . . . . . . . . . . . . . . . . . 31, 44

6. Function Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

7. Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

8. Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

9. Disc Eject Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

10. Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

11. USB Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

111

Reference page

General Information

1 2

E-5

DOOR OPEN

654



Rear panel

1. HDMI Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2. FM 75 Ohms Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . 13

3. Auxiliary Input Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

10 11

4. SUBWOOFER PRE OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

5. Front Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6. Cooling Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

7. Optical Digital Input 1 Socket . . . . . . . . . . . . . . . . . . . . . . . 15

8. Optical Digital Input 2 Socket . . . . . . . . . . . . . . . . . . . . . . . 15

9. Video Output Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

10. S-Video Output Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

11. Component Video Out Sockets . . . . . . . . . . . . . . . . . . . . . . 14

12. SCART Output Socket (Audio + Video) . . . . . . . . . . . . . . . . 14

13. AC Power Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Reference page

1 2 3 4 5 6 7 8 9 10 11

MP3

WMA

FOLDTITLECHAP

14 15

DAILY

DIGITAL

16 17

VS PL

RDS TA PTYI TP

TOT AL

20 21 22 23

MTS MEMORY

SLEEP DAILY

MTS MEMORY MHz

IVC NB SS

18 19

ST DIGITAL VS PL

IVC NB SS

262527

HT-DV30H



Display

ENGLISH

Reference page

1. Chapter Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

2. Title Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

3. Folder Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

4. MP3 Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

5. WMA Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

6. RDS Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

7. Traffic Announcement Indicator . . . . . . . . . . . . . . . . . . . . . 48

8. Dynamic PTY Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

9. Traffic Programme Indicator . . . . . . . . . . . . . . . . . . . . . . . . 48

10. Total Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

11. Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

12. Timer Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

13. Daily Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

14. FM Stereo Mode Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 47

15. FM Stereo Receiving Indicator . . . . . . . . . . . . . . . . . . . . . . 47

16. Dolby Digital Signal Indicator . . . . . . . . . . . . . . . . . . . . . . . 39

17. DTS Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

18. Dolby Virtual Speaker Indicator . . . . . . . . . . . . . . . . . . . . . 28

19. Dolby Pro Logic II Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 28

20. Mono to Stereo Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

21. Intelligent Volume Indicator . . . . . . . . . . . . . . . . . . . . . . . . 29

22. Natural Bass Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

23. Sound Space Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

24. Memory Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

25. Disc or USB Pause Indicator . . . . . . . . . . . . . . . . . . . . . . . . 31

26. Disc or USB Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 30

27. Disc or USB Repeat Indicator . . . . . . . . . . . . . . . . . . . . 38, 45



Speaker system

General Information

1. Tweeter

2. Woofer

3. Bass Reflex Duct

4. Speaker Terminals

Speaker grilles are removable:

Make sure nothing comes into contact with the speaker diaphragms when you remove the speaker grilles.

E-6

HT-DV30H

ENGLISH

Controls and indicators (continued)

16 17 18

General Information

10 11 12

13 14

19 20 21 22



Remote control

2 3

5 6

1 2 3

4 5 6

7 8 9

7 8

24 25

26 27

+100

29 30

31 32 33 34

36 37 38

1. Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . 16

2. DVD Direct Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3. DVD On Screen Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

4. Direct Search Buttons . . . . . . . . . . . . . . . . . 23, 34, 37, 41, 42

5. Memory or Dimmer Button. . . . . . . . 24, 25, 37, 47, 49, 53, 56

6. DVD/CD/MP3/WMA Repeat Button . . . . . . . . . . . . . . . . 38, 45

7. Menu Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

8. Enter Button . . . . . . . . . . . . . . . . 17, 23, 30, 34, 36, 37, 42, 44

9. Cursor Left Button . . . . . . . . . . . 17, 30, 34, 36, 37, 42, 43, 44

10. DVD Chapter Skip/DVD/MP3/WMA Fast Reverse/CD/MP3/ WMA Track Down/Tuner Preset Down and Time Down

Button. . . . . . . . . . . . . . . . . . . . . . 25, 31, 33, 47, 49, 50, 53, 56

11. Tuning Down or Cursor Down Button . 17, 30, 36, 37, 43, 46

12. USB Play or Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . 44

13. Video Mode Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

14. DVD/CD/MP3/WMA/Stop Button. . . . . . . . . . . . . . . . . . . 31, 41

15. DVD/CD/MP3/WMA Button . . . . . . . . . . . . . . . . . . . . . . . . . . 30

16. USB Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

17. Auxiliary Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

18. Tuner Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46, 49, 50

19. Audio Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

20. Dolby Virtual Speaker Button . . . . . . . . . . . . . . . . . . . . . . . 27

21. Shift Button . . . . . . . . . . . 13, 17, 24, 27, 28, 36, 41, 45, 49, 50

22. Volume Up or Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . 24

23. Clear or Display Button . . . . . . . . . . . . . . . . . . . . . . 38, 47, 49

24. On/Stand-by Button . . . . 16, 17, 24, 25, 30, 46, 47, 49, 53, 59

25. Clock or Timer Button. . . . . . . . . . . . . . . . . . . . . . . . 25, 53, 56

30. DVD Angle Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 36

31. DVD Subtitle Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 39

32. DVD Zoom Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 43

33. Return Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

34. Tuning Up or Cursor Up Button . . . . . . . 17, 30, 36, 37, 43, 46

Reference page

E-7

35. Cursor Right Button . . . . . . . . . . 17, 30, 34, 36, 37, 42, 43, 44

36. DVD Chapter Skip/DVD/MP3/WMA Fast Forward/CD/MP3/

WMA Track Up/Tuner Preset Up and Time Up Button. . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 31, 33, 47, 49, 50, 53, 56

37. DVD Slow Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

38. DVD/CD/MP3/WMA Play or Pause Button . . . . . . . . . . . 31, 35

39. DVD/CD/MP3/WMA Still Button . . . . . . . . . . . . . . . . . . . . . . 35

40. TV Operation Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8



Remote control with shift button

2. RDS ASPM Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

3. RDS PTY Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

5. Set Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

6. A-B Repeat Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

7. Top Menu Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

20. Demo Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

23. RDS DISP Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

26. Sound Space Button . . . . . . . . . . . . . . . . . . . . . . . . 27, 28, 29

Natural Bass Button

27.

28.

Intelligent Volume Button

29. Sound Mode Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

30.

Mono to Stereo Button

32.

Random Button

. . . . . . . . . . . . . . . . . . . . . . . . . . 27, 28, 29

. . . . . . . . . . . . . . . . . . . . 27, 28, 29

. . . . . . . . . . . . . . . . . . . . . . . . 27, 28, 29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41, 45

Reference page

TV Operation Buttons (Only SHARP TV):

On/Stand-by Button

Volume Up and Down Buttons

Note:

Some models of SHARP TV may not be operable.

Set the TV

power to

“ON” or

“STAND-BY”.

Turn up/down the TV volume.

Input Select Button (TV)

Channel Up and Down Buttons

HT-DV30H

ENGLISH

Press the button to switch the input source.

Switch up/ down the TV channels.

General Information

E-8

HT-DV30H

ENGLISH

Description of discs



Types of playable discs

The DVD player can play back discs bearing any of the following marks:

Disc type Disc contents

DVD Video Disc Audio and video

DVD-R

(movies)

Audio and video

(movies)

(*1): Playability depends on recording device or disc condition

(special disc, scratches, dirt or dirt on pick up).

(*2): The DVD-R/DVD-RW/CD-R/CD-RW may not be played back

properly depending on the recording equipment or the disc.

(*3): JPEG or JPG picture discs are also playable on this unit.

However, pictures may not be clear (depends on resolution and recording method).

(*4): If the file size is larger than 10 Mb, it will take some time for the

file to be displayed.



For unplayable discs, see page 10.

Types of playable DVD discs vary depending on the region. This unit can play back only DVDs with the same region number written on the back of the unit.

Disc recorded in Video Mode (*1)(*2) DVD-RW

Disc recorded in Video Mode (*2) Audio CD Audio

General Information

CD-R/CD-RW (*1)(*2)

Or CD-R/CD-RW recorded in JPEG format (*3) (*4)

DivX® Video disc (Ver 6 and below) Audio and video

E-9

Audio and video

(movies)

Audio and picture

(movies)

22 3 4

Icons used in this operation manual

Some functions may not be available depending on discs. The following icons indicate the discs that can be used in the section.

... Indicates DVDs. ... Indicates audio CDs. ... Indicates CD-R/RW with MP3 recording. ... Indicates CD-R/RW with WMA recording.

WMA

... Indicates CD-R/RW with JPEG recording. ... Indicates CD-R/RW with DivX



Some operations may not be performed depending on discs even if they are described in this manual.



During operation, “INVALID KEY” may be displayed on the screen. This means that the operations described in this manual are prohibited by the disc.

recording.



Discs that cannot be played

DVDs without the region

number on the back of the unit.

DVDs with SECAM system DVD-ROM DVD-RAM DVD-Audio

 The discs above cannot be played at all, or no sound is heard

although images appear on the screen or vice versa.

 Incorrect operation may damage the speakers and can have an

adverse effect on your hearing when played at high volume settings.

 You cannot play illegally produced discs.

Notes:

 A disc which has scratches or fingerprints may not play properly.

Refer to “Care of compact discs” (page 60) and clean the disc.

 Do not play discs of special shapes (heart or octagon shaped) as

they can be ejected whilst rotating and cause injury.

CDG CDV Photo CD CD-ROM SACD Discs recorded in

special formats,etc.

DVD+R DVD+RW

 Title, chapter and track

DVDs are divided into “titles” and “chapters”. If the disc has more than one movie on it, each movie is a separate “title”. “Chapters” are subdivisions of titles.

Title 1 Title 2

Chapter 1

Chapter 2

Chapter 3 Chapter 1 Chapter 2

Audio CDs consist of “tracks”. A “track” is each tune on an audio CD.

Track 1 Track 2 Track 3 Track 4 Track 5

Note:

Title, chapter, or track numbers may not be recorded on some discs.

 DivX®

 Official DivX CertifiedTM product  Plays all versions of DivX® video

(including DivX® 6) with standard playback of DivX® media files (DivX version cannot be upgraded on this product.)

 Icons used on DVD discs

Check the icons on the DVD case before playing your discs.

Display Description

Region number (playable area number)

2 3 4

Format recorded on the DVD To adopt the video format to the

Recorded in 4:3.

You can enjoy wide images on a wide-screen TV and letterbox size images on the 4:3 size TV.

You can enjoy wide images on a wide-screen TV and 4:3 images with the side edges cut on the 4:3 size TV.

Type of subtitles recorded Recorded subtitle languages.

Example:

1: English 2: French

Number of camera angles Number of angles recorded on the

Number of audio tracks and audio recording systems

Example: 1: Original <English> (Dolby Digital 2 Surround)

2: English (Dolby Digital 5.1 Surround)

DVD discs are programmed with region numbers indicating countries in which they can be played. This system can play discs with region number on the back of the unit.

connected TVs (“wide-screen TV” or “4:3 size TV”).

Language can be selected with the SUBTITLE button.

DVD. Angles can be selected with the ANGLE button.

The number of audio tracks and audio recording systems are indicated.

The audio recorded on the DVD

can be switched by using the AUDIO button.

The number of audio tracks and

recording systems vary depending on the DVD. Check them in the DVD's manual.

HT-DV30H

ENGLISH

General Information

E-10

HT-DV30H

ENGLISH

System installation

Installation image:

CP-DV30H speakers (left and right)

Unit

 Magnetically shielded speakers

The speakers can be placed beside or near the TV as they are magnetically shielded. However, uneven colours may appear on the screen depending on the type of TV.

Preparation for Use

If colour variation occurs:

Turn off the TV (from the power switch). After 15 - 30 minutes, turn the TV on again.

If the colour variation is still present:

Move the speakers further away from the TV. Refer to the operation manual of the TV for details.

Note:

The speakers are magnetically shielded.

E-11

System connections

Make sure to unplug the AC power lead before making any connections.

HT-DV30H

ENGLISH

Right speaker

Red

Left speaker

FM aerial

To a wall socket

Preparation for Use

Red

E-12

HT-DV30H

ENGLISH

System connections (continued)

Caution:

 Use speakers with an impedance of 4 ohms or more, as lower

impedance speakers can damage the unit.

 Do not mistake the right and the left

channels. The right speaker is the one on the right side when you face the unit.

 Do not let the bare speaker wires touch

each other.

 Do not allow any objects to fall into or to be

placed in the bass reflex duct.

 Do not stand or sit on the speakers. You

may be injured.

 Aerial connection

Supplied FM aerial:

Connect the FM aerial wire to the FM 75 OHMS socket and position the FM aerial wire in the direction where the strongest signal can be received.

Note:

Placing the aerial on the unit or near the AC power lead may cause noise pickup. Place the aerial away from the unit for better reception.

 External FM aerial

Preparation for Use

Use an external FM aerial if you require better reception. Consult your dealer.

75 ohms coaxial cable

External FM aerial

Incorrect

FM aerial

 AC power connection

After checking all the connections have been made correctly, plug the AC power lead of this unit into the wall socket. If you plug in the unit first, the unit will enter the stand-by mode.

Wall socket

(AC 220 - 240 V ~ 50 Hz)

Note:

Unplug the AC power lead from the wall socket if the unit will not be in use for a prolonged period of time.

 Demonstration mode

The first time the unit is plugged in, the unit will enter the demonstration mode. You will see words scroll.

To cancel the demonstration mode:

When the unit is in the power stand-by mode (demonstration mode), press the SHIFT and DEMO buttons on the remote control. The unit will enter the low power consumption mode.

To return to the demonstration mode:

When the unit is in the power stand-by mode, press the SHIFT and DEMO buttons on the remote control again.

E-13

Note:

When an external FM aerial is used, disconnect the supplied FM aerial wire.

Connecting to a conventional TV/monitor

Caution:

Turn off all other equipment before making any connections.

 If the TV/monitor has video input, connect it to

the VIDEO OUT socket on the rear of the unit.

Video signal

(not supplied)

To video input socket

 If the TV/monitor has S-video input, connect it to

the S-VIDEO OUT socket on the rear of the unit.

Video signal

Notes:

 Change the TV input in accordance with the connected socket.  Do not connect other equipment between the TV and this unit. If

they are connected via a VCR, pictures may be distorted.

 If your TV has different indications for the component video

inputs (Y, CB and CR or Y, B-Y and P-Y), connect sockets with its matching colour.

 Do not connect to a component video input socket designed for

the high-vision system, which is not DVD-compatible (the images may be distorted or not appear).

 If the TV/monitor has scart input, connect it to

the SCART OUT socket on the rear of the unit. (Do not connect the SCART cable to equipment other than the TV/monitor)

To select SCART function:  On main unit: Press FUNCTION button repeatedly until SCART

is displayed.

 On remote control: Press AUX button repeatedly until

SCART is displayed.

HT-DV30H

ENGLISH

S-video cable (not supplied)

To S-video input socket

 If the TV/monitor has component video input,

connect it to the COMPONENT VIDEO OUT socket on the rear of the unit.

Component video cable (not supplied)

To component video input socket

To SCART input socket

SCART cable (not supplied)

Video/Audio signal

 If the TV/monitor has HDMI input, connect it to

the HDMI socket on the rear of the unit.

HDMl cable

To HDMI input socket

Preparation for Use

E-14

HT-DV30H

ENGLISH

Audio connection to other equipment

You can hear the sound of other equipment via this product. Connect the DVD player, VCR or digital tuner to a TV directly to receive the images (refer to the operation manual of each equipment).

Caution:

Turn off the other equipment before making this connection.

 Connection for the analogue sound (VCR, etc.)

To select AUX function:  On main unit: Press FUNCTION button repeatedly until AUX is

displayed.

 On remote control: Press AUX button repeatedly until AUX is

displayed.

 Connection for the digital tuner sound (or other

If the digital equipment has an optical output socket, you can enjoy better sound by connecting it to the optical digital input socket of the main unit using the optical digital cable. To select OPTICAL 1 or OPTICAL 2 function:

 On main unit: Press FUNCTION button repeatedly until

 On remote control: Press AUX button repeatedly until

optical digital equipment such as an MD player)

OPTICAL 1 or OPTICAL 2 is displayed.

Preparation for Use

E-15

To audio input sockets (AUX IN)

Audio cable (commercially available)

To audio output sockets

VCR, DVD recorder, etc.

Optical digital cable (commercially available)

Digital tuner, etc.

To optical digital audio input socket

To optical digital audio output socket

Digital equipment such as a digital music player

Remote control

 Battery installation

1 Open the battery cover. 2 Insert the supplied batteries according to the direction

indicated in the battery compartment.

When inserting or removing the batteries, push them towards the

battery terminals.

3 Close the cover.

Precautions for battery use:

 Replace all old batteries with new ones at the same time.  Do not mix old and new batteries.  Remove the batteries if the unit will not be used for long periods

of time. This will prevent potential damage due to battery leakage.

Caution:

 Do not use rechargeable batteries (nickel-cadmium battery, etc.).  Installing the batteries incorrectly may cause the unit to

malfunction.

 Batteries (battery packed or batteries installed) shall not be

exposed to excessive heat such as sunshine, fire or the like.

Notes concerning use:

 Replace the batteries if the operating distance is reduced or if the

operation becomes erratic. Purchase 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar).

 Periodically clean the transmitter on the remote control and the

sensor on the unit with a soft cloth.

 Exposing the sensor on the unit to strong light may interfere with

operation. Change the lighting or the direction of the unit if this occurs.

 Keep the remote control away from moisture, heat, shock, and

vibrations.

 Test of the remote control

After installing the unit (see pages 11 - 15), check that the remote control operates correctly. Point the remote control directly at the remote sensor on the unit.

The remote control can be used within the range shown below:

Press the ON/STAND-BY button. Does the power turn on? Now, you can use the unit.

Remote sensor

HT-DV30H

ENGLISH

Preparation for Use

Battery removal:

Open the battery cover and pull up the battery to take out.

0.2 m - 6 m (8" - 20’)

1 2 3

4 5 6

7 8 9

E-16

HT-DV30H

ENGLISH

Changing the set up menu

1 2 3

4 5 6

7 8 9

+100

1 Turn on the TV. 2 Set the TV to the correct input, eg. “AV1”, “VIDEO”, etc. 3 Turn on the unit by pressing the

ON/STAND-BY button.

The SHARP startup screen appears.

Note:

Startup screen will be displayed when both S-Video cable and SCART cable are connected to the TV. If only the SVideo cable is connected, the screen may be blank. To set up S-Video mode, use video out cable or SCART cable.

4 Press the SHIFT and SET UP buttons.

Preparation for Use

E-17

5 Press the or button to select a menu.

 See the list on pages 18 - 23 for set up menu.

6 Press the , , or button to change the setting and

press the ENTER button.

7 After setting is completed, select

“EXIT SET UP”, then press the ENTER button to return to the main page.

Notes:

 The setting are stored even if the unit is set to stand-by mode.  The backup function protects the stored setting for a few hours

should there be a power failure or AC power lead disconnection.

 System set up can be performed during playback mode.

Set up menu Selectable parameters (* indicates default setting) Description

SYSTEM SET UP

TV SYSTEM NTSC

PAL*

Select the correct colour system (TV standard). (for details, see page 22).

AUTO

HT-DV30H

ENGLISH

LANGUAGE SET UP

VIDEO S-VIDEO

SCART* COMP. P-SCAN ON COMP. P-SCAN OFF

Select “S-VIDEO or SCART or COMP. P-SCAN ON or COMP. P-SCAN OFF” mode if connecting unit to TV (for details, see page 14). Selection can also be made using remote control VIDEO MODE button.

TV TYPE 4:3 PS*

4:3 LB

The screen mode should be set according to the connected TV type (for details, see page 22).

16:9 PASSWORD _ _ _ _ Change the password (for details, see page 23). RATING 1 KID SAFE

2 G

3 PG

4 PG13

Set a restriction level for DVD viewing (for details, see page 23). Enter a 4-digit password.

It is set to 0000 by default. 5 PG-R 6 R 7 NC-17 8 ADULT*

DEFAULT RESTORE This resets all settings, except for PARENTAL to

the factory defaults.

OSD LANGUAGE

ENGLISH* FRENCH SPANISH CHINESE GERMAN ITALIAN

You can select the desired OSD (On Screen

Display) language for the set up menu or playback

control screen.

Example: To select French language, choose

“FRENCH” from the menu. Press ENTER button

and below screen will appear in French. PORTUGUESE DUTCH

DÉFIN. LANGUE LANGUES OSD

LANGUE AUDIO LNG. SS-TITRE LANG. MENU DivX [R] VOD

QUITTER SET UP

ANGLAIS

FRANÇAIS

ESPAGNOL CHINOIS ALLEMAND ITALIEN PORTUGAIS HOLLANDAIS

Preparation for Use

E-18

HT-DV30H

ENGLISH

Changing the set up menu (continued)

Set up menu Selectable parameters (* indicates default setting) Description

LANGUAGE SET UP

AUDIO LANG

SUBTITLE LANG

ENGLISH* FRENCH SPANISH CHINESE GERMAN ITALIAN

ENGLISH* FRENCH SPANISH CHINESE GERMAN ITALIAN OFF

Select the language audible from the speakers.

Select the subtitle displayed on the TV screen.

AUDIO SET UP

Preparation for Use

E-19

MENU LANG

DivX [R] VOD

ENGLISH* FRENCH SPANISH CHINESE GERMAN ITALIAN

REGISTRATION

CODE

********

AUDIO OUT SP DIF/OFF

SP DIF/RAW SP DIF/PCM*

Select the disc menu language.

SHARP provide you the DivX registration code that allows you to rent and purchase videos using the DivX service. Please go to www.divx.com/vod for more information.

Useful whilst using HDMI cable. When playing a disc recorded with Dolby Digital or DTS, the corresponding digital signals will be output from the HDMI output socket.  PCM : Choose this setting if the TV with HDMI

technology cannot support Dolby Digital or DTS to avoid noise or mute from the TV.

 RAW : Choose this setting if the TV with HDMI

technology can support Dolby Digital or DTS.

Set up menu Selectable parameters (* indicates default setting) Description

VIDEO SET UP

BRIGHTNESS To adjust TV screen brightness level.

12 10

6 4 2 0

CONTRAST To adjust TV screen contrast level.

12 10

6 4 2 0

HT-DV30H

ENGLISH

HUE To adjust TV screen hue level.

+6 +4 +2

-2

-4

-6

Preparation for Use

E-20

HT-DV30H

ENGLISH

Changing the set up menu (continued)

Set up menu Selectable parameters (* indicates default setting) Description

DIGITAL SET UP

Preparation for Use

EXIT SET UP

SATURATION To adjust TV screen saturation level.

12 10

8 6 4 2 0

HDMI OUTPUT 480P/576P

DYNAMIC RANGE

720P* 1080 I

To select HDMI resolution.

Dynamic Range Control can be set from OFF to FULL.

Full

FULL : Dynamic Range Control set to maximum.

OFF

6/8

4/8

2/8

OFF

The setting is completed.

Dynamic Range Control set to off.

E-21

 TV display setting

Indicator Setting

4:3 PS

When playing a wide image (16:9) disc, the left and right sides of the image are cut (pan scan) to display a natural-looking 4:3 size image. A wide image disc without pan scan

is played back in 4:3 letterbox.

A 4:3 disc is played in 4:3.

4:3 LB

When playing a wide image (16:9) disc, black bands are inserted at the top and bottom and you can enjoy full wide images (16:9) on a 4:3 size TV.

A 4:3 disc is played in 4:3.

16:9

A wide image (16:9) is displayed when playing a wide image (16:9) disc.



When playing a 4:3 image disc, the image size depends on the setting of the connected TV.



If you play back a wide image (16:9) disc with this unit connected to a 4:3 TV, the vertically shrunk image is displayed.

Note:

When playing disc with a fixed video format, the display setting will not change even if the TV screen size is changed.

 TV system setting

Indicator Setting

NTSC PAL AUTO

Note:

To achieve optimal picture setting when playing back a DVD disc, ensure the setting of the main unit TV system are the same as the disc video system.

Select this mode for the NTSC TV. Select this mode for the PAL TV. Select this mode for the multi-system TV.

Refer pages 17 - 21 “Changing the set up menu” and follow the changing steps provided.

DVD disc type

NTSC PAL

Unit setting

 Language setting

Indicator

OSD LANGUAGE

AUDIO LANG

SUBTITLE LANG

MENU LANG

A language for screen display can be set for the set up menu, message, etc.

English French

DISC LOADING DISQUE CHARGEMENT

A language for audio can be set. You can specify a language for conversation and narration.

English French

A language for subtitle can be set. The subtitle are displayed in a specified language.

English French

Thank you

A language for disc menus can be set. Menu screens are displayed in a specified language.

English French

CAST

STAFF

Setting

Thank you

Merci

ACTEURS

PERSONNEL

HT-DV30H

ENGLISH

Merci

Preparation for Use

E-22

HT-DV30H

ENGLISH

Changing the set up menu (continued)

 Rating setting

1 Select “SYSTEM SET UP” on the Set up menu screen (see

steps 1 - 6 on page 17).

2 Before setting “RATING”, ensure password is unlocked

“ ”. The “RATING” level cannot be set if the password is locked “ ”.

3 After selecting “RATING” in steps 1 - 6 on page 17, select the

rating level and press the ENTER button to confirm.

4 After entering rating level, select “PASSWORD” to lock the

password key.

5 Enter a 4-digit password using the Direct Search buttons

and press the ENTER button.

*If this is the first time, enter “0000” as factory default password.

Indicator Setting

1 KID SAFE Only DVD software intended for children can be

2G to 7 NC-17 Only DVD software intended for general use

8 ADULT DVD software of any grade (adult/general/

* Level 8: for most restrictive viewing ===> Level 1: for general audiences viewing. The smaller the number, the greater the level of restriction.

Preparation for Use

Note:

Whilst playing a disc with parental lock, the display may appear requesting a password in order to watch some restricted scenes. In such case, enter the password to temporarily change the parental level.

played back.

and children can be played back.

children) can be played back.

 Password setting

From the set up menu, select “SYSTEM SET UP”, “PASSWORD” and choose “----- ”.

1 When setting the password for the first time, enter the

factory default password by pressing “0000”. The “ ” will be unlocked.

2 Enter your new password (maximum 4-digits) using the

Direct Search buttons and press ENTER button to return. The “ ” will be locked.

3 Enter again the same new password and press ENTER

button to return. The “ ” will be unlocked.

4 To change to another password, repeat steps 2 - 3. 5 Exit set up.

Note:

If you forget your password, cancel the current password by pressing “0000” using the Direct Search buttons.

E-23

General control

 Volume auto fade-in

 If you turn off and on the main unit with volume set to 34 or

higher, the volume starts at 20 and fades in to the last set level.

 If you turn off and on the main unit with the volume level set to less

than 34, the volume starts at the last level volume setting.

HT-DV30H

ENGLISH

1 2 3

4 5 6

7 8 9

+100

Volume

ring

 To turn the power on

Press the ON/STAND-BY button to turn the power on.

After use:

Press the ON/STAND-BY button to enter the power stand-by mode.

 Illumination light control

Press the MEMORY/DIMMER button for more than 2 seconds to adjust the brightness of the display and volume ring.

Volume ring light and display bright

Volume ring light off and display dim

Volume ring light off and display gets dimmer

 Auto power off function

In the stop mode of discs/USB operation, the main unit enters the stand-by mode after 15 minutes of inactivity.

 Volume control

Main unit operation:

When the VOLUME control is turned clockwise, the volume will increase. When it is turned anti-clockwise, the volume will decrease.

Remote control operation:

Press the VOLUME (+ or –) button to increase or decrease the volume.

...

39 MAX0 1

 Function

When the FUNCTION button on main unit is pressed, the current function will change to different mode. Press the FUNCTION button repeatedly to select desired function.

DVD/CD USB TUNER OPTICAL 1

OPTICAL 2AUX INSCART

Note:

The backup function will protect the memorised function mode for a few hours should there be a power failure or the AC power lead becomes disconnected.

Basic Operation

E-24

HT-DV30H

ENGLISH

Setting the clock (Remote Control only)

In this example, the clock is set for the 24-hour (0:00) display.

1 Press the ON/STAND-BY button to turn the power on. 2 Press the CLOCK/TIMER button. 3 Within 10 seconds, press the or button to select

“CLOCK”, and press the MEMORY/DIMMER button.

Basic Operation

4 Press the or button to select 24-hour or 12-hour

display and then press the MEMORY/DIMMER button.

“0:00” The 24-hour display will appear. (0:00 - 23:59) “AM 12:00” The 12-hour display will appear. (AM 12:00 - PM 11:59) “AM 0:00” The 12-hour display will appear. (AM 0:00 - PM 11:59)

E-25

1 2 3

4 5 6

7 8 9

+100

5 Press the or button to adjust the hour and then

press the MEMORY/DIMMER button.

Press the or button once to advance the time by 1 hour. Hold it down to advance continuously.

6 Press the or button to adjust the minutes and then

press the MEMORY/DIMMER button.

Press the or button once to advance the time by 1 minute. Hold it down to change the time in 5-minute intervals.

To conﬁrm the time display:

[When the unit is in the stand-by mode] Press the CLOCK/TIMER button. The time display will appear for about 10 seconds.

[When the power is on] Press the CLOCK/TIMER button. Within 10 seconds, press the or button to display the time. The time display will appear for about 10 seconds.

Note:

The “CLOCK” will appear or time will ﬂash to conﬁrm the time display when the AC power supply is restored after a power failure or unplugging the unit. If incorrect, readjust the clock as follows.

To readjust the clock:

Perform “Setting the clock” from step 1. If the “CLOCK” does not appear in step 3, step 4 (for selecting the 24-hour or 12-hour display) will be skipped.

To change the 24-hour or 12-hour display:

1 Clear all the programmed contents. [Refer to “Factory reset,

clearing all memory” on page 59 for details.]

2 Perform “Setting the clock” from step 1.

Enjoying surround sound (sound mode)

 Preset sound modes and sound image

Voice of narration comes out from the

You can enjoy normal stereo sounds.

centre; you can hear cheers and feel the atmosphere in the theatre with a wide sound field like 5.1 ch.

Appropriate for sports broadcasting such as baseball and football.

HT-DV30H

ENGLISH

Enjoy a wide sound field like 5.1 ch as well as enhanced powerful bass sounds.

Suitable for movies, etc.

Easy to listen to bass sounds such as voice of narration (even at low volume) due to well-controlled bass sounds.

Suitable for news, etc.

Enhanced bass sounds create clearcut and spacious sounds at 2.1 ch.

Appropriate for music, etc.

Words are easy to hear and loud sounds are controlled; even at low volume, you can enjoy a wide sound field like 5.1 ch.

Suitable for listening to sounds of movies at low volume.

Bass frequencies are emphasised. You can select the BASS level.

Basic Operation

Treble frequencies are emphasised. You can select the TREBLE level.

E-26

HT-DV30H

ENGLISH

Enjoying surround sound (sound mode) (continued)

 Preset sound mode

Select any of the 8 preset modes already set to the optimal sound quality levels.

Select a desired sound mode by pressing the SHIFT and SOUND MODE buttons simultaneously.

DisplayPreset sound mode

STANDARD

CINEMA

NEWS

 Dolby Virtual Speaker (DVS) sound mode

The Dolby Virtual Speaker (DVS) creates virtual surround sound comparable to the 5 channel sound produced by the 2 channel speaker. When setting DVS to “ON” for 2 channel stereo signals, Dolby Pro Logic (see page 28) brings out virtual sound effects through the signals converted into 5 channel.

Press the DVS button.

The Dolby Virtual Speaker indicator lights up and set change to DVS WIDE mode. Press DVS button again to change to DVS REFERENCE mode.

Press the DVS button again to return to “DVS OFF”.

Basic Operation

 Bass control

1. Press the SHIFT and SOUND MODE buttons simultaneously to select “BASS”.

2. Within 10 seconds, press the VOLUME (+ or –) button to adjust the bass.

 Treble control

1. Press the SHIFT and SOUND MODE buttons simultaneously to select “TREBLE”.

2. Within 10 seconds, press the VOLUME (+ or –) button to adjust the treble.

E-27

MUSIC

SPORT

NIGHT

BASS

TREBLE

-5 +5

Notes:

 The DVS default setting is “WIDE” mode.  When setting the DVS mode to “WIDE” or “REFERENCE”, the

preset sound mode and Audistry (SOUND SPACE mode, MONO TO STEREO mode) are cancelled. (The NATURAL BASS mode and the INTELLIGENT VOLUME mode are not cancelled.)

 Monaural signals do not generate surround effects.  In case input signal is Dual mono type and DVS is set to “WIDE”

or “REFERENCE”, the sound may not be output correctly.

 When unit is turned on for the first time, selecting BASS

mode using the SOUND MODE button will automatically set the DVS to OFF. Subsequently, when BASS mode is selected again, the DVS setting will follow the current user setting.

 When headphone is inserted, DVS setting and BASS/TREBLE

setting, set earlier by user will be cancelled. However the DVS setting will not be recovered when the headphone is unplugged.

ON The Dolby Virtual Speaker creates multichannel-like

sound effects. Compared with the cinema mode, the bass sound level is

slightly reduced.

The Dolby Pro Logic indicator also lights up if 2ch sound signals are detected.

OFF The Dolby Virtual Speaker is deactivated.

 Audistry sound mode

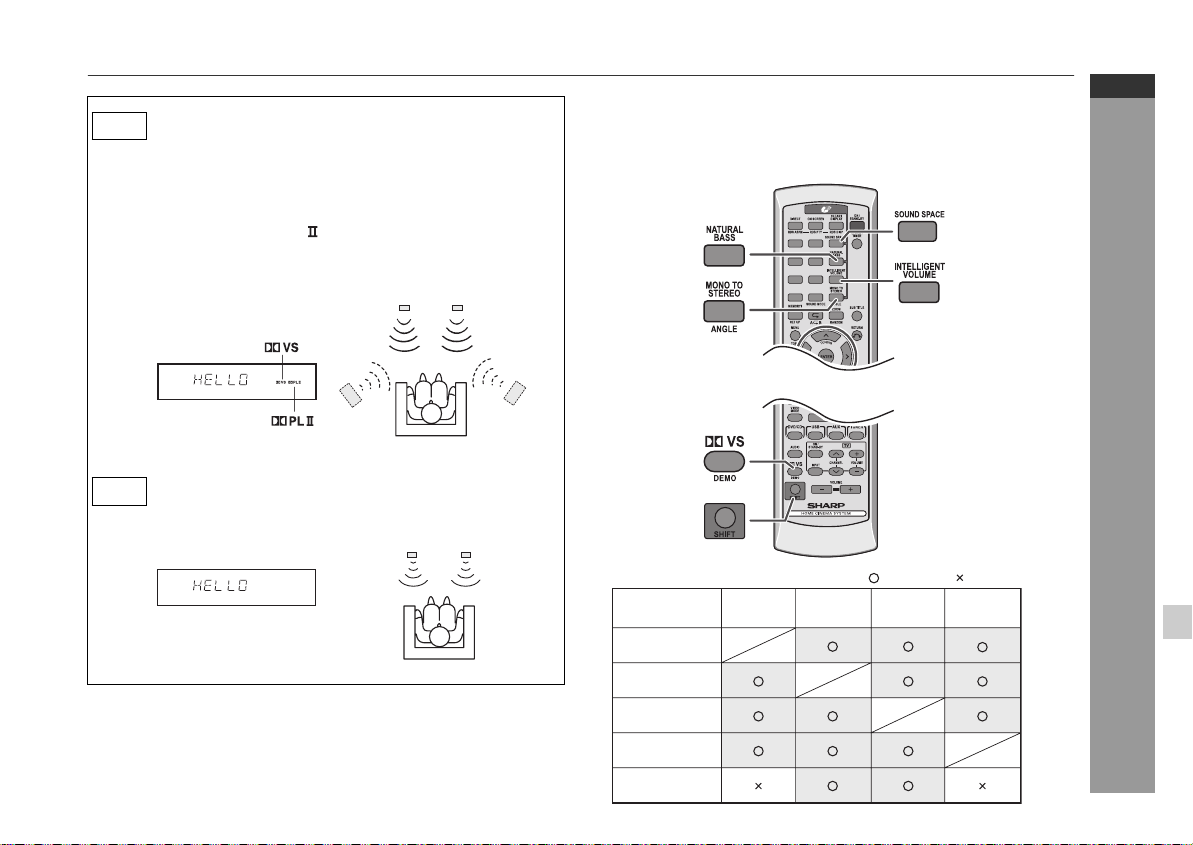

Enjoy a variety of sounds by each or any combination of the 4 modes.

Press the SHIFT and desired mode button simultaneously.

Press it again to cancel.

1 2 3

4 5 6

7 8 9

+100

HT-DV30H

ENGLISH

Basic Operation

Possible combinations

SOUND

When you select “SOUND SPACE”

When you select

“NATURAL BASS”

When you select

“INTELLIGENT VOLUME”

When you select

“MONO TO STEREO”

When you select

“DVS”

SPACE

NATURAL

BASS

:Enabled

INTELLIGENT

VOLUME

:Disabled

MONO TO

STEREO

E-28

HT-DV30H

ENGLISH

Enjoying surround sound (sound mode) (continued)

(Sound stage expansion)

The 4 speakers create spacious stereo sounds.

NATURAL BASS

(Bass sound expansion)

The system’s low-frequency characteristics realise the optimal bass sounds.

INTELLIGENT VOLUME

(Peak limiter and expander)

Appropriate listener-friendly volumes realised; the volume is

Basic Operation

decreased during loud sounds, and increased during low sounds.

SOUND SPACE

(The SOUND SPACE indicator lights up.)

(The NATURAL BASS indicator lights up.)

(The INTELLIGENT VOLUME indicator lights up.)

Notes:

 When setting each mode of Audistry to “ON”, the preset sound

mode setting is cancelled.

 When setting the SOUND SPACE or MONO TO STEREO mode

to “ON”, the DVS setting is also cancelled. (It is not cancelled even if the NATURAL BASS or INTELLIGENT VOLUME mode is set to “ON”.)

E-29

MONO TO STEREO

(Mono Stereo conversion)

You can enjoy monaural sound sources with a stereo-like effect.

(The MONO TO STEREO indicator lights up.)

Playing a disc

Turn on the TV, and switch the input to the “VIDEO 1”, “VIDEO 2”, etc. accordingly.

1 2 3

4 5 6

7 8 9

+100

 Playback

Press the ON/STAND-BY button to turn the power on.

“SHARP” startup screen appears on the TV screen.

NO DISC

Press the DVD/CD button on the remote control.

Insert the disc into the disc slot, label side up.



The disc must be fully inserted into the disc slot before playing.

WMA

If “NO DISC” appears due to improper disc insertion, switch off the AC power supply and then switch it on again.

12 cm (5")

8 cm (3")



8 cm disc can be inserted without an adaptor.



Due to the structure of the disc information, it takes longer to read an MP3/WMA disc than a normal CD (approximately 20 to 90 seconds).

Some discs play automatically. If playback does not start, press the (DVD/CD ) button.

HT-DV30H

ENGLISH

DVD Operation

Disc play indicator

When the menu appears on the TV screen: On DVD:  Select item by using cursor ( , , or ) button and press

ENTER button.

 To return to the previous display, press the RETURN

button.

E-30

HT-DV30H

ENGLISH

Playing a disc (continued)

 Playback will begin from track 1.  After the last track on the disc is played, the unit will stop

automatically.

To remove the disc: In the stop mode, press the button.



Various disc functions

Function Main

Play Press in the stop mode.

unit

Remote

control

Operation

Caution:

 Do not play discs of special shapes (heart, octagon, etc). They

may cause malfunctions.

 Do not push the disc whilst it is moving.  If the power fails whilst the disc is moving, wait until the power is

restored.

 If TV or radio interference occurs during CD operation, move the

unit away from the TV or radio.

 Auto power on function

When you press any of these buttons during stand-by mode, the

units turns on.

 FUNCTION button (main unit): The unit turns on and the last of

previous function is activated. (DVD/CD/USB/TUNER/ OPTICAL1/ OPTICAL 2/ AUX IN/ SCART)

 / button (main unit): The unit turns on and start playback the

last of previous function of DVD/CD or USB.

 DVD/CD button (remote control): The unit turns on and the “DVD/

DVD Operation

CD” function is activated.

 USB button (remote control): The unit turns on and the “USB”

function is activated.

 AUX button (remote control): The unit turns on and the last of

previous function is activated. (OPTICAL 1/OPTICAL 2/AUX IN/ SCART)

 TUNER button (remote control): The unit turns on and the

“TUNER” function is activated.

 USB / button (remote control): The unit turns on and start

playback the “USB” function.

 DVD/CD / button (remote control): The unit turns on and start

playback the “DVD/CD” function.

E-31

Stop Press in the playback mode.

Pause Press in the playback mode.

Track up/ Track down

Fast forward/ Fast reverse

Notes for CD or MP3/WMA disc:

 When the end of the last track is reached during fast forward,

playback will stop. When the beginning of the first track is reached during fast reverse, the unit will enter the playback mode.

 Rewritable multi-session discs with unﬁnished writing, can still be

played.

Press the / button to resume playback from the paused point.

Press in the playback or stop mode. If you press the button in the stop mode, press the / button to start the desired track.

Press and hold down in the playback mode. Release the button to resume playback.

To interrupt playback

Press the (DVD/CD ) button. To resume playback from the same point, press the (DVD/CD

) button.

To stop playback DVD:

Press the button twice.

Audio CD/MP3/WMA/JPEG/DivX:

Press the button.

CD:

Caution:

 The unit gets slightly warm when used for a long time. It does not

mean the unit is damaged.

 When attempting to play disc with scratches or of a different

region number, or unplayable or restricted (*1) discs, an error message will appear on the TV display and the disc will not play.

(*1) Viewing is prohibited on some DVDs according to the audience age.

Notes:

 Stop positions may be recorded on some discs. When you play

such a disc, playback stops here.

 During an operation, “INVALID KEY” may appear indicating that

the operation is disabled by the disc.

Total indicator

 To resume playback after stopping

(resume play)

You can resume playback from the point playback is stopped.

1 Whilst a disc is playing, press the

button.

The system stores the point you stopped.

RESUME

2 To restart play, press the (DVD/CD ) button.

To cancel the resume playback:

Press the button twice.

Notes:

 The resume playback feature is disabled on some discs.  Depending on the disc, playback may resume from slightly before

the stopped position.

 DVD mode operation indicators

The following are examples of operation indicators that appear

during DVD playback.

Operation TV screen Unit display

When the unit is on without a disc.

Disc data is being read.

First time stop

Second time stop

Play

Pause

READ

PRE STOP 9

STOP 9

SEQ PLAY

PAUSE 8

HT-DV30H

ENGLISH

DVD Operation

E-32

HT-DV30H

ENGLISH

Basic operation

 To locate the beginning of a chapter track (skip)

You can move to other tracks with simple operations.

DVD Operation

Whilst a disc is playing, press the or button.

 Use the button to skip to the next chapter (track).  Use the button twice to skip to the previous chapter

(track).

Notes:

 Some discs do not display the chapter (track) and the skip feature

is disabled.

 On a DVD, skip does not operate between titles.

1 2 3

4 5 6

7 8 9

+100

WMA

1 2 3

4 5 6

7 8 9

+100

 Fast forward/Fast reverse (search)

You can search the desired point as you play the disc.

1 Whilst a disc is playing, press and hold the or

button.

The scanning speed will change as follows at each press of the button.

PLAY (Normal play)

The disc is forwarded by the button and backward by the

button.

WMA

Forward X 2 Forward X 4 Forward X 8 Forward X 20

Backward X 2 Backward X 4 Backward X 8 Backward X 20

2 Press the (DVD/CD ) button to return to the normal

playback.

Notes:

 On some discs, the search is disabled.  On a DVD, search does not operate between titles.  On audio CD, the search can be operated between tracks.  Whilst searching on a DVD, the sound is not heard and the

subtitles only appear at x 2 speed search.

 When search is performed during the DVD playback, pictures may

not be forwarded or reversed in the search speed specified in this manual, depending on the disc or the scene being played.

 The search does not operate on JPEG discs.  Whilst searching on an audio CD, MP3 or WMA disc, the sound

can only be heard at x 2 speed search.

E-33

 To start playback from the desired point (direct

play)

To select and play the desired title and chapter:

1 Whilst in the stop or playback mode, press the DIRECT

button.

TV screen

TT 00/02 CH 000/025 y 01:41:14

2 Select the title or chapter by pressing the or button and

enter the title or chapter number using the Direct Search buttons.

Example:

To select chapter 1: Press “1”. To select chapter 12: Press “1” and “2”. To select chapter 22: Press “2” and “2”.

3 Press the ENTER button after confirm.

Notes:

 Direct play feature is disabled on some discs.  Some DVD discs may not display the chapter number. You can

specify the desired point only in the current title and not in other titles.

To play by specifying time (time search):

You can play back from the desired point by specifying the time.

1 Press DIRECT button.

startup

TV screen

TT 01/03 CH 000/025 y 00:00:00

Input desired time here

hour min sec

2 Press button on the remote control to select time

column. The time will be reset as “00:00:00”.

3 Specify the time with the Direct Search buttons, and then

press the ENTER button.

TT 01/03 CH 000/025 01:23:40

 To specify 1 hour 23 minutes and 40 seconds, enter “01:23:40”.  If you enter the wrong number, press or button for the

desired time.

Notes:

 Some discs cannot play from the specified point.  Time search feature is disabled on some discs.

HT-DV30H

ENGLISH

DVD Operation

E-34

HT-DV30H

SF 1/2

PLAY (Normal play)

SF 1/3 SF 1/4 SF 1/5 SF 1/6 SF 1/7

SF 1/2

ENGLISH

Useful operation

1 2 3

4 5 6

7 8 9

 Slow motion play

You can slow down the playback speed.

1 Whilst a disc is playing, press the SLOW button

repeatedly to select the desired speed.

The speed changes as follows:

+100

Press the (DVD/CD ) button to return to the normal playback.

Notes:

 On some discs with movies inside, the slow-motion play function

is disabled.

 The sound is muted during slow-motion play.

DVD Operation

E-35

 Still picture/Frame advance

You can freeze the picture during playback.

1 Whilst a disc is playing, press the

STILL button.

TV screen

STEP

2 Each press of the STILL button advances the frame in

the still mode.

3 Press the (DVD/CD ) button to return to the normal

playback.

Note: The sound is muted during still picture.

 To change the angle

You can change the angle of view when playing a DVD disc that contains scenes recorded from multiple angle.

When “ ” is displayed in the upper left corner of the TV screen, press the ANGLE button repeatedly to select the desired angle number.

Notes:

 The angle number is not displayed if angles are not recorded on

 Refer to the manual of the disc as the operation may vary

the disc.

depending on the disc.

 To zoom images (zoom)

You can zoom in and zoom out the image during playback.

1 Whilst a disc is playing, press the ZOOM button.

Each press of the ZOOM button cycles through the zoom setting as belows:

PLAY (Normal play)

ZOOM 2 ZOOM 3

ZOOM:OFF

ZOOM 1/4

ZOOM 1/2ZOOM 4

ZOOM 1/3

2 To shift the view and display the

desired part of a zoomed image, press the , , or button repeatedly.

To return to normal view:

Press the ZOOM button repeatedly to select “ZOOM:OFF”.

Notes:

 Images may become distorted when zoomed.  Subtitles cannot be zoomed.  For JPEG ZOOM function, please refer page 43 for details.

 To play the contents between the specified

points repeatedly (A-B repeat)

WMA

You can play the desired portion repeatedly by specifying it during playback.

Whilst a disc is playing, press simultaneously TV screen

REPEAT A -

This registers the start point (A).

Press SHIFT and A B button simultaneously again to enter the end point (B).

TV screen

REPEAT A - B

This starts A-B repeat from the start point (A) to the end point (B).

Press SHIFT and A

to the normal playback.

Notes:

 A-B repeat play is disabled on some discs.  A-B repeat play for DVD is possible only within a chapter.  Some scenes on DVD may not allow A-B repeat play.

SHIFT and A

Unit display

POINT A 4A

Unit display

button simultaneously to return

button

4A BPOINT B 4B

 To select a subtitle or audio language from the

disc menu

You can select the desired subtitle or audio language and sound system [Dolby Digital (5.1ch) or Dolby Digital (2ch)] on your DVD if it has disc menu.

1 Whilst in the stop or playback mode, press the TOP

MENU/MENU button to display the disc menu.

2 Press the , , or button to change the setting and

press the ENTER button.

Note:

The procedure shown here provides only general steps. The actual procedure for using the disc menu depends on the disc. See the disc jacket for details.

HT-DV30H

ENGLISH

DVD Operation

E-36

HT-DV30H

ENGLISH

Useful operation (continued)

 To play in the desired order (programmed play)

You can play back the desired tracks in a specific order. Maximum of 16 tracks can be programmed.

1 Whilst in the stop mode, press the MEMORY/DIMMER

button.

The PROGRAM screen shows as follows on CD and USB:

PROG

2 Enter a track and chapter number with the Direct Search

buttons.

The PROGRAM screen shows as follows on DVD:

PROG

DVD Operation

The PROGRAM screen shows as follows on CD and USB:

PROG

 For the next entry, repeat the procedure above to enter

 If you enter the wrong number, you can change the title/

 If the track number is 2 digits or more, example track 12, just

 Folder programmed is not possible.

WMA

TV screen

PLAY CLEAR

TV screen

T C T C T C T C

01:12

PLAY CLEAR

TV screen

0015

0013

0102

PLAY CLEAR

Unit display

1) ENTER TITLE

2) ENTER CHAPTER

Unit display

other track numbers by pressing Direct Search buttons after pressing ENTER button.

track number by pressing Direct Search buttons again before pressing ENTER button.

press “1” and “2” by Direct Search buttons.

3 Select “PLAY” at the PROGRAM menu by pressing , ,

or button and press ENTER button on remote control to start play.

To change the programmed contents:

Repeat the above procedure from step 1.

To cancel the programmed play mode:

Select “CLEAR” at the PROGRAM menu by pressing , , or button and press ENTER button on remote control to cancel the programmed play mode.

Notes:

 If the disc is ejected, the programmed sequence will be cancelled.  The programme will be automatically cancelled if you press the

ON/STAND-BY button to enter the stand-by mode or change the function from DVD/CD to another.

 During the programme operation, pressing the RANDOM button

will automatically cancel the programme.

 Removing the USB memory device will automatically cancel the

programmed sequence.

 Select “CLEAR” at the PROGRAM menu and press ENTER

button, the programmed sequence will be cancelled.

1 2 3

4 5 6

7 8 9

+100

1 2 3

4 5 6

7 8 9

+100

E-37

 To play repeatedly (repeat play)

You can play a chapter (track) or a title repeatedly by specifying it during playback.

WMA

1 Whilst a disc is playing, press the button to Repeat 1.

TV screen

REP: [CHAPTER]

Each time the button is pressed, the repeat play mode changes in the following order. The repeat play mode changes as follows on DVD:

REP: [CHAPTER]

REP: [TITLE]

REP: [OFF]

“CHAP REP

“TITLE RE ”P

“NORMAL”

The repeat play mode changes as follows on audio CD:

REP: [REP 1]

REP: [REP ALL]

REP:

[OFF] “NORMAL”

“1-REPEAT

“ALL REPEAT P”

The repeat play mode changes as follows on MP3/WMA:

REP: [REP 1]

REP: [REP DIR]

REP: [REP ALL]

REP: [OFF]

“1-REPEAT P”

“FOLD REPEAT P”

“ALL REPEAT P”

“NORMAL”

CHAP REP

”

Unit display

Repeat the currently playing chapter.

Repeat the currently playing title.

The normal playback

Repeat the currently playing track.

Repeat the currently playing disc.

The normal playback.

Repeat the currently playing track.

Repeat the currently playing directory.

Repeat the currently playing disc.

The normal playback.

2 To return to the normal playback, press the button

repeatedly to select “NORMAL”.

Notes:

 After performing repeat play, be sure to press the button.

Otherwise, the disc will play continuously.

 On some discs, the repeat play function is disabled.

 To change the display on TV screen

You can display or hide the operation indicators on the TV screen. Whilst a disc is playing, press the ON SCREEN button. (The display is changed at each press.)

DVD:

Current title number

DVD

TT 1/28 CH 1/14

1/4ENG 5.1CH 1/5 ENG OFF

Current Subtitle and Audio Language

DVD

TT 1/28 CH 1/14

DVD

TT 1/28 CH 1/14

DVD

OFF

Current chapter number

C 00:00:52

Total number of chapters

Total number of titles

Elapsed playback time for the total chapter

C –00:04:59

Remaining playback time for the current chapter

T 00:01:14

Elapsed playback time for the current title

T –01:27:40TT 1/28 CH 1/14

Remaining playback time for the current title

 To change the display on main unit

Whilst a disc is playing, press the CLEAR/DISPLAY button.

(The display is changed at each press.)

DVD:

CHAPTER Indicator

Current chapter number Current title number

WMA

TITLE Indicator

HT-DV30H

ENGLISH

DVD Operation

E-38

HT-DV30H

ENGLISH

Useful operation (continued)

MP3/WMA:

 Title, Artist and Album name is displayed if it is recorded on the disc.  Display content can be changed by pressing the CLEAR/

DISPLAY button on remote control.

Album Display Artist Display

Note:

If “UNKNOWN” is displayed, it means Title or Artist or Album name is not recorded.

DVD Operation

1 2 3

4 5 6

7 8 9

+100

 To change the subtitle language

You can change the subtitle language or hide subtitles during playback.

Title Display Function Display

Whilst a disc is playing, press the SUBTITLE button repeatedly to select the desired subtitle language.

[ENGLISH]:

Notes:

 On some discs, the subtitle language cannot be changed.  If no subtitles are recorded on the disc, “OFF” is displayed.  It may take time to switch the subtitle language to the selected

one.

 Subtitles cannot be hidden on some DVDs.

 To change the audio language (audio output)

During playback, you can change the audio language (audio output).

Whilst a disc is playing, press the AUDIO button repeatedly to select the desired audio number.

You can select desired languages.

: [1 ENGLISH D 5.1CH]

: [2 ENGLISH D 2CH]

[ENGLISH]:

E-39

The subtitle language, audio language and TV type you select during playback are reset each time you set this unit to stand-by mode or switch the input. To keep your own settings, set them in the Set up menu (see page 17).

Notes:

 On some discs, the audio language cannot be changed.  For the audio language and audio system, refer to the manual of

the disc.

Listening to a CD or MP3/WMA disc

This system can play back a standard CD, CD-R/RW in the CD format and CD-R/RW with MP3 or WMA ﬁles, but cannot record on them. Some audio CD-R and CD-RW discs may not be playable due to the state of the disc or the device that was used for recording.

MP3: MP3 is a form of compression. It is an acronym which stands for MPEG Audio Layer 3. MP3 is a type of audio code which is processed by signiﬁcant compression from the original audio source with very little loss in sound quality.

 This system supports MPEG 1 Layer 3 and VBR files.  During VBR ﬁle playback, time counter in the display may differ

from its actual playback time.

 Bitrate which is supported by MP3 is 32 ~ 320 kbps.

WMA: WMA files are Advanced System Format files that include audio files which are compressed with Windows Media Audio codec. WMA is developed by Microsoft as an audio format file for Windows Media Player.

 “MP3” and “WMA” indicator will light up after the unit reads

information on an MP3 or WMA disc.

 Bitrate which is supported by WMA is 64 ~ 160 kbps.

The following playback functions are the same as DVD operations.

Page

Playing a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 - 32

To locate the beginning of a chapter track (skip) . . . . . . . . . . 33

Fast forward/Fast reverse (search) . . . . . . . . . . . . . . . . . . . . . . 33

To start playback from the desired point (direct play) . . . . . . 34

To play the contents between the specified points repeatedly

(A-B repeat) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

To play in the desired order (programmed play) . . . . . . . . . . . 37

To play repeatedly (repeat play) . . . . . . . . . . . . . . . . . . . . . . . . 38

To change the display on TV screen . . . . . . . . . . . . . . . . . . . . 38

To change the display on main unit . . . . . . . . . . . . . . . . . .38 - 39

1 2 3

4 5 6

7 8 9

+100

HT-DV30H

ENGLISH

CD, CD-R and CD-RW Operation

E-40

HT-DV30H

ENGLISH

Advanced CD or MP3/WMA disc playback

 To play in random order (random play)

WMA

The tracks on the disc play back can be played in random order automatically.

In the stop or playback mode, press the SHIFT button and then the RANDOM button.

All the tracks play in random order.

Unit DisplayTV screen

[ON]Random

Use the Direct Search buttons on the remote control to select the desired track whilst playing or in the stop mode.

1 2 3

4 5 6

7 8 9

+100

Selected track number

1 2 3

4 5 6

7 8 9

+100

To cancel random play:

To cancel random playback, press the SHIFT and RANDOM buttons, so that the random “R**” character will disappear.

Notes:

 On some disc, this function cannot be used.  If RANDOM button is pressed whilst in programmed playback,

playback will enter random mode and programme is cancelled.

 In random play, the unit will select and play tracks automatically.

(You cannot select the order of the tracks.)

 If you press the or button during random play, you

can move to the track selected next by the random operation.

 In random function, playback will continue until button is

pressed.

CD, CD-R and CD-RW Operation

 To start playback from the desired point

(direct play)

By using the Direct Search buttons, the desired tracks on the current disc can be played.

E-41

Notes:

 A track number higher than the number of tracks on the disc

cannot be selected.

 During random play, direct search is not possible.  For CD-R/RW discs recorded in the MP3 or WMA format, you can

select the track number but cannot select the folder by pressing the Direct Search buttons.

Notes:

 This unit only supports “MPEG-1 Audio Layer-3” and “MPEG-2

Audio Layer-3” format. (Sampling Frequency is 32, 44.1, 48kHz)

 “MPEG-2.5 Audio Layer-3” and MP1, MP2 format are not

supported.

 Playback order for MP3 files may differ sometimes depending on

the writing software used during file downloading.

 Bitrate which is supported by MP3 is 32~320 kbps, WMA is

64~160 kbps.

 For MP3/WMA files, please put “.MP3” “.WMA” extension. Files

cannot be played back if there is no MP3/WMA extension.

 Playlists are not supported on this unit.  This unit only supports MP3 ID3-Tag version 1.x.  The display playback time may not be displayed correctly when

playing back a variable bitrate file.

 Copyright protected WMA files cannot be played back.

DivX and JPEG disc operation

Page

Playing a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 - 32

To locate the beginning of a chapter track (skip) . . . . . . . . . . 33

Fast forward/Fast reverse (search) . . . . . . . . . . . . . . . . . . . . . . 33

To start playback from the desired point (direct play) . . . . . . 34

Still picture/Frame advance . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Slow motion play (DivX only) . . . . . . . . . . . . . . . . . . . . . . . . . . 35

To change the angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

To zoom images (zoom). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

To play the contents between the specified points repeatedly

(A-B repeat) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

To select a subtitle or audio language from the disc menu . . 36

To play in the desired order (programmed play) . . . . . . . . . . . 37

To play repeatedly (repeat play) . . . . . . . . . . . . . . . . . . . . . . . . 38

To change the display on TV screen. . . . . . . . . . . . . . . . . . . . . 38

To change the display on main unit . . . . . . . . . . . . . . . . . .38 - 39

To change the audio language . . . . . . . . . . . . . . . . . . . . . . . . . 39

1 2 3

4 5 6

7 8 9

+100

HT-DV30H

ENGLISH

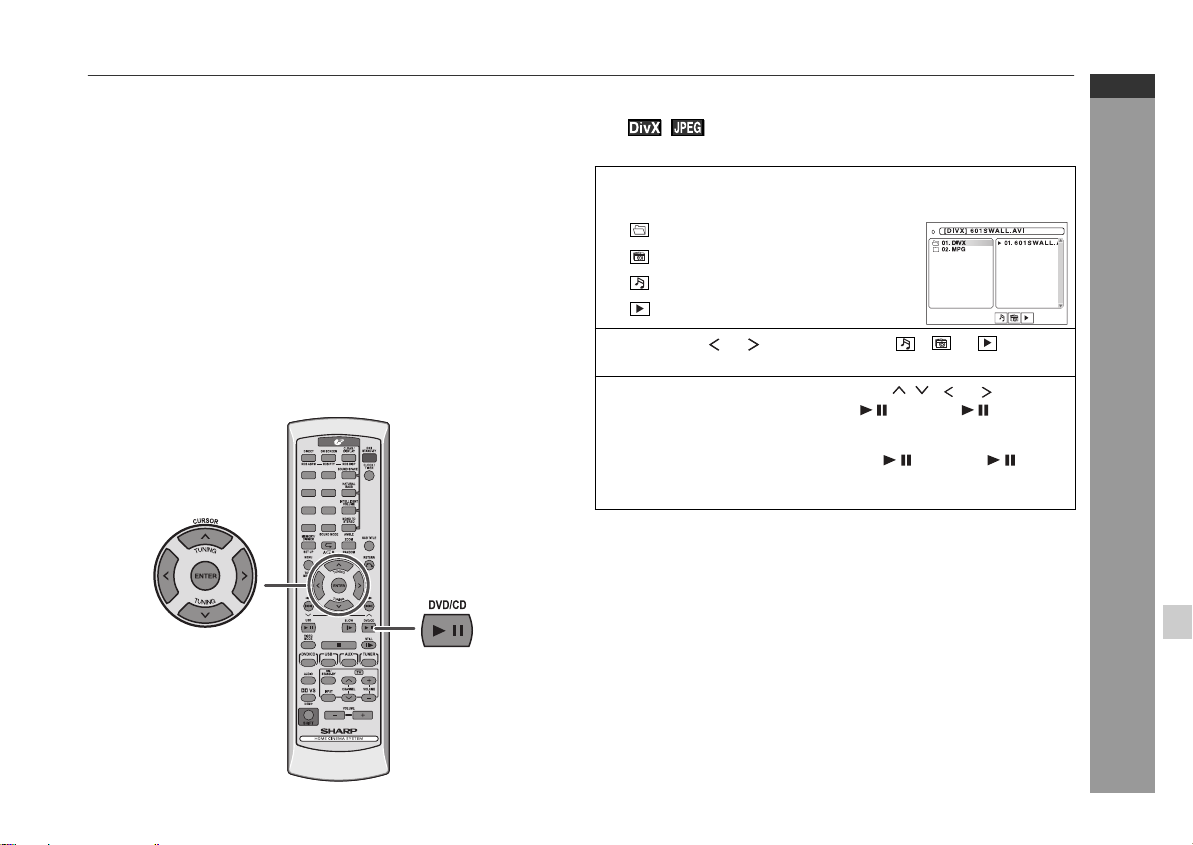

 Playback on the DivX and JPEG menu screen

You can play CD-R/RW recorded in the DivX and JPEG formats.

1 Load a disc containing DivX and JPEG files, the menu

screen appears.

.... indicates folders

.... indicates JPEG data

.... indicates MP3/WMA data

.... indicates DivX or MPEG data

2 Press the or button to select , or and then

press the ENTER button.

3 Select a folder or a track using the , , or button.

 Playback starts when you press (DVD/CD ) or ENTER

button.

 The next file picture can be automatically displayed after a

while for JPEG format if you select (DVD/CD ) button to start playback.

 Using the Direct Search buttons, you can open file directly.

CD, CD-R and CD-RW Operation

E-42

HT-DV30H

ENGLISH

DivX and JPEG disc operation (continued)

 Zoom function

1 During playback, press the ZOOM button. 2 Each press of the ZOOM button cycles through the zoom

setting as follows:

NORMAL PLAY (ZOOM : OFF)

ZOOM 2 ZOOM 3 ZOOM 4

 Rotating a picture

1 During playback, press the , , or button.

The image rotates as below:

button : 90° rotation in a clockwise direction.

3 To shift the view and display the desired part of a zoomed

image, press the , , or button repeatedly.

Press the button.

CD, CD-R and CD-RW Operation

To return to normal view:

Press the ZOOM button again, “ZOOM:OFF” will appear on the screen.

E-43

ZOOM 1/3ZOOM 1/4

Press the button.

ZOOM 1/2

button : 90° rotation in an anti-clockwise direction.

button : Horizontal mirror image.

button : Vertical mirror image.

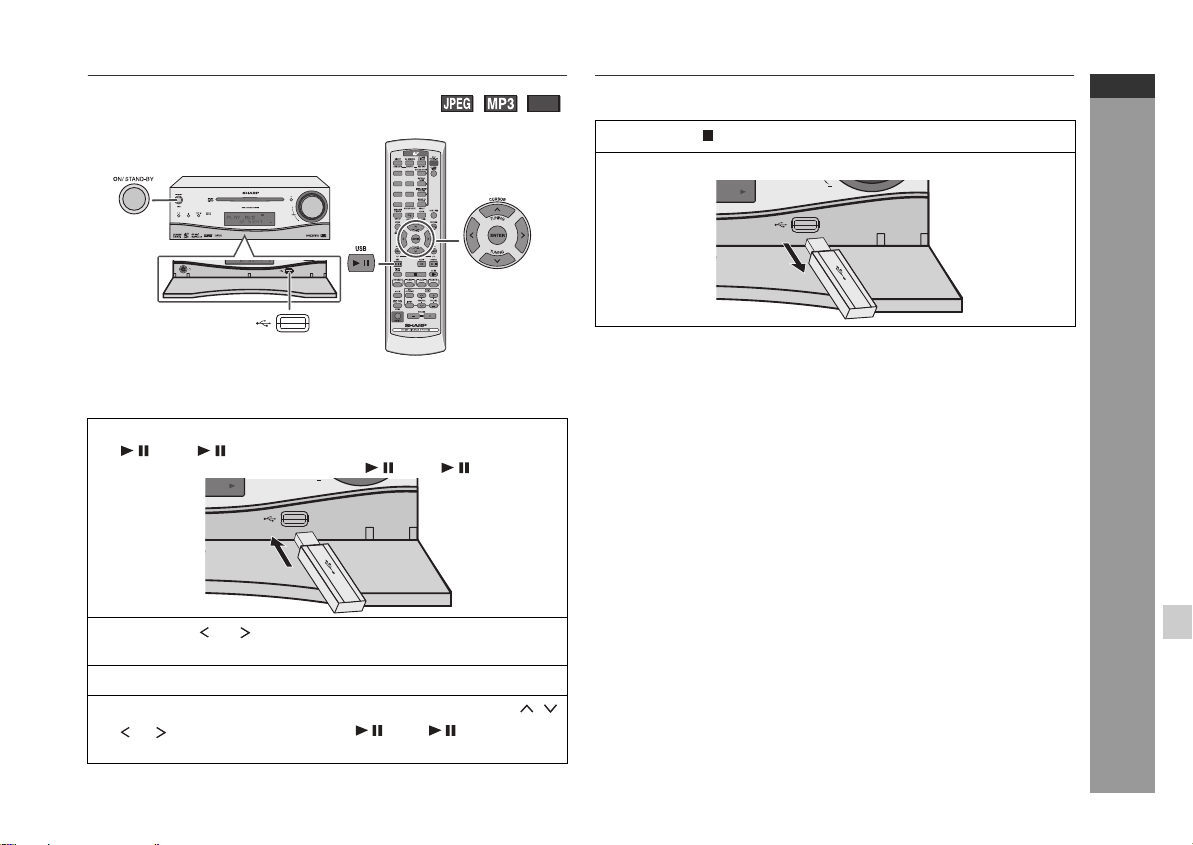

Playback on USB memory device

 Playback on USB memory device

You can play USB recorded in JPEG, MP3 and WMA formats.

1 2 3

4 5 6

7 8 9

+100

Note:

This product is not compatible with MTP and AAC file systems.

1 Open the bottom door. Connect the USB device. Press the

(USB ) button.

 To select USB function, press the (USB ) button.

2 Press the or button to select data types recorded in

USB memory device.

Press ENTER button to choose folder types.

4 Select desired track to be played back by pressing , ,

or . Then press ENTER or (USB ) button. This

function is only visible when connected to TV.

WMA

To remove USB memory device

 To remove USB memory device

1 Press the button. 2 Disconnect USB memory device from the USB terminal.

The following functions are the same as DVD or CD operations:

Page

To locate the beginning of a chapter track (skip) . . . . . . . . . . 33

Fast forward/Fast reverse (search) . . . . . . . . . . . . . . . . . . . . . . 33

To start playback from the desired point (direct play) . . . . . . 34

Slow motion play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

To zoom images (zoom). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

To play the contents between the specified points repeatedly

(A-B repeat) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

To play in the desired order (programmed play) . . . . . . . . . . . 37

Random play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Note:

If USB memory device is not connected, “NO MEDIA” will be shown on the display.

HT-DV30H

ENGLISH

USB Memory Playback

E-44

HT-DV30H

ENGLISH

To remove USB memory device (continued)

Notes:

 SHARP will not be held liable for the loss of data whilst the USB

memory device is connected to the audio system.

 Files compressed in MP3 and / or WMA format can be played

back when connected to the USB terminal.

 This USB memory’s format support FAT 16 or FAT 32.  SHARP cannot guarantee that all USB memory devices will work

on this audio system.

 This USB memory cannot be operated via USB hub.  If “UNSUPPORT WMA” is displayed, it means “Copyright

protected WMA ﬁle” is selected.

 The USB terminal in this unit is not intended for a PC connection

but is used for music streaming with a USB memory device.

 The larger the capacity of the USB storage device, the longer it will

take for the data to be read.

 Some USB multi-reader devices may not work correctly with the

USB terminal on this unit.

 External storage devices cannot be played back using the USB

terminal on this unit.

 This unit only supports “MPEG-1 Audio Layer-3” and “MPEG-2

Audio Layer-3” format. (Sampling Frequency is 32, 44.1, 48kHz)

 “MPEG-2.5 Audio Layer-3” and MP1, MP2 format are not

supported.

 Playlists are not supported on this unit.  The playback time may not be displayed correctly when playing

USB Memory Playback

back a variable bitrate ﬁle.

 Use only the supplied USB cable.

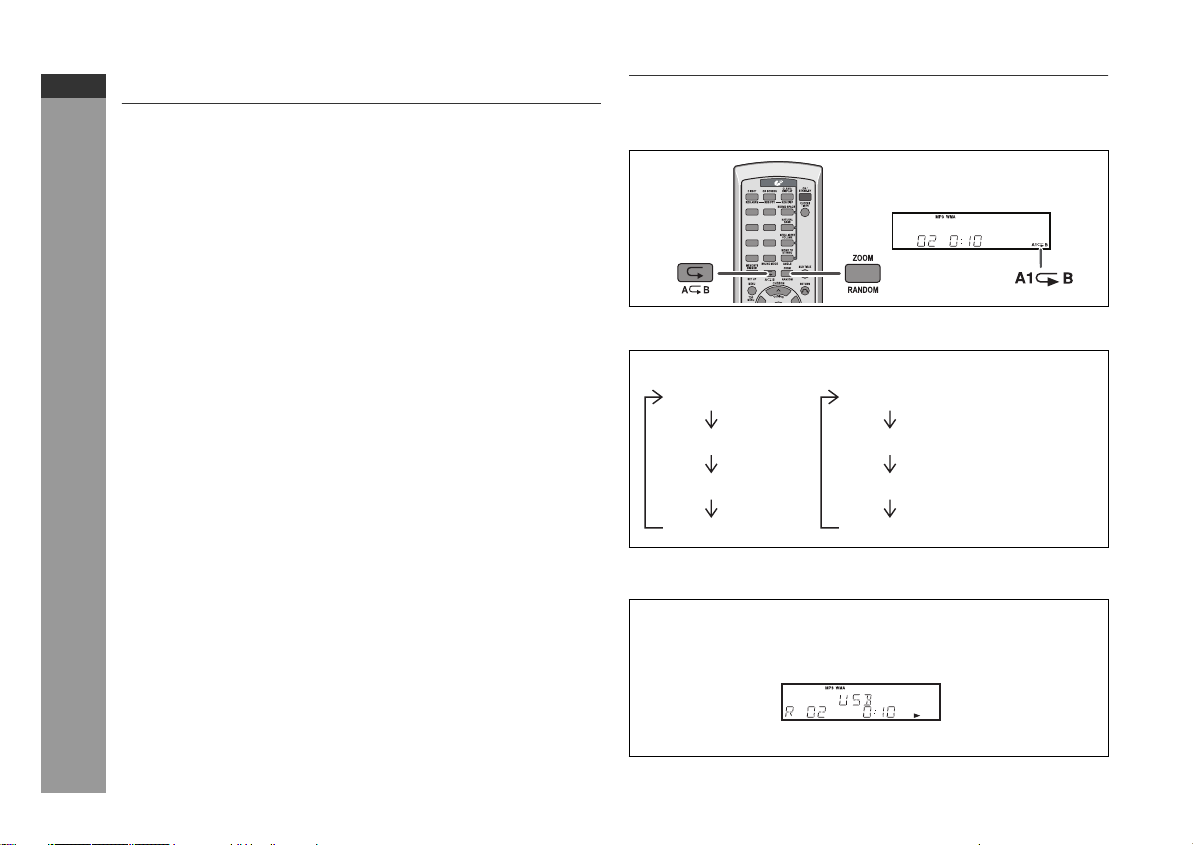

Advanced USB playback

 Repeat play (REMOTE CONTROL ONLY)

Repeat play can play single track and all track sequence continuously.

1 2 3

4 5 6

7 8 9

+100

Whilst a disc is playing, each time the button is pressed, the repeat mode changes in the following order:

In case of an USB mode:

REP: [REP 1]

REP: [REP DIR]

REP: [REP ALL]

REP: [OFF] “NORMAL”

 Random play (REMOTE CONTROL ONLY)

The tracks can be played in random order automatically.

To random play all tracks:

Press the SHIFT and RANDOM buttons on the remote control so that random indicator lights up in the display window.

“1-REPEAT”

“FOLD REPEAT”

“ALL REPEAT”

Repeat the currently playing track.

Repeat the currently playing directory.

Repeat the currently playing USB.

The normal playback

E-45

To cancel random playback, press again the SHIFT and RANDOM buttons, so that the random indicator will disappear.

Notes:

 If you press the or button during random play, you

can move to the track selected next by the random operation.

 In random play, the unit will select and play tracks automatically.

(You cannot select the order of the tracks.)

 If you press the REPEAT button during random play, playback will

enter repeat mode and random will be cancelled.

 In random function, playback will continue until button is

pressed.

Caution:

After performing repeat, be sure to press the button. Otherwise, it will play continuously.

Notes:

 This unit only supports “MPEG-1 Audio Layer-3” and “MPEG-2

Audio Layer-3” format. (Sampling Frequency is 32, 44.1, 48kHz)

 “MPEG-2.5 Audio Layer-3” and MP1, MP2 format are not

supported.

 Playback order for MP3 files may differ sometimes depending on

the writing software used during file download.

 Bitrate which is supported by MP3 is 32~320 kbps, WMA is

64~160 kbps.

 For MP3/WMA files, please put “.MP3” “.WMA” extension. Files

cannot be played back if there is no MP3/WMA extension.

 Playlists are not supported on this unit.  This unit only supports MP3 ID3-Tag version 1.x.  The display playback time may not be displayed correctly when

playing back a variable bitrate file.

 Copyright protected WMA files cannot be played back.

Listening to the radio

1 2 3

4 5 6

7 8 9

 Tuning

1 Press the ON/STAND-BY button to turn the power on. 2 Press the TUNER button on the remote control. 3 Press the TUNING ( or ) button to tune in to the

desired station.

Manual tuning:

Press the TUNING ( or ) button as many times as required to tune in to the desired station.

Auto tuning:

When the TUNING ( or ) button is pressed for more than 0.5 seconds, scanning will start automatically and the tuner will stop at the first receivable broadcast station.

+100

HT-DV30H

ENGLISH

Radio Operation

E-46

HT-DV30H

ENGLISH

Listening to the radio (continued)

Notes:

 When radio interference occurs, auto scan tuning may stop

automatically at that point.

 Auto scan tuning will skip weak signal stations.  To stop the auto tuning, press the TUNING ( or ) button again.  When an RDS (Radio Data System) station is tuned in, the

frequency will be displayed first, and then the RDS indicator will light up. Finally, the station name will appear.

 Full auto tuning can be achieved for RDS stations “ASPM”, see

page 49.

To receive an FM stereo transmission:

Press the TUNER button to select stereo mode and “ST” indicator will be displayed.

 “ ” will appear when an FM broadcast is in stereo.  If the FM reception is weak, press the TUNER button to extinguish

the “ST” indicator. The reception changes to monaural, and the sound becomes clearer.

 Memorising a station

Up to 30 stations for FM band can be stored and recalled at the push of a button. (PRESET ( or ) )

Radio Operation

1 Perform steps 1 - 3 in “Tuning” on page 46. 2 Press the MEMORY/DIMMER button to enter the preset

tuning saving mode.

FM stereo receiving indicator

FM stereo mode indicator

4 Within 30 seconds, press the MEMORY/DIMMER button to

store that station in memory.

If the “MEMORY” and preset number indicators disappear before the station is memorised, repeat the operation from step

5 Repeat steps 1 - 4 to set other stations, or to change a

preset station.

When a new station is stored in memory, the station previously memorised for that preset channel number will be erased.

Note:

The backup function protects the memorised stations for a few hours should there be a power failure or the AC power lead become disconnected.

 To recall a memorised station

Press the PRESET ( or ) button for less than 0.5 seconds to select the desired station.

 To scan the preset stations

The station saved in memory can be scanned automatically. (Preset memory scan)

Press the PRESET ( or ) button for more than 0.5

seconds. The preset number will flash and the programmed stations will be tuned in sequentially, for 5 seconds each.

2 Press the PRESET ( or ) button again when the desired

station is located.

E-47

3 Within 30 seconds, press the PRESET ( or ) button to

select the preset channel number.

Store the stations in memory, in order, starting with preset channel 1.

 To erase entire preset memory

1 Press the ON/STAND-BY button to enter the stand-by mode. 2 Press and hold CLEAR/DISPLAY button until “TUNER CLEAR”

appears.

Using the Radio Data System (RDS)

RDS is a broadcasting service which a growing number of FM stations provide. These FM stations send additional signals along with their regular programme signals. They send their station names, and information about the type of programme such as sport, music, etc.

When tuned to an RDS station, “RDS” and the station name will be displayed. “TP” (Traffic Programme) will appear on the display when the received broadcast carries traffic information, and “TA” (Traffic Announcement) will appear whilst a traffic information is on air. “PTYI” (Dynamic PTY Indicator) will appear whilst the Dynamic PTY station is received.

 Information provided by RDS

Each time the RDS DISP button is pressed, the display will switch as follows:

1 2 3

4 5 6

7 8 9

+100

HT-DV30H

ENGLISH

You can control the RDS by using the buttons on the remote control only.

Station name (PS) Programme type (PTY)

Frequency Radio text (RT)

When tuning in to a station other than an RDS station or to an RDS station which sends weak signal, the display will change in the following order:

NO PS NO PTY

FM 98.80 MHz

NO RT

Advanced Features

E-48

HT-DV30H

ENGLISH

Using the Radio Data System (RDS) (continued)

 Using the Auto Station Programme Memory

(ASPM)

Whilst in the ASPM operation mode, the tuner will automatically search for new RDS stations. Up to 30 stations can be stored. If you have already stored some stations in memory, the number of new stations you can store will be less.

1 Press the TUNER button to select the FM band. 2 Press and hold down the SHIFT and RDS ASPM button on

the remote control for at least 3 seconds.

1 After “ASPM” has flashed for about 4 seconds, scanning will

start (87.50 - 108.00 MHz).

2 When an RDS station is found, “RDS” will appear for a short

time and the station will be stored in memory.

3 After scanning, the number of stations stored in memory will

Advanced Features

be displayed for 4 seconds, and then “END” will appear for 4 seconds.

E-49

To stop the ASPM operation before it is complete:

Press the SHIFT and RDS ASPM button whilst it is scanning for stations. The stations which are already stored in memory will be kept there.

Notes:

 If the same station is broadcasting on different frequencies, the

strongest frequency will be stored in memory.

 Any station which has the same frequency as the one stored in

memory will not be stored.

 If 30 stations have already been stored in memory, the scan will

be aborted. If you want to redo the ASPM operation, erase the preset memory.

 If no station is stored in memory, “END” will appear for about 4

seconds.

 If the RDS signals are very weak, station names may not be

stored in memory.

To erase all of the contents of preset memory:

1 Press the ON/STAND-BY button to enter the power stand-by

mode.

2 Press CLEAR/DISPLAY button for more than 2 seconds until

“TUNER CLEAR” appears.

 After performing this operation, all of the preset memory

information will be erased.

To store a station name again if the wrong name was stored in memory:

It may be impossible to store station names in memory using the ASPM function if there is lots of noise or if the signal is too weak. In this case, perform as follows.

1 Press the PRESET ( or ) button to check whether the names

are correct.

2 If you find a wrong name whilst receiving the station, wait until the

correct name is displayed and then press the MEMORY/ DIMMER button.

3 Within 30 seconds, press the MEMORY/DIMMER button whilst

the preset channel number is flashing.

 The new station name has been stored in memory correctly.

Notes:

 The same station name can be stored in different channels.  In a certain area or during certain time periods, the station names

may temporarily be different.

 Notes for RDS operation

If any of the following events occur, it does not mean that the unit is faulty:

 “PS”, “NO PS” and a station name appear alternately, and the unit

does not operate properly.

 If a particular station is not broadcasting properly or a station is

conducting tests, the RDS reception function may not work properly.

 When you receive an RDS station whose signal is too weak,

information like the station name may not be displayed.

 “NO PS”, “NO PTY” or “NO RT” will flash for about 5 seconds, and

then the frequency will be displayed.

Notes for radio text:

 The first 10 characters of the radio text will appear for 4 seconds

and then they will scroll across the display.

 If you tune in to an RDS station which is not broadcasting any

radio text, “NO RT” will be displayed when you switch to the radio text position.

 Whilst radio text data is received or when the text contents

change, “RT” will be displayed.

 To recall stations in memory

To specify programmed types and select stations (PTY search):

You can search a station by specifying the programme type (news,

sports, traffic programme, etc. ... see pages 51 - 52) from the stations

in memory.

1 Press the TUNER button to select the FM. 2 Press the SHIFT and RDS PTY button on the remote

control.

“SELECT” and “PTY TI” will appear alternately for about 6 seconds.

3 Within 6 seconds, press the PRESET ( or ) button to

select the programme type.

Each time the button is pressed, the programme type will appear. If the button is held down for more than 0.5 seconds, the programme type will appear continuously.

4 Whilst the selected programme type is flashing (within 6

seconds), press the SHIFT and RDS PTY button again.

HT-DV30H

ENGLISH

Advanced Features

After the selected programme type has been lit for 2 seconds, “SEARCH” will appear, and the search operation will start.

E-50

HT-DV30H

ENGLISH

Using the Radio Data System (RDS) (continued)

Notes:

 If the display has stopped flashing, start again from step 2. If the

unit finds a desired programme type, the corresponding channel number will flash for about 4 seconds, and then the station name will flash for 7 seconds, which will remain lit.

 If you want to listen to the same programme type of another

station, press the SHIFT and RDS PTY button whilst the channel number or station name is flashing. The unit will look for the next station.

 If no station can be found, “NOT FOUND” will appear for 4

seconds.

If you select the traffic programme:

If you select the traffic programme (TP) in step 3, “TP” will appear. (This does not mean that you can listen to the traffic information at that time.) When the traffic information is broadcast, “TA” will appear.

Advanced Features

Descriptions of the PTY (Programme Type) codes, TP (Traffic Programme) and TA (Traffic Announcement).

You can search for and receive the following PTY, TP and TA signals.

NEWS Short accounts of facts, events and publicly

expressed views, reportage and actuality.

AFFAIRS Topical programme expanding or enlarging upon

the news, generally in different presentation style or concept, including debate, or analysis.

INFO Programmes whose purpose is to impart advice in

the widest sense.

SPORT Programme concerned with any aspect of sport. EDUCATE Programme intended primarily to educate, of which

the formal element is fundamental.

DRAMA All radio plays and serials. CULTURE Programmes concerned with any aspect of national

or regional culture, including language, theatre, etc.

SCIENCE Programmes about the natural sciences and

technology.

VARIED Used for mainly speech-based programmes usually

of light-entertainment nature, not covered by other categories. Examples include: quizzes, panel games, personality interviews.

POP M Commercial music, which would generally be

considered to be of current popular appeal, often featuring in current or recent record sales charts.

ROCK M Contemporary modern music, usually written and

performed by young musicians.

EASY M Current contemporary music considered to be

“easy-listening”, as opposed to Pop, Rock or Classical, or one of the specialised music styles, Jazz, Folk or Country. Music in this category is often but not always, vocal, and usually of short duration.

E-51

LIGHT M Classical music for general, rather than specialist

appreciation. Examples of music in this category are instrumental music, and vocal or choral works.

CLASSICS Performances of major orchestral works,

symphonies, chamber music, etc., and including Grand Opera.

OTHER M Musical styles not fitting into any of the other

categories. Particularly used for specialist music of which Rhythm & Blues and Reggae are examples.

WEATHER Weather reports and forecasts and meteorological

information.

FINANCE Stock Market reports, commerce, trading, etc. CHILDREN For programmes targeted at a young audience,

primarily for entertainment and interest, rather than where the objective is to educate.

SOCIAL Programmes about people and things that

influence them individually or in groups. Includes: sociology, history, geography, psychology and society.

RELIGION Any aspect of beliefs and faiths, involving a God or

Gods, the nature of existence and ethics.

PHONE IN Involving members of the public expressing their

views either by phone or at a public forum.

TRAVEL Features and programmes concerned with travel to

near and far destinations, package tours and travel ideas and opportunities. Not for use for announcements about problems, delays, or roadworks affecting immediate travel where TP/TA should be used.

LEISURE Programmes concerned with recreational activities

in which the listener might participate. Examples include, Gardening, Fishing, Antique collecting, Cooking, Food & Wine, etc.

JAZZ Polyphonic, syncopated music characterised by

improvisation.

COUNTRY Songs which originate from, or continue the musical

tradition of the American Southern State characterised by a straightforward melody and narrative story line.

NATION M Current Popular Music of the Nation or Region in

that country’s language, as opposed to International “Pop” which is usually US or UK inspired and in English.

OLDIES Music from the so-called “golden age” of popular

music.

FOLK M Music which has its roots in the musical culture of a

particular nation, usually played on acoustic instruments. The narrative or story may be based on historical events or people.

DOCUMENT Programme concerned with factual matters,

presented in an investigative style.

TEST Broadcast when testing emergency broadcast

equipment or receivers.

ALARM ! Emergency announcement made under

exceptional circumstances to give warning of events causing danger of a general nature.

NONE No programme type (receive only). TP Broadcasts which carry traffic announcements. TA Traffic announcements are being broadcast.

HT-DV30H

ENGLISH

Advanced Features

E-52

HT-DV30H

ENGLISH

Timer and sleep operation (Remote Control only)

Timer playback:

The unit turns on and plays the desired source (DVD/CD, USB, TUNER, OPTICAL 1, OPTICAL 2, AUX IN, SCART) at a preset time.

This unit has 2 types of timer: ONCE TIMER and DAILY TIMER.

Once timer: Once timer play works for one time only at a preset

time.

Daily timer: Daily timer play works at the same preset time

every day.

For example, set the timer as a wake-up call every morning.

Using the once timer and daily timer in combination:

For example, use the once timer to listen to a radio programme, and use the daily timer to wake up.

1 Set the daily timer (pages 53 - 55). 2 Set the once timer (pages 53 - 55).

 Timer playback

Before setting timer:

1 Check that the clock is set to the correct time (refer to page 25).

If it is not set, you cannot use the timer function.

2 For timer playback: Load discs to be played.

1 2 3

4 5 6

7 8 9

+100

Advanced Features

Daily timer

Start

Note:

When set times for the daily timer and once timer overlap, the once timer takes priority. Allow an interval of at least 1 minute between operations.

E-53

1 minute or more

Once timer

Stop Start Stop

1 Press the ON/STAND-BY button to turn the power on. 2 Press the CLOCK/TIMER button. 3 Within 10 seconds, press the or button to select

“ONCE” or “DAILY”, and press the MEMORY/DIMMER button.

Set the clock to the correct time if “ONCE” or “DAILY” does not appear.

4 Within 10 seconds, press the or button to select

“ONCE SET” or “DAILY SET”, and press the MEMORY/ DIMMER button.

5 Press the or button to adjust the hour and then

press the MEMORY/DIMMER button.

The illustrations show the timer playback setting in the daily timer mode.

6 Press the or button to adjust the minutes and then

press the MEMORY/DIMMER button.

7 Set the time to finish as in steps 5 and 6 above.

HT-DV30H

ENGLISH

8 Switch input with the or button, and then press the

MEMORY/DIMMER button.

To select the timer playback source: DVD/CD, USB, OPTICAL 1, OPTICAL 2, AUX IN, SCART or TUNER.

 When you select the tuner, select a station by pressing the

or button, and then press the MEMORY/DIMMER

button.

 If a station has not been programmed, “NO PRESET” will be

displayed and timer setting will be cancelled.

9 Adjust the volume using the VOLUME control, and then

press the MEMORY/DIMMER button.

Do not turn the volume up too high.

10 Press the ON/STAND-BY button to enter the power stand-

by mode.

The “TIMER” indicator lights up and the unit is ready for timer playback.

Advanced Features

Continued to the next page

E-54

HT-DV30H

ENGLISH

Timer and sleep operation (Remote Control only) (continued)

11 When the preset time is reached, playback will start.

The volume will increase gradually until it reaches the preset volume.

12 When the timer end time is reached, the system will enter

the power stand-by mode automatically.

Once timer:

The timer will be cancelled. The “r” indicator will blink during timer playback.

Daily timer:

The timer will operate at the same time every day. It will continue until the daily timer setting is cancelled. Cancel the daily timer when it is not in use. The “DAILY r” indicator will blink during timer playback.

Note:

When performing timer playback using another unit connected to the USB terminal/OPTICAL 1/OPTICAL 2/AUX IN/SCART sockets, select USB or OPTICAL 1 or OPTICAL 2 or AUX or SCART in step 8.

This unit will turn on or enter the power stand-by mode automatically. However, the connected unit to USB terminal/OPTICAL 1/OPTICAL 2/AUX IN/SCART sockets will not turn on or off.

Advanced Features

Checking the timer setting in the timer stand-by mode:

1 Press the CLOCK/TIMER button. 2 Within 10 seconds, press the or button to select “ONCE”

or “DAILY”, and press the MEMORY/DIMMER button.

3 Within 10 seconds, press the or button to select “ONCE

CALL” or “DAILY CALL”, and press the MEMORY/DIMMER button.

The unit returns to the timer stand-by mode after displaying the settings in order.

Cancelling the timer setting in the timer stand-by mode:

1 Press the CLOCK/TIMER button. 2 Within 10 seconds, press the or button to select “ONCE”

or “DAILY”, and press the MEMORY/DIMMER button.

3 Within 10 seconds, press the or button to select “ONCE

OFF” or “DAILY OFF”, and press the MEMORY/DIMMER button. Timer will be cancelled (the setting will not be cancelled).

Reusing the memorised timer setting:

The timer setting will be memorised once it is entered. To reuse the same setting, perform the following operations.

1 Turn the power on and press the CLOCK/TIMER button. 2 Within 10 seconds, press the or button to select “ONCE”

or “DAILY”, and press the MEMORY/DIMMER button.

3 Within 10 seconds, press the or button to select “ONCE

ON” or “DAILY ON”, and press the MEMORY/DIMMER button.

4 Press the ON/STAND-BY button to enter the power stand-by

mode.

E-55

 Sleep operation

The radio, discs and USB can all be turned off automatically.

1 Play back the desired sound source. 2 Press the CLOCK/TIMER button. 3 Within 10 seconds, press the

or button to select “SLEEP”, and press the MEMORY/DIMMER button.

4 Press the or button to select the time.

(Maximum: 3 hours - Minimum: 1 minute)

 3 hours - 5 minutes 5-minute intervals  5 minutes - 1 minute 1-minute intervals

5 Press the MEMORY/DIMMER

button.

“SLEEP” will appear.

To cancel the sleep operation:

Press the ON/STAND-BY button whilst “SLEEP” is indicated. To cancel the sleep operation without setting the unit to the stand-by mode, proceed as follows.

1 Whilst “SLEEP” is indicated, press the CLOCK/TIMER button. 2 Within 10 seconds, press the or button to select “SLEEP

OFF”, and press the MEMORY/DIMMER button.

 To use timer and sleep operation together

Sleep and timer playback:

For example, you can fall asleep listening to the radio and wake up to CD the next morning.

1 Set the sleep time (see left, steps 1 - 5). 2 Whilst the sleep timer is set, set the timer playback (steps 2 -

10, pages 53 - 54).

Sleep timer setting

Timer playback setting

End time

HT-DV30H

ENGLISH

6 The unit will enter the power stand-by mode automatically

after the preset time has elapsed.

The volume will be turned down 1 minute before the sleep operation finishes.

To confirm the remaining sleep time:

1 Whilst “SLEEP” is indicated, press the CLOCK/TIMER button. 2 Within 10 seconds, press the or button to select “SLEEP

X : XX”. “X : XX” is sleep remaining time.

 The remaining sleep time is displayed for about 10 seconds.  You can change the remaining sleep time whilst it is displayed by

pressing the MEMORY/DIMMER button (steps 4 - 5).

1 minute - 3 hours Desired time

Sleep operation will automatically sto

Timer playback start time

Advanced Features

E-56

HT-DV30H

ENGLISH

Headphone connection

 Before plugging in or unplugging the headphone, reduce the

volume.

 Be sure your headphone have a 3.5 mm (1/8") diameter plug and

impedance between 16 and 50 ohms. The recommended

impedance is 32 ohms.

 Plugging in the headphone disconnects the speakers

automatically. Adjust the volume using the VOLUME control.

Advanced Features

Enhancing your system

 Subwoofer connection

When a commercially available subwoofer with a built-in amplifier is connected to this unit, you can enjoy sound with emphasised bass. Connect an RCA lead from a commercially available speaker with a built-in amplifier to the SUBWOOFER PRE-OUT socket.

Subwoofer with a built-in amplifier

E-57

Troubleshooting chart

Many potential problems can be resolved by the owner without calling a service technician. If something is wrong with this product, check the following before calling your authorised SHARP dealer or service centre.

 General

Symptom Possible cause

 The power is not turned

on.

 The clock is not set to the

correct time.

 No sound is heard.  Is the volume level set to “0”?

 The sounds from

speakers are not well balanced.

 Noise is heard during

playback.

 When a button is pressed,

the unit does not respond.

 Interference or noise

occurs on the TV image.

 The display on the unit is

dark.

 No images are displayed.  Is the TV turned on?

 Is the unit unplugged?

 Did a power failure occur? Reset

the clock. (Refer to page 25)

 Are the headphones connected?  Are the speaker wires

disconnected?

 Are the speaker wires connected

to the wrong channels?

 Move the unit away from any

computers or mobile phones.

 Set the unit to the power stand-

by mode and then turn it back on.

 If the unit still malfunctions,

disconnect the unit from the mains for 30 seconds, then reconnect.

 Is the unit placed near TV with

internal aerial? Use an external aerial.

 Is the display in the dimmer

mode?

 Is the TV input switched on?

 DVD player

Symptom Possible cause

 Even though a disc

is loaded, “No Disc” is displayed.

 Playback sounds

are skipped.

 The control buttons

do not function. Music or video playback is interrupted.

 Pictures and sound

are skipped.

 The unit does not

operate even if the power is on.

 Images cannot be

played back. (Sound is not heard.)

 Is the disc loaded upside down?  Is the disc very dirty?  Does the disc satisfy the standards?  Is the unit located near excessive

vibrations?

 Is condensation formed inside the unit?

 Is the disc very dirty?  Does the disc satisfy the standards?  Is the unit located near excessive

vibrations?

 Is condensation formed inside the unit?  Is the disc very dirty?  Is the unit located near excessive

vibrations?

 Is condensation formed inside the unit?  Is a disc other than a DVD (region

number at the back of the unit), audio CD, CD-R or CD-RW loaded?

 Are the video and audio cables

connected improperly?

 Is a disc other than a DVD (region

number 2 or ALL), audio CD, CD-R or CD-RW loaded?

 Is the disc very dirty?  Is the disc loaded upside down?  Is the optical pick up dirty?  Is the TV input set to video (VIDEO 1,

VIDEO 2, etc.)?

 Is the unit turned on?

HT-DV30H

ENGLISH

References

E-58

HT-DV30H

ENGLISH

Troubleshooting chart (continued)

 USB

 Remote control

References

 Tuner

Symptom Possible cause

 Device cannot be

detected.

 Playback does not

start.

 Wrong time display.  Wrong file name dis-

play.

Symptom Possible cause

 The remote control

does not operate.

Symptom Possible cause

 The radio makes unusual

noises continuously.

 Is there any MP3/WMA file available?  Is the device properly connected?  Is it MTP device?  Does the device contain AAC files

only?

 Is it a copyright protected WMA file?  Is it a false MP3 file?

 Is Variable Bitrate file being played

back?

 Is the File Name written in Chinese or

Japanese characters?

 Is the AC power lead of the unit

plugged in?

 Is the battery polarity correct?  Are the batteries dead?  Is the distance or angle incorrect?  Is there a strong light shinning on the

remote sensor?

 Is the unit placed near the TV or

computer?

 Is the FM aerial or AM loop aerial

placed properly? Move the aerial away from the AC power lead if it is located nearby.

 Condensation

Sudden temperature changes, storage or operation in an extremely humid environment may cause condensation inside the cabinet (CD pickup, etc.) or on the transmitter on the remote control. Condensation can cause the unit to malfunction. If this happens, leave the power on with no disc in the unit until normal playback is possible (about 1 hour). Wipe off any condensation on the

transmitter with a soft cloth before operating the unit.

 If trouble occurs

When this product is subjected to strong external interference (mechanical shock, excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction.

If such a problem occurs, do the following:

1 Set the unit to the stand-by mode and turn the power on again. 2 If the unit is not restored in the previous operation, unplug and

plug in the unit, and then turn the power on.

Note:

If neither operation above restores the unit, clear all the memory by resetting it.

 Before transporting the unit

Remove the CD from the unit. Make sure there is no CD in the disc tray. Then, set the unit to the power stand-by mode. Carrying the unit with disc left inside can damage the unit.

 Factory reset, clearing all memory

1 Press the ON/STAND-BY button to enter the power stand-by

mode.

2 Whilst pressing down the button, press the ON/STAND-BY

button until “CLEAR ALL” appears.

E-59

Caution:

This operation will erase all data stored in memory including clock, timer settings, tuner preset and CD programme.

 Error indicators and warning

When you load an unplayable disc or fail to perform operations properly, the following messages are displayed on the unit and the TV screen.

Display Meaning

E7  Malfunction of surround circuit.

ERROR  The unit considers the DVD mechanism is

FAN LOCK  The cooling fan on the rear of the unit does

NO DISC  The disc is not loaded. NO SIGNAL  The digital audio input socket is not

NO SUPPORT  When copyright protected WMA file is

(*): Set the main unit to the stand-by mode and turn the power on again, or unplug and plug it back in. Should the same message appear, contact your authorised SHARP dealer or service centre.

 Place the unit away from noise source and

plug the AC power lead into another wall socket. (*)

defective. (*)

not run. Unplug the AC power lead and check if foreign object get caught around the cooling fan.

connected properly.

 Unspecified signal is received and cannot

be recognised.

played back.

 Care of compact discs

Compact discs are fairly resistant to damage, however mistracking can occur due to an accumulation of dirt on the disc surface. Follow the guidelines below for maximum enjoyment from your CD collection and player.  Do not write on either side of the disc, particularly the non-label

side from which signals are read. Do not mark this surface.

 Keep your discs away from direct sunlight, heat, and excessive

moisture.

 Always hold the CDs by the edges. Fingerprints, dirt, or water on

the CDs can cause noise or mistracking. If a CD is dirty or does not play properly, clean it with a soft, dry cloth, wiping straight out from the centre, along the radius.

YES Correct

Maintenance

 Cleaning the cabinet

Periodically wipe the cabinet with a soft cloth and a diluted soap solution, then with a dry cloth.

Caution:

 Do not use chemicals for cleaning (petrol, paint thinner, etc.). It

may damage the cabinet ﬁnish.

 Do not apply oil to the inside of the unit. It may cause

malfunctions.

HT-DV30H

ENGLISH

References

E-60

HT-DV30H

ENGLISH

Specifications

As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

 Main Unit

References

Power source AC 220 - 240 V ~ 50 Hz

Power consumption

Output power MPO: 150 W (75 W + 75 W) (10% T.H.D.)

Video output terminals

Audio input terminals

Audio output terminals

Dimensions Width: 300 mm (11-13/16")

Weight 3.8 kg (8.3 lbs.)

Power on: 65 W Power stand-by: 0.6 W (*)

RMS: 150 W (75 W + 75 W) (10% T.H.D.) RMS: 90 W (45 W + 45 W) (0.9% T.H.D.)

SCART output: SCART terminal x 1 Video output: RCA type x 1 S-video output: S-terminal x 1 Component video output: (Y/PB/PR) x 1 HDMI output : HDMI x 1 Support 480p/570p/720p/1080i output formats.

Optical digital input (DIGITAL 1): Square type x 1 Optical digital input (DIGITAL 2): Square type x 1 Analogue input : 500mV/47k ohms

Speakers: 4 ohms Subwoofer Pre-out (audio signal): 1V/10K ohms at 70 Hz Headphones: 16 - 50 ohms (recommended: 32 ohms)

Height: 106 mm (4-1/8") Depth: 300 mm (11-13/16")

 USB

USB host interface

Support file  MPEG 1 Layer 3

Bitrate support  MP3 (32 - 320 kbps)

Other  Maximum total number of MP3/WMA files is

File system support

 Complies with USB 1.1/2.0 (Full Speed)

Mass Storage Class.

 Support Bulk only and CBI protocol.

 MPEG 2 Layer 3  WMA (Non DRM)

 WMA (64 - 160 kbps)

65 535.

 Maximum total number of folders is 512

INCLUSIVE of root directory. (Folders which have non playable files also counted.)

 The ID3TAG information supported are

TITLE, ARTIST and ALBUM only.

 Support ID3TAG version 1 and version 2.  Support USB devices with Microsoft

Windows/DOS/FAT 12/FAT 16/FAT 32.

 2 kbyte block length for sector.

 Tuner

Frequency range

Other Maximum station can be stored is 30 preset.

FM: 87.5 - 108 MHz

E-61

(*) This power consumption value is obtained when the demonstration mode is cancelled in the power stand-by mode. Refer to page 13 to cancel the demonstration mode.

 DVD player  Speaker

Signal system PAL/NTSC colour

Supported disc types

Video signal Horizontal resolution: 500 lines

Audio signal Frequency

DVD (with the same region number at the back of the unit), audio CD, CD-R, CD-RW, JPEG, DivX (version 3 ~ 6)

S/N ratio: 70 dB

characteristics

S/N radio CD: 94 dB (1 kHz) Dynamic range Linear PCM DVD: 95 dB

Total harmonic distortion ratio

Linear PCM DVD: 20 Hz to 20 kHz (sampling rate: 48 kHz) 20 Hz to 20 kHz (sampling rate: 96 kHz) CD: 20 Hz to 20 kHz

CD: 94 dB

0.01% maximum

Type 2-way type speaker system

Maximum input power

Rated input power 75 W Impedance 4 ohms Dimensions Width: 165 mm (6-7/16")

Weight 3.1 kg (6.8 lbs.)/each

HT-DV30H

ENGLISH

2.5 cm (1") tweeter 12 cm (4-3/4") woofer

150 W

Height: 260 mm (10-1/4") Depth: 229 mm (9-1/16")

References

E-62

HT-DV30H DVD CINEMA

U P

DOWN

Sharp HT-DV30H Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

ENGLISH

Special Notes

Important Instruction

Introduction

Accessories

Special Note

General Information

Contents

Precautions

General

Cooling fan

Volume control

Controls and indicators

Front panel

Rear panel

Display

Speaker system

Remote control

Remote control with shift button

Description of discs

Types of playable discs

Discs that cannot be played

 Title, chapter and track

 Icons used on DVD discs

System installation

 Magnetically shielded speakers

Preparation for Use

System connections

 Aerial connection

External FM aerial

 AC power connection

 Demonstration mode

Connecting to a conventional TV/monitor

Audio connection to other equipment

 Connection for the analogue sound (VCR, etc.)

Remote control

 Battery installation

 Test of the remote control

Changing the set up menu

 TV display setting

 TV system setting

 Language setting

 Rating setting

 Password setting

General control

 Volume auto fade-in

 To turn the power on

 Illumination light control

 Auto power off function

 Volume control

 Function

Basic Operation

Setting the clock (Remote Control only)

Enjoying surround sound (sound mode)

 Preset sound modes and sound image

Playing a disc

 Playback

DVD Operation

Various disc functions

 Auto power on function

 DVD mode operation indicators

Basic operation

 To locate the beginning of a chapter track (skip)

 Fast forward/Fast reverse (search)

Useful operation

 Slow motion play

 Still picture/Frame advance

 To change the angle

 To zoom images (zoom)

 To play in the desired order (programmed play)

 To play repeatedly (repeat play)

 To change the display on TV screen

 To change the display on main unit

 To change the subtitle language

 To change the audio language (audio output)

Listening to a CD or MP3/WMA disc
