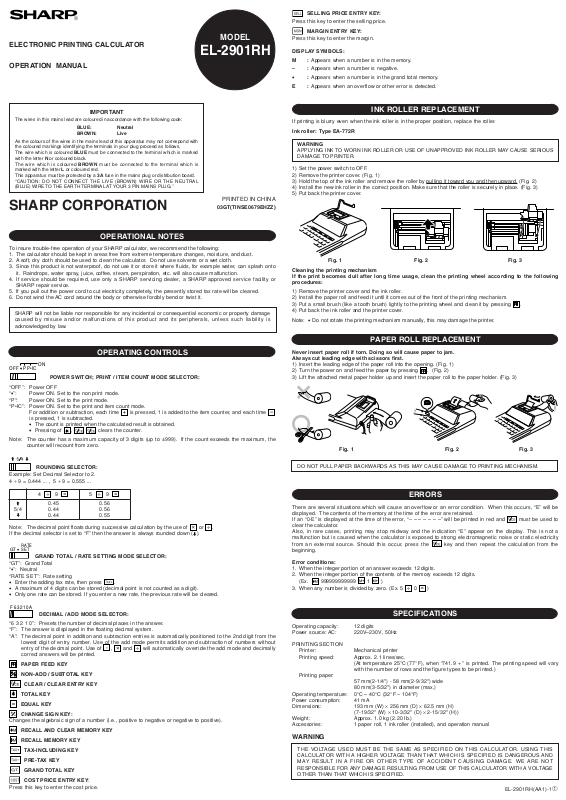

Sharp EL-2901RH Owner Manual

®
ELECTRONIC PRINTING CALCULATOR
OPERATION MANUAL
MODEL
EL-2901RH
SELLING PRICE ENTRY KEY:
Press this key to enter the selling price.
MARGIN ENTRY KEY:
Press this key to enter the margin.
DISPLAY SYMBOLS:
M:Appears when a number is in the memory.
–:Appears when a number is negative.
: Appears when a number is in the grand total memory.
E:Appears when an overflow or other error is detected.
The wires in this mains lead are coloured in accordance with the following code:
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows, The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. This apparatus must be protected by a 3A fuse in the mains plug or distribution board. CAUTION: DO NOT CONNECT THE LIVE (BROWN) WIRE OR THE NEUTRAL (BLUE) WIRE TO THE EARTH TERMINAL AT YOUR 3 PIN MAINS PLUG.
IMPORTANT
BLUE: Neutral BROWN: Live
PRINTED IN CHINA
SHARP CORPORATION
03GT(TINSE0679EHZZ)
OPERATIONAL NOTES
To insure trouble-free operation of your SHARP calculator, we recommend the following:
1. The calculator should be kept in areas free from extreme temperature changes, moisture, and dust.
2. A soft, dry cloth should be used to clean the calculator. Do not use solvents or a wet cloth.
3. Since this product is not waterproof, do not use it or store it where fluids, for example water, can splash onto it. Raindrops, water spray, juice, coffee, steam, perspiration, etc. will also cause malfunction.
4. If service should be required, use only a SHARP servicing dealer, a SHARP approved service facility or SHARP repair service.
6. Do not wind the AC cord around the body or otherwise forcibly bend or twist it.
SHARP will not be liable nor responsible for any incidental or consequential economic or property damage caused by misuse and/or malfunctions of this product and its peripherals, unless such liability is acknowledged by law.
OPERATING CONTROLS
OFF • P P•IC
“OFF”: Power OFF “”: Power ON. Set to the non print mode. “P”: Power ON. Set to the print mode. “P•IC”: Power ON. Set to the print and item count mode.
Note: The counter has a maximum capacity of 3 digits (up to ±999). If the count exceeds the maximum, the
ON
POWER SWITCH; PRINT / ITEM COUNT MODE SELECTOR:
For addition or subtraction, each time
is pressed, 1 is subtracted.
The count is printed when the calculated result is obtained.
Pressing of
counter will recount from zero.
,
clears the counter.
is pressed, 1 is added to the item counter, and each time
INK ROLLER REPLACEMENT
If printing is blurry even when the ink roller is in the proper position, replace the roller.
Ink roller: Type EA-772R
WARNING
APPLYING INK TO WORN INK ROLLER OR USE OF UNAPPROVED INK ROLLER MAY CAUSE SERIOUS DAMAGE TO PRINTER.
1) Set the power switch to OFF.
2) Remove the printer cover. (Fig. 1)
3) Hold the top of the ink roller and remove the roller by
4) Install the new ink roller in the correct position. Make sure that the roller is securely in place. (Fig. 3)
5) Put back the printer cover.
Fig. 1 Fig. 2
Cleaning the printing mechanism If the print becomes dull after long time usage, clean the printing wheel according to the following procedures:
1) Remove the printer cover and the ink roller.
2) Install the paper roll and feed it until it comes out of the front of the printing mechanism.
3) Put a small brush (like a tooth brush) lightly to the printing wheel and clean it by pressing
4) Put back the ink roller and the printer cover.
Note: Do not rotate the printing mechanism manually, this may damage the printer.
pulling it toward you and then upward. (Fig. 2)
Fig. 3
.
PAPER ROLL REPLACEMENT
Never insert paper roll if torn. Doing so will cause paper to jam. Always cut leading edge with scissors first.
1) Insert the leading edge of the paper roll into the opening. (Fig. 1)
2) Turn the power on and feed the paper by pressing
3) Lift the attached metal paper holder up and insert the paper roll to the paper holder. (Fig. 3)
Fig. 1
. (Fig. 2)
Fig. 2
Fig. 3
ROUNDING SELECTOR:
Example: Set Decimal Selector to 2. 4 ÷ 9 = 0.444 ... , 5 ÷ 9 = 0.555 ...
4 9
5/4 0.44 0.56
Note: The decimal point floats during successive calculation by the use of If the decimal selector is set to “F” then the answer is always rounded down (
GT •
GT: Grand Total: NeutralRATE SET: Rate setting
Enter the adding tax rate, then press
A maximum of 4 digits can be stored (decimal point is not counted as a digit).
Only one rate can be stored. If you enter a new rate, the previous rate will be cleared.
F 6 3 2 1 0 A
6 3 2 1 0: Presets the number of decimal places in the answer.F: The answer is displayed in the floating decimal system.A: The decimal point in addition and subtraction entries is automatically positioned to the 2nd digit from the
TOTAL KEY
EQUAL KEY
CHANGE SIGN KEY:
Changes the algebraic sign of a number (i.e., positive to negative or negative to positive).
RECALL AND CLEAR MEMORY KEY
RECALL MEMORY KEY
Press this key to enter the cost price.
0.45 0.56
0.44 0.55
RATE SET
GRAND TOTAL / RATE SETTING MODE SELECTOR:
DECIMAL / ADD MODE SELECTOR:
lowest digit of entry number. Use of the add mode permits addition and subtraction of numbers without entry of the decimal point. Use of
correct answers will be printed.
PAPER FEED KEY
NON-ADD / SUBTOTAL KEY
CLEAR / CLEAR ENTRY KEY
TAX-INCLUDING KEY
PRE-TAX KEY
GRAND TOTAL KEY
COST PRICE ENTRY KEY:
5 9
.
, and
or . ).
will automatically override the add mode and decimally
DO NOT PULL PAPER BACKWARDS AS THIS MAY CAUSE DAMAGE TO PRINTING MECHANISM.
ERRORS
There are several situations which will cause an overflow or an error condition. When this occurs, “E” will be displayed. The contents of the memory at the time of the error are retained. If an “0E” is displayed at the time of the error, “– – – – – – –” will be printed in red and clear the calculator. Also, in rare cases, printing may stop midway and the indication “E” appear on the display. This is not a malfunction but is caused when the calculator is exposed to strong electromagnetic noise or static electricity from an external source. Should this occur, press the
beginning.
Error conditions:
1. When the integer portion of an answer exceeds 12 digits.
2. When the integer portion of the contents of the memory exceeds 12 digits. 999999999999
(Ex.
3. When any number is divided by zero. (Ex. 5
1
)
0
key and then repeat the calculation from the
)
must be used to
SPECIFICATIONS
Operating capacity: 12 digits Power source: AC: 220V–230V, 50Hz
PRINTING SECTION
Printer: Mechanical printer Printing speed: Approx. 2.1 lines/sec.
Printing paper:
Operating temperature: 0°C – 40°C (32°F – 104°F) Power consumption: 41 mA Dimensions: 193 mm (W) × 256 mm (D) × 62.5 mm (H)
Weight: Approx. 1.0 kg (2.20 Ib.) Accessories: 1 paper roll, 1 ink roller (installed), and operation manual
WARNING
THE VOLTAGE USED MUST BE THE SAME AS SPECIFIED ON THIS CALCULATOR. USING THIS CALCULATOR WITH A HIGHER VOLTAGE THAN THAT WHICH IS SPECIFIED IS DANGEROUS AND MAY RESULT IN A FIRE OR OTHER TYPE OF ACCIDENT CAUSING DAMAGE. WE ARE NOT RESPONSIBLE FOR ANY DAMAGE RESULTING FROM USE OF THIS CALCULATOR WITH A VOLTAGE OTHER THAN THAT WHICH IS SPECIFIED.
(At temperature 25°C (77°F), when 741.9 + is printed. The printing speed will vary with the number of rows and the figure types to be printed.)
57 mm(2-1/4") - 58 mm(2-9/32") wide 80 mm(3-5/32") in diameter (max.)
(7-19/32" (W) × 10-3/32" (D) × 2-15/32" (H))
EL-2901RH(AA1)-1
CALCULATION EXAMPLES
GT •
RATE SET
GT •
RATE SET
1. Set the decimal selector as specified in each example. The rounding selector should be in the “5/4” position unless otherwise specified.
2. The grand total/rate setting mode selector should be in the “•” position (off) unless otherwise specified.
3. The print / item count mode selector should be in the “P” position unless otherwise specified.
4. Press
5. If an error is made while entering a number, press
6. After entering a value, press
7. Example procedures are listed in following manner unless otherwise specified.
prior to beginning any calculation.
performing different calculation tasks,
mode.
Operation Display Print
, or to activate the Cost/Sell/Margin Calculation mode. In case of
or and enter the correct number.
key must be pressed first to cancel the Cost/Sell/Margin
ADDITION AND SUBTRACTION WITH ADD MODE
ON
12.45 + 16.24 + 19.35 – 5.21 =
*11245
1624
1935
521
was not used in the entries.
*1 :
OFF P P•IC
12.45 12.45 +
28.69 16.24 +
48.04 19.35 +
42.83 5.21 –
42.83 42.83
.............
002
F 6 3 2 1 0 A
MIXED CALCULATIONS
ON
A. 5 × 2 + 12 =
5
2
12
OFF P P•IC
5. 5.×
10. 10.✱
10. 10.+
22. 12.+
002
22. 22.✱
F 6 3 2 1 0 A
.............
2.=
B. (10 + 2) × 5 =
10
2
5
OFF P P•IC
10. 10.+
12. 2.+
12. 12.×
60. 60.✱
CONSTANT
A. 62.35 × 11.11 =
62.35 × 22.22 =
62.35
11.11
22.22
62.35 62.35 ×
692.7085 692.7085
1,385.417 1,385.417
F 6 3 2 1 0 A
11.11 =
22.22 =
B. 11.11
÷ 77.77 =
22.22 ÷ 77.77 =
11.11
77.77
22.22 22.22 =
11. 11 11.11 ÷
0.14285714285 0.14285714285
0.28571428571 0.28571428571
PERCENT
A. 100 × 2 5% =
100
25
100. 100
25.00 25.00
ITEM COUNT CALCULATION
Bill No. Number of bills Amount
1 1 $100.55 2 1 $200.00 3 1 $200.00 4 1 $400.55 5 1 $500.65
Total (a) (b)
F 6 3 2 1 0 A
.
×
25.%
B. 123 ÷ 1368 = (%)
123
1368 1,368.%
100.55
200
400.55
500.65
123. 123
8.99 8.99
OFF P P•IC
100.55 100.55 +
300.55 200.00 +
500.55 200.00 +
901.10 400.55 +
1,401.75 500.65 +
1,401.75 1,401.75 (b)
.............
005
GRAND TOTAL
100 + 200 + 300 =
+) 300 + 400 + 500 =
Grand total
100
200
300
300
400
500
ON
OFF P P•IC
100. 100
300. 200
600. 300
600.
300.
700.
1,200.
1,200.
1,800.
F 6 3 2 1 0 A
600.✱ +
300
400
500
1,200.✱ +
1,800.✱✱
RATE SET
GT •
.
+
.
+
.
+
.
+
.
+
.
+
ON
ON
F 6 3 2 1 0 A
5.=
F 6 3 2 1 0 A
77.77 =
F 6 3 2 1 0 A
.
÷
F 6 3 2 1 0 A
MEMORY
46 × 78 =
+) 125 ÷ 5= –)72× 8=
Total
2
*
46
125
*2 : Press
78
5
72
8
to clear the memory before starting a memory calculation.
3,588.
125.
576.
3,037.
COST / SELL / MARGIN CALCULATION
EXAMPLE 1: Determine the cost price for 30%
Entries in the order of “30 500 are also valid.
EXAMPLE 2: Determine the selling price for 30%
Entries in the order of “30 350 are also valid.
margin when the selling price is set at $500.
Selling Price ➁ Margin
Cost Price
500 500. 500.✱
30 30.
350. 350.✱C
margin when the cost price is set at $350.
Cost Price ➁ Margin
Selling Price
350
30 30.
350. 350.✱C
500. 500.✱
TAX RATE CALCULATIONS
EXAMPLE 1: Set a 5% tax rate.
GT •
(a)
GT •
Caution! The socket outlet shall be installed near the equipment and shall be easily accessible.
This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.
Calculate the tax on $800 and calculate the total including tax.
RATE SET
55.
RATE SET
800
5.000
840. 840
F 6 3 2 1 0 A
46. 46.×
M
M
M
25.
M
72.
M
M
F 6 3 2 1 0 A
30.✱%
F 6 3 2 1 0 A
30.✱%
F 6 3 2 1 0 A
.
.
.
5.000 %
800
.
.
.
3,588.+M
3,037.◊
EXAMPLE 3: Determine the margin when the cost
Entries in the order of “500 350 are also
In case of abnormal conditions
When this unit is exposed to strong RF noise and/or extreme physical shock during the operation, or when the power cord is plugged into the AC outlet, the unit
.
may start functioning abnormally which, in some rare occasion all keys - including the power key and the
.
40
.
If such abnormal conditions are observed, unplug the AC cord from the socket. Keep the unit unplugged for about 5 seconds, reconnect the AC plug, then turn on the power.
RATE SET
GT •
78.=
125.÷
5.=
25.+M
72.×
8.=
576.–M
M
price is set at $350, and the selling price at $500.
Cost Price ➁ Selling Price
Margin
Also, obtain the margin when the cost price is set to $250.
350 350. 350.✱C
500 500.
30. 30.✱%
250 250. 250.✱C
50. 50.✱%
valid.
The entered value (enter value, then press , , or ) will be kept in the buffer; the
re-entry will not be necessary when recalculat­ing.
The buffer contents will be cleared upon new
entry, or when the power switch is turned off/on, or when “E” is displayed.
EXAMPLE 2: Perform two calculations using $840
and $525, both of which already include tax. Calculate the tax on the total and the total without tax. (tax rate: 5%)
840
525
key - cease to respond.
840. 840.+
1,365. 525.+
1,300. 1,300
EL-2901RH(AA1)-2
500.✱
500.✱
1,365 . . .
F 6 3 2 1 0 A
F 6 3 2 1 0 A
.
65.– .
