Sharp CDMD3000 User Manual
AUDIO TOWER SYSTEM
MODEL
CD-MD3000H
OPERATION MANUAL
If you require any advice or assistance regarding your Sharp product, please visit our
web-site www.sharp.co.uk/support.
Customers without internet access may telephone 08705 274277 during office hours (or
(01) 676 0648 if telephoning from Ireland).
Thank you for purchasing this SHARP product.
T o obtain the best performance from this product, please read this
manual carefully . It will guide you in operating your SHARP product.
CD-MD3000H Audio Tower System consisting of CD-MD3000H (main
unit) and CP-RW5000H (speaker system).
Special Notes
NOTES FOR USERS IN THE U.K. AND IRELAND
The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 3A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS
1362 fuse marked
the pin face of the plug must be used.
Always refit the fuse cover after replacing the fuse. Never use the plug without the
fuse cover fitted.
In the unlikely event of the socket outlet in your home not being compatible with the
plug supplied, cut-off the mains plug and fit an appropriate type.
DANGER:
The fuse from the cut-off plug should be removed and the cut-off plug destroyed
immediately and disposed of in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 13A
socket outlet as a serious electric shock may occur.
To fit an appropriate plug to the mains lead, follow the instructions below:
IMPORTANT:
The wires in the mains lead are coloured in accordance with the following code:
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this product may not correspond with
the coloured markings identifying the terminals in your plug, proceed as follows:
● The wire which is coloured blue must be connected to the plug terminal which is
marked N or coloured black.
● The wire which is coloured brown must be connected to the plug terminal which is
marked L or coloured red.
Ensure that neither the brown nor the blue wire is connected to the earth terminal in
your three pin plug.
Before replacing the plug cover, make sure that:
● If the new fitted plug contains a fuse, its value is the same as that removed from
the cut-off plug.
● The cord grip is clamped over the sheath of the mains lead and not simply over the
lead wires.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
SERVICE INFORMATION
In the unlikely event of your equipment requiring repair, please contact the dealer or
Important Instruction
supplier from whom it was purchased. Where this is not possible, please visit our
web-site www.sharp.co.uk/support.
Customers without internet access may telephone 08705 274277 during office hours
(or (01) 676 0648 if telephoning from Ireland).
Please note; all calls will be charged at local rate.
Certain replacement parts and accessories may be obtained from our main parts
distributor.
In the unlikely event of this equipment requiring repair during the guarantee period,
you will need to provide proof of the date of purchase to the repairing company.
2
Please keep your invoice or receipt, which is supplied at the time of purchase.
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
or and of the same rating as above, which is also indicated on
WILLOW VALE ELECTRONICS LTD.
0121 766 5414
WARNINGS
● When the ON/ST AND-BY button is set at STAND-BY position, mains voltage is still
present inside the unit.
When the ON/STAND-BY button is set at ST AND-BY position, the unit may be brought
into operation by the timer mode or remote control.
● This unit contains no user serviceable parts. Never remove covers unless qualified
to do so. This unit contains dangerous voltages, always remove mains plug from the
socket before any service operation and when not in use for a long period.
● To prevent fire or shock hazard, do not expose this appliance to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.
CAUTION
● Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
● As the laser beam used in this compact disc player is harmful to the eyes, do not
attempt to disassemble the cabinet. Refer servicing to qualified personnel only.
NOTES
● Recording and playback of any material may require consent, which SHARP is
unable to give. Please refer particularly to the provisions of the Copyright Act
1956, the Dramatic and Musical Performers Protection Act 1958, the Performers
Protection Acts 1963 and 1972 and to any subsequent statutory enactments and
orders.
● This equipment complies with the requirements of Directives 89/336/EEC and 73/23/
EEC as amended by 93/68/EEC.
US and foreign patents licensed from Dolby Laboratories.
●
Contents
■
Important Instruction Page
Special Notes .......................................................................................2
■
General Information
Precautions .......................................................................................4-5
Accessories ......................................................................................... 5
Controls and Indicators .................................................................6-11
■
Preparation for Use
System Connections ....................................................................12-13
Remote Control .................................................................................14
■
Basic Operation
General Control ................................................................................. 15
Sound Control ...................................................................................16
Setting the Clock ...............................................................................17
■
CD Playback
Listening to a CD (CDs) ...............................................................18-19
■
MD Playback
Listening to a MiniDisc ................................................................20-21
■
Advanced CD/MD Playback
Programmed Play ..............................................................................22
Repeat or Random Play ....................................................................23
To Specify a Disc to Play (CD Only).................................................23
Switching the Time Display ..............................................................23
■
Tape Playback
Listening to a Cassette Tape............................................................24
■
MD Recording Page
Before Recording to a MiniDisc .......................................................35
Recording to a MiniDisc from CDs ............................................ 36-38
Recording to a MiniDisc from a Cassette Tape ..............................39
Recording to a MiniDisc from the Radio .........................................39
Checking Displays ............................................................................40
■
Tape Recording
Recording to a Cassette Tape from a CD........................................41
Recording to a Cassette Tape from a MiniDisc ..............................42
Recording to a Cassette Tape from the Radio................................43
■
MD Editing
Titling a MiniDisc ..........................................................................44-45
Editing a Recorded MiniDisc ...................................................... 46-48
■
Advanced Features
Timer and Sleep Operation......................................................... 49-51
Enhancing Your Stereo System ................................................. 52-53
■
References
What is a MiniDisc?...........................................................................54
MiniDisc System Limitations............................................................54
Error Messages .................................................................................55
Troubleshooting Chart.................................................................56-57
Maintenance.......................................................................................58
Specifications ...............................................................................58-59
TERMS OF GUARANTEE ................................................. Back cover
Important Instruction
■
Radio
Listening to the Radio..................................................................25-26
■
RDS Radio
Using the Radio Data System (RDS) ......................................... 27-34
3
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
Precautions
■
General
● Please ensure that the equipment is positioned in a well ventilated area
and that there is at least 10 cm (4") of free space along the sides and back.
There must also be a minimum of 20 cm (8") of free space on the top of the
unit.
10 cm (4")
● Use the unit on a firm, level surface free
from vibration.
● Keep the unit away from direct sunlight,
strong magnetic fields, excessive dust,
humidity and electronic/electrical equipment (home computers, facsimiles, etc.)
which generates electrical noise.
● Do not place anything on top of the unit.
● Do not expose the unit to moisture, to temperatures higher than 60°C
(140°F) or to extreme low temperatures.
10 cm (4")
20 cm (8")
General Information
● If your system does not work properly, disconnect the AC power lead
from the wall socket. Plug the AC power lead back in, and then turn on
your system.
● In case of an electrical storm, unplug the
unit for safety.
4
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
10 cm (4")
● Hold the AC power plug by the head when re-
moving it from the wall socket, as pulling the
lead can damage internal wires.
● Do not remove the outer cover, as this may
result in electric shock. Refer internal service to your local SHARP service facility.
● The ventilation should not be impeded by cov-
ering the ventilation openings with items, such
as newspapers, tablecloths, curtains, etc.
● No naked flame sources, such as lighted candles, should be placed on the
apparatus.
● Attention should be drawn to the environmental aspects of battery disposal.
● The apparatus is designed for use in moderate climate.
● This unit should only be used within the range of 5°C - 35°C (41°F - 95°F).
Warning:
The voltage used must be the same as that specified on this unit.
Using this product with a higher voltage other than that which is specified is
dangerous and may result in a fire or other type of accident causing damage.
SHARP will not be held responsible for any damage resulting from use of this
unit with a voltage other than that which is specified.
■
Volume control
The sound level at a given volume setting depends on speaker efficiency,
location, and various other factors.
It is advisable to avoid exposure to high volume levels, which occur whilst
turning the unit on with the volume control setting up high, or whilst continually listening at high volumes.
Precautions (continued)
Accessories
■
Care of compact discs
Compact discs are fairly resistant to damage, however mistracking can occur due to an accumulation of dirt on the disc surface.
Follow the guidelines below for maximum enjoyment from your CD collection
and player.
● Do not write on either side of the disc, particularly the non-label side from
which signals are read.
Do not mark this surface.
● Keep your discs away from direct sunlight, heat, and excessive moisture.
● Always hold the CDs by the edges. Fingerprints, dirt, or water on the CDs
can cause noise or mistracking. If a CD is dirty or does not play properly,
clean it with a soft, dry cloth, wiping straight out from the centre, along the
radius.
■
Cassette tape
●
For playback, use normal or low-noise tape for the
best sound. (Metal or CrO
For recording, use only normal tape.
● Do not use C-120 tapes or poor-quality tapes, as they
may cause malfunctions.
● Before loading a tape into the cassette compartment,
tighten the slack with a pen or pencil.
2
tape is not recommended.)
Please confirm that the following accessories are included.
Remote control × 1
AM loop aerial × 1
Blue
(UM/SUM-3, R6, HP-7 or similar) × 2
“AA” size battery
FM aerial × 1
Red
Cassettes have removable tabs which prevent accidental
recording or erasing.
Removing the tab will protect the corresponding side.
Cover the tab holes with adhesive tape to erase or record
again.
Tab for side B (2)
Side A (1)
Tab for side A (1)
Black Black
Speaker wire for
MAIN terminals × 2
Note:
Only the above accessories are included.
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
Speaker wire for
SUBWOOFER terminals × 2
General Information
5

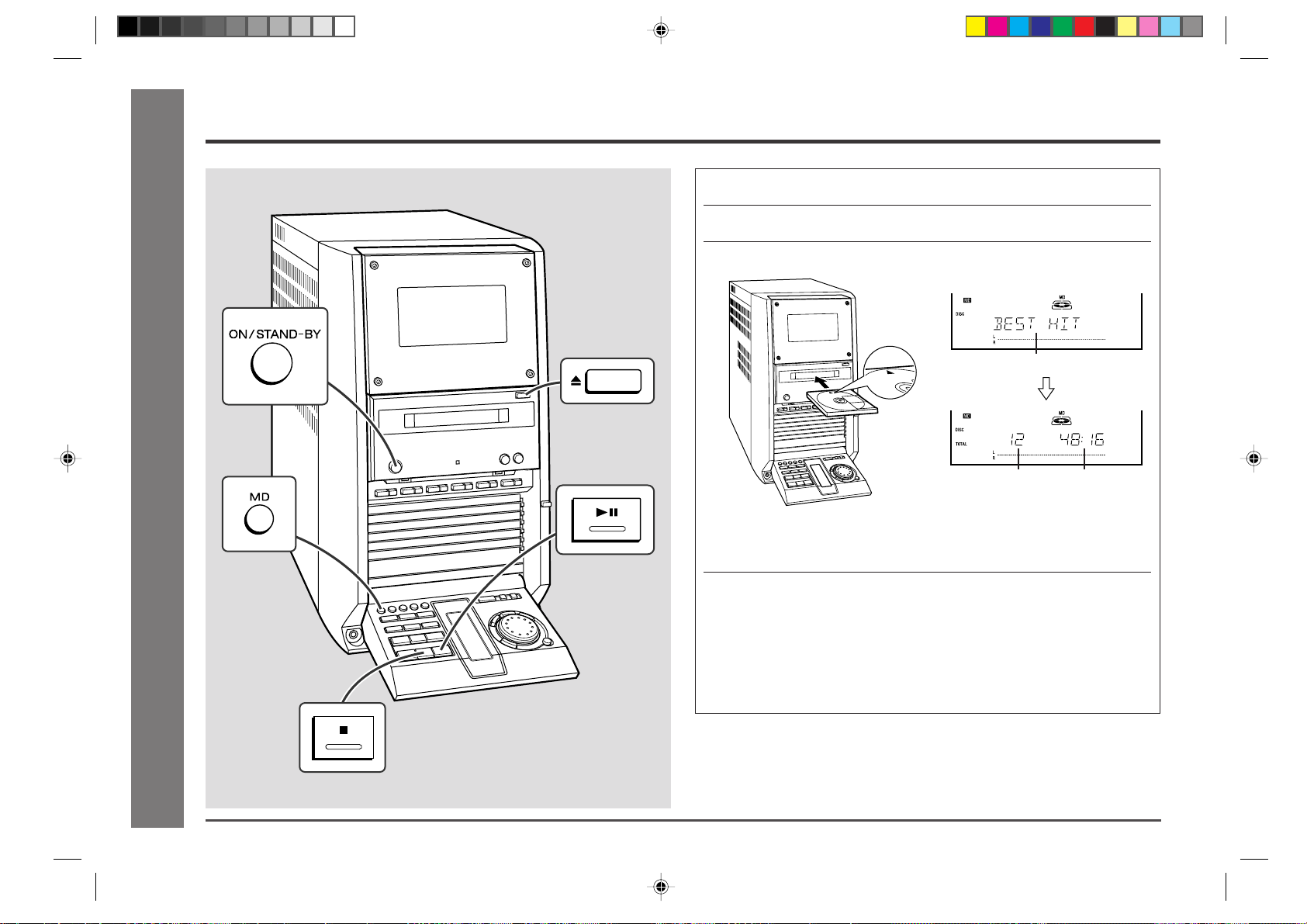

Controls and Indicators
1
2
3
4
5
10
■ Front panel Reference page
01. Cassette Compartment....................................................... 24, 41-43
02. Volume Up/Demo Button ....................................................15, 16, 50
03. Volume Down Button ..........................................................16, 50, 57
04. Timer Set Indicator..........................................................................50
05. On/Stand-by Button ............................................................15, 49, 57
06. CD Direct Play Buttons (with Indicator)/
CD Eject Buttons................................................................. 18, 23, 41
07. Disc Trays ........................................................................................18
08. Headphone Socket.......................................................................... 52
09. MD Eject Button ..............................................................................21
9
10. MD Compartment ......................................................................20, 36
11. Control Panel Open/Close Button .................................................15
6
7
General Information
8
6
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
11
Controls and Indicators (continued)
21
22
23
24
25
26
27
28
29
15
12
16
13
14
30
31
32
33
34
35
36
37
17
18
19
20
■ Control panel Reference page
12. CD/MD Play Mode Select Button ...................................................23
13. Equalizer Mode Select Button........................................................16
14. Extra Bass Button ...........................................................................16
15. Name/Toc Edit Button ................................................................44-48
16. Delete Button................................................................................... 45
17. Menu Button ........................................................................17, 49, 51
18. Display/Character Button .........................................................40, 44
19. Jog Dial ................................................................................17, 26, 36
20. Enter Button ........................................................................17, 26, 36
21. Tuner (Band) Button ....................................................................... 25
22. MD Track Edit Button......................................................................38
23. CD Button ............................................................................18, 36, 41
24. MD Button ..................................................................................20, 42
25. CD MD One Touch Edit Button.............................................. 37, 38
26. MD Auto Mark Select Button.................................................... 39, 53
27. CD/MD Fast Reverse, Tape Fast Wind or
Tuning Down Button (with Indicator) ..........................19, 21, 24, 25
28. Stop Button (with Indicator)............................................... 19, 21, 24
29. Tape Reverse Play Button (with Indicator) ....................... 24, 41-43
30. Tape Button ............................................................................... 24, 43
31. Auxiliary Button ........................................................................50, 53
32. MD Record Button.....................................................................39, 53
33. MD Record Mode Button ....................................................36, 38, 53
34. MD Record Speed Select Button ................................................... 37
35. Tape Record Pause Button ................................................ 41-43, 53
36. CD/MD Fast Forward, Tape Fast Wind or
Tuning Up Button (with Indicator) ...............................19, 21, 24, 25
37. CD/MD Play or Pause, Tape Forward Play Button
(with Indicator) ....................................................................19, 20, 24
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
General Information
7
Controls and Indicators (continued)
1
2
3
4
5
6
18
19
20
21
General Information
8
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
13 14 15 16 17
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
7
8
9
10
11
12
■ Multi-function LCD display
01. CD Indicators
02. Function Indicator
03. Extra Bass Indicator
04. Timer Play Indicator
05. Sleep Indicator
06. Timer Recording Indicator
07. CD/MD Play Indicator
08. CD/MD Repeat Indicator
09. CD/MD Pause Indicator
10. FM Stereo Indicator
11. Tape Reverse Mode Indicator
12. FM Stereo Mode Indicator
13. Cassette Indicator
14. Level Meter
15. MD Indicator
16. Digital Source Indicator
17. Monaural Long-Play Mode Indicator
18. Disc Name Indicator
19. Auto Mark Indicator
20. Memory Indicator
21. Total Indicator
22. Track Name Indicator
23. Track Edit Indicator
24. Random Play Indicator
25. CD All Disc Play Indicator
26. Remain Indicator
27. Record Indicator
28. RDS Indicator
29. Radio Text Indicator
30. Clock Time Indicator
31. Dynamic PTY Indicator
32. Traffic Programme Indicator
33. TOC Indicator
34. Synchronised Recording Indicator
35. EON Indicator
36. Traffic Information Indicator
37. Programme Type Indicator
38. Traffic Announcement Indicator
Controls and Indicators (continued)
1
2
3
4
■ Rear panel Reference page
01. AM Loop Aerial Socket ...................................................................12
02. FM 75 Ohms Aerial Socket .............................................................12
03. Auxiliary Input Sockets ......................................................50, 52, 53
04. Digital Input Socket.............................................................50, 52, 53
05. Speaker Terminals ..........................................................................12
06. AC Power Lead................................................................................ 12
5
6
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
General Information
9
Controls and Indicators (continued)
1
2
3
4
5
6
7
8
9
10
11
12
13
General Information
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
■ Remote control Reference page
01. Remote Control Transmitter........................................................... 14
02. CD Button (No. 23) ..........................................................................22
03. MD Button (No. 24) ..........................................................................22
04. Tape Button (No. 30)
05. CD Direct Play Buttons (No. 6)....................................................... 22
06. Clear Button.........................................................................22, 26, 29
07. Memory Button................................................................................ 22
08. CD/MD Fast Reverse, Tape Fast Wind or
Preset Down Button...................................................... 19, 21, 24, 26
09. Enter Button (No. 20) ................................................................26, 29
10. Stop Button (No. 28)........................................................................22
11. Menu Button (No. 17)
12. MD Record Button (No. 32)
13. MD Record Mode Button (No. 33)
14. Time Button ...............................................................................23, 34
15. FM Stereo Mode Button.................................................................. 25
16. Control Panel Open/Close Button (No. 11)
17. Tuner (Band) Button (No. 21) ................................................... 29, 30
18. Auxiliary Button (No. 31)
19. On/Stand-by Button (No. 5) ............................................................14
20. RDS Programme Type/Traffic Information Search Button .... 30-32
21. RDS EON Button .......................................................................31, 32
22. RDS ASPM (Auto Station Programme Memory) Button ..............29
23. RDS Display Mode Selector Button.........................................27, 34
24. CD/MD Play Mode Select Button (No. 12)
25. CD/MD Fast Forward, Tape Fast Wind or
Preset Up Button........................................................... 19, 21, 24, 26
26. CD/MD Play or Pause, Tape Play Button (No. 29, 37) .......22, 24, 42
27. Tape Reverse Mode Select Button .......................................... 24, 41
28. Tape Record Pause Button (No. 35)
29. Dimmer Button ................................................................................15
30. Display Button........................................................................... 17, 49
31. Equalizer Mode Select Button (No. 13)
32. Extra Bass Button (No. 14)
33. Volume Up or Down Buttons (No. 2, 3)
10
33
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
This number (No. ) indicates the same function button on the main unit (see
pages 6-7).
mon buttons, illustrations of the main unit are used.
Buttons with no number are on the remote control only. To show com-
Controls and Indicators (continued)
Right speaker
Left speaker
■ Speaker system
1
2
3
01. Tweeter 4. Subwoofer
02. Woofer 5. Subwoofer Terminals
03. Bass Reflex Duct 6. Main Speaker Terminals
Speaker grilles are removable:
Make sure nothing comes into contact with the
speaker diaphragms when you remove the
speaker grilles.
Placing the speaker system:
There is no distinction between the right and
the left speakers.
4
There are two sounds from the subwoofer.
5
One comes out from the bass reflex duct and
the other rebounds from the wall behind the
speaker.
6
Bi-amp system:
Each speaker unit has a built-in subwoofer (low frequency range) which is driven separately from the woofer and tweeter (mid-to-high frequency range). Two independent
amplifiers which have individual frequency characteristics are used.
By amplifying separately the two frequency bands, clearer sound is achieved.
Tweeter
Woofer
Subwoofer
Mid-to-high range
(200 Hz - 20 kHz)
Power amplifier
Pre-amplifier
L-ch
Pre-amplifier
Power amplifier
General Information
Ultra-low range
(60 Hz - 200 Hz)
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
11
System Connections
FM aerial
Right
speaker
AM loop aerial
Preparation for Use
Right speaker Left speaker
2 31
Blue
Black
Red
Left
speaker
Wall socket
(AC 230 V, 50 Hz)
12
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
■
Aerial connection
Supplied FM aerial:
Connect the FM aerial wire to the FM 75 OHMS socket and position the FM aerial wire
in the direction where the strongest signal can be received.
Supplied AM loop aerial:
Connect the AM loop aerial to the AM LOOP socket. Position the AM loop aerial for
optimum reception. Place the AM loop aerial on a shelf, etc., or attach it to a stand or a
wall with screws (not supplied).
Note:
Placing the aerial on the stereo system or near the AC power lead may cause noise
pickup.
Place the aerial away from the stereo system for better reception.
Installing the AM loop aerial:
<Assembling>
<Attaching to the wall>
Wall
Screws
External FM aerial:
Use an external FM aerial if you require better reception.
Consult your dealer.
External FM aerial
■
Speaker connection
Main terminals (left side of the rear):
Connect the blue wire to the (+) and the black one to the (–).
Subwoofer terminals (right side of the rear):
Connect the red wire to the (+) and the black one to the (–).
Caution:
●
Connect the speaker wires to the speakers first, then to the unit.
● Never mistake the MAIN and the SUBWOOFER terminals.
The stereo system or the speakers may be damaged .
● Only the included speakers should be used with this product.
Do not use other speakers with this unit or use the supplied speakers with other
units.
● Do not mistake the right and the left channels.
The right speaker is the one on the right side when you face the unit.
● Do not let the bare speaker wires touch each other.
Incorrect Incorrect
● Do not stand or sit on the speakers. You may be injured.
■
Connecting the AC power lead
After checking all the connections have been made correctly, plug the unit into the
mains.
If you plug the unit first, the unit will enter the demonstration mode (see page 15).
Note:
Unplug the unit if it will not be used for a prolonged period of time.
Preparation for Use
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
13
Remote Control
■
Battery installation
1. Remove the battery cover.
2. Insert the supplied batteries according to the direction indicated in
the battery compartment.
● When inserting or removing the batteries, push them towards the ë battery
terminals.
3. Replace the cover.
Precautions for battery use:
● Replace all old batteries with new ones at the same time.
● Do not mix old and new batteries.
● Remove the batteries if the unit will not be used for long periods of time. This will
prevent potential damage due to battery leakage.
Caution:
● Do not use rechargeable batteries (nickel-cadmium battery, etc.).
● Installing the batteries incorrectly may cause the unit to malfunction.
Notes concerning use:
● Replace the batteries if the operating distance is reduced or if the operation be-
Preparation for Use
comes erratic.
Purchase 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar).
● Periodically clean the transmitter on the remote control and the sensor on the ste-
reo system with a soft cloth.
● Exposing the sensor on the stereo system to strong light may interfere with opera-
tion. Change the lighting or the direction of the stereo system.
● Keep the remote control away from moisture, heat, shock, and vibrations.
■
Test of the remote control
Face the remote control directly to the remote sensor on the unit.
The remote control can be used within the range shown below:
Press the ON/STAND-BY button. Does the power turn on? Now, you can enjoy the
music.
Remote sensor
0.2 m - 6 m
(8" - 20')
14
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
General Control
■
Demonstration Mode
The first time the unit is plugged, the unit will enter the demonstration mode. You will
see words scroll.
To cancel the demonstration mode:
When the unit is in the power stand-by mode (demonstration mode), press the DEMO
button. The unit will enter the low power consumption mode.
To return to the demonstration mode:
When the unit is in the power stand-by mode, press the DEMO button again.
■
Opening and closing the control panel
The control panel is motorised.
The control panel automatically opens when the power is turned on, and closes when
the unit is set to the power stand-by mode.
When the power is turned on, you can open or close the control panel by pressing the
control panel open/close 7 button.
Caution:
● Do not push the control panel whilst it is opening or closing.
● Do not press buttons on the control panel strongly. The hinge of the panel may be
broken.
● Be careful not to jam your fingers in the control panel.
■
Display Brightness (2 levels)
You can switch the display brightness by pressing the DIMMER button.
DIMMER OFF
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
DIMMER ON
Basic Operation
15
Sound Control
■ Volume control
Press the VOLUME W button to increase the volume and the VOLUME X button for
decreasing.
■ Bass control
When the X-BASS button is pressed, the unit will enter the extra bass mode which
emphasises the bass frequencies, and “X-BASS” will appear.
To cancel the extra bass mode, press the X-BASS button.
Bass is emphasised. Cancelled.
■ Equalizer
When the EQUALIZER button is pressed, the current mode setting will be displayed.
To change to a different mode, press the EQUALIZER button repeatedly until the desired sound mode appears.
Basic Operation
16
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
The sound is not modified. Bass and treble are emphasised.
Treble is reduced. Vocals (midrange tones) are
emphasised.
Setting the Clock
5 Turn the jog dial to adjust the hour and within 2 minutes, press
the ENTER button.
●
When the 12-hour display is selected, “AM” will change automatically to “PM”.
6 Turn the jog dial to adjust the minutes and within 2 minutes, press
the ENTER button.
●
The hour will not advance even if minutes advance from “59” to “00”.
● The clock starts from “0” second. (Seconds are not displayed.)
The time display will disappear after a few seconds.
In this example, the clock is set for the 24-hour (0:00) display.

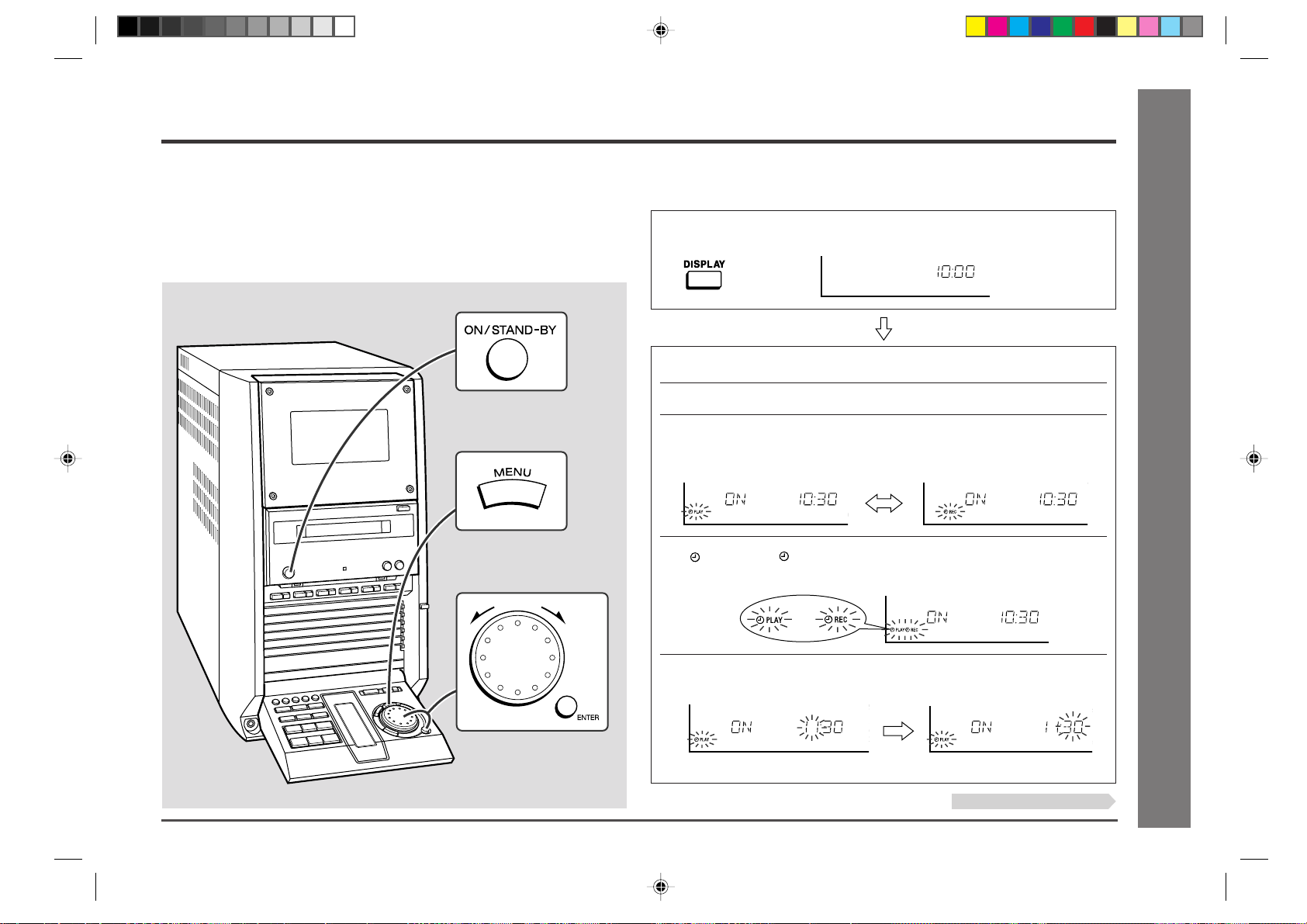

1 Press the ON/STAND-BY button to turn the power on.
2 Press the MENU button.
3 Turn the jog dial to select “CLOCK” and within 10 seconds, press
the ENTER button.
4 Turn the jog dial to select the 24-hour or 12-hour display and
within 2 minutes, press the ENTER button.
“0:00” → The 24-hour display will appear. (0:00 - 23:59)
“AM 12:00”→
“AM 0:00” →
The 12-hour display will appear. (AM 12:00 - PM 1 1:59)
The 12-hour display will appear. (AM 0:00 - PM 1 1:59)
To confirm the time display:
[When the stand-by mode]
Press the DISPLAY button on the remote control.
The time display will appear for about 3 seconds.
[When the power is on]
Press the MENU button.
The time display will appear for about 10 seconds.
Note:
“CLOCK” will appear or time will flash at the push of the DISPLAY button when the AC
power supply is restored after a power failure or after unplugging the unit.
Reset the clock as follows.
To reset the clock:
[When time will flash]
1. Press the ON/STAND-BY button.
2. Press the MENU button.
3. Press the ENTER button.
4. Perform “Setting the Clock” from step 5.
[When “CLOCK” will appear]
Perform “Setting the Clock” from the beginning.
To change the 24-hour or 12-hour display:
1. Clear all the programmed contents.
[Refer to “If trouble occurs (reset)” on page 57 for details.]
2. Preform “Setting the clock” from the beginning.
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
Basic Operation
17
Listening to a CD (CDs)
This system can play audio CD-R and CD-RW discs just as CD discs, but cannot
perform recording.
CD Playback
■
To play discs in turn (from Disc 1 to Disc 6)
1 Press the ON/STAND-BY button to turn the power on.
2 Press the CD button.
3 Press the DISC 1
7 7
7 button to open the disc tray 1.
7 7
4 Place the CD on the disc tray 1, label side up.
● Be sure to place 8 cm (3") CD in the middle of the disc trays.
5 Press the DISC 1
Means "disc
inside"
12 cm (5”)
7 7
7 button to close the disc tray 1.
7 7
8 cm (3”)
18
Total number of tracks
Total playing time
6 You can place discs on the trays 2 - 6 by following steps 3 - 5.
Note:
The system will search CD trays until it finds a CD and will not search the rest of the
trays.
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
Loading...
