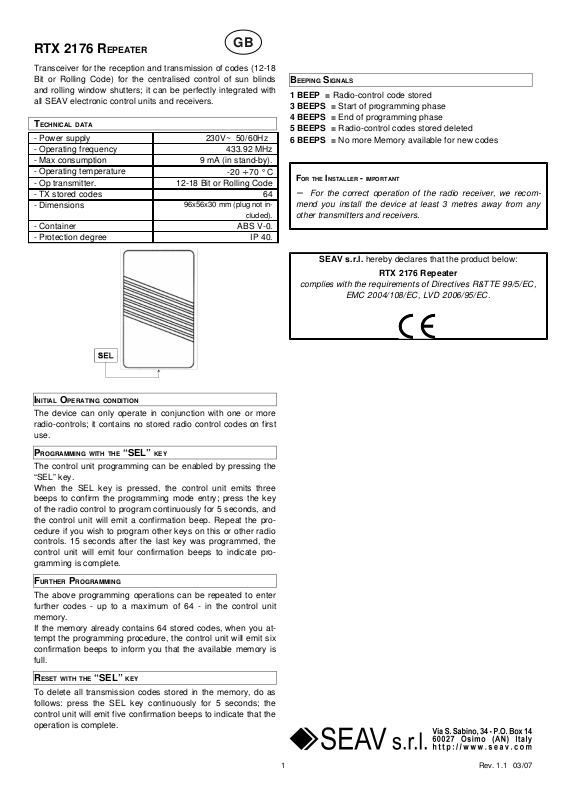

RTX 2176 REPEATER
Transceiver for the reception and transmission of codes (12-18
Bit or Rolling Code) for the centralised control of sun blinds
and rolling window shutters; it can be perfectly integrated with
all SEAV electronic control units and receivers.
TECHNICAL DATA
- Power supply 230V~ 50/60Hz
- Operating frequency 433.92 MHz
- Max consumption 9 mA (in stand-by).
- Operating temperature
-20 ÷ 70 °C
- Op transmitter. 12-18 Bit or Rolling Code
- TX stored codes 64
- Dimensions
96x56x30 mm (plug not in-
cluded).
- Container ABS V-0.
- Protection degree IP 40.
INITIAL OPERATING CONDITION
The device can only operate in conjunction with one or more
radio-controls; it contains no stored radio control codes on first
use.
PROGRAMMING WITH THE “SEL” KEY
The control unit programming can be enabled by pressing the
“SEL” key.
When the SEL key is pressed, the control unit emits three
beeps to confirm the programming mode entry; press the key
of the radio control to program continuously for 5 seconds, and
the control unit will emit a confirmation beep. Repeat the procedure if you wish to program other keys on this or other radio
controls. 15 seconds after the last key was programmed, the
control unit will emit four confirmation beeps to indicate programming is complete.
FURTHER PROGRAMMING
The above programming operations can be repeated to enter
further codes - up to a maximum of 64 - in the control unit
memory.
If the memory already contains 64 stored codes, when you attempt the programming procedure, the control unit will emit six
confirmation beeps to inform you that the available memory is
full.
RESET WITH THE “SEL” KEY
To delete all transmission codes stored in the memory, do as
follows: press the SEL key continuously for 5 seconds; the
control unit will emit five confirmation beeps to indicate that the
operation is complete.
BEEPING SIGNALS
1 BEEP = Radio-control code stored
3 BEEPS = Start of programming phase
4 BEEPS = End of programming phase
5 BEEPS = Radio-control codes stored deleted
6 BEEPS = No more Memory available for new codes
FOR THE INSTALLER - IMPORTANT
− For the correct operation of the radio receiver, we recom-
mend you install the device at least 3 metres away from any
other transmitters and receivers.
SEAV s.r.l. hereby declares that the product below:
RTX 2176 Repeater
complies with the requirements of Directives R&TTE 99/5/EC,
EMC 2004/108/EC, LVD 2006/95/EC.
1 Rev. 1.1 03/07
GB
