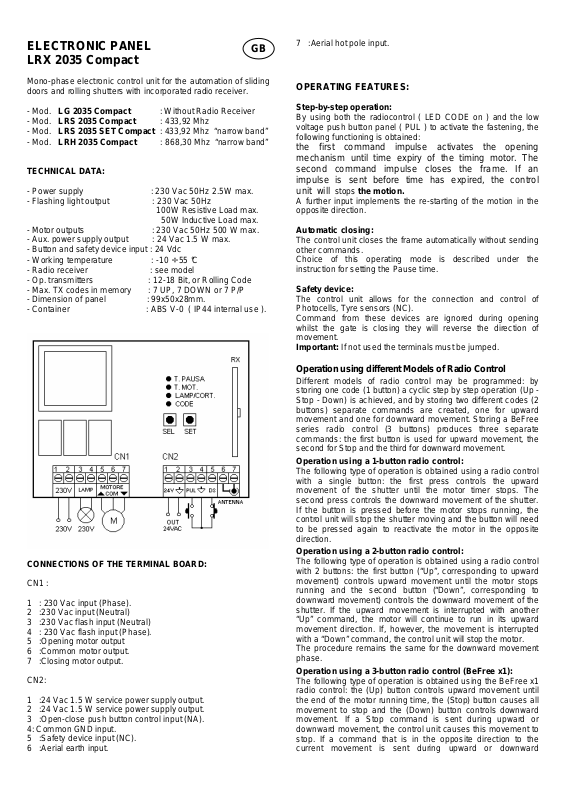

ELECTRONIC PANEL
GB
LRX 2035 Compact
Mono-phase electronic control unit for the automation of sliding
doors and rolling shutters with incorporated radio receiver.
- Mod. LG 2035 Compact : Without Radio Receiver
- Mod. LRS 2035 Compact : 433,92 Mhz
- Mod. LRS 2035 SET Compact : 433,92 Mhz “narrow band”
- Mod. LRH 2035 Compact : 868,30 Mhz “narrow band”
TECHNICAL DATA:
- Power supply : 230 Vac 50Hz 2.5W max.
- Flashing light output : 230 Vac 50Hz
100W Resistive Load max.
50W Inductive Load max.
- Motor outputs : 230 Vac 50Hz 500 W max.
- Aux. power supply output : 24 Vac 1.5 W max.
- Button and safety device input : 24 Vdc
- Working temperature : -10 ÷ 55 °C
- Radio receiver : see model
- Op. transmitters : 12-18 Bit, or Rolling Code
- Max. TX codes in memory : 7 UP, 7 DOWN or 7 P/P
- Dimension of panel : 99x50x28mm.
- Container : ABS V-0 ( IP44 internal use ).
CONNECTIONS OF THE TERMINAL BOARD:
CN1 :
1 : 230 Vac input (Phase).
2 :230 Vac input (Neutral)
3 :230 Vac flash input (Neutral)
4 : 230 Vac flash input (Phase).
5 :Opening motor output
6 :Common motor output.
7 :Closing motor output.
CN2:
1 :24 Vac 1.5 W service power supply output.
2 :24 Vac 1.5 W service power supply output.
3 :Open-close push button control input (NA).
4: Common GND input.
5 :Safety device input (NC).
6 :Aerial earth input.
7 :Aerial hot pole input.
OPERATING FEATURES:
Step-by-step operation:
By using both the radiocontrol ( LED CODE on ) and the low
voltage push button panel ( PUL ) to activate the fastening, the
following functioning is obtained:
the first command impulse activates the opening
mechanism until time expiry of the timing motor. The
second command impulse closes the frame. If an
impulse is sent before time has expired, the control
unit will
A further input implements the re-starting of the motion in the
opposite direction.
Automatic closing:
The control unit closes the frame automatically without sending
other commands.
Choice of this operating mode is described under the
instruction for setting the Pause time.
Safety device:
The control unit allows for the connection and control of
Photocells, Tyre sensors (NC).
Command from these devices are ignored during opening
whilst the gate is closing they will reverse the direction of
movement.
Important: If not used the terminals must be jumped.
stops the motion.
Operation using different Models of Radio Control
Different models of radio control may be programmed: by
storing one code (1 button) a cyclic step by step operation (Up Stop - Down) is achieved, and by storing two different codes (2
buttons) separate commands are created, one for upward
movement and one for downward movement. Storing a BeFree
series radio control (3 buttons) produces three separate
commands: the first button is used for upward movement, the
second for Stop and the third for downward movement.
Operation using a 1-button radio control:
The following type of operation is obtained using a radio control
with a single button: the first press controls the upward
movement of the shutter until the motor timer stops. The
second press controls the downward movement of the shutter.
If the button is pressed before the motor stops running, the
control unit will stop the shutter moving and the button will need
to be pressed again to reactivate the motor in the opposite
direction.
Operation using a 2-button radio control:
The following type of operation is obtained using a radio control
with 2 buttons: the first button (“Up”, corresponding to upward
movement) controls upward movement until the motor stops
running and the second button (“Down”, corresponding to
downward movement) controls the downward movement of the
shutter. If the upward movement is interrupted with another
“Up” command, the motor will continue to run in its upward
movement direction. If, however, the movement is interrupted
with a “Down” command, the control unit will stop the motor.
The procedure remains the same for the downward movement
phase.
Operation using a 3-button radio control (BeFree x1):
The following type of operation is obtained using the BeFree x1
radio control: the (Up) button controls upward movement until
the end of the motor running time, the (Stop) button causes all
movement to stop and the (Down) button controls downward
movement. If a Stop command is sent during upward or
downward movement, the control unit causes this movement to
stop. If a command that is in the opposite direction to the
current movement is sent during upward or downward
Page 2
movement, the control unit causes the shutter to change
direction.
Operation using a 3-button radio control (BeFree x3 - X6):
When using the BeFree x3 - x6 radio control, you will obtain the
same type of operation as previously described for the BeFree
x1 version; furthermore, the buttons (-) and (+) at the sides of
the radio control may be used to select the (Up - Stop - Down)
commands for 6 different types of operation.
PROGRAMMING:
SEL button: selects the type of function to be memorised, the
selection is indicated by a flashing LED.
By repeatedly pressing the button it is possible to choose the
desired function. The selection will remain active for 10
seconds indicated by a flashing LED. If no other operations are
executed during this period, the control board will return to its
previous state.
SET button: programs the information relative the type of
function previously selected with the SEL button.
LED Reference LED Off LED On
1) CODE No code Code activated
2) LAMP/CORT. Flashing Courtesy Light
3) T. MOT. Unlimited timing Programmed delay
4) T. PAUSE. No automatic close With automatic close
1) CODE: (Radiocontrol programming)
Operation with 1 or 2 codes of the radiocontrol.
During the programming procedure, it is possible to save 1 or 2
radiocontrol codes. One code allows for cyclical operation
(Up/Down), two codes allow to obtain two distinct controls, the
first for ascent and the second for descent.
Programming: The transmission code is programmed in the
following manner: press the SEL button, LED CODE starts
flashing. At the same time send the first code selected with the
desired radiocontrol and LED CODE will start flashing quickly,
send the second code to be saved. LED CODE will remain on
and the programming is complete. If the second code is not
sent within 10 seconds the control unit will exit the
programming phase and select the function with only one code
of the radiocontrol. In case all 7 available codes have been
memorised, by repeating the programming operation, all 4
LEDs indicators will start to flash very fast, indicating that
further memorising is not possible.
Programming the transmission code remotely.
This procedure allows to program the transmission code
remotely, without using the SEL button on the unit itself, but
remotely following the operation.
To program a transmission code remotely, proceed as follows:
send the code of a previously saved radiocontrol code
continuously for more than 10 seconds, at the same time the
control unit enters the programming mode as described above.
Enabling the programming of a transmission code
remotely.
The control unit is supplied by the manufacturer with remote
programming of a transmission code not enabled; to enable the
function proceed as follows: connect the control unit to a
230Vac power supply by pressing and holding the SEL button.
All the indicator LEDs will turn on and the programming is
complete. To disable the function enabled previously, repeat
the operation or conduct the RESET procedure.
Deletion
Cancellation of all memorised codes is carried out in the
following manner: press the SEL button and LED CODE will
start to flash. Then press the SET button. The procedure is now
complete and LED CODE will stop flashing.
Rule of the memorisation of the first Radio control:
In the programming of radio controls, the following rule applies:
if the first radio control to be memorised is a rolling code type,
the control unit will then only accept rolling code radio controls,
thus ensuring greater safety against intrusions; if the first radio
to be memorised is a fixed code remote control (12 or 18 bits),
then the control unit will accept both the fixed code and rolling
code radio controls having only the fixed part of rolling codes
controlled ((essentially losing the safety feature of the rolling
system).
WARNING: to restore the control unit to factory default
configurations (without applying the rule of the first radio control
memorisation), it is required to perform a RESET of the control
unit because it will not enough to erase memorised radio
controls.
2) LAMP/CORT. : (Selection of the flashing light or the
courtesy light)
The control unit has a 230 Vac output, for connection to a
flashing light or a courtesy light.
The control unit is supplied by the manufacturer with the
Flashing function enabled. If you wish to enable the courtesy
light, proceed as follows: use the SEL button to navigate to the
LAMP/CORT LED when flashing and then press the SET
button. The LAMP/CORT button will light up permanently.
Repeat the procedure to restore the previous configuration.
Flashing function: The 230 Vac output will be activated
each time that the automation is moving, for the duration of the
motor time. If the Pause time is memorised, the flashing light
will be active even during the Pause.
Functioning of the Courtesy light: The 230 Vac output will be
activated for 3 minutes, each time that an ascent command is
given.
3) T. MOT. (Programming the motor operating time max. 4
minutes)
The control unit is factory supplied with a working time motor
predefined equal to 30 sec.
If a reprogramming of the motor operating time is needed, it
must be carried out through the closed frame in the following
manner: use the SEL button to navigate to the T. MOT LED
when flashing, then continuously press the SET button. The
rolling shutter will start the opening. When you have reached
the required height, release the SET button and at the same
time the motor time storage will be completed and the T. MOT.
LED will remain lit and fixed. If you want an infinite motor time,
use the SEL button to navigate to the T.MOT LED when
flashing and press the SET button for less than 1 second. At
the same time the LED will shut off and the operation will be
completed. It is advisable to memorise a time that is a few
seconds longer after the frame has reached the end.
4) T. PAUSE:
(Automatic closing time programming max. 4 minutes)
The manufacturer furnishes the control unit with an automatic
closure (pause time equal to 15 sec.). If a reprogramming of
the automatic closing time is needed, it must be carried out
through the closed frame in the following manner: use the SEL
button to navigate to the T. PAUSE LED when flashing. Then
press and hold down the SET button for a period equal to the
desired pause interval between closing and opening
operations. At expiration of the desired time release the SET
button. At the same time the memorisation of automatic closing
time will be determined and the T. PAUSE LED will remain lit.
If you do not want automatic closing, take position on the
flashing of the T. PAUSE LED. Then press the SET button for
less than a second. At the same time the LED will shut off and
the operation will be concluded.
RESET:
To reset the default configuration of the control unit, press the
SEL and SET buttons simultaneously; all RED indicator LEDs
will switch on and then off again immediately.
Page 3
I
MPORTANT FOR THE INSTALLER
The control unit was designed to be assembled together with
other components (motor, shutter or gate, safety devices) to
constitute a finished product (machine) in compliance with
Machinery Directives.
The safety of the final installation and the compliance with all
prescribed Standards is the responsibility of the person who
assembles the various parts to construct a total closing.
It is also advised to comply with the following
recommendations:
− Before automating the frame, check that it is in good
conditions, in compliance with the Machinery Directive
and with EN 12604.
− Wiring of the various electrical components outside of the
control unit must be carried out in compliance with that
prescribed in Standard EN 60204-1 and its amendments
at point 5.2.7 of EN 12453. Power supply and connection
cables must be fixed using the cable glands supplied as
optional accessories.
− The gearmotor used to move the frame must comply with
that prescribed at point 5.2.7 of EN 12453.
− Fix the control unit on a wall. To mount it, use the special
support supplied with the casing and insert fixing screws
in the designated spaces.
− The controller must be placed within an environment that
ensures an IP44 degree or higher.
For the fixing of the device, insert the screws through the
slots in the bracket which is supplied with the casing.
− To facilitate the wiring of the control unit, break the little
pitches of plastic support and, after having made the wire
connections, replace the housing cover.
− Mounting of a push button panel for manual control must
be done positioning the push button panel where the
user is not in a dangerous position, in compliance with
point 5.2.8 of EN 12453.
− The control unit does not have any type of isolating
device for the 230 Vac line. It will therefore be the
responsibility of the installer to arrange an isolating
device inside the plant. It is necessary to install a monophase switch with over-voltage category III. It must be
positioned where it can be protected from accidental
closing, according to that prescribed in point 5.2.9 of EN
12453.
− In compliance with 5.4.2 of EN 12453, it is recommended
to use gearmotors equipped with an electric-mechanical
release device, so that the door can be moved manually
in case of necessity.
− In compliance with 5.4.3. of EN 12453, use electric-
mechanical release systems or similar devices which
stop the door safely in the end run position.
− Cables for power and connection to the motor suitable for
insertion in the pg9 cable glands provided must have an
outside diameter between 4.5 and 7 mm. The internal
conductors wires must have a nominal section of
0.75mm
− Fix a warning sign near the place of installation, conform
with ISO 3864, with minimum height of 60 mm
− Use safety devices capable of monitoring the status of
their connection to the electrical control unit.
− When installation is complete, carry out all the controls
prescribed by EN 12453 - EN 12445 to be sure that the
closing complies with the provisions.
− For a correct functioning of the radio receiver, if using one
or more control units, the installation at a minimum
distance of at least 3 metres one from the other is
recommended.
2..
If a raceway is not used, use H05RR-F cables.
I
MPORTANT FOR THE INSTALLER
- The device must never be used by children or persons with
reduced physical-psychological abilities, unless supervised or
trained on the functioning and the use modalities.
- Do not allow children to play with the device and keep the
radiocontrols away from their reach.
- Ensure there is no-one immediately near-by until the door is
not fully open or closed.
- ATTENTION: keep this instruction manual and respect the
important safety prescriptions contained herein. The non
compliance with the prescriptions may cause damages and
serious accidents.
- Frequently examine the plant to detect any signs of
damaging. Do not use the device if a repair intervention is
necessary.
Warning
All operations that require the opening of the casing (cables
connection, programming, etc.) must be carried out by expert
personnel during installation. For any further operation which
requires the casing to be re-opened (re-programming, repair or
installation amendments) contact the after-sales assistance.
SEAV s.r.l. declares that the products:
Electronic control unit:
LG 2035 Compact - LRS 2035 Compact
LRS 2035 SET Compact – LRH 2035 Compact
comply with the specifications of the R&TTE 99/5/EC, EMC
2004/108/EC and LVD 2006/95/EC Directives.
Rev. 1.2 on 12-06-2012
Loading...
