LTX 2296
Radio Actuator / Transmitter LTX2296, used with the Receiver BeSafe RX New in all those cases where you have the need to have
the implementation of the controls located in other sites from BeSafe RX New or to replicate remote radio commands, sent to the
Receiver Besafe RX stored in memory.
I
MPORTANT FOR THE INSTALLER
- The device must be powered by a low voltage source security that complies with EN61558-2-6.
- All operations, which require the opening of the case (installation, programming and repair, etc.), must be carried out
by experienced staff.
- The fixing of power cables and connection cables must be guaranteed by assembling cable glands supplied optional.
- Secure the plastic cover of the device to a wall inserting the mounting screws in the provided spaces.
I
MPORTANT FOR THE USER
- The device can be used by children over the age of 8 years or people with limited psychological or physical abilities or
with little knowledge and experience only when supervised or trained on the operation and how to use safely to
understand the dangers involved in its use.
- These instructions are available on the website www.seav.com
- Do not allow children to play with the device and keep the radio controls out of their reach.
- Frequently examine the plant to detect any signs of damage. Do not use the device if you need a repair.
- Always remember to turn off the power before cleaning or maintenance works.
- The cleaning and maintenance works shall not be made by children without being supervised.
RADIO ACTUATOR AND RS
485
GB
ATTENTION: keep this instruction manual and respect the important safety instructions contained inside. The non-
compliance with the prescriptions may cause damages and serious accidents.
Radio Actuator / Transmitter LTX 2296
Complies with the requirements of the rules
T
ECHNICAL CHARACTERISTICS
- Supply: 12Vdc
- Max consumption: 20 mA
- Cable length: 100 mt. Max.
- Work Frequency : 433,92 MHz
- Transmitters op. : 12-18-32 Bit o Rolling Code
- N° 2 command relè : 30VDC 1A
- Range in free space: 50-100mt.
- Working temperature: -10°C ÷ +55°C
- Dimensions: 53x82x40mm
R&TTE 99//EC, EMC 2004/108/EC, LVD 2006/95/EC.
1
Rev. 1.2 26/07/2015
C

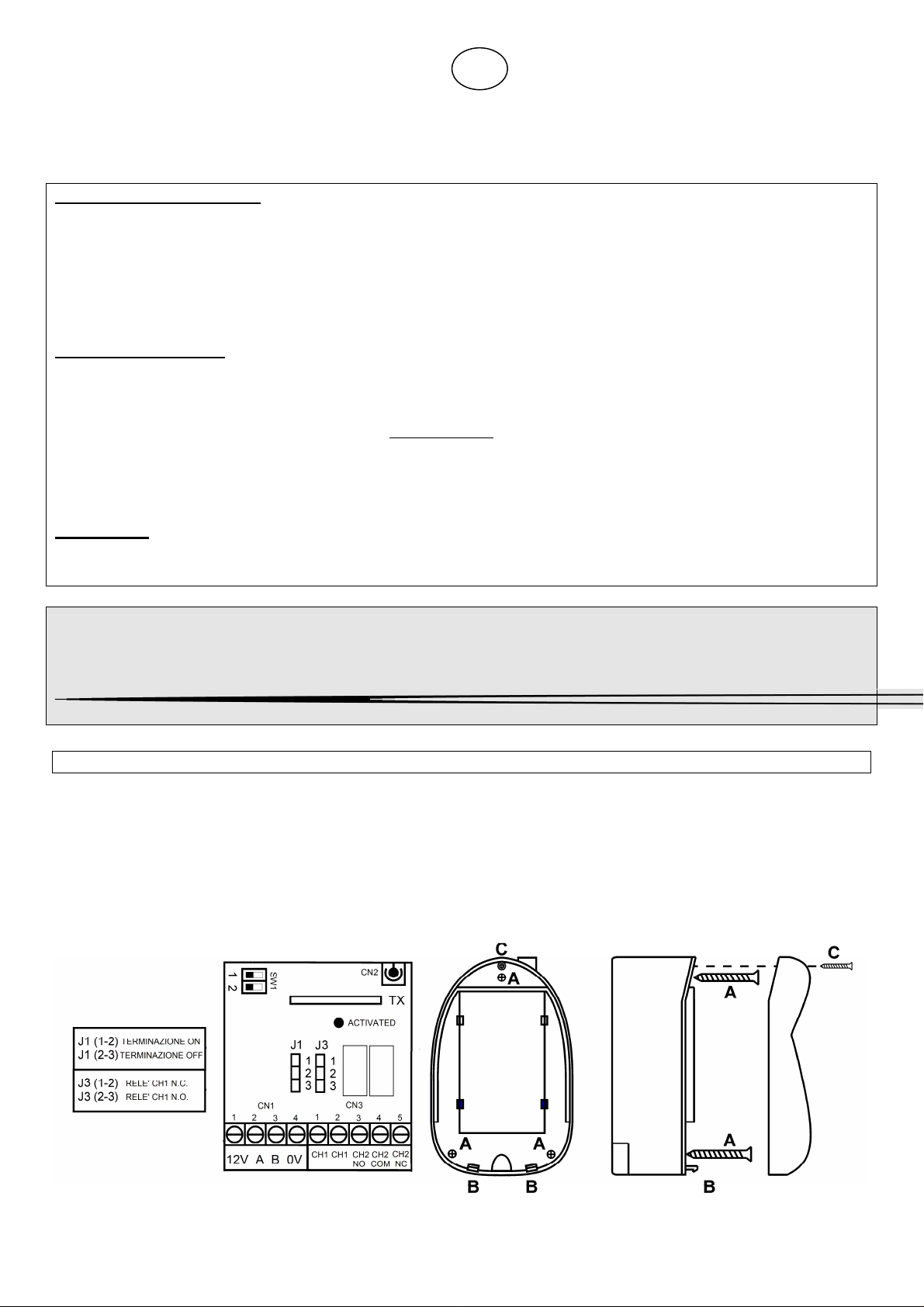

ONNECTIONS OF TERMINAL BLOCKS
CN1 :
1 : Supply output 12 VDC Device.
2 : Communication gate RS 485 signal A.
3 : Communication gate RS 485 signal B.
4 : Supply output 0 VDC device.
CN2 :
1 : Input Antenna hot spot.
2 : Input mass Antenna.
CN3 :
1 : Output Relè OUT 1 dry contact control (NO).
2 : Output Relè OUT 1 dry contact control (NO).
3 : Output Relè OUT 2 dry contact control (NO).
4 : Output Relè OUT 2 dry contact control (COM).
5 : Output Relè OUT 2 dry contact control (NC).
C
ONNECTING
BUS
TO RECEIVER BESAFE RX NEW
It is possible to connect to every single BeSafe RX New receiver up to 2 Actuators / Transmitters LTX2296.
By dip switch SW1 in advance you must assign to each Actuator / Transmitter LTX2296 its own address:
ADDRESS 1 ADDRESS 2
2
Rev. 1.2 26/07/2015
