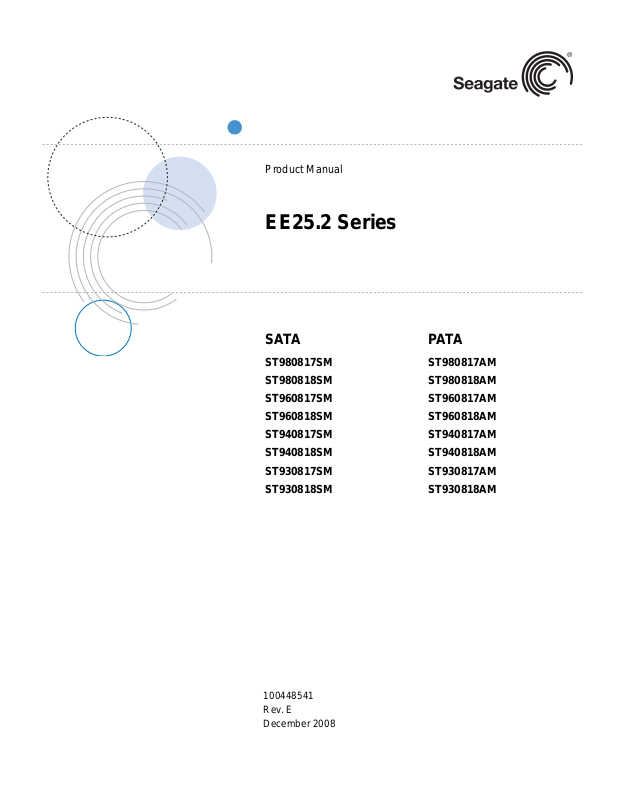

Product Manual
EE25.2 Series
SATA |
PATA |
ST980817SM |
ST980817AM |
ST980818SM |
ST980818AM |
ST960817SM |
ST960817AM |
ST960818SM |
ST960818AM |
ST940817SM |
ST940817AM |
ST940818SM |
ST940818AM |
ST930817SM |
ST930817AM |
ST930818SM |
ST930818AM |
100448541 Rev. E December 2008
Copyright © 2007 - 2008 Seagate Technology LLC. All rights reserved. Printed in USA. Publication number: 100448541, Rev. E, December 2008
Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. EE25 Series is either a trademark or registered trademark of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners.
When referring to hard drive capacity, one gigabyte, or GB, equals one billion bytes. Your computer’s operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Quantitative usage examples for various applications are for illustrative purposes. Actual quantities will vary based on various factors, including file size, file format, features and application software. Seagate reserves the right to change, without notice, product offerings or specifications.
1.0 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2.0 Drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1 Specification summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2.2 Formatted capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 2.3 Default logical geometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 2.4 Physical organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.5 Recording technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.6 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 2.7 Seek time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 2.8 Start/stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 2.9 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.9.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 2.9.2 Conducted noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 2.9.3 Voltage tolerance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 2.9.4 Power-management modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.10 Environmental specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 2.10.1 Ambient temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 2.10.2 Temperature gradient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 2.10.3 Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.11 Altitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 2.11.1 Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 2.11.2 Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.12 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 2.13 Electromagnetic immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 2.14 Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 2.15 Agency certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 2.15.1 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 2.15.2 Electromagnetic compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 2.15.3 FCC verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.16 Environmental protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 2.16.1 European Union Restriction of Hazardous Substances (RoHS) . . . . . . . . . . . . 24 2.17 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.0 Mounting and configuring the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.1 Handling and static discharge precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 3.2 Drive mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 3.3 Breather filter hole precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 3.4 How to configure the drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 3.4.1 How to configure and connect Serial ATA (SATA) drives . . . . . . . . . . . . . . . . . 28 3.4.2 How to configure Parallel ATA (PATA) drives . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.0 Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.1 Serial ATA (SATA) interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 4.1.1 Hot-Plug compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 4.1.2 Serial ATA device plug connector pin definitions . . . . . . . . . . . . . . . . . . . . . . . . 32
4.2 Parallel ATA (ATA) interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 4.2.1 PATA interface signals and connector pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 4.3 Supported ATA commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4.4 Identify Device command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 4.5 Set Features command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 4.6 S.M.A.R.T. commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.0 Seagate Technology support services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
EE25.2 Series Product Manual, Rev. E |
i |
ii |
EE25.2 Series Product Manual, Rev. E |
List of Figures
Figure 1. Typical 5V startup and operation current profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Figure 2. Mounting dimensions—top, side and end view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Figure 3. Breather filter hole location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Figure 4. SATA connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Figure 5. Attaching SATA cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Figure 6. Jumper settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
EE25.2 Series Product Manual, Rev. E |
iii |
iv |
EE25.2 Series Product Manual, Rev. E |
This manual describes the functional, mechanical and interface specifications for the following Seagate® EE25.2 Series drives:
Market |
Capacity |
Interface |
Model |
|
|
|
|
Extreme |
80 GBytes |
PATA |
ST980817AM |
|
|
|
|
Extreme |
80 Gbytes |
SATA |
ST980817SM |
|
|
|
|
Extreme |
60 Gbytes |
PATA |
ST960817AM |
|
|
|
|
Extreme |
60 Gbytes |
SATA |
ST960817SM |
|
|
|
|
Extreme |
40 Gbytes |
PATA |
ST940817AM |
|
|
|
|
Extreme |
40 Gbytes |
SATA |
ST940817SM |
|
|
|
|
Extreme |
30 Gbytes |
PATA |
ST930817AM |
|
|
|
|
Extreme |
30 Gbytes |
SATA |
ST930817SM |
|
|
|
|
Rugged |
80 GBytes |
PATA |
ST980818AM |
|
|
|
|
Rugged |
80 Gbytes |
SATA |
ST980818SM |
|
|
|
|
Rugged |
60 Gbytes |
PATA |
ST960818AM |
|
|
|
|
Rugged |
60 Gbytes |
SATA |
ST960818SM |
|
|
|
|
Rugged |
40 Gbytes |
PATA |
ST940818AM |
|
|
|
|
Rugged |
40 Gbytes |
SATA |
ST940818SM |
|
|
|
|
Rugged |
30 Gbytes |
PATA |
ST930818AM |
|
|
|
|
Rugged |
30 Gbytes |
SATA |
ST930818SM |
|
|
|
|
These drives provide the following key features:
•Extreme operating environment capabilities: Extreme temperature range: -30°C to 85°C Rugged temperature range: -20°C to 75°C
•5,400-RPM spindle speed and 8-Mbyte buffer combine for superior performance.
•Quiet operation. Fluid Dynamic Bearing (FDB) motor.
•High instantaneous (burst) data transfer rates (up to 3 Gbytes per second) using SATA interface.
•Giant magnetoresistive (GMR) recording heads and EPRML technology, which provide the drives with increased areal density.
•State-of-the-art cache and on-the-fly error-correction algorithms.
•Full-track multiple-sector transfer capability without local processor intervention.
EE25.2 Series Product Manual, Rev. E |
1 |
•900 Gs nonoperating shock and 300 Gs operating shock.
•SeaTools™ diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
•The 3D Defense System™, which includes Drive Defense, Data Defense, and Diagnostic Defense, offers the industry’s most comprehensive protection for disc drives.
•Support for S.M.A.R.T. drive monitoring and reporting.
•Support for Read Multiple and Write Multiple commands.
•PATA models support for autodetection of master/slave drives that use cable select (CSEL).
2 |
EE25.2 Series Product Manual, Rev. E |
Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For convenience, the phrases the drive and this drive are used to indicate the models documented in this manual.
The specifications listed in the following two tables are for quick reference. For details on specification measurement or definition, see the appropriate section of this manual.
EE25.2 Series Product Manual, Rev. E |
3 |
Table 1: |
Specifications for 80 Gbyte models |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Drive specification |
|
ST980817AM |
|
ST980818AM |
|
ST980817SM |
|
ST980818SM |
|
|
(Extreme) |
|
(Rugged) |
|
(Extreme) |
|
(Rugged) |
||
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
Formatted (512 bytes/sector)* |
|
80 Gbytes |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Guaranteed sectors |
|
156,301,488 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Interface |
|
|
PATA |
|
|
SATA |
|
||
|
|
|
|
|
|
|
|
|
|
Bytes per sector |
|
512 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Physical read/write heads |
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Discs |
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cache |
|
|
8 Mbytes |
|
|
|
|
|
|
|
|
|
|
|
|
||||
Recording density, BPI |
|
840k bits/inch (typical) |
|
|
|
||||
|
|
|
|
|
|
||||
Track density. TPI |
|
150k tracks/inch (typical) |
|
|
|
||||
|
|
|
|
|
|
|
|||
Areal density |
|
|
126 Gbits/inch2 (typical) |
|
|
|
|||
Spindle speed |
|
|
5,400 RPM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Internal data transfer rate |
|
450 Mbits/sec max |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
||
I/O data transfer rate |
|
100 Mbytes/sec |
|
|
Up to 3 Gbits/sec |
|
|||
|
|
|
|
|
|
|
|||
Sustained throughput, typical (nominal operating conditions) |
|
45 Mbytes/sec maximum |
|
|
|
||||
|
|
|
|||||||
ATA data-transfer modes supported |
|
PIO modes 0–4; Multiword DMA modes 0–2; Ultra DMA modes 0–5 |
|||||||
|
|
|
|
|
|
|
|||
Height |
|
|
9.5 +/-0.2 mm (0.374 +/-.008 inches) |
|
|
|
|||
|
|
|
|
|
|||||
Width |
|
|
69.85 +/-0.25 mm (2.750 +/-0.010 inches) |
|
|||||
|
|
|
|
|
|
|
|
|
|
Length |
|
|
100.2 +/-0.25 mm |
|
|
100.5 +/- 1.58 mm |
|
||
|
|
(3.945 +/-0.010 inches) |
|
(3.957 +/- 0.062 inches) |
|||||
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||
Weight |
|
|
102 grams (0.22 lb) (maximum) |
|
|
|
|||
|
|
|
|
|
|
|
|
||
Average latency |
|
5.6 msec |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Power-on to ready |
|
|
|
|
|
|
|
|
|
-20 to 85°C for extreme models (75°C for rugged models) |
|
3.0 seconds (typical), 5 seconds (max) |
|
||||||
-30 to -20°C (extreme models only) |
|
12 seconds (typical) |
|
|
|
||||
3 sigma maximum at extreme cold temperature |
|
<30 seconds |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Standby to ready |
|
|
|
|
|
|
|
|
|
-20 to 85°C for extreme models (75°C for rugged models) |
|
3.0 seconds (typical), 5 seconds (max) |
|
||||||
-30 to -20°C (extreme models only) |
|
12 seconds (typical) |
|
|
|
||||
3 sigma maximum at extreme cold temperature |
|
<30 seconds |
|
|
|
|
|
||
|
|
|
|
||||||
Track-to-track seek time |
|
1.0 msec (read, typical), 1.5 msec (write, typical) |
|
||||||
|
|
|
|
|
|
||||
Average seek time (random) |
|
12.5 msec (typical), 14 msec (max) |
|
|
|
||||
|
|
|
|
|
|
||||
Average seek, read (random) |
|
13 msec (typical), 14 msec (max) |
|
|
|
||||
|
|
|
|
|
|
||||
Average seek, write (random) |
|
14 msec (typical), 15 msec (max) |
|
|
|
||||
|
|
|
|
|
|
||||
Full-stroke seek |
|
23 msec (typical); 24 msec (max) |
|
|
|
||||
|
|
|
|
|
|
|
|||
Startup current 5V |
|
1.30 amps (typical) |
|
|
1.30 amps (typical) |
||||
|
|
|
1.55 amps (max) |
|
|
1.55 amps (max) |
|
||
|
|
|
|
|
|||||
Seek power at 25°C |
|
1.65 watts / 0.33 amps (typical) |
|
2.45 watts / 0.49 amps |
|||||
|
|
|
|
|
|||||
Read power at 25°C |
|
1.40 watts / 0.28 amps (typical) |
|
3.00 watts / 0.60 amps (typical) |
|||||
|
|
|
|
|
|||||
Write power at 25°C |
|
1.50 watts / 0.30 amps (typical) |
|
2.30 watts / 0.46 amps (typical) |
|||||
|
|
|
|
|
|||||
Idle mode (active idle at 25°C) |
|
1.65 watts / 0.33 amps (typical) |
|
2.35 watts / 0.47 amps (typical) |
|||||
|
|
|
|
|
|||||
Standby mode at 25°C |
|
0.26 watts / 0.05 amps (typical)*** |
|
1.10 watts / 0.22 amps (typical)*** |
|||||
|
|
|
|
|
|||||
Sleep mode at 25°C |
|
0.26 watts / 0.05 amps (typical)*** |
|
1.10 watts / 0.22 amps (typical)*** |
|||||
|
|
|
|
|
|
|
|
||
Voltage tolerance (including noise) |
|
5V ± 5% |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Ambient temperature |
|
-30° to 85°C (Extreme); -20° to 75°C (Rugged); |
|
||||||
Operating |
|
|
|
||||||
Nonoperating |
|
–40° to 95°C (Extreme and Rugged) |
|
|
|
4 |
EE25.2 Series Product Manual, Rev. E |
Drive specification |
ST980817AM |
|
ST980818AM |
ST980817SM |
|
ST980818SM |
(Extreme) |
|
(Rugged) |
(Extreme) |
|
(Rugged) |
|
|
|
|
||||
|
|
|
|
|
|
|
Temperature gradient |
20°C/hour (operating) |
|
|
|
||
(noncondensing) |
30°C/hour (nonoperating) |
|
|
|
||
|
|
|
|
|
||
Relative humidity (noncondensing) |
5% to 90% (operating) |
|
|
|
||
|
5% to 95% (nonoperating) |
|
|
|
||
|
|
|
|
|
|
|
Relative humidity gradient (noncondensing) |
30% per hour max |
|
|
|
|
|
|
|
|
|
|
||
Wet bulb temperature |
30°C (operating, max) |
|
|
|
||
|
40°C (nonoperating, max) |
|
|
|
||
|
|
|
||||
Altitude, operating (Extreme models: -30°C to 85°C) |
–304.8 m to 5,500 m (–1000 ft to 18,100 ft) |
|
||||
Altitude, operating (Rugged models: -20°C to 75°C) |
|
|
|
|
|
|
|
|
|
||||
Altitude, nonoperating (below mean sea level, max) |
–304.8 m to 12,192 m (–1,000 ft to 40,000 ft) |
|
||||
|
|
|
|
|
|
|
Shock, operating |
|
|
|
|
|
|
at 2 msec |
300 Gs max |
|
|
|
|
|
at 11 msec |
150 Gs max |
|
|
|
|
|
|
|
|
|
|
|
|
Shock, nonoperating |
|
|
|
|
|
|
at 2 msec |
800 Gs max |
|
|
|
|
|
at 1 msec |
900 Gs max |
|
|
|
|
|
at 0.5 msec |
400 Gs max |
|
|
|
|
|
|
|
|
||||
Vibration, operating (linear swept sine) |
2.0 Gs (0 to peak, 5–500 Hz); (X, Y, Z axis, 45° angles) |
|
||||
(max displacement may apply below 10 hz) |
|
|
|
|
|
|
Vibration, nonoperating (linear swept sine) |
5.0 Gs (0 to peak, 5–500 Hz); (X, Y, Z axis, 45° angles) |
|
||||
(max displacement may apply below 22 hz) |
|
|
|
|
|
|
|
|
|
||||
Vibration, operating (linear random) |
.003 G2/hz (5–500 Hz); (X, Y, Z axis, 45° angles) |
|
||||
Vibration, nonoperating (linear random) |
.025 G2/Hz, 3.5 Grms (5–500 Hz); (X, Y, Z axis, 45° angles) |
|||||
Drive acoustics, sound power |
|
|
|
|
|
|
Idle** |
1.7 Bels (typical) |
|
|
|
|
|
|
1.9 Bels (max) |
|
|
|
|
|
Seek |
1.9 Bels (typical) |
|
|
|
|
|
|
2.1 Bels (max) |
|
|
|
|
|
Nonrecoverable read errors |
1 per 1014 bits read |
|
|
|
||
Mean Time Before Failure (MTBF) |
1,000,000 power-on hours |
|
|
|
||
|
At 8,760 POH (Power On Hours) per year |
|
||||
|
Max ambient air temperature: 25°C. |
|
|
|
||
|
|
|
|
|
|
|
Load/Unload (U/UL) cycles |
|
|
|
|
|
|
25°C, 50% relative humidity |
1,200,000 software-controlled power on/off cycles |
|
||||
|
100,000 hard power on/off cycles |
|
|
|
||
-30°C, 0% relative humidity (extreme models) |
300,000 software-controlled |
|
|
|
||
85°C, 20% relative humidity (extreme models) |
100,000 hard power on/off cycles |
|
|
|
||
-20°C, 0% relative humidity (rugged models) |
300,000 software-controlled |
|
|
|
||
75°C, 20% relative humidity (rugged models) |
100,000 hard power on/off cycles |
|
|
|
||
Service life |
10 years (form, fit, and function replacement) |
|
||||
|
|
|||||
Warranty |
To determine the warranty for a specific drive, use a web browser to |
|||||
|
access the follow-ing web page: |
|
|
|
||
|
support.seagate.com/customer/warranty_validation.jsp |
|
||||
|
You will be asked to provide the drive serial number, model number (or |
|||||
|
part number) and country of purchase. |
|
||||
|
After submitting this information, the system will display the warranty |
|||||
|
information for your drive. |
|
|
|
||
|
|
|
|
|
|
|
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting.
**During periods of drive idle, some offline activity may occur, according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels.
***Typical host and S4; while in the S3 and S4 states, drive sleep and drive standby modes will not contribute to battery power consumption.
EE25.2 Series Product Manual, Rev. E |
5 |
Table 2: |
Specifications for 60 Gbyte models |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Drive specification |
|
ST960817AM |
|
ST960818AM |
|
ST960817SM |
|
ST960818SM |
|
|
(Extreme) |
|
(Rugged) |
|
(Extreme) |
|
(Rugged) |
||
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
Formatted (512 bytes/sector)* |
|
60 Gbytes |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Guaranteed sectors |
|
117,210,240 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Interface |
|
|
PATA |
|
|
SATA |
|
||
|
|
|
|
|
|
|
|
|
|
Bytes per sector |
|
512 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Physical read/write heads |
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Discs |
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cache |
|
|
8 Mbytes |
|
|
|
|
|
|
|
|
|
|
|
|
||||
Recording density, BPI |
|
840k bits/inch (typical) |
|
|
|
||||
|
|
|
|
|
|
||||
Track density. TPI |
|
150k tracks/inch (typical) |
|
|
|
||||
|
|
|
|
|
|
|
|||
Areal density |
|
|
126 Gbits/inch2 (typical) |
|
|
|
|||
Spindle speed |
|
|
5,400 RPM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Internal data transfer rate |
|
450 Mbits/sec max |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
||
I/O data transfer rate |
|
100 Mbytes/sec |
|
|
Up to 3 Gbits/sec |
|
|||
|
|
|
|
|
|
|
|||
Sustained throughput, typical (nominal operating conditions) |
|
45 Mbytes/sec maximum |
|
|
|
||||
|
|
|
|||||||
ATA data-transfer modes supported |
|
PIO modes 0–4; Multiword DMA modes 0–2; Ultra DMA modes 0–5 |
|||||||
|
|
|
|
|
|
|
|||
Height |
|
|
9.5 +/-0.2 mm (0.374 +/-.008 inches) |
|
|
|
|||
|
|
|
|
|
|||||
Width |
|
|
69.85 +/-0.25 mm (2.750 +/-0.010 inches) |
|
|||||
|
|
|
|
|
|
|
|
|
|
Length |
|
|
100.2 +/-0.25 mm |
|
|
100.5 +/- 1.58 mm |
|
||
|
|
(3.945 +/-0.010 inches) |
|
(3.957 +/- 0.062 inches) |
|||||
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||
Weight |
|
|
102 grams (0.22 lb) (maximum) |
|
|
|
|||
|
|
|
|
|
|
|
|
||
Average latency |
|
5.6 msec |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Power-on to ready |
|
|
|
|
|
|
|
|
|
-20 to 85°C for extreme models (75°C for rugged models) |
|
3.0 seconds (typical), 5 seconds (max) |
|
||||||
-30 to -20°C (extreme models only) |
|
12 seconds (typical) |
|
|
|
||||
3 sigma maximum at extreme cold temperature |
|
<30 seconds |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Standby to ready |
|
|
|
|
|
|
|
|
|
-20 to 85°C for extreme models (75°C for rugged models) |
|
3.0 seconds (typical), 5 seconds (max) |
|
||||||
-30 to -20°C (extreme models only) |
|
12 seconds (typical) |
|
|
|
||||
3 sigma maximum at extreme cold temperature |
|
<30 seconds |
|
|
|
|
|
||
|
|
|
|
||||||
Track-to-track seek time |
|
1.0 msec (read, typical), 1.5 msec (write, typical) |
|
||||||
|
|
|
|
|
|
||||
Average seek time (random) |
|
12.5 msec (typical), 14 msec (max) |
|
|
|
||||
|
|
|
|
|
|
||||
Average seek, read (random) |
|
13 msec (typical), 14 msec (max) |
|
|
|
||||
|
|
|
|
|
|
||||
Average seek, write (random) |
|
14 msec (typical), 15 msec (max) |
|
|
|
||||
|
|
|
|
|
|
||||
Full-stroke seek |
|
23 msec (typical); 24 msec (max) |
|
|
|
||||
|
|
|
|
|
|
|
|||
Startup current 5V |
|
1.30 amps (typical) |
|
|
1.30 amps (typical) |
||||
|
|
|
1.55 amps (max) |
|
|
1.55 amps (max) |
|
||
|
|
|
|
|
|||||
Seek power at 25°C |
|
1.65 watts / 0.33 amps (typical) |
|
2.45 watts / 0.49 amps |
|||||
|
|
|
|
|
|||||
Read power at 25°C |
|
1.40 watts / 0.28 amps (typical) |
|
3.00 watts / 0.60 amps (typical) |
|||||
|
|
|
|
|
|||||
Write power at 25°C |
|
1.50 watts / 0.30 amps (typical) |
|
2.30 watts / 0.46 amps (typical) |
|||||
|
|
|
|
|
|||||
Idle mode (active idle at 25°C) |
|
1.65 watts / 0.33 amps (typical) |
|
2.35 watts / 0.47 amps (typical) |
|||||
|
|
|
|
|
|||||
Standby mode at 25°C |
|
0.26 watts / 0.05 amps (typical)*** |
|
1.10 watts / 0.22 amps (typical)*** |
|||||
|
|
|
|
|
|||||
Sleep mode at 25°C |
|
0.26 watts / 0.05 amps (typical)*** |
|
1.10 watts / 0.22 amps (typical)*** |
|||||
|
|
|
|
|
|
|
|
||
Voltage tolerance (including noise) |
|
5V ± 5% |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Ambient temperature |
|
-30° to 85°C (Extreme); -20° to 75°C (Rugged); |
|
||||||
Operating |
|
|
|
||||||
Nonoperating |
|
–40° to 95°C (Extreme and Rugged) |
|
|
|
6 |
EE25.2 Series Product Manual, Rev. E |
Drive specification |
ST960817AM |
|
ST960818AM |
ST960817SM |
ST960818SM |
(Extreme) |
|
(Rugged) |
(Extreme) |
(Rugged) |
|
|
|
||||
|
|
|
|
|
|
Temperature gradient |
20°C/hour (operating) |
|
|
||
(noncondensing) |
30°C/hour (nonoperating) |
|
|
||
|
|
|
|
||
Relative humidity (noncondensing) |
5% to 90% (operating) |
|
|
||
|
5% to 95% (nonoperating) |
|
|
||
|
|
|
|
|
|
Relative humidity gradient (noncondensing) |
30% per hour max |
|
|
|
|
|
|
|
|
||
Wet bulb temperature |
30°C (operating, max) |
|
|
||
|
40°C (nonoperating, max) |
|
|
||
|
|
|
|||
Altitude, operating (Extreme models: -30°C to 85°C) |
–304.8 m to 5,500 m (–1000 ft to 18,100 ft) |
|
|||
Altitude, operating (Rugged models: -20°C to 75°C) |
|
|
|
|
|
|
|
|
|||
Altitude, nonoperating (below mean sea level, max) |
–304.8 m to 12,192 m (–1,000 ft to 40,000 ft) |
|
|||
|
|
|
|
|
|
Shock, operating |
|
|
|
|
|
at 2 msec |
300 Gs max |
|
|
|
|
at 11 msec |
150 Gs max |
|
|
|
|
|
|
|
|
|
|
Shock, nonoperating |
|
|
|
|
|
at 2 msec |
800 Gs max |
|
|
|
|
at 1 msec |
900 Gs max |
|
|
|
|
at 0.5 msec |
400 Gs max |
|
|
|
|
|
|
|
|||
Vibration, operating (linear swept sine) |
2.0 Gs (0 to peak, 5–500 Hz); (X, Y, Z axis, 45° angles) |
|
|||
(max displacement may apply below 10 hz) |
|
|
|
|
|
Vibration, nonoperating (linear swept sine) |
5.0 Gs (0 to peak, 5–500 Hz); (X, Y, Z axis, 45° angles) |
|
|||
(max displacement may apply below 22 hz) |
|
|
|
|
|
|
|
|
|||
Vibration, operating (linear random) |
.003 G2/hz (5–500 Hz); (X, Y, Z axis, 45° angles) |
|
|||
Vibration, nonoperating (linear random) |
.025 G2/Hz, 3.5 Grms (5–500 Hz); (X, Y, Z axis, 45° angles) |
||||
Drive acoustics, sound power |
|
|
|
|
|
Idle** |
1.7 Bels (typical) |
|
|
|
|
|
1.9 Bels (max) |
|
|
|
|
Seek |
1.9 Bels (typical) |
|
|
|
|
|
2.1 Bels (max) |
|
|
|
|
Nonrecoverable read errors |
1 per 1014 bits read |
|
|
||
Mean Time Before Failure (MTBF) |
1,000,000 power-on hours |
|
|
||
|
At 8,760 POH (Power On Hours) per year |
|
|||
|
Max ambient air temperature: 25°C. |
|
|
||
|
|
|
|
|
|
Load/Unload (U/UL) cycles |
|
|
|
|
|
25°C, 50% relative humidity |
1,200,000 software-controlled power on/off cycles |
|
|||
|
100,000 hard power on/off cycles |
|
|
||
-30°C, 0% relative humidity (extreme models) |
300,000 software-controlled |
|
|
||
85°C, 20% relative humidity (extreme models) |
100,000 hard power on/off cycles |
|
|
||
-20°C, 0% relative humidity (rugged models) |
300,000 software-controlled |
|
|
||
75°C, 20% relative humidity (rugged models) |
100,000 hard power on/off cycles |
|
|
||
Service life |
10 years (form, fit, and function replacement) |
|
|||
|
|
||||
Warranty |
To determine the warranty for a specific drive, use a web browser to |
||||
|
access the follow-ing web page: |
|
|
||
|
support.seagate.com/customer/warranty_validation.jsp |
|
|||
|
You will be asked to provide the drive serial number, model number (or |
||||
|
part number) and country of purchase. |
|
|||
|
After submitting this information, the system will display the warranty |
||||
|
information for your drive. |
|
|
||
|
|
|
|
|
|
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting.
**During periods of drive idle, some offline activity may occur, according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels.
***Typical host systems will pull power to the drive when entering S3 and S4; while in the S3 and S4 states, drive sleep and drive standby modes will not contribute to battery power consumption.
EE25.2 Series Product Manual, Rev. E |
7 |
Table 3: |
Specifications for 40 Gbyte models |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Drive specification |
|
ST940817AM |
|
ST940818AM |
|
ST940817SM |
|
ST940818SM |
|
|
(Extreme) |
|
(Rugged) |
|
(Extreme) |
|
(Rugged) |
||
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
Formatted (512 bytes/sector)* |
|
40 Gbytes |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Guaranteed sectors |
|
78,140,160 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Interface |
|
|
PATA |
|
|
SATA |
|
||
|
|
|
|
|
|
|
|
|
|
Bytes per sector |
|
512 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Physical read/write heads |
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Discs |
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cache |
|
|
8 Mbytes |
|
|
|
|
|
|
|
|
|
|
|
|
||||
Recording density, BPI |
|
840k bits/inch (typical) |
|
|
|
||||
|
|
|
|
|
|
||||
Track density. TPI |
|
150k tracks/inch (typical) |
|
|
|
||||
|
|
|
|
|
|
|
|||
Areal density |
|
|
126 Gbits/inch2 (typical) |
|
|
|
|||
Spindle speed |
|
|
5,400 RPM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Internal data transfer rate |
|
450 Mbits/sec max |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
||
I/O data transfer rate |
|
100 Mbytes/sec |
|
|
Up to 3 Gbits/sec |
|
|||
|
|
|
|
|
|
|
|||
Sustained throughput, typical (nominal operating conditions) |
|
45 Mbytes/sec maximum |
|
|
|
||||
|
|
|
|||||||
ATA data-transfer modes supported |
|
PIO modes 0–4; Multiword DMA modes 0–2; Ultra DMA modes 0–5 |
|||||||
|
|
|
|
|
|
|
|||
Height |
|
|
9.5 +/-0.2 mm (0.374 +/-.008 inches) |
|
|
|
|||
|
|
|
|
|
|||||
Width |
|
|
69.85 +/-0.25 mm (2.750 +/-0.010 inches) |
|
|||||
|
|
|
|
|
|
|
|
|
|
Length |
|
|
100.2 +/-0.25 mm |
|
|
100.5 +/- 1.58 mm |
|
||
|
|
(3.945 +/-0.010 inches) |
|
(3.957 +/- 0.062 inches) |
|||||
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||
Weight |
|
|
102 grams (0.22 lb) (maximum) |
|
|
|
|||
|
|
|
|
|
|
|
|
||
Average latency |
|
5.6 msec |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Power-on to ready |
|
|
|
|
|
|
|
|
|
-20 to 85°C for extreme models (75°C for rugged models) |
|
3.0 seconds (typical), 5 seconds (max) |
|
||||||
-30 to -20°C (extreme models only) |
|
12 seconds (typical) |
|
|
|
||||
3 sigma maximum at extreme cold temperature |
|
<30 seconds |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Standby to ready |
|
|
|
|
|
|
|
|
|
-20 to 85°C for extreme models (75°C for rugged models) |
|
3.0 seconds (typical), 5 seconds (max) |
|
||||||
-30 to -20°C (extreme models only) |
|
12 seconds (typical) |
|
|
|
||||
3 sigma maximum at extreme cold temperature |
|
<30 seconds |
|
|
|
|
|
||
|
|
|
|
||||||
Track-to-track seek time |
|
1.0 msec (read, typical), 1.5 msec (write, typical) |
|
||||||
|
|
|
|
|
|
||||
Average seek time (random) |
|
12.5 msec (typical), 14 msec (max) |
|
|
|
||||
|
|
|
|
|
|
||||
Average seek, read (random) |
|
13 msec (typical), 14 msec (max) |
|
|
|
||||
|
|
|
|
|
|
||||
Average seek, write (random) |
|
14 msec (typical), 15 msec (max) |
|
|
|
||||
|
|
|
|
|
|
||||
Full-stroke seek |
|
23 msec (typical); 24 msec (max) |
|
|
|
||||
|
|
|
|
|
|
|
|
||
Startup current 5V |
|
1.30 amps (typical) |
|
|
1.30 amps (typical) |
||||
|
1.55 amps (max) |
|
|
1.55 amps (max) |
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|||||
Seek power at 25°C |
|
1.65 watts / 0.33 amps (typical) |
|
2.45 watts / 0.49 amps |
|||||
|
|
|
|
|
|||||
Read power at 25°C |
|
1.40 watts / 0.28 amps (typical) |
|
3.00 watts / 0.60 amps (typical) |
|||||
|
|
|
|
|
|||||
Write power at 25°C |
|
1.50 watts / 0.30 amps (typical) |
|
2.30 watts / 0.46 amps (typical) |
|||||
|
|
|
|
|
|||||
Idle mode (active idle at 25°C) |
|
1.65 watts / 0.33 amps (typical) |
|
2.35 watts / 0.47 amps (typical) |
|||||
|
|
|
|
|
|||||
Standby mode at 25°C |
|
0.26 watts / 0.05 amps (typical)*** |
|
1.10 watts / 0.22 amps (typical)*** |
|||||
|
|
|
|
|
|||||
Sleep mode at 25°C |
|
0.26 watts / 0.05 amps (typical)*** |
|
1.10 watts / 0.22 amps (typical)*** |
|||||
|
|
|
|
|
|
|
|
||
Voltage tolerance (including noise) |
|
5V ± 5% |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Ambient temperature |
|
-30° to 85°C (Extreme); -20° to 75°C (Rugged); |
|
||||||
Operating |
|
|
|
||||||
Nonoperating |
|
–40° to 95°C (Extreme and Rugged) |
|
|
|
8 |
EE25.2 Series Product Manual, Rev. E |
Drive specification |
ST940817AM |
|
ST940818AM |
ST940817SM |
ST940818SM |
(Extreme) |
|
(Rugged) |
(Extreme) |
(Rugged) |
|
|
|
||||
|
|
|
|
|
|
Temperature gradient |
20°C/hour (operating) |
|
|
||
(noncondensing) |
30°C/hour (nonoperating) |
|
|
||
|
|
|
|
||
Relative humidity (noncondensing) |
5% to 90% (operating) |
|
|
||
|
5% to 95% (nonoperating) |
|
|
||
|
|
|
|
|
|
Relative humidity gradient (noncondensing) |
30% per hour max |
|
|
|
|
|
|
|
|
||
Wet bulb temperature |
30°C (operating, max) |
|
|
||
|
40°C (nonoperating, max) |
|
|
||
|
|
|
|||
Altitude, operating (Extreme models: -30°C to 85°C) |
–304.8 m to 5,500 m (–1000 ft to 18,100 ft) |
|
|||
Altitude, operating (Rugged models: -20°C to 75°C) |
|
|
|
|
|
|
|
|
|||
Altitude, nonoperating (below mean sea level, max) |
–304.8 m to 12,192 m (–1,000 ft to 40,000 ft) |
|
|||
|
|
|
|
|
|
Shock, operating |
|
|
|
|
|
at 2 msec |
300 Gs max |
|
|
|
|
at 11 msec |
150 Gs max |
|
|
|
|
|
|
|
|
|
|
Shock, nonoperating |
|
|
|
|
|
at 2 msec |
800 Gs max |
|
|
|
|
at 1 msec |
900 Gs max |
|
|
|
|
at 0.5 msec |
400 Gs max |
|
|
|
|
|
|
|
|||
Vibration, operating (linear swept sine) |
2.0 G (0 to peak, 5–500 Hz); (X, Y, Z axis, 45° angles) |
|
|||
(max displacement may apply below 10 hz) |
|
|
|
|
|
Vibration, nonoperating (linear swept sine) |
5.0 Gs (0 to peak, 5–500 Hz); (X, Y, Z axis, 45° angles) |
|
|||
(max displacement may apply below 22 hz) |
|
|
|
|
|
|
|
|
|||
Vibration, operating (linear random) |
.003 G2/hz (5–500 Hz); (X, Y, Z axis, 45° angles) |
|
|||
Vibration, nonoperating (linear random) |
.025 G2/Hz, 3.5 Grms (5–500 Hz); (X, Y, Z axis, 45° angles) |
||||
Drive acoustics, sound power |
|
|
|
|
|
Idle** |
1.7 Bels (typical) |
|
|
|
|
|
1.9 Bels (max) |
|
|
|
|
Seek |
1.9 Bels (typical) |
|
|
|
|
|
2.1 Bels (max) |
|
|
|
|
Nonrecoverable read errors |
1 per 1014 bits read |
|
|
||
Mean Time Before Failure (MTBF) |
1,000,000 power-on hours |
|
|
||
|
At 8,760 POH (Power On Hours) per year |
|
|||
|
Max ambient air temperature: 25°C. |
|
|
||
|
|
|
|
|
|
Load/Unload (U/UL) cycles |
|
|
|
|
|
25°C, 50% relative humidity |
1,200,000 software-controlled power on/off cycles |
|
|||
|
100,000 hard power on/off cycles |
|
|
||
-30°C, 0% relative humidity (extreme models) |
300,000 software-controlled |
|
|
||
85°C, 20% relative humidity (extreme models) |
100,000 hard power on/off cycles |
|
|
||
-20°C, 0% relative humidity (rugged models) |
300,000 software-controlled |
|
|
||
75°C, 20% relative humidity (rugged models) |
100,000 hard power on/off cycles |
|
|
||
Service life |
10 years (form, fit, and function replacement) |
|
|||
|
|
||||
Warranty |
To determine the warranty for a specific drive, use a web browser to |
||||
|
access the follow-ing web page: |
|
|
||
|
support.seagate.com/customer/warranty_validation.jsp |
|
|||
|
You will be asked to provide the drive serial number, model number (or |
||||
|
part number) and country of purchase. |
|
|||
|
After submitting this information, the system will display the warranty |
||||
|
information for your drive. |
|
|
||
|
|
|
|
|
|
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting.
**During periods of drive idle, some offline activity may occur, according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels.
***Typical host systems will pull power to the drive when entering S3 and S4; while in the S3 and S4 states, drive sleep and drive standby modes will not contribute to battery power consumption.
EE25.2 Series Product Manual, Rev. E |
9 |
Table 4: |
Specifications for 30 Gbyte models |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Drive specification |
|
ST930817AM |
|
ST930818AM |
|
ST930817SM |
|
ST930818SM |
|
|
(Extreme) |
|
(Rugged) |
|
(Extreme) |
|
(Rugged) |
||
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
Formatted (512 bytes/sector)* |
|
30 Gbytes |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Guaranteed sectors |
|
58,605,120 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Interface |
|
|
PATA |
|
|
SATA |
|
||
|
|
|
|
|
|
|
|
|
|
Bytes per sector |
|
512 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Physical read/write heads |
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Discs |
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cache |
|
|
8 Mbytes |
|
|
|
|
|
|
|
|
|
|
|
|
||||
Recording density, BPI |
|
840k bits/inch (typical) |
|
|
|
||||
|
|
|
|
|
|
||||
Track density. TPI |
|
150k tracks/inch (typical) |
|
|
|
||||
|
|
|
|
|
|
|
|||
Areal density |
|
|
126 Gbits/inch2 (typical) |
|
|
|
|||
Spindle speed |
|
|
5,400 RPM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Internal data transfer rate |
|
450 Mbits/sec max |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
||
I/O data transfer rate |
|
100 Mbytes/sec |
|
|
Up to 3 Gbits/sec |
|
|||
|
|
|
|
|
|
|
|||
Sustained throughput, typical (nominal operating conditions) |
|
45 Mbytes/sec maximum |
|
|
|
||||
|
|
|
|||||||
ATA data-transfer modes supported |
|
PIO modes 0–4; Multiword DMA modes 0–2; Ultra DMA modes 0–5 |
|||||||
|
|
|
|
|
|
|
|||
Height |
|
|
9.5 +/-0.2 mm (0.374 +/-.008 inches) |
|
|
|
|||
|
|
|
|
|
|||||
Width |
|
|
69.85 +/-0.25 mm (2.750 +/-0.010 inches) |
|
|||||
|
|
|
|
|
|
|
|
|
|
Length |
|
|
100.2 +/-0.25 mm |
|
|
100.5 +/- 1.58 mm |
|
||
|
|
(3.945 +/-0.010 inches) |
|
(3.957 +/- 0.062 inches) |
|||||
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||
Weight |
|
|
102 grams (0.22 lb) (maximum) |
|
|
|
|||
|
|
|
|
|
|
|
|
||
Average latency |
|
5.6 msec |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Power-on to ready |
|
|
|
|
|
|
|
|
|
-20 to 85°C for extreme models (75°C for rugged models) |
|
3.0 seconds (typical), 5 seconds (max) |
|
||||||
-30 to -20°C (extreme models only) |
|
12 seconds (typical) |
|
|
|
||||
3 sigma maximum at extreme cold temperature |
|
<30 seconds |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Standby to ready |
|
|
|
|
|
|
|
|
|
-20 to 85°C for extreme models (75°C for rugged models) |
|
3.0 seconds (typical), 5 seconds (max) |
|
||||||
-30 to -20°C (extreme models only) |
|
12 seconds (typical) |
|
|
|
||||
3 sigma maximum at extreme cold temperature |
|
<30 seconds |
|
|
|
|
|
||
|
|
|
|
||||||
Track-to-track seek time |
|
1.0 msec (read, typical), 1.5 msec (write, typical) |
|
||||||
|
|
|
|
|
|
||||
Average seek time (random) |
|
12.5 msec (typical), 14 msec (max) |
|
|
|
||||
|
|
|
|
|
|
||||
Average seek, read (random) |
|
13 msec (typical), 14 msec (max) |
|
|
|
||||
|
|
|
|
|
|
||||
Average seek, write (random) |
|
14 msec (typical), 15 msec (max) |
|
|
|
||||
|
|
|
|
|
|
||||
Full-stroke seek |
|
23 msec (typical); 24 msec (max) |
|
|
|
||||
|
|
|
|
|
|
|
|
||
Startup current 5V |
|
1.30 amps (typical) |
|
|
1.30 amps (typical) |
||||
|
1.55 amps (max) |
|
|
1.55 amps (max) |
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|||||
Seek power at 25°C |
|
1.65 watts / 0.33 amps (typical) |
|
2.45 watts / 0.49 amps |
|||||
|
|
|
|
|
|||||
Read power at 25°C |
|
1.40 watts / 0.28 amps (typical) |
|
3.00 watts / 0.60 amps (typical) |
|||||
|
|
|
|
|
|||||
Write power at 25°C |
|
1.50 watts / 0.30 amps (typical) |
|
2.30 watts / 0.46 amps (typical) |
|||||
|
|
|
|
|
|||||
Idle mode (active idle at 25°C) |
|
1.65 watts / 0.33 amps (typical) |
|
2.35 watts / 0.47 amps (typical) |
|||||
|
|
|
|
|
|||||
Standby mode at 25°C |
|
0.26 watts / 0.05 amps (typical)*** |
|
1.10 watts / 0.22 amps (typical)*** |
|||||
|
|
|
|
|
|||||
Sleep mode at 25°C |
|
0.26 watts / 0.05 amps (typical)*** |
|
1.10 watts / 0.22 amps (typical)*** |
|||||
|
|
|
|
|
|
|
|
||
Voltage tolerance (including noise) |
|
5V ± 5% |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Ambient temperature |
|
-30° to 85°C (Extreme); -20° to 75°C (Rugged); |
|
||||||
Operating |
|
|
|
||||||
Nonoperating |
|
–40° to 95°C (Extreme and Rugged) |
|
|
|
10 |
EE25.2 Series Product Manual, Rev. E |
Drive specification |
ST930817AM |
|
ST930818AM |
ST930817SM |
|
ST930818SM |
(Extreme) |
|
(Rugged) |
(Extreme) |
|
(Rugged) |
|
|
|
|
||||
|
|
|
|
|
|
|
Temperature gradient |
20°C/hour (operating) |
|
|
|
||
(noncondensing) |
30°C/hour (nonoperating) |
|
|
|
||
|
|
|
|
|
||
Relative humidity (noncondensing) |
5% to 90% (operating) |
|
|
|
||
|
5% to 95% (nonoperating) |
|
|
|
||
|
|
|
|
|
|
|
Relative humidity gradient (noncondensing) |
30% per hour max |
|
|
|
|
|
|
|
|
|
|
||
Wet bulb temperature |
30°C (operating, max) |
|
|
|
||
|
40°C (nonoperating, max) |
|
|
|
||
|
|
|
||||
Altitude, operating (Extreme models: -30°C to 85°C) |
–304.8 m to 5,500 m (–1000 ft to 18,100 ft) |
|
||||
Altitude, operating (Rugged models: -20°C to 75°C) |
|
|
|
|
|
|
|
|
|
||||
Altitude, nonoperating (below mean sea level, max) |
–304.8 m to 12,192 m (–1,000 ft to 40,000 ft) |
|
||||
|
|
|
|
|
|
|
Shock, operating |
|
|
|
|
|
|
at 2 msec |
300 Gs max |
|
|
|
|
|
at 11 msec |
150 Gs max |
|
|
|
|
|
|
|
|
|
|
|
|
Shock, nonoperating |
|
|
|
|
|
|
at 2 msec |
800 Gs max |
|
|
|
|
|
at 1 msec |
900 Gs max |
|
|
|
|
|
at 0.5 msec |
400 Gs max |
|
|
|
|
|
|
|
|
||||
Vibration, operating (linear swept sine) |
2.0 Gs (0 to peak, 5–500 Hz); (X, Y, Z axis, 45° angles) |
|
||||
(max displacement may apply below 10 hz) |
|
|
|
|
|
|
Vibration, nonoperating (linear swept sine) |
5.0 Gs (0 to peak, 5–500 Hz); (X, Y, Z axis, 45° angles) |
|
||||
(max displacement may apply below 22 hz) |
|
|
|
|
|
|
|
|
|
||||
Vibration, operating (linear random) |
.003 G2/hz (5–500 Hz); (X, Y, Z axis, 45° angles) |
|
||||
Vibration, nonoperating (linear random) |
.025 G2/Hz, 3.5 Grms (5–500 Hz); (X, Y, Z axis, 45° angles) |
|||||
Drive acoustics, sound power |
|
|
|
|
|
|
Idle** |
1.7 Bels (typical) |
|
|
|
|
|
|
1.9 Bels (max) |
|
|
|
|
|
Seek |
1.9 Bels (typical) |
|
|
|
|
|
|
2.1 Bels (max) |
|
|
|
|
|
Nonrecoverable read errors |
1 per 1014 bits read |
|
|
|
||
Mean Time Before Failure (MTBF) |
1,000,000 power-on hours |
|
|
|
||
|
At 8,760 POH (Power On Hours) per year |
|
||||
|
Max ambient air temperature: 25°C. |
|
|
|
||
|
|
|
|
|
|
|
Load/Unload (U/UL) cycles |
|
|
|
|
|
|
25°C, 50% relative humidity |
1,200,000 software-controlled power on/off cycles |
|
||||
|
100,000 hard power on/off cycles |
|
|
|
||
-30°C, 0% relative humidity (extreme models) |
300,000 software-controlled |
|
|
|
||
85°C, 20% relative humidity (extreme models) |
100,000 hard power on/off cycles |
|
|
|
||
-20°C, 0% relative humidity (rugged models) |
300,000 software-controlled |
|
|
|
||
75°C, 20% relative humidity (rugged models) |
100,000 hard power on/off cycles |
|
|
|
||
Service life |
10 years (form, fit, and function replacement) |
|
||||
|
|
|||||
Warranty |
To determine the warranty for a specific drive, use a web browser to |
|||||
|
access the follow-ing web page: |
|
|
|
||
|
support.seagate.com/customer/warranty_validation.jsp |
|
||||
|
You will be asked to provide the drive serial number, model number (or |
|||||
|
part number) and country of purchase. |
|
||||
|
After submitting this information, the system will display the warranty |
|||||
|
information for your drive. |
|
|
|
||
|
|
|
|
|
|
|
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting.
**During periods of drive idle, some offline activity may occur, according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels.
***Typical host systems will pull power to the drive when entering S3 and S4; while in the S3 and S4 states, drive sleep and drive standby modes will not contribute to battery power consumption.
EE25.2 Series Product Manual, Rev. E |
11 |
Model |
Formatted capacity* |
Guaranteed sectors |
Bytes per sector |
|
|
|
|
ST980817AM |
80 Gbytes |
156,301,488 |
512 |
|
|
|
|
ST980818AM |
80 Gbytes |
156,301,488 |
512 |
|
|
|
|
ST980817SM |
80 Gbytes |
156,301,488 |
512 |
|
|
|
|
ST980818SM |
80 Gbytes |
156,301,488 |
512 |
|
|
|
|
ST960817AM |
60 Gbytes |
117,210,240 |
512 |
|
|
|
|
ST960818AM |
60 Gbytes |
117,210,240 |
512 |
|
|
|
|
ST960817SM |
60 Gbytes |
117,210,240 |
512 |
|
|
|
|
ST960818SM |
60 Gbytes |
117,210,240 |
512 |
|
|
|
|
ST940817AM |
40 Gbytes |
78,140,160 |
512 |
|
|
|
|
ST940818AM |
40 Gbytes |
78,140,160 |
512 |
|
|
|
|
ST940817SM |
40 Gbytes |
78,140,160 |
512 |
|
|
|
|
ST940818SM |
40 Gbytes |
78,140,160 |
512 |
|
|
|
|
ST930817AM |
30 Gbytes |
58,605,120 |
512 |
|
|
|
|
ST930818AM |
30 Gbytes |
58,605,120 |
512 |
|
|
|
|
ST930817SM |
30 Gbytes |
58,605,120 |
512 |
|
|
|
|
ST930818SM |
30 Gbytes |
58,605,120 |
512 |
|
|
|
|
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting.
Cylinders |
Read/write heads |
Sectors per track |
|
|
|
16,383 |
16 |
63 |
|
|
|
LBA mode
When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the number of guaranteed sectors as defined above.
12 |
EE25.2 Series Product Manual, Rev. E |
