SCHURTER SMD-SPT Technical data

Non resettable fuses

10

ø 5.2

20

+0.1

-0.2

±0.5

±0.2

5.5 5.5

5

9.5

Surface Mount Fuse, 5 x 20 mm, Time-Lag T, H, 250 VAC, Au plating

IEC 60127-2 · 250 VAC · 300 VDC · Time-Lag T

SMD-SPT

www.schurter.com/pg01_2

Description

- Directly solderable on printed circuit boards

- IEC Standard Fuse

- H = High Breaking Capacity

Standards

- IEC 60127-2/5

- UL 248-14

- CSA C22.2 no. 248.14

Approvals

- VDE License Number: 40010881

- UL File Number: E41599

Technical Data

Rated Voltage 250 VAC, 300 VDC
Rated Current 1 - 16 A
Breaking Capacity 500 A - 1500 A
Characteristic Time-Lag T
Mounting PCB,SMT
Admissible Ambient Air Temp. -55 °C to 125 °C
Climatic Category 55/125/21 acc. to IEC 60068-1
Material: Housing Ceramic
Material: Terminals Gold-Plated Copper Alloy
Unit Weight 1 g
Storage Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking , Current, Voltage, Characteristic,

Breaking Capacity

Applications

- Primary Protection on SMD PCB

References

General Product Information
Packaging Detail

s

Weblinks

Approvals, RoHS, CHINA-RoHS, e-Store, Distributor-Stock-Check,
Accessories, Product Change Notification (PCN)

Soldering Methods Reflow
Solderability 245 °C / 3 sec acc. to IEC 60068-2-58,

Resistance to Soldering Heat 260 °C / 10 sec acc. to IEC 60068-2-58,

Resistance to Vibration acc. to IEC 60068-2-6, test Fc
Moisture Resistance Test MIL-STD-202, Method 106E

Terminal Strength MIL-STD-202, Method 211A

Thermal Shock MIL-STD-202, Method 107D

Case Resistance acc. to EIA/IS-722, Test 4.7

Resistance to Solvents MIL-STD-202, Method 215A

Test Td

Test Td

(50 cycles in a temp./mister chamber)

(Deflection of board 1 mm for 1 minute)

(200 air-to-air cycles from -55 to
+125°C)

Ω (between leeds and body)

>100 M

Dimensions

20 mm

Soldering pads

Fuses

1

2

SMD-SPT

www.schurter.com/pg01_2

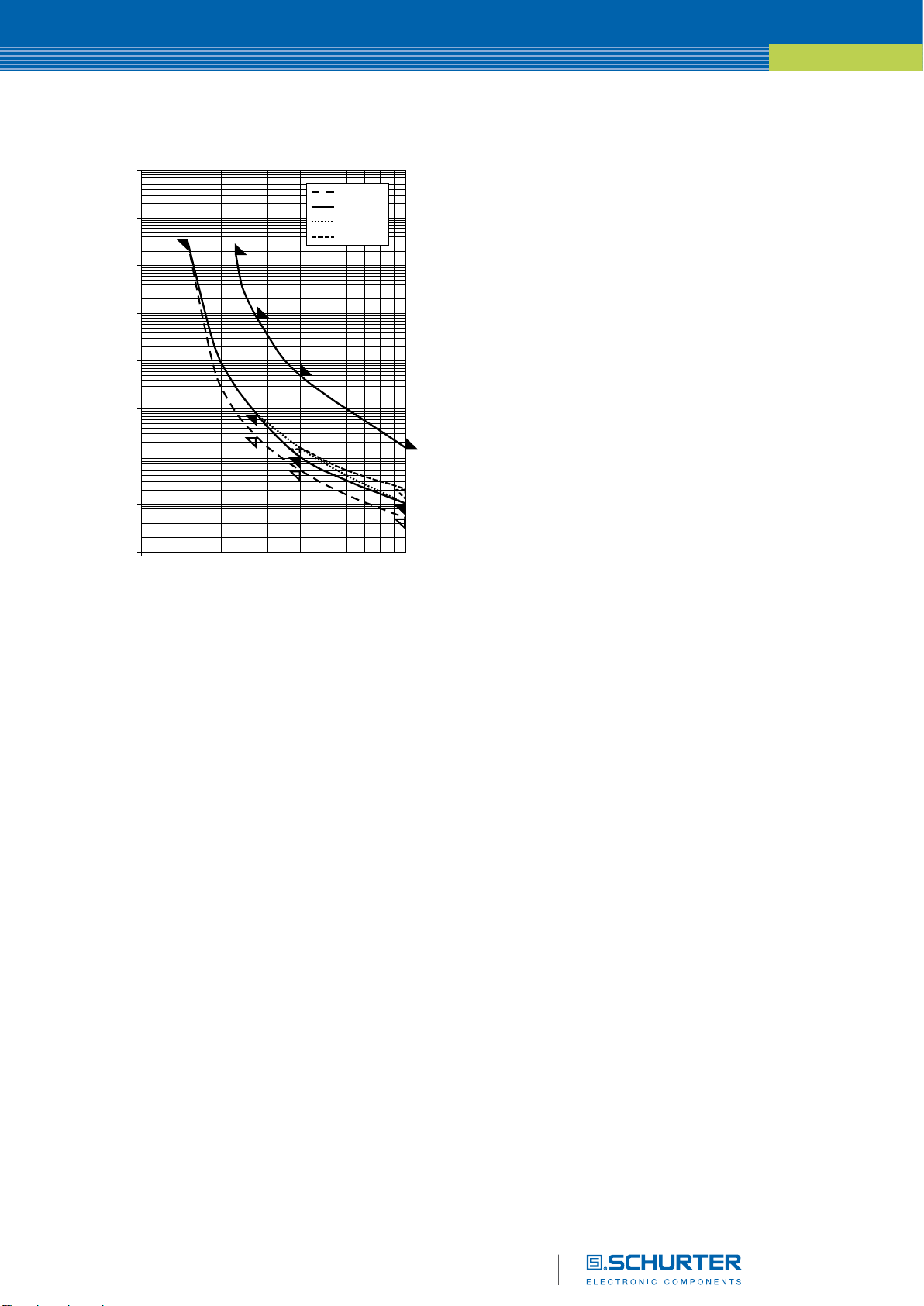

Pre-Arcing Time

Rated Current In 1.5 x In min. 2.1 x In max. 2.75 x In

min.

1 A - 3.15 A 60 min 30 min 750 ms 80 s 95 ms 5 s 10 ms 150 ms

4 A - 6.3 A 60 min 30 min 750 ms 80 s 150 ms 5 s 10 ms 150 ms

8 A - 10 A 30 min 30 min 750 ms 80 s 150 ms 5 s 10 ms 150 ms

12.5 A - 16 A 15 min 30 min 750 ms 80 s 150 ms 5 s 20 ms 150 ms

2.75 x In
max.

Variants

Rated Cur-

rent [A]

Rated Vol­tage [VAC]

Rated Vol-

tage [VDC]

Breaking
Capacity

Voltage Drop

1.0 In max.
[mV]

4.0 x In min. 4.0 x In max. 10.0 x In

Voltage Drop

1.0 In typ.
[mV]

Power Dissi-

pation 1.5 In

max. [mW]

Power Dissi-

pation 1.5 In

min.

typ. [mW]

10.0 x In
max.

Melting I²t

10.0 Intyp.
[A²s]

Non resettable fuses

Order Number

1 250 300 1) 250 180 2500 500 1.1

1.25 250 300 1) 250 150 2500 500 1.86

1.6 250 300 1) 200 130 2500 500 4.35

2 250 300 1) 190 120 2500 600 9.2

2.5 250 300 1) 180 100 2500 600 11.7

3.15 250 300 1) 140 100 4000 800 33.7

4 250 150 2) 100 90 4000 900 62.4

5 250 150 2) 100 90 4000 1200 97.5

6.3 250 150 2) 100 70 4000 1200 171

8 250 150 3) 100 70 4000 1300 268

10 250 150 3) 100 70 4000 2100 400

12.5 250 125 4) - 70 - 3100 563

16 250 125 4) - 70 - 4000 1272

1) IEC: 1500 A @ 250 VAC, p.f. = 0.7 - 0.8

1) UL: 10 kA @ 125 VAC, p.f. = 0.7 - 0.8 / 1500 A @ 250 VAC, p.f. = 0.7 - 0.8 / 1500 A @ 300 VDC

2) IEC: 1500 A @ 250 VAC, p.f. = 0.7 - 0.8

2) UL: 10 kA @ 125 VAC, p.f. = 0.7 - 0.8 / 1500 A @ 250 VAC, p.f. = 0.7 - 0.8 / 1500 A @ 150 VDC

3) IEC: 1000 A @ 250 VAC

3) UL: 1000 A @ 250 VAC / 1500 A @ 150 VDC

4) UL: 500 A @ 125 VAC, p.f. = 0.7 - 0.8 / 1000 A @ 125 VAC / 500 A @ 250 VAC / 1500 A @ 125 VDC

Packaging Unit

.xx = .11 Plastic Bag (100 pcs.)
.xx = .22 Blister Tape 38 cm Reel (1000 pcs.)

l l

l l

l l

l l

l l

l l

l l

l l

l l

l l

l l

0001.2704.xx

0001.2705.xx

0001.2706.xx

0001.2707.xx

0001.2708.xx

0001.2709.xx

0001.2710.xx

0001.2711.xx

0001.2712.xx

0001.2713.xx

0001.2714.xx

l

l

0001.2715.xx

0001.2716.xx

Fuses
