SCHURTER TASTER 1600.11 Datasheet [de, en]

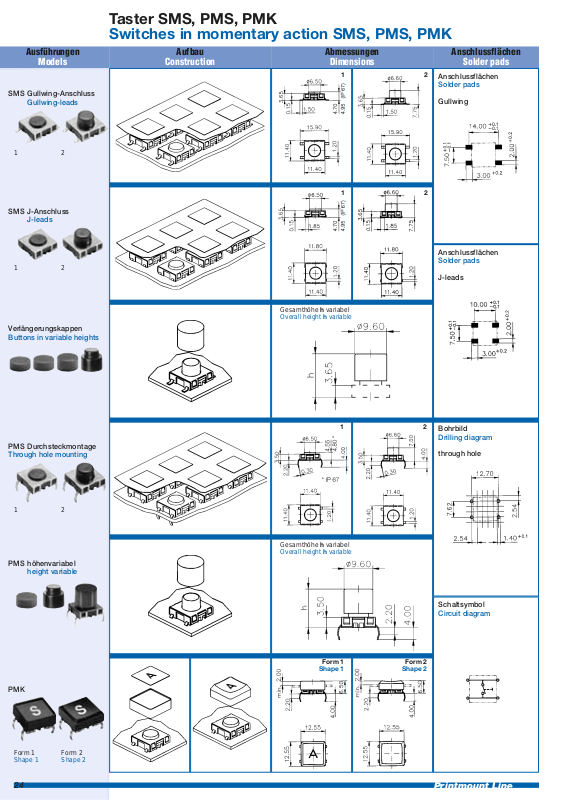

Page 1
Ausführungen
Models
SMS Gullwing-Anschluss
Gullwing-leads
21
Taster SMS, PMS, PMK
Switches in momentary action SMS, PMS, PMK
Aufbau
Construction
Abmessungen
1
2
Anschlussflächen
Solder pads
Gullwing
Anschlussflächen
Solder pads
SMS J-Anschluss
J-leads
21
Verlängerungskappen
Buttons in variable heights
PMS Durchsteckmontage
Through hole mounting
1
Gesamthöhe h variabel
Overall height h variable
1
2
Anschlussflächen
Solder pads
J-leads
2
Bohrbild
Drilling diagram
through hole
21
PMS höhenvariabel
height variable
PMK
Form 1
Shape 1
Form 2
Shape 2
Gesamthöhe h variabel
Overall height h variable
Form 1
Shape 1
Form 2
Shape 2
Schaltsymbol
Circuit diagram
24
Printmount Line
Page 2
Technische Daten SMS, PMS, PMK
Technical Data SMS, PMS, PMK
1. Mechanische Kennwerte / Mechanical data
Betätigungskraft / Actuating force IP 40
IP 67 Schaltweg / Contact travel Endanschlagfestigkeit (DIN 41640 Teil 19) / End stop strength Lebensdauer (IEC 512-5 Test 9a, Betätigungskraft 5N) / Lifetime
2. Elektrische Kennwerte / Electrical data
Schaltspannung max. / Switching voltage max. Schaltstrom max. / Switching current max. Lebensdauer (bei Nennschaltleistung 0,12W)
Lifetime (at rated breaking capacity 0,12W)
Durchgangswiderstand, neu (IEC 512-2, mV-Methode)
Initial contact resistance, new
Durchgangswiderstand, nach 106 Schaltungen
Initial contact resistance after 106 cycles
Isolationswiderstand (IEC 512-2) / Insulation resistance Prellzeit / Contact bounce time
1,8N ±0,4N 2,2N ±0,4N
0,35mm ±0,1mm
> 106 Betätigungen Operations
PMS PMKSMS
1,8N ±0,4N 2,2N ±0,4N
0,35mm ±0,1mm
> 100N
30V AC / 42V DC
50mA
> 106 Schaltungen
Cycles
< 50mΩ
< 150mΩ
8
> 10
Ω
typ. 0,15ms
2,2N ±0,4N
0,30mm ±0,1mm
3. SonstigeKennwerte / Other data
Lötbarkeit / Solderability (CECC 00802 und IEC 68-2-20) Lötwärmebeständigkeit (IEC 68-2-20 Test Tb, Methode 1A)
Soldering heat resistance (IEC 68-2-20 Test Tb, Methode 2)
(CECC 00802 Klassifikation B)
(CECC 00802 Klassifikation C) Umgebungstemperatur / Ambient temperature Lagertemperatur / Storage temperature Reinigungsmittelbeständigkeit (IEC 68-2-45) Testmedium
Cleaning agent proof
Flussmitteldichtigkeit (DIN 41640 Teil 84) / Flux-proof
Schutzgrad / Degree of protection
4. Werkstoffe / Materials
Kontaktmaterial Gold / Contact material gold Anschlüsse / Terminals Sockel / Socket
IR-Reflow
350°C / 10s 215°C / 40s 260°C / 10s
—
IP 40 / IP 67
PMS PMKSMS
260°C / 10s 350°C / 10s
-40°C…+85°C
-40°C…+85°C Zestron
gegeben
given
IP 40 / IP 67
PMS PMKSMS
CuZn – 1,5µm Ni + 0,5µm Au
CuZn – 8µm SnPb
Thermoplast PA 4.6
260°C / 10s 350°C / 10s
gegeben
given
IP 67
Betätiger / Actuator Abdeckblech / Cover plate Dichtmembrane / Sealing membrane
5. Verpackung / Packaging
Printmount Line
im Blistergurt
taped and reeled
lose geschüttet
loose in boxes
Thermoplast PPS
X12CrNi17 7
VMQ VMQ—
PMS PMKSMS
lose geschüttet
loose in boxes
lose geschüttet
loose in boxes
25
Page 3
Ausführungen
Models
SMS
Gullwing-Anschluss
Gullwing-leads
Taster SMS, PMS
Switches in momentary action SMS, PMS
Varianten
Variations
Schutzgrad
Degree of protection
IP 40 IP 67
Artikelnummer
Part Number
1241.1600.XX
1241.1606.XX
J-Anschluss
J-leads
Gullwing-Anschluss
Gullwing-leads
J-Anschluss
J-leads
Zusätzl. Verlängerungs­kappen für lange Betätiger
(muss separat bestellt werden)
Button in variable heights for long actuators
(must be ordered seperately)
h
PMS
Kurzer Betätiger
Short actuator
Verpackung
IP 40 IP 67
IP 40 IP 67
IP 40 IP 67
lose geschüttet
loose in boxes
1241.1601.XX
1241.1607.XX
1241.1612.XX
1241.1618.XX
1241.1613.XX
1241.1619.XX
1241.1613. 11
Packaging
im Blistergurt
Gesamthöhe h
Overall height h
1
Zusätzl. Verlängerungskappe
8,50mm
9,25mm 10,00mm 10,75mm 11,50mm 12,25mm 13,00mm 13,75mm
taped and reeled
(gelb / yellow)
(orange / orange)
(rot / red)
(blau / blue)
(grün / green)
(grau / grey)
(schwarz / black)
(weiß / white)
1241.1613. 23
0862.8101
0862.8102
0862.8103
0862.8104
0862.8105
0862.8106
0862.8107
0862.8108
0862.8226
additional key cap
1
Ab 14,50 mm zusätzl. (zweite) Verlängerungskappen für Zwischengrößen (h +6mm) erforderlich. Muss separat bestellt werden.
Starting with 14,50 mm, additional (second) key caps for midsizes (h +6 mm) are necessary. Order seperately.
Schutzgrad
IP 40
1241.1602
Degree of protection
IP 67
1241.1608
Langer Betätiger
Long actuator
Höhenvariabel
Height variable
h
26
IP 40
IP 67
Schutzgrad
IP 40
Degree of protection
IP 67
Gesamthöhe h
Overall height h
2
Ab 14,35 mm werden die Höhen mit einer zusätzl. (zweiten) Verlängerungskappe realisiert.
Starting with 14,35 mm the heights were realized with an additional (second) keycap.
(gelb / yellow) (orange / orange) (rot / red) (blau / blue) (grün / green) (grau / grey) (schwarz / black) (weiß / white)
8,35mm = 1 9,10mm = 2
9,85mm = 3 10,60mm = 4 11,35mm = 5 12,10mm = 6 12,85mm = 7 13,60mm = 8
1241.1614
1241.1620
1241.1624. XX
1241.1625. XX
2
14,35mm = 11 15,10mm = 21 15,85mm = 31 16,60mm = 41 17,35mm = 51 18,10mm = 61 18,85mm = 71 19,60mm = 81
Printmount Line
Page 4
PMK und Tastkappen für SMS, Taskappen zur Beleuchtung
PMK and key caps for SMS, Illumination key caps
Ausführungen
Models
PMK
Form 1
Shape 1
Schutzgrad IP 67
Degree of protection
Varianten
Variations
beschriftet / with legend unbeschriftet / without legend
Artikelnummer
Part Number
1241.1629.X.XXX
1241.1629.X.XXX
Form 2
Shape 2
Form 1
Shape 1
Form 2
Shape 2
SMS
Tastkappe
Key cap
Einlegeschild
Insert plate
Tastkappe
Key cap
Grundmodul
Base module
PMK
Tastkappe
Key cap
Form 1
Shape 1
Form 2
Shape 2
für IP 67 mit kurzem Betätiger
for IP 67 with short actuator
Farbe der Tastkappe
Colour of key cap
Beschriftung Tastkappe/Ein­legeschild (Schrifthöhe/ Schriftarten siehe Seite 39)
Legend of key cap/insert plate (Type height/ type face see page 39)
A= 001
B= 002 C= 003 D= 004
E= 005
F= 006 G= 007 H= 008
I= 009
J= 010
K= 011
L= 012
M= 013
N= 014 O= 015
beschriftet / with legend unbeschriftet / without legend
beschriftet / with legend unbeschriftet / without legend
beschriftet / with legend unbeschriftet / without legend
rot red grün green grau grey
schwarz black
weiß white
P= 016
Q= 017
R= 018 S= 019 T= 020
U= 021
V= 022
W= 023
X= 024 Y= 025 Z= 026
0= 027 1= 028 2= 029 3= 030
4= 031 5= 032 6= 033 7= 034 8= 035 9= 036 += 037
-= 038
·= 039 x= 040 ÷= 041
S = 042
== 043 #= 044
↔ = 045
1241.1633.X.XXX
1241.1633.X.XXX
0865.9541.X.XXX
0865.9541.X.XXX
0865.9542.X.XXX
0862.800 X
0865.9542. 3
0865.9542. 5
0865.9542. 6
0865.9542. 7
0865.9542. 8
◊ = 046
→ = 047 ← = 048
↓ = 049 ↑ = 050
%= 051
√ = 052
CTRL= 053
RETURN= 054
SHIFT= 055
LOCK= 056 STOP= 057
ENTER= 058
BACK= 059
LINE= 060
EIN= 061
AUS= 062
AUF= 063
AB= 064
ON= 065
OFF= 066
UP= 067
DOWN= 068
HIGH= 069
LOW= 070
ON/OFF= 071
START= 072
Grundmodul
Base module
Tastkappe als Beleuchtungs-Aufsatz
Illumination key cap
Printmount Line
Farbe des Einlegeschildes bei unbeschrifteter Ausführung Form 1
Colour of insert plate without legend shape 1
In Vorbereitung / In Preparation Farbe der Tastkappe
Colour of key cap
Aufragsbezogene Fertigung / Order specific production
gelb yellow = 091
orange orange = 092
rot red = 093
blau blue = 094
grün green = 095
transparent
transparent
grau grey = 096
schwarz black = 097
weiß white = 098
anthrazit anthracite = 099
0859.9335
27
