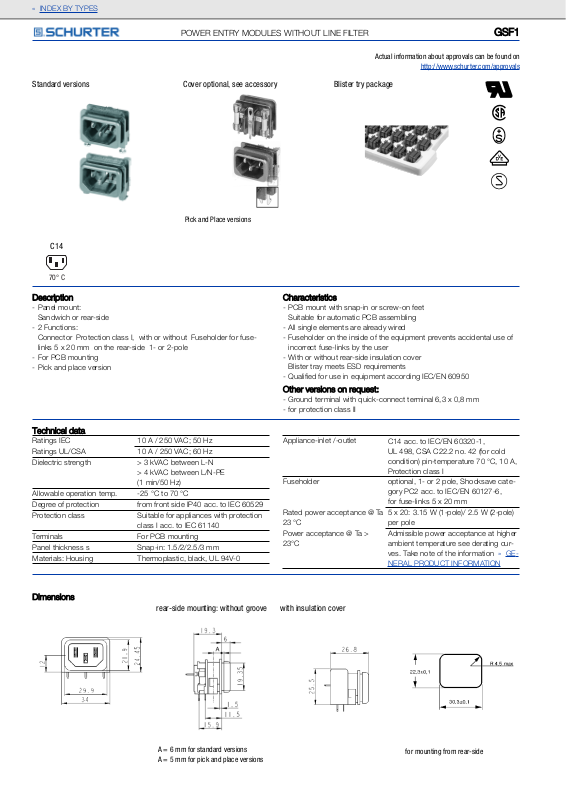

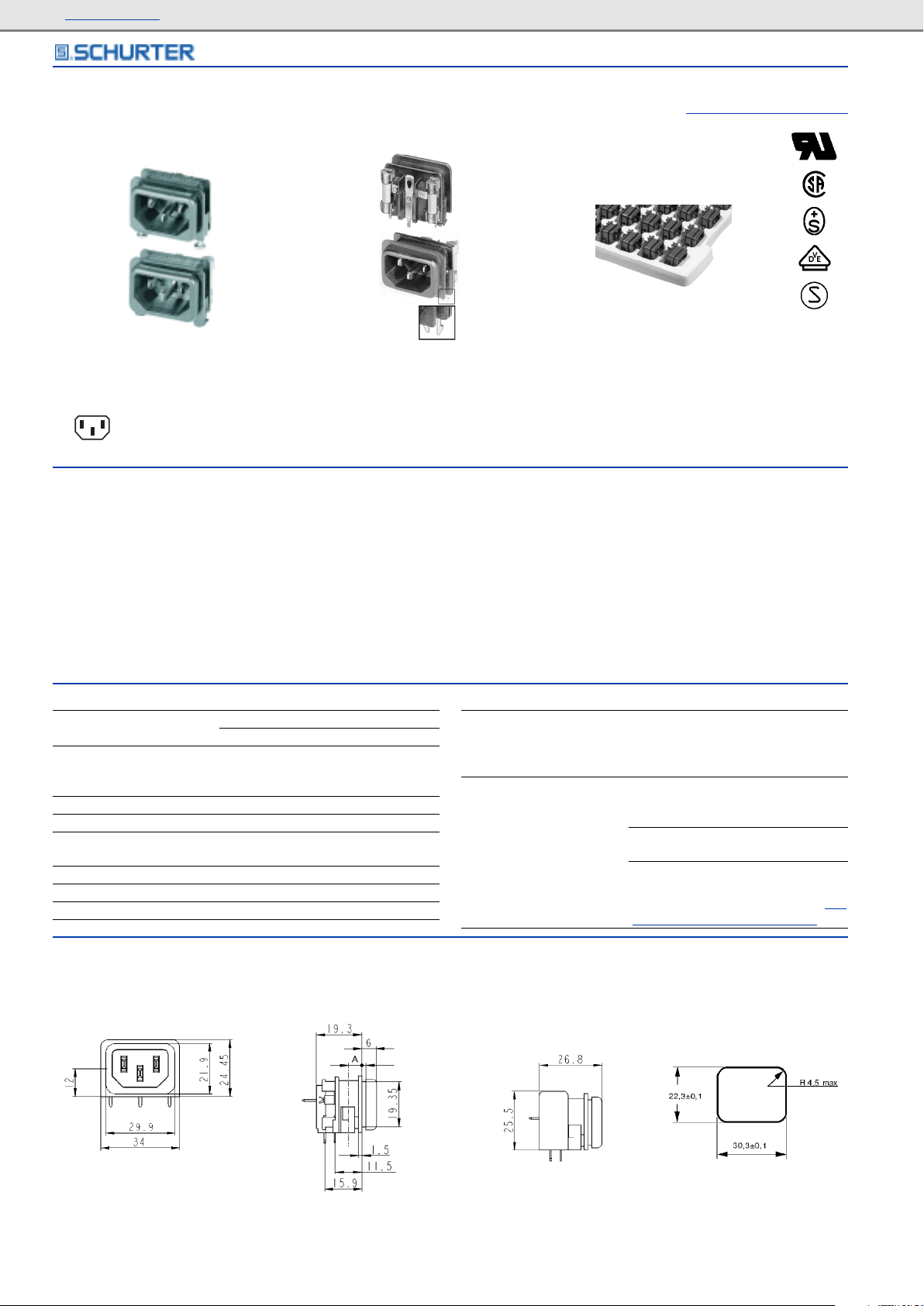

Page 1
« INDEX BY TYPES
POWER ENTRY MODULES WITHOUT LINE FILTER
GGSSFF1
1
Standard versions Cover optional, see accessory
Pick and Place versions
C14
70° C
DDeessccrriippttiioonn
- Panel mount:
Sandwich or rear-side
- 2 Functions:
Connector Protection class I, with or without Fuseholder for fuselinks 5 x 20 mm on the rear-side 1- or 2-pole
- For PCB mounting
- Pick and place version
Actual information about approvals can be found on
http://www
.schurter.com/approvals
Blister try package
CChhaarraacctteerriissttiiccs
- PCB mount with snap-in or screw-on feet
Suitable for automatic PCB assembling
- All single elements are already wired
- Fuseholder on the inside of the equipment prevents accidental use of
incorrect fuse-links by the user
- With or without rear-side insulation cover
Blister tray meets ESD requirements
- Qualified for use in equipment according IEC/EN 60950
OOtthheerr vveerrssiioonnss oonn rreeqquueesstt:
- Ground terminal with quick-connect terminal 6,3 x 0,8 mm
- for protection class II
s
:
TTeecchhnniiccaall ddaatta
Ratings IEC 10 A / 250 VAC; 50 Hz
Ratings UL/CSA 10 A / 250 VAC; 60 Hz
Dielectric strength
Allowable operation temp. -25 °C to 70 °C
Degree of protection from front side IP40 acc. to IEC 60529
otection class
Pr
Terminals For PCB mounting
Panel thickness s Snap-in: 1.5/2/2.5/3 mm
Materials: Housing Thermoplastic, black, UL 94V
DDiimmeennssiioonns
a
> 3 kVAC between L-N
AC between L/N-PE
> 4 kV
(1 min/50 Hz)
Suitable for appliances with pr
class I acc. to IEC 61140
otection
-0
s
-side mounting:
rear
without groove
Appliance-inlet /-outlet
Fuseholder optional, 1- or 2 pole, Shocksave cate-
Rated power acceptance @ T
23 °C
Power acceptance @ Ta >
23°C
with insula
tion cover
C14 acc. to IEC/EN 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
condition) pin-temperature 70 °C, 10 A,
Protection class I
gory PC2 acc. to IEC/EN 60127-6,
for fuse-links 5 x 20 mm
a
5 x 20: 3.15 W (1-pole)/ 2.5 W (2-pole)
per pole
Admissible power acceptance at higher
ambient temperature see derating curves. Take note of the information »GE-
NERAL PRODUCT INFORMATION
A = 6 mm for standard versions
A = 5 mm for pick and place versions
for mounting from rear-side
Page 2
« INDEX BY TYPES
POWER ENTRY MODULES WITHOUT LINE FILTER
GGSSFF1
1
A = 6 mm for standard versions
A = 5 mm for pick and place versions

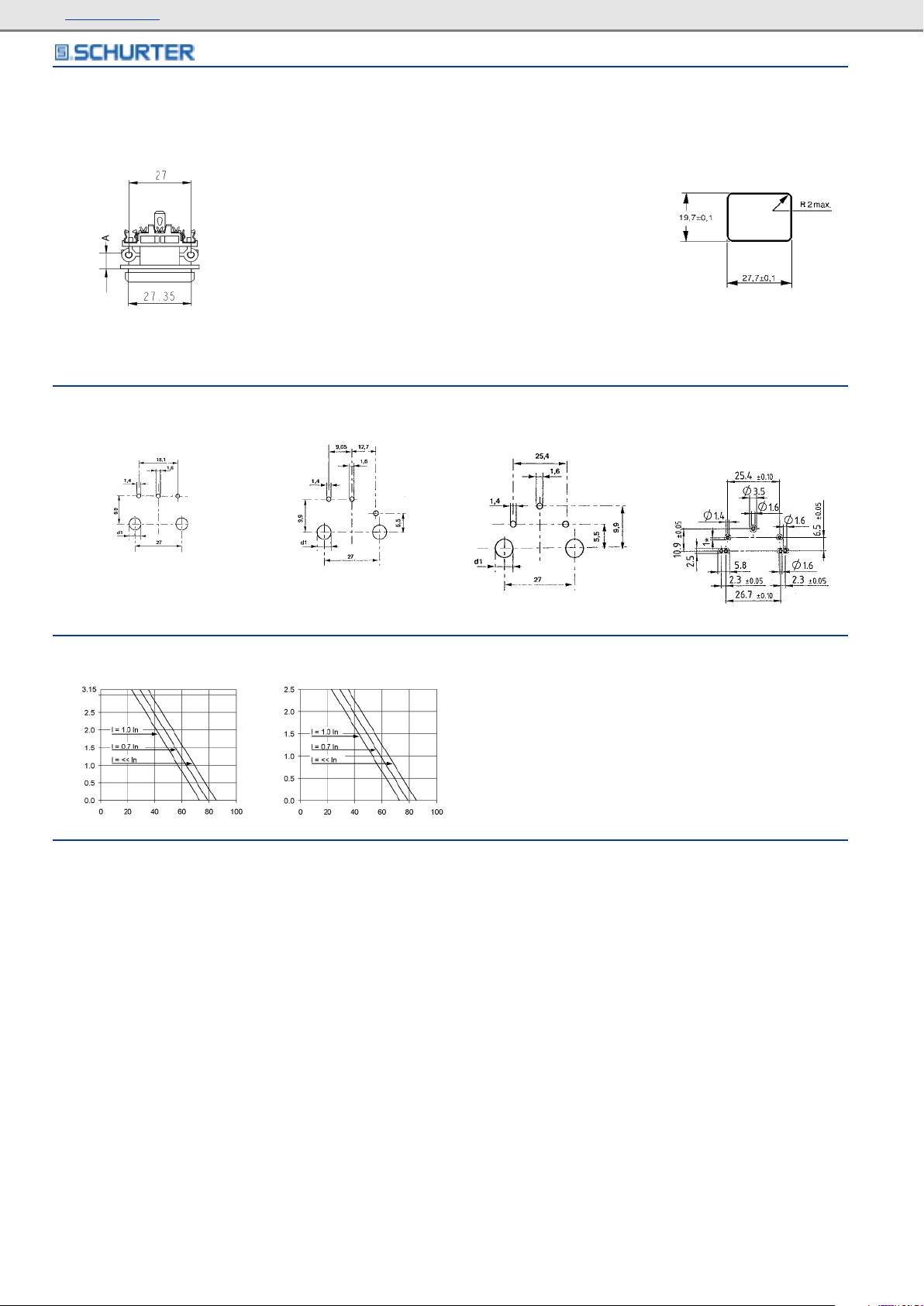

DDrriilllliinngg ddiiaaggrraamms
s
without fuseholder
d1 for snap-in mounting = 6 ± 0.05
d1 for self-tapping screw = 3.6 ± 0.1
DDeerraattiinngg ccuurrvvees
s
1-pole
tance in Watt
Admissible power accep-
Ambient air temperature Ta °C
with 1-pole fuseholder
d1 for snap-in mounting = 6 ± 0.05
d1 for self-tapping screw = 3.6 ± 0.1
2-pole
tance in Watt per pole
Admissible power accep-
Ambient air temperature Ta °C
with 2-pole fuseholder
d1 for snap-in mounting = 6 ± 0.05
d1 for self-tapping screw = 3.6 ± 0.1
for sandwich mounting
Pick and Place versions
without / with 1-pole or
2-pole fuseholder
1* only for protection class II
Page 3
« INDEX BY TYPES
s
VVaarriiaanntts
POWER ENTRY MODULES WITHOUT LINE FILTER
GGSSFF1
1
OOrrddeerr NNuummbbeerr MMoouunnttiinngg ssiiddee PPaanneell mmoouunnttiinngg PPaanneell tthhiicckknneessss ss
[[mmmm]]
GSF1.0202.31 Sandwich Snap-in 1.5
GSF1.0202.41 Sandwich Snap-in 2
GSF1.0202.51 Sandwich Snap-in 2.5
GSF1.0202.61 Sandwich Snap-in 3
GSF1.0201.31 Sandwich Snap-in 1.5
GSF1.0201.41 Sandwich Snap-in 2
GSF1.0201.51 Sandwich Snap-in 2.5
GSF1.0201.61 Sandwich Snap-in 3
GSF1.1202.31 Sandwich Snap-in 1.5 1-pole
GSF1.1202.41 Sandwich Snap-in 2 1-pole
GSF1.1202.51 Sandwich Snap-in 2.5 1-pole
GSF1.1202.61 Sandwich Snap-in 3 1-pole
GSF1.1201.31 Sandwich Snap-in 1.5 1-pole
GSF1.1201.41 Sandwich Snap-in 2 1-pole
GSF1.1201.51 Sandwich Snap-in 2.5 1-pole
GSF1.1201.61 Sandwich Snap-in 3 1-pole
GSF1.2202.31 Sandwich Snap-in 1.5 2-pole
GSF1.2202.41 Sandwich Snap-in 2 2-pole
GSF1.2202.51 Sandwich Snap-in 2.5 2-pole
GSF1.2202.61 Sandwich Snap-in 3 2-pole
GSF1.2201.31 Sandwich Snap-in 1.5 2-pole
GSF1.2201.41 Sandwich Snap-in 2 2-pole
GSF1.2201.51 Sandwich Snap-in 2.5 2-pole
GSF1.2201.61 Sandwich Snap-in 3 2-pole
GSF1.0002.31 Sandwich Screw-on 1.5
GSF1.0002.41 Sandwich Screw-on 2
GSF1.0002.51 Sandwich Screw-on 2.5
GSF1.0002.61 Sandwich Screw-on 3
GSF1.0001.31 Sandwich Screw-on 1.5
GSF1.0001.41 Sandwich Screw-on 2
GSF1.0001.51 Sandwich Screw-on 2.5
GSF1.0001.61 Sandwich Screw-on 3
GSF1.1002.31 Sandwich Screw-on 1.5 1-pole
GSF1.1002.41 Sandwich Screw-on 2 1-pole
GSF1.1002.61 Sandwich Screw-on 3 1-pole
GSF1.1001.31 Sandwich Screw-on 1.5 1-pole
GSF1.1001.41 Sandwich Screw-on 2 1-pole
GSF1.1001.51 Sandwich Screw-on 2.5 1-pole
GSF1.1001.61 Sandwich Screw-on 3 1-pole
GSF1.2002.31 Sandwich Screw-on 1.5 2-pole
GSF1.2002.41 Sandwich Screw-on 2 2-pole
GSF1.2002.51 Sandwich Screw-on 2.5 2-pole
GSF1.2002.61 Sandwich Screw-on 3 2-pole
GSF1.2001.31 Sandwich Screw-on 1.5 2-pole
GSF1.2001.41 Sandwich Screw-on 2 2-pole
GSF1.2001.51 Sandwich Screw-on 2.5 2-pole
GSF1.2001.61 Sandwich Screw-on 3 2-pole
GSF1.3402.01 rear-side Metal snaps 6
GSF1.4402.01 rear-side Metal snaps 6 1-pole
FFuusseehhoollddeerr GGrroouunndd tteerrmmiinnaall
44..88 xx 00..88 mmmm
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
GGrroouunndd tteerrmmiinnaall ddiirreeccttiioonn PPaacckkaaggee
angled to pin axis
angled to pin axis
angled to pin axis
angled to pin axis
straight
straight
straight
straight
angled to pin axis
angled to pin axis
angled to pin axis
angled to pin axis
straight
straight
straight
straight
angled to pin axis
angled to pin axis
angled to pin axis
angled to pin axis
straight
straight
straight
straight
angled to pin axis
angled to pin axis
angled to pin axis
angled to pin axis
straight
straight
straight
straight
angled to pin axis
angled to pin axis
angled to pin axis
straight
straight
straight
straight
angled to pin axis
angled to pin axis
angled to pin axis
angled to pin axis
straight
straight
straight
straight
angled to pin axis Blister tray package
angled to pin axis Blister tray package
Page 4
« INDEX BY TYPES
s
VVaarriiaanntts
POWER ENTRY MODULES WITHOUT LINE FILTER
GGSSFF1
1
OOrrddeerr NNuummbbeerr MMoouunnttiinngg ssiiddee PPaanneell mmoouunnttiinngg PPaanneell tthhiicckknneessss ss
[[mmmm]]
GSF1.5402.01 rear-side Metal snaps 6 2-pole
GSF1.0202.01 rear-side Snap-in 6
GSF1.0201.01 rear-side Snap-in 6
GSF1.1202.01 rear-side Snap-in 6 1-pole
GSF1.1201.01 rear-side Snap-in 6 1-pole
GSF1.2202.01 rear-side Snap-in 6 2-pole
GSF1.2201.01 rear-side Snap-in 6 2-pole
GSF1.0002.01 rear-side Screw-on 6
GSF1.0001.01 rear-side Screw-on 6
GSF1.1002.01 rear-side Screw-on 6 1-pole
GSF1.1001.01 rear-side Screw-on 6 1-pole
GSF1.2002.01 rear-side Screw-on 6 2-pole
GSF1.2001.01 rear-side Screw-on 6 2-pole
Insulation cover must be ordered separately. Order No. 0098.0078
PPaacckkaaggiinngg uunniitt
50 Pcs
FFuusseehhoollddeerr GGrroouunndd tteerrmmiinnaall
44..88 xx 00..88 mmmm
l
l
l
l
l
l
l
l
l
l
l
l
l
GGrroouunndd tteerrmmiinnaall ddiirreeccttiioonn PPaacckkaaggee
angled to pin axis Blister tray package
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
angled to pin axis
straight
