Schneider ATV312H055M2, ATV312H037M2, ATV312HU30N4, ATV312HU15N4, ATV312H055N4 User Manual

2354235 11/2008

Altivar 312

Variable speed drives for asynchronous motors

Programming manual

07/2014

BBV46385

www.schneider-electric.com

The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein. This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications. It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation, and testing of the products with respect to the relevant specific application or use thereof. Neither Schneider Electric nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein. If you have any suggestions for improvements or amendments or have found errors in this publication, please notify us.

No part of this document may be reproduced in any form or by any means, electronic, or mechanical, including photocopying, without express written permission of Schneider Electric.

All pertinent state, regional, and local safety regulations must be observed when installing and using this product. For reasons of safety and to help ensure compliance with documented system data, only the manufacturer should perform repairs to components.

When devices are used for applications with technical safety requirements, the relevant instructions must be followed.

Failure to use Schneider Electric software or approved software with our hardware products may result in injury, harm, or improper operating results.

2 BBV46385 01/2014

Contents

Important information __________________________________________________________________________________________ 4 Before you begin______________________________________________________________________________________________ 5 Documentation structure________________________________________________________________________________________ 7 Software enhancements________________________________________________________________________________________ 8 Steps for setting up the drive ____________________________________________________________________________________ 9 Setup - Preliminary Recommendations ___________________________________________________________________________ 10 Factory configuration _________________________________________________________________________________________ 11 Basic functions ______________________________________________________________________________________________ 12 Remote display terminal option, ATV31 ___________________________________________________________________________ 14 Remote graphic display terminal option, ATV61/ATV71_______________________________________________________________ 15 Remote display terminal option, ATV12 ___________________________________________________________________________ 19 Structure of the parameter tables ________________________________________________________________________________ 20 Compatibility of functions ______________________________________________________________________________________ 21 List of functions that can be assigned to inputs/outputs_______________________________________________________________ 23 List of functions that can be assigned to the Network and Modbus control word bits ________________________________________ 25 Checklist ___________________________________________________________________________________________________ 26 Programming _______________________________________________________________________________________________ 27 [SPEED REFERENCE] (rEF-) menu _____________________________________________________________________________ 31 [SETTINGS] (SEt-) menu ______________________________________________________________________________________ 32 [MOTOR CONTROL] (drC-) menu _______________________________________________________________________________ 41 [INPUTS / OUTPUTS CFG] (I-O-) menu __________________________________________________________________________ 47 [COMMAND] (CtL-) menu______________________________________________________________________________________ 50 [COMMAND] (CtL-) menu______________________________________________________________________________________ 61 [APPLICATION FUNCT.] (FUn-) menu ___________________________________________________________________________ 62 [FAULT MANAGEMENT] (FLt-) menu ____________________________________________________________________________ 91 [COMMUNICATION] (COM-) menu ______________________________________________________________________________ 98 [MONITORING] (SUP-) menu _________________________________________________________________________________ 100 Migration ATV31 - ATV312____________________________________________________________________________________ 105 Diagnostics and troubleshooting________________________________________________________________________________ 106 Index of functions ___________________________________________________________________________________________ 111 Index of parameter codes and customer settings___________________________________________________________________ 112

BBV46385 07/2014 3

Important information

The addition of this symbol to a Danger or Warning safety label indicates that an electrical hazard exists, which will result in

personal injury if the instructions are not followed.

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow

this symbol to avoid possible injury or death.

NOTICE

Read these instructions carefully, and look at the equipment to become familiar with the device before trying to install, operate, or maintain it. The following special messages may appear throughout this documentation or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death, serious injury or

equipment damage.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, can result in death, serious injury or

equipment damage.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, can result in injury or equipment damage.

CAUTION

CAUTION, used without the safety alert symbol, indicates a potentially hazardous situation which, if not avoided, can

result in equipment damage.

PLEASE NOTE

The word "drive" as used in this manual refers to the "controller portion" of the adjustable speed drive as defined by NEC.

Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this documentation.

4 BBV46385 07/2014

Before you begin

Read and understand these instructions before performing any procedure with this drive.

DANGER

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

• Only appropriately trained persons who are familiar with and understand the contents of this manual and all other pertinent product documentation and who have received safety training to recognize and avoid hazards involved are authorized to work on and with this drive system. Installation, adjustment, repair and maintenance must be performed by qualified personnel.

• The system integrator is responsible for compliance with all local and national electrical code requirements as well as all other applicable regulations with respect to grounding of all equipment.

• Many components of the product, including the printed circuit boards, operate with mains voltage. Do not touch. Use only electrically insulated tools.

• Do not touch unshielded components or terminals with voltage present.

• Motors can generate voltage when the shaft is rotated. Prior to performing any type of work on the drive system, block the motor shaft to prevent rotation.

• AC voltage can couple voltage to unused conductors in the motor cable. Insulate both ends of unused conductors of the motor cable.

• Do not short across the DC bus terminals or the DC bus capacitors or the braking resistor terminals.

• Before performing work on the drive system:

- Disconnect all power, including external control power that may be present.

- Place a "Do Not Turn On" label on all power switches.

- Lock all power switches in the open position.

- Wait 15 minutes to allow the DC bus capacitors to discharge. The DC bus LED is not an indicator of the absence of DC bus voltage that can exceed 800 Vdc.

- Measure the voltage on the DC bus between the DC bus terminals using a properly rated voltmeter to verify that the voltage is < 42 Vdc.

- If the DC bus capacitors do not discharge properly, contact your local Schneider Electric representative.

• Install and close all covers before applying voltage.

Failure to follow these instructions will result in death or serious injury.

DANGER

UNINTENDED EQUIPMENT OPERATION

• Read and understand this manual before installing or operating the Altivar 312 drive.

• Any changes made to the parameter settings must be performed by qualified personnel.

Failure to follow these instructions will result in death or serious injury.

WARNING

DAMAGED EQUIPMENT

Do not install or operate any drive that appears damaged.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

BBV46385 07/2014 5

Before you begin

WARNING

LOSS OF CONTROL

• The designer of any control scheme must consider the potential failure modes of control paths and, for critical control functions, provide a means to achieve a safe state during and after a path failure. Examples of critical control functions are emergency stop, overtravel stop, power outage, and restart.

• Separate or redundant control paths must be provided for critical control functions.

• System control paths may include communication links. Consideration must be given to the implications of unanticipated transmission delays or failures of the link.

• Observe all accident prevention regulations and local safety guidelines.

• Each implementation of the product must be individually and thoroughly tested for proper operation before being placed into service.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

a. For USA: Additional information, refer to NEMA ICS 1.1 (latest edition), “Safety Guidelines for the Application, Installation, and Maintenance of Solid State Control”

and to NEMA ICS 7.1 (latest edition), “Safety Standards for Construction and Guide for Selection, Installation and Operation of Adjustable Speed Drive Systems.”

a

6 BBV46385 07/2014

Documentation structure

The following Altivar 312 technical documents are available on the Schneider Electric website (www.schneider-electric.com).

Installation Manual

This manual describes how to install and connect the drive.

Programming manual

This manual describes the functions and parameters of the drive's terminals and how to use them.

Quick Start

This document describes how to connect and configure the drive so that the motor can be started both quickly and easily for basic applications. This document is supplied with the drive.

Manuals for Modbus®, CANopen®, etc.

These manuals describe the installation process, the bus or network connections, signaling, diagnostics and the configuration of parameters specific to communication. They also describe the communication services of the protocols.

BBV46385 07/2014 7

Software enhancements

Since it was first marketed, the Altivar ATV 312 has been equipped with additional functions. Software version V5.1 IE 50 has now been updatedto V5.1 IE 54. This documentation relates to version V5.1 IE 54. The software version appears on the rating plate attached to the side of the drive.

Enhancements made to version V5.1 IE 54 in comparison to V5.1 IE 50

New possible configuration

- Local configuration : By pressing the MODE button during 3 seconds, the drive switches automatically to Local configuration. The embedded Jog Dial works as a potentiometer (Fr1 = AIV1) and embedded RUN button is activated.

- Remote configuration : This is the factory configuration.

8 BBV46385 07/2014

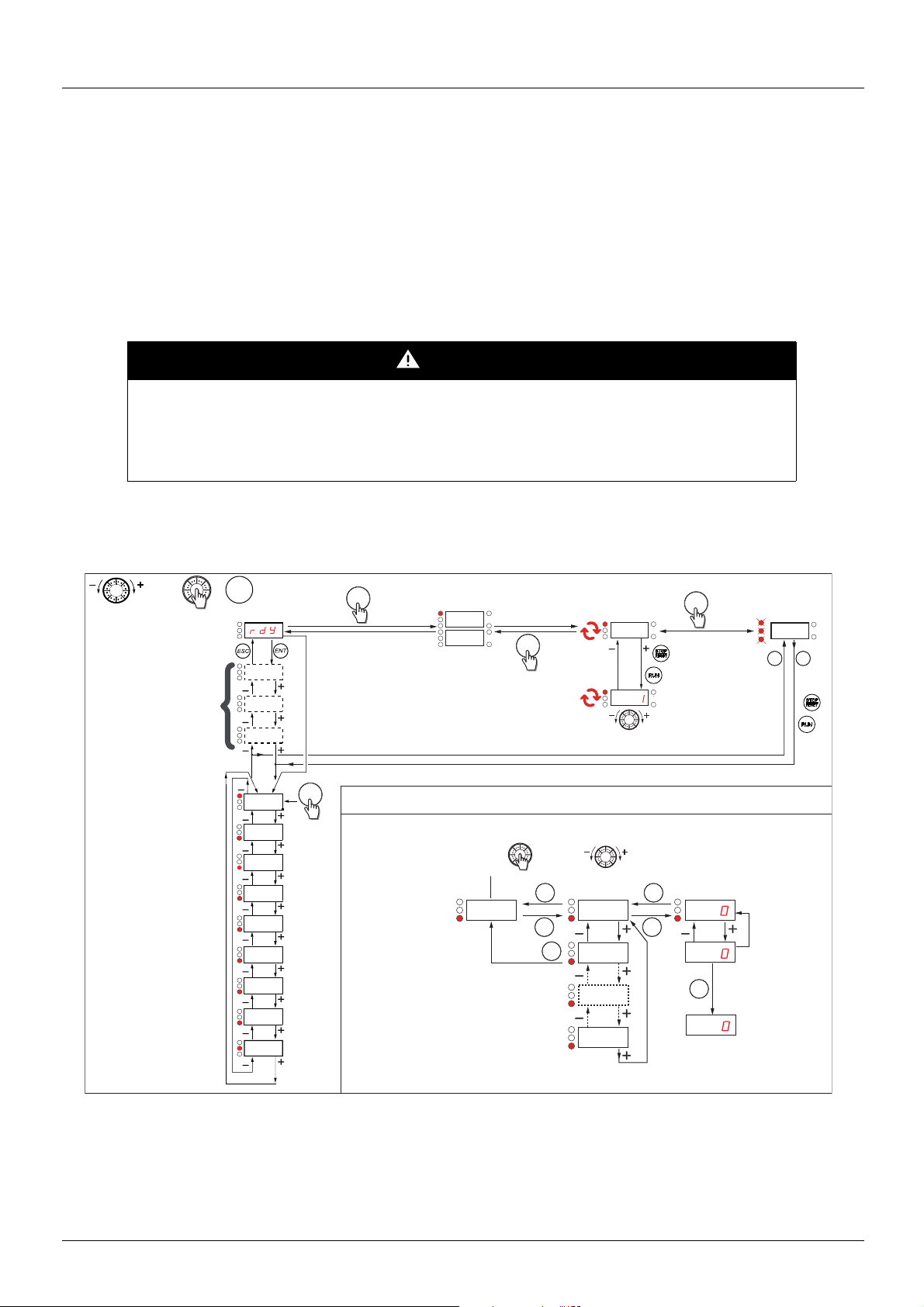

Steps for setting up the drive

3. Configure:

v The nominal frequency of the motor

[Standard mot. freq] (bFr) page 41

if this is

not 50 Hz,

v The motor parameters in the [MOTOR

CONTROL] (drC-) menu, page 41

, only if

the factory configuration of the drive is

not suitable,

v The application functions in the

[INPUTS / OUTPUTS CFG] (I-O-) menu,

page 47

, the [COMMAND] (CtL-) menu,

page 50

, and the [APPLICATION

FUNCT.] (FUn-) menu, page 62

, only if the factory configuration of the drive is not suitable.

4. In the [SETTINGS] (SEt-) menu, adjust the following parameters:

v [Acceleration] (ACC), page 32 and

[Deceleration], (dEC) page 32

,

v [Low speed] (LSP), page 33 and [High

speed] (HSP), page 33

,

v [Mot. therm. current] (ItH), page 33.

2. Apply input power to the drive, but do not give a run command.

Tips:

• Before beginning programming, complete the customer

setting tables, page

112.

• Use the [Restore config.] (FCS) parameter, page 46,

to return to the factory settings at any time.

• To locate the description of a function quickly, use the index of functions on page

111.

• Before configuring a function, read carefully the "Function compatibility" section on pages

21 and 22.

• Note: The following operations must be performed for optimum drive performance in terms of accuracy and response time:

- Enter the values indicated on the (motor) rating plate in

the

[MOTOR CONTROL] (drC-) menu, page 41.

- Perform auto-tuning with the motor cold and connected

using the

[Auto-tuning] (tun) parameter, page 43.

- Adjust the [FreqLoopGain] (FLG) parameter, page 33

and the

[Fr.Loop.Stab] (StA) parameter, page 34.

INSTALLATION

1. Please refer to the Installation Manual.

PROGRAMMING

5. Start the drive.

BBV46385 07/2014 9

Setup - Preliminary Recommendations

Before powering up the drive

DANGER

UNINTENDED EQUIPMENT OPERATION

Make sure that all logic inputs are inactive to avoid any unintended operation.

Failure to follow these instructions will result in death or serious injury.

Before configuring the drive

DANGER

UNINTENDED EQUIPMENT OPERATION

• Read and understand this manual before installing or operating the ATV312 drive.

• Any changes made to the parameter settings must be performed by qualified personnel.

• Make sure that all logic inputs are inactive to avoid any unintended operation when parameters are being changed.

Failure to follow these instructions will result in death or serious injury.

Start-up

Note: When factory settings apply and during power-up/manual reset or after a stop command, the motor can only be powered once the

"forward", "reverse" and "DC injection stop" commands have been reset. If they have not been reset, the drive will display [Freewheel stop]

(nSt) but will not start. If the automatic restart function has been configured ([Automatic restart] (Atr) parameter in the [FAULT

MANAGEMENT] (FLt-) menu, page 91

), these commands are taken into account without a reset (to zero) being necessary.

Line contactor

CAUTION

RISK OF DAMAGE TO DRIVE

• Frequent use of the contactor will cause premature ageing of the filter capacitors.

• Do not have cycle times less than 60 seconds.

Failure to follow these instructions can result in equipment damage.

Using a motor with a lower rating or dispensing with a motor altogether

• With the factory settings, motor output phase loss detection is active ([Output Phase Loss] (OPL) = [YES] (YES), page 94). To avoid having to use a motor with the same rating as the drive when testing the drive or during a maintenance phase, deactivate motor output phase loss detection ([Output Phase Loss] (OPL) = [No] (nO)). This can prove particularly useful if very powerful drives are being used.

•Set the [U/F mot 1 selected] (UFt) parameter, page 44,

on [Cst. torque] (L) in the [MOTOR CONTROL] (drC-) menu.

CAUTION

RISK OF DAMAGE TO MOTOR

Motor thermal protection will not be provided by the drive if the motor 's nominal current is 20% lower than that of the drive. Find an alternative source of thermal protection.

Failure to follow these instructions can result in equipment damage.

10 BBV46385 07/2014

Factory configuration

Factory settings

The Altivar 312 is factory-set for the most common operating conditions:

• Display: drive ready [Ready] (rdY) with motor stopped, and motor frequency with motor running.

• The LI5 and LI6 and logic inputs, AI3 analog input, AOC analog output, and R2 relay are unaffected.

• Stop mode when fault detected: freewheel

Code Description Value Page

bFr [Standard mot. freq] [50Hz IEC] 41

tCC [2/3 wire control] [2 wire] (2C): 2-wire control 30

UFt [U/F mot 1 selected] [SVC] (n): Sensorless flux vector control for constant torque applications 44

ACC DEC

LSP [Low speed] 0 Hz 33

HSP [High speed] 50 Hz 33

ItH [Mot. therm. current] Nominal motor current (value depending on drive rating) 33

SdC1 [Auto DC inj. level 1] 0.7 x nominal drive current, for 0.5 seconds 35

SFr [Switching freq.] 4 kHz 40

rrS [Reverse assign.] [LI2] (LI2): Logic input LI2 48

PS2 [2 preset speeds] [LI3] (LI3): Logic input LI3 72

PS4 [4 preset speeds] [LI4] (LI4): Logic input LI4 72

Fr1 [Ref.1 channel] [AI1] (AI1) - Analog input AI1 29

SA2 [Summing ref. 2] [AI2] (AI2) - Analog input AI2 70

r1 [R1 Assignment]

brA [Dec ramp adapt.] [Yes] (YES): Function active (automatic adaptation of deceleration ramp) 64

Atr [Automatic restart] [No] (nO): Function inactive 91

Stt [Type of stop] [Ramp stop] (rMP): On ramp 65

CFG [Macro configuration] [Factory set.] (Std) (1) 45

[Acceleration] [Deceleration]

3.00 seconds 63

[No drive flt] (FLt): The contact opens when a fault is detected or when the drive has

been switched off

49

Check whether the values above are compatible with the application. If necessary, the drive can be used without changing the settings.

(1)If you want to keep the drive's presettings to a minimum, select the macro configuration [Macro configuration] (CFG) = [Start/stop] (StS)

followed by [Restore config.] (FCS) = [Factory Set.] (InI) (page 46

The [Start/stop] (StS) macro configuration is the same as the factory configuration, apart from the I/O assignment:

• Logic inputs:

- LI1, LI2 (reversing): 2-wire transition detection control, LI1 = run forward, LI2 = run reverse.

- LI3 to LI6: Inactive (not assigned).

• Analog inputs:

- AI1: Speed reference 0-10 V.

- AI2, AI3: Inactive (not assigned).

• Relay R1: The contact opens in the event of a detected fault (or drive off).

• Relay R2: Inactive (not assigned).

• Analog output AOC: 0-20 mA, inactive (not assigned).

).

BBV46385 07/2014 11

Basic functions

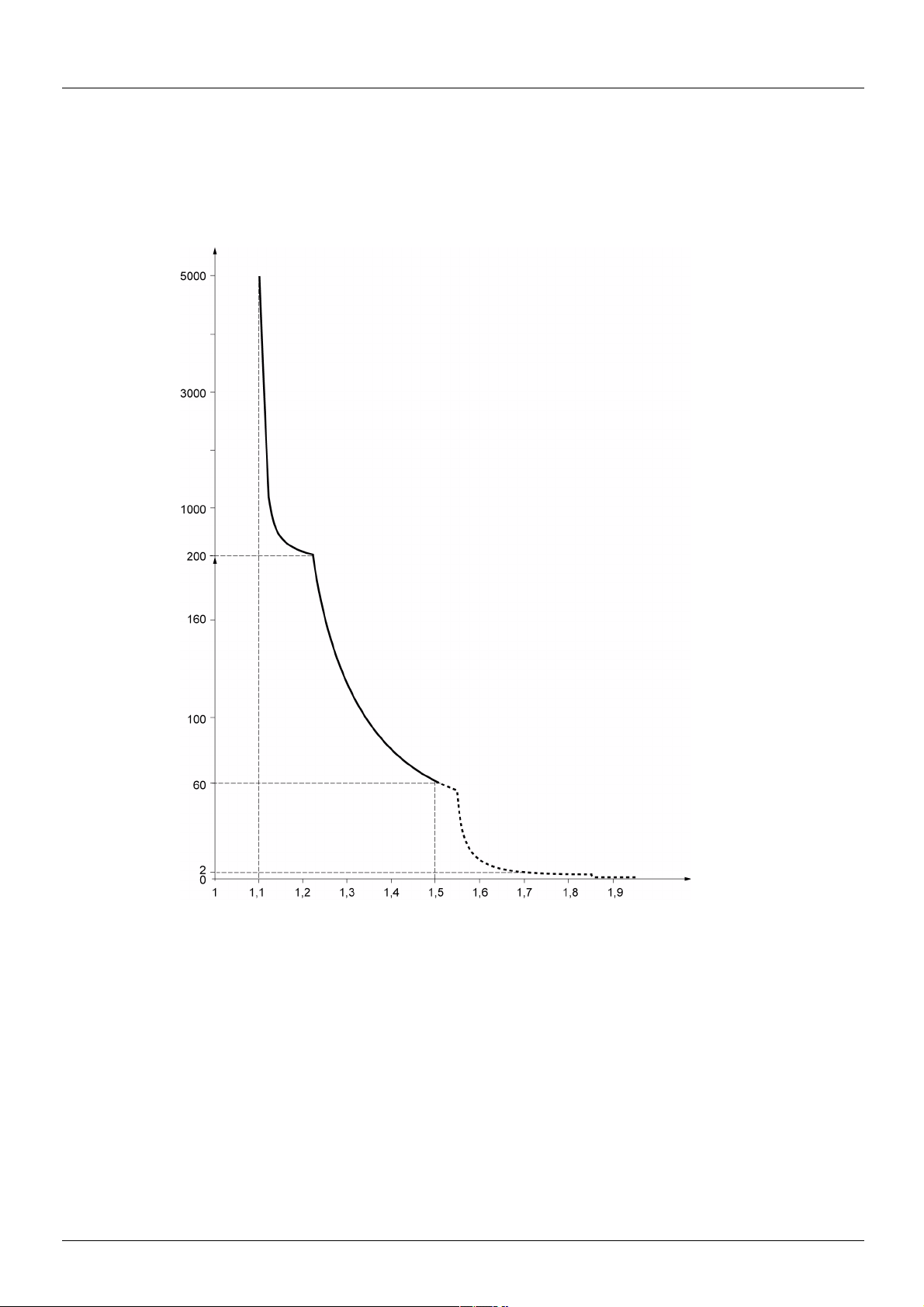

Time (seconds)

Motor current/In drive

Drive thermal protection

Functions:

Thermal protection by PTC probe fitted on the heatsink or integrated in the power module. Indirect protection of the drive against overloads by tripping in the event of an overcurrent. Typical tripping values:

- Motor current = 185% of nominal drive current: 2 seconds

- Motor current = 150% of nominal drive current: 60 seconds

Drive ventilation

The fan starts up when the drive is powered up then shuts down after 10 seconds if a run command has not been received. The fan is powered automatically when the drive is unlocked (direction of operation + reference). It is powered down a few seconds after the drive is locked (motor speed < 0.2 Hz and injection braking completed).

12 BBV46385 07/2014

Basic functions

Tripping time t

in seconds

Motor current / [Mot. therm. current] (ItH)

Motor thermal protection

Function:

Thermal protection by calculating the I2t. The protection takes account of self-cooled motors.

CAUTION

RISK OF DAMAGE TO MOTOR

External protection against overloads is required under the following circumstances:

• When the product is being switched on again, as there is no memory to record the motor thermal state

• When supplying more than one motor

• When supplying motors with ratings less than 0.2 times the nominal drive current

• When using motor switching

Failure to follow these instructions can result in equipment damage.

BBV46385 07/2014 13

Remote display terminal option, ATV31

4-character display

Connector

Access locking switch:

• Position:

[MONITORING] (SUP-) and [SPEED REFERENCE] (rEF-) menus can be

accessed.

[SETTINGS] (SEt-), [MONITORING]

(SUP-) and [SPEED REFERENCE] (rEF-) can be accessed.

• Position:

• Position: All menus can be accessed

This terminal is a local control unit which can be mounted on the door of the wall-mounted or floor-standing enclosure. It has a cable with connectors, which is connected to the drive serial link (see the manual supplied with the terminal). Its display capabilities are practically identical to those of the Altivar 312. With this terminal, however, up and down arrows are used for navigation rather than a jog dial. There is also an access locking switch for the menus. There are three buttons for controlling the drive (1):

• FWD/REV: Reversal of the direction of rotation

• RUN: Motor run command

• STOP/RESET: Motor stop command or reset

Pressing the button a first time stops the motor, and if DC injection standstill braking is configured, pressing it a second time stops this braking.

View of the front panel:: View of the rear panel :

Note: Protection via customer confidential code has priority over the switch.

Note:

• The remote terminal access locking switch also locks access by the drive keys.

• When the remote display terminal is disconnected, any locking remains active for the drive keys.

• The remote display terminal will only be active if the [Modbus baud rate] (tbr) parameter in the [COMMUNICATION] (COM-) menu, page 98

(1)To activate the buttons on the remote display terminal, you first have to configure [HMI command] (LCC) = [Yes] (YES), page 61

, still has its factory setting: [19.2 Kbps] (19.2).

Saving and loading configurations

Up to four complete configurations for ATV312 drives without an option card can be stored on the remote display terminal. These configurations can be saved, transported and transferred from one drive to another of the same rating. 4 different operations for the same device can also be stored on the terminal. See the [Saving config.] (SCS) and [Restore config.] (FCS) parameters in the [MOTOR CONTROL] (drC-) menu, pages 45

[INPUTS / OUTPUTS CFG] (I-O-) menu, pages 49 FUNCT.] (FUn-) menu, pages 90

To transfer a configuration between an ATV31 and an ATV32, follow the procedure on page 90

14 BBV46385 07/2014

and 90.

.

and 46, the

and 49, the [COMMAND] (CtL-) menu, pages 61 and 61, and the [APPLICATION

.

Remote graphic display terminal option, ATV61/ATV71

1 Graphic display

2 Function keys:

F1: CODE F2, F3: not used F4: MODE

3 Button to stop/reset

4 Run button

5 Navigation button:

• Press (ENT): - To save the current value

- To enter the selected menu or parameter

• Turn CW/CCW: - To increase or decrease a value

- To go to the next or previous line

- To increase or decrease the reference if control via the display terminal is activated

7

ESC button:cancels a value, a

parameter or a menu to return to the previous selection

6

Button for reversing the direction

of rotation of the motor

Description of the terminal

Thanks to the screen size of this graphic display terminal, which works with FLASH V1.1IE19 or higher and is part of the ATV71, it is possible to display more detailed information than can be shown on an on-board display. It is connected in the same way as the ATV31 remote display terminal.

Note: Keys 3, 4, 5 and 6 can be used to control the drive directly, if control via the terminal is activated.

To activate the buttons on the remote display terminal, you first have to configure [HMI command] (LCC) = [Yes] (YES), page 61

BBV46385 07/2014 15

.

Remote graphic display terminal option, ATV61/ATV71 (continued)

LANGUAGE

English

Français

Deutsch

Espanol

Italiano

Chinese

Russian

Turkish

ATV312HU15M2

1.5kW/2HP 200V Single

MAIN MENU

DRIVE MENU

LANGUAGE

DRIVE MENU

SPEED REFERENCE

SETTINGS

MOTOR CONTROL

INPUTS / OUTPUTS CFG

COMMAND

Code Mode

APPLICATION FUNCT.

FAULT MANAGEMENT

COMMUNICATION

Powering up the graphic display terminal for the first time

When powering up the graphic display terminal for the first time, the user has to select the required language.

Display after the graphic display terminal has been powered up for the first time. Select the language and press ENT.

The drive's rating details will now appear.

3 seconds or ENT

The [MAIN MENU] follows automatically.

Automatically switches to the [DRIVE MENU] menu after 3 seconds. Select the menu and press ENT.

16 BBV46385 07/2014

Remote graphic display terminal option, ATV61/ATV71 (continued)

ATV312HU15M2

1.5kW/2HP 200V Single

MAIN MENU

DRIVE MENU

LANGUAGE

DRIVE MENU

Standard mot. freq

2/3 wire control

Ref.1 channel

SPEED REFERENCE

SETTINGS

MOTOR CONTROL

INPUTS / OUTPUTS CFG

COMMAND

APPLICATION FUNCT.

FAULT MANAGEMENT

COMMUNICATION

DRIVE MENU

Ready

Code Mode

Powering up the drive for the first time

When powering up the drive for the first time, the user immediately accesses the 3 parameters below: [Standard mot. freq] (bFr), [Ref.1

channel] (Fr1), and [2/3 wire control] (tCC), page 30

. .

Display after the drive has been powered up for the first time.

The [MAIN MENU] follows automatically.

3 seconds

ESC

Automatically switches to the [DRIVE MENU] menu after 3 seconds. Select the menu and press ENT.

The word "Ready" appears on the graphic display terminal if you press the ESC key when in the

[DRIVE MENU].

BBV46385 07/2014 17

Remote graphic display terminal option, ATV61/ATV71 (continued)

ATV312HU15M2

1.5kW/2HP 200V Single

MAIN MENU

DRIVE MENU

LANGUAGE

DRIVE MENU

SPEED REFERENCE

SETTINGS

MOTOR CONTROL

INPUTS / OUTPUTS CFG

COMMAND

Code Mode

APPLICATION FUNCT.

FAULT MANAGEMENT

COMMUNICATION

DRIVE MENU

Ready

Code Mode

Subsequent power-ups

Display after powering up.

The [MAIN MENU] follows automatically.

3 seconds

ESC

Automatically switches to the [DRIVE MENU] menu after 3 seconds. Select the menu and press ENT.

The word "Ready" appears on the graphic display terminal if you press the ESC key when in the

[DRIVE MENU].

18 BBV46385 07/2014

Remote display terminal option, ATV12

1 Graphic display

2 MODE button (1): If [SPEED

REFERENCE] (rEF-) is displayed,

this will take you to the

[SETTINGS] (SEt-) menu. If not, it

will take you to the [SPEED

REFERENCE] (rEF-) menu.

3 ESC button

Used to quit a menu/parameter or

remove the currently displayed

value in order to revert

to the previous value

retained in the memory

4 RUN button

Executes the function

assuming it has been

configured

5 Navigation keys

6 ENT button

Used to save the current value or access the selected menu/parameter

8 Button for reversing the direction

of rotation of the motor

7 STOP button Used to stop the motor and perform a reset

Description of the terminal

This terminal is a local control unit which can be mounted on the door of the wall-mounted or floor-standing enclosure. It has a cable with connectors, which is connected to the drive serial link (see the manual supplied with the terminal). Its display capabilities are practically identical to those of the Altivar 312. With this terminal, up and down arrows are used for navigation rather than a jog dial.

(1) If the drive is locked by a code ([PIN code 1] (COd), page 103

(SUP-) menu to the [SPEED REFERENCE] (rEF-) menu and vice versa.

To activate the buttons on the remote display terminal, you first have to configure [HMI command] (LCC) = [Yes] (YES), page 61

), pressing the Mode key enables you to switch from the [MONITORING]

.

BBV46385 07/2014 19

Structure of the parameter tables

APPLICATION FUNCT.] menu (Fun-)

Code Name/Description Adjustment

range

Factory setting

PI-

b [PI regulator]

Note: The "PI regulator" function is incompatible with several functions (see page 21). It can only be configured if these functions are unassigned, in particular the summing inputs (set [Summing

ref. 2] (SA2) to [No] (nO), page 70

) and the preset speeds (set [2 preset speeds] (PS2) and

[4 preset speeds] (PS4) to [No] (nO), page 72

) which will have been assigned as part of the

factory settings.

PIF

M [PID feedback ass.]

[Non] (nO)

no AI1 A12 A13

v [Non] (nO): not assigned v [AI1] (AI1): analog input AI1 v [AI2] (AI2): analog input AI2 v [AI3] (AI3): analog input AI3

5

2

3

1

4

6

8

7

1. Name of menu on 4-digit 7-segment display

2. Submenu code on 4-digit 7-segment display

3. Parameter code on 4-digit 7-segment display

4. Parameter value on 4-digit 7-segment display

5. Name of menu on ATV61/ATV71 graphic display terminal

6. Name of submenu on ATV61/ATV71 graphic display terminal

7. Name of parameter on ATV61/ATV71 graphic display terminal

8. Value of parameter on ATV61/ATV71 graphic display terminal

The parameter tables contained in the descriptions of the various menus are organized as follows.

Example :

20 BBV46385 07/2014

Compatibility of functions

Incompatible functions

The following functions will be inaccessible or deactivated in the cases described below:

Automatic restart

This is only possible for the 2-wire level control type ([2/3 wire control] (tCC) = [2 wire] (2C) and [2 wire type] (tCt) = [Level] (LEL) or

[Fwd priority] (PFO)).

Catch on the fly

This is only possible for the 2-wire level control type ([2/3 wire control] (tCC) = [2 wire] (2C) and [2 wire type] (tCt) = [Level] (LEL) or

[Fwd priority] (PFO)).

This function is locked if automatic standstill injection has been configured as DC ([Auto DC injection] (AdC) = [Continuous] (Ct)).

Function compatibility table

The choice of application functions may be limited by the number of I/O and by the fact that some functions are incompatible with one another. Functions which are not listed in this table are compatible.

If there is an incompatibility between functions, the first function configured will prevent the others being configured.

To configure a function, first check that functions which are incompatible with it are unassigned, especially those which are assigned in the factory settings.

Summing inputs (factory setting)

+/- speed (1)

Management of limit switches

Preset speeds (factory setting)

PI regulator

Jog operation

Brake control

DC injection stop

Summing inputs (factory setting)

+/- speed (1)

Management of limit switches

Preset speeds (factory setting)

PI regulator

Jog operation

Brake control

DC injection stop

Fast stop

Freewheel stop

(1)Excluding special application with reference channel [Ref.2 channel] (Fr2) (see diagrams 53

p

Incompatible functions Compatible functions Not applicable

Priority functions (functions which cannot be active at the same time):

XA

Stop functions take priority over run commands. Speed references via logic command take priority over analog references.

The function marked with the arrow takes priority over the other.

pApA

p ppp

p

Xp pA

pppp pp

Xp Xp p

pp p

p A

XX

Fast stop

and 55)

Freewheel stop

A

BBV46385 07/2014 21

Compatibility of functions

Logic and analog input application functions

Each of the functions on the following pages can be assigned to one of the inputs. A single input can activate several functions at the same time (reverse and 2nd ramp for example). The user must therefore ensure that these functions can be used at the same time. The [MONITORING] (SUP-) menu ([[LOGIC INPUT CONF.]] (LIA-) parameter, page 104 parameter, page 104

Before assigning a reference, command or function to a logic or analog input, the user must check that this input has not already been assigned in the factory settings and that no other input has been assigned to an incompatible or unwanted function.

• Example of incompatible function to be unassigned: In order to use the "+speed/-speed" function, the preset speeds and summing input 2 must first be unassigned.

The table below lists the factory-set input assignments and the procedure for unassigning them.

Assigned input Function Code To unassign, set to: Page

LI2 Run reverse rrS nO 48

LI3 2 preset speeds PS2 nO 72

LI4 4 preset speeds PS4 nO 72

AI1 Reference 1 Fr1 Anything but AI1 58

LI1 Run forward tCC 2C or 3C 47

AI2 Summing input 2 SA2 nO 70

) can be used to display the functions assigned to each input in order to check their compatibility.

, and [[ANALOG INPUTS IMAGE]] (AIA-)

22 BBV46385 07/2014

List of functions that can be assigned to inputs/outputs

Logic inputs Page Code Factory setting

Not assigned - - LI5 - LI6

Run forward - - LI1

2 preset speeds 72

4 preset speeds 72

8 preset speeds 72

16 preset speeds 73

2 preset PI references 80

4 preset PI references 81 Pr4

+ speed 77

- speed 77

Jog operation 75 JOG

Ramp switching 64

2nd current limit switching 86

Fast stop via logic input 65 FSt

DC injection via logic input 66

Freewheel stop via logic input 67

Run reverse 48

External fault 93

RESET 92

Forced local mode 99

Reference switching 59

Control channel switching 60

Motor switching 87

Forward limit switch 89

Reverse limit switch 89

Fault inhibition 96

PS2 LI3

PS4 LI4

PS8

PS16

Pr2

USP

dSP

rPS

LC2

dCI

nSt

rrS LI2

EtF

rSF

FLO

rFC

CCS

CHP

LAF

LAr

InH

Analog inputs Page Code Factory setting

Not assigned - - AI3

Reference 1 58

Reference 2 58

Summing input 2 70

Summing input 3 70

PI regulator feedback 80

BBV46385 07/2014 23

Fr1 AI1

Fr2

SA2 AI2

SA3

PIF

List of functions that can be assigned to inputs/outputs

Analog/logic output Page Code Factory setting

Not assigned - - AOC/AOV

Motor current 48

Motor frequency 48

Motor torque 48

Power supplied by the drive 48

Drive detected fault (logic data) 48

Drive running (logic data) 48

Frequency threshold reached (logic data) 48 FtA

High speed (HSP) reached (logic data) 48

Current threshold reached (logic data) 48

Frequency reference reached (logic data) 48 SrA

Motor thermal threshold reached (logic data) 48

Brake sequence (logic data) 48

OCr

OFr

Otr

OPr

FLt

rUn

FLA

CtA

tSA

bLC

Relay Page Code Factory setting

Not assigned - - R2

Detected fault 49

Drive running 49

Frequency threshold reached 49

High speed (HSP) reached 49

Current threshold reached 49

Frequency reference reached 49

Motor thermal threshold reached 49

Brake sequence 49

Copy of the logic input 49

FLt R1

rUn

FtA

FLA

CtA

SrA

tSA

bLC

LI1 to LI6

24 BBV46385 07/2014

List of functions that can be assigned to the Network and Modbus control word bits

Bits 11 to 15 of the control word Page Code

2 preset speeds 72

4 preset speeds 72

8 preset speeds 72

16 preset speeds 73

2 preset PI references 80

4 preset PI references 81

Ramp switching 64

2nd current limit switching 86 LC2

Fast stop via logic input 65

DC injection 66

External fault 93 EtF

Reference switching 59

Control channel switching 60

Motor switching 87 CHP

PS2

PS4

PS8

PS16

Pr2

Pr4

rPS

FSt

dCI

rFC

CCS

BBV46385 07/2014 25

Checklist

Carefully read the information contained in the programming, installation and simplified manuals, as well as the information in the catalog. Before starting to use the drive, please check the following points relating to mechanical and electrical installations. For the full range of documentation, please visit www.schneider-electric.com.

1. Mechanical installation (see the simplified and installation manuals)

• For details of the different installation types and recommendations concerning ambient temperature, please refer to the installation instructions in the simplified or installation manuals.

• Install the drive vertically in accordance with the specifications. Please refer to the installation instructions in the simplified or installation manuals.

• When using the drive, both the environmental conditions defined under standard 60721-3-3 and the levels defined in the catalog must be respected.

• Install the required options for your application. Refer to the catalog for details.

2. Electrical installation (see the simplified and installation manuals)

• Ground the drive. See the sections on how to ground equipment in the simplified and installation manuals.

• Make sure the input supply voltage matches the nominal drive voltage and connect the line supply in accordance with the simplified and installation manuals.

• Make sure you use appropriate input line fuses and circuit breakers. See the simplified and installation manuals.

• Arrange the cables for the control terminals as required (see the simplified and installation manuals). Separate the supply and control cables in accordance with EMC compatibility rules.

• The ATV312ppppM2 and ATV312ppppN4 ranges include an EMC filter Using an IT jumper helps reduce leakage current. This is explained in the paragraph about the internal EMC filter on the ATV312ppppM2 and the ATV312ppppN4 in the installation manual.

• Make sure the motor connections are right for the voltage (star, delta).

3. Using and starting up the drive

• Start the drive. [Standard mot. freq] (bFr), page 29, is displayed the first time the drive is powered up. Make sure the frequency defined by frequency bFr (the factory setting is 50 Hz) matches the motor's frequency.

• When the drive is powered up for the first time, the [Ref.1 channel] (Fr1) parameter, page 29 parameter, page 30 the drive locally.

• When the drive is powered up subsequently, [Ready] (rdY) is displayed on the HMI.

•The [Restore config.] (FCS) function, page 46

, are displayed after [Standard mot. freq] (bFr). These parameters will need to be adjusted if you wish to control

, is used to reinitialize the drive with the factory settings.

, and the [2/3 wire control] (tCC)

26 BBV46385 07/2014

Programming

• 4 x 7 segment display

RUN button: Controls powering up of the motor for forward running in LOCAL configuration and in REMOTE configuration if the [2/3 wire control] (tCC) parameter in the

[INPUTS /OUTPUTS CFG] (I-O-) menu is set

to [Local] (LOC), page 47

(could be

hidden by door if function disabled)

• Jog dial - can be used for navigation by turning it clockwise or counter-clockwise - pressing the jog dial enables the user to make a selection or confirm information.

• Used to quit a menu or parameter or to clear the value displayed in order to revert to the value in the memory

• In LOCAL configuration, 2s press on ESC button switches between the control/ programming modes

STOP/RESET button

• Enables detected fault to be reset

• Can be used to control motor stopping

-If [2/3 wire control] (tCC) is not set to

[Local] (LOC), freewheel stop

-If [2/3 wire control] (tCC) is set to [Local]

(LOC), stop on ramp or freewheel stop

during DC injection braking

• 2 CANopen status LEDs

• MON LED, illuminated if

[MONITORING] (SUP-)

menu is active

• CONF LED, illuminated if the

[SETTINGS] (SEt-), [MOTOR CONTROL]

(drC-),[INPUTS / OUTPUTS

CFG] (I-O-), [COMMAND]

(CtL-), [APPLICATION

FUNCT] (FUn-), [FAULT MANAGEMENT] (FLt-)

or [COMMUNICATION]

(COM-) menus are active

Functions as a potentiometer in LOCAL configuration and in REMOTE configuration if [Ref.1 channel] (Fr1-) in the [COMMAND] (CtL-) menu is set to [Image input AIV1] (AIV1)

MODE button (1): 3s press on MODE button switches between the REMOTE/LOCAL configurations. If [SPEED REFERENCE] (rEF-) is displayed, this will take you to the

[SETTINGS] (SEt-) menu. If not, it

will take you to the [SPEED

REFERENCE] (rEF-) menu.

• Load LED

• REF LED, illuminated if

[SPEED REFERENCE]

(rEF-) menu is active

Note1: In LOCAL configuration, the three Leds REF, MON,and CONF are blinking simultaneously in programming mode and are working as a Led chaser in control mode.

Description of the HMI

Functions of the display and the keys

Normal display, with no fault code displayed and no startup:

- : Displays the parameter selected in the [MONITORING] (SUP-) menu (default: motor frequency). If the current is limited, the display flashes. In such cases, CLI will appear at the top left if an ATV61/ATV71 graphic display terminal is connected to the drive.

- InIt: Initialization sequence

- rdY: Drive ready

- dCb: DC injection braking in progress

- nSt: Freewheel stop

- FSt: Fast stop

- tUn : Auto-tuning in progress

In the event of a detected fault, the display will flash to notify the user accordingly. If an ATV61/ATV71 graphic display terminal is connected, the name of the detected fault will be displayed.

(1) If the drive is locked by a code ([PIN code 1] (COd), page 103

(SUP-) menu to the [SPEED REFERENCE] (rEF-) menu and vice versa. It is no longer possible to switch between LOCAL and REMOTE

configurations.

), pressing the Mode key enables you to switch from the [MONITORING]

BBV46385 07/2014 27

Programming

bFr

Fr1

tCC

I-O-

CtL-

FUn-

FLt-

COM-

SUP-

SEt-

drC-

rEF-

LOC

35.

rdY

rEN

3s

MODE

3s

MODE

2s

ESC

rdY

[SPEED REFERENCE]

[SETTINGS]

[MOTOR CONTROL]

[INPUTS / OUTPUTS CFG]

[APPLICATION FUNCT.]

[COMMAND]

[FAULT MANAGEMENT]

[COMMUNICATION]

[MONITORING]

ESC ENT

[Output frequency] (Hz)

= ENT

= - +

SEt- ACC

dEC

26.

15.

= ENT

SFr

ESC

ENT ENT

ENT

ESC

Parameter selection

These 3 parameters are only visible at first power up of the drive.

Settings can be changed subsequently in menu:

drC- for bFr CtL- for Fr1 I-O- for tCC.

Easy REMOTE and LOCAL configuration

The LOCAL configuration allows to activate automatically the embedded RUN button and the jog dial as a potentiometer. In that configuration, the speed adjustment will also be effective on remote keypads. MODE button on ATV12 remote display terminal and on ATV61/71 graphic display terminal (function key F4) is also active to switch from one configuration to another.

[Ref.1 channel] (Fr1) is set to [AI Virtual 1] (AIV1) and [2/3 wire control] (tCC) are set to [Local] (LOC) when switching to LOCAL

configuration.

Choose the configuration (REMOTE or LOCAL) before starting the parameters adjustment of the drive.

For parameters interdependencies reasons, switching from one configuration to another will change other parameters (for example : Input/ Output assignment will return to their factory value).

DANGER

UNINTENDED EQUIPMENT OPERATION

When switching from REMOTE to LOCAL configuration, all the assignments involving the logic inputs will revert to their default values.

• Check that this change is compatible with the wiring diagram used.

Failure to follow these instructions will result in death or serious injury.

Structure of the menus

28 BBV46385 07/2014

Programming

Configuring the [Standard mot. freq] (bFr), [2/3 wire control] (tCC), and

[Ref.1 channel] (Fr1) parameters

These parameters can only be modified when the drive is stopped and no run command is present.

Code Description Adjustment

range

bFr

50 60

Fr1

AI1 AI2 AI3

AIU1

UPdt UPdH

LCC

Mdb nEt

M [Standard mot. freq]

This parameter is only visible the first time the drive is powered up. It can be modified at any time in the [MOTOR CONTROL] (drC-) menu.

[50Hz IEC] (50): 50 Hz [60Hz NEMA] (60): 60 Hz

This parameter modifies the presets of the following parameters: [High speed] (HSP), page 33

threshold] (Ftd), page 39

, [Rated motor freq.] (FrS), page 41, and [Max frequency] (tFr), page 44

M [Ref.1 channel]

v [AI1] (AI1) - Analog input AI1 v [AI2] (AI2) - Analog input AI2 v [AI3] (AI3) - Analog input AI3 v [AI Virtual 1] (AIV1) - In terminal control mode, the jog dial functions as a potentiometer.

If [ACCESS LEVEL] (LAC) = [Level 2] (L2) or [Level 3] (L3), the following additional assignments are possible:

v [+/- SPEED] (UPdt): +/- speed reference via LI. See configuration page 77. v [+/-spd HMI] (UPdH): +/- speed reference by turning the jog dial on the ATV312 keypad.

To use, display the frequency [Output frequency] (rFr), page 101 the terminal is controlled from the [MONITORING] (SUP-) menu by selecting the [Output frequency] (rFr) parameter.

If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following additional assignments are possible:

. The +/- speed function via the keypad or

v [HMI] (LCC) reference via the remote display terminal, [HMI Frequency ref.] (LFr) parameter in the

[SETTINGS] (SEt-) menu, page 32

v [Modbus] (Mdb): Reference via Modbus v [Com. card] (nEt): Reference via network communication protocol

Factory setting

[50Hz IEC] (50)

, [Freq.

[AI1] (AI1)

BBV46385 07/2014 29

Programming

2 s

Code Description Adjustment

range

tCC

M [2/3 wire control]

DANGER

UNINTENDED EQUIPMENT OPERATION

When the [2/3 wire control] (tCC) parameter is changed, the [Reverse assign.] (rrS) parameter, page 48, and the

2C 3C

LOC

[2 wire type] (tCt) parameter, page 47

values. Check that this change is compatible with the wiring diagram used.

Failure to follow these instructions will result in death or serious injury.

Control configuration:

v [2 wire] (2C): 2-wire control v [3 wire] (3C): 3-wire control v [Local] (LOC): Local control (RUN/STOP/RESET drive) (invisible if [ACCESS LEVEL] (LAC) = [Level 3] (L3),

page 58

2-wire control: The open or closed state of the input controls running or stopping. Wiring example: LI1: Forward LIx: Reverse

3-wire control (pulse control): A "forward" or "reverse" pulse is sufficient to control startup, a "stop" pulse is sufficient to control stopping. Wiring example: LI1: Stop LI2: Forward LIx: Reverse

)

, and all the assignments involving the logic inputs will revert to their default

Factory setting

[2 wire] (2C)

The jog dial (ENT) needs to be pressed and held down (for 2 s) to change the assignment for this parameter.

30 BBV46385 07/2014

[SPEED REFERENCE] (rEF-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

The [SPEED REFERENCE] (rEF-) menu displays [HMI Frequency ref.] (LFr), [Image input AIV1] (AIV1) or [Frequency ref.] (FrH) depending on which control channel is active.

During local control, the HMI's jog dial functions as a potentiometer, making it possible to increase or reduce the reference value within limits defined by the [Low speed] (LSP) and [High speed] (HSP) parameters.

When local control is deactivated, by the [Ref.1 channel] (Fr1) parameter, only the reference values are displayed. The value will be read- only and can only be changed via the jog dial (the speed reference is supplied by an AI or another source).

The reference displayed will depend on how the drive has been configured.

Code Description Factory setting

LFr

AIU1

FrH

M [HMI Frequency ref.]

This parameter only appears if the function has been enabled. It is used to change the speed reference from the remote control. ENT does not have to be pressed to enable a change of reference.

M [Image input AIV1]

Used to amend the speed reference via the jog dial

M [Frequency ref.]

This parameter is read-only. It enables you to display the speed reference applied to the motor, regardless of which reference channel has been selected.

0 to 500 Hz

0 to 100%

LSP to HSP Hz

BBV46385 07/2014 31

[SETTINGS] (SEt-) menu

Speed reference via the display terminal

Scaling factor for the [Cust. output value] (SPd1) parameter

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

The adjustment parameters can be modified with the drive running or stopped.

Note: Changes should preferably be made with the drive stopped.

Code Description Adjustment range Factory setting

LFr

g

rPI

g

ACC

AC2

g

dE2

g

dEC

M [HMI Frequency ref.]

This parameter is displayed if [HMI command] (LCC) = [Yes] (YES), page 61 or if [Ref.1 channel] (Fr1)/[Ref.2

channel] (Fr2) = [HMI] (LCC) page 58 Frequency ref.] (LFr) can also be accessed via the drive's keypad. [HMI Frequency ref.] (LFr) is reinitialized to 0 when power is switched off.

M [Internal PID ref.]

Parameter is only visible if [PID feedback ass.] (PIF) is not set to [No] (nO), page 80.

M [Acceleration]

Defined to accelerate from 0 to the nominal frequency [Rated motor freq.] (FrS) in the [MOTOR CONTROL]

(drC-) menu.

M [Acceleration 2]

Parameter can be accessed if [Ramp 2 threshold] (Frt) > 0, page 64, or if [Ramp switch ass.] (rPS) is assigned, page 64

.

M [Deceleration 2]

Parameter can be accessed if [Ramp 2 threshold] (Frt) > 0, page 64, or if [Ramp switch ass.] (rPS) is assigned, page 64

.

M [Deceleration]

Defined to decelerate from the nominal frequency [Rated motor freq.] (FrS) (parameter in the [MOTOR CONTROL]

(drC-)) menu to 0.

Check that the value for [Deceleration] (dEC) is not too low in relation to the load to be stopped.

0 to HSP -

, and if a remote display terminal is connected. In such cases, [HMI

0.0 to 100% 0%

In accordance with

Inr, page 63

In accordance with

Inr, page 63

In accordance with

Inr, page 63

In accordance with

Inr, page 63

3 s

5 s

3 s

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

32 BBV46385 07/2014

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

[SETTINGS] (SEt-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

FLG low

FLG correct

FLG high

In this case, increase FLG.

In this case, reduce FLG.

Code Description Adjustment

range

tA1

g

tA2

g

tA3

g

tA4

g

LSP

HSP

ItH

M [Begin Acc round]

Parameter can be accessed if the [Ramp type] (rPt) = [Customized] (CUS), page 62.

M [End Acc round]

Parameter can be accessed if the [Ramp type] (rPt) = [Customized] (CUS), page 62.

M [Begin Dec round]

Parameter can be accessed if the [Ramp type] (rPt) = [Customized] (CUS), page 62.

M [End Dec round]

Parameter can be accessed if the [Ramp type] (rPt) = [Customized] (CUS), page 62.

M [Low speed]

Motor frequency at min. reference

M [High speed]

Motor frequency at max. reference: Ensure that this setting is appropriate for the motor and the application.

M [Mot. therm. current]

Set [Mot. therm. current] (ItH) to the nominal current indicated on the motor's rating plate. If you wish to suppress thermal protection, see [Overload fault mgt] (OLL), page 94

0 to 100 10

0 to (100-tA1) 10

0 to 100 10

0 to (100-tA3) 10

0 to HSP 0

LSP to tFr bFr

0.2 to 1.5 In (1) In accordance

.

Factory setting

with the drive rating

UFr

FLG

g

(1)In corresponds to the nominal drive current indicated in the Installation Manual and on the drive nameplate.

g

BBV46385 07/2014 33

M [IR compensation]

- For [U/F mot 1 selected] (UFt) = [SVC] (n) or [Energy sav.] (nLd), page 44: IR compensation

- For [U/F mot 1 selected] (UFt) = [Cst. torque] (L) or [Var. torque] (P), page 44 Used to optimize the torque at very low speed (increase [IR compensation] (UFr) if the torque is insufficient). Check that the value for [IR compensation] (UFr) is not too high when the motor is in a hot state otherwise some instabilities can occur.

Note: Changing [U/F mot 1 selected] (UFt), page 44 setting (20%).

, will cause [IR compensation] (UFr) to return to its factory

M [FreqLoopGain]

Parameter can only be accessed if [U/F mot 1 selected] (UFt) = [SVC] (n) or [Energy sav.] (nLd), page 44. The FLG parameter adjusts the drive's ability to follow the speed ramp on the basis of the inertia of the machine being driven. Too high a gain may result in operating instability.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

0 to 100% 20%

: Voltage boost

1 to 100% 20%

[SETTINGS] (SEt-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

StA low

StA correct

StA high

In this case, increase StA.

In this case, reduce StA.

Code Description Adjustment range Factory setting

StA

g

SLP

g

IdC

M [Fr.Loop.Stab]

Parameter can only be accessed if [U/F mot 1 selected] (UFt) = [SVC] (n) or [Energy sav.] (nLd), page 44. Used to adapt the return to steady state after a speed transient (acceleration or deceleration), according to the dynamics of the machine. Gradually increase the stability to avoid any overspeed.

M [Slip compensation]

Parameter can only be accessed if [U/F mot 1 selected] (UFt) = [SVC] (n) or [Energy sav.] (nLd), page 44. Adjusts the slip compensation around the value set by the nominal motor speed. The speeds given on motor rating plates are not necessarily exact.

• If slip setting < actual slip: the motor is not rotating at the correct speed in steady state.

• If slip setting > actual slip: the motor is overcompensated and the speed is unstable.

M [DC inject. level 1]

(2) 0 to In (1) 0.7 In (1)

CAUTION

RISK OF DAMAGE TO THE MOTOR

• Check that the motor will withstand this current without overheating..

1 to 100% 20%

0 to 150% 100%

Failure to follow these instructions can result in equipment damage.

Parameter can be accessed if [Type of stop] (Stt) = [DC injection] (dCI), page 65, or if [DC injection assign.] (dCI)

g

tdC

is not set to [No] (nO), page 66 After 5 seconds, the injection current is limited to 0.5 [Mot. therm. current] (ItH) if set to a higher value.

M [DC injection time 2]

.

(2) 0.1 to 30 s 0.5 s

CAUTION

RISK OF DAMAGE TO THE MOTOR

• Long periods of DC injection braking can cause overheating and damage the motor.

• Protect the motor by avoiding long periods of DC injection braking.

Failure to follow these instructions can result in equipment damage.

g

tdC1

M [Auto DC inj. time 1]

Parameter can be accessed if [Type of stop] (Stt) = [DC injection] (dCI) , page 65.

0.1 to 30 s 0.5 s

CAUTION

RISK OF DAMAGE TO THE MOTOR

• Long periods of DC injection braking can cause overheating and damage the motor.

• Protect the motor by avoiding long periods of DC injection braking.

Failure to follow these instructions can result in equipment damage.

g

(1)In corresponds to the nominal drive current indicated in the Installation Manual and on the drive nameplate. (2)Note: These settings are not related to the "automatic standstill DC injection" function.

Parameter can be accessed if [Auto DC injection] (AdC) is not set to [No] (nO), page 68.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in

g

these menus, on the pages indicated, to aid programming.

34 BBV46385 07/2014

[SETTINGS] (SEt-) menu

Code Description Adjustment range Factory setting

SdC1

g

tdC2

g

SdC2

M [Auto DC inj. level 1]

CAUTION

RISK OF DAMAGE TO THE MOTOR

• Check that the motor will withstand this current without overheating.

Failure to follow these instructions can result in equipment damage.

Parameter can be accessed if [Auto DC injection] (AdC) is not set to [No] (nO), page 68. Note: Check that the motor will withstand this current without overheating.

M [Auto DC inj. time 2]

CAUTION

RISK OF DAMAGE TO THE MOTOR

• Long periods of DC injection braking can cause overheating and damage the motor.

• Protect the motor by avoiding long periods of DC injection braking.

Failure to follow these instructions can result in equipment damage.

Parameter can be accessed if [Auto DC injection] (AdC) is not set to [No] (nO), page 68.

M [Auto DC inj. level 2]

0 to 1.2 In (1) 0.7 In (1)

0 to 30 s 0 s

0 to 1.2 In (1) 0.5 In (1)

CAUTION

RISK OF DAMAGE TO THE MOTOR

• Check that the motor will withstand this current without overheating.

Failure to follow these instructions can result in equipment damage.

g

(1)In corresponds to the nominal drive current indicated in the Installation Manual and on the drive nameplate. (2)Note: These settings are not related to the "automatic standstill DC injection" function.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

Parameter can be accessed if [Auto DC injection] (AdC) is not set to [No] (nO), page 68. Note: Check that the motor will withstand this current without overheating.

BBV46385 07/2014 35

[SETTINGS] (SEt-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Description Adjustment range Factory setting

JPF

JF2

JGF

g

rPG

g

rIG

g

FbS

g

PIC

nO

YES

g

M [Skip Frequency]

Helps to prevent prolonged operation at a frequency range of ± 1 Hz around [Skip Frequency] (JPF). This function helps to prevent a critical speed which leads to resonance. Setting the function to 0 renders it inactive.

M [Skip Frequency 2]

Helps to prevent prolonged operation at a frequency range of ± 1 Hz around [Skip Frequency 2] (JF2). This function helps to prevent a critical speed which leads to resonance. Setting the function to 0 renders it inactive.

M [Jog frequency]

Parameter can be accessed if [JOG] (JOG) is not set to [No] (nO), page 75.

M [PID prop. gain]

Parameter is only visible if [PID feedback ass.] (PIF) is not set to [No] (nO), page 80. It provides dynamic performance when PI feedback is changing quickly.

M [PID integral gain]

Parameter is only visible if [PID feedback ass.] (PIF) is not set to [No] (nO), page 80. It provides static precision when PI feedback is changing slowly.

M [PID fbk scale factor]

Parameter is only visible if [PID feedback ass.] (PIF) is not set to [No] (nO), page 80. For adapting the process.

M [PID correct. reverse]

Parameter is only visible if [PID feedback ass.] (PIF) is not set to [No] (nO), page 80.

v [No] (nO): Normal v [Yes] (YES): Reverse

0 to 500 Hz 0 Hz

1 to 500 Hz 0 Hz

0 to 10 Hz 10 Hz

0.01 to 100 1

0.01 to 100/s 1

0.1 to 100 1

[No] (nO)

rP2

g

rP3

g

rP4

g

SP2

g

M [Preset ref. PID 2]

Parameter is only visible if [PID feedback ass.] (PIF) is not set to [No] (nO), page 80, and if [2 preset PID ref.]

(Pr2), page 80

, has been enabled by the input selection.

M [Preset ref. PID 3]

Parameter is only visible if [PID feedback ass.] (PIF) is not set to [No] (nO), page 80, and if [4 preset PID ref.]

(Pr4), page 81

, has been enabled by the input selection.

M [Preset ref. PID 4]

Parameter is only visible if [PID feedback ass.] (PIF) is not set to [No] (nO), page 80, and if [4 preset PID ref.]

(Pr4), page 81

, has been enabled by the input selection.

M [Preset speed 2]

See page 73.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

0 to 100% 30%

0 to 100% 60%

0 to 100% 90%

0 to 500 Hz 10 Hz

36 BBV46385 07/2014

[SETTINGS] (SEt-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Description Adjustment

range

SP3

g

SP4

g

SP5

g

SP6

g

SP7

g

SP8

g

SP9

g

M [Preset speed 3]

See page 73.

M [Preset speed 4]

See page 73.

M [Preset speed 5]

See page 73.

M [Preset speed 6]

See page 73.

M [Preset speed 7]

See page 73.

M [Preset speed 8]

See page 73.

M [Preset speed 9]

See page 73.

0 to 500 Hz 15 Hz

0 to 500 Hz 20 Hz

0 to 500 Hz 25 Hz

0 to 500 Hz 30 Hz

0 to 500 Hz 35 Hz

0 to 500 Hz 40 Hz

0 to 500 Hz 45 Hz

Factory setting

SP10

g

SP11

g

SP12

g

SP13

g

SP14

g

SP15

g

SP16

g

M [Preset speed 10]

See page 73.

M [Preset speed 11]

See page 74.

M [Preset speed 12]

See page 74.

M [Preset speed 13]

See page 74.

M [Preset speed 14]

See page 74.

M [Preset speed 15]

See page 74.

M [Preset speed 16]

See page 74.

0 to 500 Hz 50 Hz

0 to 500 Hz 55 Hz

0 to 500 Hz 60 Hz

0 to 500 Hz 70 Hz

0 to 500 Hz 80 Hz

0 to 500 Hz 90 Hz

0 to 500 Hz 100 Hz

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

BBV46385 07/2014 37

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

[SETTINGS] (SEt-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Description Adjustment

range

CLI

M [Current Limitation]

0.25 to 1.5 In (1) 1.5 In (1)

CAUTION

RISK OF DAMAGE TO THE MOTOR AND THE DRIVE

• Check that the motor will withstand this current, particularly in the case of permanent magnet synchronous motors, which are susceptible to demagnetization.

• Check that the profile mission complies with the derating curve given in the installation manual.

Failure to follow these instructions can result in equipment damage.

Used to limit the torque and the temperature rise of the motor.

CL2

M [I Limit. 2 value]

0.25 to 1.5 In (1) 1.5 In (1)

CAUTION

RISK OF DAMAGE TO THE MOTOR AND THE DRIVE

• Check that the motor will withstand this current, particularly in the case of permanent magnet synchronous motors, which are susceptible to demagnetization.

• Check that the profile mission complies with the derating curve given in the installation manual.

Failure to follow these instructions can result in equipment damage.

g

Parameter is only visible if [Current limit 2] (LC2) is not set to [No] (nO), page 86.

Factory setting

tLS

rSL

M [Low speed time out]

After operating at [Low speed] (LSP) for a given time, the motor is stopped automatically. The motor restarts if the frequency reference is greater than the [Low speed] (LSP) and if a run command is still present. Note: Value 0 corresponds to an unlimited period.

M [PID wake up thresh.]

0 to 999.9 s 0 (no time limit)

0 to 100% 0%

DANGER

UNINTENDED EQUIPMENT OPERATION

• Check that unintended restarts will not present any danger.

Failure to follow these instructions will result in death or serious injury

Parameter is only visible if [PID feedback ass.] (PIF) is not set to [No] (nO), page 80. If the "PI" and "Low speed operating time" [Low speed time out] (tLS) functions, page 38 same time, the PI regulator may attempt to set a speed lower than [Low speed] (LSP).

g

(1) In corresponds to the nominal drive current indicated in the Installation Manual and on the drive nameplate.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

This results in unsatisfactory operation, which consists of starting, operating at [Low speed] (LSP), then stopping, and so on. The [PID wake up thresh.] (rSL) parameter (restart error threshold) is used to set a minimum PID error threshold for restarting after a stop at prolonged [Low speed] (LSP). The function is inactive if [Low speed time out] (tLS) = 0.

, are configured at the

38 BBV46385 07/2014

[SETTINGS] (SEt-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

FLG2 low FLG2 correct

FLG2 high

In this case, increase FLG2.

In this case, reduce FLG2.

StA2 low StA2 correct StA2 high

In this case, increase StA2

In this case, reduce StA2

Code Description Adjustment

range

UFr2

g

FLG2

M [IR compensation 2]

For [U/F mot.2 selected] (UFt2) = [SVC] (n) or [Energy sav.] (nLd): IR compensation. For [U/F mot.2 selected] (UFt2) = [Cst. torque] (L) or [Var. torque] (P): voltage boost. Used to optimize the torque at very low speed (increase [IR compensation 2] (UFr2) if the torque is insufficient). Check that the value for [IR compensation 2] (UFr2) is not too high when the motor is in a hot state otherwise some instabilities can occur. Changing [U/F mot.2 selected] (UFt2) will cause [IR compensation 2] (UFr2) to return to its factory setting (20%).

M [FreqLoopGain 2]

Parameter can only be accessed if [U/F mot.2 selected] (UFT2) = [SVC] (n) or [Energy sav.] (nLd), page 88. The [FreqLoopGain 2] (FLG2) parameter adjusts the drive's ability to follow the speed ramp on the basis of the inertia of the machine being driven. Too high a gain may result in operating instability.

0 to 100% 20%

g

StA2

M [Freq. loop stability 2]

Parameter can only be accessed if [U/F mot.2 selected] (UFT2) = [SVC] (n) or [Energy sav.] (nLd), page 88. Used to adapt the return to steady state after a speed transient (acceleration or deceleration), according to the dynamics of the machine. Gradually increase the stability to avoid any overspeed.

0 to 100% 20%

Factory setting

g

SLP2

g

Ftd

ttd

Ctd

(1)In corresponds to the nominal drive current indicated in the Installation Manual and on the drive nameplate.

g

BBV46385 07/2014 39

M [Slip compensation 2]

Parameter can only be accessed if [U/F mot.2 selected] (UFT2) = [SVC] (n) or [Energy sav.] (nLd), page 88. Adjusts the slip compensation around the value set by the nominal motor speed. The speeds given on motor rating plates are not necessarily exact.

• If slip setting < actual slip: The motor is not rotating at the correct speed in steady state.

• If slip setting > actual slip: The motor is overcompensated and the speed is unstable.

M [Freq. threshold]

Threshold beyond which the contact on the relay ([R1 Assignment] (r1) or [R2 Assignment] (r2) = [Freq.Th.att.]

(FtA)) closes or output AOV = 10 V ([Analog./logic output] (dO) = [Freq. limit] (FtA)).

M [Motor therm. level]

Threshold beyond which the contact on the relay ([R1 Assignment] (r1) or [R2 Assignment] (r2) = [Th.mot. att.]

(tSA)) closes or output AOV = 10 V ([Analog./logic output] (dO) = [Drv thermal] (tSA)).

M [Current threshold]

Threshold beyond which the contact on the relay ([R1 Assignment] (r1) or [R2 Assignment] (r2) = [I attained] (CtA)) closes or output AOV = 10 V ([Analog./logic output] (dO) = [Current limit] (CtA)).

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

0 to 150% 100%

0 to 500 Hz bFr

1 to 118% 100%

0 to 1.5 In (1) In (1)

[SETTINGS] (SEt-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

[Scale factor display] (SdS) x [Output frequency] (rFr)

1000

Code Description Adjustment

range

SdS

M [Scale factor display]

0.1 to 200 30

Used to display a value in proportion to the output frequency [Output frequency] (rFr): the machine speed, the motor speed, etc.

• If [Scale factor display] (SdS)

•If 1 < [Scale factor display] (SdS)

y 1, [Cust. output value] (SPd1) is displayed (possible definition = 0.01)

y 10, [Cust. output value] (SPd2) is displayed (possible definition = 0.1)

•If [Scale factor display] (SdS) > 10, [Cust. output value] (SPd3) is displayed (possible definition = 1)

•If [Scale factor display] (SdS) > 10 and [Scale factor display] (SdS) x [Output frequency] (rFr) > 9,999:

the display will show [Cust. output value] (SPd3) = to 2 decimal places

example: for 24,223, display will show 24.22

-If [Scale factor display] (SdS) > 10 and [Scale factor display] (SdS) x [Output frequency] (rFr) > 65,535, display locked at 65.54

Example: Display motor speed for 4-pole motor, 1,500 rpm at 50 Hz (synchronous speed): [Scale factor display] (SdS) = 30 [Cust. output value] (SPd3) = 1,500 at [Output frequency] (rFr) = 50 Hz

SFr

M [Switching freq.]

(1)

2.0 to 16 kHz 4 kHz

Parameter can also be accessed in the [MOTOR CONTROL] (drC-) menu. The frequency can be adjusted to reduce the noise generated by the motor. If the frequency has been set to a value higher than 4 kHz, in the event of excessive temperature rise, the drive will automatically reduce the switching frequency and increase it again once the temperature has returned to normal.

Factory setting

(1) Parameter can also be accessed in the [MOTOR CONTROL] (drC-) menu.

40 BBV46385 07/2014

[MOTOR CONTROL] (drC-) menu

Standard motor frequency

Return to factory settings/Restore configuration

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

[Rated motor volt.] (UnS) (in volts)

[Rated motor freq.] (FrS) (in Hz)

With the exception of [Auto tuning] (tUn), which can power up the motor, parameters can only be changed in stop mode, with no run command present.

On the optional ATV31 remote display terminal, this menu can be accessed with the switch in the position.

Drive performance can be optimized by:

- Entering the values given on the motor rating plate in the Drive menu

- Performing an auto-tune operation (on a standard asynchronous motor)

Code Description Adjustment

range

bFr

50 60

M [Standard mot. freq]

[50Hz IEC] (50): 50 Hz: IEC [60Hz NEMA] (60): 60 Hz: NEMA

This parameter modifies the presets of the following parameters: [High speed] (HSP), page 33

UnS

threshold] (Ftd), page 39

M [Rated motor volt.]

, [Rated motor freq.] (FrS), page 41, and [Max frequency] (tFr), page 44.

In accordance with the drive rating

Nominal motor voltage given on the rating plate. When the line voltage is lower than the nominal motor voltage, set [Rated motor volt.] (UnS) to the same value as the line voltage for the drive terminals. ATV312

pppM2: 100 to 240 V

ATV312

pppM3: 100 to 240 V

ATV312

pppN4: 100 to 500 V

ATV312

pppS6: 100 to 600 V

FrS

M [Rated motor freq.]

10 to 500 Hz 50 Hz

Nominal motor frequency marked on the rating plate. The factory setting is 50 Hz, or 60 Hz if [Standard mot.

freq] (bFr) is set to 60 Hz.

Note: The ratio must not exceed the following values:

pppM2: 7 max.

ATV312 ATV312

pppM3: 7 max.

ATV312

pppN4: 14 max.

ATV312

pppS6: 17 max.

The factory setting is 50 Hz, or preset to 60 Hz if [Standard mot. freq] (bFr) is set to 60 Hz.

nCr

M [Rated mot. current]

Nominal motor current given on the rating plate.

0.25 to 1.5 In (1) In accordance

(1)In corresponds to the nominal drive current indicated in the Installation Manual and on the drive nameplate.

Factory setting

[50Hz IEC] (50)

, [Freq.

In accordance with the drive rating

with the drive rating

BBV46385 07/2014 41

[MOTOR CONTROL] (drC-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

100 - slip as a %

100

50 - slip in Hz

50

60 - slip in Hz

60

Code Description Adjustment range Factory setting

nSP

COS

rSC

nO

InIt 8888

M [Rated motor speed]

0 to 9,999 rpm then 10.00 to 32.76 krpm If, rather than the nominal speed, the nameplate indicates the synchronous speed and the slip in Hz or as a %, calculate the nominal speed as follows:

• Nominal speed = synchronous speed x or

• Nominal speed = synchronous speed x (50 Hz motors) or

• Nominal speed = synchronous speed x (60 Hz motors)

M [Motor 1 Cosinus Phi]

Motor Cos Phi given on the motor rating plate

M [Cold stator resist.]

0 to 32,760 rpm In accordance

with the drive rating

0.5 to 1 In accordance with the drive rating

[No] (nO)

v [No] (nO): function inactive. For applications which do not require high performance or do not tolerate

automatic auto-tuning (passing a current through the motor) each time the drive is powered up.

v [Init] (InIt): activates the function. To improve low-speed performance whatever the thermal state of the motor. v Value of cold state stator resistance used, in mΩ.

Note:

• It is strongly recommended that this function is activated for mechanical handling applications.

• The function should only be activated [Init] (InIt) when the motor is cold.

• When [Cold stator resist.] (rSC) = [Init] (InIt), the [Auto-tuning] (tUn) parameter is forced to [Power on] (POn). At the next run command the stator resistance is measured with an auto-tune. The [Cold stator resist.] (rSC) then changes to a value of (8888) and maintains it, [Auto-tuning] (tUn) is still forced to [Power on] (POn). The [Cold stator resist.] (rSC) parameter remains at [Init] (InIt) as long as the measurement has not been performed.

• Value 8888 can be forced or changed using the jog dial (1).

(1)Procedure:

- Check that the motor is cold.

- Disconnect the cables from the motor terminals.

- Measure the resistance between 2 of the motor terminals (U. V. W.) without modifying its connection.

- Use the jog dial to enter half the measured value.

- Increase the factory setting of [IR compensation] (UFr), page 33

Note: Do not use [Cold stator resist.] (rSC) if it is not set to [No] (nO) or = [Power on] (POn) with catch on the fly ([CATCH ON THE FLY]

(FLr-), page 93

).

, to 100% rather than 20%.

42 BBV46385 07/2014

[MOTOR CONTROL] (drC-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Description Adjustment

range

tUn

M [Auto tuning]

DANGER

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

• During auto-tuning the motor operates at nominal current.

• Do not work on the motor during auto-tuning.

Failure to follow these instructions will result in death or serious injury.

WARNING

LOSS OF CONTROL

• It is essential that the [Rated motor volt.] (UnS), [Rated motor freq.] (FrS), [Rated motor freq.] (nCr), [Rated

motor speed] (nSP) , [Motor 1 Cosinus Phi.] (COS) parameters are configured correctly before starting auto-

tuning.

• When one or more parameters have been changed after auto-tuning has been performed, [Auto-tuning] (tUn) will return [No] (nO) and the procedure will have to be repeated.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

nO

YES

dOnE

rUn POn LI1

to

LI6

v [No] (nO): Auto-tuning not performed v [Yes] (YES): Auto-tuning is performed as soon as possible, then the parameter automatically changes to

[Done] (dOnE) or [No] (nO) in the event that Auto-tuning is not successful [AUTO TUNING FAULT] (tnF)

is displayed if [Autotune fault mgt] (tnL) = [Yes] (YES), page 95

).

v [Done] (dOnE): Use of the values given the last time auto-tuning was performed v [Drv running] (rUn): Auto-tuning is performed every time a run command is sent. v [Power on] (POn): Auto-tuning is performed on every power-up. v [LI1] to [LI16] (LI1) to (LI6): Auto-tuning is performed on the transition from 0 V 1 of a logic input assigned

to this function.

Factory setting

[No] (nO)

tUS

tAb PEnd PrOG FAIL dOnE Strd

CUS

DANGER

HAZARD OF ELECTRIC SHOCK OR ARC FLASH

When [Auto tuning] (tUn) is set [Power on] (POn), Auto tune will be performed every time the power will be switched on.

• Check this action will not endanger personnel or equipment in any way.

Failure to follow these instructions will result in death or serious injury.

Note:

[Auto-tuning] (tUn) is forced to [Power on] (POn) if [Cold stator resist.] (rSC) = [Init] (InIt).

Auto-tuning is only performed if no command has been activated. If a "freewheel stop" or "fast stop" function is assigned to a logic input, this input must be set to 1 (active at 0). Auto-tuning may take 1 to 2 seconds. Do not interrupt the process. Wait for the display to change to [Done]

(dOnE) or [No] (nO).

M [Auto tuning state]

(For information only, cannot be modified)

v [Not done] (tAb): The default stator resistance value is used to control the motor. v [Pending] (PEnd): Auto-tuning has been requested but not yet performed. v [In Progress] (PrOG): Auto-tuning in progress. v [Failed] (FAIL): Auto-tuning was unsuccessful. v [Done] (dOnE): The stator resistance measured by the auto-tuning function is used to control the motor. v [Entered R1] (Strd): The cold state stator resistance ([Cold stator resist.] (rSC) which is not set to [No]

(nO)) is used to control the motor.

v [Customized] (CUS): The value of [Cold stator resist.] (rSC) is set manually.

[Not done] (tAb)

BBV46385 07/2014 43

[MOTOR CONTROL] (drC-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Voltage

Frequency

Code Description Adjustment

range

UFt

L P n

nLd

nrd

YES

nO

SFr

M [U/F mot 1 selected]

v [Cst. torque] (L): Constant torque for motors connected in parallel or special motors. v [Var. torque] (P): Variable torque for pump and fan applications. v [SVC] (n): Sensorless flux vector control for constant torque applications. v [Energy sav.] (nLd): Energy saving, for variable torque applications not requiring high dynamics (behaves

in a similar way to the [Var. torque] (P) ratio with no load and the [SVC] (n) ratio on load).

M [Noise reduction]

v [Yes] (YES): Frequency with random modulation. v [No] (nO): Fixed frequency.

Random frequency modulation helps to prevent any resonance which may occur at a fixed frequency.

M [Switching freq.]

The frequency can be adjusted to reduce the noise generated by the motor. If the frequency has been set to a value higher than 4 kHz, in the event of excessive temperature rise, the drive will automatically reduce the switching frequency and increase it again once the temperature has returned to normal.

(1) 2.0 to 16 kHz 4 kHz

Factory setting

[SVC] (n)

[Yes] (YES)

tFr

SrF

nO

YES

(1) Parameter can also be accessed in the [SETTINGS] (SEt-) menu.

M [Max frequency]

The factory setting is 60 Hz, or preset to 72 Hz if [Standard mot. freq] (bFr) is set to 60 Hz.

M [Speed loop filter]

v [No] (nO): The speed loop filter is active (helps to prevent the reference being exceeded). v [Yes] (YES): The speed loop filter is suppressed (in position control applications, this reduces the response

time and the reference may be exceeded).

10 to 500 Hz 60 Hz

[No] (nO):

44 BBV46385 07/2014

[MOTOR CONTROL] (drC-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

2 s

Code Description Adjustment range Factory setting

SCS

StrI

CFG

nO

StS

Std

M [Saving config.]

(1) [No] (nO)

v [No] (nO): Function inactive v [Config 1] (Str1): Saves the current configuration (but not the result of auto-tuning) to EEPROM. [Saving

config.] (SCS) automatically switches to [No] (nO) as soon as the save has been performed. This function

is used to keep another configuration in reserve, in addition to the current configuration. When drives leave the factory the current configuration and the backup configuration are both initialized with the factory configuration.

• If the ATV31 remote display terminal option is connected to the drive, the following additional selection options will appear: [File 1] (FIL1), [File 2] (FIL2), [File 3] (FIL3), [File 4] (FIL4) (files available in the remote display terminal's EEPROM memory for saving the current configuration). They can be used to store between 1 and 4 different configurations which can also be stored on or even transferred to other drives of the same rating.

[Saving config.] (SCS) automatically switches to [No] (nO) as soon as the save has been performed.

M [Macro configuration]

(1) [Factory set.] (Std)

DANGER

UNINTENDED EQUIPMENT OPERATION

Check that the selected macro configuration is compatible with the wiring diagram used.

Failure to follow these instructions will result in death or serious injury.

Choice of source configuration.

v [Start/Stop] (StS): Start/stop configuration

Identical to the factory configuration apart from the I/O assignments:

• Logic inputs:

- LI1, LI2 (reversing): 2-wire transition detection control, LI1 = run forward, LI2 = run reverse

- LI3 to LI6: Inactive (not assigned)

• Analog inputs:

- AI1: Speed reference 0-10 V

- AI2, AI3: Inactive (not assigned)

• Relay R1: The contact opens in the event of a detected fault (or drive off).

• Relay R2: Inactive (not assigned)

• Analog output AOC: 0-20 mA, inactive (not assigned)

v [Factory set.] (Std): Factory configuration (see page 11).

Note: The assignment of [Macro configuration] (CFG) results directly in a return to the selected configuration.

(1)[Saving config.] (SCS), [Macro configuration] (CFG), and [Restore config.] (FCS) can be accessed from several configuration menus,

but they apply to all menus and parameters.

(2) Parameter can also be accessed in the [SETTINGS] (SEt-) menu.

The jog dial (ENT) needs to be pressed and held down (for 2 s) to change the assignment for this parameter.

BBV46385 07/2014 45

[MOTOR CONTROL] (drC-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

2 s

Code Description Adjustment range Factory setting

FCS

rECI

nO

InI

M [Restore config.]

(1) [No] (nO)

DANGER

UNINTENDED EQUIPMENT OPERATION

Check that the changes made to the current configuration are compatible with the wiring diagram used.

Failure to follow these instructions will result in death or serious injury.

v [No] (nO): Function inactive. v [Internal 1] (rEC1): The current configuration becomes identical to the backup configuration previously

saved by [Saving config.] (SCS) = [Config 1] (Str1).

[Internal 1] (rEC1) is only visible if the backup has been carried out. [Restore config.] (FCS) automatically

switches to [No] (nO) as soon as this action has been performed.

v [Factory Set.] (InI): The current configuration is replaced by the configuration selected by the [Macro

configuration] (CFG) parameter (2). [Restore config.] (FCS) automatically switches to [No] (nO) as soon

as this action has been performed. If the ATV31 remote display terminal option is connected to the drive (3), the following additional selection options appear, as long as the corresponding files in the remote display terminal's EEPROM memory have been loaded (0 to 4 files): [File 1] (FIL1), [File 2] (FIL2), [File 3] (FIL3), [File 4] (FIL4). They enable the current configuration to be replaced with one of the 4 configurations that may be loaded on the remote display terminal.

[Restore config.] (FCS) automatically switches to [No] (nO) as soon as this action has been performed.

Note: If nAd appears on the display briefly before the parameter switches to [No] (nO), this means that the configuration transfer is not possible and has not been performed (different drive ratings, for example). If ntr appears on the display briefly before the parameter switches to [No] (nO), this means that an invalid configuration transfer has occurred and that the factory settings will need to be restored using [Factory Set.] (InI). In both cases, check the configuration to be transferred before trying again.

(1)[Saving config.] (SCS), [Macro configuration] (CFG), and [Restore config.] (FCS) can be accessed from several configuration menus,

but they apply to all menus and parameters.

(2)The following parameters are not modified by this function; they retain their configuration:

- [Standard mot. freq] (bFr), page 41

- [HMI command] (LCC), page 61

- [PIN code 1] (COd), (terminal access code), page 103

- The parameters in the [COMMUNICATION] (COM-) menu

- The parameters in the [MONITORING] (SUP-) menu

(3)Options [File 1] (FIL1) to [File 4] (FIL4) continue to be displayed on the drive, even after the ATV31 remote terminal has been

disconnected.

The jog dial (ENT) needs to be pressed and held down (for 2 s) to change the assignment for this parameter.

46 BBV46385 07/2014

[INPUTS / OUTPUTS CFG] (I-O-) menu

2-wire/3-wire control

Return to factory settings/Restore configuration

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

2 s

The parameters can only be modified when the drive is stopped and no run command is present. On the optional ATV31 remote display terminal, this menu can be accessed with the switch in the position.

Code Description Adjustment range Factory setting

tCC

tCt

M [2/3 wire control]

See page 30.

M [2 wire type]

DANGER

UNINTENDED EQUIPMENT OPERATION

Check that the changes made to 2-wire control are compatible with the wiring diagram used.

Failure to follow these instructions will result in death or serious injury.

Parameter can be accessed if [2/3 wire control] (tCC) = [2 wire] (2C), page 47.

LEL trn

PFO

The jog dial (ENT) needs to be pressed and held down (for 2 s) to change the assignment for this parameter.

v [Level] (LEL): State 0 or 1 is taken into account for run or stop. v [Transition] (trn): A change of state (transition or edge) is necessary to initiate operation, in order to help

prevent accidental restarts after a break in the power supply.

v [Fwd priority] (PFO): State 0 or 1 is taken into account for run or stop, but the "forward" input takes priority

over the "reverse" input.

[2 wire] (2C)

[Transition] (trn)

BBV46385 07/2014 47

[INPUTS / OUTPUTS CFG] (I-O-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Frequency

Example: 20 - 4 mA

Code Description Adjustment

range

rrS

nO LI1 LI2 LI3 LI4 LI5 LI6

CrL3

CrH3

M [Reverse assign.]

If [Reverse assign.] (rrS) = [No] (nO), run reverse remains active by means of negative voltage on AI2, for example.

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 can be accessed if [2/3 wire control] (tCC) = [2 wire] (2C), page 47. v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

M [AI3 min. value] M [AI3 max. value]

These two parameters are used to configure the input for 0-20 mA, 4-20 mA, 20-4 mA, etc.

0 to 20 mA 4 mA

4 to 20 mA 20 mA

Factory setting

[LI2] (LI2)

AO1t

10U

0A

4A

M [AO1 Type]

This parameter is not visible when a communication card is connected to the product.

v [Current] (0A): 0 - 20 mA configuration (use terminal AOC) v [Cur. 4-20] (4A): 4 - 20 mA configuration (use terminal AOC)

[Current](0A)

v [Voltage] (10U): 0 - 10 V configuration (use terminal AOV)

dO

nO OCr OFr

Otr OPr

FLt rUn FtA

FLA CtA

SrA tSA

bLC

APL

48 BBV46385 07/2014

M [Analog./logic output]

This parameter is not visible when a communication card is connected to the product.

v [No] (nO): Not assigned v [I motor] (OCr): Motor current. 20 mA or 10 V corresponds to twice the nominal drive current. v [Motor freq.] (OFr): Motor frequency. 20 mA or 10 V corresponds to the maximum frequency [Max

frequency] (tFr), page 44

.

v [Motor torq.] (Otr): Motor torque. 20 mA or 10 V corresponds to twice the nominal motor torque. v [P. supplied] (OPr): Power supplied by the drive. 20 mA or 10 V corresponds to twice the nominal drive

power. Making the following assignments (1) will transform the analog output to a logic output (see diagram in the Installation Manual):

v [Drive fault] (FLt): Fault detected v [Drv running] (rUn): Drive running v [Freq. limit] (FtA): Frequency threshold reached ([Freq. threshold] (Ftd) parameter in the [SETTINGS] (SEt-)

menu, page 39

)

v [HSP limit] (FLA): [High speed] (HSP) reached v [I attained] (CtA): Current threshold reached ([Current threshold] (Ctd) parameter in the

[SETTINGS] (SEt-) menu, page 39

)

v [Freq. ref.] (SrA): Frequency reference reached v [Drv thermal] (tSA): Motor thermal threshold reached ([Motor therm. level] (ttd) parameter in the

[SETTINGS] (SEt-) menu, page 39

)

v [Brake seq] (bLC): Brake sequence (for information, as this assignment can only be activated or deactivated

from the [APPLICATION FUNCT.] (FUn-) menu, page 84

)

v [No 4-20mA] (APL): Loss of 4-20 mA signal, even if [4-20mA loss] (LFL) = [No] (nO), page 95

The logic output is in state 1 (24 V) when the selected assignment is active, with the exception of [Drive

fault] (FLt) (state 1 if the drive operation is normal).

Note: (1) With these assignments, configure [AO1 Type] (AO1t) = [Current] (OA).

[No] (nO)

[INPUTS / OUTPUTS CFG] (I-O-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

2 s

Code Description Adjustment range Factory setting

r1

r2

nO FLt rUn FtA

FLA CtA

SrA tSA

APL LI1

LI6

nO FLt rUn FtA

FLA CtA

SrA tSA

bLC

APL LI1

LI6

M [R1 Assignment]

This parameter is not visible when a communication card is connected to the product.

[No drive flt]

(FLt)

v [No] (nO): Not assigned v [No drive flt] (FLt): No drive detected fault v [Drv running] (rUn): Drive running v [Freq.Th.att.] (FtA): Frequency threshold reached ([Freq. threshold] (Ftd) parameter in the [SETTINGS]

(SEt-) menu, page 39

)

v [HSP attain.] (FLA): [High speed] (HSP) reached v [I attained] (CtA): Current threshold reached ([Current threshold] (Ctd) parameter in the

[SETTINGS] (SEt-) menu, page 39

)

v [Freq.ref.att] (SrA): Frequency reference reached v [Th.mot. att.] (tSA): Motor thermal threshold reached ([Motor therm. level] (ttd) parameter in the

[SETTINGS] (SEt-) menu, page 39

)

v [4-20mA] (APL): Loss of 4-20 mA signal, even if [4-20mA loss] (LFL) = [No] (nO), page 95 v [LI1] to [LI6] (LI1) to (LI6): Returns the value of the selected logic input

to

The relay is energized when the selected assignment is active, with the exception of [No drive flt] (FLt) (energized if the drive has not detected a fault).

M [R2 Assignment]

[No] (nO)

v [No] (nO): Not assigned v [No drive flt] (FLt): No drive detected fault v [Drv running] (rUn): Drive running v [Freq.Th.att.] (FtA): Frequency threshold reached ([Freq. threshold] (Ftd) parameter in the [SETTINGS]

(SEt-) menu, page 39

)

v [HSP attain.] (FLA): [High speed] (HSP) reached v [I attained] (CtA): Current threshold reached ([Current threshold] (Ctd) parameter in the

[SETTINGS] (SEt-) menu, page 39

)

v [Freq.ref.att] (SrA): Frequency reference reached v [Th.mot. att.] (tSA): Motor thermal threshold reached ([Motor therm. level] (ttd) parameter in the

[SETTINGS] (SEt-) menu, page 39

)

v [Brk control] (bLC): Brake sequence (for information, as this assignment can only be activated or

deactivated from the [APPLICATION FUNCT.] (FUn-)- menu, page 84

)

v [4-20mA] (APL): Loss of 4-20 mA signal, even if [4-20mA loss] (LFL) = [No] (nO), page 95 v [LI1] to [LI6] (LI1)to (LI6): Returns the value of the selected logic input

to

The relay is energized when the selected assignment is active, with the exception of [No drive flt] (FLt) (energized if the drive has not detected a fault).

SCS

CFG

FCS

(1)[Saving config.] (SCS), [Macro configuration] (CFG), and [Restore config.] (FCS) can be accessed from several configuration menus,

but they apply to all menus and parameters.

The jog dial (ENT) needs to be pressed and held down (for 2 s) to change the assignment for this parameter.

BBV46385 07/2014 49

M [Saving config.] (1)

See page 45.

M [Macro configuration] (1)

See page 45.

M [Restore config.] (1)

See page 46.

nO

Std

nO

[COMMAND] (CtL-) menu

Function access level

Return to factory settings/Restore configuration

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

The parameters can only be modified when the drive is stopped and no run command is present. On the optional remote display terminal, this menu can be accessed with the switch in the position.

Control and reference channels

Run commands (forward, reverse, etc.) and references can be sent using the following channels:

Command CMD Reference rFr

tEr: Terminals (LI.) AIx: Terminals LCC: Remote display terminal (RJ45 socket) LCC: ATV312 keypad or remote display terminal LOC: Control via the keypad AIV1: Jog dial Mdb: Modbus (RJ45 socket) Mdb: Modbus (RJ45 socket) nEt: Network nEt: Network

The [ACCESS LEVEL] (LAC) parameter in the [COMMAND] (CtL-) menu, page 58 reference channels. It has 3 function levels:

• [ACCESS LEVEL] (LAC) =

Basic functions. The channels are managed in order of priority.

[Level 1] (L1):

• [ACCESS LEVEL] (LAC) =

[Level 2] (L2):

Provides the option of additional functions compared with [Level 1] (L1):

- +/- speed (motorized jog dial)

- Brake control

- 2nd current limit switching

- Motor switching

- Management of limit switches

• [ACCESS LEVEL] (LAC) =

[Level 3] (L3):

Same functions as with [Level 2] (L2). Management of the control and reference channels is configurable.

, can be used to select priority modes for the control and

50 BBV46385 07/2014

[COMMAND] (CtL-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Terminals/Keypad

Remote display terminal

Forced local modeNetwork

Control and reference

Selection of reference channel:

[Ref.1 channel] (Fr1) parameter

The control channel is connected to the same source.

Selection of reference channel:

[Ref.2 channel] (Fr2)

parameter The control channel is connected to the same source.

These channels can be combined in order of priority if [ACCESS LEVEL] (LAC) = [Level 1] (L1) or

[Level 2] (L2).

Highest priority to lowest priority: Forced local mode, Network, Modbus, Remote display terminal, Terminals/Keypad (from right to left in the diagram below)

See the detailed block diagrams on pages 53

and 54.

• On ATV312 drives, in factory settings mode, control and reference are managed by the terminals.

• With a remote terminal display, if [HMI command] (LCC) = [Yes] (YES) ([COMMAND] (CtL-) menu), control and reference are managed by the remote terminal display (reference via [HMI Frequency ref.] (LFr) in the [SETTINGS] (SEt-) menu).

The channels can be combined by configuration if [ACCESS LEVEL] (LAC) = [Level 3] (L3).

Combined control and reference ([Profile] (CHCF) parameter = [Not separ.] (SIM)):

The [Ref. 2 switching] (rFC) parameter can be used to select the [Ref.1 channel] (Fr1) or [Ref.2 channel] (Fr2) channel, or to configure a logic input or a control word bit for remote switching of either one. See the detailed block diagrams on pages 55

and 57.

BBV46385 07/2014 51

[COMMAND] (CtL-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Reference

Selection of reference channel:

[Ref.1 channel] (Fr1)

parameter

Selection of reference

channel:

[Ref.2 channel] (Fr2)

parameter

Selection of control channel: [Cmd channel 1]

(Cd1) parameter

Selection of control channel:

[Cmd channel 2] (Cd2)

parameter

Control

Separate control and reference ([Profile] (CHCF) parameter = [Separate] (SEP)):

Reference

The [Ref. 2 switching] (rFC) parameter can be used to select the [Ref.1 channel] (Fr1) or [Ref.2 channel] (Fr2) channel, or to configure a logic input or a control word bit for remote switching of either one.

Control

The [Cmd switching] (CCS) parameter, page 60, can be used to select the [Cmd channel 1] (Cd1) or [Cmd channel 2] (Cd2) channel, or to configure a logic input or a control bit for remote switching of either one.

See the detailed block diagrams on pages 55

and 56.

52 BBV46385 07/2014

[COMMAND] (CtL-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

+ speed

speed

+ speed

speed

Preset speeds

PI function

see page 78

Jog

operation

PI not assigned

PI assigned

Channel 1

Channel 2

Remote display

terminal

Ramps

Function can be accessed for

[ACCESS LEVEL] (LAC) = [Level 2] (L2)

"Modbus" or "Network" is selected online by writing the appropriate control word (see the specific bus documentation).

Note: In order to configure the +/- speed command ([Ref.1 channel]

(Fr1) = [+/- SPEED] (UPdt) or [+/-spd HMI] (UPdH)), the SA2/SA3

summing inputs and the preset speeds must be deconfigured beforehand.

Reference A

Reference B

Network

Parameter: The black square represents the factory setting assignment.

Key:

Forced local mode

Reference channel for [ACCESS LEVEL] (LAC) = [Level 1] (L1) or [Level 2] (L2)

BBV46385 07/2014 53

[COMMAND] (CtL-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

(Stop Key

priority)

Remote display terminal

Parameter: The black square represents the factory setting assignment

Remote display

terminal

Keypad

Forward Reverse STOP

Key:

Network

Control channel for [ACCESS LEVEL] (LAC) = [Level 1] (L1) or [Level 2] (L2)

The [Forced local assign.] (FLO) parameter, page 99, the [HMI command] (LCC) parameter, page 61, and the selection of the Modbus bus or network are common to the reference and control channels. Example: If [HMI command] (LCC) = [Yes] (YES), the command and reference are given by the remote display terminal.

54 BBV46385 07/2014

[COMMAND] (CtL-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

+ speed

speed

+ speed

speed

Preset speeds

PI function

see page 78

Jog

operation

PI not assigned

Forced local mode

Ramps

Parameter: The black square represents the factory setting assignment.

PI assigned

Remote

display

terminal

Remote

display

terminal

Key:

Channel 1

Channel 2

Note: In order to configure the +/- speed command ([Ref.1 channel] (Fr1) = [+/- SPEED]

(UPdt) or [+/-spd HMI] (UPdH)), the SA2/SA3 summing inputs and the preset speeds must

be deconfigured beforehand.

Note: Jog operation is only active when the reference and control are managed by the terminals (AL

p and LIp).

Reference A

Reference B

Remote display terminal

Remote

display

terminal

Reference channel for [ACCESS LEVEL] (LAC) = [Level 3] (L3)

BBV46385 07/2014 55

[COMMAND] (CtL-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

(Stop Key priority)

Forced local mode

Parameter: The black square represents

the factory setting assignment.

Forward Reverse STOP

Remote display terminal

Keypad

Remote display

terminal

Keypad

Remote display terminal

Keypad

Key:

Control channel for [ACCESS LEVEL] (LAC) = [Level 3] (L3)

Combined reference and control

The [Ref.1 channel] (Fr1) parameter, page 58, the [Ref.2 channel] (Fr2) parameter, page 58, the [Ref. 2 switching] (rFC) parameter, page

59

, the [Forced local assign.] (FLO) parameter, page 99, and the [Forced local Ref.] (FLOC) parameter, page 99, are common to reference

and control. The control channel is therefore determined by the reference channel. Example: If the [Ref.1 channel] (Fr1) reference = [AI1] (AI1) (analog input at the terminals), control is via LI (logic input at the terminals).

56 BBV46385 07/2014

[COMMAND] (CtL-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

(Stop Key

priority)

Forced local mode

Parameter:

The black square represents

the factory setting assignment.

Forward Reverse STOP

Remote display terminal

Keypad

Remote display terminal

Keypad

Remote display terminal

Keypad

Key:

Control channel for [ACCESS LEVEL] (LAC) = [Level 3] (L3)

Mixed mode (separate reference and control)

The [Forced local assign.] (FLO) parameter, page 99, and the [Forced local Ref.] (FLOC) parameter, page 99, are common to reference and control. Example: If the reference is in forced local mode via [AI1] (AI1) (analog input at the terminals), control in forced local mode is via LI (logic input at the terminals).

BBV46385 07/2014 57

[COMMAND] (CtL-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

2 s

Note: There may be an incompatibility between functions (see the incompatibility table, page 21). In this case, the first function configured will prevent the remainder being configured.

Code Description Adjustment

range

LAC

M [ACCESS LEVEL]

DANGER

UNINTENDED EQUIPMENT OPERATION

• Assigning [ACCESS LEVEL] (LAC) to [Level 3] (L3) will restore the factory settings of the [Ref.1 channel] (Fr1)

Fr1

L1 L2

L3

parameter, page 58 and the [2/3 wire control] (tCC) parameter, page 47

• [Level 3] (L3) can only be restored to [Level 2] (L2) or [Level 1] (L1), and [Level 2] (L2) can only be restored to

[Level 1] (L1) by means of a "factory setting" via [Restore config.] (FCS), page 46

• Check that this change is compatible with the wiring diagram used.

Failure to follow these instructions will result in death or serious injury.

v [Level 1] (L1): Access to standard functions and channel management in order of priority. v [Level 2] (L2):Access to advanced functions in the [APPLICATION FUNCT.] (FUn-) menu:

- - +/- speed (motorized jog dial)

- Brake control

- 2nd current limit switching

- Motor switching

- Management of limit switches

v [Level 3] (L3): Access to advanced functions and management of mixed control modes

M [Ref.1 channel]

See page 29.

, the [Cmd channel 1] (Cd1) parameter, page 59, the [Profile] (CHCF) parameter, page 59,

.

Factory setting

[Level 1] (L1)

.

[AI1] (AI1)

Fr2

nO AI1 AI2 AI3

AIU1

UPdt UpdH

LCC

Ndb nEt

(1)NOTE:

• It is not possible to simultaneously assign [+/- SPEED] (UPdt) to [Ref.1 channel] (Fr1) or [Ref.2 channel] (Fr2), and [+/-spd HMI]

(UPdH) to [Ref.1 channel] (Fr1) or [Ref.2 channel] (Fr2). Only one of the [+/- SPEED] (UPdt)/[+/-spd HMI] (UPdH) assignments is

permitted on each reference channel.

• The +/- speed function in [Ref.1 channel] (Fr1) is incompatible with several functions (see page 21 functions are unassigned, in particular the summing inputs (set [Summing ref. 2] (SA2) to [No] (nO), page 70 (set [2 preset speeds] (PS2) and [4 preset speeds] (PS4) to [No] (nO), page 72 settings.

•In [Ref.2 channel] (Fr2), the +/- speed function is compatible with the preset speeds, summing inputs, and the PI regulator.

The jog dial (ENT) needs to be pressed and held down (for 2 s) to change the assignment for this parameter.

M [Ref.2 channel]

v [No] (nO): Not assigned v [AI1] (AI1): Analog input AI1 v [AI2] (AI2): Analog input AI2 v [AI3] (AI3): Analog input AI3 v [AI Virtual 1] (AIV1): Jog dial

If [ACCESS LEVEL] (LAC) = [Level 2] (L2) or [Level 3] (L3), the following additional assignments are possible:

v [+/-Speed] (UPdt): (1) +/- speed reference via LI. See configuration page 77. v [+/-spd HMI] (UPdH): (1) +/- speed reference via the jog dial on the ATV312 keypad.

To use, display the frequency [Output frequency] (rFr), page 101 the terminal is controlled from the [MONITORING] (SUP-) menu by selecting the [Output frequency] (rFr) parameter. If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following additional assignments are possible:

. The +/- speed function via the keypad or

v [HMI] (LCC): Reference via the remote display terminal, [HMI Frequency ref.] (LFr) parameter in the

[SETTINGS] (SEt-) menu, page 32

.

v [Modbus] (Mdb): Reference via Modbus v [Com. card] (nEt): Reference via network

). It can only be configured if these

) which will have been assigned as part of the factory

[No] (nO)

) and the preset speeds

58 BBV46385 07/2014

[COMMAND] (CtL-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Description Adjustment

range

rFC

Fr1 Fr2 LI1 LI2 LI3 LI4 LI5 LI6

C111 C112 C113 C114 C115 C211 C212 C213 C214 C215

M [Ref. 2 switching]

The [Ref. 2 switching] (rFC) parameter can be used to select the [Ref.1 channel] (Fr1) or [Ref.2 channel] (Fr2) channel, or to configure a logic input or a control word bit for remote switching of [Ref.1 channel] (Fr1) or [Ref.2

channel] (Fr2).

v [ch1 active] (Fr1): Reference = reference 1 v [ch1 active] (Fr2): Reference = reference 2 v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following additional assignments are possible:

v [C111] (C111): Bit 11 of Modbus control word v [C112] (C112): Bit 12 of Modbus control word v [C113] (C113): Bit 13 of Modbus control word v [C114] (C114): Bit 14 of Modbus control word v [C115] (C115): Bit 15 of Modbus control word v [C211] (C211): Bit 11 of network control word v [C212] (C212): Bit 12 of network control word v [C213] (C213): Bit 13 of network control word v [C214] (C214): Bit 14 of network control word v [C215] (C215): Bit 15 of network control word

Factory setting

[ch1 active] (Fr1)

CHCF

SIN SEP

Cd1

g

tEr LOC LCC Ndb nEt

g

The reference can be switched with the drive running.

[Ref.1 channel] (Fr1) is active when the logic input or control word bit is at state 0. [Ref.2 channel] (Fr2) is active when the logic input or control word bit is at state 1.

M [Profile]

(control channels separated from reference channels)

Parameter can be accessed if [ACCESS LEVEL] (LAC) = [Level 3] (L3), page 58.

[Not separ.] (SIM)

v [Not separ.] (SIM): Combined v [Separate] (SEP): Separate

M [Cmd channel 1]

Parameter can be accessed if [Profile] (CHCF) = [Separate] (SEP), page 59, and [ACCESS LEVEL] (LAC) =

[Level 3] (L3), page 58

.

[Terminal] (tEr)

v [Terminal] (tEr): Control via terminals v [Local] (LOC): Control via keypad v [Remot. HMI] (LCC): Control via remote display terminal v [Modbus] (Mdb): Control via Modbus v [Com. card] (nEt): Control via the network

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

BBV46385 07/2014 59

[COMMAND] (CtL-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Description Adjustment range Factory setting

Cd2

g

tEr LOC LCC Ndb nEt

CCS

g

Cd1 Cd2 LI1 LI2 LI3 LI4 LI5

LI6 C111 C112 C113 C114 C115 C211 C212 C213 C214 C215

M [Cmd channel 2]

Parameter can be accessed if [Profile] (CHCF) = [Separate] (SEP), page 59, and [ACCESS LEVEL] (LAC) = [Level 3] (L3), page 58

.

v [Terminal] (tEr): Control via terminals v [Local] (LOC): Control via keypad v [Remot. HMI] (LCC): Control via remote display terminal v [Modbus] (Mdb): Control via Modbus v [Com. card (nEt): Control via the network

M [Cmd switching]

Parameter can be accessed if [Profile] (CHCF) = [Separate] (SEP), page 59, and [ACCESS LEVEL] (LAC) = [Level 3] (L3), page 58 The [Cmd switching] (CCS) parameter can be used to select the [Cmd channel 1] (Cd1) or [Cmd channel

2] (Cd2) channel, or to configure a logic input or a control word bit for remote switching of [Cmd channel 1]

(Cd1) or [Cmd channel 2] (Cd2).

.

v [ch1 active] (Cd1): Control channel = channel 1 v [ch2 active] (Cd2): Control channel = channel 2 v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6 v [C111] (C111): Bit 11 of Modbus control word v [C112] (C112): Bit 12 of Modbus control word v [C113] (C113): Bit 13 of Modbus control word v [C114] (C114): Bit 14 of Modbus control word v [C115] (C115): Bit 15 of Modbus control word v [C211] (C211): Bit 11 of network control word v [C212] (C212): Bit 12 of network control word v [C213] (C213): Bit 13 of network control word v [C214] (C214): Bit 14 of network control word v [C215] (C215): Bit 15 of network control word

[Modbus] (Mdb)

[ch1 active]

(Cd1)

COp

g

Channel 1 is active when the input or control word bit is at state 0, Channel 2 is active when the input or control word bit is at state 1.

M [Copy channel 1<>2]

(copy only in this direction)

[No] (nO)

DANGER

UNINTENDED EQUIPMENT OPERATION

Copying the command and/or reference can change the direction of rotation.

• Check that this is safe.

Failure to follow these instructions will result in death or serious injury.

Parameter can be accessed if [ACCESS LEVEL] (LAC) = [Level 3] (L3), page 58.

nO SP Cd

ALL

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

v [No] (nO): No copy v [Reference] (SP): Copy reference v [Command] (Cd): Copy control v [Cmd + ref.] (ALL): Copy control and reference

• If channel 2 is controlled via the terminals, channel 1 control is not copied.

• If the channel 2 reference is set via AI1, AI2, AI3 or AIU1, the channel 1 reference is not copied.

• The reference copied is [Frequency ref.] (FrH) (before ramp), unless the channel 2 reference is set via +/- speed. In this case, the reference copied is [Output frequency] (rFr) (after ramp).

Note: Copying the control and/or reference can change the direction of rotation.

60 BBV46385 07/2014

[COMMAND] (CtL-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

2 s

Code Description Adjustment

range

LCC

nO

YES

PSt

M [HMI command]

Parameter can only be accessed using a remote display terminal, and for [ACCESS LEVEL] (LAC) =

[Level 1] (L1) or [Level 2] (L2), page 58

.

v [No] (nO): Function inactive v [Yes] (YES): Enables control of the drive using the STOP/RESET, RUN and FWD/REV buttons on the

display terminal. Here, the speed reference is given by the [HMI Frequency ref.] (LFr) parameter in the

[SETTINGS] (SEt-) menu. Only the freewheel stop, fast stop and DC injection stop commands remain

active on the terminals. If the drive/terminal connection is cut or if the terminal has not been connected, the drive detects a fault and locks in [MODBUS FAULT] (SLF).

M [Stop Key priority]

This parameter can be used to activate or deactivate the stop button on the drive and the remote terminals. The stop button will be deactivated if the active control channel is different from that on the integrated display terminal or remote terminals.

WARNING

LOSS OF CONTROL

You are going to disable the stop button located on the drive and remote display Do not select "nO" unless exterior stopping methods exist.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

nO

YES

v [No] (nO): Function inactive v [Yes] (YES): STOP key priority

Factory setting

[No] (nO)

[Yes] (YES)

rOt

dFr drS bOt

SCS

CFG

FCS

The jog dial (ENT) needs to be pressed and held down (for 2 s) to change the assignment for this parameter.

M [Rotating direction]

This parameter is only visible if [Ref.1 channel] (Fr1), page 29, or [Ref.2 channel] (Fr2), page 58, are assigned to LCC or AIU1.

Direction of operation authorized for the RUN key on the keypad or the RUN key on the remote display terminal.

v [Forward] (dFr): Forward v [Reverse] (drS): Reverse v [Both] (bOt): Both directions are authorized.

M [Saving config.]

See page 45.

M [Macro configuration]

See page 45.

M [Restore config.]

See page 46.

(1)

[Forward] (dFr)

nO

Std

nO

(1)[Saving config.] (SCS), [Macro configuration] (CFG), and [Restore config.] (FCS) can be accessed from several configuration menus,

but they apply to all menus and parameters.

BBV46385 07/2014 61

[APPLICATION FUNCT.] (FUn-) menu

Submenu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

PSS-

GV

t

0

t2

t1

f (Hz)

GV

t

0

t2

t1

f (Hz)

GV

t

0

tA1 tA2 tA3 tA4

ACC ou AC2

f (Hz)

GV

t

0

dEC ou dE2

f (Hz)

GV

t

0

t2

t1

f (Hz)

GV

t

0

t2

t1

f (Hz)

U ramps

Customized ramps

The parameters can only be modified when the drive is stopped and no run command is present. On the optional remote display terminal, this menu can be accessed with the switch in the position.

Some functions have numerous parameters. In order to clarify programming and avoid having to scroll through endless parameters, these functions have been grouped in submenus. Like menus, submenus are identified by a dash after their code: for example.

Note: There may be an incompatibility between functions (see the incompatibility table, page 21 will prevent the remainder being configured.

Code Name/Description Adjustment range Factory setting

rPC-

rPt

b [RAMPS]

M [Ramp type]

Defines the shape of the acceleration and deceleration ramps

LIn

S U

CUS

v [Linear] (LIn): Linear v [S ramp] (S): S ramp v [U ramp] (U): U ramp v [Customized] (CUS): Customized

S ramps

The rounding coefficient is fixed, where t2 = 0.6 x t1 and t1 = set ramp time.

The rounding coefficient is fixed, where t2 = 0.5 x t1 and t1 = set ramp time.

). In this case, the first function configured

[Linear] (LIn)

62 BBV46385 07/2014

tA1: Adjustable from 0 to 100% (of ACC or AC2) tA2: Adjustable from 0 to (100% - tA1) (of ACC or AC2) tA3: Adjustable from 0 to 100% (of dEC or dE2) tA4: Adjustable from 0 to (100% - tA3) (of dEC or dE2)

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Name/Description Adjustment range Factory

setting

rPC-

tA1

g

tA2

g

tA3

g

tA4

g

Inr

0.01

0.1

b [RAMPS] (continued)

M [Begin Acc round]

Parameter can be accessed if the [Ramp type] (rPt) = [Customized] (CUS), page 62.

M [End Acc round]

Parameter can be accessed if the [Ramp type] (rPt) = [Customized] (CUS), page 62.

M [Begin Dec round]

Parameter can be accessed if the [Ramp type] (rPt) = [Customized] (CUS), page 62.

M [End Dec round]

Parameter can be accessed if the [Ramp type] (rPt) = [Customized] (CUS), page 62.

M [Ramp increment]

v [0.01] (0.01): Ramp can be set between 0.05 s and 327.6 s. v [0.1] (0.1): Ramp can be set between 0.1 s and 3,276 s.

1

v [1] (1): Ramp can be set between 1 s and 32,760 s (1).

This parameter applies to the [Acceleration] (ACC), [Deceleration] (dEC), [Acceleration 2] (AC2), and

[Deceleration 2] (dE2) parameters.

Note: Changing the [Ramp increment] (Inr) parameter causes the settings for the [Acceleration] (ACC),

[Deceleration] (dEC), [Acceleration 2] (AC2), and [Deceleration 2] (dE2) parameters to be modified as well.

0 to 100 10

0 to (100-tA1) 10

0 to 100 10

0 to (100-tA3) 10

0.01 - 0.1 - 1 0.1

ACC dEC

(1)When values higher than 9,999 are displayed on the drive or on the remote display terminal, a point is inserted after the thousands digit.

Note:

This type of display can lead to confusion between values which have two digits after a decimal point and values higher than 9,999. Check the value of the [Ramp increment] (Inr) parameter. Example:

-If [Ramp increment] (Inr) = 0.01, the value 15.65 corresponds to a setting of 15.65 s.

-If [Ramp increment] (Inr) = 1, the value 15.65 corresponds to a setting of 15,650 s.

(2) Parameter can also be accessed in the [SETTINGS] (SEt-) menu.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

M [Acceleration] M [Deceleration]

Defined to accelerate/decelerate between 0 and the nominal frequency [Rated motor freq.] (FrS) (parameter in the [MOTOR CONTROL] (drC-) menu). Check that the value for [Deceleration] (dEC) is not too low in relation to the load to be stopped.

(2) In accordance with

Inr, page 63

3 s 3 s

BBV46385 07/2014 63

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

LI or bit Frequency Ramp

0 0 1 1

<Frt >Frt <Frt >Frt

ACC, dEC AC2, dE2 AC2, dE2 AC2, dE2

Code Name/Description Adjustment range Factory

setting

rPC-

rPS

Cd11 Cd12 Cd13 Cd14 Cd15

Frt

nO LI1 LI2 LI3 LI4 LI5 LI6

b [RAMPS] (continued)

M [Ramp switch ass.]

This function remains active regardless of the control channel.

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following assignments are possible:

v [CD11] (CD11): Bit 11 of the control word from a communication network v [CD12] (CD12): Bit 12 of the control word from a communication network v [CD13] (CD13): Bit 13 of the control word from a communication network v [CD14] (CD14): Bit 14 of the control word from a communication network v [CD15] (CD15): Bit 15 of the control word from a communication network

[Acceleration] (ACC) and [Deceleration] (dEC) are enabled when the logic input or control word bit is at state 0. [Acceleration 2] (AC2) and [Deceleration 2] (dE2) are enabled when the logic input or control word bit is at

state 1.

M [Ramp 2 threshold]

The 2nd ramp is switched if [Ramp 2 threshold]] (Frt) is not 0 (the value 0 corresponds to the inactive function) and the output frequency is higher than [Ramp 2 threshold]] (Frt). Threshold ramp switching can be combined with switching via LI or bit as follows:

[No] (nO)

0 to 500 Hz 0 Hz

AC2

g

dE2

g

brA

nO YES

(1) Parameter can also be accessed in the [SETTINGS] (SEt-) menu.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

64 BBV46385 07/2014

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

M [Acceleration 2]

Parameter can be accessed if [Ramp 2 threshold] (Frt) > 0, page 64, or if [Ramp switch ass.] (rPS) is assigned, page 64

.

M [Deceleration 2]

Parameter can be accessed if [Ramp 2 threshold] (Frt) > 0, page 64, or if [Ramp switch ass.] (rPS) is assigned, page 64

.

M [Dec ramp adapt.]

Activating this function automatically adapts the deceleration ramp, if this has been set at too low a value for the inertia of the load.

v [No] (nO): Function inactive v [Yes] (YES): Function active. The function is incompatible with applications requiring:

• Positioning on a ramp

• The use of a braking resistor (the resistor would not operate correctly)

[Dec ramp adapt.] (brA) is forced to [No] (nO) if brake control [Brake assignment] (bLC) is assigned, page 84

(1) In accordance with

Inr, page 63

(1) In accordance with

Inr, page 63

5

[Yes] (YES)

.

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Name/Description Adjustment

range

StC-

Stt

rMP FSt nSt dCI

FSt

LI1 LI2 LI3 LI4 LI5 LI6

Cd11 Cd12 Cd13 Cd14 Cd15

b [STOP MODES](continued)

M [Type of stop]

Stop mode on disappearance of the run command or appearance of a stop command.

v [Ramp stop] (rMP): On ramp v [Fast stop] (FSt): Fast stop v [Freewheel] (nST): Freewheel stop v [DC injection] (dCI): DC injection stop

M [Fast stop]

nO

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following assignments are possible:

v [CD11] (CD11): Bit 11 of the control word from a communication network v [CD12] (CD12): Bit 12 of the control word from a communication network v [CD13] (CD13): Bit 13 of the control word from a communication network v [CD14] (CD14): Bit 14 of the control word from a communication network v [CD15] (CD15): Bit 15 of the control word from a communication network

Factory setting

[Ramp stop]

(rMP)

[No] (nO)

dCF

g

The stop is activated when the logic state of the input changes to 0 and the control word bit changes to 1. The fast stop is a stop on a reduced ramp via the [Ramp divider] (dCF) parameter. If the input falls back to state 1 and the run command is still active, the motor will only restart if 2-wire level control has been configured [2/3 wire control] (tCC) = [2 wire] (2C), and [2 wire type] (tCt) = [Level] (LEL) or [Fwd priority]

(PFO), page 47

M [Ramp divider]

Parameter can be accessed where [Type of stop] (Stt) = [Fast stop] (FSt), page 65, and where [Fast stop]

g

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

(FSt) is not [No] (nO), page 65

Ensure that the reduced ramp is not too low in relation to the load to be stopped. The value 0 corresponds to the minimum ramp.

). In other cases, a new run command must be sent.

0 to 10 4

.

BBV46385 07/2014 65

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Name/Description Adjustment

range

StC-

dCI

b [STOP MODES] (continued)

M [DC injection assign.]

WARNING

NO HOLDING TORQUE

• DC injection braking does not provide any holding torque at zero speed.

• DC injection braking does not work when there is a loss of power or when the drive detects a fault.

• Where necessary, use a separate brake to maintain torque levels.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

Note1: This function is incompatible with the "Brake control" function (see page 21).

nO LI1 LI2 LI3 LI4 LI5 LI6

Note2: The DC injection stop is not effective when the drive is stopped with the JOG function activated.

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

Factory setting

[No] (nO)

Cd11 Cd12 Cd13 Cd14 Cd15

If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following assignments are possible:

v [CD11] (CD11): Bit 11 of the control word from a communication network v [CD12] (CD12): Bit 12 of the control word from a communication network v [CD13] (CD13): Bit 13 of the control word from a communication network v [CD14] (CD14): Bit 14 of the control word from a communication network v [CD15] (CD15): Bit 15 of the control word from a communication network

Braking is activated when the logic state of the input or control word bit is at 1.

IdC

M [DC inject. level 1]

(1)(3) 0 to In (2) 0.7 In (2)

CAUTION

RISK OF DAMAGE TO MOTOR

• Check that the motor will withstand this current without overheating.

Failure to follow these instructions can result in equipment damage.

Parameter can be accessed if [Type of stop] (Stt) = [DC injection] (dCI), page 65, or if [DC injection assign.]

g

(1) Parameter can also be accessed in the [SETTINGS] (SEt-) menu. (2)In corresponds to the nominal drive current indicated in the Installation Manual and on the drive nameplate. (3)Note: These settings are not related to the "automatic standstill DC injection" function.

(dCI) is not set to [No] (nO), page 66

After 5 seconds, the injection current is limited to 0.5 [Mot. therm. current] (ItH) if set to a higher value.

.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

66 BBV46385 07/2014

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

[APPLICATION FUNCT.] (FUn-) menu

Code Name/Description Adjustment

range

StC-

tdC

b [STOP MODES] (continued)

M [DC injection time 2]

(1)(3)

0.1 to 30 s 0.5 s

CAUTION

RISK OF DAMAGE TO MOTOR

• Long periods of DC injection braking can cause overheating and damage the motor.

• Protect the motor by avoiding long periods of DC injection braking.

Failure to follow these instructions can result in equipment damage.

g

nSt

LI1 LI2 LI3 LI4 LI5 LI6

M [Freewheel stop ass.]

nO

Parameter can be accessed if [Type of stop] (Stt) = [DC injection] (dCI) , page 65.

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

Factory setting

[No] (nO)

The stop is activated when the logic state of the input is at 0. If the input falls back to state 1 and the run command is still active, the motor will only restart if 2-wire level control has been configured. In other cases, a new run command must be sent.

(1) Parameter can also be accessed in the [SETTINGS] (SEt-) menu. (2)In corresponds to the nominal drive current indicated in the Installation Manual and on the drive nameplate. (3)Note: These settings are not related to the "automatic standstill DC injection" function.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

BBV46385 07/2014 67

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Name/Description Adjustment

range

AdC-

AdC

b [AUTO DC INJECTION]

M [Auto DC injection]

If set to [Continuous] (Ct), this parameter causes injection current to be generated, even when there is no run command. This is not compatible with [Auto tuning] (tUn) = [Drv running] (rUn). this parameter can be changed at any time.

DANGER

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

When [Auto DC injection] (AdC) = [Continuous] (Ct), the injection of current is done even if a run command has not been sent.

• Check this action will not endanger personnel or equipment in any way

Failure to follow these instructions will result in death or serious injury.

WARNING

NO HOLDING TORQUE

• DC injection braking does not provide any holding torque at zero speed.

• DC injection braking does not work when there is a loss of power or when the drive detects a fault.

• Where necessary, use a separate brake to maintain torque levels.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

Factory setting

[Yes] (YES)

nO

YES

Ct

tdC1

v [No] (nO): No injection v [Yes] (YES): Standstill injection for adjustable period v [Continuous] (Ct): Continuous standstill injection

M [Auto DC inj. time 1]

(1) 0.1 to 30 s 0.5 s

CAUTION

RISK OF DAMAGE TO MOTOR

• Long periods of DC injection braking can cause overheating and damage the motor.

• Protect the motor by avoiding long periods of DC injection braking.

Failure to follow these instructions can result in equipment damage.

g

SdC1

M [Auto DC inj. level 1]

Parameter can be accessed if [Auto DC injection] (AdC) is not set to [No] (nO), page 68.

(1)

0 to 1.2 In (2) 0.7 In (2)

CAUTION

RISK OF DAMAGE TO MOTOR

• Check that the motor will withstand this current without overheating.

Failure to follow these instructions can result in equipment damage.

g

(1) Parameter can also be accessed in the [SETTINGS] (SEt-) menu. (2)In corresponds to the nominal drive current indicated in the Installation Manual and on the drive nameplate.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

Parameter can be accessed if [Auto DC injection] (AdC) is not set to [No] (nO), page 68. Note: Check that the motor will withstand this current without overheating.

68 BBV46385 07/2014

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

AdC SdC2 Operation

YES x

Ct

≠ 0

Ct = 0

Run command

Speed

Code Name/Description Adjustment

range

AdC-

tdC2

b [AUTO DC INJECTION] (continued)

M [Auto DC inj. time 2]

(1) 0 to 30 s 0 s

CAUTION

RISK OF DAMAGE TO MOTOR

• Long periods of DC injection braking can cause overheating and damage the motor.

• Protect the motor by avoiding long periods of DC injection braking.

Failure to follow these instructions can result in equipment damage.

g

SdC2

M [Auto DC inj. level 2]

Parameter can be accessed if [Auto DC injection] (AdC) is not set to [No] (nO), page 68.

(1) 0 to 1.2 In (2) 0.5 In (2)

CAUTION

RISK OF DAMAGE TO MOTOR

• Check that the motor will withstand this current without overheating.

Failure to follow these instructions can result in equipment damage.

g

Parameter can be accessed if [Auto DC injection] (AdC) is not set to [No] (nO), page 68.

Factory setting

(1) Parameter can also be accessed in the [SETTINGS] (SEt-) menu. (2)In corresponds to the nominal drive current indicated in the Installation Manual and on the drive nameplate.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

BBV46385 07/2014 69

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Note:

AI2 is a ± 10 V input which can be used for subtraction by summing a negative signal.

Code Name/Description Adjustment

range

SAI-

SA2

AI1 AI2 AI3

AIU1

LCC

Ndb nEt

SA3

AI1 AI2 AI3

AIU1

b [SUMMING INPUTS]

Can be used to sum one or two inputs to the [Ref.1 channel] (Fr1) reference only. Note: The "Summing inputs" function may be incompatible with other functions (see page 21

M [Summing ref. 2]

nO

v [No] (nO): Not assigned v [AI1] (AI1): Analog input AI1 v [AI2] (AI2): Analog input AI2 v [AI3] (AI3): Analog input AI3 v [AI Virtual 1] (AIV1): Jog dial

If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following assignments are possible:

v [HMI] (LCC): Reference via the remote display terminal, [HMI Frequency ref.] (LFr) parameter in the

[SETTINGS] (SEt-) menu, page 32

v [Modbus] (Mdb): Reference via Modbus v [Com. card] (nEt): Reference via network

M [Summing ref. 3]

v [No] (nO): Not assigned v [AI1] (AI1): Analog input AI1 v [AI2] (AI2): Analog input AI2 v [AI3] (AI3): Analog input AI3 v [AI Virtual 1] (AIV1): Jog dial

.

Factory setting

).

[AI2] (AI2)

[No] (nO)

If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following assignments are possible:

LCC

Ndb nEt

v [HMI] (LCC): Reference via the remote display terminal, [HMI Frequency ref.] (LFr) parameter in the

[SETTINGS] (SEt-) menu, page 32

v [Modbus] (Mdb): Reference via Modbus v [Com. card] (nEt): Reference via network

Summing inputs

See the complete block diagrams on pages 53 and 55.

.

70 BBV46385 07/2014

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Preset speeds

2, 4, 8 or 16 speeds can be preset, requiring 1, 2, 3 or 4 logic inputs respectively.

The following assignment order must be observed: [2 preset speeds] (PS2), then [4 preset speeds] (PS4), then [8 preset speeds] (PS8), then [16 preset speeds] (PS16).

Combination table for preset speed inputs

16 speeds

LI (PS16)

8 speeds

LI (PS8)

4 speeds

LI (PS4)

2 speeds

LI (PS2)

Speed reference

0 0 0 0 Reference (1)

0001 SP2

0010 SP3

0011 SP4

0100 SP5

0101 SP6

0110 SP7

0111 SP8

1000 SP9

1001 SP10

1010 SP11

1011 SP12

1100 SP13

1101 SP14

1110 SP15

1111 SP16

(1)See the block diagrams on page 53

and page 55: Reference 1 = (SP1).

Note: If Fr1 = LCC and rPI= nO, then PI reference (%) = 10 * AI (Hz) / 15

BBV46385 07/2014 71

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Name/Description Adjustment

range

PSS-

PS2

LI1 LI2 LI3 LI4 LI5 LI6

Cd11 Cd12 Cd13 Cd14 Cd15

PS4

LI1 LI2 LI3 LI4 LI5 LI6

b [PRESET SPEEDS]

Note: The "Preset speeds" function may be incompatible with other functions (see page 21).

M [2 preset speeds]

Selecting the assigned logic input activates the function.

nO

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following assignments are possible:

v [CD11] (CD11): Bit 11 of the control word from a communication network v [CD12] (CD12): Bit 12 of the control word from a communication network v [CD13] (CD13): Bit 13 of the control word from a communication network v [CD14] (CD14): Bit 14 of the control word from a communication network v [CD15] (CD15): Bit 15 of the control word from a communication network

M [4 preset speeds]

Selecting the assigned logic input activates the function. Ensure that [2 preset speeds] (PS2) has been assigned before assigning [4 preset speeds] (PS4).

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

Factory setting

[LI3] (LI3)

[LI4] (LI4)

Cd11 Cd12 Cd13 Cd14 Cd15

PS8

LI1 LI2 LI3 LI4 LI5 LI6

Cd11 Cd12 Cd13 Cd14 Cd15

nO

If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following assignments are possible:

v [CD11] (CD11): Bit 11 of the control word from a communication network v [CD12] (CD12): Bit 12 of the control word from a communication network v [CD13] (CD13): Bit 13 of the control word from a communication network v [CD14] (CD14): Bit 14 of the control word from a communication network v [CD15] (CD15): Bit 15 of the control word from a communication network

M [8 preset speeds]

Selecting the assigned logic input activates the function. Ensure that [4 preset speeds] (PS4) has been assigned before assigning [8 preset speeds] (PS8).

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following assignments are possible:

v [CD11] (CD11): Bit 11 of the control word from a communication network v [CD12] (CD12): Bit 12 of the control word from a communication network v [CD13] (CD13): Bit 13 of the control word from a communication network v [CD14] (CD14): Bit 14 of the control word from a communication network v [CD15] (CD15): Bit 15 of the control word from a communication network

[No] (nO)

72 BBV46385 07/2014

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Name/Description Adjustment

range

PSS-

PS16

LI1 LI2 LI3 LI4 LI5 LI6

Cd11 Cd12 Cd13 Cd14 Cd15

SP2

b [PRESET SPEEDS] (continued)

M [16 preset speeds]

Selecting the assigned logic input activates the function. Ensure that [8 preset speeds] (PS8) has been assigned before assigning [16 preset speeds] (PS16).

nO

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following assignments are possible:

v [CD11] (CD11): Bit 11 of the control word from a communication network v [CD12] (CD12): Bit 12 of the control word from a communication network v [CD13] (CD13): Bit 13 of the control word from a communication network v [CD14] (CD14): Bit 14 of the control word from a communication network v [CD15] (CD15): Bit 15 of the control word from a communication network

M [Preset speed 2]

(1)

0.0 to 500.0 Hz (2) 10 Hz

g

SP3

M [Preset speed 3]

(1)

0.0 to 500.0 Hz (2) 15 Hz

g

Factory setting

[No] (nO)

SP4

M [Preset speed 4]

(1)

0.0 to 500.0 Hz (2) 20 Hz

g

SP5

M [Preset speed 5]

(1)

0.0 to 500.0 Hz (2) 25 Hz

g

SP6

M [Preset speed 6]

(1) 0.0 to 500.0 Hz (2) 30 Hz

g

SP7

M [Preset speed 7]

(1)

0.0 to 500.0 Hz (2) 35 Hz

g

SP8

M [Preset speed 8]

(1)

0.0 to 500.0 Hz (2) 40 Hz

g

SP9

M [Preset speed 9]

(1)

0.0 to 500.0 Hz (2) 45 Hz

g

SP10

M [Preset speed 10]

(1)

0.0 to 500.0 Hz (2) 50 Hz

g

(1)Parameter can also be accessed in the [SETTINGS] (SEt-) menu. This parameter will depend on how many speeds have been

configured.

(2)Reminder: The speed remains limited by the [High speed] (HSP) parameter, page 33

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

.

BBV46385 07/2014 73

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Name/Description Adjustment

range

PSS-

SP11

b [PRESET SPEEDS] (continued)

M [Preset speed 11]

(1) 0.0 to 500.0 Hz (2) 55 Hz

Factory setting

g

SP12

M [Preset speed 12]

(1) 0.0 to 500.0 Hz (2) 60 Hz

g

SP13

M [Preset speed 13]

(1)

0.0 to 500.0 Hz (2) 70 Hz

g

SP14

M [Preset speed 14]

(1)

0.0 to 500.0 Hz (2) 80 Hz

g

SP15

M [Preset speed 15]

(1)

0.0 to 500.0 Hz (2) 90 Hz

g

SP16

M [Preset speed 16]

(1)

0.0 to 500.0 Hz (2) 100 Hz

g

(1)Parameter can also be accessed in the [SETTINGS] (SEt-) menu. This parameter will depend on how many speeds have been

configured.

(2)Reminder: The speed remains limited by the [High speed] (HSP) parameter, page 33

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

.

74 BBV46385 07/2014

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Ramp forced to 0.1 s

Reference

JGF reference

LI (JOG)

Forward

Reverse

Ramp dEC/dE2Motor

frequency

u 0.5 s

Code Name/Description Adjustment

range

JOG-

JOG

LI1 LI2 LI3 LI4 LI5 LI6

nO

b [JOG]

Note: The "Jog operation" function may be incompatible with other functions (see page 21).

M [JOG]

Selecting the assigned logic input activates the function.

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

Example: 2-wire control operation ([2/3 wire control] (tCC) = [2 wire] (2C))

Factory setting

[No] (nO)

(1) Parameter can also be accessed in the [SETTINGS] (SEt-) menu.

BBV46385 07/2014 75

JGF

g

M [Jog frequency] (1)

g

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

Parameter can be accessed if [JOG] (JOG) is not set to [No] (nO), page 75.

0 to 10 Hz 10 Hz

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

ATV312

control terminals

Motor frequency

LSP

Forward

0

2nd press

1st press

Reverse

0

2nd press

1st press

0

LSP

+/- speed

Function can only be accessed if [ACCESS LEVEL] (LAC) = [Level 2] (L2) or [Level 3] (L3), page 58. Two types of operation are available.

1. Use of single action buttons: Two logic inputs are required in addition to the direction(s) of operation.

The input assigned to the "+ speed" command increases the speed, the input assigned to the "- speed" command decreases the speed. Note: If the "+ speed" and "- speed" commands are activated at the same time, "- speed" will be given priority.

2. Use of double action buttons: Only one logic input assigned to "+ speed" is required.

+/- speed with double action buttons:

Description: 1 button pressed twice for each direction of rotation. Each action closes a contact.

Released

(- speed)

1st press

(speed maintained)

2nd press (+ speed)

Forward button – a a and b

Reverse button – c c and d

Wiring example:

LI1: Forward LIx: Reverse LIy: + speed

This type of +/- speed is incompatible with 3-wire control.

Whichever type of operation is selected, the max. speed is set by the [High speed] (HSP) parameter, page 33

.

Note:

If the reference is switched via [Ref. 2 switching] (rFC), page 59 the value of the [Output frequency] (rFr) reference (after ramp) is copied at the same time. This prevents the speed being incorrectly reset

, from one reference channel to any other reference channel with "+/- speed",

to zero when switching takes place.

76 BBV46385 07/2014

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Name/Description Adjustment

range

UPd-

USP

g

LI1 LI2 LI3 LI4 LI5 LI6

dSP

g

LI1 LI2 LI3 LI4 LI5 LI6

b [+/- SPEED]

M [+ speed assignment]

nO

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

M [-Speed assignment]

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

(motorized jog dial)

Function can only be accessed if [ACCESS LEVEL] (LAC) = [Level 2] (L2) or [Level 3] (L3), and [+/-spd HMI]

(UPdH) or [+/- SPEED] (UPdt) selected, page 58

Note: The "+/- speed" function is incompatible with several functions (see page 21 if these functions are unassigned, in particular the summing inputs (set [Summing ref. 2] (SA2) to [No] (nO), page 70 page 72

) and the preset speeds (set [2 preset speeds] (PS2) and [4 preset speeds] (PS4) to [No] (nO), ) which will have been assigned as part of the factory settings.

Parameter accessible for [+/- SPEED] (UPdt) only. Selecting the assigned logic input activates the function.

.

Factory setting

). It can only be configured

[No] (nO)

Str

g

M [Reference saved]

Associated with the "+/- speed" function, this parameter can be used to save the reference:

g

nO rAN EEP

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

• When the run commands disappear (saved to RAM)

• When the line supply or the run commands disappear (saved to EEPROM) Therefore, the next time the drive starts up, the speed reference is the last reference saved.

v [No] (nO): No saving v [RAM] (rAM): Saving in RAM v [EEprom] (EEP): Saving in EEPROM

[No] (nO)

BBV46385 07/2014 77

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Internal reference

Reference A Pages 53

and

55

Reference B Pages 53

and 55

Preset PI

references

Error

inversion

Restart error

threshold

(wake-up)

Gains

Ramps

Parameter: The black rectangle represents the factory setting assignment.

Key:

PI feedback

PI regulator

Block diagram

The function is activated by assigning an analog input to the PI feedback (measurement).

PI feedback:

PI feedback must be assigned to one of these analog inputs, AI1, AI2, or AI3.

PI reference:

The PI reference can be assigned to the following parameters in order of priority:

- Preset references via logic inputs, [Preset ref. PID 2] (rP2), [Preset ref. PID 3] (rP3), and [Preset ref. PID 4] (rP4), page 81

- Internal reference [Internal PID ref.] (rPI), page 82

- Reference [Ref.1 channel] (Fr1), page 58

Combination table for preset PI references

LI (Pr4) LI (Pr2) Pr2 = nO Reference

rPI or Fr1 00 rPI or Fr1 01 rP2 10 rP3 11 rP4

Parameters can also be accessed in the [SETTINGS] (SEt-) menu:

• [Internal PID ref.] (rPI), page 32

• [Preset ref. PID 2] (rP2), [Preset ref. PID 3] (rP3), and [Preset ref. PID 4] (rP4), page 36

• [PID prop. gain] (rPG), page 36

• [PID integral gain] (rIG), page 36

• [PID fbk scale factor] (FbS), page 36: The [PID fbk scale factor] (FbS) parameter can be used to scale the reference according to the variation range for PI feedback (sensor rating). Example: Regulating pressure PI reference (process) 0-5 bar (0-100%) Rating of pressure sensor 0-10 bar

[PID fbk scale factor] (FbS) = max. sensor scaling/max. process [PID fbk scale factor] (FbS) = 10/5= 2

• [PID wake up thresh.] (rSL), page 38 Can be used to set the PI error threshold above which the PI regulator will be reactivated (wake-up) after a stop due to the max. time

:

threshold being exceeded at low speed [Low speed time out] (tLS)

• [PID correct. reverse] (PIC), page 36

: If [PID correct. reverse] (PIC) = [No] (nO), the speed of the motor will increase when the error is positive (example: pressure control with a compressor). If [PID correct. reverse] (PIC) = [Yes] (YES), the speed of the motor will decrease when the error is positive (example: temperature control using a cooling fan).

78 BBV46385 07/2014

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Regulated

value

Proportional

gain

rPG high

Overshoot

Stabilization time

rPG low

Static error

Rise time

Time

Integral

gain

rIG high

rIG low

rPG and rIG correct

Time

Reference

"Manual - Automatic" operation with PI

This function combines the PI regulator and [Ref. 2 switching] (rFC) reference switching, page 59. The speed reference is given by

[Ref.2 channel] (Fr2) or by the PI function, depending on the state of the logic input.

Setting up the PI regulator

1. Configuration in PI mode

See the block diagram on page 78

2. Perform a test in factory settings mode (in most cases, this will be sufficient).

To optimize the drive, adjust [PID prop. gain.] (rPG) or [PID integral gain] (rIG) gradually and independently, and observe the effect on the PI feedback in relation to the reference.

3. If the factory settings are unstable or the reference is incorrect:

Perform a test with a speed reference in manual mode (without PI regulator) and with the drive on load for the speed range of the system:

- In steady state, the speed must be stable and comply with the reference, and the PI feedback signal must be stable.

- In transient state, the speed must follow the ramp and stabilize quickly, and the PI feedback must follow the speed.

If this is not the case, see the settings for the drive and/or sensor signal and cabling.

Switch to PI mode. Set [Dec ramp adapt.] (brA) to no (no auto-adaptation of the ramp). Set the [Acceleration] (ACC) and [Deceleration] (dEC) speed ramps to the minimum level permitted by the mechanics without triggering an

[OVERBRAKING] (ObF) fault.

Set the integral gain [PID integral gain] (rIG) to the minimum level. Observe the PI feedback and the reference. Switch the drive ON/OFF repeatedly or quickly vary the load or reference a number of times. Set the proportional gain [PID prop. gain] (rPG) in order to ascertain a good compromise between response time and stability in transient phases (slight overshoot and 1 to 2 oscillations before stabilizing). If the reference varies from the preset value in steady state, gradually increase the integral gain [PID integral gain] (rIG), reduce the proportional gain [PID prop. gain] (rPG) in the event of instability (pump applications), and find a compromise between response time and static precision (see diagram). Perform in-production tests over the whole reference range.

.

The oscillation frequency depends on the system dynamics.

Parameter Rise time Overshoot

[PID prop. gain] (rPG)

Stabilization

time

Static error

=

[PID integral gain] (rIG)

BBV46385 07/2014 79

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Name/Description Adjustment

range

PI-

PIF

AI1 AI2 AI3

rPG

g

rIG

g

FbS

g

b [PI REGULATOR]

Note: The "PI regulator" function is incompatible with several functions (see page 21). It can only be configured if these functions are unassigned, in particular the summing inputs (set [Summing

ref. 2] (SA2) to [No] (nO), page 70

(PS4) to [No] (nO), page 72

M [PID feedback ass.]

nO

v [No] (nO): Not assigned v [AI1] (AI1): Analog input AI1 v [AI2] (AI2): Analog input AI2 v [AI3] (AI3): Analog input AI3

M [PID prop. gain]

Parameter is only visible if [PID feedback ass.] (PIF) is not set to [No] (nO), page 80. It provides dynamic performance when PI feedback is changing quickly.

M [PID integral gain]

Parameter is only visible if [PID feedback ass.] (PIF) is not set to [No] (nO), page 80. It provides static precision when PI feedback is changing slowly.

M [PID fbk scale factor]

Parameter is only visible if [PID feedback ass.] (PIF) is not set to [No] (nO), page 80. For adapting the process.

) and the preset speeds (set [2 preset speeds] (PS2) and [4 preset speeds]

) which will have been assigned as part of the factory settings.

(1)

0.01 to 100 1

0.1 to 100 1

Factory setting

[No] (nO)

PIC

g

nO

YES

Pr2

g

nO LI1 LI2 LI3 LI4 LI5 LI6

Cd11 Cd12 Cd13 Cd14 Cd15

(1) Parameter(s) can also be accessed in the [SETTINGS] (SEt-) menu.

M [PID correct. reverse]

Parameter is only visible if [PID feedback ass.] (PIF) is not set to [No] (nO), page 80.

v [No] (nO): Normal v [Yes] (YES): Reverse

M [2 preset PID ref.]

Parameter is only visible if [PID feedback ass.] (PIF) is not set to [No] (nO), page 80. Selecting the assigned logic input activates the function.

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following assignments are possible:

v [CD11] (CD11): Bit 11 of the control word from a communication network v [CD12] (CD12): Bit 12 of the control word from a communication network v [CD13] (CD13): Bit 13 of the control word from a communication network v [CD14] (CD14): Bit 14 of the control word from a communication network v [CD15] (CD15): Bit 15 of the control word from a communication network

[No] (nO)

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

80 BBV46385 07/2014

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Name/Description Adjustment

range

PI-

Pr4

g

LI1 LI2 LI3 LI4 LI5 LI6

b [PI REGULATOR] (continued)

M [4 preset PID ref.]

Parameter is only visible if [PID feedback ass.] (PIF) is not set to [No] (nO), page 80. Selecting the assigned logic input activates the function.

nO

Make sure that [2 preset PID ref.] (Pr2), page 80

(Pr4).

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5

, has been assigned before assigning [4 preset PID ref.]

v [LI6] (LI6): Logic input LI6

Cd11 Cd12 Cd13 Cd14 Cd15

If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following assignments are possible:

v [CD11] (CD11): Bit 11 of the control word from a communication network v [CD12] (CD12): Bit 12 of the control word from a communication network v [CD13] (CD13): Bit 13 of the control word from a communication network v [CD14] (CD14): Bit 14 of the control word from a communication network v [CD15] (CD15): Bit 15 of the control word from a communication network

rP2

g

M [Preset ref. PID 2]

See page 36.

(1)

0 to 100% 30%

Factory setting

[No] (nO)

rP3

g

rP4

g

(1) Parameter(s) can also be accessed in the [SETTINGS] (SEt-) menu.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

M [Preset ref. PID 3]

See page 36.

M [Preset ref. PID 4]

See page 36.

(1) 0 to 100% 60%

(1) 0 to 100% 90%

BBV46385 07/2014 81

[APPLICATION FUNCT.] (FUn-) menu

Code Name/Description Adjustment

range

PI-

rSL

b [PI REGULATOR] (continued)

M [PID wake up thresh.]

(1) 0 to 100% 0%

DANGER

UNINTENDED EQUIPMENT OPERATION

• Check that unintended restarts will not present any danger.

Failure to follow these instructions will result in death or serious injury.

If the "PI" and "Low speed operating time" [Low speed time out] (tLS) (page 38) are configured at the same time, the PI regulator may attempt to set a speed lower than[Low speed] (LSP). This results in unsatisfactory operation, which consists of starting, operating at [Low speed] (LSP), then

g

PII

g

YES

M [Act. internal PID ref.]

nO

stopping, and so on. The rSL (restart error threshold) parameter can be used to set a minimum PI error threshold for restarting after a stop at prolonged [Low speed] (LSP). The function is inactive if [Low speed time out] (tLS) = 0.

v [No] (nO): The reference for the PI regulator is [Ref.1 channel] (Fr1), except for [+/-spd HMI] (UPdH) and

[+/- SPEED] (UPdt) (+/- speed cannot be used as a reference for the PI regulator).

v [Yes] (YES): The reference for the PI regulator is provided internally via the [Internal PID ref.] (rPI)

parameter.

Factory setting

[No] (nO)

rPI

g

(1) Parameter(s) can also be accessed in the [SETTINGS] (SEt-) menu.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

M [Internal PID ref.]

Parameter is only visible if [PID feedback ass.] (PIF) is not set to [No] (nO), page 80.

(1) 0 to 100% 0%

82 BBV46385 07/2014

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

State of brake Engaged Released Engaged

Motor speed

Speed reference

Speed

reference

Motor frequency

Motor current

Relay R2 or logic output AOC

LI forward or reverse

Settings which can be accessed in the application functions [APPLICATION

FUNCT.] (FUn-) menu:

• Brake release frequency [Brake

release freq] (brL)

• Brake release current

[Brake release I FW] (Ibr)

• Brake release time delay [Brake

Release time] (brt)

• Brake engage frequency [Brake

engage freq] (bEn)

• Brake engage time delay [Brake

engage time] (bEt)

• Brake release pulse [Brake

impulse] (bIP)

Brake control

Function can only be accessed if [ACCESS LEVEL] (LAC) = [Level 2] (L2) or [Level 3] (L3) (page 53). This function, which can be assigned to relay R2 or logic output AOC, enables the drive to manage an electromagnetic brake.

Principle

Synchronize brake release with the build-up of torque during startup and brake engage at zero speed on stopping, to help prevent jolting.

Brake sequence

Recommended brake control settings:

1. [Brake release freq] (brL), page 84

2. [Brake release I FW] (Ibr), page 84

3. [Brake Release time] (brt), page 84

Adjust according to the type of brake. It is the time required for the mechanical brake to release.

4. [Brake engage freq] (bEn), page 84

5. [Brake engage time] (bEt), page 85

Adjust according to the type of brake. It is the time required for the mechanical brake to engage.

6. [Brake impulse] (bIP), page 85

BBV46385 07/2014 83

:

- Horizontal movement: Set to 0.

- Vertical movement: Set to a frequency equal to the nominal motor slip in Hz.

:

- Horizontal movement: Set to 0.

- Vertical movement: Preset the nominal current of the motor then adjust it in order to help prevent jolting on start-up, making sure that the maximum load is held when the brake is released.

:

- Horizontal movement: Set to 0.

- Vertical movement: Set to a frequency equal to the nominal motor slip in Hz. Note: Max. [Brake engage freq] (bEn) = [Low speed]

(LSP); this means an appropriate value must be set in advance for [Low speed] (LSP).

:

- Horizontal movement: Set to [No] (nO).

- Vertical movement: Set to [Yes] (YES) and check that the motor torque direction for "run forward" control corresponds to the upward direction of the load. If necessary, reverse two motor phases. This parameter generates motor torque in an upward direction regardless of the direction of operation commanded in order to maintain the load whilst the brake is releasing.

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Name/Description Adjustment

range

bLC-

bLC

brL

g

Ibr

g

b [BRAKE LOGIC CONTROL]

Function can only be accessed if [ACCESS LEVEL] (LAC) = [Level 2] (L2) or [Level 3] (L3), page 58. Note: This function may be incompatible with other functions (see page 21

M [Brake assignment]

nO r2 dO

v [No] (nO): Not assigned v [R2] (r2): Relay R2 v [DO] (dO): Logic output AOC

If [Brake assignment] (bLC) is assigned, the [Catch on the fly] (FLr) parameter, page 93

adapt.] (brA) parameter, page 64

page 94

, is forced to [Yes] (YES).

[Brake assignment] (bLC) is forced to [No] (nO) if [Output Phase Loss] (OPL) = [Output cut] (OAC), page 94

M [Brake release freq]

Brake release frequency.

M [Brake release I FW]

Brake release current threshold for ascending or forward movement. If the value of the current [brake release I FW] (Ibr) is lower than that the fluxing current of the motor, an output phase disconnection may not be detected before releasing the brake and the load may drop.

).

, are forced to [No] (nO), and the [Output Phase Loss] (OPL) parameter,

0.0 to 10.0 Hz In accordance

0 to 1.36 In (1) In accordance

Factory setting

[No] (nO)

, and the [Dec ramp

.

with the drive rating

WARNING

UNEXPECTED EQUIPMENT OPERATION

In applications involving vertical movement, the value of the current [brake release I FW] (Ibr) must be set above the value of the fluxing current of the motor. If this condition is not satisfied, a drive with encoder feedback must be used.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

The fluxing current of a motor is equal to In * Square (1 - Cos² ϕ) with Cos ϕ indicated on the nameplate of the motor.

brt

g

LSP

g

bEn

M [Brake Release time]

Brake release time delay.

M [Low speed]

Motor frequency at min. reference. This parameter can also be changed in the [SETTINGS] (SEt-) menu, page 33

M [Brake engage freq]

0 to 5 s 0.5 s

0 to HSP (page 33

nO - 0 to LSP [No] (nO)

)

.

g

nO

0

to

LSP

(1)In corresponds to the nominal drive current indicated in the Installation Manual and on the drive nameplate.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

v Not set v Adjustment range in Hz

If [Brake assignment] (bLC) is assigned and [Brake engage freq] (bEn) remains set to [No] (nO), the drive will lock in [BRAKE CONTROL FAULT] (bLF) mode on the first run command.

0 LSP

84 BBV46385 07/2014

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Name/Description Adjustment

range

bLC-

bEt

g

bIP

YES

g

b [BRAKE LOGIC CONTROL] (continued)

M [Brake engage time]

Brake engage time (brake response time).

M [Brake impulse]

nO

v [No] (nO): Whilst the brake is releasing, the motor torque direction corresponds to the direction of rotation

commanded.

v [Yes] (YES): Whilst the brake is releasing, the motor torque direction is forward, regardless of the direction

of operation commanded. Note: Check that the motor torque direction for "run forward" control corresponds to the upward direction of the load. If necessary, reverse two motor phases.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

0 to 5 s 0.5 s

Factory setting

[No] (nO)

BBV46385 07/2014 85

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Name/Description Adjustment

range

LC2-

LC2

LI1 LI2 LI3 LI4 LI5 LI6

Cd11 Cd12 Cd13 Cd14 Cd15

b [CURRENT LIMITATION 2]

Function can only be accessed if [ACCESS LEVEL] (LAC) = [Level 2] (L2) or [Level 3] (L3), page 58.

M [Current limit 2]

Selecting the assigned logic input activates the function.

nO

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following assignments are possible:

v [CD11] (CD11): Bit 11 of the control word from a communication network v [CD12] (CD12): Bit 12 of the control word from a communication network v [CD13] (CD13): Bit 13 of the control word from a communication network v [CD14] (CD14): Bit 14 of the control word from a communication network v [CD15] (CD15): Bit 15 of the control word from a communication network

[Current Limitation] (CLI) is enabled when the logic input or control word bit is at state 0 ([SETTINGS]

(SEt-) menu, page 38

[I Limit. 2 value] (CL2) is enabled when the logic input or control word bit is at state 1.

).

Factory setting

[No] (nO)

CL2

g

(1) Parameter can also be accessed in the [SETTINGS] (SEt-) menu. (2)In corresponds to the nominal drive current indicated in the Installation Manual and on the drive nameplate.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

M [I Limit. 2 value]

See page 38.

(1) 0.25 to 1.5 In (2) 1.5 In (2)

86 BBV46385 07/2014

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

[Rated motor volt.] (UnS) (in volts)

[Rated motor freq.] (FrS) (in Hz)

Code Name/Description Adjustment

range

CHP-

CHP

LI1 LI2 LI3 LI4 LI5 LI6

Cd11 Cd12 Cd13 Cd14 Cd15

b [SWITCHING MOTOR]

Function can only be accessed if [ACCESS LEVEL] (LAC) = [Level 2] (L2) or [Level 3] (L3), page 58.

M [Motor switching]

nO

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following assignments are possible:

v [CD11] (CD11): Bit 11 of the control word from a communication network v [CD12] (CD12): Bit 12 of the control word from a communication network v [CD13] (CD13): Bit 13 of the control word from a communication network v [CD14] (CD14): Bit 14 of the control word from a communication network v [CD15] (CD15): Bit 15 of the control word from a communication network

LI or bit = 0: Motor 1 LI or bit = 1: Motor 2

Note:

• If this function is used, the auto-tuning function, page 43

• Changes to parameters are only taken into account when the drive is locked.

, is not active on motor 2.

Factory setting

[No] (nO)

UnS2

g

FrS2

g

CAUTION

RISK OF DAMAGE TO MOTOR

The motor switching function disables motor thermal protection. The use of external overload protection is required when using motor switching.

Failure to follow these instructions can result in equipment damage.

M [Nom. mot. 2 volt.]

ATV312pppM2: 100 to 240 V ATV312 ATV312 ATV312

pppM3: 100 to 240 V pppN4: 100 to 500 V pppS6: 100 to 600 V

M [Nom. motor 2 freq.]

Note:

The ratio must not exceed the following values:

ATV312 ATV312 ATV312 ATV312 The factory setting is 50 Hz, or preset to 60 Hz if [Standard mot. freq] (bFr) is set to 60 Hz.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

pppM2: 7 max. pppM3: 7 max. pppN4: 14 max. pppS6: 17 max.

In accordance with the drive rating

10 to 500 Hz 50 Hz

In accordance with the drive rating

BBV46385 07/2014 87

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

100 - slip as a %

100

50 - slip in Hz

50

60 - slip in Hz

60

L

UnS

FrS

n

P

Voltage

Frequency

Code Name/Description Adjustment

range

CHP-

nCr2

g

nSP2

g

COS2

g

b [SWITCHING MOTOR] (continued)

M [Nom. mot. 2 current]

Nominal motor 2 current given on the rating plate.

M [Nom. mot. 2 speed]

0 to 9,999 rpm then 10.00 to 32.76 krpm If, rather than the nominal speed, the nameplate indicates the synchronous speed and the slip in Hz or as a %, calculate the nominal speed as follows:

• Nominal speed = synchronous speed x or

• Nominal speed = synchronous speed x (50 Hz motors) or

• Nominal speed = synchronous speed x (60 Hz motors)

M [Motor 2 Cosinus Phi]

Cos Phi given on the rating plate of motor 2.

0.25 to 1.5 In (2)

0 to 32,760 rpm In accordance

0.5 to 1 In accordance

Factory setting

In accordance with the drive rating

with the drive rating

(1) Parameter can also be accessed in the [SETTINGS] (SEt-) menu. (2)In corresponds to the nominal drive current indicated in the Installation Manual and on the drive nameplate.

88 BBV46385 07/2014

UFt2

nLd

g

UFr2

g

FLG2

g

StA2

g

SLP2

g

M [U/F mot.2 selected]

L P n

v [Cst. torque] (L): Constant torque for motors connected in parallel or special motors v [Var. torque] (P): Variable torque for pump and fan applications v [SVC] (n): Sensorless flux vector control for constant torque applications

[SVC] (n)

v [Energy sav.] (nLd): Energy saving, for variable torque applications not requiring high dynamics (behaves

in a similar way to the P ratio at no load and the n ratio on load)

M [IR compensation 2]

See page 39.

M [FreqLoopGain 2]

See page 39.

M [Freq. loop stability 2]

See page 39.

M [Slip compensation 2]

See page 39.

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

(1) 0 to 100% 20%

(1)

1 to 100% 20%

0 to 150% 100%

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Management of limit switches

Function can only be accessed if [ACCESS LEVEL] (LAC) = [Level 2] (L2) or [Level 3] (L3), page 58. This function can be used to manage the operation of one or two series limit switches (non-reversing or reversing).

- Assignment of one or two logic inputs (forward limit switch, reverse limit switch)

- Selection of the stop type (on ramp, fast or freewheel) Following a stop, the motor is permitted to restart in the opposite direction only.

- The stop is performed when the input is in state 0. The direction of operation is authorized in state 1.

Restarting after stop caused by a limit switch

• Send a run command in the other direction (when control is via the terminals, if [2/3 wire control] (tCC) = [2 wire] (2C) and [2 wire

type] (tCt) = [Transition] (trn), first remove all the run commands).

or

• Invert the reference sign, remove all the run commands then send a run command in the same direction as before the stop caused by a limit switch.

Code Name/Description Adjustment

range

LSt-

LAF

LI1 LI2 LI3 LI4 LI5 LI6

LAr

b [LIMIT SWITCHES]

Function can only be accessed if [ACCESS LEVEL] (LAC) = [Level 2] (L2) or [Level 3] (L3), page 58. Note: This function is incompatible with the "PI regulator" function (see page 21

M [Stop FW limit sw.]

nO

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

M [Stop RV limit sw.]

g

nO LI1 LI2 LI3 LI4 LI5 LI6

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

Factory setting

).

[No] (nO)

LAS

g

rMP FSt nSt

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can

g

BBV46385 07/2014 89

also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

M [Stop type]

Parameter can be accessed if [Stop FW limit sw.] (LAF), page 89, or [Stop RV limit sw.] (LAr), page 89, is assigned.

v [Ramp stop] (rMP): On ramp v [Fast stop] (FSt): Fast stop v [Freewheel] (nSt): Freewheel stop

[Freewheel]

(nSt)

[APPLICATION FUNCT.] (FUn-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

2 s

Code Name/Description Adjustment

range

ArE

nO

31E

31A

SCS

M [Select ATV31 conf.]

This parameter is invisible if a communication option is present. It is only used to transfer a configuration via a loader tool or an ATV31 remote terminal.

[Select ATV31 conf.] (ArE) can be used during a transfer between an ATV31 and ATV312 to specify the

type of ATV31 (ATV31 or ATV31ppppppA). See page 105 and an ATV312 for more details about compatible loader tools. Note :

The transfer can't be done from an ATV31 to an ATV312 with a communication option board

Configuration transfer between an ATV31

v [No] (nO): Transfer between two ATV312

Note1: PC Software is only compatible with ATV312 using the standard input/output control board. Note2: Transfer between 2 drives is only possible if they have the same communication board.

v [ATV31 std] (31E): Transfer from an ATV31 to an ATV312. Set ARE = 31E to download a configuration

from a European ATV31.

v [ATV31...A] (31A): Transfer from an ATV31ppppppA to an ATV312. Set ARE = 31A to download a

configuration from an Asian ATV31.

Procedure for transferring a configuration:

•Set [Select ATV31 conf.] (ArE) to the required value.

• Perform the configuration transfer.

• Once the transfer is complete, turn the drive off.

• Power the drive up again to initialize the configuration.

• The parameter is restored to its factory setting.

M [Saving config.]

See page 45.

(1) [No] (nO)

Factory setting

[No] (nO)

CFG

FCS

(1) [Saving config.] (SCS), [Macro configuration] (CFG), and [Restore config.] (FCS) can be accessed from several configuration menus, but they apply to all menus and parameters.

The jog dial (ENT) needs to be pressed and held down (for 2 s) to change the assignment for this parameter.

M [Macro configuration]

See page 45.

M [Restore config.]

See page 46.

(1) [Factory set.] (Std)

(1) [No] (nO)

90 BBV46385 07/2014

[FAULT MANAGEMENT] (FLt-) menu

Automatic restart

Operating time reset to zero

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

The parameters can only be modified when the drive is stopped and no run command is present. On the optional remote display terminal, this menu can be accessed with the switch in the position.

Code Description Adjustment

range

Atr

M [Automatic restart]

DANGER

UNINTENDED EQUIPMENT OPERATION

• The automatic restart can only be used on machines or installations which do not pose any danger to either personnel or equipment.

• If the automatic restart is activated, R1 will only indicate a fault has been detected once the time-out period for the restart sequence has expired.

• The equipment must be used in compliance with national and regional safety regulations.

Failure to follow these instructions will result in death or serious injury.

The motor's automatic restart function will only be active in 2-wire level control ([2/3 wire control] (tCC) =

[2 wire] (2C), and [2 wire type] (tCt) = [Level] (LEL) or [Fwd priority] (PFO)).

nO

YES

v [No] (nO): Function inactive v [Yes] (YES): Automatic restart if the fault has been cleared and the other operating conditions permit the

restart. The restart is performed by a series of automatic attempts separated by increasingly longer waiting periods: 1 s, 5 s, 10 s, then 1 min for subsequent ones. If the restart has not taken place once the [Max. restart time] (tAr) configurable time has elapsed, the procedure is aborted and the drive remains locked until it is turned off and then on again. This function is possible with the following conditions:

[NETWORK FAULT] (CnF): Communication detected fault on the communication card [CANopen com.] (COF): CANopen communication detected fault [External] (EPF): External fault [4-20mA] (LFF): 4-20 mA loss [Overbraking] (ObF): DC bus overvoltage [Drive overheat] (OHF): Drive overheating [Motor overload] (OLF): Motor overload [Mot. phase] (OPF): Motor phase loss [Mains overvoltage] (OSF): Line supply overvoltage [Mains phase loss] (PHF): Line phase loss [MODBUS FAULT] (SLF): Modbus communication

Factory setting

[No] (nO)

Relay R1 remains activated if this function is active. The speed reference and the operating direction must be maintained.

BBV46385 07/2014 91

[FAULT MANAGEMENT] (FLt-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Description Adjustment

range

tAr

g

rSF

g

5 10 30 1h 2h 3h Ct

nO

LI1 LI2 LI3 LI4 LI5 LI6

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

M [Max. restart time]

Parameter is only visible if [Automatic restart] (Atr) = [Yes] (YES). It can be used to limit the number of consecutive restarts in the event of a recurrent detected fault.

v [5 min] (5): 5 minutes v [10 min] (10): 10 minutes v [30 min] (30): 30 minutes v [1 hour] (1h): 1 hour v [2 hours] (2h): 2 hours v [3 hours] (3h): 3 hours v [Unlimited] (Ct): Unlimited (except for [MOTOR PHASE LOSS] (OPF) and [INPUT PHASE LOSS] (PHF);

the max. duration of the restart process is limited to 3 hours)

M [Fault reset]

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

Factory setting

[5 min] (5)

[No] (nO)

92 BBV46385 07/2014

[FAULT MANAGEMENT] (FLt-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Description Adjustment

range

FLr

nO

YES

EtF

nO

LI1 LI2 LI3 LI4 LI5 LI6

M [Catch on the fly]

Used to enable a smooth restart if the run command is maintained after the following events:

- Loss of line supply or simple power off

- Reset of current drive or automatic restart

- Freewheel stop The speed given by the drive resumes from the estimated speed of the motor at the time of the restart, then follows the ramp to the reference speed. This function requires 2-wire control ( [2/3 wire control] (tCC) = [2 wire] (2C)) with [2 wire type] (tCt) = [Level]

(LEL) or [Fwd priority] (PFO).

v [No] (nO): Function inactive v [Yes] (YES): Function active

When the function is operational, it activates at each run command, resulting in a slight delay (1 second max.).

[Catch on the fly] (FLr) is forced to [No] (nO) if brake control [Brake assignment] (bLC) is assigned, page 84

M [External fault ass.]

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

Factory setting

[No] (nO)

.

[No] (nO)

Cd11 Cd12 Cd13 Cd14 Cd15

LEt

HIG

EPL

YES rNP FSt

LO

nO

If [ACCESS LEVEL] (LAC) = [Level 3] (L3), the following assignments are possible:

v [CD11] (CD11): Bit 11 of the control word from a communication network v [CD12] (CD12): Bit 12 of the control word from a communication network v [CD13] (CD13): Bit 13 of the control word from a communication network v [CD14] (CD14): Bit 14 of the control word from a communication network v [CD15] (CD15): Bit 15 of the control word from a communication network

M [External fault config]

[Active high]

(HIG)

v [Active low] (LO): The external fault is detected when the logic input assigned to [External fault ass.] (EtF)

changes to state 0. Note: In this case, [External fault ass.] (EtF) cannot be assigned to a control word bit from a communication network.

v [Active high] (HIG): The external fault is detected when the logic input or the bit assigned to [External fault

ass.] (EtF) changes to state 1.

Note: Where [External fault config] (LEt) = [Active high] (HIG), [External fault ass.] (EtF) is assigned to a control word bit from a communication network, and where there is no [External fault ass.] (EtF) fault detection, switching to [External fault config] (LEt) = [Active low] (LO) triggers [External fault ass.] (EtF) fault detection. In this case, it is necessary to turn the drive off and then back on again.

M [External fault mgt]

[Freewheel]

(YES)

v [Ignore] (nO): Ignore v [Freewheel] (YES): Detected fault management with freewheel stop v [Ramp stop] (rMP): Detected fault management with stop on ramp v [Fast stop] (FSt): Detected fault management with fast stop

BBV46385 07/2014 93

[FAULT MANAGEMENT] (FLt-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Description Adjustment

range

OPL

M [Output Phase Loss]

DANGER

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

If [Output Phase Loss] (OPL) is set to nO loss of cable is not detected

• Check this action will not endanger personnel or equipment in any way

Failure to follow these instructions will result in death or serious injury.

nO YES OAC

IPL

nO YES

OHL

v [No] (nO): Function inactive v [Yes] (YES): Tripping on the [MOTOR PHASE LOSS] (OPF) v [Output cut] (OAC): No tripping on a [MOTOR PHASE LOSS] (OPF), but management of the output voltage

in order to avoid an overcurrent when the link with the motor is re-established and catch on the fly performed even if [Catch on the fly] (FLr) = [No] (nO). To be used with output contactor.

[Output Phase Loss] (OPL) is forced to [Yes] (YES) if [Brake assignment] (bLC) is not set to [No] (nO),

page 84

.

M [Input phase loss]

This parameter is only accessible on 3-phase drives.

v [No] (nO): Ignore v [Yes] (YES): Stop mode when fault detected: freewheel

M [Overtemp fault mgt]

Factory setting

[Yes] (YES)

[Freewheel]

(YES)

YES rNP FSt

OLL

YES rNP FSt

nO

CAUTION

RISK OF DAMAGE TO THE MOTOR

Inhibiting drive overheating fault detection results in the drive not being protected. This invalidates the warranty.

• Check that the possible consequences do not present any risk.

Failure to follow these instructions can result in equipment damage.

v [Ignore] (nO): Ignore v [Freewheel] (YES): Detected fault management with freewheel stop v [Ramp stop] (rMP): Detected fault management with stop on ramp v [Fast stop] (FSt): Detected fault management with fast stop

M [Overload fault mgt]

[Freewheel]

(YES)

CAUTION

RISK OF DAMAGE TO THE MOTOR

If [Overload fault mgt] is set to nO, motor thermal protection is no longuer provided by the drive. Provide an alternative means of thermal protection.

Failure to follow these instructions can result in equipment damage.

v [Ignore] (nO): Ignore v [Freewheel] (YES): Detected fault management with freewheel stop v [Ramp stop] (rMP): Detected fault management with stop on ramp v [Fast stop] (FSt): Detected fault management with fast stop

94 BBV46385 07/2014

[FAULT MANAGEMENT] (FLt-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Description Adjustment

range

SLL

M [Modbus fault mgt]

WARNING

LOSS OF CONTROL

If [Modbus fault mgt] (SLL) = [Ignore] (n0), communication control will be inhibited. For safety reasons, inhibiting the communication fault detection should be restricted to the debug phase or to special applications.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

nO YES rNP FSt

COL

v [Ignore] (nO): Ignore v [Freewheel] (YES): Detected fault management with freewheel stop v [Ramp stop] (rMP): Detected fault management with stop on ramp v [Fast stop] (FSt): Detected fault management with fast stop

This parameter does not apply to PC-Software.

M [CANopen fault mgt]

WARNING

LOSS OF CONTROL

If [CANopen fault mgt] (COL) = [Ignore] (n0), communication control will be inhibited. For safety reasons, inhibiting the communication fault detection should be restricted to the debug phase or to special applications.

Factory setting

[Freewheel]

(YES)

[Freewheel]

(YES)

YES rNP FSt

tnL

YES

LFL

YES LFF rLS

rNP FSt

LFF

nO

Failure to follow these instructions can result in death, serious injury, or equipment damage.

v [Ignore] (nO): Ignore v [Freewheel] (YES): Detected fault management with freewheel stop v [Ramp stop] (rMP): Detected fault management with stop on ramp v [Fast stop] (FSt): Detected fault management with fast stop

M [Autotune fault mgt]

This parameter can be used to manage drive behavior in the event that auto-tuning is unsuccessful [AUTO

TUNING FAULT] (tnF)

[Yes] (YES)

v [No] (nO): Ignored (the drive reverts to the factory settings) v [Yes] (YES): Detected fault management with drive locked

If [Cold stator resist.] (rSC), page 42

(YES).

M [4-20mA loss]

, is not set to [No] (nO), [Autotune fault mgt] (tnL) is forced to [Yes]

[Freewheel]

(YES)

v [Ignore] (nO): Ignored (only possible value if [AI3 min. value] (CrL3) y 3 mA, page 48) v [Freewheel] (YES): Detected fault management with freewheel stop v [fallback spd] (LFF): The drive switches to the fallback speed ([fallback spd] (LFF) parameter). v [Spd maint.] (rLS): The drive maintains the speed at which it was operating when the loss was detected.

This speed is saved and stored as a reference until the fault has disappeared.

v [Ramp stop] (rMP): Detected fault management with stop on ramp v [Fast stop] (FSt): Detected fault management with fast stop

Note: Before setting [4-20mA loss] (LFL) to [fallback spd] (LFF) check the connection of input AI3. If [4-20mA loss] (LFL) = [fallback spd] (LFF) or [Spd maint.] (rLS), no code is displayed.

M [Fallback speed]

Fallback speed setting in the event of a [4-20mA loss] (LFL).

0 to 500 Hz 10 Hz

BBV46385 07/2014 95

[FAULT MANAGEMENT] (FLt-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

2 s

Code Description Adjustment

range

drn

nO

YES

M [Derated operation]

Lowers the tripping threshold of [Undervoltage] (USF): in order to operate on line supplies with 50% voltage drops.

v [No] (nO): Function inactive v [Yes] (YES): Function active

In this case, drive performance is derated.

CAUTION

RISK OF DAMAGE TO DRIVE

When [Derated operation] (drn) = [Yes] (YES), use a line choke (see catalog).

Failure to follow these instructions can result in equipment damage.

StP

nO

NNS

rMP FSt

M [UnderV. prevention]

This function can be used to control the type of stop where there is a loss of line supply.

v [No] (nO): Locking of the drive and freewheel stopping of the motor v [DC Maintain] (MMS): This stop mode uses the inertia to maintain the drive power supply as long as

possible.

v [Ramp stop] (rMP): Stop according to the valid ramp ([Deceleration] (dEC) or [Deceleration 2] (dE2)) v [Fast stop] (FSt): Fast stop, the stopping time depends on the inertia and the braking ability of the drive.

Factory setting

[No] (nO)

InH

M [Fault inhibit assign.]

DANGER

LOSS OF PERSONNEL AND EQUIPMENT PROTECTION

• Enabling the fault inhibition parameter [Fault inhibit assign.] (inH) will disable the drive controller protection

features.

• InH should not be enabled for typical applications of this equipment.

• InH should be enabled only in extraordinary situations where a thorough risk analysis demonstrates that the presence of adjustable speed drive protection poses a greater risk than personnel injury or equipment damage.

Failure to follow these instructions will result in death or serious injury.

This function disables drive protection for the following detected faults: SLF, CnF, EPF, CrF, LFF, OHF, OBF, OLF, OSF, OPF, PHF, SOF, tnF, COF, bLF

nO LI1 LI2 LI3 LI4 LI5 LI6

The jog dial (ENT) needs to be pressed and held down (for 2 s) to change the assignment for this parameter.

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

The logic inputs are active in the high state.

[No] (nO)

96 BBV46385 07/2014

[FAULT MANAGEMENT] (FLt-) menu

2 s

Code Description Adjustment

range

rPr

nO rtH

rp

M [Operating t. reset]

v [No] (nO): No v [rst. runtime] (rtH): Operating time reset to zero

The [Operating t. reset] (rPr) parameter automatically returns to [No] (nO) after resetting to 0.

M [Product reset]

DANGER

UNINTENDED EQUIPMENT OPERATION

You are going to reset the drive.

• Check this action will not endanger personnel or equipment in any way.

Failure to follow these instructions will result in death or serious injury.

nO YES

The jog dial (ENT) needs to be pressed and held down (for 2 s) to change the assignment for this parameter.

v [No] (nO): No v [Yes] (YES): Yes

Factory setting

[No] (nO)

BBV46385 07/2014 97

[COMMUNICATION] (COM-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

The parameters can only be modified when the drive is stopped and no run command is present. Modifications to the [Modbus Address]

(Add), [Modbus baud rate] (tbr), [Modbus format] (tFO), [CANopen address] (AdCO), and [CANopen bit rate] (bdCO) parameters are not

taken into account until the drive has been switched off and back on again. On the optional ATV31 remote display terminal, this menu can be accessed with the switch in the position.

Code Description Adjustment

range

Add

tbr

19.2

tFO

8O1 8E1

8n1 8n2

ttO

AdCO

4.8

9.6

M [Modbus Address]

Modbus address for the drive.

M [Modbus baud rate]

Modbus transmission speed

v [4.8 Kbps] (4.8): 4,800 bits/second v [9.6 Kbps] (9.6): 9,600 bits/second v [19.2 Kbps] (19.2): 19,200 bits/second (Note: This is the only value which supports the use of the remote

display terminal.)

M [Modbus format]

v [8-O-1] (8O1): 8 data bits, odd parity, 1 stop bit v [8-E-1] (8E1): 8 data bits, even parity, 1 stop bit (Note: This is the only value which supports the use of the

remote display terminal.)

v [8-N-1] (8n2): 8 data bits, no parity, 1 stop bit v [8-N-2] (8n2): 8 data bits, no parity, 2 stop bits

M [Modbus time out]

M [CANopen address]

CANopen address for the drive.

1 to 247 1

0.1 to 30 s 10 s

0 to 127 0

Factory setting

19,200 bps

[8-E-1] (8E1)

bdCO

10.0

20.0

50.0

125.0

250.0

500.0 1000

ErCO

0 1 2 3 4

98 BBV46385 07/2014

M [CANopen bit rate]

Modbus transmission speed

v [10 kbps] (10.0): 10 kbps v [20 kbps] (20.0): 20 kbps v [50 kbps] (50.0): 50 kbps v [125 kbps] (125.0): 125 kbps v [250 kbps] (250.0): 250 kbps v [500 kbps] (500.0): 500 kbps v [1 Mbps] (1000): 1000 kbps

M [Error code]

v No error v Bus off v Life time v CAN overrun v Heartbeat

125 bps

-

[COMMUNICATION] (COM-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Code Description Adjustment

range

FLO

LI1 LI2 LI3 LI4 LI5 LI6

FLOC

g

AI1 AI2 AI3

AIU1

LCC

g

nO

These parameters only appear if the corresponding function has been selected in another menu. When the parameters can also be accessed and set from within the configuration menu for the corresponding function, their description is detailed in these menus, on the pages indicated, to aid programming.

M [Forced local assign.]

v [No] (nO): Not assigned v [LI1] (LI1): Logic input LI1 v [LI2] (LI2): Logic input LI2 v [LI3] (LI3): Logic input LI3 v [LI4] (LI4): Logic input LI4 v [LI5] (LI5): Logic input LI5 v [LI6] (LI6): Logic input LI6

In forced local mode, the terminals and the display terminal regain control of the drive.

M [Forced local Ref.]

Parameter can only be accessed if [ACCESS LEVEL] (LAC) = [Level 3] (L3), page 58. In forced local mode, only the speed reference is taken into account. PI functions, summing inputs, etc. are not active. See the diagrams on pages 55

to 57.

v [AI1] (AI1): Analog input AI1, logic inputs LI v [AI2] (AI2): Analog input AI2, logic inputs LI v [AI3] (AI3): Analog input AI3, logic inputs LI v [AI Virtual 1] (AIV1): Jog dial, RUN/STOP buttons v [HMI] (HMI): Remote display terminal: [HMI Frequency ref.] (LFr) reference, page 32, RUN/STOP/FWD/

REV buttons

Factory setting

[No] (nO)

[AI1] (AI1)

BBV46385 07/2014 99

[MONITORING] (SUP-) menu

rEF-

SEt-

drC-

I-0-

CtL-

FUn-

FLt-

COM-

SUP-

Submenu

LIA-

The parameters can be accessed with the drive running or stopped. On the optional remote display terminal, this menu can be accessed with the switch in any position.

Some functions have numerous parameters. In order to clarify programming and avoid having to scroll through endless parameters, these functions have been grouped in submenus. Like menus, submenus are identified by a dash after their code: for example.

When the drive is running, the value displayed is that of one of the monitoring parameters. By default, the value displayed is the output frequency applied to the motor ([Output frequency] (rFr) parameter). While the value of the new monitoring parameter required is being displayed, press and hold down the jog dial (ENT) again (for 2 seconds) to confirm the change of monitoring parameter and store it. From then on, it is the value of this parameter that will be displayed during operation (even after powering down). "Unless the new choice is confirmed by pressing and holding down ENT again, the display will revert to the previous parameter after powering down.

Note: After the drive has been turned off or following a loss of line supply, the parameter displayed is the drive status ([Ready] (rdY), for example). The selected parameter is displayed following a run command.

100 BBV46385 07/2014

Schneider ATV312H055M2, ATV312H037M2, ATV312HU30N4, ATV312HU15N4, ATV312H055N4 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important information

Before you begin

Documentation structure

Installation Manual

Programming manual

Quick Start

Manuals for Modbus®, CANopen®, etc.

Software enhancements

Enhancements made to version V5.1 IE 54 in comparison to V5.1 IE 50

Steps for setting up the drive

Setup - Preliminary Recommendations

Before powering up the drive

Before configuring the drive

Start-up

Line contactor

Using a motor with a lower rating or dispensing with a motor altogether

Factory configuration

Factory settings

Basic functions

Drive thermal protection

Drive ventilation

Motor thermal protection

Remote display terminal option, ATV31

Saving and loading configurations

Remote graphic display terminal option, ATV61/ATV71

Remote display terminal option, ATV12

Structure of the parameter tables

APPLICATION FUNCT.] menu (Fun-)

Compatibility of functions

Incompatible functions

Function compatibility table

Logic and analog input application functions

List of functions that can be assigned to inputs/outputs

List of functions that can be assigned to the Network and Modbus control word bits

Checklist

Programming

Description of the HMI

Easy REMOTE and LOCAL configuration

Structure of the menus

[SPEED REFERENCE] (rEF-) menu

[SETTINGS] (SEt-) menu

[MOTOR CONTROL] (drC-) menu

[INPUTS / OUTPUTS CFG] (I-O-) menu

[COMMAND] (CtL-) menu

Control and reference channels

Reference channel for [ACCESS LEVEL] (LAC) = [Level 1] (L1) or [Level 2] (L2)

Control channel for [ACCESS LEVEL] (LAC) = [Level 1] (L1) or [Level 2] (L2)

Reference channel for [ACCESS LEVEL] (LAC) = [Level 3] (L3)

Control channel for [ACCESS LEVEL] (LAC) = [Level 3] (L3)

Control channel for [ACCESS LEVEL] (LAC) = [Level 3] (L3)

[COMMAND] (CtL-) menu

[APPLICATION FUNCT.] (FUn-) menu

Preset speeds

+/- speed

Brake control

Management of limit switches

[FAULT MANAGEMENT] (FLt-) menu

[COMMUNICATION] (COM-) menu

[MONITORING] (SUP-) menu
