SARGENT 9900 User Manual

ATTENTION:

* TO PREPARE DOOR, USE INSTRUCTION SHEETS AND TEMPLATES

PACKED WITH EXIT DEVICE AND OUTSIDE TRIM.

* PLEASE, LEAVE THIS INSTRUCTION SHEET FOR MAINTENANCE USE.

RHRB SHOWN PP8700

RHRB SHOWN

PP8600 RHRB SHOWN

LP8600 RHRB SHOWN

IMPORTANT:

SEE PROPER INSTRUCTION SHEET FOR EXIT DEVICE MOUNTING: A6697 - FOR 8400 EXIT DEVICE; A7012 - FOR 12-MD8400 EXIT DEVICE; A7002 - FOR MD8600 AND 12-MD8600 EXIT DEVICES.

IMPORTANT:

SEE INSTRUCTION SHEET A7212 FOR SP8700, 12-SP8700, PP8700, 12-PP8700, PR8700 AND 12-PR8700 EXIT DEVICE MOUNTING. SECURELY FASTEN ADAPTER TO SPINDLE WITH SET SCREW BEFORE MOUNTING.

IMPORTANT:

SEE INSTRUCTION SHEET A7330 FOR SP8600, 12-SP8600, PP8600, 12-PP8600, PR8600 AND 12-PR8600 EXIT DEVICE MOUNTING.

IMPORTANT:

SEE INSTRUCTION SHEET A7393 FOR LP8600, 12-LP8600, LS8600, 12-LS8600, LR8600 AND 12-LR8600 EXIT DEVICE MOUNTING.

IMPORTANT:

SEE INSTRUCTION SHEET A6770 FOR (12-)8888, AND (12-)HC8800 EXIT DEVICES MOUNTING. SECURELY FASTEN ADAPTER TO SPINDLE WITH SET SCREW BEFORE MOUNTING.

700-8 SERIES CONTROL USED WITH

PR8710, PP8710 AND SP8710

CENTER AND TOP LATCH SURFACE

VERTICAL ROD EXIT DEVICES

700-6 SERIES CONTROL USED WITH

PR8600, PP8600 AND SP8600

CENTER AND TOP LATCH CONCEALED

VERTICAL ROD EXIT DEVICES

700-6 SERIES CONTROL USED WITH

LR8600, LP8600 AND LS8600

LOW PROFILE EXIT DEVICES

ADAPTER SCREW MUST BE ON TOP

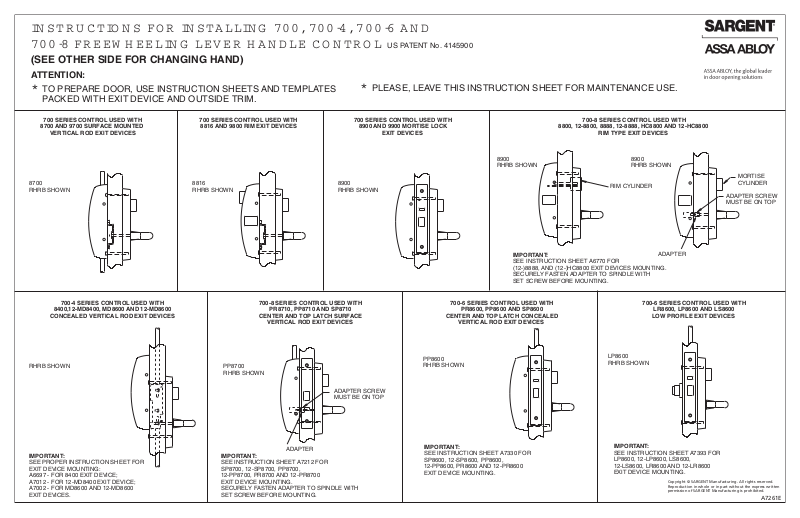

IN S T R U C T IO N S FO R IN S TA LLIN G 700,700-4,700-6 A N D 700-8 FR E E W H E E LIN G LE V E R H A N D LE C O N T R O L US PATENT No. 4145900

(SEE OTHER SIDE FOR CHANGING HAND)

700-4 SERIES CONTROL USED WITH

8400,12-MD8400, MD8600 AND 12-MD8600

CONCEALED VERTICAL ROD EXIT DEVICES

8700 RHRB SHOWN

8816 RHRB SHOWN

8900 RHRB SHOWN

700 SERIES CONTROL USED WITH

8816 AND 9800 RIM EXIT DEVICES

700 SERIES CONTROL USED WITH

8900 AND 9900 MORTISE LOCK

EXIT DEVICES

700-8 SERIES CONTROL USED WITH

8800, 12-8800, 8888, 12-8888, HC8800 AND 12-HC8800

RIM TYPE EXIT DEVICES

700 SERIES CONTROL USED WITH

700 AND 9700 SURFACE MOUNTED

VERTICAL ROD EXIT DEVICES

ADAPTER

ADAPTER SCREW MUST BE ON TOP

MORTISE CYLINDER

ADAPTER

RIM CYLINDER

A7261E

70 0 S E R IE S FR E E W H E E L IN G LE V E R H A N D LE C O N T R O L

METHOD FOR CHANGING HAND OF LEVER

1. REMOVE STOP SCREW USING PHILLIPS SCREWDRIVER.

2. REMOVE HUB SPRING FROM THE GROOVE PIN.

3. REMOVE GUIDES.

4. REMOVE TRUSS HEAD MACHINE SCREW, LOCKING SLIDE SPRING AND LOCKING SLIDE.

5. REMOVE RETAINING RING AND DISCARD.

6. REMOVE SPINDLE LOCKING HUB.

7. REMOVE LOWER HUB PLATE. REMOVE SPRING FROM THE HUB PLATE.

8. ROTATE HANDLE TO DESIRED HAND. (SPINDLE DOES NOT HAVE TO BE REMOVED TO CHANGE HAND).

9. REASSEMBLE BY FLIPPING LOWER HUB PLATE OVER. (

SO THAT SPRING RETAINING HOLE IS ON THE OPPOSITE SIDE).

ASSEMBLE LOWER HUB PLATE WITH HUB SPRING BEFORE SLIDING IT DOWN SPINDLE.

10. INSTALL SPINDLE LOCKING HUB.

11. INSTALL NEW RETAINING RING ONTO SPINDLE.

12. INSTALL LOCKING SLIDE, LOCKING SLIDE SPRING AND TRUSS HEAD MACHINE SCREW.

13. INSTALL GUIDES.

14. INSTALL HUB SPRING ONTO THE GROOVE PIN.

15. INSTALL STOP SCREW INTO THE HOLE FACING THE LEVER HANDLE.

METHOD FOR REPLACING CYLINDER

1. WITH LOCKING SLIDE IN DOWN POSITION, UNSCREW CYLINDER NUT AND REMOVE THE CYLINDER AND CYLINDER RING.

2. REPLACE CYLINDER BY REVERSING ABOVE PROCEDURE. MAKE SURE THAT CYLINDER CAM POINTS UP AND CORRECT LENGTH OF RING IS USED.

700 SERIES RH FREEWHEELING ET CONTROLS SHOWN

CYLINDER

CYLINDER RING

CASE

CYLINDER NUT

LOCKING SLIDE

LOCKING SLIDE SPRING

TRUSS HEAD MACHINE SCREW

FLAT HEAD MACHINE SCREW

RETAINING RING

SPINDLE

GUIDE

LOCKING HUB

HUB SPRING

LOWER HUB PLATE

STOP SCREW

CAP NUT

GROOVE PIN

SPINDLE

BUSHING INSERT

LEVER HANDLE

700-4 FREEWHEELING

ET CONTROL

700-6 FREEWHEELING

ET CONTROL

700-8 FREEWHEELING

ET CONTROL

A7261E
