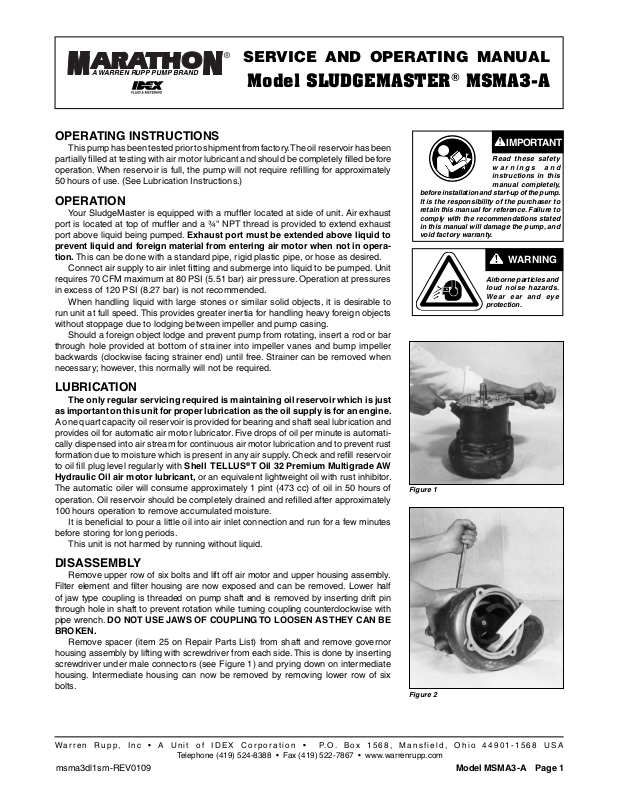

SERVICE AND OPERATING MANUAL

Model SLUDGEMASTER® MSMA3-A

OPERATING INSTRUCTIONS

This pump has been tested prior to shipment from factory. The oil reservoir has been
partially fi lled at testing with air motor lubricant and should be completely fi lled before
operation. When reservoir is full, the pump will not require refi lling for approximately
50 hours of use. (See Lubrication Instructions.)

OPERATION

Your SludgeMaster is equipped with a muffl er located at side of unit. Air exhaust
port is located at top of muffl er and a ¾" NPT thread is provided to extend exhaust
port above liquid being pumped. Exhaust port must be extended above liquid to

prevent liquid and foreign material from entering air motor when not in opera­tion. This can be done with a standard pipe, rigid plastic pipe, or hose as desired.

Connect air supply to air inlet fi tting and submerge into liquid to be pumped. Unit
requires 70 CFM maximum at 80 PSI (5.51 bar) air pressure. Operation at pressures
in excess of 120 PSI (8.27 bar) is not recommended.
When handling liquid with large stones or similar solid objects, it is desirable to
run unit at full speed. This provides greater inertia for handling heavy foreign objects
without stoppage due to lodging between impeller and pump casing.
Should a foreign object lodge and prevent pump from rotating, insert a rod or bar
through hole provided at bottom of strainer into impeller vanes and bump impeller
backwards (clockwise facing strainer end) until free. Strainer can be removed when
necessary; however, this normally will not be required.

LUBRICATION

The only regular servicing required is maintaining oil reservoir which is just
as important on this unit for proper lubrication as the oil supply is for an engine.

A one quart capacity oil reservoir is provided for bearing and shaft seal lubrication and
provides oil for automatic air motor lubricator. Five drops of oil per minute is automati­cally dispensed into air stream for continuous air motor lubrication and to prevent rust
formation due to moisture which is present in any air supply. Check and refi ll reservoir
to oil fi ll plug level regularly with Shell TELLUS
Hydraulic Oil air motor lubricant, or an equivalent lightweight oil with rust inhibitor.
The automatic oiler will consume approximately 1 pint (473 cc) of oil in 50 hours of
operation. Oil reservoir should be completely drained and refi lled after approximately
100 hours operation to remove accumulated moisture.
It is benefi cial to pour a little oil into air inlet connection and run for a few minutes
before storing for long periods.
This unit is not harmed by running without liquid.

®

T Oil 32 Premium Multigrade AW

IMPORTANT

Read these safety
warnings and
instructions in this

manual completely,
before installation and start-up of the pump.
It is the responsibility of the purchaser to
retain this manual for reference. Failure to
comply with the recommendations stated
in this manual will damage the pump, and
void factory warranty.

WARNING

Airborne particles and
loud noise hazards.
Wear ear and eye
protection.

Figure 1

DISASSEMBLY

Remove upper row of six bolts and lift off air motor and upper housing assembly.
Filter element and fi lter housing are now exposed and can be removed. Lower half
of jaw type coupling is threaded on pump shaft and is removed by inserting drift pin
through hole in shaft to prevent rotation while turning coupling counterclockwise with
pipe wrench. DO NOT USE JAWS OF COUPLING TO LOOSEN AS THEY CAN BE

BROKEN.

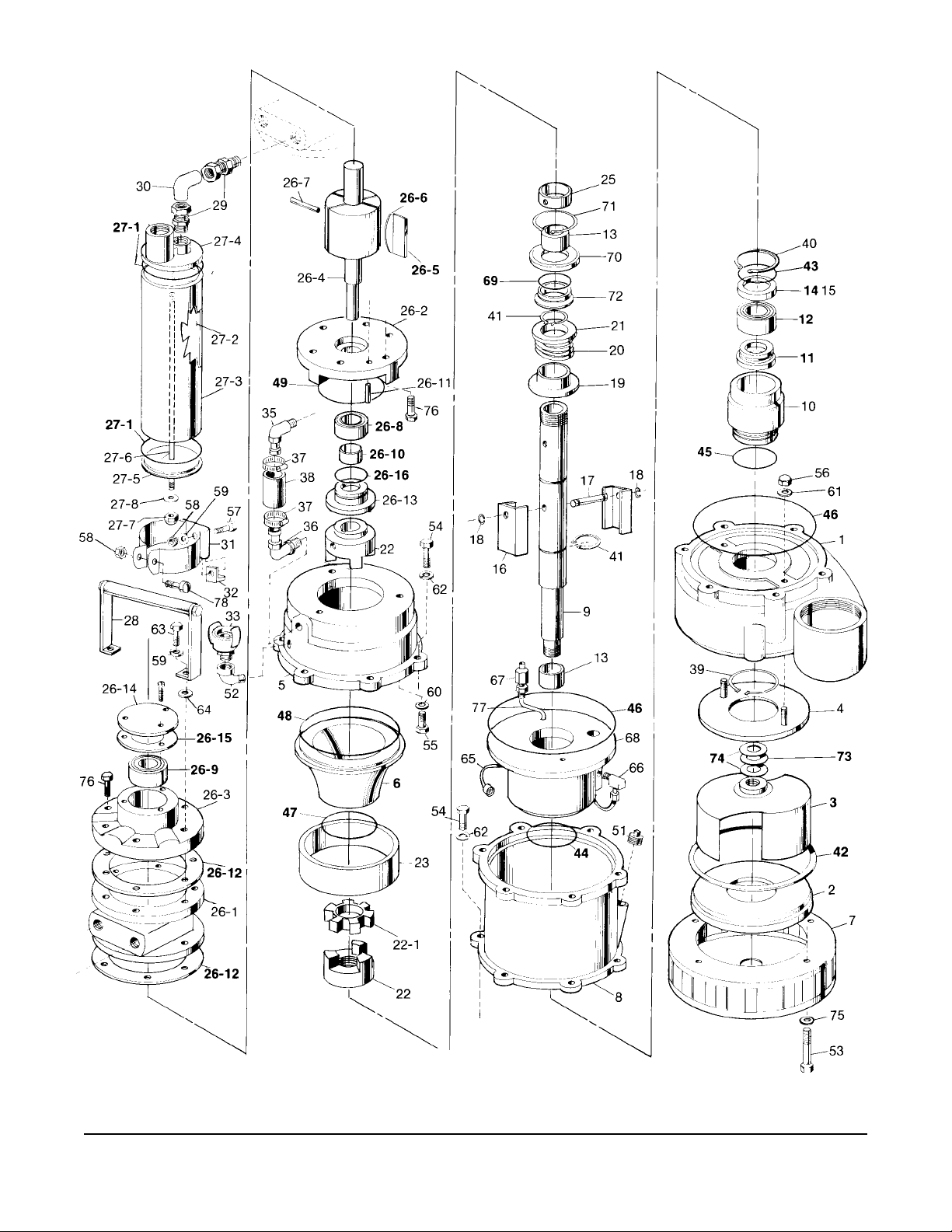

Remove spacer (item 25 on Repair Parts List) from shaft and remove governor
housing assembly by lifting with screwdriver from each side. This is done by inserting
screwdriver under male connectors (see Figure 1) and prying down on intermediate
housing. Intermediate housing can now be removed by removing lower row of six
bolts.

Warren Rupp, Inc • A Unit of IDEX Corporation • P.O. Box 1568, Mansfield, Ohio 44901-1568 USA

Telephone [phone] • Fax [phone] • www.warrenrupp.com

msma3dl1sm-REV0109 Model MSMA3-A Page 1

Figure 2

Remove strainer assembly secured with four cap nuts. Impeller is removed by
inserting block of wood, hammer handle, or similar object between impeller vane and
pump casing (see Figure 2) to prevent rotation and turn shaft counterclockwise from
air motor end with drift pin inserted through hole in shaft. Remove shaft assembly
from volute casing by removing snap ring above oil seal, bump shaft and bearing from
casing. Rotating portion of shaft seal can now be removed from shaft and stationary
seal seat can be removed from casing.

REASSEMBLY

When installing shaft seal on shaft use a lightweight oil and locate seal at extreme
end of shaft so that carbon face of seal will contact seal seat before bearing enters
housing bore during assembly. This eliminates the possibility of carbon washer falling
out of position in seal cage while bumping shaft and bearing assembly into correct
position. Push oil seal and retainer into bore above bearing and install snap ring.
Install governor weights, spool and spring if removed. Lay o-ring into casing bore and
install intermediate housing. Install o-ring and drop governor housing into position and
push down into place. Slide sleeve and spacer onto shaft with spacer and shaft holes
in alignment. Install coupling and tighten securely with drift pin and pipe wrench with
same procedure as removal. (See Figure 3.) Insert o-ring into fi lter housing bore and
press fi lter element and housing into position as shown. (See Figure 4.) Install o-ring
into intermediate bore and o-ring on to counter bore at upper end of fi lter housing.
Assembly is now ready to receive air motor and housing assembly. If coupling half on
air motor shaft is removed, make certain coupling is relocated to correct position as
indicated dimensionally in Figure 5. Line up coupling jaws for engagement by using bolt
holes of castings as a reference. Rubber spider should be installed in lower coupling
half. Lower air motor and housing into place slowly to feel for correct coupling engage­ment. When coupling is properly engaged, assembly can be pushed down by hand. DO
NOT FORCE ASSEMBLY TOGETHER WITH BOLTS. If air motor assembly is lifted
back up in attempting to engage blind coupling, make certain that o-ring on top end
of fi lter housing is still in position. If o-ring is out of position during this blind assembly,
air will by-pass the governor and over-speeding can occur. Fill with recommended oil
and run unit without pumping to check for possible oil leakage at shaft seal or o-ring
joints. Turn air supply on slowly to make certain that governor is operating properly.

Figure 3

WARRANTY

This unit is guaranteed for a period of fi ve years against defective material and
workmanship.

PERMANENT INSTALLATIONS

NOTE: As mentioned, the MSMA3-A pump does require that oil be in the reservoir

for bearing and motor lubrication. For permanent installations remove item 66, then
plug the hole with a
make sure that an in-line oiler (type oil as recommended) is used in the air supply to
the pump. Set lubricator at a usage rate of 1 pint (473 cc) every 50 hours. The motor
will then be lubricated by the in-line oiler and the bearing by the oil in the reservoir.

1

/8" pipe plug, part number 618-002-330. Fill the reservoir and

Figure 4

Figure 5

Figure 6 Spider insert.
