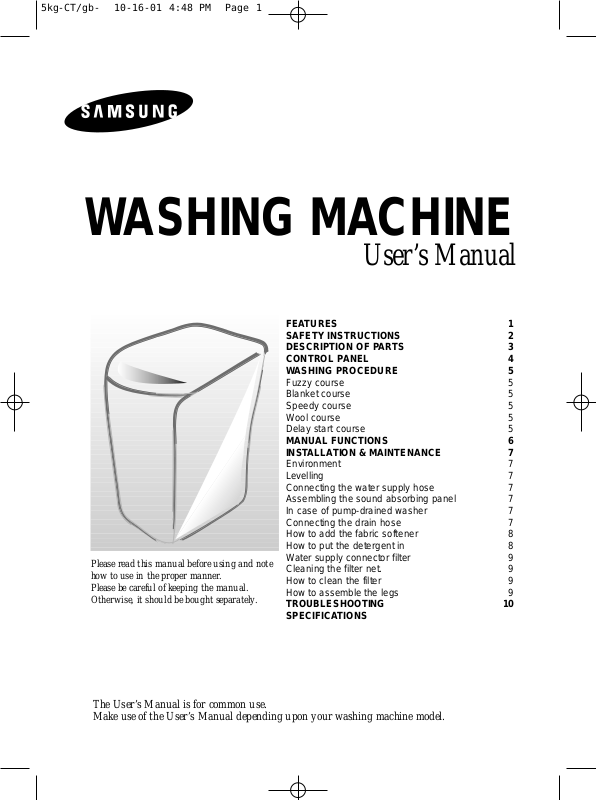

Samsung WA85K2SP, WA85K2S, WA80K2SP, WA80K2SEG/XSH, WA75K5 User Manual

WASHING MACHINE

User’s Manual

Please read this manual before using and note how to use in the proper manner.

Please be careful of keeping the manual. Otherwise, it should be bought separately.

FEATURES	1
SAFETY INSTRUCTIONS	2
DESCRIPTION OF PARTS	3
CONTROL PANEL	4
WASHING PROCEDURE	5
Fuzzy course	5
Blanket course	5
Speedy course	5
Wool course	5
Delay start course	5
MANUAL FUNCTIONS	6
INSTALLATION & MAINTENANCE	7
Environment	7
Levelling	7
Connecting the water supply hose	7
Assembling the sound absorbing panel	7
In case of pump-drained washer	7
Connecting the drain hose	7
How to add the fabric softener	8
How to put the detergent in	8
Water supply connector filter	9
Cleaning the filter net.	9
How to clean the filter	9
How to assemble the legs	9
TROUBLESHOOTING	10
SPECIFICATIONS

The User’s Manual is for common use.

Make use of the User’s Manual depending upon your washing machine model.

FEATURES

FUZZY CONTROL

• Fuzzy control operates with best washing course by sensing the washload like artificial intelligence.

TRANSPARENT WINDOW

•This Transparent Window is the new concept to solve the curiosity of users to see inside of washing machine while operation.

While operation, the laundry progress inside of washing machine can be checked by looking through the transparent window.

PULSATOR

• The Pulsator helps water and detergent to go through fabrics efficiently

while providing both the powerful water action to clean larger and heavier clothes and the gentle water action to clean all delicates with less wear and tear on clothes.

WATERFALL FLOW

•The Waterfall Flow injected from under the pulsator cascades with full force back into the tub, pushing down any clothes that float right under the water surface. It is this Waterfall Flow that enables this washing machine to effectively wash large and heavy items, such as bluejeans and blankets.

MAGIC FILTER

• This unique magic Filter ensures that all the lint inside the tub is captured for top quality filtering results to deliver consistently effective cleaning results.

SOFTENER DISPENSER

•The Softener Dispenser releases the fabric softener at the appropriate time when the last rinsing proceeds.

1

SAFETY INSTRUCTIONS

Please note that the following precautions for safety intend to prevent unpredictable danger and damage by helping the proper use in safety.

When using hot water in washing, please make sure that the water should not exceed 50˚C. ● Plastic parts may be deformed or damaged, and an electric shock or a fire may take place.

WARNING

There might be serious injury or fatal accident when you violate this instruction.

If the power supply cord or plug is damaged or loosened, do not use.

• An electric shock or a fire may take place.

Do not pull the cord off or touch it with moist hands.

• An electric shock or a fire may take place.

Do not bend the power supply cord by force or press it with heavy things.

• An electric shock or a fire may take place.

Do not install the washer nearby electric implement or don’t put a candle light or cigarette light on the washer.

• A fire may take place.

Do not disassemble, repair or remodel it recklessly.

•When you need to repair it, please call service agent. An electric shock or a fire may take place.

During operation, do not put your hands or metal materials under the washer.

•You may be hurt by spinning board beneath the washer.

Stay away from the washer when the bottom of the washer sinks into the water.

•There might be an electric shock. Please wait until the water drains out completely.

Do not put laundry stained with gasoline, benzene, or alcohol in the washer, and keep the materials away from the washer.

• An explosion or a fire may take place.

During spinning, don’t put your hand in the spinning tub.

• It may hurt your hands. If it does not stop within 15 seconds after you open the lid, call

service agent immediately.

CAUTIONS

There might be a slight injury or damage when you violate this instruction.

Don’t’ install it in the area with moisture or outdoor where it has rain or snow

• An electric shock or a fire may take place.

Please unplug the power supply cord when you do not use it.

• An electric shock or a fire may take place.

If there is dust or water on the power supply plug and its connected part, please remove it completely.

• An electric shock or a fire may take place.

Do not make your kids look into the inside of the washer.

•If your kid falls into the washer, his life could be in danger.

Ventilate immediately without touching the power plug if gas is leaking.

• An electric shock or a fire may take place if it catches flame.

If the washer makes strange noise, smell or smoke, unplug it promptly and call service agent.

• An electric shock or a fire may take place.

When cleaning, don’t spray water to the parts of the washer directly.

• It may make it’s life span shorten.

Also an electric shock or fire may take place

Don’t use several appliances together with an outlet.

• A fire may take place due to unusual heat.

Don’t press the button with an awl or pin.

• An electric shock or a fire may take place.

2

FILTER

Lint will be collected in the filter during washing.

FABRIC SOFTENER

DISPENSER

3

BLEACH INLET

PULSATOR

FRONT CONTROL

PANEL

ADJUSTABLE LEGS

Adjust the length of the legs when installing the washer.

LID

Be sure to keep the lid

closed during washing and spinning.

WATER SUPPLY HOSE(HOT)

WATER SUPPLY HOSE (COLD)

DRAIN-HOSE (PUMP)

DETERGENT BOX

SPIN BASKET POWER CORD

GROUND LEAD

When the water pipe is metal, make sure to cover the end of the ground wire.

WATER DRAIN HOSE

SOUND ABSORPTION

PANEL

washing your upon depending Manual s’User the of use Make	.use common for is Manual s’User The	PARTS OF DESCRIPTION
.model machine
