Samsung VP-X110L Schematic Diagram

This Document can not be used without Samsung’s authorization
Samsung Electronics 10-1
10. Schematic Diagrams

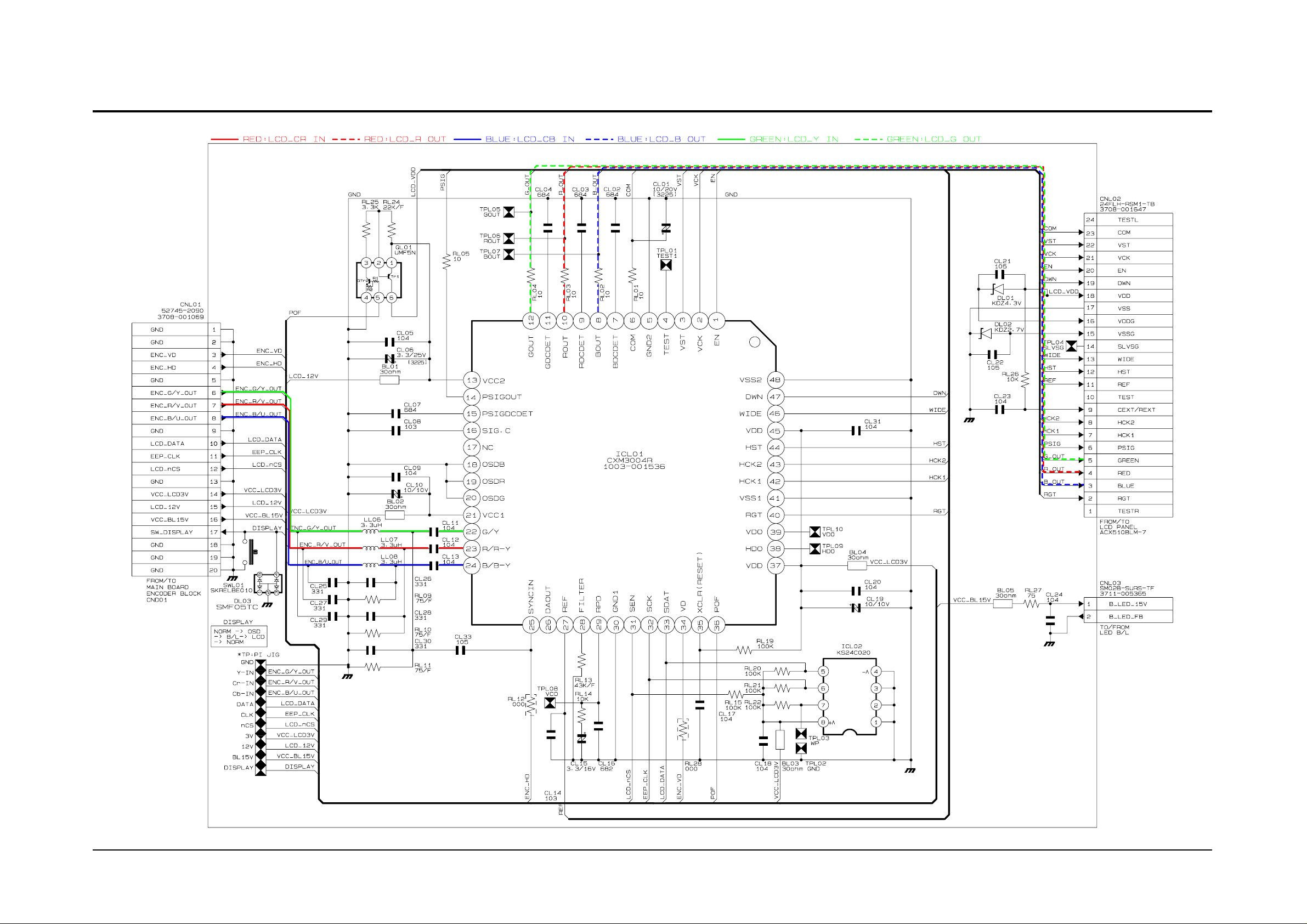

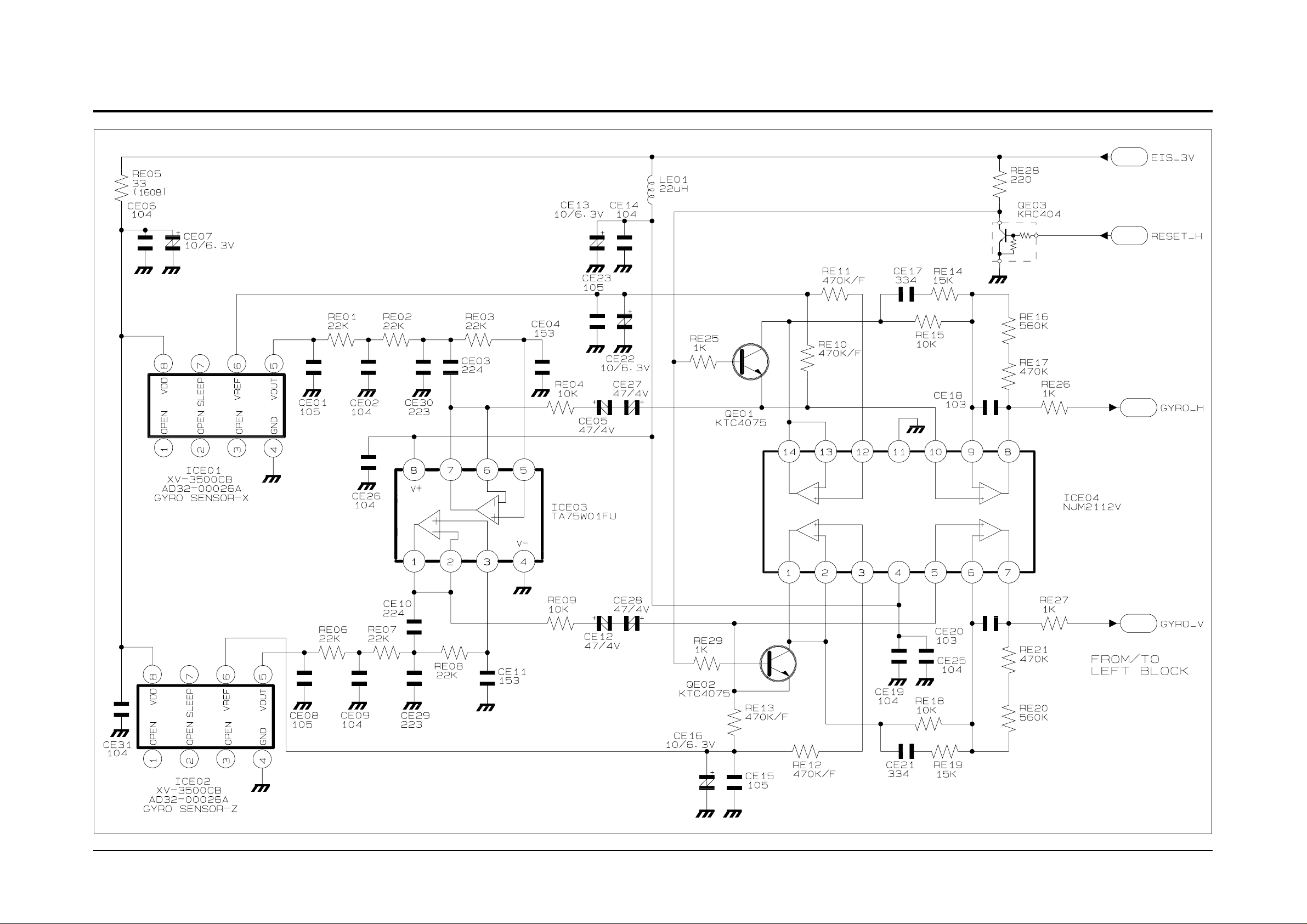

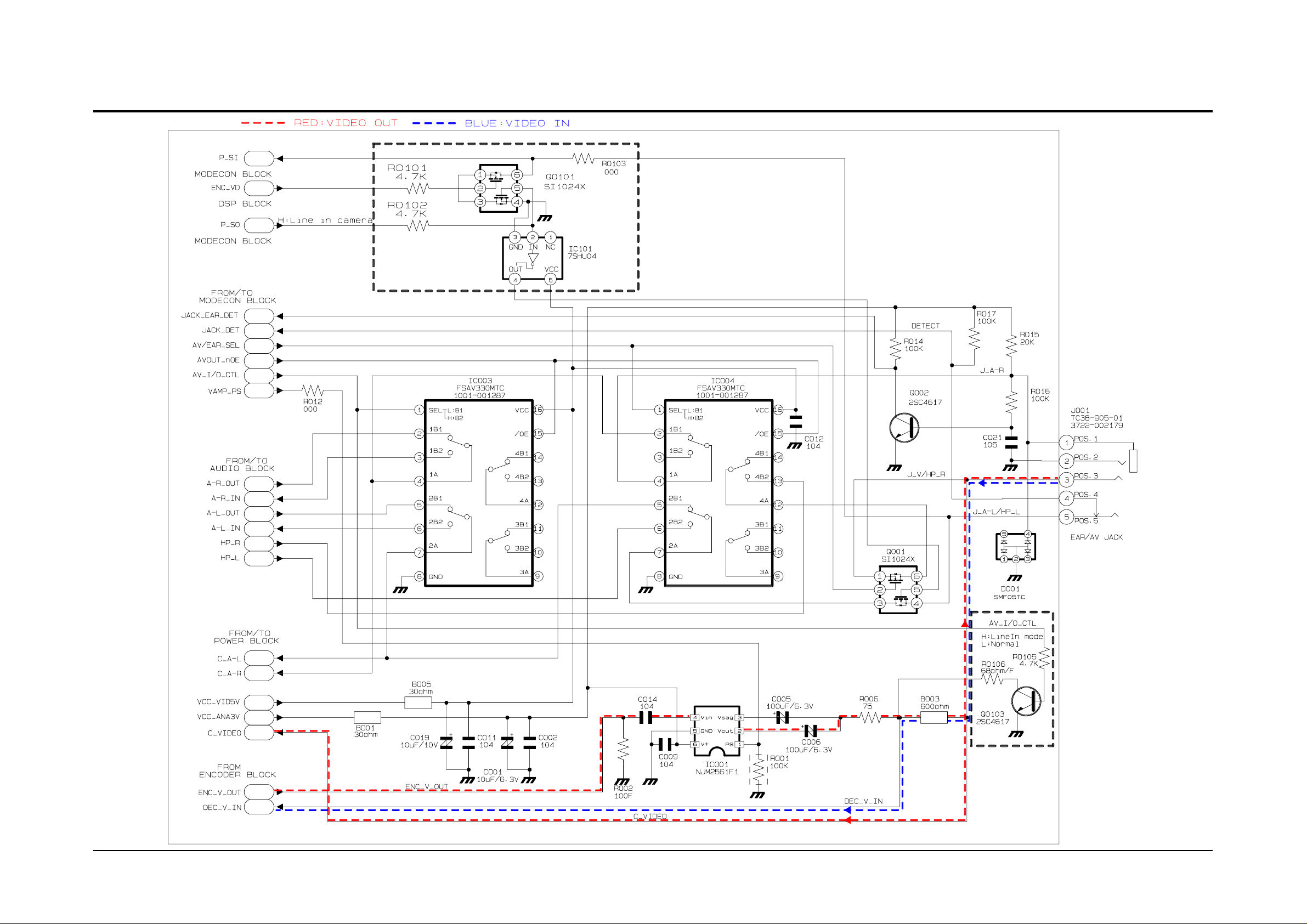

10-1 Power (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10-2 10-2 DSP (Main PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10-3 10-3 Encoder (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10-4 10-4 Memory (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10-5 10-5 Modecon (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10-6 10-6 Audio (Main PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10-7 10-7 CDS (Main PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10-8 10-8 Motor (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10-9 10-9 A/V In-Out (Main PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10-10 10-10 Left 1 (Left PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10-11 10-11 Left 2 (Left PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10-12 10-12 LCD (LCD PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10-13 10-13 CCD (CCD PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10-14
For schematic Diagram
- Resistors are in ohms, 1/8W unless otherwise noted.
Note
Special note :
Most semiconductor devices are electrostatically sensitive and therefore require the special handling techniques described under the “electrostatically sensitive (ES) devices” section of this service manual.
Note :
Do not use the part number shown on this drawing for ordering. The correct part number is shown in the parts list (may be slightly
different or amended since this drawing was prepared).
Important safety notices :
Components identified with the mark have the special characteristics for safety. When replacing any of these components. Use only the same type.
Page
Schematic Diagrams
10-2 Samsung Electronics
This Document can not be used without Samsung’s authorization

10-1 Power (Main PCB)

Schematic Diagrams
Samsung Electronics 10-3
This Document can not be used without Samsung’s authorization

10-2 DSP (Main PCB)

Schematic Diagrams
10-4 Samsung Electronics
This Document can not be used without Samsung’s authorization

10-3 Encoder (Main PCB)

Schematic Diagrams
Samsung Electronics 10-5
This Document can not be used without Samsung’s authorization

10-4 Memory (Main PCB)
