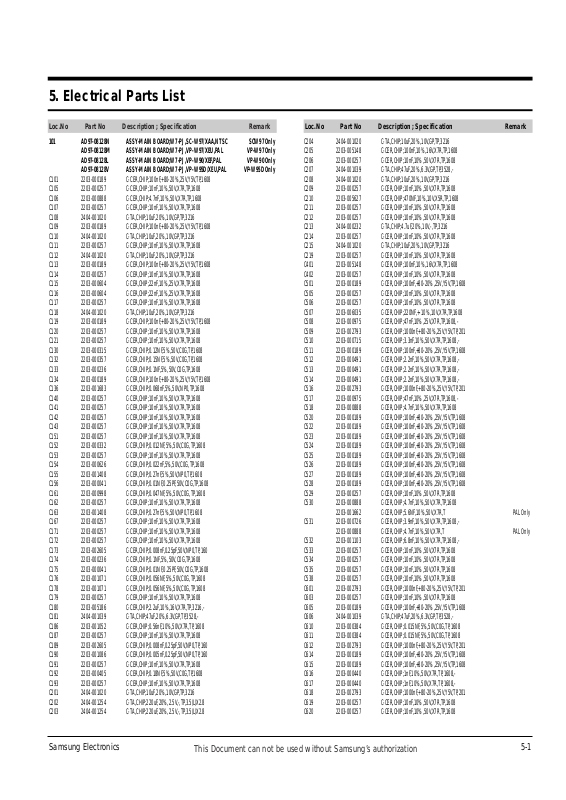

Page 1
This Document can not be used without Samsung’s authorization
Loc.No Part No Description ; Specification Remark Loc.No Part No Description ; Specification Remark
Samsung Electronics
5-1
101 AD97-08128N ASSY-MAIN BOARD;W7-PJ,SC-W97/XAA,NTSC SCW97 Only
AD97-08128M ASSY-MAIN BOARD;W7-PJ,VP-W97/XEU,PAL VP-W97 Only
AD97-08128L ASSY-MAIN BOARD;W7-PJ,VP-W90/XEF,PAL VP-W90 Only
AD97-08128V ASSY-MAIN BOARD;W7-PJ,VP-W95D/XEU,PAL VP-W95D Only
C101 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C105 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C106 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
C107 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C108 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
C109 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C110 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
C111 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C112 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
C113 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C114 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C115 2203-000604 C-CER,CHIP;22nF,10%,25V,X7R,TP,1608
C116 2203-000604 C-CER,CHIP;22nF,10%,25V,X7R,TP,1608
C117 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C118 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
C119 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C120 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C121 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C130 2203-000315 C-CER,CHIP;0.12NF,5%,50V,C0G,TP,1608
C132 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608
C133 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
C134 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C136 2203-001683 C-CER,CHIP;0.068nF,5%,50V,NP0,TP,1608
C140 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C141 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C142 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C143 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C151 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C152 2203-000332 C-CER,CHIP;0.012NF,5%,50V,C0G,TP,1608
C153 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C154 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,TP,1608
C155 2203-001408 C-CER,CHIP;0.27nF,5%,50V,NP0,TP,1608
C156 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608
C161 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608
C162 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C163 2203-001408 C-CER,CHIP;0.27nF,5%,50V,NP0,TP,1608
C167 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C171 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C172 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C173 2203-002605 C-CER,CHIP;0.008nF,0.25pF,50V,NP0,TP,160
C174 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
C175 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608
C176 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608
C178 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608
C179 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C180 2203-005186 C-CER,CHIP;2.2uF,10%,16V,X7R,TP,3216,C181 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,C186 2203-001052 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1608
C187 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C189 2203-002605 C-CER,CHIP;0.008nF,0.25pF,50V,NP0,TP,160
C190 2203-001086 C-CER,CHIP;0.005nF,0.25pF,50V,NP0,TP,160
C191 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C192 2203-000405 C-CER,CHIP;0.18NF,5%,50V,C0G,TP,1608
C193 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C201 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
C202 2404-001254 C-TA,CHIP;220uF,20%,2.5V,-,TP,3.5(L)X2.8
C203 2404-001254 C-TA,CHIP;220uF,20%,2.5V,-,TP,3.5(L)X2.8
C204 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
C205 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C206 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C207 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,C208 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
C209 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C210 2203-005627 C-CER,CHIP;470NF,10%,10V,X5R,TP,1608
C211 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C212 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C213 2404-000232 C-TA,CHIP;4.7uF,20%,10V,-,TP,3216
C214 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C215 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
C219 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C401 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C402 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C501 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C505 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C506 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C507 2203-006035 C-CER,CHIP;220NF,+-10%,10V,X7R,TP,1608
C508 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,C509 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
C510 2203-000715 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1608,C511 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C512 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,C513 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,C514 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,C516 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
C517 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,C518 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
C520 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C522 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C523 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C524 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C525 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C526 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C527 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C528 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C529 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C530 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
2203-001662 C-CER,CHIP;5.6NF,10%,50V,X7R,T PAL Only
C531 2203-000726 C-CER,CHIP;3.9nF,10%,50V,X7R,TP,1608,-
2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,T PAL Only
C532 2203-001103 C-CER,CHIP;6.8nF,10%,50V,X7R,TP,1608,C533 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C534 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C535 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C538 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C601 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
C603 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C605 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C606 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,C610 2203-000384 C-CER,CHIP;0.015NF,5%,50V,C0G,TP,1608
C611 2203-000384 C-CER,CHIP;0.015NF,5%,50V,C0G,TP,1608
C612 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
C614 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C615 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C616 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,C617 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,C618 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
C619 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C620 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
5. Electrical Parts List
Page 2
This Document can not be used without Samsung’s authorization
Loc.No Part No Description ; Specification RemarkLoc.No Part No Description ; Specification Remark
5-2
Samsung Electronics
Electrical Parts List
C621 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C626 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
C627 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
C628 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C629 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C630 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C701 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,C702 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,C703 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C704 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C705 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,C706 2404-001131 C-TA,CHIP;22UF,10%,10V,GP,TP,3528
C707 2404-000232 C-TA,CHIP;4.7uF,20%,10V,-,TP,3216
C708 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C709 2404-000232 C-TA,CHIP;4.7uF,20%,10V,-,TP,3216
C710 2203-000922 C-CER,CHIP;470nF,+80-20%,25V,Y5V,TP,2012
C711 2203-005186 C-CER,CHIP;2.2uF,10%,16V,X7R,TP,3216,C712 2404-000232 C-TA,CHIP;4.7uF,20%,10V,-,TP,3216
C713 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C714 2203-001103 C-CER,CHIP;6.8nF,10%,50V,X7R,TP,1608,C715 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C716 2203-005186 C-CER,CHIP;2.2uF,10%,16V,X7R,TP,3216,C717 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C718 2203-000715 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1608,C720 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C721 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C722 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,C723 2404-000151 C-TA,CHIP;1uF,20%,16V,-,TP,3216
C725 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,C726 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
C727 2404-000266 C-TA,CHIP;0.68uF,20%,25V,-,TP,3216
C728 2404-000151 C-TA,CHIP;1uF,20%,16V,-,TP,3216
C729 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
C730 2404-001131 C-TA,CHIP;22UF,10%,10V,GP,TP,3528
C731 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C732 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C737 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C738 2203-000715 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1608,C901 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
C903 2203-005619 C-CER,CHIP;4700NF,10%,16V,X5R,TP,3216
C904 2203-005644 C-CER,CHIP;10000nF,10%,6.3V,X5R,TP,3216
C905 2404-001131 C-TA,CHIP;22UF,10%,10V,GP,TP,3528
C906 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
C907 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C908 2203-005686 C-CER,CHIP;2200nF,20%,10V,X5R,TP,2012
C912 2203-005619 C-CER,CHIP;4700NF,10%,16V,X5R,TP,3216
C913 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528
C914 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528
C916 2203-005261 C-CER,CHIP;1000nF,10%,25V,X7R,-,3216
C917 2203-005261 C-CER,CHIP;1000nF,10%,25V,X7R,-,3216
C920 2203-005261 C-CER,CHIP;1000nF,10%,25V,X7R,-,3216
C921 2203-005261 C-CER,CHIP;1000nF,10%,25V,X7R,-,3216
C923 2203-005644 C-CER,CHIP;10000nF,10%,6.3V,X5R,TP,3216
C928 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,C929 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,C930 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C931 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C932 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608
C933 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C934 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C935 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,C936 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,C937 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,C938 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,C939 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,C940 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C941 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C945 2203-005619 C-CER,CHIP;4700NF,10%,16V,X5R,TP,3216
C946 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
C948 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,C951 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 Not used VP-W95D
C952 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 Not used VP-W95D
CA01 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
CA02 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CA03 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CA04 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
CA05 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CA07 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CA08 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CA09 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608
CA11 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CA12 2404-001251 C-TA,CHIP;22UF,20%,7V,-,TP,3216
CA13 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CA15 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CA16 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
CA17 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CA18 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CD01 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y VP-W97 Only
CD02 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V, VP-W97 Only
CD03 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y VP-W97 Only
CD04 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3 VP-W97 Only
CD06 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y VP-W97 Only
CD07 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y VP-W97 Only
CD09 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3 VP-W97 Only
CD10 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y VP-W97 Only
CD14 2404-001251 C-TA,CHIP;22UF,20%,7V,-,TP,321 VP-W97 Only
CD15 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y VP-W97 Only
CD17 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y VP-W97 Only
CL01 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CL02 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608
CL03 2203-000799 C-CER,CHIP;33nF,10%,16V,X7R,TP,1608
CL04 2203-000604 C-CER,CHIP;22nF,10%,25V,X7R,TP,1608
CL05 2203-000799 C-CER,CHIP;33nF,10%,16V,X7R,TP,1608
CL06 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CL07 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CL08 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CL09 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CL10 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
CL11 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CL13 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CL14 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
CL16 2404-000190 C-TA,CHIP;22uF,20%,16V,-,TP,5832,CL17 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CL20 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CL21 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G,TP,1608
CL22 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CL23 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CL24 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CL25 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CL26 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CL27 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CL28 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CN101 3708-001348 CONNECTOR-FPC/FFC/PIC;11P,1MM,SMD-A,SN,N
CN501 3708-001471 CONNECTOR-FPC/FFC/PIC;43P,0.5MM,SMD-A,SN
CN601 3711-004735 CONNECTOR-HEADER;BOX,38P,2R,0.8mm,SMD-A,
CN602 3708-001583 CONNECTOR-FPC/FFC/PIC;11P,1MM,SMD-A,SN,Z
CN603 3708-001582 CONNECTOR-FPC/FFC/PIC;14P,0.5MM,SMD-A,SN
CN605 3711-002050 CONNECTOR-HEADER;BOX,10P,1R,1.25mm,SMD-A
CN702 3711-000541 CONNECTOR-HEADER;BOX,2P,1R,1.25MM,SMD-A,
CNP01 3710-001478 CONNECTOR-SOCKET;18P,2R,1MM,SMD-S,SN
CNP02 3708-001070 CONNECTOR-FPC/FFC/PIC;22P,0.5MM,SMD-A,SN
CP01 2404-000157 C-TA,CHIP;1uF,20%,35V,-,TP,3216
Page 3
This Document can not be used without Samsung’s authorization
Loc.No Part No Description ; Specification Remark Loc.No Part No Description ; Specification Remark
Electrical Parts List
Samsung Electronics
5-3
CP02 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
CP04 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CP06 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CP07 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
CP08 2404-001251 C-TA,CHIP;22UF,20%,7V,-,TP,3216
CP10 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CP11 2404-001251 C-TA,CHIP;22UF,20%,7V,-,TP,3216
CP12 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CP13 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CP14 2404-001251 C-TA,CHIP;22UF,20%,7V,-,TP,3216
CP15 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CP16 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
CP17 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
CP19 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
CP20 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
CP21 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CP22 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CP23 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
CP24 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
CP25 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608
CP26 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CP27 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,TP,1608
2203-000426 C-CER,CHIP;0.018NF,5%,50V,C0G, PAL Only
CP28 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
CP30 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
CP33 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CP35 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CP41 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CP42 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CP46 2203-002605 C-CER,CHIP;0.008nF,0.25pF,50V,NP0,TP,160
CP47 2203-002605 C-CER,CHIP;0.008nF,0.25pF,50V,NP0,TP,160
CP48 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
CP49 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,CP50 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608
CP51 2203-001660 C-CER,CHIP;0.004NF,0.25PF,16V,NP0,TP,160
CV01 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
CV02 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
CV03 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
CV04 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
CV05 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
CV06 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
CV07 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y VP-W95D Only
CV08 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y VP-W95D Only
CV09 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V, VP-W95D Only
CV10 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
CV11 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y VP-W95D Only
CV12 2404-000157 C-TA,CHIP;1uF,20%,35V,-,TP,321 VP-W95D Only
CV13 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
CV14 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
CV15 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V, VP-W95D Only
CV24 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
CV25 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
CV26 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
D602 0401-001054 DIODE-SWITCHING;KDS160,80V,100MA,SOD-323
D603 0401-001054 DIODE-SWITCHING;KDS160,80V,100MA,SOD-323
D701 0401-001054 DIODE-SWITCHING;KDS160,80V,100MA,SOD-323
D905 0401-001059 DIODE-SWITCHING;1SS362,80V,80MA,SC-75,TP
IC101 1201-001312 IC-PREAMP;CXA2032Q,QFP,32P,7.0MIL,SINGLE
IC201 1201-001322 IC-VIDEO AMP;NJM2538V,SOP,20P,175MIL,-,IC401 1204-002254 IC-OSD PROCESSOR;UPD6467GR-562-E1,SSOP,2
IC501 0909-001013 IC-REAL TIME CLOCK;5C372,8BIT,SOP,8P,-,3
IC502 1003-001680 IC-MOTOR DRIVER;LB11993W,SQPF,64P,12x12x
IC601 AD09-00244A IC MICOM;uPD703040GM-061-UEU,SC-L901,17
AD09-00245A IC MICOM;uPD703040GM-062-UEU,V VP-W90/W97 Only
AD09-00080A IC MICOM;uPD70F3040GM-UEU,W-PJ VP-W95D Only
IC602 1203-002807 IC-POSI.FIXED REG.;XC6413FY01MR,SOT-25,5
IC603 1103-001224 IC-EEPROM;524L50X51,2Kx8,SOP,8P,5.13x4mm
IC701 1201-001406 IC-AUDIO AMP;7458,SQFP,64P,393MIL,-,-,PL
IC901 1203-001534 IC-PWM CONTROLLER;TL1466I,QFP,64P,-,PLAS
IC902 1203-002120 IC-POSI.FIXED REG.;1562,SOP,7P,173MIL,PL
IC903 1201-002101 IC-OP AMP;KIA358AFK,US,TP,8P,2x2.3mm,DUA Not used VP-W95D
IC905 0801-002269 IC-CMOS LOGIC;7SET04,INVERTER,SOP,5P,150
ICA01 1002-001258 IC-A/D CONVERTER;AD9806JST80016R3,10BITS
ICD01 AD13-00025A IC HYBRID-DIS;HDIS2-SYSFO,SPIK VP-W97 Only
ICD02 1105-001035 IC-DRAM;416S1120,1Mx16Bit,TSOP VP-W97 Only
ICL01 1201-001667 IC-OP AMP;12902,SSOP,TP,14P,173MIL,QUAD,
ICL02 1003-001200 IC-MOTOR DRIVER;UPD16835,SOP,38P,300MIL,
ICL03 AC14-12012T IC-OP AMP;TA75S01F(TE85L),QFP,ICP01 AD13-00010A IC-DSP;MB87L1551,W-PJ,176P,-40TO125,Q
ICP02 1003-001065 IC-CLOCK DRIVER;KS7221D,SOP,20P,225MIL,Q
ICV01 1204-001760 IC-VIDEO PROCESS;UPC5020GR-125,SOP,20P,3
L101 2703-000403 INDUCTOR-SMD;22uH,10%,3225
L102 2703-000002 INDUCTOR-SMD;100uH,10%,3225
L131 2703-000363 INDUCTOR-SMD;10uH,5%,2520
L151 2703-000363 INDUCTOR-SMD;10uH,5%,2520
L152 2703-000381 INDUCTOR-SMD;180uH,5%,3225
L153 2703-000366 INDUCTOR-SMD;22uH,5%,2520
L154 2703-000373 INDUCTOR-SMD;68uH,5%,2520
L171 2703-000365 INDUCTOR-SMD;15uH,5%,2520
L172 2703-000375 INDUCTOR-SMD;82uH,5%,2520
L173 2703-000381 INDUCTOR-SMD;180uH,5%,3225
L181 2703-000403 INDUCTOR-SMD;22uH,10%,3225
L186 2703-000375 INDUCTOR-SMD;82uH,5%,2520
L187 2703-000376 INDUCTOR-SMD;8.2uH,5%,2520
L201 2703-000409 INDUCTOR-SMD;47uH,10%,3225
L203 2703-001883 INDUCTOR-SMD;22uH,10%,2520
L401 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012
L701 2703-000398 INDUCTOR-SMD;10uH,10%,3225
L901 2703-001871 INDUCTOR-SMD;10uH,20%,6060
L902 2703-000402 INDUCTOR-SMD;1uH,20%,3225
L903 2703-002054 INDUCTOR-SMD;47uH,20%,6060
L904 2703-000398 INDUCTOR-SMD;10uH,10%,3225
L910 2703-000402 INDUCTOR-SMD;1uH,20%,3225
L911 2703-001910 INDUCTOR-SMD;68uH,20%,6060
L912 2703-001910 INDUCTOR-SMD;68uH,20%,6060
L914 2703-000397 INDUCTOR-SMD;33uH,10%,2520
L916 2703-000397 INDUCTOR-SMD;33uH,10%,2520
L918 2703-002054 INDUCTOR-SMD;47uH,20%,6060
LA01 2703-001883 INDUCTOR-SMD;22uH,10%,2520
LA02 2703-001883 INDUCTOR-SMD;22uH,10%,2520
LA03 2703-000403 INDUCTOR-SMD;22uH,10%,3225
LA04 2703-001883 INDUCTOR-SMD;22uH,10%,2520
LD01 2703-000398 INDUCTOR-SMD;10uH,10%,3225 VP-W97 Only
LP01 2703-001883 INDUCTOR-SMD;22uH,10%,2520
LP02 2703-000398 INDUCTOR-SMD;10uH,10%,3225
LP03 2703-000403 INDUCTOR-SMD;22uH,10%,3225
LP04 2703-001883 INDUCTOR-SMD;22uH,10%,2520
LP05 2703-001883 INDUCTOR-SMD;22uH,10%,2520
LP06 2703-000373 INDUCTOR-SMD;68uH,5%,2520
LP07 2703-000398 INDUCTOR-SMD;10uH,10%,3225 VP-W97 Only
LV01 2703-001883 INDUCTOR-SMD;22uH,10%,2520
Q130 0504-000167 TR-DIGITAL;RN1102,NPN,100mW,10K/10K,SSM,
Q131 0501-002311 TR-SMALL SIGNAL;HN2A01FU,PNP,200mW,UMD6,
Q141 0501-000225 TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP
Q142 0501-002311 TR-SMALL SIGNAL;HN2A01FU,PNP,200mW,UMD6,
Q151 0501-000225 TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP
Q152 0501-000225 TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP
Q153 0504-000167 TR-DIGITAL;RN1102,NPN,100mW,10K/10K,SSM,
Q161 0501-002312 TR-SMALL SIGNAL;HN2C01FU,NPN,200mW,UMD6,
Q162 0501-002312 TR-SMALL SIGNAL;HN2C01FU,NPN,200mW,UMD6,
Q171 0501-002310 TR-SMALL SIGNAL;HN1B04FU,PNP/NPN,200mW,U
Q172 0501-000552 TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,
Page 4
Q173 0504-000167 TR-DIGITAL;RN1102,NPN,100mW,10K/10K,SSM,
Q186 0501-000552 TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,
Q188 0501-002312 TR-SMALL SIGNAL;HN2C01FU,NPN,200mW,UMD6,
Q189 0501-000225 TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP
Q601 0504-000167 TR-DIGITAL;RN1102,NPN,100mW,10K/10K,SSM,
Q703 0501-002312 TR-SMALL SIGNAL;HN2C01FU,NPN,200mW,UMD6,
Q901 0502-001178 TR-POWER;CPH6702,PNP,1300mW,CPH6,TP,200
Q906 0502-001178 TR-POWER;CPH6702,PNP,1300mW,CPH6,TP,200
Q907 0502-001178 TR-POWER;CPH6702,PNP,1300mW,CPH6,TP,200
Q908 0505-001646 FET-SILICON;MCH5803,N,30V,1.4A,370MOHM,0
Q909 0502-001178 TR-POWER;CPH6702,PNP,1300mW,CPH6,TP,200
Q913 0501-000552 TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,
Q914 0506-001066 TR-ARRAY;UMF5,NPN/PNP,2,150mW,SC-88,TP,
Q915 0506-001066 TR-ARRAY;UMF5,NPN/PNP,2,150mW,SC-88,TP,
Q916 0504-001102 TR-DIGITAL;EMD3,NPN/PNP,150MW,10K/10K,EM
Q921 0501-000225 TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP
Q923 0501-000172 TR-SMALL SIGNAL;2SB1121,PNP,500mW,PCP,TP
Q924 0501-000552 TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,
Q925 0501-002373 TR-SMALL SIGNAL;EMX2,NPN,150MW,EMT6,TP,1
Q926 0505-001726 FET-SILICON;ECH8603,P,-20V,-4A,37MOHM,1.
Q927 0504-000168 TR-DIGITAL;RN1104,NPN,100MW,47K/47K,SSM,
Q928 0501-000172 TR-SMALL SIGNAL;2SB1121,PNP,500mW,PCP,TP
Q929 0501-000172 TR-SMALL SIGNAL;2SB1121,PNP,500mW,PCP,TP
Q930 0504-000168 TR-DIGITAL;RN1104,NPN,100MW,47K/47K,SSM,
Q932 0504-001102 TR-DIGITAL;EMD3,NPN/PNP,150MW,10K/10K,EM
QA01 0501-000225 TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP
QA02 0504-000168 TR-DIGITAL;RN1104,NPN,100MW,47K/47K,SSM,
QA05 0504-000167 TR-DIGITAL;RN1102,NPN,100mW,10K/10K,SSM,
QP01 0501-000552 TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,
QP02 0501-000225 TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP
QP38 0504-000168 TR-DIGITAL;RN1104,NPN,100MW,47K/47K,SSM,
QV01 0501-000552 TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,
QV02 0501-000552 TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,
QV03 0501-000552 TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,
R101 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R102 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608
R103 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R104 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R105 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R106 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608
R110 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R111 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
R112 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
R114 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608
R115 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608
R116 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608
R117 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R118 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
R119 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R120 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608
R121 2007-000118 R-CHIP;390ohm,5%,1/10W,TP,1608
R124 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,1608
R130 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
R132 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
R134 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608
R135 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608
R136 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608
R137 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
2007-001134 R-CHIP;68ohm,5%,1/10W,TP,1608 PAL Only
R140 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608
R141 2007-000121 R-CHIP;820ohm,5%,1/10W,TP,1608
R142 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608
R143 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608
R144 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R145 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
R147 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608
R148 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R149 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
R151 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R152 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608
R153 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
R154 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608
R155 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608
R158 2007-000120 R-CHIP;680ohm,5%,1/10W,TP,1608
R159 2007-000121 R-CHIP;820ohm,5%,1/10W,TP,1608
R160 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608
R161 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608
2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,160 PAL Only
R162 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
R163 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
R164 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608
R167 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608
2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 VP-W90/W97 Only
2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 VP-W95D Only
R168 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
R169 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
R170 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
R171 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R172 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
R173 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
R174 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R175 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R176 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R177 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R178 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608
R179 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R180 2007-000121 R-CHIP;820ohm,5%,1/10W,TP,1608
R181 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,1608
R182 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
R183 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608
R187 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608
R188 2007-000118 R-CHIP;390ohm,5%,1/10W,TP,1608
R189 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
R190 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R191 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
R192 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608
R193 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
R194 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R195 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608
R196 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R197 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608
R198 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608
R199 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
2007-000120 R-CHIP;680ohm,5%,1/10W,TP,1608 PAL Only
R200 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R201 2007-001134 R-CHIP;68ohm,5%,1/10W,TP,1608
R202 2007-001134 R-CHIP;68ohm,5%,1/10W,TP,1608
R203 2007-001134 R-CHIP;68ohm,5%,1/10W,TP,1608
R205 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608
R208 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608
R218 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R219 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R401 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R402 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R403 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R404 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R501 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608
R502 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R503 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R504 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R505 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 VP-W95D Only
R508 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 VP-W95D Only
Loc.No Part No Description ; Specification Remark
5-4
Samsung Electronics
Electrical Parts List
Loc.No Part No Description ; Specification Remark
This Document can not be used without Samsung’s authorization
Page 5
R510 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R511 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R512 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R513 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R514 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R516 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608
R517 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
R518 2007-000503 R-CHIP;2.2ohm,5%,1/10W,TP,1608
R519 2007-000503 R-CHIP;2.2ohm,5%,1/10W,TP,1608
R520 2007-000503 R-CHIP;2.2ohm,5%,1/10W,TP,1608
R521 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012
R522 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012
R523 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012
R524 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012
R525 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012
R526 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012
R527 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
R528 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R529 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608
R530 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R531 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 VP-W95D Only
R533 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
R534 2007-000130 R-CHIP;39Kohm,5%,1/10W,TP,1608
R535 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 PAL Only
R536 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R537 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R538 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R539 2007-000120 R-CHIP;680ohm,5%,1/10W,TP,1608
R550 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R551 2007-000755 R-CHIP;330Kohm,1%,1/10W,TP,1608
R552 2007-000755 R-CHIP;330Kohm,1%,1/10W,TP,1608
R553 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
2007-000104 R-CHIP;150Kohm,5%,1/10W,TP,160 PAL Only
R554 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608
R555 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 VP-W95D Only
R587 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R588 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R589 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R590 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R591 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R593 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R594 2007-000691 R-CHIP;3.3Mohm,5%,1/10W,TP,1608
R595 2007-000691 R-CHIP;3.3Mohm,5%,1/10W,TP,1608
R601 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R602 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R603 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R604 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R605 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R606 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R608 2007-000065 R-CHIP;2.2Mohm,5%,1/10W,TP,1608
R609 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608
R610 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608
R611 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608
R612 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608
R613 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608
R614 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608
R615 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608
R616 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R617 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R618 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R619 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R620 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R621 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R622 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R623 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R624 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R625 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R627 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R629 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608
R631 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R632 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R636 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608
R638 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R639 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R640 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R641 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R642 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R643 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R644 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R645 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R646 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R647 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R648 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R649 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R650 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R651 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608
R652 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R653 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608
R654 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R655 2007-000863 R-CHIP;4.3ohm,5%,1/8W,TP,2012
R656 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608
R657 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608
R658 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608
R659 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608
R660 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608
R662 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R663 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R664 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R665 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R666 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R667 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R668 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R669 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R670 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R671 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R672 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R673 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R674 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
R675 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608
R676 2007-000290 R-CHIP;100ohm,5%,1/8W,TP,2012
R677 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608
R679 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608
R680 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608
R681 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R682 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R683 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R684 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R685 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608
R686 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608
R687 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R688 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R690 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
R691 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
R692 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
R694 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608
R695 2007-000455 R-CHIP;18Kohm,1%,1/10W,TP,1608
R696 2007-000772 R-CHIP;33Kohm,1%,1/10W,TP,1608
R697 2007-000772 R-CHIP;33Kohm,1%,1/10W,TP,1608
R698 2007-001125 R-CHIP;68Kohm,1%,1/10W,TP,1608
R699 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608
R701 2007-001096 R-CHIP;62Kohm,1%,1/10W,TP,1608
Electrical Parts List
Samsung Electronics
5-5
Loc.No Part No Description ; Specification Remark Loc.No Part No Description ; Specification Remark
This Document can not be used without Samsung’s authorization
Page 6
R702 2007-001096 R-CHIP;62Kohm,1%,1/10W,TP,1608
R703 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
R704 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R705 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R706 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R708 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
R709 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012
R710 2007-000691 R-CHIP;3.3Mohm,5%,1/10W,TP,1608
R711 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R713 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R714 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R716 2007-000691 R-CHIP;3.3Mohm,5%,1/10W,TP,1608
R719 2007-000121 R-CHIP;820ohm,5%,1/10W,TP,1608
R720 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R721 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608
R722 2007-000708 R-CHIP;3.9Kohm,1%,1/10W,TP,1608
R723 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R724 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R727 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R728 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R742 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
R903 2007-007203 R-CHIP;5.6Kohm,0.5%,1/10W,TP,1608
R907 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R908 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R909 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608
R910 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R911 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R912 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608
R913 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608
R914 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 Not used VP-W95D
R915 2007-001695 R-CHIP;22Kohm,0.5%,1/10W,TP,1608
R916 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608
R917 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
R918 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
R919 2007-001650 R-CHIP;8.2Kohm,0.5%,1/10W,TP,1608
R920 2007-001643 R-CHIP;100Kohm,0.5%,1/10W,TP,1608
R921 2007-001694 R-CHIP;12Kohm,0.5%,1/10W,TP,1608
R922 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
R923 2007-001068 R-CHIP;6.8Kohm,1%,1/10W,TP,1608
R924 2007-001694 R-CHIP;12Kohm,0.5%,1/10W,TP,1608
R925 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608
R926 2007-001644 R-CHIP;10Kohm,0.5%,1/10W,TP,1608 Not used VP-W95D
R927 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 Not used VP-W95D
R928 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 Not used VP-W95D
R929 2007-001649 R-CHIP;4.7Kohm,0.5%,1/10W,TP,1608 Not used VP-W95D
R930 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 Not used VP-W95D
R931 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R932 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 Not used VP-W95D
R933 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608
R935 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R944 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608
R945 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
R946 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608
R947 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
R951 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R953 2007-001139 R-CHIP;7.5Kohm,1%,1/10W,TP,1608
R961 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R962 2007-001175 R-CHIP;8.2Kohm,1%,1/10W,TP,1608
R963 2007-001694 R-CHIP;12Kohm,0.5%,1/10W,TP,1608
R964 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R965 2007-000104 R-CHIP;150Kohm,5%,1/10W,TP,1608
R966 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608
R976 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 Not used VP-W95D
R977 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 Not used VP-W95D
R978 2007-000923 R-CHIP;470Kohm,1%,1/10W,TP,1608 Not used VP-W95D
R979 2007-000563 R-CHIP;220Kohm,1%,1/10W,TP,1608 Not used VP-W95D
R980 2007-001198 R-CHIP;820ohm,1%,1/8W,TP,2012 Not used VP-W95D
R981 2007-001198 R-CHIP;820ohm,1%,1/8W,TP,2012 Not used VP-W95D
R982 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 Not used VP-W95D
R983 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 Not used VP-W95D
R984 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 Not used VP-W95D
R991 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 Not used VP-W95D
R992 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 Not used VP-W95D
RA01 2007-000863 R-CHIP;4.3ohm,5%,1/8W,TP,2012
RA03 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
RA06 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RA07 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RD01 2007-000287 R-CHIP;100OHM,1%,1/10W,DA,TP,1 VP-W97 Only
RD02 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 VP-W97 Only
RD04 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 VP-W97 Only
RD06 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 VP-W97 Only
RD07 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 VP-W97 Only
RD08 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 VP-W97 Only
RD10 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 VP-W97 Only
RD12 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 VP-W97 Only
RD14 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 VP-W97 Only
RL01 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
RL02 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
RL03 2007-000104 R-CHIP;150Kohm,5%,1/10W,TP,1608
RL04 2007-000104 R-CHIP;150Kohm,5%,1/10W,TP,1608
RL05 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608
RL06 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608
RL07 2007-000637 R-CHIP;270Kohm,5%,1/10W,TP,1608
RL08 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
RL09 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
RL10 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
RL11 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RL12 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
RL13 2007-000096 R-CHIP;30Kohm,5%,1/10W,TP,1608
RL14 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
RL15 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
RL16 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608
RL17 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
RL18 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
RL19 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608
RL20 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RL21 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
RL22 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
RL23 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
RL24 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608
RL25 2007-000863 R-CHIP;4.3ohm,5%,1/8W,TP,2012
RL26 2007-000863 R-CHIP;4.3ohm,5%,1/8W,TP,2012
RL27 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
RL28 2007-000863 R-CHIP;4.3ohm,5%,1/8W,TP,2012
RL29 2007-000863 R-CHIP;4.3ohm,5%,1/8W,TP,2012
RL30 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
RL31 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
RL32 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
RL33 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608
RL34 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
RL35 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608
RL38 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608
RL39 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608
RL43 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
RP01 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RP02 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RP06 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608
RP07 2007-001042 R-CHIP;56ohm,1%,1/10W,TP,1608
RP08 2007-001042 R-CHIP;56ohm,1%,1/10W,TP,1608
RP09 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RP10 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608
RP11 2007-000287 R-CHIP;100OHM,1%,1/10W,DA,TP,1608
Loc.No Part No Description ; Specification Remark
5-6
Samsung Electronics
Electrical Parts List
Loc.No Part No Description ; Specification Remark
This Document can not be used without Samsung’s authorization
Page 7
RP12 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608
RP13 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
RP15 2007-000455 R-CHIP;18Kohm,1%,1/10W,TP,1608
RP16 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
RP17 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
RP18 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608
RP19 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608
2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,160 VP-W95D Only
RP20 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
RP21 2007-000120 R-CHIP;680ohm,5%,1/10W,TP,1608
RP23 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608
RP24 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608
2007-000121 R-CHIP;820ohm,5%,1/10W,TP,1608 PAL Only
RP25 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608
RP26 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608
2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,160 PAL Only
RP27 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
RP28 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RP29 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
RP30 2007-001090 R-CHIP;620ohm,1%,1/10W,TP,1608
RP301 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 VP-W97 Only
RP303 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 Not used VP-W90/W95D
RP31 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RP32 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
RP33 2007-000455 R-CHIP;18Kohm,1%,1/10W,TP,1608
RP34 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608
RP35 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608
RP36 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
RP37 2007-000455 R-CHIP;18Kohm,1%,1/10W,TP,1608
RP38 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
RP40 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 Not used VP-W97
RP41 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 Not used VP-W97
RP42 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 Not used VP-W97
RP43 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 Not used VP-W97
RP44 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 Not used VP-W97
RP45 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 Not used VP-W97
RP46 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 Not used VP-W97
RP47 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 Not used VP-W97
RP48 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 Not used VP-W97
RP49 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 Not used VP-W97
RP50 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
RP51 2007-000287 R-CHIP;100OHM,1%,1/10W,DA,TP,1608
RP52 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
RP53 2007-000863 R-CHIP;4.3ohm,5%,1/8W,TP,2012
RV01 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RV02 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608
RV03 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RV04 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608
RV05 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608
RV06 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
2007-000099 R-CHIP;62Kohm,5%,1/10W,TP,1608 VP-W95D Only
RV07 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
RV12 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,160 VP-W95D Only
RV14 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,160 VP-W95D Only
RV15 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 VP-W95D Only
RV16 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RV19 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 VP-W95D Only
RV20 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 VP-W95D Only
RV21 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 VP-W95D Only
RV22 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 Not used VP-W95D
RV23 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 Not used VP-W95D
RV24 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 VP-W95D Only
RV25 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
RV26 2007-000287 R-CHIP;100OHM,1%,1/10W,DA,TP,1608 Not used VP-W95D
RV31 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 VP-W95D Only
RV32 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 VP-W95D Only
SW601 3404-001034 SWITCH-TACT;12V,50mA,160gf,4x7.4x1.8mm,S
SW602 3404-001034 SWITCH-TACT;12V,50mA,160gf,4x7.4x1.8mm,S
SW603 3404-001034 SWITCH-TACT;12V,50mA,160gf,4x7.4x1.8mm,S
SW606 3404-001034 SWITCH-TACT;12V,50mA,160gf,4x7.4x1.8mm,S
SW607 3404-001034 SWITCH-TACT;12V,50mA,160gf,4x7.4x1.8mm,S
X601 2801-004146 CRYSTAL-SMD;20MHZ,30PPM,SX-3,18PF,30OHM,
X602 2801-000258 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAW,12.5
XP01 2801-004331 CRYSTAL-SMD;28.6363MHz,18ppm,SX-7,8pF,30
2801-004330 CRYSTAL-SMD;28.5MHz,18ppm,SX-7 PAL Only
113 AD97-08381A ASSY-CCD BOARD;-,W8-PJ,W8,8mm,CCD B NTSC Only
AD97-08382A ASSY-CCD BOARD;-,W8-PJ,CCD B PAL Only
CC01 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,TP,1608,CC02 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CC03 2404-000212 C-TA,CHIP;3.3uF,20%,25V,-,TP,3528
CC04 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CC05 2404-000212 C-TA,CHIP;3.3uF,20%,25V,-,TP,3528
CC06 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CNC01 3711-004241 CONNECTOR-HEADER;BOX,18P,2R,1MM,SMD-A,SN
DC02 0401-001054 DIODE-SWITCHING;KDS160,80V,100MA,SOD-323
QC01 0505-000180 FET-SILICON;2SK1070,N,-,50mA,-,150mW,SOT
RC01 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608
RC02 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
RC03 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608
RC05 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
RC07 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
165 AD97-08766A ASSY-REAR BOARD;W7-PJ,-,NTSC/PAL
CN451 3710-001676 CONNECTOR-SOCKET;38P,2R,0.8mm,SMD-S,SN
CN452 3710-001479 CONNECTOR-SOCKET;14P,2R,1MM,SMD-S,SN
D451 0601-001419 LED;SMD,RED,3.2X1.6X1.1MM,660NM,3.
J451 AD97-08499A ASSY-DC JACK;TC18-430-01,W8-PJ,STRAIGHT
J452 AD97-01200A ASSY-S-JACK;M1-PJ,-,J453 3722-001202 JACK-PHONE;7P,3.6PI,AG,YEL,NO
Q451 0504-001037 TR-DIGITAL;KRC401,NPN,100MW,4.7K/4.7K,SO
R451 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R452 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
R453 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608
R466 2007-007948 R-CHIP;0.1ohm,1%,1/2W,TP,5025
R472 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608
R473 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608
R473 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608
SW471 3409-001035 SWITCH-DETECTOR;3~5V,50uA~10mA,2,30gf,LE
SW473 3404-001117 SWITCH-TACT;12V,50mA,130gf,8.0x3.7x2.5mm
SW474 3404-001117 SWITCH-TACT;12V,50mA,130gf,8.0x3.7x2.5mm
SW477 3409-001035 SWITCH-DETECTOR;3~5V,50uA~10mA,2,30gf,LE
SW478 3409-001036 SWITCH-DETECTOR;3~5V,50uA~10mA,2,30gf,LE
VR471 2102-001019 VR-SLIDE;10Kohm,30%,1/20W,SLIDE
224 AD97-04507A ASSY-FUNCTION BOARD;FUNC SCW97/VP-W90/W95D Only
AD97-04463A ASSY-FUNCTION BOARD;FUNCTION,W3-P VP-W97 Only
CN471 3708-001492 CONNECTOR-FPC/FFC/PIC;11P,1MM,ANGLE,SN,N
CN472 3708-001706 CONNECTOR-FPC/FFC/PIC;6P,1MM,ANGLE,SN,NO
R471 2004-000971 R-METAL;470ohm,1%,1/8W,AA,TP,1.8x3.2mm
R472 2004-000413 R-METAL;18Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R473 2004-000798 R-METAL;33Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R474 2004-000798 R-METAL;33Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R475 2004-000971 R-METAL;470ohm,1%,1/8W,AA,TP,1.8x3.2mm
R476 2004-000413 R-METAL;18Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R477 2004-000798 R-METAL;33Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R478 2004-000798 R-METAL;33Kohm,1%,1/8W,AA,TP,1.8x3.2mm
RM471 AD32-00010A MODULE REMOCON;PIC-2604 SM1,37.9KHz,940n VP-W97 Only
SW471 3404-001118 SWITCH-TACT;12V DC,50mA,130gf,5x6x4.3mm,
SW472 3404-001118 SWITCH-TACT;12V DC,50mA,130gf,5x6x4.3mm,
SW473 3404-001192 SWITCH-TACT;12V DC,50MA,130GF,7.3X6.72X7
Electrical Parts List
Samsung Electronics
5-7
Loc.No Part No Description ; Specification Remark Loc.No Part No Description ; Specification Remark
This Document can not be used without Samsung’s authorization
Page 8
SW474 3404-001192 SWITCH-TACT;12V DC,50MA,130GF,7.3X6.72X7
SW475 3404-001118 SWITCH-TACT;12V DC,50mA,130gf,5x6x4.3mm,
SW476 3404-001118 SWITCH-TACT;12V DC,50mA,130gf,5x6x4.3mm,
SW477 3404-001118 SWITCH-TACT;12V DC,50mA,130gf,5x6x4.3mm,
SW478 3404-001118 SWITCH-TACT;12V DC,50mA,130gf,5x6x4.3mm,
VR471 2101-001078 VR-ROTARY;1ohm,-,-,TOP
281 AD97-04758A ASSY-CVF BOARD;0.44,CS2002-PJ,NTSC/PAL
CNV01 3708-001075 CONNECTOR-FPC/FFC/PIC;14P,0.5MM,SMD-S,SN
CNV02 3708-000514 CONNECTOR-FPC/FFC/PIC;16P,0.5MM,SMD-S,SN
CNV03 3708-001436 CONNECTOR-FPC/FFC/PIC;4P,1MM,SMD-S,SN,ZI
CV01 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
CV02 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
CV03 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CV04 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CV05 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
CV06 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528
CV07 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528
CV08 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216
CV09 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
LV01 2703-001883 INDUCTOR-SMD;22uH,10%,2520
LV02 2703-001883 INDUCTOR-SMD;22uH,10%,2520
LV06 2703-000396 INDUCTOR-SMD;10uH,10%,2520
QV02 0501-002310 TR-SMALL SIGNAL;HN1B04FU,PNP/NPN,200mW,U
RV03 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608
RV04 2007-000637 R-CHIP;270Kohm,5%,1/10W,TP,1608
RV05 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608
RV06 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
RV08 2007-001670 R-CHIP;68ohm,1%,1/8W,TP,2012
AD97-08950A ASSY-FRONT BOARD;W7/8-PJ,VP-L905D/W VP-W95D Only
CN801 AD39-00054A CBF HARNESS;-,-,-,12P,-,-,-,35023,TAPE,5
CN802 3711-000780 CONNECTOR-HEADER;BOX,2P,1R,1.25MM,STRAIG
J801 3722-001441 JACK-PHONE;3P,3.6PI,AG,BLK,-
Loc.No Part No Description ; Specification Remark
5-8
Samsung Electronics
Electrical Parts List
Loc.No Part No Description ; Specification Remark
This Document can not be used without Samsung’s authorization
Loading...
