Contents

Safety Instructions Unpacking Your Monitor Setting up Your Monitor

Connecting Your Monitor Installing the Monitor Driver

Automatic Manual

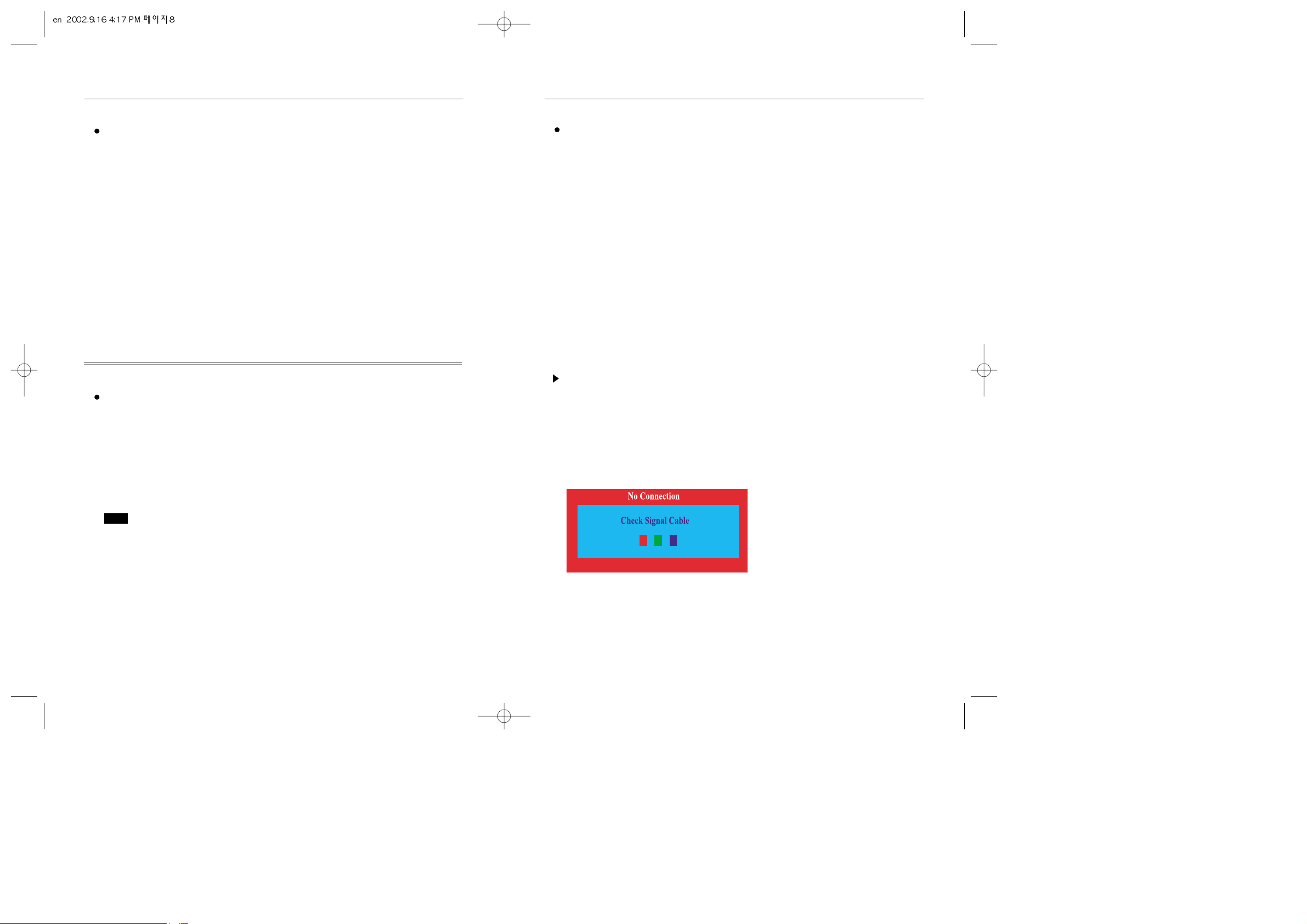

Self-Test Feature Check

Werning Messages Environment Useful Tips

Adjusting Your Monitor

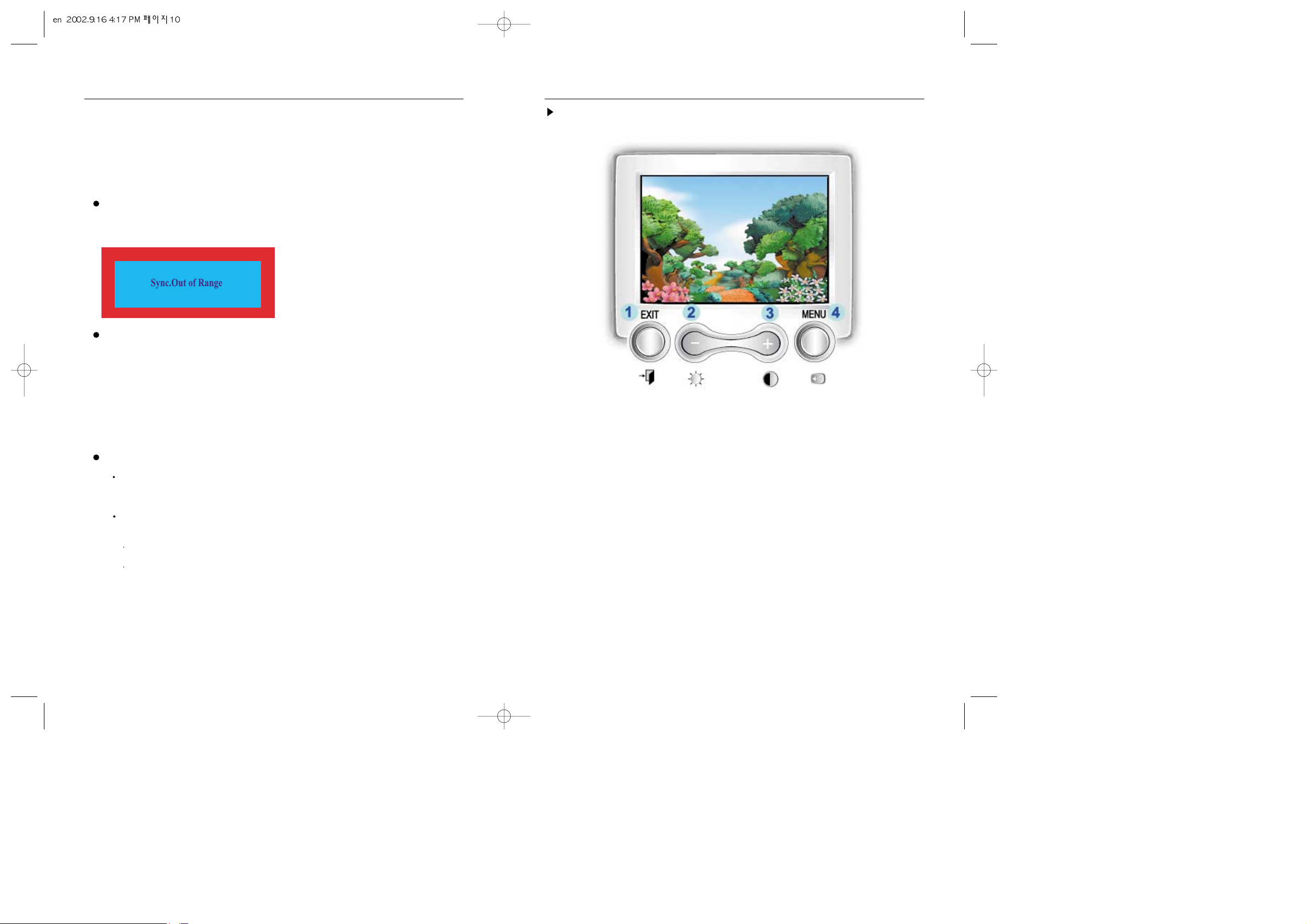

User Controls

Menu Features

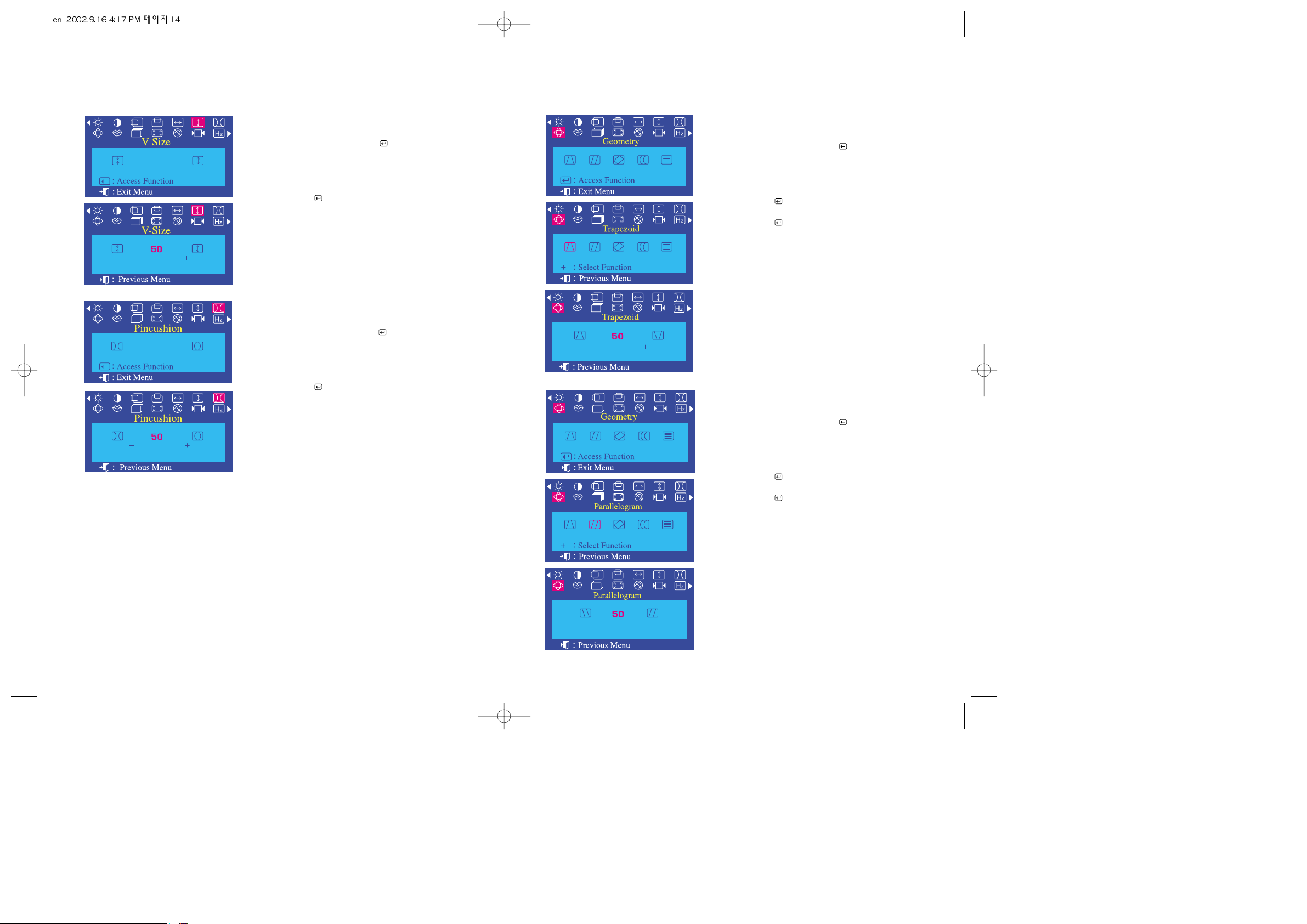

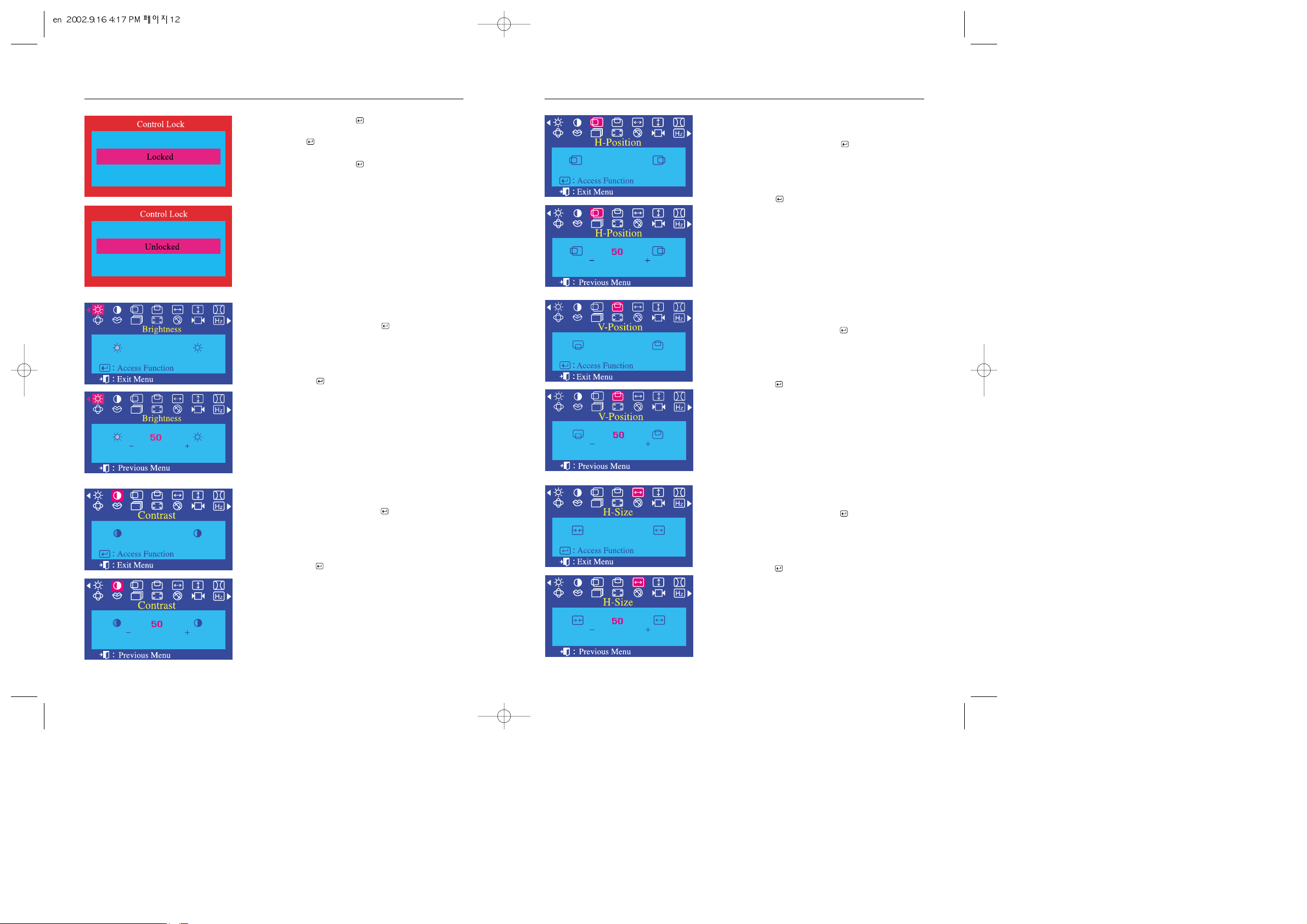

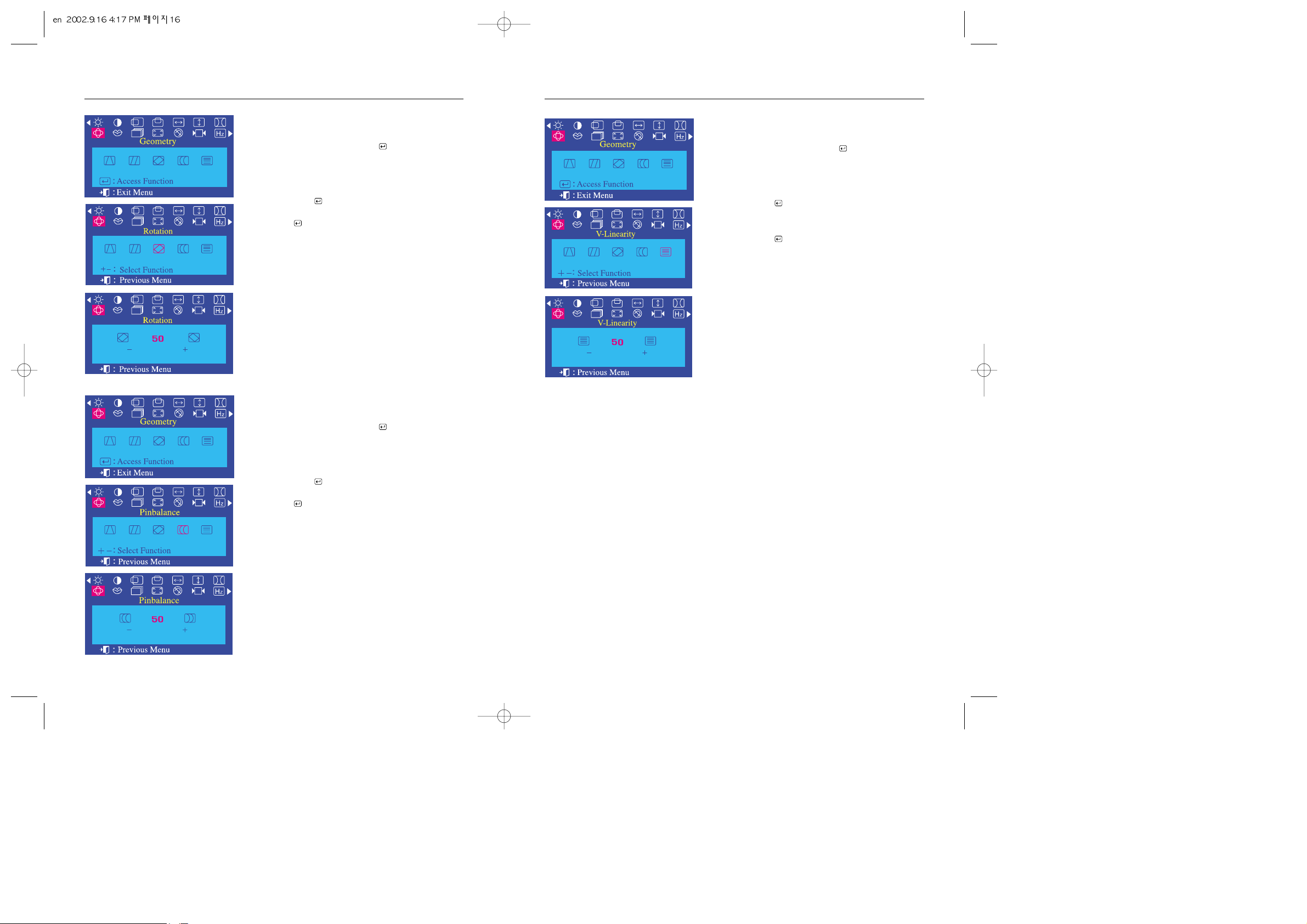

OSD Lock/Unlock Brightness Contrast H-Position V-Position H-Size V-Size Pincushion Geometry

Trapezoid Parallelogram Rotation Pinbalance

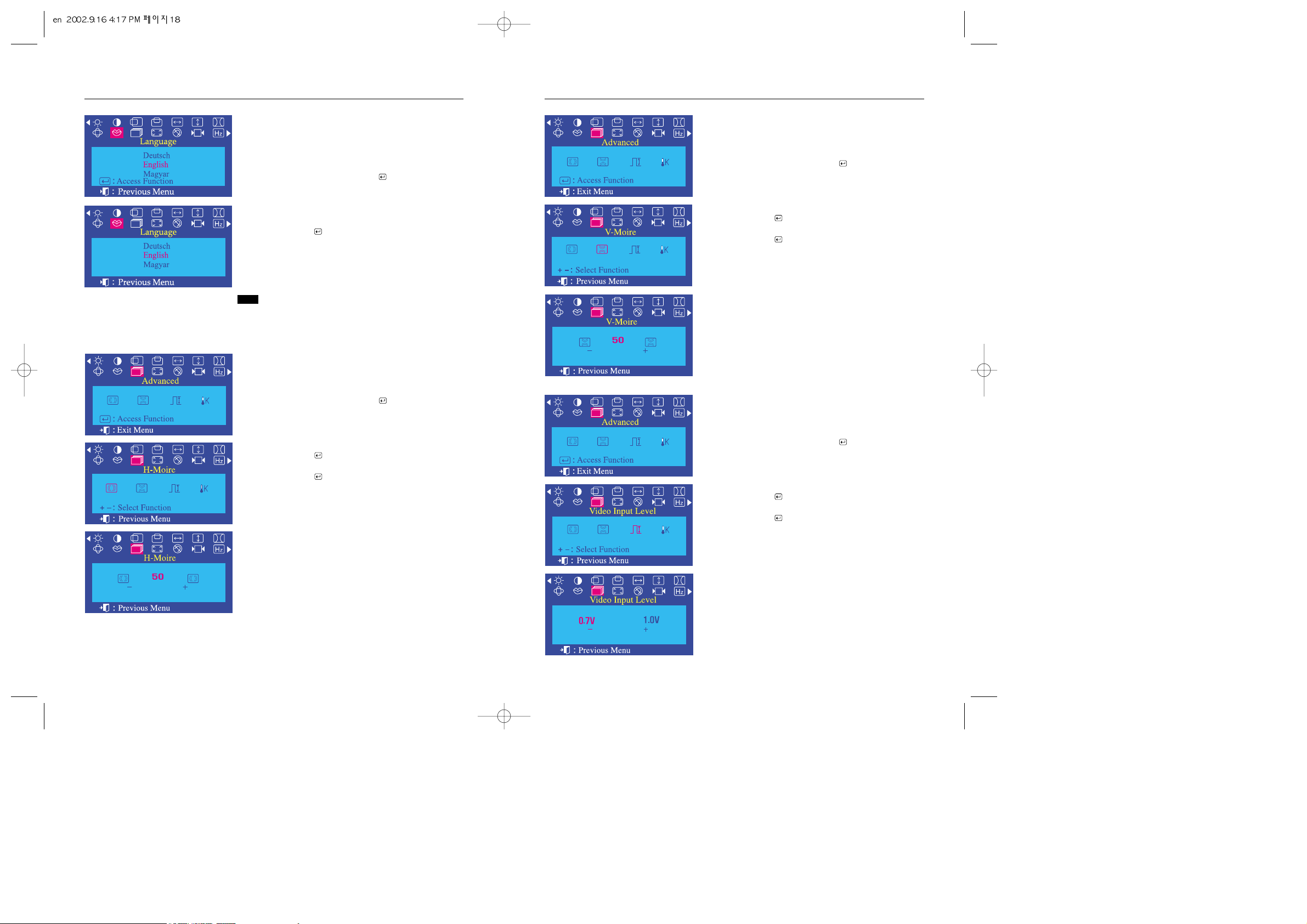

V-Linearity Language Advanced

H-Moire

V-Moire

Video Input Level

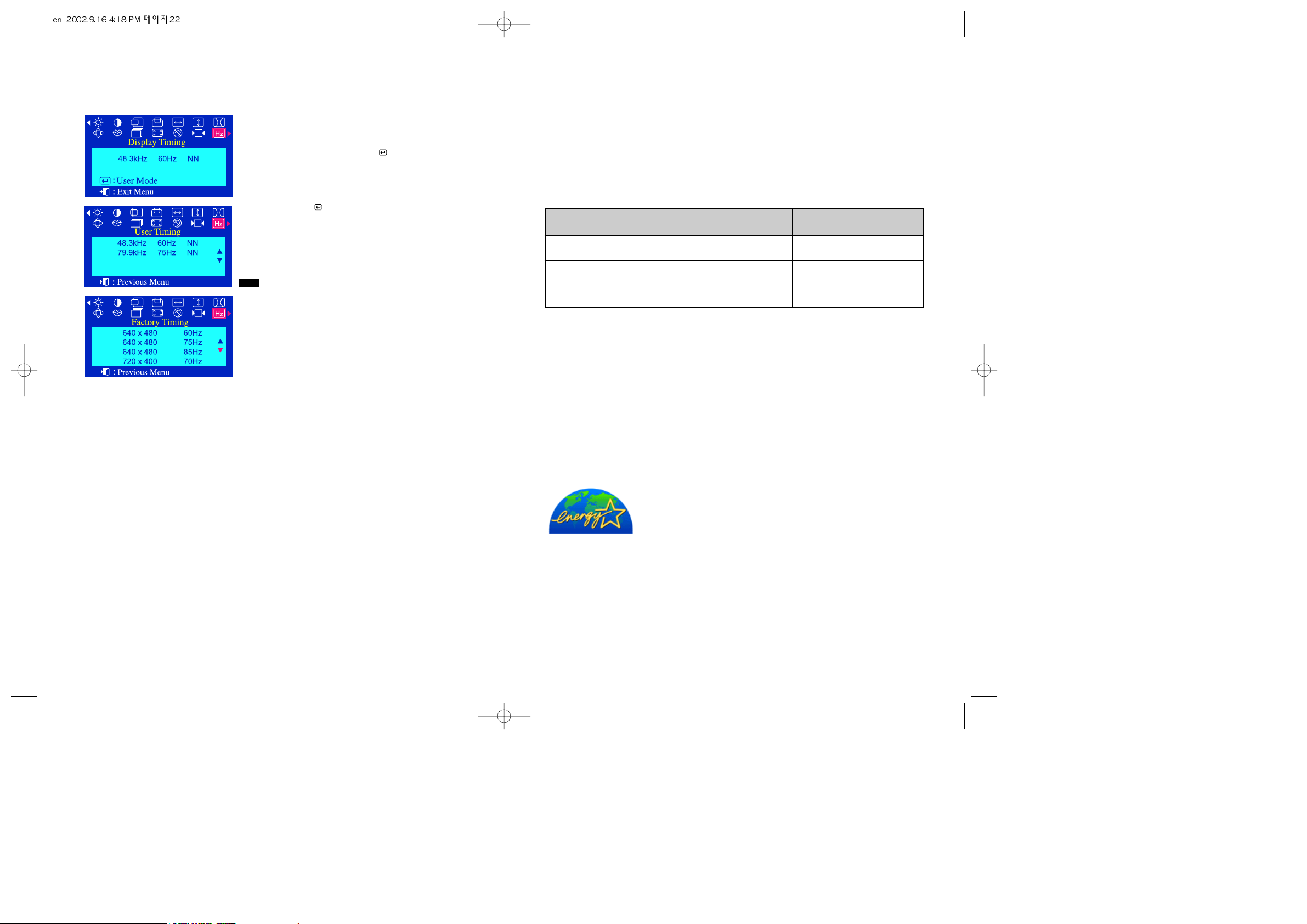

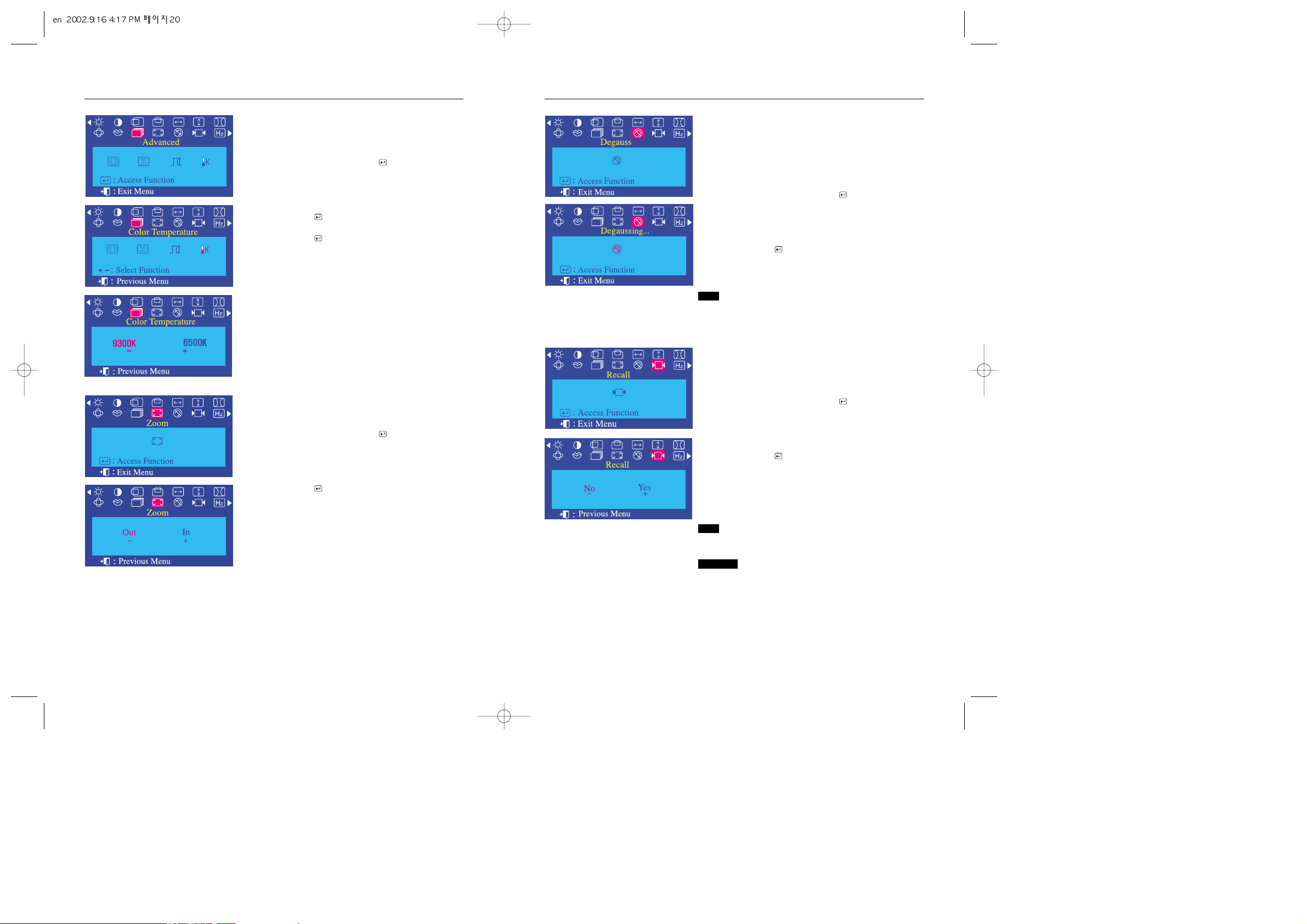

Color Temperature Zoom Degauss Recall Display Timing

Power Saver Troubleshooting Specifications Display Modes

2 3 4 4

5 6

9 10 10 10 11 11

12 12 12 13 13 13 14 14

15 15 16 16 17 18

18 19 19 20 20 21 21 22

23 24 27 28

English

Unpacking Your MonitorSafety Instructions

1. Do not use a damaged or loose plug.

2. Do not pull the plug out by the wire nor touch the plug with wet hands.

3. Use only a properly grounded plug and recepticle.

4. Do not excessively bend the plug and wire nor place heavy objects upon them, which could cause damage.

5. Disconnect the plug from the outlet during storms or lightening or if it is not used for a long period of time.

6. Do not connect too many extension cords or plugs to an outlet.

7. Do not cover the vents on the monitor cabinet.

8. Put your monitor in a location with low humidity and a minimum of dust.

9. Do not drop the monitor when moving it.

10. Place the monitor on a flat and stable surface.

11. Set down the monitor carefully.

12. Do not place the monitor face down on the screen.

13. Do not use the monitor without the monitor stand.

14. Do not spray detergent directly on the monitor.

15. Use the recommended detergent with a smooth cloth.

16. If the connector between the plug and the pin is dusty or dirty, clean it properly with a dry cloth.

17. Do not set a glass of water, chemicals or any small metal objects on the monitor.

18. Do not remove cover(or back). No user serviceable parts inside.

19. If your monitor does not operate normally - in particular, if there are any unusual sounds or

smells coming from it - unplug it immediately and contact an authorized dealer or service center.

20. Do not place any heavy objects on the monitor.

21. For each hour of looking at the monitor, you should let your eyes rest for 5 minutes.

22. Do not use or store inflammable substances near the monitor.

23. Do not try to move the monitor by pulling on the wire or the signal cable.

24. Do not move the monitor right or left by pulling only the wire or the signal cable.

25. Never insert anything metallic into the monitor openings.

26. Keep the monitor away from any magnetic substances.

Caution : Use a recommended detergent only, as other

surfactants containing large amounts of alcohol, solvent or other strong substances, can discolor or crack the monitor or damage the coated CDT

Monitor and Stand

(Some models include a stand attached. )

Please make sure the following items are

included with your monitor. If any items are

missing, contact your dealer.

Power Cord

Stand

User Guide

Monitor Driver

(Not available in all locations)

USB (Option)

Setting up Your MonitorSetting up Your Monitor

Connecting Your Monitor

1 Connect the power cord for your monitor to the power port on the back of the monitor.

Plug the power cord for the monitor into a nearby outlet.

2 Connect the end of the signal cable to your computer's video port

(video board, video card or graphics card).

3 If you are using a Macintosh computer, connect the cable to a Macintosh adapter,

and set the pins on your adapter(Adapter not included). A PC-compatible computer does not need an adapter.

Turn on your computer and monitor. If your monitor displays an image, installation is complete.

Installing the Monitor Driver (For india)

Windows ME

Automatic

Windows XP / 2000

When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions as appropriate for the operating system you have.

Prepare a blank disk and download the driver program file at the Internet web site shown here.

Internet web site : http://www.samsung-monitor.com/ (WorldWide)

http://www.samsungusa.com/monitor/ (USA) http://www.sec.co.kr/monitor/ (Korea) http://www.samsungmonitor.com.cn/ (China)

1. Insert CD into the CD-ROM driver.

2. Click “Windows ME Driver”.

3. Choose your monitor model in the model list, then click the “OK” button.

4. Click the “Install” button in the “Warning” window.

5. Monitor driver installation is completed.

1. Insert CD into the CD-ROM driver.

2. Click “Windows XP/2000 Driver”.

3. Choose your monitor model in the model list, then click the “OK” button.

4. Click the “Install” button in the “Warning” window.

5. If you can see following “Message” window, then click the “Continue Anyway” button.

Then click “OK” button.

This monitor driver is under certifying MS logo,and this installation don't damage your system. The certified driver will be posted on SAMSUNG Monitor Homepage http://www.samsung-monitor.com

6. Monitor driver installation is completed.

Rear of Computer

Rear of Macintosh

Adapter for Macintosh (Not included)

Rear of Monitor

Setting up Your MonitorSetting up Your Monitor

Microsoft ®Windows ®XP Operating System

1. Insert CD into the CD-ROM driver.

2. Click “Start” —> “Control Panel” then click the “Appearance and Themes” Icon.

3. Click “Display” icon and choose the “Settings” tab then click “Advance..”.

4. Click the “Properties” button on the “Monitor” tab and select “Driver” tab.

5. Click “Update Driver..” and select “Install from a list or..” then click “Next” button.

6. Select “Don't search ,I will..” then click “Next” and then click “Have disk”.

7. Click the “Browse” button then choose A:(D:\Driver) and choose your monitor model in the

model list and click the “Next” button.

8. If you can see following “Message” window, then click the “Continue Anyway” button. Then click “OK” button. This monitor driver is under certifying MS logo,and this installation don't damage your system. The certified driver will be posted on SAMSUNG Monitor Homepage http://www.samsung-monitor.com

9. Click the “Close” button then click “OK” button continually.

Monitor driver installation is completed.

Manual

Prepare a blank disk and download the driver program file at the Internet web site shown here.

Internet web site : http://www.samsung-monitor.com/ (WorldWide)

http://www.samsungusa.com/monitor/ (USA) http://www.sec.co.kr/monitor/ (Korea) http://www.samsungmonitor.com.cn/ (China)

10.

Microsoft ®Windows ®2000 Operating System

- When you can see “Digital Signature Not Found” on your monitor, follow these steps.

1. Choose “OK” button on the “Insert disk” window.

2. Click the “Browse” button on the “File Needed” window.

3. Choose A:(D:\Driver) then click the “Open” button and then click “OK” button.

- How to install

1. Click “Start” , “Setting” , “Control Panel”.

2. Double click the “Display” Icon.

3. Choose the “Settings” tab and then click “Advanced..”.

4. Choose “Monitor”.

Case1: If the "Properties" button is inactive, it means your monitor is properly configured.

Please stop installation

Case2: If the "Properties" button is active, click the "Properties" button then follow next

steps continually.

5. Click “Driver” and then click on “Update Driver..” then click on the “Next” button.

6. Choose “Display a list of the known drivers for this device so that I can choose a

specific driver" then click “Next” and then click “Have disk”.

7. Click the “Browse” button then choose A:(D:\Driver).

8. Click the “Open” button, then click “OK” button.

9. Choose your monitor model and click the “Next” button then click “Next” button.

Click the “Finish” button then the “Close” button. If you can see the “Digital Signature Not Found” window then click the “Yes” button. And click the “Finish” button then the “Close” button.

10.
