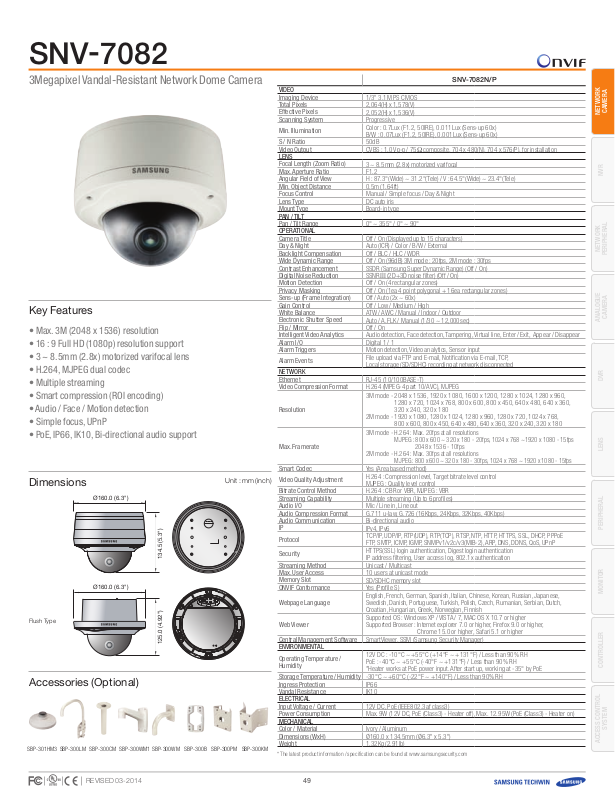

Samsung SNV-7082 Specsheet

snV-7082

Ø160.0 (6.3")

134.5 (5.3")

Ø160.0 (6.3")

134.5 (5.3")

Ø160.0 (6.3")

125.0 (4.92")

3Megapixel Vandal-Resistant Network Dome Camera

key Features

• Max. 3M (2048 x 1536) resolution

• 16 : 9 Full HD (1080p) resolution support

• 3 ~ 8.5mm (2.8x) motorized varifocal lens

• H.264, MJPEG dual codec

• Multiple streaming

• Smart compression (ROI encoding)

• Audio / Face / Motion detection

• Simple focus, UPnP

• PoE, IP66, IK10, Bi-directional audio support

Dimensions

Ø160.0 (6.3")

Ø160.0 (6.3")

Flush Type

Accessories (Optional)

SBP-300LMSBP-301HM3 SBP-300CM SBP-300WM1 SBP-300WM SBP-300B SBP-300PM SBP-300KM

REVISED 03-2014

125.0 (4.92") 134.5 (5.3")

Unit : mm (inch)

VIDEO

Imaging Device
Total Pixels
Effective Pixels
Scanning System

Min. Illumination

S / N Ratio
Video Output

LENS

Focal Length (Zoom Ratio)
Max. Aperture Ratio
Angular Field of View
Min. Object Distance
Focus Control
Lens Type
Mount Type

PAN / TILT

Pan / Tilt Range

OPERATIONAL

Camera Title
Day & Night
Backlight Compensation
Wide Dynamic Range
Contrast Enhancement
Digital Noise Reduction
Motion Detection
Privacy Masking
Sens-up (Frame Integration)
Gain Control
White Balance
Electronic Shutter Speed
Flip / Mirror
Intelligent Video Analytics
Alarm I/O
Alarm Triggers

Alarm Events

NETWORK

Ethernet
Video Compression Format

Resolution

Max. Framerate

Smart Codec

Video Quality Adjustment

Bitrate Control Method
Streaming Capability
Audio I/O
Audio Compression Format
Audio Communication
IP

Protocol

Security

Streaming Method
Max. User Access
Memory Slot
ONVIF Conformance

Webpage Language

Web Viewer

Central Management Software

ENVIRONMENTAL

Operating Temperature /
Humidity

Storage Temperature / Humidity
Ingress Protection
Vandal Resistance

ELECTRICAL

Input Voltage / Current
Power Consumption

MECHANICAL

Color / Material
Dimensions (WxH)
Weight

* The latest product information / specification can be found at www.samsungsecurity.com

49

1/3" 3.1M PS CMOS
2,064(H) x 1,578(V)
2,052(H) x 1,536(V)
Progressive
Color : 0.7Lux (F1.2, 50IRE), 0.011Lux (Sens-up 60x)
B/W : 0.07Lux (F1.2, 50IRE), 0.001Lux (Sens-up 60x)
50dB
CVBS : 1.0 Vp-p / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation

3 ~ 8.5mm (2.8x) motorized varifocal
F1.2
H : 87.3°(Wide) ~ 31.2°(Tele) / V : 64.5°(Wide) ~ 23.4°(Tele)

0.5m (1.64ft)
Manual / Simple focus / Day & Night
DC auto iris
Board-in type

0° ~ 355° / 0° ~ 90°

Off / On (Displayed up to 15 characters)
Auto (ICR) / Color / B/W / External
Off / BLC / HLC / WDR
Off / On (96dB) 3M mode : 20fps, 2M mode : 30fps
SSDR (Samsung Super Dynamic Range) (Off / On)

III

(2D+3D noise filter) (Off / On)

SSNR
Off / On (4 rectangular zones)
Off / On (1ea 4 point polygonal + 16ea rectangular zones)
Off / Auto (2x ~ 60x)
Off / Low / Medium / High
ATW / AWC / Manual / Indoor / Outdoor
Auto / A.FLK / Manual (1/30 ~ 12,000sec)
Off / On
Audio detection, Face detection, Tampering, Virtual line, Enter / Exit, Appear / Disappear
Digital 1 / 1
Motion detection, Video analytics, Sensor input
File upload via FTP and E-mail, Notification via E-mail, TCP,
Local storage (SD/SDHC) recording at network disconnected

RJ-45 (10/100BASE-T)
H.264 (MPEG-4 part 10/AVC), MJPEG
3M mode - 2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960,

1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360,
320 x 240, 320 x 180

2M mode - 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,

800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
H.264 : Max. 20fps at all resolutions

3M mode -

MJPEG : 800 x 600 ~ 320 x 180 - 20fps, 1024 x 768 ~1920 x 1080 - 15fps
2048 x 1536 - 10fps

2M mode -

H.264 : Max. 30fps at all resolutions

MJPEG : 800 x 600 ~ 320 x 180 - 30fps,
Yes (Area based method)
H.264 : Compression level, Target bitrate level control

MJPEG : Quality level control
H.264 : CBR or VBR, MJPEG : VBR
Multiple streaming (Up to 6 profiles)
Mic / Line in, Line out
G.711 u-law, G.726 (16Kbps, 24Kbps, 32Kbps, 40Kbps)
Bi-directional audio
IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP
HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Unicast / Multicast
10 users at unicast mode
SD/SDHC memory slot
Yes (Profile S)
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Supported OS : Windows XP / VISTA / 7, MAC OS X 10.7 or higher
Supported Browser : Internet explorer 7.0 or higher, Firefox 9.0 or higher,
Chrome 15.0 or higher, Safari 5.1 or higher
SmartViewer, SSM (Samsung Security Manager)

12V DC : -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
PoE : -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
*Heater works at PoE power input. After start up, working at -35° by PoE

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
IP66
IK10

12V DC, PoE (IEEE802.3af class3)
Max. 9W (12V DC, PoE (Class3) - Heater off), Max. 12.95W (PoE (Class3) - Heater on)

Ivory / Aluminum
Ø160.0 x 134.5mm (Ø6.3" x 5.3")

1.32Kg (2.91lb)
