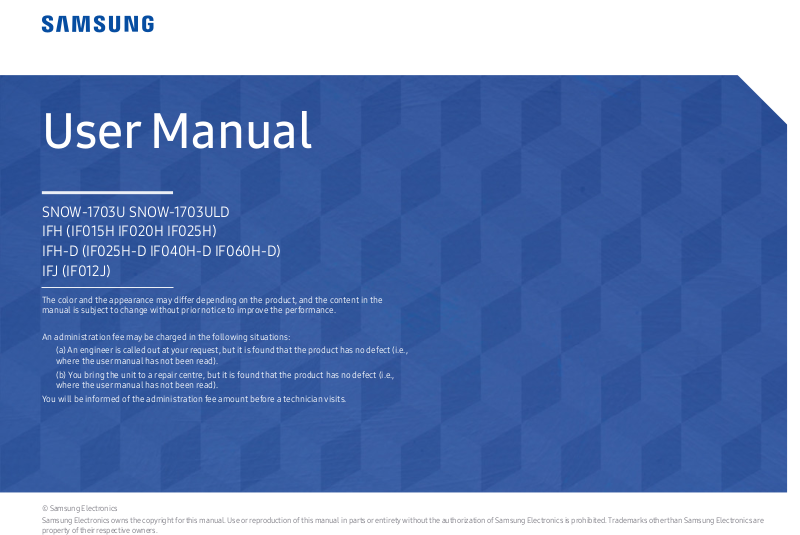

Samsung SNOW-1703ULD User guide

User Manual

SNOW-1703U SNOW-1703ULD IFH (IF015H IF020H IF025H) IFH-D (IF025H-D IF040H-D IF060H-D) IFJ (IF012J)

The color and the appearance may differ depending on the product, and the content in the manual is subject to change without prior notice to improve the performance.

An administration fee may be charged in the following situations:

(a) An engineer is called out at your request, but it is found that the product has no defect (i.e., where the user manual has not been read).

(b) You bring the unit to a repair centre, but it is found that the product has no defect (i.e., where the user manual has not been read).

You will be informed of the administration fee amount before a technician visits.

Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Trademarks other than Samsung Electronics are property of their respective owners.

Table of contents

Before Using the Product

Safety Precautions 6

Safety symbols 6 Electricity and Safety 7 Installation 8 Operation 9 Cleaning 10

Preparations

Parts 11

Front Side (SNOW-1703U / SNOW-1703ULD) 11 Reverse Side (SNOW-1703U / SNOW-1703ULD) 12 Interface Gender Card (I/G Card) 13 Reverse Side (IFH / IFH-D) 14 Reverse Side (IFJ) 15 Remote Control 16

Remote Control (SNOW-1703U / SNOW-1703ULD model only) 18

Cable Connection 18 Connection 21 Control Codes 23

Connecting and using devices

Before Connecting 26

Pre-connection Checkpoints 26

Connecting to a PC 26

Connection Using an HDMI Cable 26 Connection Using an HDMI-DVI Cable 27 Connection Using an DP Cable 27

Connecting to a Video Device 28

Connection Using an HDMI-DVI Cable 28 Connection Using an HDMI Cable 28

Connecting the LAN Cable 29

SNOW-1703U / SNOW-1703ULD Installation Precautions 29

Installing the cabinets 30

Removing the protective brackets 30 Replacing the cabinet module 31

Precautions when handling the cabinets 32

Restrictions when installing cabinets 32

Connecting to cabinets 33

Recommended number of devices for connection for each input voltage 33

Changing the Input source 34

Source 34

Web Browser 35

Settings 35 Refresh Options 37

Using LED Signage Manager

Installing / Uninstalling the software 38

Installing 38 Uninstalling 38

Player feature

Player 39

Viewing content 39 When content is running 40 Available menu 40 File Formats Compatible with Player 41

Schedule 46

Clone Product 47

ID Settings 48

Device ID 48 PC Connection Cable 48

Video Wall 49

Video Wall 49 Horizontal x Vertical 49 Screen Position 49 Format 50

Network Status 51

Picture Mode 52

On/Off Timer 53

On Timer 53

Table of contents

Off Timer 54 Holiday Management 54

Ticker 55

URL Launcher 56

URL Launcher Settings 57

Approving a connected device from the server 58

Setting the current time 59


Picture Mode 60

Contrast / Brightness / Sharpness / Color / Tint (G/R) 61

Color Temperature 61

White Balance 61

2 Point 61 10 Point 61

Output Resolution 63 LED Picture Size 63 Resolution 63 Fit to screen 63

LED HDR 63

Inverse Tone Mapping 63 Dynamic Peaking 63 Color Mapping 63

Picture Options 64

Color Tone 64 Digital Clean View 64 HDMI Black Level 64 Film Mode 64

Reset Picture 64

OnScreen Display

Screen Protection 65

Auto Protection Time 65

Message Display 66

Source Info 66 No Signal Message 66 MDC Message 66 Download Status Message 66

Language 66

Menu Size 66

Reset OnScreen Display 66

Network

Network Status 67

Open Network Settings 67

Network Settings 68

Gamma 62

Advanced Settings 62

Dynamic Contrast 62 Black Tone 62 Flesh Tone 62 RGB Only Mode 62 Color Space 62 HDMI UHD Color 62

LED Picture Size 63

Server Network Settings 70

Connect to Server 70 MagicInfo Mode 70 Server Access 70 FTP Mode 70 Proxy Server 70

Device Name 70

Table of contents

System

Accessibility 71

Menu Transparency 71 High Contrast 71 Enlarge 71

Start Setup 72

Time 72

Clock Set 72 NTP Settings 72 DST 72 Sleep Timer 72 Power On Delay 72

Auto Source Switching 73

Auto Source Switching 73 Primary Source Recovery 73 Primary Source 73 Secondary Source 73

Power Control 73

Auto Power On 73 Max. Power Saving 73 Standby Control 74 Network Standby 74 Power Button 74

Fan Control 75 Temperature Control 75

Input Device Manager 75

Keyboard Language 75 Keyboard Type 75 Input Language Shortcut 75

Play via 75

Change PIN 76

Security 76

Safety Lock On 76 Button Lock 76 USB Auto Play Lock 76 Remote Management 76

General 77

Smart Security 77 Anynet+ (HDMI-CEC) 77 HDMI Hot Plug 79 Custom Logo 79 Game Mode 79 Empty Storage 79

Reset System 79

Support

Software Update 80

Update Now 80 Auto Update 80

Contact Samsung 80

Reset All 80

Playing photos and videos (Media Play)

Read the following before using media play with a USB device 81

Using a USB device 83

Features provided in the media content list page 84

Menu items in the media content list page 85

Available buttons and features during photo playback 86

Available buttons and features during video playback 86

Eco Solution 74

Eco Sensor 74 No Signal Power Off 74 Auto Power Off 74

Fan & Temperature 75

Table of contents

Troubleshooting Guide

Requirements Before Contacting Samsung Customer Service Center 87

Testing the Product 87 Checking the Resolution and Frequency 87 Check the followings. 88

Q & A 92

Specifications

General 93

Preset Timing Modes 95

Appendix

Responsibility for the Pay Service (Cost to Customers) 99

Not a product defect 99 A Product damage caused by customer's fault 99 Others 99

License 100

Chapter 01

Before Using the Product

Safety Precautions

The following safety instructions are to ensure your personal safety and prevent property damage. Please read the following to ensure the proper use of the product.

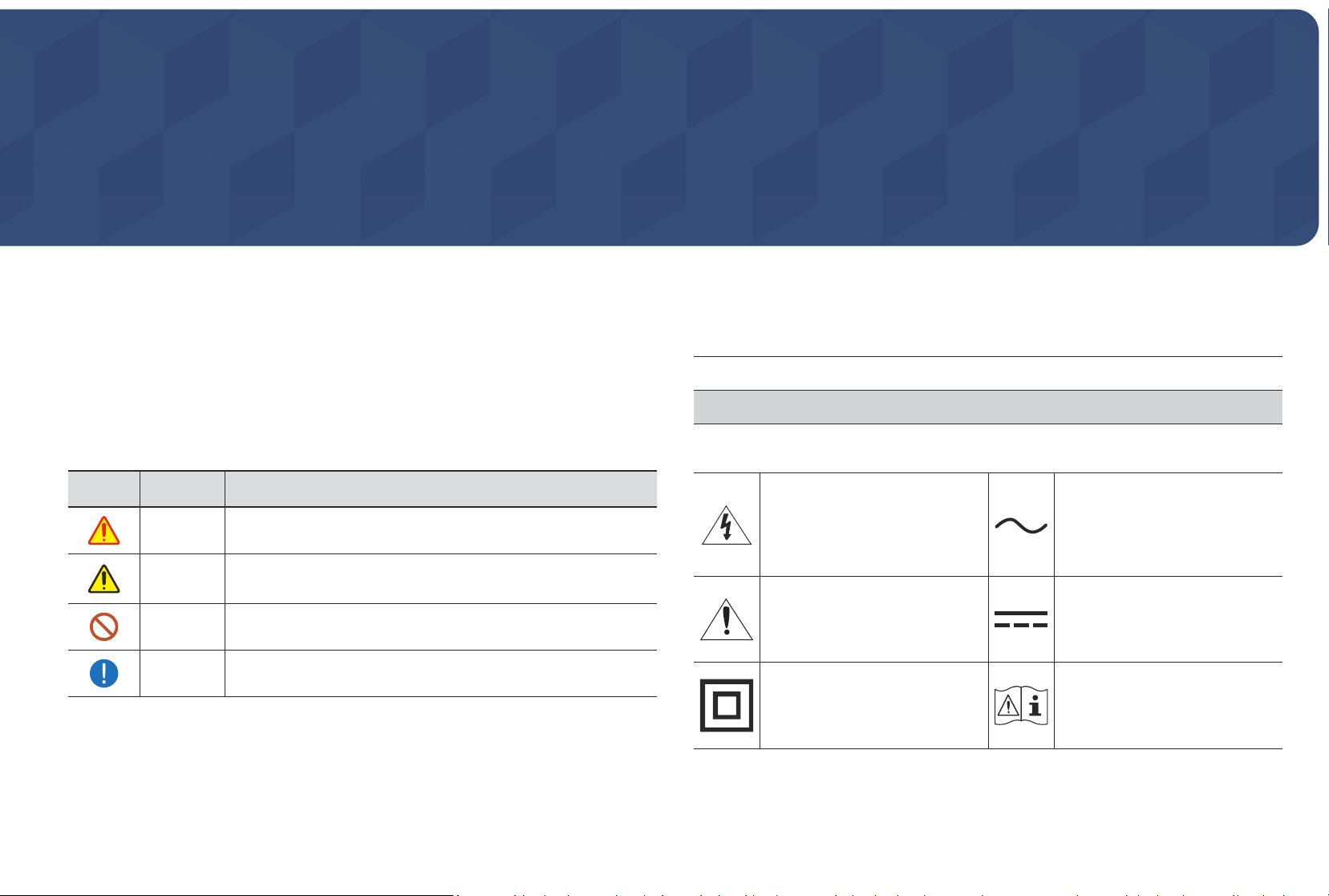

Safety symbols

Symbol Name Meaning

Warning

Caution

Prohibition

Instruction

A serious or fatal injury may result if instructions are not followed.

Personal injury or damage to properties may result if instructions are not followed.

Do NOT attempt.

Follow directions.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

This symbol indicates that this product has included important literature concerning operation and maintenance.

Class II product: This symbol indicates that a safety connection to electrical earth (ground) is not required.

AC voltage: Rated voltage marked with this symbol is AC voltage.

DC voltage: Rated voltage marked with this symbol is DC voltage.

Caution. Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

Electricity and Safety

Caution

Warning

Do not use a damaged power cord or plug, or a loose power socket.

• An electric shock or fire may result.

Do not use multiple products with a single power socket.

• Overheated power sockets may cause a fire.

Do not touch the power plug with wet hands. Otherwise, an electric shock may result.

Insert the power plug all the way in so it is not loose.

• An unsecure connection may cause a fire.

Connect the power plug to a grounded power socket (type 1 insulated devices only).

• An electric shock or injury may result.

Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy object.

• Damage to the cord may result in a fire or electric shock.

Do not place the power cord or product near heat sources.

• A fire or electric shock may result.

Clean any dust around the pins of the power plug or the power socket with a dry cloth.

• A fire may result.

Do not disconnect the power cord while the product is being used.

• The product may become damaged by an electric shock.

Only use the power cord provided with your product by Samsung. Do not use the power cord with other products.

• A fire or electric shock may result.

Keep the power socket where the power cord is connected unobstructed.

• The power cord must be disconnected to cut off power to the product when an issue occurs.

• Note that the product is not completely powered down by using only the power button on the remote.

Hold the plug when disconnecting the power cord from the power socket.

• An electric shock or fire may result.

Installation

Do not install the product within the reach of young children.

• The product may fall and injure children.

Warning

DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.

• A fire may result.

Have a technician install the wall-mount hanger.

• Installation by an unqualified person can result in an injury.

• Only use approved cabinets.

Do not install the product in poorly ventilated spaces such as a bookcase or closet.

• An increased internal temperature may cause a fire.

Install the product at least 10 cm away from the wall to allow ventilation.

• An increased internal temperature may cause a fire.

Keep the plastic packaging out of the reach of children.

• Children may suffocate.

Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.)

• The product may fall and become damaged and/or cause an injury.

• Using the product in an area with excess vibration may damage the product or cause a fire.

Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or smoke.

• A fire or electric shock may result.

Edible oil, such as soybean oil, can damage or deform the product. Do not install the product in a kitchen or near a kitchen counter.

Caution

Do not drop the product while moving.

• Product failure or personal injury may result.

Do not set down the product on its front.

• The screen may become damaged.

When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product is not protruding.

• The product may fall and become damaged and/or cause an injury.

• Install the product only on cabinets or shelves of the right size.

Set down the product gently.

• Product failure or personal injury may result.

Installing the product in an unusual place (a place exposed to a lot of ne dust, chemical substances, extreme temperatures or a signicant presence of moisture, or a place where

the product will operate continuously for an extended period of time) may seriously affect its performance.

• Be sure to consult Samsung Customer Service Center if you want to install the product at such a place.

Do not expose the product to direct sunlight, heat, or a hot object such as a stove.

• The product lifespan may be reduced or a fire may result.

Operation

Warning

There is a high voltage inside the product. Never disassemble, repair or modify the product yourself.

• A fire or electric shock may result.

• Contact Samsung Customer Service Center for repairs.

Before moving the product, turn off the power switch and disconnect the power cable and all other connected cables.

• Damage to the cord may result in a fire or electric shock.

If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord immediately and contact Samsung Customer Service Center.

• An electric shock or fire may result.

If the product is dropped or the outer case is damaged, turn off the power switch and disconnect the power cord. Then contact Samsung Customer Service Center.

• Continued use can result in a fire or electric shock.

Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.

During a lightning or thunderstorm, power off the product and remove the power cable.

• A fire or electric shock may result.

If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately.

• Sparks can cause an explosion or fire.

Do not lift or move the product by pulling the power cord or any cable.

• Product failure, an electric shock or fire may result from a damaged cable.

Do not use or keep combustible spray or an inammable substance near the product.

• An explosion or fire may result.

Ensure the vents are not blocked by tablecloths or curtains.

• An increased internal temperature may cause a fire.

Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper, matches, etc) into the product (via the vent or input/output ports, etc).

• Be sure to power off the product and disconnect the power cord when water or other foreign substances have entered the product. Then contact Samsung Customer Service Center.

• Product failure, an electric shock or fire may result.

Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product.

• Be sure to power off the product and disconnect the power cord when water or other foreign substances have entered the product. Then contact Samsung Customer Service Center.

• Product failure, an electric shock or fire may result.

Do not drop objects on the product or apply impact.

• A fire or electric shock may result.

Do not move the product by pulling the power cord or any cable.

• Product failure, an electric shock or fire may result from a damaged cable.

Caution

Disconnect the power cord from the power socket if you do not plan on using the product for an extended period of time (vacation, etc).

• Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.

Do not put DC power adapters together.

• Otherwise, a fire may result.

Remove the plastic bag from the DC power adapter before you use it.

• Otherwise, a fire may result.

Do not let water enter the DC power device or get the device wet.

• An electric shock or fire may result.

• Avoid using the product outdoors where it can be exposed to rain or snow.

• Be careful not to get the DC power adapter wet when you wash the floor.

Do not put the DC power adapter near to any heating apparatus.

• Otherwise, a fire may result.

Keep the DC power adapter in a well-ventilated area.

If you place the AC/DC power adapter so that it is hanging with the cord input facing upwards, water or other foreign substances could enter the Adapter and cause the Adapter to malfunction.

Make sure to rest the AC/DC power adapter at on a table or the oor.

The screen is bright. Keep a sufcient distance from the screen.

• Continuously looking at the screen up close is bad for your eyes.

• Keep at least the recommended viewing distance (pixel pitch x 3 m) from the screen.

e.g. For IF015H: 1.5 x 3 m = a distance of at least 4.5 m is recommended

Do not use humidiers or stoves around the product.

• A fire or electric shock may result.

Do not place heavy objects on the product.

• Product failure or personal injury may result.

Be careful that children do not place the battery in their mouths when removed from the remote control. Place the battery in a location that children or infants cannot reach.

• If children have had the battery in their mouths, consult your doctor immediately.

When replacing the battery, insert it with the right polarity (+, -).

• Otherwise, the battery may become damaged or it may cause fire, personal injury or damage due to leakage of the internal liquid.

Use only the specied standardized batteries, and do not use a new battery and a used battery at

the same time.

• Otherwise, the batteries may be damaged or cause fire, personal injury or damage due to a leakage of the internal liquid.

The batteries (and rechargeable batteries) are not ordinary refuse and must be returned for recycling purposes. The customer is responsible for returning the used or rechargeable batteries for recycling.

• The customer can return used or rechargeable batteries to a nearby public recycling center or to a store selling the same type of the battery or rechargeable battery.

Do not dispose of batteries in a re.

Cleaning

Be careful when touching the LED xture on the front of the product. There is a risk that LED

elements may fall off.

Contact Customer Service Center if the inside of the product needs cleaning (service fee will be charged).

Do not touch the product if it has been turned on for a long time. The product may be hot.

Store small accessories out of the reach of children.

Chapter 02

Preparations

Parts

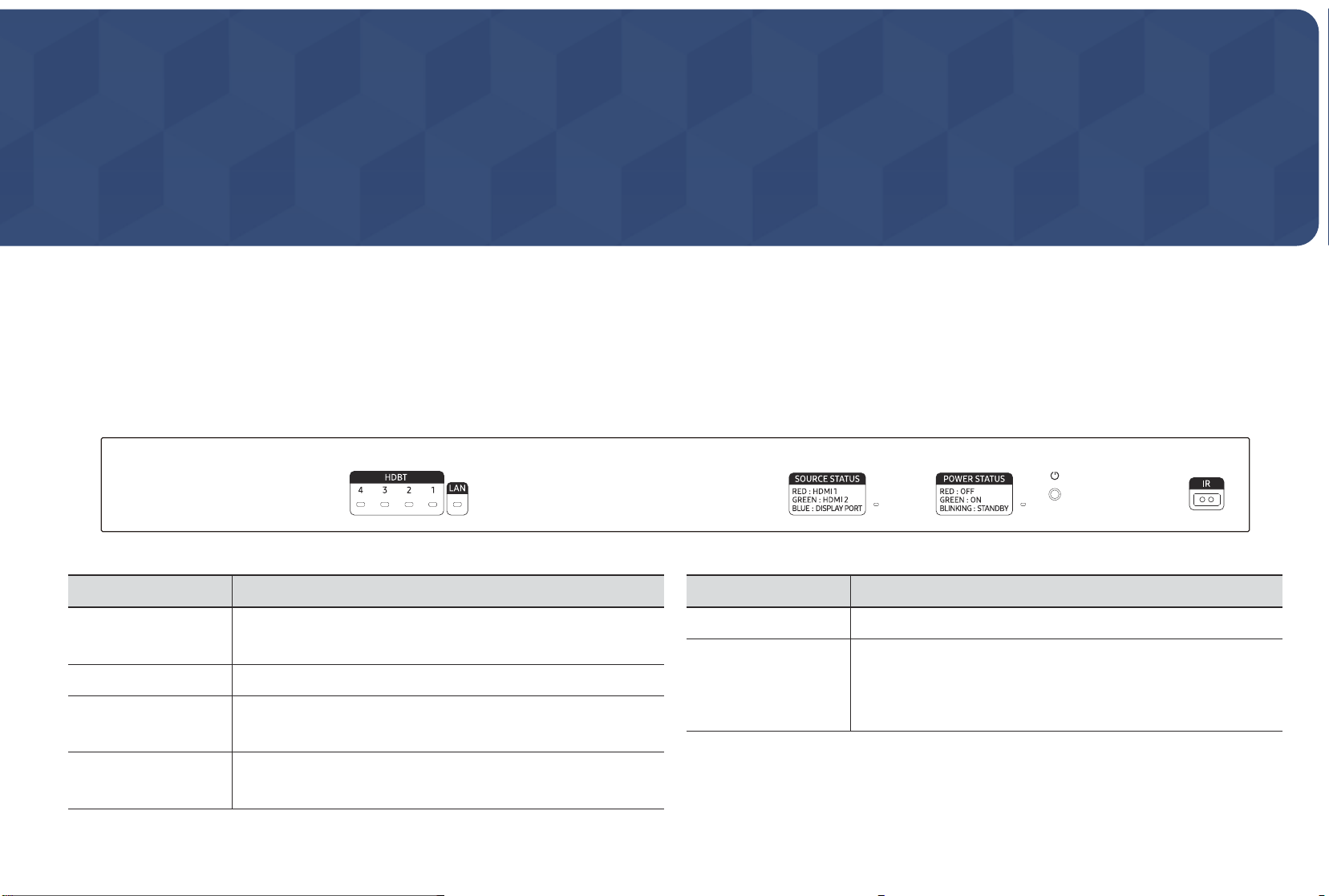

Front Side (SNOW-1703U / SNOW-1703ULD)

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

Parts Description

HDBT 4, HDBT 3, HDBT 2, HDBT 1

LAN

SOURCE STATUS

POWER STATUS

View the input HDBT source status.

4 : HDBT 4 / 3 : HDBT 3 / 2 : HDBT 2 / 1 : HDBT 1

View the input LAN source status.

View the input source status.

RED : HDMI 1 / GREEN : HDMI 2 / BLUE : DISPLAY PORT

View the power status.

RED : OFF / GREEN : ON / BLINKING : STANDBY

Parts Description

Turn the product on or off.

Aim the remote control towards this spot on the LCD Display.

Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled.

Reverse Side (SNOW-1703U / SNOW-1703ULD)

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

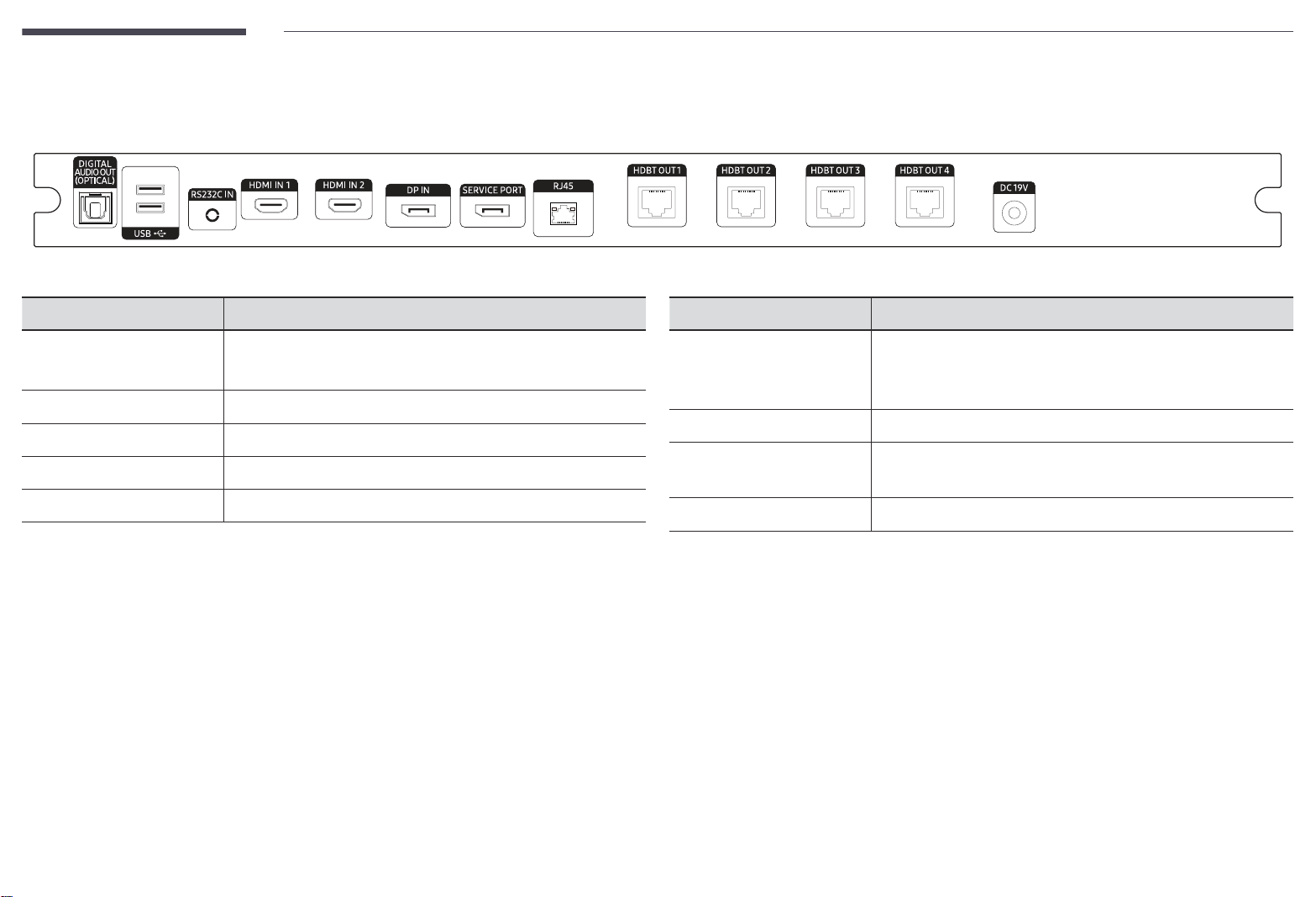

Parts Description

DIGITAL AUDIO OUT(OPTICAL)

USB

RS232C IN

HDMI IN 1, HDMI IN 2

DP IN

Connects to a audio device using the optical(digital) cable.

Supported models: SNOW-1703ULD

Connect to a USB memory device.

Used for service purposes.

Connects to a source device using a HDMI cable or HDMI-DVI cable.

Connects to a PC using a DP cable.

Parts Description

SERVICE PORT

RJ45

HDBT OUT 1, HDBT OUT 2, HDBT OUT 3, HDBT OUT 4

DC 19V

Dedicated to service technicians.

This port is for servicing only and has no user function. Do not connect a cable to this port.

Connect to a network using the LAN cable. (10/100 Mbps)

Connects to an interface gender. Each port can transmit Full HD signals. All the four ports must be used to transmit UHD signals.

Connects to the DC power adapter.

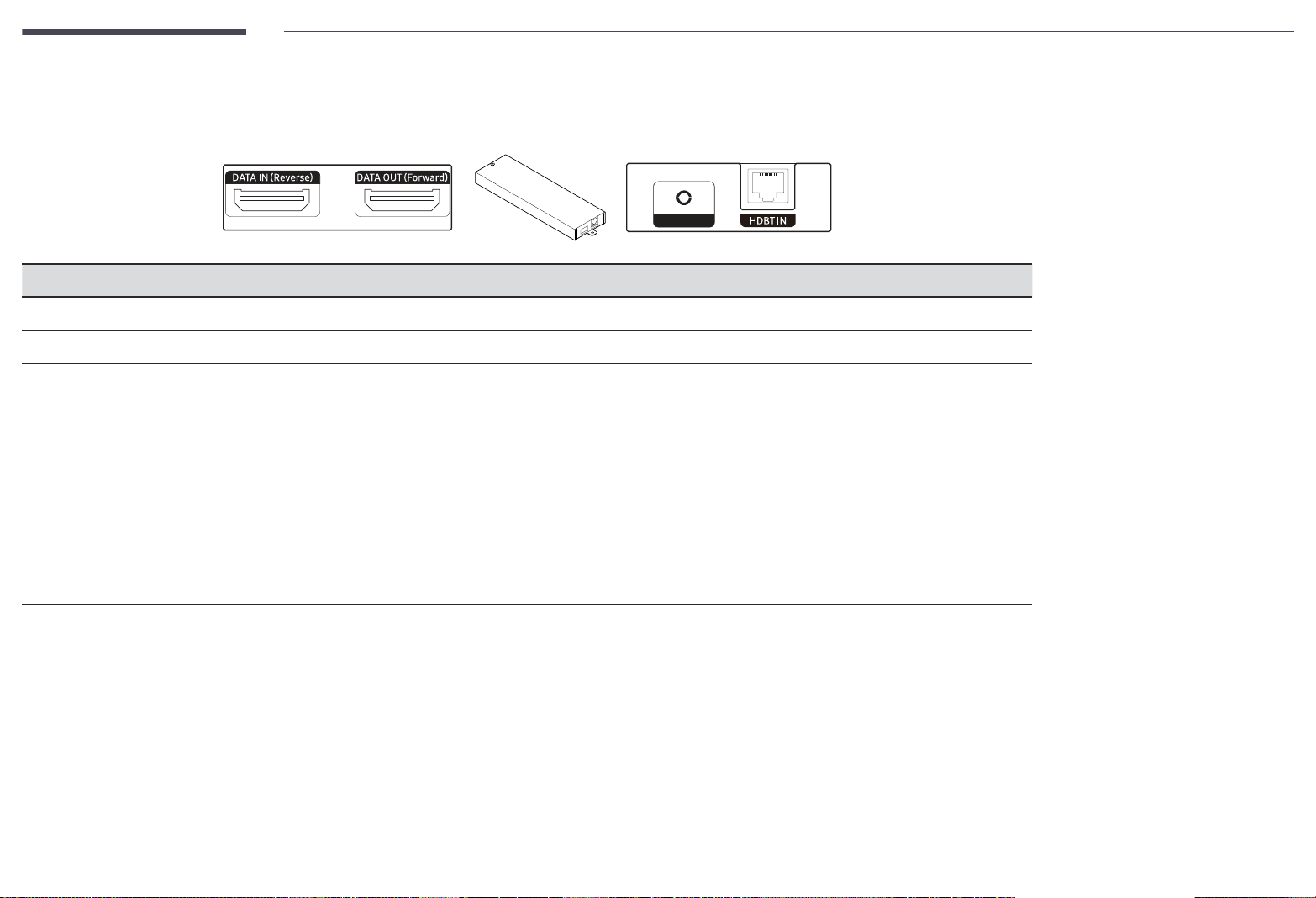

Interface Gender Card (I/G Card)

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

ECO SENSOR

Parts Description

DATA IN (Reverse)

DATA OUT (Forward)

ECO SENSOR

HDBT IN

Connects to the DATA OUT port on the last cabinet using an OCM cable.

Connects to the DATA IN port on the first cabinet using an OCM cable.

Connects an external IR cable to the ECO SENSOR port.

Automatically recognizes the ambient brightness and adjusts the brightness of the cabinet connected to the I/G card.

To turn off this function, set

Only one external IR cable is provided. The external IR cable operates with only one of multiple I/G cards. Even if multiple I/G cards are connected, external IR cable operates with only the one I/G card connected at the top.

After connecting to or disconnecting from the ECO SENSOR port on the I/G card, reboot SNOW-1703ULD.

Note that the cabinet may be subject to shadows or light interferences depending on the installation position.

ECO SENSOR is not supported in

Supported models: SNOW-1703ULD

Connects to the HDBT OUT port on SNOW-1703U or SNOW-1703ULD using an HDBT cable.

Eco Sensor to Off at System → Eco Solution.

Live Mode.

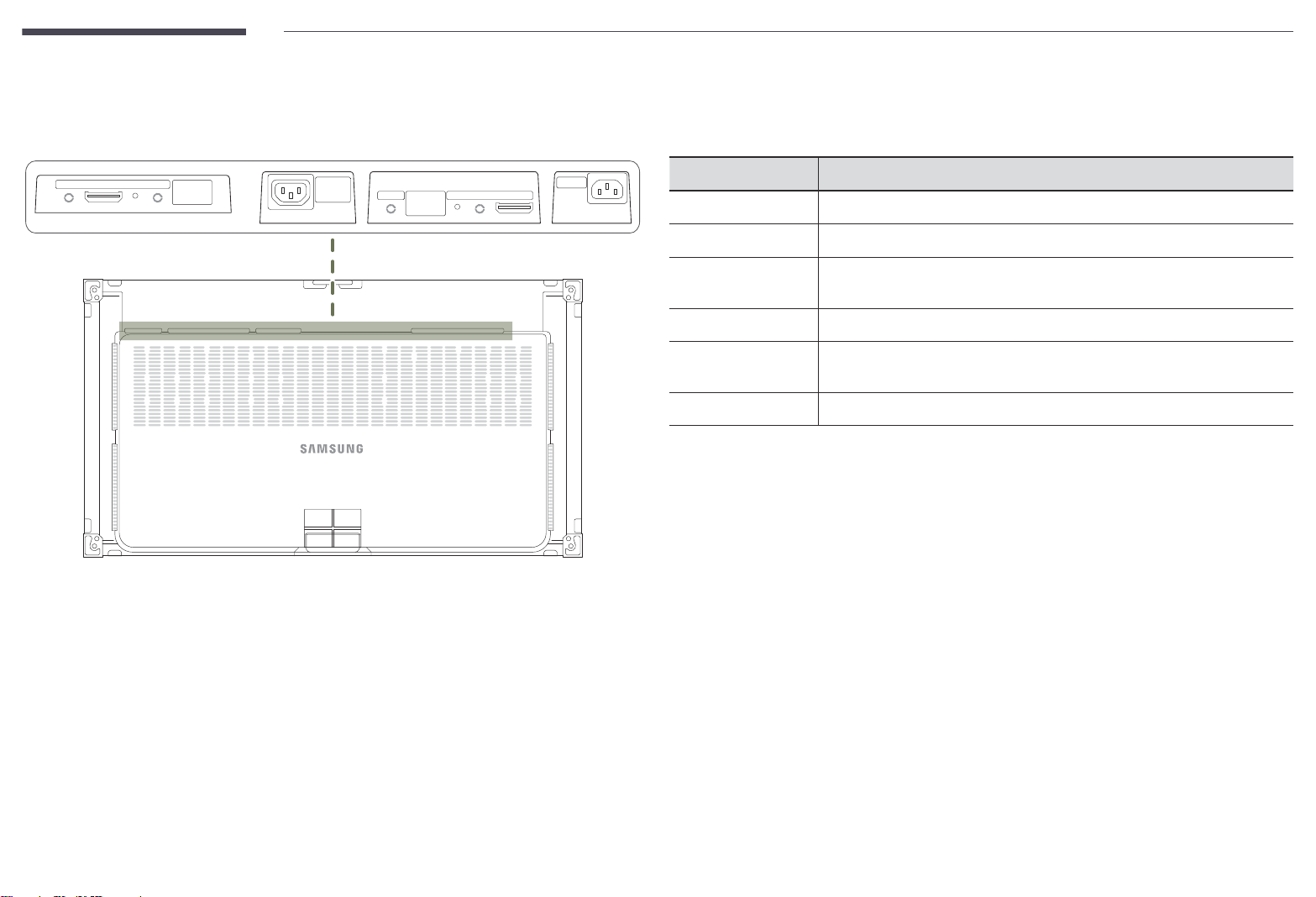

Reverse Side (IFH / IFH-D)

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

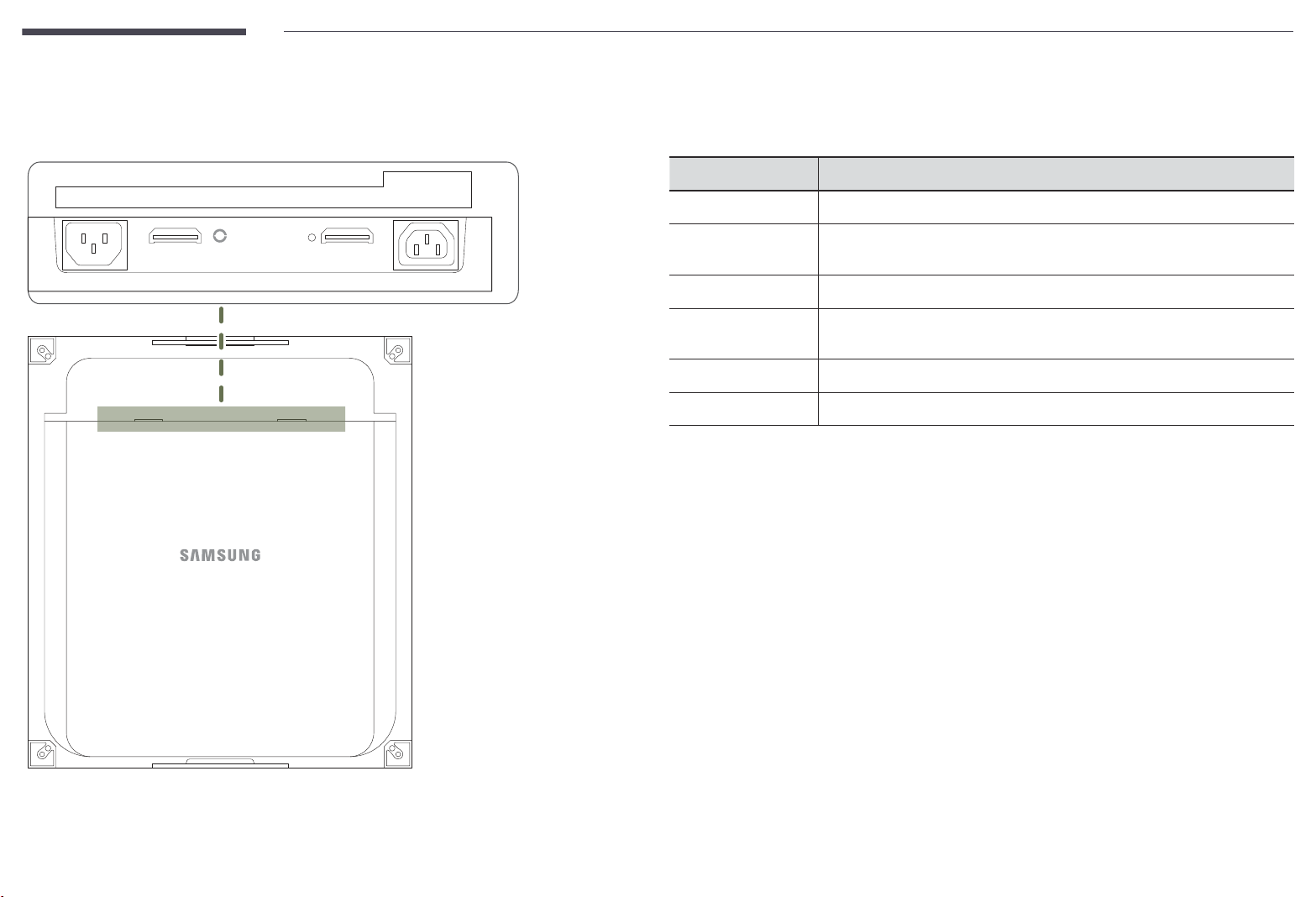

POWER IN DATA IN SERVICE

SWITCH

DATA OU T

100-240V~50/60Hz 4.0A

POWER OUT

Parts Description

POWER IN

DATA IN

SERVICE

SWITCH

DATA OUT

POWER OUT

Connects to an AC power.

Connects to the DATA OUT port on an interface gender or on the previous cabinet to receive video data.

Dedicated to service technicians.

Enters factory mode (press and hold for 5 seconds) or factory reset mode (press and hold for 10 seconds).

Connects to the DATA IN port on the next cabinet.

Connects the power cable to the next cabinet to support AC power.

Reverse Side (IFJ)

POWER OUT 100-240V 50/60Hz 4.0A

SERVICE SWITCH SERVICE DATA IN

POWER IN

SERVICE DATA OUT SWITCH SERVICE

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

Parts Description

SERVICE

DATA OUT

SWITCH

POWER OUT

DATA IN

POWER IN

Dedicated to service technicians.

Connects to the DATA IN port on the next cabinet.

Enters factory mode (press and hold for 5 seconds) or factory reset mode (press and hold for 10 seconds).

Connects the power cable to the next cabinet to support AC power.

Connects to the DATA OUT port on an interface gender or on the previous cabinet to receive video data.

Connects to an AC power.

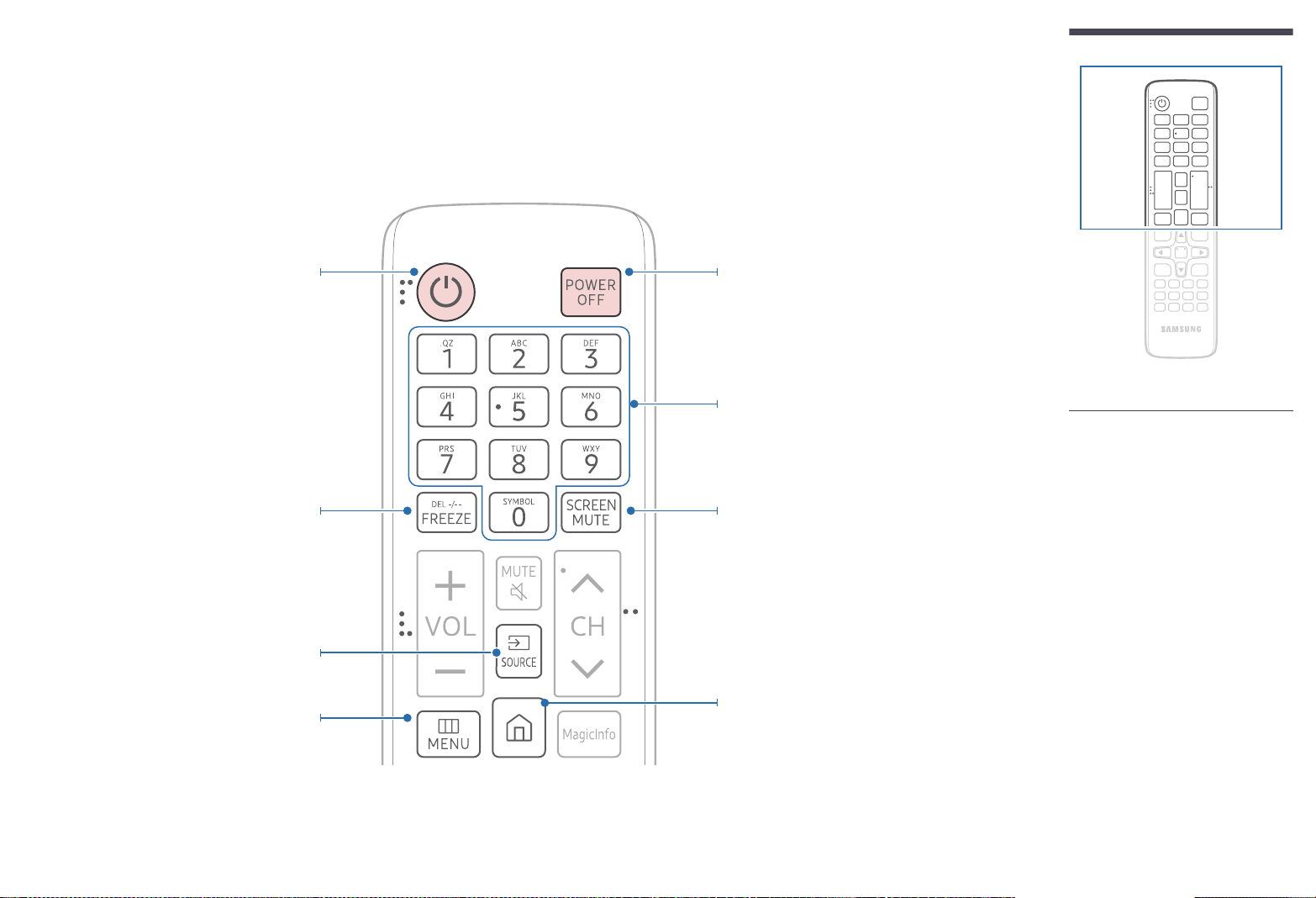

Remote Control

Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled.

A button without a description in the image below is not supported on the product.

The FREEZE function is only available for

Source.

Power on the product.

Stop the screen.

Change the input source.

Display or hide the onscreen display menu, or

return to the previous menu.

Power off the product.

Number buttons

Enter the password in the OSD menu.

Turns off the screen only. To turn the screen back on, press it again.

Player Launch Button.

"Remote control button functions

may differ for different products.

Quickly select frequently used functions.

Return to the previous menu.

Used in multimedia mode.

POWER ON / POWER OFF

Turn on or off the Smart Signage device.

SOURCE

View or select an external device connected to

the Smart Signage device.

To place batteries in the remote control

Display information about the current input source.

Move to the upper, lower, left or right menu, or adjust an option's setting.

Confirm a menu selection.

Exit the current menu.

A: Select the desired screen mode, normal mode or

Live Mode.

Before changing to

Live Mode, set Source

to HDMI 1, HDMI 2 or DisplayPort.

Live Mode is recommended for live

broadcasts such as sports events and concerts.

Note that the product reboots when the screen mode is changed.

Live Mode, only some menus are

supported. Set other settings in normal mode.

Menus supported in Live Mode: Contrast,

Brightness, Sharpness, Color Temperature, White Balance (R-Gain / G-Gain / B-Gain), HDMI Black Level, Reset Picture

B: Manually select a connected input source

from HDMI 1.

C: Manually select a connected input source from

HDMI 2.

D: Manually select a connected input source

from

DisplayPort.

"Remote control button functions

may differ for different products.

Press a button on the remote control pointing at the sensor on the front of the product to perform the corresponding function.

"Using other display devices in the

same space as the remote control of this product can cause the other display devices to be inadvertently controlled.

Use the remote control within 7 m to 10 m from the sensor on the product at an angle of 30° from the left and right.

"Store used batteries out of reach of

children and recycle.

"Do not use a new and used battery

together. Replace both batteries at the same time.

"Remove batteries when the remote

control is not to be used for an extended period of time.

Remote Control (SNOW-1703U / SNOW-

• Pin assignment

1703ULD model only)

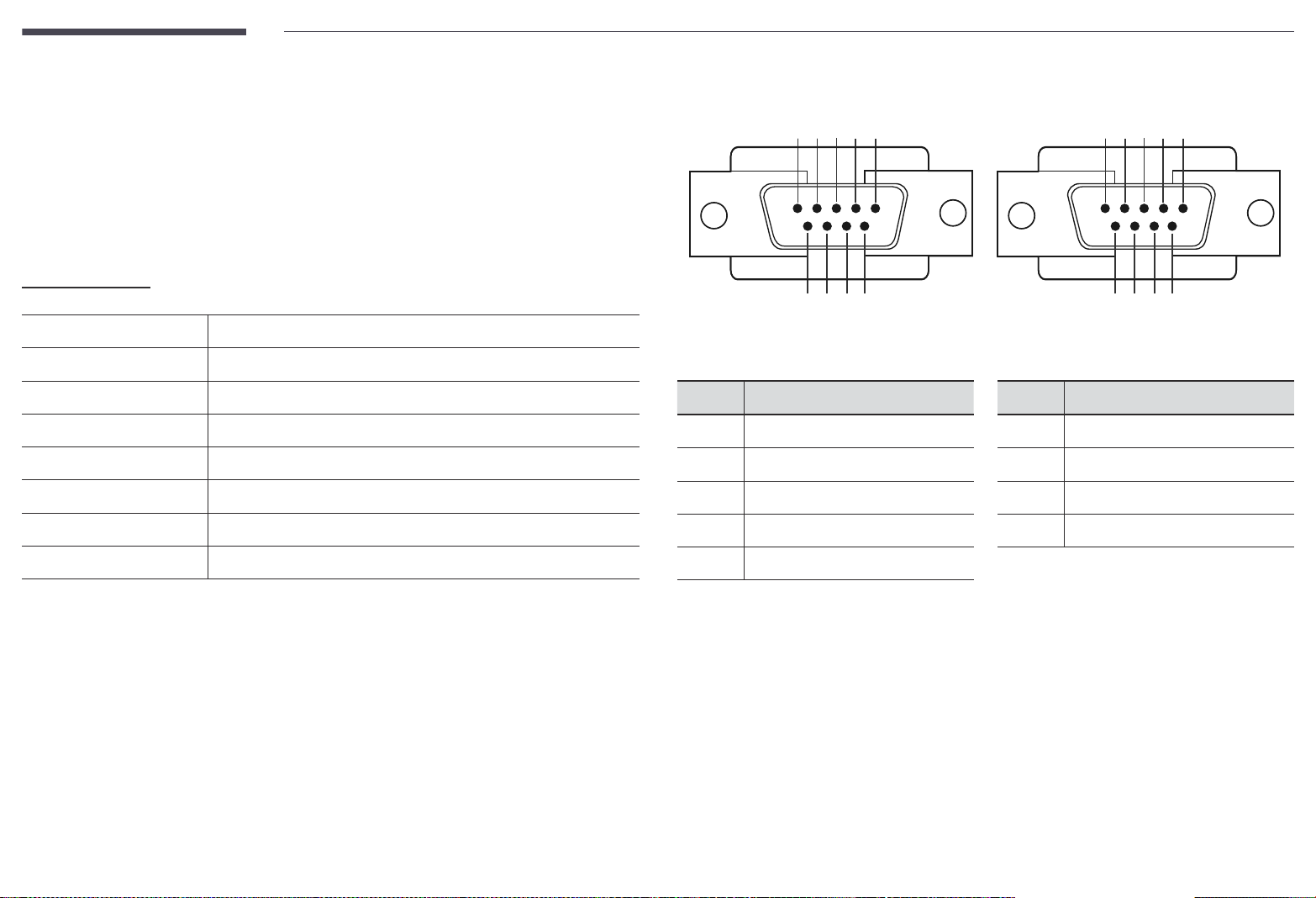

Cable Connection

RS232C Cable

Interface

Bit rate

Data bits

Parity

Stop bit

Flow control

Maximum length

RS232C (9 pins)

TxD (No.2), RxD (No.3), GND (No.5)

9600 bps

8 bit

None

1 bit

None

15 m (only shielded type)

1 2 3 4 5

6 7 8 9

Pin Signal

Detect data carrier

Received data

Transmitted data

Prepare data terminal

Signal ground

5 4 3 2 1

9 8 7 6

Pin Signal

Prepare data set

Send request

Clear to send

Ring indicator

• RS232C cable Connector: 9-Pin D-Sub to Stereo Cable

-P1-

-P1- -P1- -P2- -P2-

3 2 1

-P2-

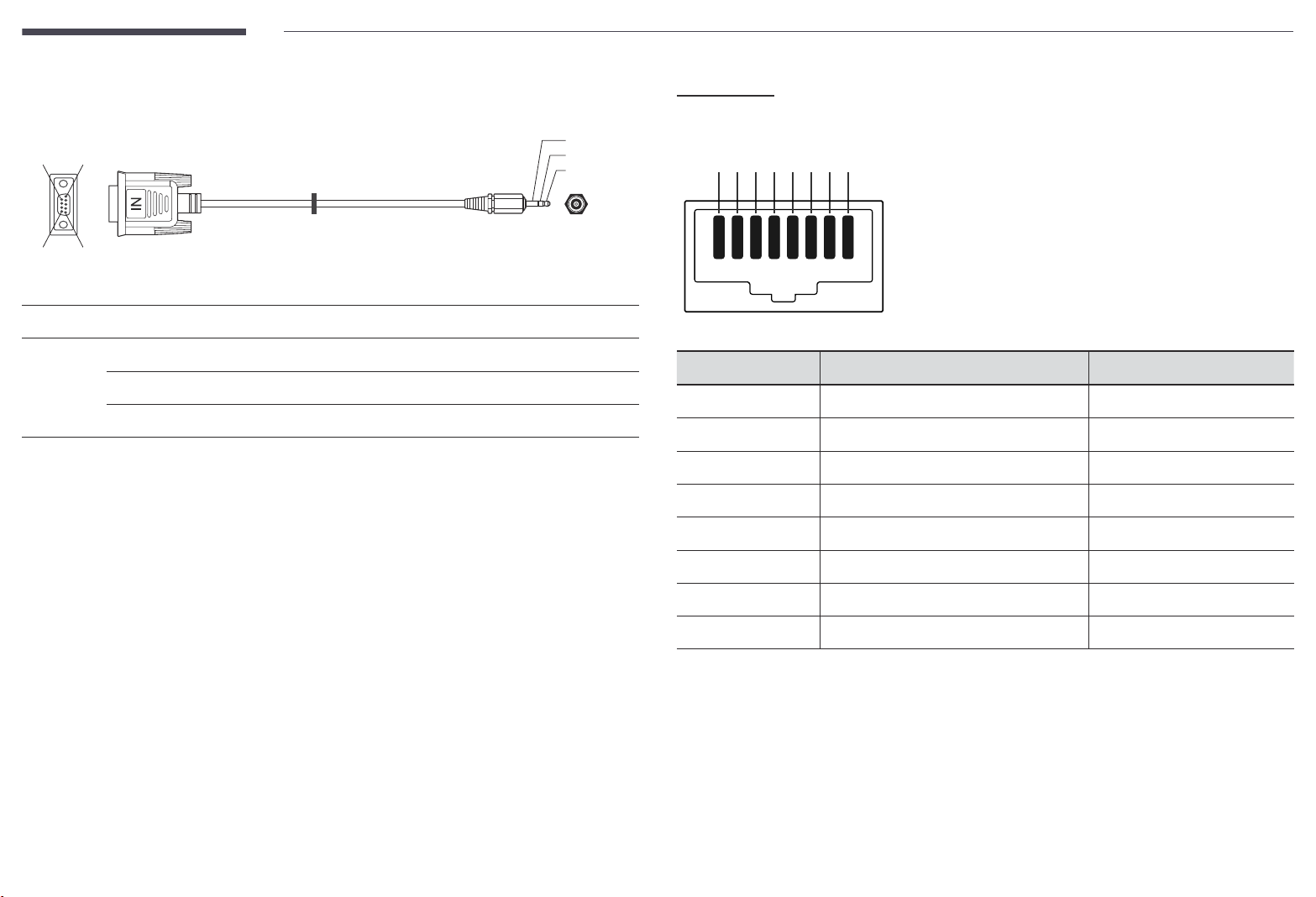

LAN Cable

• Pin assignment

1 2 3 4 5 6 7 8

Male type

Rx 3 ---------- 1 Tx STEREO

Tx 2 ---------- 2 Rx PLUG

Gnd 5 ---------- 3 Gnd (3.5ø)

Pin No Standard Color Signal

White and orange TX+

Orange TX-

White and green RX+

Blue NC

White and blue NC

Green RX-

White and brown NC

Brown NC

• Connector : RJ45

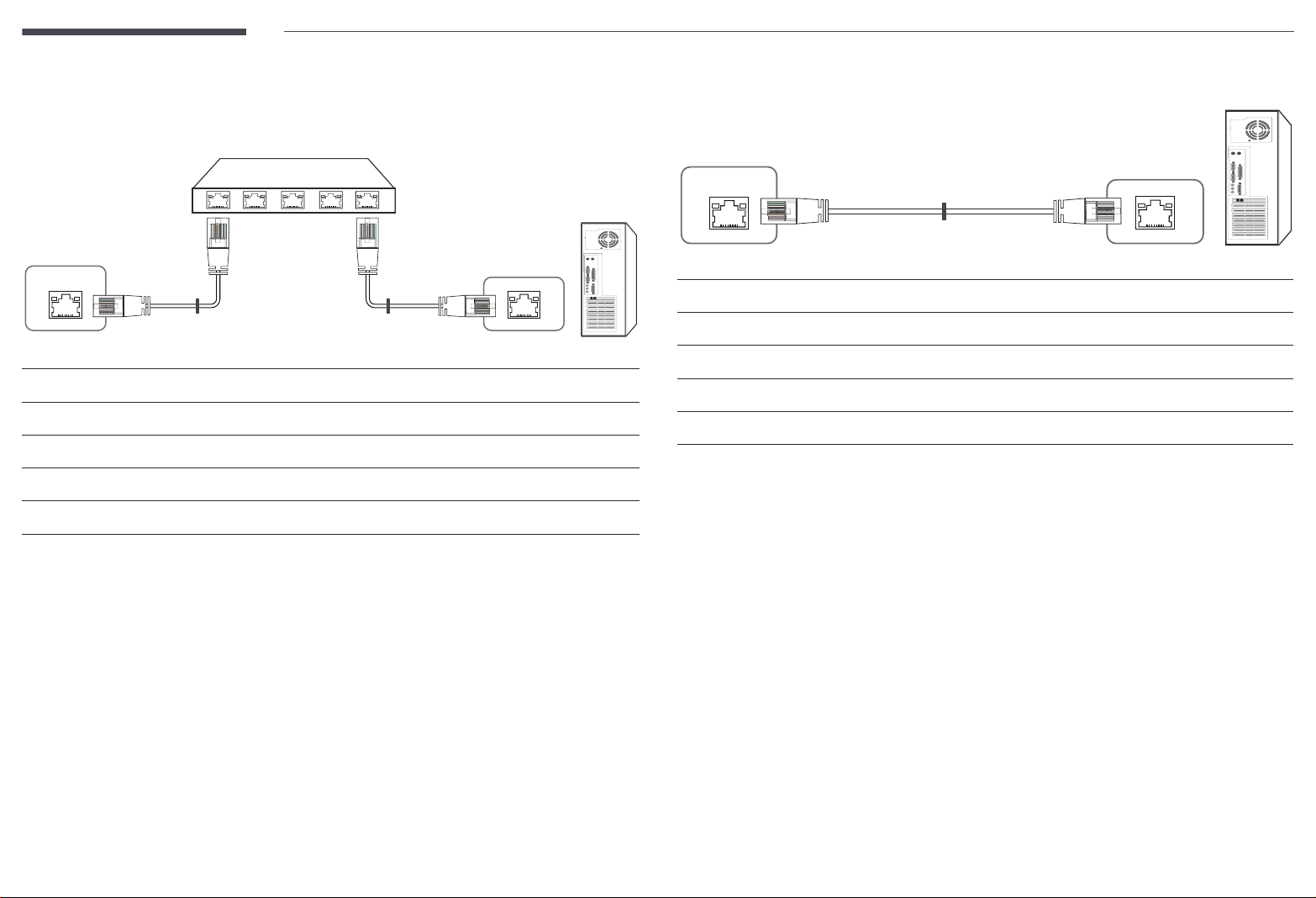

Direct LAN cable (PC to HUB)

Cross LAN cable (PC to PC)

HUB

P1P2

RJ45

Signal P1 P2 Signal

TX+ 1

TX- 2

RX+ 3

RX- 6

↔

1 TX+

2 TX-

3 RX+

6 RX-

RJ45

P1 P2

Signal P1 P2 Signal

TX+ 1

TX- 2

RX+ 3

RX- 6

↔

3 RX+

6 RX-

1 TX+

2 TX-

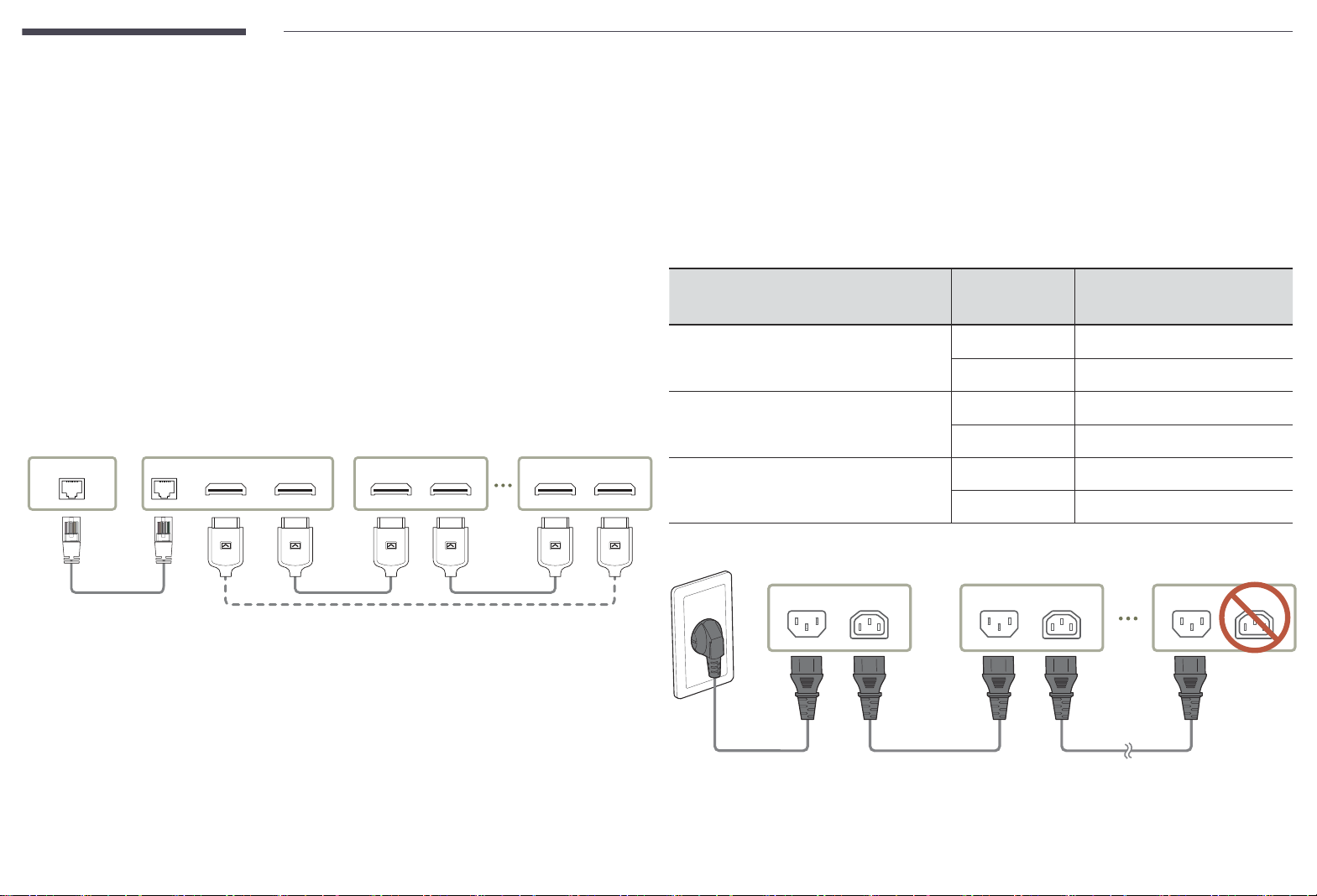

Connection

• Connection 1

Ensure that you connect the RS232C(IN) adapter to the RS232C IN port on the product.

IFH

RS232C IN

IFH-D

RS232C IN

HDBT OUT

HDBT IN

DATA OUT (Forward)

DATA IN DATA O UT DATA IN

IFJ

RS232C IN

HDBT OUT

HDBT IN

DATA OUT (Forward)

DATA IN DATA O UT DATA IN

• Connection 2

IFH

RJ45

IFH-D

HDBT OUT

HDBT IN

DATA OUT (Forward)

DATA IN DATA O UT DATA IN

IFJ

RJ45

HDBT OUT

HDBT IN

DATA OUT (Forward)

DATA IN DATA O UT DATA IN

RJ45

HDBT OUT

HDBT IN

DATA OUT (Forward)

DATA IN DATA O UT DATA IN

Control Codes

Viewing control state (Get control command)

E.g. Power On & ID=0

Header Command

0xAA 0x11 1 "Power"

Data length Data 1

Checksum

Header Command

0xAA Command type 0

Data length

Checksum

Controlling (Set control command)

Header Command

0xAA Command type 1 Value

Data length Data

Checksum

Command

No. Command type Command Value range

• All communications take place in hexadecimals. The checksum is calculated by adding up all values except the header. If a checksum adds up to be more than 2 digits as shown below (11+FF+01+01=112), the first digit is removed.

Power control 0x11 0~1

Input source control 0x14 -

Screen mode control 0x18 -

Safety Lock 0x5D 0~1

Header Command

0xAA 0x11 1 1

• To control all devices connected by a serial cable simultaneously irrespective of IDs, set the ID as "0xFE" and transmit commands. Commands will be executed by each device but ACK will not respond.

Data length Data 1

Power control

Input source control

• Function A product can be powered on and off using a PC.

• Viewing power state (Get Power ON / OFF Status)

Header Command

0xAA 0x11 0

Data length

Checksum

• Setting power ON/Off (Set Power ON / OFF)

Header Command

0xAA 0x11 1 "Power"

Data length Data

"Power": Power code to be set on a product.

1: Power ON

0: Power OFF

• Ack

Header Command

0xAA 0xFF 3 'A' 0x11 "Power"

Data length Ack/Nak r-CMD Val1

"Power": Power code to be set on a product.

• Nak

Header Command

0xAA 0xFF 3 'N' 0x11 "ERR"

Data length Ack/Nak r-CMD Val1

"ERR" : A code showing what error has occurred.

Checksum

• Function The input source of a product can be changed using a PC.

• Viewing input source state (Get Input Source Status)

Header Command

0xAA 0x14 0

Data length

Checksum

• Setting the input source (Set Input Source)

Header Command

0xAA 0x14 1 "Input Source"

Data length Data

Checksum

"Input Source": An input source code to be set on a product.

0x0C Input source At present, supports only reading the input source status.

0x21 HDMI1

0x23 HDMI2

0x25 DISPLAY PORT

0x60 MagicInfo

0x63 URL Launcher Operates only with URL Launcher.

0x65 Web Browser

This model does not support HDMI1 and HDMI2.

MagicInfo is only available with models that contain the MagicInfo function.

• Ack

Header Command

0xAA 0xFF 3 'A' 0x14

Data length Ack/Nak r-CMD Val1

"Input Source": An input source code to be set on a product.

• Nak

Header Command

0xAA 0xFF 3 'N' 0x14 "ERR"

Data length Ack/Nak r-CMD Val1

"ERR" : A code showing what error has occurred.

"Input

Source"

Checksum

Safety Lock

• Function PC can be used to turn the

This control is available regardless of whether or not the power is turned on.

• Viewing the safety lock state (Get Safety Lock Status)

Header Command

0xAA 0x5D 0

• Enabling or disabling safety lock (Set Safety Lock Enable / Disable)

Header Command

0xAA 0x5D 1 "Safety Lock"

"Safety Lock": Safety lock code to be set on a product

1: ON

0: OFF

• Ack

Safety Lock On function on or off on a product.

Data length

Data length Data

Checksum

Header Command

0xAA 0xFF 3 'A' 0x5D "Safety Lock"

Data

length

Ack/Nak r-CMD Val1

"Safety Lock": Safety lock code to be set on a product

• Nak

Header Command

0xAA 0xFF 3 'N' 0x5D "ERR"

Data

length

Ack/Nak r-CMD Val1

"ERR": A code showing what error has occurred

Checksum

Chapter 03

Connecting and using devices

Before Connecting

Pre-connection Checkpoints

Before connecting a source device, read the user manual provided with it. The number and locations of ports on source devices may differ from device to device.

Do not connect the power cable until all connections are completed. Connecting the power cable during connection may damage the product.

Check the types of ports at the back of the product you want to connect.

Connecting to a PC

• Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable.

• A PC can be connected to the product in a variety of ways. Select a connection method suitable for your PC.

Connecting parts may differ in different products.

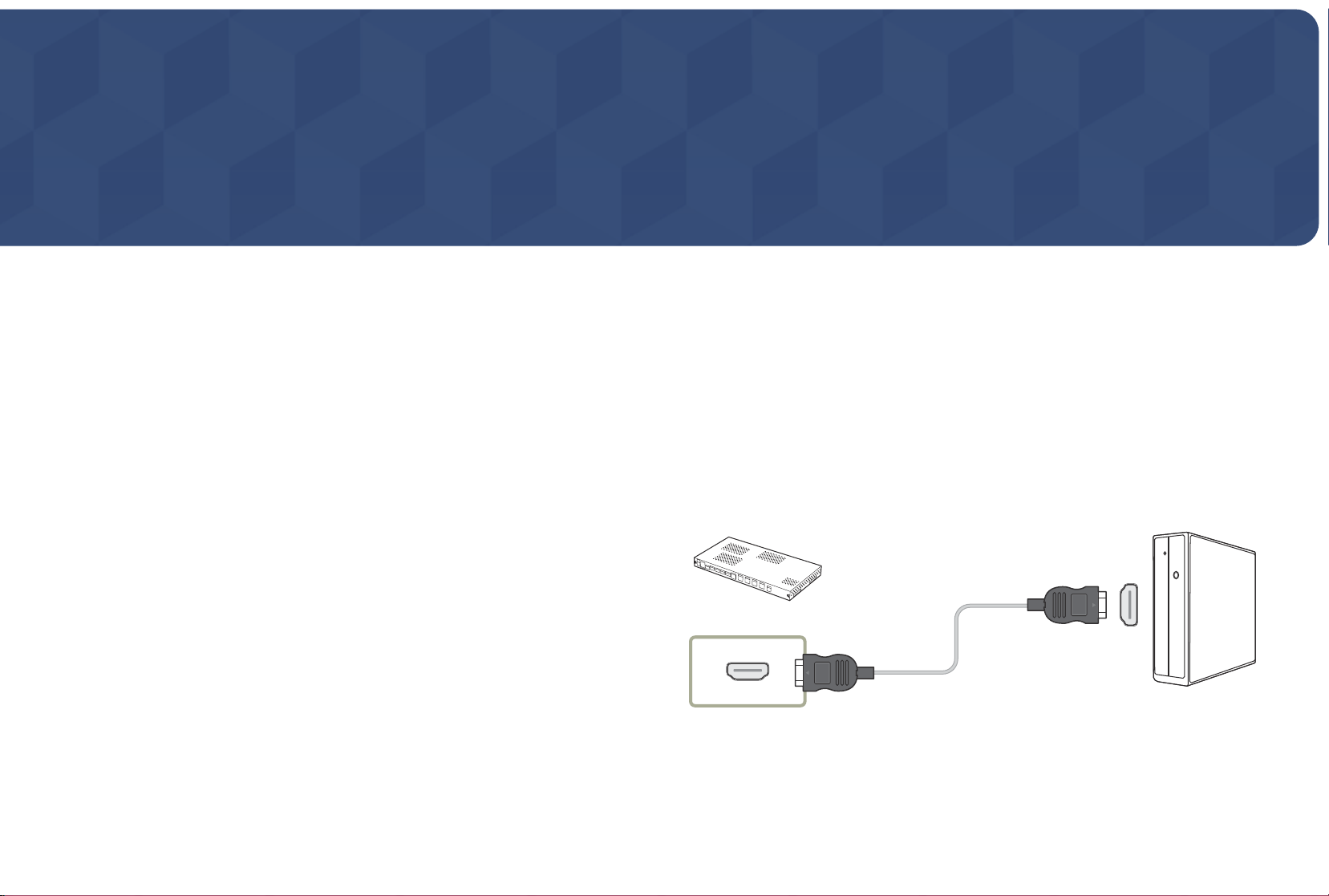

Connection Using an HDMI Cable

HDMI IN 1, HDMI IN 2

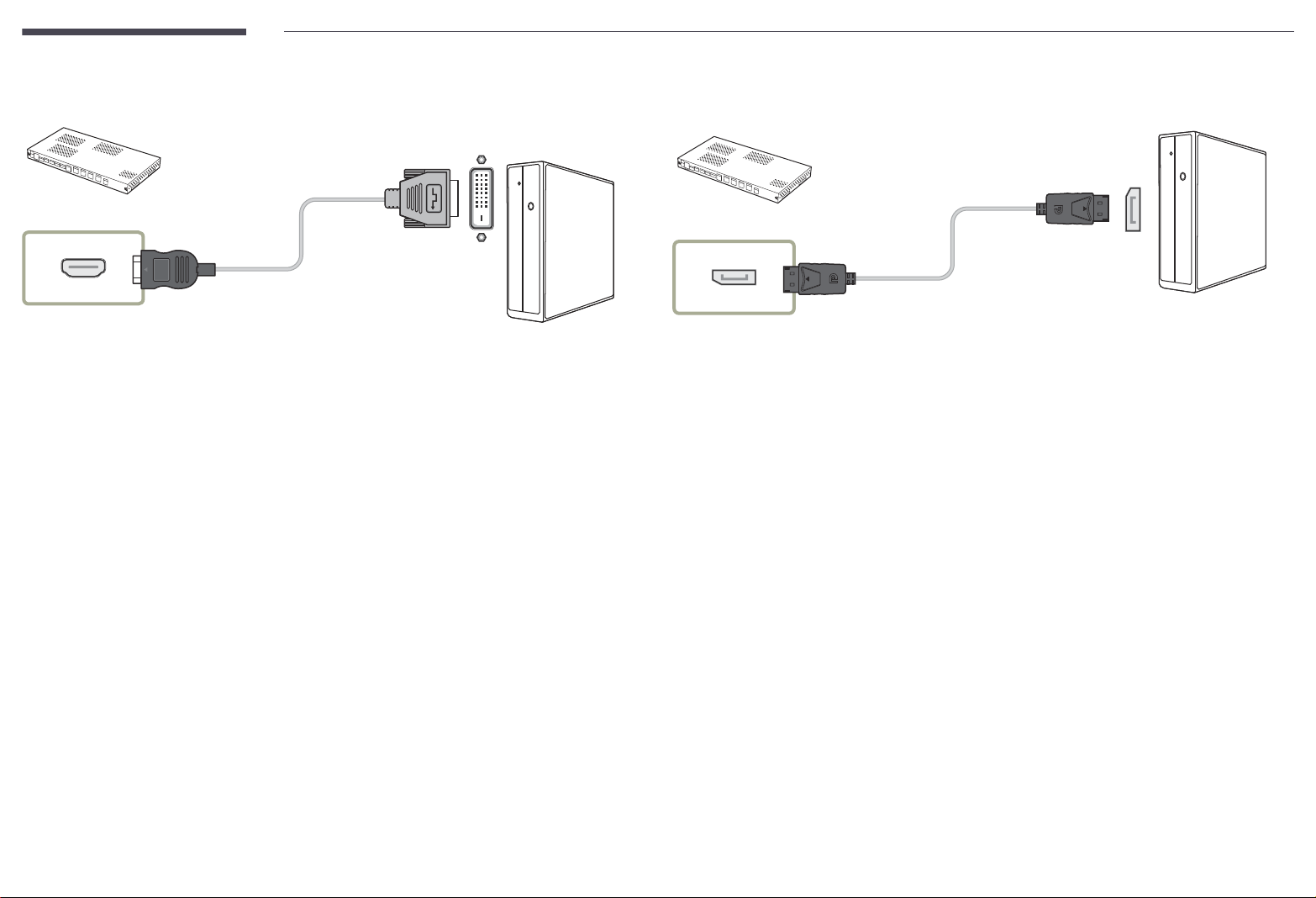

Connection Using an HDMI-DVI Cable

Connection Using an DP Cable

HDMI IN 1, HDMI IN 2

DP IN

• Precautions for using DP

To increase the standby power capacity, the product stops DP communication when it is turned off or in power-saving mode.

If the product in dual monitor mode is turned off or goes into power-saving mode, monitor setting changes may not be updated. As a result, screen output may not be displayed properly.

In the occurrence of this issue, set

Some graphics cards that are not compliant with the DP standard may prevent the Windows Booting/Bios screen from being displayed when the product is in power-saving mode. If this is the case, make sure to turn on the product first before turning on your PC.

The DisplayPort interface (DP IN) on the product and the provided DP cable are designed based on the VESA standards. Using a DP cable that is not VESA compliant may cause the product to function improperly. Samsung Electronics shall not be held responsible for any issues from using a cable that is not VESA compliant.

Make sure to use a DP cable that is VESA compliant.

Max. Power Saving to Off before using the product.

Connecting to a Video Device

Connection Using an HDMI Cable

• Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable.

• You can connect a video device to the product using a cable.

Connecting parts may differ in different products.

Press the SOURCE button on the remote control to change the source.

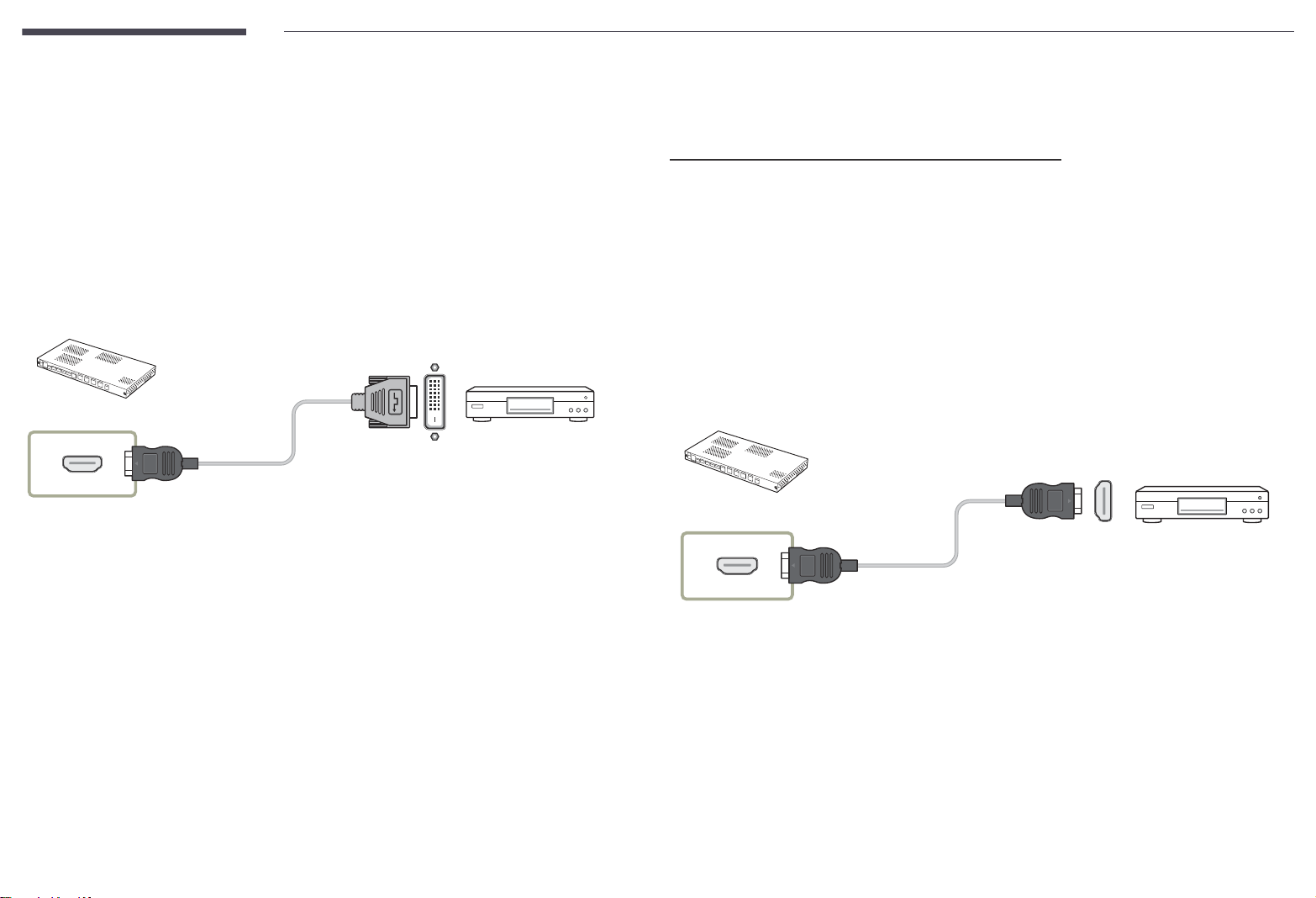

Connection Using an HDMI-DVI Cable

HDMI IN 1, HDMI IN 2

Using an HDMI cable or HDMI to DVI Cable

• For better picture and audio quality, connect to a digital device using an HDMI cable.

• If the product is connected to an external device that is compatible with an older HDMI version, the product may not display screen colors properly. It may also display a blank screen. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.

• Be sure to use an HDMI cable with a thickness of 14 mm or less.

• Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.

• A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support the ethernet function via HDMI.

HDMI IN 1, HDMI IN 2

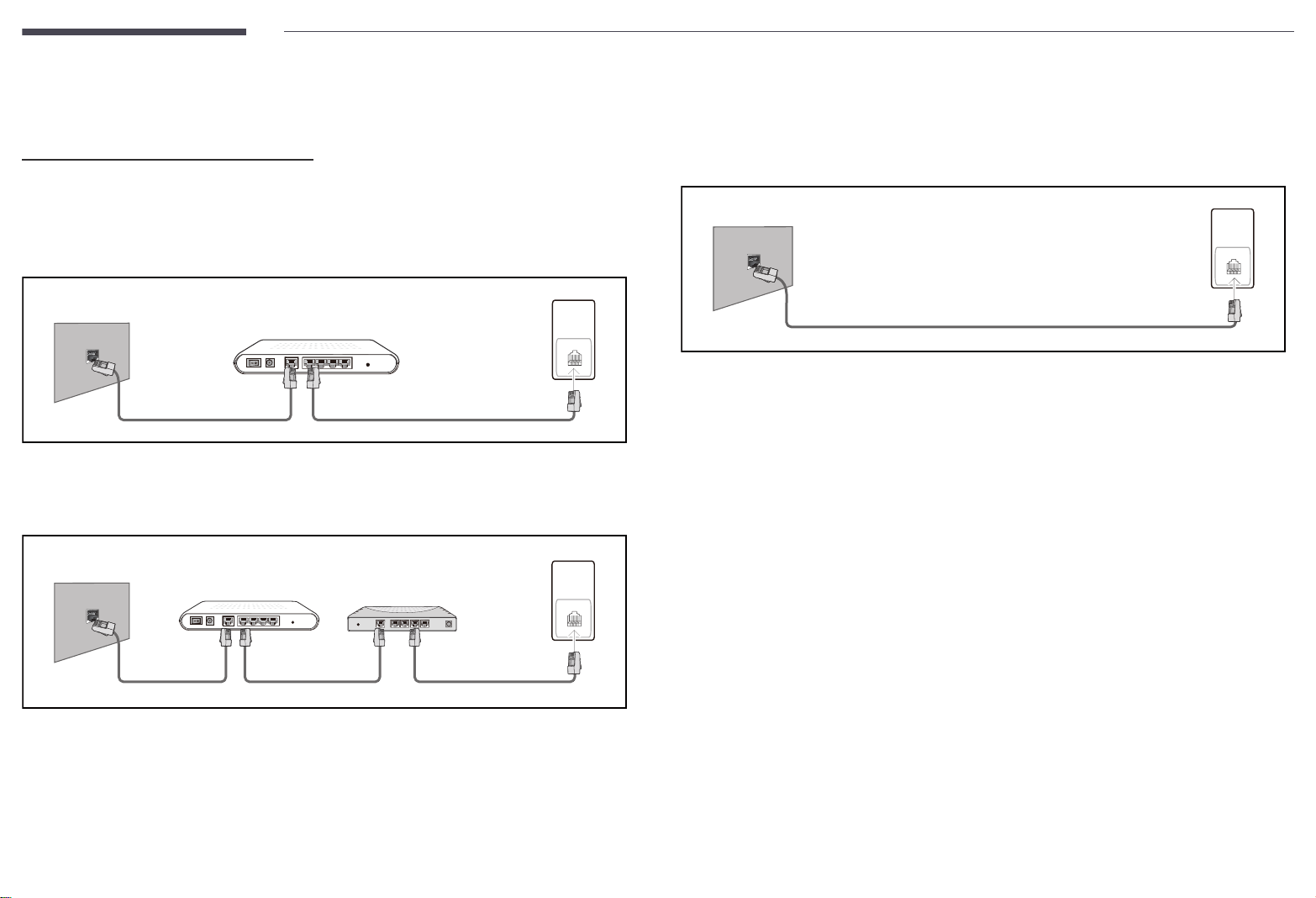

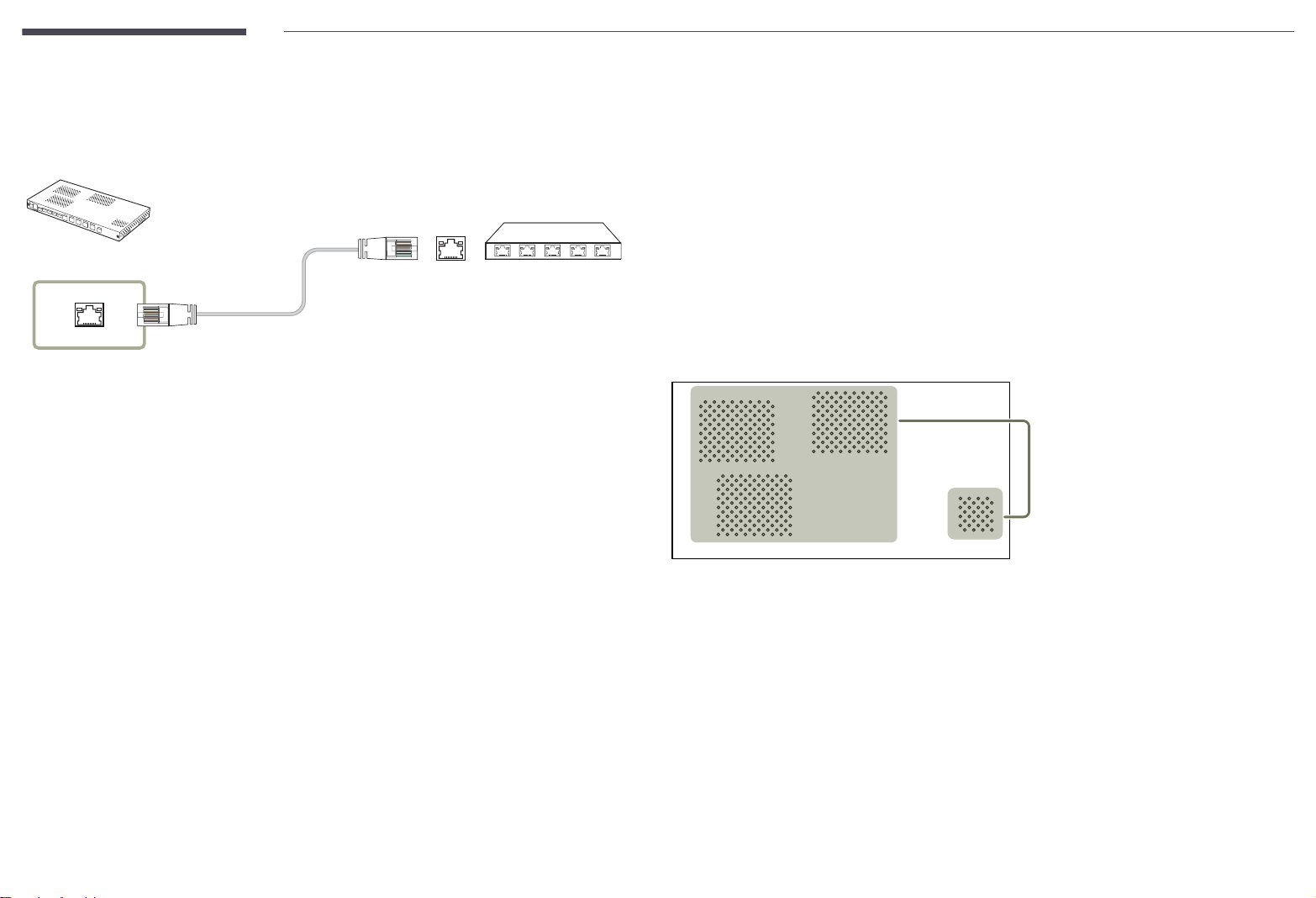

Connecting the LAN Cable

SNOW-1703U / SNOW-1703ULD Installation

Connecting parts may differ in different products.

RJ45

• Use a cable of CAT 6 (*FTP type) or higher. *FTP: Foiled Twisted Pair

Connect to a HUB or router that supports the HDCP function.

Precautions

Do not install the product on its side or upside down.

When stacking, keep the vertical distance between products at least 10 mm.

When installing on a wall, keep all distances between the wall and the top, bottom, left, right sides of the product at least 10 mm, and also keep the distance between the wall and the ports on the back of the product at least 50 mm for cable connection.

Make sure that the ambient temperature inside the rack mount does not exceed 35°.

When installing the product, do not block the air vent on the top to prevent the product from overheating.

Air vent

Installing the cabinets

Install the cabinet using the frame kit provided by the manufacturer.

For more information about how to install the frame kit, refer to the user manual that comes with it.

Samsung Electronics shall not be liable for any damage to the product and any injury to the users or others that may be incurred while the users install the product by themselves.

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

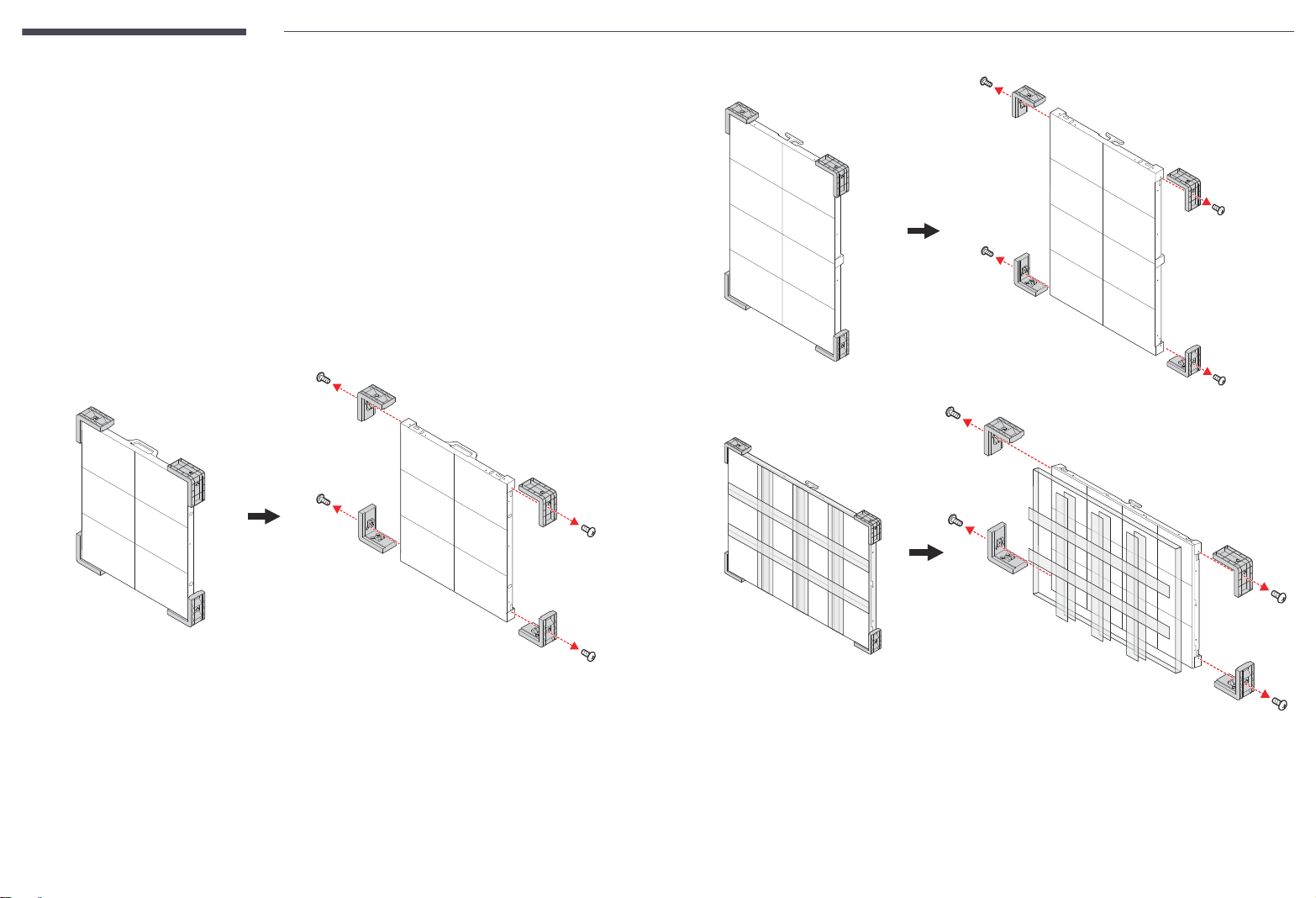

Removing the protective brackets

IFH

IFH-D

IFJ

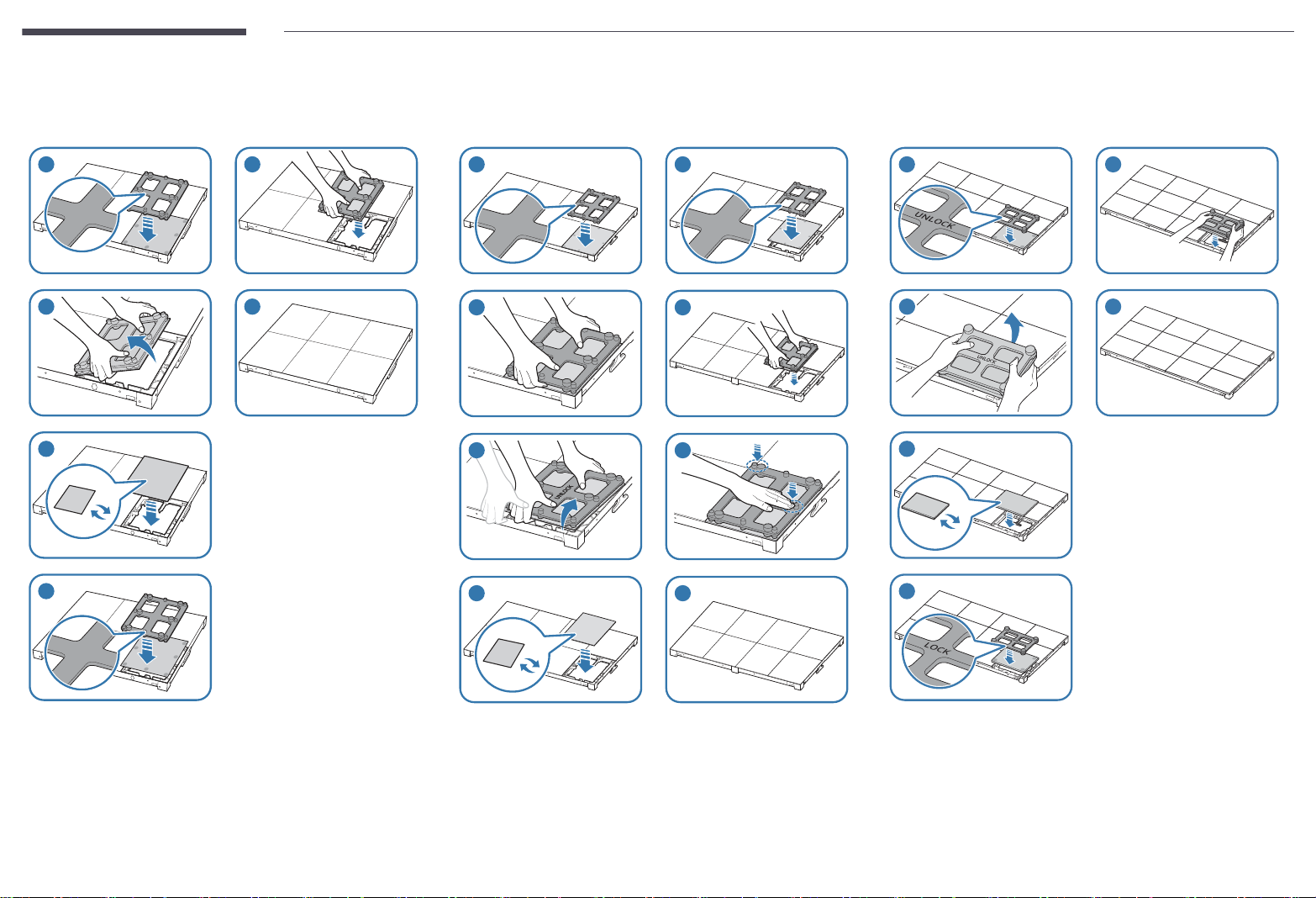

Replacing the cabinet module

UNLOCK

OCK

UNL

OCK

UNLOCK

OCK

UNLOCK

OCK

IFH

OCK

UNL

2 6

OCK

IFH-D

OCK

UNL

2 6

4 8

LOCK

IFJ

1 5

22 6

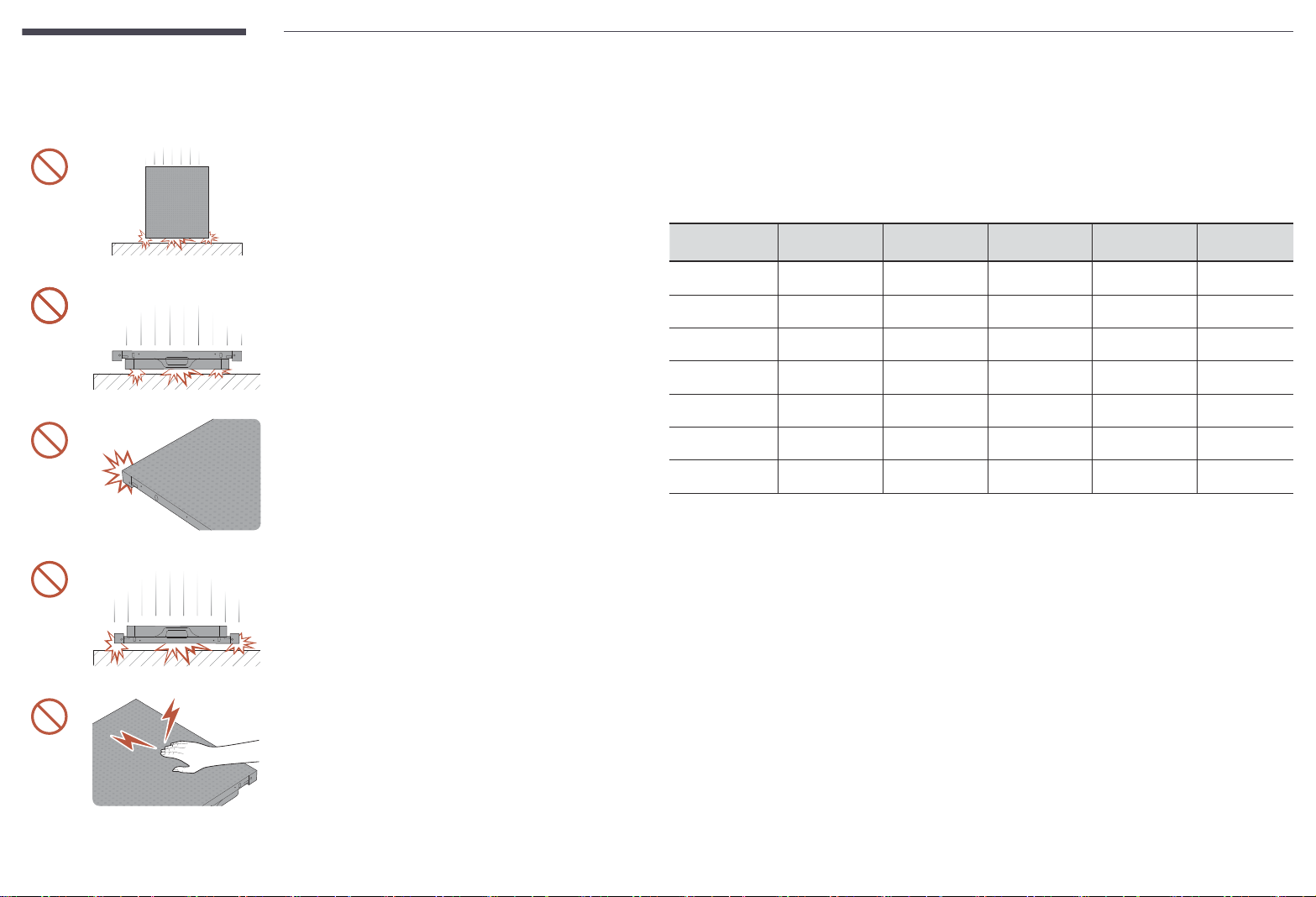

Precautions when handling the cabinets

Restrictions when installing cabinets

[Caution to prevent external shock and dropping of the product]

After removing the protective brackets, be careful not to expose the product to external shocks or vibrations. Make sure that the product is not dropped from any height.

Be careful not to expose the product to vibrations or external shocks when it is lying flat on the floor.

[Caution to prevent damage to corners]

Take extra care to ensure that the corners of a cabinet do not get damaged.

After removing the protective brackets, do not place the product on the floor with the LED facing down.

One SNOW-1703U or SNOW-1703ULD supports up to UHD resolution because it has four built-in HDBT OUT ports.

Cabinet installation guidelines by resolution

Resolution 3840 x 2160 1920 x 1080 1920 x 1440 1200 x 1080 800 x 600

IF015H

IF020H

IF025H

IF025H-D

IF040H-D

IF060H-D

IF012J

To enjoy resolutions that exceed UHD resolution, you need to add SNOW-1703Us or SNOW1703ULDs to the configuration.

12 x 6 6 x 3 - - -

16 x 8 8 x 4 - - -

20 x 10 10 x 5 - - -

- - 10 x 5 - -

32 x 12 16 x 6 - 10 x 6 -

48 x 18 24 x 9 - - 10 x 5

6 x 6 3 x 3 - - -

[Caution to prevent damage to the LED from static]

Do not touch the product without anti-static gloves.

Connecting to cabinets

Connect SNOW-1703U or SNOW-1703ULD to an external device, and then connect it to IFH, IFH-D, and IFJ devices.

IFJ supports only SNOW-1703ULD.

Connecting parts may differ in different products.

• Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable.

• Before connecting power to the cabinets, connect the I/G card to the cabinets first.

• One SNOW-1703U or SNOW-1703ULD supports only one type of LED pitch cabinets. Do not connect different types of LED pitch cabinets.

Connecting other types of cabinets may cause abnormal image quality.

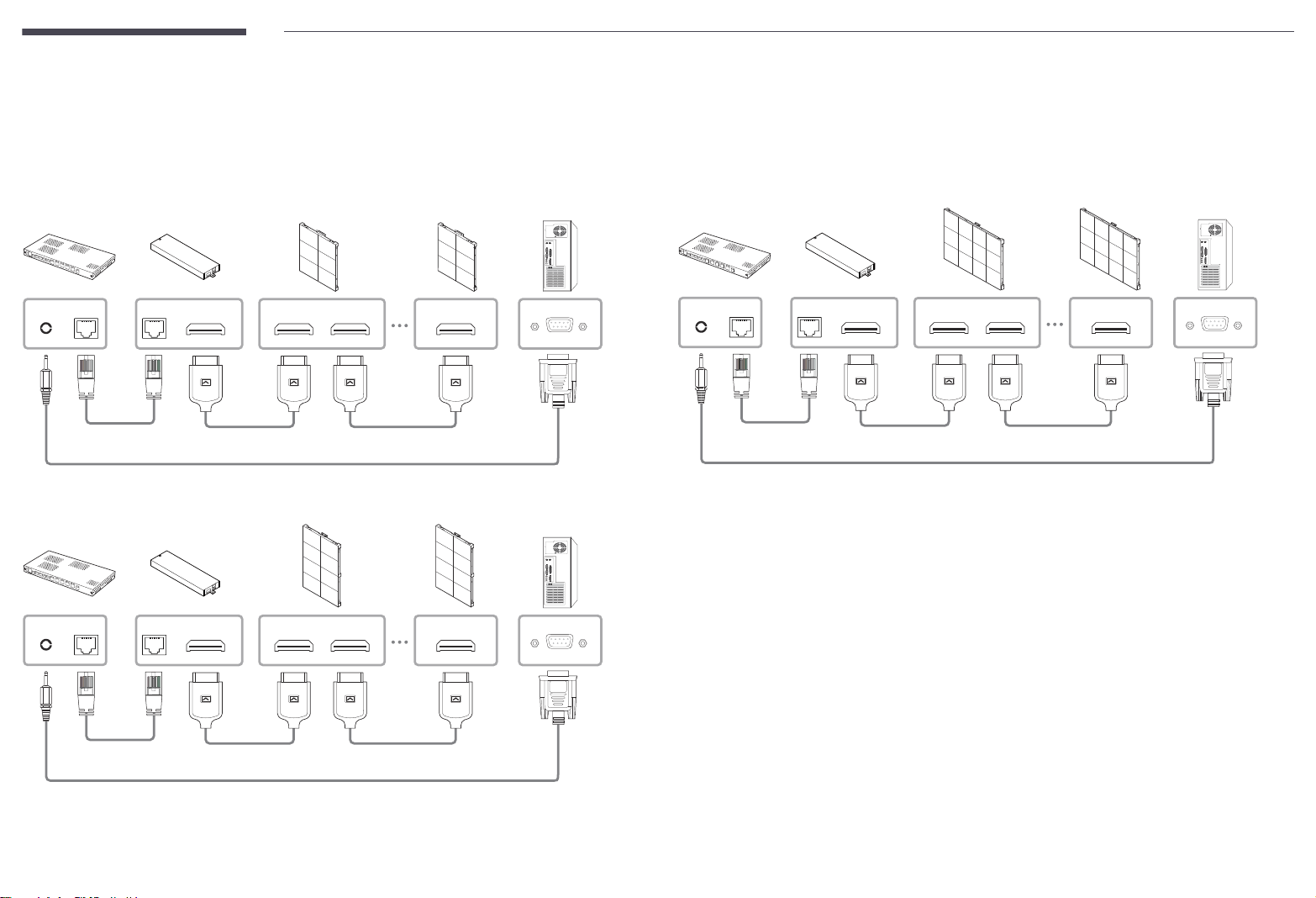

• After connecting the HDBT cable, connect the OCM cable in the following order:

SNOW-1703U /

SNOW-1703ULD

HDBT OUT HDBT IN

I/G Card

DATA IN (Reverse)

DATA OUT (Forward)

First cabinet

DATA IN DATA OUT

Last cabinet

DATA IN DATA OUT

Recommended number of devices for connection for each input voltage

Exceeding the recommended maximum number of devices may produce overvoltage, causing the circuit breaker to trip down or the product to be damaged. Make sure that the number of connected devices does not exceed the recommended maximum number.

Samsung Electronics is not liable for any problems incurred by connecting devices that exceed the recommended maximum number.

Model Name

IFH (IF015H / IF020H)

IFH-D (IF025H-D / IF040H-D / IF060H-D)

IFH (IF025H)

IFJ (IF012J)

e.g. IFH-D

First cabinet Second cabinet Last cabinet

Operating

voltage

110 V 3 cabinets or less

220 V 4 cabinets or less

110 V 4 cabinets or less

220 V 8 cabinets or less

110 V 2 cabinets or less

220 V 4 cabinets or less

Recommended maximum

number of connections

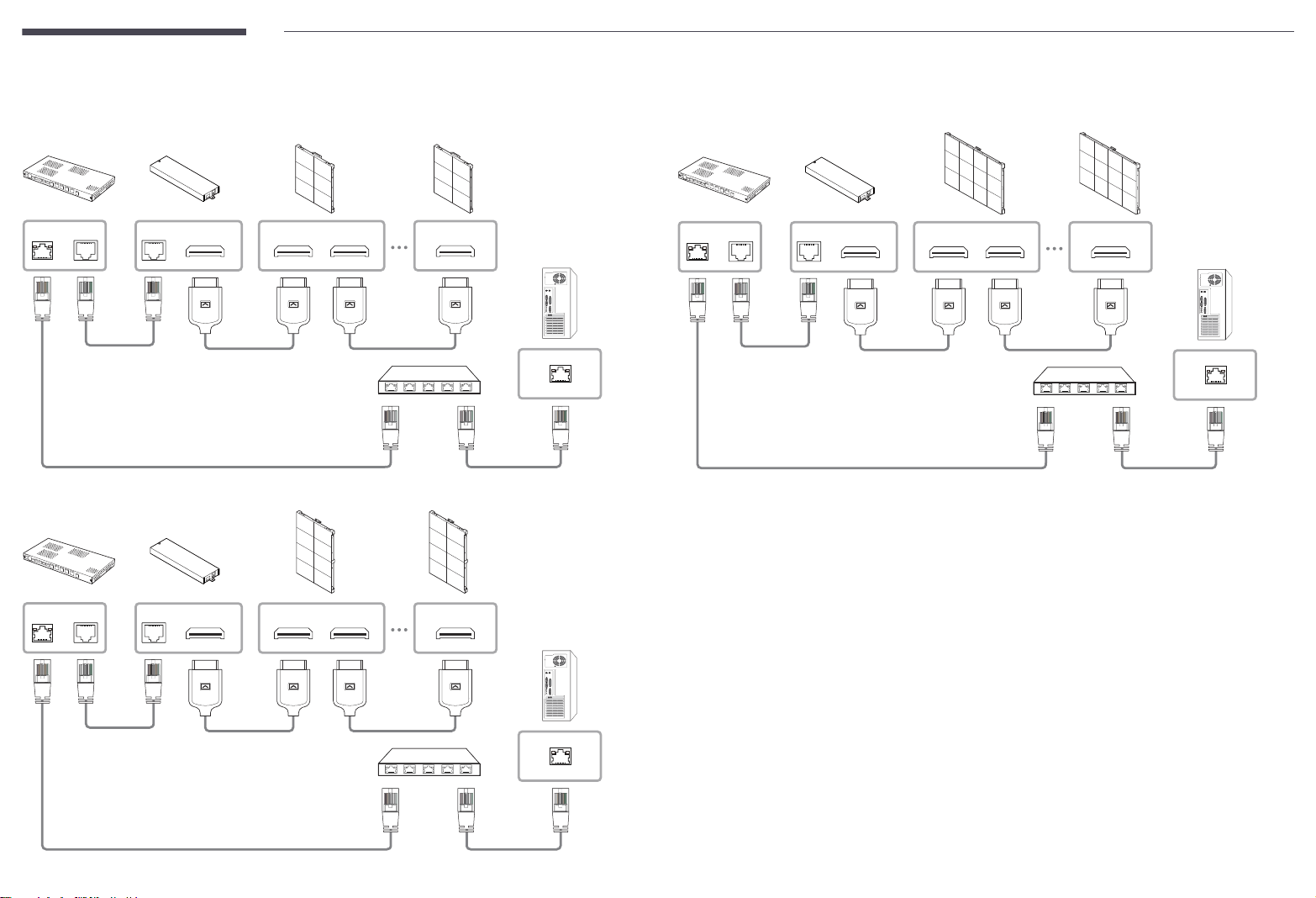

Connecting cables for redundancy

• Use a cable of CAT 6 (*FTP type) or higher. *FTP: Foiled Twisted Pair

Make sure that the HDBT cable length is from 15 m to 100 m.

If you use a cable that is out of specified length range, the signal quality may be unstable.

• Use the LAN cables recommended on the HDBaseT website (http://hdbaset.org/hdbaset- recommended-cables).

If a LAN cable that is not recommended is used, the HDBT signals may become unstable.

POWER IN POWER OUT POWER IN POWER OUT POWER IN POWER OUT

Do not use

Changing the Input source

Source

sSOURCE →

Source

Source allows you to select a variety of sources and change source device names.

You can display the screen of a source device connected to the product. Select a source from source list to display the screen of the selected source.

The input source can also be changed by using the SOURCE button on the remote control.

The screen may not display correctly if an incorrect source is selected for the source device you want to convert to.

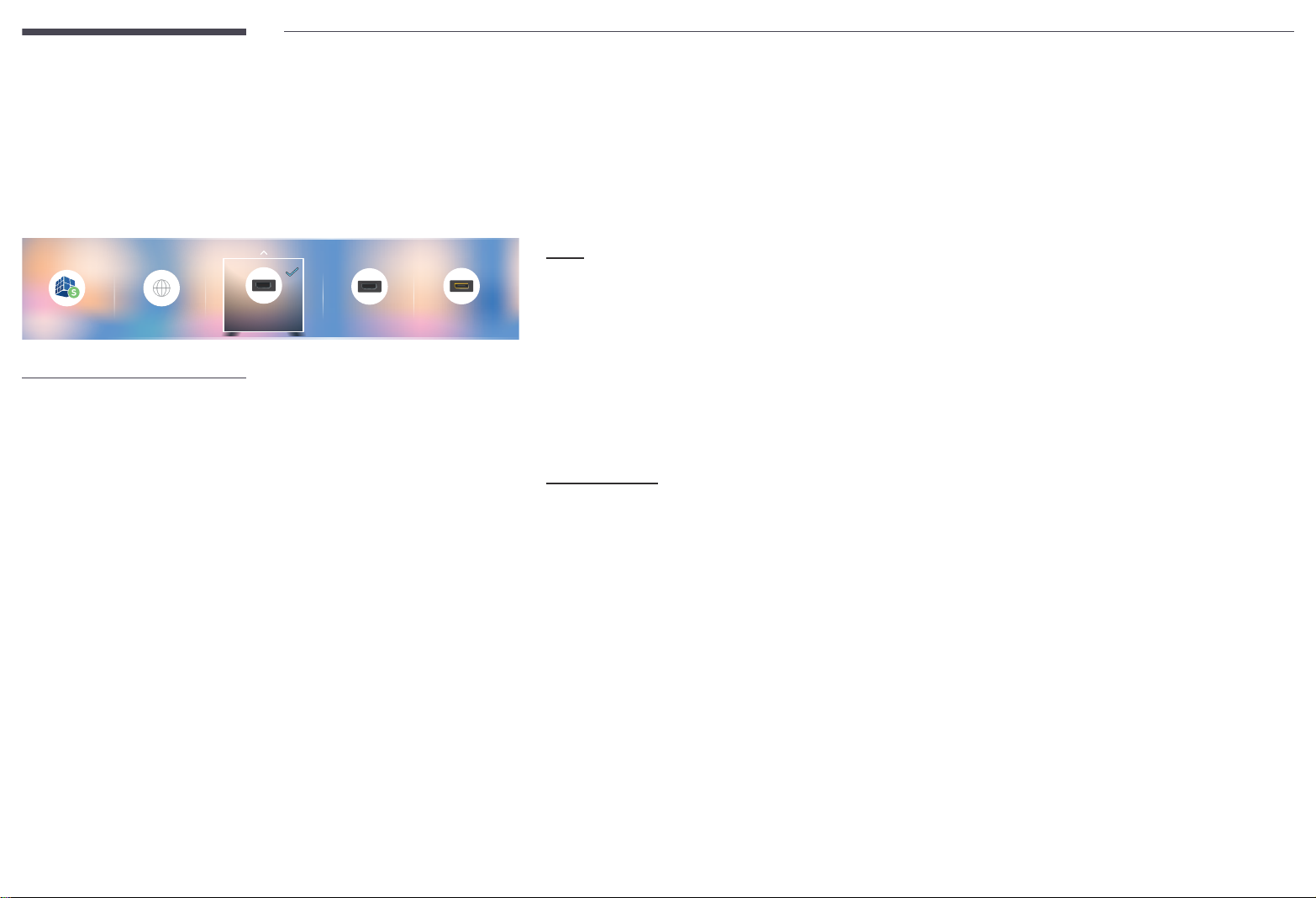

Source

Web Browser

"The displayed image may differ depending on the model.

HDMI 1

Edit

sSOURCE →

HDMI 2MagicInfo S

DisplayPort

Edit the name and device type of a connected external device.

• The list can include the following source devices. Source devices on the list differ depending on the selected source.

HDMI 1 / HDMI 2 / DisplayPort / Cable Box / Game Console / PC / Blu-ray player

• You cannot edit the following sources.

MagicInfo S / URL Launcher / Web Browser

Source → u → Edit → E

Information

INFO

You can see detailed information about the selected external device.

Web Browser

Settings

sSOURCE → Source → Web Browser → E

Web Browser

"The displayed image may differ depending on the model.

"Connect a LAN cable to access Internet from the product, similar to accessing the

Internet from a computer.

sSOURCE →

Source → Web Browser → u → Settings → E

General

Hide Tabs and Toolbar automatically

If the browser tabs, menu or toolbar are not used for a while, they will automatically disappear. To make them appear again, move the pointer or focus to the top of the screen.

• Use / Do not use

Pop-up Blocker

Make your browsing experience more pleasant by blocking pop-up windows.

• Use / Do not use

Reset Settings

All your customized web browser settings will be reset to their default values. Your bookmarks and history won't be affected.

Search Engine

If you enter a keyword in the URL/keyword input field, Web Browser will open the Search Results page.

Choose the search engine you want to use.

• Google / Bing

Privacy & Security

Blocked pages

Security Mode

Provide warnings about unsafe pages or block access to enhance Web Browser security.

This may slow the Web Browser down.

• Use / Do not use

Private Browsing

When Private Browsing is active, your browsing history won't be recorded.

• Use / Do not use

Do Not Track

Ask websites not to track you.

• Use / Do not use

JavaScript

Allow all sites to run JavaScript for a better browsing experience.

• Use / Do not use

Clear History

Clear your entire browsing history.

Delete browsing data

Delete all browsing data such as cookies, cached images and data.

Your Bookmarks and History won't be affected.

Blocked pages

Block access to pages that you have listed in Blocked pages.

• Use / Do not use

List of Blocked Pages

Block or unblock specific pages.

• Add

Approved pages

Enable web access only to pages that you have approved.

• Use / Do not use

Password for Approved pages

Set a password for managing Approved pages.

• Set Password

List of Approved Pages

Approve specific pages or remove them from Approved pages.

• Add

Encoding

Refresh Options

Encoding

Choose an encoding method for web pages. The current setting is Auto.

• Auto / Manual (Current : Unicode)

About

Display the current version of Web Browser.

sSOURCE →

Source → Web Browser → u → Refresh Options → E

Refresh Interval

Set the time for the web browser to wait before returning to the home page.

Off / 5 min / 10 min / 15 min / 30 min

•

Zoom

Set the zoom scale to apply when the web browser is refreshed.

50% / 75% / 100% / 125% / 150% / 200% / 300%

•

Home Page

Set the website to display when the web browser is refreshed.

Samsung Display / Custom

•

Custom

Enter the URL to set as the home page.

•

Enter URL

Available only when

Home Page is set to Custom.

Chapter 04

Using LED Signage Manager

The LED Signage Manager software allows you to easily control multiple display devices from your computer.

For details on how to use the LED Signage Manager software, refer to the Help after installing the software. The LED Signage Manager software is available on the website.

The installation process for LED Signage Manager may be affected by the graphics card, motherboard, and network environment.

Make sure that Windows 7 or higher and Microsoft .NET Framework 4.5 are installed on the computer, before installing LED Signage Manager.

Installing / Uninstalling the software

Installing

Run the LED Signage Manager installation file.

When the installation window appears, read the instructions and click Next.

Agree to the license agreement and click Yes .

Set the installation folder and click Next.

– If an installation folder is not specified, the software will be installed in the default

folder.

Check that the user information and installation folder have been correctly configured.

Next.

Click

Uninstalling

If there is an issue with the software, follow the steps below to uninstall the software.

The uninstall process may vary, depending on the computer operating system. This user guide assumes that Windows 7 is used.

Select Start > Control Panel > Programs and Features.

From the list, select LED Signage Manager and click Uninstall.

When the delete confirmation dialog box appears, click Yes .

After uninstallation is complete, click Finish.

After installation is complete, click Finish.

– To start LSM immediately, select the – After the software is installed, the shortcut icon is created on the desktop. – The shortcut icon may not appear, depending on the computer system and product

specifications. If the shortcut icon does not appear, press the F5 key.

Launch LED Signage Manager checkbox.

Used

199.33 MB

Available

4.26 GB(95%)

5 6

Chapter 05

Player feature

Accessible using the button on the remote control.

Player

→ Player → E

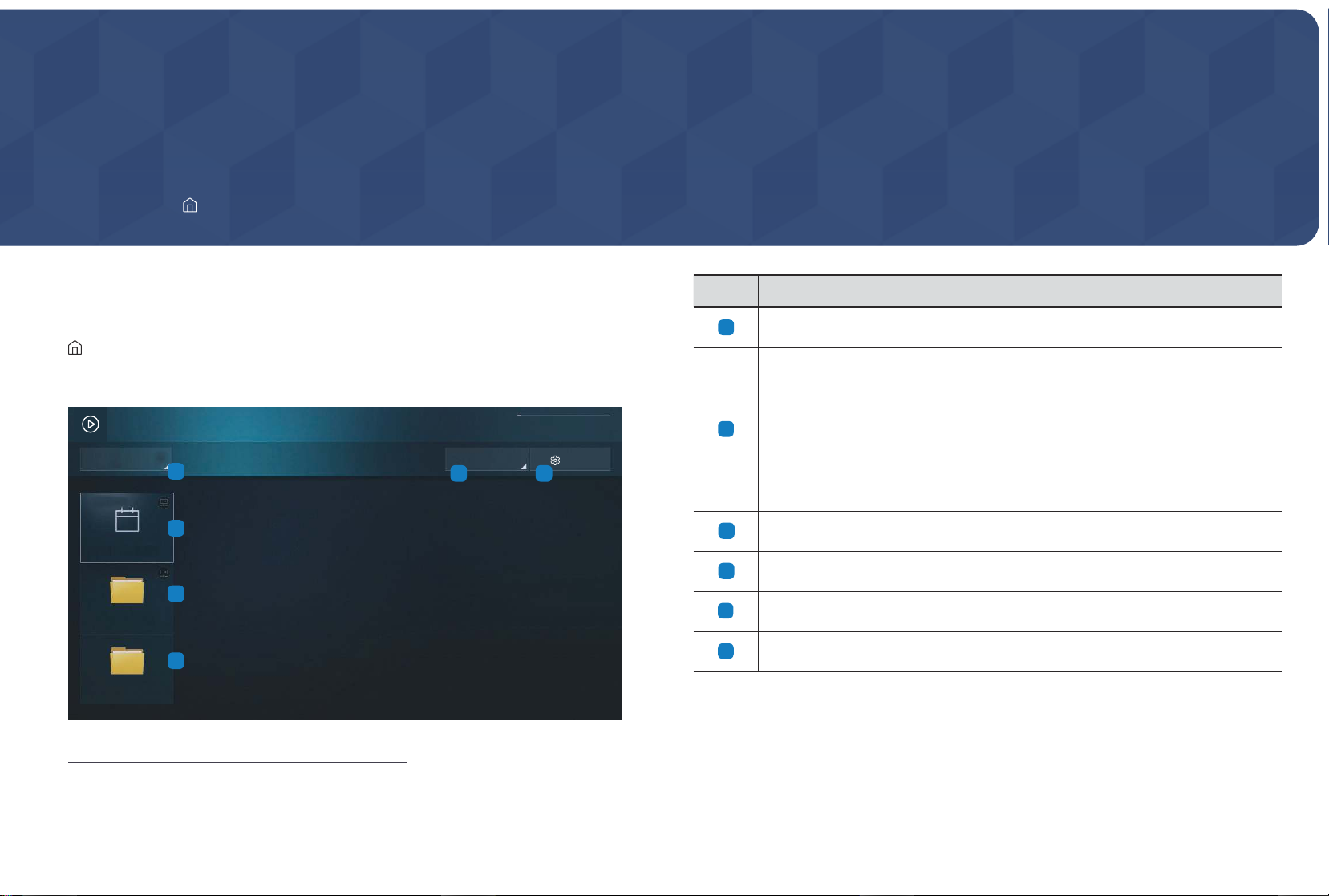

Play a range of content such as channels with schedules assigned, templates or files.

Player

Internal Memory

No channel.

Network Channel

Network File

My Templates

"The displayed image may differ depending on the model.

"To use the Player feature, set Play via to MagicInfo in System.

Filter By: All

Options

No. Description

Select between internal or external memory.

Play content, templates and schedules configured on the server.

• You can view whether the server is connected (approval) in the To view whether the server is connected when a Network Channel is running,

press INFO on the remote.

Select Network Channel from the Player screen. The No channel. message

appears if no channel has been registered in Network Channel.

Network Channel will run.

Play content stored on the server.

Play a template stored in the internal memory.

Select a content type as criterion to search for a desired content list.

Set different options for Player.

Player screen.

Viewing content

Select either internal or external memory. The files saved in the selected memory appear.

Select the desired file. The content appears on the screen. (For more information on

compatible file formats, see the “File formats compatible with Player” section.)

When content is running

Control buttons on the remote

You can use buttons on your remote control to play, pause, or skip between content on the playlist.

Available menu

Press the TOOLS button on the remote control during content playback to configure settings.

Menu Description

Playlist View a list of content items currently playing.

Button Function

TOOLS Brings up the menu bar.

INFO Displays the information of the content.

►

◄

E / ∆ / ³

Goes to next file or page.

Goes to previous file or page.

Plays or pauses slide show or video content.

Stops displaying content and goes to the

Rewinds the video content.

Fast forwards the video content.

Player screen.

Channel List Network Channel / Internal Channel / USB

Picture Mode

Repeat Set the repeat mode.

Customizes the screen settings for the content currently playing.

File Formats Compatible with Player

Template les and LFD(.lfd) les

• Supported file systems include FAT32 and NTFS.

• A file with a vertical and horizontal resolution larger than the maximum resolution cannot be played. Check the vertical and horizontal resolution of the file.

• Check supported video codec types and versions.

• Check the supported file versions.

– PowerPoint version up to 97 – 2007 is supported

• Only the last USB device that was connected is recognized.

Network Schedule Multiframe

Playback restrictions

• A maximum of two video files (Video) can be played simultaneously.

• In portrait playback mode, only one video file can be played at a time.

Office files (PPT and Word files) and PDF files, only one file type is supported at a time.

• For

• LFD(.lfd) files are not supported.

Restrictions

• Ensure a distributed folder (content / schedules) exists in Internal Memory / USB memory.

Playback restrictions

• A maximum of two video (

• For

Office files (PPT and Word files) and PDF files, only one file type is supported at a time.

• Multiple videos (

Video) cannot be played on a single display of a video wall simultaneously.

Video) files can be played.

Contents

File Extension Container Video Codec Resolution

*.avi

*.mkv

*.asf

*.wmv

*.mp4

*.mov

*.3gp

*.vro

*.mpg

*.mpeg

*.ts

*.tp

*.trp

*.mov

*.flv

*.vob

*.svi

*.m2ts

*.mts

AVI

MKV

ASF

MP4

3GP

MOV

FLV

VRO

VOB

SVA F

HEVC (H.265 - Main, Main10, Main4:2:2 10) 60 80

Window Media Video v7(WMV1), v8(WMV2)

H.264 BP/MP/HP

Motion JPEG 30 80

MVC

MPEG4 SP/ASP

Window Media Video v9 (VC1)

MPEG2

MPEG1

Microsoft MPEG-4 v1, v2, v3

H 263 Sorenson

VP6

4096 x 2160

1920 x 1080

Frame rate

(fps)

4096 x 2160: 24

3840 x 2160: 30

60 20

30 20

Bit rate

(Mbps)

*.webm

*.rmvb

VP8 1920 x 1080 90 20

WebM

VP9 4096 x 2160

RMVB RV8/9/10 (RV30/40) 1920 x 1080 60 20

4096 x 2160: 24

3840 x 2160: 30

Video Image

• 3D video is not supported.

• Content with a resolution larger than the resolution specified in the table above is not supported.

• Video content with a Bit rate or Frame rate larger than the rate specified in the table above can cause choppy video during playback.

• Video content will not play, or not play correctly, if there is an error in the content or the container.

• Some USB/digital camera devices may not be compatible with the player.

• Supports up to H.264, Level 4.1

• H.264 FMO / ASO / RS, VC1 SP / AP L4 and AVCHD are not supported.

• For all Video codecs except MVC, VP8, VP6:

– Below 1280 x 720: 60 frame max – Above 1280 x 720: 30 frame max

• GMC 2 or higher is not supported.

• Supports only BD MVC Spec.

• Only one video file can play at a time if video files on the monitor use incompatible codecs or the resolution is 1080 x 1920.

• When a single video file is playing, Seamless mode is not supported under the following conditions:

– Incompatible codec (MVC, VP3, MJPEG) ↔ Incompatible codec – Incompatible codec ↔ Compatible codec – The resolution is different from that of the monitor – The frequency is different from that of the monitor

• Compatible image file format : JPEG, PNG, BMP

32-bit, 24-bit and 8-bit BMP files are supported.

• Supported maximum resolution : 4096 x 4096

• Supported maximum file size: 20MB

• Supported image effects : 9 effects (

Fade1, Fade2, Blind, Spiral, Checker, Linear, Stairs, Wipe, Random)

Power Point PDF WORD

• Compatible document file formats – Extension : ppt, pptx

– Version : Office 97 ~ Office 2007

• Functions not supported – Animation effect

– 3D shapes (which will be displayed in 2D) – Header and footer (some subitems are not supported) – Word Art – Align

A group alignment error may occur

– Office 2007

SmartArt is not fully supported. 97 out of 115 subitems are supported.

– Object insertion – Half-width characters – Letter spacing – Charts – Vertical text

Some subitems are not supported

– Slide notes and handout

• Compatible document file formats – Extension : pdf

• Functions not supported – Content less than 1 pixel not supported because of

performance degradation issue. – Masked Image, Tiled Image content not supported. – Content with Rotated Text, not supported. – 3D Shadow Effects not supported. – Some characters not supported

(Special characters may be corrupted)

• Compatible document file formats – Extension : .doc, .docx

– Version : Office 97 ~ Office 2007

• Functions not supported – Page background effect

– Some paragraph styles – Word Art – Align

A group alignment error may occur

– 3D shapes (which will be displayed in 2D) – Office 2007

SmartArt is not fully supported. 97 out of 115 subitems are supported.

– Charts – Half-width characters – Letter spacing – Vertical text

Some subitems are not supported

– Slide notes and handout

Template les LFD

• Creation/editing/playback are only available in My

Templates

• Supported in

• Compatible document file formats – Extension : .lfd

Network Channel

Schedule

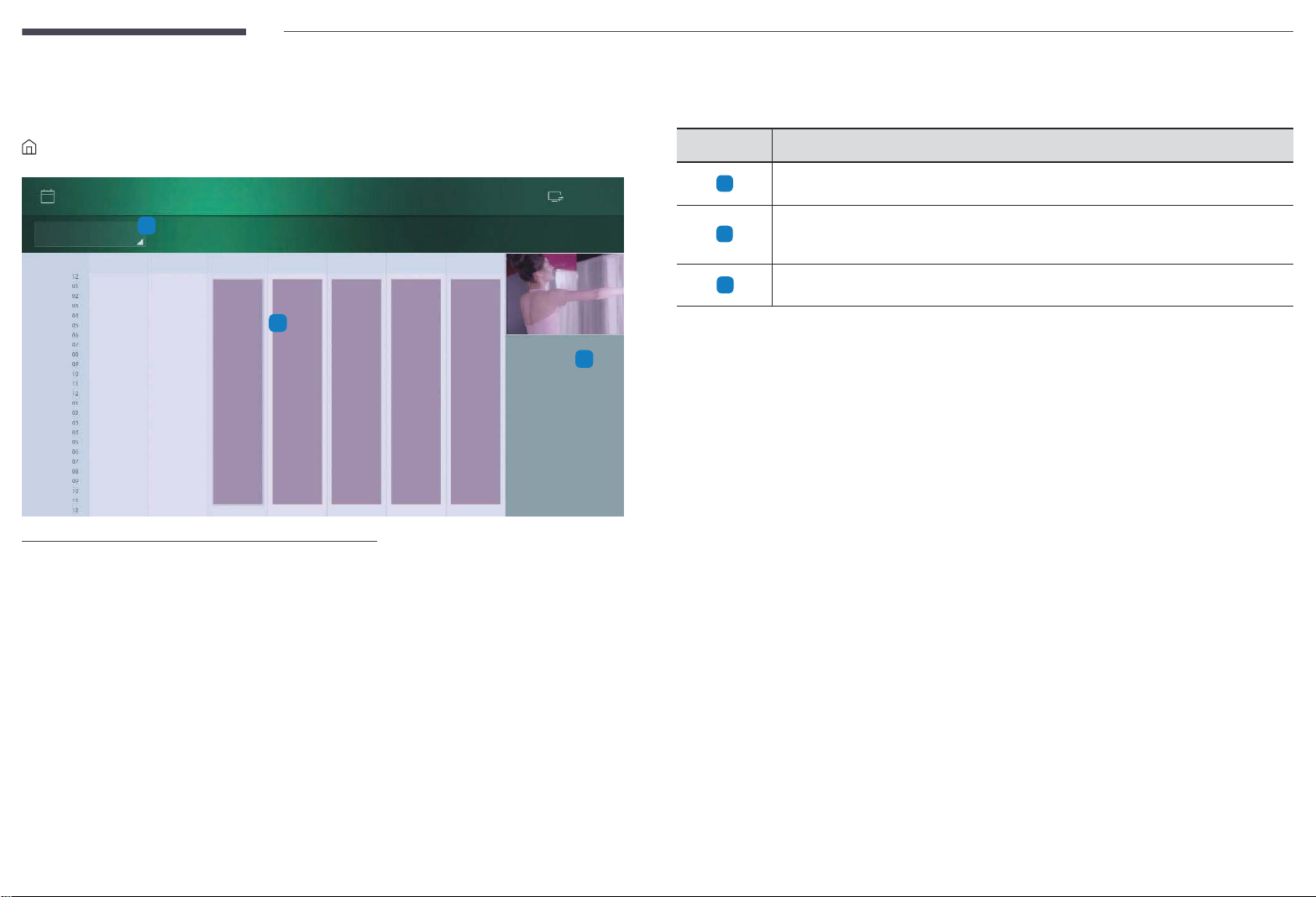

You can check the content’s playback schedule on the server, imported from an external storage, or on a mobile device.

→ Schedule → E

Schedule

Network

Sun Mon Tue Wed Thu Fri Sat

All Day

All Day All Day All Day

"The displayed image may differ depending on the model.

Information

Location: Internal Memory

Date: **-**-**** ~ **-**-****

Repeat: Daily

Time: All Day

Connected

No. Description

Select between server and external memory.

View weekly schedule of content playback.

Select to view detailed information of each event.

View a thumbnail image and brief information of the content.

Clone Product

→ Clone Product → E

Clone Product

"The displayed image may differ depending on the model.

Export settings on the product to an external storage device. You can also import settings from an external storage device.

This option is useful when assigning the same settings to several products.

When a duplicate le is not found on the external storage device

Connect the external storage device, then run the Clone Product function.

The No cloning file found on the external storage device. Export this device's settings to the external storage

message appears.

device?

When a duplicate le is found on the external storage device

Connect the external storage device, then run the Clone Product function.

The Cloning file found. Please select an option. message appears.

Run the

Clone from external storage device or Clone to external storage device function.

–

Clone from external storage device: Copy settings saved on an external storage device to the product.

–

Clone to external storage device: Copy settings on the product to an external storage device.

After configuration is complete, the product is rebooted automatically.

ID Settings

Assign an ID to a set.

→ ID Settings → E

ID Settings

"The displayed image may differ depending on the model.

Device ID

Enter the ID number of the product connected to the input cable for input signal reception. (Range: 0~224)

Press u/d to select a number, and press E.

Enter the number you want using the number buttons on the remote control.

PC Connection Cable

Select a method to connect to MDC to receive the MDC signal.

RS232C cable

• Communicates with the MDC via a RS232C cable.

•

RJ-45 (LAN)/Wi-Fi Network

Communicate with MDC via the RJ45 cable.

Video Wall

→ Video Wall → E

Customize the layout of multiple S-boxes that are connected to form a LED display.

In addition, display part of a whole picture or repeat the same picture on each of the connected multiple S-boxes.

To display multiple images, refer to MDC Help or the MagicInfo user guide. Some models may not support the MagicInfo function.

Video Wall

"The displayed image may differ depending on the model.

"For the supported resolutions, refer to the S-Box Group Supported items in the

Standard Signal Modes table on

"The S-Box Grouping function is not supported when

Output Resolution is set to FHD.

page 95.

Picture → LED Picture Size →

You can activate or deactivate

When using multiple S-Boxes, you can set content.

•

Off / On

Video Wall.

Video Wall to On to synchronize and display the S-Box outputs as a single

Horizontal x Vertical

This feature automatically splits a display based on a videowall matrix configuration.

Enter the videowall matrix.

The display is split based on the configured matrix. The number of vertical or horizontal S-boxes can be set within the range of 1 to 15.

A display can be split into a maximum of 100 screens.

The

Horizontal x Vertical option is only enabled when Video Wall is set to On.

Screen Position

To rearrange split screens, adjust the number for each product in the matrix using the

Selecting the videowall.

To rearrange products, use the direction buttons on the remote control to move a product to another desired number. Press the E button.

Screen Position will display the videowall matrix with the numbers assigned to the products that form

Screen Position allows you to split the screen into a maximum of 100 views (15 x 15). The maximum number of

views that can be split when products are connected via DP Loopout is also 100.

Screen Position option is only enabled when Video Wall is set to On.

The

To use the function, make sure

Horizontal x Vertical is configured.

Screen Position feature.

Format

Select how to display images on the LED display.

Full: Display images in full screen with no margin.

•

Natural: Display images in the original aspect ratio without enlarging or reducing the size.

The

Format option is only enabled when Video Wall is set to On.

Network Status

→ Network Status → E

Network Status

"The displayed image may differ depending on the model.

Check the current network and Internet connection.

Picture Mode

→ Picture Mode → E

Picture Mode

"The displayed image may differ depending on the model.

Select a picture mode (Picture Mode) suitable for the environment where the product will be used.

Video/Image mode improves the picture quality of the video device. Text mode improves the picture quality of the

computer.

•

Shop & Mall

Suitable for shopping malls.

– Select either

•

Office & School

Suitable for offices and schools.

– Select either

•

Terminal & Station

Suitable for bus terminals and train stations.

– Select either

•

Video Wall

Suitable for environments where videowall display are used.

– Select either

•

Calibration

In this mode, the brightness, color, gamma and uniformity settings customized using the color calibration program Color Expert are applied.

– To apply the

brightness, color, gamma and uniformity, using the color calibration program Color Expert.

– To download the Color Expert program, visit www.samsung.com/displaysolutions.

Video/Image or Te xt depending on the picture mode.

Calibration mode properly, make sure you configure the picture quality settings, such as

On/Off Timer

You must set

Clock Set before you can use this feature.

→ On/Off Timer → E

On/Off Timer

"The displayed image may differ depending on the model.

On Timer

On Timer so that your product turns on automatically at a time and on a day of your choosing.

Set

The product turns on according to the settings of the specified input source.

On Timer: Set the on timer by making a selection from one of the seven options. Ensure you set the current time

first.

On Timer 1 ~ On Timer 7)

(

•

Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual.

If you select

– The check mark indicates days you’ve selected.

•

Time: Set the hour and minute. Use the number buttons or the up and down arrow keys to enter numbers. Use

the left and right arrow buttons to change entry fields.

Source: Select the input source of your choice.

•

Content (when the Source is set to Internal/USB): From the connected USB device or the internal memory

device, select a folder containing the video or photo file that will be played when the product turns on.

This function is available only when a USB device is connected.

If there is only one photo file in the USB, the

If a folder name is too long, the folder cannot be selected.

Each USB you use is assigned its own folder. When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.

We recommend that you use a USB memory stick and a multi card reader when using

The

On Timer function may not work with USB devices with a built-in battery, MP3 players, or PMPs made by

some manufacturers because the product can take too long to recognize these devices.

Manual, you can choose the days you want On Timer to turn on your product.

Slide Show will not play.

On Timer.

Off Timer

Set the off timer (

Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual.

• If you select

– The check mark indicates days you’ve selected.

Time: Set the hour and minute. Use the number buttons or the up and down arrow keys to enter numbers. Use

• the left and right arrow buttons to change entry fields.

Off Timer) by making a selection from one of the seven options. (Off Timer 1 ~ Off Timer 7)

Manual, you can choose the days you want Off Timer to turn off your product.

Holiday Management

Timer will be disabled during a period specified as a holiday.

•

Add Holiday: Specify the period you want to add as a holiday.

Select the start and end dates of the holiday you want to add using the u/d buttons, and click the button.

The period will be added to the list of holidays.

–

Start: Set the start date of the holiday.

–

End: Set the end date of the holiday.

•

Delete: Delete selected items from the list of holidays.

Edit: Select a holiday item and then change the date.

•

Set Applied Timer: Set the On Timer and Off Timer to not activate on public holidays.

– Press E to select the – The selected

On Timer and Off Timer will not activate.

On Timer and Off Timer settings you do not want to activate.

Done

Ticker

→ Ticker → E

Ticker

"The displayed image may differ depending on the model.

Input text while a video or image is displayed and display the text on the screen.

Off / On

•

• Message: Enter a message to display on the screen.

•

Time: Set the Start Time and End Time to display a Message.

Font Options: Specify the text font and color for the message.

•

Position: Select an orientation to display a Message.

•

Scroll: Specify the scroll Direction and Speed for the message.

Preview: Preview configured caption settings.

•

URL Launcher

→ URL Launcher → E

URL Launcher

"The displayed image may differ depending on the model.

For details on how to use the URL Launcher feature, contact the dealer the product was purchased from.

To use the

URL Launcher feature, set Play via to URL Launcher in System.

URL Launcher Settings

→ URL Launcher Settings → E

URL Launcher Settings

"The displayed image may differ depending on the model.

• Install Web App: Enter URL to install the web application.

Install from USB Device: Install the web application from the USB storage device.

•

Uninstall: Remove the installed web application.

•

Timeout Setting: Set the timeout period for connecting to the URL.

Developer Mode: Enable developer mode.

•

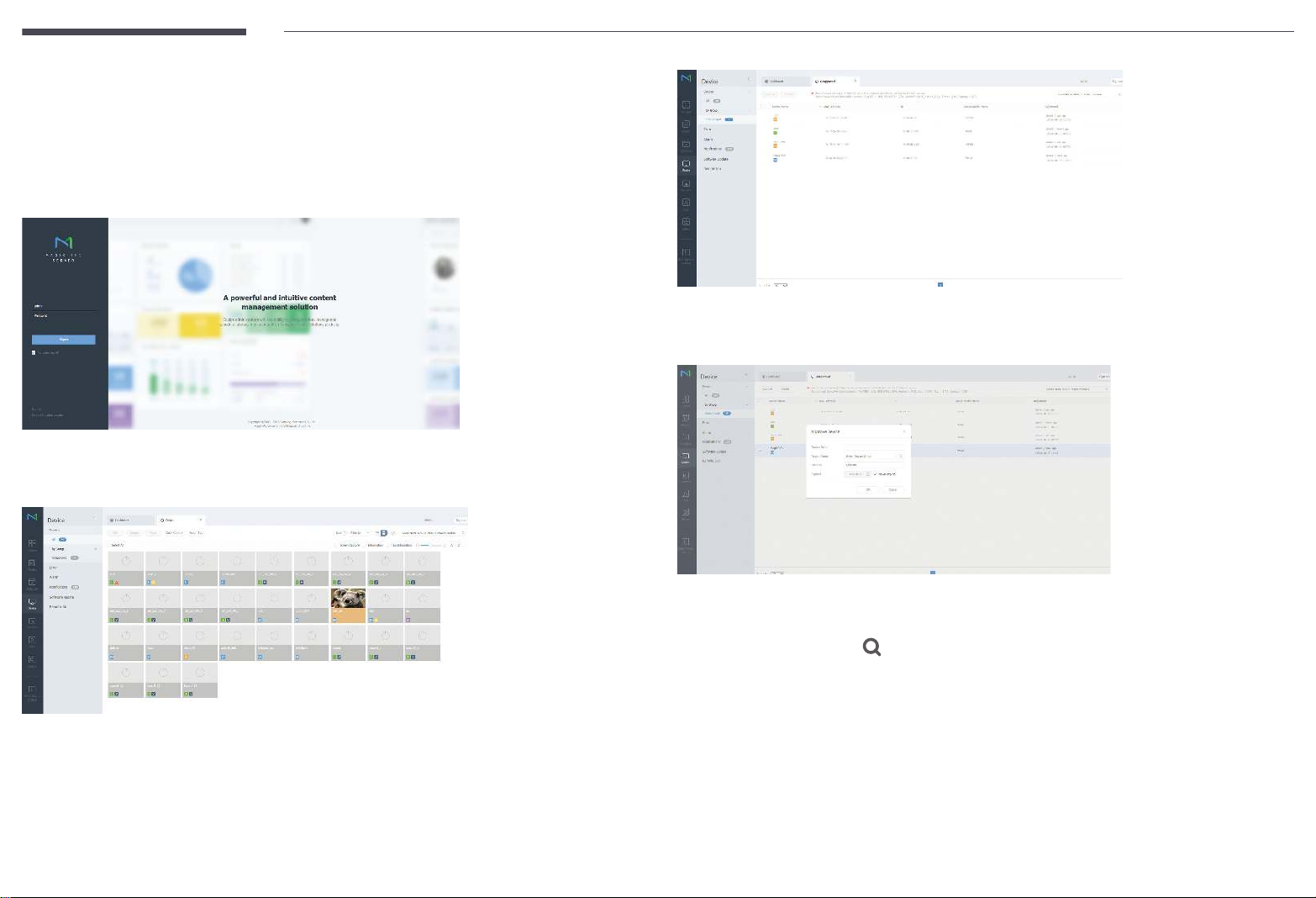

Approving a connected device from the server

First configure the server

Access the server you have assigned to your device.

Enter your ID and password to log in.

Select Device from the top menu bar.

Server Network Settings before device approval.

Select Unapproved from the sub-menus.

Select the device from the list and click the Approve button.

Enter the information required to approve the device.

Device Name: Enter the device name.

Device Group: Select

Location: Enter the current location of the device.

Expired: Set expiry date for the device's approval. If you do not want to set the expiry

date, select

Pressing the INFO button on the remote when a network schedule is running will display the details of the schedule. Check that the correct device has been selected by viewing the device ID in the details.

Never expired.

to specify the group.

Select the All menu to check that the device has been registered.

When the device is approved by the server, the schedule registered in the selected group

will be downloaded to the device. The schedule will run after it is downloaded.

For further details on how to configure a schedule, refer to the <MagicInfo Lite Server user's manual>.

If a device is deleted from the list of devices approved by the server, the device will reboot to reset its settings.

Setting the current time

A schedule may not run if the time set on the device is different from the server's current time.

Select Device from the side menu bar.

Select your device.

Select Edit → Setup.

Select Time Zone.

When connecting to the server for the first time, the time on the product is set using the GMT time of the region where the server is installed.

The time on the product can be changed from the server as shown in step 3.

Turning the product off and then on again will restore the time setting on the product to the last time that was set from the server.

For further details on how to manage the time (scheduling, holiday management, etc.), refer to the <MagicInfo Lite Server user's manual>.

Chapter 06


Configure the Picture settings (Contrast, Color Tone, etc.).

The layout of the

Picture menu options may vary depending on the product.


Picture Mode

Contrast

Brightness

Sharpness

Color

Tint (G/R)

G50 R50

Color Temperature

"The displayed image may differ depending on the model.

Shop & Mall

10000K

Picture Mode

m MENU → Picture → Picture Mode → E

Select a picture mode (

Video/Image mode improves the picture quality of the video device. Text mode improves the picture quality of the

computer.

•

Shop & Mall

Suitable for shopping malls.

– Select either

•

Office & School

Suitable for offices and schools.

– Select either

•

Terminal & Station

Suitable for bus terminals and train stations.

– Select either

•

Video Wall

Suitable for environments where videowall display are used.

– Select either

•

Calibration

In this mode, the brightness, color, gamma and uniformity settings customized using the color calibration program Color Expert are applied.

– To apply the

brightness, color, gamma and uniformity, using the color calibration program Color Expert.

– To download the Color Expert program, visit www.samsung.com/displaysolutions.

Picture Mode) suitable for the environment where the product will be used.

Video/Image or Te xt depending on the picture mode.

Calibration mode properly, make sure you configure the picture quality settings, such as

Contrast / Brightness / Sharpness / Color /

White Balance

Tint (G/R)

m MENU → Picture → E

Your product has several options for adjusting picture quality.

When you make changes to will be adjusted accordingly.

You can adjust and store settings for each external device you have connected to an input on the product.

Lowering picture brightness reduces power consumption.

Contrast, Brightness, Sharpness, Color or Tint (G/R), the OSD

Color Temperature

m MENU → Picture → Color Temperature → E

Adjust the color temperature (Red / Green / Blue). (Range: 2800K–10000K)

Enabled when

Picture Mode is set to Calibration, Color Temperature is disabled.

Color Tone is set to Off.

m MENU → Picture → White Balance → E

2 Point

Adjust the color temperature for a more natural picture.

•

R-Offset / G-Offset / B-Offset: Adjust each color’s (red, green, blue) darkness.

R-Gain / G-Gain / B-Gain: Adjust each color’s (red, green, blue) brightness.

•

Reset: Suitable for environments where videowall display are used.

10 Point

Controls the white balance in 10 point interval by adjusting the red, green, and blue brightness.

Off / On

•

• Interval: Select interval to adjust.

•

Red: Adjust the red level.

Green: Adjust the green level.

•

Blue: Adjust the blue level.

Reset: Suitable for environments where videowall display are used.

•

Some external devices may not support this function.

Enabled when

Picture Mode is set to Office & School (Video/Image).

Gamma

m MENU → Picture → Gamma → E

Adjust the primary color intensity.

Picture Mode is set to Calibration, Gamma is disabled.

Advanced Settings

m MENU → Picture → Advanced Settings → E

Picture Mode is set to Calibration, Advanced Settings is disabled.

Dynamic Contrast

Adjust the screen contrast.

Off / Low / Medium / High

•

Black Tone

Select the black level to adjust the screen depth.

Off / Dark / Darker / Darkest

•

RGB Only Mode

Displays the

Off / Red / Green / Blue

•

Red, Green and Blue color for making fine adjustments to the hue and saturation.

Picture Mode is set to Tex t, RGB Only Mode is disabled.

Color Space

Adjusts the range and variety of colors (the color space) available to create images.

Auto / Native / Custom

•

To adjust

Color, Red, Green, Blue and Reset, set Color Space to Custom.

HDMI UHD Color

Enable to optimize picture quality for HDMI UHD connection.

HDMI1 (Off / On)

•

HDMI2 (Off / On)

•

Display Port (Off / On)

HDMI UHD Color is set to On, up to the 3840 x 2160 @ 60 Hz resolution is supported.

When However, the SNOW-1703ULD model supports only 3840 x 2160 @ 60 / 59.94 / 50 Hz in

Mode

HDMI UHD Color is set to Off, up to the 1920 x 1080 @ 60 Hz resolution is supported.

When However, the SNOW-1703ULD model supports only 1920 x 1080 @ 60 / 59.94 / 50 Hz in

Mode

Live

Flesh Tone

Emphasize pink

Picture Mode is set to Tex t, Flesh Tone is disabled.

Flesh Tone.

LED Picture Size

m MENU → Picture → LED Picture Size → E

Set the details of the picture size.

Output Resolution

Fit to screen

Enlarges pictures to fit the screen.

Off / On

•

Available only when

LED Picture Size is set to Custom.

Provides optimized pictures according to the LED screen resolution.

UHD / FHD

•

The S-Box Grouping function is not supported when

Resolution

is set to FHD.

Picture → LED Picture Size → Output

LED Picture Size

Choose size and aspect ratio picture displayed on screen.

To manually adjust the LED picture size, select

•

Original: Display images in the original picture quality.

Custom: Changes the resolution to suit the user's preferences.

•

Custom.

Resolution

Set the width and height of the LED picture. (Max :

HDMI UHD Color

Max Min

Off

Available only when

LED Picture Size is set to Custom.

1920 x 1080 182 x 182

3840 x 2160 408 x 408

3840 x 2160)

Width x Height

LED HDR

m MENU → Picture → LED HDR → E

Set options to provide an optimal HDR effect.

When using multiple S-Boxes, if you set outputs may differ. To prevent this, set the sub functions of

Inverse Tone Mapping

Make the dark elements of the image darker and the bright elements brighter to make the image as realistic as possible.

Off / On

•

Dynamic Peaking

Enlarge the difference of instantaneous maximum/minimum luminance so that the bright parts can be expressed more clearly.

Off / On

•

Color Mapping

Map the color of the specific source image to the color of the target image in order to convert it to the desired color.

Off / On

•

LED HDR to On, the images qualities of the S-box

LED HDR to Off.

Picture Options

m MENU → Picture → Picture Options → E

Picture Mode is set to Calibration, Picture Options is disabled.

HDMI Black Level

Selects the black level on the screen to adjust the screen depth.

Normal / Low / Auto

•

Available only in

HDMI 1 and HDMI 2 mode (AV Timing : 480p, 576p, 720p, 1080i, 1080p).

Color Tone

Picture Mode is set to Tex t

• Off / Cool / Standard / Warm

If Picture Mode is set to Video/Image

• Off / Cool / Standard / Warm1 / Warm2

Picture Mode is set to Calibration, Color Tone is disabled.

Settings can be adjusted and stored for each external device connected to an input on the product.

Digital Clean View

Reduce picture noise to avoid distractions such as flickering.

Off / Auto

•

Picture Mode is set to Calibration, Digital Clean View is disabled.

Enabled when

Picture Mode is set to Video/Image.

Film Mode

This mode is suitable to view movies.

Sets the product to automatically sense and process film signals from all sources and adjust the picture for optimum quality.

•

Off / Auto1 / Auto2

This option can be configured if the input source supports 480i, 576i or 1080i.

This option is not supported when a PC is connected.

Enabled when

Picture Mode is set to Video/Image.

Reset Picture

m MENU → Picture → Reset Picture → E

Resets your current picture mode to its default settings.

Chapter 07

OnScreen Display

Screen Protection

Message Display

Language

Menu Size

Reset OnScreen Display

"The displayed image may differ depending on the model.

English

Original

Screen Protection

m MENU → OnScreen Display → Screen Protection → E

Auto Protection Time

If the screen displays a still image for a certain period of time you define, the product activates the screen saver to prevent the formation of burnt in ghost images on the screen.

• Off / 2 hours / 4 hours / 8 hours / 10 hours

Message Display

Language

m MENU → OnScreen Display → Message Display → E

Source Info

Select whether to display the source OSD when the input source changes.

•

Off / On

No Signal Message

Select whether to display the no-signal OSD when no signal is detected.

Off / On

•

MDC Message

Select whether to display the MDC OSD when the product is controlled by the MDC.

Off / On

•

Download Status Message

Select to display the status when downloading content from a server or other device.

•

Off / On

m MENU → OnScreen Display → Language → E

Set the menu language.

A change to the language setting will only be applied to the onscreen menu display. It will not be applied to other functions on your PC.

Menu Size

m MENU → OnScreen Display → Menu Size → E

Set the aspect ratio of the menu to match the screen.

Original / Medium / Small

•

Reset OnScreen Display

m MENU → OnScreen Display → Reset OnScreen Display → E

This option returns the current settings under

OnScreen Display to the default factory settings.

Chapter 08

Network

Network Status

Open Network Settings

Server Network Settings

Device Name

"The displayed image may differ depending on the model.

[LED S/Box] Samsung LUH Series

Network Status

m MENU → Network → Network Status → E

You can check the current network and Internet status.

Open Network Settings

m MENU → Network → Open Network Settings → E

Configure network settings to use various smart hub features such as Internet search, content sharing through a home network and feature updates.

Network Settings

Connecting to a Wired Network

There are three ways to attach your product to your LAN using cable.

• You can attach your product to your LAN by connecting the LAN port on the back of your product to an external modem using a LAN cable. See the diagram below.

• Depending on how your network is configured, you may be able to attach your product to your LAN by connecting the LAN port on the back of your product directly to a network wall outlet using a LAN cable. See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your house.

The Modem Port on the Wall

LAN

RJ45

LAN

RJ45

The Modem Port on the Wall

External Modem

(ADSL / VDSL)

Modem Cable LAN Cable

• You can attach your product to your LAN by connecting the LAN port on the back of your product to an IP Sharer which is connected to an external modem. Use LAN cable for the connection. See the diagram below.

The Modem Port on the Wall

Modem Cable LAN Cable LAN Cable

External Modem

(ADSL / VDSL)

IP Sharer

(having DHCP server)

LAN

RJ45

LAN Cable

If you have a Dynamic Network, you should use an ADSL modem or router that supports the Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your product needs to access the Internet so you do not have to enter them manually. Most home networks are Dynamic Networks.

Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address, subnet mask, gateway, and DNS values manually on your product Cable Setup Screen when you set up the network connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP).

If you have a Windows computer, you can also get these values through your computer.

You can use ADSL modems that support DHCP if your network requires a Static IP address.

ADSL modems that support DHCP also let you use Static IP addresses.

A Static IP address is recommended. If the IP address is changed by DHCP, LED Signage Manager may be disconnected.

Set the network connection to use Internet services such as perform software upgrades.

Automatic Open Network Settings

Connect to the network using a LAN cable.

Make sure a LAN cable is connected first.

How to set up automatically

Select Open Network Settings. The Open Network Settings session starts.

The network test screen appears and verifies the network connection.

When the connection has been verified, the “Your TV is connected to the Internet. If you

have any problems using online services, please contact your internet service provider.

message appears.

If the connection process fails, check the LAN port connection.

If the automatic process cannot find the network connection values or if you want to set the connection manually, go to the next section, network setup.

”

Manual Open Network Settings

Offices may use static IP addresses.

If this is the case, ask the network administrator for the IP address, subnet mask, gateway and DNS server address. Enter these values manually.

How to set up manually

Select Open Network Settings. The Open Network Settings session starts.

The network test screen appears and the verification process starts. Press Stop. The

verification process stops.

Select IP Settings on network connection screen. The IP Settings screen appears.

Select the field at the top, press E, and then set IP Settings to Enter manually. Repeat the

entry process for each field in the

Setting

manually

When done, select OK at the bottom of the page, and then press E. The network test

screen appears and the verification process starts.

When the connection has been verified, the “Your TV is connected to the Internet. If you

have any problems using online services, please contact your internet service provider.”

message appears.

IP Settings to Enter manually automatically changes DNS Setting to Enter

IP Address.

Getting the Network Connection Values

To view the Network connection values on most Windows computers, follow these steps.

Right click the Network icon on the bottom right of the screen.

In the pop-up menu that appears, click Status.

On the dialog that appears, click the Support tab.

On the Support Tab, click the Details button. The Network connection values are displayed.

Server Network Settings

m MENU → Network → Server Network Settings → E

FTP Mode

Specify the FTP operating mode.

Active / Passive

•

Connect to Server

To run

Player connect to a network.

•

Server Address / SSL / Port

SSL option is enabled, the server is configured to use https and data transfer is

If the encrypted.

Enter the server IP address and port number. Use 7001 as the port number. (If unable to connect to the server using port number 7001, check with your server administrator to find the correct port number and then change the port number.)

MagicInfo Mode

Select the appropriate product.

Lite / Premium

•

MagicInfo Mode depending on the environment where you are using the

Server Access

Select a method to connect the server network.

Allow / Deny

•

Proxy Server

Set up your proxy server connection and related functions.

Off / On

• Address / Port / ID / Password

Address / Port / ID and Password are enabled only when Proxy Server is set to On.

Device Name

m MENU → Network → Device Name → E

Select or enter a device name.

This name can be shown on network remote controls over the network.

[LED S/Box] Samsung LUH Series1 ~ 6 / User Input

•

Chapter 09

System

Accessibility

Start Setup

Time

Auto Source Switching

Power Control

Eco Solution

Fan & Temperature

"The displayed image may differ depending on the model.

Accessibility

m MENU → System → Accessibility → E

Menu Transparency

Adjust transparency of menu box.

High / Low

•

High Contrast

Set the background and font to high-contrast colors in Menu. Menu transparencies become opaque when the option is selected.

•

Off / On

Enlarge

Set whether to enlarge highlighted item in Menu.

•

Off / On

Start Setup

m MENU → System → Start Setup → E

Go through the initial setup steps like you did the first time you used this product.

Enter your 4 digit PIN number. The default PIN number is "0-0-0-0". If you want to change the PIN number, use the

Change PIN function.

DST

Switches the DST (Daylight Saving Time) function on or off.

Off / On

• Start Date: Set the start date of Daylight Saving Time.

•

End Date: Set the end date of Daylight Saving Time.

Time Offset: Select the correct time offset your timezone.

•

Start Date, End Date and Time Offset are enabled only when DST is set to On.

Time

m MENU → System → Time → E

Configure various time-related settings.

Press the INFO button if you want to view the current time.

Clock Set

Clock Set. Select Date or Time, and then press E.

Select

Use the number buttons to enter numbers or press the up and down arrow buttons. Use the left and right arrow buttons to move from one entry field to the next. Press E when done.

You can set the control.

NTP Settings

Set up the server URL and time zone to use the network time.

Date and Time directly by pressing the number buttons on the remote

Sleep Timer

Automatically shuts off the product after a preset period of time.

(

Off / 30 min. / 60 min. / 90 min. / 120 min. / 150 min. / 180 min.)

Use the up and down arrows to select a period of time, and then press E. To cancel

Timer

, select Off.

Sleep

Power On Delay

When connecting multiple products, adjust the power-on time for each product to prevent power overload (within the range 0–50 seconds).

Auto Source Switching

m MENU → System → Auto Source Switching → E

Turning on the display with is not active, the display will automatically search the different video input sources for active video.

Auto Source Switching

Auto Source Switching On, and the previous video source selection

Primary Source

Specify

Primary Source for the automatic input source.

Secondary Source

Secondary Source for the automatic input source.

Specify

The

Secondary Source function is disabled if Primary Source is set to All.

When the for active video.

The

Secondary Source selection will become active, if no primary video source is available.

If both the primary and secondary input sources are not recognized, the display will perform two searches for an active source, each search checking the primary and then secondary source. If both searches fail, the display will return to the first video source and display a message indicating that there is no signal.

When the inputs twice in sequence looking for an active video source, returning back to the first video source in the sequence if no video is found.

Auto Source Switching is On, the display video source will automatically be searched

Primary Source selection will be activated, if the current video source is not recognized.

Primary Source selection is set to All, the display will search all the video source

Primary Source Recovery

Select whether to restore the selected primary input source when a primary input source is connected.

The

Primary Source Recovery function is disabled if Primary Source is set to All.

Power Control

m MENU → System → Power Control → E

Auto Power On

This feature automatically turns on the product as soon as it is plugged in. Pressing the power button is not needed.

• Off / On

Max. Power Saving

Turns off the product to reduce power consumption after the PC has been left idle for a specified period of time.

•

Off / On

Standby Control

You can set the screen standby mode to be applied when an input signal is received.

Auto

• Power-saving mode will activate if no input signals are detected even though a source device is connected to the display.

The message

•

Off

The message No Signal will appear if no input signals are detected.

No Signal is displayed although a source device is connected, check the cable

If connection.

No Signal Message is set to Off, the No Signal message does not appear.

If this is the case, set

• On Power-saving mode will activate if no input signals are detected.

No Signal will appear if no source device is connected.

No Signal Message to On.

Network Standby

This feature keeps the network power on when the product turns off.

•

Off / On

Eco Solution

m MENU → System → Eco Solution → E

Eco Sensor

Automatically adjusts the picture brightness according to the ambient brightness.

•

Off / On

• Min. Brightness: Set the screen's Min. Brightness to use when Eco Sensor is operating.

No Signal Power Off

Save power by turning the device off when no signal is received from any source.

•

Off / 15 min. / 30 min. / 60 min.

Disabled when an attached PC is in power saving mode.

The product will automatically power off at a specified time. The time can be changed as required.

Auto Power Off

Power Button

The power button can be set to either turn on the power or turn on/off the power.

Power On Only: Set the power button to turn on the power.

•

Power On/Off: Set the power button to turn on/off the power.

The product will automatically turn off if you don’t press a button on the remote or touch a button on product front panel within select hours to prevent overheating.

•

Off / 4 hours / 6 hours / 8 hours

Fan & Temperature

Input Device Manager

m MENU → System → Fan & Temperature → E

Fan Control

Selects auto or manual for the fan speed settings.

•

Auto / Manual

Temperature Control

This function detects the internal temperature of the product. You can specify the temperature range that is acceptable.

The default temperature is set to 100 °C.

The recommended operating temperature for this product is 95 to 100 °C (based on an ambient temperature of 40 °C).

The screen will become darker if the current temperature exceeds the specified temperature limit. If the temperature continues to rise, the product will power off to prevent overheating.

m MENU → System → Input Device Manager → E

Configure options for external input devices connected to the product.

Keyboard Language

Configure the key combination used to change the input language.

Keyboard Type

Specify the keyboard type.

Input Language Shortcut

Select shortcut keys for switching between input languages.

Play via

m MENU → System → Play via → E

Select the appropriate product.

The home screen may be different depending on the setting.

•

MagicInfo / URL Launcher

Play via mode depending on the environment where you are using the

Change PIN

m MENU → System → Change PIN → E

The

Change PIN screen will appear.

Choose any 4 digits for your PIN and enter it in

Confirm New PIN.

The product has memorized your new PIN.

Default password: 0 - 0 - 0 - 0

Enter New PIN. Reenter the same 4 digits in

Security

m MENU → System → Security → E

Enter your 4 digit PIN number. The default PIN number is "0-0-0-0". If you want to change the PIN number, use the

Safety Lock On

All the menus and buttons of the product and remote control, except for the Power button on the remote control, will be locked by the

To unlock the menus and buttons, press any button and then enter the password (default password: 0-0-0-0).

Turn on while

Power On Button the enable the remote control's Power button to turn on the device

Safety Lock On is enabled.

Safety Lock On function.

Change PIN function.

Button Lock

This menu can be used to lock the buttons on the product.

Only the remote control can control the product if

•

Off / On

Button Lock is set to On.

USB Auto Play Lock

Select whether to automatically play

Off

•

Play MagicInfo content saved on the USB device automatically.

•

Do not play MagicInfo content saved on the USB device automatically.

Connecting a USB device containing

" for five seconds.

MagicInfo content saved on a connected USB device.

MagicInfo content displays "USB Auto Play Lock :

Remote Management

You can

The changed setting remains even after the product is turned off and on using the Panel key or Power switch.

Allow or Deny external commands to access your device via a network.

Deny / Allow

•

Power On Button

Turn on this feature to enable the remote control's Power button to turn on the device while

Safety Lock On is enabled.

• Off / On

General

Anynet+ (HDMI-CEC)

m MENU → System → General → E

Smart Security

Security provided to protect your TV and connected storage devices against viruses includes.

Scan

Inspect the TV and connected storage devices to check for viruses.

Isolated List

This is the list of items that have been Isolated for containing viruses.

Real-Time Monitoring

Scans for viruses by monitoring the display device in real time.

Monitoring Results

Check the list of files, networks, and processes that have been blocked.

Anynet+ (HDMI-CEC)

Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung product remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.

•

Off / On

You can only control the product.

The product remote control may not work under certain conditions. If this occurs, reselect the

Anynet+ device.

Anynet+ works when the AV device supporting Anynet+ is in the standby or on status.

Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of

the same type.

Anynet+ devices using the product remote control, not the buttons on

Troubleshooting for Anynet+

Problem Possible Solution

Anynet+ does not work.

• Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.

• Check if the Anynet+ device power cord is properly connected.

• Check the Anynet+ device’s Video/HDMI cable connections.

• Check whether Anynet+ (HDMI-CEC) is set to On in the System menu.

• Check whether the remote control is Anynet+ compatible.

• Anynet+ doesn’t work in certain situations. (initial setup)

• If you have removed and then reconnected the HDMI cable, please make sure to search devices again or turn your product off and on again.

• Check if the Anynet+ function of the Anynet device is set on.

I want to start Anynet+.

I want to exit Anynet+. • Press the SOURCE button on the product remote control and select a non- Anynet+ device.

The message “

Anynet+ device ...

the screen.

The Anynet+ device does not play.

The connected device is not displayed.

Disconnecting

” appears on

• Check if the Anynet+ device is properly connected to the product and check if the

System menu.

in the

• You cannot use the remote control when you are configuring Anynet+ or switching to a view mode.

• Use the remote control after the product has completed Anynet+ configuration or has finished switching to Anynet+.

• You cannot use the play function when initial setup is in progress.

• Check whether or not the device supports Anynet+ functions.

• Check whether or not the HDMI cable is properly connected.

• Check whether

• Search Anynet+ devices again.

• Anynet+ requires an HDMI connection. Make sure the device is connected to your product with an HDMI cable.

• Some HDMI cables may not support Anynet+ functions.

• If the connection is terminated because there has been a power failure or the HDMI cable has been disconnected, please repeat the device scan.

Anynet+ (HDMI-CEC) is set to On in the System menu.

Anynet+ (HDMI-CEC) is set to On

HDMI Hot Plug

Game Mode

This feature is used to activate the time delay to turn on a HDMI source device.

Off / On

•

Custom Logo

You can download, select, and set the display time of a custom logo that appears when the product turns on.

Custom Logo

•

You can select a custom logo (image/video) or turn off the custom logo display.

You must download the custom logo from an external USB device to set the custom logo.

• Logo Display Time

If the type of custom logo is

• Download Logo File

You can download a custom logo into the product from an external USB device.

The file name of the custom logo you want to download must be saved as “samsung” in all small letters.

When there are multiple numbers of external USB connections, the product will attempt to download the custom logo from the last device that has been connected to the product.

Custom logo file restrictions

• For image type custom logo, only bitmap files (aRGB 32bpp format) are supported.

• The resolution of the image type custom logo must be between a minimum of 128 x 64 and the maximum screen resolution. (Horizontal/Vertical values of the resolution must be multiples of 4.)

• For video type custom logo, only TS Stream types are supported.

• The maximum supported video file is 150 MB. The recommended length of a video file is 20 seconds or less.

Image, you can set the Logo Display Time.

When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting game mode.

•

Off / On

Precautions and limitations for To disconnect the game console and connect another external device, set Game Mode to

Off in the setup menu.

Game Mode

Empty Storage

Delete files to make space for new content. Recently played files will not be deleted.

Reset System

m MENU → System → Reset System → E

This option returns the current settings under system to the default factory settings.

Chapter 10

Support

Software Update

m MENU → Support → Software Update → E

Software Update menu lets you upgrade your product software to the latest version.

The

Be careful not to turn off the power until the upgrade is complete. The product will turn off and on automatically after completing the software upgrade.

When you upgrade software, all video settings you have made will return to their default settings. We advise you to write down your settings so that you can easily reset them after the upgrade.

Update Now

Update the software to the latest version.

Auto Update

This feature automatically updates the product when not in use.

•

Off / On

Contact Samsung

m MENU → Support → Contact Samsung → E

View this information when your product does not work properly or when you want to upgrade the software.

You can find information regarding our call centers and how to download products and software.

Contact Samsung and find the product Model Code and Software Version.

Reset All

m MENU → Support → Reset All → E

This option returns all the current settings for a display to the default factory settings.

Chapter 11

Playing photos and videos (Media Play)

Enjoy videos, photos files saved on a USB Mass Storage Class (MSC) device.

Play photos or videos saved on a storage device.

Play a variety of content using the following methods.

• Using a USB device: Play media content such as videos and photos from a USB device.

• Connecting a storage device: Play media content saved on a storage device such as a smartphone, camera, PC or cloud service.

Read the following before using media play with a USB device

Caution

• Before connecting a USB device to the product, back up files to ensure your data is not damaged or lost. Samsung Electronics is not liable for any damage or loss of data.

• Do not remove a USB device while it is loading.

• If a USB device is connected using a USB extension cable, the USB device may not be recognized or files saved on the device may not be able to be read.

• If the product does not recognize a connected USB device, the files on the USB device may be corrupted or may not be able to be played. If this occurs, connect the USB device to the PC to format the device, then make sure the device is connected properly.

• USB HDD greater than 2TB is not supported.

Compatible devices with media play

• Some USB digital cameras and smartphones may not be compatible with the product.

• Media play is only compatible with USB MSC devices.

• MSC device refers to a Mass Storage Class Bulk-Only Transport device. Examples of MSC devices include Thumb drives, Flash card readers and USB HDDs. (USB hubs are not supported.)

These MSC devices must be connected directly to a USB port on the product.

• If more than one Picture Transfer Protocol (PTP) device is connected, only one will work at a time.

• If multiple MSC devices are connected, some devices may not be recognized.

• USB devices that require high power (higher than 500mA or 5V) may not be supported.

• If an overheating warning message appears when a USB device is connected or used, the USB device may not be recognized or function properly.

• The screensaver activates if the product is left idle for a period of time specified in Auto Protection Time.

• Power-saving mode on some external hard disk drives may automatically deactivate after connecting to the product.

File system and formats

• Media play may not function properly with unlicensed multimedia files.

• Media Transfer Protocol (MTP) is not supported.

• Supported file systems include FAT16, FAT32 and NTFS (read only).

• Media play supports the sequential JPEG format. It does not support the progressive JPEG format.

• Images with a higher resolution take longer to be displayed on the screen.

• The maximum JPEG resolution supported is 15360x8640 pixels.

• If a file is incompatible or corrupted, a message

• When sorting files in folder view mode, a maximum of 1000 files can be displayed in each folder.

• If a USB device contains 8000 files and folders or more, some files and folders may not open.

• DRM MP3 files downloaded from websites that charge a fee cannot be played. Digital Rights Management (DRM) refers to a system for protecting the copyrights of data circulated via the Internet or other digital media by enabling secure distribution and/or disabling illegal distribution of the data.

Not Supported File Format. appears.

"It is recommended to use a USB

HDD that has a power adapter.

Using a USB device

Connecting a USB device

Turn on your product.

Connect a USB device containing photo and/or movie files to the USB port on the back or side panel of the product.

The Player page automatically appears as soon as a USB device connects to the product.

If only one USB device is connected, files saved on the USB device are displayed automatically.

To view content saved on a USB device, connect the USB device to a USB port on the product.

Removing a USB device

"It is recommended to remove a USB

device using the function.

Safely Remove

Removing a USB device from Source

Press on the remote control.

→ Player → Options → Safely Remove

Select Safely Remove and wait until the USB device is disconnected. The USB device is disconnected.

Features provided in the media content list page

→ Player → Storage device → USB

The media content list page on a storage device provides the following features.

• Storage device

Internal Memory / USB

•

Filter By

Among Video, Image, PDF, Office and My Templates content saved on a storage device, view content files under a desired file format only.

•

Options

Menu items in the media content list page

Option Name Operations

Play Selected

Send

Delete

Storage

Internal Memory

Safely Remove

Content Size

Slideshow Speed

Slideshow Effect

Default Content

Random

MagicINFO

Reset

Select the content you want to play, then select the Play button at the top of the

screen.

"The displayed image may differ depending on the model.

Play Selected

Send

Delete

Storage

Safely Remove

Content Size

Slideshow Speed

Slideshow Effect

Default Content

Reset

Select the content you want to play, then select the play button at the top of the screen.

Select the content you want to send to the other device, then select the Send button at the top of the screen.

Select the content you want to delete, then select the Delete button at the top of the screen.

Select the save location for schedules downloaded from the magicInfo server and other devices.

Safely removes USB memory

Set the screen size for content.

Set the time each slide will play for.

Set which transition effect to apply between image slides.

This default content will be displayed if you run a channel while no programs are scheduled on the channel.

Restore all the values under Options to the default when the product was purchased.

"Pressing the INFO button while a

device name is selected will display information about the selected device.

"Pressing the INFO button while a le

is selected will display information

about the selected le.

Available buttons and features during photo playback

Pressing the E button or π, ∂, ∑, µ button displays the following buttons. The RETURN button makes the buttons disappear.

• Pause / Play Start or stop a slideshow. Using a slideshow, it is possible to play all photos in a folder.

• Previous / Next View the previous or next photo.

Available buttons and features during video playback

Pressing the E button or π, ∂, ∑, µ button displays the following buttons. The RETURN button makes the buttons disappear.

• Pause / Play Pause or play a video.

The following features are available in pause mode.

• Rewind / Fast forward Rewind or fast forward a video. Speed up playback up to 3x, if required. To change the playback speed to the original speed, select ∂.

• Previous / Next To play the previous video, select π twice. Selecting π once will play the current video from the beginning.

To play the next video, select µ.

Chapter 12

Troubleshooting Guide

Requirements Before Contacting Samsung Customer Service Center

"Before calling Samsung Customer

Service Center, test your product as follows. If the problem persists, contact Samsung Customer Service Center.

"If the screen remains blank, check

the PC system, video controller and cable.

Testing the Product

Check if your product is operating normally by using the product test function.

If the screen remains blank while the power LED blinks even when the product is correctly connected to a PC, perform product testing.

Power off both the PC and product.

Disconnect all the cables from the product.

Power on the product.

If No Signal is displayed, the product is operating normally.

Checking the Resolution and Frequency

Not Optimum Mode will briefly be displayed if a mode that exceeds a supported resolution is selected(refer to Supported Resolutions).

Check the followings.

Installation issue (PC mode)

The screen keeps switching on and off.

Blank spaces are found on all four sides of the screen when a DP, an HDMI, or an HDMI-DVI cable is connected between the product and PC.

Screen issue

The power LED is off. The screen will not switch on.

No Signal is displayed on the screen.

Not Optimum Mode is displayed.

The images on the screen look distorted.

Check the cable connection between the product and PC, and ensure the connection is secure.

The blank spaces found on the screen have nothing to do with the product.

Blank spaces on the screen are caused by the PC or graphics card. To resolve the problem, adjust the screen size in the HDMI or DVI settings for the graphics card.

If the graphics card settings menu does not have an option to adjust the screen size, update the graphics card driver to the latest version.

(Please contact the graphics card or computer manufacturer for further details about how to adjust the screen settings.)

Make sure that the power cord is connected.

Check that the product is connected correctly with a cable.

Check that the device connected to the product is powered on.

This message is displayed when a signal from the graphics card exceeds the product's maximum resolution and frequency.

Refer to the Standard Signal Mode Table and set the maximum resolution and frequency according to the product specifications.

Check the cable connection to the product.

The screen is not clear. The screen is blurry.

Set the resolution and frequency to the recommended level.

Screen issue

The screen appears unstable and shaky.

There are shadows or ghost images left on the screen.

The screen is too bright. The screen is too dark.

Screen color is inconsistent.

White does not really look white.

There is no image on the screen and the power LED blinks every 0.5 to 1 second.

The product will turn off automatically.

Picture quality of the product is different from the dealer shop where it was purchased.

Check that the resolution and frequency of the PC and graphics card are set within a range compatible with the product. Then, change the screen settings if required by referring to the Additional Information on the product menu and the Standard Signal Mode Table.

Adjust Brightness and Contrast.

Go to Picture and adjust the Color Space settings.

Go to Picture and adjust the White Balance settings.

The product is in power-saving mode.

Press any key on the keyboard or move the mouse to return to the previous screen.

Go to System and make sure Sleep Timer is set to Off.

If a PC is connected to the product, check the power status of the PC.

Make sure the power cable is connected properly to the product and power outlet.

If the signal from a connected device is not detected, the product automatically turns off after 10 to 15 minutes.

Use an HDMI cable to obtain high-definition (HD) picture quality.

Encoded video content may cause the display to appear corrupted in scenes featuring fast moving objects such as in a sports event or action video.

The screen display does not look normal.

Low signal level or low picture quality may cause the display to appear corrupted. This does not mean the product is defective.

A cell phone within a distance of one-meter radius may cause static on analog and digital products.

Screen issue

The brightness and color do not look normal.

Go to Picture and adjust the screen settings such as Picture Mode, Color, Brightness and

Sharpness.

Reset the screen settings to the default settings.

Lines (red, green or blue) are displayed on the screen.

The display looks unstable and then freezes.

The screen cannot be displayed in full screen.

Remote control issue

The remote control does not work.

These lines are displayed when there is a defect in DATA SOURCE DRIVER IC on the monitor. Contact a Samsung Service Center to resolve the issue.

The screen may freeze when a resolution other than the recommended resolution is used or if the signal is not stable. To resolve the issue, change the PC resolution to the recommended resolution.

A scaled SD (4:3) content file can cause black bars on both sides of an HD channel screen.

A video with an aspect ratio different from the product can cause black bars at the top and bottom of the screen.

Change the screen size setting to full screen on the product or source device.

Make sure that the batteries are correctly in place (+/-).

Check if the batteries are flat.

Check for power failure.

Make sure that the power cord is connected.

Check for any special lighting or neon signs switched on in the vicinity.

Source device issue

A beeping sound is heard when my PC is booting.

If a beeping sound is heard when your PC is booting, have your PC serviced.

Other issue

The product smells like plastic.

Video playback is choppy.

Small particles are found on the edges of the product.

When I try to change the PC resolution, a message "The

dened resolution is not currently supported.

HDMI Black Level is not functioning properly on an HDMI

device with YCbCr output.

The IR sensor is not functioning.

In power-saving mode, when the input source is

DisplayPort, PC display settings cannot be saved.

" appears.

The plastic smell is normal and disappears over time.

Check the cable connection and connect it again if required.

Using an excessively hard or thick cable may cause choppy video playback.

Make sure cables are flexible enough to ensure durability. When mounting the product onto a wall, it is recommended to use right-angle cables.

The particles are part of the product design. The product is not defective.

The message "The defined resolution is not currently supported." appears if the input source resolution exceeds the maximum resolution of the display.

To resolve the issue, change the PC resolution to a resolution supported on the display.

This function is available only when a source device, such as a DVD player and STB, is connected to the product via an HDMI (RGB signal) cable.

Make sure the sensor light turns on when a button is pressed on the remote control.

• If the light does not turn on, turn the power switch off and then on again. If the sensor light still does not turn on after the power switch is turned off and then on again, an internal jack may be disconnected.

Contact your nearest service center to have the product serviced.

Go to System → Power Control and set Max. Power Saving to Off. Alternatively, configure the PC display output settings again. Ensure the set is turned on.

When booting the PC with the input source set to

DisplayPort, the BIOS and booting screens do not appear.

Boot the PC when the set is turned on or when the input source is not DisplayPort.

Q & A

"Refer to the user manual for your

PC or graphics card for further instructions on adjustment.

Question Answer

How can I change the frequency?

How can I change the resolution?

How do I set powersaving mode?

Set the frequency on your graphics card.

• Windows 7: Go to Control Panel → Appearance and Personalization → Display → Adjust resolution → Advanced Settings → Monitor and adjust the frequency in Monitor Settings.

• Windows 8: Go to Settings → Control Panel → Appearance and Personalization → Display

→ Adjust resolution → Advanced Settings → Monitor and adjust the frequency in Monitor Settings.

• Windows 10: Go to Settings → System → Display → Advanced display settings → Display adapter properties → Monitor, and adjust Screen refresh rate under Monitor settings.

• Windows 7: Go to Control Panel → Appearance and Personalization → Display → Adjust Resolution and adjust the resolution.

• Windows 8: Go to Settings → Control Panel → Appearance and Personalization → Display → Adjust Resolution and adjust the resolution.

• Windows 10: Go to Settings → System → Display → Advanced display settings, and adjust the resolution.

• Windows 7: Set power-saving mode in Control Panel → Appearance and Personalization → Personalize → Screen Saver Settings or BIOS SETUP on the PC.

• Windows 8: Set power-saving mode in Settings → Control Panel → Appearance and Personalization → Personalize → Screen Saver Settings or BIOS SETUP on the PC.

• Windows 10: Set power-saving mode in Settings → Personalization → Lock screen → Screen timeout settings → Power & sleep or BIOS SETUP on the PC.

Chapter 13

Specications

General

Model Name SNOW-1703U SNOW-1703ULD

Power Supply

Environmental considerations

Supported models

Operating

Storage

AC100-240V~ 50/60Hz Based on the AC voltage of the adapter. For the DC voltage of the product, refer to the product label.

Temperature : 50 °F - 104 °F (10 °C - 40 °C) Humidity : 10% - 80%, non-condensing

Temperature : -4 °F - 113 °F (-20 °C - 45 °C) Humidity : 5% - 95%, non-condensing

IF015H, IF020H, IF025H, IF025H-D, IF040H-D, IF060H-D

IF015H, IF020H, IF025H, IF025H-D, IF040H-D, IF060H-D, IF012J

Model Name IF015H IF020H IF025H IF025H-D IF040H-D IF060H-D IF012J

Cabinet

Pixel Pitch

LED pixel conguration

LED pixel size (W x H)

Pixels (Row x Column)

Aspect ratio (W:H)

Refresh rate

1.5 mm /

0.06 inches

1.0 mm x 1.0 mm

0.04 inches x 0.04 inches

320 x 360 pixels 240 x 270 pixels 192 x 216 pixels 192 x 288 pixels 120 x 180 pixels 80 x 120 pixels 640 x 360 pixels

8:9 8:9 8:9 2:3 2:3 2:3 16:9

2.0 mm /

0.08 inches

1.5 mm x 1.5 mm

0.06 inches x 0.06 inches

2.5 mm /

0.1 inches

3-in-1(R/G/B in 1 LED) 3-in-1(G/R/B in 1 LED)

2.1 mm x 2.1 mm

0.08 inches x 0.08 inches

1920/3840Hz 3840Hz

2.5 mm /

0.1 inches

2.1 mm x 2.1 mm

0.08 inches x 0.08 inches

4.0 mm /

0.16 inches

2.1 mm x 2.1 mm

0.08 inches x 0.08 inches

6.0 mm /

0.23 inches

2.1 mm x 2.1 mm

0.08 inches x 0.08 inches

1.26 mm /

0.05 inches

1.0 mm x 1.0 mm

0.04 inches x 0.04

Synchronization

50/60Hz

AC100-240V~ 50/60Hz

Power Supply

Environmental considerations

Plug-and-Play

Video Frame rate

Operating

Storage

Temperature : 32 °F - 104 °F (0 °C - 40 °C) Humidity : 10% - 80%, non-condensing

Temperature : -4 °F - 113 °F (-20 °C - 45 °C) Humidity : 5% - 95%, non-condensing

This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired.

For detailed device specifications, visit the Samsung Electronics website.

inches

(USA only)

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call, (877) 278 - 0799

Preset Timing Modes

This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Using a resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution specified for your product.

When

HDMI UHD Color is set to On, up to the 3840 x 2160 @ 60 Hz resolution is supported. When HDMI UHD Color is set to Off, up to the 1920 x 1080 @

60 Hz resolution is supported.

Model Name SNOW-1703U SNOW-1703ULD

Supported mode

Horizontal Frequency

Synchronization

Vertical Frequency

Optimum Resolution

Resolution

Maximum Resolution

The screen will automatically be adjusted if a signal that belongs to the following standard signal modes is transmitted from your PC. If the signal transmitted from the PC does not belong to the standard signal modes, the screen may be blank with the power LED on. In such a case, change the settings according to the following table by referring to the graphics card user manual.

Normal mode Normal mode Live Mode

30 – 135 kHz 65 – 134 KHz

30 – 75 Hz (DP), 24 – 75 Hz (HDMI) 50 / 59.94 / 60 Hz

1920 x 1080 @ 60 Hz, 3840 x 2160 @ 60 Hz

SNOW-1703U / SNOW-1703ULD: Normal mode

"Horizontal Frequency

The time required to scan a single line from the left to the right side of the screen is called a horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency. Horizontal frequency is measured in kHz.

"Vertical Frequency

The product displays a single image multiple times per second (like a

uorescent light) to display what

the viewer sees. The rate of a single image being displayed repeatedly per second is called vertical frequency or refresh rate. Vertical frequency is measured in Hz.

Horizontal

Resolution

Frequency

(kHz)

IBM/VESA, 640 x 480 31.469 59.940 25.175 N / N -

Mac, 640 x 480 35.000 66.667 30.240 N / N -

VESA, 640 x 480 37.861 72.809 31.500 N / N -

VESA, 640 x 480 37.500 75.000 31.500 N / N -

IBM, 720 x 400 31.469 70.087 28.322 N / P -

VESA, 800 x 600 35.156 56.250 36.000 P / P -

VESA, 800 x 600 37.879 60.317 40.000 P / P -

VESA, 800 x 600 48.077 72.188 50.000 P / P -

VESA, 800 x 600 46.875 75.000 49.500 P / P -

Mac, 832 x 624 49.726 74.551 57.284 N / N -

VESA, 1024 x 768 48.363 60.004 65.000 N / N O

VESA, 1024 x 768 56.476 70.069 75.000 N / N -

VESA, 1024 x 768 60.023 75.029 78.750 P / P -

Vertical Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

S-Box Grouping

Supported

VESA, 1152 x 864 67.500 75.000 108.000 P / P -

Mac, 1152 x 870 68.681 75.062 100.000 N / N -

VESA, 1280 x 720 45.000 60.000 74.250 P / P O

VESA, 1280 x 800 49.702 59.810 83.500 N / P -

VESA, 1280 x 1024 63.981 60.020 108.000 P / P O

VESA, 1280 x 1024 79.976 75.025 135.000 P / P -

Horizontal

Resolution

Frequency

(kHz)

VESA, 1366 x 768 47.712 59.790 85.500 P / P -

VESA, 1440 x 900 55.935 59.887 106.500 N / P -

VESA, 1600 x 900 60.000 60.000 108.000 P / P O

VESA, 1680 x 1050 65.290 59.954 146.250 N / P -

VESA, 1920 x 1080 67.500 60.000 148. 500 P / P O

VESA CVT, 1920 x 1080 66.587 59.934 138.500 P / N -

VESA CVT, 2560 x 1440 88.787 59.951 241.500 P / N -

VESA CVT, 3840 x 2160 133.313 59.9 97 533.250 P / N -

CTA-861 VIC 3, 720 x 480 31.469 59.940 27.000 N / N -

CTA-861 VIC 4, 1280 x 720 45.000 60.000 74.250 P / P O

CTA-861 VIC 5, 1920 x 1080i 33.750 60.000 74.250 P / P -

CTA-861 VIC 16, 1920 x 1080 67.500 60.000 148.500 P / P O

CTA-861 VIC 18, 720 x 576 31.250 50.000 27.000 N / N O

Vertical Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

S-Box Grouping

Supported

CTA-861 VIC 19, 1280 x 720 37.500 50.000 74.250 P / P O

CTA-861 VIC 20, 1920 x 1080i 28.125 50.000 74.250 P / P -

CTA-861 VIC 31, 1920 x 1080 56.250 50.000 148.500 P / P O

CTA-861 VIC 32, 1920 x 1080 27.000 24.000 74.250 P / P -

CTA-861 VIC 33, 1920 x 1080 28.125 25.000 74.250 P / P -

CTA-861 VIC 34, 1920 x 1080 33.750 30.000 74.250 P / P -

CTA-861 VIC 93, 3840 x 2160 54.000 24.000 297.000 P / P -

Horizontal

Resolution

Frequency

(kHz)

CTA-861 VIC 94, 3840 x 2160 56.250 25.000 297.000 P / P -

CTA-861 VIC 95, 3840 x 2160 67.500 30.000 297.000 P / P -

CTA-861 VIC 96, 3840 x 2160 112.500 50.000 594.000 P / P O

CTA-861 VIC 97, 3840 x 2160 135.000 60.000 594.000 P / P O

Vertical Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

S-Box Grouping

Supported

SNOW-1703ULD:

VESA, 1920 x 1080 67.500 60.000 148.500 P / P -

VESA CVT, 1920 x 1080 66.587 59.934 138.500 P / N -

VESA CVT, 3840 x 2160 133.313 59.9 97 533.250 P / N -

CTA-861 VIC 16, 1920 x 1080 67.500 60.000 148.500 P / P -

CTA-861 VIC 97, 3840 x 2160 135.000 60.000 594.000 P / P -

Live Mode

Resolution

Horizontal Frequency

(kHz)

Vertical Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

S-Box Grouping

Supported

Chapter 14

Appendix

Responsibility for the Pay Service (Cost to Customers)

When the service is requested, in spite of in warranty, we may charge you for a visit from a service technician in the following cases.

Not a product defect

Cleaning of the product, Adjustment, Explanation, Re-installation and etc.

• If a service technician gives instructions on how to use product or simply adjusts options without disassembling product.

• If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal, etc.)

• If a product is reinstalled or devices are connected additionally after installing the purchased product for the first time.

• If a product is reinstalled to move to a different spot or to move to a different house.

• If customer requests instructions on how to use because of another company's product.

• If customer requests instructions on how to use the network or another company's program.

• If customer requests software installation and setup for the product.

• If a service technician removes/cleans dusts or foreign materials inside of the product.

• If customer requests an installation additionally after purchasing a product through home- shopping or online.

A Product damage caused by customer's fault

Product damage caused by customer's mishandling or wrong repair

If a product damage is caused by;

• External impact or drop.

• Use of supplies or separatly sold product unspecified by Samsung.

• Repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics Co., Ltd.

• Remodeling or repairing the product by customer.

• Using it with incorrect voltage or non-authorized electrical connections.

• Not following the "cautions" in User Manual.

Others

• If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)

• If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator, Lamp, Filter, Ribbon, etc.)

If customer requests a service in case the product has no defect, service fee may be charged. So please read User Manual first.

License

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Open Source Licence Notice

In the case of using open source software, Open Source Licences are available on the product menu. Open Source Licence Notice is written only English.

For information on the Open Source Licence Notice, contact the Samsung Customer Center or send email to oss.request@samsung.com.

Open Source Announcement

Some software components of this product incorporate source code covered under the GNU General Public License (GPL), the GNU Lesser General Public License (LGPL) etc.

Acknowledgement:

The software included in this product contains copyrighted software that is licensed under the GPL/LGPL etc. You may obtain the complete Corresponding Source code from us for a period of three years after our last shipment of this product by sending email to: oss. request@samsung.com

If you want to obtain the complete Corresponding Source code in the physical medium such as CD-ROM, the cost of physically performing source distribution may be charged.

You may also find a copy of the source at following website.

http://software-dl.ti.com/processor-sdk-linux/esd/AM335X/latest/exports/software_ manifest.htm

100

Samsung SNOW-1703ULD User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
