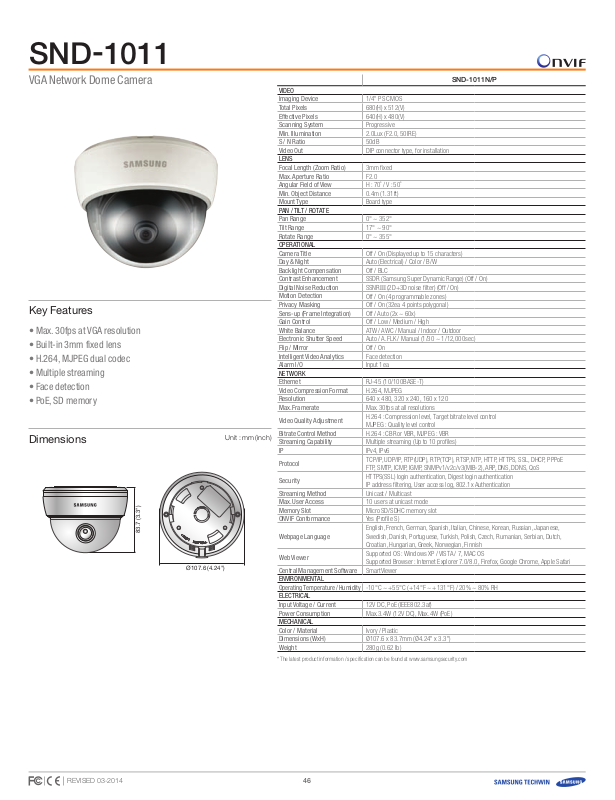

Samsung SND-1011 Specsheet

snD-1011

83.7 (3.3")

83.7 (3.3")

Ø107.6 (4.24")

VGA Network Dome Camera

key Features

• Max. 30fps at VGA resolution

• Built-in 3mm fixed lens

• H.264, MJPEG dual codec

• Multiple streaming

• Face detection

• PoE, SD memory

Dimensions

83.7 (3.3")

Ø107.6 (4.24")

Unit : mm (inch)

snD-1011n/P

VIDEO

Imaging Device
Total Pixels
Effective Pixels
Scanning System
Min. Illumination
S / N Ratio
Video Out

LENS

Focal Length (Zoom Ratio)
Max. Aperture Ratio
Angular Field of View
Min. Object Distance
Mount Type

PAN / TILT / ROTATE

Pan Range
Tilt Range
Rotate Range

OPERATIONAL

Camera Title
Day & Night
Backlight Compensation
Contrast Enhancement
Digital Noise Reduction
Motion Detection
Privacy Masking
Sens-up (Frame Integration)
Gain Control
White Balance
Electronic Shutter Speed
Flip / Mirror
Intelligent Video Analytics
Alarm I/O

NETWORK

Ethernet
Video Compression Format
Resolution
Max. Framerate

Video Quality Adjustment

Bitrate Control Method
Streaming Capability
IP

Protocol

Security

Streaming Method
Max. User Access
Memory Slot
ONVIF Conformance

Webpage Language

Web Viewer

Central Management Software

ENVIRONMENTAL

Operating Temperature / Humidity

ELECTRICAL

Input Voltage / Current
Power Consumption

MECHANICAL

Color / Material
Dimensions (WxH)
Weight

* The latest product information / specification can be found at www.samsungsecurity.com

1/4" PS CMOS
680(H) x 512(V)
640(H) x 480(V)
Progressive

2.0Lux (F2.0, 50IRE)
50dB
DIP connector type, for installation

3mm fixed
F2.0
H : 70˚ / V : 50˚

0.4m (1.31ft)
Board type

0° ~ 352°
17° ~ 90°
0° ~ 355°

Off / On (Displayed up to 15 characters)
Auto (Electrical) / Color / B/W
Off / BLC
SSDR (Samsung Super Dynamic Range) (Off / On)

III

(2D+3D noise filter) (Off / On)

SSNR
Off / On (4 programmable zones)
Off / On (32ea 4 points polygonal)
Off / Auto (2x ~ 60x)
Off / Low / Medium / High
ATW / AWC / Manual / Indoor / Outdoor
Auto / A.FLK / Manual (1/30 ~ 1/12,000sec)
Off / On
Face detection
Input 1ea

RJ-45 (10/100BASE-T)
H.264, MJPEG
640 x 480, 320 x 240, 160 x 120
Max. 30fps at all resolutions
H.264 : Compression level, Target bitrate level control
MJPEG : Quality level control
H.264 : CBR or VBR, MJPEG : VBR
Multiple streaming (Up to 10 profiles)
IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS
HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x Authentication
Unicast / Multicast
10 users at unicast mode
Micro SD/SDHC memory slot
Yes (Profile S)
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Supported OS : Windows XP / VISTA / 7, MAC OS
Supported Browser : Internet Explorer 7.0/8.0, Firefox, Google Chrome, Apple Safari
SmartViewer

-10°C ~ +55°C (+14°F ~ +131°F) / 20% ~ 80% RH

12V DC, PoE (IEEE802.3af)
Max.3.4W (12V DC), Max.4W (PoE)

Ivory / Plastic
Ø107.6 x 83.7mm (Ø4.24" x 3.3")
280g (0.62 lb)

REVISED 03-2014
