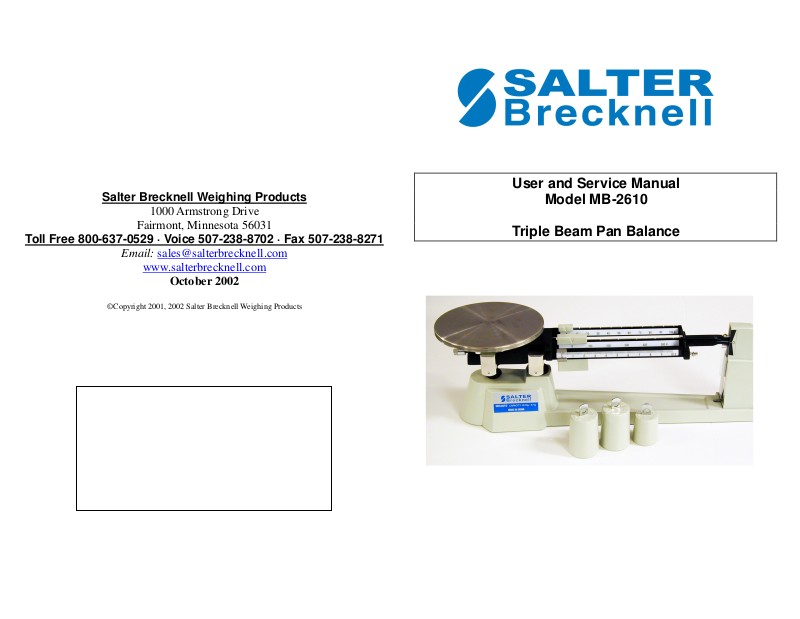

User and Service Manual

Model MB-2610

Triple Beam Pan Balance

CONSTRUCTION AND APPLICATION

:

MB-2610 Single – Pan Balance is an unequal arm
type with three beams. Each beam is made of a high
quality aluminum alloy and the plane is of ground agate,
which improves accuracy of use and lengthens life of
operation. The product can use attachment weights to
extend the weighing range. To speed weighing, the
magnetic damping system brings the pointer to rest with
a minimum number of swings.

The MB-2610 is suitable for physics and chemistry
experiments, analytical weighing in chemical works,
medical and hygiene weighing, foodstuff, agriculture,
textiles, electronics, mines, scientific research institutions,
high school science labs, universities and colleges and
more.

SPECIFICATIONS:

Capacity

Without attachment weights: 610 g.

With attachment weights: 2610 g.
Readability: 0.1 g.
Weighing units: grams
Beam Calibrations: 10 x 0.1 g; 100 x 10 g; 500 x 100 g

FEATURES:

Triple Beam, Direct Reading

Magnetic Damping System

ADJUSTMENT AND OPERATION:

Unpacking:

Carefully remove the balance and the separate sliding
weights from the foam carton. Removed slit rubber washers
located underneath the platform and rubber washer located
above the pointer.

Set-Up:

After placing the balance on a smooth, flat surface,
slide the weights up into the slot on the respective beam
(center and behind). With all sliding weights in zero
position, the pointer should be near zero.

Zeroing:

For exact zero, adjust the knurled knob, which is
located at the left end of the beam. It is advisable to check
the zero adjustment periodically.

Attachment Weights:

Total capacity is 2610 grams when attachment weights
are suspended from the pivots, without the weights, the
capacity is only 610 grams.

Salter Brecknell Weighing Products

1000 Armstrong Drive

Fairmont, Minnesota 56031

Toll Free 800-637-0529 · Voice 507-238-8702 · Fax [phone]

Email: [e-mail]

www.salterbrecknell.com

October 2002

©Copyright 2001, 2002 Salter Brecknell Weighing Products
