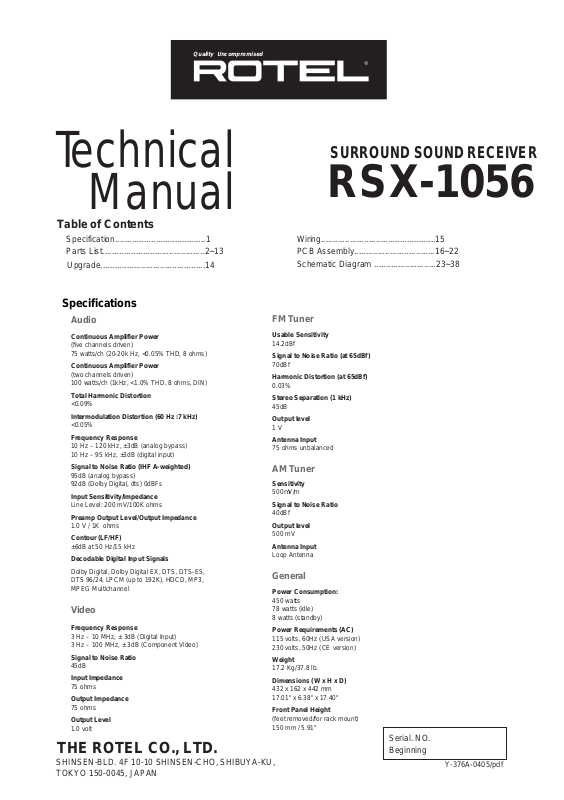

Rotel RSX-1056 Service manual

Quality Uncompromised
®
Technical
Manual
Table of Contents
Specification......................................1
Parts List...........................................2~13
Upgrade............................................14
Specifications
Audio
Continuous Amplifier Power
(five channels driven) 75 watts/ch (20-20k Hz, <0.05% THD, 8 ohms)
Continuous Amplifier Power
(two channels driven) 100 watts/ch (1kHz, <1.0% THD, 8 ohms, DIN)
Total Harmonic Distortion
<0.09%
Intermodulation Distortion (60 Hz :7 kHz)
<0.05%
Frequency Response
10 Hz – 120 kHz, ±3dB (analog bypass) 10 Hz – 95 kHz, ±3dB (digital input)
Signal to Noise Ratio (IHF A-weighted)
95dB (analog bypass) 92dB (Dolby Digital, dts) 0dBFs
Input Sensitivity/Impedance
Line Level: 200 mV/100K ohms
Preamp Output Level/Output Impedance
1.0 V / 1K ohms
Contour (LF/HF)
±6dB at 50 Hz/15 kHz
Decodable Digital Input Signals
Dolby Digital, Dolby Digital EX, DTS, DTS-ES, DTS 96/24, LPCM (up to 192K), HDCD, MP3, MPEG Multichannel
Video
Frequency Response
3 Hz – 10 MHz, ± 3dB (Digital Input) 3 Hz – 100 MHz, ± 3dB (Component Video)
Signal to Noise Ratio
45dB
Input Impedance
75 ohms
Output Impedance
75 ohms
Output Level
1.0 volt
THE ROTEL CO., LTD.
SHINSEN-BLD. 4F 10-10 SHINSEN-CHO, SHIBUYA-KU, TOKYO 150-0045, JAPAN
SURROUND SOUND RECEIVER
RSX-1056

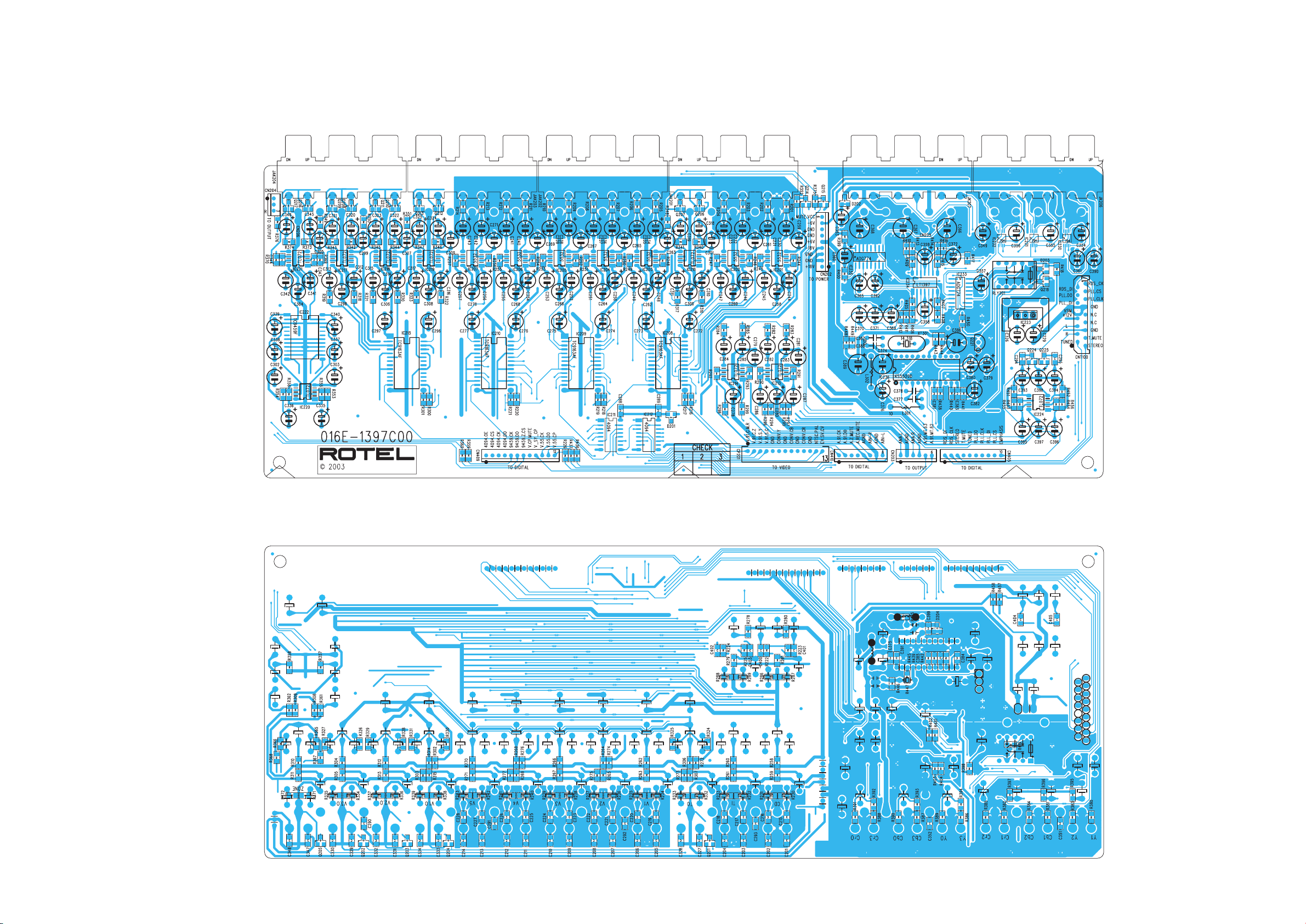

PCB Assembly..................................16~22

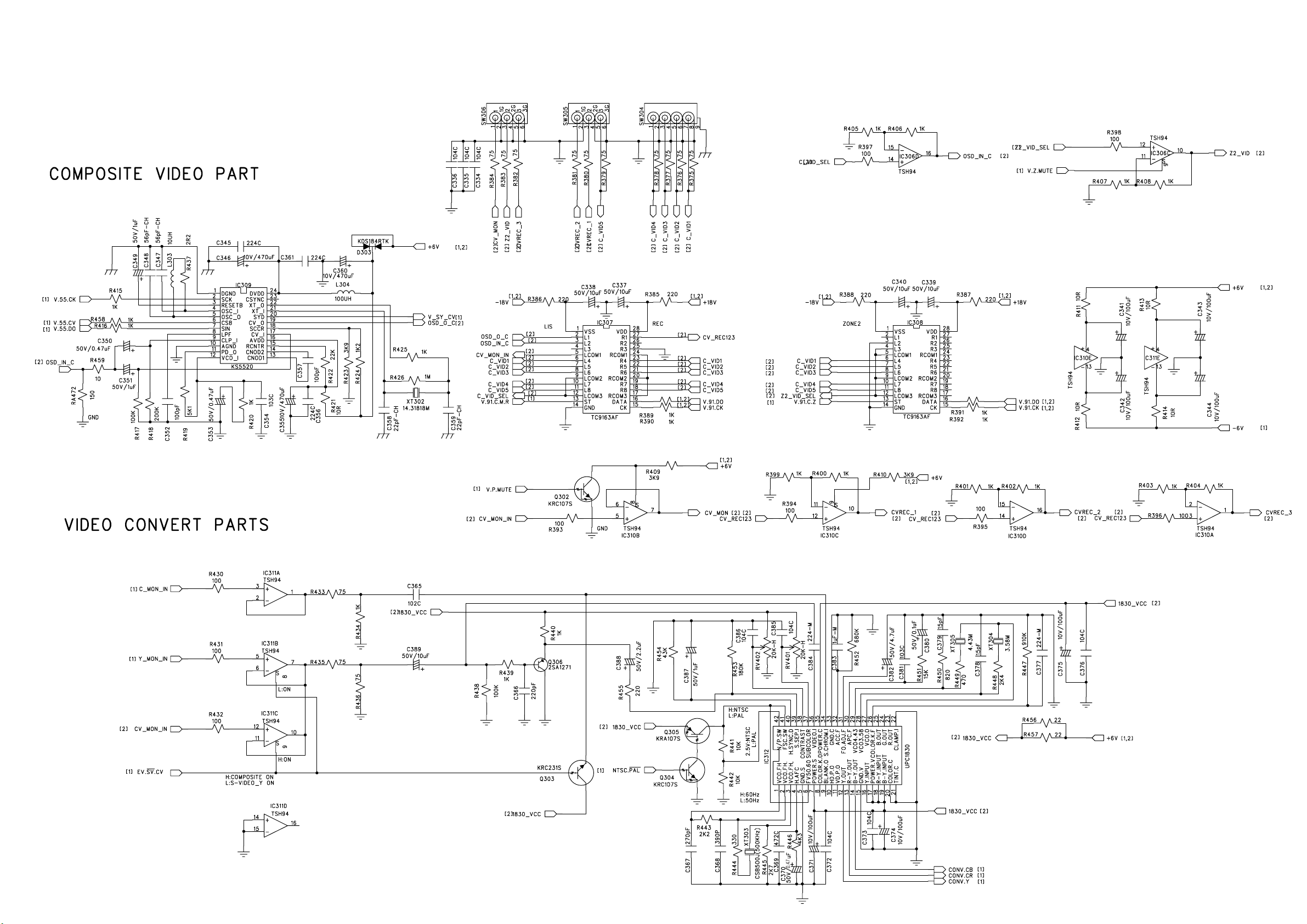

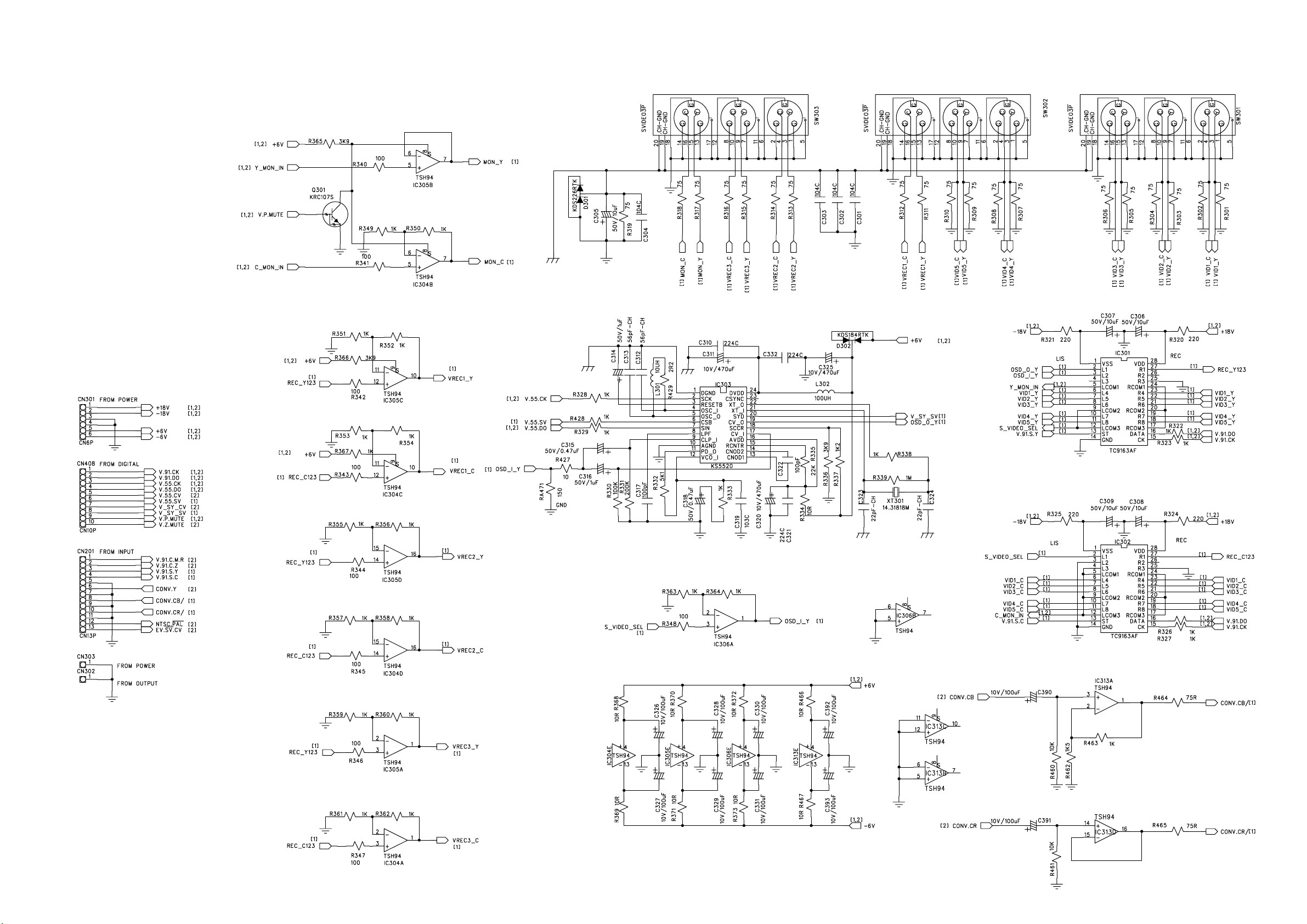

Schematic Diagram ..........................23~38
FM Tuner
Usable Sensitivity
14.2dBf
Signal to Noise Ratio (at 65dBf)
70dBf
Harmonic Distortion (at 65dBf)
0.03%
Stereo Separation (1 kHz)
45dB
Output level
1 V
Antenna Input
75 ohms unbalanced
AM Tuner
Sensitivity
m
500 V/m
Signal to Noise Ratio
40dBf
Output level
500 mV
Antenna Input
Loop Antenna
General
Power Consumption:
450 watts 78 watts (idle) 8 watts (standby)
Power Requirements (AC)
115 volts, 60Hz (USA version) 230 volts, 50Hz (CE version)
Weight
17.2 Kg/37.8 lb.
Dimensions (W x H x D)
432 x 162 x 442 mm
17.01" x 6.38" x 17.40"
Front Panel Height
(feet removed/for rack mount) 150 mm / 5.91"
Serial. NO. Beginning
Y-376A-0405/pdf
Appearance
2
STANDBY
RSX-1056
SURROUND SOUND RECEIVER RSX-1056
12345
6 7 8 9 0 DIRECT MEMORYMONO
ANTENNA
Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942, 5,956674, 5,974,380, 5,978,762, and other world-wide patents issued and pending. "DTS" and "DTS Digital Surround" are registered trademarks of Digital Theater Systems, Inc. Copyright 1996, 2000 Digital
321
B
P
Theater Systems, Inc. All rights reserved.
DIGITAL OUT
R
DIGITAL INPUT
OPTICAL
YPBYP
1
COAXIAL COAXIAL OPTICAL
21
COMPONENT VIDEO IN
P
R
2
COMPOSITE IN
23451
COMPOSITE OUT
VIDEO INTAPECD
VOLUME
12V TRIG OUT
2 ZONE1
435IN OUT
CD TUNER TAPE1
2CH
CB 1REAR LFRONT L SUB 1CENTER 1
CB 2REAR RFRONT R SUB 2CENTER 2
COMPUTER I/O
VIDEO OUT
2132
213
DOLBY
PLII/3ST
ZONE
OUT
MON
OUT
VIDEO1 VIDEO2 VIDEO3 VIDEO5VIDEO4
DTS
Neo 6 DSP
SOFTWARE UPGRADABLE
L
SURROUND SOUND
RECEIVER
MODEL NO. : RSX-1056
R
POWER CONSUMPTION:
450 WATTS
MULTI INPUT MUTE RECZONE
SPEAKERS
SURROUNDCENTER
LEFT
RIGHT
FRONT/CB/ZONE
POWER
ON
OFF
LEFT/1
RIGHT/2
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
BAND
TUNING
REAR L
IR OUT
CB 1
CB 2REAR RFRONT R SUB
21
FRONT L CENTER
REM IN
EXTZONE
1
3
MON OUT
231
ZONE OUT
MON
OUT
S-VIDEO IN S-VIDEO OUT
23451
Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", "Surround EX", and the double-D symbol are trademarks of Dolby Laboraties Licensing Corporation.
Parts List 1/9
3
SYMBOL PARTS NO. DESCRIPTION
016 E-1397C00 PCB ASSY
501E-1397-B PCB ASSY (INPUT) L301 021 LAL02TB100M MICRO INDUCTOR 10uH L302 021 LAL02TB101M MICRO INDUCTOR 100uH XT301 023 HC49U-001WR CRYSTAL 14.31818MHZ IC230-232 031 ADG704BRM IC SMD (4CH MPX) ADG704BRM IC233,235 031 ADG774BR IC SMD (MPX) ADG774BR IC211,212 031 HEF4094BT IC SMD (SHIFT REGISTER) HEF4094BT IC236 031 KS5520-1 IC (SCREEN DISPLAY) KS5520-01 IC234 031 LT1397CS IC SMD (OPEAMP) LT1397CS IC201-207 031 NJM5532M IC SMD (OPEAMP) NJM5532M IC223 031 NJM7812FA IC (REGULATOR +12VDC) IC208-210,215 031 TC9163AF IC SMD (SWITCH ALLEY) KIC9163AF IC222 031 TC9459F IC SMD (VOLUME) KIC9459F IC213,214,216-221,224 031 TL072CD IC SMD (OPE DUAL) TL072CD Q201-205 032 KRA107S TRANSISTOR CHIP KRA107S Q206-218,224,225 032 KRC231S TRANSISTOR CHIP KRC231S Q221 032 KTA1271 TRANSISTOR KTA1271 D204 037 KDS226RTK DIODE CHIP KDS226RTK D201-203 037 KDS226RTK DIODE CHIP KDS226RTK C349,354-361,365,369-372,390,392 041 TUTES1A101-TF ELECTROLYTIC CAPACITOR 10V100uF C366-368,C374,386,389 041 TUTES1A471-TF ELECTROLYTIC CAPACITOR 10V470uF C229,258-281,298-309,397,398 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF C376,380 041 TUTES1H010-TF ELECTROLYTIC CAPACITOR 50V1uF C230-257,282-287,296,297,310-326 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF C379,382 041 TUTES1HR47-TF ELECTROLYTIC CAPACITOR 50V0.47uF C387,388 043 TC50VCH220 CERAMIC CAPACITOR 22pF C377,378 043 TC50VCH560 CERAMIC CAPACITOR 56pF C383 047 ECJ2VB1H103K CERAMIC CAPACITOR CHIP 0.01uF C294,295 047 ECJ2VB1H153K CERAMIC CAPACITOR CHIP 0.015uF C290-293,351,352,399,288,289 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF C375,385 047 ECJ2VF1H224Z CERAMIC CAPACITOR CHIP 0.22uF C201-228,327-334,347,348,384,343,344,381 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF R395-398,399,417,444 055 ERJ6GEYJ100V RESISTOR CHIP 10 R419,418 055 ERJ6GEYJ101V RESISTOR CHIP 100 R447,201-214,216-221,226,282-285,300,301 055 ERJ6GEYJ102V RESISTOR CHIP 1K R316-323,340-347,353,354,359,360,373,374 055 ERJ6GEYJ102V RESISTOR CHIP 1K R436,437 055 ERJ6GEYJ102V RESISTOR CHIP 1K R352,369,370,375,400 055 ERJ6GEYJ103V RESISTOR CHIP 10K R230-243,332-339,357,358,365,366,371,372 055 ERJ6GEYJ104V RESISTOR CHIP 100K R392-394,439,294,295,348-351,376,411-414 055 ERJ6GEYJ104V RESISTOR CHIP 100K R446 055 ERJ6GEYJ105V RESISTOR CHIP 1M R443 055 ERJ6GEYJ122V RESISTOR CHIP 1.2K R450 055 ERJ6GEYJ181V RESISTOR CHIP 180 R367,368,296,297 055 ERJ6GEYJ182V RESISTOR CHIP 1.8K R438 055 ERJ6GEYJ204V RESISTOR CHIP 200K R258-281,302-315,361,362,457,458 055 ERJ6GEYJ221V RESISTOR CHIP 220 R441 055 ERJ6GEYJ222V RESISTOR CHIP 2.2K R442 055 ERJ6GEYJ223V RESISTOR CHIP 22K R405-410,415,416 055 ERJ6GEYJ271V RESISTOR CHIP 270 R435 055 ERJ6GEYJ2R2V RESISTOR CHIP 2.2 R286-289,324-331,355,356,451,452 055 ERJ6GEYJ334V RESISTOR CHIP 330K R445 055 ERJ6GEYJ392V RESISTOR CHIP 3.9K R222-225,455,456 055 ERJ6GEYJ393V RESISTOR CHIP 39K R401-404,448,449 055 ERJ6GEYJ470V RESISTOR CHIP 47 R244-257,290-293,453,454 055 ERJ6GEYJ472V RESISTOR CHIP 4.7K R440 055 ERJ6GEYJ512V RESISTOR CHIP 5.1K R380-391 055 ERJ6GEYJ750V RESISTOR CHIP 75 R298,299 055 ERJ6GEYJ821V RESISTOR CHIP 820 RLY201 063 A12W-K RELAY A12W-K JAK201-204 066 C-4792A01 6P PIN JACK (W/R) JK206,207 066 C-4833A01 6P PIN JACK (G/BLU/R) CP201 068 B13B-PH-KS CONNECTOR WAFER 13P CNT100 068 C-4867A01 FPC CONNECTOR 17P(TOP TI)
RSX-1056
Parts List 2/9
4
RSX-1056
SYMBOL PARTS NO. DESCRIPTION
016 E-1398E00 PCB ASSY
501E-1398-B PCB ASSY (VIDEO) L301,303 021 LAL02TB100M MICRO INDUCTOR 10uH L302,304 021 LAL02TB101M MICRO INDUCTOR 100uH XT303 023 CSB500F23 RESONATOR CSB500 F23 XT301,302 023 HC49U-001WR CRYSTAL 14.31818MHZ XT304 023 HC49US-010 CRYSTAL HC49US3.579545MHZ XT305 023 HC49US-011 CRYSTAL HC49US4.433619MHZ IC303,309 031 KS5520-1 IC (SCREEN DISPLAY) KS5520-01 IC312 031 UPC1830GT IC SMD (VIDEO CONVERTER) UPC1830GT IC301,302,307,308 031 TC9163AF IC SMD (SWITCH ALLEY) KIC9163AF IC304-306,310,311,313 031 TSH94ID IC SMD (VIDEO AMP) TSH94ID Q305 032 KRA107S TRANSISTOR CHIP KRA107S Q301,302,304 032 KRC107S TRANSISTOR CHIP KRC107S Q303 032 KRC231S TRANSISTOR CHIP KRC231S Q306 032 KTA1271 TRANSISTOR KTA1271 D302,303 037 KDS184RTK DIODE CHIP KDS184RTK D301 037 KDS226RTK DIODE CHIP KDS223RTK C326-331,341-344,371,374,375,390-393 041 TUTES1A101-TF ELECTROLYTIC CAPACITOR 10V100uF C311,320,325,346,355,360 041 TUTES1A471-TF ELECTROLYTIC CAPACITOR 10V470uF C314,316,349,351,387 041 TUTES1H010-TF ELECTROLYTIC CAPACITOR 50V1uF C380 041 TUTES1H0R1-TF ELECTROLYTIC CAPACITOR 50V0.1uF C305-309,337-340,389 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF C370,388 041 TUTES1H2R2-TF ELECTROLYTIC CAPACITOR 50V2.2uF C382 041 TUTES1H4R7-TF ELECTROLYTIC CAPACITOR 50V4.7uF C315,318,350,353 041 TUTES1HR47-TF ELECTROLYTIC CAPACITOR 50V0.47uF C323,324,358,359 043 TC50VCH220 CERAMIC CAPACITOR 22pF C312,313,347,348 043 TC50VCH560 CERAMIC CAPACITOR 56pF C377,384 044 TBF014D0224J M.P CAPACITOR 63V0.22uF C383 044 TBF074D0105J M.P CAPACITOR 63V1uF C378,379 047 CL21C150JBNC CERAMIC CAPACITOR CHIP 15pF C319,354,381 047 ECJ2VB1H103K CERAMIC CAPACITOR CHIP 0.01uF C369 047 ECJ2VB1H472K CERAMIC CAPACITOR CHIP 4700pF C301-304,334-336 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF C372,373,376,385,386 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF C310,321,332,345,356,361 047 ECJ2VF1H224Z CERAMIC CAPACITOR CHIP 0.22uF C317,322,352,357 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF C365 047 ECJ2VG1H102J CERAMIC CAPACITOR CHIP 1000pF C366 047 ECJ2VG1H221J CERAMIC CAPACITOR CHIP 220pF C367 047 ECJ2VG1H271J CERAMIC CAPACITOR CHIP 270pF C368 047 ECJ2VG1H391J CERAMIC CAPACITOR CHIP 390pF RV401,402 051 EVM3Y-B24 SEMI-FIXED RESISTOR 20KB R334,368-373,411-414,421,427,459,466,467 055 ERJ6GEYJ100V RESISTOR CHIP 10 R340-348,393-398,430-432 055 ERJ6GEYJ101V RESISTOR CHIP 100 R322,323,326-329,349-364,367,389-392 055 ERJ6GEYJ102V RESISTOR CHIP 1K R399-408,415,416,428,434,439,440,458 055 ERJ6GEYJ102V RESISTOR CHIP 1K R338,425,463 055 ERJ6GEYJ102V RESISTOR CHIP 1K R441,442,460,461 055 ERJ6GEYJ103V RESISTOR CHIP 10K R330,417,438 055 ERJ6GEYJ104V RESISTOR CHIP 100K R339,426 055 ERJ6GEYJ105V RESISTOR CHIP 1M R337,424 055 ERJ6GEYJ122V RESISTOR CHIP 1.2K R462 055 ERJ6GEYJ152V RESISTOR CHIP 1.5K R451 055 ERJ6GEYJ153V RESISTOR CHIP 15K R453 055 ERJ6GEYJ184V RESISTOR CHIP 180K R331,418 055 ERJ6GEYJ204V RESISTOR CHIP 200K R456,457 055 ERJ6GEYJ220V RESISTOR CHIP 22 R320,321,324,325,385-388,455 055 ERJ6GEYJ221V RESISTOR CHIP 220 R443,333,420 055 ERJ6GEYJ222V RESISTOR CHIP 2.2K R335,422 055 ERJ6GEYJ223V RESISTOR CHIP 22K R448 055 ERJ6GEYJ242V RESISTOR CHIP 2.4K R445 055 ERJ6GEYJ272V RESISTOR CHIP 2.7K R429,437 055 ERJ6GEYJ2R2V RESISTOR CHIP 2.2 R444 055 ERJ6GEYJ331V RESISTOR CHIP 330 R336,365,366,409,410,423 055 ERJ6GEYJ392V RESISTOR CHIP 3.9K
Parts List 3/9
5
RSX-1056
SYMBOL PARTS NO. DESCRIPTION
R446 055 ERJ6GEYJ432V RESISTOR CHIP 4.3K R454 055 ERJ6GEYJ433V RESISTOR CHIP 43K R449 055 ERJ6GEYJ471V RESISTOR CHIP 470 R332,419 055 ERJ6GEYJ512V RESISTOR CHIP 5.1K R452 055 ERJ6GEYJ684V RESISTOR CHIP 680K R301-319,375-384,433,435,436,464,465 055 ERJ6GEYJ750V RESISTOR CHIP 75 R450 055 ERJ6GEYJ821V RESISTOR CHIP 820 R447 055 ERJ6GEYJ914V RESISTOR CHIP 910K SW305,306 066 4TR-2964#10 3P PIN JACK (YEL) SW301-303 066 C-4604A02 3P MINI DIN JACK YKF51-5520 SW304 066 C-4860A01 4P PIN JACK (YEL)
016 E-1399C00 PCB ASSY
501E-1399-B PCB ASSY (DIGITAL) XT402 023 CXO-002 CRYSTAL 12.288MHZ XT401 023 HC49U-009 CRYSTAL HC49U24.576MHZ IC438 031 39VF040 IC (MPR) SST39VF040-70-4C-NH IC440 031 74HC00 IC (QUAD NAND GATE) 74HC00 IC436,446 031 74HC125 IC (QUAD BUFFER) 74HCT125D IC441,442 031 74HC157 IC (QUAD MPX) 74VHC157 IC445 031 74HC244 IC (OCTAL BUFFER) 74VHC244 IC431 031 AK4114VQ IC SMD (DIR) AK4114VQ IC447-450 031 AK4395VF IC SMD (D/A CONVERTER) AK4395VF IC432 031 AK5383VS IC SMD (A/D CONVERTER) AK5383VS IC403 031 AM29F004BT-X56 IC PLCC (FLASH MEMORY) AM29F004BT70JI IC443 031 AME1117BCBT IC (REGULATOR 2.5V) IC444 031 AME1117CCGT IC SMD (REGULATOR 3.3V) IC404 031 AT24C16PI-2.7 IC (EEPROM) AT24C16PL IC437 031 CS49400 IC SMD (DSP) CS49400-3 IC405 031 HIN232CB IC SMD (RS232) HIN232CB IC402 031 IS62C256 IC SMD (SRAM) IS62C256 IC439 031 K4S161622D IC SMD (MEMORY) K4S161622D IC406,407 031 LTV817 IC SMD (PHOTO COUPLER) IC433-435,451-454 031 TL072CD IC SMD (OPE DUAL) TL072CD IC401 031 TMP95C063F IC SMD (CPU) TMP95C063F Q401,QCW451,QFL/R451 032 KRC107S TRANSISTOR CHIP KRC107S Q402-404 032 KRC231S TRANSISTOR CHIP KRC231S D401-407 037 KDS184RTK DIODE CHIP KDS184RTK
C430 041 SCDA5R5104V BACKUP CAPACITOR 5.5V 0.1F
C480,481,484,487,C406 041 TUTES1A101-TF ELECTROLYTIC CAPACITOR 10V100uF C454-462,512-519,CAL/R401-404 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF CCB455,CCW455,CF455,CS455 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF C418-421 041 TUTES1H010-TF ELECTROLYTIC CAPACITOR 50V1uF C414,417,438,439,441-443,453,482,483 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF C485,486,CBL/R454,CCB454,456,CCT454 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF CCW454,456,CF454,456,CFL/R454 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF CS454,456,CSL/R454,CSW454 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF C503 041 TUTES1H2R2-TF ELECTROLYTIC CAPACITOR 50V2.2uF C416 041 TUTES1H3R3-TF ELECTROLYTIC CAPACITOR 50V3.3uF C415 041 TUTES1HR22-TF ELECTROLYTIC CAPACITOR 50V0.22uF C440 041 TUTES1HR47-TF ELECTROLYTIC CAPACITOR 50V0.47uF CAL/R408,CSW452,453 047 ECJ2VB1H103K CERAMIC CAPACITOR CHIP 0.01uF CCT455,CFL/R455 047 ECJ2VB1H223K CERAMIC CAPACITOR CHIP 0.022uF C501 047 ECJ2VC1H122J CERAMIC CAPACITOR CHIP 1200pF C409-411,422-428,436,437,447,450,451 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF C467-479,488-490,493-496,498,500 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF C504-509,520-523,CCB451-453 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF CCW451-453,CF451-453,CS451-453 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF C401-405,407,408,429,431-435,444-446,448 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF C452,463-465,491,499,510,511 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF CAL/R405 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF C449,C5383 047 ECJ2VF1H224Z CERAMIC CAPACITOR CHIP 0.22uF CBL/R452,453,CCT452,453,CFL/R452,453 047 ECJ2VG1H121J CERAMIC CAPACITOR CHIP 120pF CSL/R452,453 047 ECJ2VG1H121J CERAMIC CAPACITOR CHIP 120pF C412,413 047 ECJ2VG1H270J CERAMIC CAPACITOR CHIP 27pF
Parts List 4/9
6
SYMBOL PARTS NO. DESCRIPTION
CBL/R451,CCT451,CFL/R451,CSL/R451,CSW451 047 ECJ2VG1H331J CERAMIC CAPACITOR CHIP 330pF CAL/R406,407 047 ECJ2VG1H471J CERAMIC CAPACITOR CHIP 470pF C502 047 ECJ2VG1H680J CERAMIC CAPACITOR CHIP 68pF RM410-420 055 CN43-101 RESISTOR CHIP NETWORK 100 RM403-409 055 CN43-103 RESISTOR CHIP NETWORK 10K RM401,402 055 CN43-332 RESISTOR CHIP NETWORK 3.3K R407,408,426,444,445 055 ERJ6GEYJ100V RESISTOR CHIP 10 R405,406,409-411,458,4395 055 ERJ6GEYJ101V RESISTOR CHIP 100 R427,428,448,451,459-462,476-479,418 055 ERJ6GEYJ101V RESISTOR CHIP 100 RBL/R458,RCT458,RFL/R458,RSL/R458 055 ERJ6GEYJ102V RESISTOR CHIP 1K RSW458 055 ERJ6GEYJ102V RESISTOR CHIP 1K R415-417,430,1056,401,402,412-414,447 055 ERJ6GEYJ103V RESISTOR CHIP 10K RAL/R401,402,404,405 055 ERJ6GEYJ103V RESISTOR CHIP 10K RBL/R457,RCT457,RFL/R457,RSL/R457 055 ERJ6GEYJ104V RESISTOR CHIP 100K RSW457 055 ERJ6GEYJ104V RESISTOR CHIP 100K R403 055 ERJ6GEYJ105V RESISTOR CHIP 1M R446 055 ERJ6GEYJ183V RESISTOR CHIP 18K R480,RAL/R408,411 055 ERJ6GEYJ220V RESISTOR CHIP 22 R452-457,466-473,435-438 055 ERJ6GEYJ221V RESISTOR CHIP 220 R463. 055 ERJ6GEYJ302V RESISTOR CHIP 3K RAL/R406,409 055 ERJ6GEYJ302V RESISTOR CHIP 3K R464,465 055 ERJ6GEYJ332V RESISTOR CHIP 3.3K R439-443 055 ERJ6GEYJ471V RESISTOR CHIP 470 R404,420-425,419 055 ERJ6GEYJ472V RESISTOR CHIP 4.7K R429,449,450,474,475,4394,5383 055 ERJ6GEYJ473V RESISTOR CHIP 47K RAL/R403 055 ERJ6GEYJ473V RESISTOR CHIP 47K RBL/R451-453,455,456,RCT451-453,455,456 055 ERJ6GEYJ562V RESISTOR CHIP 5.6K RFL/R451-453,455,456,RSW451-453,455,456 055 ERJ6GEYJ562V RESISTOR CHIP 5.6K RSL/R451-453,455,456 055 ERJ6GEYJ562V RESISTOR CHIP 5.6K R431-434 055 ERJ6GEYJ750V RESISTOR CHIP 75 RAL/R407,410 055 ERJ6GEYJ911V RESISTOR CHIP 910 RBL/R454,RCT454,RFL/R454,RSL/R454 055 ERJ6GEYJ912V RESISTOR CHIP 9.1K RSW454 055 ERJ6GEYJ912V RESISTOR CHIP 9.1K RLY401-403 063 A12W-K RELAY A12W-K SW401 064 KSP02H DIP SWITCH JAK407-413 065 YKB21-5103A 3.5DIA MINIATURE JACK (ST) JAK401,402 066 C-4859A01 2P PIN JACK AU (BLACK) JAK406 066 SY010-8P/K JACK RJ45 SY010-8P/K JAK404,405 066 TORX179L JACK OPTICAL RECEIVER JAK403 066 TOTX179L JACK OPTICAL TRANSMITTER CP405,408 068 B10B-PH-KS CONNECTOR WAFER 10P CP409 068 B12B-PH-KS CONNECTOR WAFER 12P CP406 068 B7B-PH-KS CONNECTOR WAFER 7P CP410 068 B8B-PH-KS CONNECTOR WAFER 8P IC403,438 068 PLCC32TS IC SOCKET 32P
016 E-1401A00 PCB ASSY
501E-1401-B PCB ASY (MULTI INPUT) IC715-718 031 TL072CD IC SMD (OPE DUAL) TL072CD CMB707,708,CMC707,708,CMF707,708 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF CMS707,708 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF CMB703,704,CMC702,CMF703,704 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF CMS703,704,CMW702 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF C713,714 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF CMB705,706,CMC703,CMF705,706,CMS705,706 047 ECJ2VG1H100D CERAMIC CAPACITOR CHIP 10pF CMB701,702,710,711,CMC701,710 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF CMF701,702,710,711,CMS701,702,710,711 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF CMW701,703,710 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF RMB701,702,RMC701,RMF701,702 055 ERJ6GEYJ101V RESISTOR CHIP 100R RMS701,702,RMW701 055 ERJ6GEYJ101V RESISTOR CHIP 100R RMB705,706,RMB711,712,RMC703,705 055 ERJ6GEYJ103V RESISTOR CHIP 10K RMF705,706,RMS705,706,711,712 055 ERJ6GEYJ103V RESISTOR CHIP 10K RMB703,704,RMC702,RMF703,704 055 ERJ6GEYJ104V RESISTOR CHIP 100K RMS703,704,RMW702 055 ERJ6GEYJ104V RESISTOR CHIP 100K RMW703,704 055 ERJ6GEYJ123V RESISTOR CHIP 12K
RSX-1056
Parts List 5/9
7
RSX-1056
SYMBOL PARTS NO. DESCRIPTION
RMB707,708,RMC707,708,RMF707,708 055 ERJ6GEYJ221V RESISTOR CHIP 220 RMS707,708 055 ERJ6GEYJ221V RESISTOR CHIP 220 RMF711,712 055 ERJ6GEYJ302V RESISTOR CHIP 3K RMF709,710 055 ERJ6GEYJ334V RESISTOR CHIP 330K RMB709,710,RMC704,RMS709,710 055 ERJ6GEYJ432V RESISTOR CHIP 4.3K JAK702 066 C-4764A02 2P PIN JACK (B/B) JAK701 066 C-4861A01 6P PIN JACK (W/R)
016 E-1405B00 PCB ASSY
501E-1405 PCB ASSY (POWER 1) (F801) 036 5ST3.15 FUSE 250VT3.15A (F801) 036 5ST8 FUSE 250VT8A R801 054 MOF12-3M3 MOF RESISTOR 1/2W 3.3M CP803 068 4428505746 CONNECTOR WAFER 5P 7.92MM CP116,117,231,232,801,802 068 B2P3-VH CONNECTOR WAFER 2P AC VOLTAGE SELECTION 068 C-4765A01WR CONNECTOR WIRE 2P 40MM
016 E-1406C00 PCB ASSY
501E-1406 PCB ASSY (POWER 2) IC901-904 031 NJM7805FA IC (REGULATOR +5VDC) IC905 031 NJM7806FA IC (REGULATOR +6VDC) IC909 031 NJM7812FA IC (REGULATOR +12VDC) IC907 031 NJM7818FA IC (REGULATOR +18VDC) IC906 031 NJM7906FA IC (REGULATOR -6VDC) IC908 031 NJM7918FA IC (REGULATOR -18VDC) Q901 032 TA1450-ST TRANSISTOR 2SA1450AA-ST Q251,252,902,903 033 TC3708-ST TRANSISTOR 2SC3708AA-ST DB951 034 KBPC2504W-F POWER DIODE 25A400V D901,902,905,906,912-922,925-931 034 T1N4003-TB DIODE 1N4003-E D251,903,909 034 T1N4148-86 DIODE 1N4148TAP-50 D910 034 TRD27JST1 ZENER DIODE 27V (AB2) D904 034 TRD4.3EST1 ZENER DIODE 4.3V (AB2) D252 034 TRD6.8JST1 ZENER DIODE 6.8V (AB2) D911 034 TRD9.1JST1 ZENER DIODE 9.1V (AB2) F903,904 036 5ST2 FUSE 250VT2A F901,902 036 5ST3.15 FUSE 250VT3.15A C956-959 041 HC80V8200UF ELECTROLYTIC CAPACITOR 80V8200uF C904 041 TUTES1C102-TS ELECTROLYTIC CAPACITOR 16V1000F C901,910,918,919 041 TUTES1C472-TS ELECTROLYTIC CAPACITOR 16V4700uF C902,905,909,911,920,921,931,932,938 041 TUTES1H010-TF ELECTROLYTIC CAPACITOR 50V1uF C907 041 TUTES1H220-TF ELECTROLYTIC CAPACITOR 50V22uF C906 041 TUTES1H470-TF ELECTROLYTIC CAPACITOR 50V47uF C251 041 TUTES1H471-TS ELECTROLYTIC CAPACITOR 10V470uF C922,936 041 TUTES1V471-TS ELECTROLYTIC CAPACITOR 35V470uF C908 041 UTES1C103 ELECTROLYTIC CAPACITOR 16V10000uF C929,930 041 UTES1V332-TS ELECTROLYTIC CAPACITOR 35V3300uF C903,951-955 043 TC500V103 CERAMIC CAPACITOR 500V0.01uF C913-917,924-928 044 TBFO14D0103J M.P CAPACITOR 63V0.01uF R905,906 053 CR14-010J-A CARBON RESISTOR 1/4W 1 R252,902,909 053 CR14-102J-A CARBON RESISTOR 1/4W 1K R908 053 CR14-103J-A CARBON RESISTOR 1/4W 10K R253 053 CR14-152J-A CARBON RESISTOR 1/4W 1.5K R911,917 053 CR14-220J-A CARBON RESISTOR 1/4W 22 R910,916 053 CR14-222J-A CARBON RESISTOR 1/4W 2.2K R907 053 CR14-470J-A CARBON RESISTOR 1/4W 47 R903 053 CR14-473J-A CARBON RESISTOR 1/4W 47K R251 053 CR14-682J-A CARBON RESISTOR 1/4W 6.8K R901 054 1WS10J MOF RESISTOR 1WS 10 R904,914,915,920,921,922 054 2WS1JF MOF RESISTOR 2WS 1 RLY901,902 063 DG2SU-24 RELAY DG24D2-OS(M) CP403 068 B10B-PH-KS CONNECTOR WAFER 10P CP251 068 B2B-EH CONNECTOR WAFER 2P CP411-413 068 B2B-PH-KS CONNECTOR WAFER 2P CP204 068 B2P3-VH CONNECTOR WAFER 2P CP205,902 068 B3B-EH CONNECTOR WAFER 3P
Parts List 6/9
8
RSX-1056
SYMBOL PARTS NO. DESCRIPTION
CP951 068 B3P-VH CONNECTOR WAFER 3P CP404,701 068 B5B-PH-KS CONNECTOR WAFER 5P CP301 068 B6B-PH-KS CONNECTOR WAFER 6P CP901 068 B7B-EH CONNECTOR WAFER 7P CP106 068 B7B-PH-KS CONNECTOR WAFER 7P CP202 068 B9B-PH-KS CONNECTOR WAFER 9P
016 X-1407B01-03 PCB ASSY
501X-1407 PCB ASSY (SPEAKER) C966-970 044 TBF014D0472J M.P CAPACITOR 63V4700pF C951-955 044 TBF014D0473J M.P CAPACITOR 63V0.047uF R951-955 054 2WS10JF MOF RESISTOR 2WS 10 SW100 061 C-4172A13 PUSH SWITCH SPUN12XT131 (STANDBY) JAK951,952 067 C-4794A00 4P SPEAKER TERMINAL (R/B) JAK953 067 C-4862A01 2P SPEAKER TERMINAL (R/B) CP101 068 B2B-PH-KS CONNECTOR WAFER 2P CT202,910,951 068 B2P-VH CONNECTOR WAFER 2P CT203,911 068 B3P-VH CONNECTOR WAFER 3P
016 X-1408A01-03 PCB ASSY
501X-1408 PCB ASSY (FRONT) X101 023 CST10.0MTW CERAMIC RESONATOR IC100 031 CXP82832-359Q IC SMD (CPU) CXP82832-359Q RMC101 031 SBX3010-52B IC (REMOTE EYE) Q101,102 032 TC3708-ST TR 2SC3708AA-ST D101-106 034 T1N4148-86 DIODE 1N4148TAP-50 FIP1 035 HNR08MM31 FL TUBE C114 041 TUTES1H010-TF ELECTROLYTIC CAPACITOR 50V1uF C119 041 TUTES1H3R3-TF ELECTROLYTIC CAPACITOR 50V3.3uF C117 041 TUTES1H4R7-TF ELECTROLYTIC CAPACITOR 50V4.7uF C101-107 043 TC50V101 CERAMIC CAPACITOR 100pF C115 043 TC50V103 CERAMIC CAPACITOR 0.01uF C118 043 TC50V223 CERAMIC CAPACITOR 0.022uF C100,112,113 043 TC50V473 CERAMIC CAPACITOR 0.047uF C108-111 043 TC50V821 CERAMIC CAPACITOR 820pF R121 for RED LED 053 CR14-181J-A CARBON RESISTOR 1/4W 180 R121 for BLUE LED 053 CR14-471J-A CARBON RESISTOR 1/4W 470 R101-104,124-126,142 054 TMF1001 MOF RESISTOR 1K R109,114-119 054 TMF1002 MOF RESISTOR 10K R121 054 TMF1800 MOF RESISTOR 180R R122,123 054 TMF4701 MOF RESISTOR 4.7K R105-108,110-113 054 TMF4702 MOF RESISTOR 47K R120 054 TMF47R0 MOF RESISTOR 47R ESW101 056 C-4678A01 ROTARY ENCODER EC16B243040F(D25) (VOLUME) SW101-132 061 C-4679A03 TACT SWITCH 5MM GRAY SKHHAMA010 CP105 068 B2B-PH-KS CONNECTOR WAFER 2P CP110 068 B3B-PH-KS CONNECTOR WAFER 3P CP102 068 B4B-PH-KS CONNECTOR WAFER 4P
016 E-1413A00 PCB ASSY
501E-1413 PCB ASSY (POWER AMPLIFIER) D401,402,501,502 034T1N4148-86 DIODE 1N4148TAP-50 L101,201,301,401,501 021 LF167A00 SPEAKER COIL 1.0F7T Q702 032 KRC107M TRANSISTOR KRC107M Q109,209,309,409,509 033 A1360-OY TRANSISTOR 2SA1360-OY Q112,212,312,412,512 033 A1859-Y TRANSISTOR 2SA1859A-Y Q110,210,310,410,510 033 C3423-OY TRANSISTOR 2SC3423-OY Q111,211,311,411,511 033 C4883-Y TRANSISTOR 2SC4883A-Y Q101-105,201-205,301-305,Q401-405,501-505,701 033 KTA1268-GRBL TRANSISTOR KTA1268-GRBL Q106-108,206-208,306-308,Q406-408,506-508 033 KTC3200-GRBL TRANSISTOR KTC3200-GRBL D101,102,201,202,301,302 034 T1N4148-86 DIODE 1N4148TAP -50 D701 034 TRD12JST1 ZENER DIODE 12V (AB2) C106,206,306,406,506 041 TUTES1A221-TF ELECTROLYTIC CAPACITOR 10V220uF C107,207,307,407,507,701,702 041 TUTES1H010-TF ELECTROLYTIC CAPACITOR 50V1uF C111,112,211,212,311,312,C411,412,511,512 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF C108,208,308,408,508 041 TUTES1H220-TF ELECTROLYTIC CAPACITOR 50V22uF
Parts List 7/9
9
SYMBOL PARTS NO. DESCRIPTION
C703 041 TUTES1H470-TF ELECTROLYTIC CAPACITOR 50V47uF C105,205,305,405,505 041 TUTES1H4R7-FB ELECTROLYTIC CAPACITOR 50V4.7uF C109,110,209,210,309,310,C409,410,509,510 041 TUTES1J471-TS ELECTROLYTIC CAPACITOR 63V470uF C104,204,304,404,504 043 TC50V181 CERAMIC CAPACITOR 180pF C102,202,302,402,502 043 TC50V271 CERAMIC CAPACITOR 270pF C101,201,301,401,501 043 TC50V391 CERAMIC CAPACITOR 390pF C103,203,303,403,503 043 TC50VCH5R6-A CERAMIC CAPACITOR 5.6pF R705,706 054 2WS1KJF MOF RESISTOR 2WS 1K R141,241,341,441,541 054 MPR5W0.27RJ METAL PLATE RESISTOR 5W 0.27 R136,137,236,237,336,337,436,437,536,537 054 TMF1000 METAL FILM RESISTOR 1/4W 100 R101,102,201,202,301,302,401,402,501,502 054 TMF16-1001 METAL FILM RESISTOR 1/6W 1K R113,213,313,413,513 054 TMF16-1002 METAL FILM RESISTOR 1/6W 10K R702 054 TMF16-1003 METAL FILM RESISTOR 1/6W 100K R126,127,226,227,326,327,426,427,526,527 054 TMF16-1200 METAL FILM RESISTOR 1/6W 120 R109,110,209,210,309,310,409,410,509,510 054 TMF16-1201 METAL FILM RESISTOR 1/6W 1.2K R112,212,312,412,512 054 TMF16-1500 METAL FILM RESISTOR 1/6W 150 R704 054 TMF16-1503 METAL FILM RESISTOR 1/6W 150K R105,106,205,206,305,306,405,406,505,506 054 TMF16-15R0 METAL FILM RESISTOR 1/6W 15 R128,228,328,428,528 054 TMF16-1801 METAL FILM RESISTOR 1/6W 1.8K R129,229,329,429,529 054 TMF16-2001 METAL FILM RESISTOR 1/6W 2K R116-118,216-218,316-318,416-418,516-518 054 TMF16-2202 METAL FILM RESISTOR 1/6W 22K R703 054 TMF16-3301 METAL FILM RESISTOR 1/6W 3.3K R103,104,203,204,303,304,403,404,503,504 054 TMF16-3302 METAL FILM RESISTOR 1/6W 33K R132-135,232-235,332-335,432-435,532-535 054 TMF16-39R0 METAL FILM RESISTOR 1/6W 39 R115,215,315,415,515 054 TMF16-4300 METAL FILM RESISTOR 1/6W 430 R114,214,314,414,514 054 TMF16-4302 METAL FILM RESISTOR 1/6W 43K R119-125,219-225,319-325,419-425,519-525 054 TMF16-5600 METAL FILM RESISTOR 1/6W 560 R131,231,331,431,531 054 TMF16-6801 METAL FILM RESISTOR 1/6W 6.8K R701 054 TMF16-6802 METAL FILM RESISTOR 1/6W 68K R111,211,311,411,511 054 TMF16-68R0 METAL FILM RESISTOR 1/6W 68 R107,108,207,208,307,308,407,408,507,508 054 TMF16-7500 METAL FILM RESISTOR 1/6W 750 R130,230,330,430,530 054 TMF16-9100 METAL FILM RESISTOR 1/6W 910 R140,240,340,440,540 054 TMF2200 METAL FILM RESISTOR 1/4W 220 R138,139,238,239,338,339,438,439,538,539 054 TMF3R30 METAL FILM RESISTOR 1/4W 3.3 CP201 068 B10B-PH-KS CONNECTOR WAFER 10P
016 E-1419A00 PCB ASSY
501E-1419 PCB ASSY (OUTPUT) IC702 031 TC9162AF IC SMD (SWITCH ALLEY) KIC9162AF IC701 031 TC9163AF IC SMD (SWITCH ALLEY) KIC9163AF IC709,710 031 TC9482F IC SMD (VOLUME) KIC9482F IC707,708,IC703-706,711-714 031 TL072CD IC SMD (OPE DUAL) TL072CD QC702,QCB701,QF701,QS701,QSW702 032 KRA107S TRANSISTOR CHIP KRA107S Q701-703,QBL/R701,QC701,QFL/R701 032 KRC231S TRANSISTOR CHIP KRC231S QSL/R701,QSW701 032 KRC231S TRANSISTOR CHIP KRC231S D701,702,DC701,DCB701,DF701,DS701,DSW701 037 KDS184RTK DOIDE CHIP KDS184RTK C701-705,707,709,711,CB701,702 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF CCB703,704,CCW701-704,CF701-704 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF CMW710,711,CS701-704 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF CBL/R702,704,705,708,CCT702,704,705,708 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF CFL/R702,704,705,708,CMW705 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF CSL/R702,704,705,708,CSW702,704,705,708 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF CMW707 047 ECJ2VB1H333K CERAMIC CAPACITOR CHIP 0.033uF C706,708,710,712,713,714 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF CCB705,CCT709,CF705,CS705,CSW709 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF CMW706 047 ECJ2VF1H224Z CERAMIC CAPACITOR CHIP 0.22uF CBL/R707,CCT707,CFL/R707,CSL/R707 047 ECJ2VG1H100D CERAMIC CAPACITOR CHIP 10pF CBL/R701,703,706,CCT701,703,706 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF CFL/R701,703,706,CSW701,703,706,707 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF CSL/R701,703,706,CMW704 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF CMW708,709 047 ECJ2VG1H222J CERAMIC CAPACITOR CHIP 0.0022uF 1056J1-1056J5,J701 055 ERJ6GEY0R00V RESISTOR CHIP 0 RBL/R705,RCT705,RFL/R705,RSL/R705,RSW705 055 ERJ6GEYJ101V RESISTOR CHIP 100 RBL/R701,707,RCT701,707,RFL/R701,707 055 ERJ6GEYJ101V RESISTOR CHIP 100 RMW709,RSL/R701,707,RSW701,707 055 ERJ6GEYJ101V RESISTOR CHIP 100
RSX-1056
Parts List 8/9
10
SYMBOL PARTS NO. DESCRIPTION
R703-705,708-710,713-715,718-720 055 ERJ6GEYJ102 RESISTOR CHIP 1K RBL/R712,RCT712,RFL/R712,RMW712,713 055 ERJ6GEYJ102 RESISTOR CHIP 1K RSL/R712,RSW710,712,R721-728 055 ERJ6GEYJ102 RESISTOR CHIP 1K RBL/R709,RCT709,RFL/R703,709 055 ERJ6GEYJ103V RESISTOR CHIP 10K RMW711,715,716,RSL/R709 055 ERJ6GEYJ103V RESISTOR CHIP 10K RBL/R706,RCB705,RCT706,713,RFL/R706 055 ERJ6GEYJ104V RESISTOR CHIP 100K RS705,RSL/R706,RSW706,713 055 ERJ6GEYJ104V RESISTOR CHIP 100K RBL/R702,708,711,RCB706,RCT702,708,711,714 055 ERJ6GEYJ104V RESISTOR CHIP 100K RF705,706,RFL/R702,708,711,RMW710,714 055 ERJ6GEYJ104V RESISTOR CHIP 100K RS706,RSL/R702,708,711,RSW702,708,711,714 055 ERJ6GEYJ104V RESISTOR CHIP 100K RBL/R704,RCT704,RSL/R704 055 ERJ6GEYJ122V RESISTOR CHIP 1.2K RBL/R703,RCT703,RMW706,707,RSL/R703 055 ERJ6GEYJ123V RESISTOR CHIP 12K RSW709 055 ERJ6GEYJ153V RESISTOR CHIP 15K R729,730,RMW705 055 ERJ6GEYJ182V RESISTOR CHIP 1.8K RSW703 055 ERJ6GEYJ203V RESISTOR CHIP 20K R701,702,706,707,711,712,716,717 055 ERJ6GEYJ221V RESISTOR CHIP 200 RB701,702,RCB703,704,RCW701-704 055 ERJ6GEYJ221V RESISTOR CHIP 200 RF701-704,RMW717,718,RS701-704 055 ERJ6GEYJ221V RESISTOR CHIP 200 RBL/R710,RCT710,RFL/R710,RSL/R710 055 ERJ6GEYJ222V RESISTOR CHIP 2.2K RMW708 055 ERJ6GEYJ273V RESISTOR CHIP 27K RSW704 055 ERJ6GEYJ332V RESISTOR CHIP 3.3K RFL/R704 055 ERJ6GEYJ392V RESISTOR CHIP 3.9K RA731,733 055 ERJ6GEYJ472V RESISTOR CHIP4.7K RA732,734 055 ERJ6GEYJ562V RESISTOR CHIP 5.6K RY701,702 063 A12W-K RELAY A12W-K TER702 066 C-4784A02 4P PIN JACK (B/B) TER701 066 C-4792A01 6P PIN JACK (W/R) CP401,402,702 068 B15B-PH-KS CONNECTOR WAFER 15P CP703 068 B2B-PH-KS CONNECTOR WAFER 2P CP204,701 068 B3B-PH-KS CONNECTOR WAFER 3P CP203 068 B6B-PH-KS CONNECTOR WAFER 6P
HEAT SINK ASSEMBLY
017 UF3-08A01 HEAT SINKER BOARD Q115,215,315,415,515 032 C4137-V TRANSISTOR Q114,214,314,414,514 033 A1386-OPY TRANSISTOR 2SA1386A-OPY Q113,213,313,413,513 033 C3519-OPY TRANSISTOR 2SC3519A-OPY
019 TO-220 MICA SHEET TBM-51W-15 #9036
019 TO-3P MICA SHEET TBM-51W-15 #9043 CP251 034 P43T7D200BW20 POSISTOR
O T H E R S
011 FP-571-B BLACK PANEL ASSY
011 FP-571-S SILVER PANEL ASSY
011 UF3-01B00 H/S PANEL H150
012 RV4-09A00 PUSH BUTTON 14Φ (BLACK)
012 RV4-09A01 PUSH BUTTON 14Φ (SILVER)
012 TB3-18A00 TACT BUTTON 16KEY (BLACK)
012 TB3-18A01 TACT BUTTON 16KEY (SILVER)
014 UF3-06A00 UPPER COVER
019 4TSH-19#2 PLASTIC FOOT 50Φ (BLACK)
019 C-4714A00 POWER KNOB RING 14Φ (BLACK)
019 C-4714A01 POWER KNOB RING 14Φ (SILVER)
019 PR4-12B00 KNOB RING(RED) 46Φ
019 PR4-12B01 KNOB RING(BLU) 46Φ
022 T-1097U02 POWER TRANSFORMER
034 SEL1124R LED (RED) 1X5
034 SEL1E24W LED (BLU) 1X5
061 C-4838A00 ROCKER SWITCH SR1N6BB
068 C-4701A06 CONNECTOR WIRE 2P 120MM
068 C-4748A04WR CONNECTOR WIRE 2P 90MM
069 C-4629A01 AC 2P INLET 6102.3100 (WIRING)
072 C-4621A01 AC CORD SET SJT AWG16/2C for USA
072 C-4622A01 AC CORD SET for AUSTRALIA
072 C-4624A01 AC CORD SET for EUROPE
RSX-1056
Parts List 9/9
11
SYMBOL PARTS NO. DESCRIPTION
072 C-4786A01 COMPUTER I/O CABLE (6-P) CNT100 072 C-4863A01 FLAT CABLE 17P 200mm
081 VB3-04A00 INSIDE CARTON
081 VB3-05A00 SHIPPING CARTON
081 Z-208 STYROL MOULDING
092 RR-1050 REMOTE CONTROL UNIT
082 OMRSX-1056 OWNER'S MANUAL
RSX-1056
S
Y
Y
R
Addendum List for Black and Silve
r
12
SYMBOL PART
011 FP-571A-B BLACK PANEL ASS 011 FP-571A-S SILVER PANEL ASS 011 UF3-01B00 H/S PANEL H150 012 C-4711A03 KNOB 43F NO MARK (BLK) 012 C-4711A03S KNOB 43F NO MARK (SLV) 012 RV4-09A00 PUSH BUTTON 14F (BLK) 012 RV4-09A01 PUSH BUTTON 14F (SLV) 012 TB3-18A00 TACT BUTTON 16 KEY (BLK) 012 TB3-18A01 TACT BUTTON 16 KEY (SLV) 034 SEL1124 034 SEL1E24W LED (BLU) 1X5
RSX1056
DESCRIPTION
LED (RED) 1X5
