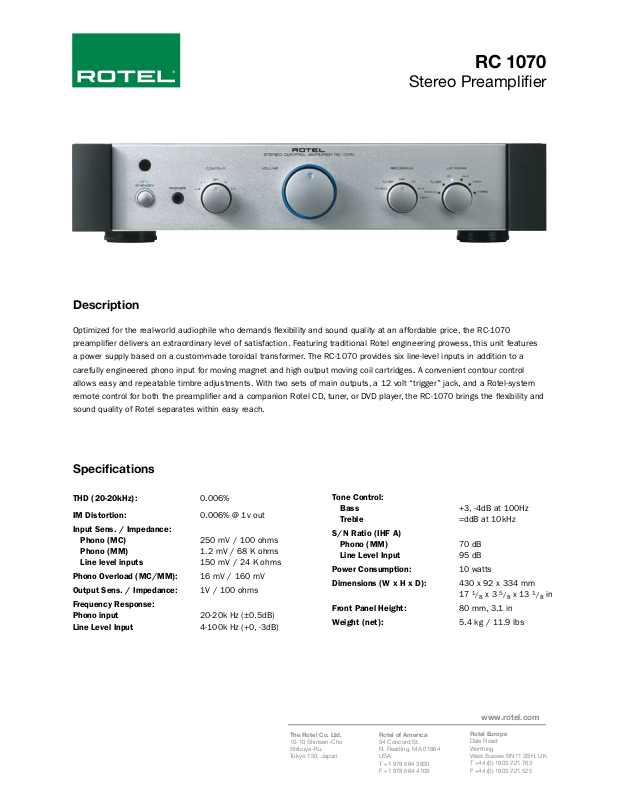

Rotel RC-1070 Brochure
RC 1070
Stereo Preamplier
Description
Optimized for the real-world audiophile who demands exibility and sound quality at an affordable price, the RC-1070
preamplier delivers an extraordinary level of satisfaction. Featuring traditional Rotel engineering prowess, this unit features
a power supply based on a custom-made toroidal transformer. The RC-1070 provides six line-level inputs in addition to a
carefully engineered phono input for moving magnet and high output moving coil cartridges. A convenient contour control
allows easy and repeatable timbre adjustments. With two sets of main outputs, a 12 volt “trigger” jack, and a Rotel-system
remote control for both the preamplier and a companion Rotel CD, tuner, or DVD player, the RC-1070 brings the exibility and
sound quality of Rotel separates within easy reach.
Specications
THD (20-20kHz): 0.006%
IM Distortion: 0.006% @ 1v out
Input Sens. / Impedance:
Phono (MC)
Phono (MM)
Line level inputs
Phono Overload (MC/MM): 16 mV / 160 mV
Output Sens. / Impedance: 1V / 100 ohms
Frequency Response:
Phono input
Line Level Input
250 mV / 100 ohms
1.2 mV / 68 K ohms
150 mV / 24 K ohms
20-20k Hz (±0.5dB)
4-100k Hz (+0, -3dB)
Tone Control:
Bass
Treble
S/N Ratio (IHF A)
Phono (MM)
Line Level Input
Power Consumption: 10 watts
Dimensions (W x H x D): 430 x 92 x 334 mm
Front Panel Height: 80 mm, 3.1 in
Weight (net): 5.4 kg / 11.9 lbs
The Rotel Co. Ltd.
10-10 Shinsen-Cho
Shibuya-Ku,
Tokyo 150, Japan
Rotel of America
54 Concord St.
N. Reading, MA 01864
USA
T +1 978 664 3820
F +1 978 664 4109
+3, -4dB at 100Hz
=ddB at 10kHz
70 dB
95 dB
1
/
x 3
8
5
/
8
x 13
17
www.rotel.com
Rotel Europe
Dale Road
Worthing
West Sussex BN11 2BH, UK
T +44 (0) 1903 221 763
F +44 (0) 1903 221 525
1
/
in
8
