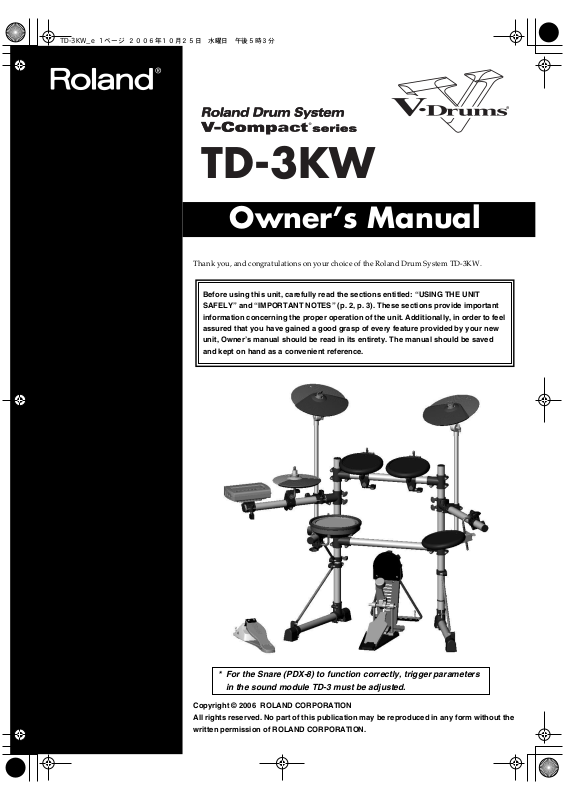

Roland TD-3KW User Manual

TD-3KW

201a

Before using this unit, carefully read the sections entitled: “USING THE UNIT

SAFELY” and “IMPORTANT NOTES” (p. 2, p. 3). These sections provide important

information concerning the proper operation of the unit. Additionally, in order to feel

assured that you have gained a good grasp of every feature provided by your new

unit, Owner’s manual should be read in its entirety. The manual should be saved

and kept on hand as a convenient reference.

Owner’s Manual

Thank you, and congratulations on your choice of the Roland Drum System TD-3KW.

* For the Snare (PDX-8) to function correctly, trigger parameters

in the sound module TD-3 must be adjusted.

202

Copyright © 2006 ROLAND CORPORATION

All rights reserved. No part of this publication may be reproduced in any form without the

written permission of ROLAND CORPORATION.

USING THE UNIT SAFELY

Used for instructions intended to alert
the user to the risk of death or severe
injury should the unit be used
improperly.

Used for instructions intended to alert
the user to the risk of injury or material
damage should the unit be used
improperly.

* Material damage refers to damage or

other adverse effects caused with
respect to the home and all its
furnishings, as well to domestic
animals or pets.

001

• Before using this unit, make sure to read the
instructions below, and the Owner’s Manual.

................................................................................................

002b

• Do not open or perform any internal modifications
on the unit. (The only exception would be where
this manual provides specific instructions which
should be followed in order to put in place user-installable
options; see p. 7.)

................................................................................................

003

• Do not attempt to repair the unit, or replace parts
within it (except when this manual provides
specific instructions directing you to do so). Refer
all servicing to your retailer, the nearest Roland
Service Center, or an authorized Roland
distributor, as listed on the “Information” page.

................................................................................................

004

• Never use or store the unit in places that are:

• Subject to temperature extremes (e.g.,

direct sunlight in an enclosed vehicle, near
a heating duct, on top of heat-generating
equipment); or are

• Damp (e.g., baths, washrooms, on wet

floors); or are

• Humid; or are

• Exposed to rain; or are

• Dusty; or are

• Subject to high levels of vibration.

................................................................................................

005

• This unit should be used only with a rack or stand
that is recommended by Roland.

................................................................................................

The symbol alerts the user to important instructions
or warnings.The specific meaning of the symbol is
determined by the design contained within the
triangle. In the case of the symbol at left, it is used for
general cautions, warnings, or alerts to danger.

The symbol alerts the user to items that must never
be carried out (are forbidden). The specific thing that
must not be done is indicated by the design contained
within the circle. In the case of the symbol at left, it
means that the unit must never be disassembled.

The ● symbol alerts the user to things that must be
carried out. The specific thing that must be done is
indicated by the design contained within the circle. In
the case of the symbol at left, it means that the power­cord plug must be unplugged from the outlet.

006

• When using the unit with a rack or stand recom­mended by Roland, the rack or stand must be
carefully placed so it is level and sure to remain
stable. If not using a rack or stand, you still need to
make sure that any location you choose for placing
the unit provides a level surface that will properly
support the unit, and keep it from wobbling.

................................................................................................

011

• Do not allow any objects (e.g., flammable material,
coins, pins); or liquids of any kind (water, soft
drinks, etc.) to penetrate the unit.

................................................................................................

013

• In households with small children, an adult should
provide supervision until the child is capable of
following all the rules essential for the safe
operation of the unit.

................................................................................................

014

• Do not drop it!

104

• Try to prevent cords and cables from becoming
entangled. Also, all cords and cables should be
placed so they are out of the reach of children.

................................................................................................

106

• Never climb on top of, nor place heavy objects on
the unit.

................................................................................................

118a

• Should you remove nuts, washers, screws, anchor
bolts, etc., keep them in a safe place out of
children’s reach, so there is no chance of them
being swallowed accidentally.

................................................................................................

2

IMPORTANT NOTES

291a

In addition to the items listed under “USING THE UNIT

SAFELY” on page 2, please read and observe the

following:

Placement

354a

• Do not expose the unit to direct sunlight, place it near
devices that radiate heat, leave it inside an enclosed
vehicle, or otherwise subject it to temperature extremes.
Excessive heat can deform or discolor the unit.

356

• Do not allow rubber, vinyl, or similar materials to remain
on the unit for long periods of time. Such objects can
discolor or otherwise harmfully affect the finish.

Maintenance

401a

• For everyday cleaning wipe the unit with a soft, dry cloth
or one that has been slightly dampened with water. To
remove stubborn dirt, use a cloth impregnated with a
mild, non-abrasive detergent. Afterwards, be sure to wipe
the unit thoroughly with a soft, dry cloth.

402

• Never use benzine, thinners, alcohol or solvents of any
kind, to avoid the possibility of discoloration and/or
deformation.

Additional Precautions

553

• Use a reasonable amount of care when using the unit’s
buttons, sliders, or other controls; and when using its jacks
and connectors. Rough handling can lead to malfunctions.

556

• When connecting / disconnecting all cables, grasp the
connector itself—never pull on the cable. This way you
will avoid causing shorts, or damage to the cable’s
internal elements.

558a

• To avoid disturbing your neighbors, try to keep the unit’s
volume at reasonable levels. You may prefer to use
headphones, so you do not need to be concerned about
those around you (especially when it is late at night).

558d

• This instrument is designed to minimize the extraneous
sounds produced when it’s played. However, since sound
vibrations can be transmitted through floors and walls to a
greater degree than expected, take care not to allow these
sounds to become a nuisance to neighbors, especially
when performing at night and when using headphones.

3

Checking the Contents of the Box

❑

TD-3 (Percussion Sound Module) x 1

❑

KD-8 (Kick Trigger Pad) x 1

❑

FD-8 (Hi-Hat Control Pedal) x 1

❑

PDX-8 (V-Pad) x 1

❑

PD-8 (Pad) x 3

❑

CY-5 (Cymbal Pad) x 1

❑

CY-8 (Cymbal Pad) x 2

❑

Connection Cables

❑

Tuning Key x 1

■

TD-3KW Owner’s Manual x 1

❑

PLAY-ALONG AUDIO CD Set x 1

❑

PLAY-ALONG AUDIO CD

❑

Connection Cable (stereo miniture phone type)

• The tuning key is included in the FD-8 package.

• The TD-3 Owner’s Manual is included in the TD-3
package.

• This package does not include a kick pedal. Use with a
commercially available kick pedal.

• This package does not include the CY-5 attachment set
for cymbal.

962a

* In the interest of product improvement, the specifications and/

or appearance of this unit are subject to change without prior
notice.

MDS-3C

Assemble the Drum Stand.

About the Stand, refer to the owner’s manual for the

stand.

Do NOT open the legs of the stand at more than 120

degrees, and NOT make the distance of both Right/Left

end legs as more than 90cm (36 inches). If you do so, the

stand could fall down.

(Drum Stand)

120˚

120˚

90 cm (36 inches)

TD-3

fig.TD-3.e

• To attach the stand holder, remove the four 8 mm

928

• When turning the unit upside-down, get a bunch

929

• When turning the unit upside-down, handle with

(Percussion Sound Module)

Attach the mounting plate (included with the optional drum stand) to the TD-3.

Using the screws attached to the bottom panel, attach the holder so the unit is oriented as shown in the diagram.

screws (M5 x 8) from the bottom of the TD-3 and

use them. Use of other screws may result in

damage to the unit.

of newspapers or magazines, and place them

under the four corners or at both ends to prevent

damage to the buttons and controls. Also, you

should try to orient the unit so no buttons or

controls get damaged.

care to avoid dropping it, or allowing it to fall or

tip over.

Narrow

Wide

4

PDX-8

(Snare)

USING THE UNIT SAFELY

Adjusting the Head Tension

fig.PD-85.e_80

Hoop

Rim Rubber

Stand Fixing Screw

Output Jack

Holder

add

* Do NOT place your fingers inside the shell, as you may hurt

yourself or cause damage to the PDX-8. Or when changing the

head, do NOT touch any of the internal parts. Also, do not

insert your fingers into the hole of the mounting bracket.

fig.Stand.j

Tuning Bolt

Head Sensor

Head

Shell

Rim Sensor

Before using the pad, tighten the
head so that the tension is rather firm.

Looseness in the head tension may result in problems such as

failure of the PDX-8’s rim shots to sound or double triggering.

Striking the head when the head tension is loose may

damage the sensor.

1.

Use a tuning key to tighten the tuning bolts.

Strike the head to check the feel and response.

fig.Adjust.e

Loosen Tighten

fig.Stand.j

Head Sensor

Rim Sensor

Head Sensor

Tighten each tuning bolt one by one, observing the

numerical order shown in the diagram. Do not firmly

tighten a single tuning bolt by itself. Doing so will make

it impossible to tension the head evenly, and will cause

malfunctions.

fig.Bolt

3

1

6

5

2

4

2.

Fine-tune the adjustment while continuing to
check the pad feel and response.

• On the PDX-8, adjusting the head tension affects only the

head response, and does not change the pitch of the

sound as it would on an acoustic drum.

• Head tension may slacken with the passage of time.

Readjust the tension as needed.

5

USING THE UNIT SAFELY

Attaching the Pad to a Stand

Attach the PDX-8 to a pad mount of the stand.

Be sure to tighten the stand fixing screw securel. If it

remain loose, double triggering may occur.

fig.Stand.e

Tighten

fig.RimShot.e

Suitable position
for rim shots

Player

Loosen

Rod

Playing Methods

Head Shots

fig.HeadShot.e

Head

* Do not strike the hoop.

Rim Shots

fig.RimShot.e

Cross Stick

Only strike the rim of the pad.

Depending on the instrument assigned to the rim, you

can play rim shots and/or cross stick sounds.

fig.XStick.e

Rim

Rim

* To play the cross stick, be sure that you only strike the rim of

the pad. Placing your hand on the head of the pad might

prevent the cross stick sound from being played properly.

For more on settings and tones, see the respective

module’s owner’s manual.

If you hear a rim sound when you strike the head,

decrease the “Rim Sensitivity ( )” value.

If you cannot get a rim sound even when you strike

the rim hard, increase the “Rim Sensitivity ( )”

value.

Rim

* To play rim shots, strike the rim in the area shown in the

diagram.

6

Head Replacement

When the Head Should Be Replaced

The head is an expendable item that eventually will wear out

and need to be replaced. Replace the head when the following

occurs:

Slack portions remain in the head even when the head tension

is properly adjusted.

Replacement heads (optional): MH-8 Mesh Head

1.

Remove all tuning bolts from the PDX-8.

fig.Replace.e

Loosen

Tuning Bolt

Hoop

Tighten

Tuning Key

USING THE UNIT SAFELY

Specifications

PDX-8

Head Size: 8 inches

Triggers: 2 (Head, Rim)

Dimensions: 266 (W) x 326 (D) x 62 (H) mm

10-1/2 (W) x 12-7/8 (D) x 2-1/2 (H) inches

Weight: 1.3 kg

2 lbs 14 oz

Options: Mesh Head (MH-8)

* The Rim rubber is one component that eventually wears out

(the more so if numerous rim shots are performed), and will

require replacement. Rim shots may not be performed correctly

when the rim rubber is worn out. If this occurs, replace the rim

rubber. Consult Roland Service for more on replacing the rim

rubber.

add

* Due to the nature of the materials used in the sensor, changes

in room temperature may affect the sensitivity of the sensor.

Head

Hoop’s Rubber
Portion

Shell

Do not apply excessive force to the sensor and cushion

located under the head. Doing so can interfere with

accurate detection, and may damage it.

2.

Remove the hoop.

3.

Remove the old head.

4.

Place the new head on the shell.

5.

Place the hoop onto the head.

6.

Attach the tuning bolts to the hoop and shell.

7.

Next, adjust the tension of the head. Refer to
“Adjusting the Head Tension” (p. 5).

Sensor

Do not firmly tighten a single tuning bolt by itself. Doing

so will make it impossible to tension the head evenly, and

will cause malfunctions.

7

USING THE UNIT SAFELY

PD-8

fig.PD-8.e

(Tom)

Stand Fixing Screw

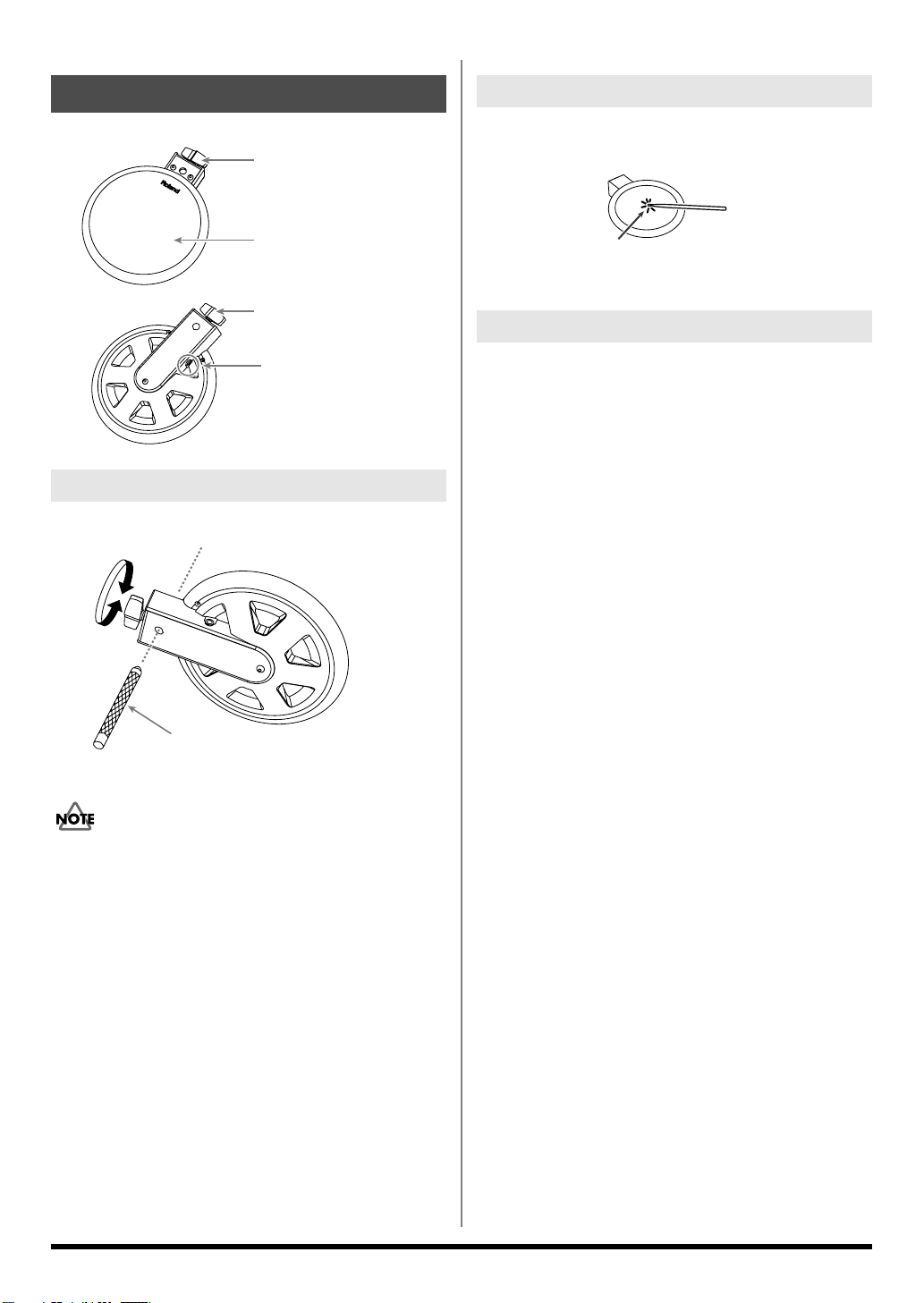

Playing the PD-8

fig.PD-HR.e

Head Shot

Head

Stand Fixing Screw

Output Jack

Attaching the Pad to a Stand

fig.PD-Set.e

Tighten

Loosen

Rod

Head

Specifications

PD-8

Pad Size: 8.5 inches

Triggers: 2 (Head, Rim)

Dimensions: 226 (W) x 280 (D) x 54 (H) mm

8-15/16 (W) x 11-1/16 (W) x 2-1/8 (H) inches

Weight: 1.2 kg

2 lbs 11 oz

Pass the rod through the pipe that is inside the holder.

When attaching the PD-8s to the mounts, be sure to

tighten the stand fixing screws securely. If any of them

remain loose, the pad could fall off.

8

CY-5

fig.CY-8.e

Output Jack

(Hi-Hat)

Bow Portion

Edge Portion

Pad Face

2.

Mount the CY-5 so it fits the lower clutch as

USING THE UNIT SAFELY

shown below.

Projection (Be sure to

orient it correctly)

Making the Settings

When mounting the CY-5 on an L-Rod (pad mount),
use ONLY the attachment set as shown below.

Upper Clutch

Clutch Felt (S)

Clutch Felt (L)

Lower Clutch

1.

Mounting the lower clutch and the clutch felt
(L).

Align the notched section as shown below. Then place the

clutch felt (L) so it fits securely.

Notch
(Be sure to
orient it correctly)

Tighten the bolt with
a tuning key.

3.

Place the clutch felt (s), and while applying
some pressure, mount the upper clutch as
shown.

Afterwards, you can adjust the upper clutch to have the

movement you desire. If it is too loose, double triggering

may occur.

Be sure the ROLAND logo is on the opposite side of the

playing area.

Apply pressure

Tighten the bolt with
a tuning key.

Specifications

CY-5

Size: 10 inches

Triggers: 2 (Bow, Edge)

Dimensions: 246 (W) x 246 (D) x 45 (H) mm

9-11/16 (W) x 9-11/16 (D) x 1-13/16 (H) inches

Weight: 380 g

14 oz (without attachment)

Accessories: Attachment Set for Hi-Hat (Upper Clutch,

Lower Clutch, Clutch Felt (L), Clutch Felt (S))

add

* Continuous playing may cause dis-coloration of the pad, but

this will not affect the Pad's function.

9

USING THE UNIT SAFELY

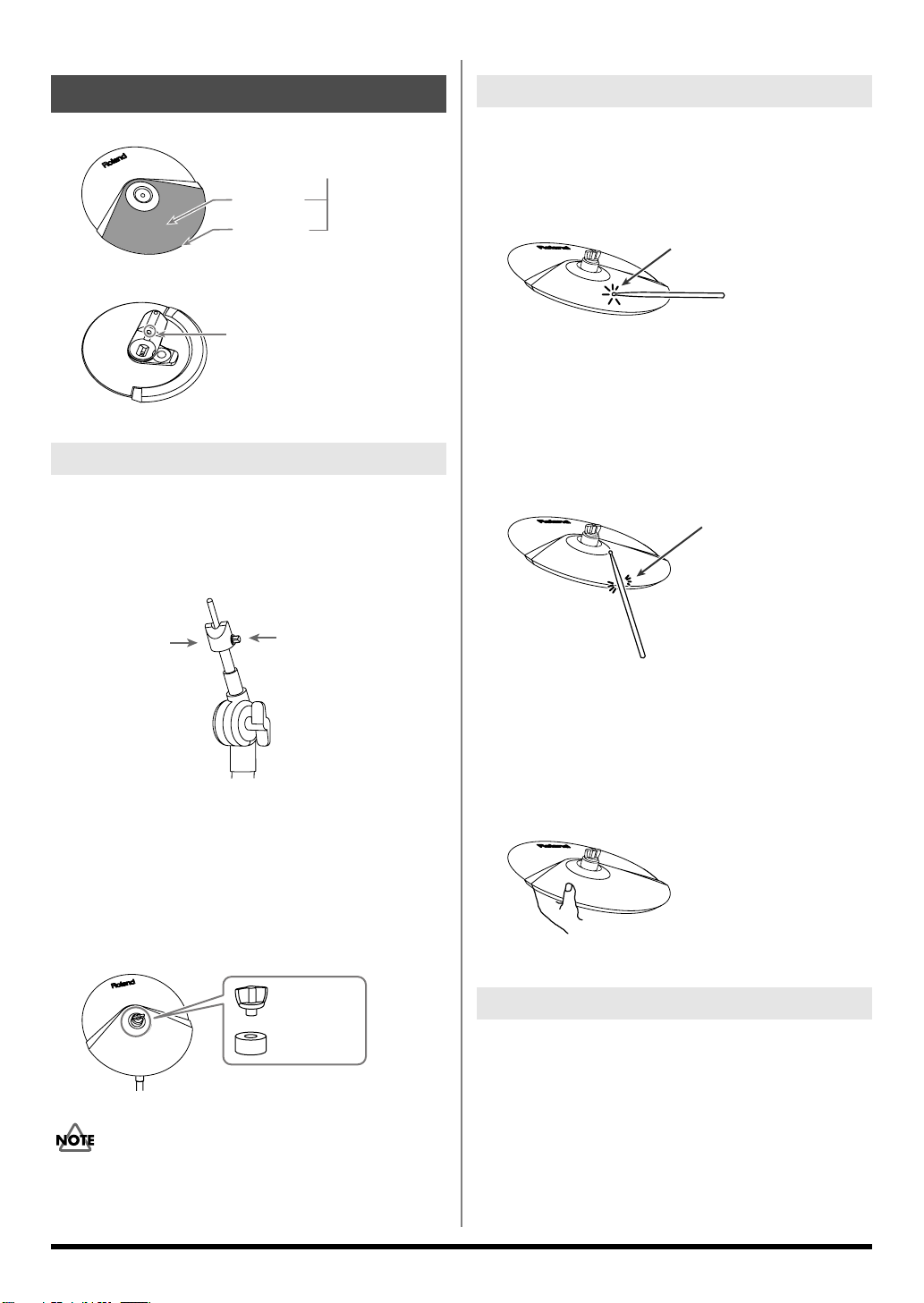

CY-8

(Crash Cymbal/Ride Cymbal)

Playing the CY-8

fig.CY-8.

Pad Face

Bow Portion

Edge Portion

Output Jack

Attaching the Cymbal Pad to a Stand

1.

Use a tuning key to tighten the stopper bolt.

The stopper keeps the cymbal pad from turning, and

prevents the cables from catching or getting tangled on

the stand.

fig.CY-Set01.e

Stopper

(Be sure to

orient it correctly)

Tighten the bolt with
a tuning key.

Bow Shot

This is the most common playing method, playing the pad

face of the cymbal. It corresponds to the sound of the “head-

side” of the connected trigger input.

fig.CY-Bow.e

Bow

Edge Shot

This playing method involves striking the edge with the

shoulder of the stick. It corresponds to the sound of the “rim-

side” of the connected trigger input.

* To make use of edge shot, you’ll need to connect to a trigger

input jack on the percussion sound module that accommodates
rim shots.

fig.CY-Edge.e

Edge

2.

Attach the CY-8 so the Roland logo is
positioned on the opposite side of the playing
area.

3.

Tighten the wing nut to obtain the desired
movement.

Use the included felt washer and the wing nut.

fig.CY-Set02.e

Wing Nut

Felt Washer

Double sounding may occur if the wing nut is loose.

Choking

Choking (pinching) the cymbal’s edge with the hand

immediately after hitting the cymbal makes the sound stop.

* To make use of choking play techniques, you’ll need to connect

to a trigger input jack on the percussion sound module that
accommodates rim shots.

fig.CY-Choke

Specifications

CY-8

Size: 12 inches

Triggers: 2 (Bow, Edge)

Dimensions: 290 (W) x 295 (D) x 47 (H) mm

11-7/16 (W) x 11-5/8 (D) x 1-7/8 (H) inches

Weight: 650 g / 1 lb 7 oz

Accessories: Wing Nut, Felt Washer, Stopper

* Continuous playing may cause dis-coloration of the pad, but

this will not affect the Pad's function.

10

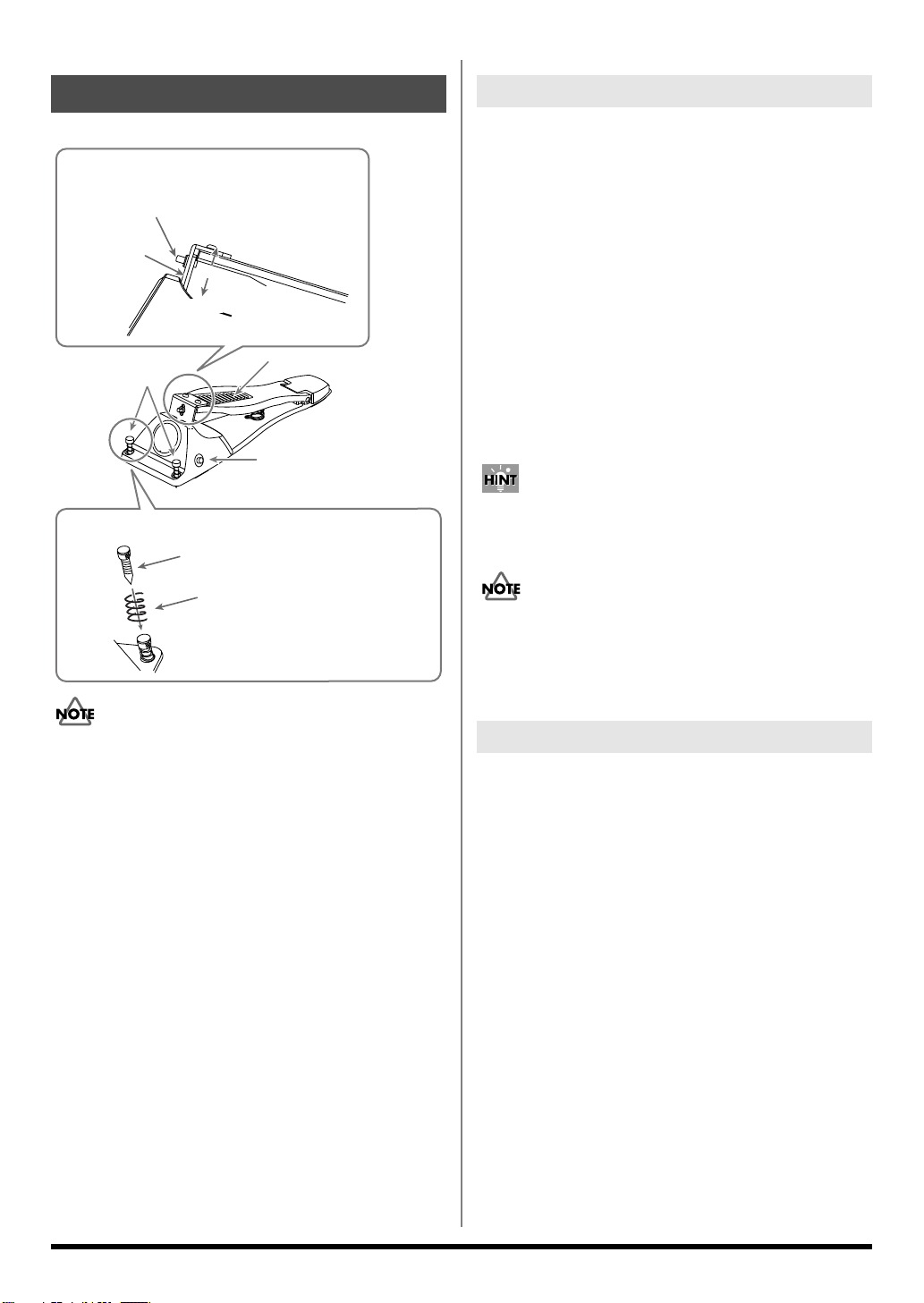

FD-8

(Hi-Hat Control Pedal)

USING THE UNIT SAFELY

Using the FD-8

fig.FD-8.e

Adjusting the Travel of the Pedal

Loosen the nut with a tuning key.
After adjusting, tighten the nut.

Shift the Arm

Anchor Bolt

Attaching the Anchor Bolts (When Using on the Carpet)

deep

shallow

Pedal Plate

Control Out Jack

Anchor Bolt

Spring for
the Anchor Bolt

Using the FD-8, you can control the opening and closing of the

hi-hat sound.

Open Hi-Hat

Strike the hi-hat without pressing the pedal

Half Open Hi-Hat

Strike the hi-hat with the pedal pressed half-way

Closed Hi-Hat

Strike the hi-hat with the pedal pressed

Foot Closed

Completely press down the pedal

The volume of the Foot Closed sound can be adjusted

separately (TD-3 Owner’s Manual; p. 42).

• Connect the FD-8 to the TD-3 before turning on the

power.

• Do NOT press the pedal when turning on the power.

• The tips of the anchor bolts are sharp. Handle with care.

• When using on flooring, the anchor bolts may damage

the floor. Do not attach the anchor bolts.

• When the FD-8 is not going to be used for a long period

of time, move and fix the arm, allowing longer travel for

the pedal.

• To avoid damage, do not leave the FD-8 for extended

periods of time with the pedal plate depressed.

Specifications

FD-8

Dimensions: 130 (W) x 396 (D) x 103 (H) mm

5-1/8 (W) x 15-5/8 (D) x 4-1/16 (H) inches

Weight: 1.3 kg

2 lbs 14 oz

Accessory: Tuning Key

11

USING THE UNIT SAFELY

KD-8

fig.KD-8.e

(Kick)

Output Jack

Stand

Anchor Bolt

Head

3.

Use a tuning key supplied with the FD-8 to
tighten the screws removed in Step 1 so that
the stand is firmly secured.

fig.KD-Assy03

Foot Plate

Making the Settings

1.

Remove the screws attached to the reverse side
of the KD-8’s trigger.

fig.KD-Assy01

2.

Pull out the stand in the direction indicated by
the arrow until it is fully extended.

fig.KD-Assy02

4.

Attach the kick pedal.

Position the beater so that it strikes the center of the head,

then secure the kick pedal and KD-8 firmly in place.

fig.KD-Assy04.e

Beater

Install the kick pedal securely.

Adjusting the Foot Plate Height

Depending on your kick pedal, it can be unstable when you

attach it to the KD-8. Be sure to adjust the foot plate height so

that the entire bottom surface of the pedal is attached to the

floor.

fig.KD-Assy05.e

Beater

Commercially Available Kick Pedal

12

* Adjust the height so that the entire pedal comes
into contact with the floor.

1.

Loosen the stand’s anchor bolts and remove
the foot plate.

fig.KD-Assy06

2.

Set the kick pedal so that the entire bottom
surface is attached to the floor.

3.

In most cases, the stand becomes somewhat
floated. Tighten the anchor bolts securely there
to fix the stand and foot plate.

fig.KD-Assy07.e

This hight will vary depending
on your kick pedal.

Adjusting the Anchor Bolts

When using the kick pedal on a carpet or similar surface,

adjust the anchor bolts so their tips protrude from the plate

and secure the pedal in place; this will make it easier to use the

kick pedal.

However, when used on flooring, the anchor bolts may

damage the floor. Adjust the anchor bolts correctly.

fig.KD-Anchor.e

Adjusting the Anchor Bolts

When Using on the Carpet When using on the Floor

The tips of the anchor bolts are sharp. Handle with care.

USING THE UNIT SAFELY

When Using a Twin Pedal

fig.KD-Pedal1

Position the two beaters

equally apart from the center

of the pad as shown in the

figure at left. If one of the

beater is further away from the

center than the other, the

sound from the further beater

will be lower in volume, or

will not sound as desired.

fig.KD-Pedal2

Using a twin pedal will result

in lower sensitivity as

compared to when a single

pedal is used. Raise the

sensitivity on the sound

module.

• Install the kick pedal securely.

• Take care not to pinch your fingers.

• The tips of the anchor bolts are sharp. Handle with care.

• When moving the setup, be sure to remove the screws

and fold the stand. Transporting the KD-8 while it

remains open may subject the stand to excessive strain

and result in damage to the stand.

Specifications

KD-8

Dimensions: 272 (W) x 260 (D) x 405 (H) mm

10-3/4 (W) x 10-1/4 (D) x 16 (H) inches

Weight: 2.9 kg

6 lbs 7 oz

Accessory: Screws

* Continuous playing may cause dis-coloration of the pad, but

this will not affect the Pad's function.

13

.

CY-8

CY-8

PD-8

PD-8

PD-8

PDX-8

KD-8

FD-8

CY-5

TD-3

USING THE UNIT SAFELY

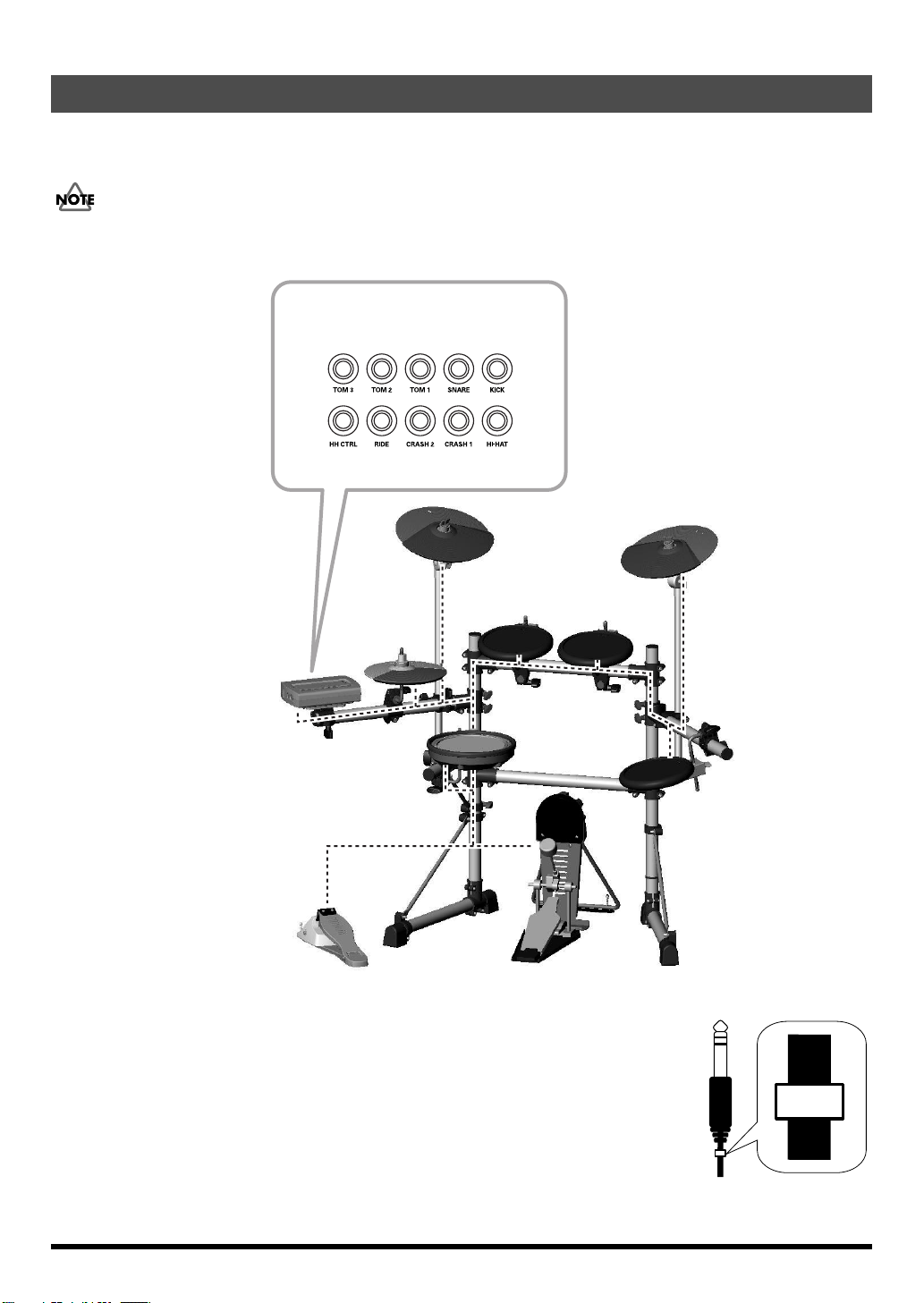

Assemble the “TD-3KW”

921

Using the provided cables, connect the pads.

Connect the L-shaped plugs of the included cables to the pads.

To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power

on all devices before making any connections.

fig.Setting1.e

Trigger Inputs

TD-3

T1T2T3

RD

HHC CR1

CY-8

HH

CY-5

PDX-8

SNR

KIKSNR

HH

CR1

T1

PD-8

KIK

RD

CY-8

T2

PD-8

T3

PD-8

KD-8

HHC

FD-8

fig.Label

1.

Insert the plugs of connecting cables into the TRIGGER INPUTS jacks on the
rear of the TD-3.

2.

Insert the L-sharped plugs into the TRIGGER OUTPUTS jacks of the pads.

* When you connect the cables, please refer to the labels that are attached to both ends of the cables.

14

SNR

.

USING THE UNIT SAFELY

Trigger Settings For TD-3

For the Snare (PDX-8) to function correctly, trigger parameters in the sound module
TD-3 must be adjusted.

For more detailed informations, refer to the TD-3 Owner’s Manual.

.

Adding the Optional Pads to the TD-3KW

When adding a new pad, use trigger input CRASH2.

Examples

Adding a Cymbal

Adding the CY-8 or the CY-5 for a 2nd Crash or a Splash Cymbal. For mounting, use the Cymbal Mount

MDY-10U.

Adding a Tom

Adding the PD-8 for a 2nd floor tom. For mounting, use the Pad Mount MDH-10U.

Options

Kick Trigger Pad: KD-8, KD-7

V-Kick Trigger Pad: KD-85, KD-120

Dual Trigger Pad: PD-8

V-Pad: PDX-8, PD-85, PD-105, PD-125

Cymbal Pad: CY-8, CY-5

V-Cymbal: CY-12R/C, CY-14C, CY-15R

Pad Mount: MDH-10U

Cymbal Mount: MDY-10U

15

Information When you need repair service, call your nearest Roland Service Center or authorized Roland

distributor in your country as shown below.

AFRICA

EGYPT

Al Fanny Trading Office

9, EBN Hagar A1 Askalany
Street,
ARD E1 Golf, Heliopolis,
Cairo 11341, EGYPT
TEL: [phone]

REUNION

Maison FO - YAM Marcel

25 Rue Jules Hermann,
Chaudron - BP79 97 491
Ste Clotilde Cedex,
REUNION ISLAND
TEL: [phone]

SOUTH AFRICA

T.O.M.S. Sound & Music
(Pty)Ltd.

11 Melle St., Braamfontein,
Johannesbourg,
SOUTH AFRICA
TEL: [phone]
FAX: [phone]

Paul Bothner(PTY)Ltd.

Royal Cape Park, Unit 24
Londonderry Road, Ottery 7800
Cape Town, SOUTH AFRICA
TEL: [phone]

ASIA

CHINA

Roland Shanghai Electronics
Co.,Ltd.

5F. No.1500 Pingliang Road
Shanghai 200090, CHINA
TEL: [phone]

Roland Shanghai Electronics
Co.,Ltd.
(BEIJING OFFICE)

10F. No.18 3 Section Anhuaxili
Chaoyang District Beijing
100011 CHINA
TEL: [phone]

HONG KONG

Tom Lee Music Co., Ltd.
Service Division

22-32 Pun Shan Street, Tsuen
Wan, New Territories,
HONG KONG
TEL: [phone]

Parsons Music Ltd.

8th Floor, Railway Plaza, 39
Chatham Road South, T.S.T,
Kowloon, HONG KONG
TEL: [phone]

INDIA

Rivera Digitec (India) Pvt. Ltd.

409, Nirman Kendra
Mahalaxmi Flats Compound
Off. Dr. Edwin Moses Road,
Mumbai-400011, INDIA
TEL: [phone]

INDONESIA

PT Citra IntiRama

J1. Cideng Timur No. 15J-150
Jakarta Pusat
INDONESIA
TEL: [phone]

KOREA

Cosmos Corporation

1461-9, Seocho-Dong,
Seocho Ku, Seoul, KOREA
TEL: [phone]

MALAYSIA

Roland Asia Pacific Sdn. Bhd.

45-1, Block C2, Jalan PJU 1/39,
Dataran Prima, 47301 Petaling
Jaya, Selangor, MALAYSIA
TEL: [phone]

PHILIPPINES

G.A. Yupangco & Co. Inc.

339 Gil J. Puyat Avenue
Makati, Metro Manila 1200,
PHILIPPINES
TEL: [phone]

SINGAPORE

SWEE LEE MUSIC
COMPANY PTE. LTD.

150 Sims Drive,
SINGAPORE 387381
TEL: [phone]

TAIWAN

ROLAND TAIWAN
ENTERPRISE CO., LTD.

Room 5, 9fl. No. 112 Chung
Shan N.Road Sec.2, Taipei,
TAIWAN, R.O.C.
TEL: [phone]

THAILAND

Theera Music Co. , Ltd.

330 Soi Verng NakornKasem,
New Road, Sumpantawongse,
Bangkok 10100, THAILAND
TEL: [phone]

AUSTRALIA/
NEW ZEALAND

AUSTRALIA/
NEW ZEALAND

Roland Corporation
Australia Pty.,Ltd.

38 Campbell Avenue
Dee Why West. NSW 2099
AUSTRALIA

For Australia
Tel: [phone]
For New Zealand
Tel: [phone]

CENTRAL/LATIN
AMERICA

ARGENTINA

Instrumentos Musicales S.A.

Av.Santa Fe 2055
(1123) Buenos Aires
ARGENTINA
TEL: [phone]

BARBADOS

A&B Music Supplies LTD

12 Webster Industrial Park
Wildey, St.Michael, Barbados
TEL: [phone]

BRAZIL

Roland Brasil Ltda.

Rua San Jose, 780 Sala B
Parque Industrial San Jose
Cotia - Sao Paulo - SP, BRAZIL
TEL: [phone]

CHILE

Comercial Fancy II S.A.

Rut.: 96.919.420-1
Nataniel Cox #739, 4th Floor
Santiago - Centro, CHILE
TEL: [phone]

COLOMBIA

Centro Musical Ltda.

Cra 43 B No 25 A 41 Bododega 9
Medellin, Colombia
TEL: [phone]

COSTA RICA

JUAN Bansbach Instrumentos
Musicales

Ave.1. Calle 11, Apartado
10237,
San Jose, COSTA RICA
TEL: [phone]

CURACAO

Zeelandia Music Center Inc.

Orionweg 30
Curacao, Netherland Antilles
TEL:[phone]

DOMINICAN REPUBLIC

Instrumentos Fernando Giraldez

Calle Proyecto Central No.3
Ens.La Esperilla
Santo Domingo,
Dominican Republic
TEL:[phone]

ECUADOR

Mas Musika

Rumichaca 822 y Zaruma
Guayaquil - Ecuador
TEL:[phone]

EL SALVADOR

OMNI MUSIC

75 Avenida Norte y Final
Alameda Juan Pablo II,
Edificio No.4010 San Salvador,
EL SALVADOR
TEL: [phone]

GUATEMALA

Casa Instrumental

Calzada Roosevelt 34-01,zona 11
Ciudad de Guatemala
Guatemala
TEL:[phone]

HONDURAS

Almacen Pajaro Azul S.A. de C.V.

BO.Paz Barahona
3 Ave.11 Calle S.O
San Pedro Sula, Honduras
TEL: [phone]

MARTINIQUE

Musique & Son

Z.I.Les Mangle
97232 Le Lamantin
Martinique F.W.I.
TEL: [phone]

Gigamusic SARL

10 Rte De La Folie
97200 Fort De France
Martinique F.W.I.
TEL: [phone]

MEXICO

Casa Veerkamp, s.a. de c.v.

Av. Toluca No. 323, Col. Olivar
de los Padres 01780 Mexico
D.F. MEXICO
TEL: [phone]

NICARAGUA

Bansbach Instrumentos
Musicales Nicaragua

Altamira D'Este Calle Principal
de la Farmacia 5ta.Avenida
1 Cuadra al Lago.#503
Managua, Nicaragua
TEL: [phone]

PANAMA

SUPRO MUNDIAL, S.A.

Boulevard Andrews, Albrook,
Panama City, REP. DE
PANAMA
TEL: [phone]

PARAGUAY

Distribuidora De
Instrumentos Musicales

J.E. Olear y ESQ. Manduvira
Asuncion PARAGUAY
TEL: [phone]

PERU

Audionet

Distribuciones Musicales SAC
Juan Fanning 530
Miraflores
Lima - Peru
TEL: [phone]

TRINIDAD

AMR Ltd

Ground Floor
Maritime Plaza
Barataria Trinidad W.I.
TEL: [phone]

URUGUAY

Todo Musica S.A.

Francisco Acuna de Figueroa
1771
C.P.: 11.800
Montevideo, URUGUAY
TEL: [phone]

VENEZUELA

Instrumentos Musicales
Allegro,C.A.

Av.las industrias edf.Guitar
import
#7 zona Industrial de Turumo
Caracas, Venezuela
TEL: [phone]

EUROPE

AUSTRIA

Roland Elektronische
Musikinstrumente HmbH.
Austrian Office

Eduard-Bodem-Gasse 8,
A-6020 Innsbruck, AUSTRIA
TEL: [phone]

BELGIUM/FRANCE/
HOLLAND/
LUXEMBOURG

Roland Central Europe N.V.

Houtstraat 3, B-2260, Oevel
(Westerlo) BELGIUM
TEL: [phone]

CZECH REP.

K-AUDIO

Kardasovska 626.
CZ-198 00 Praha 9,
CZECH REP.
TEL: [phone]

DENMARK

Roland Scandinavia A/S

Nordhavnsvej 7, Postbox 880,
DK-2100 Copenhagen
DENMARK
TEL: [phone]

FINLAND

Roland Scandinavia As, Filial
Finland

Elannontie 5
FIN-01510 Vantaa, FINLAND
TEL: [phone]

GERMANY

Roland Elektronische
Musikinstrumente HmbH.

Oststrasse 96, 22844
Norderstedt, GERMANY
TEL: [phone]

GREECE/CYPRUS

STOLLAS S.A.
Music Sound Light

155, New National Road
Patras 26442, GREECE
TEL: [phone]

HUNGARY

Roland East Europe Ltd.

Warehouse Area ‘DEPO’ Pf.83
H-2046 Torokbalint,
HUNGARY
TEL: [phone]

IRELAND

Roland Ireland

G2 Calmount Park, Calmount
Avenue, Dublin 12
Republic of IRELAND
TEL: [phone]

ITALY

Roland Italy S. p. A.

Viale delle Industrie 8,
20020 Arese, Milano, ITALY
TEL: [phone]

NORWAY

Roland Scandinavia Avd.
Kontor Norge

Lilleakerveien 2 Postboks 95
Lilleaker N-0216 Oslo
NORWAY
TEL: [phone]

POLAND

MX MUSIC SP.Z.O.O.

UL. Gibraltarska 4.
PL-03664 Warszawa POLAND
TEL: [phone]

PORTUGAL

Roland Iberia, S.L.
Portugal Office

Cais das Pedras, 8/9-1 Dto
4050-465, Porto, PORTUGAL
TEL: [phone]

ROMANIA

FBS LINES

Piata Libertatii 1,
535500 Gheorgheni,
ROMANIA
TEL: [phone]

RUSSIA

MuTek

Dorozhnaya ul.3,korp.6
117 545 Moscow, RUSSIA
TEL: [phone]

SPAIN

Roland Iberia, S.L.

Paseo García Faria, 33-35
08005 Barcelona SPAIN
TEL: [phone]

SWEDEN

Roland Scandinavia A/S
SWEDISH SALES OFFICE

Danvik Center 28, 2 tr.
S-131 30 Nacka SWEDEN
TEL: [phone]

SWITZERLAND

Roland (Switzerland) AG

Landstrasse 5, Postfach,
CH-4452 Itingen,
SWITZERLAND
TEL: [phone]

UKRAINE

TIC-TAC

Mira Str. 19/108
P.O. Box 180
295400 Munkachevo,
UKRAINE
TEL: [phone]

UNITED KINGDOM

Roland (U.K.) Ltd.

Atlantic Close, Swansea
Enterprise Park, SWANSEA
SA7 9FJ,
UNITED KINGDOM
TEL: [phone]

MIDDLE EAST

BAHRAIN

Moon Stores

No.16, Bab Al Bahrain Avenue,
P.O.Box 247, Manama 304,
State of BAHRAIN
TEL: [phone]

IRAN

MOCO INC.

No.41 Nike St., Dr.Shariyati Ave.,
Roberoye Cerahe Mirdamad
Tehran, IRAN
TEL: [phone]

ISRAEL

Halilit P. Greenspoon & Sons
Ltd.

8 Retzif Ha'aliya Hashnya St.
Tel-Aviv-Yafo ISRAEL
TEL: [phone]

JORDAN

MUSIC HOUSE CO. LTD.
FREDDY FOR MUSIC

P. O. Box 922846
Amman 11192 JORDAN
TEL: [phone]

KUWAIT

EASA HUSAIN AL-YOUSIFI
& SONS CO.

Abdullah Salem Street,
Safat, KUWAIT
TEL: [phone]

LEBANON

Chahine S.A.L.

Gerge Zeidan St., Chahine
Bldg., Achrafieh, P.O.Box: 16­5857
Beirut, LEBANON
TEL: [phone]

OMAN

TALENTZ CENTRE L.L.C.

Malatan House No.1
Al Noor Street, Ruwi
SULTANATE OF OMAN
TEL: [phone]

QATAR

Al Emadi Co. (Badie Studio &
Stores)

P.O. Box 62, Doha, QATAR
TEL: [phone]

SAUDI ARABIA

aDawliah Universal
Electronics APL

Corniche Road, Aldossary
Bldg., 1st Floor, Alkhobar,
SAUDI ARABIA

P.O.Box 2154, Alkhobar 31952
SAUDI ARABIA
TEL: [phone]

SYRIA

Technical Light & Sound
Center

Rawda, Abdul Qader Jazairi St.
Bldg. No. 21, P.O.BOX 13520,
Damascus, SYRIA
TEL: [phone]

TURKEY

ZUHAL DIS TICARET A.S.

Galip Dede Cad. No.37
Beyoglu - Istanbul / TURKEY
TEL: [phone]

U.A.E.

Zak Electronics & Musical
Instruments Co. L.L.C.

Zabeel Road, Al Sherooq Bldg.,
No. 14, Grand Floor, Dubai,
U.A.E.
TEL: [phone]

NORTH AMERICA

CANADA

Roland Canada Ltd.
(Head Office)

5480 Parkwood Way
Richmond B. C., V6V 2M4
CANADA
TEL: [phone]

Roland Canada Ltd.
(Toronto Office)

170 Admiral Boulevard
Mississauga On L5T 2N6
CANADA
TEL: [phone]

U. S. A.

Roland Corporation U.S.

5100 S. Eastern Avenue
Los Angeles, CA 90040-2938,
U. S. A.
TEL: [phone]

As of August 1, 2006 (ROLAND)

04234178 3PR
