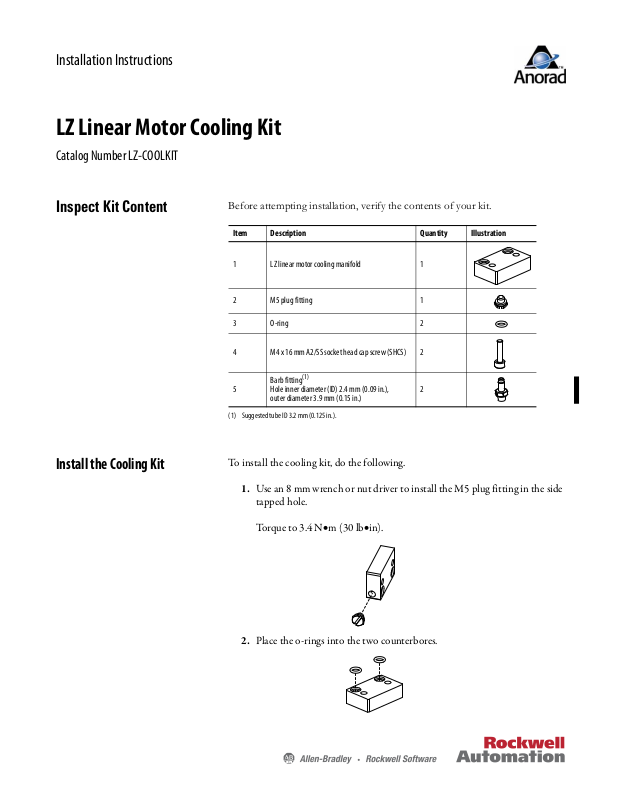

Installation Instructions
LZ Linear Motor Cooling Kit
Catalog Number LZ-COOLKIT
Inspect Kit Content
Install the Cooling Kit
Before attempting installation, verify the contents of your kit.
Item Description Quantity Illustration
1 LZ linear motor cooling manifold 1
2 M5 plug fitting 1
3O-ring 2
4 M4 x 16 mm A2/SS socket head cap screw (SHCS) 2
5
(1) Suggested tube ID 3.2 mm (0.125 in.).
To install the cooling kit, do the following.
Barb fitting
Hole inner diameter (ID) 2.4 mm (0.09 in.),
outer diameter 3.9 mm (0.15 in.)
1. Use an 8 mm wrench or nut driver to install the M5 plug fitting in the side
tapped hole.
(1)
2
Torqu e t o 3 .4 Nm(30lbin).
2. Place the o-rings into the two counterbores.
![](/html/1a/1aa9/1aa91702407758af09bb157909cd5f8c842b8281ffc1dd55141e32b5ac67af3b/bg2.png)
3. Attach the manifold to the coil mounting bar as shown by securing to the
tapped holes with M4 SHCS.
Torqu e t o 3 .4 N m(30lbin) using a 3 mm hex key.
4. Install the barb fittings to the cable end of the coil.
Torque to 3.4 Nm (30 lbin) using an 8 mm wrench or nut driver.
Additional Resource
This document contain additional information concerning related Anorad
products.
Resource Description
LZ-Series Linear Motors User Manual, publication
.
LZ-UM001
Provides details about LZ-Series linear motors.
You can view or download publications at
http://www.rockwellautomation.com/literature/
. To order paper copies of
technical documentation, contact your local Allen-Bradley distributor or
Rockwell Automation sales representative.
