GuardShield™ Micro 400
Safety Light Curtains
User Manual
R
Important User Information
Because of the variety of uses for the products described in this publication, those responsible for the
application and use of this control equipment must satisfy themselves that all necessary steps have been
taken to assure that each application and use meets all performance and safety requirements, including
any applicable laws, regulations, codes and standards.
Reproduction of the contents of this copyrighted publication, in whole or part, without written permission
of Rockwell Automation, is prohibited.
Throughout this manual we use notes to make you aware of safety considerations:
The illustrations, charts, sample programs and layout examples shown in the guide are intended solely for
purposes of example. Since there are many variables and requirements associated with any particular
installation, Rockwell Automation does not assume responsibility or liability (to include intellectual property
liability) for actual use based upon the examples shown in this publication.
Rockwell Automation publication SGI-1.1, Safety Guidelines for the Application, Installation and
Maintenance of Solid-State Control (available from your local Rockwell Automation sales oce), describes
some important dierences between solid-state equipment and electromechanical devices that should be
taken into consideration when applying products such as those described in this publication.
It is recommended that you save this user manual for future use.
Identies information about practices or circumstances that can cause an explosion in
a hazardous environment, which may lead to personal injury or death, property
damage, or economic loss.
Identies information that is critical for successful application and understanding of
the product.
Identies information about practices or circumstances that can lead to personal
injury or death, property damage, or economic loss. Attentions help you identify a
hazard, avoid a hazard, and recognize the consequences.
SHOCK HAZARD
Labels may be on or inside the equipment (for example, drive or motor) to alert people
that dangerous voltage may be present.
BURN HAZARD
Labels may be on or inside the equipment (for example, drive or motor) to alert people
that surfaces may reach dangerous temperatures.
WARNING
IMPORTANT
ATTENTION
GuardShield™ Micro 400 Safety Light Curtain User Manual
R
Conditions required for proper use of the
GuardShield Micro 400 Safety Light Curtain
Please make sure you read and understand these requirements before you select and install the
GuardShield Micro 400 safety light curtain. GuardShield safety light curtains are point of operation
and perimeter access safeguarding devices. These safety light curtains are intended to be used to
to provide point of operation and perimeter access safeguarding of personnel on a variety of
machinery.
GuardShield Micro 400 safety light curtains are presence sensing devices and will not protect
personnel from heat, chemicals, or ying parts. They are intended to signal a stop of hazardous
machine motion when the sensing eld is broken.
The GuardShield Micro 400 family of safety light curtains are general purpose presence sensing
devices which are designed to protect personnel working on or near machinery.
It is the responsibility of the employer to properly install, operate and maintain the product as
well as the machinery on which the GuardShield Micro 400 presence sensing device is installed.
The installation of GuardShield Micro 400 safety light curtains must comply with all applicable
federal, state, and local rules, regulations, and codes.
GuardShield Micro 400 safety light curtains must be properly installed by qualied personnel.
GuardShield Micro 400 safety light curtains can only be used on machinery which can be stopped
anywhere in its stroke or cycle.
GuardShield Micro 400 safety light curtains should never be used on full revolution clutched
machinery.
The eectiveness of the GuardShield Micro 400 safety light curtains depends upon the integrity
of the machine control circuit. The machinery on which the GuardShield Micro 400 presence
sensing device is installed should have control circuitry that is fail safe in design.
All stopping mechanisms for the machinery should be inspected regularly to ensure proper
operation. The protected machinery must have a consistent reliable and repeatable stopping
time.
ATTENTION
Failure to read and follow these instructions can lead to misapplication or
misuse of the GuardShield Micro 400 safety light curtains, resulting in personal
injury and damage to equipment.
Original instructions
1
GuardShield™ Micro 400 Safety Light Curtain User Manual
Save these instructions for use at a future time.
Generally recognized technical regulations and quality
assurance system ISO 9000 are carefully applied during the
development and production of Allen-Bradley/Guardmaster
products.
This technical description must be followed when installing
and commissioning the GuardShield Micro 400. Inspection
and commissioning must be carried out by a qualified
person.
Table of Contents
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Important Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Principles for Safe Use and Symbols Used. . . . . . . . . . . . . . . . . . 4
Specialist Personnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Range of Uses of the Device . . . . . . . . . . . . . . . . . . . . . . . .4
Proper Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Protective Notes and Protective Measures. . . . . . . . . 5
Product Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Special Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Principles of Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
The GuardShield Light Curtain. . . . . . . . . . . . . . . . . . . . . .6
Cascading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Examples of Range of Use . . . . . . . . . . . . . . . . . . . . . . . . . .6
Safety Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Response Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Blanking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Determining the Safety Distance. . . . . . . . . . . . . . . . . . . . 8
US Safety Distance Formula . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
OSHA Safety Distance Calculation Formula . . . . . . . . . . . . . . . . 8
The ANSI Safety Distance Formula. . . . . . . . . . . . . . . . . . . . . . . . . 8
European Safety Distance Formula . . . . . . . . . . . . . . . . . . . . . . . . 9
Minimum Distance from Reflecting Surfaces . . . . . . . . . . . . . . . 9
Installation and Mounting. . . . . . . . . . . . . . . . . . . . . . . . 10
Correct Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Incorrect Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation and Alignment Procedure. . . . . . . . . . . . . 11
Standard GuardShield Micro 400 . . . . . . . . . . . . . . . . . . . . . . . . . 11
Multiple GuardShield Micro 400 . . . . . . . . . . . . . . . . . . . . . . . . . .11
Cascaded GuardShield Micro 400. . . . . . . . . . . . . . . . . . . . . . . . . 12
Mounting and Alignment of Cascading GuardShield . . . . . . 13
Micro 400 IP69K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Mounting Brackets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Electrical Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
External test signal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Power supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Bringing into operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Corrective Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Safety Instructions—Maintenance . . . . . . . . . . . . . . . . 18
Daily Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Six-Month Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Product Label. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Catalog Number Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . .21
GuardShield Micro 400 Products . . . . . . . . . . . . . . . . . . 21
Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Cascades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
IP69K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
GuardShield Micro 400 Standard . . . . . . . . . . . . . . . . . . . . . . . . .23
GuardShield Micro 400 Cascades . . . . . . . . . . . . . . . . . . . . . . . . .23
GuardShield Micro 400 IP69K. . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Certificate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
EC Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
GuardShield Micro 400 Special Safety Light Curtain Systems.
28
Systems with Reinforced Profiles. . . . . . . . . . . . . . . . . . . . . . . . . .28
Perimeter Systems (PAC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Special Patchcords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Special Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
This manual covers the operation and installation
of the:
• GuardShield Micro 400 POC,
• GuardShield Micro 400 IP69K systems, and
• GuardShield Micro 400 special configurations in the appendix
IMPORTANT
Rockwell Automation reserves the right to make changes or
revisions to the material contained in this publication and cannot
be held liable for incidental or consequential damages resulting
from the furnishing, performance or use of this material.
2
Original instructions
R
R
GuardShield™ Micro 400 Safety Light Curtain User Manual
IMPORTANT
These installation instructions are designed to
address the technical personnel of the machine
manufacturer and or the installer of the safety
system regarding the proper mounting,
configuration, electrical installation,
commissioning, operation and maintenance of
the GuardShield Micro 400 safety light curtain.
These installation instructions do not provide
instruction for the operation of machinery to
which the GuardShield Micro 400 safety light
curtain is, or will be, integrated. Only qualified
personnel should install this equipment.
Introduction
The GuardShield Micro 400 is an economical three box
(transmitter, receiver and controller) Type 4 safety light curtain
offered in a small profile (15 x 20 mm (0.59 x 0.79 in.)) housing.
The protective heights are offered from 150…1200 mm
(5.9…47.24 in.) in 150 mm (5.9 in.) increments. The compact
housing size allows the GuardShield Micro 400 to be mounted in
areas where standard safety light curtains may not be able to be
mounted due to space constraints. It is also possible to recess the
GuardShield Micro 400 transmitter and receiver into machine
frames.
Micro 400 System
The Micro 400 requires a dedicated controller, either an MSR41
which has ON/OFF functionality or an MSR42 which offers
advanced functionality of fixed and floating blanking, manual
restart and muting. The MSR42 can also be used as a multi
function safety module, allowing the connection of additional
safety light curtains, safety laser scanner — any safety device with
PNP type outputs.
The Micro 400 transmitter and receiver are offered with 8-pin M12
connectors at the end of 500 mm (20 in.) integrated cables. The
patchcords to connect the transmitter and receiver to the
controller are the same part number and are offered in a variety of
lengths. These patchcords are configured on one end with M12
connectors which mate to the integrated pigtail connectors and
RJ45 connectors on the opposite end which plug into to the MSR
41 or MSR42 controllers.
Micro 400 Cascading
The GuardShield Micro 400 is also offered in a “cascadeable”
configuration. GuardShield Cascadeable Micro 400 safety light
curtains allow the interconnection of multiple segments of the
Micro 400 safety light curtain with a common pair of safety
outputs. This cascadeable configurability of the GuardShield
Micro 400 reduces overall system wiring and allows the
GuardShield Micro 400 to be fitted into a variety of applications
where the safety distances for mounting the light curtain may
allow personnel to stand between the light curtain’s sensing field
and the hazard or where multiple-sided guarding is required and
the use of corner mirrors is not possible.
A GuardShield Cascadeable Micro 400 safety light curtain system
is comprised of one or two pair of Cascadeable Micro 400 light
curtains as well as a standard Micro 400 pair as the last segment
pair in the cascaded system.
GuardShield Micro 400 cascaded pairs are offered in both 14 mm
(0.55 in.) and 30 mm (1.18 in.) resolutions in limited protected
heights. It is possible to mix 14 mm (0.55 in.) and 30 mm (1.18 in.)
resolution pairs in a Cascaded Micro 400 system.

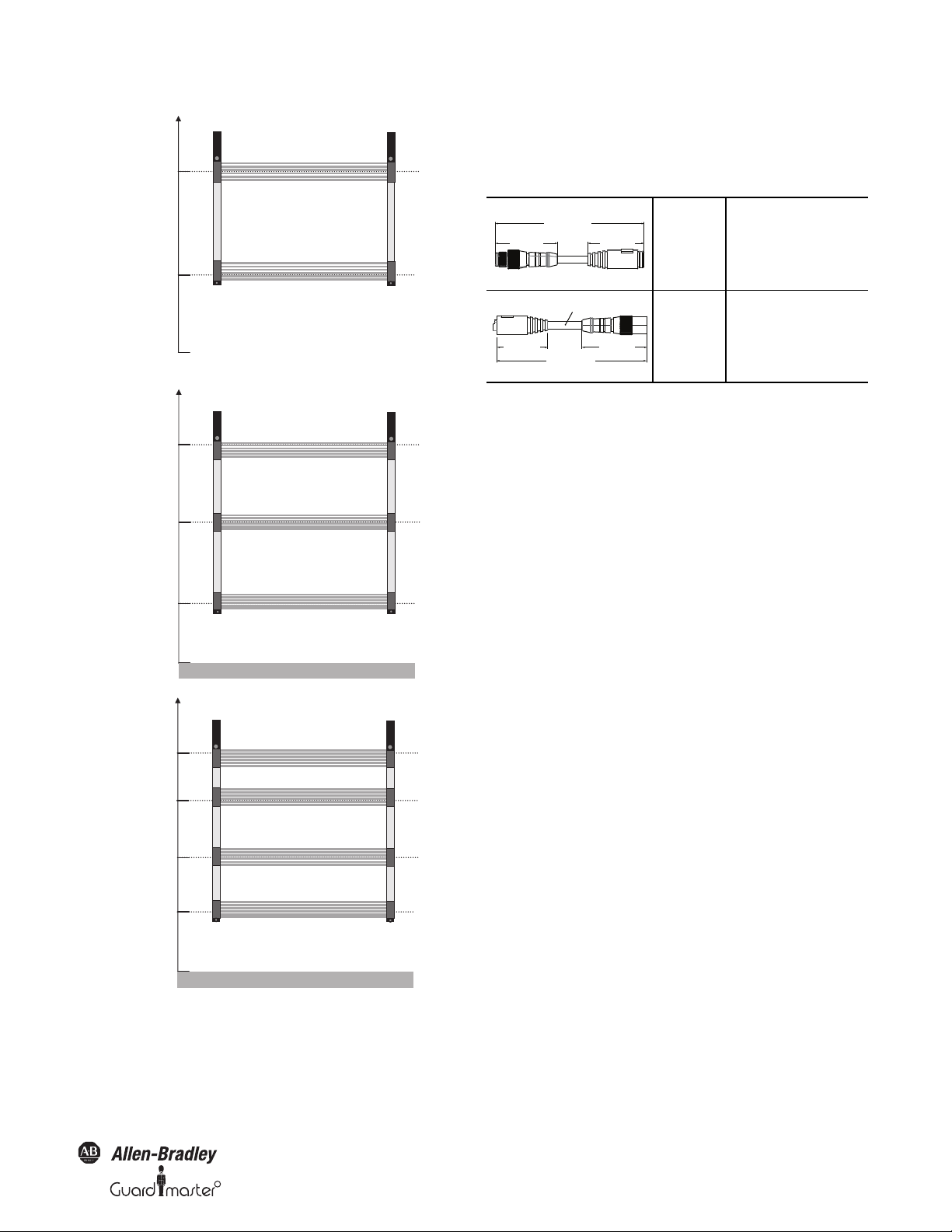

When connecting two cascadeable segments together, the
resultant cable length between segments is 1000 mm (40 in.).
If an additional length between segment pairs is required,
Rockwell offers an M12 to M12 patchcord in 1, 3, and 5 m (3.3, 9.8,
and 16.3 ft) lengths (445L-AC8PC1 or 445L-AC8PC3).
Note: The maximum Cascaded Micro 400 system length can not
exceed 10 m (32.8 ft) as measured between the RJ45
connection at the MSR 41 or MSR 42 Controller to the last
beam in the standard Micro 400, including all cable
lengths. The maximum number of beams in a cascaded
Micro 400 system can not exceed 255 beams.
Micro 400 Washdown Option
The GuardShield Micro 400 is offered with the transmitter and
receiver sealed in clear polycarbonate tubes with an
environmental rating of IP69K. These IP69K Micro 400 light
curtains are factory sealed and are ordered as pairs. They are
offered in a 14 mm (0.55 in.) resolution in protected heights of
150, 300, 600, 900, and 1200 mm (5.9, 11.8, 23.6, 35.4, and 47.2 in.).
The required MSR41 or MSR42 controllers maintain the IP20 rating
and must be mounted in a suitable enclosure.
The Micro 400 IP69K transmitter and receiver are both offered
with
8-pin M12 connectors at the end of 500 mm (20 in.) integrated
cables. The patchcords to connect the transmitter and receiver to
the controller are the same part number and are offered in 1, 2, 3,
5, and 8m (3.3, 6.6, 9.8, 16.4, and 26.2 ft) lengths.
These patchcords are configured on one end with M12
connectors which mate to the integrated pigtail connectors and
RJ45 connectors on the opposite end which plug into to the
MSR42 or MSR41 controller.
Micro 400 Specials
In addition to the standard GuardShield Micro 400 configurations,
the GuardShield Micro 400 is also offered in special configurations
as described in the Appendix.
The GuardShield Micro 400 family of safety light curtains are
general purpose presence sensing devices, designed for use on
hazardous machinery providing point of operation (POC), as well
as, perimeter (PAC) detection.
Note: The standard GuardShield Micro 400 must always be the
last segment in a Cascaded Micro 400 system
A cascadeable pair of GuardShield Micro 400 light curtains has a
500 mm (20 in.) pigtail with a female M12 quick disconnect on the
bottom of the Micro 400 light curtain and a 500 mm (20 in.) pigtail
with a male M12 quick disconnect attached to the top of the
Micro 400 transmitter and receiver.
The GuardShield Cascadeable Micro 400 system operates as a
single light curtain pair with a common set of OSSDs. Each
segment pair is connected in series making the complete system’s
response time the sum of each segment pair, plus the response
time of the MSR41 or MSR42 and other safety devices in the stop
circuit.
Original instructions
Important Requirements
The GuardShield Micro 400 requires a dedicated controller. The
MSR41 controller is used for on/off applications and the MSR42
can also be used as a multi-functional safety module, allowing the
connection of additional safety light curtains, safety laser scanner,
or any safety device with two Output Signal Switch Devices
3
GuardShield™ Micro 400 Safety Light Curtain User Manual
Identifies information about practices or
circumstances that can lead to personal
injury or death, property damage, or
economic loss. Attentions help you identify a
hazard, avoid a hazard, and recognize the
consequences.
Identifies information that is critical for
successful appilcation and understanding of
the product.
ATTENTION
The GuardShield Micro 400 must not be used
with machines that cannot be stopped
electrically in an emergency.
The safety distance between the GuardShield
Micro 400 and a dangerous machine
movement has to be maintained at all times.
Additional mechanical protective devices
have to be installed in a way that hazardous
machine elements cannot be reached without
passing through the protective field.
The GuardShield Micro 400 has to be installed
in a way that operators can only access the
hazard through the sensing field of the Micro
400.
Improper installation can result in serious
injury.
Never connect the outputs to +24V DC. If the
outputs are connected to +24V DC, they are in
ON-state and cannot stop hazardous spots at
the machine/application.
Never expose the GuardShield Micro 400 to
flammable or explosive gases.
Regular safety inspections are imperative (see
maintenance).
(OSSD) outputs, or two contacts, such as E-Stops and enabling
switches.
There are a number of operating modes that can be configured
with the MSR42 controller. EDM, Start/Restart interlock, fixed and
floating blanking and muting are possible.
Safety Precautions
Principles for Safe Use and Symbols Used
The following instructions are preventive warnings to ensure the
safe and proper operation of the GuardShield Micro 400 light
curtains. These instructions are an essential part of the safety
precautions and therefore have to be observed at any time.
Throughout this manual we use the labels ATTENTION and
IMPORTANT to alert you to the following:
ATTENTION
ATTENTION helps you
• Identify a hazard
•Avoid a hazard
• Recognize the consequences
IMPORTANT: Identifies information that is especially important
for successful application and understanding of the product.
IMPORTANT
Specialist Personnel
The GuardShield Micro 400 safety light curtain must be installed,
commissioned and serviced only by a qualified person. A qualified
person is defined as a person who:
• Has undergone the appropriate technical training
and
• Who has been instructed by the responsible machine operator
in the operation of the machine and the currently valid safety
guidelines
and
• Who has read and has ongoing access to these installation
instructions
4
Range of Uses of the Device
The GuardShield Micro 400 safety light curtain is classified as
electro-sensitive protective equipment (ESPE). It fulfills the
requirements of a Type 4 ESPE defined by IEC 61496-1 and CLC/TS
61496-2 and is, therefore, allowed for use with controls in safety
category Type 4 in compliance with EN ISO 13849, SIL CL3 in
accordance with EN62061 or up to PLe in accordance with EN ISO
13849.
These devices are suitable for:
• Point of operation protection (finger and hand protection)
• Hazardous area protection
Access to the hazardous point must be allowed only through the
protective field. The machine/system is not allowed to start as
long as personnel are within the hazardous area. Refer to the

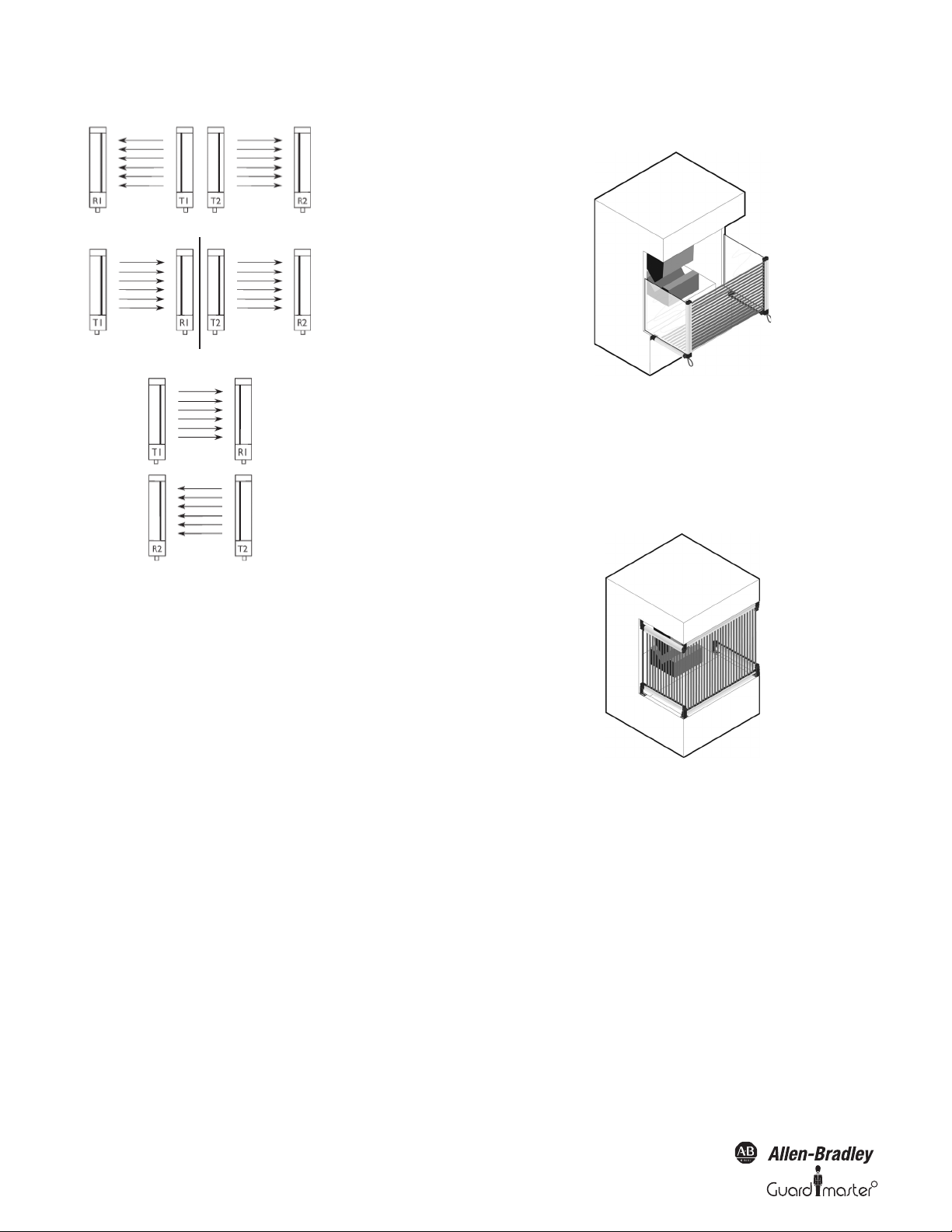

“Examples of Range of Use” on page 6 for an illustration of the
protection modes.
Depending on the application, mechanical protection devices
may be required in addition to the safety light curtain.
Original instructions
R
R
GuardShield™ Micro 400 Safety Light Curtain User Manual
Safety Notes
Please observe the following items in order to
ensure the proper and safe use of the
GuardShield Micro 400 safety light curtain.
POC:
The physical resolution of the GuardShield Micro 400 POC is
• 14 mm (0.55 in.) or
• 30 mm (1.18 in.).
The protective field height of standard GuardShield Micro 400 is
between 150 mm (5.91 in.) and 1200 mm (47.2 in.).
The maximum protective field width is 0…5 m (16.4 ft).
Cascadable Micro 400
The physical resolution of cascadable GuardShield Micro 400 POC
is
• 14 mm (0.55 in.) or
• 30 mm (1.18 in.).
The protective field height of cascadable GuardShield Micro 400 is
between 300 mm (11.82 in.) and 1200 mm (47.2 in.). The
maximum protective field width is 0…5 m (16.4 ft).
Micro 400 IP69K Option
The physical resolution of the GuardShield Micro 400 IP69K is
14 mm (0.55 in.). The protective field height of GuardShield Micro
400 IP69K is between 300 mm (11.8 in.) and 1200 mm (47.2 in.).
The maximum protective field width is 0…5 m (16.4 ft).
The Micro 400 IP69K option has the Micro 400 light curtains
factory sealed in polycarbonate enclosures.
The GuardShield Micro 400 require a controller to operate in
conjunction with one of the following safety controllers
• MSR41 ON/OFF functionality
• MSR42 multi-function module
Proper Use
The GuardShield Micro 400 safety light curtain must be used only
as defined in the “Range of Uses of the Device.” It must be used
only by qualified personnel and only on the machine where it has
been installed and initialized by qualified personnel.
If the device is used for any other purposes or modified in any
way, warranty claims against Allen-Bradley/Guardmaster shall
become null and void.
General Protective Notes and Protective Measures
IMPORTANT
The national/international rules and regulations apply to the
installation, use and periodic technical inspections of the safety
light curtain, in particular:
• Machine Directive 2006/42/EC
• Low Voltage Directive 2006/95/EC
• Use of Work Directive (2009/104/EC)
• The work safety regulations/safety rules
• Other relevant health and safety regulations
Manufacturers and users of the machine with which the safety
light curtain is used are responsible for obtaining and observing
all applicable safety regulations and rules.
• The notices, in particular the test regulations of these
installation instructions (e.g. on use, mounting, installation or
integration into the existing machine controller) must be
observed.
• The tests must be carried out by specialist personnel or
specially qualified and authorized personnel and must be
recorded and documented to ensure that the tests can be
reconstructed and retraced at any time.
• The installation instructions must be made available to the
user of the machine where the GuardShield Micro 400 safety
light curtain is installed. The machine operator is to be
instructed in the use of the device by specialist personnel and
must be instructed to read the installation instructions.
Product Description
This section provides information on the special features and
properties of the safety light curtain. It describes the structure
and functions of the unit, in particular the different operating
modes.
Please read this section before mounting, installing and
commissioning the unit.
Special Features
• Slim design 15 x 20 mm (0.59 x 0.79 in.)
• Built in diagnostic LEDs
•HW configurable with MSR41
• HW and SW configurable with MSR42
• M12 connector on 20 inch pigtails
• Maintenance free and cost effective
Principle of Operation
The GuardShield Micro 400 safety light curtain consists of a nonmatched pair of optic units, i.e., transmitter and receiver with the
same protected height and resolution. The controller
functionality of the Micro 400 light curtains are through a
separate control module.
• MSR41 ON/OFF functionality
• MSR42 multi-function module
The maximum distance between transmitter and receiver is
referred to as the protective field width or range. The protective
field height is the distance between the first and last beam in the
device.
The transmitter emits sequential pulses of infrared light which are
received by the GuardShield Micro 400 receiver and processed by
the connected controller. The synchronization of the timing of the
emission and reception of infrared light pulses is accomplished by
the connected MSR controller.
The connected controller has safety outputs [Output Signal
Switching Devices (OSSDs)] and nonsafety auxiliary outputs.
When the GuardShield Micro 400 transmitter and receiver are
properly connected and aligned, the OSSDs of the connected
controller are current sourcing +24V DC. Interruption of the
sensing field causes the controller to switch the sourced current
OFF (0V DC).
Original instructions
5
GuardShield™ Micro 400 Safety Light Curtain User Manual
Operating mode as manual or automatic restart
(reset), EDM (external device monitoring),
blanked beams or overriding of the
GuardShield Micro 400 are controlled from the
connected safety controller (e.g. MSR42). For
details see user manual of the connected safety
controller.
Tra ns mi tt er
(white)
Receiver
(blue marking)
Restoring the GuardShield Micro 400 sensing field, (in Guard only
configuration) causes all safety outputs (OSSDs) of the connected
controller to switch to the active high state (resume current
sourcing +24V DC).
IMPORTANT
The GuardShield Light Curtain
The GuardShield Micro 400 safety light curtain consists of a
transmitter and a receiver.
Figure 1: Components of the GuardShield Micro 400
The protective field is between the bottom of the top end cap and
the area above the status LEDs.
The width of the protective field is derived from the length of the
light path between transmitter and receiver and must not exceed
the maximum rated width of the protective field 0…5 m (0…16.4
ft).
Cascading
The GuardShield, Micro 400 POC is also available in cascading
segments which allow a number of GuardShield Micro 400
transmitters and receivers to be interconnected. This product
configurability allows the GuardShield Micro 400 to protect
multiple sides of a machine or simply adds flexibility when
positioning the GuardShield Micro 400 in various applications.
Patchcords
Last segment pair
must be a standard
Micro 400 pair
Figure 2: Up to three GuardShield Micro 400 segments can be interconnected. For limitations
see text.
Standard GuardShield Micro 400 cascading segments are offered
in protective heights from 300…1200 mm (11.8…47.2 in.) in both
14 mm (0.55 in.) and 30 mm (1.18 in.) resolutions.
A maximum of three GuardShield Micro 400 light curtains can be
interconnected (maximum two cascades plus one standard
GuardShield Micro 400). The maximum number of beams in a
cascading system is 255 beams. The individual segments can have
mixed resolutions, i.e., 14 mm and 30 mm as long as the pairs
have the same protective heights and resolutions. The maximum
cable length from the control unit to the last beam can be 10 m.
Cascading segments cannot be used as standalone light curtain
pairs.
However, if using multiple cascaded pairs or only one, the last pair
in the cascaded system must be a standard GuardShield Micro
400 light curtain.
The following limitations need to be considered:
• A maximum of 255 light beams per controller
• 10 m maximum total length for light curtains, extension
modules and connection cable combined (Figure 2)
• Only a Rockwell patchcord (445L-AC8xxx) may be used
between the light curtains and the controller. A patchcord is
required to connect the M12 connector of the Micro 400 to
either the MSR41 or MSR42 controller. The patchcord has an
8-pin M12 on one end and an RJ45 connector on opposite end.
6
Examples of Range of Use
The GuardShield Micro 400 safety light curtain operates as a
proper protective device only if the following conditions are met:
• The control of the machine must be electrical.
• The controlled machine must be able to be stopped any where
in the machines stroke or cycle.
• The transmitter and receiver must be mounted such that
access to the hazard is only through the light curtain’s
protective field.
• If used as an access device, the restart button must be located
outside the hazardous area such that it can not be operated by
a person working inside the hazardous area.
• The statutory and local rules and regulations must be observed
when installing and using the device.
Original instructions
R
R
IMPORTANT
Additional measures may be necessary to
ensure that the ESPE does not fail to danger
when other forms of light radiation are present
in a particular application (i.e., use of cableless
control devices on cranes, radiation from weld
spatter or effects from strobe lights).
The protective system must be tested for
proper operation after each and every change
to the configuration.
IMPORTANT
The response time of the GuardShield Micro 400
light curtain system is dependent on the
opera ting mode of the connected safety controller.
With the help of an optical interface (445LAF6150) it is also possible, to delay the response
time of the connected safety light curtain
system, when the GuardShield Micro 400 is
connected to the MSR42 controller.
If a controller unit is reconfigured, a new
configuration control document must be
printed and has to be kept close to the
controller. Also the corresponding control unit
has to be marked with the provided label.
IMPORTANT
When making changes to the configuration of
the GuardShield Micro 400 system, it is
necessary to recalculate the safety distance and
potentially relocate the GuardShield Micro 400
light curtains at the proper distance from the
hazard.
IMPORTANT
The device can be operated in a fixed and/or
floating blanking mode if an MSR42 controller
is used. The resolution will increase according
configuration control document. The light
curtain stick has to be clearly labeled with the
configured resolution.
Safety Functions
The GuardShield Micro 400 safety light curtain offers a variety of
functions, which are integral to the system.
Operating modes, functions and features of the GuardShield
system are activated through HW or SW of the corresponding
connected MSR41 or MSR42 controller. For details, please refer to
the manual of the attached controller.
IMPORTANT
Response Time
The standard response time of the light curtain (see MSR42)is
dependant on the physical resolution and the protective height and is
shown on the product label. The actual response time depends on
the connected control unit and its configuration. The response
time may be faster and can be taken from the corresponding
configuration control document, created from the configuration
software of the corresponding safety controller (e.g., MSR42).
The total light curtain system response time for a cascaded
system is the sum of the response times of each cascade plus the
response time of the standard light curtain. The declared
response times are worst case values.
A worst case response time is printed on the product label or in
the GuardShield Micro 400 Products section:
t
LC
t
C
t
Nx
Example of the total response time of a cascaded light curtain:
Response time of the standard Micro 400 light
curtain
Response time of the control unit (e.g., MSR42)
including any connected MSR45 relay modules
Sum of response times tNx of all additional
connected GuardShield Micro 400 light curtain
cascades (x = 1 or 2)
GuardShield™ Micro 400 Safety Light Curtain User Manual
A detailed explanation, including the corresponding safety
information, for configuring a MSR42 controller module may be
found in the "Configuration Tool" program manual.
Parameters which may lead to an increased response time:
• Stop delay time
•Blanking
•Muting
• Using an MSR45E relay expansion module
Blanking
There are some industrial applications where material must be fed
through the protective field (e.g., textile machines or small
assembly machines). This movement of material through the
GuardShield Micro 400’s sensing field in the standard safety mode
would result in an interruption and therefore bring the machine
to an unwanted stop. To avoid this it is possible to blank out
certain beams. This operating mode is generally known as “Fixed
Blanking.” Blanking functionality is available with the MSR42
controller and requires the optical interface module to program
this functionality.
Description Length/Resolution
+ tC + tN)
LC
)
N1
)
N2
)
LC
1200/14 mm 41.9 ms
300/14 mm 18.5 ms
600/14 mm 26.3 ms
1200/14-300/14-600/14 mm
Cascade 1 (t
Cascade 2 (t
Standard (t
System (t
Ta ble 1 :
The response time printed on the product label reflects the
double scan mode of the MSR41 and MSR42 controller.
Response time
88.7 ms + tC
Original instructions
With a MSR42 safety controller and an Optical Interface
(445L-AF6150) it is possible for authorized personnel to activate
different blanking modes. Blanking modes are broken down into
the following categories:
•Fixed blanking
•Floating blanking
7
GuardShield™ Micro 400 Safety Light Curtain User Manual
With the blanking function, the resolution and
the response time of the GuardShield Micro 400
light curtain system will be changed. If the
"Blanking" function is activated, a new, longer
response time and a new, larger resolution will
be present, which must be applied to the
calculation of the safety distance. The minimal
safety distance of the light curtain must always
be adapted to the actual operating mode. The
corresponding reaction time of a light curtain
without blanking is stated on the label of each
system. If blanking is configured, the new
reaction time, and the new resolution,
according to the configuration control
document must be entered in the appropriate
spaces on the supplied label, and attached to
the GuardShield Micro 400 light curtain (see
Figure 3). The labels are provided with the
GuardShield Micro 400 mounting kit.
Further information on "Blanking" may be
found in the “Configuration and Diagnostic
Tool” manual for the corresponding safety
controller (e.g. MSR42).
The GuardShield Micro 400 safety light curtains
must be mounted at a sufficient distance from
the pinch point or point of operation hazard to
ensure that the machine stops before a person’s
finger, hand, arm(s), or body reaches the hazard.
IMPORTANT
Regardless of the calculated safety distance,
GuardShield Micro 400 safety light curtains
should never be mounted closer than six inches
from the point of operation or pinch point
hazard.
IMPORTANT
Determining Stop Time: The measurement of
stopping time (Ts) must include the stopping
times of all devices in the stop circuit. Not
including all device and control system
elements when calculating Ts will result in an
inaccurate safety distance calculation.
IMPORTANT
Fixed blanking From beam................to beam.....
Floating blanking Resolution................................mm
Reduced resolution Reaction time...........................ms
Figure 3: Additional label for blanking. After configuring blanking, the label must be
attached and clearly visible on the receiver portion of the light curtain
IMPORTANT
Determining the Safety Distance
The light curtain must be mounted with proper safety distance
• From the point of danger
• From reflecting surfaces
In the United States there are two formulas that are used to
properly calculate the safety distance. The first, the OSHA formula,
is the minimum requirement for the calculation of the safety
distance. The second formula, the one recommended by Rockwell
Automation, is the ANSI formula, which incorporates additional
factors to be considered when calculating the safety distance.
OSHA Safety Distance Calculation Formula
The OSHA safety distance formula as specified in CFR Subpart O
1910.217 is as follows:
Ds = 63 X T
Ds Safety Distance in inches
63 Is the OSHA recommended hand speed constant in inches
Ts Is the total stop time of all devices in the safety circuit,
Note: The T
S
per second
measured in seconds. This value must include all
components involved in stopping the hazardous motion of
the machinery. For a mechanical power press it is the
stopping time measured at approximately the 90° position
of the crankshaft rotation.
number must include the response times of all
S
devices, including the response time of the safety light
curtain, the safety light curtain controller (if used), the
machine’s control circuit
to stop the hazardous motion of
and any other devices that react
the machinery. Not
including the response time of a device or devices in the
stop time calculation will result in insufficient safety
distance for the application. This may result in operator
injury.
US Safety Distance Formula
IMPORTANT
This distance, referred to as the safety distance, must be properly
calculated prior to determining the safety light curtain’s
protective height and mounting the light curtains on the
machine. Failure to properly calculate this safety distance may
result in operator injury.
8
Original instructions
The ANSI Safety Distance Formula
The ANSI safety distance formula, which is the Rockwell
Automation recommended formula, is as follows:
D
= K x (TS + TCS + Tr + Tbm) + D
S
Ds Minimum safety distance between the safeguarding device
and the nearest point of operation hazard, in inches.
K Hand speed constant in inches per second. The ANSI
standard value is 63 inches per second when the operator
begins reaching toward the point of operation hazard from
rest. NOTE: ANSI B11.19 1990 E4.2.3.3.5 states “The value of
the hand speed constant, K, has been determined by
pf
R
R
various studies and although these studies indicate speeds
Safety distance S (Ds)
Protective field height
Point
Distance to avoid standing behind
of
danger
the safety curtain 75mm
of 63 inches/second to over 100 inches/second, they are not
conclusive determinations. The employer should consider
all factors, including the physical ability of the operator,
when determining the value of K to be used.”
Ts Stop time of the machine tool measured at the final control
element.
Tcs Response time of the control system.
GuardShield™ Micro 400 Safety Light Curtain User Manual
Note: T
and Tcs are usually measured by a stop time measuring
s
device.
Tr Response time of the presence sensing device (safety light
curtain) and its interface (MSR4x and MSR45E). This value is
generally stated by the device manufacturer or it can be
measured by the user.
Tbm Additional time allowed for the brake monitor to
compensate for variations in normal stopping time.
Dpf Depth penetration factor. It is an added distance to allow for
how far into the protective field an object, such as a finger
or hand, can travel before being detected. D
is related to
pf
the safety light curtain’s object sensitivity. Object sensitivity
is the smallest diameter object which will always be
detected anywhere in the sensing field.
Example:
In opto-electronic safeguarding, such as with a perpendicular
safety light curtain applications with object sensitivity (effective
resolution) less than 2.5 inches, the D
can be approximated
pf
based on the following formula:
(inches) = 3.4 × (Object Sensitivity – 0.276),
D
pf
but not less than 0.
European Safety Distance Formula
A safety distance must be maintained between the light curtain
and the point of danger. This safety distance ensures that the
point of danger can only be reached after the dangerous state of
the machine has been completely removed.
The safety distance as defined in EN ISO 13855 and EN ISO 13857
depends on:
• Stopping/run-down time of the machine or system. (The
stopping/run-down time is shown in the machine
documentation or must be determined by taking a
measurement.)
• Response time of the protective device, e.g. GuardShield Micro
400 (for “Response Time” see page 7).
• Reach or approach speed.
• Resolution of the light curtain and/or beam separation.

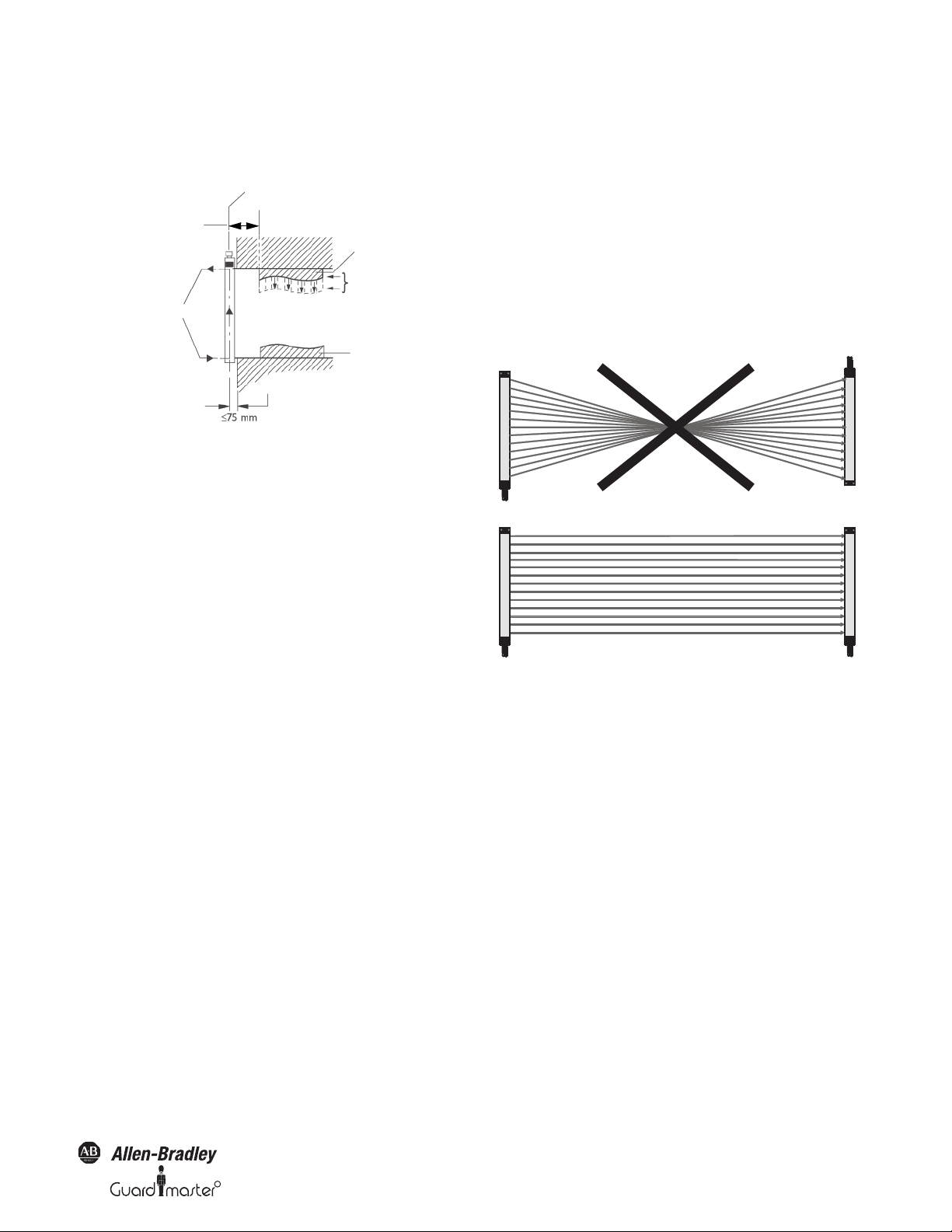

Figure 4: Safety distance from the point of danger
How to Calculate the Safety Distance S
According to EN ISO 13855 and EN ISO 13857:
-> First, calculate S using the following formula:
S = 2000 × T + 8 × (d – 14) [mm]
Where…
T = stopping/run-down time of the machine
+ response time of the protective device [s]
d = resolution of the light curtain [mm]
S = safety distance [mm]
The reach/approach speed is already included in the
formula.
-> If the result S is <= 500 mm (19.6 in.), then use the determined
value as the safety distance.
-> If the result S is > 500 mm (19.6 in.), then recalculate S as
follows:
S = 1600 × T + 8 × (d – 14) [mm]
Example:
Stopping/run-down time of the machine = 290 ms
Response time = 30 ms
Resolution of the light curtain = 14 mm (0.55 in.)
T = 290 ms + 30 ms = 320 ms = 0.32 s
S = 2000 × 0.32 + 8 × (14 – 14) = 640 mm (25.1 in.)
S > 500 mm (19.6 in.) therefore:
S = 1600 × 0.32 + 8 × (14 – 14) = 512 mm (20.1 in.)
Minimum Distance from Reflecting Surfaces
The infrared light from the transmitter may be reflected off of
shiny surfaces and be received by the system’s receiver. If this
condition occurs, it can result in an object not being detected
when it enters the GuardShield Micro 400 sensing field.
All reflecting surfaces and objects (e.g. material bins) must
therefore be located at a minimum distance a from the protective
field of the system. The minimum distance a depends on the
distance D between transmitter and receiver.
Original instructions
9
GuardShield™ Micro 400 Safety Light Curtain User Manual
Distance D (meters)
IMPORTANT
The installation of the GuardShield Micro 400
safety light curtain must be such that access to
the hazard is only possible through the sensing
field of the GuardShield. Auxiliary safeguarding
may be required in conjunction with the
GuardShield Micro 400 to meet this
requirement.
Operators cannot reach hazardous
machine parts without passing through
the protective field.
Operators must not step between the
protective field and hazardous machine
parts (by-pass prevention).
Operators can reach hazardous machine
parts without passing through the
protective field.
Operators can step between the
protective field and hazardous machine
parts.
Figure 5: Minimum dista nce from reflecting surf aces
How to Determine the Minimum Distance from the Reflecting
Surfaces:
-> Determine the distance D [m] transmitter-receiver
-> Read the minimum distance a [mm] from the graph:
The GuardShield Micro 400 safety light curtain is suitable for most
benign operating environments (IP54). Proper safety distance as
well as adequate protective height must be observed. For the
installation height and safety distance, please refer to
“Determining the Safety Distance” section on page 8.
Determine if the machinery, on which the GuardShield Micro 400
is to be mounted, meets the requirements as specified in the
beginning of this manual, i.e., machinery must be able to be
stopped anywhere in its stroke or cycle, consistently and
repeatedly.
Correct Installation
Figure 6: Graph, minimum distance from reflecting surfaces
The effective aperture angle for the GuardShield Micro 400
system is
± 2.5° at a mounting distance of > 3.0 m (9.8 ft). Calculate the
minimum distance to reflecting surfaces depending on the
distance between the transmitter and the receiver, using an
aperture angle of ± 2.5°, or take the appropriate value from the
following table:
Distance Between Transmitter and Receiver
(Range D) [m (ft)]
0.2…3.0 m (0.65…9.8 ft) 135 (5.31)
4.0 m (13.1 ft) 175 (6.88)
5.0 m (16.4 ft) 220 (8.66)
Minimum Distance
a [mm (in.)]
Table 2: Table, minimum distance from reflecting sur faces
Formula: a = tan 2.5° x D [mm]
a = minimum distance to reflecting surfaces
D = distance between transmitter and receiver
Installation and Mounting
This section describes the installation of the GuardShield Micro
400 safety light curtain.
A rigid and flat base, isolated against shock and vibration should
be selected to mount the GuardShield Micro 400 light curtain.
This in combination with the standard mounting bracket set will
keep the initial alignment during operation even in harsh
industrial environments.
Incorrect Installation
10
Original instructions
R
R
GuardShield™ Micro 400 Safety Light Curtain User Manual
Middle of Depth of Protective Field
Safety Distance
Point of Operation
Top of tool
Bottom of tool
To avoid the possibility of
standing between the protective
field and the point of operation,
the distance must be
maintained.
Protective Field Marking
Machine stop
time
The GuardShield Micro 400 must be mounted at the proper
distance from the point of operation hazard. This distance is
referred to as the Safety Distance.
Figure 7: Determining machine stop ping time and safety distance
Installation and Alignment Procedure
Standard GuardShield Micro 400
The alignment procedure can be made easier with the use of integrated
indicator LEDs (Table 1).
1. Mount the transmitter and receiver with the brackets (Figure 9). Make
sure that the longitudinal axis of both are oriented parallel to each other.
For a vertical or horizontal mounting a level might help to find the
correct position.
2. Take care that the receiver and transmitter are oriented in the
same direction. This means, the beginning of the protective field
which is found next to the cable which leads to the safety
controller, must be located at the same end of the protective
field. A reference would be that the indicator LEDs are opposite
one another. It is not allowed to mount the GuardShield Micro
400 systems rotated 180° (Figure 8: Layout of the transmitter/
receiver).
3. Connect the transmitter and receiver to the controller and
power up according the description in the following section.
The indicators will help for alignment.
4. After aligning the longitudinal axis of the transmitter and
receiver, rotate the receiver along the longitudinal axis to find
the receiving angle. During rotation, the receiving angle is
shown by the illumination of the green LED in the GuardShield
Micro 400 light curtain. If this green LED is blinking, the amount
of light detected by the receiver is not sufficient for stable
operation. After realigning the light curtain, the protective field
must be briefly interrupted. After removing the object from the
protective field, a sufficient intensity level is indicated by the
illumination of the green LED in the light curtain.
5. Adjust and mount the receiver at the center of this operating
angle.
6. After aligning the receiver, rotate the transmitter to find the
transmitting angle. During rotation, the transmitting angle is
shown by the illumination of the green LED in the GuardShield
Micro 400 light curtain.
7. Adjust and mount the transmitter at the center of this
operating angle.
8. Test the protective function of the GuardShield Micro 400 light
curtain by using the test rod, according to Figure 13. The
insertion of this rod into the protective field at any position has
to lead to a protective field interruption (illumination of the red
LED in the GuardShield Micro 400).
Cycle power to assure that the system powers up and goes to the
ON state.
Incorrect
Transmitter
Correct
Transmitter
Figure 8: Layout of the transmitter/receiver
Multiple GuardShield Micro 400
When two or more GuardShield Micro 400s are mounted in close
proximity to one another, it may be possible for the receiver of
one GuardShield Micro 400 pair to receive infrared light from the
transmitter of another GuardShield Micro 400 pair.
There are various techniques to prevent or eliminate the
possibility of optical interference from light curtains mounted in
the same plane. The simplest method is to alternate transmitter
and receiver pairs so that the receiver from a second pair is facing
away from the transmitter of another light curtain pair in close
proximity. It is also possible to place a physical barrier between
pairs to prevent the infrared light from reaching another light
curtain pair.
Receiver
Receiver
Original instructions
11
GuardShield™ Micro 400 Safety Light Curtain User Manual
Transmitters emit in
opposite direction. Each
receiver receives only the
beams of the appropriate
transmitter.
Transmitters emit in same
direction:
Optical (physical) barrier
necessary
Positioning of the light
curtain: Transmitters emit in
opposite direction.
GuardShield Micro 400 light curtains is equal to a standard
GuardShield Micro 400 light curtain.
Figure 10: “L-shaped” two segment GuardShield Micro 400 cascading systems offer
protection when it is possible to stand between the vertical light curtain and the machine
hazard
Three Segment GuardShield Cascading Systems
When the use of corner mirrors is not practical or possible, threesided guarding of a machine hazard is possible using cascading
GuardShield Micro 400 light curtains.
Figure 9: Multiple GuardShield Micro 400 alignment options
Cascaded GuardShield Micro 400
Configuration of Operating Modes in Cascading Systems
All of the operating modes of a cascaded GuardShield Micro 400
can be configured at the MSR42 control unit.
Two Segment Cascading GuardShield Systems
When the safety distance calculation requires that a GuardShield
pair is vertically mounted at a distance that would allow a person
to stand between the vertical pair and the machine hazard, a
means of detection of that person is required.
There are a few methods of detecting the presence of a person
who could be standing in front of the machine hazard but inside
of the light curtain; installing a safety mat or safety laser scanner
are possible solutions, however, they are costly solutions as these
are separate safety systems that need to be integrated to the
safety circuit. The most cost-effective solution is to interconnect
an additional light curtain in series to the vertical pair. This is
accomplished by first selecting a cascading pair of GuardShield
Micro 400 safety light curtains with a protective height and
resolution based upon the results of a risk assessment. It is then
necessary to select the horizontal protected height of the pair of
GuardShield Micro 400 light curtains. This pair should provide
detection from the vertical pair to the front of the machine
hazard. In most cases this pair of GuardShield Micro 400 can be 30
mm resolution as their purpose is to detect the presence of a
person, not a person’s fingers or hands.
The next step is to select the interconnect patchcords for the
transmitter and receiver. These patchcords are offered in a variety
of lengths (“Table 6: Available cable types” on page 14). The final
cascading segment which is not connected to another pair of
Figure 11: Top and bottom mounting of three GuardShield Micro 400 segments is possible,
which will provide three-sided machine guarding without the use of corner mirrors
12
Original instructions
R
R
GuardShield™ Micro 400 Safety Light Curtain User Manual
It helps to align the cascading segments in a
particular order. First connect the last segment
(segment with one connector) closest to the
control unit. Once the LED in the edge is green;
secure mounting brackets of that pair. Next
connect middle segment to the last segment
and connect to the controller. When middle
segment receiver LED is green secure those
brackets. Finally connect the closest segment to
the other segments and connect all together to
the controller.
Only the diagnosis LED of the first segment
displays the protective field status. The LEDs of
other segments stay off.
For aligning a cascaded system, the optical
interface module (see “Accessorie” on page 25)
can be a valuable alignment help.
IMPORTANT
Do not rotate end or connection cap as there’s a
danger of bending the light curtain.
Do not mount brackets on transparent tube.
Excessive force may damage the tube. When
using cleaning solutions, consider the materials
listed in Table 3.
Mounting and Alignment of Cascading GuardShield
IMPORTANT
In a cascading system only the LEDs of the segment closest to the
controller are working. LEDs of other segments don’t work.
Micro 400 IP69K
The GuardShield Micro 400 IP69K meets the requirements of
Protection Classes IP65, IP66, IP67, IP68 and IP69K to IEC 60529
standards.
The tubes surrounding the GuardShield Micro 400 have no
influence on either operation range or safety class as per IEC/EN
61496-1.
Mounting kits are provided which attach to the connection and
end module of the tube. The Micro 400 IP69K is supplied with the
two mounting brackets. Do not rotate end or connection cap
(danger of bending the light curtain).
The polycarbonate enclosure must be cleaned regularly and
when dirty.
1. Do not use any powerful cleansing materials.
2. Do not use any abrasive cleansing materials.
3. Due to static charge dust particles remain attached to the
polycarbonate enclosure. You can alleviate this effect by using
an antistatic plastic cleansing agent applied with an antistatic
cloth for cleaning.
The connection plug has to be mounted away from high pressure
water.
Protection Class (IEC 60529)
Tub e:
Plug:
Material: Connector and closure caps POM (Polyoxymethylene)
Plastic tube PC (Polycarbonate)
Cable screw fitting PA6 (Polyamide 6)
O-Rings (seals) NBR (Nitril-Butadien-Rubber)
Mounting brackets V2A [1.4301 (X5CrNi18-10)]
Pigtail cable PVC
M12 Plug Nickel-plated brass copper
IP65, IP66, IP67, IP68, IP69K
IP65
Table 3: Material specification
Mounting Brackets
The GuardShield Micro 400 is mounted using brackets which
attach to the side of both transmitter and receiver. It may be
necessary to use additional brackets to mount the GuardShield
Micro 400 at a proper safety distance from the machinery hazard.
The backside of the light curtain profile has continuous grooves to
fix the mounting brackets at any position along the light curtain
housing.
4. Clean polycarbonate enclosure as follows:
• Remove dirt on the enclosure using ample quantities of water.
In that way you will avoid scratching the surface.
• Then wipe off with a clean, slightly damp cloth.
• Finally, dry the plastic tube with a clean cloth.
5. Short time (max. 2 min.) with 80°C (176°F) warm water
washable.
After every cleaning process please note the following:
• Remove water residues on the enclosure.
• Wipe the tubes with a clean cloth.
• Check position of transmitter and receiver to ensure that
excessively loose or excessively tight grip or movement to the
back by the safety device is not possible.
• Check safety function of the protective device
Original instructions
13
GuardShield™ Micro 400 Safety Light Curtain User Manual
M4x16
12.7 (0.5)
M4
4.8
(0.19)
dia.
1.9 (0.08)
4.9 (0.19)
8.9 (0.35)
3
(0.18)
3.3
(0.13)
32 (1.26)
28 (1.1)
30
(1.18)
20
(0.79
25.5
(1.0)
17.5
(0.7)
31.5
(1.24)
9
(0.35)
24.95 (0.98)
35 (1.38)
Length, see table; tolerance 0/+50 mm
50.2
(1.98)
17
(0.67)
Dia.
32.2
(1.27)
80
(3.15)
51.3
(2.02)
15 (0.59)
Dia.
ATTENTION
The safety devices and the interconnection to
the machinery have to comply with the basic
safety requirements as mentioned in the
current regulations and standards.
Direct interfacing of a safety light curtain to
machine control that does not meet the
necessary safety integrity level, i.e., use of
general purpose PLCs or general purpose
relays may result in injury to personnel.
Further brackets may be obtained as an option, to offer the
possibility of mounting on the side or in the center:
39 (1.54)
445L-AF6143
Adjustable 180° bracket kit
(two per kit) supplied with
each pair
445L-AF6145
Flat bracket kit (two per kit)
Two kits required per pair
445L-AF6149
Adjustable flat bracket (two
per kit)
Two kits required per pair
The connection cables are offered with color coded rings
attached to each cable. Remove one color ring from the cable as
necessary. The following color code is defined:
White – Transmitter (Tx)
Blue – Receiver (Rx)
Connection:
Description [m (ft)] Cat. No.
Patchcord, PVC jacke t, 1 (3.3) M12 to RJ45 445L-AC8RJ1
Patchcord, PVC jacke t, 2 (6.6) M12 to RJ45 445L-AC8RJ2
Patchcord, PVC jacke t, 3 (9.8) M12 to RJ45 445L-AC8RJ3
Patchcord, PVC jacke t, 5 (16.8) M12 to RJ45 445L-AC8RJ5
Patchcord, PVC jacke t, 8 (26.2) M12 to RJ45 445L-AC8RJ8
Extension:
Description [m (ft)] Cat. No.
Patchcord, PVC jacket, 1 (3.3) M12 to M12 445L-AC8PC1
Patchcord, PVC jacket, 3 (9.8) M12 to M12 445L-AC8PC3
Patchcord, PVC jacket, 5 (16.8) M12 to M12 445L-AC8PC5
Table 6: Available cable types
Cable
17 (0.67)
6.3 (0.25) dia.
58 (2.28)
445L-AF6160
IP69K mounting bracket kit
37
(two kits per pair supplied
(1.46)
with each pair)
Ta ble 4
Electrical Installation
Connections
The connection of a GuardShield Micro 400 to a machine
controller must occur using an MSR41 or MSR42 Series safety
controller module. Only prefabricated cable (445L-AC8xxx)
provided by Rockwell Automation may be used between the light
curtain and controller (Table 5).
The Micro 400 requires two patchcords, one for the transmitter
and one for the receiver. The M12 8-pin connector is used for
connecting to the light curtain, while the RJ45 connector is
plugged to the controller. M12 to M12 patchcords are used for
extending the cable, especially between cascades of the Micro
400 light curtain.
150
(5.91)
Ferrite
32.5
(1.28)
Figure 12: RJ45 connector/M12 8-pin connec tor male [shielded cable], connection cable from
MSR41 or MSR42 control unit to the light curtain
Figure 13: M12 connector (male)/M12 8-pin connector (female) [shielded cable], extension
connection cable or to use between light curtain cascades.
Power supply, inputs, safety outputs and status outputs are
connected to the terminal block of the MSR41, MSR42 controller
or a MSR45E (see wiring diagrams, figures 14 and 15 on page 15).
The interfacing of the light curtain with the machine control has
to be control reliable, i.e. a correct interface with a safety PLC or
safety relays with positive guided relay contacts.
14
Original instructions
R
GuardShield™ Micro 400 Safety Light Curtain User Manual
R
Lamp
GPIO4
GPIO3
GPIO2
GPIO1
OSSD1
OSSD2
Info1
Info2
In1
In2
0 V
24 V
Blue
K1 K2
24V DC
White
0V DC
Start
K1
K2
Transmitter Receiver
M
L1 L2 L3
Figure 14: Wiring diagram for connection of MSR42 to contactors
Original instructions
15
GuardShield™ Micro 400 Safety Light Curtain User Manual
The status outputs (Info1 and Info2) of the
MSR41 or MSR42 safety control units are not
safety related. They may not be used within the
safety circuit of the machine.
+24V DC
Transmitter
Micro 400
Receiver
Start
K4
K3
Ribbon Cable for Extender
RJ-45
LAMP
GPIO4
GPIO3
GPIO2
GPIO1
OSSD2
OSSD1
INFO2
INFO1
IN2
IN1
0V/GND
+24V
Blue
MSR42
White
RJ-45
..
..
..
..
..
..
13
14
23
24
MSR45E
L1 L2 L3
K4
K3
GND = 0V
Figure 15: Wiring Diagram for connection to MSR45E Expansion Module and external
contactor using start release
External test signal
In case the risk analysis of the application requires an external test
signal (according to EN 13849-1) please refer to the user manual
of the connected MSR42 control unit.
Power supply
The power supply and the evaluation of the protective field of a
GuardShield Micro 400 light curtain can only be carried out
through a MSR41 or MSR42 Series control unit.
Bringing into operation
The transmitter and receiver units must be connected to a MSR41 o r
MSR42 safety control unit. Then the supply voltage may be
connected to the control unit. After power-up, there is an automatic
self test (duration < 5 s) of all system components.
In case the protective field is free and the transmitter and receiver
are correctly aligned, the green LEDs on the GuardShield Micro
400 light curtains will illuminate.
If after a successful power-up the light curtain detects an
interruption of the protection field, the red LEDs on the
GuardShield Micro 400 light curtains will illuminate.
M
more MSR45E safety relay expansion modules can be connected
to the MSR41 or MSR42 controller.
Each MSR41 or MSR42 safety controller also provides two status
outputs (Info1 and Info2). These may only be connected to the
machine controller for information purposes.
ATTENTION
Outputs
A GuardShield Micro 400 safety light curtain pair is always
connected to a safety controller. Every connection to a machine
controller or a safety circuit is done through an MSR41 or MSR42
safety controller, which provides two redundant semiconductor
OSSD (Output Signal Switching Device) safety outputs. One or
16
Original instructions
R
R
ATTENTION
Prior to first powering up or after a changed
machine setting, the responsible person shall
review the following checklist.
Checklist
Before the initiation of the GuardShield Micro 400 the responsible
person should work through the following checklist.
Check prior to first initiation or after a changed machine setting (e.g.,
a rewiring):
1. The power supply is a 24V DC device, that must comply to all
applicable standards of the Machinery Directive 2006/42/EC,
and the product standard (IEC61496), for example 1606-XLPseries. No connection to a conventional power supply.
2. Proper polarity of the power supply at the controller of the
GuardShield Micro 400.
3. The transmitter connection cable is properly connected to the
transmitter, the receiver connection cable is properly
connected to the receiver. All plugs are connected.
4. The OSSD outputs are not connected to +24V DC.
5. The connected switching elements (load) are not connected to
24V DC.
6. If two or more GuardShield Micro 400s are to be used, make
sure that each system is properly installed, in order to avoid
optical interference.
Switch the GuardShield Micro 400 on and check its function by
observing the following: two seconds after switching on, the
system starts to work properly if the protection field is free of
obstructions
Troubleshooting
With the help of two LEDs, system conditions and faults of the
GuardShield Micro 400 systems are indicated.
A red and a green LED are integrated in the end-cap connection
module of each profile (near the cable), which clearly signals the
sta tus o f the protective fie ld. With the help of the LED display, system
conditions and faults of the GuardShield Micro 400 systems are
indicated.
GuardShield™ Micro 400 Safety Light Curtain User Manual
Figure 16: Indicators
LED Color Meaning
Green
Red
On Protective field free
Flashing Intensity inadequate
Off Protective field free
On Light curtain interrupted
Flashing Error (lock out condition)
Ta ble 7 : L ED me an in gs
The conditions signaled by the LEDs can also be obtained from
the status outputs of the connected MSR41 or MSR42 Series
safety control module (see user manual of the corresponding
control unit).
Red LED continuously shining:
Check the alignment if the LED of the GuardShield Micro 400 is
continuously red. With the help of the optical interface
(445L-AF6150) it is possible to display individual beam status at a
Laptop per USB interface.
Red LED blinking (lock-out condition):
If the red LED of the GuardShield Micro 400 is blinking, the
following conditions can cause the fault:
1. Inadequate supply voltage to the MSR41 or MSR42 safety
controller.
2. Transmitter and/or receiver cables not correctly plugged into
the MSR41 or MSR42 controller.
3. Transmitter and receiver light curtains are connected to the
incorrect locations in the controller (transmitter plugged into
receiver connection).
4. Incorrect assembly in case of cascaded systems (transmitter
and receiver mixed).
5. Cable connector makes poor contact.
6. Error in the EDM feedback channel at the safety control (only in
case of EDM).
7. Short circuit at the OSSD outputs.
8. Foreign light source affecting the receiving unit.
9. Blanking configured and wrong light curtain length or
resolution connected (only in case of blanking).
Original instructions
17
GuardShield™ Micro 400 Safety Light Curtain User Manual
Never operate the GuardShield Micro 400 before
carrying out the following inspection. Improper
inspection may lead to operator injury.
If any of the above conditions do not result in
the hazardous motion of the machine ceasing,
do not allow the protected machine to be
placed in operation.
Corrective steps
1. Examine connections, cables and plugs of transmitter and receiver.
2. Turn the supply voltage off and on again.
With the help of the optical interface, it is possible to display the
lock out information at a Laptop per USB interface.
If the LED of the safety light curtain is still blinking red, please
contact Rockwell Automation technical support.
Note: In cascaded systems only the LED in the first safety light
curtain will illuminate (closest to the safety controller).
Transmitter
Safety Instructions—Maintenance
ATTENTION
For safety reasons all inspection results should be recorded.
Only persons, who clearly understand the functioning of the
GuardShield Micro 400 and of the machine, may carry out an
inspection.
If installer, planning engineer and operator are different people,
make sure that the user has sufficient information available to
carry out the inspection.
Daily Inspection
1. Approach to hazardous machine parts must only be possible
through the protective field of GuardShield Micro 400.
2. Operators cannot step through the sensing area while working
on dangerous machine parts.
3. The safety distance of the application is bigger than the
calculated value.
4. The optic front cover is neither scratched nor dirty.
Operate the machine and check, if the hazardous movement will
stop under the following circumstances.
5. The protective field is interrupted.
6. Hazardous machine movement stops immediately, if the
protective field is interrupted by the test rod directly in front of
the transmitter, directly in front of the receiver and in the
middle between transmitter and receiver.
7. No hazardous machine movement while the test rod is
anywhere within the protective field.
8. If the blanking function is activated, check all sections of the
protective field with the appropriate test piece.
Figure 17: Proper test ing of protective field using test rod
Six-Month Inspection
Check the following items:
•every six months or
• according local regulations or
• whenever a machine setting was changed.
1. Machine stops or does not obstruct any safety function.
2. The latest machine or connection modifications have no effect
on the control system.
3. The outputs of the controller of the GuardShield Micro 400 are
properly connected to the machine.
4. The total response time of the machine is shorter than the
calculated value.
5. Cables and plugs of the GuardShield Micro 400 are in good
condition.
6. Mounting brackets, caps and cables are properly secured.
Cleaning
If the optic front cover of the GuardShield Micro 400 is dirty or
scratched, the outputs turn off. Take a clean, soft cloth and rub
without pressure. Do not apply aggressive, abrasive or scratching
cleansing agents, which might attack the surface.
IMPORTANT
18
Original instructions
R
R
Product Label
GuardShield™ Micro 400 Safety Light Curtain User Manual
GuardShield
Micro400 Tx
Cat No. 445L-T4C0300FP Ser A Rev A
Product of
Switzerland
TM
3T8LA5AA
106 402 S400S-KEF5 N-LF6-V-AABA00199 ID: 2504-2504
Protect. height: 300mm
Resolut. 14 m m
Response time: < 1 9 ms +tc + tn
AOPD 24XE
Operat. range: 0 to 5m
Encl. Rating: IP54
Type 4
HW: V1.15
Figure 18
Date Code
AABCCDEE
AA = Production place (AL=Mexico, 3T= Switzerland)
B=Year
CC = Day (LA = 001, LB = 002, …)
D = Internal RA product code
4 = GS Micro 400 System
5 = GS Micro 400 Tx
6 = GS Micro 400 Rx
EE = Counter (AA=001, AB=002, …)
Example: 3T8LA5AA:
AA = 3T = Produced in Switzerland
B = 8 = Year 2008
CC = LA = Day 001
D = 5 = Transmitter
EE = AA = 001
Explanation of terminology
Rx Receiver
Tx Tran smi tte r
Cat No Catalog number
Ser Series number
Rev Revision number
HW Hardware version
AOPD Typ e
Active optoelectronic protective equipment type 4 based on IEC
61496-1, -2
Type 4 Type 4 based on IEC 61496-1, -2
3T8LA5AA Date Code
Operating range Maximum operating range
Protective height Protective height
Resolution Resolution for the protective device ("without blanking")
Enclosure Rating IP – enclosure rating
Response time
(no blanking)
Response time (see MSR42) for the protective device. See Response
Time on page 7.
Response time t
19 ms
Response time of the control unit including any connected
t
c
relay mo dules
Sum of response times tLC of all additional connected
t
N
GuardShield Micro 400 light curtain cascades
of the light curtain cascade
LC
Ta ble 8
Original instructions
19
GuardShield™ Micro 400 Safety Light Curtain User Manual
Technical Specifications
Safety Ratings
Standards IEC/EN61496 Parts 1 and 2, UL61496 Parts 1 and 2, UL1998
Safety Classification Type 4 per IEC/EN61496. Category 4 device per EN 954-1, SIL 3 per IEC 61508, PLe per EN/ISO 13849-1
Probability of a Dangerous Failure per Hour PFH
Certifications cULus Listed, TÜV, CE Marked for all applicable directives
Outputs
Micro 400 Outputs Data output to controller (MSR41 or MSR42)
MSR41/MSR42 Outputs Two 400 mA OSSD
Non-Safety Outputs Auxiliary outputs from MSR41 or MSR42 controller—2 configurable 100 mA, outputs
Switching Current @ Voltage, Max. 400 mA @ 24V DC
Operating Characteristics
Response Time
Indicator LEDs ON -State, OFF-State, Inten sity, Lockout
Protected Height [mm (in.)] 150…1200 (5.9 …47.2) in 150 mm increments
Resolution [mm (in.)] 14 (0.55), 30 (1.18) or PAC (Perimeter)
Scanning
Range/Resolution
Synchronization Electrical through MSR41 or MSR42
Wave Length 940 nm
Time for Self Check When Switching on U
Environmental
Enclosure Type Rating
Relative Humidity 15…95% (noncondensing)
Operating Temperature 0…55 °C (14…131 °F)
Storage Temperature -20…7 0 °C (4…158 °F)
Vibration IEC 60068-2-6; Frequency 10…55 Hz; Amplitude 0.35 mm (0.01 in.)
Shock
Power Supply Input power from MSR41 or MSR42 controller
Input Power, Max. 24V DC ±15% (MSR41 or MSR42 controller)
Maximum Residual Ripple 5% of Vss
Power Consumption 0.07 A max. (no load)
Equipment Class I II (VDE 0106 part 100)
EMC IEC 61496 part 1
Physical Characteristics
Max. Number of Beams 255
Standard Mounting 1 80° adjustable mounting brackets supplied (two sets 445L-AF6143)
Weig ht Vari es by prote cti ve hei ght
Housing Cross Section
Optical Window Polycarbonate
Enclosure Treatment Polyester powder coated, silicon free
Connection Type Transmitter/rece iver: 8-pin M12 micro QD
Cable Leng th
Patchc ords
sp
6.0 E-9 1/h MSR42 or MSR41 and MSR45E
4.0 E-9 1/h Micro 400
14 mm: 12…42 ms, varies by protective height and resolution, protect. height 150-1200 mm
30 mm; 11…23 ms, varies by protective height and resolution, protect. height 150-1200 mm
14 mm (0.55 in.) resolution: 0…5 m (16.4 ft)
30 mm (1.18 in.) resolution: 0…5 m (16.4 ft)
< 5 s
Micro 400 is IP54;
Micro 400 IP69K is IP65, IP66, IP67, IP68, IP69K, Plug: I P65
IEC 60068-2-29; Acceleration 10 g, pulse duration 16 ms 10…55 Hz;
Amplitude 0.35 mm (0.01 in.)
Slim profile (standard): 15 mm x 20 mm (0.59 x 0.79 in.)
Reinforced profile (special): 30 mm x 40 mm (1.18 x 1.57 in.)
1, 2, 3, 5, and 8 m (3.3, 6.6, 9.8, 16.4, and 26.2 ft) cable M12 to R J45 for MSR41 or MSR42.
Max. total system length can not exceed 10 m (32.8 ft).
1, 3, and 5 m (3.3, 9.8, and 16.4 ft) M12 to M12 patchcords.
Total system length cannot exce ed 10 m (32.8 ft) including protective height of Micro 400, integrated cables and patchcords from M12
connector to MSR41 or MSR42.
20
Original instructions
R
R
Catalog Number Configurator
445L- 0150 PFC4P
Connector Option
P = Pigtail with micro QD connector
D = M12, 8-pin QD
Environmental Rating:
F = IP54
K = IP69K
Protective Height (mm)
0150
0300
0450
0600
0750
0900
1050
1200
C = 14 mm resolution
E = 30 mm resolution
Category Type 4
P = Pair; T = Transmitter; R = Receiver
C= Cascade; G = Cascade transmitter; E = Cascade receiver
Bulletin Number
GuardShield™ Micro 400 Safety Light Curtain User Manual
GuardShield Micro 400 Products
The response times (*) are maximum values with no blanking configured. If blanking is configured in the Micro 400 controller, the
response time values could be higher. The times depend on the controller type and the configuration. The real response time may be
faster. Please obtain the exact time from the software "Configuration Tool."
GuardShield Micro 400, Standard, Profile 20 x 15 mm, Resolution 14 mm
Max. response time
Sensor Pair Transmitter Receiver
445L-P4C0150FP 445L-T4C0150FP 445L-R4C0150FP 14 (0.55) 150 (5.91) 14.6 ms 0.8 kg
445L-P4C0300FP 445L-T4C0300FP 445L-R4C0300FP 14 (0.55) 300 (11.81) 18.5 ms 0.9 kg
445L-P4C0450FP 445L-T4C0450FP 445L-R4C0450FP 14 (0.55) 450 (17.71) 22.4 ms 0.9 kg
445L-P4C0600FP 445L-T4C0600FP 445L-R4C0600FP 14 (0.55) 600 (23.62) 26.3 ms 1.0 kg
445L-P4C0750FP 445L-T4C0750FP 445L-R4C0750FP 14 (0.55) 750 (29.52) 30.2 ms 1.1 kg
445L-P4C0900FP 445L-T4C0900FP 445L-R4C0900FP 14 (0.55) 900 (35.43) 34.1 ms 1.3 kg
445L-P4C1050FP 445L-T4C1050FP 445L-R4C1050FP 14 (0.55) 1050 (41.33) 38.0 ms 1.3 kg
445L-P4C1200FP 445L-T4C1200FP 445L-R4C1200FP 14 (0.55) 1200 (47.24) 41.9 ms 1.3 kg
Resolution
[mm (in.)]
Protection Height A
[mm (in.)]
GuardShield Micro 400, Standard, Profile 20 x 15 mm, Resolution 30 mm
Sensor Pair Transmitter Receiver
445L-P4E0150FP 445L-T4E0150FP 445L-R4E0150FP 30 mm (1.18) 150 (5.91) 12.4 ms 0.8 kg
445L-P4E0300FP 445L-T4E0300FP 445L-R4E0300FP 30 mm (1.18) 300 (11.81) 13.9 ms 0.9 kg
445L-P4E0450FP 445L-T4E0450FP 445L-R4E0450FP 30 mm (1.18) 450 (17.71) 15.5 ms 0.9 kg
445L-P4E0600FP 445L-T4E0600FP 445L-R4E0600FP 30 mm (1.18) 600 (23.62) 17.0 ms 1.0 kg
445L-P4E0750FP 445L-T4E0750FP 445L-R4E0750FP 30 mm (1.18) 750 (29.52) 18.5 ms 1.1 kg
445L-P4E0900FP 445L-T4E0900FP 445L-R4E0900FP 30 mm (1.18) 900 (35.43) 20.2 ms 1.2 kg
445L-P4E1050FP 445L-T4E1050FP 445L-R4E1050FP 30 mm (1.18) 1050 (41.33) 21.7 ms 1.3 kg
445L-P4E1200FP 445L-T4E1200FP 445L-R4E1200FP 30 mm (1.18) 1200 (47.24) 23.3 ms 1.3 kg
Resolution
[mm (in.)]
Protection Height A
[mm (in.)]
t
LC
(ms) *
Max. response time
t
LC
(ms) *
Weight per pair [incl.
packaging]
Weight per pair [incl.
packaging]
Original instructions
21
GuardShield™ Micro 400 Safety Light Curtain User Manual
GuardShield Micro 400, Cascaded, Profile 20 x 15 mm, Resolution 14 mm
Sensor Pair Transmitter Receiver
445L-C4C0150FP 445L-G4C0150FP 445L-F4C0150FP 14 (0.55) 150 (5.91) 0.8 kg
445L-C4C0300FP 445L-G4C0300FP 445L-F4C0300FP 14 (0.55) 300 (1 1.81) 0.9 kg
445L-C4C0450FP 445L-G4C0450FP 445L-F4C0450FP 14 (0.55) 450 (1 7.71) 0.9 kg
445L-C4C0600FP 445L-G4C0600FP 445L-F4C0600FP 14 (0.55) 600 (2 3.62) 1.0 kg
445L-C4C0900FP 445L-G4C0900FP 445L-F4C0900FP 14 (0.55) 900 (3 5.43) 1.2 kg
445L-C4C1200FP 445L-G4C1200FP 445L-F4C1200FP 14 (0.55) 1200 (47.24) 1.3 kg
Resolution
[mm (in.)]
Protection Height A
[mm (in.)]
Weight per pair [incl.
packaging]
GuardShield Micro 400, Cascaded, Profile 20 x 15 mm, Resolution 30 mm
Sensor Pair Transmitter Receiver
445L-C4E0150FP 445 L-G4E0150FP 44 5L-F4E0150FP 30 (1.18) 150 (5.91) 0.8 kg
445L-C4E0300FP 445 L-G4E0300FP 44 5L-F4E0300FP 30 (1.18) 300 (11.81) 0.9 kg
445L-C4E0600FP 445 L-G4E0600FP 44 5L-F4E0600FP 30 (1.18) 600 (23.62) 1.0 kg
445L-C4E0750FP 445 L-G4E0750FP 44 5L-F4E0750FP 30 (1.18) 750 (29.52) 1.1 kg
445L-C4E0900FP 445 L-G4E0900FP 44 5L-F4E0900FP 30 (1.18) 900 (35.43) 1.2 kg
445L-C4E1200FP 445 L-G4E1200FP 44 5L-F4E1200FP 30 (1.18) 1200 (47.24) 1.3 kg
Resolution
[mm (in.)]
Protection Height A
[mm (in.)]
Weight per pair [incl.
packaging]
GuardShield Micro 400, IP69K, tube, Resolution 14 mm
Max. response time
Sensor Pair Transmitter Receiver
445L-P4C0150KD 445L-T4C0150KD 445L-R4C0150KD 14 (0.55) 150 (5.91) 14.6 ms 1.45 kg
445L-P4C0300KD 445L-T4C0300KD 445L-R4C0300KD 14 (0.55) 300 (11.81) 18.5 ms 1.5 kg
445L-P4C0600KD 445L-T4C0600KD 445L-R4C0600KD 14 (0.55) 600 (23.62) 26.3 ms 1.7 kg
445L-P4C0900KD 445L-T4C0900KD 445L-R4C0900KD 14 (0.55) 900 (35.43) 34.1 ms 2.3 kg
445L-P4C1200KD 445L-T4C1200KD 445L-R4C1200KD 14 (0.55) 1200 (47.24) 41.9 ms 2.4 kg
Resolution
[mm (in.)]
Protection Height A
[mm (in.)]
t
LC
(ms) *
Weight per pair [incl.
packaging]
22
Original instructions
R
R
GuardShield™ Micro 400 Safety Light Curtain User Manual
Dimensions [mm (in.)]
GuardShield Micro 400 Standard
51.3
(2.02)
455
(17.91)
27.8
(1.09)
GuardShield Micro 400 Cascades
51.3
(2.02)
50
(1.97)
14.2
(0.56)
32.5
(1.28)
455
(17.91)
27.8
(1.09)
15.5
(0.61)
15.5
(0.61)
19.8
(0.78)
A - protection length according to table
15.5
(0.61)
Figure 19: GuardShield Micro 400
19.8
(0.78)
1.5
(0.06)
A - protection length according to table
27.8
(1.09)
455
(17.91)
51.3
(2.02)
15
(0.59)
Figure 20: GuardShield cascadable Micro 400
Original instructions
23
GuardShield™ Micro 400 Safety Light Curtain User Manual
GuardShield Micro 400 IP69K (Washdown)
Ta ble 9
System Cat. No.
(incl. mounting kit)
445L-P4C0150KD 150 (5.9) 280 (11.0)
445L-P4C0300KD 300 (11.8) 430 (16.9)
445L-P4C0600KD 600 (23.6) 730 (28.7)
445L-P4C0900KD 900 (35.4) 1030 (40.5)
445L-P4C1200KD 1200 (47.2) 1330 (52.3)
Protection Zone Height A
[mm (in.)] System Length (no cable) [mm (in.) ]
Figure 21
24
Original instructions
R
R
Accessorie
Required Safety Controller — Select One [mm (in.)]
Description Mounting Size Cat. No.
MSR41 ON/OFF
MSR42 Multi-functional module
GuardShield™ Micro 400 Safety Light Curtain User Manual
35 mm DIN Rail 22.5 (0.89) 440R-P221AGS
35 mm DIN Rail 22.5 (0.89) 440R-P226AGS-NNR
Muting Box
Wall 200 x 200 x 160 mm (7.87 x 7.87 x 6.3 in.) 445L-AMUTBOX1
Original instructions
25
GuardShield™ Micro 400 Safety Light Curtain User Manual
Optional Safety Relay Expansion Module
Relay Input Voltage Reset Outputs Cat.No.
Supplied by MSR41 or MSR42 Determined by MSR41 or MSR42 2 N.O. 440-P4NANS
Safety Relay Expansion Module
MSR45E
Safety Relay Interface accessories for MSR41 or MSR42 Controllers
The MSR41 or MSR42 can have up to three MSR45E safety relays
interconnected. Each module requires a ribbon cable connector
Description Cat. No.
Ribbon cable – for one MSR45E 440R-ACABL1
Ribbon cable – for two MSR45Es 440R-ACABL2
Ribbon cable – for three MSR45Es 440R-ACABL3
Optical interface
Operation mode and parameters of the MSR42 controller may be
changed using the configuration software which is available on
www.ab.com and with the optical interface 445L-AF6150.
Description Cat. No.
to make the interconnection. The table shows the cat. no. for each
ribbon cable connector.
Programming of the MSR42 is only necessary for advanced
operating modes (e.g. blanking, muting, etc.) or for connection of
additional devices (e.g., enabling switch, emergency stop button,
etc.).
26
USB optical interface software configuration tool used to configure
the MSR42
Original instructions
445L-AF6150
R
R
Optional accessories:
8 x 13
50 (1.96)
73 (2.87)
A
Ls
L
B
AA
Section
A-A
+/- 120°
114 (4.48)
13.3
(5.24)
35
(1.37)
54
(2.12)
44.4
(1.74)
75
(2.95)
2.5
(0.09)
6.5
(0.25)
4.5
(0.17)
10.5
(0.41)
A
A
A
A
Description
Mirror, 600 mm, 4 m
A
A
A
Mirror, 450 mm, 4 m
Mirror, 300 mm, 4 m
Mirror, 750 mm, 4 m
Mirror, 900 mm, 4 m
Mirror, 1050 mm, 4 m
Mirror, 1200 mm, 4 m
Mirror, 1350 mm, 4 m
Mirror, 1500 mm, 4 m
Mirror, 1800 mm, 4 m
Mirror, 1650 mm, 4 m
A
A
A
A
Model No.
LL AB
S
440L-AM0750300
440L-AM0750450
440L-AM0750600
440L-AM0750750
440L-AM0750900
440L-AM0751050
440L-AM0751200
440L-AM0751350
440L-AM0751500
440L-AM0751650
440L-AM0751800
396 340 372 440
546 490 522 590
696 640 672 740
846 790 822 890
996 940 972 1040
1146 1090 1122 1190
1296 1240 1272 1340
1446 1390 1422 1490
1596 1540 1572 1640
1746 1690 1722 1790
1896 1840 1872 1940
Series
GuardShield™ Micro 400 Safety Light Curtain User Manual
Description Cat. No.
Adjustable 180° bracket kit (two per kit).
Two kits supplied with each pair
Flat bracket kit (two per kit)
Two kits required per pair
Adjustable flat bracket (two per kit)
Two kits required per pair
IP69K mounting bracket kit (two per kit).
Two kits supplied with each IP69K pair.
Mirror 440L-AM075 Corner Mirror for Multi-Sided Guarding
Specially constructed glass mirrors for 2- and 3-sided
safeguarding applications.
Note: Each mirror reduces maximum scan range by 10% per
mirror. Each corner mirror supplied with two end-cap
mounting brackets:
Narrow Mirror
Short-Rang e 0…4
m
(0…13.1ft)
Protected Height
[mm (in.)]
150 (5.91) / 300 (11.8) 300 (11.8) 440L-AM0750300
450 (17.7) 45 0 (17.7) 440L-AM0750450
445L-AF6143
445L-AF6145
445L-AF6149
445L-AF6160
Mirror height [(mm
(in.)] C at. No.
600 (23.6) 60 0 (23.6) 440L-AM0750600
750 (29.5) 75 0 (29.5) 440L-AM0750750
900 (35.4) 90 0 (35.4) 440L-AM0750900
1050 (41.3) 1050 (41.3) 440L-AM0751050
1200 (47.2) 1200 (47.2) 440L-AM0751200
Ta ble 1 0
Original instructions
27
GuardShield™ Micro 400 Safety Light Curtain User Manual
30 (1.18)
40
(1.57)
29.5
(1.16)
M6x40
M4x16
11
(0.43)
Appendix
GuardShield Micro 400 Special
Safety Light Curtain Systems
Content
Introduction
Systems with reinforced profiles
Perimeter systems
Special patchcords
Special systems
In addition to the GuardShield Micro 400 manual this appendix
gives some additional information for some GuardShield Micro
400 special systems.
Systems with Re-inforced Profiles
The GuardShield Micro 400 standard safety light curtains are
usually offered in the slim profile with dimensions of 20 x 15 mm.
The maximum length is limited to 1200 mm (47.2 in.) to prevent a
damage by twisting or bending. For longer lengths up to 2200
mm the systems are offered in a re-inforced profile. Standard and
cascaded systems are available based on the re-inforced profile.
Robust (re-inforced) Profile Dimensions [mm (in.)]
Flat bracket kit for reinforce
profile. (Two per kit) supplied
with each pair
Two kits required per pair.
Adjustable 180° bracket kit (two
per kit) for reinforced profile.
445L-AF6140
445L-AF6141
Figure 22: Cross section of the re-inforced profile
Two kits required per pair.
Perimeter Systems (PAC)
Perimeter systems are usually produced by means of several
single beam light barriers. But the flexibility of the GuardShield
Micro 400 system allows also the production of vertical entry
safeguarding according to the standard EN ISO 13855 [2010].
Such systems are composed of active and passive elements in one
compact profile. The element length of each is 50 mm (1.97 in.)
(variations are given in the appendix).
The big advantage of GuardShield Micro 400 Perimeter systems is
the easier way of mounting and the uncomplicated way of
starting up the operation. The time needed to connect the wires
and aligning the optics is reduced in comparison to standard
perimeter systems consisting of single beam light barriers, where
often mirrors are also included which can only be positioned with
difficulties.
The protective field and the active elements, respectively, are
clearly recognized as surfaces with the integrated optical lenses.
The not monitored areas (passive elements) are also clearly
indicated as black surfaces.
How to Calculate the Safety Distance S for
GuardShield Micro 400 PAC Systems
In the case of perimeter systems or light curtains with a resolution
d > 40 mm, the safety distance is calculated for vertical mounting
light curtains and horizontal approach, according to the formula:
S = 1.6 mm/ms x T + 850 mm
More detailed information regarding safety distance and safety
heights can be found in standard EN 13855 (2010).
28
Original instructions
R
R
GuardShield™ Micro 400 Safety Light Curtain User Manual
400
900
Reference plane (e.g. ground)
0
300
1100
Reference plane (e.g. ground)
0
700
300
1200
Reference plane (e.g. ground)
0
600
900
Distance to reference plane [mm]Distance to reference plane [mm]Distance to reference plane [mm]
120 (4.72)
±10
40.5 (1.59)
52.1 (2.05)
Cable
Special Patchcords
All GuardShield Micro 400 light curtains have actually M12/8-pin
connector. Special patchcords might be necessary to replace
older connector versions:
120 (4.72)
50.2 (1.98)
±10
45.5 (1.79)
445L-ACDN9M12
Patchcord, 8 Pin, Din9/female to M12/
male
445L-109296
Patchcord, 8 Pin, Din9/male to M12/
female
Table 11:
Special Systems
Besides the standard lengths given in “Technical Specifications”
on page 20 Rockwell Automation also offers some special lengths
and configurations. For those systems, longer lead time might be
expected.
The mentioned response times (*) are maximum values. The times
depend on the controller type and the configuration. The real
response time may be faster. Please obtain the exact response
time from the MSR42 "Configuration software."
Figure 25: Perimeter systems (2-, 3-, and 4-beams), according to EN ISO 13855 [2010]
Original instructions
29
GuardShield™ Micro 400 Safety Light Curtain User Manual
GuardShield Micro 400, Nonstandard Lengths, Profile 20 x 15 mm, Resolution 14 mm
Sensor Pair Transmitter Receiver
445L-P4C0050FP 445L-T4C0050FP 445L-R4C0050FP 14 (0.55) 20 x 15 50 (1.97) 12.0 ms 0.6 kg
445L-P4C0100FP 445L-T4C0100FP 445L-R4C0100FP 14 (0.55) 20 x 15 100 (3.94) 13.3 ms 0.7 kg
445L-P4C0200FP 445L-T4C0200FP 445L-R4C0200FP 14 (0.55) 20 x 15 200 (7.87) 15.9 ms 0.8 kg
445L-P4C0250FP 445L-T4C0250FP 445L-R4C0250FP 14 (0.55) 20 x 15 250 (9.84) 17.2 ms 0.8 kg
445L-P4C0350FP 445L-T4C0350FP 445L-R4C0350FP 14 (0.55) 20 x 15 350 (13.78) 19.8 ms 0.9 kg
445L-P4C0400FP 445L-T4C0400FP 445L-R4C0400FP 14 (0.55) 20 x 15 400 (15.75) 21.1 ms 0.9 kg
445L-P4C0500FP 445L-T4C0500FP 445L-R4C0500FP 14 (0.55) 20 x 15 500 (19.69) 23.7 ms 0.9 kg
445L-P4C0550FP 445L-T4C0550FP 445L-R4C0550FP 14 (0.55) 20 x 15 550 (21.65) 25.0 ms 1.0 kg
445L-P4C0650FP 445L-T4C0650FP 445L-R4C0650FP 14 (0.55) 20 x 15 650 (25.59) 27.6 ms 1.0 kg
445L-P4C0700FP 445L-T4C0700FP 445L-R4C0700FP 14 (0.55) 20 x 15 700 (27.56) 28.9 ms 1.1 kg
445L-P4C0800FP 445L-T4C0800FP 445L-R4C0800FP 14 (0.55) 20 x 15 800 (31.50) 31.5 ms 1.2 kg
445L-P4C0850FP 445L-T4C0850FP 445L-R4C0850FP 14 (0.55) 20 x 15 850 (33.46) 32.8 ms 1.2 kg
445L-P4C0950FP 445L-T4C0950FP 445L-R4-C0950FP 14 (0.5 5) 20 x 15 950 (37.4) ms 1.3 kg
445L-P4C1000FP 445L-T4C1000FP 445L-R4C1000FP 14 (0.55) 20 x 15 1000 (39.37) 36.7 ms 1.3 kg
445L-P4C1100FP 445L-T4C1100FP 445L-R4C1100FP 14 (0.55) 20 x 15 1100 (43.31) 39.3 ms 1.3 kg
Resolution
[mm (in.)]
Profile Dimensions
[mm x mm]
Protection Height A
[mm (in.)]
Max. Respon se T ime
t
(ms) *
LC
GuardShield Micro 400, Nonstandard Lengths, Profile 20 x 15 mm, Resolution 30 mm
Sensor Pair Transmitter Receiver
445L-P4E0050FP 445L-T4E0050FP 445L-R4E0050FP 30 (1.18) 20x15 50 (1.97) 11.3 ms 0.6 kg
445L-P4E0100FP 445L-T4E0100FP 445L-R4E0100FP 30 (1 .18) 20x15 100 (3.94) 11.8 ms 0.6 kg
445L-P4E0200FP 445L-T4E0200FP 445L-R4E0200FP 30 (1 .18) 20x15 200 (7.87) 12.9 ms 0.7 kg
445L-P4E0250FP 445L-T4E0250FP 445L-R4E0250FP 30 (1 .18) 20x15 250 (9.84) 13.3 ms 0.7 kg
445L-P4E0350FP 445L-T4E0350FP 445L-R4E0350FP 30 (1.18) 20x15 350 (1 3.78) 14.4 ms 0.8 kg
445L-P4E0400FP 445L-T4E0400FP 445L-R4E0400FP 30 (1.18) 20x15 400 (1 5.75) 15.0 ms 0.8 kg
445L-P4E0500FP 445L-T4E0500FP 445L-R4E0500FP 30 (1.18) 20x15 500 (1 9.69) 15.9 ms 0.9 kg
445L-P4E0550FP 445L-T4E0550FP 445L-R4E0550FP 30 (1.18) 20x15 550 (2 1.65) 16.5 ms 1.0 kg
445L-P4E0650FP 445L-T4E0650FP 445L-R4E0650FP 30 (1.18) 20x15 650 (2 5.59) 17.6 ms 1.1 kg
445L-P4E0700FP 445L-T4E0700FP 445L-R4E0700FP 30 (1.18) 20x15 700 (2 7.56) 18.1 ms 1.2 kg
445L-P4E0800FP 445L-T4E0800FP 445L-R4E0800FP 30 (1 .18) 20x15 800 (31.5) 19.1 ms 1.3 kg
445L-P4E0850FP 445L-T4E0850FP 445L-R4E0850FP 30 (1.18) 20x15 850 (3 3.46) 19.6 ms 1.3 kg
445L-P4E0950FP 445L-T4E0950FP 445L-R4E0950FP 30 (1 .18) 20x15 950 (37.4) 20.7 ms 1.4 kg
445L-P4E1000FP 445L-T4E1000FP 445L-R4E1000FP 30 (1 .18) 20x15 1000 (39.37) 21.1 ms 1.4 kg
445L-P4E1100FP 445L-T4E1100FP 445L-R4E1100FP 30 (1 .18) 20x15 1100 (43.31) 22.2 ms 1.5 kg
Resolution
[mm (in.)]
Profile Dimensions
[mm x mm]
Protection Height A
[mm (in.)]
Max. Response Time
tLC (ms) *
[incl. packaging]
Weight per Pair
[incl. packaging]
Weight per Pair
30
Original instructions
R
GuardShield™ Micro 400 Safety Light Curtain User Manual
R
GuardShield Micro 400, Nonstandard Lengths, Cascaded, Profile 20 x 15 mm, Resolution 14 mm
Sensor Pair Transmitter Receiver
445L-C4C0050FP 445L-G4C0050FP 445L-F4 C0050FP 14 (0.55) 20x15 50 (1.97) 12.0 ms 0.6 kg
445L-C4C0100FP 445L-G4C0100FP 445L-F4 C0100FP 14 (0.55) 20x15 100 (3.94) 13.3 ms 0.6 kg
445L-C4C0200FP 445L-G4C0200FP 445L-F4 C0200FP 14 (0.55) 20x15 200 (7.87) 15.9 ms 0.8 kg
445L-C4C0250FP 445L-G4C0250FP 445L-F4 C0250FP 14 (0.55) 20x15 250 (9.84) 17.2 ms 0.9 kg
445L-C4C0350FP 445L-G4C0350FP 445L-F4 C0350FP 14 (0.55) 20x15 350 (13.78) 19.8 ms 0.9 kg
445L-C4C0400FP 445L-G4C0400FP 445L-F4 C0400FP 14 (0.55) 20x15 400 (15.75) 21.1 ms 0.9 kg
445L-C4C0500FP 445L-G4C0500FP 445L-F4 C0500FP 14 (0.55) 20x15 500 (19.69) 23.7 ms 0.9 kg
445L-C4C0550FP 445L-G4C0550FP 445L-F4 C0550FP 14 (0.55) 20x15 550 (21.65) 25.0 ms 1 kg
445L-C4C0650FP 445L-G4C0650FP 445L-F4 C0650FP 14 (0.55) 20x15 650 (25.59) 27.6 ms 1 kg
445L-C4C0700FP 445L-G4C0700FP 445L-F4 C0700FP 14 (0.55) 20x15 700 (27.56) 28.9 ms 1 kg
445L-C4C0800FP 445L-G4C0800FP 445L-F4 C0800FP 14 (0.55) 20x15 800 (31.5) 31.5 ms 1.1 kg
445L-C4C0850FP 445L-G4C0850FP 445L-F4 C0850FP 14 (0.55) 20x15 850 (33.46) 32.8 ms 1.1 kg
445L-C4C0950FP 445L-G4C0950FP 445L-F4 C0950FP 14 (0.55) 20x15 950 (37.4) 35.4 ms 1.1 kg
445L-C4C1000FP 445L-G4C1000FP 445L-F4 C1000FP 14 (0.55) 20x15 1000 (39.37) 36.7 ms 1.3 kg
445L-C4C1100FP 445L-G4C1100FP 445L-F4 C1100FP 14 (0.55) 20x15 1100 (43.31) 39.3 ms 1.3 kg
Resolution
[mm (in.)]
Profile Dimensions
[mm x mm]
Protection Height A
[mm (in.)]
Max. Response Time
tLC (ms) *
GuardShield Micro 400, Nonstandard Lengths, Cascaded, Profile 20x15mm, Resolution 30 mm
Sensor Pair Transmitter Receiver
445L-C4E0050FP 445L-G4E0050FP 445L-F4E0050FP 30 (1.18) 20x15 50 (1.97) 11.3 ms 0.1 kg
445L-C4E0150FP 445L-G4E0150FP 445L-F4E0150FP 30 (1 .18) 20x15 150 (5.91) 12.4 ms 0.2 kg
445L-C4E0300FP 445L-G4E0300FP 445L-F4E0300FP 30 (1.18) 20x15 300 (1 1.81) 13.9 ms 0.3 kg
445L-C4E0350FP 445L-G4E0350FP 445L-F4E0350FP 30 (1.18) 20x15 350 (1 3.78) 14.4 ms 0.4 kg
445L-C4E0400FP 445L-G4E0400FP 445L-F4E0400FP 30 (1.18) 20x15 400 (1 5.75) 15.0 ms 0.4 kg
445L-C4E0450FP 445L-G4E0450FP 445L-F4E0450FP 30 (1.18) 20x15 450 (1 7.72) 15.5 ms 0.4 kg
445L-C4E0600FP 445L-G4E0600FP 445L-F4E0600FP 30 (1.18) 20x15 600 (2 3.62) 17.0 ms 0.5 kg
445L-C4E0750FP 445L-G4E0750FP 445L-F4E0750FP 30 (1.18) 20x15 750 (2 9.52) 18.5 ms 0.6 kg
445L-C4E0900FP 445L-G4E0900FP 445L-F4E0900FP 30 (1.18) 20x15 900 (3 5.43) 20.2 ms 0.7 kg
445L-C4E1200FP 445L-G4E1200FP 445L-F4E1200FP 30 (1 .18) 20x15 1200 (47.24) 23.3 ms 0.9 kg
Resolution
[mm (in.)]
Profile Dimensions
[mm x mm]
Protection Height A
[mm (in.)]
Max. Respon se Tim e
tLC (ms) *
Weight per Pair
[incl. packaging]
Weight per Pair
[incl. packaging]
Original instructions
31
GuardShield™ Micro 400 Safety Light Curtain User Manual
GuardShield Micro 400, Special Systems, Profile Reinforced, Resolution 14 mm
Sensor Pair Transmitter Receiver
445L-110490-0001 445L-110119 445L-110118 14 (0 .55) 40x30 150 (5.91) 14.6 ms 1.1 kg
445L-110490-0002 445L-110121 445L-110120 14 (0.55) 40x30 300 (1 1.81) 18.5 ms 1.3 kg
445L-110490-0003 445L-110123 445L-110122 14 (0.55) 40x30 400 (1 5.75) 21.1 ms 1.5 kg
445L-110490-0004 445L-110125 445L-110124 14 (0.55) 40x30 450 (1 7.72) 22.4 ms 1.6 kg
445L-110490-0024 445L-111391 445L-111390 14 (0.55) 40x30 500 (1 9.69) 23.7 ms 1.3 kg
445L-110490-0006 445L-110129 445L-110128 14 (0.55) 40x30 600 (2 3.62) 26.3 ms 1.9 kg
445L-110490-0008 445L-110133 445L-110132 14 (0.55) 40x30 750 (2 9.53) 30.2 ms 2.2 kg
445L-110490-0028 445L-112858 445L-112857 14 (0 .55) 40x30 800 (31.5) 31.5 ms 2.3 kg
445L-110490-0009 445L-110135 445L-110134 14 (0.55) 40x30 900 (3 5.43) 34.1 ms 2.5 kg
445L-110490-0010 445L-110137 445L-110136 14 (0 .55) 40x30 1000 (39.37) 36.7 ms 2.8 kg
445L-110490-0029 445L-112862 445L-112861 14 (0 .55) 40x30 1050 (41.34) 38.0 ms 2.9 kg
445L-110490-0025 445L-111394 445L-111395 14 (0 .55) 40x30 1100 (43.31) 39.3 ms 3.0 kg
445L-110490-0011 445L-110139 445L-110138 14 (0 .55) 40x30 1200 (47.24) 41.9 ms 3.1 kg
445L-110490-0013 445L-110143 445L-110142 14 (0 .55) 40x30 1350 (53.15) 45.8 ms 3.4 kg
445L-110490-0014 445L-110145 445L-110144 14 (0 .55) 40x30 1500 (59.06) 49.7 ms 3.7 kg
445L-110490-0015 445L-110147 445L-110146 14 (0 .55) 40x30 1600 (62.99) 52.3 ms 4.1 kg
445L-110490-0017 445L-110151 445L-110150 14 (0 .55) 40x30 1650 (64.96) 53.6 ms 4.1 kg
445L-110490-0030 445L-112866 445L-112865 14 (0 .55) 40x30 1700 (66.93) 54.9 ms 4.2 kg
445L-110490-0018 445L-110153 445L-110152 14 (0 .55) 40x30 1800 (70.87) 57.5 ms 4.3 kg
445L-110490-0019 445L-110155 445L-110154 14 (0 .55) 40x30 2000 (78.74) 62.7 ms 4.3 kg
445L-110490-0027 445L-111378 445L-111377 14 (0 .55) 40x30 2100 (82.68) 65.3 ms 4.4 kg
445L-110490-0020 445L-110157 445L-110156 14 (0 .55) 40x30 2200 (86.61) 67.9 ms 4.6 kg
Resolution
[mm (in.)]
Profile Dimensions
[mm x mm]
Protection Height A
[mm (in.)]
Max. Response Time
tLC (ms) *
Weight per Pair
[incl. packaging]
GuardShield Micro 400, Special Systems, Profile Reinforced, Resolution 30 mm
Sensor Pair Transmitter Receiver
445L-110490-0005 445L-110127 445L-110126 30 (1.18) 40x30 500 (1 9.69) 15.9 ms 1.7 kg
445L-110490-0012 445L-110141 445L-110140 30 (1 .18) 40x30 1300 (51.18) 24.3 ms 3.3 kg
445L-110490-0016 445L-110149 445L-110148 30 (1 .18) 40x30 1600 (62.99) 27.4 ms 4.1 kg
Resolution
[mm (in.)]
Profile Dimensions
[mm x mm]
Protection Height A
[mm (in.)]
Max. Respon se T ime
(ms) *
t
LC
Weight per Pair
[incl. packaging]
GuardShield Micro 400, Special Systems, Cascaded, Profile Reinforced, Resolution 14 mm
Sensor Pair Transmitter Receiver
445L-110491-0001 445L-110171 445L-110170 14 (0.55) 40x30 600 (2 3.62) 26.3 ms 1.9 kg
445L-110491-0002 445L-110173 445L-110172 14 (0.55) 40x30 750 (2 9.53) 30.2 ms 2.2 kg
445L-110491-0003 445L-110175 445L-110174 14 (0.55) 40x30 900 (3 5.43) 34.1 ms 2.5 kg
445L-110491-0004 445L-110177 445L-110176 14 (0 .55) 40x30 1000 (39.37) 36.7 ms 2.8 kg
445L-110491-0015 445L-111399 445L-111398 14 (0 .55) 40x30 1050 (41.34) 38.0 ms 2.9 kg
445L-110491-0005 445L-110179 445L-110178 14 (0 .55) 40x30 1100 (43.31) 39.3 ms 2.9 kg
445L-110491-0006 445L-110181 445L-110180 14 (0 .55) 40x30 1200 (47.24) 41.9 ms 3.1 kg
445L-110491-0007 445L-110183 445L-110182 14 (0 .55) 40x30 1350 (53.15) 45.8 ms 3.4 kg
445L-110491-0008 445L-110185 445L-110184 14 (0 .55) 40x30 1500 (59.06) 49.7 ms 3.7 kg
445L-110491-0009 445L-110187 445L-110186 14 (0 .55) 40x30 1650 (64.96) 53.6 ms 4.1 kg
445L-110491-0010 445L-110189 445L-110188 14 (0 .55) 40x30 1800 (70.87) 57.5 ms 4.3 kg
Resolution
[mm (in.)]
Profile Dimensions
[mm x mm]
Protection Height A
[mm (in.)]
Max. Response Time
tLC (ms) *
Weight per Pair
[incl. packaging]
32
Original instructions
R
R
GuardShield Micro 400, Special Systems, Profile Slim, PAC
GuardShield™ Micro 400 Safety Light Curtain User Manual
Sensor Pair Transmitter Receiver
445L-110492-0002 445L-110161 445L-110160 2 B eam, 500 mm 20x15 550 (21.65) 11.8 m s 1.0 kg
445L-110492-0004 445L-110165 445L-110164 3 B eam, 400 mm 20x15 850 (33.46) 12.4 m s 1.2 kg
445L-110492-0006 445L-110169 445L-110168 4 B eam, 300 mm 20x15 950 (37.40) 12.9 m s 1.3 kg
Resolution
[mm (in.)]
Profile Dimensions
[mm x mm]
Protection Height A
[mm (in.)]
Max. Respon se T ime
t
(ms) *
LC
Weight per Pair
[incl. packaging]
GuardShield Micro 400, Special Systems, Profile Reinforced, PAC
Sensor Pair Transmitter Receiver
445L-110492-0001 445L-110159 445L-110158 2 B eam, 500 mm 40x30 550 (21.65) 11.8 m s 1.8 kg
445L-110492-0003 445L-110163 445L-110162 3 B eam, 400 mm 40x30 850 (33.46) 12.4 m s 2.4 kg
445L-110492-0005 445L-110167 445L-110166 4 B eam, 300 mm 40x30 950 (37.40) 12.9 m s 3.1 kg
Resolution
[mm (in.)]
Profile Dimensions
[mm x mm]
Protection Height A
[mm (in.)]
Max. Respon se T ime
(ms) *
t
LC
Weight per pair [incl.
Special GuardShield Micro 400, Special Systems
Sensor Pair Transmitter Receiver
445L-103567-0055 - - 14 (0.55) 20 x 15
445L-109316 - - 14 (0.55) 20 x 15 150 (5.91) cascaded 14.6 ms 0.6 kg
445L-109317 - - 14 (0.55) 20 x 15 150 (5.91) 14. 6 ms 0.6 kg
445L-103567-0018 - - 14 (0.55) 20 x 15
445L-103567-0065 - - 14 (0.55) 20 x 15
445L-110490-0007 445L-110131 445L-110130 30 (1.18) 20 x 15 650 (25.59) 17.6 ms 1.0 kg
445L-108582-0002 445L-108578 445L-108579 30 (1.18) 20 x 15 900 (35.43) 20.2 ms 1.3 kg
- 445L-108670 445L-108671 30 (1.18) 20 x 15 800 (31.50) 19.1 ms 1.2 kg
Resolution
[mm (in.)]
Profile Dimensions
[mm x mm]
Protection Height A
[mm (in.)]
150…150
(5.91…5.91)
50…450
(1.97…17.72)
50…400
(1.97…15.75)
Max. Respon se T ime
(ms) *
t
LC
18.5 ms 1.9 kg
23.7 ms 1.2 kg
22.4 ms 1.1 kg
Weight per Pair
[incl. packaging]
packaging]
Original instructions
33
GuardShield™ Micro 400 Safety Light Curtain User Manual
Certificate
DOC
EC Declaration of Conformity
The undersigned, representing the manufacturer and the authorised representative established within the
Community
Rockwell Automation, Inc.
2 Executive Dr.
Chelmsford, MA 01824
USA
Herewith declare that the Products: GuardShield Micro400 Safety Light Curtains
Product identification (brand and
catalogue number/part number):
Allen-Bradley / GuardShield 445L Series
(reference the attached list of catalogue numbers)
Product Safety Function Micro400 safety light curtains are Type 4 active opto-electronic protective devices
(AOPD) with resolutions of 14mm and 30mm. They are cascadeable, and can be
used in conjunction with MSR4x safety devices up to Safety Category 4 (EN 954-1)/
SIL3/SIL CL3 (EN 61508 / EN 62061) and PL e (EN ISO 13849-1).
are in conformity with the essential requirements of the following EC Directive(s) when installed in accordance with the
installation instructions contained in the product documentation:
2006/42/EC Machinery Directive
2004/108/EC EMC Directive
and that the standards and/or technical specifications referenced below have been applied:
EN 61496-1:2004 + A1:2008 Safety of machinery – Electro-sensitive protective equipment – Part 1: General
requirements and tests
IEC 61496-2:2006 Safety of machinery – Electro-sensitive protective equipment – Part 2: Particular
requirements for equipment using active opto-electronic protective devices (AOPD’s)
EN ISO 13849-1:2008 Safety of machinery – Safety-related parts of control systems – Part 1: General
principles for design
EN 61508 Parts 1-7:1998-2000 Functional safety of electrical/electronic/programmable electronic safety-related
systems
EN 954-1:1997 Safety of machinery – Safety related parts of control systems – Part 1: General
principles for design
EN 50178:1997 Electronic equipment for use in power installations
EN 62061:2005 Safety of machinery – Functional safety of safety-related electrical, electronic and
programmable electronic control systems
EN 60204-1:2006 Safety of machinery – Electrical equipment of machines – General requirements
EN 61000-6-4:2007 Electromagnetic compatibility (EMC) – Part 6-4: Generic standards – Emission
standard for industrial environments (Class A)
EN 61000-6-2:2005 Electromagnetic Compatibility (EMC) – Part 6-2: Generic standards – Immunity for
industrial environments
Conformance of a type sample belonging to the above mentioned product family with the regulations from the EC Machinery
Directive has been certified by:
TÜV Rheinland Product Safety GmbH
Am Grauen Stein
D-51105 Köln, Germany
Manufacturer: Authorised Representative in the Community:
Rockwell Automation BV
Rivium 1e Straat, 23
2909 LE Capelle aan den IJssel
Netherlands
EC Type Examination Certificate No:
968/M 205.00/08 & 968/M 205.00/09
Signature
Signature
Name: Daniel L. Nachtigall Name: Viktor Schiffer
Position: Supv – Product Certification Engineering Position: Engineering Manager
Date: 02-Mar-2011 Date: 08-Mar-2011
34
Original instructions
R
GuardShield™ Micro 400 Safety Light Curtain User Manual
R
Document Control Number: SEN-0393-B-EN 1 / 3
Catalogue number Series
1
Description
445L-x4xxFP GuardShield Micro400 safety light curtain per Nomenclature
1) If no series number is given, then all series are covered
NOMENCLATURE:
Standard 445L Series Nomenclature:
445L - C 4 C 1200 F P
1 234567
1. Designates Product Line
445L – GuardShield Micro 400 safety light curtain
2. Designates Optic Head Designation
C – Cascadeable transmitter and receiver pair
F – Cascadeable receiver
G – Cascadeable transmitter
P – Transmitter and receiver pair
R – Receiver
T – Transmitter
3. Designates AOPD Safety Type
4 – Type 4
4. Designates Photoelectric Safety Device and Sensing Resolution
C – GuardShield Micro400, 14 mm sensing
E – GuardShield Micro400, 30 mm sensing
5. Designates Protective Height
0050 – 050 mm
0100 – 100 mm
0150 – 150 mm
0200 – 200 mm
0250 – 250 mm
0300 – 300 mm
0350 – 350 mm
0400 – 400 mm
0450 – 450 mm
0500 – 500 mm
0550 – 550 mm
0600 – 600 mm
0650 – 650 mm
0700 – 700 mm
0750 – 750 mm
0800 – 800 mm
0850 – 850 mm
0900 – 900 mm
0950 – 950 mm
1000 – 1000 mm
1050 – 1050 mm
1100 – 1100 mm
1150 – 1150 mm
1200 – 1200 mm
6. Designates Environmental Rating
F – IP54
K – IP69K
7 Designates Connection Type
P – Pigtail with micro-style quick disconnect, M12
Original instructions
35
GuardShield™ Micro 400 Safety Light Curtain User Manual
Custom 445L Series Nomenclature (1):
445L - 110490-0000
12
1. Designates Product Line
445L – GuardShield Micro 400 safety light curtain
2. Designates Custom Catalog Designation
Any number from 100000-0000...199999-9999 can be used to denote custom catalog numbers for the 445L series light
curtains
Custom 445L Series Nomenclature (2):
445L - 105000
12
1. Designates Product Line
445L – GuardShield Micro 400 safety light curtain
2. Designates Custom Catalog Designation
Any number from 100000...199999 can be used to denote custom catalog numbers for the 445L series light curtains
36
Original instructions
R
R
Notes:
GuardShield™ Micro 400 Safety Light Curtain User Manual
Original instructions
39
Power, Control and Information Solutions Headquarters
Americas: Rockwell Automation, 1201 South Second Street, Milwaukee, WI 53204-2496 USA, Tel: (1) 414.382.2000, Fax: (1) 414.382.4444
Europe/Middle East/Africa: Rockwell Automation NV, Pegasus Park, De Kleetlaan 12a, 1831 Diegem, Belgium, Tel: (32) 2 663 0600, Fax: (32) 2 663 0640
Asia Pacic: Rockwell Automation, Level 14, Core F, Cyberport 3, 100 Cyberport Road, Hong Kong, Tel: (852) 2887 4788, Fax: (852) 2508 1846
www.rockwel lautomation.com
GuardShield is a trademark of Rockwell Automation, Inc.
Guardmaster is a registered trademark of Rockwell Automation, Inc.
Publication 445L-UM003A-EN-P
PN-107934, 10000167493 Ver 03— September 2014 Copyright ©2014 Rockwell Automation, Inc. All Rights Reser ved. Printed in USA.
CSA: 107123
Loading...
