Rockwell Automation 2727-M7P20D1P1, 2727-M7P20D1Q2, 2727-M7P20D1Q3 User Manual

MobileView Machine Terminal MT750

2727-M7P20D1P1 2727-M7P20D1Q2 2727-M7P20D1Q3

User Manual

Important User Information

Solid state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (Publication SGI-1.1 available from your local Rockwell Automation sales office or online at http://www.ab.com/manuals/gi) describes some important differences between solid state equipment and hard-wired electromechanical devices. Because of this difference, and also because of the wide variety of uses for solid state equipment, all persons responsible for applying this equipment must satisfy themselves that each intended application of this equipment is acceptable.

In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams.

No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc. is prohibited.

Throughout this manual we use notes to make you aware of safety considerations.

WARNING

ATTENTION

IMPORTANT

SHOCK HAZARD

Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss.

Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss.

Attentions help you:

• identify a hazard

• avoid a hazard

• recognize the consequence

Identifies information that is critical for successful application and understanding of the product.

Labels may be located on or inside the drive to alert people that dangerous voltage may be present.

This preface provides information on:

• manual contents

• terminology

• intended audience

• intended uses

• European Communities (EC) Directive Compliance

• standards and agency certifications

• Rockwell Automation Support

Preface

Contents of Manual

This manual is organized as follows:

Chapter Title Description

1 Overview Gives a general overview of the

MobileView Machine Terminal MT750 and its features.

2 Terminal Connections Shows how to connect the MobileView

MT750 to the Junction Box, make Ethernet, serial, and IrDA (keyboard and printer) connections, use the PC Card slot, and install the optional mounting bracket.

3 Configuring the MobileView

Terminal

4 Using RSView ME Station Describes the RSView ME Station

5 CE Thin Client Operating

Instructions

Provides details on how to use the MobileView Configuration Tool to calibrate operating elements. It also provides details on how to transfer data between the MobileView terminal and PC, and install programs.

software installed in the MobileView 2727-M7P20D1Q2 and 2727-M7P20D1Q3 terminals.

Gives instructions on how to start up, configure Ethernet settings, and power off the MobileView MT750 terminal. It also gives details on how to start terminal services.

6 Windows CE Applications Describes the Windows CE software

installed in the MobileView terminal, generation of Windows CE programs, and the MobileView MT750 virtual channel.

1 Publication 2727-UM003D-EN-P

Preface 2

Chapter Title Description

7 Maintenance and

Troubleshooting

A Specifications Gives specifications for the MobileView

Provides information on cleaning, handling and troubleshooting the MobileView MT750 terminal.

MT750 terminal.

Terminology

Intended Audience

Intended Uses

B Available Fonts for Terminal

Applications

The MobileView Machine Terminal MT750 is referred to as the MobileView terminal throughout this manual.

This manual is for the individuals responsible for installing, configuring, troubleshooting, and operating the MobileView Machine Terminal MT750 in an industrial environment.

The MobileView Machine Terminal MT750 may only be used for the types of use described in this manual. This terminal has been developed, manufactured, tested and documented in accordance with ergonomic guidelines and the appropriate safety standards. If you follow the instructions and safety precautions relating to the intended use are properly observed, the MobileView MT750 does not, under normal circumstances, represent a danger to the health of personnel or a risk of damage to other property or equipment.

Provides information on pre-installed fonts and available fonts for download for the MobileView terminals.

European Communities (EC) Directive Compliance

Publication 2727-UM003D-EN-P

Observe national regulations for disposing of electronic components.

The product has the CE mark and is approved for installation within the European Union and EEA regions. It has been designed and tested to meet the following directives. In addition, the device meets the Council Directive 98/37/EC as a safety component.

Preface 3

EMC Directive

This product is tested to meet the Council Directive 89/336/EC Electromagnetic Compatibility (EMC) by applying the following standards, in whole or in part, documented in a technical construction file:

• EN 61000-6-4 EMC - Generic Emission Standard, Part 2 - Industrial

Environment

• EN 61000-6-4 EMC - Generic Immunity Standard, Part 2 - Industrial

Environment

• EN 61131-2 - Programmable Controllers Part 2 - Equipment

Requirement and Tests

This product is intended for use in an industrial environment.

A Declaration of Conformity is available upon request.

ATTENTION

The MobileView Machine Terminal MT750 meets the requirements of EN 50081-2, Class A Emissions for Industrial Environment. In the residential environment, this product may cause high frequency interferences. Corrective measures of the equipment might be necessary.

Publication 2727-UM003D-EN-P

Preface 4

Publication 2727-UM003D-EN-P

Preface

Overview

Terminal Connections

Contents of Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P-1

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P-2

Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P-2

Intended Uses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P-2

European Communities (EC) Directive Compliance . . . . . . P-2

EMC Directive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P-2

Chapter 1

Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

MobileView MT750 Sample System Configuration. . . . . . . . 1-2

Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Membrane Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Touch Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

MobileView MT750 Configurations. . . . . . . . . . . . . . . . . . . 1-6

MobileView MT750 Accessories . . . . . . . . . . . . . . . . . . . . . 1-6

Chapter 2

Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Mounting and Connecting the Junction Box . . . . . . . . . . . . 2-2

DIN Rail Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Connecting the MobileView to the Junction Box . . . . . . 2-4

Junction Box Pinout and Wiring . . . . . . . . . . . . . . . . . . 2-5

Power Supply Requirements. . . . . . . . . . . . . . . . . . . . . 2-6

MobileView Connection Cable . . . . . . . . . . . . . . . . . . . 2-7

MobileView Junction Box Cable . . . . . . . . . . . . . . . . . . 2-8

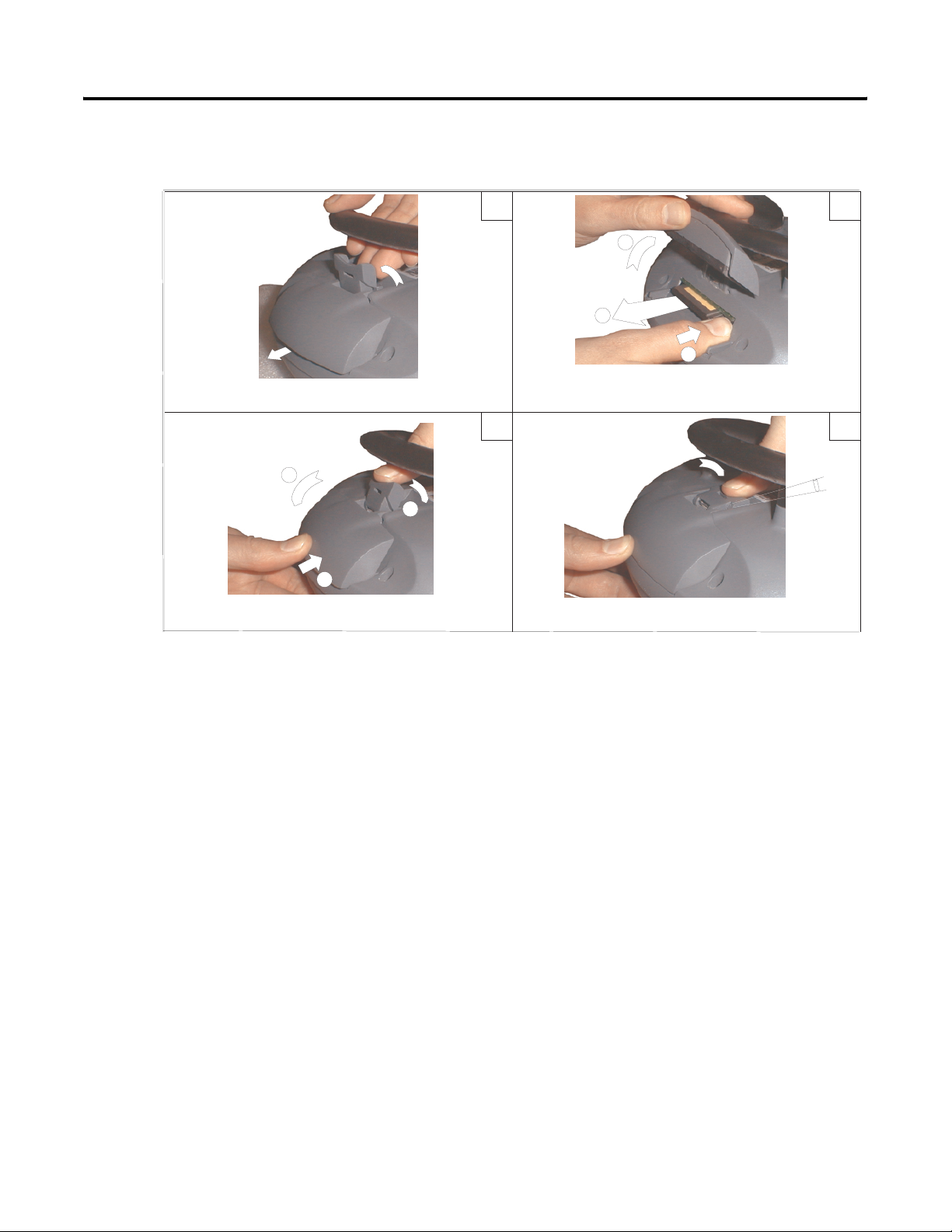

Accessing/Wiring the MobileView Connection Compartment 2-9

Removing the Back Cover . . . . . . . . . . . . . . . . . . . . . . 2-9

Connection Compartment Details . . . . . . . . . . . . . . . . . 2-10

Attaching the MobileView Connection Cable. . . . . . . . . 2-11

Connecting a Computer using the RS-232 Serial Port. . . . . . 2-12

Making an Ethernet Connection. . . . . . . . . . . . . . . . . . . . . 2-13

Using the PC Card Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Inserting the PC Card . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Removing the PC Card . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

Connecting a Keyboard / Printer Using the IrDA Interface . 2-16

Installing the Mounting Bracket . . . . . . . . . . . . . . . . . . . . . 2-17

Chapter 3

Configuring the MobileView Terminal

i Publication 2727-UM003D-EN-P

Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Using the MobileView Configuration Tool . . . . . . . . . . . . . 3-1

Calibrating the Potentiometer . . . . . . . . . . . . . . . . . . . . 3-2

Adjusting Display and Touch Screen Settings . . . . . . . . 3-3

Setting the Handwheel to Zero . . . . . . . . . . . . . . . . . . . 3-4

Configure Keypad Settings . . . . . . . . . . . . . . . . . . . . . . 3-5

Configuring Startup Settings . . . . . . . . . . . . . . . . . . . . . 3-6

Table of Contents ii

Using RSView ME Station

Activating/Testing Pushbutton LEDs . . . . . . . . . . . . . . . 3-7

Loading a New Image File . . . . . . . . . . . . . . . . . . . . . . 3-7

Clearing the Registry . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

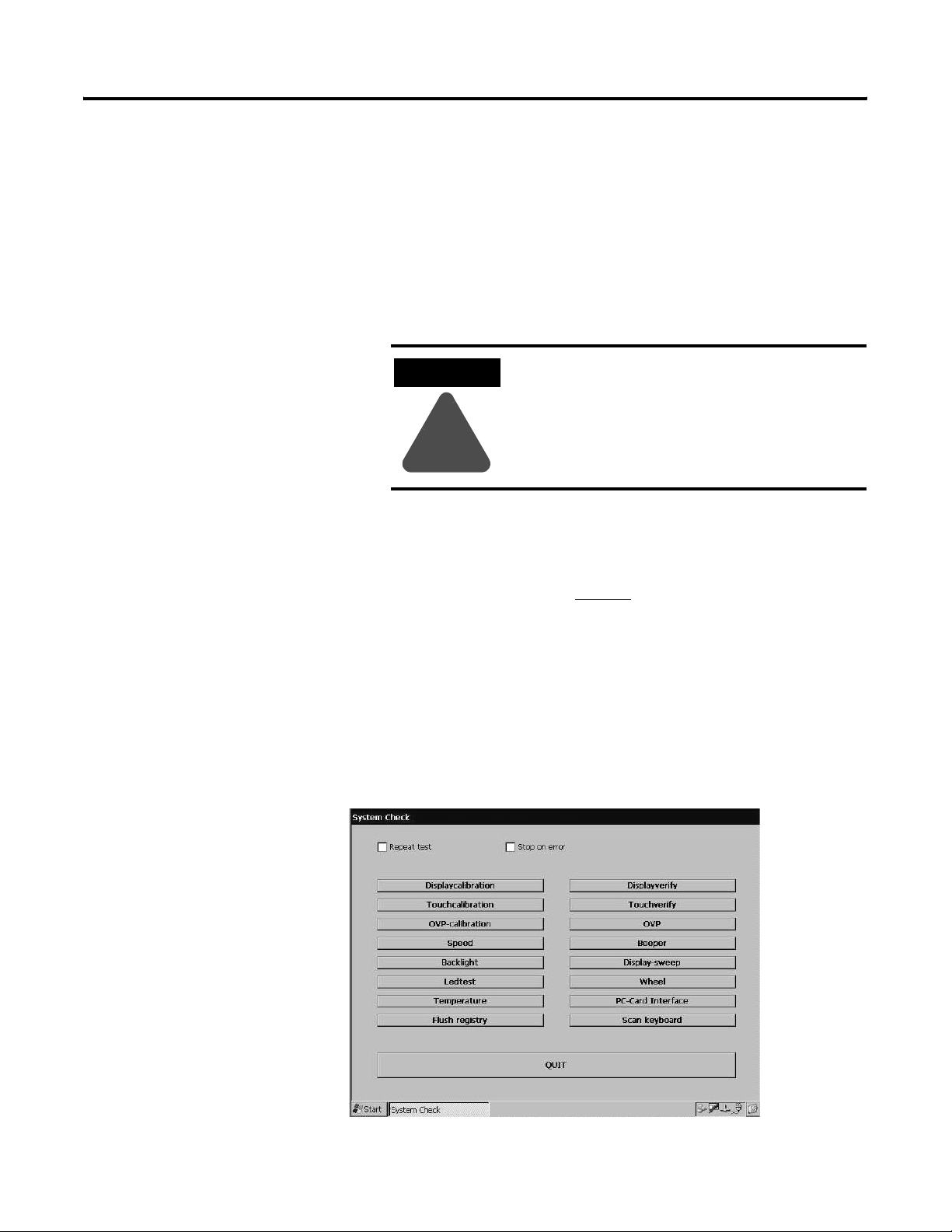

Checking the Operating and Control Elements . . . . . . . . . . 3-12

Transferring Data with a Personal Computer . . . . . . . . . . . 3-13

Verifying Serial Port Availability . . . . . . . . . . . . . . . . . . 3-13

Installing Microsoft ActiveSync Software . . . . . . . . . . . . 3-14

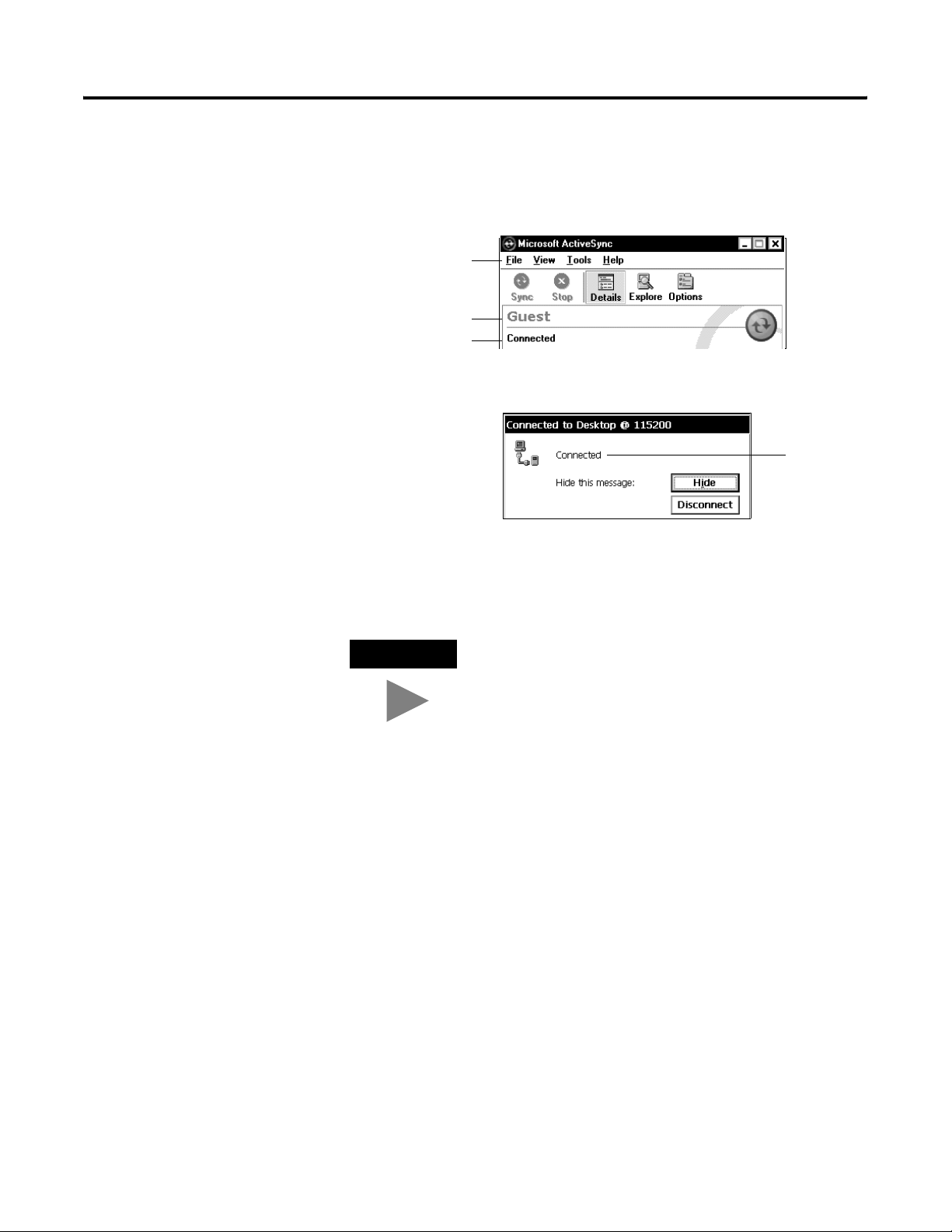

Connecting the MobileView Terminal to a PC . . . . . . . . 3-14

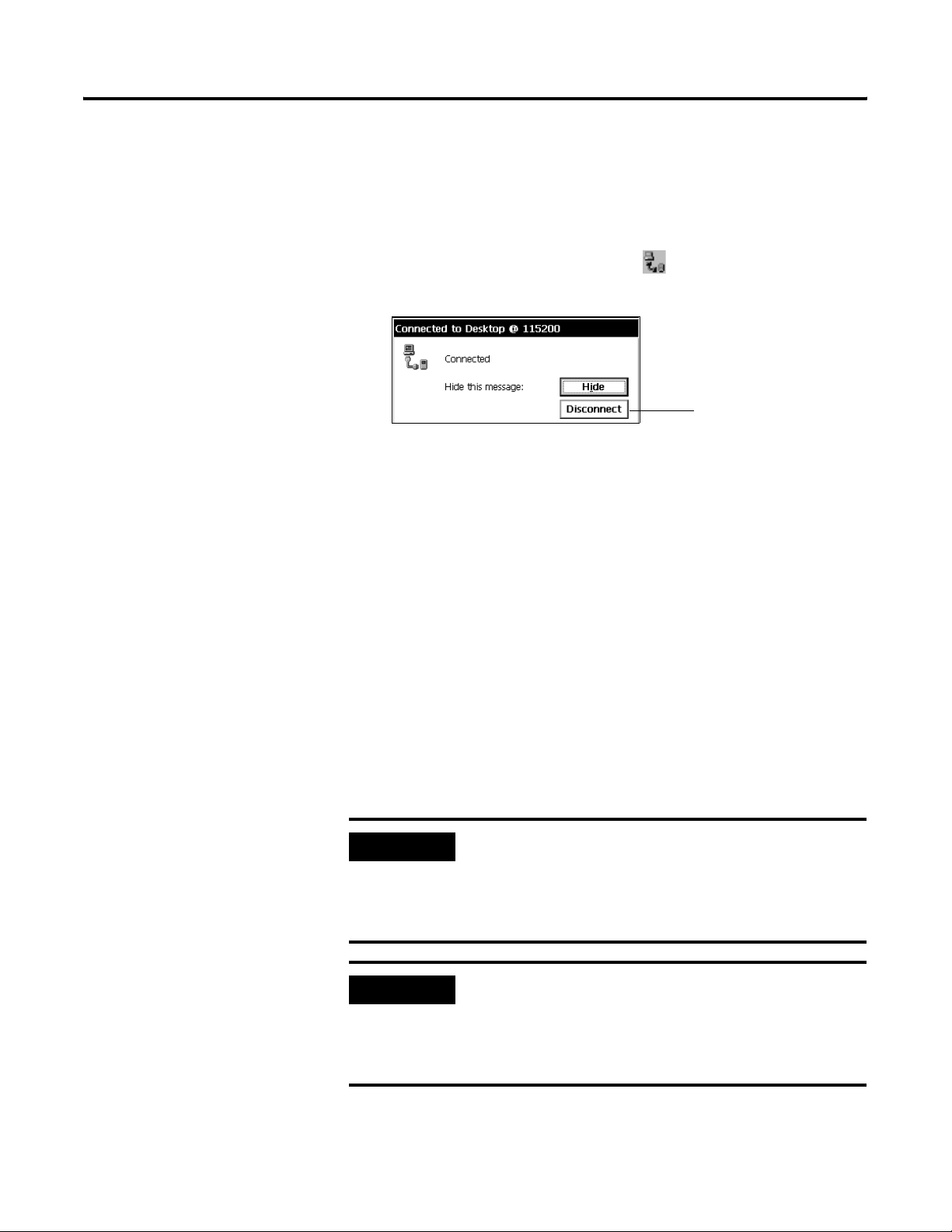

Disconnecting Communication . . . . . . . . . . . . . . . . . . . 3-16

Installing Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16

Saving Registry Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Power Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Chapter 4

Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Startup Options for RSView ME Station . . . . . . . . . . . . . . . 4-1

Start RSView without Loading or Running .MER Application 4-1

Start RSView and Load .MER Application . . . . . . . . . . . 4-2

Start RSView and Run .MER Application . . . . . . . . . . . . 4-2

Other Shortcut Paths for RSView ME Station . . . . . . . . . 4-3

Starting RSView ME from the desktop . . . . . . . . . . . . . . . . 4-4

Screen Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Input Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Loading an ME Application . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Running an Application. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Application Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Terminal Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

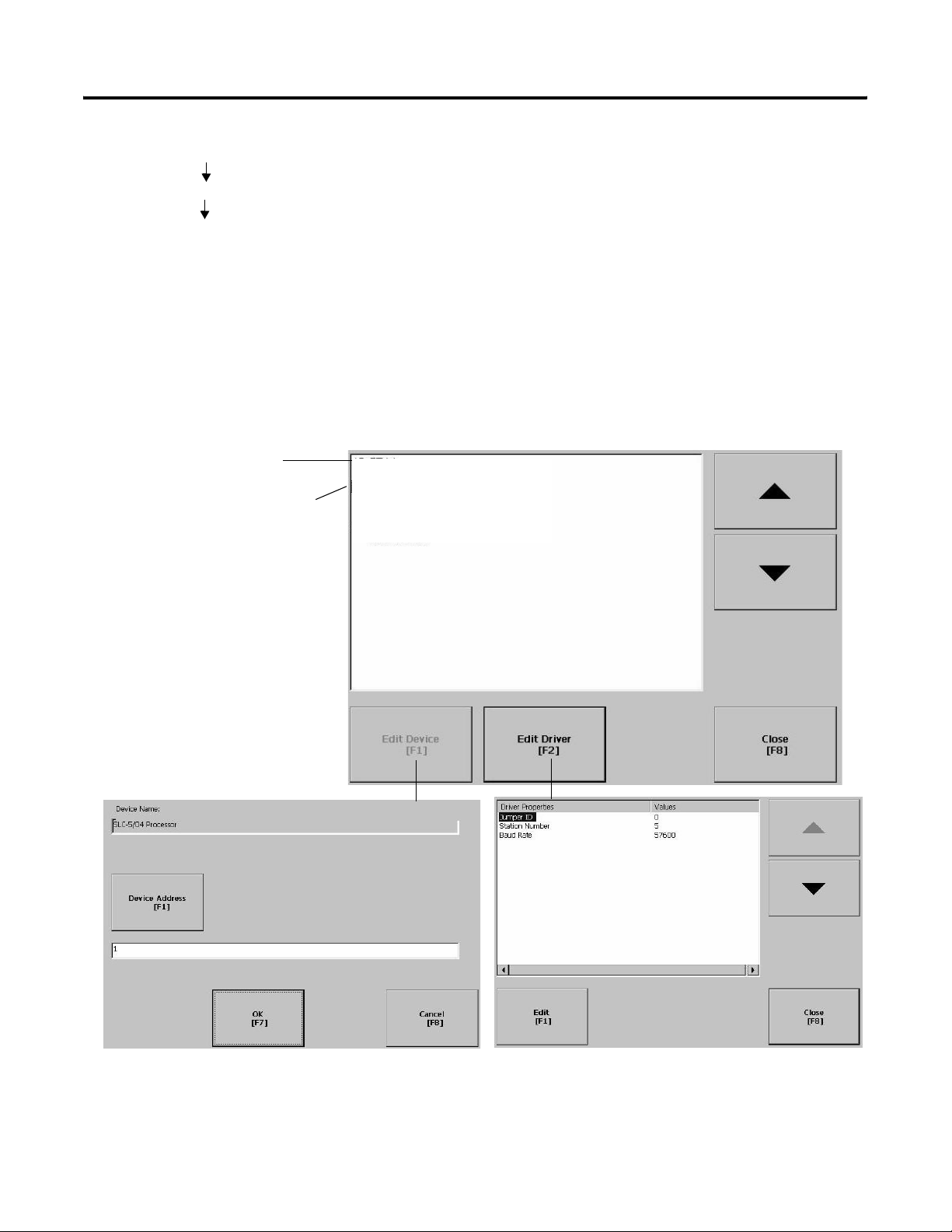

Networks and Communications . . . . . . . . . . . . . . . . . . . . . 4-9

KEPServer Port ID’s . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

RSLinx Enterprise Communications. . . . . . . . . . . . . . . . 4-10

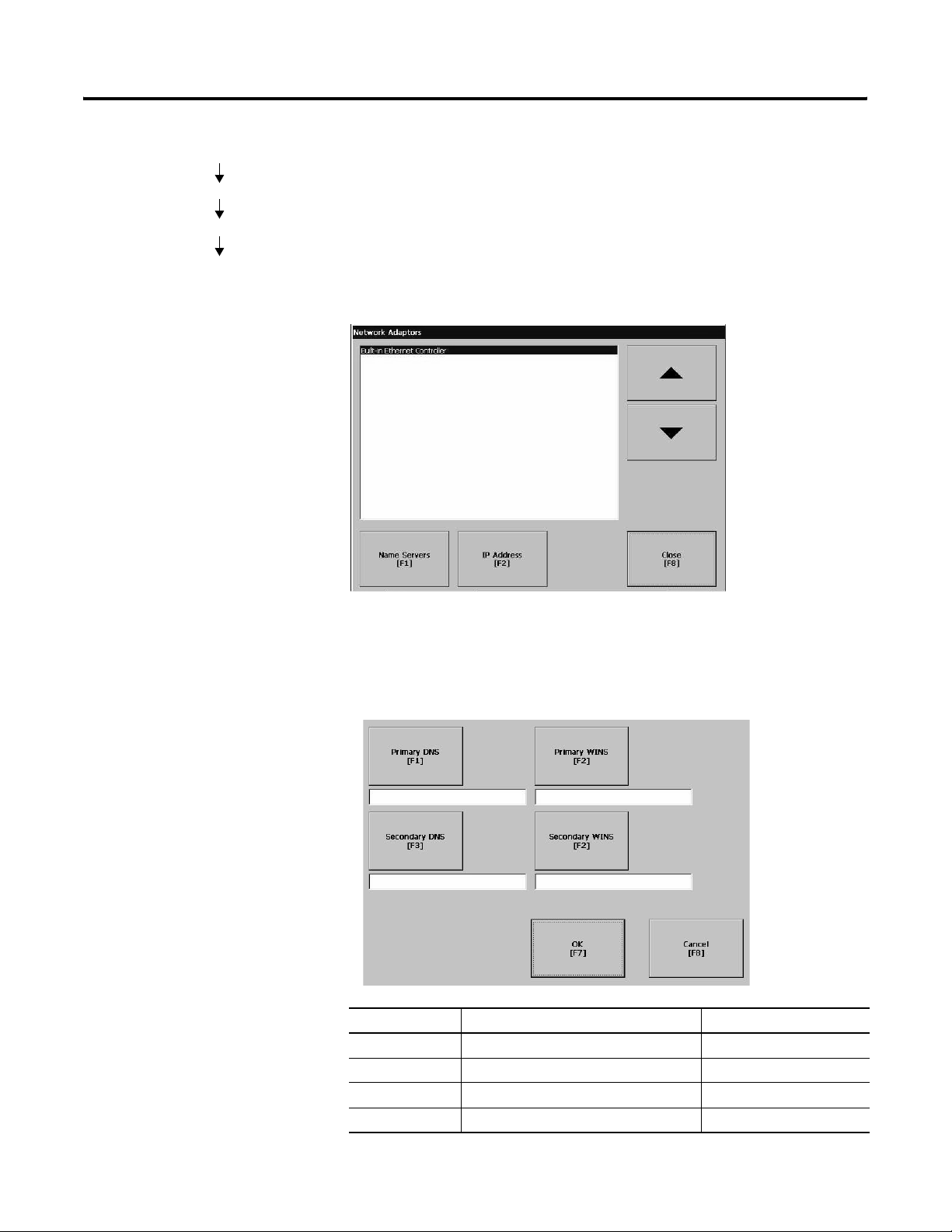

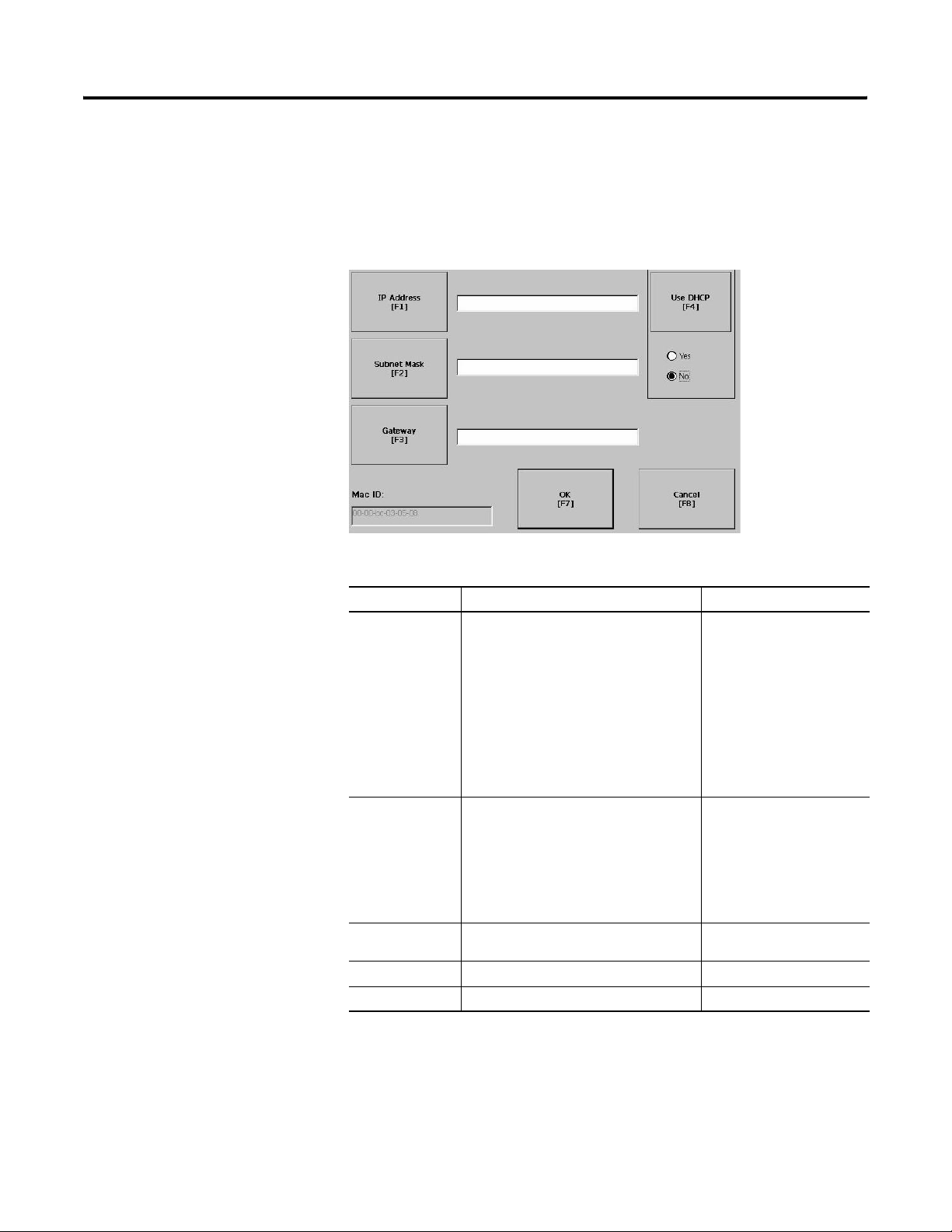

Network Connections. . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

Diagnostic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

Message Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

File Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

Delete Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

Copy Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Font Linking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

Print Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21

Display, Alarm, and Diagnostic Print Setup . . . . . . . . . . 4-21

Startup Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

RSView ME Station Startup . . . . . . . . . . . . . . . . . . . . . . 4-23

Time/Date/Regional Settings . . . . . . . . . . . . . . . . . . . . . . . 4-25

Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26

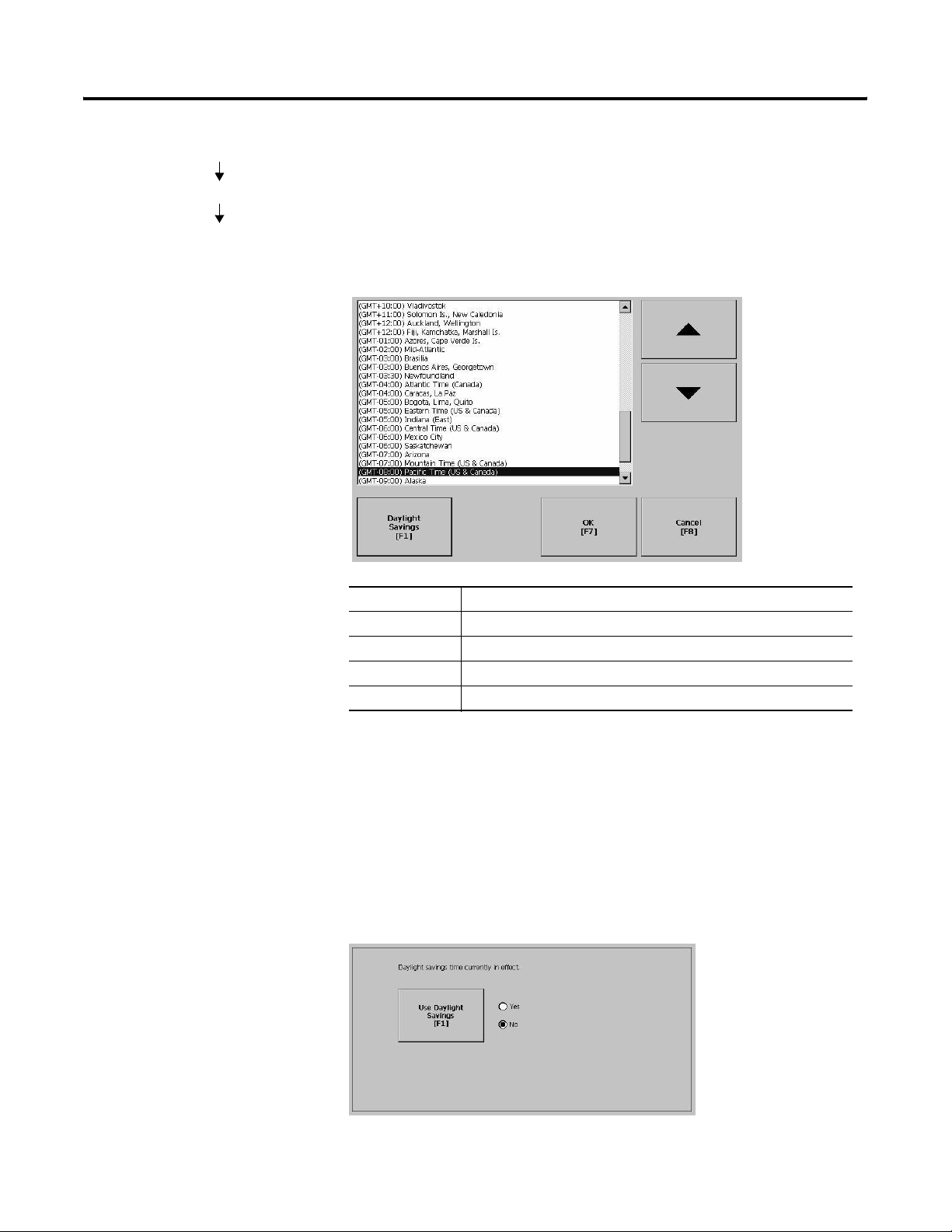

Time Zone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27

Publication 2727-UM003D-EN-P

CE Thin Client Operating Instructions

Windows CE Applications

Table of Contents iii

Chapter 5

Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Starting Up/Powering On the Terminal . . . . . . . . . . . . . . . 5-1

Setting Auto Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

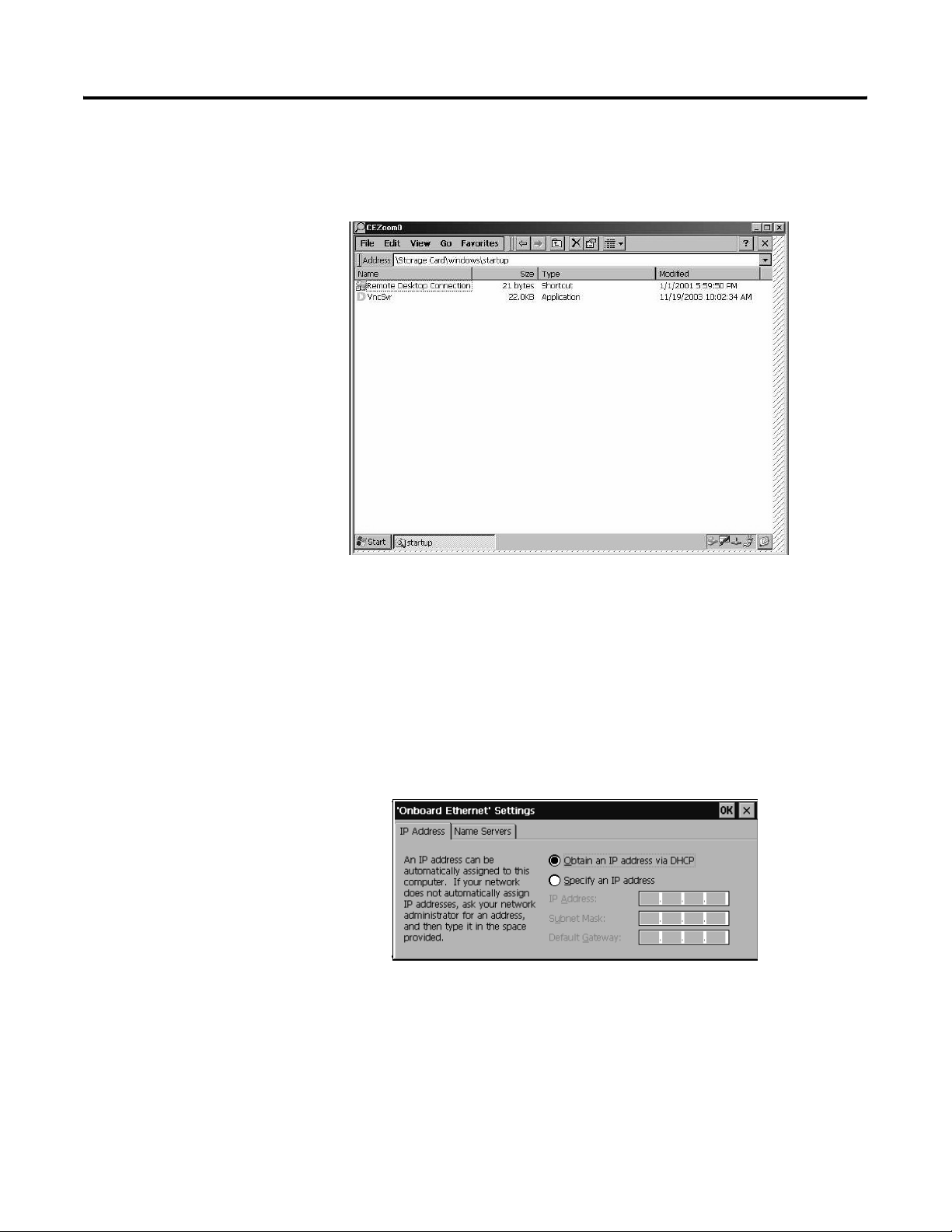

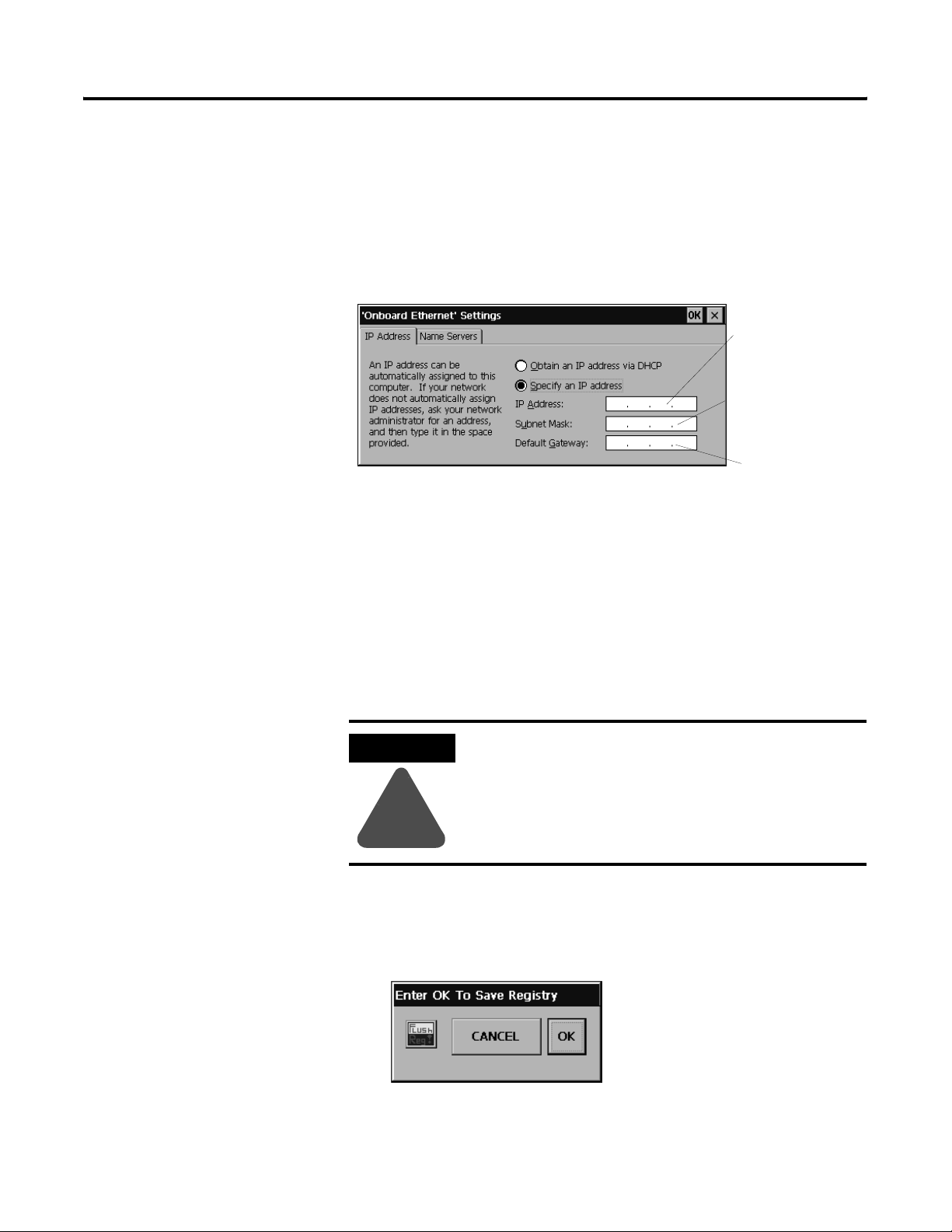

Configuring Ethernet Network Settings. . . . . . . . . . . . . . . . 5-2

Saving Registry Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

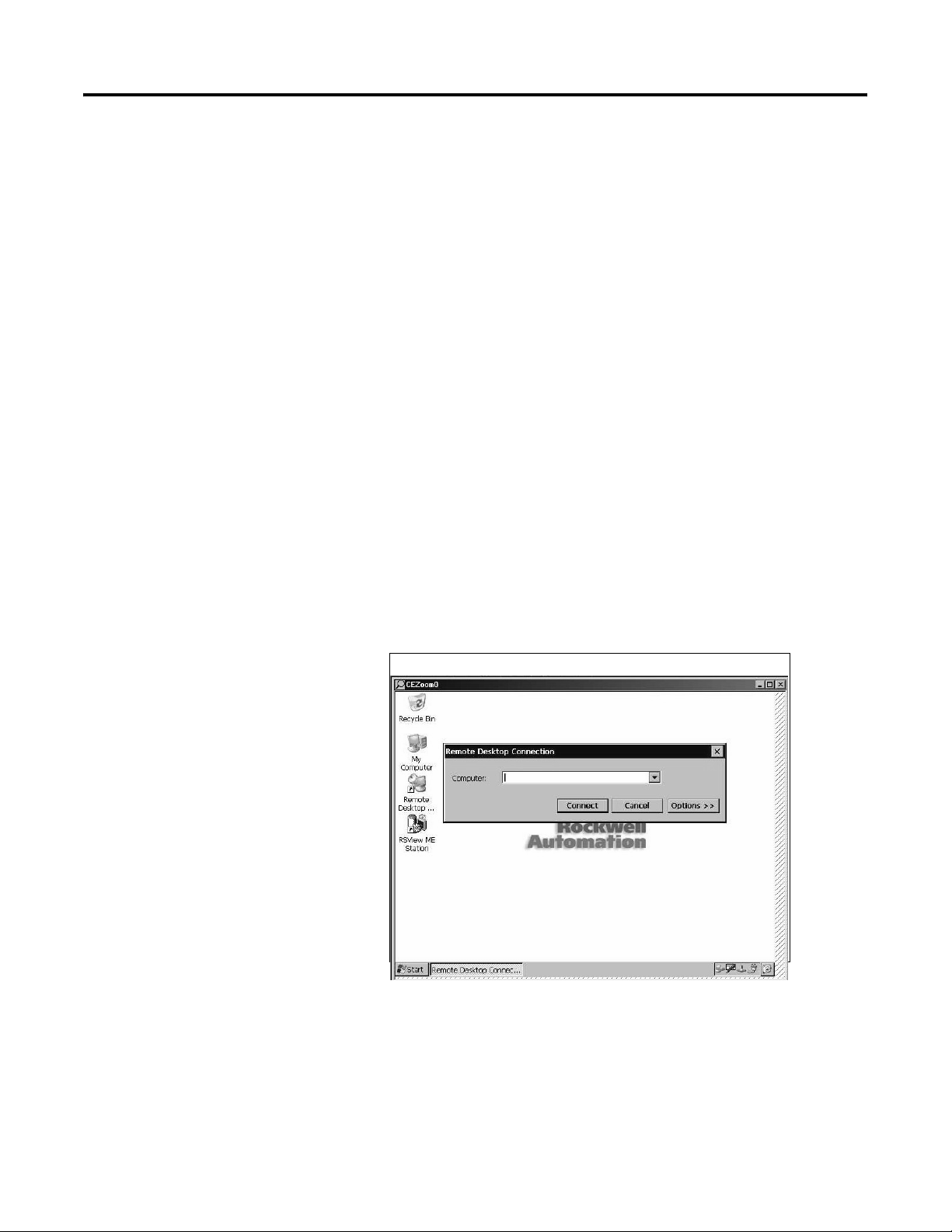

Starting Terminal Services . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Shutting Down/Powering Off the Terminal . . . . . . . . . . . . 5-5

Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Chapter 6

Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

MobileView Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Generating Programs for Windows CE . . . . . . . . . . . . . . . . 6-2

Virtual Channel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Activating the Virtual Channel . . . . . . . . . . . . . . . . . . . 6-4

Events Causing the Client to Send Data. . . . . . . . . . . . . 6-4

Events of Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Data Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

Example: Interface on Server . . . . . . . . . . . . . . . . . . . . 6-7

Maintenance and Troubleshooting

Specifications

Available Fonts for Terminal Applications

Index

Chapter 7

Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Cleaning the MobileView MT750 Terminal . . . . . . . . . . . . . 7-1

Handling the MobileView MT750 Terminal. . . . . . . . . . . . . 7-2

Troubleshooting the Terminal . . . . . . . . . . . . . . . . . . . . . . 7-3

Providing Technical Support Information . . . . . . . . . . . . . . 7-4

Appendix A

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Standard and Agency Certifications . . . . . . . . . . . . . . . . . . A-2

Appendix B

Downloading Fonts to Terminal . . . . . . . . . . . . . . . . . . . . B-1

VersaView CE Accessories CD . . . . . . . . . . . . . . . . . . . . . . B-2

RSView Machine Edition Fonts CD. . . . . . . . . . . . . . . . . . . B-2

Publication 2727-UM003D-EN-P

Table of Contents iv

Publication 2727-UM003D-EN-P

Overview

Chapter

Chapter Objectives

Overview

This chapter covers the following topics:

• overview

• hardware description

• membrane keypad

• touch screen

• terminal configurations

• terminal accessories

The MobileView products are a family of human machine interface devices with a rugged design and Windows-CE compatible electronics.

Using a high-performance Intel StrongARM processor and providing an Ethernet interface, the MobileView Machine Terminal MT750 is ideal for a variety of applications including:

• operator panel for machines and plants

• teach and programming panel for robots

• test, maintenance, and startup

All tasks can be solved graphically and in color. Operation is intuitive, using a touch screen with symbol-controlled sequences.

Instead of a floppy or hard disk drive, which are not suitable for harsh environmental conditions, the MobileView MT750 uses scalable FLASH and RAM banks. Functionality is easily expanded using PC cards Type I, II, and III.

The MobileView MT750 connects as a client to a Windows NT or Windows 2000 server. It also provides a Windows CE platform for applications generated with common visualization tools, Visual Basic or Visual C++, and the CE 4.x Software Developers Kit (SDK) included on the product CD.

The MobileView Machine Terminal MT750 (Catalog Number 2727-M7P20D1Q2 and 2727-M7P20D1Q3) supports RSView Machine Edition Software.

The MobileView MT750 easily adapts to specific applications using configurable operating and control elements.

1 Publication 2727-UM003D-EN-P

1-2 Overview

MobileView MT750 Sample System Configuration

MobileView Machine Terminal MT750

running as CE Thin Client and/or

Custom CE Applications

ror

r u R

7 8 9

4 5

1 2 3

. 0 -

ESC

KETOP

5, 10, 15, 20 meter mobile

Connection Cable

Discrete/Ethernet

Connection

Typical System Control Cabinet

Safety Equipment

Connections for

MobileView G750 only

24V dc Power

MobileView

Junction Box

24V DC

ONLY

+24V

TERM INAL IN

GND

ES1+

ES1-

ES2+

ES2-

ED1+

ED1-

ED2+

ED2-

RS422 OUT

+24V

GND

ES1+

ES1-

ES2+

ES2-

ED1+

ED1-

ED2+

ED2-

ETHERNET OUT

Ethernet

Connection

Local or Remote

Windows NT or 2000 Server

Publication 2727-UM003D-EN-P - Month Year

Overview 1-3

Hardware Description

The following illustration shows the location of key hardware components.

1 Potentiometer with 0-127 linear resolution (option)

2 Electronic handwheel with 50 pulses/rev, -32768 to +32768 (option)

3 Emergency stop switch location (optional only on the MobileView Guard G750

4 Membrane keypad with tactile feedback - standard Windows keyboard operation

5 Illuminated momentary push button, normally open, OFF marking, yellow LED (option)

6 3-position key switch (option)

7 Illuminated momentary push button, normally open, ON marking, yellow LED (option)

8 7.7 inch VGA (640 x 480 pixels) passive matrix color LCD display with analog resistive

9 Enabling switch location - one each side of handle (optional only on the MobileView

10 IrDA keyboard/printer interface, 9600 or 115.2K baud

11 Handle for left or right-hand operation

12 Single slot PC card interface for Type I, II and III cards (option)

13 Strain relief for connection cable (shipped with cable)

14 Back cover to connection compartment

15 Plug for cable outlet when not used (meets degree protection IP54)

Ter mi na ls )

touch screen

Guard 750 Terminals)

Publication 2727-UM003D-EN-P

1-4 Overview

Membrane Keypad

Tab Left/Right Keys

Shift and Ctrl Keys

Backspace and Esc Key

Page Up/Down Home/End

The MobileView terminal has a membrane keypad with stainless steel dome switches for tactile feedback.

Function Keys

F1 - F12

Numeric, Period, Minus Keys

Enter Key

Alt Key

The keys on the keypad operate identically to a Windows PC keyboard with the exception of Tab Left and the ALT-Arrow key combinations. Most standard 2-key combinations are supported including some 3-key combinations. The table below shows the Windows virtual key codes for each key.

Keypad Key Windows Virtual Key Code

Numeric keys 0 - 9 VK_NUMPAD0 through VK_NUMPAD9

. (period) VK_DECIMAL

- (minus) VK_SUBRACT

Arrow (left/right/up/down) VK_LEFT/VK_RIGHT/VK_UP/VK_DOWN

Enter VK_RETURN

Backspace VK_BACK

ALT+Up arrow (PG UP) VK_PRIOR

ALT+Down arrow (PG DN) VK_NEXT

ALT+Left arrow (PG HOME) VK_HOME

ALT+Right arrow (PG END) VK_END

Tab Left key VK_LSHIFT+VK_TAB

Tab Right key VK_TAB

SHIFT key VK_LSHIFT

CTRL VK_LCONTROL

F1 - F12 function keys VK_F1 through VK_F12

Publication 2727-UM003D-EN-P - Month Year

Keypad Key Windows Virtual Key Code

ESC key VK_ESCAPE

ALT key VK_MENU

Options:

Illuminated push button, left Key switch, left Key switch, right Illuminated push button, right

VK_F13 VK_F14 VK_F15 VK_16

Overview 1-5

Touch Screen

The touch screen is calibrated before shipment. No further calibration is required.

ATTENTION

Do not use a sharp object, such as a screw driver to operate the touch screen. Using sharp objects may damage the touch screen.

Publication 2727-UM003D-EN-P

1-6 Overview

MobileView MT750 Configurations

The MobileView MT750 terminal is available in 3 configurations. The table below lists each configuration by catalog number and the included features.

Features 2727-M7P20D1P1 2727-M7P20D1Q2 2727-M7P20D1Q3

7.7 Inch VGA Display Yes

IrDA Interface Yes

3-Position Enable Switch

2-Circuit E-Stop

(Position 3)

Memory 16MB DRAM

PC Card Slot No Yes

Communications 10Base-T Ethernet

Operating Elements No No

Windows CE Operating System

RSView Machine Edition

Thin Client Application

32MB Flash

No Yes

64MB DRAM/64MB Flash

Push Button with OFF Marking - Position 5

Key Switch - Position 6

Push Button with ON marking - Position 7

Yes

MobileView MT750

The following accessories are available for the MobileView MT750 terminal.

Accessories

Catalog Number Description

2727-MRT5 MobileView Connection Cable (5 meter /16.4 ft) - connects the MobileView terminal to the Junction Box Cable.

2727-MRT10 MobileView Connection Cable (10 meter /32.8 ft) - connects the MobileView terminal to the Junction Box Cable

2727-MRT15 MobileView Connection Cable (15 meter /49.2 ft) - connects the MobileView terminal to the Junction Box Cable.

2727-MRT20 MobileView Connection Cable (20 meter/65.6 ft) - connects the Mobileview terminal to the Junction Box cable.

2727-MRJB1 MobileView Junction Box - provides controller, Ethernet and power supply connections.

2727-MREX1 MobileView Junction Box Cable (2 meter / 6.5 ft) - connects the MobileView Connection Cable to the Junction Box.

2727-MRC1 MobileView Download Cable (4 meter /13.1 ft) - connects between the MobileView terminal to a PC.

2727-MRMB1 MobileView Mounting Bracket for stationary operation or storing the MobileView terminal.

2727-MRSDK1 MobileView SDK file set for Windows CE development

Publication 2727-UM003D-EN-P - Month Year

Terminal Connections

Chapter

Chapter Objectives

This chapter shows how to connect devices to the MobileView terminal, including:

• mounting and connecting the MobileView Junction Box

• accessing and wiring the MobileView connection compartment

• connecting a computer using the RS-232 Port

• making an Ethernet connection

• using the PC card slot

• connecting a keyboard/printer using the IrDA interface

• installing the MobileView Mounting Bracket

1 Publication 2727-UM003D-EN-P

2-2 Terminal Connections

Mounting and Connecting the Junction Box

Pin 1, 24V dc

(with Female

Terminal Block

Connector K3)

The MobileView Junction Box (2727-MRJB1) integrates the MobileView terminal into the control system. It mounts on a DIN rail inside an enclosure and has the following connectors:

Connectors Description

S1 RJ-45 jack for connecting the MobileView data lines.

S2 9-pin DSUB female connector (for future use).

S3 RJ-45 jack to Ethernet network.

X1 12-pin male connector for connecting the Junction Box Cable.

60 mm (2.36 in)

+24V

GND

ES1+

ES1-

ES2+

ES2-

ED1+

ED1-

ED2+

ED2-

X2 12-pin male connector (shipped with a female terminal block connector) for

connecting the:

24V DC

ON LY

TER M INAL IN

RS422 OUT

• 24V dc power supply

• emergency stop switch

• enabling switches

Junction Box

150 mm (5.91 in) 108 mm (4.25 in)

Pin 1, 24V dc

(with Female

Terminal Block

Connector K4)

Grounding Screw

+24V

GND

ES1+

ES1-

ES2+

ES2-

ED1+

ED1-

ED2+

ED2-

ATTENTION

ETHERNET OUT

162 mm (6.4 in.)

DIN Rail Latch

Grounding Screw Strain Relief

for Cable

The MobileView Junction Box and the MobileView terminal meet the safety class III in accordance with EN 61131-2 and EN 50178.

When connecting the terminal, make sure all voltages connected to the MobileView terminal are safety extra low voltages and isolated from the low voltage supply system by a safety transformer or a similar safety component.

Publication 2727-UM003D-EN-P

Terminal Connections 2-3

DIN Rail Mounting

Mount the MobileView Junction Box inside an enclosure using a DIN rail (not shipped with terminal).

To install the Junction Box on a DIN rail:

1. Mount the DIN rail.

2. Hook the top slot over the DIN rail.

3. While pressing the Junction Box against the DIN rail, snap the

Junction Box into position.

To remove the Junction Box from the DIN rail:

1. Place a screwdriver in the DIN rail latch at the bottom of the

Junction Box.

2. Holding the Junction Box, pry downward on the latch until the

Junction Box is released from the DIN rail.

Publication 2727-UM003D-EN-P

2-4 Terminal Connections

Connecting the MobileView to the Junction Box

MobileView Terminal

ESC

7 8 9

5 6

1 2

Control Cabinet

Pin 1, 24V dc

r o

r un R

KETOP

Safety Equipment Connections (for Mobileview G750 only)

MobileView

Terminal Connections

Pin 1, 24V dc

X2/K4

MobileView Junction Box

+24V

GND

ES1+

X1/K3

ES1-

ES2+

ES2-

ED1+

ED1-

ED2+

ED2-

+24V

GND

ES1+

ES1-

ES2+

ES2-

ED1+

ED1-

ED2+

ED2-

24V DC

ON LY

TER M INAL IN

R S422 OUT

ETHERNET OUT

maximum wall thickness 5 mm (0.2 in)

Junction Box Cable

2 m (6.5 ft)

Use Grounding Screw to connect Earth Ground to Junction Box.

10 Base-T Connection to Ethernet Network

Junction Box Cable

Tie Wi re

24 mm

(0.94 in)

25 mm (±0.1)

(0.98 in

±0.0039)

Cable Clearance on both sides of Enclosure Wall

130mm (5.12 in)

100 mm (3.94 in)

Connection Cable

Connection

Junction Box Cable

Publication 2727-UM003D-EN-P

MobileView

S19

Junction Box Pinout and Wiring

MobileView

Connection Cable

pink

black

green-brown

white-green

grey-pink

red-blue

brown

yellow

green

grey

violet

Junction Box

Cable

pink

black

green-brown

white-green

grey-pink

red-blue

brown

yellow

green

grey

violet

Terminal Connections 2-5

MobileView

Junction Box

24V dc

GND_IN

E-Stop, circuit 1, pos.*

3 4

E-Stop, circuit 1, neg.*

E-Stop, circuit 2, pos.*

E-Stop, circuit 2, neg.*

Enabling Sw. circuit 1, pos.*

Enabling Sw. circuit 1, neg.*

Enabling Sw. circuit 2, pos.*

Enabling Sw. circuit 2, neg.*

Not Used

+24V

1 2

GND ES1+

3 4

ES1-

ES2+

ES2-

ED1+

ED1-

ED2+

ED2-

11 12

blue

white

orange

red

* Junction Box connections are for connection to MobileView Guard G750 Terminals only.

blue

white

orange

red

Future Use

To Ethernet Network

TD+

TDRD+

RD-

Publication 2727-UM003D-EN-P

2-6 Terminal Connections

Power Supply Requirements

Electrical Specifications

24V dc Power Supply Use a 24V dc Safety Extra Low Voltage power

supply. Supply Voltage Range: 18V dc to 32V dc Current Consumption: 300mA at 24V dc Peak Inrush Current: 5.6 A maximum

Grounding Connect Earth Ground to the Junction Box using

the Earth Ground Screw (shown on previous page 2-4).

ATTENTION

• The device meets the safety class III in

accordance with EN 61131-2 and EN 50178. The 24V power supply for the equipment must provide appropriate isolation between the safety-extra-low-voltage circuits and dangerous-contact voltage circuits (for example, by safety transformers or similar facilities).

• The power supply circuit must be protected with

a 3.15 A fuse.

• The nominal supply voltage of the MobileView

terminal (without MobileView Connection Cable) is 24V dc (supply voltage range: 18-32V dc) with a typical input current of 300 mA.

When planning the power supply, consider the voltage drop in the connection cable. Specifications of power supply lines in the connection cable are:

- Cross section: AWG24 (0.24mm

- Material: zinc-coated copper strand

- Line resistance:

<90 Ohm/km (<145 Ohm/mile)

)

Publication 2727-UM003D-EN-P

Terminal Connections 2-7

MobileView Connection Cable

The Mobile Connection Cable (2727-MRTxx) connects the MobileView terminal to the MobileView Junction Box Cable (2727-MREX1). The Connection Cable is 5, 10, 15, or 20 meters (6.4, 32.8, 49.2 or 65.6 ft). This cable withstands water, cleaning agents, motor oil, drilling oils, grease, lubricants and condensates containing hydrochloric acid.

17-pin Circular

Connector Pin #

MobileView

Connection Cable

Wire Color

1pink

2black

3 green-brown

4 white-green

5 grey-pink

6 red-blue

7brown

8yellow

12 green

17 grey

9 bridge to pin 10

10 bridge to pin 9

11 violet

13 blue

14 white

15 orange

16 red

K3, 11-pin Female

Connector

to S19 in

RJ-45 Jack

Ethernet to S4 in

Ter mi na l

-->>

6 - 24V DC

7 - GND_IN

8 - E-stop, circuit 1, positive*

9 - E-stop, circuit 1, negative*

10 - E-stop, circuit 2, positive*

11 - E-stop, circuit 2, negative*

1 - enabling switch, circuit 1, positive*

2 - enabling switch, circuit 1, negative*

3 - enabling switch, circuit 2, positive*

4 - enabling switch, circuit 2, negative*

- - not used

5 - not used

- 1 TD+ (transmit)

- 2 TD- (transmit)

- 3 RD+ (receive)

- 6 RD- (receive)

* For connection to MobileView Guard G750 only.

K2, 8-pin

Signal

Description

Ter mi na l

K3, 11-pin female connector to S19 at MobileView terminal

K2, 8-pin RJ-45 jack to S4 at MobileView terminal

K1, 17-pin circular connector view from connector side

5, 10, 15, or 20 meter (6.4, 32.8, 49.2, or 65.6 ft)

Publication 2727-UM003D-EN-P

2-8 Terminal Connections

MobileView Junction Box Cable

The MobileView Junction Box Cable (2727-MREX1) connects the Junction Box to the circular jack in the wall of the enclosure. The cable length is 2 meters (6.5 ft.). When the MobileView terminal is not connected to the Junction Box, the dust cover provides protection for the 17-pin connector.

K1, 17-pin

Circular Jack

Pin #

MobileView

Junction Box Cable

Wire Color

K2, 8-pin

RJ-45 Jack

to S1 at

Junction Box

K3, 12-pin

Terminal Block

to X1 at

Junction Box

1pink--> - 1 24V DC

2black

3 green-brown

4 white-green

5 grey-pink

6 red-blue

7brown

8yellow

12 green

17 grey

10 -

11 violet

13 blue

14 white

15 orange

16 red

--> - 2 GND_IN

--> - 3 E-stop, circuit 1, positive*

--> - 4 E-stop, circuit 1, negative*

--> - 5 E-stop, circuit 2, positive*

--> - 6 E-stop, circuit 2, negative*

--> - 7 enabling switch, circuit 1, positive*

--> - 8 enabling switch, circuit 1, negative*

--> - 9 enabling switch, circuit 2, positive*

--> - 10 enabling switch, circuit 2, negative*

--> - not used

--> - 12 not used

--> - 11 not used

--> 1 - TD+ (transmit)

--> 2 - TD- (transmit)

--> 3 - RD+ (receive)

--> 6 - RD- (receive)

* For connection to MobileView Guard G750 only.

Signal

Description

K3, 12-pin connector

for terminal block X1

at Junction Box

K2, 8-pin RJ-45 jack Ethernet for S1 at Junction Box

Publication 2727-UM003D-EN-P

2 meter (6.5 ft)

K1, 17-pin circular jack view from connector side

K1, 17-pin circular jack mounts to enclosure

Dust Cover

Terminal Connections 2-9

Accessing/Wiring the MobileView Connection Compartment

Removing the Back Cover

This section shows how to remove the back cover of the MobileView terminal. Once the back cover is removed, you have access to the area which contains all of the connectors.

ATTENTION

Turn off the power supply before removing the back cover of the MobileView terminal.

When the back cover is removed, the MobileView terminal is sensitive to electrostatic discharge (ESD).

1. Place the terminal on a stable, flat surface.

2. Remove the 6 screws that secure the back cover to the MobileView

terminal.

3. Carefully lift off the back cover and place it on a secure surface.

Back Cover

Publication 2727-UM003D-EN-P

2-10 Terminal Connections

RS-232 Serial Port

for downloading software.

Main connector (S19)

for power supply and control lines

Connection Compartment Details

The following illustration shows what the connection compartment of the MobileView terminal looks like with the back cover removed.

Reset Button

Pin 1

for rebooting Windows CE. All data not flushed to Registry or saved to Flush Storage is lost.

Serial

Serial port

port

S19

Reset

00:60:B5:06:00:01

2250-00001

AABBCCDDEEFF

B2 B6 B3

Ethernet label

Ethernet (MAC) address

S6,

COM -Modul

S6,

COM -Modul

Cable Tag

allows the terminal to be uniquely identified.

Important: Install plug on the unused MobileView Connection Cable outlet.

Ethernet

Position of switches does not affect terminal operation (for future use)

Ethernet connector (S4)

for data exchange

Connector

not used

Strain Relief

for connecting MobileView Connection Cable (on left or right side)

Publication 2727-UM003D-EN-P

Terminal Connections 2-11

Attaching the MobileView Connection Cable

You can attach the Connection Cable on either side of the terminal for right or left-hand operation. To relocate the cable, simply grasp the strain relief and/or the plug and slide off of mount with a rocking motion.

IMPORTANT

Make sure the K3, 11-pin female connector clicks completely into S19, Main Connector when plugged in. Ensure proper seating of K2, 8-pin RJ-45 jack into S4, Ethernet Connector.

To avoid pinching the cable with the back cover, avoid laying the cable on top of the T-supports.

After routing the cable, secure the back cover to the terminal. To maintain IP54 degree protection, tighten the 6 screws to a torque of 4.42 in-lb.

Attaching Connection Cable on Right Side

Avoid routing cable

over T-support.

S19

Main Connector

S6,

COM -Modul

S4, Ethernet Connector

Attaching Connection Cable on Left Side

S4, Ethernet Connector

S19, Main Connector

Avoid routing cable over T-support.

S6,

COM-Modul

Publication 2727-UM003D-EN-P

2-12 Terminal Connections

Connecting a Computer using the RS-232 Serial Port

Use the RS-232 Serial Port in the MobileView terminal to download software or to modify/transmit data between the MobileView terminal and computer using Active Sync software.

The RS-232 Serial Port uses the following fixed communication parameters:

• 115200 baud

• 8 data bits

• 1 stop bit

• No parity

• No handshake

The MobileView Download Cable (Catalog Number 2727-MRC1) connects the MobileView terminal to the serial port of your computer.

9-pin DSUB

(female connector)

2 3

4 5

PC 9-pin

(male connector)

MobileView 10-pin Latch

(male connector)

1* 2*

3 5

7* 9

ActiveSync

Gnd

MobileView

Serial Port S2 Connector

(female)

* Pins 1, 2 and 7 are connected together on the CPU board in the MobileView terminal. They are used for the ActiveSync signal. If you make your own cable, do not eliminate these 3 wires.

Pin 1

Ader 1

4 meters (13.12 feet)

Serial port

Reset

2250-00001

00:60:B5:06:00:01

AABBCCDDEEFF

S6,

COM -Modul

B2 B6 B3

Ethernet

Serial

Port

Publication 2727-UM003D-EN-P

Terminal Connections 2-13

Making an Ethernet Connection

The MobileView terminal is equipped with a 10Base-T interface which supports TCP/IP protocol at 10MBaud for half-duplex communications.

The Ethernet connector at S3 on the Junction Box provides a connection to an Ethernet network. The connector uses an 8-pin modular jack connector.

Pinouts are as follows:

Pin # Ethernet Signal

1TD+

2TD-

3RD+

4 Not Used

5 Not Used

6RD-

7 Not Used

8 Not Used

Using the PC Card Slot

The PC card slot is a factory installed option and supports Type I, II, and III PC cards. The following PC cards are available from Allen-Bradley. The terminal does not support SRAM cards, CardBus cards, or cards that use 12 volts for programming.

Catalog No. Description

2711-NM28 8M flash ATA card for storing applications.

2711-NM216 16M flash ATA card for storing applications.

2711-NM232 32M flash ATA card for storing applications.

Publication 2727-UM003D-EN-P

2-14 Terminal Connections

Inserting the PC Card

Lay the MobileView with the display facing down onto a flat, clean table, preferably on Electrostatic Discharge (ESD) pad. Take care not to damage the terminal and its elements.

1. Open the cover.

2. Insert the PC card as shown.

Ejection button

Attention:

Verify that this corner is inserted into the slot on the side of the ejection button.

Unlock the PC card cover as shown (until the locking lever is released)

Attention:

Check the condition and position of the cover seal before closing the PC card cover.

Insert the PC card until it locks in and the ejection button pops out.

1. Close the cover.

2. and 3. Lock the cover as shown.

Press down the cover until it snaps in completely to meet the protection degree IP54.

Must snap completely.

Publication 2727-UM003D-EN-P

Removing the PC Card

Terminal Connections 2-15

Unlock the PC card cover as shown (until the locking lever is released).

1. Close the cover.

2. and 3. Lock the cover as shown.

1. Open the PC card cover.

2. Press the ejection button of the PC card slot.

3. Remove the PC Card

Press down the cover until it snaps in completely to meet the protection degree IP54.

Must snap completely.

Connecting a Keyboard / Printer Using the IrDA Interface

The IrDA keyboard/printer interface is built into the lower rim of the MobileView terminal (see page

1-3) and supports communication

with:

• keyboards

• printers

The port is located for convenient operation with an IrDA keyboard.

To use a standard PC keyboard with the IrDA port, you must use a converter (PS2 keypad to IrDA).

To print using the IrDA port, you must orient the MobileView towards the IrDA port of the printer. The printer must be PCL compatible.

The IrDA port is assigned to the COM 3 or COM 4 interface port.

Protocol: Only the HP-SIR (Low Speed) coding is used (LPM Mode enabled). The maximum baud rate is 115.2K baud.

Publication 2727-UM003D-EN-P

2-16 Terminal Connections

Installing the Mounting Bracket

Height Adjustment Plate

Carrier

MobileView

Connection

Cable

Holder

The MobileView Mounting Bracket (2727-MRMB1) is used for stationary operation or storage of the MobileView terminal. The following illustration shows the mounting bracket with and without the terminal mounted.

Dimensions and Mounting Holes

120 mm (4.72 in)

(

526 mm (20.71 in)

550 mm (21.65 in)

)

(

)

28 mm

150 mm (5.91 in)

22 mm (0.87 in)

12 mm (0.47 in)

(1.1 in)

20 mm

(0.79 in)

The carrier is adjustable in 8 positions over a height of 320 mm (12.60 in). It is important to attach the carrier at all 4 points on the height adjustment plate. Mount the cable holder on the carrier using the screws shipped with the bracket.

Use suitable screws (not shipped with product) to mount the height adjustment plate.

Publication 2727-UM003D-EN-P

Chapter

Configuring the MobileView Terminal

Chapter Objectives

Using the MobileView Configuration Tool

This chapter shows how to:

• configure settings of the MobileView hardware using the MV

Configuration Tool

• verify operating and control elements

• transfer data with a Personal Computer

• install programs

• save registry settings

• setting the date and time

IMPORTANT

Use the MobileView Configuration Tool to:

• calibrate and test operating elements

• adjust display

• calibrate the touch screen

• set start-up functions

Settings not made with the MV Configuration Tool, must be saved using the Registry Backup utility found in Start>Programs>MobileView folder. See page 3-16.

To activate the tool from the Start menu, select:

Start>Programs>MobileView>MV Configuration Tool

The MobileView Config Tool dialog opens with the default Potentiometer tab selected.

1 Publication 2727-UM003 D-EN-P

3-2 Configuring the MobileView Terminal

After making configuration changes and exiting the MobileView Config Tool dialog, you will be prompted to write the registry changes to Flash memory. You must do this to retain changes through power cycles.

The following dialog appears.

Tap the Yes button to save the configuration to Flash memory.

Calibrating the Potentiometer

The Potentiometer tab allows calibration of the potentiometer.

To start calibration, tap the Calibrate button. The radio button indicator prompts you to move the potentiometer to the:

• Min (Minimum) position, full travel in the counter clockwise

direction and then to

• Max (Maximum) position, full travel in the clockwise direction.

After moving the potentiometer to the Min and then the Max position, tap the Calibrate button again to complete the calibration. The value to the right of the Potentiometer slide bar should read 127 and the slide bar pointer should be centered on the rightmost tick line.

Publication 2727-UM003D-EN-P

To verify calibration, move the potentiometer knob to the Min and Max positions. The slide bar value should read as a linear value from 0 to 127.

Configuring the MobileView Terminal 3-3

Adjusting Display and Touch Screen Settings

The Display/Touch tab lets you control the brightness and contrast of the display and calibrate the touch screen.

Display Configuration

To adjust the brightness and contrast, simply move the associated scroll bars and/or tap buttons.

Screen Saver

To set the screen saver, select Start>Settings>Control Panel and run Display Settings.

The screen saver will be enabled if there is no keypad, touch screen, or operator activity for a time period exceeding the Idle Time setting in the Backlight tab of the Display Settings. The screen saver backlight brightness can also be set. To turn off the backlight while on external power, enter a turn-off time of 30 seconds to 30 minutes.

Once in screen saver mode, the first keypad key or touch screen activation will only deactivate the screen saver but not activate the buttons or functions assigned to the keypad key or touch screen touch cells. The handwheel, keyswitch, pushbutton and potentiometer operators will also deactivate the screen saver but remain fully functional while screen saver mode is active.

Publication 2727-UM003 D-EN-P

3-4 Configuring the MobileView Terminal

Touch Screen Calibration

To calibrate the touch screen, tap the Calibrate Touch button. An image with a white background, a cross hair target in the center of the screen, and instructions at the top, will appear. Simply follow the instructions to complete the calibration. For best results use a stylus.

ATTENTION

Do not use a sharp object, such as a screw driver when operating the touch screen. Using sharp objects may damage the touch screen.

Setting the Handwheel to Zero

The Handwheel tab calibrates the electronic handwheel of the MobileView terminal.

Publication 2727-UM003D-EN-P

The handwheel registers a 16-bit value (-32768 to +32768) which can be processed in the target application as needed and is calibrated for 50 pulses per revolution. Every single increment of the handwheel is equal to a value of 1.

To calibrate the handwheel:

1. Move the handwheel to the desired start position.

2. Tap the Reset button on the Handwheel tab of the MobileView

Config dialog. The handwheel slide bar will move to the leftmost tick mark and

the actual value will be reset to a start value of 0.

Configuring the MobileView Terminal 3-5

Configure Keypad Settings

You can adjust the keypad auto-repeat rate through the Keyboard Properties dialog in the Control Panel.

To set the auto-repeat rates:

1. Select Start>Settings>Control Panel.

2. Double-tap Keyboard.

3. Tap the Enable character repeat check box.

4. Select the desired Repeat delay and Repeat rate settings and then tap OK to save the changes and exit the dialog.

TIP

The Keypad auto-repeat rate settings are for the physical left and right membrane keypads only. You cannot configure the on-screen, alphanumeric input panel.

Publication 2727-UM003 D-EN-P

3-6 Configuring the MobileView Terminal

Configuring Startup Settings

The Startup tab determines what occurs after a restart or power cycle of the MobileView terminal.

You can select the following startup actions for the MobileView terminal:

• Update OS Image on Next Startup - Loads the OS (Operating

System) image from the BOOTP Server via the network the next time the MobileView is started.

IMPORTANT

The Ethernet connection must have been established, the BOOTP Server must be correctly configured, and an OS image file must be available. See the MobileView G750/MT750 Flash Update documentation for more information.

• Disable internal network controller: - Deactivates the internal

Ethernet interface CELAN1:Onboard Ethernet at the next startup.

To enable the network controller after disabling:

a. Deselect “Disable Internal Network Controller”. b. Perform a registry backup by selecting

Start>Programs>MobileView>Registry Backup.

c. Cycle power to the MobileView terminal.

Publication 2727-UM003D-EN-P

Configuring the MobileView Terminal 3-7

Activating/Testing Pushbutton LEDs

The Pushbuttons tab allows activation of the push button LEDs, that are present, on the MobileView terminal.

Tap one of the 3 pushbutton targets to switch the corresponding LED to Flashing, On, or Off. The first tap switches the LED to Flashing, the second tap switches the LED to On, and the third tap switches the LED to Off.

IMPORTANT

This activation test utility activates the push button LEDs only. The push button and keyswitch position states are not affected.

Loading a New Image File

The Image Update tab allows selection, validation, and loading of a new WinCE Flash image file to the MobileView terminal.

You can update the image directly from a PC card or using an Ethernet or Serial connection download the update file to the MobileView Terminal. Do not remove the PC card until the image update procedure is complete.

Interruptions may occur when downloading large files over Ethernet connections using two or more switches.

Publication 2727-UM003 D-EN-P

3-8 Configuring the MobileView Terminal

1. Tap the Image Update tab.

2. Tap the Image File button. Browse and select the .bin file, then tap the Start Update button.

IMPORTANT

If the IPSM is still formatting the flash area, you will see the message, “PSM is active. Do you want to deactivate PSM and reset the device?”. Follow the bulleted procedure. If this message does not appear, proceed with step 3.

• Tap the OK button to stop the IPSM. The message “PSM

deactivate” appears.

• Tap the OK button to quit and reset the terminal. If the terminal

did not reset, the file SoftReset.exe will not copy to the terminal’s root directory.

• Select Start>Programs>MobileView>MV Configuration Tool

• Repeat step 1.

3. Tap Yes to continue past two warnings.

Publication 2727-UM003D-EN-P

Configuring the MobileView Terminal 3-9

4. The image update starts. The Updating Image dialog shows the progress of the update.

Tool Version

ATTENTION

After starting an update, do not cycle power or remove the PC card until the update is complete. If the update is interrupted, the terminal will become inactive and can only be initialized and updated using the BootP server. See the MobileView G750/MT750 Flash Update documentation for more information.

Publication 2727-UM003 D-EN-P

3-10 Configuring the MobileView Terminal

When the update is complete, the following dialog appears.

5. Tap the OK button to reset the terminal.

A dialog displays the message “erasing PSM, please wait...”.

When this operation is complete, the terminal resets.

6. The update is complete. You can calibrate the touch screen and safely remove the PC card from the terminal.

Clearing the Registry

IMPORTANT

All modifications made to the registry since product delivery will be deleted.

To clear the registry and restore factory default settings:

1. Tap the Clear Registry button on the Image Update tab.

A warning dialog appears letting you know that the current settings will be replaced with the factory default settings and that the terminal will reset.

2. Tap Yes to continue. The terminal resets.

Publication 2727-UM003D-EN-P

Configuring the MobileView Terminal 3-11

Checking the Operating and Control Elements

You can verify the operating and control elements of the MobileView terminal using the System Check software. You can check the following operating and control elements:

• Override potentiometer (option)

• Electronic handwheel (option)

• Membrane Keypad

• Touch screen

• Display

ATTENTION

Any changes to the contrast or brightness setting in the display backlight system check will be applied to the MobileView terminal and the configuration tool.

• Illuminated push button (option)

• Key switch (option)

• IPSM Flash file system

The following safety elements cannot

• Emergency stop switch

• Enabling switches

be checked with this utility:

The System Check software also lets you check the MobileView terminal data, such as the CPU memory, interface module, or operating elements.

To run this software, select: Start>Programs>MobileView>System Check

Publication 2727-UM003 D-EN-P

3-12 Configuring the MobileView Terminal

Transferring Data with a Personal Computer

This section shows how to transmit data between the MobileView terminal and a PC using the MicroSoft ActiveSync software. It shows how to:

• verify serial port availability

• install the Microsoft ActiveSync software

• connect the MobileView terminal to a PC

• disconnect communications

Verifying Serial Port Availability

To verify that your PC serial port is available:

1. For Windows 95, Windows 98 and Windows NT systems:

On your PC, select Start>Settings>Control Panel.

For Windows 2000 systems: On your PC, right-click My Computer, select Manage and then

Device Manager.

2. For Windows 95 and Windows 98 systems:

Double-click the System icon and select Device Manager tab.

For Windows NT systems: Double-click the Ports icon.

For Windows 2000 systems: Double-click Ports from the menu.

3. View the devices by type or number. Double-click the desired port.

4. Click the Port Settings tab or the Settings button and set the Bits Per Second or Baud Rate to match MobileView settings.

Bits per second setting

Publication 2727-UM003D-EN-P

5. Click OK to apply any changes and close the windows.

Configuring the MobileView Terminal 3-13

Installing Microsoft ActiveSync Software

Microsoft ActiveSync enables you to connect the IDA to your PC. ActiveSync version 3.1 or greater is required. Download ActiveSync from the Internet at www.microsoft.com/pocketpc/downloads/activesync.asp Microsoft’s installation instructions. When the software installation is complete, continue by following the procedure below.

and follow

Connecting the MobileView Terminal to a PC

To connect the MobileView terminal to a PC:

1. Remove the back cover of the MobileView terminal.

2. Plug the MobileView Download Cable (Catalog Number

2727-MRC1) into the RS-232 Port (note the location of pin 1). See page 2-12.

3. If ActiveSync or the Get Connected window is not open already on the PC, follow these steps:

• Select Start>Programs>Communications>ActiveSync>OK

on the PC. The ActiveSync window opens.

• In the ActiveSync window, select File, Get Connected from

the menu bar. The Get Connected window will open.

4. In the Get Connected window, click the Next button.

5. On the MobileView Terminal, select Start>Programs>Communication>ActiveSync. MobileView

Terminal opens a connection status box On the PC, the Get Connected window instructs you to wait while Setup locates your mobile device. When the PC and MobileView connect, the MobileView connection status box closes. The PC’s ActiveSync window shows “Connected” and a New Partnership window will open.

6. In the New Partnership window on the PC, click No in response to the question “Would you like to set up a partnership?” Then, click the Next button.

Publication 2727-UM003 D-EN-P

3-14 Configuring the MobileView Terminal

7. The New Partnership window closes and the ActiveSync window shows you are connected as “Guest”.

Connection Status Box on the PC

Menu bar

Device identity

Status

Connection Status Box on the MobileView Terminal

Status

8. Once you are connected, you can use Windows Explorer to transfer files between your PC directories and your Mobile Device directories.

TIP

If the connection fails, try it again, making sure you follow steps 3 and 4 in close sequence. If the connection still fails, use the ActiveSync Troubleshooter, which provides diagnostic steps to identify and correct problems. On the ActiveSync Help menu, tap Microsoft ActiveSync Help. Double-click the ActiveSync Troubleshooter book, then double-click ActiveSync Troubleshooter.

If communication problems occur:

• restart the ActiveSync software on the PC.

• reduce the baud rate on the MobileView terminal by selecting

Start>Settings>Network and Dial-up Connections and then select the com1_115K connection. Then select File>Properties. Select the configure tab and then select the desired baud rate from the Baud Rate pull-down menu.

Publication 2727-UM003D-EN-P

Configuring the MobileView Terminal 3-15

Disconnecting Communication

To disconnect communication between the MobileView and PC:

1. If the connection status box is minimized on the MobileView,

double-tap the Connection icon at the bottom of the

MobileView terminal screen to open it.

Disconnect button

2. Tap the Disconnect button. Communication disconnects and the connection status box closes.

3. The ActiveSync window on the PC will show a status of “Not Connected”. This may take some time before it is displayed.

Installing Programs

You can install programs using the ActiveSync software on a PC (covered in the previous section) or a PC card.

• For PC program transfers, use Windows Explorer on the PC.

The MobileView terminal will appear as a MobileView device directory.

• For PC card transfers, insert the PC card in the PC card slot of

the MobileView terminal and use Windows Explorer on the MobileView terminal. The PC card image will appear as “Storage Card” directory under the root directory.

IMPORTANT

The “Flash Storage” directory is the only directory stored in flash. Programs and data installed in other directories are lost when power is cycled to the MobileView terminal. Save all data you want to retain in the “Flash Storage” directory.

Many programs store their drivers in the Windows directory, but this directory is not saved. These programs will not function after you turn off the MobileView terminal. Relocate drivers to the “Flash Storage” directory.

Publication 2727-UM003 D-EN-P

3-16 Configuring the MobileView Terminal

Saving Registry Settings

ATTENTION

Any hardware configuration or Ethernet network configuration changes must be saved using the Registry Backup or they will be lost during a MobileView terminal power cycle.

To save the current registry settings:

1. Tap the Start button and select Programs>MobileView>Registry Backup.

To save the registry, tap the OK button. Saving the registry may take 15 seconds. The registry backup will automatically close.

Publication 2727-UM003D-EN-P

Using RSView ME Station

Chapter

Chapter Objectives

Startup Options for RSView ME Station

This chapter shows how to use RSView ME Station on your MobileView 2727-M7P20D1Q2, or -M7P20D1Q3 terminal. It includes topics on how to:

• configure startup options

• start RSView ME Station

• load an ME application

• run an ME application

• view application settings

• modify terminal settings

RSView ME Station can be started:

• without loading or running an .MER application

• automatically loading an .MER application

• automatically loading and running an .MER application

Start RSView without Loading or Running .MER Application

To start RSView ME Runtime without loading or running an .MER application:

• select the RSView ME Station icon from the desktop

• select RSView ME Station from the Start menu

Programs>Rockwell Software>RSView ME Station

• type MERuntime.exe and its path in the Run dialog of the

Windows Start menu.

Path to MERuntime.exe

If the path to RSView ME contains spaces, you must enclose the path in double quotes.

Example:

"Flash Storage\Rockwell Software\RSViewME\MERuntime.exe"

If you copy the RSView ME Station shortcut from the desktop to the Windows Startup folder (\Flash Storage\Windows\Startup), RSView ME station will automatically run on startup.

1 Publication 2727-UM003 D-EN-P

4-2 Using RSView ME Station

Example:

"Flash Storage\Rockwell Software\RSViewME\MERuntime.exe" "Flash Storage\Rockwell Software\RSViewME\Runtime\MYAPP.MER"

Start RSView and Load .MER Application

To start RSView ME Station and automatically load an .MER application:

• select the RSView ME Station icon from the desktop

• select RSView ME Station from the Start menu:

Programs>Rockwell Software>RSView ME Station

• type the appropriate shortcut path in the Run dialog on the

Windows Start menu.

Path to MERuntime.exe, followed by a space, followed by the path to the .MER

If the path to RSView ME or the path to the application contains spaces, you must enclose the path in double quotes.

If you place a shortcut to the .MER application into the Windows Startup (\Flash Storage\Windows\Startup) folder, the ME Runtime will automatically start and load the .MER application on terminal startup.

If the application specified in the Run dialog or the Startup folder does not exist or is corrupted, the main RSView ME Configuration Mode screen will open.

Start RSView and Run .MER Application

To start RSView ME Station and automatically run an .MER application:

• type the appropriate shortcut path in the Run dialog on the

Windows Start menu.

Path to MERuntime.exe, followed by a space, followed by the path to the .MER, followed by /r

If the path to RSView ME or the path to the application contains spaces, you must enclose the path in double quotes.

Example:

"Flash Storage\Rockwell Software\RSViewME\MERuntime.exe" "Flash Storage\Rockwell Software\RSViewME\Runtime\MYAPP.MER" /r

If you place a shortcut with the above command line in the Windows Startup folder (\Flash Storage\Windows\Startup), the ME Runtime will start and automatically run the .MER application.

Publication 2727-UM003D-EN-P

If the application specified in the Run dialog or the Startup folder does not exist or is corrupted, the main RSView ME Configuration Mode screen will open and display the following message:

Unable to load application

Other Shortcut Paths for RSView ME Station

Using RSView ME Station 4-3

IMPORTANT

If the path to RSView ME or the path to the application contains spaces, you must enclose the path in double quotes.

• To run the .MER application and delete its log files without

replacing the terminal’s communication configuration with that of the applications, use the following path:

Path to MERuntime.exe, followed by a space, followed by the path to the .MER, followed by /r/d

Example:

"Flash Storage\Rockwell Software\RSViewME\MERuntime.exe" "Flash Storage\Rockwell Software\RSViewME\Runtime\MYAPP.MER" /r/d

To run the .MER application and replace the terminal’s communication configuration with that of the applications without deleting its log files, use the following path:

Path to MERuntime.exe, followed by a space, followed by the path to the .MER, followed by /r/o

Example:

"Flash Storage\Rockwell Software\RSViewME\MERuntime.exe" "Flash Storage\Rockwell Software\RSViewME\Runtime\MYAPP.MER" /r/o

• To run the .MER application, delete its log files, and replace the

terminal’s communication configuration with that of the applications, use the following path:

Path to MERuntime.exe, followed by a space, followed by the path to the .MER, followed by /r/d/o

Example:

"Flash Storage\Rockwell Software\RSViewME\MERuntime.exe" "Flash Storage\Rockwell Software\RSViewME\Runtime\MYAPP.MER" /r/d/o

Publication 2727-UM003 D-EN-P

4-4 Using RSView ME Station

Starting RSView ME from the desktop

Name of application that is currently loaded. Only appears if application is loaded.

To activate buttons:

• on keypad terminals, select the

corresponding function key [Fx]

• on touch screen terminals, tap the

button with your finger or stylus.

• if a mouse is attached, make

selections with the mouse.

If RSView ME Station does not automatically run on startup, you can access it from the Windows Start menu or the desktop icon.

To start RSView ME Station:

• select RSView ME Station from the Windows Start menu.

Start>Programs>Rockwell Software>RSView ME Station

• select the RSView ME Station icon on the desktop.

To access RSView ME Station from a running application:

• press the Goto Configuration Mode button.

The application stops running but is still loaded.

Publication 2727-UM003D-EN-P

Main Screen Button Description

Load Application (F1) Opens another screen where you select an application to load.

Run Application (F2) Runs the .MER application displayed under Current Application.

Application Settings (F3) Opens a menu of application-specific configuration settings.

Terminal Settings (F4) Opens a menu of options to configure non-application, specific

Delete Log Files Before Running (F5)

Reset (F7) Resets the terminal. The action that occurs on startup depends

Exit (F8) Exits RSView ME Station.

Once loaded, the application name will appear under Current Application.

An application must be loaded before you can run it.

terminal settings for the MobileView terminal.

Toggles between Yes and No. If you select Yes, all data log files, alarm history and alarm status files will be deleted before the application runs. If you select No, log files are not deleted.

on whether shortcut paths are defined in the Windows Startup folder.

Using RSView ME Station 4-5

Screen Buttons

RSView ME Station uses screen buttons for data entry and navigation.

• To use the touch screen, tap the button with your finger or

stylus.

• To use the keypad, select the function key listed on the button,

or in some cases, the corresponding key on the keypad.

Besides operation specific buttons which are used to modify configuration data, most screens have a combination of the following buttons.

Screen Buttons Description

[F10]

[F7]

Cancel

[F8]

Returns to the previous screen.

Accepts modified values and returns to previous screen.

Cancels the current operation without saving any changes.

Moves highlight up or down a list.

Selects a highlighted screen or item from a list.

Publication 2727-UM003 D-EN-P

4-6 Using RSView ME Station

Character Keyboard

• On a touch terminal, tap the keys.

• On a keypad terminal, use the

arrow keys on the keypad to select keys.

• If a mouse is attached, use the

mouse to select keys.

Input Panel

Many screens have buttons that access fields where you must enter/edit data. When you press the button or function key, the Input Panel opens ready for you to input data.

If the field is restricted to a numeric value, only the 0-9 keys will be enabled. If the value is an IP address, the 0-9 and decimal point keys will be enabled. All other keys will be disabled.

Display Area

Controls

Controls Function

SHF Switches keys between their shifted and unshifted state. The initial default is shifted.

CAPS Switches keys between lowercase and uppercase characters. The initial default is lowercase.

SPACE Enters a space between characters in the Display Area.

Backspace Deletes the previous character (to the left of the cursor) in the Display Area.

Select Selects a character and enters it in the Display Area.

→ ← ↑ ↓

Enter Accepts the entered characters and returns to the previous screen

ESC Cancels the current operation and returns to the previous screen.

Selects the character to the right, left, above or below the currently selected character.

To enter characters in the Display Area:

1. Select a character on the Character Keyboard.

2. Press the Select button to copy the character to the Display

Area.

3. When done entering all characters, press Enter. You will return to the previous screen.

You will return to the previous screen with the newly entered data.

Publication 2727-UM003D-EN-P

Using RSView ME Station 4-7

Loading an ME Application

List of .mer applications stored in the compact flash of the terminal.

To load an RSView ME .MER application, select the Load Application button on the main screen:

Moves

highlight up

Moves

highlight down

1. Select the Source button to select the storage location of the application file you want to load. The options are:

• Internal Storage - the Internal Flash in the MobileView terminal.

• External Storage 1 - the External PCMCIA Flash card loaded in

the card slot of the terminal.

• External Storage 2 - not supported by MobileView products.

2. Select an .MER file from the list. Use the up and down cursor keys to select a file.

3. Select the Load button to load the application.

4. You will be asked if you want to replace the terminals’ current

communication configuration with the application’s communication configuration.

5. Select Yes or No. If you select Yes, any changes made to the device addresses or driver properties in the RSLinx Communications screen will be lost.

The name of the currently loaded application will appear at the top of the main RSView ME Station screen.

Publication 2727-UM003 D-EN-P

4-8 Using RSView ME Station

Running an Application

Application Settings

Terminal Settings

• On a touch terminal, tap the

button.

• On a keypad terminal, press

the corresponding key on the keypad

To run a loaded application, select the Run Application button on the main RSView ME Station screen. An application must be loaded, before you can run it. Log files generated by the application may be deleted if this option was selected on the main screen or enabled as a Startup Option under Terminal Settings.

From the Application Settings screen, you can show device shortcuts defined for the loaded .MER application. For example, your .MER application might have SLC defined as a device shortcut name for the SLC 5/05. Device shortcuts are read-only and cannot be edited.

From Terminal Settings, you can open screens to configure and modify non-application settings for the MobileView terminal.

Moves highlight up

Networks and Communications

Moves highlight down

Selects highlighted item and opens screen

Returns to previous screen.

Terminal Setting Description

About RSView ME Station Describes the RSView ME Station software installed on

Diagnostics Setup Forwards diagnostic messages form a remote log

File Management Copies or deletes application files or font files from a

Font Linking Links a font file to a base font loaded on the terminal.

Networks and Communications Configures network connections and communication

Print Setup Configures settings for printing displays, alarm messages,

RSView ME Station Startup Specifies whether the terminal starts up in configure or

Time/Date Sets the date, time.

the 2727-M7P20D1Q2, 2727-M7P20D1Q3 terminals.

destination to a computer running diagnostics.

storage location.

settings specific to the application.

and diagnostics messages generated by the application.

run mode. Also lets you enable/disable tests to run on the terminal at startup.

Publication 2727-UM003D-EN-P

Using RSView ME Station 4-9

Networks and Communications

Terminal Settings

Networks and Communications

KEPServer Port ID’s

From the Networks and Communications screen, you can access settings for:

• KEPServer Port ID’s

• Network Connections

• RSLinx Enterprise Communications

KEPServer Port ID’s

To access the KEPServer Port ID’s screen, you must have KEPServer Enterprise installed on your terminal. Otherwise, you will get an error message when accessing this screen.

Publication 2727-UM003 D-EN-P

4-10 Using RSView ME Station

Terminal Settings

Networks and Communications

RSLinx Enterprise Communications

Ethernet Driver Has no properties to edit.

Communication Driver

RSLinx Enterprise Communications

The RSLinx Enterprise Communications screen shows a treeview of installed communication cards and network configurations. You can:

• edit/view the driver settings for the communication protocol

used by your .MER application.

• edit the device address of the controller on the network.

The procedure for editing these settings is the same regardless of the communication protocol. The only differences are the properties for each communication protocol and the device address of the logic controller. The properties for each communication protocol are defined immediately after this section.

AB_ETH-1 <No Devices> Serial-DF-1 <No Devices>

Publication 2727-UM003D-EN-P

Using RSView ME Station 4-11

To edit communication settings:

1. From the RSLinx Configuration Screen, select the communication

card installed on your terminal.

2. Select the Driver Settings button. A properties screen opens showing the current communication

settings for the driver.

3. To modify a setting, select the setting and then the Edit button. The Input Panel opens showing the current setting.

4. Using the Input Panel, modify the setting and then select the Enter button.

You return to the previous screen with the newly entered data.

To edit the device address of the logic controller:

1. From the RSLinx Configuration screen, select a device node.

2. Select the Edit Device button.

A screen opens showing the name of the device and its current node address.

3. To modify the device address, press the Device Address button. The Input Panel opens showing the current address.

4. Using the Input Panel, modify the address and then select the Enter button.

You return to the previous screen with the new address.

IMPORTANT

Modified settings do not take effect until the terminal is rebooted.

Publication 2727-UM003 D-EN-P

4-12 Using RSView ME Station

Terminal Settings

Networks and Communications

Network Connections

Terminal Settings

Networks and Communications

Network Connections

Device Name

Network Connections

The Network Connections screen lets you configure the following for the MobileView terminal:

• Device Name

• Network Adapters

• Network Identification

Device Name

The Device Name screen identifies the MobileView terminal to other computers on the network.

Publication 2727-UM003D-EN-P

Field Description Valid Values

Device Name Name that identifies the MobileView

terminal to other computers on the network.

Device Description Provides a description of the terminal. 50 characters maximum

15 characters maximum, without spaces

Using RSView ME Station 4-13

Terminal Settings

Networks and Communications

Network Connections

Network Adapters

The Network Adapters screen configures driver settings for all network adapters installed on the terminal. The only network adapter on the MobileView terminal is the Built-in Ethernet Controller.

Press the Name Servers button and/or IP Address button to access driver settings.

Name Servers

Defines Name Server addresses for the Network Adapter. These addresses are automatically assigned if DHCP is enabled for the network adapter.

Field Description Valid Values

Primary DNS The address of the primary DNS resolver. xxx.xxx.xxx.xxx

Secondary DNS The address of the secondary DNS resolver. xxx.xxx.xxx.xxx

Primary WINS The address of the primary WINS resolver. xxx.xxx.xxx.xxx

Secondary WINS The address of the secondary WINS resolver. xxx.xxx.xxx.xxx

Publication 2727-UM003 D-EN-P

4-14 Using RSView ME Station

IP Address

The IP Address screen identifies the IP address of the selected network adapter. If the network the MobileView is connected to does not automatically assign an IP address, you can assign the address in this screen.

Field Description Valid Values

Use DHCP Enables or disables DHCP (Dynamic Host

Configuration Protocol) settings. DHCP automatically allocates network devices and configurations to newly attached devices on the network.

If DHCP is set to Yes, the MobileView is automatically assigned an IP address, Subnet Mask and Gateway. The fields are disabled.

If DHCP is set to No, you can enter the IP address, Subnet Mask and Gateway address.

IP Address A unique address identifying the MobileView

on the Ethernet network.

Subnet Mask Address must be identical to the server

subnet mask.

Gateway Optional Gateway address xxx.xxx.xxx.xxx

Mac ID Read only field

Yes (default) No

xxx.xxx.xxx.xxx

000.000.000.000 (default)

Range of values for the first set of decimal numbers is 1-255 unless all fields are set to 000. The range of values for the last three sets of decimal numbers is 0-255.

xxx.xxx.xxx.xxx

Publication 2727-UM003D-EN-P

Using RSView ME Station 4-15

Terminal Settings

Networks and Communications

Network Connections

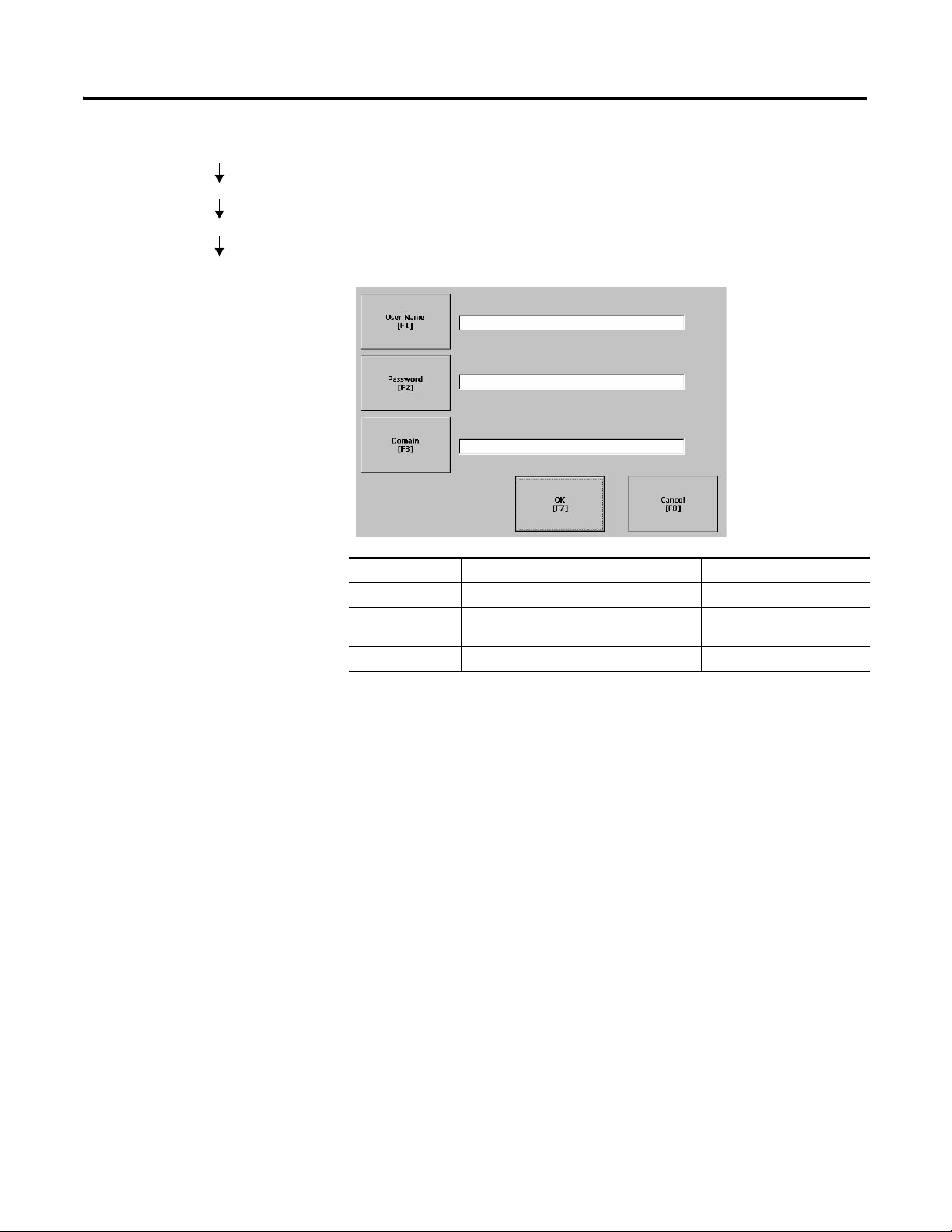

Network Identification

The Network Identification screen configures settings that enable the MobileView terminal to gain access to network resources. You can enter a user name, password and domain (provided by your network administrator).

Field Description Valid Values

User Name Identifies the user to the network. 70 characters maximum

Password Characters that gain access to network along

with the user name.

Domain Name Provided by network administrator. 15 characters maximum

No character limitation

Publication 2727-UM003 D-EN-P

4-16 Using RSView ME Station

Diagnostic Setup

Terminal Settings

Diagnostic Setup

The Diagnostic Setup screen configures diagnostics for the current computer. The screen shows a treeview of possible diagnostic nodes.

To access the Remote Log Setup or Message Routing, select the node and then the Edit button.

The Remote Log Destination forwards messages that it receives to a Windows 2000/XP computer running diagnostics. The location is determined by the IP address and port number.

Field Description Valid Values

Address Address of the remote Windows 2000/XP

computer.

Port The port used to communicate with the

remote Windows 2000/XP computer.

xxx.xxx.xxx.xxx

4445 (default)

Message Routing

The Message Routing screen lets you access the following screens:

• Remote Log

• RSView Diagnostics List

Each of the above screens shows a list of messages that can be sent to that destination. The list shows the On/Off status of each message type. Use the On/Off button to turn a message type on or off. A message type is enabled if it has a checked box.

Publication 2727-UM003D-EN-P

Using RSView ME Station 4-17

File Management

Terminal Settings

File Management

Delete Files

The File Management screen lets you access screens to:

• Delete Files

• Copy Files

Delete Files

From the Delete Files screen you can select options to:

• Delete Applications - deletes an .MER application file from a

storage location.

• Delete Fonts - deletes a font file from a storage location.

• Delete Log Files - deletes any data log files, alarm history files

and alarm status files in the System Default location on the MobileView terminal.

Delete Application or Font Files

The process for deleting an application file or a font file is the same.

1. Select the Source button to select the storage location of the application or font file you want to delete.

• Internal Storage - the Internal Flash in the MobileView terminal.

• External Storage 1 - the External PCMCIA Flash card loaded in

the card slot of the terminal.

• External Storage 2 - not supported by MobileView products.

2. Select a file from the list.

3. Select the Delete button.

4. You will be asked if you want to delete the selected application or font file from the storage location. Select Yes or No.

Publication 2727-UM003 D-EN-P

4-18 Using RSView ME Station

Delete Log Files

Select this option to delete any data log files, alarm history files and alarm status files in the System Default location on the MobileView terminal. You will be asked to confirm the operation.

Do you want to delete all of the RSView ME Station Log Files?

Select Yes or No. Any log files not located in the System Default location will not be deleted.

Terminal Settings

File Management

Copy Files

List of files stored in Internal Flash of terminal.

Copy Files

From the Copy Files screen, you can select options to:

• Copy Applications - copies an .MER application file from one

storage location to another

• Copy Fonts - copies a font file from one storage location to

another.

Copy Applications or Fonts

The process for copying an application file or a font file is the same.

Publication 2727-UM003D-EN-P

1. Select the Source button to select the location of the application or font file you want to copy.

• Internal Storage - the Internal Flash in the MobileView terminal.

• External Storage 1 - the External PCMCIA Flash card loaded in

the card slot of the terminal.

2. Select the Destination button on the same screen to open the following screen.

Using RSView ME Station 4-19

3. Select the Destination button to select the storage location where you want to copy the application or font file to. The destination cannot be the same as the source location.

• Internal Storage - the Internal Flash in the MobileView terminal.

• External Storage 1 - the External PCMCIA Flash card loaded in

the card slot of the terminal.

4. Select the Copy button to copy the selected application or font file to the selected destination.

If the file exists, you will receive a warning and will be asked if you want to overwrite the existing application.

5. Select Yes or No.

Publication 2727-UM003 D-EN-P

4-20 Using RSView ME Station

Font Linking

Terminal Settings

Font Linking

List of fonts loaded on the terminal.

Shows all fonts loaded on the terminal except the base font. Select the name of the font you are linking to the base font. Click the Add Fonts button to link the font file for the selected font to the base font. You will return to the Linked Fonts screen.

Add Linked Font

Courier New

MS Mincho

Tahoma Times New Roman

Font linking allows you to run a translated application on the terminal by linking a font file to the base font (for example, linking a Chinese font file to the base font Arial).

For more details on pre-installed terminal fonts and additional fonts available for downloading, see Appendix B.

Select Base Font

Arial

Courier New Tahoma Times New Roman

Add Fonts

[F1]

Linked Font

Show Links

[F1]

Shows the location and name of the font that is linked to the base font

[F8]

Base font = Arial Link: MS Mincho External storage 1\MSMINCHO.TTC

used by the terminal. If a file is not linked, box will be empty.

[F8]

Delete Link

[F1]

Deletes linked font file (if any)

Edit Link

[F2]

Edits the link by allowing you to add the linked file to a font loaded on the terminal.

[F8]

Publication 2727-UM003D-EN-P

Using RSView ME Station 4-21

Print Setup

Terminal Settings

Print Setup

The Print Setup screen lets you access screens to configure print options for:

• Displays

• Alarms

• Diagnostic messages.

Display, Alarm, and Diagnostic Print Setup

The setup for printing displays, alarm messages and diagnostics messages from an RSView .MER application is the same. The Advanced Settings for each function are different.

Field Description Valid Values

PCL Printer Type of printer to use. Laser (default)

Port Port to use for printing displays, alarm

messages, and diagnostic messages.

Network Path Network path of printer to use if the Port

selection is Network.

Advanced Settings Press this button to open additional settings.

Inkjet

Network (default)

519 characters maximum

Advanced Settings for Display Print Setup

Select the Advanced Settings button to:

• change print orientation (portrait or landscape)

• enable or disable draft mode

Publication 2727-UM003 D-EN-P

4-22 Using RSView ME Station

Advanced Settings for Diagnostic Messages and Alarm Messages

The following screen configures when to print diagnostic or alarm messages that are sent to the Network or port.

To configure how messages are queued for printing, select the Print Messages After button and set one of the following options:

• Specified number of messages

Prints messages after 60 are queued or another specified value. The default is 60 (about one full page of messages.)

• 500 messages or timeout period, whichever is first

Prints after 500 messages are queued or a specific time period has elapsed, whichever comes first. The default time period is 168 hours (7 days). You can specify another value. For example, if 350 messages are in the queue and 7 days have elapsed, the 350 messages will print.

• Specified number of messages or timeout period,

whichever is first

Prints after a specified number of messages are queued or a specific time period has elapsed, whichever comes first.

The default number of messages to queue is 60. The default timeout period is 168 hours (7 days). You can change both values. For example, the number of messages is set to 75 and the timeout period is set to 48 hours (2 day). If the queue has 75 messages after only 24 hours, these messages will print. If there are only 15 messages in the queue at 48 hours, the 15 messages will not print until the time period has elapsed.

Publication 2727-UM003D-EN-P

Using RSView ME Station 4-23

Startup Options

Terminal Settings

RSView ME Station Startup

The Startup Options screen accesses the following screens to modify:

• RSView ME Station Startup

• Startup Tests

RSView ME Station Startup

The RSView Machine Station Startup screen specifies what action the MobileView terminal takes on startup:

• Do not start RSView ME Station

• Go to Configure Mode of RSView ME

• Run the Current Application

This option is available only if an application is loaded.

RSView ME Station will start up based on shortcuts in the Windows Startup folder and whether an application is loaded.

Select the On Startup button to switch between Do not start RSView ME, Go to Configure Mode, or Run the Current Application. Select the button under the last two options to configure specific settings for each mode.

Publication 2727-UM003 D-EN-P

4-24 Using RSView ME Station

Configuration Mode

The Configuration Mode Options screen specifies whether the MobileView will boot up in Configure Mode:

• with the current application loaded.

• with the communication configuration of the current application

or the terminal’s RSLinx communication configuration. If you select Yes to replace the terminal’s communication

configuration with that of the application, any changes made to the device addresses or driver properties in the RSLinx Communications screen will be lost.

These options are available only if an application is loaded in the terminal. If an application is not loaded, both options are disabled and set to No.

Configuration Mode

Run Options

The Run Options screen specifies whether or not:

• to replace the terminal’s communication (RSLinx) settings with

application settings when the application is run. If you select Yes, any changes to the device addresses or driver

properties in the RSLinx Communications screen will be lost when the terminal boots up.

Publication 2727-UM003D-EN-P

• to delete log files (data, alarm history, alarm status) generated by

the terminal from the System Default location before running the application.

Using RSView ME Station 4-25

Time/Date/Regional Settings

Terminal Settings

Tim e/D ate

Date

The Time/Date/Regional Settings screen lets you access the following screens to set:

• date

• regional settings

• time

• time zone

TIP

Time/Date/Regional Setting information is not saved during a reboot.

Date

The Date screen shows and configures the current date in separate Year, Month and Day fields.

Field Description Valid Values

Year The current year in a 4-digit format. 1980 - 2099

Month The current month.

Day The current day. The day of the month is

validated based on the month.

1 - 12

0 - 31

Publication 2727-UM003 D-EN-P

4-26 Using RSView ME Station

Terminal Settings

Tim e/D ate

Tim e

Time

The Time screen shows and configures the current time in 24-hour format in separate Hour, Minute and Second fields.

Field Description Valid Values

Hour The current hour in 24-hour format. 0 - 23

Minute The current minute in 24-hour format.

Seconds The current second in 24-hour format. 0 - 59

0 - 59

Publication 2727-UM003D-EN-P

Using RSView ME Station 4-27

Terminal Settings

Time/Date

Time Zone

The Time Zone screen shows the current time zone that is installed on the MobileView terminal. Time zones are installed as a part of the operating system. Changing the time zone adjusts the current time and date to match the new time zone.

Language Default Time Zone

English (GMT -05:00) Eastern Time (US & Canada)

French (GMT +01:00) Brussels, Copenhagen, Madrid, Paris

German (GMT +01:00) Amsterdam, Berlin, Bern, Rome, Stockholm, Vienna

Japanese (GMT +09:00) Osaka, Sapporo, Tokyo

If the selected time zone supports Daylight Savings, you can select the Daylight Savings button.

Daylight Savings

The Daylight Savings screen configures whether daylight savings time is in effect for the current time zone. Daylight Savings is set to Yes for all time zones except for Japanese, which does support daylight savings. Daylight savings changes are not permanently applied until you close the Time Zone screen.

Publication 2727-UM003 D-EN-P

4-28 Using RSView ME Station

Publication 2727-UM003D-EN-P

Chapter

CE Thin Client Operating Instructions

Chapter Objectives

Starting Up/Powering On the Terminal

This chapter provides instructions on how to:

• start up or power on the MobileView terminal

• set up an auto start sequence

• configure Ethernet network settings

• save registry settings

• start terminal services

• shut down or power off the MobileView terminal

• reset the time and date

To start up or power on the MobileView terminal:

1. Attach the MobileView Connection Cable to the Junction Box

Cable as shown on page 2-4. Tighten threaded coupling until it is finger tight.

2. Check the MobileView terminal for a start-up screen.

If the start-up screen does not appear, check the 24V dc power source and cable connections at the Junction Box and MobileView terminal.

1 Publication 2727-UM003D-EN-P

5-2 CE Thin Client Operating Instructions

Setting Auto Start

To configure the Auto Start sequence, copy the Remote Desktop Connection shortcut from the desktop to the Windows Startup folder (storage card\windows\startup).

Configuring Ethernet Network Settings

To configure the onboard Ethernet communications hardware of your MobileView terminal:

1. Tap the Start button and select Settings>Control Panel.

2. Double-tap the Network and Dial-up Connections icon.

3. Double-tap the CELAN1 icon.

Publication 2727-UM003D-EN-P

CE Thin Client Operating Instructions 5-3

4. Tap the IP Address tab and select either Obtain an IP Address via DHCP or Specify an IP Address, depending on your

network configuration. If you select Specify an IP Address, complete the 3 text boxes

with information from your network administrator or ISP. Use the on-screen input panel to enter the text. You can access the input panel by tapping the Stylus icon on the task bar.

IP Address must be a unique address on the LAN.

Subnet Mask must be identical to the server subnet mask.

Default Gateway is optional.

5. Tap OK in the settings dialog. A notification window appears prompting you to either remove and reinstall your card or restart the device for the new settings to take effect. Tap the OK button in notification window.

Saving Registry Settings

6. Tap OK on the Network Configuration dialog and close the Control Panel.

ATTENTION

Any hardware configuration or Ethernet network configuration changes must be saved using the Registry Backup or they will be lost during a MobileView terminal power cycle.

To save the current registry settings:

1. Tap the Start button and select Programs>MobileView>Registry Backup.

2. To save the registry, tap the OK button. Saving the registry may

take 15 seconds. The registry backup will automatically close.

Publication 2727-UM003D-EN-P

5-4 CE Thin Client Operating Instructions

Starting Terminal Services

To connect to a terminal server as a CE client:

TIP

1. Double-tap the Remote Desktop Connection shortcut on the desktop of the MobileView terminal or select the Terminal Server Client application from the Programs>Remote Desktop Connection on the Start menu.

Before connecting to the server as a client, move the server task bar to the top of the screen. This will make it easier to access the client and CE task bars, and size the application screens for optimal viewing on the MobileView terminal.

Publication 2727-UM003D-EN-P

2. Enter the Terminal Server’s Name or a valid TCP/IP address in the Server box using the on-screen input panel or select a server name or address from the Recent Servers box.

3. Tap the Connect button. A server log on window similar to the one below appears.

4. Enter your user name and password to operate as an active CE client.

CE Thin Client Operating Instructions 5-5

Shutting Down/Powering Off the Terminal

Setting the Date and Time

To shut down or power off the terminal:

1. Close down all applications that are running on CE client.

2. Tap the Start button on the CE client task bar. Select Shutdown and then Log Off to disconnect from the terminal server.

3. Remove 24V dc power from the MobileView junction box or

disconnect the MobileView connection cable from the junction box cable.

IMPORTANT

The real-time clock in the MobileView terminal is not backed up by a battery. You must reset the date and time and after every power cycle. Set the date and time by selecting Start>Settings>Control Panel>Date/Time.

Publication 2727-UM003D-EN-P

5-6 CE Thin Client Operating Instructions

Publication 2727-UM003D-EN-P

Windows CE Applications

Chapter

Chapter Objectives

MobileView Software

This chapter covers:

• MobileView software

• generating programs for Windows CE

• virtual channel

The MobileView terminal is delivered with pre-installed software that is stored in the flash of the device. This image contains the Windows CE operating system core and additional applications.

Operating system: Windows CE 3.0 for 2727-M7P20D1P1 Windows CE 4.1 for 2727-M7P20D1Q2, 2727-M7P20D1Q3

• Shell

• System Control

• Net Web Explorer

• ActiveSync

Pre-installed application programs:

• MS Terminal Server Client V1.5

• Pocket Registry Editor

• Pocket Paint V3.0

• Pocket Notepad V2.1.1

Pre-installed drivers:

• PC card wireless LAN card type Orinoco PC Card Silver 11Mbit/s

IEEE 802.11b

• PC card for Windows CE standard modem

• IrDA/serial keypad interface for PS-2 keypad for KeyMate by

MicroFoundry.

MobileView-specific software:

• Toggle-Sip (Software-Keypad)

• VirtualChannel VC

• MobileView Configuration Tool for configuration of operating

and control elements, display, touch screen and registry backup.

1 Publication 2727-UM003D-EN-P

6-2 Windows CE Applications

Generating Programs for Windows CE

Virtual Channel

Data Direction

Potentiometer <-- 0 to 127 1 Event in case of modification and

Electrical handwheel <--> -32768 to +32768 2 Event in case of modification, upon

You can easily generate programs for Windows CE. Programming is similar to an application for a standard MS Windows NT PC. Under Windows CE, only the number of available WIN32-Apes is limited.

Two software development kits are included on the product CD; Virtual Channel SDK and CE 4.X SDK. Reference the CD for the CE

4.X SDK User Manual.

The protocol “Virtual Channel” (VC) is used to transmit control and operating element data between a controller (control application running on a server) and one or more MobileView terminals.

The following data can be transmitted via the VC:

Server <--> MT

Value Range Size

(Bytes)

Transmission

upon request of the control

request of the control, and as set command for adjusting

Enable Switch* <-- 0/1 1 Event in case of modification

Keys/buttons below display

<--> On

Push button LEDS

Contrast, Brightness <--> 0 to 255 2 As command from the control and as

Time for Screen Saver <--> 0 to 255 1 As command from the control and as

State of Screen Saver <--> 0 to 1 1 Event or as request from the client to

Volume <--> 0 to 255 1 As command from the control and as

Background Lighting <--> 0 to 1 1 As command from the control and as

Write To Flash --> - - Command

Pleasant --> 0 to 255 1 Command

Keep Alive <-- 0 to 65535 - Command

* Available on MobileView Guard G750 Terminals only

Flashing

Off

2 As command from the control and as

request from the client to the control.

a request from the client to the control.

the control.

request from the client to the control.

Publication 2727-UM003D-EN-P

Windows CE Applications 6-3

Data transmission between the controller and MobileView terminal is based on the Ethernet connection (TCP/IP protocol, Listening Port 0xCEBA). All devices must be identified by their IP address.

Several MobileView terminals may be connected to one controller, but only one controller can be connected to a MobileView terminal at any given time.

The VC protocol is an event-driven protocol, i.e. each station can send data at any time without request.

Getting Started

Refer to the MobileView MT750/G750 User Document CD that ships with the terminal for the Virtual Channel Development Kit. The Development Kit includes the API functions, header files,.all files, and sample code.

Activating the Virtual Channel

To enable the user of the virtual channel:

1. Select Start>Programs>MobileView>Virtual Channel

2. Double-tap the icon on the status bar.

3. Enter server IP address and tap the Connect button.

Events Causing the Client to Send Data

• Modification of value of potentiometer (override)

• Modification of handwheel value

• Modification of key status of a key/button

• Data inquiry of server

With each event, the client sends the server a data package containing the information about the type of event as well as the current data of all operating elements. If the client produces several events one after the other, and the server cannot process all of them at once, the server will send one message containing all events.

Publication 2727-UM003D-EN-P

6-4 Windows CE Applications

Events of Server

By sending a package to the client, the server can set the current value of the handwheel, or request the current values (position of handwheel and override potentiometer, as well as state of keys). The server can also read the current states of the values which can be modified by the server.

Data Transmission

Client to Server

typedef enum {

eKVCJoystickIsZero 0x0001 eKVCJoystickNotZero 0x0002 eKVCSpaceMouseIsZero 0x0004 eKVCSpaceMouseNotZero 0x0008 eKVCHandWheelChanged 0x0010 eKVCOverrideChanged 0x0020 eKVCKeyPressed 0x0040 eKVCKeyReleased 0x0080 eKVCLedValue 0x0100 eKVCContrast 0x0200 eKVCBrightness 0x0300 eKVCVolume 0x0400 eKVCScreensaverTime 0x0500 eKVCScreensaverState 0x0600 eKVCBacklightState 0x0700 eKVCLed 0x0800 eKVCJoystickResp 0x0900 eKVCSpaceMouseResp 0x0A00 eKVCHandWheelResp 0x0B00 eKVCOverrideResp 0x0C00 eKVCAlive 0xFE00 eKVCClientDisconnect 0xFF00

} TKVCEvent;

Publication 2727-UM003D-EN-P

typedef struct {

UINT16 event; struct {

UINT8 overrideVal; UINT8 keyVal; TKVCJostickData joystickVal; SINT16 handWheelVal; TKVCSpaceMouseData spaceMouseVal;

} data;

} TKVCClientData;

typedef enum {

eKtpKeyboardLedOff = 1,

eKtpKeyboardLedOn = 2, eKtpKeyboardLedBlink = 3

} TKtpLedState;

typedef struct {

char posX;

char posY; char posZ; } TKVCJostickData;

typedef struct {

UINT16 posX;

UINT16 posY;

UINT16 psoZ; } TKVCSpaceMouseData;

typedef struct { SINT16 absVal; SINT16 dynVal; }TKVCHandWheelData;

Windows CE Applications 6-5

Server to Client

typedef enum {

eKVCSetWheelValue, eKVCSetLed

eKVCSetContrast, eKVCSetBrightness, eKVCSetVolume,

eKVCSetScreensaver,

eKVCGetLed, eKVCGetContrast, eKVCGetBrightness, eKVCGetVolume, eKVCGetScreensaver, eKVCGetJostickValue,

eKVCGetSpaceMouseValue, eKVCGetOverrideValue, eKVCGetWheelValue,

eKVCSwtichBacklight, eKVCGetBacklightState,

eKVCPlaySound, eKVCWriteFlash eKVCDisconnect

} TKVCCommand;

typedef struct {

TKVCCommand command; SINT16 param;

} TKVCServerData;

Publication 2727-UM003D-EN-P

6-6 Windows CE Applications

Example: Interface on Server

On the server side, the VC protocol is represented by two classes: CKVCServerand CKVCConnection. An object of the CKVCServer class represents the actual server (the "listener") and an object of the CKVCConnection class represents a connection to a client.

"Server class"

class CKVCServer { public:

virtual CKVCConnection* OnClientConnect(const char *pIpAdr)= 0; virtual int OnClientDisconnect(CKVCConnection *pConnection, TDisconInfo info);

}; CKVCConnection* OnClientConnect(SOCKET socket, sockaddr_in &sockAdr);

This method is always called when a terminal establishes a connection to the control. The parameters socket and sockAdr specify the connection parameters of the terminal. This function must return a pointer to an object of the CKVCConnection class. A return value of 0 indicates that the control rejects the logon of the terminal.

int OnClientDisconnect(CKVCConnection *pConnection, TDisconInfo info);

This method will be called if the server cannot reach the client any more. The cause of the logoff is specified in info.

Publication 2727-UM003D-EN-P

Windows CE Applications 6-7

Connections

class CKVCConnection { private:

char *pIpAdr;

public:

virtual int Init(CKVCServer *pServer, SOCKET socket, SOCKADDR_IN &socketAdr,Tpriority threadPriority); virtual int Exit(); virtual int OnOverrideChange(SINT16 val); virtual int OnWheelChange(SINT16 wheelAbsVal); virtual int OnKeyboardEvent(TKVCEvent keyEvent, int keyNum); virtual int OnSpaceMouseEvent(TKVCEvent event, TKVCSpaceMouseData *pSMData); virtual int OnDisconnect(int val);

virtual int GetWheelVal(TKVCHandWheelData &hwData); virutal int GetOverrideVal(SINT16 &overrideVal); virtual int GetSpaceMousePos(TKVCSpaceMouseData &smData); virtual int GetLedState(UINT8 ledNum,UINT8 &state);

virtual int GetContrast(UINT8 &contrast); virtual int GetBrightness(UINT8 &brightness); virtual int GetVolume(UINT8 &volume); virutal int GetScreensaverTime(UINT16 &time); virtual int GetScreensaverState(UINT8 &state);

virtual int SetWheelVal(SINT16 val); virtual int SetLed(UINT8 ledNum, TKVCLedMode mode); virtual int SetContrast(UINT8 contrast);

virtual int SetBrightness(UINT8 brightness); virtual int SetVolume(UINT8 volume);

virtual int SetScreenSaver(UINT16 screenSaverTime); virtual int SwitchBacklight(UINT8 backlightOnOff);

virtual int WriteToFlash(); virtual int PlaySound(UINT16 soundNr);

};

The methods OnOverrideChange, OnWheelChange, OnKeyboardEvent, OnJoystickEvent and OnSpacemouseEvent will be called if an event has occurred at the corresponding operating element on the client.

int CKVCConnection::OnOverrideChange(SINT16 val);

This method will be called if the value of the override potentiometer has changed on the client. The current value is specified in the parameter val.

Publication 2727-UM003D-EN-P

6-8 Windows CE Applications

int CKVCConnection::OnWheelChange(SINT16 wheelAbsVal); The method OnWheelChange will be called if the value of the handwheel has changed. The current value is transferred as an absolute value in the parameter wheelAbsVal.

virtual int OnKeyboardEvent(TKVCEvent keyEvent, int keyNum); The method OnKeyboardEvent will be called if a key has been pressed/released. The key number is specified in keyNum, the state of the key (make, break) in keyEvent.

int CKVCConnection::OnSpacemouseEvent(TKVCEvent event, TKVCSpaceMouseData *pSMData); The method OnSpacemouseEvent will be called if the space mouse is moved from the 0 position, and if it reaches the 0 position. The current position is transferred in the parameter event, and the current values in the parameter pSMData.

int CKVCConnection::OnDisconnect(int val); The method OnDisconnect will be called if the client terminates the connection with the disconnect message.

int CKVCConnection::GetWheelVal(TKVCHandWheelData &hwData); The method GetWheelVal returns the current position value of the wheel in hwData.absVal, and the modification value since the last call in hwData.dynVal.

int CKVCConnection::GetOverrideValue(SINT16 &overrideVal); The method GetOverrideValue returns the current value of the override potentiometer in the variable overrideVal.

int CKVCConnection::GetSpaceMousePos(TKVCSpaceMouseData &smData); The method GetSpaceMousePos returns the current space mouse position in the variable smData.

int CKVCConnection::GetLedState(UINT8 ledNr , UINT8 &state); The method GetLedState is used to request the current state of the LED transferred in ledNr. The result is returned in state.

int CKVCConnection::GetContrast(UINT8 &contrast); The method GetContrast returns the current value of the contrast setting in the variable contrast.

Publication 2727-UM003D-EN-P

Windows CE Applications 6-9

int CKVCConnection::GetBrightness(UINT8 &brightness); The method GetBrightness returns the current value of the brightness setting in the variable brightness.

int CKVCConnection::GetVolume(UINT8 &volume); The method GetVolume returns the current value of the volume setting in the variable volume.

int CKVCConnection::GetScreensaverTime(UINT16 &screensaverTime); The method GetScreensaverTime returns the current value of the screensaver setting in the variable screensaverTime.

int CKVCConnection::GetScreensaverState(UINT8 &state); The method GetScreensaverstate returns the current state of the screensaver in the variable state.

int CKVCConnection::GetBacklightState(UINT8 &state); The method GetBacklightState returns the current state of the background lighting in the variable state.

int CKVCConnection::SetWheel(SINT16 value); This method sets the value of the handwheel to the value specified in value and returns the last value. This value is the initial value for the absolute value returned by OnWheelChange.

int CKVCConnection::SetLed(UINT8 ledNum, TKVCLedeMode mode); Calling the method SetLed sets the LED defined in ledNum to the mode transferred in mode.

int CKVCConnection::SetContrast(UINT8 contrast); Calling the method SetContrast changes the value of the contrast setting on the client.

int CKVCConnection::SetBrightness(UINT8 brightness); Calling the method SetBrightness changes the value of the brightness setting on the client.

int CKVCConnection::SetVolume(UINT8 volume); Calling the method SetVolume changes the value of the volume setting on the client.

int CKVCConnection::SetScreensaver(UINT16 screensaverTime); Calling the method SetScreensaver changes the response time of the screensaver on the client.

int CKVCConnection::SwitchBacklight(UINT8 backlightOnOff); Calling the method SwitchBacklight switches on and off the background lighting on the client (backlightOnOff = 1 / backlightOnOff = 0).

int CKVCConnection::WriteToFlash(); Calling the method WriteToFlash saves the contents of the Client Windows Registry in the flash memory.

int CKVCConnection::PlaySound(UINT16 soundNr); Calling the method PlaySound starts the reproduction of the sound with the number transferred in soundNr.

Publication 2727-UM003D-EN-P

6-10 Windows CE Applications

Publication 2727-UM003D-EN-P

Maintenance and Troubleshooting

Chapter

Chapter Objectives

Cleaning the MobileView MT750 Terminal

This chapter provides information on:

• cleaning the terminal

• handling the terminal

• troubleshooting to correct common operating problems

• what type of information to provide when calling for technical

support

For the touch screen, clean gently with a lint-free cloth. Dampen with a mixture of 50% water and 50% isopropyl alcohol. If needed, clean the unit daily with work in harsh environments.

For the housing, dampen a cloth with a mixture of 50% water and 50% isopropyl alcohol or a mild detergent. Use no harsh cleaning additives.

1 Publication 2727-UM003D-EN-P

7-2 Maintenance and Troubleshooting

Handling the MobileView MT750 Terminal

The MobileView terminal is a high-quality device that is equipped with state-of-the-art electronics.

To avoid malfunctions or damage through improper handling, follow these instructions during operation.

ATTENTION

• Do not operate the terminal if the cable is

damaged or pinched. To avoid damaging the cable, do not place the cable over or around sharp objects.

• When the terminal is not in use, hang the

terminal in the mounting bracket or place inside a cabinet or enclosure.

• To avoid dropping the terminal, do not set the

terminal on unstable surfaces and keep the cable clear of high traffic areas.

• To avoid damaging the operating elements, do

not set the terminal on its operating side.

• If the terminal falls to the ground, test the

emergency stop switch and enabling switch, and verify that the PC card cover closes properly before operating machine/plant.

• Do not set the terminal near heat sources and

avoid direct sunlight.

• Avoid exposing the terminal to mechanical

vibrations, excessive dust, humidity or strong magnetic fields.

• Use a soft, damp cloth with 50% water and 50%

isopropyl alcohol to clean the operating panel and operating elements. Do not use solvents, scouring agents, or scrubbing sponges.

• Prevent foreign objects or liquids from getting

into the terminal. Check the protective covers of the device regularly. Make sure all screws are firmly tightened and that the housing and cable entrance is not damaged.

• Turn off the power supply before removing the

back cover of the MobileView terminal. When the back cover is removed, the terminal is sensitive to electrostatic discharge (ESD).

• If the terminal exhibits any defect, have the unit

thoroughly and fully tested by the manufacturer or authorized repair dealer before operating terminal again.

Publication 2727-UM003D-EN-P

Maintenance and Troubleshooting 7-3

Troubleshooting the

• The following table lists common problems that may occur with

your terminal and solutions to the problems.

Terminal

Problem Solution Page

Terminal will not power up Check for 24V dc power on K3 and K4 connectors of the MobileView Junction

Box.

Check for a solid connection between the MobileView Connection Cable and the Junction Box Cable at K1 connection point.

Check the MobileView Junction Box Cable connections K3/X1 and K4/X2. 2-4

Check the MobileView Connection Cable connection in Connection Compartment of MobileView terminal.

Terminal screen is very dim or black If the screen is somewhat readable, select

Start>Programs>MobileView>MV Configuration Tool. Tap the Display/Touch tab and try to adjust brightness and contrast.

If the screen is black:

• Tap the touch screen or any of the keypad buttons to de-activate the

screen saver.

• Check power to the terminal. Follow instructions for problem, Terminal

will not power up.

• Cycle power to the terminal. If you here a click and the normal jingle

sound of Windows CE, the terminal is executing the operating system and the display backlight is most likely defective. Return terminal for repair.

• If the screen is blinking or rapidly changing brightness, a corrupted

registry or flash image may exist. A flash update may remedy the problem. Follow instructions in the Flash Update documentation. If the flash update does not correct problem, return terminal for repair.

2-4, 2-6

2-4

2-10

3-1, 3-3

Difficulty in making selections on touch screen

Terminal screen is static (locked up). The touch screen and keypad activations do not initiate any changes.

The touch screen may be out of alignment. Re-calibrate the touch screen. 3-3

The CE application or Terminal Server Client may not be responding. Attempt a power cycle (shutdown/powerup).

Check terminal server for proper operation.

Check Ethernet communications. See the next problem, “Terminal will not communicate on Ethernet network”.

Attempt a flash update. Refer to the Flash Update documentation for details.

5-1, 5-5

Publication 2727-UM003D-EN-P

7-4 Maintenance and Troubleshooting

Problem Solution Page

Terminal will not communicate on Ethernet network

Check Ethernet cable connections at the MobileView Junction Box and your Ethernet hub.

2-4

Try to ping the MobileView terminal from a PC in your network to check for correct configuration settings, then check MobileView terminal settings.

If you are using a DHCP server, check if the DHCP function is set in the network settings of the MobileView terminal.

If you connect to the Ethernet network using fixed settings, verify that the IP Address, Subnet Mask, and Default Gateway network settings are correct in the MobileView terminal.

Check the Ethernet connection on the MobileView terminal. 2-9

Program Memory Low There is inadequate memory to run a program or programs. Select

Start>Settings>Control Panel>System. Select the Memory tab in the System Properties dialog and follow instructions to increase memory to run programs.

Providing Technical

For Rockwell Automation Support see the back cover of this manual. Be prepared to provide the following information:

Support Information

• detailed description of problem including circumstances of

when it occurred (for example, programs that were running, steps that were taken)

• steps you tried to take, if any, to try and resolve problem

• version information for the MobileView terminal. From your

MobileView terminal, select:

5-2

Start>Programs>MobileView>MVVersion

The MobileView release number is most important, but other version information may also be helpful.

Publication 2727-UM003D-EN-P

General

Appendix

Specifications

General

Processor Intel StrongARM SA-1110/206 mHz

Operating System

2727-M7P20D1P1

2727-M7P20D1Q2, -M7P20D1Q3

Memory

2727-M7P20D1P1

2727-M7P20D1Q2, -M7P20D1Q3

Display Passive LCD 7.7-inch VGA with 256 colors

Touch Screen 7.7-inch analog resistive

Microsoft Windows CE 3.0 Microsoft Windows CE 4.1

16M DRAM/32M Flash or 64M DRAM/64M Flash

Electrical

Keypad Stainless steel dome membrane switches

with tactile feedback

Housing Double-walled AB housing, resistive to

grease, oil, lubricants, alcohol, silicone free Flammability class: UL 94-V0

Dimensions

Diameter 290 mm (11.42 inches)

Depth without handle 80 mm (3.15 inches)

Depth with handle 130 mm (5.12 inches)

Weight 1550 grams (3.42 lbs) - without options

Electrical

Nominal Supply Voltage 24V dc safety-extra-low voltage

Supply Voltage Range 18V dc to 32V dc

Typical Input Current 300mA at 24V dc

Peak Inrush Current 5.6A maximum

Power Supply 10 ms minimum holdup time

(EN 61131-2:1994 + A11:1996 +A12:2000 and EN 50178:1997)

1 Publication 2727-UM003D-EN-P

A-2 Specifications

Environmental

Operating Temperature 0

° to 50°C (32° to 122°F)

Standard and Agency Certifications

Storage Temperature -25

Relative Humidity (non-condensing) 5 to 95% RH at 0 to 50

Protection Degree IP54

Vibration (operating) 10 Hz <

Shock (operating) 25 g (0.055 lb) / 11 ms IEC 60068-2-27

Drop Test Resistant to drops on all surfaces from

Altitude Up to 3000 meters (9.842 feet)

General

UL 508 Industrial Control Equipment

CSA C22.2 No. 14 Industrial Control Equipment

C-Tick Marked for all applicable acts.

ElectroMagnetic Compatibility

EN 61000-6-4:2001 EMC generic emission standard, industrial

° to +70°C (-13° to +158°F)

°C (32° to 122°F)

f < 57 Hz with 0.15 mm (0.0059 in)

57 Hz <

f < 150 Hz with 2 g (0.0044 lb)

height of 1.0 m (39.4 in) onto a hard surface (EN 61131-2:1994 + A11:1996 +A12:2000)

environment

Publication 2727-UM003D-EN-P

EN 61000-6-2:2001 EMC generic immunity standard, industrial

environment

IEC 61131-2 final draft, chapter 7,8 Programmable Controllers - Equipment

requirements and tests

Operating Safety

ISO 61131-2

EN 61131-2:1994 + A11:1996 +

A12:2000

EN 50178:1997 Electronic equipment for use in power

Programmable Controllers - Equipment requirements and test

installations

Appendix

Available Fonts for Terminal Applications

The following fonts are pre-installed on MobileView, PanelView Plus, and VersaView CE terminals:

• True Type fonts (scalable)

– Tahoma.ttf (proportional) – Courier.ttf (fixed width) – Arial.ttf (proportional)

• (23) fonts of various sizes migrated from PanelView Standard

and PanelView "e" terminals (various sizes)

To simplify the creation and downloading of .mer application files on these devices, use the above list of fonts when developing screens in RSView Studio.

Downloading Fonts to Terminal

Additional fonts are available in RSView Studio when developing application screens.

• If the font used to develop screens is not available on the target

device, the closest font is selected.

• If bolding or italics is used, and a separate bold or italics font is

unavailable, then the target operating system will use an algorithm to produce these affects.

In either case, the device screens will look different than they do in RSView Studio.

To use additional fonts on a MobileView, PanelView Plus, VersaView CE device, copy any of the font files on the VersaView CE Accessories CD or the RSView Machine Edition Fonts CD to the following directory on the computer where RSView Studio is installed:

c:\Documents and Settings\All Users\Documents\RSView Enterprise\ME\Runtime

You can now use the File Transfer Utility in RSView Studio to download the font file(s) to the target device:

1. Select Tools>Transfer Utility.

2. Select Source File>True Type Fonts.

3. Select a font file to download to the device and press the Download button.

1 Publication 2727-UM003D-EN-P

B-2 Available Fonts for Terminal Applications

VersaView CE Accessories CD

RSView Machine Edition Fonts CD

Fonts File Name Size (Bytes)

Arial

Arial (Subset 1_30) arial_1_30.ttf 153,720

Arial Black arialk.ttf 117,028

Arial Bold arialbd.ttf 288,496

Arial Bold Italic arialbi.ttf 226,748

Arial Italic ariali.ttf 207,808

Comic Sans MS

Comic Sans MS comic.ttf 126,364

Comic Sans MS Bold comicbd.ttf 111,476

Courier New

Courier New (Subset 1_30) cour_1_30.ttf 162,460

Courier New Bold courbd.ttf 312,920

Courier New Bold Italic courbi.ttf 236,148

Courier New Italic couri.ttf 245,032

Georgia

Georgia georgia.ttf 149,628

Georgia Bold georgiab.ttf 141,032

Georgia Bold Italic georgiaz.ttf 159,736

Georgia Italic georgiai.ttf 157,388

Impact impact.ttf 136,076

Kino kino.ttf 28,872

MSLogo mslogo.ttf 2,500

Symbol symbol.ttf 69,464

The following True Type fonts are included on the VersaView CE Accessories CD:

• Times New Roman.ttf

• Symbol.ttf

• Wingdings.ttf

This CD is not supplied with MobileView or PanelView Plus terminals.
