Installation Instructions
ArmorBlock MaXum 16 Sinking
Output Module Series B
(Cat. No. 1792D-0VT16E)
42047
This ArmorBlock MaXum™ I/O module (Cat. No. 1792D-0VT16E) is a
stand-alone 24V dc I/O product which communicates via a
DeviceNet™ network. The sealed housing of this module requires no
enclosure.
This module has 16 sinking outputs accessed through Y splitter
cables. Outputs are self-protected 24V dc and provide up to 0.3A
each. Local logic control has been added to the Series B version of
this product.
Publication 1792D-IN041B-EN-P - September 2000
2 ArmorBlock MaXum 16 Sinking Output Module Series B
Package Contents
Your package contains:
• 1 ArmorBlock MaXum Module
• Installation Instructions
Please note that cable bases are ordered and shipped separately.
European Communities (EC) Directive Compliance
If this product has the CE mark it is approved for installation within
the European Union and EEA regions. It has been designed and
tested to meet the following directives.
EMC Directive
This product is tested to meet the Council Directive 89/336/EC
Electromagnetic Compatibility (EMC) by applying the following
standards, in whole or in part, documented in a technical
construction file:
• EN 50081-2 EMC — Generic Emission Standard, Part 2 —
Industrial Environment
• EN 50082-2 EMC — Generic Immunity Standard, Part 2 —
Industrial Environment
This product is intended for use in an industrial environment.
Low Voltage Directive
This product is tested to meet Council Directive 73/23/EEC Low
Voltage, by applying the safety requirements of EN 61131-2
Programmable Controllers, Part 2 - Equipment Requirements and
Tests.
For specific information required by EN 61131-2, see the appropriate
sections in this publication, as well as the Allen-Bradley publication
Industrial Automation Wiring and Grounding Guidelines For Noise
Immunity, publication 1770-4.1.
Publication 1792D-IN041B-EN-P - September 2000
ArmorBlock MaXum 16 Sinking Output Module Series B 3
Install Your ArmorBlock MaXum I/O Module
To install the module you must:
• Set the node address
• Mount the module to the cable base
• Connect the output cord sets to the MaXum module
• Communicate with your ArmorBlock MaXum I/O module
Each of these steps is discussed in the following procedures.
Set the Node Address
Valid node addresses are 00 to 63.
Set the node address using the rotary switches, DeviceNetManager™
software, RSNetWorx for DeviceNet™ software, or another software
configuration tool. Setting the switches between 64 to 99 lets the
software have address control.
Each module is shipped with the node address set to 63. The
switches are located on the underside of the module. The two
switches are:
• MSD (most significant digit)
• LSD (least significant digit)
To reset the node address, use a small blade screwdriver to rotate the
switches. Line up the small black dot on the switch with the number
setting you wish to use.
The rotary switches are read at module power up only. Settings
between 64 and 99 cause the module to use the last valid node
address stored internally. Example: The last setting was 40. If a
change is made to 68, and then you power up, the address will
default to 40.
Publication 1792D-IN041B-EN-P - September 2000
4 ArmorBlock MaXum 16 Sinking Output Module Series B
Refer to the illustration of the node address below.
NODE ADDRESS
(00-63 PGM)
0
0
9
1
1
9
8
7
6
Bottom View of Module
Example: Node Address is set at 62 (see small black dots).
2
2
8
7
3
3
6
4
4
5
5
LSDMSD
30703
The module is equipped with AutoBaud detect. AutoBaud lets the
module read the settings already in use on your DeviceNet network
and automatically adjusts to follow those settings.
Mount the Module to the Cable Base
This module mounts to the following cable bases:
• 1792D-CBFM for KwikLink™ flat media installation
• 1792D-CB12 for 12mm drop cable installation
• 1792D-CB18P for round media DeviceNet
• or other optional cable base assembly
IMPORTANT
The cable base should already be installed. See
publications 1792D-IN009B-EN-P (CBFM & CB12)
or 1792D-IN036B-EN-P (CB18, CB18P, CB18PT) for
more information on how to install the cable base.
To install the module:
IMPORTANT
Proper alignment of the screws is necessary to
complete the connections between the module
contacts and cable contacts.
Publication 1792D-IN041B-EN-P - September 2000
ArmorBlock MaXum 16 Sinking Output Module Series B 5
1. Position the module over the mounted cable base. Align the
three captive screws in the module with the accepting
receptacles in the base.
2. Tighten the screws with a torque of 8 inch-pounds to secure
the module to the base.
IMPORTANT
1.9 in
48.26 mm
Assembled dimensions in (mm)
Dimensions change according to the cable base
and module combination used.
6.85 in
174 mm
2.7 in
68.6 mm
Align the
screws to
properly
assemble the
module to the
base.
Cable Base
1792D-CBFM is
used for this
example.
41522
Publication 1792D-IN041B-EN-P - September 2000
6 ArmorBlock MaXum 16 Sinking Output Module Series B
Connect the Output Cord Sets to the MaXum Module
This module uses 5 pin micro (12mm) style PCB mounted connectors.
Eight micro caps cover the connectors on your module. Remove the
caps and connect your cord sets to the appropriate ports. This
product has two outputs per connector. Use a “Y” splitter cable for
access to all output connections.
Use the micro caps to cover and seal unused ports. A pinout diagram
for the connectors is shown below.

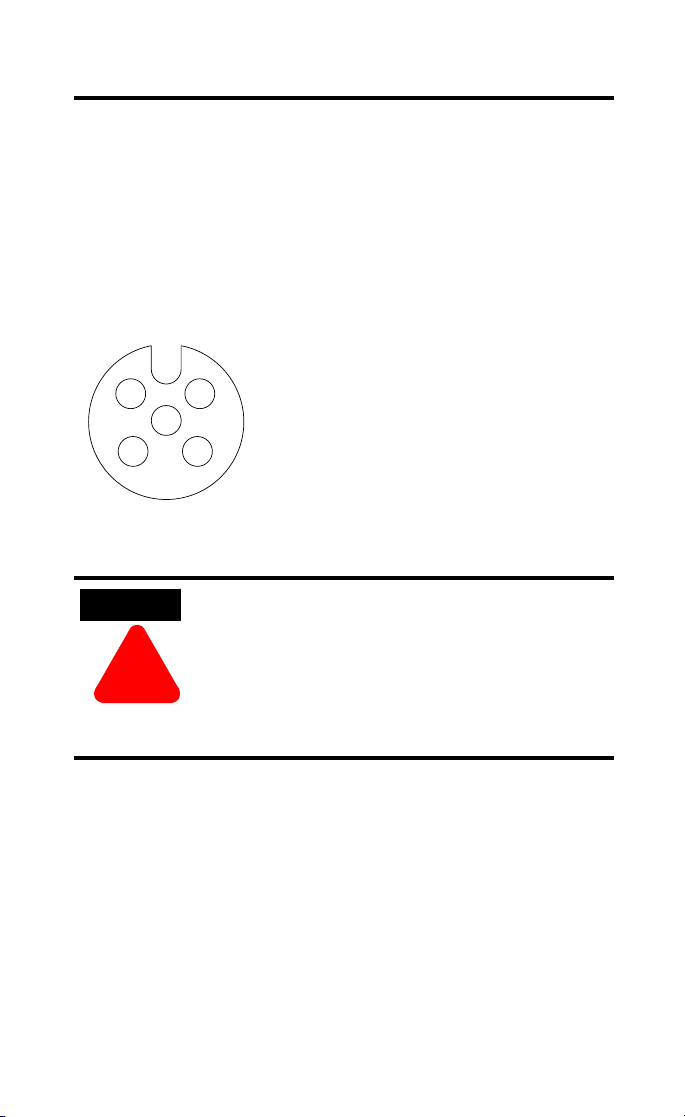

Micro-Connector
(View into Sockets)
1
4
Please refer to publication 889-5.0 for Rockwell Automation cables
and cord sets offerings.
ATTENTION
!
2
5
3
• Make sure all connectors and caps are securely
tightened to properly seal the connections
against leaks and maintain IP67 requirements.
• For maximum noise immunity, output cable
return wires must be properly terminated.
When outputs are connected in loopback,
return wires should be connected together.
• I/O cable length should be less than 30 meters.
Pin 1 Auxiliary +24V dc
Pin 2 Output B
Pin 3 Not used
Pin 4 Output A
Pin 5 Not Used
41452
Publication 1792D-IN041B-EN-P - September 2000
ArmorBlock MaXum 16 Sinking Output Module Series B 7
I/O connectors for this module are shown below.
Connector A
Output 0
Output 1
Connector B
Output 2
Output 3
Connector C
Output 4
Output 5
Connector D
Output 6
Output 7
Connector H
Output 15
Output 14
Connector G
Output 13
Output 12
Connector F
Output 11
Output 10
Connector E
Output 9
Output 8
42048
DeviceNet Cable
DeviceNet cables are described in the installation publications for the
cable base assembly of your choice. Refer to the following
publications:
• 1792D-IN009B-EN-P ArmorBlock MaXum Cable Base
Installation Guide
• DN-6.7.2 DeviceNet Cable Planning and Installation Manual
Publication 1792D-IN041B-EN-P - September 2000
8 ArmorBlock MaXum 16 Sinking Output Module Series B
Communicate with Your ArmorBlock MaXum I/O
Module
This ArmorBlock module’s I/O is exchanged with the master through
a poll, change-of-state, or cyclic connection.
The module consumes and produces output data as follows:
Type of I/O Connections Consumes Produces
Cyclic 2 Bytes 1 Byte
Polled 2 Bytes 1 Byte
Change-of-State 2 Bytes 1 Byte
Cyclic - allows configuration of the block as an I/O client. The block
will produce and consume its I/O cyclically at the rate configured.
Polled - a master initiates communication by sending its polled I/O
message to the module. This 16 output module consumes the
message, updates outputs, and produces a response. The response
has output data, output faults, and contains the status of the Auxiliary
power.
Change-of-State - productions occur when an output changes or a
fault condition occurs. If no output or fault condition change occurs
within the expected packet rate, a heartbeat production occurs. This
heartbeat production tells the scanner module that the I/O module is
alive and ready to communicate. Consumption occurs when data
changes and the master produces new output data to the I/O block.
Refer to the table below for the word/bit definitions.
Bit 0706050403020100
Produces 0 RSVD OPWR RSVD RSVD RSVD RSVD RSVD RSVD
Consumes 0 O7 O6 O5 O4 O3 O2 O1 O0
Consumes 1 O15 O14 O13 O12 O11 O10 O9 O8
Where: RSVD = Reserved OPWR = Output Power (Auxiliary Power) O = Output
Publication 1792D-IN041B-EN-P - September 2000
ArmorBlock MaXum 16 Sinking Output Module Series B 9
Byte Bit Description
Produces 0 00-05
Consumes 0 00-07 Output bits: When the bit is set (1), the output will be turned
Consumes 1 00-07 Output bits: When the bit is set (1), the output will be turned
Reserved
06
OPWR = Output Power Fault, when the bit is set, Auxiliary
Power is not present.
07
Reserved
on. Bit 00 corresponds to output 0, bit 01 corresponds to
output 1, bit 02 corresponds to output 2, bit 03
corresponds to output 3, bit 04 corresponds to output 4, bit
05 corresponds to output 5, bit 06 corresponds to output 6,
and bit 07 corresponds to output 7
on. Bit 00 corresponds to output 8, bit 01 corresponds to
output 9, bit 02 corresponds to output 10, bit 03
corresponds to output 11, bit 04 corresponds to output 12
bit 05 corresponds to output 13, bit 06 corresponds to
output 14, and bit 07 corresponds to output 15
The DeviceNet Network uses advanced network technology,
producer/consumer communication, to increase network
functionality and throughput. Visit our web site at
http://www.ab.com/networks
for producer/consumer technology
information and updates.
Publication 1792D-IN041B-EN-P - September 2000
10 ArmorBlock MaXum 16 Sinking Output Module Series B
Troubleshoot with the Indicators
This module has the following indicators:
• Net/Mod status indicator
• Logic status indicator
• Auxiliary power
• Individual point status indicators
Point LED Indicators for
Outputs 0 and 1
Connector A
Outputs 2 and 3
Connector B
Outputs 4 and 5
Connector C
Outputs 6 and 7
Connector D
Module Status Indicators
LED Assignments
Point LED Indicators for
Outputs 14 and 15
Connector H
Outputs 12 and 13
Connector G
Outputs 10 and 11
Connector F
Outputs 8 and 9
Connector E
42048
The following table describes network and module status indicators.
Net/Mod Status Indicator
Indicator Status
Off No power or auto bauding
Flashing Green/Off On line but not connected
Solid Green On line, link OK, connected
Flashing Red Recoverable fault - module configuration error
I/O connection fault - one or more I/O connections in the timed-out
state
Publication 1792D-IN041B-EN-P - September 2000
ArmorBlock MaXum 16 Sinking Output Module Series B 11
Net/Mod Status Indicator (continued)
Indicator Status
Solid Red Unrecoverable fault
Communication failure - duplicate node address present or incorrect
baud rate
Green to Red to Off At powerup only - LED test
The following table describes logic status indicators.
Logic Status Indicators
State Status
Off Logic is disabled
Solid Green Logic is enabled
Flashing Green Local forces are applied and local logic is enabled
The following table describes Auxiliary power indicator.
Auxiliary Power
Indication Status
None No Auxiliary Power
Green
Solid Auxiliary Power Present
The following table describes I/O status indicators.
I/O Status Indicators
Function Module Status Indicator Point Indicator Condition
Outputs Green
Green
None
Yel lo w
Output not energized
Output energized
For more information on indications, see the Technical Data,
publication 1792-TD001B-EN-P.
Publication 1792D-IN041B-EN-P - September 2000
12 ArmorBlock MaXum 16 Sinking Output Module Series B
Specifications
16 Output Module - Cat. No. 1792D-OVT16E
Max. Min.
Outputs per block 16 sinking outputs labeled 00 through 15
Output Auxiliary Voltage 30V 10V
On-state Voltage Drop 1V -
On-state Current 0.3A -
Off-state Leakage 1.5mA -
Module Current (all outputs) 4.0A -
Surge Current - for 10 ms,
repeatable every 2s
Indicators Net/Mod Status - red/green
Communication Rate •125Kbps @ 500 meters (1600 feet) for thick cable,
DeviceNet Power: Voltage
Auxiliary Power: Voltage
Dimensions (assembled to base)
inches - (millimeters)
Environmental Conditions
Operational Temperature
Storage Temperature
Relative Humidity
Shock Operating
Non-operating
Vibration
Conductors Publication DN-6.7.2
Current
Current
0.6A -
Auxiliary Power - green
Logic Status - red/green
Point LED - yellow/orange/red
flat media length 375 meters (1230 feet)
•250Kbps @ 200 meters (600 feet) for thick cable,
flat media length 150 meters (492 feet)
•500Kbps @ 100 meters (330 feet) for thick cable,
flat media length 75 meters (246 feet)
25V dc max
125mA
30V dc
4A
1.9H x 2.7W x 6.85D
(48.26)H x (68.6)W x (174)D
o
-25 to 60
-25 to 80
Up to 100%
30g peak acceleration, 11 (+1) ms pulse width
50g peak acceleration, 11 (+1) ms pulse width
Tested 10g @ 10-500 Hz per IEC 68-2-6
C (-13 to 140°F)
o
C (-13 to 176°F)
11V dc min
250mA
10V dc
4A
Publication 1792D-IN041B-EN-P - September 2000
ArmorBlock MaXum 16 Sinking Output Module Series B 13
16 Output Module - Cat. No. 1792D-OVT16E
Enclosure Meets or exceeds IP67
Agency Certification
(when product is marked)
• CSA certified
• CSA Class 1, Division 2, Groups A, B, C,
D certified
• UL listed
• CE marked for all applicable directives
Technical Data (user
information)
Publication 1792-TD001B-EN-P
Publication 1792D-IN041B-EN-P - September 2000
14 ArmorBlock MaXum 16 Sinking Output Module Series B
Hazardous Location Approval
The following information applies only to products marked
with Hazardous Location Approval, when operating in
hazardous locations:
Products marked “CL I, DIV 2, GP A, B, C, D” are suitable for use in
Class I Division 2 Groups A, B, C, D, Hazardous Locations and
nonhazardous locations only. Each product is supplied with markings
on the rating nameplate indicating the hazardous location
temperature code. When combining products within a system, the
most adverse temperature code (lowest “T” number) may be used to
help determine the overall temperature code of the system.
Combinations of equipment in your system are subject to
investigation by the local Authority Having Jurisdiction at the time of
installation.
WARNING
!
WARNING
EXPLOSION HAZARD -
• Do not disconnect equipment unless power
has been removed or the area is known to be
nonhazardous.
• Do not disconnect connections to this
equipment unless power has been removed
or the area is known to be nonhazardous.
Secure any external connections that mate to
this equipment by using screws, sliding
latches, threaded connectors, or other means
provided with this product.
• Substitution of components may impair
suitability for Class I, Division 2.
• If this product contains batteries, they must
only be changed in an area known to be
nonhazardous.
Use supply wires suitable for 30°C above
surrounding ambient.
!
Publication 1792D-IN041B-EN-P - September 2000
ArmorBlock MaXum 16 Sinking Output Module Series B 15
WARNING
When used in a Class I, Division 2, hazardous
location, this equipment must be mounted in a
suitable enclosure with proper wiring method that
complies with the governing electrical codes.
!
Les informations suivantes ne concernent que les produits
marqués pour une utilisation en environnements dangereux :
Les produits marqués « CL I, DIV 2, GP A, B, C, D » ne conviennent
qu’à une utilisation en environnements de Classe I Division 2
Groupes A, B, C, D dangereux et non dangereux. Chaque produit est
livré avec des marquages sur sa plaque d’identification qui indiquent
le code de température pour les environnements dangereux. Lorsque
plusieurs produits sont combinés dans un système, le code de
température le plus défavorable (code de température le plus faible)
peut être utilisé pour déterminer le code de température global du
système. Les combinaisons d’équipements dans le système sont
sujettes à inspection par les autorités locales qualifiées au moment de
l’installation.
AVERTISSEMENT
!
RISQUE D’EXPLOSION -
• Couper le courant ou s’assurer que
l’environnement est classé non dangereux
avant de débrancher l’équipement.
• Couper le courant ou s’assurer que
l’environnement est classé non dangereux
avant de débrancher les connecteurs. Fixer
tous les connecteurs externes reliés à cet
équipement à l’aide de vis, loquets
coulissants, connecteurs filetés ou autres
moyens fournis avec ce produit.
• La substitution de composants peut rendre cet
équipement inadapté à une utilisation en
environnement de Classe I, Division 2.
• S’assurer que l’environnement est classé non
dangereux avant de changer les piles.
Publication 1792D-IN041B-EN-P - September 2000
AVERTISSEMENT
!
Utiliser des fils d’alimentation qui conviennent à
une température de 30°C au-dessus de la
température ambiante.
AVERTISSEMENT
Pour une utilisation en environnement de classe i,
division 2 dangereux, cet equipement doit etre
monte dans un boitier avec un cablage approprie
conforme aux normes electriques en vigueur.
!
This product has been tested at an Open DeviceNet Vendor
Association, Inc. (ODVA) authorized independent test laboratory and
found to comply with ODVA Conformance Test. Please contact the
ODVA website (http://www.odva.org) for listing of products tested by
ODVA independent test labs for further details.
ArmorBlock, ArmorBlock MaXum and KwikLink are trademarks of Rockwell Automation.
DeviceNet is a trademark of Open DeviceNet Vendor Association.
DeviceNetManager is a trademark of Rockwell Automation Allen-Bradley, Inc.
RSNetWorx for DeviceNet is a trademark of Rockwell Software, Inc.
Publication 1792D-IN041B-EN-P - September 2000 PN 957395-73
Supersedes Publication 1792D-5.41 - A ugust 1999 © 2000 Rockwell Internati onal Corporation. Printed in USA
Loading...
