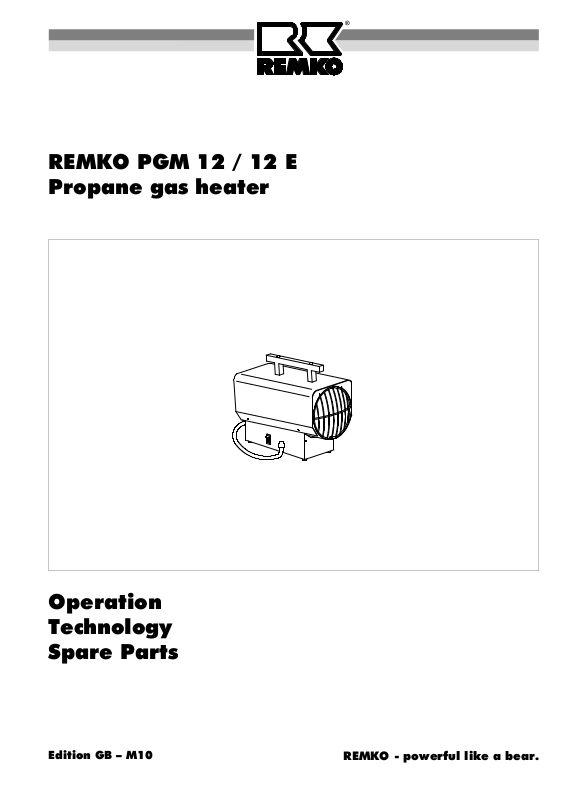

REMKO PGM 12 / 12 E
Propane gas heater
Operation
Technology
Spare Parts
Edition GB – M10
REMKO - powerful like a bear.
Operating instructions
Make sure to read these instructions carefully before starting/using the unit!
Our guarantee will become void when the unit supplied by us is used and installed
for inadequate purposes, or maintained incorrectly, etc.,
or if it is changed without our prior consent!
Mobile propane gas heater
REMKO PGM 12 / 12 E
Contents page
Safety Instructions 4
Description of device 4
General Instructions 5
Before Starting 6
Starting 7
Unit shut down 7
Maintenance 8
Always keep these operating instructions near or on the unit!
G
Contents page
Wiring diagram 9
Technical data 9
Service and Guarantee 9
Exploded view 10
Spare part list 11
Troubleshooting 12
Maintenance log 13
G
3
Safety Instructions
When using this unit make sure always to observe the
applicable building and fire protection regulations as
well as the rules of the trade co-operative association.
Additionally please note the following safety instructions.
◊ The unit may be operated only by those persons who
have been instructed accordingly.
◊ The unit is to be installed and operated in such a
way as to ensure that the employees are not endangered by waste gases and radiation heat and that no
fire can break out.
◊ The unit may only be installed and operated in
rooms, when the air rate fed to the unit is sufficient
for combustion.
◊ Make sure to install mobile liquid gas reservoir on a
solid ground and in a vertical position.
◊ Liquid gas reservoir may never be used in a lying po-
sition while the unit is operating.
Explosion hazard: Gas exit in the liquid phase from
the gas nozzle.
◊ The unit may be operated only in well aerated rooms.
◊ Persons may not stay permanently in the room
where the unit has been installed.
Relevant prohibition signs are to be fastened to the
entrances.
◊ The unit is to be installed and operated on a solid
non combustible ground.
◊ It is to be ensured that no combustible objects/
materials can be sucked in.
◊ The unit may not be installed or operated in inflam-
mable and explosive surroundings.
◊ A safety zone of 1.5 m around the unit and a mini-
mum distance of 3 m at the unit’s exhaust opening
are to be observed, even regarding non combustible
objects.
◊ The unit’s exhaust opening may not be reduced or
equipped with hoses or pipings.
◊ Make sure not to introduce foreign matters into the
unit.
◊ The air suction grille is always to be kept free from
dirt and loose objects.
◊ The units may not be exposed to direct water jets.
◊ All electric cables outside the unit are to be protected
from damage (e.g. caused by animals, etc.).
◊ Make sure to cut off the gas supply and to pull the
mains plug out of the mains socket when maintenance and repairs are carried out.
Description of Device
The unit is a mobile, liquid gas fired heater without a
combustion chamber and with a fan for transporting hot
air.
The unit works without an exhaust system and is only
suitable for industrial purpose.
The unit is directly heated and are suitable for a allpurpose and simple application.
The unit are equipped with noiseless maintenance-free
axial fan, durable gas burner, electromagnetic valve,
piezo electric ignition, ignition protection with thermoelectric flame monitoring and connecting cable with plug.
The unit is in accordance with the basic safety and
health requirements of the relevant EU – regulation.
Areas of Application
◊ For drying new buildings.
◊ Spot heating of working places outside or in open, fire-
proof halls and production places.
◊ Permanent or temporary heating of rooms with suffi-
cient fresh air intake.
◊ For defrosting of machines, vehicles and non flam-
mable storage goods;
◊ for tempering frost-endangered parts.
Working of Device
When the unit has been switched on (operating switch
in position "I" = heating operation), the supply air fan is
started and the electromagnetic valve opens. However,
the gas supply to the burner is still blocked.
The gas supply to the burner is released only after having pressed on the pin of the thermoelectric gas valve
(safety pilot). The liquid gas is supplied by means of a
nozzle under pressure to the burner pipe, where it is enriched with an adequate quantity of oxygen which has
been adapted to the burner capacity concerned.
The generated gas-air-mixture is ignited at the burner
head by an electric ignition spark. The spark is generated by the manual actuation of the piezo electric igniter.
The thermoelectric control of the flame is started by
heating the thermocouple. The pin of the safety pilot is
to be released.
Gas supply is interrupted in case of operating troubles
or when the flame goes out. However, the supply air fan
continues working. The unit has to be restarted.
The temperature limiter interrupts the gas intake when
the unit is overheating. The automatic release of the
temperature limiter occures after the unit has cooled
down. A restart of the unit is necessary.
When any work is carried out on the gas supply
line and when the gas cylinder is replaced, all
stop valves must be closed and there may be no
G
ignition sources in the direct surroundings.
4
Safety devices may be neither bridged nor
blocked.
G
General Instructions
◊ The unit may be operated only by those persons who
have been instructed regarding the unit’s operation
and the handling of liquid gas.
◊ When using the unit make sure always to ob-
serve the guiding principles of the countries and
states concerned.
◊ The unit may only be operated in rooms when
– the air rate fed to the unit is sufficient for combus-
tion and
– the rooms are well ventilated and de-ventilated
and
– the percentage of the substances which are injuri-
ous to health in the breathed in air has no inadmissible concentration.
◊ A good and natural ventilation and deventilation
is given if e.g.
1. the room volume in m³ corresponds to at least 30
times the nominal heat load in kW of all the units
being operated in the room, and if a natural air exchange through doors and windows is ensured, or
2. if there are permanently open ventilation possibilities for ingoing and outgoing air near the ceiling
and the floor, of which the size in m² corresponds
to at least 0.003 times the nominal heat load in
kW of all the units being operated in the room.
◊ A uniform unit connection pressure of 0.3 bar (300
mbar) of category I
of the European Community.
◊ The connection pressure may not fall below or ex-
ceed the required value.
◊ When using longer hoses the corresponding pres-
sure loss has to be considered.
◊ Make sure to use exclusively components, such as
gas hose, pressure controller and tube security devices (protection against breakage) or safety devices
against gas leakage, that have been tested and are
suitable for the intended purpose.
◊ The pressure controllers must have a firmly regu-
lated initial pressure of 300 mbar and are to be
equipped with a security device against tube breakage.
◊ The unit may not be operated, if the gas occurs liq-
uid in to the burner.
is necessary for all countries
3B/P
◊ In building site operation it is only allowed to use
hoses which are suitable for liquid gas.
According to regional regulations.
◊ The length of the gas hose should not exceed 2 me-
tres.
◊ If there are special operational reasons and if corre-
sponding safety regulations are considered and the
length of the hoses are as short as possible it is also
possible to use longer hoses.
◊ Gas hoses are to be protected generally against
chemical, thermal and mechanical damage.
◊ In uncontrolled operation hoses with hose-break pro-
tection must be used.
◊ The operating personnel has to check the function of
operation and safety devices and the existence of
safety devices before starting the unit.
◊ If any defects are stated the superintending person
has to be informed.
◊ If any defect occurs which endangers the operating
security of the unit, the unit has to be switched off!
◊ The unit may be only maintained by trained persons
and only original spare parts may be used.
◊ Wearing and ageing parts of the unit have to be re-
placed regularly. This is not valid if an expert confirms the faultless function of the unit.
◊ If the unit has been switched off by the temperature
limiter due to overheating, the reason for the fault
has to be detected and eliminated.
For optimum unit operation, the device should not
be operated at an ambient temperature above 25 °C.
G
5
Before Starting
Make sure to charge a person with the operation of the
unit and with the supervision of the reservoirs and of the
bottle stock who has been instructed sufficiently regarding the handlings concerned.
Make sure to draw the operators‘ attention to possible
dangers during the handling of liquid gas.
The persons charged with the operation of the units
have to check the units before starting work to detect
obvious defects on the operating and safety elements
and to make sure that the safety devices have not been
removed.
A constant unit connection pressure of 0.3 bar
(300 mbar) must be ensured, also during continu-
G
ous operation.
When any work is carried out on the gas supply
line and when the gas cylinder is replaced, all
stop valves must be closed and there may be no
G
ignition sources in the direct surroundings.
Important information about the installation
When installing or removing the gas hose make sure to
exert a counterpressure on the gas connection nipple of
the unit using an open-end spanner SW 17 and observing the left-handed thread.
This procedure also refers to all further gas components, such as pressure controller, hose security device
(protection against breakage), etc.
Unscrew gas hose
Turn union nut
clockwise
Important information about icing gas bottles
Fasten gas hose
Turn union nut
counter-clockwise
Connection of gas supply
Make the connection as follows:
1. Connect pressure controller to
the gas cylinder(s).
Attention!
left-handed thread!
G
2. Open cylinder(s) valve(s).
When gas is taken out of several gas cylinders simultaneously, all the valves have to be
opened.
3. Press release button of the
hose-break protection (protection
against breakage) after having
opened the valve(s).
This has also to be done after
each replacement of cylinders.
Insufficiently dimensioned supply plants can cause icing
of the pressure gas or pressure reservoirs. When the
gas pressure falls a proper gas supply to the consumer
points can no longer be ensured in many cases.
This will result in imperfect combustion, harmful waste
gases or extinction of the flame. Therefore the supply
plant is to be dimensioned in such a way as to ensure
that problems of this kind cannot be caused.
The crystalline white frost may not be removed by open
fire, glowing objects or radiators.
Sufficient gas supply is to be ensured according to the
unit power rating (see identification plate), service life
and ambient temperature of the supply tanks.
In principle, we recommend that you use a set of at
least 3 cylinders to avoid intensive icing of the reservoirs. The number of cylinders can be increased by using a set of several cylinders (accessories), depending
on the unit capacity and the service life.
Assembly of Multi-cylinder Set
All cylinders valves must be open to ensure regular gas
supply!
gas hose to unit
4. Check after the installation and
connection of the units all the
gas bearing connections to
make sure that they are tight.
Soap solution, leakage detecting spray etc.
Do not use open flames!
Install only in well ventilated rooms, not in rooms
which people will be using for longer periods!
G
6
hose-break protection
pressure controller
high pressure hose 0.4 m
T-connection
Starting
Important safety instructions
Make sure to place the gas reservoir only laterally behind
the unit!
2
2. Press down pressure pin 2 of
thermoelectric gas valve (safety
pilot) and keep the pin pressed.
Never heat up or defrost gas reservoir through the
unit’s hot air current.
G
Danger of explosion.
Never use the gas reservoir in a lying position
when the unit is operating.
G
Danger of explosion.
The unit is to be installed only in well aerated
rooms, but not in living rooms or similar recreation
G
rooms!
Connecting the unit to the power supply
1
1. Put the operating switch into
position "O" (Off)
3
4. After the formation of flames still hold down the pressure pin for approx. 10 - 15 seconds, until the thermoelectric flame monitoring has started.
5. Do not release the pressure pin before this.
6. If the flame is extinguished after the pressure pin has
been released, repeat the ignition procedure after
having waited for approx. 1 minute.
7. Keep the pressure pin pressed down a little longer.
Important instructions
Make sure that the supply air can be freely sucked and
the heated air can be blown off without problems.
The suction and blower apertures of the unit may not be
narrowed or equipped with hoses or conduits.
3. After approx. 2 or 3 sec. the
piezo electric igniter 3 is to be
actuated (possibly several
times) with the pressure pin still
held down, until a formation of
flames has occured.
2. Connect the unit plug to a properly connected power socket.
230V/1~ 50Hz
The electric connection of the units is to be carried
out via a special supply point with fault current
G
safety switch.
Heating
1. Put the operating switch into "I"
position (heating operation)
The supply air fan starts..
Make sure to keep the safety distance from combustible and inflammable materials and to observe
G
the local fire protection codes.
Unit Shut Down
1. Close all the bottle valves.
2. Let the flame burn out.
1
3. Put operating switch 1 into “0”
position (off).
4. Unplug mains plug from the
mains socket.
7
Maintenance
Depending on the operation conditions the units are to
be tested by an expert when necessary, but at least
regularly every two years, to ensure their safe operation.
The test result is to be recorded in a test certificate
which is to be safely kept until the next test so that it can
be presented to the authorised persons for control purposes at any time.
Regular maintenance and care, at least after each heating period is the basic condition for a long service life
and a faultless operation of the unit.
◊ Check ignition electrode and clean when necessary.
◊ Set the ignition electrode when necessary.
3 mm distance from the burnerhead.
◊ Check thermocouple and clean when necessary.
The bi-metal spring may neither be damaged nor
bent in or order not to affect the function of the
G
temperature-limiter!
When the unit is being maintained, set or repaired,
the gas supply has to be cut off and the mains plug
G
has to be unplugged from the mains socket!
Setting and maintenance is to be carried out only
by authorised experts!
G
Please pay attention to the following points:
◊ The unit is to be maintained and cleaned in regular
intervals.
◊ The unit is to be kept free from dust and other de-
posits and is to be cleaned only with a dry or humid
cloth.
Do not use water jet.
◊ Do not use any aggressive cleaning agents or those
which are harmful or environmentally unfriendly.
◊ Do not use cleaning agents which contain solvents.
◊ Only use suitable cleaning agents to remove ex-
treme dirt.
◊ Check suction and discharge grille regularly to see
whether it is dirty and clean it, when necessary.
◊ Check the suction opening for combustion air as well
as the injector fitted behind it and the gas nozzle
regularly to make sure that they are not dirty.
◊ Check gas hoses and gaskets to see whether they
are damaged and replace when necessary.
◊ Clean gas burner and gas nozzle regularly.
◊ Clean baffle plate regularly.
3 mm
gasburner
Disassembly for Cleaning
1. Remove four fastening screws 1.
2. Pull off the outside
casing to the front.
1
3. Remove three fastening screws 2 of air
suction grille.
2
4. Remove air suction
grille with fan motor
and fan blade
5. Pull the inner casing
to the front.
Cleaning the unit
After disassembly all components are easily accessible
for cleaning and maintenance purposes.
ignition
electrode
thermocouple
Intensive yellowish flames indicate that the fresh
air supply is probably insufficient and that there is
G
some dirt inside the unit, respectively.
8
temperature limiter
◊ Clean burner carefully.
Possibly use compressed air.
◊ Clean gas nozzle carefully when necessary.
◊ Carefully remove dirt and dust from ignition elec-
trode, thermocouple and temperature limiter.
◊ Remove deposits and other dirt from base of unit.
◊ Assemble all the parts thoroughly in reverse order.
Control the functions of the complete unit and
carry out a tightness check for all gas-bearing connections using soap solution and leakage detec-
G
tion spray, respectively.
Wiring Diagram
TE
P Z
Z
M V1
TB
1 2 3 4
KL
1 2 3 4
BS
MV2
L1
NP E
M
1~
KL = terminal strip M = fan motor TE = thermocouple
BS = operating switch Z = ignition electrode MV1 = gas valve (thermoelectric)
MV2 = gas valve (electromagnetic) PZ = piezo electric igniter TB = temperature limiter
Technical Data
Service and Guarantee
Series PGM 12/12 E
Nominal heat output kW 12
Heating capacity kW 12
Air output m³/h 250
Any claims under guarantee regarding materials can be
accepted only when the orderer or his customer has
filled in completely the “guarantee certificate” which is
enclosed with every REMKO-heater and has returned it
to REMKO GmbH & Co. KG in due time after the unit’s
sale and commissioning.
Fuel/type of gas liquid gas Cat. I
Gas pressure mbar 300
Gas consumption kg/h 0,95
3B/P
The units are factory tested on faultless function. If any
failure occurs though which cannot be eliminated by the
operating person, please contact your dealer or contact
person.
Electrical connection V 230
Frequency Hz 50
Power consumption max. W 60
Fuse protection A 10
An operation/use other than that indicated in these
instructions is prohibited!
In the case of non-observation we will not be held
G
responsible and our guarantee will become void.
Kind of protection IP 44
Sound pressure level LpA 1m
1)
dB(A)
57
Weight kg 6,8
Dimensions total length mm 400
width mm 185
height mm 320
1)
noise measuring DIN 45635-01-Kl3 in heating operation
Correct usage
The units are to be used only for heating and ventilation
purpose in industrial or commercial application because
of their construction and equipment.
If specification of the manufacturer or legal regulations,
are not followed or if unauthorised changes are made
on the unit, the manufacturer is not liable for resulting
damages.
9
Exploded View
1
2
17
15
28 29
18
16
27
26
19
14
20
13
21
14
25
22
23
24
16
30
8
4
3
5
6
7
9
10
12
We reserve the right to make modifications in dimensions and construction in the interests of technical progress.
11
10
Spare Part List
No. Description Ref.-No.
1 transport handle 1101142
2 outside casing PGM 12 1103801
2a outside casing PGM 12 E (stainless steel) 1103832
3 inside casing 1103802
4 retaining ring 1103811
5 discharge protection grille 1103803
6 gas burner 1103804
7 ignition electrode 1103818
8 terminal strip, 4 x 1101442
9 base 1103805
10 foot rest 1103806
11 traction relief 1103904
12 connecting cable with plug 1103808
13 operating switch 1103809
14 ignition cable 1103810
15 piezo electric igniter 1101364
16 thermocouple 1103812
17 gas connection nipple 1103813
18 gas valve (thermoelectric) 1101169
19 reducing nipple 1103829
20 gas valve (electromagnetic) 1101376
21 gas nozzle 1103815
22 angled coupling 1103816
23 protection socket, small 1101304
24 cover plate 1103828
25 temperature limiter 1103817
26 fan blade 1103819
27 clutch plate B6ø 1108455
28 fan motor 1103820
29 air suction grille 1103821
30 clutch disk 1101375
not shown
pressure controller with hose-break protection 1103825
1,5 running metres gas hose 1103826
2,0 running metres gas hose (HD for building sites) 1103827
When ordering spare parts it is necessary to indicate EDV-No. and machine no. (see data plate)!
11
Troubleshooting
– unit doesn’t start
– unit stops during operation
– fan blows, but gas supply is blocked
resp. no ignition
– flame goes out after having released the pin of
thermoelectric gas valve
– gas supply is blocked, resp. flame goes out
– fuel consumption is too high
– unit can’t be shut down
– heating capacity drops during continuous operation
cause: trouble:
1 – 2 – 3 – 4 – 7
2 – 4 – 7 – 12 – 13
4 – 5 – 8 – 9 – 12
8 – 10 – 11
4 – 6 – 7 –10 – 11 – 12 – 13
12 – 15
3 – 14
13
1. no electrical connection
fan motor is overcharged
2.
(fan blows irregularly or is blocked)
3. operating switch defect
4. no gas pressure on solenoid valve
5. no ignition spark
6. air-suction grille dirty
7. unit is shut down by temperature limiter
8. safety pilot does not open (resp. does not lock)
9. piezo electric igniter defect
10. thermocouple resp. temperature limiter defect
cause: remedy:
- plug the mains into an appropriate mains socket (230V/1~ 50Hz)
- check fan motor, fan blade and clutch plate and replace if neces-
sary.
- close gas supply, unplug the mains and replace defect operating
switch
- check gas supply
- check contents of gas bottle(s)
- check gas hose(s) for damage
- release hose-break protection resp. replace it
- set ignition electrode
- check ignition cable
- check porcelain insulation of ignition electrode
- clean air-suction grille
- check air-suction and blow-out grille and clean if necessary
- check fresh air supply
- replace safety pilot
- replace piezo electric igniter
- check position of thermocouple and adjust according to setting hints
11. loose or dirty connection between safety pilot and thermocouple
pressure controller defect or false pressure controller mounted
12.
resp. hose break protection is blocked
gas bottle(s) iced over due to low temperatures and too high gas
13
taking
- check connection and clean if necessary
- mount original pressure controller
- release hose-break protection resp. replace it
- replace empty gas bottle(s) and connect 2-3 bottles using multi bot-
tle set (EDV-No. 1014050)
- close gas supply
14. solenoid valve does not open
- let flame burn out
- put operating switch in position „0” and unplug the mains
- replace solenoid valve
15. leak gas hose(s)
- find leakage by foam forming mediums eliminate leakage
Make sure that the gas supply has been closed and the mains plug has been taken out of the mains
socket before carrying out any work regarding the unit!
G G
Setting and maintenance is to be carried out by authorised experts only!
12
Maintenance Log
Model: : ................................ Model No.: : ......................................
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Clean unit -surfaceClean unit -interiorClean fan blade
Clean combustion chamber
Clean gas burner
Set/replace ignition electrode
Check gas hose
Check gas leading parts for leaks
Check safety facility
Check protection guards
Check unit for damage
Check fastening screws
Electric safety-inspections
Test run
Remarks: ......................................................................................................................................................................
......................................................................................................................................................................................
1. Date: ...................... 2. Date: ...................... 3. Date: ...................... 4. Date: ...................... 5. Date: ......................
.................................. .................................. .................................. .................................. ..................................
Signature Signature Signature Signature Signature
6. Date: ...................... 7. Date: ...................... 8. Date: ...................... 9. Date: ...................... 10. Date: ....................
.................................. .................................. .................................. .................................. ..................................
Signature Signature Signature Signature Signature
11. Date: .................... 12. Date: .................... 13. Date: .................... 14. Date: .................... 15. Date: ....................
.................................. .................................. .................................. .................................. ..................................
Signature Signature Signature Signature Signature
16. Date: .................... 17. Date: .................... 18. Date: .................... 19. Date: .................... 20. Date: ....................
.................................. .................................. .................................. .................................. ..................................
Signature Signature Signature Signature Signature
Setting and maintenance work is to be carried out only by authorised specialists!
13
REMKO GmbH & Co. KG
Klima- und Wärmetechnik
D-32791 Lage • Im Seelenkamp 12
D-32777 Lage • PO Box 1827
Phone +49 (5232) 606 - 0
Fax +49 (5232) 606260
Loading...
