Regency Sunrise E33S Installation Manual
E33 Sunrise
MODELS: E33S-NG1 Natural Gas E33S-LP1 Propane
™
Gas Insert
Owners &
Installation Manual
www.regency-fi re.com
WARNING:
If the information in these instructions are not followed exactly,
a fi re or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other fl ammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualifi ed
installer, service agency or the gas supplier.
Tested by:
918-747b
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fi re department.
01/05/10
FPI GAS FIREPLACE INSERT
TO THE NEW OWNER
Congratulations! You are the owner of a state-of-the-art Gas Insert by FPI.
The E33 SunriseTM Gas Insert has been designed to provide you with all the warmth and charm of a fi replace, at
the fl ick of a switch. The E33S-NG1 and E33S-LP1 have been approved by Warnock Hersey for both safety and
effi ciency. As it also bears our own mark, it promises to provide you with economy, comfort and security for many
trouble free years to follow. Please take a moment now to acquaint yourself with these instructions and the many
features of your FPI Fireplace.
WARNING
HOT GLASS
WILL
CAUSE BURNS
DO NOT TOUCH
UNTIL COOLED
NEVER
ALLOW CHILDREN
TO TOUCH GLASS
GLASS
2
Regency® E33S-1 Sunrise Gas Insert
TABLE OF CONTENTS
SAFETY LABEL
Copy of Safety Decal ....................................................4
REQUIREMENTS
MA Code - CO Detector.................................................5
UNIT DIMENSIONS
Dimensions ....................................................................6
INSTALLATION
Important Message .......................................................7
For Your Safety ..............................................................7
Gas Pressure Testing ....................................................7
Specifi cations ................................................................7
Installation Into A Solid Fuel Burning Fireplace .............7
Before You Start ............................................................7
Installation Checklist .....................................................8
Materials Required ........................................................8
Minimum Fireplace Opening..........................................8
Minimum Clearances To Combustibles .........................9
Combustible Mantel Clearances..................................9
Gas Connection ..........................................................10
Venting.........................................................................10
Flue Liner Installation ..................................................10
Gas Pipe Pressure Testing ..........................................11
SIT Valve Description ..................................................11
Gas Insert Aeration System .........................................11
Conversion from ng to lp .............................................12

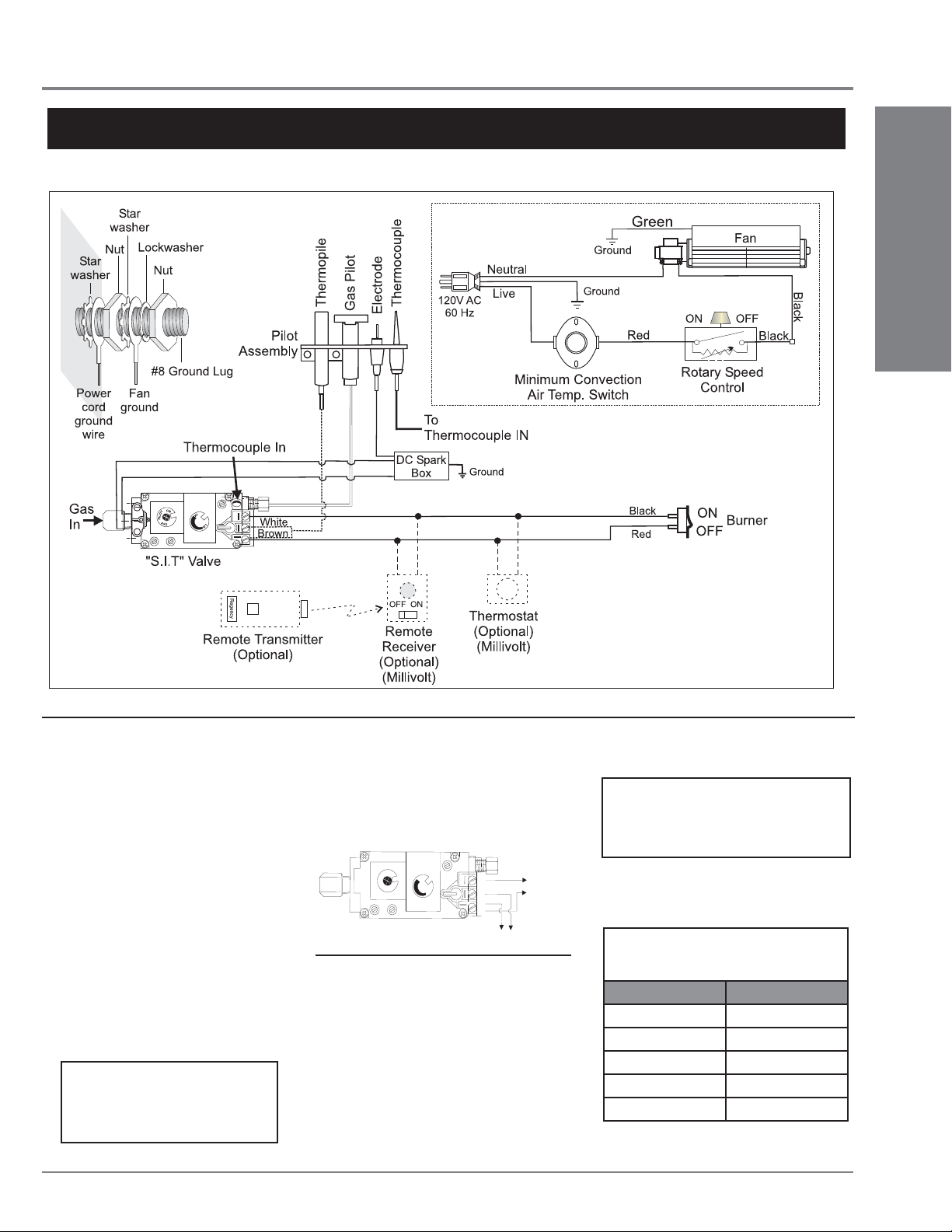

Wiring Diagrams ..........................................................16
Optional Remote Control ............................................17
Optional Wall Thermostat ...........................................17

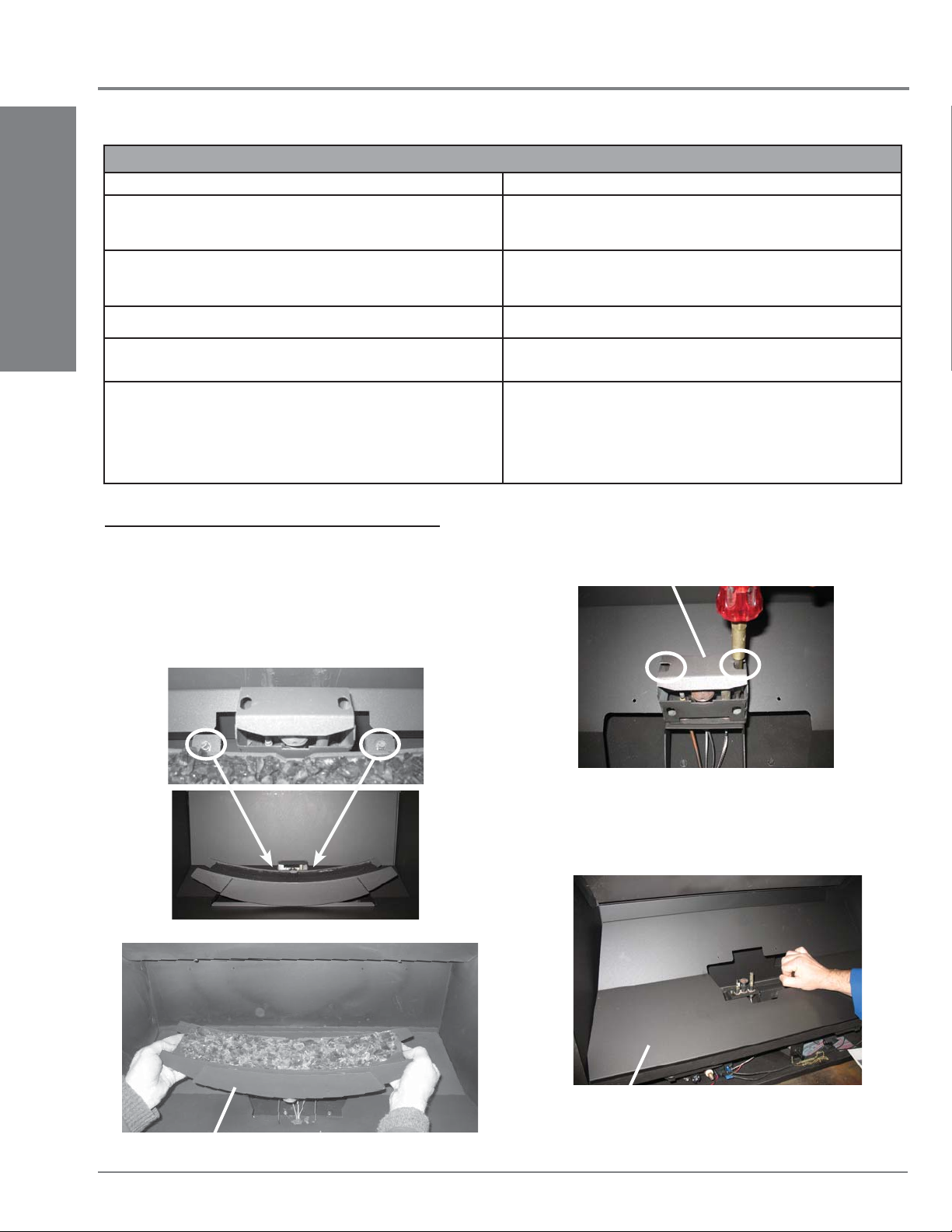

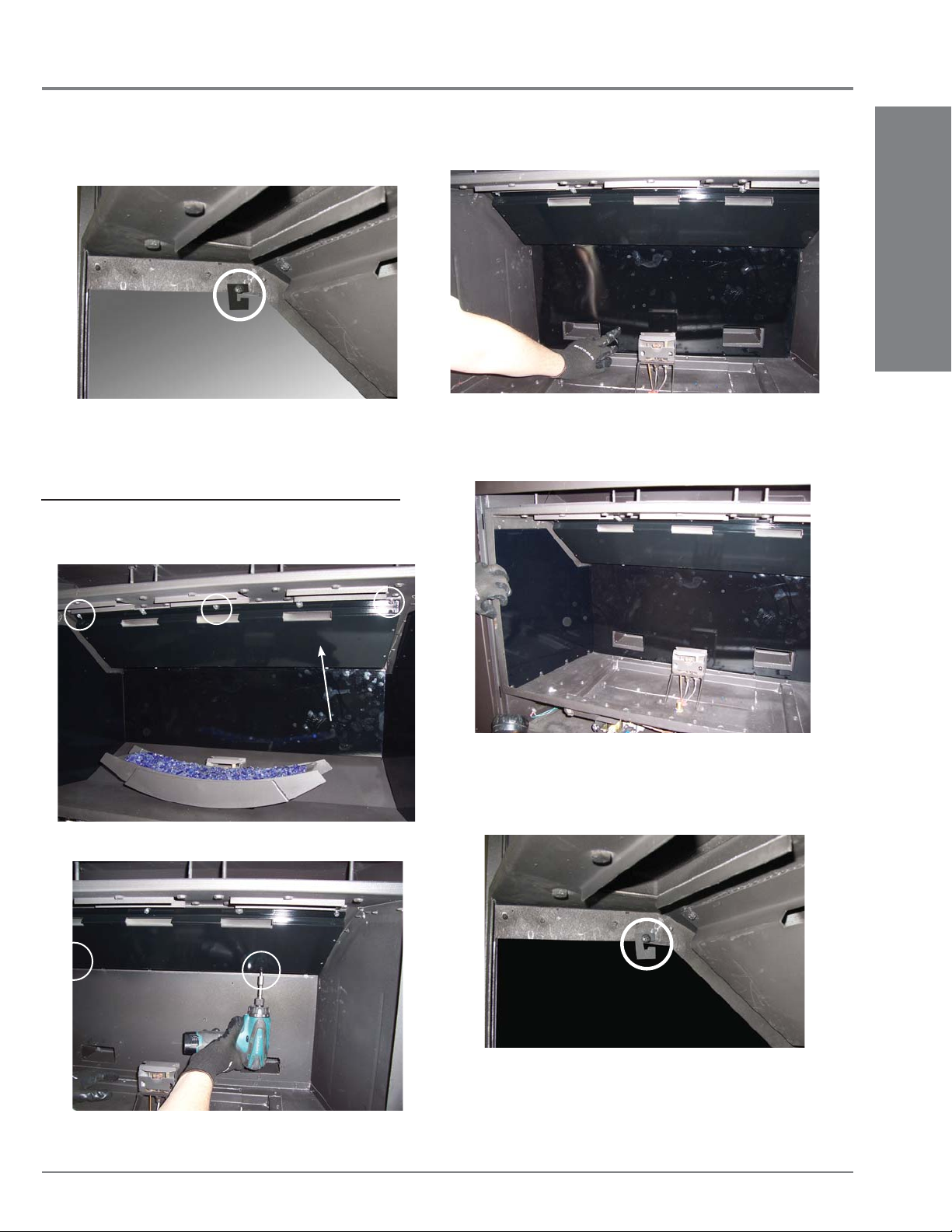

Optional Refl ective Panel Installation ..........................18

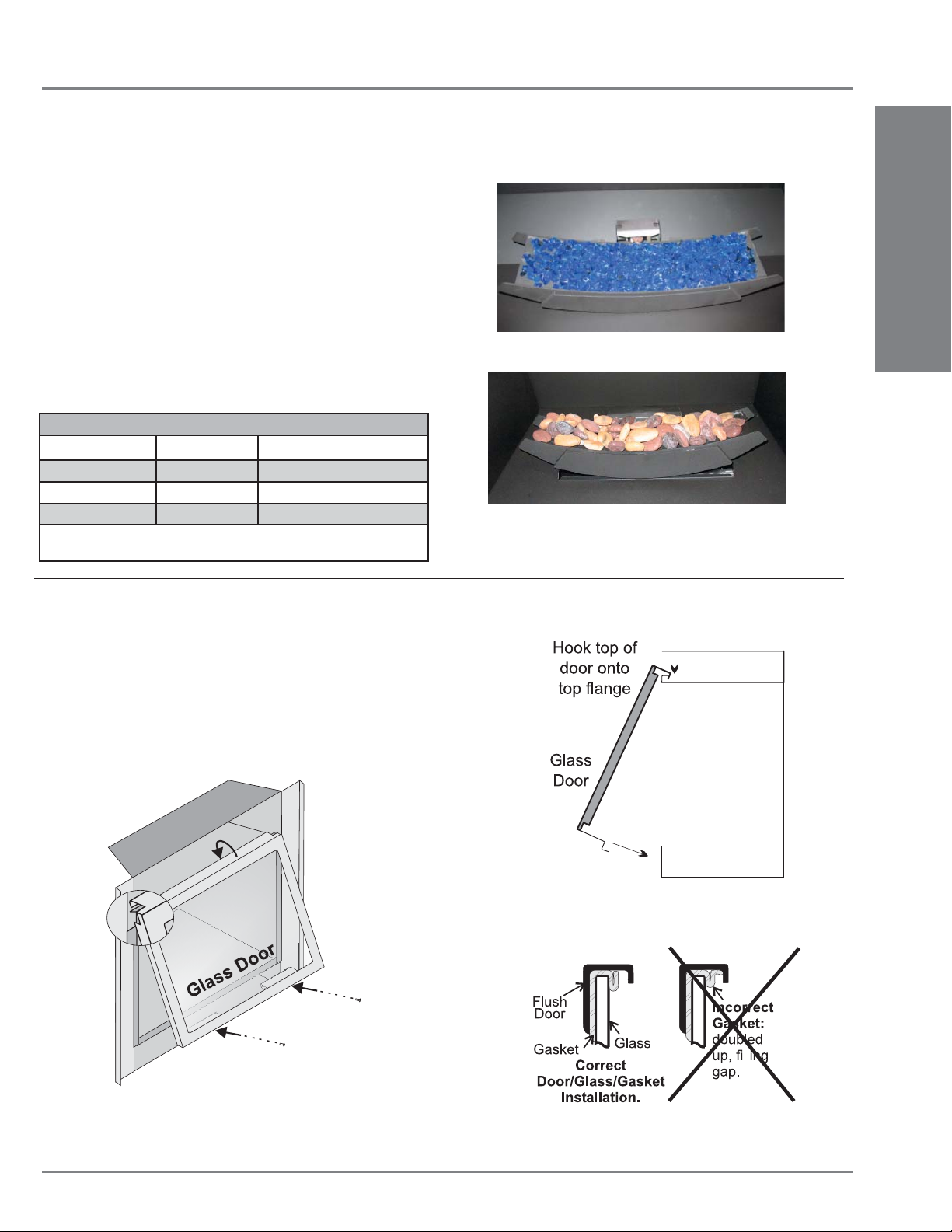

Glass Crystal | Ceramic stones Installation .................21
Glass Door Installation ................................................21

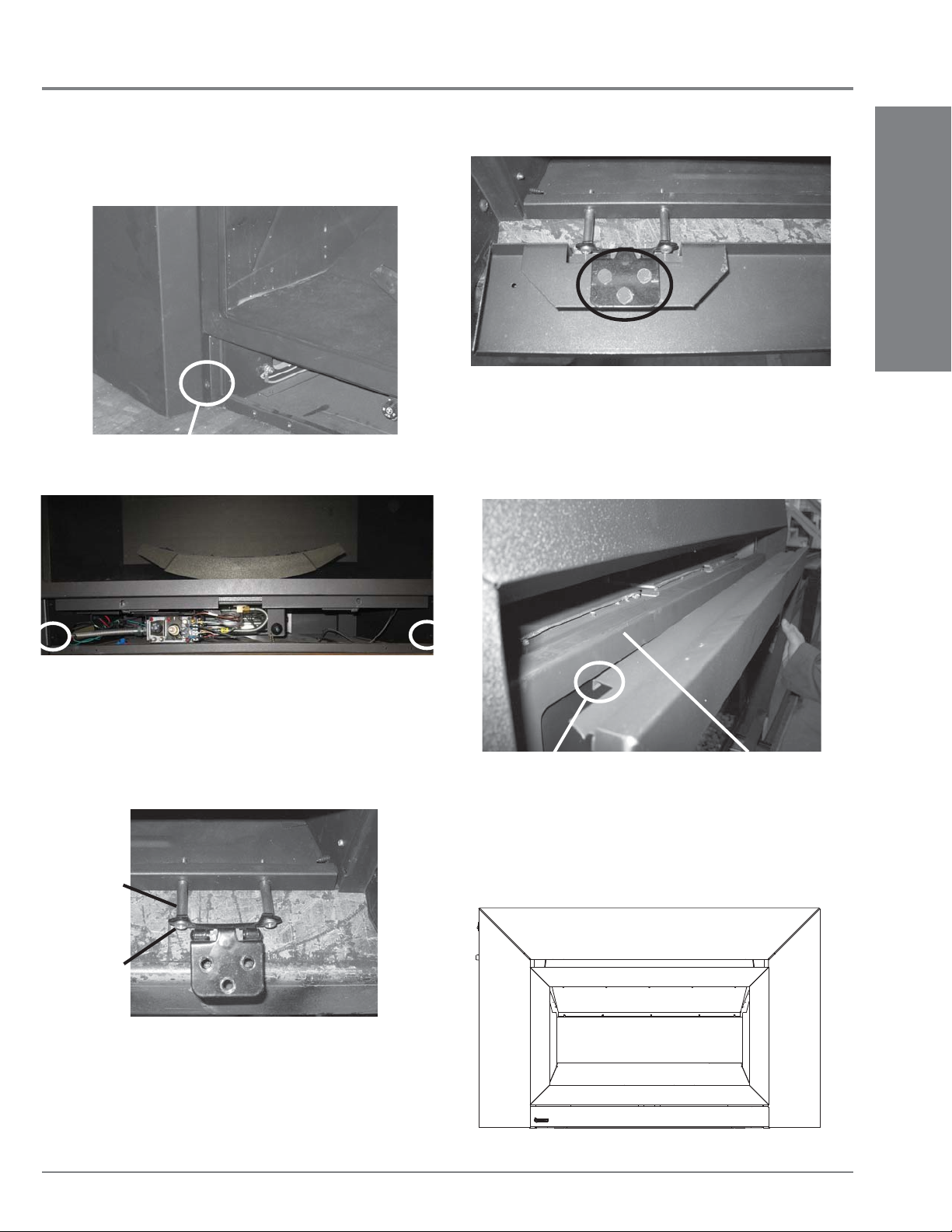

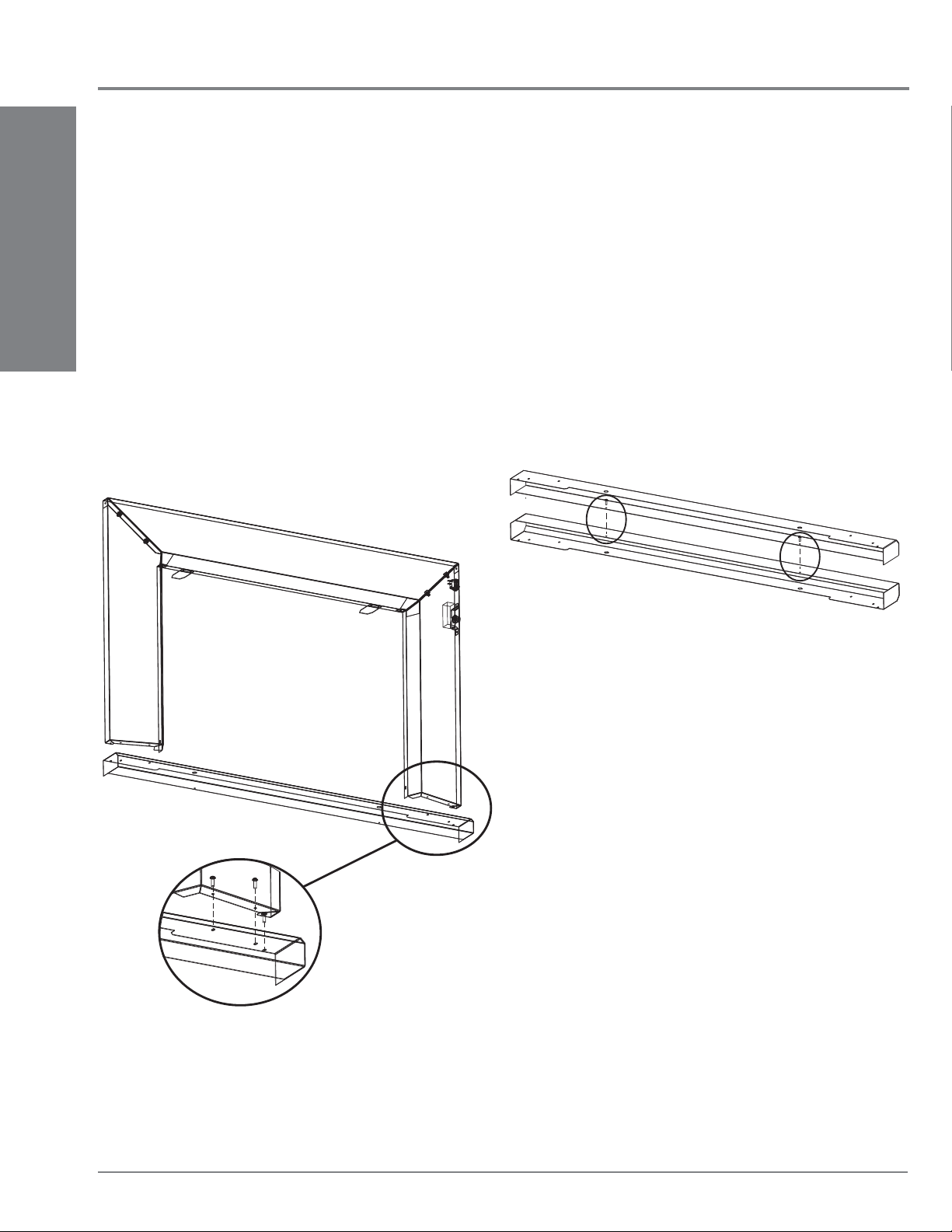

Contemporary Faceplate & Door Frame Installation ...22
Low Profi le Faceplate Installation ................................24
Optional Hearth Trim Installation .................................26
OPERATING INSTRUCTIONS
Final Check..................................................................27
First Fire ......................................................................27
Operating Instructions .................................................27

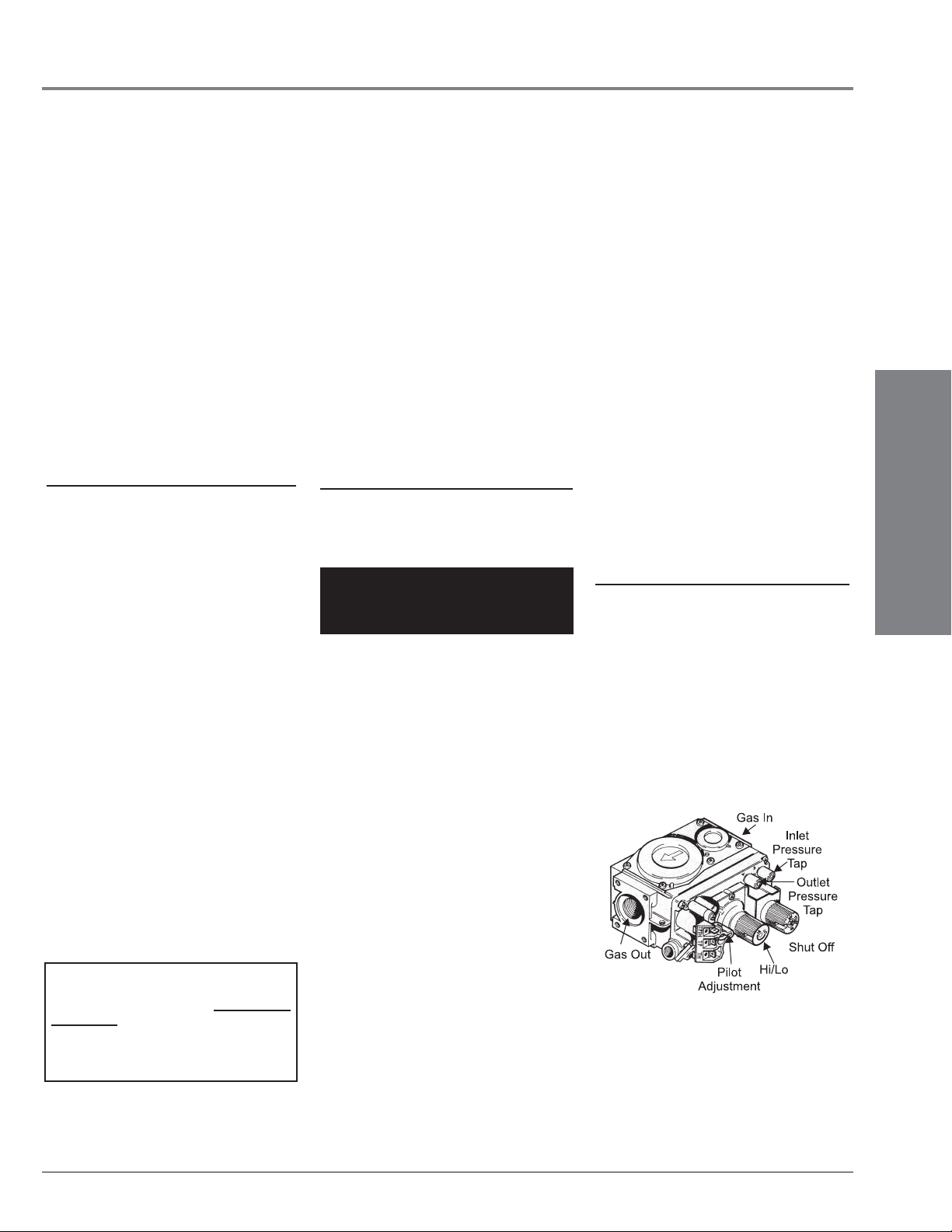

Lighting Procedure ......................................................27
Shutdown Procedure ...................................................27
Copy Of Lighting Instruction Plate ...............................28
Automatic Convection Fan Operation..........................28
Normal Operating Sounds Of Gas Appliances ............28
MAINTENANCE
Maintenance Instructions.............................................29
General Vent Maintenance ..........................................29

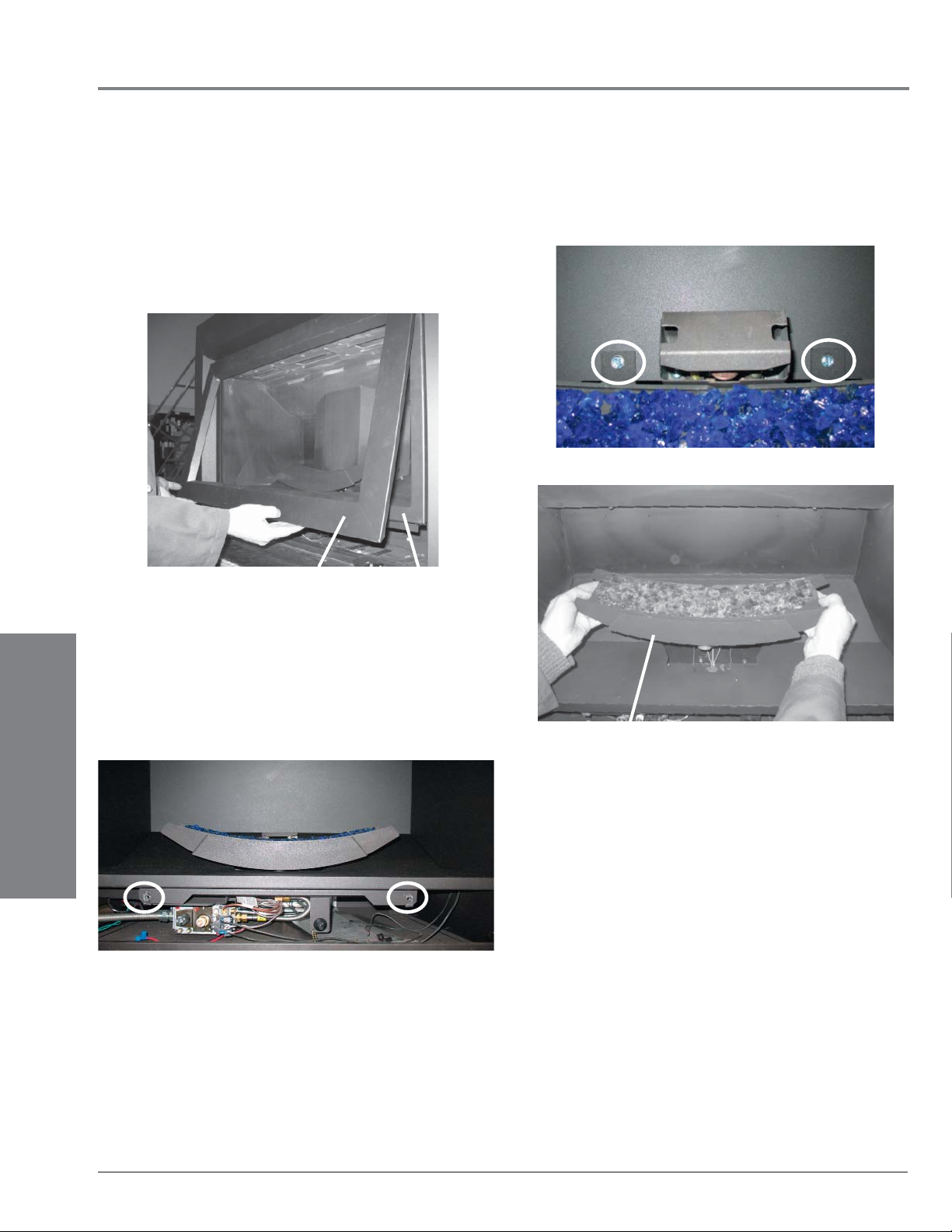

Door Glass ..................................................................29
V alve Tray Replacement ..............................................30
Fan Replacement ........................................................32
PARTS LIST

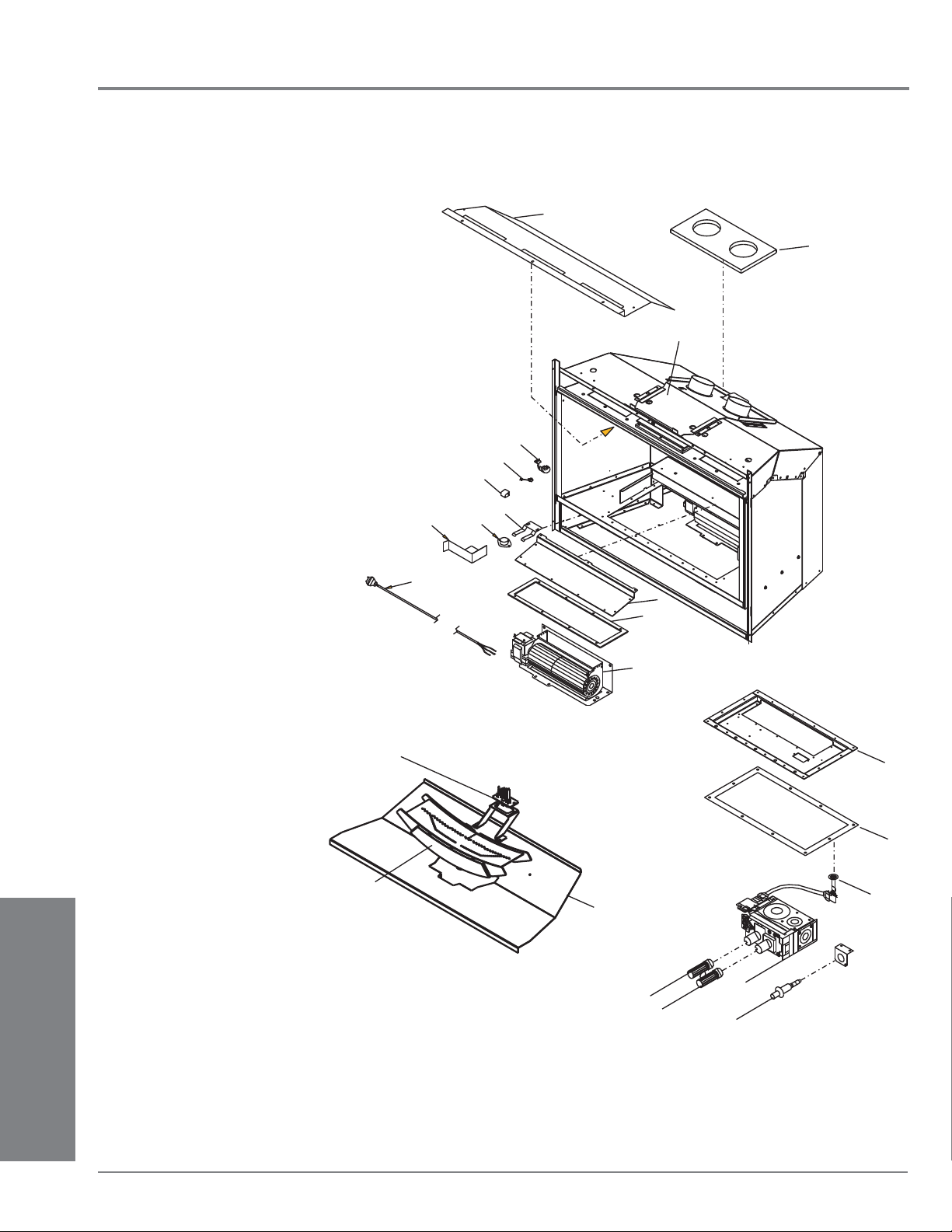

Main Assembly ............................................................34
Accessories .................................................................35
WARRANTY
Warranty ......................................................................39
Regency® E33S-1 Sunrise Gas Insert 3
SAFETY LABEL
D
E
F
A
B
C
Alcove Width E 76" (1930mm)
Alcove Depth F 36" (914mm)
Fan Part No. 320-517/P
Electrical Supply: 115 V, 56 WATTS, 60 Hz
* Alcove side wall must have a
min. of 8” clearance on one side.
NOT FOR USE WITH SOLID FUEL
MADE IN CANADA /FABRIQUE AU CANADA
DO NOT REMOVE THIS LABEL /
NE PAS ENLEVER CETTE ETIQUETTE
Serial No. / No de serie
Duplicate Serial number
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and
Propane Installation Code, CSA B149.1.
This appliance must be installed in accordance with the Standard CAN/CSA Z240 MH, Mobile Housing, in Canada, or with the Manufactured Home
Construction andSafety Standard, Title24 CFR,Part 3280, in theUnited States, orwhen sucha standardis not applicable,ANSI/NCSBCS A225.1/NFPA
501A, ManufacturedHome InstallationsStandard
This applianceis only foruse with thetype of gasindicated on therating plate andmay be installedin an aftermarket,permanently located,manufactured
(mobile) homewhere notprohibited by localcodes. Seeowner's manual fordetails.
This applianceis notconvertible for usewith othergases unless acertified kitis used.
WARNING.This fireplacehas been convertedfor use witha gas fireplaceinsert only andcannot be usedfor burning woodor solid fuels unlessall original
parts havebeen replaced,and the fireplacere-approved bythe authority havingjurisdiction.
Installer l'appareil selonles codes ourèglements locaux, ou, en l'absence detels règlements, selon les codes d'installationANSI Z223.1, National Fuel
Gas Codeou CSA-B149.1en vigueur.
Installer l'appareil selonla norme CAN/CSA-Z240, Série MM,Maison mobiles ouCAN/CSA-Z240 VC, Véhicules de camping,ou la norme 24 CFRPart
3280, Manufactured Home Construction and Safety Standard. Si ces normes ne sont pas pertinentes, utilisez la normeANSI/NCSBCS A225.1/NFPA
501A, ManufacturedHome InstallationsStandard
AVERTISSEMENT : Ce foyer a été converti pour utilisation avec un foyer au gaz encastrable et ne peut être utiliser pour brûler du bois ou d'autres
combustibles solidesà moinsque toutes lespièces d'origineaient été remplacéeset quele foyer aitété approuvéde nouveau parl'autorité compétente.
For usewith glassdoors certified withthe applianceonly
This ventedgas fireplaceheater is notfor usewith air filters. Ne pasutiliser defiltre à airavec cefoyer au gazà évacuation.
Cet appareil doit être utilize uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison
préfabriquée ou mobile (É.-U. seulement) installée à demeure si les règlements locaux le permettent. Voir la notice de l'utilisateur pour plus de
renseignements. Cetappareil nepeut pas êtreutilisé avecd'autres gaz saufsi unetrousse de conversioncertifiée estfournie.
Cet appareiln'est pasconvertible pour uneutilisation avecd'autres gaz, saufsi unkit certifié estutilisé.
Pour utilisationuniquement avecles portes enverre certifiéesavec l'appareil
Listed:
Certified for/Certifi e pour:
Tested to:
WN#
CANADA and U.S.A.
CAN/CGA-2.17-M91, ANSI Z21.88-2009 / CSA 2.33-2009
VENTED GAS FIREPLACE HEATER
/
16042
FOYER AU GAZ À ÉVACUATION
é
VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUELS. /
NE PAS UTILISER AVEC DUCOMBUSTIBLE SOLIDE.
FOYER AU
GAZ À ÉVACUATION -
ÉÉQUIP A L'UISINE POUR GAZ PROPANE
ÉÉQUIP A L'UISINE POUR GAZ NATURAL
FPI Fireplace Products International Ltd.,
Delta BC, CANADA
Pression d'allimentation minimum
Pression la tubulure d' chappement basse
Pression la tubulure d' chappement lev e
Dimensions de l'orifice
D bit Calorifique minimum
D bit Calorifique maximum
à
à
é
ééé
é
é
Pression d'allimentation minimum
Pression la tubulure d' chappement basse
Pression la tubulure d' chappement lev e
Dimensions de l'orifice
D bit Calorifique minimum
D bit Calorifique maximum
à
à
é
ééé
é
é
340
340
Model/Modele:
E33S-NG1
918-748a
Model/Modele:
E33S-LP1
NATURAL GAS FIREPLACE INSERT: MODEL
Factory Equipped For Altitude 0-4500ft. (0-1370m)
Min. Supply Pressure 5“ WC (1.25 kpa)
Low Setting Man. Pressure 1.1" WC (0.27 kpa)
Max. Manifold Pressure 3.8" WC (0.95 kpa)
Orifice Size 42 DMS
Minimum Input 13,500 Btu/h (3.95 kW)
Maximum Input 26,000 Btu/h (7.61 kW)
E33S-NG1
PROPANE GAS FIREPLACE INSERT: MODEL
Factory Equipped For Altitude 0-4500ft. (0-1370m)
Min. Supply Pressure 12" WC (2.99 kpa)
Low Setting Man. Pressure 2.9" WC (0.72 kpa)
Max. Manifold Pressure 11" WC (2.74 kpa)
Orifice Size 54 DMS
Minimum Input 12,000 Btu/h (3.51 kW)
Maximum Input 23,000 Btu/h (6.74 kW)
E33S-LP1
Minimum Clearances to Combustibles
from Insert
Side Walls A* 8" (203mm)
Ceiling B 47" (1194mm)
Min. Mantel Height C 15" (381mm)
Max. Mantel Depth D 3½" (89mm)

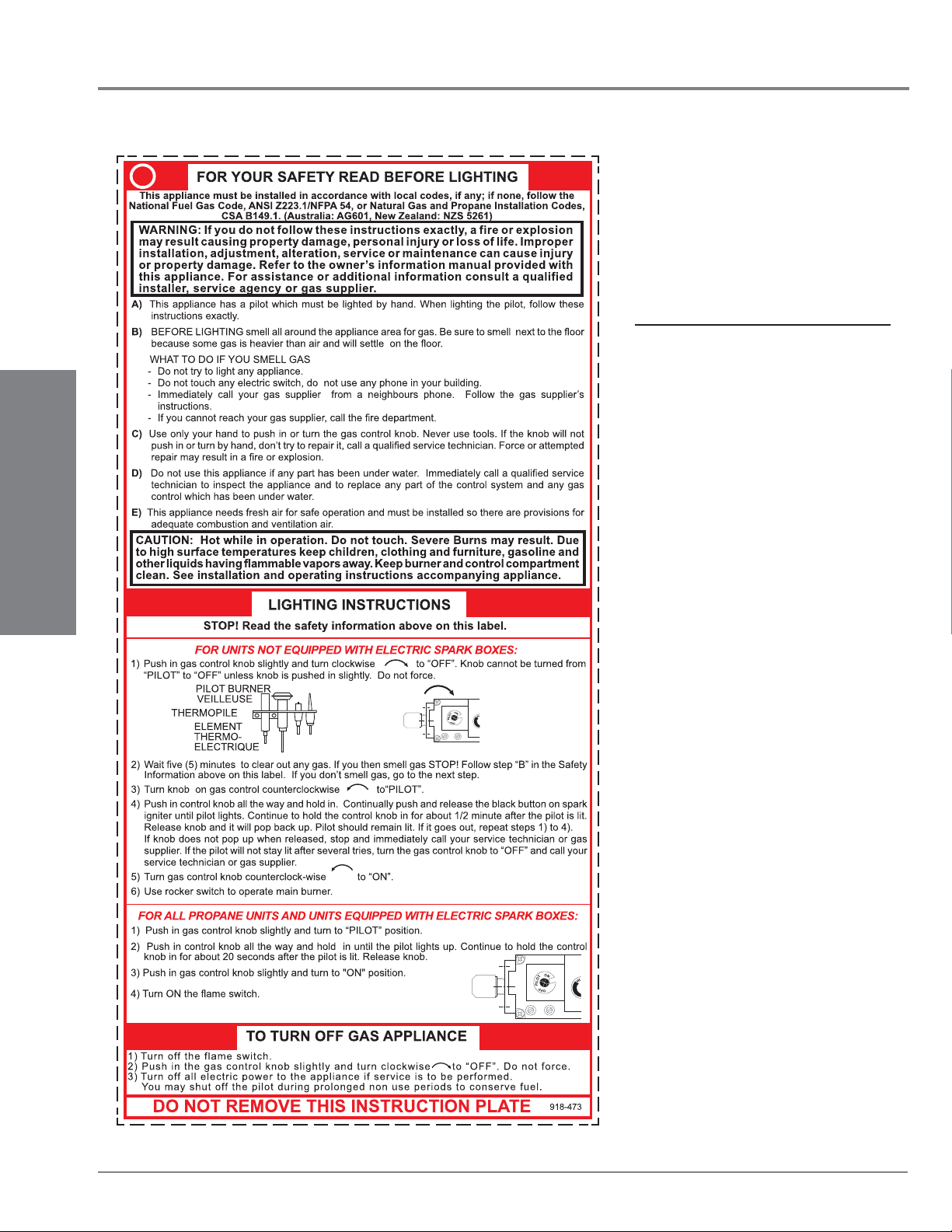

This is a copy of the safety label that
accompanies the E33 Sunrise
TM
Gas
Insert. We have printed a copy of the
contents here for your review. The safety
label is located on a plate inside the
base of the unit visible when the bottom
louver is opened.
NOTE: FPI units are constantly being
improved. Check the label on the unit
and if there is a difference, the label
on the unit is the correct one.
INSTALLATION
For the State of Massachusetts, installation
and repair must be done by a plumber or
gasfi tter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, fl exible
connectors shall not exceed 36 inches in
length.
For the State of Massachusetts, the appliances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordance with NFPA 720 and a CO alarm
with battery back up in the same room where
the gas appliance is installed.
4
Regency® E33S-1 Sunrise Gas Insert
REQUIREMENTS
MA Code - CO Detector
(for the State of Massachusetts only)
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
INSTALLATION
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of
the installation.
Regency® E33S-1 Sunrise Gas Insert 5
UNIT DIMENSIONS
32-1/8” (816mm)
24-3/8” (619mm)
INSTALLATION
16-1/2” (419mm)
47-1/2” (1207mm)
30-5/8” (778mm)
23-1/2” (597mm)
1-1/8”
(28mm)
13-3/4” (349mm)
27-7/8” (708mm)
2-7/8”
(72mm)
6
11-3/8”
(290mm)
16-1/2” (419mm)
Regency® E33S-1 Sunrise Gas Insert
18-1/16” (459mm)
22-7/8” (581mm)
23-3/4” (603mm)
INSTALLATION
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The FPI Gas Insert must be installed in accordance with these instructions. Carefully read all
the instructions in this manual fi rst. Consult
the building authority having jurisdiction to
determine the need for a permit prior to starting
the installation.
NOTE: Failure to follow the instructions could
cause a malfunction of the heater which could
result in death, serious bodily injury, and/or
property damage. Failure to follow these
instructions may also void your fi re insurance
and/or warranty.
FOR YOUR SAFETY
This appliance requires air for proper combustion.
Always provide adequate combustion and
ventilation air. Follow instructions and
information in CSA B149.1 (in Canada) or the
National Fuel Gas Code ANS Z223.1/NFPA
(in the USA), regarding requirements for
combustion and ventilation air.
GAS PRESSURE
TESTING
The appliance must be isolated from the gas
supply piping system by closing its individual
manual shut off valve during any pressure
testing of the gas supply piping system at test
pressures equal to or less than
1/2 psig. (3.45 kPa).
SPECIFICATIONS
At pressures over 1/2 psig, the pipe to the unit
must be disconnected.
Gas Input Capacity:
Natural Gas 26,000 Btu/h
Propane 23,000 Btu/h
Min. Input:
Natural Gas 13,500 Btu/h
Propane 12,000 Btu/h
INSTALLATION INTO A
SOLID FUEL BURNING
FIREPLACE OR
FACTORY BUILT
FIREPLACE
The E33S Gas Insert have been tested and
approved to be vented into any masonry
fireplace or approved solid fuel burning
factory built fi replace that will allow the insert
to physically fi t into the fi rebox. Refer to the
"Minimum Fireplace Dimensions" section.
If the factory built fi replace* height is too low
for your Insert, you may remove the smoke
baffl e plate and damper from the factory
built fi replace as long as these items are
saved and are reinstalled in the event that
the Insert is removed. NOTE: Any alterations
made to the listed solid fuel burning factory
built fi replace may void the listing of the
fi replace. Cutting any sheet-metal parts of
the fi replace, in which the gas fi replace insert
is to be installed, is prohibited.
If the factory-built fi replace has no gas
access hole(s) provided, an access hole of
1.5" (37.5mm) or less may be drilled through
the lower sides or bottom of the fi rebox in
a proper workmanship like manner. This
access hole must be plugged with noncombustible insulation after the gas supply
line has been installed.
The fi replace and fi replace chimney must
be clean and in good working order and
constructed of non-combustible materials
and chimney cleanouts must fi t properly.
Refractory, glass doors, screen rails, screen
mesh, and log grates can be removed
from the fi replace before installing the gas
fi replace insert. Smoke shelves, shields
and baffl es may be removed if attached by
mechanical fasteners. A tight connection
between the gas fi replace insert fl ue collar
and the fi replace chimney must be made.
*Check with your local inspector before
commencing with this installation.
Installer must mechanically attach the supplied
label to the inside of the fi rebox of the fi replace
into which the gas fi replace insert is installed.
BEFORE YOU ST ART
Safe installation and operation of this appliance
requires common sense, however, we are
required by the Canadian Safety Standards
and ANSI Standards to make you aware of
the following:
General Safety Information
1) The appliance installation must conform
with local codes or in the absence of local
codes, with CAN/CSA B149.1 (in Canada)
or the National Fuel Gas Code ANSI Z223.1
NFPA 54 in the U.S.A. This appliance should
be installed by a qualifi ed gas fi tter technician
only.
2) Installation and repair should be done
by a qualifi ed service person.
3) The appliance should be inspected
before use and at least annually by
a professional service person. More
frequent cleaning may be required due
to excessive lint from carpeting, bedding
material, animal hair, etc. It is imperative
that control compartments, burners
and circulating air passageways of the
appliance be kept clean.
4) See general construction and assembly
instructions. This appliance may only be
installed in a vented, noncombustible
fi replace.
5) This appliance is Listed for bedroom
installations when used with a Listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.
6) Always connect this appliance to a vent
system vent that is run (or routed) to the
outside of the building envelope. Never vent
to another room or inside a building. Make
sure that the vent is properly sized and is
of adequate height to provide the proper
draft.
7) Inspect the venting system annually for
blockage and any signs of deterioration.
8) Any glass removed for servicing must be
replaced prior to operating the appliance.
INSTALLATION
Fuels: Approved for use with both natural gas,
and propane. Approved as is for use at 0' to
4,500' (0-1370m).
Electrical: 120V A.C. system.
Circulation Fan: Variable speed, 127 CFM.
Vent System: 3" co-linear aluminum fl ex.
Cobalt Blue Glass Crystals
Regency® E33S-1 Sunrise Gas Insert 7
"WARNING: This fi replace has been converted
for use with a gas fi replace insert only and
cannot be used for burning wood or solid fuels
unless all original parts have been replaced,
and the fi replace re-approved by the authority
having jurisdiction."
9) WARNING: Failure to position the parts
in accordance with the diagrams in
this manual or failure to use only parts
specifi cally approved with this appliance
may result in property damage or
personal injury.
10) T o prevent injury , do not allow anyone who
is unfamiliar with the operation to use the
fi replace.
INSTALLATION
11) Due to high temperatures, the appliance
should be located out of high traffi c areas
and away from furniture and draperies.
Children and adults should be alerted to
the hazards of high surface temperatures,
especially the fi replace glass, and should
stay away to avoid burns or clothing
ignition. Y oung children should be carefully
supervised when they are in the same
room as the appliance. Clothing or other
fl ammable material should not be placed
on or near the appliance.
INSTALLATION
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.
INSTALLATION
CHECKLIST
Before installing vent system ensure that the
damper plate is open and secure to prevent the
damper plate from falling down and crushing
the liner.
The FPI Gas Insert is installed as listed
below.
1) Check all clearances to combustibles.
Refer to the following sections where
applicable:
a. Minimum Clearances to Combustibles
b. Combustible Mantel Clearances
2) Make the gas connection. Refer to the "Gas
Connection" section.
8) Install standard and optional features. Refer
to the following sections where applicable:
a. Glass Crystals
b. Contemporary Faceplate
c. Remote Control
d. Wall Thermostat
9) Final check. Refer to the "Final Check"
section. Before leaving this unit with the
customer, the installer must ensure that the
appliance is fi ring correctly. This includes:
a) Clocking the appliance to ensure the
correct fi ring rate.
b) Adjusting the primary air, if required,
to ensure that the fl ame does not
carbon. Refer to the "Gas Insert
Aeration System" section.
c) Ensuring that the appliance is venting
correctly.
MATERIALS
REQUIRED
No electrical power supply is required for the gas
control to operate. A 120 V olt AC power cord is
hooked up to the fan. Plug the 3 wire cord into
a suitable receptacle. Do not cut the ground
terminal off under any circumstances. When
connected with 120 volts, the appliance must
be electrically grounded in accordance with
local codes, current version of the Canadian
Electrical Code CSA C22.1 (in Canada) or in
the absence of local codes, with the National
Electrical Code ANSI/NFPA 70.
MINIMUM FIREPLACE
OPENING
The minimum fi replace opening is shown in the
following diagrams:
Width (at front) 32-1/4" (819mm)
Width (at rear) 25" (635m)
Depth 16-3/4" (425mm)
Height 24-3/16" (614mm)
3) Install the 3" fl ue liner to the sliding connector
plate. Refer to the "Flue Liner Installation"
section.
4) Slide the unit half way into the fi replace.
5) Pull the vent connector plate through the
tapered brackets and fasten to the front
plate. Refer to the "Flue Liner Installation"
section.
6) Slide the unit fully into the fi replace.
7) Test gas pressure, refer to the "Gas Pipe
Pressure Testing" section. Check aeration
system, refer to "Gas Insert Aeration
Systems" section.
8
WARNING:
Electrical Grounding Instructions
This appliance is equipped with
a three pronged (grounding) plug
for your protection against shock
hazard and should be plugged
directly into a properly grounded
three-prong receptacle. Do not cut
or remove the grounding prong
from this plug.
Regency® E33S-1 Sunrise Gas Insert
MINIMUM CLEARANCES TO COMBUSTIBLES
From Unit
Side Walls A* 8" (203 mm)
Ceiling B 47" (1194 mm)
Min. Mantel Height C 15" (381 mm)
Max. Mantel Depth D 3-1/2" (89 mm)
Alcove Width E 76" (1930 mm)
Alcove Depth F 36" (914 mm)
* Alcove side wall must have a min. of 8" clearance
on one side.
INSTALLATION
INSTALLATION
COMBUSTIBLE MANTEL CLEARANCES
Due to the extreme heat this fi replace emits, the mantel clearances
are critical.
Note: A non-combustible mantel may be installed at a lower height
if the framing is made of metal studs covered with a noncombustible board.
Mantel can be installed anywhere in shaded area or higher using the
above scale.
Note: Ensure the paint that is used on the mantel and the facing
is "heat resistant" or the paint may discolour.
Regency® E33S-1 Sunrise Gas Insert 9
INSTALLATION
GAS CONNECTION
GAS CONNECTION WARNING:
Only persons licensed to work
with gas piping may make the
necessary gas connections to
this appliance.
1) If the appliance is to be installed into an
INSTALLATION
existing chimney system, thoroughly clean
the masonry or factory built fi replace.
2) The appliance is provided with an opening on
the left hand side of the control compartment.
A 3/8" NPT gas supply pipe must be brought
near this inlet hole.
3) Locate the center point where the vent
will pass through the chimney above the
appliance. Move the appliance into the exact
location where it is to be installed. Ensure
that the Insert is level.
NOTE: This unit is equipped with a heat
sensor thermodisc which will prevent the
blower from operating until the unit reaches
the correct temperature.
VENTING
THE APPLIANCE MUST NOT BE
CONNECTED TO A CHIMNEY FLUE
SERVING A SEPARATE SOLID FUEL
BURNING APPLIANCE.
This appliance is designed to be attached to
two 3" (76mm) co-linear aluminium fl ex running
the full length of the chimney. The fl ue length
must be a minimum length of 8 ' (2.44m) and
a maximum of 35' (10.7m). See chart above
for minimum distances from roof. Periodically
check that the vent is unrestricted.
Masonry chimneys may take various contours
which the fl exible liner will accommodate.
However, keep the fl exible liner as straight
as possible, avoid unnecessary bending.
Part # Description
948-305 3" Flex - 35 ft.
946-529 FPI Co-linear DV Vertical
Termination Cap
Alternate Approved Caps
46DVA-VC Vertical Termination Cap
46DVA-VCH High Wind Cap
46DVA-GK 3" Co-linear Adaptor with
fl ashing
In areas of consistently high winds, we
recommend using the Simpson Dura-Vent
System (46DVA-GK adapter and 46DVA-VCH
high-wind cap).
The Air Intake pipe must be attached to the inlet
air collar of the termination cap.
FLUE LINER
INSTALLATION
1) Cut the fl ex liner as required.
2) Mark the end of one liner with an "E" to
indicate Exhaust.
3) Connect the other end of the above liner to
the exhaust side of the termination adaptor,
seal connection with high temperature
silicone. Secure with gear clamp.
4) Connect the 2nd liner to the inlet side of
the adaptor, seal connection with high
temperature silicone. Secure with gear
clamp.
5) Install fl ashing.
6) Insert both liners into chimney, passing
through the damper opening.
7) Install termination cap.
8) Connect the marked end of the liner to the
exhaust collar of the vent connector plate
marked with an "E", seal connection with
high temperature silicone. Secure with gear
clamp.
9) Connect the 2nd liner to the intake collar, seal
connection with high temperature silicone.
Secure with gear clamp.
10) Align vent connector plate with guides on
unit.
11) Slide unit into masonry opening, while
ensuring that the slot at the rear of the
connector plate mates up with the hold down
plate on the unit.
12) Secure with Screw.
NOTE:
1) Final gas connection should be made after
unit is in place to avoid damage to line when
pushing the unit into position.
10
2) Mill-pac may be used instead of high
tempture silicone and screws may be used
instead of gear clamps at connections of
liner to inlet and vent collars.
Regency® E33S-1 Sunrise Gas Insert
INSTALLATION
1
2
3
4
5
6
IN OUT
GAS PIPE
PRESSURE TESTING
The appliance must be isolated from the gas
supply piping system by closing its individual
manual shut-off valve during any pressure
testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig. (3.45
kPa). Disconnect piping from valve at pressures
over 1/2 psig.
The manifold pressure is controlled by a regulator
built into the gas control, and should be checked
at the pressure test point.
NOTE: To properly check gas pressure, both
inlet and manifold pressures should
be checked using the valve pressure
ports on the valve.
1) Make sure the valve is in the "OFF" position.
2) Loosen the "IN" and/or "OUT" pressure
tap(s), turning counterclockwise with a 1/8"
wide fl at screwdriver.
3) Attach manometer to "IN" and/or "OUT"
pressure tap(s) using a 5/16" ID hose.
4) Light the pilot and turn the valve to "ON"
position.
SIT VALVE DESCRIPTION
1) Gas on/off knob
2) Manual high/low adjustment
3) Pilot Adjustment
4) Thermocouple Connection - option
5) Manifold (Outlet) Pressure Tap
6) Inlet Pressure Tap
7) Pilot Outlet
8) Main Gas Outlet
9) Alternative TC Connection Point
GAS INSERT
AERATION SYSTEM
INSTALLATION
The burner aeration is factory set but may need
adjusting due to either the local gas supply or
altitude. Open the air shutter for a blue fl ame
or close for a more yellow fl ame.
The burner assembly will need to be removed
in order to adjust burner aeration if required.
See steps 1-4 in "Conversion Kit# 434-969
from NG to LP".
Minimum Air Shutter Opening:
1/8" Natural Gas
1/4" Propane
CAUTION: Carbon will be produced if the
air shutter is closed too much.
Note: Any damage due to carboning
resulting from improperly setting
the aeration controls is NOT
covered under warranty.
Note: Aeration Adjustment should only
be performed by an authorized FPI
Installer at the time of installation
or service.
5) The pressure check should be carried out
with the unit burning and the setting should
be within the limits specifi ed on the safety
label.
6) When fi nished reading manometer, turn
off the gas valve, disconnect the hose and
tighten the screw (clockwise) with a 1/8" fl at
screwdriver. Note: Screw should be snug,
but do not over tighten.
Regency® E33S-1 Sunrise Gas Insert 11
INSTALLATION

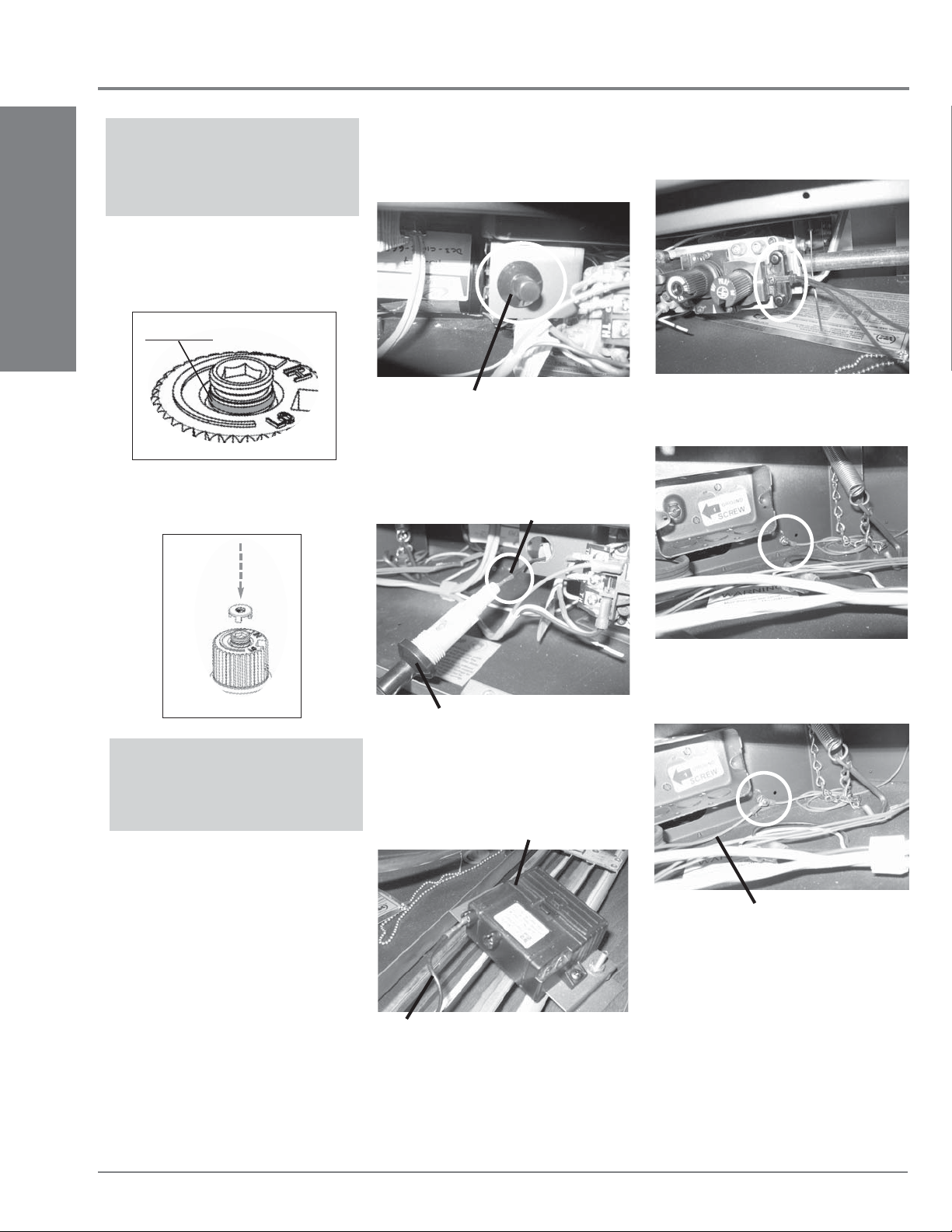

CONVERSION KIT #434-969 FROM NG TO LP
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER
NOTE: See page 1 for H25 / H27 conversion instructions and page 4 for P33S-4 conversion instructions.
IF IN DOUBT DO NOT DO THIS CONVERSION!!
INSTALLATION
Each Kit contains one LP
Conversion Kit and one DC
Sparker Kit.
LP Conversion Kit Contains:
Qty. Part # Description
1 904-163 Burner Orifi ce #54
1 918-590 Decal "Converted to
LPG"
1 908-528 Red "LPG" label
1 904-529 5/32" Allen Key
1 910-037 LPG Injector
(Pilot Orifi ce)
1 918-480 Instruction Sheet

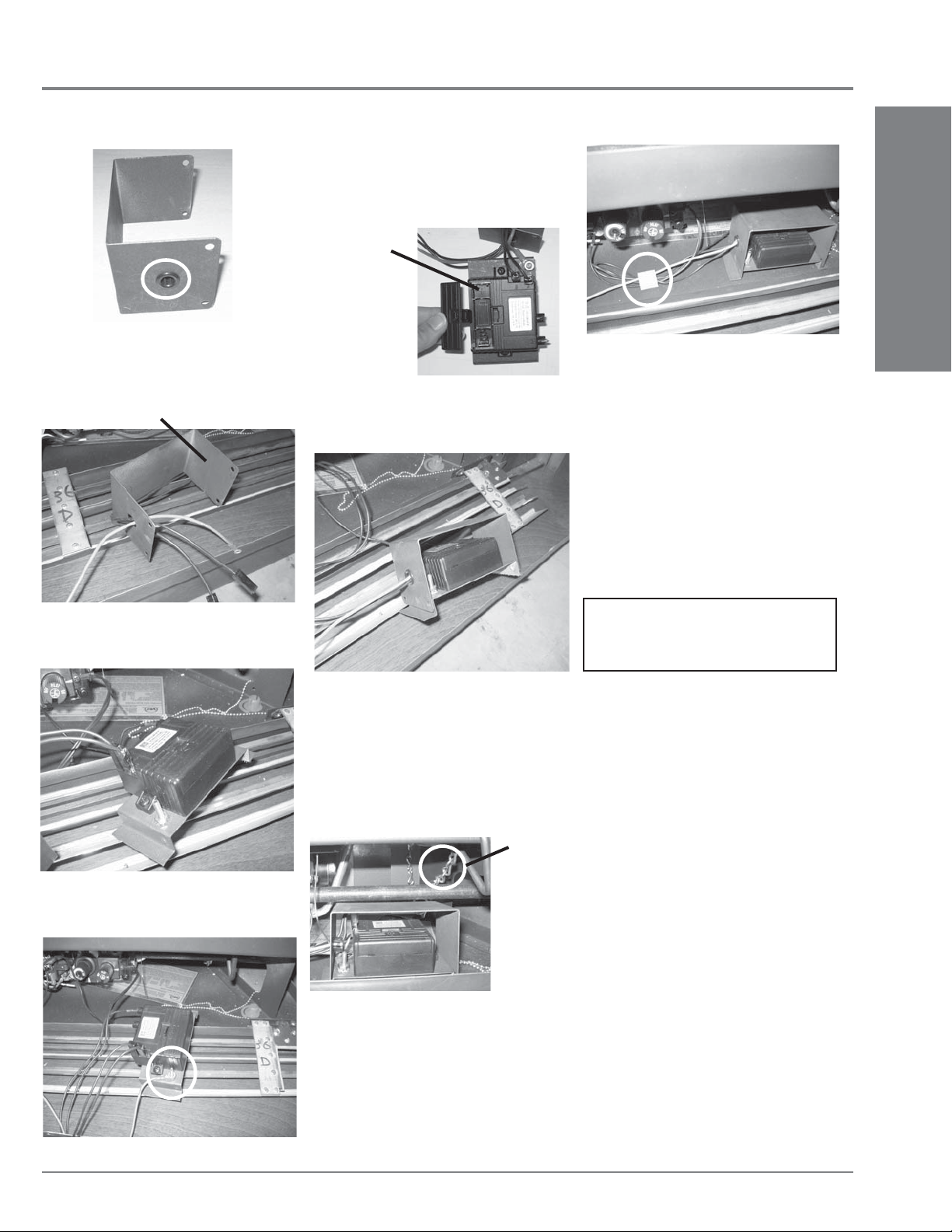

DC Sparker Kit Contains:
Qty. Part # Description
1 820-475 Bracket DC Sparker
1 820-476 Bracket DC Sparker
1 904-153 Washer #8 External Star
1 904-330 Nut 8-32 Hex
1 904-438 Plug Nylon 0.750 Hole,
Black (for H25 only)
1 904-531 Bushing Split Plastic
0.500 in.
1 904-543 Screw 8-32 x 3/4 Pan
Head
2 904-553 Screw #8 x 1/2 Type
"B", Black Oxide
1 910-073 Spark Generator
Battery Holder
1 910-074 Spark Generator
Switch C/W Wire
1 910-078 Battery Size AA
Energizer En91
2 910-199 Clip Wire Holder
1 910-903 Wire Fan To Power Cord
Ground 30 in.
904-781 Velcro Hook, Black
904-782 Velcro Hook, Black
U32S only:
a) Release the two hooks from the
bottom of the glass door.
b) Swing the door out 45 degrees from
the bottom and lift up and out (applies
to both units).
3) Remove the burner by undoing the 2
screws as shown below.
Burner
Burner screws on U32S
4) After screws have been removed,
slide the burner to the left, then lift out
carefully (U32S unit only.)
(E33S - lift burner directly out).
U32S burner shown

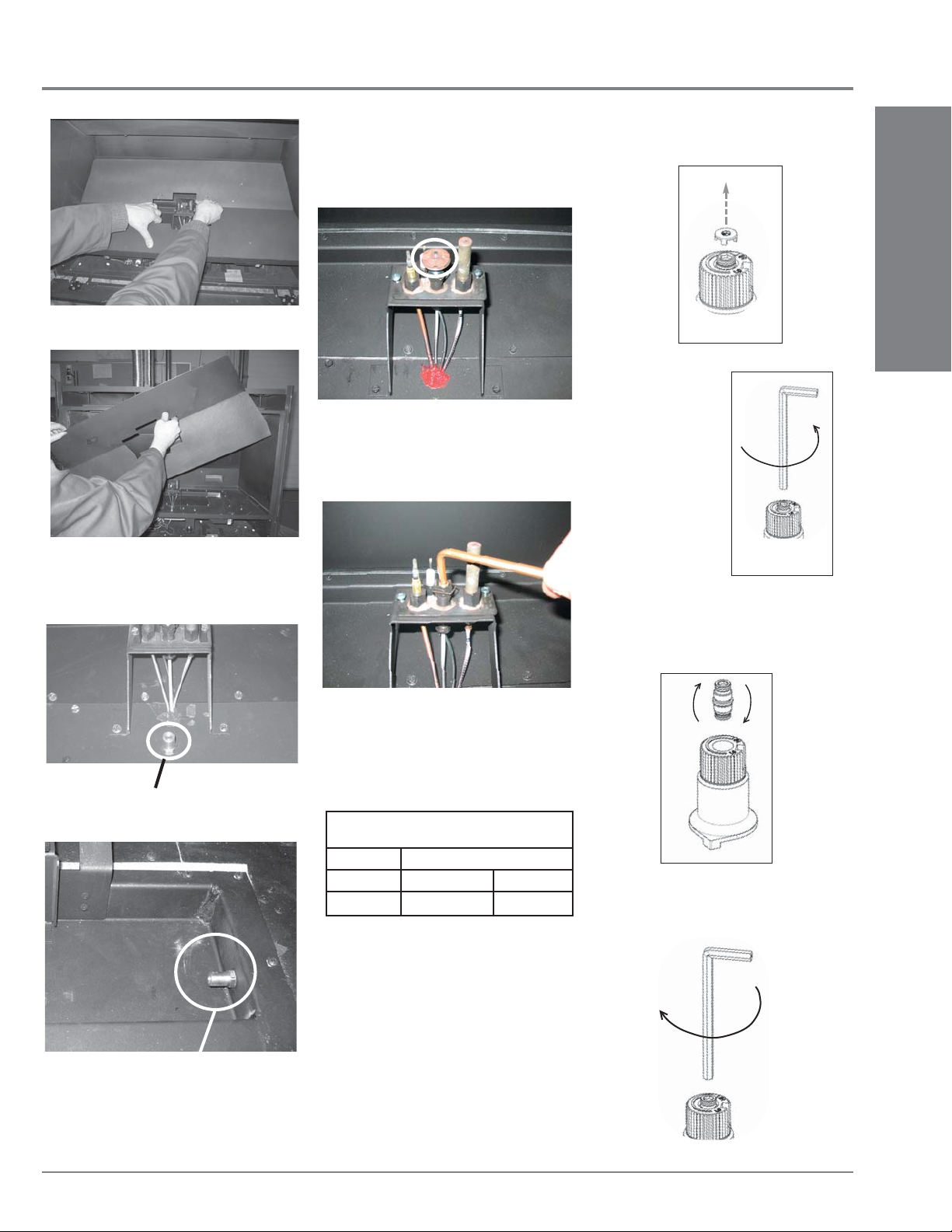

5) Remove the pilot shield by removing the
2 screws as shown below.
1) Turn off the gas supply.
2) Remove the glass door.
E33S only:
a) Remove the 2 screws at the bottom
of the glass door.
12
6) Remove the base cover by lifting up
from the back and maneover out.
Burner screws on E33S
Base Cover
Regency® E33S-1 Sunrise Gas Insert
Loading...
