INSTRUCTION MANUAL
IN DASH COLOR TFT-LCD MONITOR
PLVIN60
PLVIN60
POWER
AV1/2
HOU SEL MIN
6 IN DASH TFT-LCD MONITOR
SEL
OPEN/CLOSE
Thanks for purchasing In-dash type TFT-LCD Monitor. Please read this menu
carefully before the installation.
Remote Control Operation
1
POWER
PP
V1
V2
TFT-LCD MONITOR
Operation
1.Press the open button and the
screen wil pop-up automatically.
STO
SYS
1
Power On/Off
2
3
4
5
6
2
Brightness adjustment
3
Color adjustment
4
Contrast adjustment
5
Store your favourite values
6
Switch between V1/V2 inputs
2.Draw the screen along the horizontal direction until
it can not slide in this direction
3.Upturn the screen,
the maximum angle is 120 .
Flip vertical
120
+/-30
4.Adjust Angle: Horizontal: +/-30
Vertical: 0~120
+120

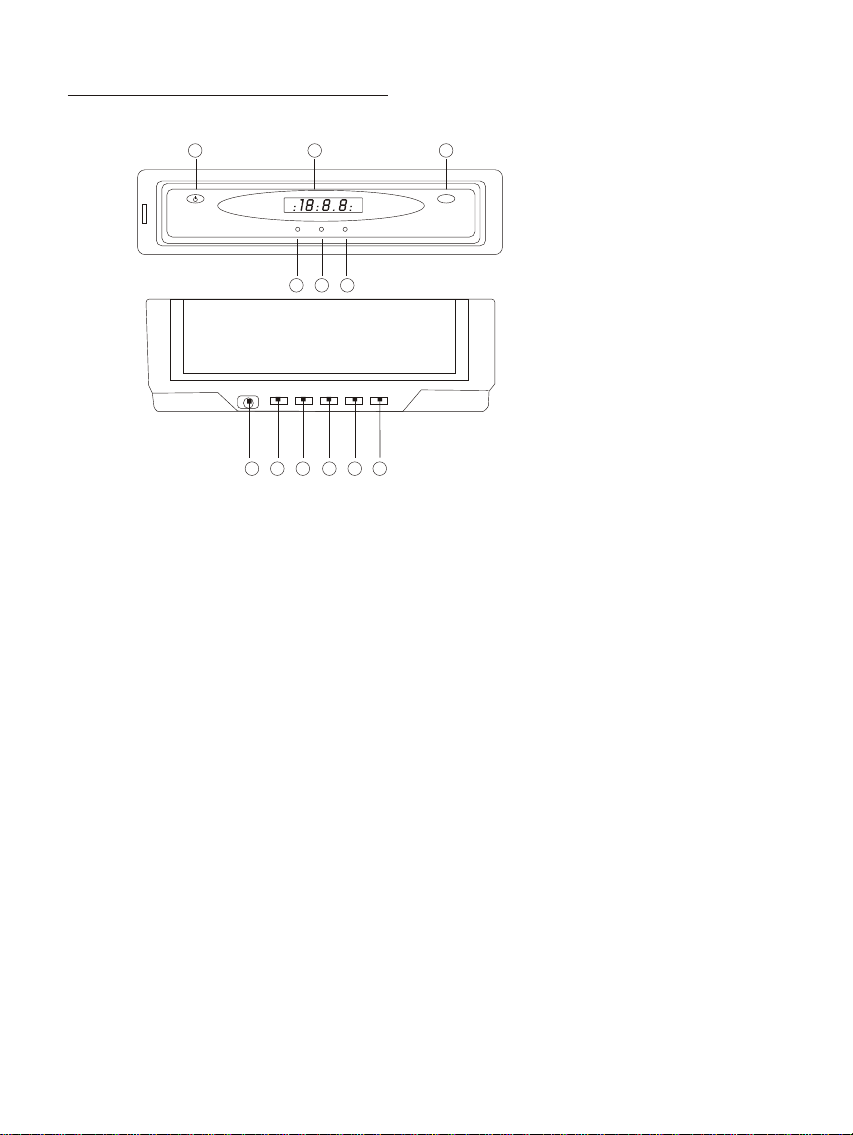

Instruction for Panel Functions
3
OPEN/CLOSE
POWER
1
HOU SEL MIN
4 526
7 8 9
11 12
10
1.Screen power switch
Press power to switch on the products, the clock appears and the
background lights on and press power again to turn off.
2.LED Digital Clock
This screen is a digital quartz clock showing time in 24-hour style.
AM represents morning and PM represents afternoon.
3.OPEN/CLOSE key
Press open key, the screen will be pushed out.
If the products is Semi-automatic, the press POWER on the remote
control, the monitor will be pushed out/ close automatically.
4.Clock Adjustment
Press the key to adjust HOUR. It will rise one hour by each press.
5.Reset
When the product suddenly doesn`t work properly, press this key to make
the CPU restoration.
6.Minutes Adjustment
Press the key to adjust Minute. It will rise one minute by each press.
7.Infrared Remote eye
8.Power ON/OFF
Press the key to make the shift between Av1 and Av2 of monitor.
10.Down
11.Select key
You can display the menu by pushing SEL in order of brightness, color,
contrast.
12.UP
Specifications
1.Power requirements
2.Power output
3.Video color system
4.TFT display angle
Mechanic rotate angle
5.Effective display size
6.Back light board use longevity
7.Digital Clock Display mode
8.Clock oscillation mode
9.Environment temperature
10.Relative humidty
DC12-14.4V
10W
NTSC
Horizontal:+ 45 ; Vertical:+55
Horizontal:+30 ; Vertical:0~120
6 inch
25, Min=10,000h
24-hour LED display
Quartz crystal
-10 - 55
<90%(+55 )
