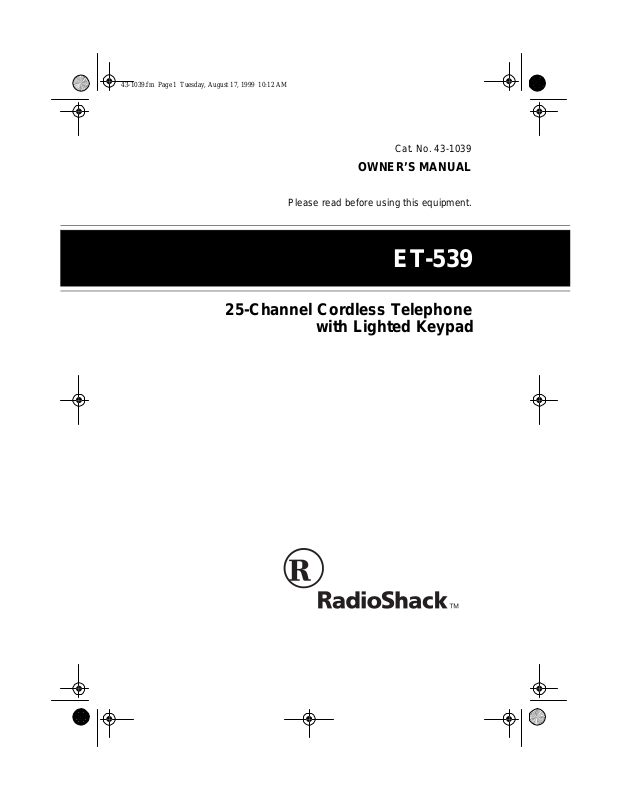

Radio Shack ET-539 User Manual

43-103 9.fm Page 1 Tuesday, August 17, 1999 10:12 AM

25-Channel Cordless Telephone

Cat. No. 43-1039

OWNER’S MANUAL

Please read before using this equipment.

ET-539

with Lighted Keypad

g

y

y

y

y

g

g

43-103 9.fm Page 2 Tuesday, August 17, 1999 10:12 AM

FEATURES

Your RadioShack ET-539 25-Channel
Cordless Telephone with Lighted Key ­pad includes the latest advances in
cordless phone technology, and in­cludes these features:

Auto-Scan

— automatically selects
the clearest channel when you pick up
the phone.

25-Channel Selector

— lets you man­ually change channels to find the one
with the least interference.

Li

hted Keypad

— lights to make the
phone easy to use when you are mak­ing or answering a call in a dark room.

10-Number Memor

— lets you store
10 phone numbers in memory for easy
dialing.

Advanced Super CCT Circuitr

—
provides clarity comparable to a cord­ed phone, reduces background noise,
and increases effective operating dis­tance.

‚

COM-LOK

— ensures that other cord­less phone users cannot use your
phone line while the handset is on the
base.

Automatic Securit
tion Code

— changes each time you

Access Protec-

disconnect and restore power to the
base to help prevent other cordless
phone users from using your phone
line while the handset is off the base.

— sends an electronic switch-

Flash

hook signal for use with special phone
services such as call waiting.

Redial

— with the touch of a b utton,

quickly redials the last number dialed.

Touch To ne or Pulse (Rota r

— lets you connect y our phone to

in

) Dial-

either type of service.

Handset Volume Control

— lets you
control the volume of the sound you
hear through the handset.

Hearin

-Aid Compatibility

— lets
you use your phone with he aring aids
that have a T (telephone) switch.

Please read this Owner’s Manual care­fully so you ca n enjoy all of your tele­phone’s features.

© 1996 Tandy Corporation.

COM-LOK is a registered trademark used by Tandy Corporation.

RadioShack is a trademark used by Tandy Corporation.

All Rights Reserv ed .

2

CAUTION

43-103 9.fm Page 3 Tuesday, August 17, 1999 10:12 AM

Important: Cordless phones such as
this one require AC power to operate.
When the AC power is off, you cannot
dial out or receive incoming calls using
your ET-539. For this reason, the E T­539 cordless phone should not be your
only telephone. To be safe, you should
also have a phone that does not need
AC power to operate (not a cordless
phone) so you can still make and receive
calls if there is an AC power failure.

This telephone has been tested and
found to comply with all applicable UL
and FCC standards.

Your ET-539 operates on standard ra­dio frequencies, as allocated by the
FCC. Therefore, it is possible for other
radio units operating on similar fre­quencies, within a certain area, to in­advertently intercept your conversa­tions and/or cause interference on
your cordless telephone. This lack of
privacy can occur with any cordless
telephone.

Warning: To prevent f ire or shock
hazard, do not expose t his product
to rain or moisture.

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER OR BA CK. NO USER-S ERVICE­ABLE PARTS INSIDE. REFER SERVIC­ING TO QUALIFIED PERSONNEL.

This symbol is intended to aler t you
to the p r es en c e o f un in su lated d an ­gerous voltage within the product’s
enclosure that might be of suf ficient
magnitude to constitute a risk of
electric shock. Do not open the
product’s case.

This symbol is intended to inform
you that important operating and

!

maintenance instructions are in­cluded in the literature accompany­ing this product.

!

For your records, we urge you to
record the serial number of your phone
in the space below. The serial number
is on the bottom panel of the base.

Serial Number ______________

3

43-103 9.fm Page 4 Tuesday, August 17, 1999 10:12 AM

READ THIS BEFORE
INSTALLATION

We have designed your te lephone to
conform to federal regulations, and
you can connect it to mos t telephone
lines. However, each device that you
connect to the phone line draws power
from the phone line. We refer to this
power draw as the device’s ringer
equivalence number, or REN. The
REN is shown on the bottom of your
phone’s base.

If you are using more than one phone
or other device on t he line, add up all
the RENs. If the total is more than five,
your phone might not ring. In rural ar­eas, a total REN of three might im pair
ringer operation. If ringer operation is
impaired, remove a device from the
line.

FCC STATEM ENT

This telephone complies with Part 68

FCC Rules

of
quest, provide the FCC registration
number and the REN to your phone
company. These num bers are located
on the bottom of your phone’s base.

Note:

phone to any of the following:

You must not connect your

• Coin-operated systems

• Party-line systems

• Most electronic key phone sys­tems

. You must, upon re-

4

g

43-103 9.fm Page 5 Tuesday, August 17, 1999 10:12 AM

CONTENTS

Installation ............................................................................................................ 6

Selecting a Location ........................................................................................ 6

Placing th e Base on a Desk Top ............................................................... 6

Mounting the Base on a Wall Plate ........................................................... 7

Mounting the Base Directly on a Wall ....................................................... 8

Preparation ......................................................................................................... 10

Connecting the Battery ................................................................................. 10

Charging the Battery ..................................................................................... 10

Setting the Dialing Mode ............................................................................... 11

Setting the Volume.......................................................................................... 11

Operation ............................................................................................................ 12

Making/Answering a Call .............................................................................. 12

Using the Handset at the Base ............................................................... 12

Using the Handset Away from the Base ................................................. 12

Changing Channels ...................................................................................... 13

Using Redial .................................................................................................. 13

Using Flash ................................................................................................... 13

Using Tone Services on a Pulse Line ........................................................... 14

Using Page ................................................................................................... 14

Memory Dialing ............................................................................................. 14

Storing a Number in Memory .................................................................. 15

Entering a Pause in a Memory Number ................................................. 16

Dialing a Stored Number ........................................................................ 16

Storing/Chain Dialing Service Numbers ................................................. 16

Testing Stored Emergency Numbers ...................................................... 16

Troubleshootin

Care and Maintenance ...................................................................................... 19

Replacing the Battery .................................................................................... 20

The FCC Wants You to Know ....................................................................... 21

Lightning ....................................................................................................... 21

................................................................................................ 17

5

43-103 9.fm Page 6 Tuesday, August 17, 1999 10:12 AM

INSTALLATION

SELECTING A LOCATION

Select a location for the telephone that
is:

• Near an AC outlet

• Near a telephone line jack

• Out of the way of normal activities

• Away from electrical machinery,
electrical appliances, and metal
walls or filing cabinets

• Away from wireless intercoms,
alarms, and room monitors

The base’s location affects the phone’s
range. If you have a choi ce of several
locations, try each to see which pro­vides the best performance.

Note:

modular jack, you must update the wir­ing yourself, using jacks and adapt ers
available at your local RadioShack
store. Or, you can let the phon e com­pany update the wiring for you.

If the phone line jack is not a

• The phone company will charge
you for the installation of the nec­essary jacks.

• The USOC number of the jack to
be installed is RJ11C for a base­board jack or RJ11W for a wall
jack.

adapter meets these requirements.
Using an adapter that does not meet
these requirements cou ld damage t he
phone or the adapter.

Placing the Base on
a Desk Top

1. Plug one end of the supplied mod­ular cord into the phone jack on
the back of the base.

2. Plug the modular cord’s other end
into a modular phone line jack.

3. Insert the supplied AC adapter’s
barrel plug into the
the back of the base.

4. Plug the adapter into a standard
AC outlet.

5. Fully extend the base’s antenna
and place it in a vertical position.

12V DC

jack on

Caution:

12V DC adapter that delivers at least
200 milliamps with its center tip set to
positive. Its plug must correctly fit the
phone’s

6

You must use a 120V AC/

12V DC

jack. The supplied

(illus

w/callout:

AC Adapter)

43-103 9.fm Page 7 Tuesday, August 17, 1999 10:12 AM

Mounting the Base on
a Wall Plate

You need a standard wall plate (not
supplied) for this mounting method.

1. Plug one end of the sho rt m odul ar
cord into the phone jack on the
back of the base.

2. Route the short cord downward
through the top left slot on the
base's bottom and under th e clips
as shown.

4. Align the tabs on the bracket with
the slots on the back of the base
and push up on t he brack et un til it
snaps in place.

If you later want to rem ove

Note:

the bracket, press

PUSH

and slide
the bracket down to remove it
from the base's bottom.

5. Insert the supplied AC adapter's
barrel plug into the

12V DC

jack on
the back of the base. Then route
the adapter's cord around the
strain relief and through the right
slot on the base's bottom and
under the clips as shown.

3. Route the other end of the short
cord through the hole in the sup­plied bracket's center.

6. Plug the adapter into a standard
AC outlet.

7. Plug the modular cord into the
wall plate's jack.

7

43-103 9.fm Page 8 Tuesday, August 17, 1999 10:12 AM

8. Align the bracket's keyhole slots
with the wall plate studs and slide
the base downward to secure it.

9. Press and lift out the handset
holder. Rotate the holder 180
degrees as sh own, and then snap
it back into place so it holds the
handset.

(Illus wit h
callout: Lift)

10. Fully extend the base’s antenna
and place it in a vertical position.

Mounting the Base Directly
on a Wall

You need two wood screws (not sup­plied) for this mounting method.

1. Drill two holes 3
mm) apart. Then thread a screw
into each hole, letting the heads
extend about
from the wall.

2. Plug one en d of the supp lied long
modular cord into the phone jack
on the back of the base.

3. On the bottom of the base, route
the modular cord downward and
under the left slot's clips. Then
plug the cord's other end into a
modular phone line jack.

15

/16 inches (100

1

/4 inch (6.5 mm)

8
