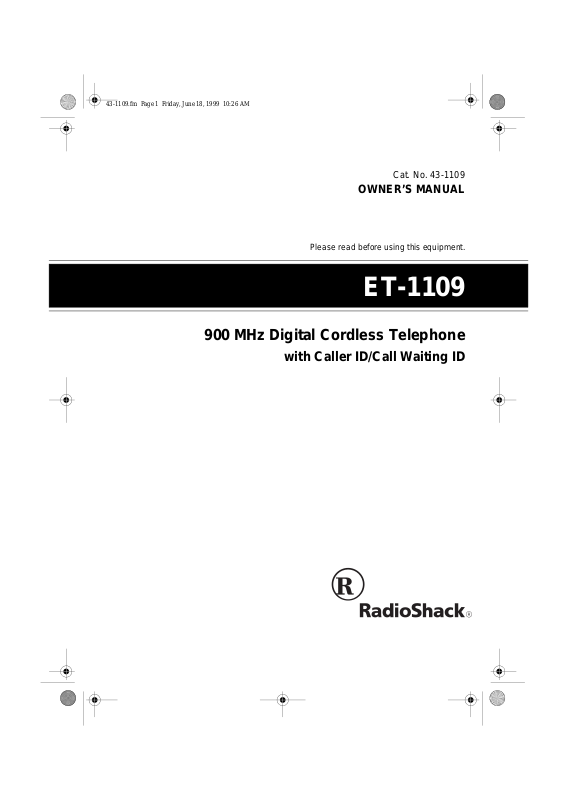

900 MHz Digital Cordless Telephone
Cat. No. 43-1109
OWNER’S MANUAL
Please read before using this equipment.
ET-1109
with Caller ID/Call Waiting ID
43-1109.fm Page 2 Friday, June 18, 1999 10:26 AM
FEATURES
Your RadioShack ET-1109 900 MHz
Digital Cordless Telephone uses advanced technolo gy to give you supe rior
audio quality and extended range.
The ET-1109’s Caller ID unit records
each caller’s telephone number (and
name, if available in yo ur area) and the
date and time of the cal l, as provid ed by
your local phone company to Caller ID
service subscriber s. If you subscribe to
Call Waiting with Ca ller ID, the ET-1109
can show you the incom ing caller information, even when you are alr eady tal king on the phone.
Your ET-1109 has these features:
900 MHz Operation
— Pr ovides longer
range and less interference than many
other cordless phones.
Caller ID Memory
— stores up to 50
Caller ID records.
— lets you send a signal from th e
Page
base to the handset to page someone or
to help you locate the handset.
Volume Control
— lets you adjust th e
volume you hear through the handset.
Adjustable Ringer/Tone Volume
—
lets you choose between two volumes
and tones for the ET-1109’s ringer.
Facedown or Faceup Handset Charg-
— you can place the handse t on th e
ing
base facedown or faceup (to show the
Caller ID display, for example).
Wall Mountable
— you can mount th e
ET-1109 on a wall to save surface
space.
Ample Talk and Standby Time
— the
supplied battery (when fully charged)
provides about 7 hours of talk time or 7
days of standby time.
Headset Jack
— lets you connect an
optional headset ( av ai lable from your local RadioShack store) for hands-free
convenience.
3-Line Liquid Crystal Display
— lets
you view an entire Caller ID record on
one screen.
20-Number Memory Dialing
— lets
you store up to 20 numbers in memory
for easy dialing.
© 1999 Tandy Corporation.
RadioShack is a registered trademark used by Tandy Corporation.
All Rights Reserved.
2
Security Access-Protection Code
—
automatically prevents other cordless
phone users from usi ng your phone l ine
while the handset is off the base.
Autotalk
— you can set the ET-1109 so
you can answer a call simply by lifting
the handset from the base.
43-1109.fm Page 3 Friday, June 18, 1999 10:26 AM
Tone or Pulse Dialing
— lets you use
tone or pulse (rotary) dialing and lets
you switch from pulse to tone dialing fo r
long-distance, bank-by-phone, or other
special services.
Redial
— lets you quickly redial an y of
the last three numbers dialed.
Flash
— sends an electronic switchhook signal for use with special phone
services, such as Call Waiting.
Hearing-Aid Compatibility
— lets you
use the ET-1109 with h earing aids that
have a T (telephone) switch.
This telephone has been tested and
found to comply with all applicable and
FCC standards and is UL listed.
We recommend you record your
phone’s serial number here. The number is on the bottom of the base.
Serial Number __________________
Where Caller ID is offered, one or more
options are generally avail abl e:
• caller’s number only
• caller’s name only
• caller’s name and number.
WARNING:
shock hazard, do not expose this product to rain
or moisture.
CAUTION:
ELECTRIC SHOCK, DO NOT REMOVE
COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED PERSONNEL.
To reduce the risk of fire or
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
TO REDUCE THE RISK OF
This symbol is intended to alert
you to the presence of uninsulated dangerous voltage within
the product’s enclosure that might
be of sufficient magnitude to constitute a risk of electric shock. Do
not open the product’s case.
!
Important Caller ID Information
To use the phone’s Caller ID and Call
Waiting with Caller ID features, you
must be in an area where those services
are available and yo u must s ubscribe to
those services throu gh your loc al phone
company.
This symbol is intended to inform
you that important operating and
!
maintenance instructions are
included in the literature accompanying this product.
3
43-1109.fm Page 4 Friday, June 18, 1999 10:26 AM
Important:
• Cordless phones such as this one
require AC power to operate. When
the power is off, you cannot make or
receive calls using your ET-1109. To
be safe, you should also have a
phone that does not need AC powe r
to operate (not a cordless phone),
so you can still make and receive
calls if there is an AC power failure.
• Your phone operates on standard
radio frequencies as allocated by
the FCC. It is possible for other radio units operating nearby on similar
frequencies to unintentionally intercept your conv ersation or cause in terference. This possible lack of
privacy can occur with any cordless
phone.
READ THIS BEFORE
INSTALLATION
Your ET-1109 confor ms to federal regulations, and yo u can connect it to most
telephone lines. However, each device
that you connect to the telephone line
draws power from the line. We refer to
this power draw as the device’s
equivalence number
is on the bottom of the base.
If you are using more than o ne ph one o r
other device on the li ne, add up all the
RENs. If the total is more than five (three
in rural areas), your phones might not
ring. If ringer ope ration is impaired, remove a device from the line.
, or REN. The REN
ringer
FCC STATEMENT
Your ET-1109 com plies with Part 68 of
FCC Rules
provide the FCC registration number
and the REN to your phone company.
These numbers are on the bottom of the
base.
Note:
to any of the following:
• coin-operated systems
• party-line systems
• most electronic key phone systems
The ET-1109 compli es wi th th e limi ts for
a Class B digital d evice as specified in
Part 15 of
vide reasonable protection against radio and TV interference in a resident ial
area. However, your equipment might
cause TV or radio interference even
when it is operating properly. To eliminate interference, you can try one or
more of the following corrective measures:
• Reorient or relocate the receiving
antenna.
• Increase the distance between the
equipment and the radio or TV.
• Use outlets on different electrical circuits for the equip ment and the radio or TV.
Consult your local RadioShack store if
the problem still exists.
. You must, upon request,
You must not conne ct y ou r p hon e
FCC Rules
. These limits pro-
4
43-1109.fm Page 5 Friday, June 18, 1999 10:26 AM
CONTENTS
Installation ........................... .................................................... ............................. 6
Mounting the Phone ........................................................................................ 6
On a Desk ............................. ...... ....... ...... ....... ...... .................................... 6
On a Wall Plate or Wall ............................................................................. 7
Connecting and Charging the Battery Pack .................................................... 8
Setting the Dialing Mode ............................................................................... 10
Setting the Ringer Tone/Volume .................................................................... 10
Turning Auto Talk On/Off ............................................................................... 10
Turning Caller ID/Call Waiting On/Off ............................................................ 11
Storing Your Area Code ................................................................................ 11
Operation ............................. ............................................. .................................. 13
Making and Receiving Calls .......................................................................... 13
Selecting the Channel ................................................................................... 13
Adjusting the Handset Volume ...................................................................... 13
Using Redial .................................................................................................. 14
Using Flash ................................................................................................... 14
Using Tone Services on a Pulse Line ............................................................ 14
Paging ........................................................................................................... 15
Memory Dialing ............................................................................................. 15
Storing a Number and Name in Memory ................................................ 15
Editing or Deleting a Number in Memory ................................................ 16
Entering a Pause .................................................................................... 17
Reviewing Memory Numbers .................................................................. 17
Dialing a Memory Number ...................................................................... 17
Chain-Dialing Service Numbers .............................................................. 17
Testing Stored Emergency Numbers ...................................................... 18
Using a Headset ............................................................................................ 18
Caller ID Operation ............................................................................................ 19
Reviewing Caller ID Records ........................................................................ 19
Caller ID Messages ................................................................................ 20
Dialing Numbers from a Caller ID Record ..................................................... 20
Storing a Caller ID Record to Memory .......................................................... 20
Deleting Caller ID Records ............................................................................ 21
Troubleshooting ...................................................................... ................... ........ 22
Care and Maintenance ....................................................................................... 24
Replacing the Battery Pack ........................................................................... 25
The FCC Wants You to Know ........................................................................ 26
Lightning ......................... ................................ ................................. .............. 26
5
43-1109.fm Page 6 Friday, June 18, 1999 10:26 AM
INSTALLATION
MOUNTING THE PHONE
You can place the phone on a desk or
table, mount it on a standard wall pla te,
or mount it directly on a wall.
Select a location that is:
• near an AC outlet
• near a telephone line jack
• out of the way of normal activities
• away from electrical machinery,
electrical applianc es, metal walls or
filing cabinets, wireless intercoms,
alarms, and room monitors
• away from other cordless phones
The base’s location affects the handset’s range. If you have a choi ce of several locations, try each to see which
provides the best performance.
Caution:
2 power source that supplies 9
!
volts DC and delivers at least
210 mA. Its center tip must be set to
positive and its plug must fit the ET1109's
adapter meets these s pecifications. Using an adapter that does not m eet thes e
specifications could damage the ET1109 or the adapter.
DC IN 9V
You must use a Class
jack. The supplied
dioShack store. Or, you can let the
telephone company up date the wiring for you.
• The USOC number of th e jack to be
installed is RJ11C, or RJ11W for a
wall plate jack.
On a Desk
Follow these ste ps when you place the
base on a desk, shelf or table.
1. Plug one end of the supplied long
modular cord into the
on the back of the base.
2. Insert the supplied AC adapter’s
barrel plug into the
the back of the base.
TEL LINE
DC IN 9V
jack
jack on
Notes:
• Your telephone connects di rectly to
a modular phone line jack. If your
phone line jack is not a modular
jack, you can update the wiring
yourself, using jacks and adapters
available from your local Ra-
6
43-1109.fm Page 7 Friday, June 18, 1999 10:26 AM
3. Route the adapter’s cord through
the strain relief slot on the bracket.
Strain
Relief Slot
4. Plug the adapter into a s tandard AC
outlet.
5. Lift the base’s antenna to a vertical
position.
On a Wall Plate or Wall
1. Plug one end of the supplied short
modular cord in to the
on the back of the base as in “On a
Desk Top,” Step 1, on Page 6.
2. Insert the supplied AC adapter’s
barrel plug into t he
in “On a Desk Top,” Step 3.
TEL LINE
DC IN 9V
jack as
jack
4. Plug the modular cord’s other end
into the wall plate jack, then align
the bracket’s ke yhole slots with the
wall plate studs and slide the base
downward to secure it.
5. Plug the adapter in to a s tandar d AC
outlet.
6. Press and lift out the handset holder. Rotate it 180°, then snap it back
into place so it holds the handset.
3. Route the adapter and modular
cords through the grooves on the
bracket.
7. Lift the base’s antenna to a vertical
position.
To mount the ET-1109 direct ly on
Note:
a wall, you need two screws (not supplied) with heads that fit into th e k eyh ol e
slots on the bottom of the base.
7
43-1109.fm Page 8 Friday, June 18, 1999 10:26 AM
Follow the steps under “ On a Wa ll Plate
or Wall” on Page 7, then apply these additional instructions for placement on a
wall.
15
1. Drill two holes 3
inches (100 mm)
16
/
5
16
/
apart. Then thread
a screw into each
hole, letting the
heads extend about
5
/16 inch (5 mm)
from the wall.
315/
16
5
/
16
2. Plug one end of the supplied long
modular cord into the
TEL LINE
jack
on the back of the base and route
adapter through the gr ooves on the
bracket.
CONNECTING AND
CHARGING THE BATTERY
PACK
The ET-1109 comes with a rechargeable nickel-cad mium battery pac k in the
handset, but not connected. Before using your phone, you must connect the
battery pack, then char ge it fo r about 2 4
hours.
1. Press down and slid e off the batte ry
pack compartment cover.
2. Lift the battery pack out of the co mpartment.
3. Align the bracket’s keyhole slots
with the mounting scr ews and slide
the base downward to secure it.
8
3. Plug the ba tter y pack ’ s co nnect or in to the socket in the compartment,
(the connect or fi ts on ly on e wa y), re place the battery pac k, and replace
the cover.
43-1109.fm Page 9 Friday, June 18, 1999 10:26 AM
To charge the battery pack, place the
handset either faceup or facedown on
the base. The CHARGE/IN USE indi cator on the base lights and
Total:00
appears on the handset display.
CHARGE/IN USE
Indicator
Recharge the battery pack when
Battery
Important:
flashes on the display.
Be sure the battery pack i s
Low
properly connected before you try to
charge it. The CHARGE/IN US E indicator lights when the handset is on the
base, even if the battery pack is not connected.
Notes:
• When you first use the phone afte r
charging or recharging the battery
pack, the phone might not work and
you might hear an error tone when
you press
TALK
. Return the handset
to the base for about 5 seconds to
reset the se curity access-pr otection
code.
• If the base loses power for abou t 30
minutes while the handset is away
from it, the security access-protection code might be lo st. To reset the
code, return the handset to the base
for about 5 seconds.
The handset does not los e its security access-protection code even if
the battery pack is completely discharged.
• Using a pencil eraser, clean the
charging contacts on the handset
and base about once a month.
• If the battery pack becomes weak
during a call, the hands et beeps e very 3 seconds and
Low Battery
flashes. When this happens, you
cannot make a call until you recharge the battery pack.
• About once a month, fully di scharg e
the battery by keeping the handset
off the base until
Low Battery
flashes on the display. Otherwise,
the battery pack loses its ability to
fully recharge.
• If the display is bl ank an d th e p hon e
does not work, rec harge the battery
pack. (The battery power might be
too low to light the display.)
• If you are not going to use your
phone for an extended period of
time, disconnect the battery pack.
This increases the battery pack’s
usable life.
9
Loading...
