4300 WOOD STOVE SERIES
Advanced Combustion Technology (ACT)
MILLENNIUM STEP TOP UNI-BODY
|
|
|
VERY IMPORTANT!! |
|
|
|
BEFORE STARTING YOUR |
|
|
|
FIRST FIRE READ |
|
|
|
HOW TO OPERATE THE |
Tested and |
O-T L |
Beaverton |
2-STEP DOOR HANDLE |
Listed by |
Oregon USA |
ON PAGE 20 |
|
|
C |
|
OMNI-Test Laboratories, Inc.
This manual contains instructions for Installation, Operation & Maintenance. Please read this entire manual before you install and use your new room heater. Failure to follow instructions may result in property damage, bodily injury, or even death.
IMPORTANT SAFETY NOTES:
1)When installing your stove, particular attention should be paid to fire protection. If this room heater is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. Contact local building, fire officials or authority having jurisdiction about restrictions, installation inspection and permit requirements in your area.
2)CAUTION: Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to start or “freshen up” a fire in this heater. Keep all such liquids well away from the heater while it is in use.
3)During operation, if any part of the stove starts to glow, the stove is in an overfired condition. Close the air controls completely by pulling them out, until the glowing has stopped. OVERFIRING VOIDS YOUR WARRANTY!
4)Cool ashes should be disposed of carefully, using a metal container.
5)Do not burn wet or green wood. Store wood in a dry location.
6)DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS SUCH AS GASOLINE, NAPHTHA OR ENGINE OIL. Do not burn treated wood, or wood with salt (driftwood, etc.). Burning materials other than wood (including charcoal) under adverse conditions may generate carbon monoxide in the home, resulting in illness or possible death.
7)Do not permit creosote or soot to accumulate excessively in the chimney or inside the firebox.
8)Check your chimney system thoroughly when installing into an existing metal or masonry chimney. Seek professional advice if in doubt about its condition.
9)Do not connect this unit to a chimnney flue already serving another appliance.
10)Comply with all minimum clearances to combustibles as shown in this manual for this appliance.
11)Build fire on brick firebox floor. Do not use grates, andirons or other methods to support fuel.
12)HOT WHILE IN OPERATION! Keep children, pets, clothing and furniture away. Contact can cause skin burns.
13)Do not connect to any air distribution duct or system.
14)RISK OF FIRE! Do not operate with stove door or ash removal system door open.
15)For further information refer to NFPA 211 (USA) or CAN/CSA-B365 (Canada).
16)Do not operate without fully assembling all components. Burning your stove wthout the legs attached (if supplied with unit) will void your warranty, and could present a serious safety hazard.
17)Do not operate with broken glass.
PRIOR TO FIRST FIRE: Remove all labels from glass. Clean plated surfaces with a glass cleanser and soft cloth to prevent staining from fingerprint oils.
1445 North Highway |
SAVE THESE INSTRUCTIONS |
|
|
|
|
Colville, WA 99114 |
Part 250-7061C December 10, 2004 |
www.quadrafire.com |
R
4300 ACT Wood Stove Series
Hearth & Home Technologies welcomes you to our tradition of excellence! In choosing a Quadra-Fire appliance, you have our assurance of commitment to quality, durability, and performance.
This commitment begins with our research of the market, including ‘Voice of the Customer’ contacts, ensuring we make products that will satisfy your needs. Our Research and Development facility then employs the world’s most advanced technology to achieve the optimum operation of our stoves, inserts and fireplaces. And yet we are old-fashioned when it comes to craftsmanship. Each unit is meticulously fabricated and gold and nickel surfaces are hand-finished for lasting beauty and enjoyment. Our pledge to quality is completed as each model undergoes a quality control inspection. Additionally, we feel it is important to offer you several finishing options and accessories to complement your home’s décor, individualize the use of your appliance, and provide financial options in acquiring a quality hearth appliance. Ask your Quadra-Fire Dealer for information on these options. From design, to fabrication, to shipping: Our guarantee of quality is more than a word, it’s Quadra-Fire tradition, and we proudly back this tradition with a Limited Lifetime Warranty.
Prior to installation, we ask you to take a few moments to read this manual. It has been our experience that your overall enjoyment of your new appliance will be greatly enhanced by becoming familiar with its installation, operation and maintenance. We wish you and your family many years of enjoyment in the warmth and comfort of your hearth appliance. Thank you for choosing Quadra-Fire.
With warm regards,
___________________________ |
___________________________ |
___________________________ |
Alan Trusler |
Dan Henry |
Mike Derosier |
Senior Vice President |
Vice President |
Vice President |
Dealer Channel |
Research & Development |
Quadra-Fire Brand Manager |
_________________________ |
_________________________ |
Jason Olmstead |
Dave Fiebelkorn |
Vice President & |
Materials Manager |
General Manager |
|
Page 2 |
250-7061C December 10, 2004 |
R
4300 ACT Wood Stove Series
TABLE OF CONTENTS
MODEL NAME |
QUADRA-FIRE 4300 ACT |
|
WOOD STOVE SERIES |
||
|
||
|
|
|
Uni-Body: ___Step Top ___ Millennium |
||
Serial Number
Date Purchased
Dealership Where Purchased
Dealer Phone
Additional Information:
After completing your warranty card, attach your sales receipt and warranty stub here for future reference.
WARNING!
When this heater is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. Contact local building or fire officials about restrictions and installation inspection requirements in your area. Please read this entire manual before you install and use your new room heater. Failure to follow instructions may result in property damage, bodily injury, or even death.
Listings & Safety Cautions .................................. |
4 |
Installation Materials Needed.............................. |
4 |
Venting System Overview ................................... |
4 |
Serial Number Label Location............................. |
5 |
Dimensions.......................................................... |
5-6 |
Locating Your Stove ............................................ |
6 |
Vent Specifications.............................................. |
6 |
Clearances to Combustibles ............................... |
7 |
Floor Protection................................................... |
8-9 |
Alternate Materials Worksheet ............................ |
9 |
INSTALLATION METHODS: |
|
Chimney Height / Draft & 2-10-3 Rule................. |
10 |
Flue Systems & Chimney Connections............... |
11 |
Masonry Chimney ............................................... |
11 |
Solid Pack with Metal Supports........................... |
12-13 |

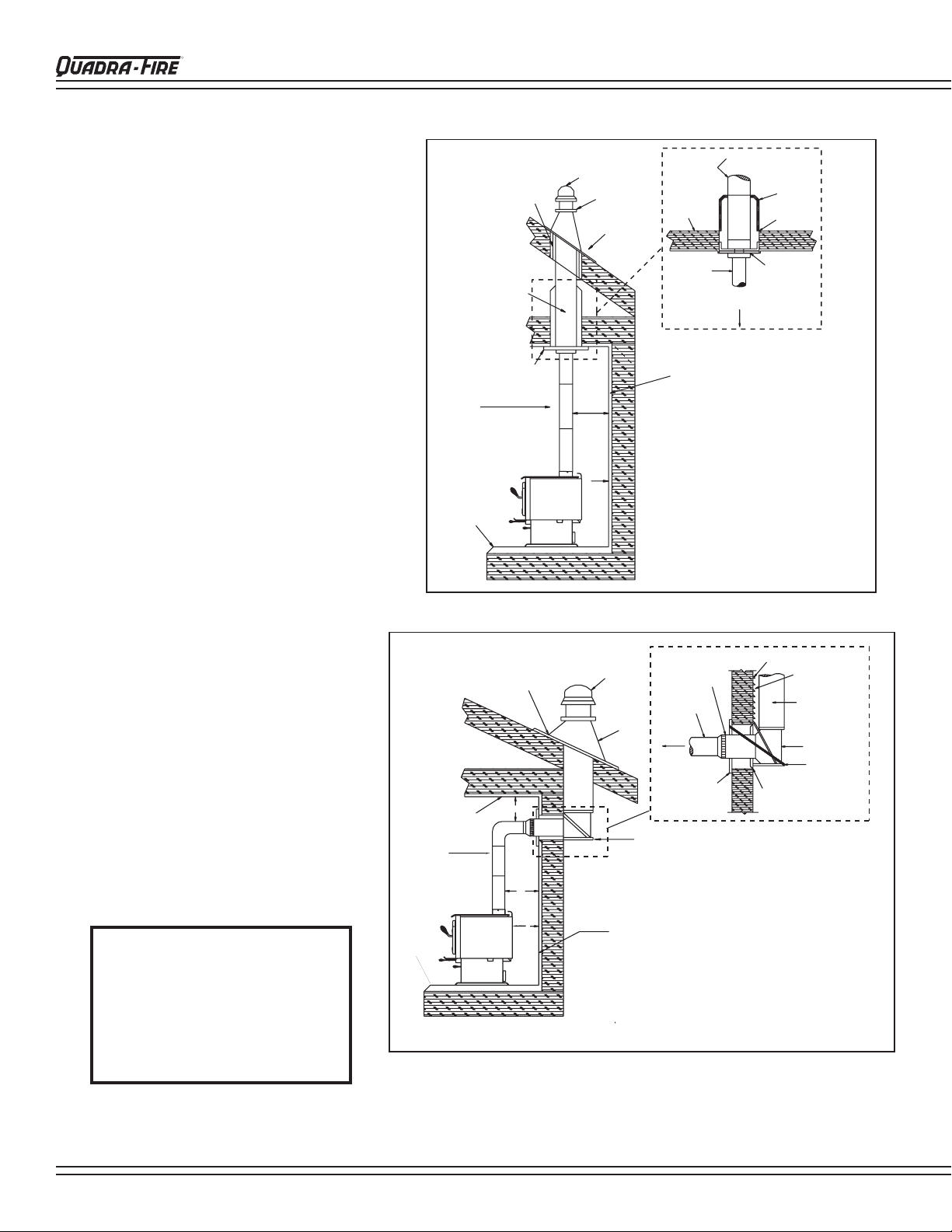

Metal Pre-Fab Chimney ...................................... |
14 |
Mobile Home ....................................................... |
15 |
OPERATING INSTRUCTIONS: |
|
Ash Removal System.......................................... |
16 |
Burning Process.................................................. |
20 |
Start-Up & Primary Air Controls........................... |
20 |
2-Step Door Handle Instructions ......................... |
20 |
Operating Instructions ......................................... |
21 |
Building a Fire ..................................................... |
21 |
Opacity ................................................................ |
22 |
Burn Rates .......................................................... |
22 |
Wood Selection ................................................... |
22 |
Blower Operation................................................. |
22 |
MAINTENANCE: |
|
Creosote Removal............................................... |
23 |
Chimney Cleaning............................................... |
23 |
Ash Disposal ...................................................... |
23 |
Overfiring............................................................. |
23 |
Firebrick .............................................................. |
23 |
Glass Care & Cleaning........................................ |
23 |
Plated Surfaces................................................... |
23 |
ACCESSSORY / PARTS REPLACEMENT |
|
Ash Removal System.......................................... |
16 |

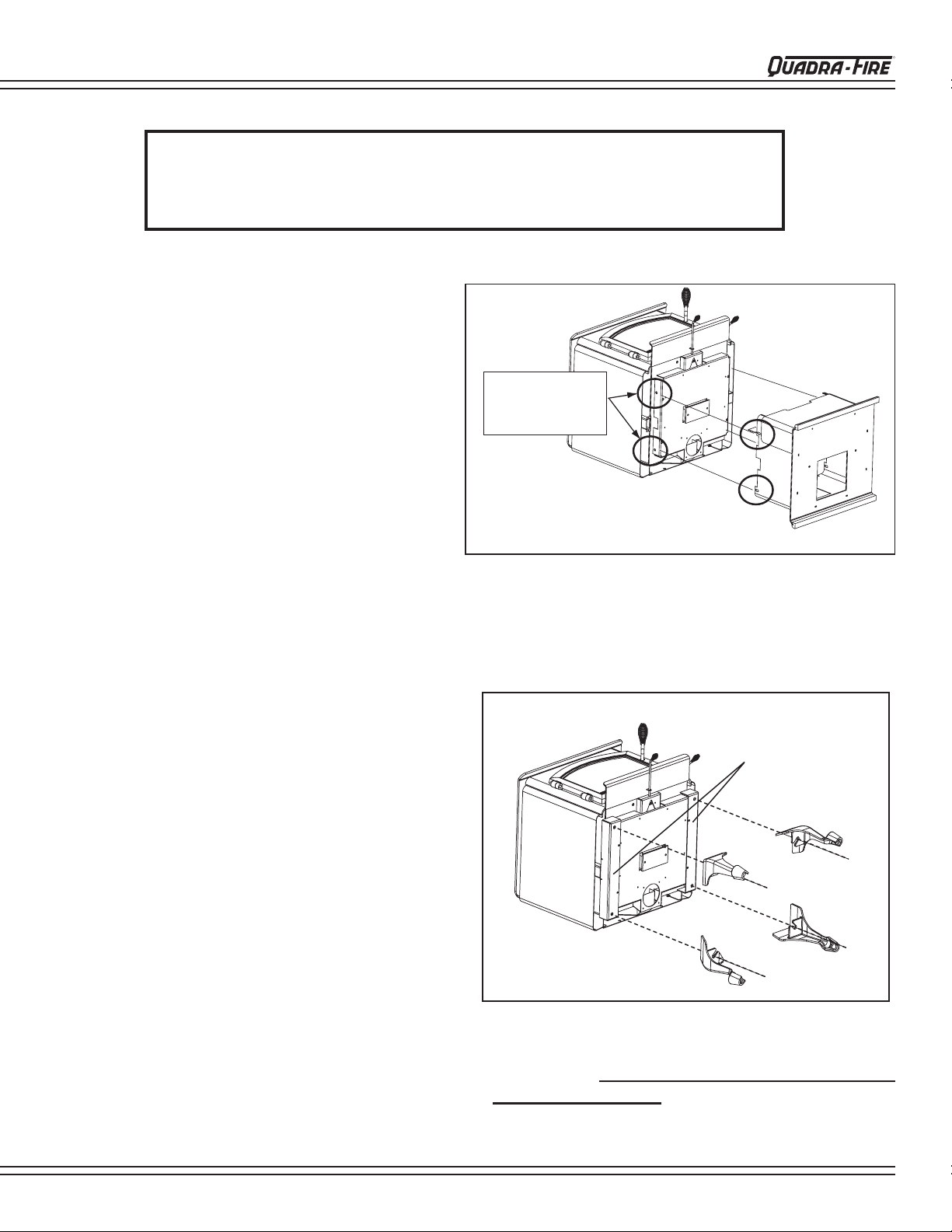

Pedestal & Leg Kit Installation............................. |
17 |
Outside Air Kit...................................................... |
19 |

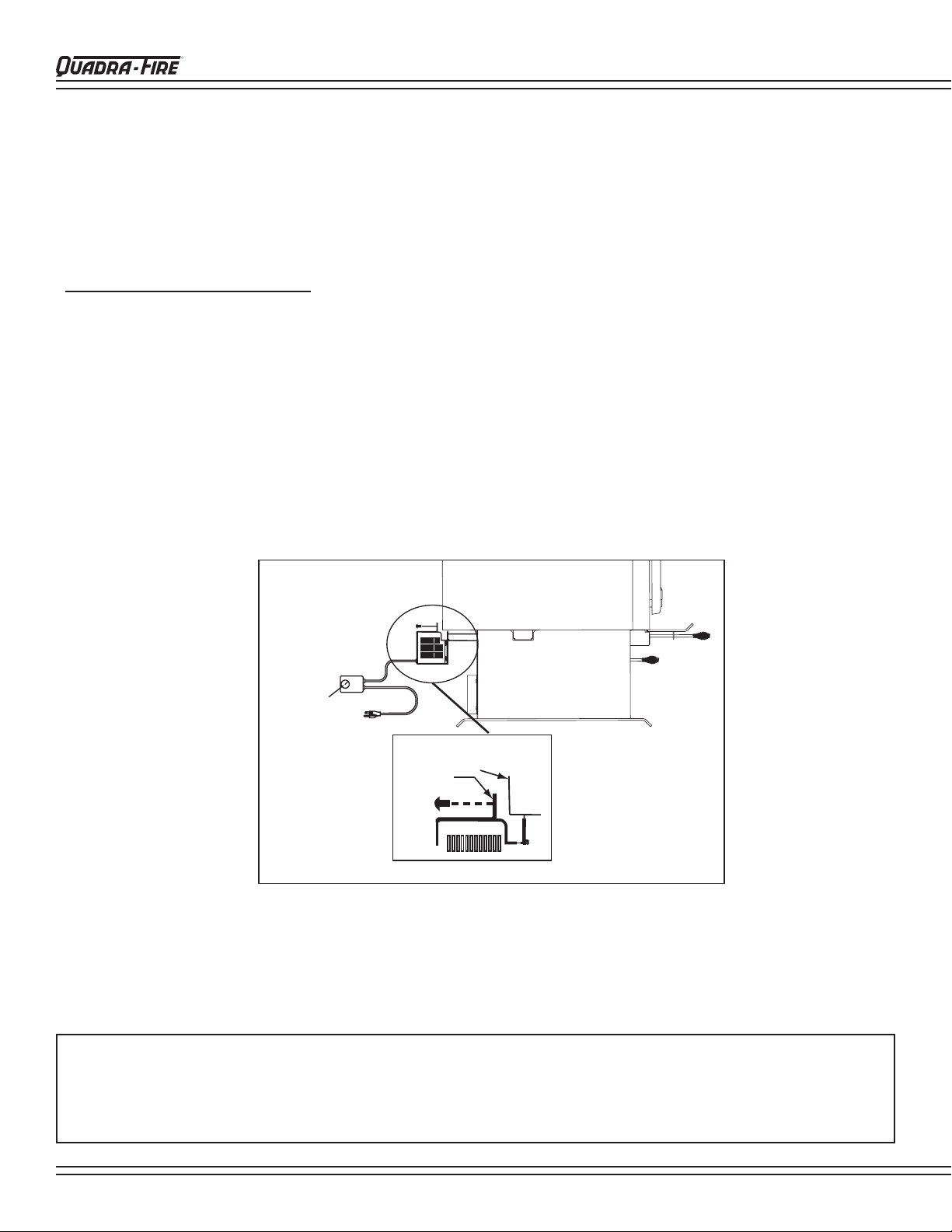

Blower Installation and Operation ....................... |
21 |
Top Shield Installation ......................................... |
18 |
Brick Replacement .............................................. |
24 |
Glass Replacement............................................. |
24 |
Door Handle Assembly........................................ |
25 |
Baffle Removal & Installation .............................. |
25 |
Exploded Views................................................... |
26 |
Accessory & Replacement Parts List .................. |
27 |
Service Maintenance and Log............................. |
30 |
Warranty Policy ................................................... |
31 |
Contact Information............................................. |
32 |
250-7061C December 10, 2004 |
Page 3 |
R
4300 ACT Wood Stove Series
LISTINGS & SAFETY CAUTIONS
These installation instructions describe the installation and operation of the QUADRA-FIRE 4300 woodstove. This stove meets the U.S. Environmental Protection Agency’s 1990 particulate emission standards. The 4300 is listed by OMNI-Test Laboratories, Inc. to UL Safety Standard 1482, and ULC S627, and (UM) 84-HUD. The 4300 is approved for mobile home installations when not installed in a sleeping room and when an outside combustion air inlet is provided. The structural integrity of the mobile home floor, ceiling, and walls must be maintained. The stove must be properly grounded to the frame of the mobile home and use only listed double-wall connector pipe. Outside Air Kit, Part 831-1780, must be installed in a mobile home installation.
Check with your local building code agency before you begin your installation to ensure compliance with local codes, including the need for permits and follow-up inspections. Be sure local building codes do not supersede UL specifications and always obtain a building permit so that insurance protection benefits cannot be unexpectedly cancelled. If any assistance is required during installation, please contact your local dealer.
Inspect and clean vent system frequently in accordance with the instructions contained in this manual. Do not connect this unit to a chimney serving another appliance.
When using optional Blower, Part 831-1701, route power cord away from unit. Do not route cord under or in front of appliance.
Do not elevate fire. Build wood fire directly on firebrick.
Do not overfire - if heater or chimney connector glows, you are overfiring. Stove thermometer recommended.
Operate only with the door closed. Open only to add fuel to the fire. Operating with the door open can cause hot embers or sparks to fall out and a fire may result.
INSTALLATION MATERIALS NEEDED FOR SAFETY
CHIMNEY CONNECTOR (also known as flue pipe or stove pipe): The chimney connector joins the stove to the chimney (see page 11). It must be 6” (152mm) minimum diameter 24 MSG black or blued steel, or an approved air-insulated double wall venting pipe.
THIMBLE: Amanufactured or site-constructed device installed in combustible walls through which the chimney connector passes to the chimney (see pages 12-13). It is intended to keep the walls from igniting.
CHIMNEY SYSTEMS:
A.APPROVED MASONRY (see specifications on page 11) with at least 5/8” (16mm) fire clay lining joined with refractory cement or other listed system suitable for use with wood stoves.
B.PREFABRICATED 6" (152mm) listed high temperature (UL 103 HT or ULC S629M) chimney. Components required by manufacturers for installation such as the chimney support base, firestop (as appropriate), attic insulation shield, insulated tee, etc., are necessary to assure a safe chimney installation. Use only components manufactured for the chimney. Chimney installation should meet NFPA 211 standards.
FIRE SAFETY: To provide reasonable fire safety, the following should be given serious consideration:
1.Install at least one smoke detector on each floor of your home to ensure your safety. They should be located away from the heating appliance and close to the sleeping areas. Follow the smoke detector manufacturer’s placement and installation instructions, and be sure to maintain regularly.
2.A conveniently located Class A fire extinguisher to contend with small fires resulting from burning embers.
3.A practiced evacuation plan, consisting of at least two escape routes.
4.A plan to deal with a chimney fire as follows: In the event of a chimney fire:
A.Notify fire department
B.Prepare occupants for immediate evacuation.
C.Close all openings into the stove.
D.While awaiting fire department, watch for ignition of adjacent combustibles from overheated stove pipe, hot embers or sparks from the chimney.
VENTING SYSTEM
The venting system consists of a chimney connector and a chimney. These get extremely hot during use. Temperatures inside the chimney may exceed 2000°F (1100°C) in the event of a creosote fire. To protect against the possibility of a house fire, the chimney connector and chimney must be properly installed and maintained. An approved thimble must be used when a connection is made through a combustible wall to a chimney. A chimney support package must be used when a connection is made through the ceiling to a prefabricated chimney. These accessories are absolutely necessary to provide safe clearances to combustible wall and ceiling material. Follow venting manufacturer’s clearances when installing venting system.
This stove may be connected to a lined masonry chimney or a listed high temperature prefabricated approved metal chimney. Do not connect it to a chimney serving another appliance. To do so will affect the safe operation of both appliances.
WARNING! NEVER DRAW OUTSIDE COMBUSTION AIR FROM A WALL, FLOOR OR CEILING CAVITY OR FROM ANY ENCLOSED SPACE SUCH AS AN ATTIC OR GARAGE.
WARNING! DONOTATTEMPTTOOPERATETHISWOODSTOVE WITHOUT READING AND UNDERSTANDING THESE OPERATING INSTRUCTIONS THOROUGHLY. FAILURE TO OPERATE THIS APPLIANCE PROPERLY MAY CAUSE A HOUSE FIRE.
WARNING! THIS APPLIANCE IS HOT WHILE IN OPERATION AND MAY REMAIN SO UP TO 40 MINUTES OR LONGERAFTER THERE IS NO FUEL IN THE FIREBOX. IF THIS APPLIANCE IS IN A HIGH TRAFFIC AREA OR CHILDREN MAY BE NEAR IT IS RECOMMENDED THATYOU PURCHASEADECORATIVE BARRIOR TO GO IN FRONT OF THE APPLIANCE. ALWAYS KEEP CHILDREN AWAY WHILE IT IS OPERATING AND DO NOT LET ANYONE OPERATE THIS APPLIANCE UNLESS THEY ARE FAMILIAR WITH THESE OPERATION INSTRUCTIONS.
Page 4 |
250-7061C December 10, 2004 |
R
4300 ACT Wood Stove Series
DIMENSIONS
4300 STEP TOP UNI-BODY PEDESTAL MODEL
26-1/2" (673mm)
34-1/4"
(870mm) 34-1/4" (870mm)
|
|
8-9/16" |
10-1/2" |
|
(217mm) |
|
|
|
(267mm) |
15.0" (381mm) |
|
|
|
|
|
4-3/16" (106mm) |
25-3/16" (640mm) |
25-3/16" (640mm)
4300 STEP TOP UNI-BODY LEG MODEL
26-1/2" (673mm)
|
34-1/4" |
34-1/4" |
|
(870mm) |
(870mm) |
|
|
|
|
|
8-9/16" |
|
|
(217mm) |
10-1/2" |
|
|
(267mm) |
15.0" (381mm) |
25-3/16" (640mm) |
|
4-3/16" (106mm) |
|
25-3/16" (640mm)
SERIAL NUMBER / SAFETY LABEL LOCATION ON ALL MODELS:
BACK OF STOVE
250-7061C December 10, 2004 |
Page 5 |
R
4300 ACT Wood Stove Series
DIMENSIONS
4300 MILLENNIUM MODEL
|
25-1/2" (648mm) |
|
|
9-1/2" |
12-3/4" |
28-1/2" (724mm) |
|
(241mm) |
(324mm) |
||
|
C |
|
|
L |
25-1/2" (648mm) |
|
|
|
|
|
5-1/2" (140mm) |
2-1/4" (57mm) |
|
CL |
|
|
|
|
|
10-15/16" |
|
|
19-1/16" (484mm) |
(278mm) |
Back of Stove to Glass |
|
14-15/16" |
||
|
|
|
|
31-1/8" |
15-1/16" (383mm) |
(379mm) |
24-11/16" (628mm) |
(791mm) |
|
|
|
18.0"(457mm) |
10-3/16" |
16.0" |
|
(259mm) |
(406mm) CL |
|
|
|
|
|
4-3/8" (111mm) |
21.0" (533mm) |
|
20-3/8" (518mm) |
LOCATING YOUR STOVE
WHEN LOCATING YOUR STOVE consider safety, convenience, traffic flow, and the fact that the stove will need a chimney and chimney connector. It is a good idea to plan your installation on paper, using exact measurements for clearances and floor protection, before actually beginning the installation. If you’re not using an existing chimney, place the stove where there will be a clear passage for a factory-built listed chimney through the ceiling and roof.
AVOID FIRE: Maintain the designated clearances to combustibles. Insulation must not touch the chimney. You must maintain the designated air space clearance around the chimney. This space around a chimney is necessary to allow natural heat removal from the area. Insulation in this space will cause a heat buildup, which may ignite wood framing. NOTE: Clearances may only be reduced by means approved by the regulatory authority having jurisdiction.
WE RECOMMEND that a qualified building inspector and your insurance company representative review your plans before and after installation.
VENT SPECIFICATIONS
Single Wall: Six inch (6”) (152mm) diameter, minimum 24 MSG black or blued steel connector pipe, with a listed factory-built chimney type UL103 HT* suitable for use with solid fuels, or a masonry chimney, and the referenced clearances.
Double Wall/Mobile Home: Six inch (6”) (152mm) diameter, listed double wall air insulated connector pipe with listed factory-built UL103 HT* Class “A” chimney, or a masonry chimney (Mobile Home must be equipped with a spark arrestor), and the referenced clearances. Use only double-wall connector pipe, Dura-Vent DVL, Selkirk metalbestos DS or Security DL double wall connector.
*In Canada must comply with CAN/ULC-S269 for the 650° Factory-built chimney.
Page 6 |
250-7061C December 10, 2004 |
R
4300 ACT Wood Stove Series
CLEARANCES TO COMBUSTIBLES (UL AND ULC)
90° OFF TOP |
H* |
|
|
||
UP & OUT CEILING |
G |
|
CLEARANCE |
||
|
||
STOVE TO CEILING |
|
|
CLEARANCE |
|
BACKWALL / SIDEWALL
A |
B |
|
C |
|
D |
90° OFF TOP |
H* |
|
G |
||
UP & OUT CEILING |
||
CLEARANCE |
|
|
STOVE TO CEILING |
|
|
CLEARANCE |
|
CORNER INSTALLATION
E |
F |
|
|
|
E |
|
F |
ALCOVE SIDE VIEW
G |
A |
|
|
|
B |
ALCOVE SIDE VIEW
G |
A |
B |
ALCOVE TOP VIEW
C
D
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS In Inches & (Millimeters) NOTE: All "A" , "C" and "F" Dimensions are to the inside diameter of the flue collar.
|
A |
B |
C |
D |
E |
F |
G |
H |
INSTALLATION: Full Vertical OR Horizontal with Minimum 2 Foot Vertical Off Stove Top |
|
|
||||||
SINGLE WALL PIPE |
18 (457) |
15.5 (394) |
26 (660) |
17 (432) |
10 (254) |
18.5 (470) |
52.5 (1334) |
18 (457)* |
Flat Top Model |
||||||||
Step-Top Model |
12 (305) |
8.5 (216) |
23 (584) |
13 (330) |
2 (51) |
13 (330) |
50.5 (1283) |
18 (457)* |
DOUBLE WALL PIPE |
13 (330) |
10.5 (267) |
24.5 (622) |
15 (381) |
10 (254) |
18.5 (470) |
52.5 (1334) |
10 (254) |
Flat Top Model |
|
|
|
|
|
|
|
|
Step-Top Model |
10 (254) |
6.5 (165) |
23 (584) |
13 (330) |
2 (51) |
13 (330) |
50.5 (1283) |
5 (127) |
INSTALLATION: 90° Elbow Off Top of Stove Through Backwall |
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
DOUBLE WALL PIPE |
8.5 (216) |
6 (152) |
24.5 (622) |
15 (381) |
10 (254) |
18.5 (470) |
52.5 (1334) |
18 (457)* |
Flat Top Model |
||||||||
Step-Top Model |
7.5 (191) |
4 (102) |
19 (229) |
9 (229) |
2 (51) |
13 (330) |
50.5 (1283) |
18 (457)* |
INSTALLATION: ALCOVE Six inch (6") (152mm) diameter listed Double Wall air insulated connector pipe with UL 103 HT listed factory-built Class "A" chimney, or a masonry chimney. (Mobile Home must be equipped with a spark arrestor). Maximum depth of Alcove shall be no more than 48"(1220mm). Please refer to the clearances below for minimum Alcove height requirements to top of unit.
DOUBLE WALL PIPE
Flat Top Model |
13 (330) |
10.5 (267) |
24.5 (622) |
15 (381) |
N/A |
N/A |
52.5 (1334) |
N/A |
Step-Top Model |
10 (254) |
6.5 (165) |
23 (584) |
13 (330) |
N/A |
N/A |
37 (940) |
N/A |
250-7061C December 10, 2004 |
Page 7 |
R
4300 ACT Wood Stove Series
FLOOR PROTECTION
FLOOR PROTECTION: Floor protector must be noncombustible material, extending beneath heater and to the front/sides/rear as indicated. The floor must be non-combustible or otherwise adequately protected from radiant heat given off by the unit and from sparks and falling embers. A layer of thin brick or ceramic tile over a combustible floor is not sufficient. A listed hearth pad that has a “k” value of .84 or lower meets this requirement.
In USAinstallations, it is necessary to install a floor protector of 1/2" thick metal clad millboard (“k” value = .84) or equivalent at least 16" in front of glass door and 8" to both sides of the fuel loading door. Open the door and measure 8” from the side edge of the opening in the face of the stove. See *exception below.
See Alternate Materials Worksheet on Page 9 to determine if alternate floor protection materials are acceptable.
In Canada, similar floor protection must be provided 18" (457mm) in front and 8" (203mm) from the sides and rear of the stove. See *exception below.
*EXCEPTION: Non-combustile floor protection must extend beneath the flue pipe when installed with horizontal venting and extend 2” (51mm) beyond each side.
NOTE: Drawings are for illustration purposes only and are not to scale.
USA 4300 Millennium |
|
USA 4300 Step Top Uni-Body |
Canada - Both Models |
||||
|
|
|
|
|
203mm (8") |
|
|
3-1/4" |
|
2-3/4" |
|
|
|
Millennium |
|
|
|
|
203mm |
203mm |
1287mm |
||
|
|
|
|
|
|||
|
|
|
|
|
(50-3/4") |
||
4-3/4" |
|
|
|
|
(8") |
(8") |
|
|
|
5-1/4" |
40-1/2" |
minimum |
|||
|
|
|
|
|
|||
|
|
40-3/4" |
|
|
|
|
|
Fuel loading door |
|
|
minimum |
|
|
|
|
|
|
minimum |
Fuel loading door |
|
|
|
Step Top |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
1288mm |
|
8" |
|
8" |
|
457mm (18") |
(50-1/2") |
|
16" from glass |
|
|
minimum |
||||
|
|
|
|
|
|||
|
|
16" from glass |
|
|
|
|
|
|
USA |
|
|
|
CANADA |
|
|
|
|
USA |
|
|
|
||
31-5/8" minimum |
|
|
31-5/8" minimum |
|
Millennium |
Step Top Uni-body |
|
|
|
|
|
1054mm (41-1/2") |
1080mm (42-1/2) |
|
|
|
|
|
|
|
minimum |
minimum |
|
USA -4300 Millinneum |
USA 4300 Uni-Body Step Top |
Horizontal Venting |
|||||
56-5/8" |
|
|
48-1/2" |
|
|
Both Models |
|
|
|
|
|
|
|
||
-5/8" 31
56-5/8"
-3/4" 40
USA
30.0"
16" required
coverage
30.0"
" -5/8 31
48-1/2"
|
" |
2 |
|
-1/ |
|
40 |
|
USA
30.0"
16" required
coverage
30.0"
Must extend 2" (51mm) beyond each side of pipe (shaded area)
USA - Required
Canada - Recommended
Page 8 |
250-7061C December 10, 2004 |
R
4300 ACT Wood Stove Series
FLOOR PROTECTION (Cont’d)
ALTERNATE MATERIALS WORKSHEET
How to determine if alternate floor protection materials are acceptable:
All floor protection must be non-combustible (i.e., metals, brick, stone, mineral fiber boards, etc.). Any organic materials (i.e., plastics, wood paper products, etc.) are combustible and must not be used. The floor protection specified includes some form of thermal designation such as R-value (thermal resistance) or k-factor (thermal conductivity).
PROCEDURE:
1. Convert specification to R-value:
R-value given - no conversion needed. |
|
|
K-factor is given with a required thickness (T) in inches: |
R = |
1 |
x T |
|
|
|
K x 12 |
|||||
k-factor is given with a required thickness (T) in inches: R = |
1 |
x T |
r-factor is given with a required thickness (T) in inches: R = r x T |
||||
k |
|||||||
|
|
|
|
|
|
||
2.Determine the R-value of the proposed alternate floor protector.
i.Use the formula in step (1) to convert values not expressed as “R”.
ii.For multiple layers, add R-values of each layer to determine overall R-value.
3.If the overall R-value of the system is greater than the R-value of the specified floor protector, the alternate is acceptable.
EXAMPLE: The specified floor protector should be 3/4 inch thick material with a k-factor of 0.84. The proposed alternate is 4” brick with an r-factor of 0.2 over 1/8” mineral board with a k-factor of 0.29.
Step (a): Use formula above to convert specification to R-value.
|
1 |
x T = |
1 |
x 0.75 = 0.893 |
|
R = k |
.84 |
||||
|
|||||
Step (b): Calculate R of proposed system.
4" brick of r = 0.2, therefore: |
|
1/8" mineral board of k = 0.29, therefore: |
||||||
R |
brick |
= 0.2 x 4 = 0.8 |
|
R |
mineral board |
= 1 |
x 0.125 = 0.431 |
|
|
|
|
|
|
0.29 |
|
||
|
|
|
|
|
|
|
||
Rtotal = Rbrick + Rmineral board = 0.8 + 0.431 = 1.231
Step (c): Compare proposed system Rtotal of 1.231 to specified R of 0.893. Since proposed system Rtotal is greater than required, the system is acceptable.
DEFINITIONS |
R = |
(ft2)(hr)(oF) |
k = |
Btu(in) |
= K x 12 |
K = |
Btu(ft |
) |
r = (ft2)(hr)(oF)= |
1 |
|
|
|||||||||
2 |
|
k |
||||||||
|
Btu |
|
ft2(hr)(oF) |
|
ft (hr)(oF) |
(Btu)(in) |
||||
250-7061C December 10, 2004 |
Page 9 |
R
4300 ACT Wood Stove Series
CHIMNEY HEIGHT/DRAFT
To be sure that your Quadra-Fire stove burns properly, the chimney draft (static pressure) should be approximately -.10” water column (W.C.) during a high burn and -.04” W.C. during a low burn, measured 6” (152mm) above the top of the stove after one hour of operation at each burn setting.
NOTE: These are guidelines only, and may vary somewhat for individual installations.
Your Quadra-Fire stove was designed for and tested on a 6” (152mm) chimney, 12 ft.-14 ft. (360-420cm) high, (includes stove height) measured from the base of the stove. The further your stack height or diameter varies from this configuration, the possibility of performance problems exists. In addition, exterior conditions such as roof line, surrounding trees, prevailing winds and nearby hills can influence stove performance. Your local dealer is the expert in your geographic area and can usually make suggestions or discover solutions that will easily correct your flue problem, allowing your woodstove and its flue system to operate correctly and provide safe and economical heat for your home.
A masonry chimney or a listed factory-built UL103 HT Class “A” chimney must be the required height above the roof and any other nearby obstructions. The chimney must be at least 3 ft. (91cm) higher than the highest point where it passes through the roof and at least 2 ft. (61cm) higher than the highest part of the roof or structure that is within 10 ft. (305cm) of the chimney, measured horizontally. See 2-10-3 Rule below.
These are safety requirements and are not meant to assure proper flue draft.
We recommend using a minimum total system height of 12 ft. (360cm), measured from the flue collar to the top of the chimney (not including chimney cap).
Availability of combustion air: A source of air (oxygen) is necessary in order for combustion to take place. It is important to realize that whatever combustion air is consumed by the fire must be replaced. If you are using room air, the air is replaced via air leakage that occurs around windows and under doors, etc. However, in most newly constructed houses, mobile homes, or even existing homes that are fitted with tightly sealed doors and windows, the area from which the combustion air is taken is relatively air tight. In these cases, an outside air source must be made available to feed combustion air from outside the home into the stove. An Outside Air Kit is available for your stove as an option, Part 831-1780. The kit is a requirement for mobile home installations. Check with the local authorities in your area for the requirements in your location.
|
2-10-3 RULE |
3 ft Min |
2 ft Min (61cm) |
|
|
(91cm) |
|
|
10 ft Min |
|
(305cm) |
|
WARNING! |
ALWAYS FOLLOW CHIMNEY CONNECTOR MANUFACTURER’S INSTRUCTIONS FOR PROPER INSTALLATION.
CHIMNEY CONNECTOR IS TO BE USED ONLY WITHIN THE ROOM, BETWEEN THE STOVE AND CEILING OR WALL. THE CONNECTOR SHALL NOT PASS THROUGH AN ATTIC OR ROOF SPACE, CLOSET OR SIMILAR CONCEALED SPACE, OR A FLOOR, OR CEILING. MAINTAIN MINIMUM CLEARANCES TO COMBUSTIBLES AS REFERENCED ON PAGES 7, 8, 9, &10.
Page 10 |
250-7061C December 10, 2004 |
Loading...
