R
Model:
EDGE60
Natural
ZERO CLEARANCE PELLET FIREPLACE
Owner’s Manual - Installation and Operation
Curved
DO NOT DISCARD THIS MANUAL
• Important operating and
maintenance instructions included.
EDGE™ 60
NOTICE
•
Read, understand and
follow these instructions for safe installation and operation.
Tested and
Listed by
Tuscan Studio
•
Leave this manual with
party responsible for use
and operation.
O-T L
C
DO NOT
DISCARD
US
Portland
Oregon USA
WARNING
Please read this entire manual
before installation and use of this
pellet fuel-burning room heater.
Failure to follow these instructions
could result in property damage,
bodily injury or even death.
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• Do not overfi re - If any external part starts to
glow, you are overfi ring. Reduce fl ame height
(feed rate). Overfi ring will void your warranty.
• Comply with all minimum clearances to combustibles as specifi ed. Failure to comply may
cause house fi re.
CAUTION
Tested and approved for wood pellets, shelled fi eld
corn, wheat and black oil sunfl ower seeds. Burning
of any other type of fuel voids your warranty.
WARNING
HOT SURFACES!
Glass and other surfaces are
hot during operation AND
cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room
as fi replace.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
fl ammable materials.
• Keep clothing, furniture, draperies and other
fl ammable materials away.
Installation and service of this appliance should
be performed by qualifi ed personnel. Hearth &
Home Technologies recommends NFI certifi ed
professionals, or technicians supervised by an
NFI certifi ed professional.
www.quadrafi re.com
7051-158B
December 6, 2011
EDGE 60 Pellet Fireplace
CAUTION
er, sous certaines conditions,
M1990 Room
E AVEC LES
ÉTAIRE POUR
, partie 60,
es : Le Conseil
s Nationaux
r des instructions
R
Hearth & Home Technologies welcomes you to our tradition of
excellence! In choosing a Quadra-Fire appliance, you have
our assurance of commitment to quality, durability, and performance.
This commitment begins with our research of the market,
including ‘Voice of the Customer’ contacts, ensuring we make
products that will satisfy your needs. Our Research and Development facility then employs the world’s most advanced technology to achieve the optimum operation of our stoves, inserts
and fi replaces. And yet we are old-fashioned when it comes to
craftsmanship. Each unit is meticulously fabricated and surfaces
are hand-fi nished for lasting beauty and enjoyment. Our pledge
to quality is completed as each model undergoes a quality control
inspection.
We wish you and your family many years of enjoyment in the
warmth and comfort of your hearth appliance.
Thank you for choosing Quadra-Fire.
LOCATION OF SERIAL NUMBER LABEL: Right Inside Edge of Outer Can (Fig. 2)
Made in U.S.A. of US and
imported parts.
Fabriqué aux
États-Unis-d’Amérique par des
pièces d’origine américaine et
pièces importées.
7051-159C
Tested and
Listed by
OMNI-Test Laboratories, Inc.
O-T L
US
C
Report / Rapport
#061-F-75-6.2
Portland
Oregon USA
Testing Lab & Report No.
Manufactured by:
1445 Highway North, Colville, WA 99114
Fabriqué par
www.quadrafire.com
:
2012
2013
2014
JAN FEB MAR APR MAY JUNE
JULY AUG SEP OCT NOV DEC
EDGE 60 PELLET
FIREPLACE
Manufacture Date Serial Number
R
007007
LOCATION OF CLEARANCE TO COMBUSTIBLES LABEL: Left Hand Panel of Hopper (Fig. 3)
:
SAFETY LABEL / ÉTIQUETTE DE SÉCURITÉ

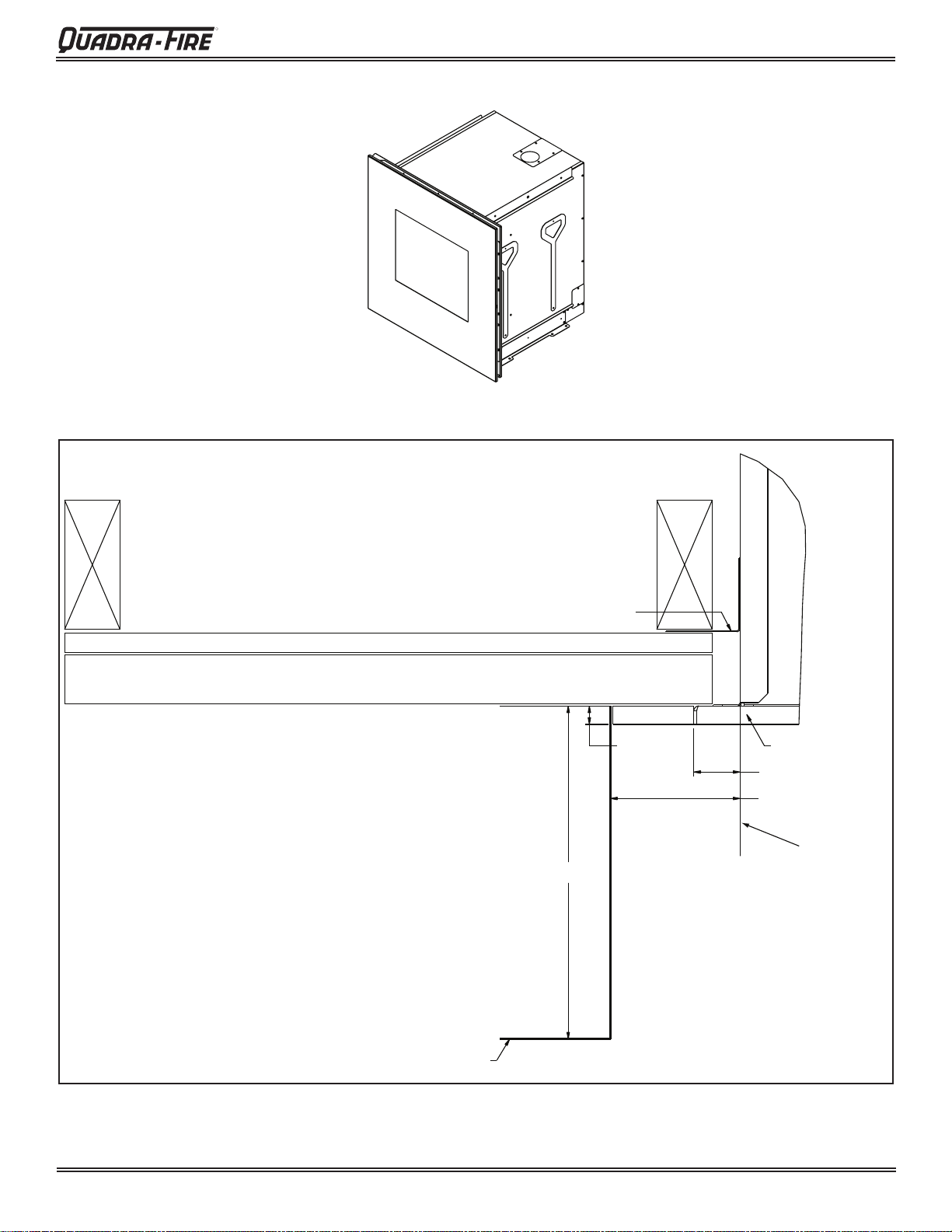

F Floor Protection Hearth Extension From Door Opening 6 in (152mm)
G Floor Protection to the Side of Door Opening 6 in (152mm)
F Portection du plancer agrandissement du foyer à ouverture du port: 6 in (152mm)
G Portection du plancer de côté à ouverture du port: 6 in (152mm)
ALL MATERIAL USED FOR FLOOR PROTECTION MUST BE NON-COMBUSTIBLE
R
Also suitable for Mobile Home
0 in. (0mm)
*
DO NOT REMOVE THIS LABEL
EDGE 60 PELLET FIREPLACE
Appareil de chauffage de combustible solide/de type de boulettes. Accepté dans
l'installation dans les maisons mobiles. Cet appareil a été testé et enregistré pour l
dans les Maisons Mobiles en accord avec OAR 814-23-9000 jusqu'à 814-23-909.
Testé à: ASTM #1509-04, ULC S628-93, ULC/ORD-C1482Heating. Pellet Burning Type, UM) 84-HUD POUR USAG
BOULETTES DE BOIS. VOIR LE MANUAL DU PROPRI
D’AUTRES OPTIONS DE CARBURANT.
OMNI-Test Laboratories, Inc. a déterminé que cet appareil se conforme avec la
norme de l’Association Canadienne de normalisation (CSA) B415.1 ainsi que
le Titre 40 du Code Fédéral de Régulations des États-Unis
sous-partie AAA. Accréditations OMNI-Test Laboratori
Canadien des Normes (CCN/SCC), l’Institue des Standard
Américain (ANSI) et l’Agence de Protection Environnemental (EPA).
Puissance de Rendement: 52,000 BTU/HR
Puissance Électrique: 115 VAC, 60 Hz, Début 5 Amps, Courir 1.25 Amps,
DANGER: Il y a risque de décharge électrique. Déconnectez le fil électrique de la prise
de contact avant le service. Remplacez la vitre seulement avec une vitre céramique de
5 mm disponible chez votre fournisseur.
Pour allumer, monter la température du thermostat au dessus de la température de la
pièce, le poêle s'allumera automatiquement. Pour éteindre, descendre la température
du thermostat en dessous de la température de la pièce. Pou
supplémentaires, référez vous au manuel du propriétaire. Gardez la porte d'ouverture
et la porte des cendres fermées hermétiquement durant l'opération.
I
nstallez et utilisez en accord avec les instructions d'installation et d'opération du
fabricant. Contactez le bureau de la construction ou le bureau des incendies au
sujet des restrictions et des inspections d'installation dans votre voisinage. Ne pas
obstruez l'espace en dessous de l'appareil.
A
VIS - Pour Les Maisons Mobiles: Ne pas installer dans une chambre à coucher.
Un tuyau extérieur de combustion d'air doit être installé et ne doit pas être obstrué
lorsque l'appareil est en usage. La structure intégrale du plancher, du plafond et
des murs de la maison mobile doit être maintenue intacte.
Référez vous aux instructions du fabricant et des codes locaux pour les précautions
requises pour passer une cheminée à travers un mur ou un plafond combustibles,
et les compensations maximums.
Inspectez et nettoyez la cheminée fréquemment.
Domaines de la cheminée incorporant les gaines d'air chaud ou froid doivent être
enfermés en conformité avec les instructions d'installation du fabricant.
Les composants requis pour tout l'installations. Assemblage d'air extérieur, Numéro de
Pièce OAK-3.
Ne pas connecter cet appareil à une cheminée servant un autre appareil.
Utilitsez le syst
ATTENTION: ouvertures d'air de combustion ne doivent pas être obstruées.
ATTENTION: Il est nécessaire que ce foyer ont l'air d'un bon fonctionnement. S'il vous plaît
se référer à des propriétaires mannual pour les conséquences possibles d'une mauvaise
ventilation.
B
A
A
*Voir le fabricant pour les espaces libres des conduits enregistré, 1 inch (25mm) minimum
PRÉVENTION DES FEUX DE MAISON
è
me de ventilation de 3 or 4 inch (76-102mm) de diametre de type “L” ou “PL”.
ESPACES LIBRES MINIMUM DES MATÉRIAUX COMBUSTIBLES
A Surfaces Mur de arrières 0 in (0mm)
C
B Surfaces Mur de côté 0 in. (0mm)
C Surfaces supérieurs à la boutisse 0 in. (0mm)
D Du conduits des combustibles
E Protection du plancer dessus cheminéel: Ne pas requis
NE PAS ENLEVER L'ÉTIQUETTE
*
7051-148C
'usage
Open Front. Serial Number Label located
on right side inside edge of outer can.
Figure 2 - Serial Number Label
Slide fireplace out on the rails. Clearance
to Combustible Label located on left side of
hopper.
Figure 3 - Clearance to Combustibles
Label
HOT WHILE IN OPERATION DO NOT TOUCH, KEEP CHILDREN, CLOTHING AND FURNITURE
AWAY. CONTACT MAY CAUSE SKIN BURNS. SEE NAMEPLATE AND INSTRUCTIONS. Operate
this unit only with the fuel hopper lid closed. Failure to do so may result in emissions of products of
combustion from the hopper under certain conditions. Maintain hopper seal in good condition. Do not
ATTENTION:
CHAUD LORS DE L'OPÉRATION. NE PAS TOUCHER. GARDEZ LES ENFANTS ET LES VÊTEMENTS LOIN DE L'ESPACE DÉSIGNÉ DE
L'INSTALLATION. LE CONTACT PEUT CAUSER DES BRÛLURES À LA PEAU. VOIR L'ÉTIQUETTE ET LES INSTRUCTIONS. Opérez cet
appareil avec le couvercle de la trémie fermé. Le défaut de ne pas suivre les instructions peut résult
en une combustion des émissions des produits venant de la trémie. Ne pas remplir la trémie trop pleine.
Tested and
Listed by
Listed Solid Fuel Room Heater/Pellet Type.
Installation. This appliance has been tested and listed for use in Manufactured
Homes in accordance with OAR 814-23-9000 through 814-23-909.
Tested to: ASTM E1509-04, ULC S628-93,
ULC/ORD-C1482-M1990 Room Heating Pellet Burning Type, (UM)
84-HUD FOR USE
MANUAL FOR OTHER FUEL OPTIONS.
OMNI-Test Laboratories, Inc. has determined that this appliance
complies with Canadian Standards Association (CSA) B415.1
and Title 40 of the U.S. Code of Federal Regulations, Part 60,
SubPart AAA.OMNI-Test Laboratories Accrediations: The
Standards Council of Canada, the American National Standards
Institute, and the U.S. Environmental Protection Agency.
Input Rating: 52,000 BTU/HR.
Electrical Rating:
DANGER:
Servicing Unit.
Replace glass only with 5mm ceramic available from your dealer.
To start, set thermostat above room temperature, the stove will light
automatically. To shutdown, set thermostat to below room
temperature. For further instruction refer to owner's manual.
Keep viewing & ash removal doors tightly closed during operation.
Install and use only in accordance with manufacturer's installation
and operating instructions. Contact local building or fire officials
about restrictions and inspection in our area.
WARNING: FOR MOBILE HOMES: Do not install appliance in a
sleeping room. An outside combustion air inlet must be provided.
The structural integrity of the mobile home floor, ceiling and walls
must be maintained.
Refer to manufacturer's instructions and local codes for
precautions required for passing chimney through a combustible
wall or ceiling. Inspect and clean vent system frequently in
accordance with manufacturer's instructions.
Areas of the fireplace incorporating warm or cold air ducts shall be
enclosed according to the manufacturer’s installation instructions.
Components required for all installations: Outside Air Kit, Part
Number OAK-3.
DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVICING ANOTHER
APPLIANCE.
Use a 3 or 4 inch (76-102mm) diameter type "L" or "PL" venting system.
CAUTION: Combustion air openings are not to be obstructed.
CAUTION: It is necessary that this fireplace have air for proper
operation. Please refer to the owners mannual for possible
consequences of improper ventilation.
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
A Standoff to Back Wall
B Standoff to Side Walls 0 in (0mm)
C Top Standoff to Header 0 in (0mm)
D Vent Pipe to Combustible
E Floor Protection under Fireplace None Required
* Use Pipe Manufacturer’s Listed Clearances, 1 inch (25mm) Minimum
G
overfill hopper.
Portland
O-T L
Oregon USA
US
C
OMNI-Test Laboratories, Inc.
ONLY WITH PELLETIZED WOOD. SEE OWNER’S
115 VAC, 60 Hz, Start 5 Amps, Run 1.25 AMPS.
Risk of Electric Shock. Disconnect Power Before
PREVENT HOUSE FIRES
F
Page 2
7051-158B
December 6, 2011
R
EDGE 60 Pellet Fireplace
Safety Alert Key:
!
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the fi replace or to property.
TABLE OF CONTENTS
Congratulations ...............................................................2
Sample of Safety/Serial Numer Label .............................2
Safety Alert Key ...............................................................3
Limited Warranty .............................................................4-5
Section 1: Listing and Code Approvals
A. Appliance Certifi cations.....................................6
B. Mobile Home Approved.....................................6
C. Glass Specifi cations ..........................................6
D. Electrical Rating ................................................6
E. Outside Air Required .........................................6
F. BTU & Effi ciency Specifi cations ........................6
User’s Guide
Section 2: Operating Instructions
A. Fire Safety .........................................................8
B. Combustible/Non-Combustible Material............8
C. Fuel Material & Fuel Storage ............................8-9
D. General Operation Information..........................9
E. Power Switch ....................................................9
F. Before Your First Fire ........................................9
G. Filling the Hoper with Fuel.................................10
H. Starting Your First Fire ......................................10
I. Ignition Cycles ...................................................10-11
J. Fire Characteristics & Flame Height
Adjustment ........................................................12
K. Battery Back-Up System ...................................12-13
L. Clear Space ......................................................13
Section 3: Maintaining & Servicing Appliance
A. Proper Shutdown Procedures ...........................14
B. Quick Reference Maintenance Chart ................14
C. High Ash Fuel Content Maintenance ................15
D. Accessing Components for Maintenance..........15
E. General Maintenance & Cleaning .....................16-20
Section 4: Troubleshooting for Homeowner
A. Frequently Asked Questions .............................21
B. Wall Control Error Messages ............................22
Installer’s Guide
Section 5: Getting Started
A. Design, Installation & Location
Considerations and Floor Support ....................23
B. Locating Your Thermostat Wall Control ............24
C. Tools & Supplies Needed..................................24
D. Inspect Appliance and Components .................24
E. Checklist to Help Determine Location ...............24
F. Recommended Sequence of Installation ......... 25
G. Items to Verify During Test Burn .......................25
Section 6: Framing & Clearances
A. Recommended Locations ................................26
B. Hearth Extension...............................................26
C. Sealing at Penetration of Building Envelope .....27
D. Frame the Fireplace .........................................27
E. Construct a Chase ............................................28
F. Finishing Material .............................................. 29
G. Door Opening Clearances.................................30-31
H.
I. Non-Combustible Materials ...............................33
J. Combustible Materials....................................... 33
Combustible Mantel & Fuel Loading Clearance
..32
Section 7: Installation of Fireplace
A. Position the Fireplace........................................34
B. Sub-Floor Material & Securing Fireplace ..........34
C. Junction Box and Wiring Diagram ..................... 35
D. Connecting Wall Control to Fireplace................35
E. Thermostat Wall Control Installation .................35
F. Flue Collar Installation.......................................36-37
Section 8: Vent Information
A. Venting Termination Requirements...................38
B. Avoiding Smoke and Odors ..............................39
C. Negative Pressure.............................................40
D. Draft ..................................................................40
E. Chimney & Exhaust Connection .......................41
F. Equivalent Feet of Pipe .....................................41
G. Pipe Selection Chart .........................................42
H. Outside Air Locations & Considerations............43
I. Outside Air Installation ......................................44
J. Vertical, Interior, Typical Installation .................45
K. Through the Wall & Vertical, Exterior ................45
L. Through the Wall ...............................................46
Section 9: Mobile Home Installation .................. 47
Section 10: Appliance Set-Up
A. Log Set Placement ............................................48
B. Front Installation Instruction ..............................49
Section 11: Replacement Parts
A. Glass Replacement ...........................................50
B. Combustion (Exhaust) Blower ..........................50
C. Convection Blower ............................................51
D. Baffl e Removal & Replacement ........................51
Section 12: Troubleshooting for Installers ........52
Section 13: Reference Materials
A. Fireplace Dimensions........................................53
B. Component Functions ....................................... 54-55
C. Component Locations .......................................56
D. Exploded Drawings ...........................................57
E. Service Parts & Accessories .............................58-62
F. Service & Maintenance Log ..............................63
G. Contact Information ........................................... 64
December 6, 2011
7051-158B
Page 3
EDGE 60 Pellet Fireplace
R
Page 4
7051-158B
December 6, 2011
R
EDGE 60 Pellet Fireplace
December 6, 2011
7051-158B
Page 5
EDGE 60 Pellet Fireplace
R
1
Listing and Code Approvals
A. Appliance Certifi cation
Model EDGE™ 60 Pellet Fireplace
Laboratory OMNI Test Laboratories, Inc.
Report No. 061-F-75-6.2
Type Solid Fuel Room Heater/Pellet Type
Standard ASTM E1509-04, ULC S627-00 and
ULC/ORD-C1482 Room Heater Pellet
Fuel Burning type and (UM) 84-HUD,
Mobile Home Approved.
FCC Complies with Part 15 of FCC Rules.
Operation is subject to the following
two conditions: (1) this device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that
may cause undesired operation.
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
ASTM E1509-04, ULC S627-00, (UM) 84-HUD and
ULC/ORD-C-1482.
B. Mobile Home Approved
This appliance is approved for mobile home installations
when not installed in a sleeping room and when an outside
combustion air inlet is used.
The structural integrity of the mobile home fl oor, ceiling, and
walls must be maintained.
The appliance must be properly grounded to the frame of
the mobile home and use only Listed pellet vent Class “L”
or “PL” connector pipe.
A Quadra-Fire Outside Air Kit must be installed in a mobile
home installation. You must order the Outside Air Kit separately.
Note: The appliance is also approved for installation
into a shop.
C. Glass Specifi cations
This appliance is equipped with 5mm ceramic glass. Replace
glass only with 5mm ceramic glass. Please contact your
dealer for replacement glass.
D. Electrical Rating
F. BTU & Effi ciency Specifi cations
Emissions Rating: EPA Compliance
BTU Input*: 14,620 - 52,000 / hr
Effi ciency: 83.3%
Heating Capacity: 2,400 - 3,800 square feet depend-
ing on climate zone
Hopper Capacity: 120 lbs
Fuels: Pellets, Shelled Field Corn, Wheat
and Black Sunfl ower Seeds
Shipping Weight: 450 lbs (empty hopper)
Weight with Full
Hopper:
*BTU will vary, depending on the type of fuel you use in
your fi replace. Consult your Quadra-Fire dealer for best
results.
WARNING! Risk of Fire! Hearth & Home Technologies disclaims any responsibility for, and the warranty and agency
listing will be voided by the below actions.
DO NOT:
• Install or operate damaged appliance
• Modify appliance
• Install other than as instructed by Hearth & Home
Technologies
• Operate the appliance without fully assembling all
components
• Overfi re
• Install any component not approved by Hearth &
Home Technologies
• Install parts or components not Listed or approved.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualifi ed
installer, service agency or your dealer.
NOTICE: Hearth & Home Technologies, manufacturer
of this appliance, reserves the right to alter its products, their specifi cations and/or price without notice.
Quadra-Fire is a registered trademark
of Hearth & Home Technologies.
add approximately 120 lbs
115 VAC, 60 Hz, Start 5 Amps, Run 1.25 Amps
E. Outside Air Kit
Outside Air is required on all installations. You must order
the Outside Air Kit separately.
Page 6
7051-158B
December 6, 2011
R
EDGE 60 Pellet Fireplace
User’s Guide
2
Operating Instructions
WARNING
HOT SURFACES!
Glass and other surfaces are hot during operation AND cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as fi replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other fl ammable materials.
• Keep clothing, furniture, draperies and other fl ammable materials away.
WARNING! Do not operate appliance before reading and
understanding the operating instructions in both of the
Owner’s and Thermostat Wall Control manuals. Failure to
operate appliance according to operating instructions could cause
fi re or injury.
CAUTION
Use only approved fuel. This unit was tested and
approved for wood pellets, shelled fi eld corn, wheat
and black oil sunfl ower seeds. Burning of any other
type of fuel voids your warranty.
December 6, 2011
7051-158B
Page 7
EDGE 60 Pellet Fireplace
R
A. Fire Safety
To provide reasonable fi re safety, the following should be
given serious consideration:
• Install at least one smoke detector and CO monitor on each
fl oor of your home.
• Locate detectors away from the heating appliance and close
to the sleeping areas.
• Follow the detector’s manufacturer’s placement and
installation instructions and maintain regularly.
• Conveniently locate a Class A fi re extinguisher to contend
with small fi res.
• In the event of a hopper fi re:
• Evacute the house immediately.
• Notify fi re department.
B. Combustible/Non-Combustible Materials
• Combustible Material
Material made of or surfaced with wood, compressed
paper, plant fi bers, plastics, or any material capable
of igniting and burning, whether fl ame-proofed or not,
plastered or unplastered.
• Non-combustible Material
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, slate,
glass or plasters, or any combination thereof.
• Non-combustible Sealant Material
Sealants which will not ignite and burn: Rutland, Inc.
Fireplace Mortar #63, Rutland 76R, Nufl ex 304, GE
RTV106 or GE RTB116 (or equivalent).
C. Fuel Material and Fuel Storage
Pellet fuel quality can greatly fluctuate. The EDGE 60
appliance has been designed to burn a wide variety of fuels,
giving you the choice to use the fuel that is most economical
in your region.
Hearth & Home Techonologies strongly recommends only
using Pellet Fuel Institute (PFI) certifi ed fuel.
Fuel Material
• Made from sawdust or wood by-products
• Shelled fi eld corn & other biomass fuels
• Depending on the source material it may have a high or
low ash content.
Higher Ash Content Material
• Hardwoods with a high mineral content
• Fuel that contains bark
• Standard grade pellets, high ash pellets, corn and other
biomass fuels
Lower Ash Content Material
• Softwoods
• Fuels with low mineral content
• Premium grade pellets
Shelled Field Corn
• Must be 15% or less moisture content.
• Must be clean and free from debris
• Never burn corn straight from the fi eld
• Stalk parts, excessive fi nes and cob remnants, etc. will
clog the auger mechanism
• Corn with excessive grain dust must be screened by sifting
with 3/16 inch (4.7mm) mesh screening
CAUTION! Do not burn fuel that contains an additive;
(such as soybean oil).
• May cause hopper fi res
• Damage to product may result
Read the ingredients list on the package. If you are buying
corn or wheat the only ingredient that should be listed is
corn or wheat.
WARNING! Risk of Chemical Poisoning!
Do NOT burn treated seed corn
• Chemical pesticides are harmful or fatal if swallowed
• Burning treated seed corn will void your warranty
Clinkers
Minerals and other non-combustible materials such as sand
will turn into a hard, glass-like substance called a clinker when
heated in the fi repot.
Trees from different areas will vary in mineral content. That
is why some fuels produce more clinkers than others.
Moisture
Always burn dry fuel. Burning fuel with high moisture content
takes heat from the fuel and tends to cool the appliance,
robbing heat from your home. Damp pellet fuel can clog the
feed system.
Size
•
Pellets are either 1/4 inch or 5/16 inch (6-8mm) in diameter
• Length should be no more that 1-1/2 inches (38mm)
• Pellet lengths can vary from lot to lot from the same
manufacturer
• Due to length variations, the fl ame height (feed rate) may
need adjusting occasionally. See page 12 for instructions.
Performance
• Higher ash content requires the ash drawer to be emptied
more frequently
• Hardwoods require more air to burn properly
• Set wall control to “Utility Pellet” if the fi repot and ash pan
are fi lling quickly. This will cause the auto-clean system
to empty the fi repot more often.
• Premium wood pellets produce the highest heat output.
• Burning pellets longer than 1-1/2 inches (38mm) can cause
an inconsistent fuel feed rate and/or missed ignitions.
We recommend that you buy fuel in multi-ton lots whenever
possible. However, we do recommend trying various brands
before purchasing multi-ton lots to ensure your satisfaction.
Page 8
7051-158B
December 6, 2011
R
EDGE 60 Pellet Fireplace
CAUTION! Tested and approved for wood pellets, shelled
fi eld corn, wheat and black oil sunfl ower seeds. Burning of
any other type of fuel voids your warranty.
Changing to Different Fuel Type
• Empty the hopper of the previous fuel
•
Thoroughly vacuum hopper before fi lling with the new
fuel
• Select the appropriate setting on the FUEL SELECTION
screen on the thermostat wall control
The burn rate, BTU content and heat output will all vary
depending on the fuel selected.
Storage
• Wood pellets should be left in their original sealed bag
until using to prevent moisture absorption.
• Shelled corn, wheat or sunfl ower seeds should be stored
in a tight container to prevent it from absorbing moisture
from damp or wet fl oors.
• This will also prevent rodents from becoming a problem
• Do not store any pellet fuel within the clearance
requirements or in an area that would hinder routine
cleaning and maintenance.
D. General Operating Information
2. Thermostat Wall Control - Manual Setting
When you select “Manual” on the AUTO/MANUAL screen the
appliance will still automatically turn on and off according to
the temperature setting.
However, you will be able to manually control the heat output
levels. Adjust the heat output levels by using the HEAT
OUTPUT LEVEL screen. Figure 9.2.
Medium
Figure 9.2
3. Auto-Clean Firepot System
Your appliance is equipped with an automatic fi repot cleaning
system that will change the frequency of cleaning based on
the fuel being burned.
The auto-clean system will clean itself immediately on initial
.
plug in. If there is a power outage, as soon as power is
restored it will recycle and clean itself if there is no fi re in the
fi repot.
NOTE: User is responsible for removing the ash from the
ash drawer.
Read and understand the Thermostat
Wall Control manual for detailed operating
instructions. The wall control is an intregal
part of how to operate this appliance.
1. Thermostat Wall Control - Automatic Setting
The appliance is like most modern furnaces; when the
thermostat wall control calls for heat, your appliance will
automatically light and deliver heat.
When the room is up to temperature and the wall control is
satisfi ed the appliance will shut down.
In the automatic setting the heat output level is controlled by
the wall control. Select “Automatic” on the AUTO/MANUAL
screen. Figure 9.1.
Automatic
Manual
Off
Figure 9.1
E. Power Switch
The power switch is located at the bottom right hand corner of
the fi replace. It turns the power on and off to the fi replace.
Before servicing the fi replace this power switch must be in
the off position. When the power switch is OFF there will be
no display on the wall control screen.
Power Switch
Power
Switch
= ON
I
0
= OFF
Figure 9.3
F. Before Your First Fire
• First, make sure your appliance has been properly installed
and that all safety requirements have been met.
• Pay particular attention to the fi re protection, venting and
thermostat wall control installation instructions.
• Double check that the ash pan, hopper and fi rebox are
empty and then close the fi rebox door.
December 6, 2011
NOTICE:
inside end of the thermocouple cover or missed ignitions can
occur.
The tip of thermocouple must be in contact with the
7051-158B
Page 9
EDGE 60 Pellet Fireplace
R
G. Filling the Hopper with Fuel
Check the hopper and make sure it is empty before fi lling
•
with fuel.
• Open the front to expose the hopper door. Pull down on the
hopper door to open and fi ll with fuel. The hopper door can
now serve as a shelf to support the bag of fuel
• Do not over fi ll the hopper. The hopper door must be completely closed to maintain proper vacuum and for the feed
motor to operate. An error ICON will appear on the wall
control if the hopper door is not properly closed.
• Do not leave any part of the fuel bag on the appliance after
fi lling hopper.
NOTICE: RAISED PLATFORM INSTALLATIONS
Consideration must be given for fi lling the hopper with fuel
when determining the height of the raised platform. It must
not be so high that it interferes with the safety of fi lling the
hopper with fuel.
H. Starting Your First Fire
1. Fuel Selection
To start your fi rst fi re, you must:
• Select the appropriate fuel on the FUEL SELECTION screen
on the thermostat wall control to match the fuel you have
chosen to burn.
• If the proper fuel is not selected your appliance will not
operate properly.
• For example, if you have selected wood pellets and you are
burning corn, the appliance may not light, it may go out or
overfeed. Figure 10.1.
NOTE: If you are lighting your appliance for the fi rst time:
• The feed tube will be empty and it can take some time to fi ll
it with fuel before you will see a fi re
• Put a handful of fuel in the fi repot (priming) to speed up the
process. You can also do this when you have run completely out of fuel.
FUEL SELECTION
Corn
Utility Pellet
Softwood Pellet
Sunflower Seeds
Wheat
Hardwood Pellet
DONE
Figure 10.1
2. Comfort Level Selection
Once your fuel is selected, select the temperature at the desired
setting on the SET COMFORT LEVEL screen. Figure 10.2.
SELECT
3. Automatic or Manual Setting
The automatic setting will control the heat output based on
the comfort level selection. The manual setting allows you to
manually control the heat output settings.
I. Ignition Cycles
The fi replace engine is controlled by the digital thermostat
wall control. The digital display on the wall control will tell
you what your appliance is doing in the upper left corner
(System Status). Figure 10.3.
System Status
READY
12:30 PM
Set at: 73
73
MENU
Figure 10.3
Every time the thermostat calls for heat, the appliance steps
through fi ve cycles:
1 Start-Up Cycle 4 Shutdown Cycle
2 Soft-Start Cycle 5 Auto-Clean Cycle
3 Heating Cycle
The duration and characteristics of these cycles may be different with each type of fuel selected.
WARNING! RISK OF FIRE!
Do NOT operate appliance:
• With appliance door open
• With fi repot fl oor open
• With ash pan removed
• Without the two slide rail attachment bolts secured to
fi replace
1. Start-Up Cycle
During this cycle:
• Igniter turns on for 90 seconds to heat up the air in the
fi repot
• Combustion blower starts
• Vacuum switch comes on
• Feed motor turns on adding fuel to the fi repot and the
appliance waits for the fi re to start
The duration of start-up depends on the type and quality
of fuel used. It is normal to see some smoke during the
ignition process as moisture evaporates and the fuel lights.
The smoke will stop once the fi re starts.
HEAT OUTPUT
Page 10
Figure 10.2
7051-158B
December 6, 2011
R
EDGE 60 Pellet Fireplace
2. Soft Start Cycle (SS-Low / SS-Med)
Once the fi re is lit:
• The appliance moves into the low soft-start cycle as it
continues to build the fi re
• More fuel will be added
• As the fi re builds, the appliance will change to medium
soft-start mode
• The heating cycle begins
3. Heating Cycle ( Auto / Man - L, ML, M, MH, H)
There are two choices in the Automatic / Manual menu of
how your appliance will operate:
Automatic Mode
• The wall control will turn the heat output level up or down
depending on how far the room temperature is from the
desired temperature
• The digital display will read AUTO:M, i.e. automatic-medium level
• As the room temperature approaches the desired temperature, the appliance will turn down to lower settings
• When the home reaches your set temperature, the appliance will go into the shutdown cycle
Manual Mode
• Set the heat output setting from the main screen
• The right bottom button will read HEAT OUTPUT
• You can operate the appliance from any of the 5 levels
• On the lowest level (MAN: L) the appliance will stay on
longer, burn less fuel per hour, and will take longer to
bring the home up to your desired temperature
• On the highest setting (MAN:H) the appliance will burn
more fuel per hour, and bring your home up to temperature more quickly
•
In Manual mode the heat output does not change but
will stay at the setting you chose until the comfort level
is reached (meaning the thermostat has been satisfi ed).
Turn to OFF to stop operation.
5. Auto-Clean Cycle
The fi repot auto-clean system will cycle:
• When the appliance is fi rst plugged in
• When the house reaches temperature and the appliance
shuts down
• At prescribed intervals, depending on the type of fuel selected
• When starting up after an electrical interruption
If your appliance is running and the auto-clean cycle is initiated, the appliance will revert to shutdown cycle.
• The fl oor of the fi repot will open and dump the ash into
the ash pan
• It takes approximately 2 minutes to complete the autoclean cycle
• The fl oor will then shut, and if the thermostat is still calling for heat, the fi re will start again
• During this auto-clean cycle, the convection blower may
continue to run. The combustion blower will continue to
run.
Additional Screen Messages:
READY It is telling you that the home is up to temperature
and doesn’t need any heat.
- - - - - The screen will show 5 dashes when the wall
control and the control board are NOT communicating with
each other. Check that the wiring on the thermostat is properly connected.
MAINTENANCE BURN This indicates the appliance is
operating on battery backup, prior to the auto-clean. The
maintenance burn will keep the system from shutting down
as the appliance will not automatically re-light in battery
back-up mode.
OFF The AUTO/MANUAL SETTING screen has been set
to OFF. Set the appliance to OFF when performing periodic
maintenance to prevent an unexpected startup.
BLANK SCREEN The ON/OFF switch may in OFF position. Turn to ON position.
4. Shutdown Cycle
Once your home has reached your set temperature:
• Appliance will stop feeding fuel and allow the fi re to diminish
• Convection blower will continue to run until the appliance
cools to appropriate temperature
• Appliance will begin the auto-clean cycle
December 6, 2011
7051-158B
CAUTION
Tested and approved for wood pellets, shelled fi eld
corn, wheat and black oil sunfl ower seeds. Burning
of any other type of fuel voids your warranty.
Page 11
EDGE 60 Pellet Fireplace
R
J. Fire Characteristics and Flame Height
(Feed Rate) Adjustment
A properly adjusted fi re will have an active fl ame pattern
and the fl ame will rise and fall somewhat. This is normal.
• On HIGH setting, the fl ame will extend approximately
203mm out of the fi repot. If it is not 203mm tall, increase the fl ame height.
• On MEDIUM or LOW setting the fl ame will be shorter.
• Reduce the fl ame height if the fi re has tall fl ames with
black tails and seems somewhat lazy. This may also
indicate that the fi repot and/or heat exchanger needs
to be cleaned. Refer to Section 3 for Maintenance and
Cleaning Instructions.
Adjusting the Flame Height (Feed Rate)
• Set your appliance to “MANUAL” mode on the wall
control.
• Set the heat output level to HIGH.
• Adjust the fl ame height using the “FLAME HEIGHT
ADJUST” screen on the wall control. Figure 12.1.
Figure 12.1
K. Battery Back-up System (Optional)
CAUTION!
• Hook up to battery terminals BEFORE you plug battery
into appliance.
• Damage to internal electronic components may occur.
The appliance has been designed to operate on an optional
battery back-up system.
If you have frequent power outages in your region, hook
the appliance up to a 12 volt battery and it will automatically
switch to battery power in the event of a power failure. The
12 volt power cord, sold as a separate accessory, does not
charge the battery.
WARNING! Risk of Injury!
• Do not operate in the battery back-up mode with the
appliance pulled out on the slide rails.
• Blowers may continue to run and would be exposed to
human contact.
Instructions to Hook Up to Battery Back-Up
Open Front to expose battery plug on bottom left side of
fi replace. Plug in the battery. Figure 12.2. Be sure the bolts
securing the unit in place are installed and secured.
Left Side
Firebox Door
Battery Plug In
Ash Door
Figure 12.2
Operating on Battery Back-Up
• A battery icon appears on your wall control to let you
know you are now operating on battery power. Figure
12.3
• The fi re must be manually lit as the appliance will no
longer automatically light. Follow the instructions in the
Wall Control Manual.
• Use only approved fi re starting gel to start the fi re.
• The high burn rate is no longer available on battery
back-up.
• Each level drops down one level, i.e the high burn be-
comes medium-high burn and so on.
• If the battery charge falls below 10 volt it can no longer
sustain the appliance operation and the appliance will
shut down. You must disconnect and reconnect the battery to start it up again.
Recommended Battery
• 12 volt deep cycle battery, (i.e., marine or RV type).
• A 12 volt battery cable is available through your local
dealer.
13 Volts
12 Volts 11 Volts
Battery
Below
10 Volts
Figure 12.3
Page 12
7051-158B
December 6, 2011
R
K. Battery Back-up System (Cont’d)
Wall Control Display
The wall control will display the battery icon when operating in
the battery back-up mode. Figure 13.1.
“Maint Burn” will display when
the thermostat has reached the
set room temperature and will
run on low until it reaches its
auto-clean cycle time.
EDGE 60 Pellet Fireplace
MAINT BURN
12:30 PM
Set at: 73
73
MENU
Battery icon.
Figure 13.1
L. Clear Space
WARNING! RISK OF FIRE! Do NOT place combustible
objects in front of the appliance. High temperatures may
ignite clothing, furniture or draperies. Maintain a minimum
clearance of 3ft in front of appliance.
Mantel:
objects on mantel or hearth. Heat may damage these
objects.
Avoid placing candles and other heat-sensitive
HEAT OUTPUT
NOTICE: Clearances may only be reduced by means ap-
proved by the regulatory authority having jurisdiction.
WARNING! RISK OF FIRE! Keep combustible materials,
gasoline and other fl ammable vapors and liquids clear of
appliance.
• Do NOT store fl ammable materials in the appliance’s
vicinity.
• Do NOT use gasoline, lantern fuel, kerosene, charcoal
lighter fl uid or similar liquids to start or “freshen up” a fi re
in this heater.
Keep all such liquids well away from the heater while it is in
use as combustible materials may ignite.
December 6, 2011
7051-158B
Page 13
EDGE 60 Pellet Fireplace
R
3
Maintaining & Servicing Your Appliance
A. Proper Shutdown Procedure
• Set wall control to OFF on AUTOMATIC / MANUAL SETTING screen. Figure 14.1.
• Wall control screen will scroll through the following messages after setting to OFF.
• Shutdown
• Auto-Clean
• Off
Approximately 45 minutes after setting the wall control to
OFF, the appliance should be cool enough to touch. If so,
now you can turn the power switch to OFF and pull the
appliance foward on the rails.
There is an interlock switch next to the power switch that as
you slide the appliance out it will ensure the auto-clean system
and the auger will not run, but the blowers will operate.
After servicing, restart with the AUTO/MANUAL SETTINGS
screen. Figure 14.1.
B. Quick Reference Maintenance Chart
Before Servicing Your Appliance
CAUTION! SHOCK AND SMOKE HAZARD!
• Proper Shutdown Procedure must be followed.
• Smoke spillage into room can occur if appliance is not
cool before turning off power switch.
• Risk of shock if appliance is not turned off before servicing appliance.
Automatic
Manual
Off
Figure 14.1
Follow the detailed instructions found in this
section for each step listed in the chart below.
Cleaning or Inspection
Frequency Daily Weekly Every 2
Monthly Yearly
Weeks
Ash Pan - Burning Wood Pellets Every 5 bags of fuel OR X
Ash Pan - Burning Alternate Fuels Every 1 bag of fuel OR X
Ash Removal from Firebox More frequently depending on the
fuel type or ash build-up
Auto-Clean Inspection More frequently depending on the
fuel type
Blower, Combustion (Exhaust) More frequently depending on the
fuel type
Blower, Convection More frequently depending on the
operating environment
Door Latch Inspection Prior to heating season OR X
Firebox - Prepare for Non-Burn Season At end of heating season OR X
Firepot - Burning Softwood Pellets Every 5 bags OR X
Firepot - Burning Hardwood Pellets Every 3 bags OR X
Firepot - Burning Alternate Fuels Every 1 bag OR X
Glass When clear view of fi repot
becomes obscured
Heat Exchanger & Drop Tube Every 1 ton of fuel OR X
Hopper Every 1 ton of fuel or when chang-
ing fuel types
Venting System More frequently depending on the
fuel type
OR X
OR X
OR X
OR X
OR X
OR X
OR X
Page 14
NOTICE: These are recommendations. Clean more frequently if you encounter heavy
build-up of ash at the recommended interval or you see soot coming from the
vent. Not properly cleaning your appliance on a regular basis will void your
warranty.
7051-158B
December 6, 2011
R
EDGE 60 Pellet Fireplace
C. High Ash Fuel Content Maintenance
• Frequency: When the ash build-up exceeds the half
way point in the fi repot
• By: Homeowner
If the ash build-up exceeds the half way point in the fi repot
before it automatically cleans, then the fi repot is not being
cleaned often enough.
Another symptom is if clinkers are adhering to the sides of
the fi repot.
Double check the wall control to ensure the proper setting
has been selected for the fuel you are burning. If that is correct, change the setting to “Utility Pellet”.
NOTE: You will need to empty the ash pan more frequently if using the “Utility Pellet” setting.
WARNING! Risk of Fire and Smoke!
• High ash fuels or lack of maintenance can cause fi repot to
overfi ll. Follow proper shutdown procedure if ash buildup
exceeds half way point in fi repot.
• Failure to do so could result in smoking, sooting and possible hopper fi res.
Pull fireplace toward you until
fully extended
Slide Rails
Figure 15.3
Attachment brackets shown in open position.
Fireplace is not secure and can roll forward
on the rails. Also the exhaust gaskets are
not sealed properly and combustion leakage
will occur.
Pellets Back-Up
in Feed Tube
Firepot Overfills
Ash Build-Up in Firebox
Figure 15.1
D. Accessing Components for Maintenance
Follow the proper shutdown procedure found on page 14.
1.
2. Remove the Front. Lay it on a soft surface to prevent
scratching.
3. Remove both bolts located on each lower side of the fi replace with a Phillips head screwdriver or socket wrench
and set aside. Figure 15.2.
4. Pull the fi replace towards you until fully extended. Figure
15.3.
One bolt located on each side of fireplace
Figure 15.2
Brackets separated
Figure 15.4
Attachment brackets are tightly fastened to one another so
fireplace is secure and will not roll forward on the rails. It also
ensures the exhaust gaskets are sealed properly to prevent
combustion leakage.
Figure 15.5
5. Components are now exposed for service.
6. Slide the fi replace back into the outer can. Re-attach the
bolts ensuring that the attachment brackets are securely
fastened. This will prevent the fi replace from unexpectedly sliding out on the rail system. Figures 15.4 and
15.5.
7. Double check the bolts and brackets are correctly
positioned to ensure the exhaust gaskets are properly sealed to prevent combustion leakage.
December 6, 2011
7051-158B
Page 15
EDGE 60 Pellet Fireplace
E. General Maintenance and Cleaning
1. Auto-Clean System Inspection & Cleaning
• Frequency: Monthly or every ton (aprx. 50 bags) or
more frequently depending on the type of fuel
• By: Homeowner
a. Be sure the wall control screen says OFF, the appliance
is allowed to cool and the power switch is in the OFF
position.
b. Open the Front and fi rebox door. Inspect the auto-clean
springs: (See item #33 on Figure C on page 57 for the
location of the springs).
• Inspect for any degradation or deformation
• As the springs heat up and cool down they can lose
tension
• If there is a gap showing above the fi repot bottom,
approximately 1/16 inch (1.59mm) or more, it means
the springs have lost their tension
• Lost tension can not keep the fl oor in the proper
position causing ignition problems and fuel falling
into the ash pan.
• Call your dealer to replace the springs.
c. Inspect the holes in the fi repot fl oor for any debris.
• The holes must be kept clear.
• Burning corn will cause the holes to fi ll with particles
and will need to be removed.
d. How often the fi repot cleans itself depends on:
• The type of fuel you selected on the thermostat wall
control
• How long the apliance burns before satisfying set point
on the the wall control.
• Burning biomass fuels may require a more thorough
cleaning during the burn season.
e. Excessive clinkers will eventually jam the auto-clean
system and generate an error message on the wall
control.
R
2. Cleaning Ash Pan
• Frequency: Wood Pellets: Weekly or every 3-5 bags
Alternate Fuel: Daily or every 1 bag
• By: Homeowner
a Locate the ash pan underneath the fi repot.
b. Slide the ash pan straight out.
c. Empty into a non-combustible container and re-install ash
pan.
d. When replacing ash pan push it back until it catches on
the 2 side latches.
e. Clinkers fi lling the ash pan will have to be cleaned out
more often than ash. See Disposal of Ashes.
3. Disposal of Ashes
• Frequency: As needed
• By: Homeowner
a. Ashes should be placed in a metal container with a tight-
fi tting lid.
b. The closed container of ashes should be placed on a
non-combustible fl oor or on the ground, well away from
all combustible materials, pending fi nal disposal.
c. If the ashes are disposed of by burial in soil or otherwise
locally dispersed, they should be retained in the closed
container until all cinders have been thoroughly cooled.
WARNING! RISK OF FIRE! Keep combustible materials,
gasoline and other fl ammable vapors and liquids clear of
appliance.
• Do NOT store fl ammable materials in the appliance’s
vicinity.
• Never use gasoline, gasoline-type lantern fuel, kerosene
charcoal lighter fl uid or similar liquids to start or “freshen
up” a fi re in this heater.
Keep all such liquids well away from the heater while it is in
use as combustible materials may ignite.
WARNING! RISK OF FIRE!
Do NOT store fuel:
• Closer than required clearances to combustibles to appliance.
• Within space required for loading or ash removal.
Figure 16.1
Page 16
7051-158B
WARNING
Handle glass doors with care.
• Inspect the gasket to ensure it is
undamaged.
• Do NOT strike, slam or scratch glass.
• Do NOT operate appliance with glass door
removed, cracked, broken or scratched.
December 6, 2011
R
4. Cleaning Heat Exchanger, Drop Tube & Exhaust
• Frequency: Monthly or every 1 ton of fuel (aprx. 50
bags).
• By: Homeowner
NOTE:
There are heavy duty vacuum cleaners specifi cally
designed for solid fuel appliance cleaning.
WARNING! Hopper Fire Risk!
For trouble free use of your pellet appliance you must perform cleaning as called for in these instructions. Not doing
so will result in:
• Poor operating performance
• Smoke spillage into the home
• Overheating of components
Not properly cleaning your appliance on a regular basis will
void your warranty.
Tools Needed: A Shop Vac and generic micro cleaning
kit; fl at head and Phillips screwdriver; 11/32 Nut-driver or
wrench.
EDGE 60 Pellet Fireplace
Figure 17.2
3.
Assemble the crevice tool from the micro cleaning kit
to attach to a Shop Vac. Figure 17.3.
Shop Vac* Example
Micro Cleaning Kit*
Example
* Can be purchased at your local hardware store.
1. It is necessary to remove the baffl e to gain access to the
heat exchanger. Follow instructions for baffl e removal
on page 50.
2. Vacuum the ash from the heat exchanger with an
upholstery brush to remove the majority of the ash. Be
sure to vacuum the back of the baffl e also. Inspect the
drop tube and remove any residue build-up in the drop
tube. Figure 17.1.
Figure 17.3
4.
U
se the crevice tool to fi nish cleaning the heat exchanger
fi ns. It is critical that the 2 exhaust exits at the back of the
fi rebox fl oor (left and right) be thoroughly cleaned. Figure
17.4. There are several ways this can done.
a. Use the crevice tool.
b. Attach a hose 1/2 inch (12.7mm) in diameter and
approximately 2 feet (607mm) in length to your vacuum
hose.
c. Use a bottle brush and push the ash down to the
bottom. Remove the combustion (exhaust) blower
and then vacuum out the ash.
Figures 18.1 and 18.2
on page 18.
Figure 17.1 - Example of a dirty heat exchanger
December 6, 2011
7051-158B
2 exhaust exits (left and right side) must
be thoroughly cleaned. Each exit is
approximately 4 inches wide, 1 inch
across and 3 inches deep.
Figure 17.4
Page 17
EDGE 60 Pellet Fireplace
R
Cleaning Heat Exchanger, Drop Tube & Exhaust (Cont’d)
5. The combustion blower must be removed to clean
the exhaust path. Follow the instructions on page 49
however you do not need to disconnect the wires.
a Vacuum out the exhaust area. Figure 18.2. You
may need to replace the gasket at this time also.
See Parts List for part number.
Use a brush to clean out the exhaust transition
b.
path.
5. Cleaning Firepot with Firepot Clean-Out Tool
• Frequency:
Softwood Pellets: Weekly or every 5 bags
Hardwood Pellets: Weekly or every 3 bags
Alternate Fuel: Daily or every 1 bag
• By: Homeowner
a. Be sure the wall control screen says OFF, the appliance
is allowed to cool and the power switch is in the OFF
position.
b. It may be necessary to use your fi repot clean-out tool
to chip away material that has built up on the sides of
the fi repot and to push out any clinkers.
• Larger clinkers may have to be removed from the
top of the fi repot.
•
• If the clinker adheres to the sides of the fi repot, you
c. After power is restored, the auto-clean system will
d. The firepot floor plate must be fully closed when
Corn clinkers can be especially diffi cult to break up
will need to manually clean the fi repot.
recycle and then clean itself.
fi nished.
.
Figure 18.1
Figure 18.2
Vacuum out the exhaust area.
Clinker
Figure 18.3 - Large Clinker
6. Ash Removal from Firebox
• Frequency: Weekly or more frequently depending on
ash build-up
• By: Homeowner
Be sure the wall control screen says OFF, the appliance
is allowed to cool and power switch is in the OFF
position.
There must not be any hot ashes in the fi rebox during
cleaning.
Frequent cleaning of the ash in the fi rebox with a vacuum
cleaner will help slow down the build-up of ash in the
exhaust blower and vent system.
Page 18
7051-158B
December 6, 2011
R
EDGE 60 Pellet Fireplace
7. Cleaning the Hopper
• Frequency: Monthly or after burning 1 ton of fuel
(aprx. 50 bags) or when changing fuel types
• By: Homeowner
a. Be sure the wall control screen says OFF, the appliance
is allowed to cool and the power switch is in the OFF
position.
b. After burning approximately 1 ton of fuel you will need to
clean the hopper to prevent sawdust and/or fi nes buildup.
b. A combination of sawdust/fi nes and pellets on the auger
reduces the amount of fuel supply to the fi repot.
c. This can result in nuisance shut downs and mis-starts.
• Empty the hopper of any remaining pellets.
• Vacuum the hopper and feed tube.
8. Cleaning the Glass
• Frequency: When clear view of fi repot becomes
obscure
• By: Homeowner
a. Be sure the wall control screen says OFF, the
appliance is allowed to cool and the power switch is
in the OFF position.
b. Clean glass with a non-abrasive commercially
available cleaner. Wipe down with dry towel.
Caution! Handle glass assembly with care. Glass is
breakable.
• Avoid striking, scratching or slamming glass
• Avoid abrasive cleaners
• Do not clean glass while it is hot
9. Door Latch Inspection
• Frequency: Prior to heating season
• By: Homeowner
The door latch is non-adjustable but the gasketing between
the glass and fi rebox should be inspected periodically to
make sure there is a good seal.
If the gasket is frayed or damaged, replace with a new
one.
10. Cleaning Exhaust Blower - Do Not Use
Lubrication
• Frequency: Yearly or as needed
• By: Homeowner
a. Be sure the wall control screen says OFF, the
appliance is allowed to cool and the power switch is
in the OFF position.
b. Use a soft brush and vacuum to clean the
propellers.
11. Cleaning Convection Blower - Do Not Use
Lubrication
• Frequency: Yearly or as needed
• By: Homeowner
a. Be sure the wall control screen says OFF, the appliance
is allowed to cool andthe power switch is in the OFF
position.
b. Use a soft brush and vacuum to clean the
propellers.
12. Preparing Firebox for Non-Burn Season
• Frequency: Yearly
• By: Homeowner
a. Be sure the wall control screen says OFF, the appli-
ance is allowed to cool andthe power switch is in the
OFF position.
b. Remove all ash from the fi rebox and vacuum thor-
oughly.
c. Paint all exposed steel, including cast-iron.
•
Use the Touch-Up paint supplied with the appliance;
or,
• Purchase paint from your local dealer
• Must use a high-temperature paint made specifi cially for heating appliances
d. Cleaning the fl ue at the end of the burn season will
prevent corrosives to build-up and damage the fl ue.
e. Outside temperatures should have no affect on the
performance of the appliance under freezing conditions.
13. Soot and Fly Ash: Formation & Need for Removal
in Exhaust Venting System.
• Frequency: Prior to each burn season and after pro-
longed shut down.
• By: Qualifi ed Service Technician/Homeowner
The products of combustion will contain small particles
of fl yash. The fl yash will collect in the exhaust venting
system and restrict the fl ow of the fl ue gases. Incomplete combustion, such as occurs during startup, shutdown, or incorrect operation of the room heater will lead
to some soot formation which will collect in the exhaust
venting system. The exhaust venting system should be
inspected at least once every year to determine if cleaning is necessary.
The venting system may need to be cleaned at least
once a year or more often depending upon the quality
of your fuel or if there is a lot of horizontal pipe sections.
Ash will build up more quickly in the horizontal sections.
December 6, 2011
7051-158B
Page 19
EDGE 60 Pellet Fireplace
R
14. Chimney Inspection and Cleaning..
• Frequency: Prior to each burn season and after pro-
longed shut down.
• By: Qualifi ed Service Technician/Homeowner
In order to properly clean your chimney you will need
the following items. Make sure you have a Correctly
sized chimney brush, chimney brush rods or rope and
pull rings (depending on method used), fi replace cover
(for use with an ash vacuum or to contain dust), protective covering for furniture and rugs, tape, metal bucket,
small shovel and broom, vacuum cleaner, and a powerful fl ashlight.
There are four common methods used to control the
brush for effective cleaning.
1. Flexible Rod Method, Top Down (Preferred
Method): Seal off fi replace or stove opening to prevent
soot from entering the home. For fi replaces a Fireplace
Cover is a great way to seal off the opening and allow
a vacuum cleaner to attach to keep the dust out of your
home. Attach the brush securely to the fl exible rod and
lower into the top of the chimney, add more rods as necessary to reach the fl ue bottom. Work the brush up and
down several times until the chimney is clean. Use a
powerful fl ashlight to look into the chimney to be sure
you have cleaned it completely.
Cover area around opening to prevent staining of rugs,
furniture, etc… Work the brush up and down several times until the chimney is clean. Use a powerful
fl ashlight to look into the chimney to be sure you have
cleaned it completely. Follow clean-up directions below.
For All Methods: Sweep or vacuum up all residues
prior to using stove or fi replace. Be especially careful
to check the debris behind the damper and smoke shelf
area, in elbows or “T” connections. Special hand held
chimney cleaning brushes are available to reach hardto-clean areas. Clean a wire bristle chimney brush after
use and coat with a rust preservative. During the burning season we highly recommend the use of Anti-CreoSoot or another creosote remover product to reduce the
build-up of creosote deposits.
2. Flexible Rod Method, Bottom-up: Insert brush and
rod up through the fi replace damper or chimney cleanout door. Add more rods as necessary to reach the top
of the chimney. This method is often messy since sealing the opening cannot be done during cleaning. Cover
area around opening to prevent staining rugs, furniture,
etc. Use a powerful fl ashlight to look into the chimney to
be sure you have cleaned it completely. Work the brush
up and down several times until the chimney is clean.
3. Line and Weight Method: Seal off fi replace or
stove opening to prevent soot from entering the home.
Securely attach a compact 20-pound (minimum) weight
to one end of the brush with one accessory pull ring and
attach a rope that is more than long enough to reach
the bottom of the fl ue, to the other brush end. Lower the
brush into the chimney and up again until the chimney is
clean. Use a powerful fl ashlight to look into the chimney
to be sure you have cleaned it completely.
4. Dual Line Method: This method requires two
people, one on the roof and one below at the clean-out
or fi replace opening. Attach one rope to each end of the
brush. Drop one rope down the chimney to the person
below. Cleaning is done by alternately pulling the ropes
to vigorously move the brush up and down in the fl ue.
This method is often messy since sealing off the opening cannot be done during cleaning.
Page 20
7051-158B
December 6, 2011
R
Troubleshooting for Homeowner
4
A. Frequently Asked Questions
ISSUES SOLUTIONS
1. Metallic noise
2. Ash buildup on glass
3. Glass has turned dirty
EDGE 60 Pellet Fireplace
1. Noise is caused by metal expanding and contracting as it heats
up and cools down, similar to the sound produced by a furnace or
heating duct. This noise does not affect the operation or longevity
of your appliance.
2. This is normal. Clean the glass.
3. Excessive build up of ash. The lower burn settings will produce
more ash, the higher burn settings produce less. The more it burns
on low the more frequent cleaning of the glass is required.
4. Fire has tall fl ames with black tails and is lazy
5. Excessive smokey start-up
6. Large fl ame at start-up
7. Mechanical Noise
NOTICE:
perature paint. Open windows for air circulation. Odors may be irritating to sensitive individuals.
Odors and vapors are released during initial operation due to the curing of high tem-
4. The fl ame height adjustment needs to be reduced or the fi repot
needs cleaning. Heat exchanger & combustion blower needs
cleaning.
5. Either the fi repot is dirty or there is too much fuel at start-up and not
enough air.
6. This is normal. Flame will settle down once the fi re is established.
Some smoke is normal.
7. The fl oor of the fi repot in the auto-clean system may make some
noise as it scrapes the ash into the ash pan.
December 6, 2011
7051-158B
Page 21
EDGE 60 Pellet Fireplace
B. Wall Control Error Codes
R
Error Message
SNAP DISC TRIPPED
AUGER JAMMED
MISSED IGNITION
MIN FIREPOT TEMP
MAX DROP TUBE TEMP
CHECK ASHPAN
SCREEN GOES BLANK
Possible Cause Corrective Action
Overheat sensor (snap disc) has tripped
Convection blower may need cleaning
Auger jammed, feed motor bad Use clean-out tool to clear jam.
Out of fuel or fuel has clumped together to form
a dam in hopper
Out of fuel Refi ll hopper
Wrong fuel table setting
Flame height set too high
Components may need cleaning
Auto-clean jammed Turn the power switch OFF and then back ON to
Static discharge or nearby lightening or Electric
Fast Transients at the input mains
Power switch in OFF position
Hopper lid not closed all the way. Close the lid. If that didn’t work the switch is out,
Turn power off to appliance and manually reset snap
disc then turn back on. If that doesn’t work, call your
dealer.
Clean convection blower if needed.
Empty hopper and look for foreign objects and
remove
Turn the power switch OFF and then back ON to
clear error code
Break up pellets that have clumped together
Refi ll hopper if fuel level is low
Add handful of pellets to fi repot
Confi rm setting matches burning fuel
Adjust fl ame height
Clean the fi rebox, heat exhanger, convection blower,
fi repot and ash pan. If problem persists, call your
dealer.
clear error code.
If ash pan is empty, check for a jam. Use the cleanout tool and fi rmly push in the fi repot fl oor holes and
fl ex spring and push toward home (closed position)
to release jam. If problem persists, call your dealer.
Wait 25 seconds and press any key. If the screen
does not come back on, call your dealer.
Turned to ON position.
call your dealer.
Page 22
Firebox door is not latched properly
Fireplace may not be rolled in completely
Slide Rail bolts may not be installed
Out of fuel Check fuel level, if OK the switch may be out, call
7051-158B
Check the latch, if OK the door switch may be out,
call your dealer.
If fi replace is completely rolled in, interlock switch
may be out, call your dealer.
Install bolts
your dealer.
December 6, 2011
R
Installer’s Guide
EDGE 60 Pellet Fireplace
5
Getting Started
A
.
Design, Installation & Location Considerations
1. Appliance Location
NOTICE: Contact local building or fire officials about
restrictions and installation inspection requirements in your
area.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult insurance carrier, local building inspector, fi re
offi cials or authorities having jurisdiction over restrictions,
installation inspection and permits.
It is a good idea to plan your installation on paper, using
exact measurements for clearances and fl oor protection,
before actually beginning the installation. Location of the
appliance and chimney will affect performance.
Consideration must be given to:
• Safety, convenience, traffi c fl ow
• Placement of the chimney and chimney connector and
to minimize the use of chimney offsets.
• Place the appliance where there will be a clear passage
for a Listed chimney through the ceiling and roof (vertical) or through exterior wall (horizontal).
• Installing the required outside air kit will affect the loca-
tion of the vent termination.
When locating vent and venting termination, the ideal loca-
tion is to vent above roof line when possible. This minimizes the affects of wind loading.
Since pellet exhaust can contain ash, soot or sparks, you
must consider the location of:
• Windows
• Air Intakes
• Air Conditioner
• Overhang, soffi ts, porch roofs, adjacent walls
• Landscaping, vegetation
• Horizontal or vertical vent termination
2. Floor Support
The supporting fl oor under the appliance must be able to
handle the weight of the fi replace, fuel load and the weight
of the chimney.
Ensure that your fl oor will suport these weights prior to installation. Add suffi cient additional support to meet this
weight requirment prior to installation. The weight of the
fi replace is 450 lbs and with a full hopper of fuel weighing
120 lbs, the total for the fi replace and fuel is 570 lbs.
WARNING! Risk of Fire Damaged parts could impair safe
operation. Do NOT install damaged, incomplete or substitute
components.
CAUTION!
If burning shelled fi eld corn, you must use ap-
proved venting specifi cally designed for corn to prevent
corrosion or degradation. Follow the instructions from the
venting manufacturer.
Location NOT recommended:
• Not the highest point of the roof
• Wind loading possible
Windward
Figure 22.1
December 6, 2011
Recommended:
Outside Air Intake
on windward side
Recommended Location:
• Above peak
Marginal Location:
• Below peak
Recommended:
• Insulated exterior chase
in cooler climates
Recommended Location:
• Above peak
• Inside heated space
Multi-level Roofs
7051-158B
Marginal Location:
• Wind loading possible
Location NOT recommended:
• Too close to tree
• Below adjacent structure
• Lower roof line
• Avoid outside wall
Leeward
NOT recommended:
Outside Air Intake
on leeward side
Page 23
EDGE 60 Pellet Fireplace
R
B. Thermostat Wall Control Location
The thermostat wall control’s location will have some affect
on the appliance’s operation.
• Maximum wire length from appliance is 100 feet (30.48m)
continuous unspliced wire. Recommended 20 gauge wire,
solid copper .
• When located close to the appliance, it may require a
slightly higher temperature setting to keep the rest of the
house comfortable.
• When located in an adjacent room or on a different fl oor
level, you will notice higher temperatures near the appliance.
CAUTION!
ance. No other wall control or thermostat can be substituted.
The wall control is an integral part of the appli-
C. Tools And Supplies Needed
Tools and building supplies normally required for installation.
Reciprocating Saw
Hammer
Phillips Screwdriver
Tape Measure
Plumb Line
Level
Framing Material
Hi-temp Caulking Material
Gloves
Safety Glasses
Wire Nuts
7/16 inch Socket Wrench
Framing Square
Electric Drill & Bits
Self-Tapping Screws
Outside Air Required
Class L or PL Pellet Vent
May also need:
Vent Support Straps
E. Checklist to Help Determine Location
Description
Vent termination location - vertical or horizontal
Venting clearances
Outside air location (3 options)
Electrical connection
Location of thermostat wall control
Clearance to combustibles
Mantel projection fuel loading clearances
Sidewalls, surrounds and trim clearances
Hearth extension fl oor protection
Height for loading fuel into hopper if installed on a
raised platform
Allow enough clearance to open front when
installing fi nishing material that protrodues
beyond the mounting frame.
Thickness of fi nishing material
Service space clearances
WARNING
DO NOT INSTALL IN SLEEPING ROOM
D. Inspect Appliance and Components
WARNING! Risk of Fire! Damaged parts could impair safe
operation. Do NOT install damaged, incomplete or substitute
components.
• Open the appliance and remove all the parts and articles
packed inside the Component Pack. Inspect all the parts
and glass for shipping damage.
• Report to your dealer any parts damaged in shipment.
•
All labels have been removed from the glass door.
•
Plated surfaces have been wiped clean with a soft cloth,
if applicable.
• Read all the instructions before starting the installation.
Follow these instructions carefully during the
installation to ensure maximum safety and benefi t.
• Follow pipe manufacturer instructions for installation
and air clearance requirments.
Page 24
7051-158B
December 6, 2011
R
EDGE 60 Pellet Fireplace
F. Recommended Sequence of Installation
NOTICE:
• Read and understand Sections 6 through 10 for detailed
information before installing the fi replace.
• Follow all clearances as specifi ed.
• The choice of fi nishing material and decorative front
must be determined before installation can begin as it
will determine the placement of the fi replace.
• Outside air is required on all installations and the Outside
Air Kit must be ordered separately.
Recommended Sequence
1. Identify the exhaust vent and outside air locations
and install necessary venting components including
wall thimble, fi re stop or roof fl ashing for a vertical termination. NOTE: Outside Air Kit must be
ordered separately.
2. Complete the framing.
3. Install the electrical junction box near the electrical
opening on the left side of the appliance. Maximum
distance of 9 inches (229mm) from appliance.
4. Identify the location of the wall control and run the
wire (25 ft [7.62 meters] in length) to the left side of
the appliance.
5. Prepare the fi replace for the exhaust vent adapter.
Install adapter, seal with high temp silicone and
screws and install all cover plates.
6. Preset the nailing fl anges depending on the thickness of your fi nishing material.
7. Ensure that fi replace is level before securing in
place. If not level the decorative front will not swing
out properly.
8. IT IS CRUCIAL FIREPLACE IS ROBUSTLY
SECURED. Slide the fi replace into place and
secure to the fl oor with the securing brackets and to
the wall. See page 33 for detailed instructions.
9. Attach the exhaust and outside air venting to the
appliance.
10. Hook up power and the wall control.
11. Slide the fi replace out on the rail system to validate
that it is secure and there is no defl ection in the
outer can.
12.
Slide the fi replace back into the outer can. Re-attach
the bolts and brackets. Double check they are correctly positioned to ensure the exhaust gaskets are
properly sealed to prevent combustion leakage.
13. A burn test must be performed before fi nishing
material is installed. (See Item “G”).
14. Install the fi nishing material.
15. Install the decorative front.
G. Items to Verify During Test Burn
• Check for leaks in the exhaust venting system. Do you
see any smoke?
Remember on a fi rst burn odors and vapors
are released due to the curing of the high temperature paint. The focus is on the venting
system.
• Check overall operation, are there any error codes on
the Wall Control?
• Confi rm that outside air is hooked up and properly sealed.
Is there cold air infi ltration?
WARNING
Crush Hazard!
To avoid tipping over, this
appliance must be securely
fastened to the fl oor.
• The fi replace must be secured in place as outlined in
Section 6 and 7.
• When servicing the fi replace, the fi replace slides
foward on the rail system.
• Tipping can occur if fi replace is not properly secured
to the fl oor.
December 6, 2011
7051-158B
Page 25
EDGE 60 Pellet Fireplace
R
6
Framing Dimensions & Clearances
A. Recommended Locations
61-1/2 in
(1563mm)
43-1/2 in
(1105mm)
61-1/2 in
(1563mm)
27-1/2 in
(699mm)
87 in
(2210mm)
27-1/4 in (692mm)
Outside Air, Right
& Left
See Section 8 for outside air
locations.
Outside Air Kit is REQUIRED for
all installations.
14-1/4 in (362mm)
Junction Box
30 in (762mm)
Recommended for
Service Space
27-1/2 in
(699mm)
10-1/8 in (257mm)
Top/Rear Vent & Rear
Outside Air
26-7/8 in
(682mm)
29-3/4 in
(756mm)
Top Vent
30 in (762mm)
Recommended for
Service Space
B. Hearth Extension
48 in
(1219mm)
Figure 25.1
30 in (762mm)
Recommended for
Service Space
27-1/2 in
(699mm)
30 in (762mm)
Recommended for
Service Space
30 in (762mm)
Recommended for
Service Space
27-1/2 in
(699mm)
30 in (762mm)
Recommended for
Service Space
WARNING
• Any hearth extension is to be installed as illus-
trated in Figure 25.2
• If employing a hearth extension, any parts or
materials used in construction must be noncombustible.
Figure 25.2
Page 26
E
D
D Floor protection hearth extension from
E Floor protection to the side of door
7051-158B
door opening
opening
Location Inches Millimeters
6 152
6 152
December 6, 2011
R
EDGE 60 Pellet Fireplace
NOTE
• It is necessary to use sealing strips of non-combustible
materials between the fi replace hearth and factory-built
hearth extension.
• The use of a sand-cement grout between the hearth
and an on-site constructed hearth extension is also
necessary.
C. Sealing at the Penetration of Building
Envelope
The fi rst step for successfully creating an air barrier system is to seal all of the holes in the building envelope. Too
often, builders concentrate on air leakage through windows, doors, and walls, and ignore areas of much greater
importance. A key source of leakage—called a bypass—is hidden from view behind chases for fl ues and ductwork. It
is important to make sure these areas are sealed to prevent leakage. A common way to seal areas behind chases for
fl ues and ductwork is to attach and caulk a piece of plywood or foam sheathing material that covers the entire opening.
Seal penetrations. If a fl ue requires a noncombustible clearance, use a noncombustible metal collar, sealed in place to
span the gap.
Sealing these bypasses is critical to reducing air leakage in a home and maintaining the performance of insulation materials.
D. Frame the Fireplace
Figure 26.1 shows typical framing using combustible materials (2x4 lumber shown).
• Framing across the top of fi replace must be above top standoffs.
• See page 33 for detailed information regarding sub-fl oor material requirements.
See Section 8 for outside air locations.
Outside Air is REQUIRED for all installations.
inches 27-1/2 30 38-1/4 7
mm 699 762 972 178
* If interior of chase will be drywalled, add the thick-
ness to this measurement.
** Adjust header height for a raised platform under
Header MUST NOT
be notched!
C
D
A
B
D = extra space needed
for securing fireplace to the floor
and for outside air connection if
it is installed on side of fireplace
fi replace, Taking into consideration the maximum
height allowed for loading fuel into the hopper.
A B* C** D
Figure 26.1 - Framing the Fireplace
December 6, 2011
7051-158B
Page 27
EDGE 60 Pellet Fireplace
E. Construct the Chase
R
You may enclose the vent system in a chase. See Figures
27.1 & 27.2.
1. Appliance and chimney enclosed in an exterior chase.
2. Chimney offset through exterior wall and enclosed in chase.
3. Chase constructed on roof on non-combustible material.
Note: In cooler climates, all chase walls should be insulated.
1
2
3
Figure 27.1- Chase Constructions
• Check local/regional building codes for compliance.
• Construct ouside wall of chase as you would the outside
walls of the building to prevent cold air drafting problems.
The chase should not break the outside building envelope
in any manner. All outer walls need to be insulated.
• Install vapor and air infi ltration barriers per local/regional
building codes.
• Holes and other openings should be caulked with high
temperature caulk or fi lled with unfaced fi ber glass
insulation.
COOLER CLIMATES
• In cooler climates, Hearth & Home Technologies Inc.
recommends you insulate walls, ceiling, base plate,
cantilever fl oor. Use batt type insulation between the
joists.
• Place a sheet of plywood or a raised platform on
cement slab under appliance only. You need to secure
the appliance to the cement slab so do not extend the
plywood so as to interfer with the attachment.
• A fi restop spacer should be installed in an insulated
false ceiling at the 8 ft. (2.4m) level above the fi replace
assembly. This reduces heat loss through the chase. It is
required that fi restops be installed every 10 ft (3.05m) to
control spread of fi re, but 8 ft is recommended to prevent
heat loss.
Termination Cap
Metal Chase Top
Ceiling
Firestop
False Ceiling
Attic
Tabs
Insulation
False Ceiling
Insulation
Shield
Ceiling
Firestop
Insulation
False Ceiling
Chimney
Insulation in the
outside walls
of the chase
Figure 27.2 - Chase Assembly
WARNING! You must install false ceilings and ceiling
fi restops at each fl oor of the chase or every 10 ft (3.05 m)
to control spread of fi re.
• Hearth & Home Technologies Inc. suggests you sheetrock
and tape (or use an equivalent method) all inside surfaces
of fi rst level for maximum air tightness.
WARNING! Risk of Fire!
You must maintain the pellet pipe
manufacturer’s minimum air space clearance to insulation
and other materials surrounding the chimney system.
• Insulation and other materials must be fi rmly secured
to prevent accidental contact with chimney system.
• Failure to prevent contact between insulation or other
materials and chimney system may cause overheating and fi re.
Page 28
7051-158B
December 6, 2011
R
EDGE 60 Pellet Fireplace
F. Finishing Material
NOTICE: Non-combustible material is not needed to fi nish
this appliance.
It is important that the fi nishing material is determined before
the appliance is secured to the fl oor. Depending on the fi nishing material and installation method, the appliance may
need to be positioned further in or out of the wall.
There are three ways fi nishing material can be applied:.
1. Behind the mounting frame
2. Flush with the mounting frame
3. Protrudes beyond the mounting frame
1. Behind the Mounting Frame
The mounting frame is designed to have a 1/2 inch (13mm)
overlap on the sides and the top of the framing opening.
Figure 28.1.
Finishing Material Behind
the Mounting Frame
2. Flush with the Mounting Frame
The fi nish material can not be thicker than 1-1/2 inches
(38mm) to use this method. Figure 28.3.
• Set the nailing fl anges for sheet rock thickness and
install the appliance.
• Install the mounting frame.
• Install the fi nishing material to edge of the mounting
frame.
Finishing Material Flush
with Mounting Frame
Mounting Frame
Figure 28.3.
Mounting Frame
Figure 28.1.
Positioning the nailing fl anges:
• Slide the nailing fl anges all the way to the front and this
will set the appliance for 1/2 inch (13mm) sheet rock.
• If tile, marble or other fl at surface fi nish material is desiered and you want the mounting frame to cover the cut
edge, set the nailing fl anges at a dimension of the sheet
rock thickness plus the fi nishing material thickness.
Figure 28.2.
Example: Sheetrock = 1/2 inch (13mm)
Finish Material = 3/8 inch (9.5mm)
Move fl ange: 7/8 inch (22.5mm)
Front of Fireplace
Adjustment Screw
Adjustable Nailing Flange
7/8 in
(22.5mm)
Figure 28.2
3. Protrudes Beyond the Mounting Frame
This method is mainly used for a brick or stone installation. When fi nishing material is protrudes of the mounting
frame and front, there must be a 1-1/4 inch (32mm) airfl ow
clearance in front of the mounting frame. Figure 28.4.
Finishing Material Beyond Door Frame
Masonry Spacer
Door Frame
Maintain 1-1/4 inch (32mm) air
clearance in front of door frame
Figure 28.4.
Use the masonry spacer supplied with the Front to position
the fi nishing material at the proper dimension. Remember
to keep the Front opening clearances in mind when fi nishing
material is protrudes of the Front. (See pages 29-30) .
• Set the nailing fl anges for sheet rock thickness and
install the appliance.
• Install the mounting frame.
• Install the fi nishing material to edge of the mounting
frame.
• Complete the installation following all specifi ed clearances to combustibles.
December 6, 2011
7051-158B
Page 29
EDGE 60 Pellet Fireplace
G. Front Opening Clearance
R
Curved Front
Tuscan Front
TOP VIEW
Drywall
Finishing Material
Opening Clearances for the Curved,
Tuscan and Natural Fronts
*Note: The Masonry Spacer is used
when the finishing material is brick or
stone or any material that is proud to
the mouting frame. See page 28 for
details.
9 in
(229mm)
(165mm)
8 in
(203mm)
6-1/2 in
5-1/2 in
(140mm)
3-1/2 in
(89mm)
Nailing Flange
3 in
(76mm)
Natural Front
Masonry Spacer
1-1/4 in
1/2 in
(32mm)
(13mm)
3-1/2 in (89mm)
4 in (102mm)
4-1/2 in (114mm)
5 in (127mm)
Appliance
*
Mounting
Frame
Edge of
appliance
outer skin
Figure 29.1
Page 30
Mantel Leg
7051-158B
5-1/2 in (140mm)
6 in (152mm)
December 6, 2011
R
G. Front Opening Clearance (Cont’d)
EDGE 60 Pellet Fireplace
Studio Front
TOP VIEW
Drywall
Finishing Material
Opening Clearances
for the Studio Front
*Note: The Masonry Spacer is used
when the finishing material is brick or
stone or any material that is proud to the
mounting frame. See page 28 for
details.
Nailing Flange
9 in (229mm)
Masonry Spacer
1/2 in
(13mm)
Appliance
*
Mounting Frame
5-1/4 In (133mm)
7-1/2 In (190mm)
Edge of appliance
outer skin
Figure 30.1
December 6, 2011
Mantel Leg
7051-158B
Page 31
EDGE 60 Pellet Fireplace
H. Mantel Fuel Loading Clearances
NOTE: Be sure to consider the process of loading fuel when choosing and locating a mantel.
R
Drywall
9 in (229mm)
8 in (203mm)
7 in (178mm)
6 in 152mm)
5 in (127mm)
4 in (102mm)
3 in (76mm)
2 in (51mm)
1 in (25mm)
1/2 in (13mm)
Masonry Spacer
Finishing Material
2-1/2 in
(64mm)
1-1/4 in
(32mm)
3-1/2 in
(89mm)
24 in (610mm)
(1:1 rise to run ratio)
4-1/2 in
(114mm)
6-1/2 in
(165mm)
5-1/2 in
(140mm)
7-1/2 in
(191mm)
Mantel
8-1/2 in
(216mm)
10-1/2 in
(267mm)
9-1/2 in
(241mm)
74 in
(1880mm)
to Floor
Figure 31.1
Page 32
Appliance
Side View
7051-158B
Floor Line
December 6, 2011
R
I. Non-Combustible Materials
• Materials which will not ignite and burn, composed of any
combination of the following:
- Steel - Iron
- Brick - Tile
- Concrete - Slate
- Glass - Plasters
• Materials reported as passing ASTM E 136, Standard
Test Method for Behavior of Metals, in a Vertical Tube
Furnace at 750° C.
• Non-Combustible Sealant Material
- Sealants which will not ignite and burn:
- Rutland, Inc. Fireplace Mortar #63,
- Rutland 76R,
- Nufl ex 304,
- GE RTV106 or GE RTB116 (or equivalent).
J. Combustible Materials
EDGE 60 Pellet Fireplace
• Materials made of or surfaced with any of the following
materials:
- Wood
- Plant fi bers
- Plastic
- Compressed paper
• Any material that can ignite and burn; fl ame proofed or
not, plastered or un-plastered
WARNING! Risk of Fire! You must maintain
clearances.
• Do NOT cover metal fi replace front with combustible
materials.
• Install combustible materials only to specifi ed clearances
on top front, sides and back edges.
December 6, 2011
7051-158B
Page 33
EDGE 60 Pellet Fireplace
Installation of Fireplace
7
Caution! Risk of Cuts/Abrasions. Wear protective
gloves and safety glasses during installation. Sheet
metal edges are sharp.
A. Position the Fireplace
• Place the fi replace on a continuous fl at surface or install on a
raised platform.
• Follow framing instructions in Section 6.
WARNING! Risk of Fire! Prevent contact with sagging, loose
insulation.
• DO NOT install against vapor barriers or exposed insula-
tion.
• Secure insulation and vapor barriers.
• Provide minimum air space clearances at the sides, top
and back of the fi replace assembly as outlined in Section 6
B. Sub-Floor Material & Securing Fireplace
NOTE: Finish material and installation method must be selected
before securing the fi replace to the fl oor.
be turned around so the longer fl ange attaches to the fl oor. We
recommend that the brackets are turned around for a concrete
attachment. Figure 33.1.
There are 4 holes on each fl ange. Secure each fl ange with 2
bolts. Choose the holes that best secures the fi replace to the fl oor.
Please note that you always want to include the washer on the
bolts that attach to the fl oor.
You can re-use the same bolts and washers that attach the fi replace to the pallet. However, there is also a full set of bolts and
washers included in the component pack.
After properly securing the fi replace to the fl oor, the 2 slide rail “L”
brackets that hold the rails in place for shipping may be removed
and discarded. Figure 33.2.
.
Front & rear bracket on each side
securing fireplace to pallet
R
WARNING
Crush Hazard!
To avoid tipping over, this
appliance must be securely
fastened to the fl oor.
Flooring Material Under Appliance:
Concrete subfl ooring is the most secure method. Follow the manufacturing instructions that come with the concrete anchor bolts for
properly securing fi replace to the concrete. In cooler climates place
a sheet of plywood or a raised platform on cement slab under appliance only. You need to secure the appliance to the cement slab so
do not extend the plywood so as to interfer with the attachment.
Wood Flooring
Non-Raised Hearth
Minimum 19mm thickness plywood of C-C plugged grade
•
or better exterior glue plywood.
Raised Hearth
• Minimum of 2 layers of 19mm thickness plywood of C-C
plugged grade or better exterior glue plywood.
• The raised base must be fi rmly secured to the house
framing members.
CDX or OSB plywood or particle board are not acceptable in
either installation.
Securing Fireplace
NOTE: Fireplace MUST be level before securing in place.
The fi replace is secured to the pallet with 4 brackets, 2 on each
side. Re-use these same brackets to secure the fi replace to the
fl oor.
The brackets are attached with the short fl ange attached to the
pallet and the long fl ange attached to the fi replace. These may
Page 34
7051-158B
Figure 33.1
“L” Shipping Bracket Holding
Rails in Place. One on each
side.
Figure 33.2
Testing for Defl ection & Removing Handles
Remove the 2 bolts from each lower side of the fi replace and slowly roll out the fi replace on the rail system.
Inspect attachment of brackets to the fl oor and fi replace to ensure
there is zero defl ection in the outer can when it is rolled out on the
rails.
CAUTION!
• If there is any defl ection, this could cause damage to the fi nishing material such as tile, mortar, etc.
• If fi replace is not properly secured, fi nishing materials will not be
covered under warranty.
Remove the lift handles as they could rattle if left in place. Reinstall the bolts in the fi rebox sides to prevent leaks after removing
the handles.
Slide the fi replace back into the outer can. Re-attach the bolts and
brackets. Double check they are correctly positioned to ensure
the exhaust gaskets are properly sealed to prevent combustion leakage.
Figure 34.1
December 6, 2011
R
EDGE 60 Pellet Fireplace
C. Junction Box & Wiring Diagram
Caution! The fi replace should be securely attached to the
fl oor prior to making fi nal electrical connections.
WARNING
Shock Hazard
• A grounded metal outlet power supply box is
required for all installations.
• Provides a positive ground path to earth for
outer can of the fi replace.
• Protects against possible electrical shock.
1. Disconnect power supply providing power to the outlet
box you intend to use.
2. The power supply cord is inside a 7-1/2 foot (2.29m)
long 3/8 inch (9.5mm) fl exible conduit cable located and
attached to the left side of the outer can. Figure 34.1.
The cable comes with an insulated snap-in connection.
3. Locate the metal outlet box within 7-1/2 feet (2.29m) of
the fi replace. (Note: Metal outlet box not supplied).
4.
Feed the power cord into the 1/2 inch (12.7mm) standard
knockout of the outlet box and then press the connection
into the metal outlet box.
5. The power supply cord has black, white and green wires
to connect to the outlet box.
Black wire: Connects to 120V AC 15-20 amp circuit
White wire: Connects to neutral wire
Green wire: Connects to ground wire and outlet box
6. Ensure the 2 green grounding wires are securely attached
to the grounding screw. Figure 34.2.
D. Connecting Wall Control To Fireplace
1. There is a 5 screw terminal connection bar that is located
in the lower left side of the fi replace above the slide rails.
Figure 34.3.
2. Route the 25 foot (7.62m) long white wall control wire that
is supplied in the component pack through the rubber
grommet in the left side of the fi replace outer can. Figure
34.1
3. The center 3 screws are for the thermostat wall control
wires and the 2 outer screws are mounting screws and
should not have wires attached to them.
The thermostat wires are color coded. The green wire
is on the top, the white in the middle and the red on the
bottom.
5. Attach the wall control wire to the thermostat wall control
Follow the directions on page 35. Do not pinch the control wires with any staples between the fi replace and wall
control. Figure 35.1 on page 35.
6. Bend back the 3 red spade connectors towards inside of
outer can and away from the fi replace. Wires should not
be in the way when the fi replace is rolled out on the rail
system.
Power Supply Cord inside 7.5 ft
(2.29m) Flexible Cable
Thermostat Wall Control Wire
Figure 34.1 - Power Supply Cord
and Wall Control Wire
December 6, 2011
White
Wires
Black
Wires
Grounding
Screw
Both Green Grounding Wires
Attach to Grounding Screw
Figure 34.2 - Metal Outlet Box
7051-158B
Green
White
Red
Fireplace Left Lower Front
Matching
Color Dots
Figure 34.3 - Terminal Connection Bar
Page 35
EDGE 60 Pellet Fireplace
R
E. Thermostat Wall Control Installation
NOTICE: The thermostat wall control should be mounted
on an inside wall and not in direct line with the appliance
convection air.
NOTICE: If the thermostat wall control is located too close
to the appliance, you may need to set the temperature setting
slightly higher to maintain the desired temperature in your
home.
Consideration should be given to the mounting material
when installing the wall control.
If mounting the wall control to a sheet rock surface you
should use the provided anchors for mounting.
If mounting the wall control to a wood surface or an electrical outlet box then the fasteners provided will suffi ce and
the anchors need not be used.
1. Remove the front cover of the wall control by prying the
cover off with a small screwdriver or your fi ngernail. Place
the front side to the packaging to protect it from damage
while installing the sub base.
2. Route the wires into the wall control leaving only the
amount necessary to make the connection to the terminal
block in the upper left hand corner remaining. The wires are
routed to the terminal block according to the letters printed
in the thermostat sub base.
Red at the top
Green in the middle
White at the bottom
3. Push as much extra wire as possible back into the wall
and seal the hole in the wall with putty or insulation.
4. When re-installing the cover make sure that the wire
routing does not interfere with any of the components.
Make adjustments as needed and snap cover back into
place making sure that all locking tabs snap into place.
F. Installing Flue Collar, Vertical or Horizontal
The fi replace ships from the factory without the fl ue collar
and gasket attached. They are located in the component
pack inside the fi rebox. Follow the steps below for a vertical
or horizontal installation.
Vertical Installation
1. Remove the fl ue collar and gasket from the component
pack. Push out the 6 slugs in the gasket.
2. Remove both the top and rear cover plates. Save screws
and plates for later re-attachment.
3. Place the orange fl ue gasket over the locating pins on
the exhaust fl ue transition on the back of the fi replace.
Figure 35.2.
4. Insert the fl ue pipe through the top cover plate.
5. Before inserting the fl ue collar into the pipe, liberally
silicone the end of the fl ue collar with Hi-Temp silicone
about 1-1/2 inches (38mm) wide. Figure 36.1 on page
36.
NOTE: You will need to install one section of 3 inch (76mm)
diameter vent pipe to clear the outer can cover plate before
installing a 3 to 4 inch (76-102mm) pellet pipe adapter for
the balance of the venting.
6. Lay the fi rst section of pipe on its side for screw attachment. The 2 screws need to be directly above the locating pins, 180 degrees apart. Figure 36.2 on page 36.
7. Drill holes through the pipe walls directly into the fl ue
collar. Attach screws through pipe into fl ue collar.
8. Carefully feed the fl ue collar and pipe through the outer
can top fl ue opening and guide the fl ue collar base plate
over the 2 locating pins. Secure with 4 screws provided
in component pack.
9. Re-attach the top cover plate to the top of the fi replace
and the rear cover to the back of the outer can. Figure
36.4 on page 36.
Top
Red Wire
Green Wire
White Wire
Bottom
Figure 35.1- Back Side of Wall Control with
Cover Off
Page 36
7051-158B
4 screws in outer corner holes
Locating Pins
Figure 35.2- Install Orange Flue Gasket
December 6, 2011
R
EDGE 60 Pellet Fireplace
Vertical Installation (Cont’d)
Pipe
Liberally silicone
all around flue
collar before
inserting into pip
e
Top Cover Plate
Figure 36.1
Drill Holes for Screws
above Locating Pins
X
Flue Collar
Horizontal Installation
1. Remove the fl ue collar and orange gasket from the component
pack. Push out the 6 slugs in the gasket.
2. Remove the rear cover plate. Save screws and plate for later
re-attachment.
3. Place the orange fl ue gasket over the locating pins on the
exhaust fl ue transition on the back of the fi replace. Figure
35.2 on page 35.
4. Position the fl ue collar over the gasket and secure in place.
Figure 36.5.
5.
Position the rear cover plate,secure in place. Figure 36.6.
6. Before placing the pipe over the fl ue collar, liberally silicone
the end of the fl ue collar with Hi-Temp silicone about 1-1/2
inches (38mm) wide.
7. Drill holes through the pipe walls directly into the fl ue collar
one on each side, 180 degrees apart. Screw the pipe to the
fl ue collar with 2 screws. Figure 36.7.
Locating Pins each Side
Locating Pin
on Each Side
Figure 36.2
Figure 36.3
Attach rear cover plate
with hole at the top and
secure in place.
Insert assemblied
pipe and flue collar
through top of outer
can and over gasket.
Secure in place
with 4 screws
Secure top
cover plate in
place.
Flue Collar in Horizontal Position
Figure 36.5
Secure pipe to flue collar with 2
screws, 180 degrees apart
Figure 36.7
Rear Cover Plate
Installed with Hole
at the Bottom
Figure 36.6
Liberally silicone flue collar
before placing pipe over collar.
Figure 36.4
December 6, 2011
7051-158B
Page 37
EDGE 60 Pellet Fireplace
Vent Information
8
A. Venting Termination Minimum Requirements
D
O
E
V
Inside Corner
G
V
A
R
V
N
Electrical
Service
N
V
N
V
N
V
H
P
Figure 37.1
L
V
B
C
FIXED
V
CLOSED
F
V
B
V
Termination Cap
OPEN
OPEN
V
B
X
Air Supply Inlet
V
FIXED
CLOSED
B
A
G
G
Gas Meter
M
I
V
Restricted Area
X
J or K
An Outside Air Kit is required on all installations. Outside Air Kit must be ordered separately.
A 12 in. Above Finish Grade (the grade surface
must be a non-combustible material
B 12 in. Open door or window: below or to the side
B 12 in. Open door or window: above
C 6 in. Permanently closed window: above, below
or to the side
D 18 in. Vertical clearance to a ventilated soffi t
located above the terminal within a horizontal distance of 2 ft from the center-line
of the terminal
E 12 in. Clearance to unventilated soffi t
F 12 in. Clearance to outside corner
G 12 in. Clearance to inside corner
H 36 in. Above gas meter/regulator measured from
horizontal center-line of regulator
I 36 in. USA
Clearance to service regulator vent outlet
72 in. Canada
J 12 in. Clearance to non-mechanical air supply
inlet to the building or the combustion air
inlet to any other appliance
K 10 ft horizontal
Clearance to mechanical air supply
3 ft vertical
L 7 ft.
Above paved sidewalk, paved driveway
located on public property
M 12 in. Under an open veranda, porch, deck or
balcony
N See Note
below*
Electric service: above, below or to the
side (location must not obstruct or interfere
with access)
O 24 in. Adjacent building, fences and protruding
parts of the structure
P 12 in. Clearance above roof line for vertical
terminations
*NOTE: Consult local building, fi re offi cials or authorities having
jurisdiction. Local codes or regulations may require different
clearances.
24 in. Above grass, top of plants, wood or any other com-
bustible
12 in. Clearance from any forced air intake of other appli-
ance
12 in. Clearance horizontally from combustible wall
15 in. Vented directly through a wall, minimum length of
horizontal pipe
12 in. horizontal
12 in. vertical
Minimum horizontal or vertical terminations must
protrude from wall
NOTICE:
Do NOT Terminate Vent:
• In any location that will allow fl ue gases or soot to enter
or stain the building.
• In any location which could create a nuisance or hazard.
• In any enclosed or semi-enclosed area such as a carport,
garage, attic, crawl space, under a sun deck or porch,
narrow walkway.
• Closely fenced area, or any location that can build up
a concentration of fumes such as a stairwell, covered
breezeway, etc.
NOTICE:
Termination must exhaust above air inlet elevation.
• It is recommended that at least 60 inches (1.52m) of vertical
pipe be installed when appliance is vented directly through a
wall. This will create a natural draft, which will help prevent
the possibility of smoke or odor venting into the home during
a power outage.
• It will also keep exhaust from causing a nuisance or hazard
by exposing people or shrubs to high temperatures.
• The safest and preferred venting method is to extend the
vent vertically through the roof or above the roof.
Page 38
7051-158B
December 6, 2011
R
EDGE 60 Pellet Fireplace
B. Avoiding Smoke and Odors
Negative Pressure, Shut-Down and Electrical Power
Failure
To reduce the probability of back-drafting or burn-back in
the pellet appliance during power failure or shut down conditions, it must be able to draft naturally without exhaust
blower operation.
Negative pressure in the house will resist this natural draft
if not accounted for in the pellet appliance installation.
Heat rises in the house and leaks out at upper levels. This
air must be replaced with cold air from outdoors which
fl ows into lower levels of the house.
Vents and chimneys into basements and lower levels of the
house can become the conduit for air supply and reverse
under these conditions.
Outside Air
An outside air kit is required in ALL installations. The Outside Air Kit must be ordered seperately.
Per national building codes, consideration must be given
to combustion air supply to all combustion appliances.
Failure to supply adequate combustion air for all appliance demands may lead to backdrafting of those and other
appliances.
Vent Confi gurations
To reduce probability of reverse drafting during shut-down
conditions Hearth & Home Technologies strongly recommends:
• Installing the pellet vent with a minimum vertical run
of 5 feet (1.52m). Preferably terminating above the
roof line.
• Installing the outside air kit at least 4 feet (1.22m)
below the vent termination.
To prevent soot damage to exterior walls of the house and
to prevent re-entry of soot or ash into the house:
• Maintain specifi ed clearances to windows, doors and
air inlets, including air conditioners.
• Vents should not be placed below ventilated soffi ts.
Run the vent above the roof.
• Avoid venting into alcove locations.
• Vents should not terminate under overhangs, decks
or onto covered porches.
• Maintain minimum clearance of 12 inches (305mm)
from the vent termination to the exterior wall. If you
see deposits developing on the wall, you may need
to extend this distance to accommodate your installation conditions.
When the appliance is roof vented (strongly recommended):
The air intake is best located on the exterior wall oriented towards the prevailing wind direction during the
heating season.
When the appliance is side-wall vented:
The air intake is best located on the same exterior wall
as the exhaust vent outlet and located lower on the wall
than the exhaust vent outlet.
The outside air supply kit can supply most of the demands
of the pellet appliance, but consideration must be given to
the total house demand.
House demand may consume the air needed for the appliance. It may be necessary to add additional ventilation to
the space in which the pellet appliance is located.
Consult with your local HVAC professional to determine the
ventilation demands for your house.
Optional Battery Back-Up
Hearth & Home Technologies supplies an optional battery
back-up system that operates the fi replace during power
failure conditions to prevent smoking. In shutdown mode,
the battery back-up will not prevent smoking. See Section
2 for details.
Hearth & Home Technologies assumes no responsibility for, nor does the warranty extend to, smoke damage
caused by reverse drafting of pellet appliances under shut
down or power failure conditions.
December 6, 2011
7051-158B
Page 39
EDGE 60 Pellet Fireplace
R
C. Negative Pressure
WARNING! Risk of Asphyxiation!
cause spillage of combustion fumes and soot.
Negative pressure results from the imbalance of air available for the fi replace to operate properly. It can be strongest
in lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water heaters
and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
Negative pressure can
D. Draft
Draft is the pressure difference needed to vent fi replaces
successfully. When a fi replace is drafting successfully, all
combustion byproducts are exiting the home through the
chimney.
Install through the warm airspace enclosed by the building
envelope. This helps to produce more draft, especially during lighting and die-down of the fi re.
Considerations for successful draft include:
• Preventing negative pressure
• Location of fi replace and chimney
NOTICE: Hearth & Home Technologies assumes no
responsibility for the improper performance of the chimney
system caused by:
• Inadequate draft due to environmental conditions
• Downdrafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
To minimize the effects of negative air pressure:
• Install the outside air kit with the intake facing prevailing
winds during the heating season
• Ensure adequate outdoor air for all combustion appliances
and exhaust equipment
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the fi replace
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and seams
taped or sealed
Page 40
7051-158B
December 6, 2011
R
EDGE 60 Pellet Fireplace
E. Chimney and Exhaust Connection
CAUTION!
• DO NOT CONNECT THIS UNIT TO A CHIMNEY
FLUE SERVING ANOTHER APPLIANCE.
• DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING SYSTEM OF THIS UNIT.
1. Chimney & Connector: Use 3 or 4 inch (76-102mm)
diameter type "L" or "PL" venting system. It can be vented
vertically or horizontally.
2. Mobile Home: Approved for all Listed pellet vent. As
with all installations a Quadra-Fire Outside Air Kit must
be used with manufactured home installations.
3. INSTALL VENT AT CLEARANCES SPECIFIED BY THE
VENT MANUFACTURER.
4. Exhaust Venting System: Secure to the appliance with
at least 2 screws 180 degrees apart. Also secure all
connector pipe joints with at least 3 screws through each
joint.
WARNING! RISK OF FIRE!
• Only LISTED venting components may be used.
• NO OTHER vent components may be used.
• Substitute or damaged vent components may impair
safe operation.
WARNING
Vent surfaces get HOT, can cause burns
if touched. Non-combustible shielding or
guards may be required.
WARNING! RISK OF INJURY OR PROPERTY
DAMAGE!
• Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
• Refer to the owner’s information manual provided with this
appliance.
• For assistance or additional information consult a qualifi ed
installer, service agency or your dealer.
NOTE: All pipe must be welded seam pipe whenever
possible. Seal pipe joints with high temperature silicone
(500°F [260°C] minimum rated only).
NOTE: If burning shelled fi eld corn, you must use
approved venting specifi cally designed for corn. Follow
the instructions from the venting manufacturer.
F. Equivalent Feet of Pipe
The table below can help you calculate the equivalent feet
of pipe which is a method used to determine pellet vent size.
Figure 40.1.
Example of 3 Elbow-Rear Vent Termination Calculation
2 ft.
3 ft.
2 ft.
Pellet Venting
Component
90o Elbow or Tee
45o Elbow
Horizontal Pipe
Vertical Pipe
# of
Elbows
Feet of
3X5 15
Multiplied ByEquivalent
Pipe
X 3
7X 1 7
2X 0.5 1
Total Equivalent Feet 23
Feet
Equivalent Feet
Components
Figure 40.1
December 6, 2011
2 ft.
7051-158B
Note: This is a generic example and is not
intended to represent any specifi c fuel type.
Page 41
EDGE 60 Pellet Fireplace
G. Pipe Selection Chart
The chart will help you in determining proper venting size
according to the equivalent feet of pipe calculated previously
and the altitude above sea level of this installation.
Figure 41.1.
a. Locate the calculated equivalent feet of pipe on the verti-
cal left side of the chart.
b. Move to the right horizontally on the chart until you reach
your altitude above sea level.
R
WARNING! RISK OF FIRE!
Do NOT pack insulation or other combustibles between
fi restops.
• ALWAYS maintain specifi ed clearances around venting
and fi restop systems.
• Install fi restops as specifi ed.
Failure to keep insulation or other material away from vent
pipe may cause fi re.
c. If you fall below the diagonal line, 3 or 4 inch (76 to
102mm) pipe may be used.
d. If it is anywhere above the diagonal line, a 4 inch (102mm)
diameter pipe is required.
NOTICE:
• A 90° elbow is 5 times as restrictive to the fl ow of exhaust
gases under positive pressure as 1 foot (305mm) of horizontal pipe.
• A foot of horizontal pipe is twice as restrictive as a foot of
vertical pipe.
Example 1
Equivalent Pipe
Length In Feet
Example 2
30
20
10
4 in. (102mm) Diameter Pipe Only
WARNING
It is critical to have a working smoke detector
installed in the home of unit operation.
• Smoke alarms that are properly installed and
maintained play a vital role in reducing fi re deaths and
injuries. Having a working smoke alarm reduces the
chance of fi re related injuries..
WARNING
Products of combustion generate carbon monoxide and
different fuels generate different levels. Carbon monoxide
• Only use approved fuels in this appliance.
• Always keep door shut during operation. Operating this unit
with doors open can allow CO to leak into the home.
CO can kill you before you are aware it is in your home. At
lower levels of exposure, CO causes mild effects that are often
mistaken for the fl u. These symptoms include headaches,
dizziness, disorientation, nausea and fatigue. The effects of CO
exposure can vary greatly from person to person depending on
age, overall health and the concentration and length of exposure.
3 in. or 4 in. (76mm or 102mm) Diameter Pipe
0
1 2 3 4 5 6 7 8 9 10
ALTITUDE IN THOUSANDS OF FEET
Figure 41.1
Example 1: If the equivalent length of pipe is 23 feet (7m) with altitude
of 8,000 feet (2438m) you must use 4 inch (102mm) diameter type “L”
or “PL” vent.
Example 2: If the equivalent length of pipe is 12 feet (3.7m) with altitude
of 6,000 feet (1829m) you may use 3 or 4 inch (76 to 102mm) diameter
type “L” or “PL” vent.
Page 42
7051-158B
December 6, 2011
R
H. Outside Air Locations & Considerations
EDGE 60 Pellet Fireplace
Door
C
L
C
L
4-7/8 in.
(124mm)
1-3/4 in.
(44mm)
C
L
C
L
Outside Air
Left Rear Corner
Figure 42.1 - Outside Air Inlet Locations
NOTE: The fi replace ships from the factory with the left and right outside
air covers installed. Once the location for the outside air inlet has been
choosen, install the outside air covers over the two unused air inlets.
Door
C
L
C
L
Outside Air
Right Rear Corner
4-7/8 in.
(125mm)
1-3/4 in.
(44mm)
4-7/8 in.
(24mm)
Rear Vent
C
L
C
L
9-1/4 in.
(235mm)
Outside Air
Rear of Fireplace
NO
NO
Outlet blocked by
snow, leaves, etc.
Garage or
combustible
liquids storage
YES
Clear area
outside
house or in
“ventilated”
crawl space
Figure 42.2 - Outside Combustion Air Placement
NO
Attic space
NO
Outlet placed
higher than 3 ft
below the
termination cap
Fireplace
December 6, 2011
7051-158B
Page 43
EDGE 60 Pellet Fireplace
R
I. Outside Air Kit Installation
Outside air is required on ALL installations. The Outside Air Kit must be ordered seperately.
CAUTION! Risk of Fire or Asphyxiation! Do not draw
outside combustion air from wall, fl oor or ceiling cavity, or
enclosed spaces such as an attic or garage.
• Do not place outside air inlet close to exhaust vents
or chimneys. Fumes or odors could be drawn into the
room.
• Locate outside air inlet to prevent blockage from
leaves, snow/ice, or other debris. Blockages could
cause combustion air starvation.
Install Outside Air Kit
• Keep duct runs short and straight to minimize restriction.
• The outside air kit can be installed in three different
locations - the left or right side or from the back of the
fi replace. Figure 42.1 on page 42.
•
Locate the air inlet in a clear area, preferably into prevailing
wind during the heating season. Figure 42.2 on page 42.
• Install as shown in Figure 43.1.
• The air duct may be run vertically.
Included in Kit: 2 wire ties, 1 collar assembly, 1 termination cap assembly, 1 trim ring, fasteners.
NOTE: 3 Inch (75mm) Aluminum Flex Pipe Not Supplied.
Tools Needed: Phillips Head screwdriver; wire cutters;
hole saw or jig saw.
1. Measure distance from fl oor to air vent opening in appliance and mark location on wall.
Use saw to cut opening in wall.
• Cut a 3-1/2 to 4 inches (89-102mm) opening on inside
wall.
* Cut a 4 to 4-1/2 inches (102-114mm) opening on out-
side of house.
2. Use wire tie to secure fl ex pipe to collar assembly.
3. Slide trim ring over fl ex pipe and run pipe through wall.
4. Attach fl ex pipe (not supplied) to outside termination
cap with second wire tie.
5. Secure termination cap to outside surface.
6. Secure trim ring to the wall.
Collar
Wire Ties
Trim Ring
Termination Cap
Figure 43.1 - Outside Air Installation
3 inch Aluminum Flex
Pipe (not included)
Page 44
7051-158B
December 6, 2011
R
J. Vertical - Interior - Typical Installation
EDGE 60 Pellet Fireplace
6 in.
(152mm)
Min.
Flashing
Firestop
Termination
Cap
12 in.
(305mm)
Minimum
1 in. (25mm)
Minimum
*See Note
0 in. (0mm) to
Standoff
We recommend a minimum of 60 inches (1.52m) vertical, however above the eave is preferred.
Both installations are approved for mobile home installations. Must use 3 or 4 inch (76mm to 102mm) “L”
or “PL” Listed pellet venting or Listed double wall pipe
and Quadra-Fire Outside Air Kit in all installations.
Single wall pipe is approved for residential installations only.
*NOTE: Clearance to combustibles are for 1 inch
(25mm) clearance approved pellet pipe. If pellet pipe
has a 2 inch or 3 inch (51mm or 76mm) air clearance
to combustibles, increase the clearance from rear
standoff accordingly to meet pipe manufacturer clearance requirements
Non-combustible
Hearth Extension
Figure 44.1
0 in. (0mm) to Standoff
6 in. (152mm)
minimum
K. Through the Wall & Vertical - Exterior
Termination
Cap
Flashing
12 in.
(305mm)
minimum
Support
Bracket
every 60 in.
(1524mm)
Wall Thimble
Tee
Clean-out
Cover
December 6, 2011
Non-combustible
Hearth Extension
Figure 44.2
7051-158B
Page 45
EDGE 60 Pellet Fireplace
L. Through the Wall
R
Horizontal termination cap must be a minimum of 12 inches
(305mm) from the wall. Approved for mobile home installations.
Must use 3 or 4 inch (76mm-102mm) “L” or “PL” Listed pellet
venting and a Quadra-Fire Outside Air Kit in ALL installations.
Straight Out
(152mm)
Minimum
From Glass
Non-combustible
Hearth Extension
0 in. (0mm) to Standoff
6 in.
NOTE:
In Canada, where passage through a wall or partition of
combustible construction is desired, the installation shall
conform to CAN/CSA-B365
Horizontal
W all
Thimble
12 in.
(305mm)
Minimum
T ermination
Cap
Figure 45.1
NOTICE! See Section 8 “Avoiding Smoke and Odors” to minimize soot
damage to exterior walls of the house and to prevent re-entry of soot or ash
into the house for horizontal vent confi guration
45 Degree
Illustration shows venting going in both directions.
Choose which one is best for your installation.
12 in. (305mm)
Minimum
Wall
Thimble
12 in. (305mm)
Minimum
1-1/6 in.( 27mm)
Minimum
Page 46
Figure 45.2
1-16 in.
(27mm)
Minimum
7051-158B
December 6, 2011
R
EDGE 60 Pellet Fireplace
9
1. An outside air intake must be provided for the combus-
Mobile Home Installation
WARNING! Risk of Asphyxiation!
• Never install in a sleeping room.
Consumes oxygen in the the room.
tion air and must:
• Remain clear of leaves, debris, ice and/or snow.
• Be unrestricted while the appliance is in use to prevent room air starvation which causes smoke spillage.
• Smoke spillage can also set off smoke alarms.
2. The combustion air duct system must be made of metal
and it must:
• Permit zero clearance to combustible construction.
• Prevent material from dropping into the inlet or into
the area beneath the dwelling.
• Must contain a rodent screen.
3. The appliance must be secured to the mobile home
structure by bolting it to the fl oor. See page 33 for
detailed instructions on securing fireplace to the
fl oor.
4. The appliance must be grounded with #8 solid copper
grounding wire or equivalent, terminated at each end
with an NEC approved grounding device.
5. Refer to Clearances to Combustibles and fl oor protection requirements in Section 6 for listings to combustibles and appropriate chimney systems.
6. Use silicone to create an effective vapor barrier at
the location where the chimney or other component
penetrates to the the exterior of the structure.
7. Follow the chimney manufacturer’s instructions when
installing the vent system for use in a mobile home.
8. I
nstallation shall be in accordance with the Manufacturers
Home & Safety Standard (HUD) CFR 3280, Part 24.
CAUTION
THE STRUCTURAL INTEGRITY OF THE MOBILE HOME
FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED
Do NOT cut through:
• Floor joist, wall, studs or ceiling trusses.
• Any supporting material that would affect the structural
integrity.
This unit is to be connected to a factory-built chimney
conforming to CAN/ULC-S629, Standard for 650°C
Factory-Built Chimneys.
For removal of the chimney for mobile home transporta-
tion, contact the proper transportation offi cials.
SparkArrestor Cap
Storm Collar
Roof Flashing
Joist Shield/Firestop
Figure 46.1
Approved Class L
or PL Pellet Vent
December 6, 2011
7051-158B
Page 47
EDGE 60 Pellet Fireplace
R
10
Appliance Set-Up
A. Optional Log Set Placement Instructions
2 PIECE LOG SET INSTALLATION
1. Place the left log as shown. There are 2 indentations in
the bottom of the log to fi t over the screw heads in the
fi rebox. Figures 47.1 and 47.2.
2. Place the right log in front of the 2 screw heads in the
fi rebox. Figures 47.3 and 47.4.
CAUTION! Logs are FRAGILE. Use extreme care when
handling or cleaning logs.
Left Log
Right Log
Log rests in front of screws
Figure 47.3
Log fits over screws
Figure 47.1
Log has indentations on the
bottom to fit over the screw heads.
Figure 47.2
Figure 47.4
NOTICE:
Due to the abrasive nature of a pellet appliance fi re, the logs
are not covered under warranty.
Any placement variation other than shown here can cause
excessive heat and shall void the appliance warranty.
Page 48
7051-158B
December 6, 2011
R
Installing Front onto Mounting Frame
B. Front - Installation
Included in Kit: Front, mounting frame, masonry spacer,
fasteners and glove
Tools Required: Phillips Head screwdriver
CAUTION! BURN HAZARD. Allow the front to cool
before touching. Do NOT touch without wearing protective
glove.
Installing Mounting Bracket on Fireplace
1. Use a Phillips Head screwdriver and attach the mounting frame to the face of the fi replace with 5 screws on
the top and bottom and 4 on each side. Figure 48.1
2. The front is attached to the mounting frame via the
hinges.
3. All 4 fronts are mounted the same way.
EDGE 60 Pellet Fireplace
Hinges Aligned
Figure 48.3
Front
Figure 48.1
Push Up on
Spring Loaded
Hinge Pin
Mounting
Frame
Figure 48.4
Push Locking Tab into
Place to Hold Hinge Pin
Hinge on Fireplace
Hinge on Front
Figure 48.2
December 6, 2011
Start with Bottom Hinge
Alignment and then Top
7051-158B
Locking Tab
Figure 48.5
Page 49
EDGE 60 Pellet Fireplace
R
11
Replacement Parts
A. Glass Replacement
WARNING! Risk of Injury!
• Glass is 5mm thick high temperature heat-resistant ceramic
glass.
• DO NOT REPLACE with any other material.
• Alternate material may shatter and cause injury
1. To remove the door:
a. Swing open the front.
b. Remove the door by lifting it off the hinge pins.
c. Lay on a fl at surface face down.
2.
Using a Phillips head screwdriver, remove 4 screws, 2
on the top and 2 on the bottom. Figure 49.1.
3. Remove metal bracket.
4. Remove the glass.
5.
Replace with new glass with gasket.
6. Re-attach metal bracket with 4 screws.
7. Re-install door over hinge pins and close front.
B. Combustion (Exhaust) Blower
Replacement
1. Follow the proper shut down procedures as outlined on
page 14, Section 3.A
2. The combustion blower is mounted in the lower right
rear of the appliance. Figure 49.2.
3. Use an 11/32 nut driver to loosen all six nuts, but do
not remove. Rotate the blower and remove from the
housing. Figure 49.3.
4. Disconnect the wires.
5. You will also need to replace the gasket, see Parts List
for part number.
6. Install replacement blower in reverse order and re-connect the wires.
Combustion Blower Located
Right Lower Side of Fireplace
Figure 49.1
Page 50
Remove 4 screws
Metal Bracket
Glass with Gasket
7051-158B
Combustion Blower
Figure 49.2
Loosen all 6 nuts, but do NOT Remove
Figure 49.3
December 6, 2011
R
EDGE 60 Pellet Fireplace
C. Convection Blower Replacement
1. Follow the proper shut down procedures as outlined on
page 14, Section 3.A.
2. Remove the 2 bolts from the bottom left and right side
of the fi replace and slide the fi replace out.
3. Locate the convection blower on the bottom left rear of
the fi replace. Reach behind the blower and release the
latch by pushing the top of the latch towards the blower.
Figure 50.1.
4. Rock the top of the blower slightly and lift up and out.
The blower will pass around the control board and out
the side of the fi replace.
5. Disconnect the wire harness from the bottom of the
blower by depressing the tabs on the sides of the connector and then pulling to remove.
6. Re-connect wire harness to the new replacement
blower. Install the blower by placing the bottom fl ange
into the opening fi rst then rotate blower up into position.
7.
When the blower is properly positioned the latch will engage
the notch to hold the blower in place. Figure 50.2.
8. Slide appliance back in position and re-install bolts.
Release the Latch
D. Baffl e Removal & Replacement
WARNING! Risk of Injury!
material. The baffl e is made of cast iron and therefore is
heavy and awkward at times to maneuver. Clear and prepare
your work area before you begin.
1. Follow the proper shut down procedures as outlined
on page 14, Section 3.A.
2. Open front and open fi rebox door.
3. The baffl e is located at the top inside of fi rebox.
4. To remove the baffl e:
a. Place a fl at head screwdriver into the slot of the
latches located in the upper corners. Figure
50.3.
b. Push down and the bottom of the latch will fall
forward off of the post.
c. Lift the baffl e up and then out toward you.
5. To replace the baffl e:
a.
Place the 2 locating ears behind the bottom edge.
b. Tilt the baffl e up and into place.
The baffl e must be centered in the fi rebox before
latching it in place.
c. If it is not centered the latch is trapped between
the baffl e and side of the fi rebox instead of latching properly.
d. The bottom of the latches will fi t over the posts.
e. Push the top of the latch forward to lock latch into
place.
Cast iron is a very heavy
Figure 50.1
Figure 50.2
December 6, 2011
7051-158B
Baffle
Latches
Insert flat head screw driver into “V”
section and push down and the bottom
of the latch will fall forward o ff of post
Figure 50.3
Locating ears - 1 on
each side. Fit behind
bottom edge.
Page 51
EDGE 60 Pellet Fireplace
12
Troubleshooting For Installers
R
With proper installation, operation, and maintenance your appliance will provide years of trouble-free service. This trouble-
shooting guide shall be used by a qualifi ed service technician
only).
Error Message
Bad wall control or control board
3 wires have loose connections or installed
wrong
BAD TC DROP TUBE
(TC = Thermocouple)
BAD TC FIREPOT
(TC = Thermocouple)
SNAP DISC TRIPPED Overheat sensor (snap disc) has tripped
VACUUM SW ERROR
(SW = Switch)
COMB BLOWER JAMMED Combustion blower is blocked/jammed Remove blockage
AUGER JAMMED Auger jammed, feed motor bad Pull the feed system and inspect
MISSED IGNITION Igniter bad or poor harness connection
MIN FIREPOT TEMP Out of fuel Refi ll hopper
MAX DROP TUBE TEMP Stove in over-heat condition
CONV BLOWER JAMMED Convection blower blocked/jammed Remove blockage
CHECK ASHPAN Auto-clean jammed
SCREEN GOES BLANK Static discharge or nearby lightning or
Drop tube thermocouple is broken or leads are
reversed
Firepot thermocouple is broken or leads are
reversed
Convection blower may need cleaning
Vacuum switch is bad
Vacuum hose is plugged/disconnected
Out of fuel or fuel is bridging in hopper
Faulty fi repot thermocouple connection has
shorted.
Flame height set too high
Components may need cleaning
Auto-clean switch is bad
Linkage has become disconnected
Electric fast transients at the input mains
Power switch in OFF position
Hopper lid not closed all the way
Switch is out of adjustment (auger will not
function)
Firebox door is not latched properly
Fireplace not rolled in completely
Slide rail bolts not installed
Out of fuel Check fuel level, if OK the switch may be
Possible Cause Corrective Action
Replace wall control or control board
Check connections
Check connections
Replace thermocouple
Check connections
Replace thermocouple
Turn power off to appliance and manually
reset snap disc then turn power back on
Clean convection blower if needed
Check connections. Bypass vacuum with
jumper wire, if runs, switch is bad. Replace
switch
Check vacuum hose
Replace blower if necessary
Turn the power switch OFF and then back
ON to clear the error
Clear jam and Press Retry
Check connections, if OK replace igniter
Break up bridging pellets. Refi ll hopper
Replace the thermocouple
Press Retry
Add handful of pellets to fi repot to prime it
Press Retry
Confi rm setting matches burning fuel
Adjust fl ame height
Clean the fi rebox, heat exchanger, convection blower, fi repot and ash pan
Replace blower if necessary
Turn the power switch OFF and then back
ON to clear the error
If ashpan is empty, check for a jam. Use a
screw driver and fi rmly push in the fi repot
fl oor holes and fl ex spring and push toward
home to release jam
Replace switch
Reconnect linkage
Wait 25 seconds and press any key to
refresh the screen.
Turn to ON position
Close the lid. If that didn’t work replace the
switch
Adjust or replace switch
Adjust or replace door switch
Replace interlock switch or magnet
Install bolts
out, replace switch
Page 52
7051-158B
December 6, 2011
R
EDGE 60 Pellet Fireplace
13
Reference Materials
A. Fireplace Dimensions
Front View
(shown without a Front)
Top View
26 in.(660mm)
9-1/4 in.
3/4 in.
(19mm)
(234mm)
Top Vent
Rear View
9-1/4 in.
3/4 in.
(19mm)
C
L
(235mm)
Rear Vent
29 in.
(737mm)
3/4 in.
(19mm)
37-1/2 in.
(953mm)
Outside
4-7/8 in.
(124mm)
1-3/4 in.
(44mm)
Air
C
26-7/8 in.
(682mm)
4-7/8 in.
(24mm)
9-1/4 in.
(235mm)
L
C
L
Left Side View Right Side View
Front
Front
Junction Box
C
L
C
C
L
C
L
L
14-1/4 in.
(362mm)
16-1/2 in.
(419mm)
Outside Air
1-3/4 in.
(44mm)
Outside Air
C
L
C
L
4-7/8 in.
(125mm)
C
L
21-3/8 in.
(543mm)
December 6, 2011
7051-158B
Page 53
EDGE 60 Pellet Fireplace
R
B. Component Functions
1. Auto-Clean Motor
Location: Behind and under the fi repot on the left side, inside
the convection air chamber
Function: It automatically opens and closes the fi repot fl oor
so ashes can fall into the ash pan.
2. Auto-Clean Switch
Location: On top of the auto-clean motor
Function: Communicates to the control board when the fi repot
fl oor is open and when the auto-clean system has completed
its cycle and is back in the home (closed) position.
3.
12 Volt Battery Back-Up Cable (Optional Accessory)
Location: Plugs into the appliance at the lower left front of
the appliance.
Function: An icon will display on the wall control when the
appliance has lost main power and is running on battery
back-up.
4. Combustion (Exhaust) Blower
Location: Mounted in the bottom right rear of appliance.
Function: Pulls the exhaust from the appliance and pushs it
out through the venting system.
5. Control Board
Location: Lower left side of appliance.
Function: Controls the functioning of the appliance and
communicates with the wall control. The control board can
only be opened by an authorized dealer.
6. Convection Blower
Location: Mounted at the bottom left rear of the appliance
Function: Pushes heated air through the heat exchange
system into the room.
7. Door Switch
Location: Mounted on the right side of the fi rebox behind
the door handle
Function: Senses when the door is open and will display an
icon on the wall control and will turn off the auto-clean system
and feed motor for safety.
8. Feed System
Location: On the right side of the appliance and can be
removed as an entire assembly. The assembly includes
the feed motor, mounting bracket, bearing and feed spring
(auger).
Function: The hollow feed spring (auger) pulls pellets up the
feed tube from the hopper area and drops them down the
feed chute into the fi repot
When describing the location of a component,
it is always AS YOU FACE THE FRONT OF
THE APPLIANCE.
9. Firepot
Location: Inside fi rebox and is made of high quality ductile
iron.
Function: The fl oor of the fi repot automatically opens for
cleaning and is operated by the auto-clean fi repot system.
The fl oor needs to return to a completely closed position or
the appliance will not operate properly.
10. Fuses
Location: One AC fuse and one DC fuse is located on the
inside of the control board and a third fuse is located in the
power supply. Figures 54.1 & 54.2 on page 54.
Function: The AC fuse operates the igniter and the DC
fuse operates all of the other components. The third fuse
protects the components in the power supply. A fuse will
blow should a short occur and shut off power to the appliance. The fuses can only be replaced by an authorized
dealer.
11. Heat Exchanger
Location: Behind the baffl e. Remove the cast iron baffl e
to access the heat exchanger.
Function: Transfers heat from the exhaust system into the
convection air chamber.
12. Hopper Lid Switch
Location: Lower front right side of appliance on the power
switch cover.
Function: Senses whether the hopper lid is open and dis-
plays an icon on the wall control and will turn off the feed
motor.
13. Interlock Switch
Location: Lower front right side of appliance behind power
switch.
Function: Causes the auger to stop functioning and will be
opened when the appliances slides are extended.
14. Igniter (Heating Element)
Location: Mounted on the base of the fi repot.
Function: Combustion air travels over the red hot igniter
creating super heated air that ignites the pellets or other
fuels.
15. Power Receptacle
Location: Lower rear of the appliance
Function: Check the wall receptacle for 120 volt, 60 Hz
(standard current). Make sure the outlet is grounded and
has the correct polarity.
Page 54
7051-158B
December 6, 2011
R
EDGE 60 Pellet Fireplace
16. Power Supply
Location: At the rear of the appliance
Function: Converts 120 volt AC current to 15 volt DC current to
power the appliance.
17. Power Switch
Location: Lower front right side of appliance
Function: Turns the power on and off to the appliance
18.
Overheat Sensor (Snap Disc)
Location: Mounted on the back of the drop tube in the center
of the appliance and has a reset button. Remove the right side
panel to access.
Function: If the fi re tries to burn back into the feed system or
push exhaust up the feed tube, this sensor will shut the appliance down, however the wall control will still display messages.
This sensor must be manually re-set. Disconnect power before
resetting.
19. Thermocouple - Firepot
Location: On top of the fi repot inside the thermocouple cover
(ceramic protection tube)
Function: Sends a millivolt signal to the control board telling the
control board there is a fi re in the fi repot.
20. Thermocouple - Drop Tube
Location: Bottom of the drop tube on the right side and
attached with a wing nut
Function: Turns the convection blower on and off, varies
the speed of the convection blower and will shut down
appliance if internal heat exceeds set temperature.
21. Vacuum Switch
Location: Right side of the appliance under the feed
motor behind right side panel and connects to the drop
tube with a hose
Function: Turns the feed system on when vacuum is
present in the fi rebox. The vacuum switch is a safety
device to shut off the feed motor if the exhaust or the
heat exchanger system is dirty, plugged or if the fi rebox
door is open.
22. Wall Control, Thermostat
Location: Interior wall of the home
Function: The appliance is designed to run on a custom
designed 3.3 volt DC thermostat wall control. It will not
operate on any other wall control. Refer to the instructions supplied with the appliance, located in the component pack.
23. Wiring Schematic for Power Supply
See Figure 54.1 below.
24. Wiring Schematic for Control Board
See Figure 54.2 below.
Fuse 15A 250V
(need to remove
120V AC in
cover)
Heat sinks are taped to cover for
shipping. Slowly lift cover and cut the
tape holding them in place and then
you can remove the cover.
120V AC out to
Control Board
15V DC out to
Control Board
Fuse 15A 120V,
under the cover
14
n/a
10111213
15 16
6
9
8
7
17
5
Fuse 15A 120V,
under the cover
Figure 54.1 - Power Supply Figure 54.2 - Control Board
Control Board Schematic
# Description # Description # Description
1 Combustion Blower 7 Thermostat Wall Control 12 Igniter
2 Auto-Clean System 8 Combustion Blower (feedback) 13 AC Power In for Igniter
3 Feed/Auger Motors 9 Firepot Thermocouple 14 Convection Blower Power
4 Hopper/Door Switches 10 Drop Tube Thermocouple 15 Overheat Sensor (Snap Disc)
5 Auger/Auto Clean/Vacuum Switches n/a Not Used 16 DC Power In from Power Supply
6 Low Fuel 11 Convection Blower (feedback) 17 12 Volt Battery Back-up
4
3
2
1
December 6, 2011
7051-158B
Page 55
EDGE 60 Pellet Fireplace
C. Component Locations
Exhaust
with Gasket
Convection
Blower
R
Hopper
Exhaust
Transition
Feed Motor
Battery
Backup
Outside Air Intake
w/Gasket (left side)
Figure 55.1 - View of Left Rear
One bolt located on each side of fireplace
Pull fireplace toward you until
fully extended
Combustion
Blower
Power
Supply
Figure 55.2 - View of Right Rear
Heat Exchanger,
Front & Back
Baffle
Figure 55.3 - Rail System
Page 56
Slide Rails
Figure 55.4
7051-158B
Ash Pan
Firepot
Thermocouple and
Thermocouple Cover
December 6, 2011
R
EDGE 60 Pellet Fireplace
F. Service And Maintenance Log
Date of Service Performed By Description of Service
December 6, 2011
7051-158B
Page 63
R
CONTACT INFORMATION:
Hearth & Home Technologies
1445 North Highway
Colville, WA 99114
Division of HNI INDUSTRIES
Please contact your Quadra-Fire dealer with any questions or concerns.
For the number of your nearest Quadra-Fire dealer
visit our web site at www.quadrafi re.com
NOTICE
DO NOT DISCARD THIS MANUAL
•
• Important operating and
maintenance instructions included.
•
Read, understand and
follow these instructions for safe installation and operation.
Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
We recommend that you record the following pertinent
information for your EDGE 60 PELLET FIREPLACE
Date purchased/installed:
Serial Number: Location on appliance:
Dealership purchased from: Dealer phone:
Notes:
