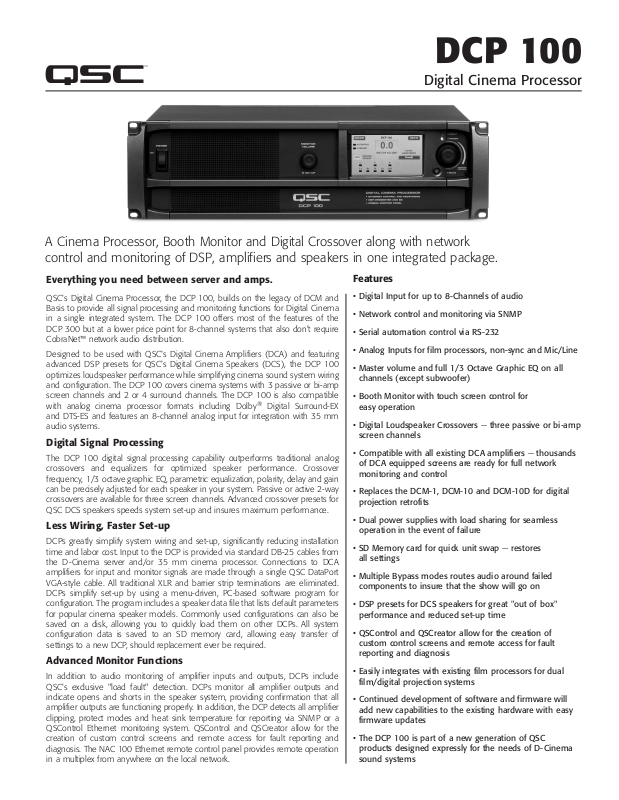

DCP 100

Digital Cinema Processor

A Cinema Processor, Booth Monitor and Digital Crossover along with network
control and monitoring of DSP, amplifiers and speakers in one integrated package.

Everything you need between server and amps.

QSC's Digital Cinema Processor, the DCP 100, builds on the legacy of DCM and
Basis to provide all signal processing and monitoring functions for Digital Cinema
in a single integrated system. The DCP 100 offers most of the features of the
DCP 300 but at a lower price point for 8-channel systems that also don’t require
CobraNet™ network audio distribution.

Designed to be used with QSC's Digital Cinema Amplifiers (DCA) and featuring
advanced DSP presets for QSC's Digital Cinema Speakers (DCS), the DCP 100
optimizes loudspeaker performance while simplifying cinema sound system wiring
and configuration. The DCP 100 covers cinema systems with 3 passive or bi-amp
screen channels and 2 or 4 surround channels. The DCP 100 is also compatible
with analog cinema processor formats including Dolby® Digital Surround-EX
and DTS-ES and features an 8-channel analog input for integration with 35 mm
audio systems.

Digital Signal Processing

The DCP 100 digital signal processing capability outperforms traditional analog
crossovers and equalizers for optimized speaker performance. Crossover
frequency, 1/3 octave graphic EQ, parametric equalization, polarity, delay and gain
can be precisely adjusted for each speaker in your system. Passive or active 2-way
crossovers are available for three screen channels. Advanced crossover presets for
QSC DCS speakers speeds system set-up and insures maximum performance.

Less Wiring, Faster Set-up

DCPs greatly simplify system wiring and set-up, significantly reducing installation
time and labor cost. Input to the DCP is provided via standard DB-25 cables from
the D-Cinema server and/or 35 mm cinema processor. Connections to DCA
amplifiers for input and monitor signals are made through a single QSC DataPort
VGA-style cable. All traditional XLR and barrier strip terminations are eliminated.
DCPs simplify set-up by using a menu-driven, PC-based software program for
configuration. The program includes a speaker data file that lists default parameters
for popular cinema speaker models. Commonly used configurations can also be
saved on a disk, allowing you to quickly load them on other DCPs. All system
configuration data is saved to an SD memory card, allowing easy transfer of
settings to a new DCP, should replacement ever be required.

Advanced Monitor Functions

In addition to audio monitoring of amplifier inputs and outputs, DCPs include
QSC's exclusive "load fault" detection. DCPs monitor all amplifier outputs and
indicate opens and shorts in the speaker system, providing confirmation that all
amplifier outputs are functioning properly. In addition, the DCP detects all amplifier
clipping, protect modes and heat sink temperature for reporting via SNMP or a
QSControl Ethernet monitoring system. QSControl and QSCreator allow for the
creation of custom control screens and remote access for fault reporting and
diagnosis. The NAC 100 Ethernet remote control panel provides remote operation
in a multiplex from anywhere on the local network.

Features

• Digital Input for up to 8-Channels of audio

• Network control and monitoring via SNMP

• Serial automation control via RS-232

• Analog Inputs for film processors, non-sync and Mic/Line

• Master volume and full 1/3 Octave Graphic EQ on all
channels (except subwoofer)

• Booth Monitor with touch screen control for
easy operation

• Digital Loudspeaker Crossovers — three passive or bi-amp
screen channels

• Compatible with all existing DCA amplifiers — thousands
of DCA equipped screens are ready for full network
monitoring and control

• Replaces the DCM-1, DCM-10 and DCM-10D for digital
projection retrofits

• Dual power supplies with load sharing for seamless
operation in the event of failure

• SD Memory card for quick unit swap — restores
all settings

• Multiple Bypass modes routes audio around failed
components to insure that the show will go on

• DSP presets for DCS speakers for great "out of box"
performance and reduced set-up time

• QSControl and QSCreator allow for the creation of
custom control screens and remote access for fault
reporting and diagnosis

• Easily integrates with existing film processors for dual
film/digital projection systems

• Continued development of software and firmware will
add new capabilities to the existing hardware with easy
firmware updates

• The DCP 100 is part of a new generation of QSC
products designed expressly for the needs of D-Cinema
sound systems

DCP 100

Front Panel Controls Relay outputs 6-pin Euro-style (x2) – outbound control

Power switch Rocker switch USB port Config and management interface

Mute control Push button QSControl and SNMP RJ45 10/100 Mbps network management

Auditorium fader Rotary encoder SD card receptacle Configuration memory card (1 GB min)

Monitor volume/parameter adjust Rotary encoder H.I. and V.I. impaired outputs

Menu-driven LCD Touch control LCD Output stage type Single ended (balanced Z)

Rear Panel Connectors Output impedance 50 Ohms

D-Cinema input DB-25 — AES3/EBU channels 1-8 Nominal output level -11.8 dBu (200 mVrms)

Audio formats 5.1, 5.1 EX, 7.1 DS Loading requirements Rmin = 2k Ohms, Cmax = 4nF

Analog input DB-25 — Analog audio channels 1-8 QSControl™ network/ SNMP

Preliminary Specifications

Universal Mic/Line input XLR — Mic (+ phantom pwr) or line level Protocol

S/PDIF input

RCA (L/R) inputs

DataPort outputs HD-15 (8) — QSC amplifier interface Dimensions (H/W/D): 5.25" x 19" x 15.2" (133 mm x 483 mm x 386 mm)

Automation inputs

Serial Control DB-9 RS-232 serial interface

Logic output 4-pin Euro-style (x2) – outbound control

RCA — Stereo digital audio interface
and Lt/Rt Matrix

RCA (2) — Stereo Left and Right
and Lt/Rt Matrix

6-pin Euro-style (x2) – TTL compatible dry
contact closure

Data rate 10/100 Mbps

Connection requirements

Line voltage requirements 100 VAC – 240 VAC, 50/60 Hz

Weight 16.6 lb (7.5 kg)

Standard TCP/IP implementation over Ethernet or
Fast Ethernet

Cat-5 UTP cable or better (100m maximum length),
direct connection to wired network switch ports only,
dedicated LAN or VLAN

RoHS

All specifications are subject to change without notice.
