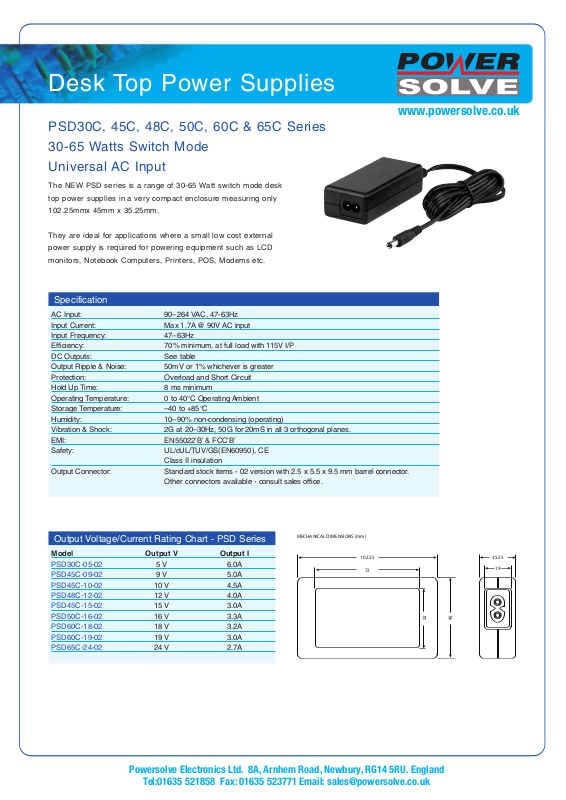

Desk Top Power Supplies
102.25 35.25
19
32
45
72
MECHANICAL DIMENSIONS (mm)
PSD30C, 45C, 48C, 50C, 60C & 65C Series
30-65 Watts Switch Mode
Universal AC Input
The NEW PSD series is a range of 30-65 Watt switch mode desk
top power supplies in a very compact enclosure measuring only
102.25mmx 45mm x 35.25mm.
They are ideal for applications where a small low cost external
power supply is required for powering equipment such as LCD
monitors, Notebook Computers, Printers, POS, Modems etc.
Specification
AC Input: 90–264 VAC, 47-63Hz
Input Current: Max 1.7A @ 90V AC input
Input Frequency: 47–63Hz
Efficiency: 70% minimum, at full load with 115V I/P
DC Outputs: See table
Output Ripple & Noise: 50mV or 1% whichever is greater
Protection: Overload and Short Circuit
Hold Up Time: 8 ms minimum
Operating Temperature: 0 to 40°C Operating Ambient
Storage Temperature: –40 to +85°C
Humidity: 10–90% non-condensing (operating)
Vibration & Shock: 2G at 20–30Hz, 50G for 20mS in all 3 orthogonal planes.
EMI: EN55022’B’ & FCC’B’
Safety: UL/cUL/TUV/GS(EN60950), CE
Class II insulation
Output Connector: Standard stock items - 02 version with 2.5 x 5.5 x 9.5 mm barrel connector.
Other connectors available - consult sales of
fice.
Output Voltage/Current Rating Chart - PSD Series
Model Output V Output I
PSD30C-05-02 5 V 6.0A
PSD45C-09-02 9 V 5.0A
PSD45C-10-02
PSD48C-12-02 12 V 4.0A
PSD45C-15-02 15 V 3.0A
PSD50C-16-02 16 V 3.3A
PSD60C-18-02 18 V 3.2A
PSD60C-19-02 19 V 3.0A
PSD65C-24-02
10 V
24 V
4.5A
2.7A
