Page 1
U
nit 8A
Arnhem Road
Newbury. RG14 5RU
Tel: +44 (0) 1635 521858
Fax: +44 (0) 1635 523771
www.powersolve.co.uk
Mod els Volt age range Cur rent range
S 6-40 0 - 6 V 0 - 40 A
S 15-18 0 - 15 V 0 - 18 A
S 28-10 0 - 28 V 0 - 10 A

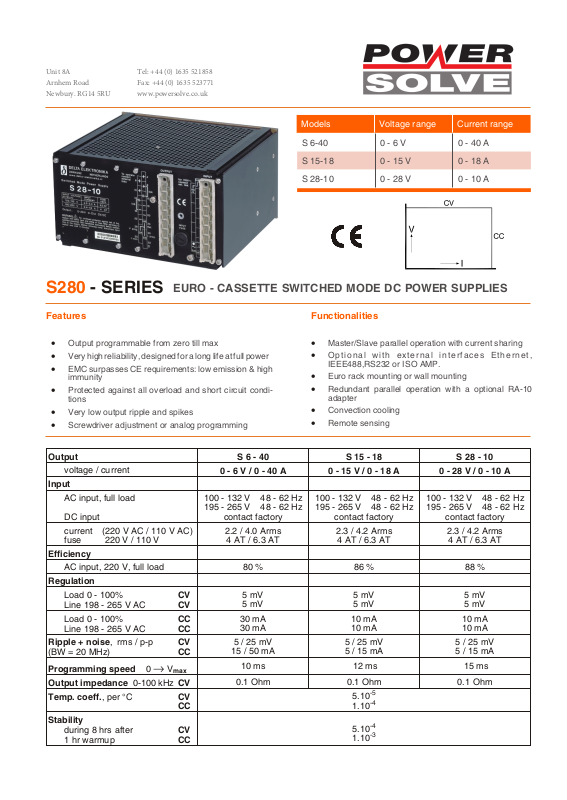

S280 - SE RIES
EURO - CAS SETTE SWITCHED MODE DC POWER SUP PLIES
Features Functionalities
• Out put pro gram ma ble from zero till max
• Very high re li abil ity, de signed for a long life at full power
• EMC sur passes CE re quire ments: low emis sion & high
im mu nity
• Pro tected against all over load and short cir cuit con di -
tions
• Very low out put rip ple and spikes
• Screw driver ad just ment or an a log pro gram ming
• Mas ter/Slave par al lel op er a tion with cur rent shar ing
• Op tional with ex ter nal in ter faces Ethernet,
IEEE488,RS232 or ISO AMP.
• Euro rack mount ing or wall mount ing
• Re dun dant par al lel op er a tion with a op tional RA-10
adapter
• Con vec tion cool ing
• Re mote sens ing
Out put S 6 - 40 S 15 - 18 S 28 - 10
volt age / cur rent
0 - 6 V / 0 - 40 A 0 - 15 V / 0 - 18 A 0 - 28 V / 0 - 10 A
In put
AC in put, full load
DC in put
cur rent (220 V AC / 110 V AC)
fuse 220 V / 110 V
100 - 132 V 48 - 62 Hz
195 - 265 V 48 - 62 Hz
con tact fac tory
2.2 / 4.0 Arms
4 AT / 6.3 AT
100 - 132 V 48 - 62 Hz
195 - 265 V 48 - 62 Hz
con tact fac tory
2.3 / 4.2 Arms
4 AT / 6.3 AT
100 - 132 V 48 - 62 Hz
195 - 265 V 48 - 62 Hz
con tact fac tory
2.3 / 4.2 Arms
4 AT / 6.3 AT
Ef fi ciency
AC in put, 220 V, full load 80 % 86 % 88 %
Reg u la tion
Load 0 - 100% CV
Line 198 - 265 V AC CV
Load 0 - 100% CC
Line 198 - 265 V AC CC
Rip ple + noise, rms / p-p CV
(BW = 20 MHz) CC
Pro gram ming speed 0 → V
max
Out put im ped ance 0-100 kHz CV
Temp. coeff., per °C CV
CC
Sta bil ity
dur ing 8 hrs af ter CV
1 hr warmup CC
5 mV
5 mV
30 mA
30 mA
5 / 25 mV
15 / 50 mA
10 ms 12 ms 15 ms
0.1 Ohm 0.1 Ohm 0.1 Ohm
5 mV
5 mV
10 mA
10 mA
5 / 25 mV
5 / 15 mA
-5
5.10
-4
1.10
-4
5.10
-3
1.10
5 mV
5 mV
10 mA
10 mA
5 / 25 mV
5 / 15 mA
Page 2
An a log Pro gramming
Pro gramming in puts
in put range
ac cu racy
in put im ped ance
Mon i toring out put
out put range
ac cu racy
out put im ped ance
± 0.2% - 5 mV / + 12 mV
0 - 5 V
5 kOhm
not avail able 0 - 5 V
Re cov ery time
50 - 100% load step :
100 µs S6-40, S28-10
200 µs S15-18
In su la tion
In put/Out put : 3750 Vrms (1 min.)
8 mm creepage/clear ance
In put/case : 2500 Vrms (1 min.)
Out put/case : 500 V DC
Safety : EN 60950 EN 61010
EMC
Power Sup ply Stan dard : EN 61204-3
Ge neric Emis sion
: EN 61000-6-3 (EN 55022B)
Ge neric Im mu nity : EN 61000-6-2
Op er at ing am bi ent temp. : –20 to +50 °C
Ther mal pro tec tion : Out put shuts down in case
of in suf fi cient cool ing
Se ries op er a tion : Max. 500 V to tal volt age
Re mote sens ing : Max. 2 V per lead
CV CC
0 - 5 V
± 0.5% - 4 mV / + 20 mV
5 kOhm
± 0.5% − 6 mV / + 0 mV
20 Ohm
OVP ad just range : 5 - 35 V
Mount ing : Ver ti cal air flow through the
unit should not be ob structed
Cooling : Nat u ral con vec tion cool ing,
no blower, no noise.
MTBF : 500 000 hrs
Standby in put power : 4 W
Hold-up time
100 % load, 220 V AC : 20 ms
50 % load, 220 V AC : 40 ms
Di men sions (h x w x d) : 106 x 194.5 x 166 mm
Case : DIN 41494 / IP20
Con nec tors : H15 (DIN 41612)
Weight : 2.8 kg
Out put con nec tor
In ter nal cir cuit of pro gram ming in puts
Di men sions
FPW front panel for wall mount ing
FP40, front panel for Eurocard-rack
Eurorack mount ing
with front panel FP40
Page 4 SPECIFICATIONS Rev. Sept. 2012
Wall mount ing with
front panel FPW
Re dun dant adapter
RA 10 for S28 - 10
