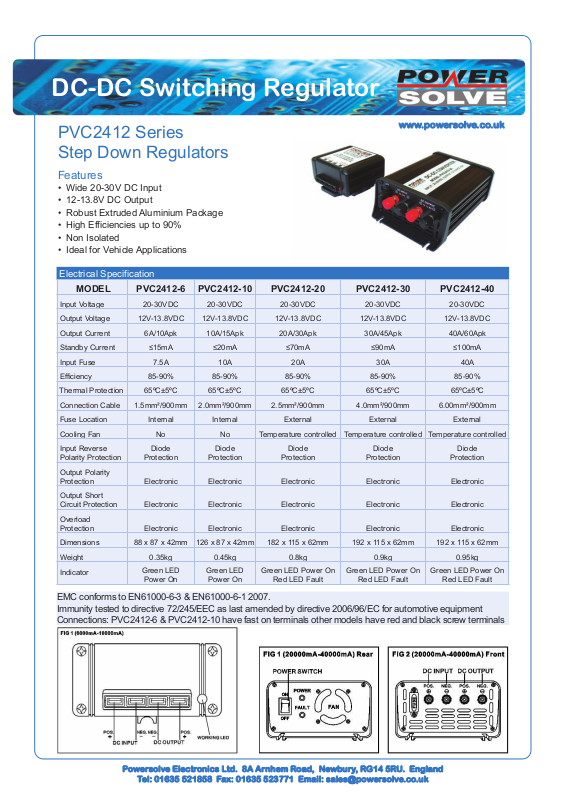

DC-DC Switching Regulator
www.powersolve.co.uk
PVC2412 Series
Step Down Regulators
Features
• Wide 20-30V DC Input
• 12-13.8V DC Output
• Robust Extruded Aluminium Package
• High Efficiencies up to 90%
• Non Isolated
• Ideal for Vehicle Applications
Electrical Specification
MODEL PVC2412-6 PVC2412-10 PVC2412-20 PVC2412-30 PVC2412-40
Input Voltage 20-30VDC 20-30VDC 20-30VDC 20-30VDC 20-30VDC
Output Voltage 12V-13.8VDC 12V-13.8VDC 12V-13.8VDC 12V-13.8VDC 12V-13.8VDC
Output Current 6A/10Apk 10A/15Apk 20A/30Apk 30A/45Apk 40A/60Apk
Standby Current ≤15mA ≤20mA ≤70mA ≤90mA ≤100mA
Input Fuse 7.5A 10A 20A 30A 40A
Efficiency 85-90% 85-90% 85-90% 85-90% 85-90%
Thermal Protection 65ºC±5ºC 65ºC±5ºC 65ºC±5ºC 65ºC±5ºC 65ºC±5ºC
Connection Cable 1.5mm²/900mm 2.0mm²/900mm 2.5mm²/900mm 4.0mm²/900mm 6.00mm²/900mm
Fuse Location Internal Internal External External External
Cooling Fan No No Temperature controlled Temperature controlled Temperature controlled
Input Reverse
Polarity Protection
Output Polarity
Protection Electronic Electronic Electronic Electronic Electronic
Output Short
Circuit Protection
Overload
Protection Electronic Electronic Electronic Electronic Electronic
Dimensions 88 x 87 x 42mm 126 x 87 x 42mm 182 x 115 x 62mm 192 x 115 x 62mm 192 x 115 x 62mm
Weight 0.35kg 0.45kg 0.8kg 0.9kg 0.95kg
Indicator
Diode
Protection
Electronic Electronic Electronic Electronic Electronic
Green LED
Power On
Diode
Protection
Green LED
Power On
Diode
Protection
Green LED Power On
Red LED Fault
Diode
Protection
Green LED Power On
Red LED Fault
Diode
Protection
Green LED Power On
Red LED Fault
EMC conforms to EN61000-6-3 & EN61000-6-1 2007.
Immunity tested to directive 72/245/EEC as last amended by directive 2006/96/EC for automotive equipment
Connections: PVC2412-6 & PVC2412-10 have fast on terminals other models have red and black screw terminals
