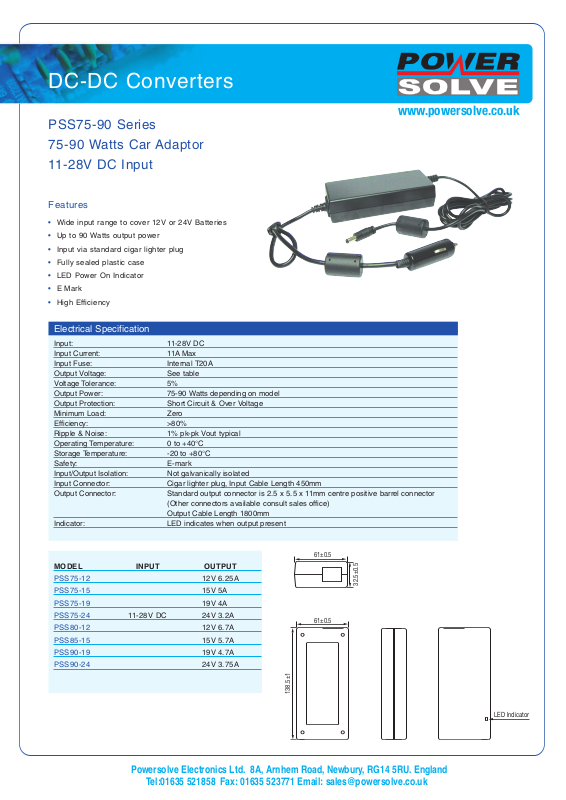

DC-DC Converters
61±0.5
LED Indicator
61±0.5
32.5±0.5
138.5±1
PSS75-90 Series
75-90 Watts Car Adaptor
11-28V DC Input
Features
• Wide input range to cover 12V or 24V Batteries
• Up to 90 Watts output power
• Input via standard cigar lighter plug
• Fully sealed plastic case
• LED Power On Indicator
• E Mark
• High Efficiency
Electrical Specification
Input: 11-28V DC
Input Current: 11A Max
Input Fuse: Internal T20A
Output Voltage: See table
Voltage Tolerance: 5%
Output Power: 75-90 Watts depending on model
Output Protection: Short Circuit & Over Voltage
Minimum Load: Zero
Efficiency: >80%
Ripple & Noise: 1% pk-pk Vout typical
Operating Temperature: 0 to +40°C
Storage Temperature: -20 to +80°C
Safety: E-mark
Input/Output Isolation: Not galvanically isolated
Input Connector: Cigar lighter plug, Input Cable Length 450mm
Output Connector: Standard output connector is 2.5 x 5.5 x 11mm centre positive barrel connector
(Other connectors available consult sales office)
Output Cable Length 1800mm
Indicator: LED indicates when output present
MODEL INPUT OUTPUT
PSS75-12 12V 6.25A
PSS75-15 15V 5A
PSS75-19 19V 4A
PSS75-24 11-28V DC 24V 3.2A
PSS80-12 12V 6.7A
PSS85-15 15V 5.7A
PSS90-19 19V 4.7A
PSS90-24 24V 3.75A
