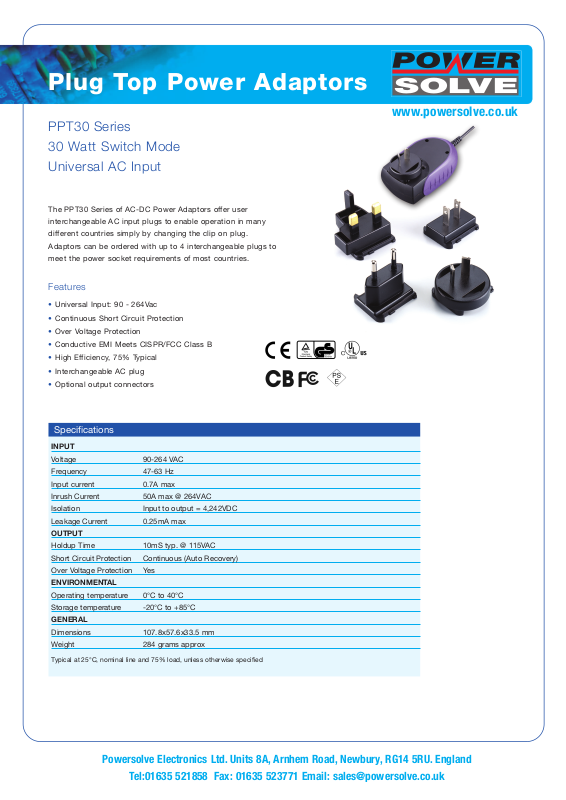

Page 1
Plug Top Power Adaptors
PPT30 Series
30 Watt Switch Mode
Universal AC Input
The PPT30 Series of AC-DC Power Adaptors offer user
interchangeable AC input plugs to enable operation in many
different countries simply by changing the clip on plug.
Adaptors can be ordered with up to 4 interchangeable plugs to
meet the power socket requirements of most countries.
Features
Universal Input: 90 - 264Vac
•
• Continuous Short Circuit Protection
• Over Voltage Protection
• Conductive EMI Meets CISPR/FCC Class B
• High Efficiency, 75% Typical
• Interchangeable AC plug
• Optional output connectors
www.powersolve.co.uk
Specifications
INPUT
Voltage 90-264 VAC
Frequency 47-63 Hz
Input current 0.7A max
Inrush Current 50A max @ 264VAC
Isolation
Leakage Current 0.25mA max
OUTPUT
eight
ime
oltage Pr
otection
Holdup T
Short Circuit Protection Continuous (Auto Recovery)
Over V
ENVIRONMENTAL
Operating temperature 0°C to 40°C
Storage temperature -20°C to +85°C
GENERAL
Dimensions 107.8x57.6x33.5 mm
W
Typical at 25°C, nominal line and 75% load, unless otherwise specified
Input to output = 4,242VDC
10mS typ. @ 115V
es
Y
284 grams approx
AC
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
19
(0.75)
25.1
(0.99)
28
(1.1)
17.4
(0.69)
16
(0.63)
39
(1.54)
18
(0.71)
17
(0.67)
31.5
(1.24)
28.9
(1.14)
37.95
(1.49)
33.5
(1.32)
5
7.6
(
2.27)
107.8
(4.24)
32.6
(1.28)
4
(0.16)
6.3
(0.25)
22.2(0.87)
UNIT: mm (Inches)
Plug Top Power Adaptors
www.powersolve.co.uk
MODEL OUTPUT VOLTAGE MAX LOAD MIN LOAD RIPPLE & NOISE VOLTAGE LINE LOAD
ACCURACY REGULATION REGULATION
PPT30-050 5.0V 5.0A 0A 1% ±4% ±1% ±6%
PPT30-090 9.0V 3.3A 0A 1% ±2% ±1% ±3%
PPT30-120 12V 2.5A 0A 1% ±2% ±1% ±2%
PPT30-150 15V 2.0A 0A 1% ±2% ±1% ±2%
PPT30-180 18V 1.65A 0A 1% ±2% ±1% ±2%
PPT30-240 24V 1.25A 0A 1% ±2% ±1% ±2%
Note:
1. Voltage setpoint at 60% load.
2. Add a 0.1µF ceramic capacitor and a 10µF E.L. capacitor to output for Ripple & Noise measurement @20MHz BW.
egulation measured from 100Vac to 240Vac, full load.
3. Line r
4. Load regulation measured from 60% to full load and from 60% to 20% load (60% +/- 40% load)
Stock items will be fitted with 5.5x2.5x9.5mm barrel connector, centre positive.
Options: Alter
native output connectors are available - consult sales office for details.
e on output cable - consult sales of
In-line fer
rite cor
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
fice for details.
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
