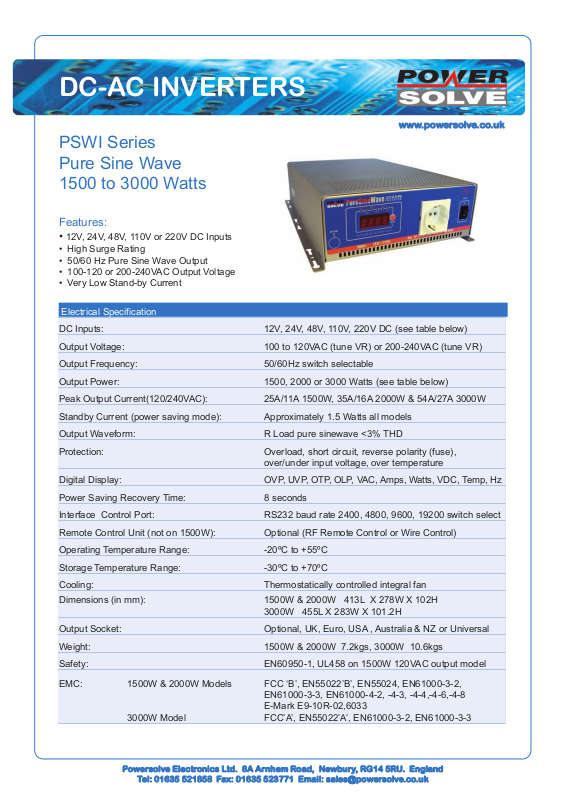

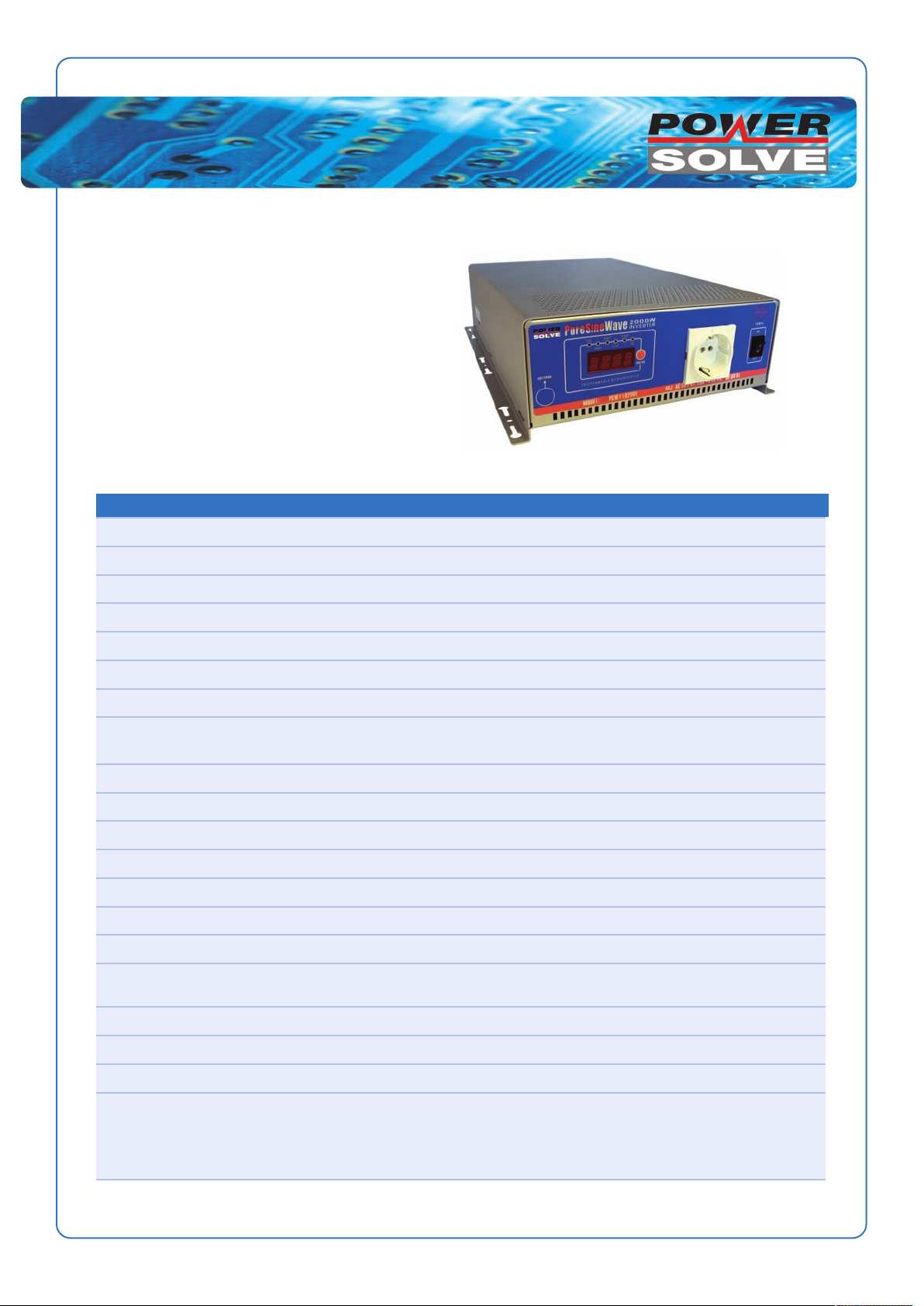

DC-AC INVERTERS
www.powersolve.co.uk
PSWI Series
Pure Sine Wave
1500 to 3000 Watts
Features:
12V, 24V, 48V, 110V or 220V DC Inputs
•
• High Surge Rating
• 50/60 Hz Pure Sine Wave Output
• 100-120 or 200-240VAC Output Voltage
• Very Low Stand-by Current
Electrical Specification
DC Inputs: 12V, 24V, 48V, 110V, 220V DC (see table below)
Output Voltage: 100 to 120VAC (tune VR) or 200-240VAC (tune VR)
Output Frequency: 50/60Hz switch selectable
Output Power: 1500, 2000 or 3000 Watts (see table below)
Peak Output Current(120/240VAC): 25A/11A 1500W, 35A/16A 2000W & 54A/27A 3000W
Standby Current (power saving mode): Approximately 1.5 Watts all models
Output Waveform: R Load pure sinewave <3% THD
Protection: Overload, short circuit, reverse polarity (fuse),
over/under input voltage, over temperature
Digital Display: OVP, UVP, OTP, OLP, VAC, Amps, Watts, VDC, Temp, Hz
Power Saving Recovery Time: 8 seconds
Interface Control Port: RS232 baud rate 2400, 4800, 9600, 19200 switch select
Remote Control Unit (not on 1500W): Optional (RF Remote Control or Wire Control)
Operating Temperature Range: -20ºC to +55ºC
Storage Temperature Range: -30ºC to +70ºC
Cooling: Thermostatically controlled integral fan
Dimensions (in mm): 1500W & 2000W 413L X 278W X 102H
3000W 455L X 283W X 101.2H
Output Socket: Optional, UK, Euro, USA , Australia & NZ or Universal
Weight: 1500W & 2000W 7.2kgs, 3000W 10.6kgs
Safety: EN60950-1, UL458 on 1500W 120VAC output model
EMC: 1500W & 2000W Models FCC ‘B’, EN55022’B’, EN55024, EN61000-3-2,
EN61000-3-3, EN61000-4-2, -4-3, -4-4,-4-6,-4-8
E-Mark E9-10R-02,6033
3000W Model FCC’A’, EN55022’A’, EN61000-3-2, EN61000-3-3
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
DC-AC INVERTERS
www.powersolve.co.uk

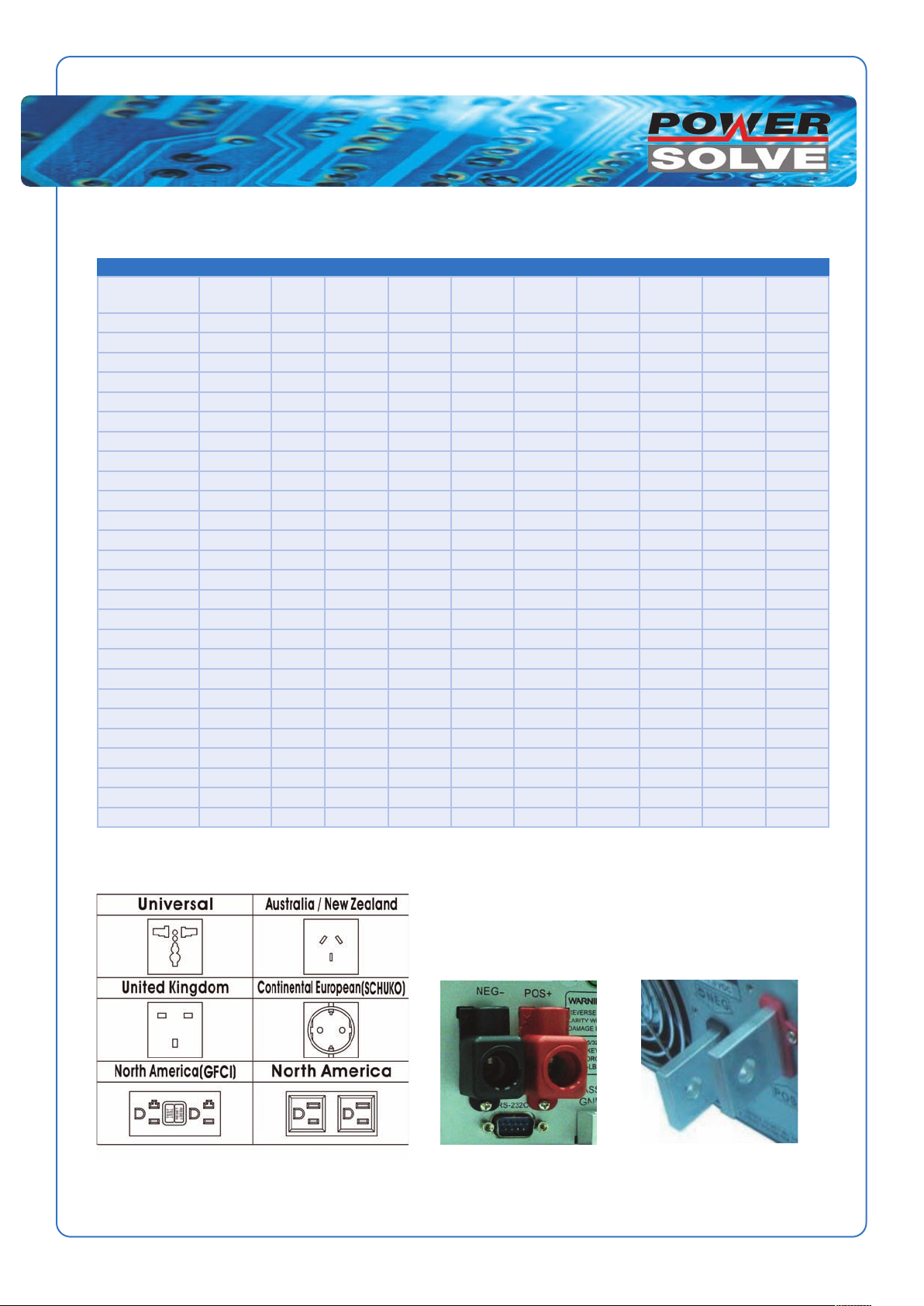

Input & Output Ratings
Model DC InputACOutput
PSWI-1500-12-110 10-16V DC 110V AC 1500W 3000W 15.5V DC 16.0V DC 10.5V DC 10.0V DC 86% 1.2A
PSWI-1500-12-220 10-16V DC 220V AC 1500W 3000W 15.5V DC 16.0V DC 10.5V DC 10.0V DC 87% 1.60A
PSWI-1500-24-110 20-32V DC 110V AC 1500W 3000W 31.0V DC 32.0V DC 21.0V DC 20.0V DC 88% 0.55A
PSWI-1500-24-220 20-32V DC 220V AC 1500W 3000W 31.0V DC 32.0V DC 21.0V DC 20.0V DC 90% 0.7A
PSWI-1500-48-110 42-62V DC 110 VAC 1500W 3000W 61.0V DC 62.0V DC 43.0V DC 42.0V DC 89% 0.3A
PSWI-1500-48-220 42-62V DC 220V AC 1500W 3000W 61.0V DC 62.0V DC 43.0V DC 42.0V DC 92% 0.36A
PSWI-2000-12-110 10-16V DC 110V AC 2000W 4000W 15.5V DC 16.0V DC 10.5V DC 10.0V DC 86% 1.4A
PSWI-2000-12-220 10-16V DC 220V AC 2000W 4000W 15.5V DC 16.0V DC 10.5V DC 10.0V DC 87% 1.8A
PSWI-2000-24-110 20-32V DC 110V AC 2000W 4000W 31.0V DC 32.0V DC 21.0V DC 20.0V DC 88% 0.75A
PSWI-2000-24-220 20-32V DC 220V AC 2000W 4000W 31.0V DC 32.0V DC 21.0V DC 20.0V DC 90% 0.9A
PSWI-2000-48-110 42-62V DC 110V AC 2000W 4000W 61.0V DC 62.0V DC 43.0V DC 42.0V DC 89% 0.5A
PSWI-2000-48-220 42-62V DC 220V AC 2000W 4000W 61.0V DC 62.0V DC 43.0V DC 42.0V DC 92% 0.57A
PSWI-2000-110-110 90-140V DC 110V AC 2000W 4000W 135.0V DC 140.0V DC 95.0V DC 90.0V DC 94% 0.32A
PSWI-2000-110-220 90-140V DC 220V AC 2000W 4000W 135.0V DC 140.0V DC 95.0V DC 90.0V DC 94% 0.46A
PSWI-2000-220-110 180-275V DC 110V AC 2000W 4000W 270.0V DC 275.0V DC 185.0V DC 180.0V DC 94% 0.28A
PSWI-2000-220-220 180-275V DC 220V AC 2000W 4000W 270.0V DC 275.0V DC 185.0V DC 180.0V DC 94% 0.38A
PSWI-3000-12-110 10-16V DC 110 VAC 3000W 6000W 15.5V DC 16.0V DC 10.5V DC 10.0V DC 86% 1.25A
PSWI-3000-12-220 10-16V DC 220V AC 3000W 6000W 15.5V DC 16.0V DC 10.5V DC 10.0V DC 87% 1.79A
PSWI-3000-24-110 20-32V DC 110V AC 3000W 6000W 31.0V DC 32.0V DC 21.0V DC 20.0V DC 88% 0.56A
PSWI-3000-24-220 20-32V DC 220V AC 3000W 6000W 31.0V DC 32.0V DC 21.0V DC 20.0V DC 90% 0.87A
PSWI-3000-48-110 42-62V DC 110V AC 3000W 6000W 61.0V DC 62.0V DC 43.0V DC 42.0V DC 89% 0.32A
PSWI-3000-48-220 42-62V DC 220V AC 3000W 6000W 61.0V DC 62.0V DC 43.0V DC 42.0V DC 92% 0.40A
PSWI-3000-110-110 90-140V DC 110V AC 3000W 6000W 135.0V DC 140.0V DC 95.0V DC 90.0V DC 94% 0.38A
PSWI-3000-110-220 90-140V DC 220V AC 3000W 6000W 135.0V DC 140.0V DC 95.0V DC 90.0V DC 94% 0.4A
PSWI-3000-220-110 180-275V DC 110V AC 3000W 6000W 270.0V DC 275.0V DC 185.0V DC 180.0V DC 94% 0.18A
PSWI-3000-220-220 180-275V DC 220V AC 3000W 6000W 270.0V DC 275.0V DC 185.0V DC 180.0V DC 94% 0.2A
Power
Cont.
Power
Surge
Input OV
Alarm
Input OV
Shutdown
Input UV
Alarm
Input UV
Shutdown
Efficiency
Full Load
No Load
Current
For output connectors add suffix -UK after part number for 13A socket, -EU for Euro socket, -US or USGFCI for USA socket, -AU for Australia/New Zealand or -UV for universal version.
DC Input Connectors as per photos below showing
coloured screw terminals for 1500W and 2000W
units and heavy duty bus bar for 3000W units.
RS232 interface is via a 9 pin D type connector.
1500 & 2000 Watts 3000 Watts
Other options: RF or Wired Remote control unit - consult sales office for details
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
