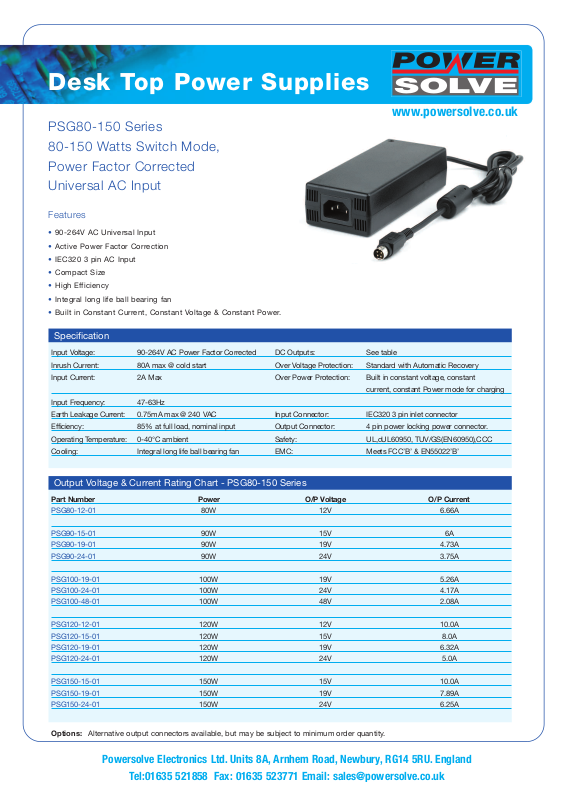

Page 1
Desk Top Power Supplies
www.powersolve.co.uk
PSG80-150 Series
80-150 Watts Switch Mode,
Power Factor Corrected
Universal AC Input
Features
• 90-264V AC Universal Input
• Active Power Factor Correction
• IEC320 3 pin AC Input
• Compact Size
• High Efficiency
• Integral long life ball bearing fan
• Built in Constant Current, Constant Voltage & Constant Power.
Specification
Input Voltage: 90-264V AC Power Factor Corrected DC Outputs: See table
Inrush Current: 80A max @ cold start Over Voltage Protection: Standard with Automatic Recovery
Input Current: 2A Max Over Power Protection: Built in constant voltage, constant
current, constant Power mode for charging
Input Frequency: 47-63Hz
Earth Leakage Current: 0.75mA max @ 240 VAC Input Connector: IEC320 3 pin inlet connector
Efficiency: 85% at full load, nominal input Output Connector: 4 pin power locking power connector.
Operating Temperature: 0-40°C ambient Safety: UL,cUL60950, TUV/GS(EN60950),CCC
Cooling: Integral long life ball bearing fan EMC: Meets FCC’B’ & EN55022’B’
ent Rating Chart - PSG80-150 Series
Output V
Part Number Power O/P Voltage O/P Current
PSG80-12-01 80W 12V 6.66A
PSG90-15-01 90W 15V 6A
PSG90-19-01 90W 19V 4.73A
PSG90-24-01 90W 24V 3.75A
PSG100-19-01 100W 19V 5.26A
PSG100-24-01 100W 24V 4.17A
PSG100-48-01 100W 48V 2.08A
PSG120-12-01 120W 12V 10.0A
PSG120-15-01
PSG120-19-01
PSG120-24-01 120W 24V 5.0A
PSG150-15-01
PSG150-19-01 150W 19V 7.89A
PSG150-24-01
Options: Alternative output connectors available, but may be subject to minimum order quantity.
oltage & Cur
r
120W
120W
150W
150W
15V
19V
15V
24V 6.25A
8.0A
6.32A
10.0A
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
Desk Top Power Supplies
www.powersolve.co.uk
Dimensions in Inches (mm)
