Pioneer SC-67, SC-68 Operating Instruction

Operating Instructions

AV Receiver

SC-68 SC-67

IMPORTANT

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel.

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 20 cm at top, 10 cm at rear, and 20 cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

D3-4-2-1-3_A1_En

D3-4-2-1-4*_A1_En

D3-4-2-1-7a_A1_En

D3-4-2-1-7b*_A1_En

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1_A1_En

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).

CAUTION

The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-1-7c*_A1_En

D3-4-2-2-1a_A1_En

D3-4-2-2-2a*_A1_En

11)

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in

Only use attachments/accessories specified by the manufacturer.

12)

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to

avoid injury from tip-over. accordance with the manufacturer’s instructions. Do not install near any heat sources such as

8) radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized

9) or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or

10) pinched particularly at plugs, convenience

13)

Unplug this apparatus during lightning storms or when unused for long periods of time.

14)

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

receptacles, and the point where they exit from the apparatus.

D3-7-13-69_En

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help.

Caution

To prevent fire hazard, the Class 2 Wiring Cable should be used for connection with speaker, and should be routed away from hazards to avoid damage to the insulation of the cable.

D3-7-13-67*_A1_En

WARNING: Handling the cord on this product or

cords associated with accessories sold with the product may expose you to chemicals listed on proposition 65 known to the State of California and other governmental entities to cause cancer and birth defect or other reproductive harm.

Information to User

D8-10-1-2_A1_En

D36-P5_B1_En

Alterations or modifications carried out without appropriate authorization may invalidate the user’s right to operate the equipment.

D8-10-2_A1_En

IMPORTANT NOTICE

THE MODEL NUMBER AND SERIAL NUMBER OF THIS EQUIPMENT ARE ON THE REAR OR BOTTOM. RECORD THESE NUMBERS ON YOUR ENCLOSED WARRANTY CARD AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.

D36-AP9-1_A1_En

CAUTION

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.

D8-10-3a_A1_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

K041_A1_En

This Class B digital apparatus complies with Canadian ICES-003.

D8-10-1-3_A1_En

CAUTION: HOT SURFACE. DO NOT TOUCH.

The top surface over the internal heatsink may become hot when operating this product continuously.

The Safety of Your Ears is in Your Hands

Get the most out of your equipment by playing it at a safe level – a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time, your hearing “comfort level” adapts to higher volumes of sound, so what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

ESTABLISH A SAFE LEVEL:

• Set your volume control at a low setting.

• Slowly increase the sound until you can hear it

comfortably and clearly, without distortion.

• Once you have established a comfortable sound level, set the dial and leave it there.

BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:

• Do not turn up the volume so high that you can’t hear what’s around you.

• Use caution or temporarily discontinue use in potentially hazardous situations.

• Do not use headphones while operating a motorized vehicle; the use of headphones may create a traffic hazard and is illegal in many areas.

S001a_A1_En

SC-68 only

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Name: AV Receiver Model Number: SC-68 Responsible Party Name: PIONEER ELECTRONICS (USA) INC. SERVICE SUPPORT DIVISION Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA 90810-1003, U.S.A. Phone: 1-800-421-1404 URL: http://www.pioneerelectronics.com

D8-10-4*_C1_En

Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly.

Contents

01 Before you start

Checking what’s in the box ................................................................................................................................................ 8

Our philosophy .................................................................................................................................................................... 8

Features ............................................................................................................................................................................... 8

Installing the receiver ......................................................................................................................................................... 9

Loading the batteries .......................................................................................................................................................... 9

Operating range of remote control unit..........................................................................................................................10

About using AVNavigator (included CD-ROM)..............................................................................................................10

02 Controls and displays

Remote control .................................................................................................................................................................12

Display ...............................................................................................................................................................................14

Front panel ........................................................................................................................................................................15

03 Connecting your equipment

Connecting your equipment ............................................................................................................................................18

Rear panel .........................................................................................................................................................................18

Determining the speakers’ application ..........................................................................................................................19

Placing the speakers ........................................................................................................................................................22

Connecting the speakers .................................................................................................................................................22

Installing your speaker system ........................................................................................................................................24

About the audio connection ............................................................................................................................................29

About the video converter ................................................................................................................................................29

About HDMI ......................................................................................................................................................................30

Connecting your TV and playback components ............................................................................................................30

Connecting an HDD/DVD recorder, BD recorder and other video sources ...............................................................33

Connecting a satellite/cable receiver or other set-top box ...........................................................................................34

Connecting other audio components .............................................................................................................................35

Connecting additional amplifiers ....................................................................................................................................35

Connecting the multichannel analog inputs .................................................................................................................36

Connecting AM/FM antennas .........................................................................................................................................36

MULTI-ZONE setup ...........................................................................................................................................................37

Connecting to the network through LAN interface .......................................................................................................40

Connecting optional Bluetooth ADAPTER .....................................................................................................................40

Connecting an iPod ..........................................................................................................................................................40

Connecting a USB device ................................................................................................................................................41

Connecting an MHL-compatible device .........................................................................................................................41

Connecting an HDMI-equipped component to the front panel input .........................................................................41

Using a USB cable to connect to a PC ...........................................................................................................................42

Connecting to a wireless LAN .........................................................................................................................................42

Connecting an IR receiver ...............................................................................................................................................42

Switching components on and off using the 12 volt trigger .........................................................................................43

Plugging in the receiver ...................................................................................................................................................43

04 Basic Setup

Changing the OSD display language (OSD Language) ................................................................................................45

Automatically conducting optimum sound tuning (Full Auto MCACC) .....................................................................45

The Input Setup menu ......................................................................................................................................................47

Operation Mode Setup .....................................................................................................................................................48

About the Home Menu.....................................................................................................................................................48

05 Basic playback

Playing a source ...............................................................................................................................................................50

Playing an iPod .................................................................................................................................................................51

Playing a USB device .......................................................................................................................................................52

Playing an MHL-compatible device ................................................................................................................................53

Playing music from a PC .................................................................................................................................................54

Listening to the radio ........................................................................................................................................................54

Bluetooth ADAPTER for Wireless Enjoyment of Music ................................................................................................55

06 Listening to your system

Enjoying various types of playback using the listening modes ....................................................................................58

Selecting MCACC presets ...............................................................................................................................................60

Choosing the input signal ................................................................................................................................................60

Better sound using Phase Control ..................................................................................................................................61

Better sound using Phase Control and Full Band Phase Control ...............................................................................61

07 Playback with NETWORK features

Introduction ....................................................................................................................................................................... 64

Playback with Network functions....................................................................................................................................65

About network playback...................................................................................................................................................66

About playable file formats ..............................................................................................................................................68

08 Control with HDMI function

About the Control with HDMI function ...........................................................................................................................70

Making Control with HDMI connections ........................................................................................................................70

HDMI Setup.......................................................................................................................................................................70

Before using synchronization ..........................................................................................................................................71

About synchronized operations ......................................................................................................................................71

Setting the PQLS function ...............................................................................................................................................71

About Sound Retriever Link and Stream Smoother Link ..............................................................................................71

Cautions on the Control with HDMI function ................................................................................................................72

09 Using other functions

Setting the Audio options ................................................................................................................................................74

Setting the Video options .................................................................................................................................................76

Switching the speaker terminals ....................................................................................................................................78

Using the MULTI-ZONE controls .....................................................................................................................................79

Making an audio or a video recording ............................................................................................................................79

Network settings from a web browser ............................................................................................................................80

Using the sleep timer .......................................................................................................................................................80

Dimming the display ........................................................................................................................................................80

Switching the HDMI output .............................................................................................................................................80

Checking your system settings .......................................................................................................................................80

Resetting the system ........................................................................................................................................................81

10 Controlling the rest of your system

About the Remote Setup menu.......................................................................................................................................83

Operating multiple receivers ...........................................................................................................................................83

Setting the remote to control other components ..........................................................................................................83

Selecting preset codes directly .......................................................................................................................................83

Programming signals from other remote controls .......................................................................................................84

Erasing one of the remote control button settings ........................................................................................................84

Erasing all learnt settings that are in one input function .............................................................................................85

Direct function ..................................................................................................................................................................85

Setting the backlight mode .............................................................................................................................................85

About the ALL ZONE STBY (All Zone Standby) and DISCRETE ON (Discrete On) functions ....................................85

Resetting the remote control settings ............................................................................................................................86

Controlling components ..................................................................................................................................................86

11 The Advanced MCACC menu

Making receiver settings from the Advanced MCACC menu ......................................................................................90

Automatic MCACC (Expert) .............................................................................................................................................90

Manual MCACC setup .....................................................................................................................................................92

Checking MCACC Data ....................................................................................................................................................95

Data Management............................................................................................................................................................96

12 The System Setup and Other Setup menus

Making receiver settings from the System Setup menu...............................................................................................98

Manual speaker setup ......................................................................................................................................................98

Network Setup menu .....................................................................................................................................................100

Checking the Network Information ...............................................................................................................................101

The Other Setup menu ...................................................................................................................................................102

MHL Setup ......................................................................................................................................................................104

13 FAQ

Troubleshooting ..............................................................................................................................................................106

Power ...............................................................................................................................................................................106

No sound .........................................................................................................................................................................106

Other audio problems ....................................................................................................................................................107

ADAPTER PORT terminal ..............................................................................................................................................108

Video ................................................................................................................................................................................108

Settings ............................................................................................................................................................................108

Professional Calibration EQ graphical output .............................................................................................................109

Display .............................................................................................................................................................................109

Remote control ...............................................................................................................................................................109

HDMI ................................................................................................................................................................................110

AVNavigator ....................................................................................................................................................................110

USB interface ..................................................................................................................................................................111

iPod ..................................................................................................................................................................................111

Network ...........................................................................................................................................................................111

USB-DAC .........................................................................................................................................................................113

Web Control ....................................................................................................................................................................113

Wireless LAN ...................................................................................................................................................................113

14 Additional information

Surround sound formats ...............................................................................................................................................116

About THX .......................................................................................................................................................................116

About iPod .......................................................................................................................................................................117

About SiriusXM ...............................................................................................................................................................117

About FLAC .....................................................................................................................................................................118

Windows 7 .......................................................................................................................................................................118

MHL..................................................................................................................................................................................118

Auto Surround, ALC and Stream Direct with different input signal formats ............................................................119

Speaker Setting Guide....................................................................................................................................................119

About messages displayed when using network functions .......................................................................................120

Important information regarding the HDMI connection ............................................................................................121

Cleaning the unit ............................................................................................................................................................121

Glossary ...........................................................................................................................................................................122

Features index .................................................................................................................................................................125

Specifications .................................................................................................................................................................126

Preset code list................................................................................................................................................................128

Flow of settings on the receiver

Flow for connecting and setting the receiver

The unit is a full-fledged AV receiver equipped with an abundance of functions and terminals. It can be used easily after following the procedure below to make the connections and settings.

Required setting item: 1, 2, 3, 4, 5, 7, 9 Setting to be made as necessary: 6, 8, 10, 11, 12, 13

Important

The receiver’s initial settings can be made on the computer using Wiring Navi on the AVNavigator CD-ROM included with the receiver. In this case, virtually the same connections and settings as in steps 2, 3, 4, 5, 6, 7 and 8 can be made interactively. For instructions on using AVNavigator, see About using AVNavigator (included

CD-ROM) on page 10.

1 Before you start

! Checking what’s in the box on page 8 ! Loading the batteries on page 9

2 Determining the speakers’ application (page 19)

! [A] 9.2 channel surround system (Front height/Front wide) connection ! [B] 7.2 channel surround system & Speaker B connection ! [C] 7.2 channel surround system & Front Bi-amping connection (High quality surround) ! [D] 7.2 channel surround system (Surround back) & ZONE 2 connection (Multi Zone) ! [E] 7.2 channel surround system (Front height/Front wide) & ZONE 2 connection (Multi Zone) ! [F] 5.2 channel surround system & Front Bi-amping connection (High quality surround) & ZONE 2 connection

(Multi Zone)

! [G] 5.2 channel surround system & ZONE 2/ZONE 3 connection (Multi Zone) ! [H] 5.2 channel surround system & Speaker B Bi-amping connection ! [I] 5.2 channel surround system & Front and Surround Bi-amping connection (High quality surround) ! [J] 5.2 channel surround system & Front and Center Bi-amping connection (High quality surround)

3 Connecting the speakers

! Placing the speakers on page 22 ! Connecting the speakers on page 22 ! Installing your speaker system on page 24 ! Bi-amping your speakers on page 23

4 Connecting the components

! About the audio connection on page 29 ! About the video converter on page 29 ! Connecting your TV and playback components on page 30 ! Connecting AM/FM antennas on page 36 ! Plugging in the receiver on page 43

5 Power On

6 Changing the OSD display language (OSD Language) (page 45)

7 MCACC speaker settings

! Automatically conducting optimum sound tuning (Full Auto MCACC) on page 45

8 The Input Setup menu (page 47)

(When using connections other than the recommended connections)

9 Basic playback (page 49)

10 Switching the HDMI output (page 80)

11 Adjusting the sound and picture quality as desired

! Using the various listening modes (page 57) ! Better sound using Phase Control (page 61) ! Better sound using Phase Control and Full Band Phase Control (page 61) ! Measuring the all EQ type (SYMMETRY/ALL CH ADJ/FRONT ALIGN) (page 90) ! Changing the channel level while listening (page 99) ! Switching on/off the Acoustic Calibration EQ, Auto Sound Retriever or Dialog Enhancement (page 74) ! Setting the PQLS function (page 71) ! Setting the Audio options (page 74) ! Setting the Video options (page 76)

12 Other optional adjustments and settings

! Control with HDMI function (page 69) ! The Advanced MCACC menu (page 89) ! The System Setup and Other Setup menus (page 97)

13 Making maximum use of the remote control

! Operating multiple receivers (page 83) ! Setting the remote to control other components (page 83)

Before you start

Checking what’s in the box ............................................................................................................8

Our philosophy ................................................................................................................................ 8

Features ............................................................................................................................................ 8

Installing the receiver ...................................................................................................................... 9

Loading the batteries ...................................................................................................................... 9

Operating range of remote control unit ......................................................................................10

About using AVNavigator (included CD-ROM) ........................................................................... 10

Before you start

Checking what’s in the box

Please check that you’ve received the following supplied accessories:

! Setup microphone (cable: 5 m (16.4 ft.)) ! Remote control unit ! AAA size IEC R03 dry cell batteries (to confirm system operation) x2 ! AM loop antenna ! FM wire antenna ! iPod cable ! MHL cable ! Power cord ! CD-ROM (AVNavigator) ! Quick start guide ! Safety Brochure ! Warranty sheet

Our philosophy

Pioneer is dedicated to making your home theater listening experience as close as possible to the vision of the moviemakers and mastering engineer when they created the original soundtrack. We do this by focusing on three important steps:

1 Achieving the highest possible sound quality

2 Allowing for customized acoustic calibration according to any listening area

3 Fine-tuning the receiver with the help of world-class studio engineers

With the cooperation of AIR Studios, this receiver has been designated AIR Studios Monitor:

Features

% Class D Amplifier

This unit is an AV receiver developed based on the latest high performance Class D amplifier and integrating the essence of Pioneer’s high sound quality designs. This new generation reference amplifier offers outstanding performance with high sound quality and reproduces the latest in multi-channel digital contents.

% Apple AirPlay

With AirPlay you can stream music from iTunes to the SC-68 and SC-67 and play it through your home cinema system. You can even use the receiver to view metadata including song title, artist as well as album art on a connected display. With Pioneer’s Air Play-compatible receivers, you can easily enjoy your iTunes music in any room in the house.

% Air Jam App compatible

For the SC-68 and SC-67, the optional AS-BT200 Bluetooth adapter works together with Pioneer’s exclusive Air Jam application. Available free App in App Store and Android Market, Air Jam allows up to 4 iPhone, iPod touch, iPad or Android devices to share music and create a group playlist for a unique and fun social music network experience.

% MHLTM (Mobile High-definition Link)-compatible device playback

An MHL-compatible mobile device can be connected to enjoy full-HD videos, high quality multi-channel audio, and photos etc., with charge the battery on the receiver.

% USB-DAC

SC-68 only Music files on a computer can be played by connecting the receiver with the computer using a commercially available USB cable. Files can be played with high sound quality when the exclusive driver is installed on the computer. The driver software can be installed from the included CD-ROM (AVNavigator).

% AVNavigator

The CD-ROM (AVNavigator) included with this unit provides a variety of functions, such as Wiring Navi with a guide for connecting the unit and setting up from the computer and an Interactive Manual for operating the unit while reading the manual. Also, Operation Guide describes the receiver’s playback operations and how to use several functions through videos and illustrations. AVNavigator is not only included PC software, but also iPad version in free download from App Store. For detail, check the website: http://pioneer.jp/product/soft/iapp_avnavi/en.html

% HDMI (3D, Audio Return Channel)

A compatible component is required to use the above function.

% 4K Pass Through

Displays 4K resolution video signals pass-through on the display.

% PQLS Bit-stream

Jitterless high quality playback is possible by connecting a PQLS-compatible player with HDMI connections. This feature is only available when the connected Pioneer Blu-ray Disc Player supporting the PQLS function.

% Auto Phase Control Plus

For discs created with standards other than Phase Control, the LFE channel is delayed upon recording in the first place. This function automatically corrects for phase shifting on such discs and broadcast. This function is especially effective when playing music.

% Hi-bit 32

Creates a wider dynamic range with digital sources like CDs, DVDs or BDs. 16-, 20- and 24-bit PCM as well as compressed audio is requantized to 32 bits, and the high frequency component is interpolated upon data processing to enable smoother, more subtle musical expression.

% Sound Retriever Link

By connecting a Pioneer player supporting the Sound Retriever Link function, compressed audio files played on the player can be corrected automatically to play the sound with higher density. This feature is only available when the connected Pioneer Blu-ray Disc Player supporting the PQLS function.

% Virtual Wide speaker

When you’re not using front wide speakers, selecting this mode allows you to hear a virtual front wide channel through your front speakers. This improves the continuity of the sound from the front channel to the surround channels.

% Stream Smoother Link

By connecting a Pioneer player supporting the Stream Smoother Link function, compressed video or movie files played on the player can be corrected automatically to play them with a more natural, easily viewable picture. This feature is only available when the connected Pioneer Blu-ray Disc Player supporting the PQLS function.

% iPod playback

Your iPod, iPhone or iPad can be connected to the receiver’s USB terminal and RCA video terminal to play the music/video files on the iPod, iPhone or iPad. Also, the iPod, iPhone or iPad is charged when it is connected to the receiver.

Before you start

% Dolby Pro Logic llz compatible

Adding a pair of speakers above the front left and right speakers adds expressiveness in the vertical direction to the previous horizontally-oriented sound field. The height channel strengthens the sound field’s sense of threedimensionality and air, producing presence and expansion.

% Internet Radio

By connecting this receiver to the network via the LAN terminal, you can listen to Internet radio stations.

% Bluetooth compatible

Using the Bluetooth ADAPTER (AS-BT100 or AS-BT200) lets you enjoy music files on an iPhone or other Bluetooth wireless technology device wirelessly.

% Auto Sound Retriever

The Auto Sound Retriever feature employs DSP technology to restore sound pressure and smooth jagged artifacts left over after compression.

% Easy setup using Advanced MCACC

The Auto MCACC Setup provides a quick but accurate surround sound setup, which includes the advanced features of Professional Acoustic Calibration EQ.

Installing the receiver

! When installing this unit, make sure to put it on a level and stable surface. ! Don’t install it on the following places:

— on a color TV (the screen may distort) — near a cassette deck (or close to a device that gives off a magnetic field). This may interfere with the sound. — in direct sunlight — in damp or wet areas — in extremely hot or cold areas — in places where there is vibration or other movement — in places that are very dusty — in places that have hot fumes or oils (such as a kitchen)

! Do not touch this receiver’s bottom panel while the power is on or just after it is turned off. The bottom panel

becomes hot when the power is on (or right after it is turned off) and could cause burns.

Loading the batteries

The batteries included with the unit are to check initial operations; they may not last over a long period. We recommend using alkaline batteries that have a longer life.

WARNING

! Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a

heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

CAUTION

Incorrect use of batteries may result in such hazards as leakage and bursting. Observe the following precautions:

! Never use new and old batteries together. ! Insert the plus and minus sides of the batteries properly according to the marks in the battery case. ! Batteries with the same shape may have different voltages. Do not use different batteries together. ! When disposing of used batteries, please comply with governmental regulations or environmental public insti-

tution’s rules that apply in your country/area.

Before you start

Operating range of remote control unit

The remote control may not work properly if:

! There are obstacles between the remote control and the receiver’s remote sensor. ! Direct sunlight or fluorescent light is shining onto the remote sensor. ! The receiver is located near a device that is emitting infrared rays. ! The receiver is operated simultaneously with another infrared remote control unit.

30°

7 m (23 ft.)

About using AVNavigator (included CD-ROM)

The included AVNavigator CD-ROM contains Wiring Navi allowing you to easily make the receiver’s connections and initial settings in dialog fashion. High precision initial settings can be completed easily simply by following the instructions on the screen to make the connections and settings. There are also other features enabling easy use of various functions, including an Interactive Manual that operates in association with the receiver, updating of various types of software, and MCACC Application that lets you check the MCACC measurement results on 3D graphs.

Installing AVNavigator

1 Load the included CD-ROM into your computer’s CD drive.

The CD-ROM’s top menu screen appears.

2 Click ‘Install AVNavigator’ from the CD-ROM top menu.

3 Follow the instructions on the screen to install.

When “Finish” is selected, installation is completed.

4 Remove the included CD-ROM from the computer’s CD drive.

Handling the CD-ROM

Operating Environment

! AVNavigator can be used with Microsoft® Windows® XP/Vista/7. ! A browser is at times used for AVNavigator functions. The supported browser is Microsoft Internet Explorer 8

or 9.

! Adobe® Flash® Player 10 must be installed to use some of the functions in AVNavigator. For details, see http://www.adobe.com/downloads/.

Precautions For Use

! This CD-ROM is for use with a personal computer. It cannot be used with a DVD player or music CD player.

Attempting to play this CD-ROM with a DVD player or music CD player can damage speakers or cause impaired hearing due to the large volume.

License

! Please agree to the “Terms of Use” indicated below before using this CD-ROM. Do not use if you are unwilling

to consent to the terms of its use.

! Copyright to data provided on this CD-ROM belongs to PIONEER CORPORATION. Unauthorized transfer,

duplication, broadcast, public transmission, translation, sales, lending or other such matters that go beyond the scope of “personal use” or “citation” as defined by Copyright Law may be subject to punitive actions. Permission to use this CD-ROM is granted under license by PIONEER CORPORATION.

General Disclaimer

! PIONEER CORPORATION does not guarantee the operation of this CD-ROM with respect to personal com-

puters using any of the applicable OS. In addition, PIONEER CORPORATION is not liable for any damages incurred as a result of use of this CD-ROM and is not responsible for any compensation. The names of private corporations, products and other entities described herein are the registered trademarks or trademarks of their respective firms.

Using AVNavigator

1 Click [AVNavigator 2012.IV] on the desktop to launch AVNavigator.

AVNavigator is launched and Wiring Navi starts up. The language selection screen appears. Follow the instructions on the screen to make the connections and automatic settings.

Wiring Navi only starts up automatically the first time AVNavigator is launched.

2 Select and use the desired function.

AVNavigator includes the following functions:

! Wiring Navi – Guides you through connections and initial settings in dialog fashion. High precision initial

settings can be made easily.

! Operation Guide – Describes the receiver’s playback operations and how to use several functions through

videos and illustrations.

! Interactive Manual – Automatically displays the pages explaining the functions that have been operated on

the receiver. It is also possible to operate the receiver from the Interactive Manual.

! Glossary – Displays glossary pages. ! MCACC Appli – Displays Advanced MCACC measurement results vividly on the computer.

There are special operating instructions for MCACC Application. These instructions are included in the

AVNavigator Interactive Manual’s menus. Refer to them when using MCACC Application.

! Software Update – Allows various types of software to be updated. ! Settings – Used to make various AVNavigator settings. ! Detection – Used to detect the receiver.

Deleting the AVNavigator

You can use the following method to uninstall (delete) the AVNavigator from your PC.

% Delete from the Control Panel of the PC.

From the Start menu, click “Program” d “PIONEER CORPORATION” d “AVNavigator 2012.IV” d “Uninstall AVNavigator 2012.IV”.

Controls and displays

Remote control ..............................................................................................................................12

Display ............................................................................................................................................ 14

Front panel ..................................................................................................................................... 15

Controls and displays

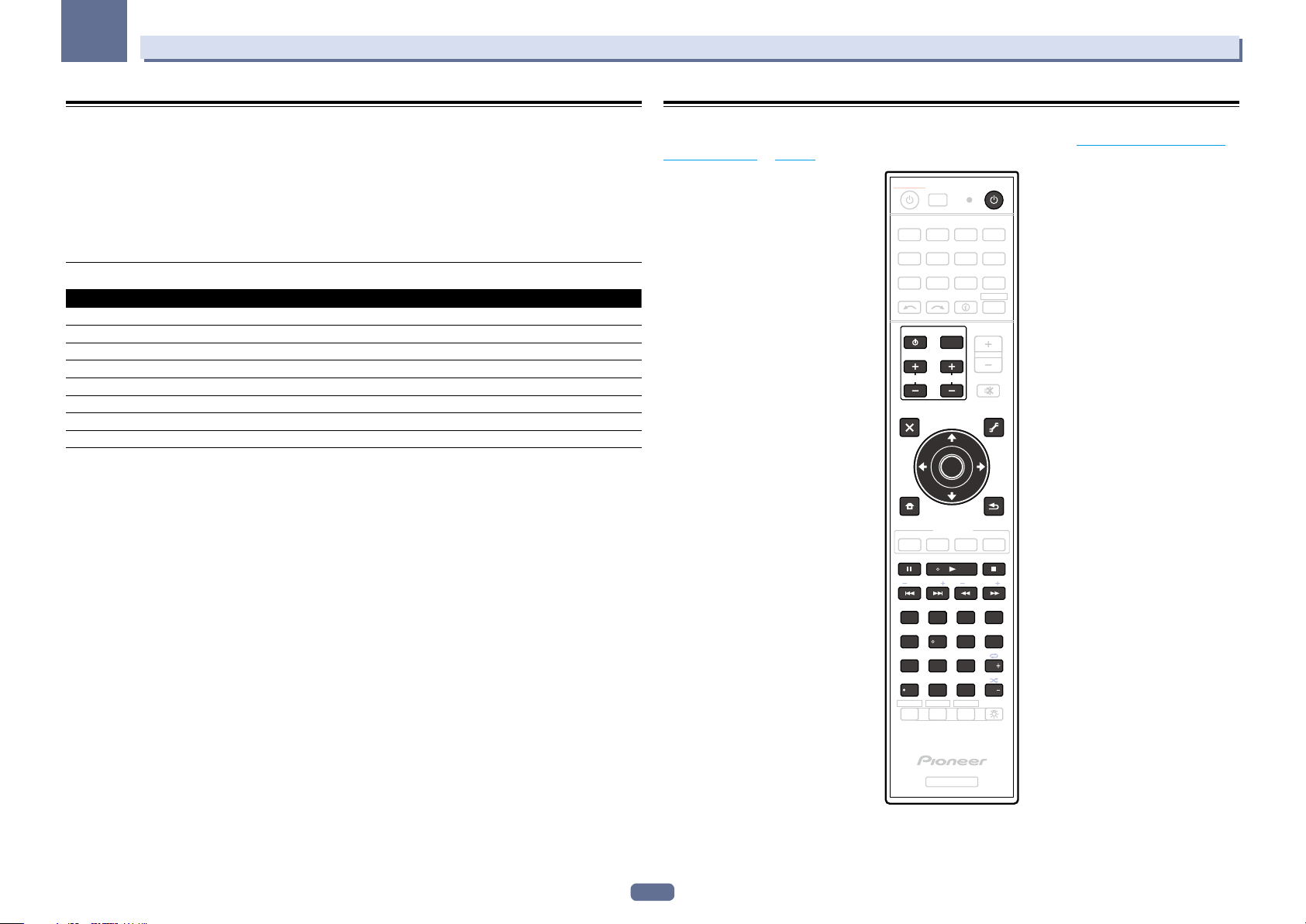

Remote control

This section explains how to operate the remote control for the receiver.

2,3

ALL ZONE STBY DISCRETE ON

RCU SETUP

BD DVDDVR

CDTV

USB CBL

SAT

iPod

INPUT

SELECT

TV CONTROL

AUDIO

PARAMETER

TOP MENU

HOME MENU

iPod CTRL

FEATURES

PQLS

PHASE

MPX

PRESET TUNE

AUTO/ALC/

DIRECT

STANDARD ADV SURR

222

SIGNAL SEL MCACC

546

DIMMER

SPEAKERS

HDMI OUT

D.ACCESS

/ CLR

ZONE 2 ZONE 3 ZONE 4

Z2 Z3 Z4

RECEIVER

INPUT

VOL

ENTER

BAND

BDR

NET

MHL

STATUS

Hi-Bit

CH LEVEL

SLEEP

CLASS

ENTER

SOURCERECEIVER

HDMI

ADPT

TUNER

RECEIVER

VOLUME

MUTE

VIDEO

PARAMETER

TOOLS

RETURN

D.FILT

PTY

THX

+Favorite

AUDIO

AUTO

S.RTRV

DISP

LIGHT

The remote has been conveniently color-coded according to component control using the following system:

! White – Receiver control, TV control ! Blue – Other controls (See pages 51, 52, 54, 55 and 86.)

1 u RECEIVER

This switches between standby and on for this receiver.

2 ALL ZONE STBY DISCRETE ON

Use this button to perform unique operations (page 85).

3 RCU SETUP

Use to input the preset code when making remote control settings and to set the remote control mode (page 83).

4 Input function buttons

Press to select control of other components (page 83). Use INPUT SELECT c/ d to select the input function (page 50).

5 Receiver Control buttons

Press first to access:

! STATUS – Press to check selected receiver settings (page 80). ! AUTO/ALC/DIRECT – Switches between Auto Surround (page 58), Auto Level Control, Optimum Surround

mode and Stream Direct mode (page 60).

! STANDARD – Press for Standard decoding and to switch various modes (2 Pro Logic, Neo:X, etc.) (page

58).

! ADV SURR – Use to switch between the various surround modes (page 59). ! THX – Press to select a Home THX listening mode (page 59). ! SIGNAL SEL – Use to select an input signal (page 60). ! MCACC – Press to switch between MCACC presets (page 60). ! CH LEVEL – Press repeatedly to select a channel, then use k/l to adjust the level (page 99). ! AUTO S.RTRV – Press to restore CD quality sound to compressed audio sources (page 74). ! SPEAKERS – Use to change the speaker terminal (page 78). ! DIMMER – Dims or brightens the display (page 80). ! SLEEP – Use to put the receiver in sleep mode and select the amount of time before sleep (page 80). ! HDMI OUT – Switch the HDMI output terminal (page 80).

6 TV CONTROL buttons

These buttons can be used to perform operations on the TV to which the TV CONTROL INPUT button is assigned. The TV can be operated with these buttons regardless of the input set for the remote control’s operation mode (page 83).

7 Receiver setting buttons

Press first to access:

! AUDIO PARAMETER – Use to access the Audio options (page 74). ! VIDEO PARAMETER – Use to access the Video options (page 76). ! HOME MENU – Use to access the Home Menu (pages 45, 47, 70, 90 and 98). ! RETURN – Press to confirm and exit the current menu screen.

8 i/j/k/l/ENTER

Use the arrow buttons when setting up your surround sound system (see page 90) and the Audio or Video options (page 74 or 76).

9 FEATURES buttons

These let you operate the receiver’s features directly.

! PHASE – Press to switch on/off Phase Control or Full Band Phase Control (page 61). ! PQLS – Press to select the PQLS setting (page 71). ! Hi-Bit – Press to switch on/off the Hi-Bit 32 setting (page 74). ! D.FILT – Press to select the AUDIO DAC (Digital Audio Converter) digital filter type (page 74).

10 MULTI-ZONE select buttons

Switch to perform operations in ZONE 2, ZONE 3 and ZONE 4 (page 79).

11 Remote control LED

Lights when a command is sent from the remote control.

Switches the remote to control the receiver (used to select the white commands). Switch to perform operations in the main zone. Also use this button to set up surround sound.

13 VOLUME +/–

Use to set the listening volume.

14 MUTE

Mutes the sound or restores the sound if it has been muted (adjusting the volume also restores the sound).

15 LIGHT

Press to turn on/off the illumination for the buttons. The way the buttons light can be selected from four modes (page 85).

Controls and displays

Display

21 3 864 1075 11 13 14

AUTO

HDMI

DIGITAL

ANALOG

AUTO SURROUND STREAM DIRECT

PROLOGIC x THX ADV.SURROUND

STANDARD

SP AB

L C R SL SR XL XR

LFE

Neo:6

SLEEP

DIGITAL PLUS

TrueHD

DTS HD ES 96/24

MSTR

DSD PCM MULTI-ZONE S.RTRV SOUND UP MIX

TUNER

PHONO

iPod

FULL BAND

PQLS

DVD

2019 2116 17 18

ALC

DVR

1 Signal indicators

Light to indicate the currently selected input signal. AUTO lights when the receiver is set to select the input signal automatically (page 60).

2 Program format indicators

Light to indicate the channels to which digital signals are being input.

! L/R – Left front/Right front channel ! C – Center channel ! SL/SR – Left surround/Right surround channel ! LFE – Low frequency effects channel (the (( )) indicators light when an LFE signal is being input) ! XL/XR – Two channels other than the ones above ! XC – Either one channel other than the ones above, the mono surround channel or matrix encode flag

3 Digital format indicators

Light when a signal encoded in the corresponding format is detected.

! 2 DIGITAL – Lights with Dolby Digital decoding. ! 2 DIGITAL PLUS – Lights with Dolby Digital Plus decoding. ! 2 TrueHD – Lights with Dolby TrueHD decoding. ! DTS – Lights with DTS decoding. ! DTS HD – Lights with DTS-HD decoding. ! 96/24 – Lights with DTS 96/24 decoding. ! DSD – Lights during playback of DSD (Direct Stream Digital) signals. ! DSD PCM – Light during DSD (Direct Stream Digital) to PCM conversion with SACDs. ! PCM – Lights during playback of PCM signals. ! MSTR – Lights during playback of DTS-HD Master Audio signals.

4 MULTI-ZONE

Lights when the MULTI-ZONE feature is active (page 79).

5 FULL BAND

Lights when the Full Band Phase Control is switched on (page 61).

6 Listening mode indicators

! AUTO SURROUND – Lights when the Auto Surround feature is switched on (page 58). ! ALC – Lights when the ALC (Auto level control) mode is selected (page 58). ! STREAM DIRECT – Lights when Direct/Pure Direct is selected (page 60). ! ADV.SURROUND – Lights when one of the Advanced Surround modes has been selected (page 59). ! STANDARD – Lights when one of the Standard Surround modes is switched on (page 58). ! THX – Lights when one of the Home THX modes is selected (page 59).

AT T

OVER

VIDEO

9 12

TUNED STEREO MONO

HDMI

[ 2 ]

USB

[ 3 ]

[ 4 ]

7 (PHASE CONTROL)

Lights when the Phase Control (page 61) or Full Band Phase Control (page 61) is switched on.

8 Analog signal indicators

Light to indicate reducing the level of an analog signal (page 74).

9 PQLS

Lights when the PQLS feature is active (page 71).

10 Tuner indicators

! TUNED – Lights when a broadcast is being received. ! STEREO – Lights when a stereo FM broadcast is being received in auto stereo mode. ! MONO – Lights when the mono mode is set using MPX.

Lights when the sound is muted.

12 SOUND

Lights when the DIALOG E (Dialog Enhancement) or TONE (tone controls) features is selected (page 74).

13 Master volume level

Shows the overall volume level. “---” indicates the minimum level, and “+12dB” indicates the maximum level.

14 Input function indicators

Light to indicate the input function you have selected.

15 Scroll indicators

Light when there are more selectable items when making the various settings.

16 Speaker indicators

Lights to indicate the current speaker system using SPEAKERS (page 78).

17 SLEEP

Lights when the receiver is in sleep mode (page 80).

18 Matrix decoding format indicators

! 2PRO LOGIC IIx – This lights to indicate 2 Pro Logic II / 2 Pro Logic IIx decoding (page 58).

19 S.RTRV

Lights when the Auto Sound Retriever function is active (page 74).

20 Character display

Displays various system information.

21 Remote control mode indicator

Lights to indicate the receiver’s remote control mode setting. (Not displayed when set to 1.) (page 102)

Controls and displays

Front panel

1 2 4

ADVANCED

MCACC

FL OFF

INPUT SELECTOR

STANDBY/ON

8910 1211 13 15

AUDIO

PARAMETER

HOME MENU RETURN

VIDEO

PARAMETER

TUNE

ENTER

TUNE (HDMI)

ZONE 2 ON/OFF

ZONE 3 ON/OFF

PRESETPRESET

ZONE 4 ON/OFF

MULTI-ZONE

CONTROL

PHONES

SPEAKERS

MCACC

SETUP MIC

iPod iPhone iPad DIRECT CONTROL

AUTO SURR/ALC/

STREAM DIRECTHOME THX BAND TUNER EDIT

5V 2.1 A 5V 1 A

iPod iPhone iPad

16 17 1918 20 21

1 u STANDBY/ON

This switches between standby and on for this receiver.

2 INPUT SELECTOR dial

Use to select an input function.

3 Indicators

! ADVANCED MCACC – Lights when EQ is set to ON in the AUDIO PARAMETER menu (page 74). ! FL OFF – Lights when “off” (nothing displayed) is selected with the display’s dimmer adjustment (page 80). ! HDMI – Blinks when connecting an HDMI-equipped component; lights when the component is connected

(page 30).

! iPod iPhone iPad – Lights to indicate iPod/iPhone/iPad is connected (page 40).

4 Character display

See Display on page 14.

5 Remote sensor

Receives the signals from the remote control (page 10).

iPod iPhone iPadHDMI

USBHDMI 5 INPUT/

MHL ( )

MASTER VOLUME

6 MASTER VOLUME dial

7 Front panel controls

To access the front panel controls, catch the sides of the door with your fingers and pull forward.

INPUT SELECTOR

STANDBY/ON

MASTER VOLUME

8 AUDIO PARAMETER

Use to access the Audio options (page 74).

9 i/j/k/l (TUNE/PRESET) /ENTER

Use the arrow buttons when setting up your Home Menu. Use TUNE i/j to find radio frequencies and use PRESET k/l to find preset stations (page 54).

10 VIDEO PARAMETER

Use to access the Video options (page 76).

11 MULTI-ZONE controls

If you’ve made MULTI-ZONE connections (page 37) use these controls to control the sub zone from the main zone (page 79).

12 SPEAKERS

Use to change the speaker terminal (page 78).

13 iPod iPhone iPad DIRECT CONTROL

Change the receiver’s input to the iPod and enable iPod operations on the iPod (page 51).

14 Listening mode buttons

! AUTO SURR/ALC/STREAM DIRECT – Switches between Auto Surround (page 58), Auto Level Control,

Optimum Surround mode and Stream Direct mode (page 60).

! HOME THX – Press to select a Home THX listening mode (page 59).

15 TUNER controls

! BAND – Switches between AM and FM radio bands (page 54). ! TUNER EDIT – Use with TUNE i/j, PRESET k/l and ENTER to memorize and name stations for recall

(page 54).

16 HOME MENU

Use to access the Home Menu (pages 45, 47, 70, 90 and 98).

17 RETURN

Press to confirm and exit the current menu screen.

18 PHONES jack

Use to connect headphones. When the headphones are connected, there is no sound output from the speakers.

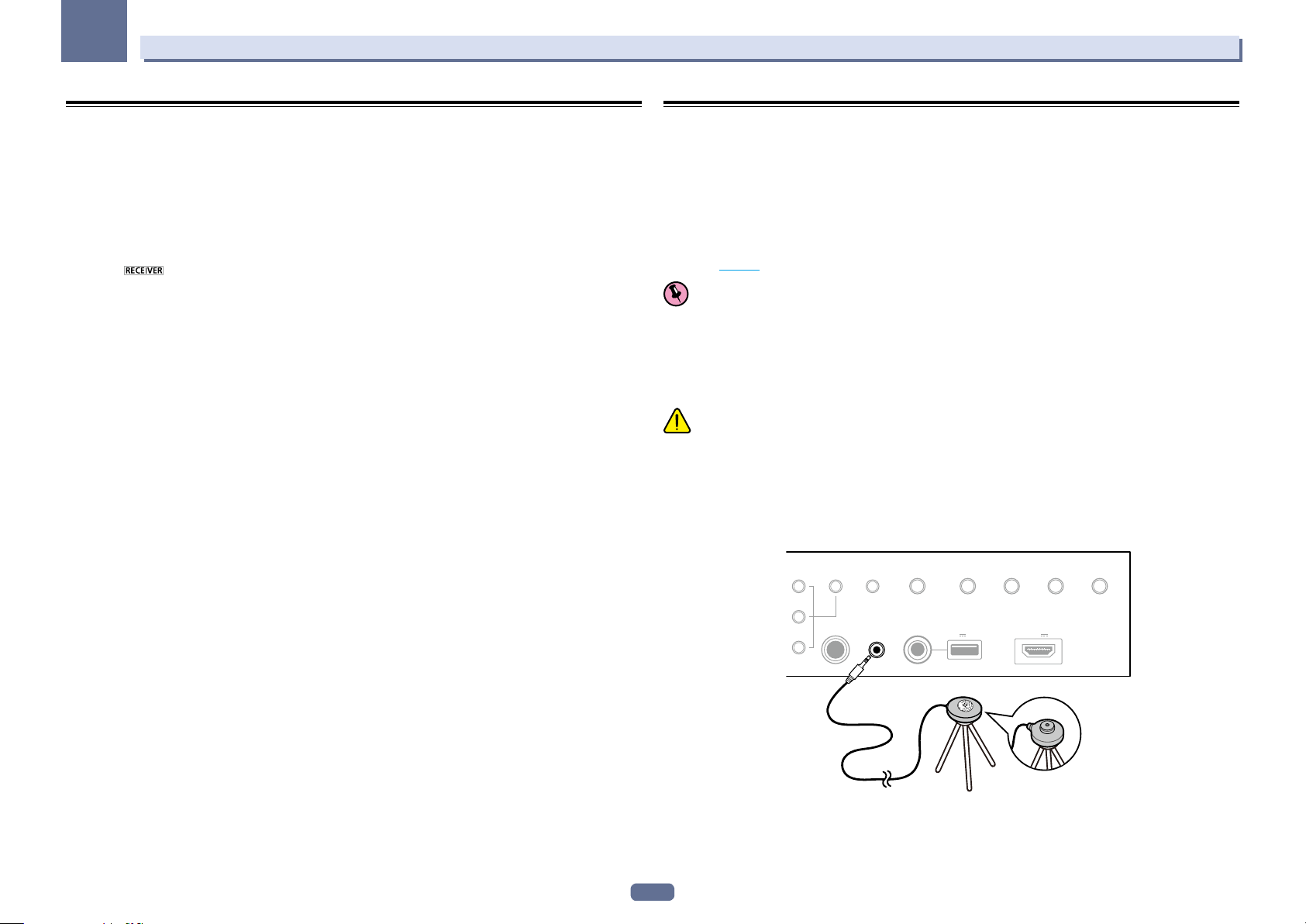

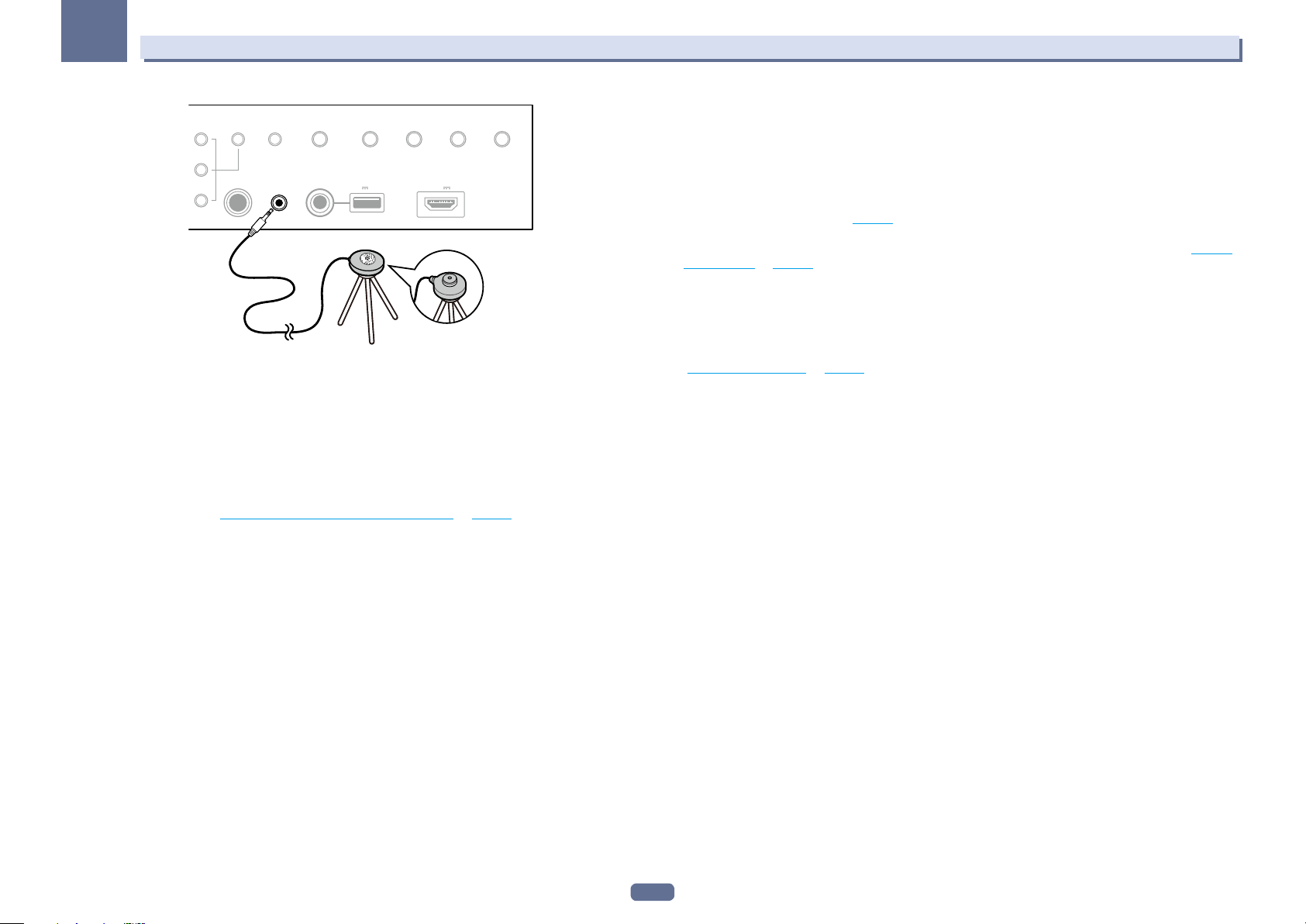

19 MCACC SETUP MIC jack

Use to connect the supplied microphone (page 45).

20 iPod iPhone iPad USB terminals

Use to connect your Apple iPod/iPhone/iPad as an audio and video source (page 40), or connect a USB device for audio and photo playback (page 41).

21 HDMI input/MHL connector

Use for connection to a compatible HDMI device (Video camera, etc.) (page 41). An MHL-compatible mobile device can also be connected here using the included MHL cable (page 41).

Controls and displays

Connecting your equipment

Connecting your equipment .........................................................................................................18

Rear panel ......................................................................................................................................18

Determining the speakers’ application ........................................................................................19

Placing the speakers ...................................................................................................................... 22

Connecting the speakers ...............................................................................................................22

Installing your speaker system ..................................................................................................... 24

About the audio connection ......................................................................................................... 29

About the video converter ...........................................................................................................29

About HDMI ................................................................................................................................... 30

Connecting your TV and playback components .........................................................................30

Connecting an HDD/DVD recorder, BD recorder and other video sources ............................... 33

Connecting a satellite/cable receiver or other set-top box ........................................................34

Connecting other audio components .......................................................................................... 35

Connecting additional amplifiers ................................................................................................. 35

Connecting the multichannel analog inputs ............................................................................... 36

Connecting AM/FM antennas .......................................................................................................36

MULTI-ZONE setup ........................................................................................................................37

Connecting to the network through LAN interface ...................................................................40

Connecting optional Bluetooth ADAPTER ...................................................................................40

Connecting an iPod........................................................................................................................40

Connecting a USB device ..............................................................................................................41

Connecting an MHL-compatible device ....................................................................................... 41

Connecting an HDMI-equipped component to the front panel input ...................................... 41

Using a USB cable to connect to a PC ........................................................................................... 42

Connecting to a wireless LAN ....................................................................................................... 42

Connecting an IR receiver .............................................................................................................42

Switching components on and off using the 12 volt trigger ..................................................... 43

Plugging in the receiver ................................................................................................................ 43

Connecting your equipment

This receiver provides you with many connection possibilities, but it doesn’t have to be difficult. This chapter explains the kinds of components you can connect to make up your home theater system.

CAUTION

! Before making or changing the connections, switch off the power and disconnect the power cord from the

power outlet. Plugging in should be the final step.

! When making connections, also keep the power cords of the devices being connected unplugged from the

power outlets.

! Depending on the device being connected (amplifier, receiver, etc.), the methods of connection and terminal

names may differ from the explanations in this manual. Also refer to the operating instructions of the respective devices.

Important

! Illustration shows the SC-68, however connections for the SC-67 are the same except where noted.

Rear panel

SC-68

DC OUTPUT

(

)

LAN

HDMI

ASSIGNABLE

1 - 7

ASSIGNABLE

(

)

DVD

(

DVR/

)

BDR

(

)

VIDEO

MONITOR

OUT

ZONE 2

OUT

RS-232C

EXTENSION

OUT

COMPONENT VIDEO

PBY

AM LOOP FM UNBAL 75

ANTENNA

12V TRIGGER

OUT

(

OUTPUT 5 V

)

150 mA MAX

(

DVD

ZONE 2

OUT

(

OUTPUT 12 V

TOTAL 150 mA MAX

)

OUT

SUBWOOFER

BD INZONE 4

(

)

SAT/CBL

VIDEO

DVDINZONE 3

SAT/CBL

IN OUT

A A

(

)

(

)

DVR/BDR

VIDEO

MONITOR OUT

VIDEO

DVR/BDR

PHONO

AUDIO

FRONTCENTER

IN 6IN

(CD)

ASSIGNABLE

ADAPTER PORT

(

OUTPUT 5 V

0.1 A MAX

SIGNAL GND

FRONT

CENTER

FRONT HEIGHT

)

SUBWOOFER

OUT 2OUT 1

ASSIGNABLEASSIGNABLE

(

)

(

DVD

SURROUND SURR BACK

SPEAKERS

)

10/100

(CONTROL)

SAT/CBL

(Single)

FRONT WIDE /

for WIRELESS LAN

OPTICALCOAXIAL

(TV)

(

)

DVR/BDR

F HEIGHT

F WIDE

PRE OUTMULTI CH IN

( 5 V

0.6 A MAX

OUT

CENTERFRONT

SUBWOOFER

OUTPUT

SURROUND

AC IN

)

USB-DAC

SURR BACKSURROUND

SURROUND BACK

RLRLRLRLRL

(Single)

SC-67

DC OUTPUT

(

)

LAN

(

SAT/CBL

(CONTROL)

)

(Single)

FRONT WIDE /

OPTICALCOAXIAL

(TV)

F HEIGHT

10/100

(

DVR/BDR

F WIDE

PRE OUT

)

for WIRELESS LAN

OUT

(

OUTPUT

5 V

0.6 A MAX

SURROUND

AC IN

)

SURROUND BACK

RLRLRLRLRL

(Single)

HDMI

ASSIGNABLE

1 - 7

ASSIGNABLE

(

)

DVD

(

DVR/

)

BDR

(

)

VIDEO

MONITOR

OUT

ZONE 2

OUT

RS-232C

EXTENSION

OUT

COMPONENT VIDEO

PBY

AM LOOP FM UNBAL 75

ANTENNA

12V TRIGGER

OUT

(

OUTPUT 5 V

)

150 mA MAX

(

)

DVD

ZONE 2

OUT

SUBWOOFER

(

OUTPUT 12 V

TOTAL 150 mA MAX

BD INZONE 4

(

)

SAT/CBL

VIDEO

DVDINZONE 3

SAT/CBL

OUT

IN OUT

A A

(

)

(

)

DVR/BDR

VIDEO

MONITOR OUT

VIDEO

DVR/BDR

PHONO

AUDIO

FRONTCENTER

IN 6IN

(CD)

ASSIGNABLE

ADAPTER PORT

(

OUTPUT 5 V

0.1 A MAX

SIGNAL GND

FRONT

CENTER

FRONT HEIGHT

)

SUBWOOFER

OUT 2OUT 1

ASSIGNABLEASSIGNABLE

(

)

DVD

SURROUND SURR BACK

SPEAKERS

)

Note

! The input functions below are assigned by default to the receiver’s different input terminals. Refer to The Input

Setup menu on page 47 to change the assignments if other connections are used.

Input function

HDMI Audio Component

(BD)

DVD IN 1 COAX-1 IN 1

SAT/CBL IN 2 COAX-2

DVR/BDR IN 3 OPT-2 IN 2

VIDEO IN 4 IN 3

HDMI 5/MHL

(front panel)

IN 5

HDMI 6 IN 6

HDMI 7 IN 7

TV OPT-1

CD ANALOG-1

Input Terminals

! The CU-RF100 omni-directional remote control (separately sold) can be connected to the RS-232C and

EXTENSION terminals. Using the CU-RF100 lets you display the receiver’s display information on the remote

control display in your hands and operate it without worrying about obstacles or the direction in which the remote control is pointing.

MONITOR

OUT

ZONE 2

OUT

RS-232C

EXTENSION

AM LOOP FM UNBAL 75

ANTENNA

(

OUTPUT 5 V 150 mA MAX

12V TRIGGER

OUT

)

(

OUTPUT 12 V TOTAL 150 mA MAX

SUBWOOFER

)

Connecting your equipment

Determining the speakers’ application

This unit is equipped with speaker terminals for 11 channels, allowing users to select a variety of speaker layouts/ usage patterns according to their tastes. The terminals to which the speakers should be connected differ according to the speaker layout/usage pattern. Select one speaker layout/usage pattern before connecting the speakers. For instructions on connections, see Installing your speaker system on page 24.

! Be sure to connect speakers to the front left and right channels (L and R). ! It is also possible to only connect one of the surround back speakers (SB) or neither. ! If you have two subwoofers, the second subwoofer can be connected to the SUBWOOFER 2 terminal.

Connecting two subwoofers increases the bass sound to achieve more powerful sound reproduction. In this case, the same sound is output from the two subwoofers.

Important

! The Speaker System setting must be made if you use any of the connections shown below other than [A] (see

Speaker system setting on page 98).

! The speakers from which sound is output can be switched according to the speaker layout/usage pattern

(sound is not necessarily output from all connected speakers). Use the SPEAKERS button to switch the speakers from which sound is output. For details, see Switching the speaker terminals on page 78.

[A] 9.2 channel surround system (Front height/Front wide) connection

*Default setting

! Speaker System setting: 9.1ch FH/FW

FHR

FHL

SW 2

FWL

FWR

SBL

SBR

[B] 7.2 channel surround system & Speaker B connection

! Speaker System setting: 7.1ch + Speaker B

FHR

FHL

SW 1

SBL

SBR

Speaker B

With these connections you can simultaneously enjoy 7.2-channel surround sound in the main zone with stereo playback of the same sound on the B speakers. The same connections also allow for 9.2-channel surround sound in the main zone when not using the B speakers. The speakers from which sound is output can be switched using the SPEAKERS button. For details, see Switching

the speaker terminals on page 78.

[C] 7.2 channel surround system & Front Bi-amping connection (High quality surround)

! Speaker System setting: 7.1ch Front Bi-Amp Bi-amping connection of the front speakers for high sound quality with 7.2-channel surround sound.

Front Bi-Amp

SW 1

A 9.2 ch surround system connects the left and right front speakers (L/R), the center speaker (C), the left and right front height speakers (FHL/FHR), the left and right front wide speakers (FWL/FWR), the left and right surround speakers (SL/SR), the left and right surround back speakers (SBL/SBR), and the subwoofers (SW 1/SW 2). It is not possible to produce sound simultaneously from the front height speakers and the front wide speakers. This surround system produces a more true-to-life sound from above. The speakers from which sound is output can be switched using the SPEAKERS button. For details, see Switching

the speaker terminals on page 78.

SBR

SBL

Connecting your equipment

[D] 7.2 channel surround system (Surround back) & ZONE 2 connection (Multi Zone)

! Speaker System setting: 7.1ch + ZONE 2 With these connections you can simultaneously enjoy 7.2-channel surround sound in the main zone with stereo playback on another component in ZONE 2. (The selection of input devices is limited.) This speaker layout/usage pattern provides 7.2-channel playback using the surround back channels in the main zone. To achieve 7.2-channel playback using the front height and front wide channels with ZONE 2 connections, see [E].

Main zone

SW 1

SBL

SBR

ZONE 2

Sub zone

[E] 7.2 channel surround system (Front height/Front wide) & ZONE 2 connection (Multi Zone)

! Speaker System setting: 7.1ch FH/FW + ZONE 2 With these connections you can simultaneously enjoy 7.2-channel surround sound in the main zone with stereo playback on another component in ZONE 2. (The selection of input devices is limited.) This speaker layout/usage pattern provides 7.2-channel playback using the front height and front wide channels in the main zone. To achieve 7.2-channel playback using the surround back channels with ZONE 2 connections, see [D]. It is not possible to produce sound simultaneously from the front height speakers and the front wide speakers. The speakers from which sound is output can be switched using the SPEAKERS button. For details, see Switching

the speaker terminals on page 78.

Main zone

FHR

SW 1

FWR

ZONE 2

Sub zone

FWL

FHL

[F] 5.2 channel surround system & Front Bi-amping connection (High quality surround) & ZONE 2 connection (Multi Zone)

! Speaker System setting: 5.1ch Bi-Amp + ZONE 2 With these connections you can simultaneously enjoy Bi-amping connection of the front speakers for high sound quality with 5.2-channel surround sound in the main zone with stereo playback on another component in ZONE 2. (The selection of input devices is limited.)

Front Bi-Amp

Main zone

SW 1

ZONE 2

Sub zone

[G] 5.2 channel surround system & ZONE 2/ZONE 3 connection (Multi Zone)

! Speaker System setting: 5.1ch + ZONE 2+3 With these connections you can simultaneously enjoy 5.2-channel surround sound in the main zone with stereo playback on another component in ZONE 2 and ZONE3. (The selection of input devices is limited.)

Main zone Sub zone

SW 1

ZONE 2

ZONE 3

Connecting your equipment

[H] 5.2 channel surround system & Speaker B Bi-amping connection

! Speaker System setting: 5.1ch + SP-B Bi-Amp With these connections you can simultaneously enjoy 5.2-channel surround sound in the main zone with stereo playback of the same sound on the B speakers. The B speakers can be bi-amped to achieve high quality sound. The speakers from which sound is output can be switched using the SPEAKERS button. For details, see Switching

the speaker terminals on page 78.

Speaker B Bi-Amp

SW 1

[I] 5.2 channel surround system & Front and Surround Bi-amping connection (High quality surround)

! Speaker System setting: 5.1ch F+Surr Bi-Amp Bi-amping connection of the front and surround speakers for high sound quality with 5.2-channel surround sound.

Front Bi-Amp

[J] 5.2 channel surround system & Front and Center Bi-amping connection (High quality surround)

! Speaker System setting: 5.1ch F+C Bi-Amp Bi-amping connection of the front and center speakers for high sound quality with 5.2-channel surround sound.

Front Bi-Amp

Center Bi-Amp

SW 1

Other speaker connections

! Your favorite speaker connections can be selected even if you have fewer than 5.2 speakers (except front left/

right speakers).

! When not connecting a subwoofer, connect speakers with low frequency reproduction capabilities to the front

channel. (The subwoofer’s low frequency component is played from the front speakers, so the speakers could be damaged.)

! After connecting, be sure to conduct the Full Auto MCACC (speaker environment setting) procedure. See

Automatically conducting optimum sound tuning (Full Auto MCACC) on page 45.

SW 1

Surround Bi-Amp

Connecting your equipment

Placing the speakers

Refer to the chart below for placement of the speakers you intend to connect.

2SW 1

FHL

FWL

! Place the surround speakers at 120º from the center. If you, (1) use the surround back speaker, and, (2) don’t use

the front height speakers / front wide speakers, we recommend placing the surround speaker right beside you.

! If you intend to connect only one surround back speaker, place it directly behind you. ! Place the left and right front height speakers at least one meter (3.3 ft.) directly above the left and right front

speakers.

THX speaker system setup

If you are using a THX certified subwoofer, use the THX INPUT jack on the subwoofer (if your subwoofer has one) or switch the filter position to THX on your subwoofer. See also THX Audio Setting on page 100 to make the settings that will give you the best sound experience when using the Home THX modes (page 59).

Some tips for improving sound quality

Where you put your speakers in the room has a big effect on the quality of the sound. The following guidelines should help you to get the best sound from your system. ! The subwoofer can be placed on the floor. Ideally, the other speakers should be at about ear-level when you’re

listening to them. Putting the speakers on the floor (except the subwoofer), or mounting them very high on a wall is not recommended.

! For the best stereo effect, place the front speakers 2 m to 3 m (6 ft. to 9 ft.) apart, at equal distance from the TV. ! If you’re going to place speakers around your CRT TV, use shielded speakers or place the speakers at a suffi-

cient distance from your CRT TV.

! If you’re using a center speaker, place the front speakers at a wider angle. If not, place them at a narrower

angle.

! Place the center speaker above or below the TV so that the sound of the center channel is localized at the TV

screen. Also, make sure the center speaker does not cross the line formed by the leading edge of the front left and right speakers.

! It is best to angle the speakers towards the listening position. The angle depends on the size of the room. Use

less of an angle for bigger rooms.

! Surround and surround back speakers should be positioned 60 cm to 90 cm (2 ft. to 3 ft.) higher than your

ears and tilted slightly downward. Make sure the speakers don’t face each other. For DVD-Audio, the speakers should be more directly behind the listener than for home theater playback.

! Try not to place the surround speakers farther away from the listening position than the front and center speak-

ers. Doing so can weaken the surround sound effect.

30 30

120 120

SBL

FHR

FWR

SBR

Connecting the speakers

Each speaker connection on the receiver comprises a positive (+) and negative (–) terminal. Make sure to match these up with the terminals on the speakers themselves. This unit supports speakers with a nominal impedance of 4 W to 16 W.

CAUTION

! These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when con-

necting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.

! Make sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal. If any

of the bare speaker wire touches the back panel it may cause the power to cut off as a safety measure.

Bare wire connections

CAUTION

Make sure that all speakers are securely installed. This not only improves sound quality, but also reduces the risk of damage or injury resulting from speakers being knocked over or falling in the event of external shocks such as earthquakes.

1 Twist exposed wire strands together.

2 Loosen terminal and insert exposed wire.

3 Tighten terminal.

123

10 mm (3/8 in.)

Note

! Please refer to the manual that came with your speakers for details on how to connect the other end of the

speaker cables to your speakers.

! Use an RCA cable to connect the subwoofer. It is not possible to connect using speaker cables. ! If you have two subwoofers, the second subwoofer can be connected to the SUBWOOFER 2 terminal.

Connecting two subwoofers increases the bass sound to achieve more powerful sound reproduction. In this case, the same sound is output from the two subwoofers.

Connecting your equipment

Banana plug connections

If you want to use speaker cables terminated with banana plugs, screw the speaker terminal fully shut, then plug the banana plug into the end of the speaker terminal.

Bi-amping your speakers

Bi-amping is when you connect the high frequency driver and low frequency driver of your speakers to different amplifiers for better crossover performance. Your speakers must be bi-ampable to do this (having separate terminals for high and low) and the sound improvement will depend on the kind of speakers you’re using.

Front right Front left

High

Low

SPEAKERS

Bi-amp compatible speaker

FRONT CENTER

Bi-amp compatible

FRONT HEIGHT

RLRL

speaker

High

Low

Bi-wiring your speakers

Your speakers can also be bi-wired if they support bi-amping. ! With these connections, the Speaker System setting makes no difference.

CAUTION

! Don’t connect different speakers from the same terminal in this way. ! When bi-wiring as well, heed the cautions for bi-amping shown above.

% To bi-wire a speaker, connect two speaker cords to the speaker terminal on the receiver.

Using a banana plug for the second connection is recommended.

FRONTCENTERAFRONT HEIGHT

RLRL

SPEAKERS

CAUTION

! Most speakers with both High and Low terminals have two metal plates that connect the High to the Low

terminals. These must be removed when you are bi-amping the speakers or you could severely damage the amplifier. See your speaker manual for more information.

! If your speakers have a removable crossover network, make sure you do not remove it for bi-amping. Doing so

may damage your speakers.

Connecting your equipment

Installing your speaker system

At the very least, front left and right speakers only are necessary. Note that your main surround speakers should always be connected as a pair, but you can connect just one surround back speaker if you like (it must be connected to the left surround back terminal).

[A] 9.2 channel surround system (Front height/Front wide) connection

! If necessary, select ‘9.1ch FH/FW’ from the Speaker System menu. See Speaker system setting on page 98 to do this. ! When only connecting one surround back speaker, connect it to the SURROUND BACK L (Single) terminals.

LINE LEVEL

INPUT

SUBWOOFER

FRONT

SURROUND SURR BACK

(Single)

Front height leftFront height right

F HEIGHT

F WIDE

LINE LEVEL

INPUT

Front leftFront right Center Subwoofer 2Subwoofer 1

Front wide leftFront wide right

[B] 7.2 channel surround system & Speaker B connection

! Select ‘7.1ch + Speaker B’ from the Speaker System menu. See Speaker system setting on page 98 to do this. ! When only connecting one surround back speaker, connect it to the SURROUND BACK L (Single) terminals.

Front height leftFront height right

Front leftFront right Center Subwoofer 2Subwoofer 1

F HEIGHT

PRE OUT

F WIDE

LINE LEVEL

INPUT

RLRLRLRL

SURROUND

LINE LEVEL

INPUT

SUBWOOFER

FRONT

A A

FRONT CENTER

SPEAKERS

CENTER

FRONT HEIGHT

SURROUND SURR BACK

FRONT WIDE /

(Single)

Speaker B- leftSpeaker B- right

SURROUND BACK

(Single)

A A

FRONT CENTER

SPEAKERS

Surround right

CENTER

FRONT HEIGHT

Surround back right Surround back left

PRE OUT

FRONT WIDE /

SURROUND

RLRLRLRL

SURROUND BACK

Surround left

(Single)

Surround right

Surround back right Surround back left

Surround left

Connecting your equipment

[C] 7.2 channel surround system & Front Bi-amping connection (High quality surround)

! Select ‘7.1ch Front Bi-Amp’ from the Speaker System menu. See Speaker system setting on page 98 to do this. ! When only connecting one surround back speaker, connect it to the SURROUND BACK L (Single) terminals.

Bi-amp compatible speaker

Front right

High

LINE LEVEL

Low

A A

FRONT CENTER

SPEAKERS

INPUT

FRONT

Center Subwoofer 2Subwoofer 1

SUBWOOFER

CENTER

FRONT HEIGHT

SURROUND SURR BACK

F HEIGHT

(Single)

PRE OUT

FRONT WIDE /

F WIDE

LINE LEVEL

INPUT

Bi-amp compatible speaker

SURROUND

RLRLRLRL

Front left

High

Low

SURROUND BACK

(Single)

[D] 7.2 channel surround system (Surround back) & ZONE 2 connection (Multi Zone)

! Select ‘7.1ch + ZONE 2’ from the Speaker System menu. See Speaker system setting on page 98 to do this. ! When only connecting one surround back speaker, connect it to the SURROUND BACK L (Single) terminals.

Center Subwoofer 2Subwoofer 1

F WIDE

PRE OUT

LINE LEVEL

INPUT

RLRLRLRL

LINE LEVEL

INPUT

SUBWOOFER

FRONT

A A

FRONT CENTER

SPEAKERS

CENTER

FRONT HEIGHT

SURROUND SURR BACK

F HEIGHT

(Single)

FRONT WIDE /

Front leftFront right

SURROUND

ZONE 2 - leftZONE 2 - right

SURROUND BACK

(Single)

Surround right

Surround back right Surround back left

Surround left

Surround right

Surround back right Surround back left

Surround left

Connecting your equipment

[E] 7.2 channel surround system (Front height/Front wide) & ZONE 2 connection (Multi Zone)

! Select ‘7.1ch FH/FW + ZONE 2’ from the Speaker System menu. See Speaker system setting on page 98 to do this.

Front height leftFront height right

Front leftFront right Center Subwoofer 2Subwoofer 1

F HEIGHT

PRE OUT

F WIDE

LINE LEVEL

INPUT

RLRLRLRL

SURROUND

SURROUND BACK

LINE LEVEL

INPUT

SUBWOOFER

FRONT

A A

FRONT CENTER

SPEAKERS

CENTER

FRONT HEIGHT

SURROUND SURR BACK

(Single)

FRONT WIDE /

[F] 5.2 channel surround system & Front Bi-amping connection (High quality surround) & ZONE 2 connection (Multi Zone)

! Select ‘5.1ch Bi-Amp + ZONE 2’ from the Speaker System menu. See Speaker system setting on page 98 to do this.

Bi-amp compatible speaker

Front wide leftFront wide right

(Single)

Front right

High

LINE LEVEL

Low

A A

FRONT CENTER

SPEAKERS

INPUT

FRONT

Center Subwoofer 2Subwoofer 1

SUBWOOFER

CENTER

FRONT HEIGHT

SURROUND SURR BACK

FRONT WIDE /

(Single)

F HEIGHT

PRE OUT

F WIDE

LINE LEVEL

INPUT

Bi-amp compatible speaker

SURROUND

RLRLRLRL

Front left

High

Low

SURROUND BACK

(Single)

Surround right

ZONE 2 - right ZONE 2 - left

Surround left

Surround right

ZONE 2 - right ZONE 2 - left

Surround left

Connecting your equipment

[G] 5.2 channel surround system & ZONE 2/ZONE 3 connection (Multi Zone)

! Select ‘5.1ch + ZONE 2+3’ from the Speaker System menu. See Speaker system setting on page 98 to do this.

Center Subwoofer 2Subwoofer 1

F WIDE

PRE OUT

LINE LEVEL

INPUT

RLRLRLRL

LINE LEVEL

INPUT

SUBWOOFER

FRONT

A A

FRONT CENTER

SPEAKERS

CENTER

FRONT HEIGHT

SURROUND SURR BACK

F HEIGHT

(Single)

FRONT WIDE /

Front leftFront right

SURROUND

ZONE 3 - leftZONE 3 - right

SURROUND BACK

[H] 5.2 channel surround system & Speaker B Bi-amping connection

! Select ‘5.1ch + SP-B Bi-Amp’ from the Speaker System menu. See Speaker system setting on page 98 to do this.

Center Subwoofer 2Subwoofer 1

F WIDE

PRE OUT

speaker

LINE LEVEL

INPUT

RLRLRLRL

(Single)

LINE LEVEL

INPUT

SUBWOOFER

FRONT

A A

FRONT CENTER

SPEAKERS

High

CENTER

FRONT HEIGHT

SURROUND SURR BACK

F HEIGHT

(Single)

FRONT WIDE /

Bi-amp compatible

Speaker B left

SURROUND

High

Front leftFront right

SURROUND BACK

(Single)

Surround right

ZONE 2 - right ZONE 2 - left

Surround left

Low

Bi-amp compatible speaker Speaker B right

Low

Surround leftSurround right

Connecting your equipment

[I] 5.2 channel surround system & Front and Surround Bi-amping connection (High quality surround)

! Select ‘5.1ch F+Surr Bi-Amp’ from the Speaker System menu. See Speaker system setting on page 98 to do this.

Bi-amp compatible speaker

Front right

High

LINE LEVEL

Low

A A

FRONT CENTER

SPEAKERS

INPUT

FRONT

Center Subwoofer 2Subwoofer 1

SUBWOOFER

CENTER

FRONT HEIGHT

SURROUND SURR BACK

F HEIGHT

(Single)

PRE OUT

FRONT WIDE /

F WIDE

LINE LEVEL

INPUT

Bi-amp compatible speaker

SURROUND

RLRLRLRL

Front left

High

Low

SURROUND BACK

(Single)

[J] 5.2 channel surround system & Front and Center Bi-amping connection (High quality surround)

! Select ‘5.1ch F+C Bi-Amp’ from the Speaker System menu. See Speaker system setting on page 98 to do this.

Bi-amp compatible speaker

Front right

High

LINE LEVEL

Low

A A

FRONT CENTER

SPEAKERS

INPUT

Bi-amp compatible speaker

Center

High

Low

SUBWOOFER

FRONT

CENTER

FRONT HEIGHT

SURROUND SURR BACK

F HEIGHT

(Single)

FRONT WIDE /

Subwoofer 2Subwoofer 1

F WIDE

PRE OUT

LINE LEVEL

INPUT

Bi-amp compatible speaker

Front left

High

Low

SURROUND

R LRLRLRLRL

SURROUND BACK

(Single)

High

Low

Bi-amp compatible speaker Surround right

Bi-amp compatible speaker

Surround left

High

Low

Surround leftSurround right

Connecting your equipment

About the audio connection

Types of cables and terminals

HDMI HD audio

Digital (Coaxial)Conventional digital audio

Digital (Optical)

Sound signal priority

RCA (Analog)

(White/Red)

! With an HDMI cable, video and audio signals can be transferred in high quality over a single cable.

Transferable audio signals

Conventional analog audio

About the video converter

The video converter ensures that all video sources are output through the HDMI OUT terminal. If the TV is only connected to the receiver’s composite VIDEO MONITOR OUT jacks, all the other video devices must be connected through composite connections. If several video components are assigned to the same input function (see The Input Setup menu on page 47), the converter gives priority to HDMI, component, then composite (in that order).

Terminal for connection with source device

HDMI IN HDMI OUT

YPBP

High picture quality

COMPONENT

VIDEO IN

Note

! The only exception is HDMI: since this resolution cannot be downsampled, you must connect your monitor/TV

to the receiver’s HDMI output when connecting this video source.

! If the video signal does not appear on your TV, try adjusting the resolution settings on your component or dis-

play. Note that some components (such as video game units) have resolutions that may not be converted. In this case, try switching Digital Video Conversion (in Setting the Video options on page 76) OFF.

! The signal input resolutions that can be converted from the component video input for the HDMI output are

480i/576i, 480p/576p, 720p and 1080i. 1080p signals cannot be converted.

! For optimal video performance, THX recommends switching Digital Video Conversion (in Setting the Video

options on page 76) OFF.

Terminal for connection with TV monitor

YPBP

COMPONENT VIDEO

MONITOR OUT

VIDEO

Video signals can be output

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Connecting your equipment

About HDMI

The HDMI connection transfers uncompressed digital video, as well as almost every kind of digital audio. This receiver incorporates High-Definition Multimedia Interface (HDMI®) technology. This receiver supports the functions described below through HDMI connections.

! Digital transfer of uncompressed video (contents protected by HDCP (1080p/24, 1080p/60, etc.)) ! 3D signal transfer ! Deep Color signal transfer ! x.v.Color signal transfer ! ARC (Audio Return Channel) ! 4K signal transfer

— This may not operate properly, depending on the connected equipment. — 4K 24p, 4K 25p and 4K 30p signals are supported. — Not supported for the HDMI IN 6 and IN 7 terminals.

! Input of multi-channel linear PCM digital audio signals (192 kHz or less) for up to 8 channels ! Input of the following digital audio formats:

— Dolby Digital, Dolby Digital Plus, DTS, High bitrate audio (Dolby TrueHD, DTS-HD Master Audio, DTS-HD

High Resolution Audio), DVD-Audio, CD, SACD (DSD signal), Video CD, Super VCD

! Synchronized operation with components using the Control with HDMI function (see Control with HDMI func-

tion on page 69)

Note

! An HDMI connection can only be made with DVI-equipped components compatible with both DVI and High

Bandwidth Digital Content Protection (HDCP). If you choose to connect to a DVI connector, you will need a separate adaptor (DVIdHDMI) to do so. A DVI connection, however, does not support audio signals. Consult your local audio dealer for more information.

! If you connect a component that is not compatible with HDCP, an HDCP ERROR message is displayed on

the front panel display. Some components that are compatible with HDCP still cause this message to be displayed, but so long as there is no problem with displaying video this is not a malfunction.

! Depending on the component you have connected, using a DVI connection may result in unreliable signal

transfers.

! This receiver supports SACD, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio. To take advantage

of these formats, however, make sure that the component connected to this receiver also supports the corresponding format.

! Use a High Speed HDMI®/TM cable. If an HDMI cable other than a High Speed HDMI®/TM cable is used, it may

not work properly.

! When an HDMI cable with a built-in equalizer is connected, it may not operate properly. ! Signal transfer is only possible when connected to a compatible component. ! HDMI format digital audio transmissions require a longer time to be recognized. Due to this, interruption in the

audio may occur when switching between audio formats or beginning playback.

! Turning on/off the device connected to this unit’s HDMI OUT terminal during playback, or disconnecting/con-

necting the HDMI cable during playback, may cause noise or interrupted audio.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

Connecting your TV and playback components

Connecting using HDMI

If you have an HDMI or DVI (with HDCP) equipped component (Blu-ray Disc player (BD), etc.), you can connect it to this receiver using a commercially available HDMI cable. If the TV and playback components support the Control with HDMI feature, the convenient Control with HDMI functions can be used (see Control with HDMI function on page 69).

This connection is required in

HDMI/DVI-compatible Blu-ray Disc player

BD IN

IN 6IN

(

)

(

)

(

)

(

)

DVD

SAT/CBL

DVR/BDR

VIDEO

(CD)

ASSIGNABLE

OUT 2OUT 1

ASSIGNABLEASSIGNABLE

( DVD

(

)

DVD

DC OUTPUT

(

)

LAN

10/100

for WIRELESS LAN

(CONTROL)

( OUTPUT 5 V

)

0.6 A MAX

OPTICALCOAXIAL

OUT

(TV)

(

)

(

)

DVR/BDR

SAT/CBL

Other HDMI/DVIequipped component

(

SAT/CBL

)

(

DVR/BDR

BD IN

! When connecting to an HDMI/DVI-compatible monitor using the HDMI OUT 2 terminal, switch the HDMI

output setting to HDMI OUT 2 or HDMI OUT ALL. See Switching the HDMI output on page 80.

! For input components, connections other than HDMI connections are also possible (see Connecting your DVD

player with no HDMI output on page 31).

order to listen to the sound of the TV over the receiver.

AUDIO OUT

ANALOG

(

VIDEO

)

IN 6IN

(CD)

ASSIGNABLE

)

HDMI/DVI-compatible

monitor

Select one

DIGITAL OUT

COAXIAL OPTICAL

OUT 2 OUT 1

ASSIGNABLE ASSIGNABLE

(

)

(

DVD

SAT/CBL

(CONTROL)

HDMI INHDMI OUT HDMI OUT

DC OUTPUT

(

)

10/100

LAN

for WIRELESS LAN

(

OUTPUT

5 V

)

OPTICALCOAXIAL

(TV)

(

)

DVR/BDR

0.6 A MAX

OUT

)

“x.v.Color” and are trademarks of Sony Corporation.
