PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER ELECTRONIC CORPORATION 1998
K-ZZD. DEC. 1998 Printed in Japan
ORDER NO.
CRT2313
HIGH POWER CD PLAYER WITH FM/AM TUNER
DEH-1000 X1N/UC
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................2
3. SCHEMATIC DIAGRAM ...........................................12

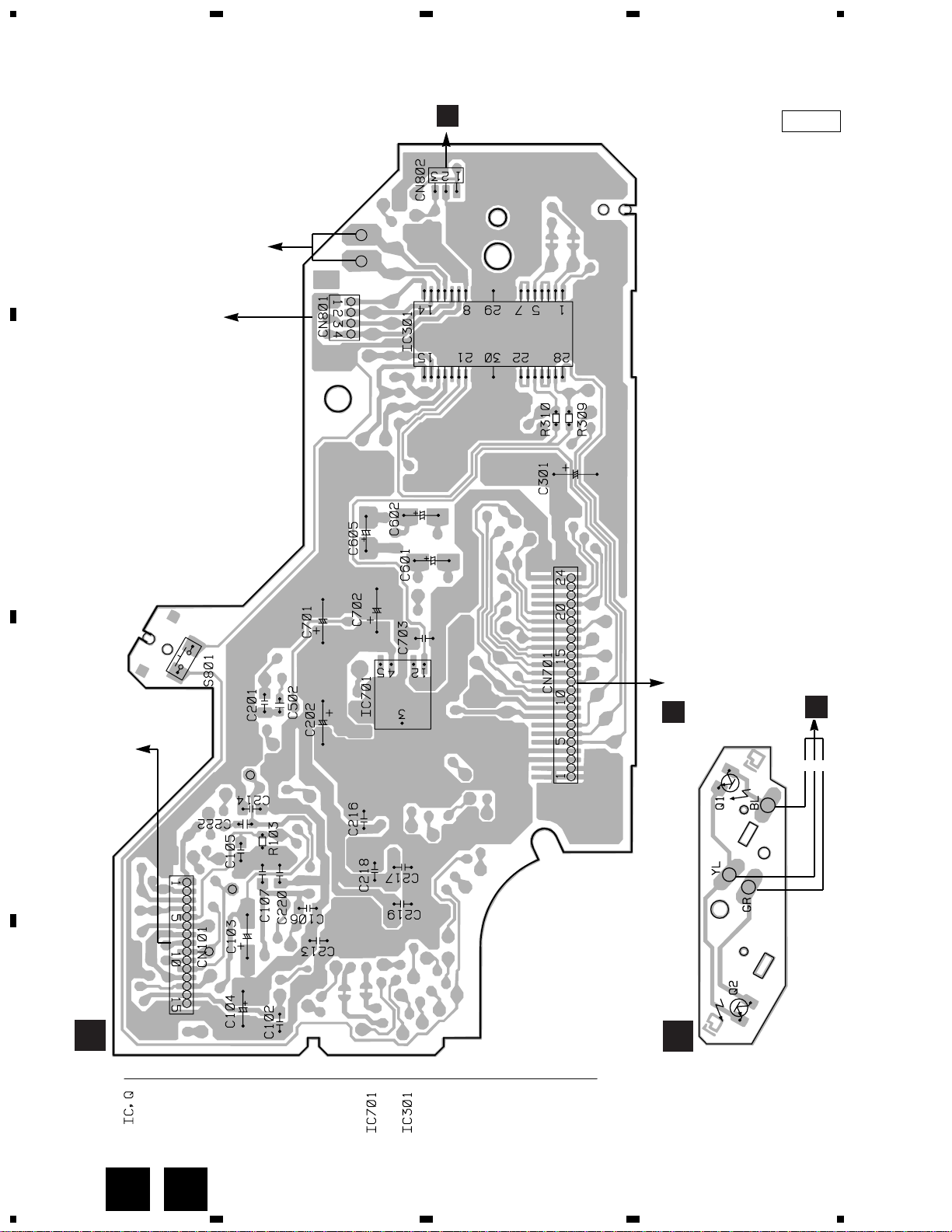

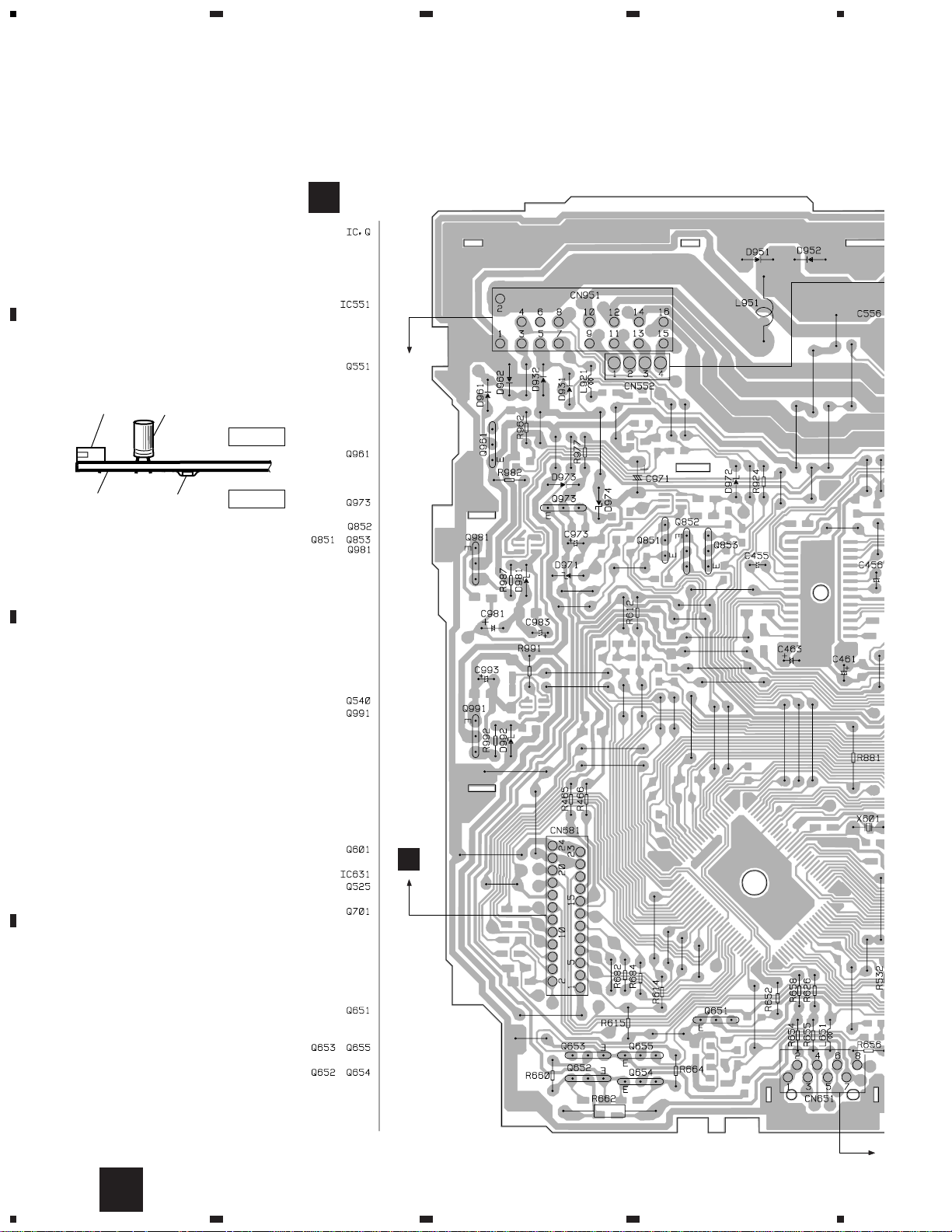

4. PCB CONNECTION DIAGRAM ................................28
5. ELECTRICAL PARTS LIST ........................................38
6. ADJUSTMENT..........................................................44
7. GENERAL INFORMATION .......................................48
7.1 PARTS .................................................................48
7.1.1 IC................................................................48
7.1.2 DISPLAY....................................................55
7.2 DIAGNOSIS ........................................................56
7.2.1 DISASSEMBLY .........................................56

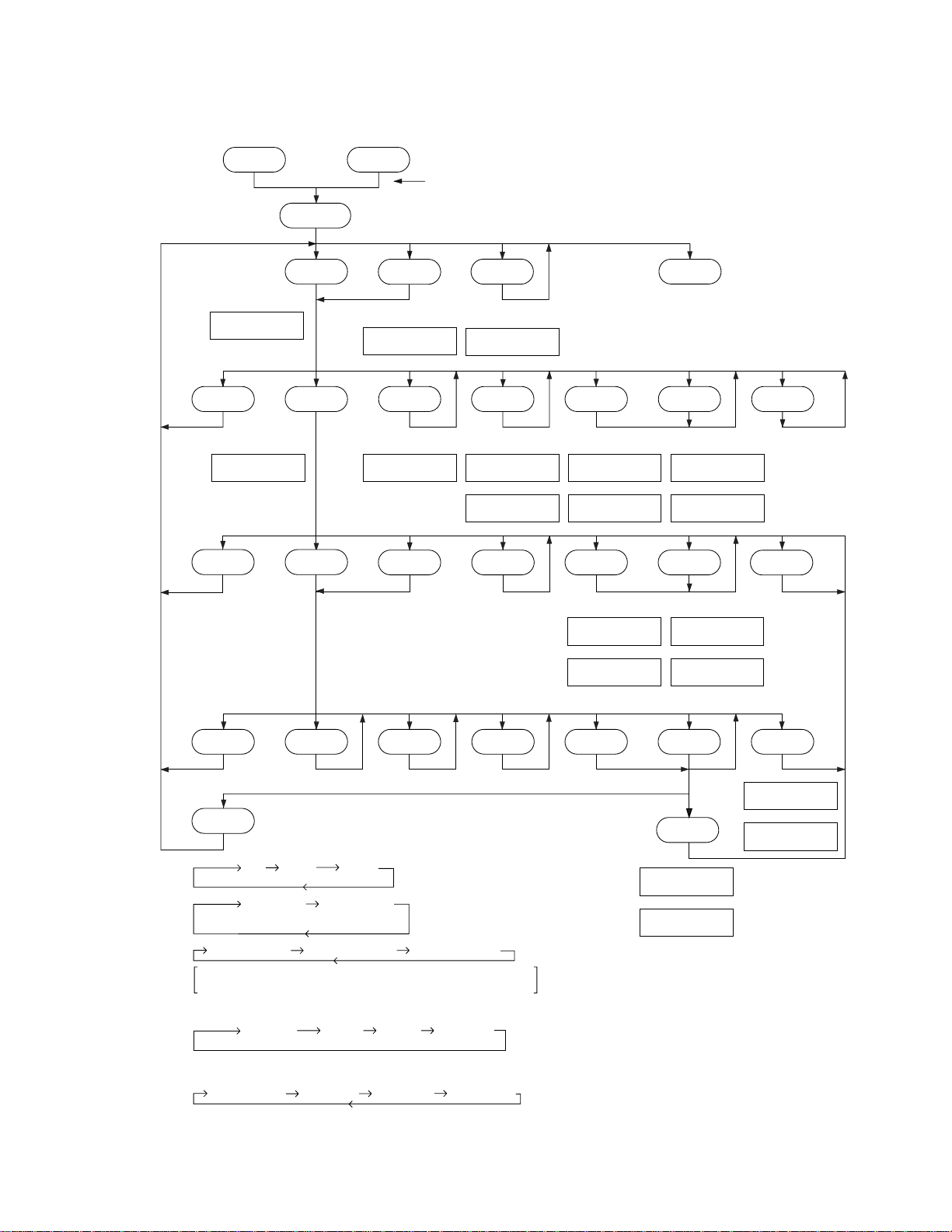

7.2.2 TEST MODE..............................................57
7.3 BLOCK DIAGRAM ..............................................61

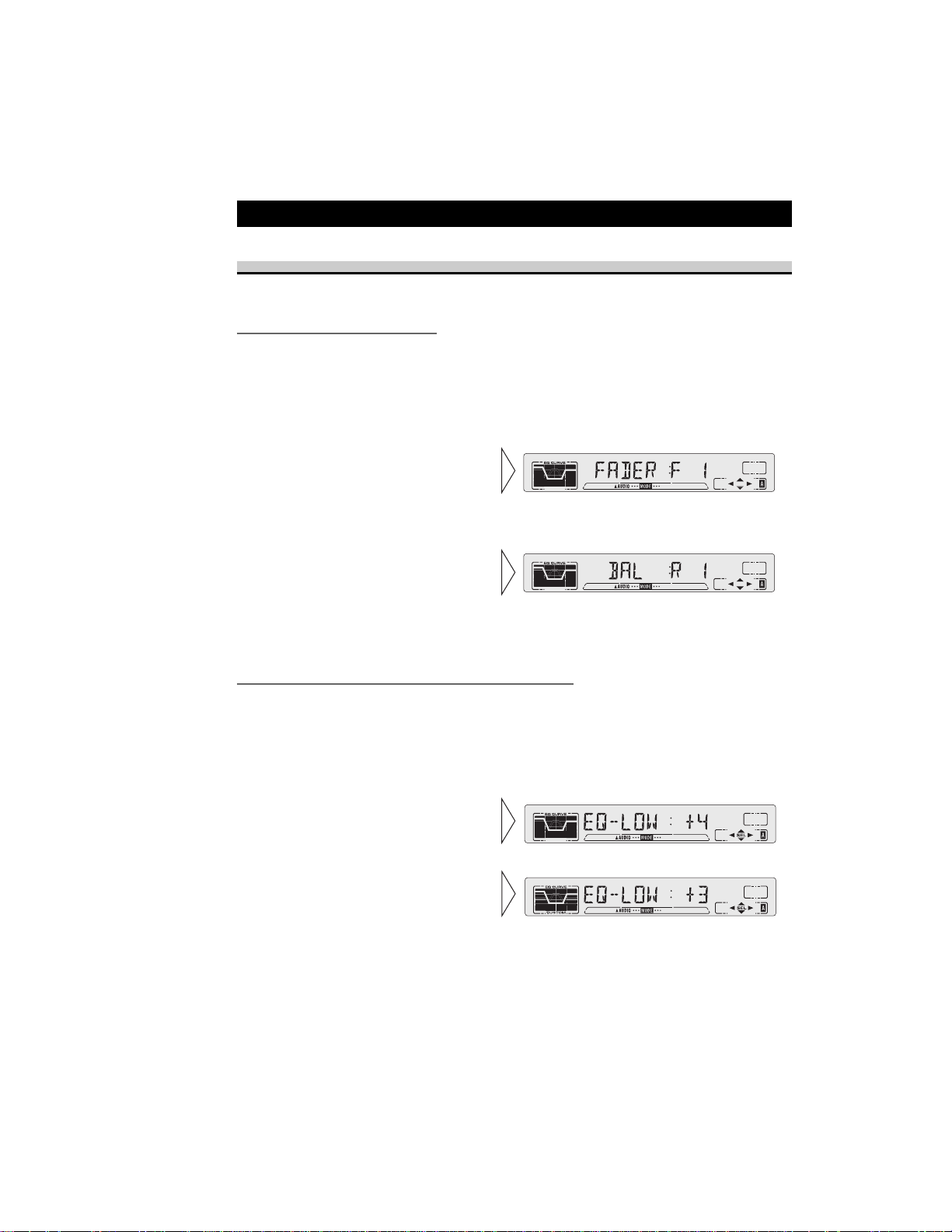

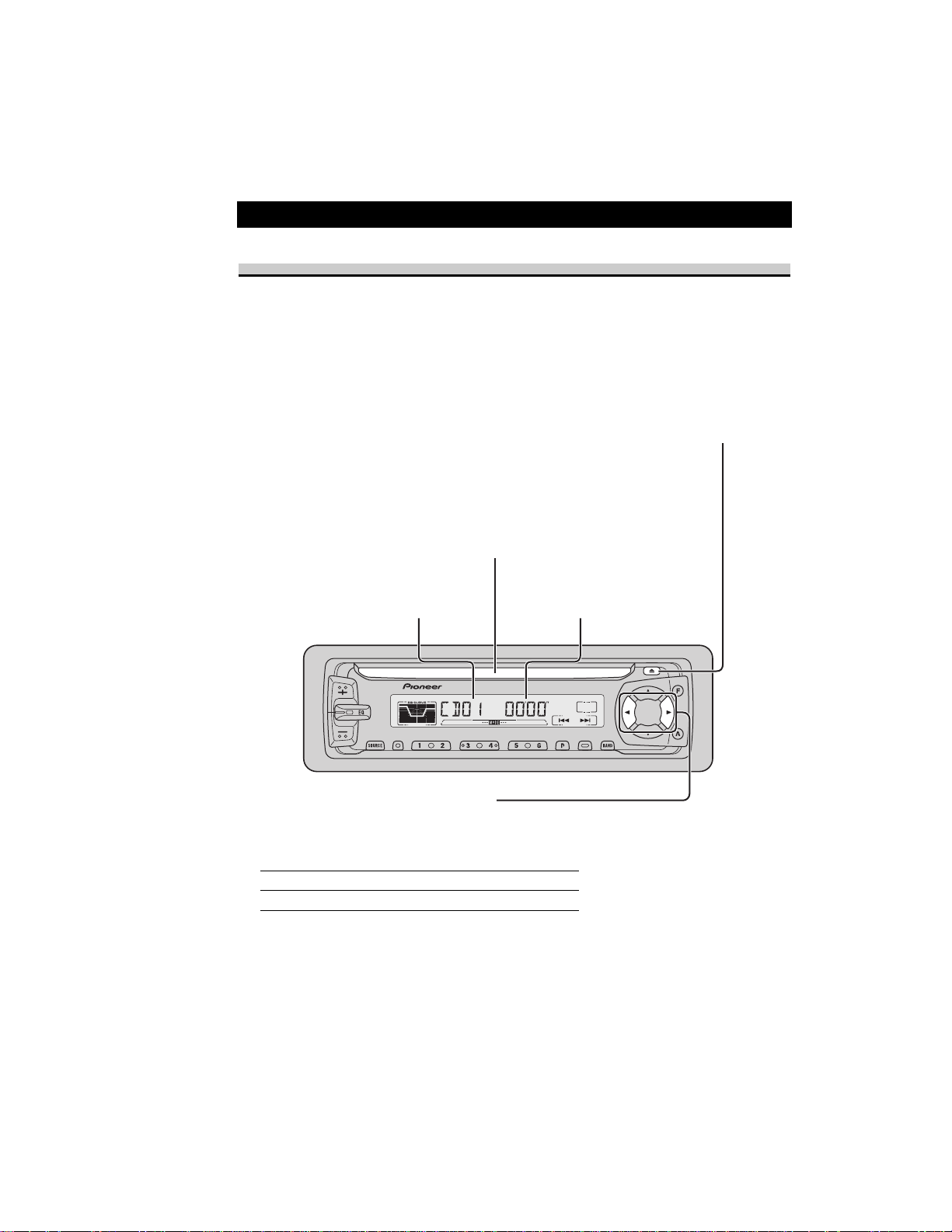

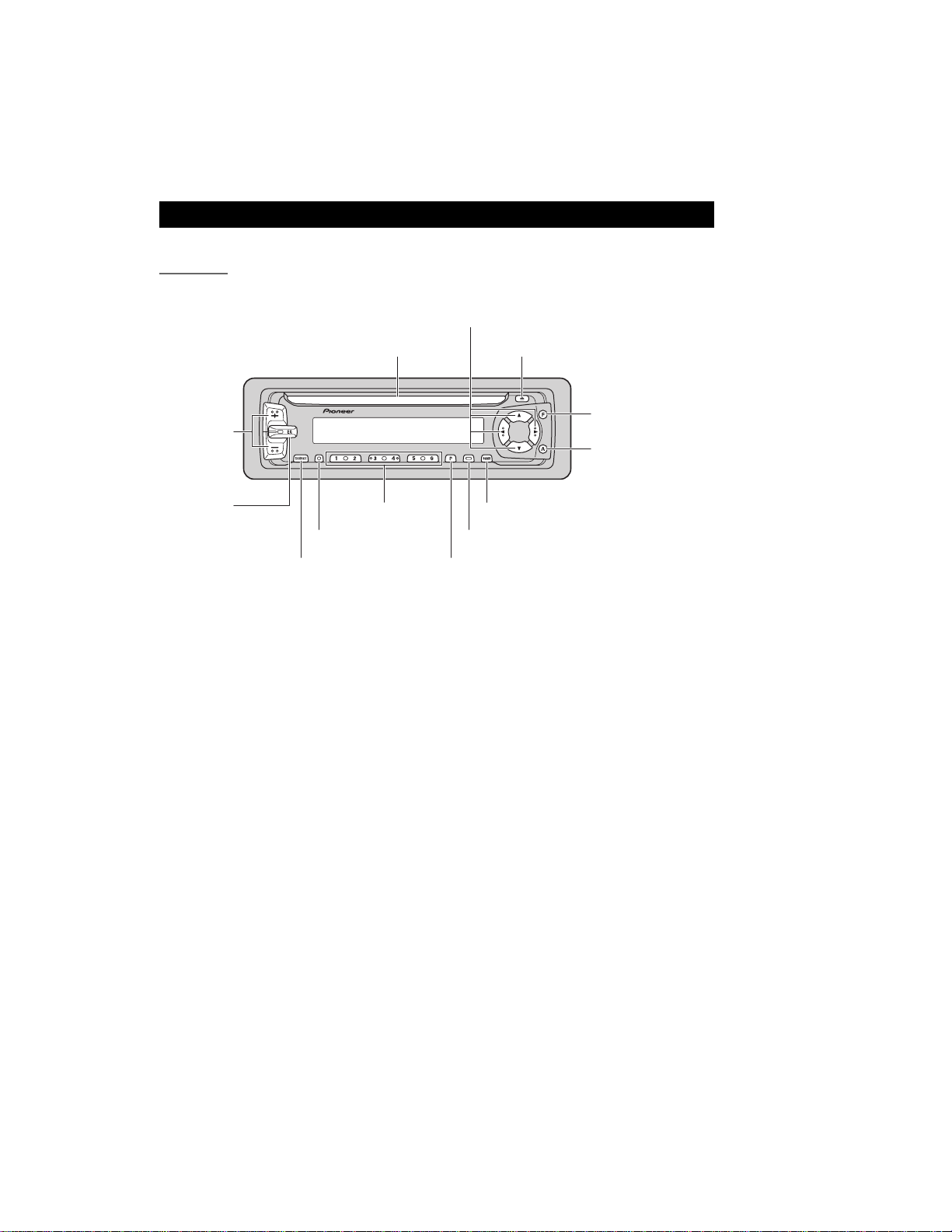

8. OPERATIONS AND SPECIFICATIONS.....................62
- See the separate manual CX-916(CRT2300) for the CD mechanism description, disassembly and circuit
description.
- The CD mechanism employed in this model is one of S8 series.
DEH-10 X1N/UC
DEH-1050 X1N/ES
DEH-1000/X1N/UC
2
DEH-1000,10,1050
- CD Player Service Precautions
1. For pickup unit(CXX1285) handling, please refer
to"Disassembly"(CX-916 Service Manual CRT2300).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a connector is plugged or unplugged.
3. Please checking the grating after changing the service pickup unit(see page 46).
CAUTION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.
W
ARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
1. SAFETY INFORMATION
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
20
15
12
16
17
4
7
11
3
10
9
8
6
5
2
14
1
3
DEH-1000,10,1050
- Owner’s Manual
Model Part No. Language
DEH-1000/X1N/UC, DEH-10/X1N/UC CRD2858 English, French, Spanish
DEH-1050/X1N/ES CRD2860 English, Spanish, Portuguese
CRD2861 Arabic, Chinese
- Installation Manual
Model Part No. Language
DEH-1000/X1N/UC, DEH-10/X1N/UC CRD2859 English, French, Spanish
DEH-1050/X1N/ES CRD2862 English, Spanish, Portuguese, Arabic, Chinese
1 Cord Assy CDE5874
* 2 Accessory Assy CEA2395
3 Spring CBH1650
4 Screw Assy CEA2396
5 Screw CBA1002
* 6 Polyethylene Bag CEG-127
7 Screw CRZ50P090FMC
8 Screw TRZ50P080FMC
* 9 Polyethylene Bag CEG-158
10 Handle CNC5395
11 Bush CNV3930
12 Polyethylene Bag
See Contrast table(2)
13 •••••
14 Carton
See Contrast table(2)
15 Contain Box See Contrast table(2)
16 Protector CHP2101
17 Protector CHP2102
18 •••••
19 •••••
20-1 Owner’s Manual
See Contrast table(2)
20-2 Owner’s Manual See Contrast table(2)
20-3 Installation Manual See Contrast table(2)
20-4 Polyethylene Bag CEG1116
* 20-5 Card
See Contrast table(2)
Mark No. Description Part No. Mark No. Description Part No.
(1) PACKING SECTION PARTS LIST
NOTE:
- Parts marked by “*” and | can not be supplied.
- Screws adjacent to ∇ mark on the product are used for disassembly.
Part No.
Mark No. Symbol and Description DEH-1000/X1N/UC DEH-10/X1N/UC DEH-1050/X1N/ES
12 Polyethylene Bag CEG1173 CEG1173 CEG-162
14 Carton CHG3664 CHG3663 CHG3665
15 Contain Box CHL3664 CHL3663 CHL3665
20-1 Owner’s Manual CRD2858 CRD2858 CRD2860
20-2 Owner’s Manual Not used Not used CRD2861
20-3 Installation Manual CRD2859 CRD2859 CRD2862
* 20-5 Card ARY1048 ARY1048 Not used
(2) CONTRAST TABLE
DEH-1000/X1N/UC, DEH-10/X1N/UC and DEH-1050/X1N/ES are constructed the same except for the following:
4
DEH-1000,10,1050
2.2 EXTERIOR
- DEH-1000/X1N/UC
5
DEH-1000,10,1050
1 Screw BMZ26P120FMC
2 Screw BSZ26P060FMC
3 Screw BSZ30P060FMC
4 Screw BSZ30P120FMC
5 Cable CDE6018
6 Cord Assy CDE5874
7 Fuse(10A) CEK1136
8 Resistor RS1/2PMF102J
9 Cap CNS1472
10 Cover CNC8367
11 Earth Plate CNC8368
12 Spacer CNM4913
13 Insulator CNM6006
14 Insulator CNM6224
| 15 Tuner Amp Unit CWM6092
16 Screw ASZ26P080FMC
17 Screw BPZ26P080FMC
18 Screw BSZ26P160FMC
19 IC(IC551) PAL005A
20 Connector(CN551) CDE5996
21 Antenna Cable(CN502) CDH1254
22 Transistor(Q981,991) 2SD2396
23 Clamper CEF1006
24 Pin Jack(CN431) CKB1028
25 Terminal(CN501) CKF1059
26 Connector(CN951) CKM1299
* 27 Connector(CN681) CKS2227
28 •••••
29 Connector(CN651) CKS3581
30 Holder CNC7533
31 Holder CNC8130
32 Holder CNC8041
33 Holder CNC8043
34 Insulator CNM5967
35 Heat Sink CNR1506
36 FM/AM Tuner Unit CWE1501
37 Holder CNC7532
38 Chassis Unit CXB3167
39 Screw BPZ20P060FMC
40 Screw BPZ20P080FMC
41 Button(+) CAC5834
42 Button(-) CAC5837
43 Button(SOURCE) CAC5983
44 Button(BAND) CAC5984
45 Button(1-6) CAC5840
46 Button(PGM,CL) CAC5841
47 Button(UP,DOWN) CAC5846
48 Button(<>) CAC5849
49 Button(F,A) CAC5852
50 Button(EJECT) CAC5853
51 Button(EQ) CAC6132
52 Cover CNM4704
53 •••••
54 •••••
55 •••••
56 •••••
57 Holder CNV5574
58 Housing CNV5575
59 Keyboard Unit CWM6098
60 LCD(LCD1801) CAW1500
61 Connector(CN1801) CKS3580
62 Holder CNC8036
63 Sheet CNM6026
64 •••••
65 Screw ISS26P055FUC
66 Lighting Conductor CNV5570
67 Connector CNV5571
68 Grille Unit CXB3504
69 Case Unit CXB4033
70 CD Mechanism Module CXK5200
71 Holder CNC6798
72 Panel CNS5132
- EXTERIOR SECTION PARTS LIST
Mark No. Description Part No.
Mark No. Description Part No.
6
DEH-1000,10,1050
- DEH-10/X1N/UC
7
DEH-1000,10,1050
1 Screw BMZ26P120FMC
2 Screw BSZ26P060FMC
3 Screw BSZ30P060FMC
4 Screw BSZ30P120FMC
5 Cable CDE6018
6 Cord Assy CDE5874
7 Fuse(10A) CEK1136
8 Resistor RS1/2PMF102J
9 Cap CNS1472
10 Cover CNC8367
11 Earth Plate CNC8368
12 Spacer CNM4913
13 Insulator CNM6006
14 Insulator CNM6224
| 15 Tuner Amp Unit CWM6092
16 Screw ASZ26P080FMC
17 Screw BPZ26P080FMC
18 Screw BSZ26P160FMC
19 IC(IC551) PAL005A
20 Connector(CN551) CDE5996
21 Antenna Cable(CN502) CDH1254
22 Transistor(Q981,991) 2SD2396
23 Clamper CEF1006
24 Pin Jack(CN431) CKB1028
25 Terminal(CN501) CKF1059
26 Connector(CN951) CKM1299
* 27 Connector(CN681) CKS2227
28 •••••
29 Connector(CN651) CKS3581
30 Holder CNC7533
31 Holder CNC8130
32 Holder CNC8041
33 Holder CNC8043
34 Insulator CNM5967
35 Heat Sink CNR1506
36 FM/AM Tuner Unit CWE1501
37 Holder CNC7532
38 Chassis Unit CXB3167
39 Screw BPZ20P060FMC
40 Screw BPZ20P080FMC
41 Button(+) CAC5834
42 Button(-) CAC5837
43 Button(SOURCE) CAC5983
44 Button(BAND) CAC5984
45 Button(1-6) CAC5840
46 Button(PGM,CL) CAC5841
47 Button(UP,DOWN) CAC5846
48 Button(<>) CAC5849
49 Button(F,A) CAC5852
50 Button(EJECT) CAC5853
51 Button(EQ) CAC6132
52 Cover CNM4704
53 •••••
54 •••••
55 •••••
56 •••••
57 Holder CNV5574
58 Housing CNV5575
59 Keyboard Unit CWM6095
60 LCD(LCD1801) CAW1500
61 Connector(CN1801) CKS3580
62 Holder CNC8036
63 Sheet CNM6026
64 •••••
65 Screw ISS26P055FUC
66 Lighting Conductor CNV5570
67 Connector CNV5571
68 Grille Unit CXB3503
69 Case Unit CXB4033
70 CD Mechanism Module CXK5200
71 Holder CNC6798
72 Panel CNS5132
- EXTERIOR SECTION PARTS LIST
Mark No. Description Part No.
Mark No. Description Part No.
8
DEH-1000,10,1050
- DEH-1050/X1N/ES
9
DEH-1000,10,1050
1 Screw BMZ26P120FMC
2 Screw BSZ26P060FMC
3 Screw BSZ30P060FMC
4 Screw BSZ30P120FMC
5 Cable CDE6018
6 Cord Assy CDE5874
7 Fuse(10A) CEK1136
8 Resistor RS1/2PMF102J
9 Cap CNS1472
10 Cover CNC8367
11 Earth Plate CNC8368
12 Spacer CNM4913
13 Insulator CNM6006
14 Insulator CNM6224
| 15 Tuner Amp Unit CWM6093
16 Screw ASZ26P080FMC
17 Screw BPZ26P080FMC
18 Screw BSZ26P160FMC
19 IC(IC551) PAL005A
20 Connector(CN551) CDE5996
21 Antenna Cable(CN502) CDH1254
22 Transistor(Q981,991) 2SD2396
23 Clamper CEF1006
24 Pin Jack(CN431) CKB1028
25 Terminal(CN501) CKF1059
26 Connector(CN951) CKM1299
* 27 Connector(CN681) CKS2227
28 •••••
29 Connector(CN651) CKS3581
30 Holder CNC7533
31 Holder CNC8130
32 Holder CNC8041
33 Holder CNC8043
34 Insulator CNM5967
35 Heat Sink CNR1506
36 FM/AM Tuner Unit CWE1501
37 Holder CNC7532
38 Chassis Unit CXB3167
39 Screw BPZ20P060FMC
40 Screw BPZ20P080FMC
41 Button(+) CAC5834
42 Button(-) CAC5837
43 Button(SOURCE) CAC5983
44 Button(BAND) CAC5984
45 Button(1-6) CAC5840
46 Button(PGM,CL) CAC5841
47 Button(UP,DOWN) CAC5846
48 Button(<>) CAC5849
49 Button(F,A) CAC5852
50 Button(EJECT) CAC5853
51 Button(EQ) CAC6132
52 Cover CNM4704
53 •••••
54 •••••
55 •••••
56 •••••
57 Holder CNV5574
58 Housing CNV5575
59 Keyboard Unit CWM6098
60 LCD(LCD1801) CAW1500
61 Connector(CN1801) CKS3580
62 Holder CNC8036
63 Sheet CNM6026
64 •••••
65 Screw ISS26P055FUC
66 Lighting Conductor CNV5570
67 Connector CNV5571
68 Grille Unit CXB3505
69 Case Unit CXB4033
70 CD Mechanism Module CXK5200
71 Holder CNC6798
72 Panel CNS5132
- EXTERIOR SECTION PARTS LIST
Mark No. Description Part No.
Mark No. Description Part No.
10
DEH-1000,10,1050
2.3 CD MECHANISM MODULE
11
DEH-1000,10,1050
Mark No. Description Part No. Mark No. Description Part No.
1 Control Unit CWX2344
2 Connector(CN802) CKS2192
3 Connector(CN801) CKS2193
4 Connector(CN701) CKS2773
5 Connector(CN101) CKS3486
6 Screw BMZ20P030FZK
7 Screw BSZ20P040FZK
8 Screw(M2×3) CBA1077
9 Screw(M2×6) CBA1230
10 Screw CBA1243
11 Screw(M2×4) CBA1362
12 Washer CBF1037
13 Washer CBF1038
14 Washer CBF1060
* 15 Washer CBF1075
16 Spring CBH2079
17 Spring CBH2117
18 Spring CBH2082
19 Spring CBH2110
20 Spring CBH2111
21 Spring CBH2114
22 Spring CBH2115
23 Spring CBH2080
24 Spring CBH2118
25 Spring CBH2161
26 Spring CBH2163
27 Spring CBH2189
28 Spring CBH2249
29 Spring CBH2260
30 Spring CBH2262
31 Spring CBL1367
32 Spring CBL1369
33 Connector CDE5531
34 Connector CDE5532
35 Shaft CLA3304
36 Screw(M2.6×6) CBA1458
37 Frame CNC7544
38 Frame CNC7545
39 Lever CNC7546
40 Arm CNC7739
41 Bracket CNC7798
42 Plate CNC8090
43 Spacer CNM3315
44 Sheet CNM6170
45 Cushion CNM6204
46 Sheet CNM6215
47 Ball CNR1189
48 Belt CNT1086
49 Roller CNV4509
50 Arm CNV5246
51 Arm CNV5247
52 Arm CNV5248
53 Arm CNV5249
54 Guide CNV5254
55 Guide CNV5255
56 Gear CNV5257
57 Gear CNV5256
58 Guide CNV5259
59 Damper CNV5266
60 Arm CNV5359
61 Arm CNV5360
62 Arm CNV5361
63 Guide CNV5509
64 Guide CNV5510
65 Holder CNV5578
66 Guide CNV5751
67 Clamper CNV5758
68 Gear CNV5813
69 Motor Unit(M1) CXB2190
70 Screw Unit CXB2191
71 Chassis Unit CXB2192
72 Gear Unit CXB2193
73 Arm Unit CXB2194
74 Motor Unit(M2) CXB2195
75 Lever Unit CXB2553
76 Arm Unit CXB2554
77 Motor Unit(M3) CXB2562
78 Arm Unit CXB2795
79 Bracket Unit CXB4071
80 Screw JFZ20P025FMC
81 Screw JGZ17P025FZK
82 Washer YE15FUC
83 Pickup Unit(Service)(P8) CXX1285
84 Screw IMS26P030FMC
* 85 PCB CNX2982
86 Photo-transistor(Q1, 2) CPT230SX-TU
- CD MECHANISM MODULE SECTION PARTS LIST
12
DEH-1000,10,1050
1
23
4
1234
D
C
B
A
3. SCHEMATIC DIAGRAM
3.1 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)
Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS
LIST”.
A-a A-b
A-aA-a
A-b A-b
A-b A-b
A-a A-a
Large size
SCH diagram
Guide page
Detailed page
A
A-a
ANTENNA
CABLE
A
S
E
VD REGULATOR
4.3V
4.3V
4.3V
4.3V
4.3V
4.3V
4.3V
A
B
E
D
13
DEH-1000,10,1050
5
6
78
5
6
78
D
C
B
A
A-b
A
RESET
CEK1136
DEH-P1000/X1N/UC
DEH-P10/X1N/UC
DEH-P1050/X1N/ES
R612
DELETED
47K
R613
0R0
DELETED
4.3V
4.3V
4.3V
4.3V
C
14
DEH-1000,10,1050
1
23
4
1234
D
C
B
A
A
SOURCE SELECTOR,
ELECTRONIC VOLUME
4.3V
4.3V
4.3V
4.3V
4.3V
4.3V
4.3V
4.3V
4.3V
4.3V
4.3V
A-a
A-a
A-b
A
B
15
DEH-1000,10,1050
5
6
78
5
6
78
D
C
B
A
ANTENNA
CABLE
VD REGULATOR
A-a
A-a
A-b
E
D
C
16
DEH-1000,10,1050
1
23
4
1234
D
C
B
A
RESET
4.3V
4.3V
4.3V
4.3V
A-a
A-b
A-b
17
DEH-1000,10,1050
5
6
78
5
6
78
D
C
B
A
CEK1136
DEH-P1000/X1N/UC
DEH-P10/X1N/UC
DEH-P1050/X1N/ES
R612
DELETED
47K
R613
0R0
DELETED
A-b
A-a
A-b
18
DEH-1000,10,1050
1
23
4
1234
D
C
B
A
B
KV1410(23)
Voltage of IC Terminals
Mark
None
F0
F65
F125
A0
A74
A125
Band
–
FM
FM
FM
AM
AM
AM
Input Level
–
0dBf
65dBf
125dBf
0dBµ
74dBµ
125dBµ
3.2 FM/AM TUNER UNIT
B
A
19
DEH-1000,10,1050
5
6
78
5
6
78
D
C
B
A
KV1410(23)
B
20
DEH-1000,10,1050
1
23
4
1234
D
C
B
A
CLOCK
PGM
DEH-1000/X1N/UC
DEH-1050/X1N/ES
DEH-10/X1N/UC
IL1801-1805
CEL1549
CEL1508
C
C
3.3 KEYBOARD UNIT
C
A
CN651
KEYBOARD UNIT
21
DEH-1000,10,1050
5
6
78
5
6
78
D
C
B
A
PD6294A
CAW1500
C
DEH-1000,10,1050
1
23
4
1234
D
C
B
A
PICKUP UNIT(SERVICE)
PHOTO UNIT
CONTROL UNIT
3.4 CD MECHANISM MODULE
D
22
E
D
E
DEH-1000,10,1050
5
6
78
5
6
78
D
C
B
A
SWITCHES:
CONTROL UNIT
S801 : HOME SWITCH.....ON-OFF
S802 : CLAMP SWITCH....ON-OFF
The underlined indicates the switch position.
23
D
A
CN681
24
DEH-1000,10,1050
1 RFI 0.5V/div. 0.5µs/div.
Normal mode: play
1 CH1: RFI 1V/div.
2 CH2: MIRR 5V/div.
Test mode: Tracking open
0.5ms/div.
1 CH1: RFI 1V/div.
2 CH2: MIRR 5V/div.
Normal mode: The defect part
passes 800µm
0.5ms/div.
3 CH1: FD 0.5V/div.
4 CH2: FO+ 2V/div.
Test mode: No disc, Focus close
0.2s/div.
3 CH1: FD 0.5V/div.
5 CH2: FOK 2V/div.
Normal mode: Focus close
0.2s/div.
6 CH1: FE 0.5V/div.
7 CH2: XSI 2V/div.
Normal mode: Focus close
1ms/div.
REFO
→
8 CH1: TE 0.5V/div.
9 CH2: TD 0.5V/div.
Test mode: 32 tracks jump (REV)
0.5ms/div.
8 CH1: TE 0.5V/div.
9 CH2: TD 0.5V/div.
Test mode: Single jump (REV)
0.5ms/div.
8 CH1: TE 0.5V/div.
9 CH2: TD 0.5V/div.
Test mode: 100 tracks jump (REV)
5ms/div.
6 CH1: FE 0.1V/div.
3 CH2: FD 0.2V/div.
Normal mode: Play
20ms/div.
3 CH1: FD 0.5V/div.
0 CH2: MD 1V/div.
Normal mode: Focus close (12cm)
0.5s/div.
3 CH1: FD 0.5V/div.
0 CH2: MD 1V/div.
Normal mode: Focus close (8cm)
0.5s/div.
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
GND
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
- Waveforms
Note:1. The encircled numbers denote measuring pointes in the circuit diagram.
2. Reference voltage
REFO:2.5V
REFO
→
REFO
→
REFO
→
REFO
→
25
DEH-1000,10,1050
8 CH1: TE 0.2V/div.
9 CH2: TD 0.2V/div.
Normal mode: play
8 CH1: TE 0.5V/div.
! CH2: SD 0.5V/div.
TEST mode: 100 Tracks jump(FWD)
5ms/div.
0 MD 0.5V/div. 0.1s/div.
Normal mode: Play (12cm)
0 MD 1V/div. 10ms/div.
Normal mode:
Long Search (12cm)
@ EFM 1V/div. 5µs/div.
Normal mode: play
8 CH1: TE 1V/div.
# CH2: TEC 1V/div.
Test mode: Focus close
Tracking open
2ms/div.
8 CH1: TE 0.5V/div.
6 CH2: FE 0.5V/div.
Normal mode:
AGC after focus close
0.2s/div.
$ PLCK 2V/div. 0.5µs/div.
Normal mode: play
20ms/div.
% SCKO 2V/div. 1µs/div.
Normal mode: play
^ Dout 2V/div. 10µs/div.
Normal mode: play
& LRCK 2V/div. 20µs/div.
Normal mode: play
* VD 5V/div. 50ms/div.
Normal mode: No disc
GND
→
REFO
→
REFO
→
GND
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
GND
→
REFO
→
GND
→
REFO
→
GND
→
REFO
→
GND
→
REFO
→
26
DEH-1000,10,1050
( CH1: R OUT 1V/div.
) CH2: L OUT 1V/div.
Normal mode: Play (1kHz 0dB)
6 CH1: FE 0.2V/div.
3 CH2: FD 0.5V/div.
Normal mode: During AGC
1ms/div.
8 CH1: TE 0.2V/div.
9 CH2: TD 0.5V/div.
Normal mode: During AGC
1 CH1: RFI 1V/div.
⁄ CH2: HOLD 5V/div.
Normal mode: The defect part passes
800µm(B.D)
0.2ms/div. 1ms/div.
0.5ms/div.
3 CH1: FD 1V/div.
⁄ CH2: HOLD 5V/div.
Normal mode: The defect part passes
800µm(B.D)
0.5ms/div.
9 CH1: TD 0.1V/div.
⁄ CH2: HOLD 5V/div.
Normal mode: The defect part passes
800µm(B.D)
0.5ms/div.
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
REFO
→
27
DEH-1000,10,1050
28
DEH-1000,10,1050
1
23
4
1234
D
C
B
A
4. PCB CONNECTION DIAGRAM
4.1 TUNER AMP UNIT
NOTE FOR PCB DIAGRAMS
1. The parts mounted on this PCB
include all necessary parts for
several destination.
For further information for
respective destinations, be sure
to check with the schematic diagram.
2. Viewpoint of PCB diagrams
A
A
Capacitor
Connector
P.C.Board
Chip Part
SIDE A
SIDE B
TUNER AMP UNIT
CORD ASSY
CN701
D
29
DEH-1000,10,1050
5
6
78
5
6
78
D
C
B
A
A
L ch
R ch
SUB WOOFER/
REAR PREOUT
IP BUS IN
SIDE A
CN1801
ANTENNA CABLE
B
C
30
DEH-1000,10,1050
1
23
4
1234
D
C
B
A
A
A
TUNER AMP UNIT
31
DEH-1000,10,1050
5
6
78
5
6
78
D
C
B
A
A
SIDE B
32
DEH-1000,10,1050
1
23
4
1234
D
C
B
A
4.2 FM/AM TUNER UNIT
B
B
SIDE A
FM/AM TUNER UNIT
A
33
DEH-1000,10,1050
1
2
34
1
2
34
D
C
B
A
B
B
SIDE B
FM/AM TUNER UNIT
34
DEH-1000,10,1050
1
23
4
1234
D
C
B
A
4.3 KEYBOARD UNIT
VOL
UP
EQ+
VOL
DOWN
EQ–
SOURCE DISPLAY 1 2 3 4 5 6 TA,PGM PTY,CLOCK BAND
EJECT
FUNC
←
AUDIO
←
←
←
C
C
SIDE A
KEYBOARD UNIT
35
DEH-1000,10,1050
1
2
34
1
2
34
D
C
B
A
C
C
SIDE B
KEYBOARD UNIT
A
CN651
36
DEH-1000,10,1050
1
23
4
1234
D
C
B
A
4.4 CD MECHANISM MODULE
CONTROL UNIT
E REFO
F
M1 CARRIAGE MOTOR
M2 LOADING MOTOR
M3 SPINDLE MOTOR
PICKUP UNIT(SERVICE)
CN802
CN681
321
PHOTO UNIT
SIDE A
D E
E
A
D
E
D
37
DEH-1000,10,1050
D
C
B
A
1
2
34
1
2
34
CONTROL UNIT
SIDE B
D
D
38
DEH-1000,10,1050
5. ELECTRICAL PARTS LIST
NOTES:
- Parts whose parts numbers are omitted are subject to being not supplied.
- The part numbers shown below indicate chip components.
Chip Resistor
RS1/_S___J,RS1/__S___J
Chip Capacitor (except for CQS.....)
CKS....., CCS....., CSZS.....
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
Unit Number : CWM6092(DEH-1000/X1N/UC,10/X1N/UC)
Unit Name : Tuner Amp Unit
MISCELLANEOUS
IC 451 IC PML003AM
IC 551 IC PAL005A
IC 601 IC PD4991A
IC 631 IC S-80734AN
Q 431 Transistor IMH3A
Q 434 Transistor DTA124EU
Q 502 Transistor 2SC4081
Q 551 Transistor DTC144ES
Q 601 Transistor DTA114ES
Q 651 Transistor 2SA933S
Q 652 Transistor 2SB1236
Q 653 Transistor DTC124ES
Q 971 Transistor IMX1
Q 973 Transistor 2SD1859
Q 981 Transistor 2SD2396
Q 982 Transistor IMD2A
Q 991 Transistor 2SD2396
Q 992 Transistor IMD2A
D 931 Diode 1SR139-400
D 932 Diode 1SR139-400
D 951 Diode 1SR139-400
D 952 Diode 1SR139-400
D 971 Diode HZS7L(C2)
D 972 Diode HZS6L(C3)
D 973 Diode 1SR139-400
D 974 Diode HZS6L(B1)
D 981 Diode HZS9L(B3)
D 992 Diode HZS9L(B1)
L 501 Ferri-Inductor LAU4R7K
L 504 Ferri-Inductor LAU2R2K
L 506 Inductor LAU100K
L 601 Inductor LAU100K
L 619 Ferri-Inductor LAU2R2K
L 621 Ferri-Inductor LAU2R2K
L 651 Ferri-Inductor LAU101K
L 951 Choke Coil 600µH CTH1221
TH 601 Thermistor CCX1031
X 601 Radiator 12.58291MHz CSS1402
FM/AM Tuner Unit CWE1501
AR 501 DSP-201M
RESISTORS
R 421 RS1/10S473J
R 431 RS1/10S821J
R 432 RS1/10S821J
R 437 RS1/10S223J
R 438 RS1/10S223J
R 443 RS1/10S0R0J
R 445 RS1/8S473J
R 465 RD1/4PU221J
R 466 RD1/4PU221J
R 501 RS1/10S0R0J
R 502 RD1/4PU222J
R 503 RS1/10S222J
R 507 RS1/10S0R0J
R 508 RS1/10S681J
R 509 RS1/10S473J
R 511 RS1/10S473J
R 512 RS1/10S681J
R 513 RS1/8S473J
R 514 RS1/10S681J
R 515 RS1/8S473J
R 516 RS1/10S681J
R 517 RS1/8S472J
R 518 RS1/10S103J
R 519 RS1/10S393J
R 520 RS1/10S681J
R 521 RS1/10S473J
R 522 RD1/4PU681J
R 523 RS1/10S473J
R 524 RS1/10S0R0J
R 525 RS1/10S0R0J
R 532 RD1/4PU681J
R 533 RS1/10S473J
R 534 RS1/10S272J
R 535 RS1/10S272J
R 536 RS1/10S162J
R 537 RS1/10S162J
R 538 RS1/10S0R0J
R 570 RD1/4PU103J
R 579 RS1/10S331J
R 580 RS1/10S103J
R 601 RS1/10S0R0J
R 602 RD1/4PU473J
R 603 RS1/10S102J
R 606 RD1/4PU102J
R 607 RD1/4PU102J
R 608 RD1/4PU102J
R 610 RS1/10S222J
R 611 RS1/10S473J
R 613 RS1/10S0R0J
R 614 RD1/4PU222J
R 615 RD1/4PU473J
R 616 RS1/10S222J
R 617 RS1/10S473J
R 618 RN1/10SE2002D
R 623 RS1/10S473J
R 624 RS1/8S473J
R 625 RS1/10S0R0J
R 626 RD1/4PU102J
R 627 RS1/10S473J
R 631 RS1/10S102J
R 632 RS1/10S822J
R 651 RS1/10S222J
R 652 RD1/4PU472J
R 654 RD1/4PU222J
R 655 RD1/4PU222J
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
A
39
DEH-1000,10,1050
R 658 RD1/4PU472J
R 659 RS1/8S472J
R 660 RD1/4PU302J
R 661 RS1/10S1R0J
R 681 RS1/10S681J
R 682 RD1/4PU102J
R 683 RS1/10S102J
R 684 RD1/4PU102J
R 924 RD1/4PU102J
R 925 RS1/10S473J
R 971 RS1/10S103J
R 972 RS1/10S473J
R 973 RS1/10S103J
R 974 RS1/10S473J
R 975 RS1/10S473J
R 976 RS1/10S473J
R 977 RD1/4PU101J
R 978 RS1/10S472J
R 979 RS1/10S472J
R 981 RS1/10S1R0J
R 982 RD1/4PU511J
R 987 RD1/4PU221J
R 991 RD1/4PU221J
R 992 RD1/4PU221J
R 993 RS1/10S472J
R 994 RS1/10S222J
CAPACITORS
C 431 CEJA4R7M35
C 432 CEAL4R7M35
C 451 CKSYB224K25
C 452 CKSYB224K25
C 453 CKSYB105K16
C 454 CKSYB105K16
C 455 CEJANP4R7M16
C 456 CEJANP4R7M16
C 457 CKSQYB153K50
C 458 CKSQYB153K50
C 461 CEAL470M10
C 462 CKSQYB104K25
C 463 CEJA100M16
C 465 CCSQSL182J50
C 466 CCSSL182J50
C 501 CKSQYB103K50
C 502 CKSQYB223K50
C 503 CKSQYB223K50
C 504 CEJA220M10
C 505 CKSQYB102K50
C 506 CEAL101M10
C 507 CKSQYB473K25
C 508 CCSQCH101J50
C 509 CKSQYB102K50
C 519 CKSQYB472K50
C 536 CKSQYB183K50
C 537 CKSQYB183K50
C 551 CKSYB224K25
C 552 CKSYB224K25
C 553 CKSYB224K25
C 554 CKSYB224K25
C 556 4700µF/16V CCH1328
C 570 CEJA100M16
C 571 CEJA330M10
C 572 CKSYB105K16
C 573 CKSYB104K50
C 601 CCSQCH200J50
C 602 CCSQCH200J50
C 603 CKSYB105K16
C 604 CEJA4R7M35
C 605 CCSQCH101J50
C 607 CCSQCH101J50
C 619 CCSQCH101J50
C 622 CCSQCH101J50
C 625 CCSQCH101J50
C 631 CEJA2R2M50
C 652 CEJA4R7M35
C 971 470µF/16V CCH1331
C 972 CKSQYB473K25
C 973 CEJA101M10
C 974 CKSQYB473K25
C 981 330µF/16V CCH1326
C 982 CKSQYB103K50
C 983 CEJA101M16
C 991 CKSQYB473K25
C 992 CKSQYB102K50
C 993 CEJA101M10
Unit Number : CWM6093(DEH-1050/X1N/ES)
Unit Name : Tuner Amp Unit
MISCELLANEOUS
IC 451 IC PML003AM
IC 551 IC PAL005A
IC 601 IC PD4991A
IC 631 IC S-80734AN
Q 431 Transistor IMH3A
Q 434 Transistor DTA124EU
Q 502 Transistor 2SC4081
Q 551 Transistor DTC144ES
Q 601 Transistor DTA114ES
Q 651 Transistor 2SA933S
Q 652 Transistor 2SB1236
Q 653 Transistor DTC124ES
Q 971 Transistor IMX1
Q 973 Transistor 2SD1859
Q 981 Transistor 2SD2396
Q 982 Transistor IMD2A
Q 991 Transistor 2SD2396
Q 992 Transistor IMD2A
D 931 Diode 1SR139-400
D 932 Diode 1SR139-400
D 951 Diode 1SR139-400
D 952 Diode 1SR139-400
D 971 Diode HZS7L(C2)
D 972 Diode HZS6L(C3)
D 973 Diode 1SR139-400
D 974 Diode HZS6L(B1)
D 981 Diode HZS9L(B3)
D 992 Diode HZS9L(B1)
L 501 Ferri-Inductor LAU4R7K
L 504 Ferri-Inductor LAU2R2K
L 506 Inductor LAU100K
L 601 Inductor LAU100K
L 619 Ferri-Inductor LAU2R2K
L 621 Ferri-Inductor LAU2R2K
L 651 Ferri-Inductor LAU101K
L 951 Choke Coil 600µH CTH1221
TH 601 Thermistor CCX1031
X 601 Radiator 12.58291MHz CSS1402
FM/AM Tuner Unit CWE1501
AR 501 DSP-201M
RESISTORS
R 421 RS1/10S473J
R 431 RS1/10S821J
R 432 RS1/10S821J
R 437 RS1/10S223J
R 438 RS1/10S223J
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
A
40
DEH-1000,10,1050
R 443 RS1/10S0R0J
R 445 RS1/8S473J
R 465 RD1/4PU221J
R 466 RD1/4PU221J
R 501 RS1/10S0R0J
R 502 RD1/4PU222J
R 503 RS1/10S222J
R 507 RS1/10S0R0J
R 508 RS1/10S681J
R 509 RS1/10S473J
R 511 RS1/10S473J
R 512 RS1/10S681J
R 513 RS1/8S473J
R 514 RS1/10S681J
R 515 RS1/8S473J
R 516 RS1/10S681J
R 517 RS1/8S472J
R 518 RS1/10S103J
R 519 RS1/10S393J
R 520 RS1/10S681J
R 521 RS1/10S473J
R 522 RD1/4PU681J
R 523 RS1/10S473J
R 524 RS1/10S0R0J
R 525 RS1/10S0R0J
R 532 RD1/4PU681J
R 533 RS1/10S473J
R 534 RS1/10S272J
R 535 RS1/10S272J
R 536 RS1/10S162J
R 537 RS1/10S162J
R 538 RS1/10S0R0J
R 570 RD1/4PU103J
R 579 RS1/10S331J
R 580 RS1/10S103J
R 601 RS1/10S0R0J
R 602 RD1/4PU473J
R 603 RS1/10S102J
R 606 RD1/4PU102J
R 607 RD1/4PU102J
R 608 RD1/4PU102J
R 610 RS1/10S222J
R 611 RS1/10S473J
R 612 RD1/4PU473J
R 614 RD1/4PU222J
R 615 RD1/4PU473J
R 616 RS1/10S222J
R 617 RS1/10S473J
R 618 RN1/10SE2002D
R 623 RS1/10S473J
R 624 RS1/8S473J
R 625 RS1/10S0R0J
R 626 RD1/4PU102J
R 627 RS1/10S473J
R 631 RS1/10S102J
R 632 RS1/10S822J
R 651 RS1/10S222J
R 652 RD1/4PU472J
R 654 RD1/4PU222J
R 655 RD1/4PU222J
R 658 RD1/4PU472J
R 659 RS1/8S472J
R 660 RD1/4PU302J
R 661 RS1/10S1R0J
R 681 RS1/10S681J
R 682 RD1/4PU102J
R 683 RS1/10S102J
R 684 RD1/4PU102J
R 924 RD1/4PU102J
R 925 RS1/10S473J
R 971 RS1/10S103J
R 972 RS1/10S473J
R 973 RS1/10S103J
R 974 RS1/10S473J
R 975 RS1/10S473J
R 976 RS1/10S473J
R 977 RD1/4PU101J
R 978 RS1/10S472J
R 979 RS1/10S472J
R 981 RS1/10S1R0J
R 982 RD1/4PU511J
R 987 RD1/4PU221J
R 991 RD1/4PU221J
R 992 RD1/4PU221J
R 993 RS1/10S472J
R 994 RS1/10S222J
CAPACITORS
C 431 CEJA4R7M35
C 432 CEAL4R7M35
C 451 CKSYB224K25
C 452 CKSYB224K25
C 453 CKSYB105K16
C 454 CKSYB105K16
C 455 CEJANP4R7M16
C 456 CEJANP4R7M16
C 457 CKSQYB153K50
C 458 CKSQYB153K50
C 461 CEAL470M10
C 462 CKSQYB104K25
C 463 CEJA100M16
C 465 CCSQSL182J50
C 466 CCSSL182J50
C 501 CKSQYB103K50
C 502 CKSQYB223K50
C 503 CKSQYB223K50
C 504 CEJA220M10
C 505 CKSQYB102K50
C 506 CEAL101M10
C 507 CKSQYB473K25
C 508 CCSQCH101J50
C 509 CKSQYB102K50
C 519 CKSQYB472K50
C 536 CKSQYB183K50
C 537 CKSQYB183K50
C 551 CKSYB224K25
C 552 CKSYB224K25
C 553 CKSYB224K25
C 554 CKSYB224K25
C 556 4700µF/16V CCH1328
C 570 CEJA100M16
C 571 CEJA330M10
C 572 CKSYB105K16
C 573 CKSYB104K50
C 601 CCSQCH200J50
C 602 CCSQCH200J50
C 603 CKSYB105K16
C 604 CEJA4R7M35
C 605 CCSQCH101J50
C 607 CCSQCH101J50
C 619 CCSQCH101J50
C 622 CCSQCH101J50
C 625 CCSQCH101J50
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
41
DEH-1000,10,1050
C 631 CEJA2R2M50
C 652 CEJA4R7M35
C 971 470µF/16V CCH1331
C 972 CKSQYB473K25
C 973 CEJA101M10
C 974 CKSQYB473K25
C 981 330µF/16V CCH1326
C 982 CKSQYB103K50
C 983 CEJA101M16
C 991 CKSQYB473K25
C 992 CKSQYB102K50
C 993 CEJA101M10
Unit Number : CWE1501
Unit Name : FM/AM Tuner Unit
CAPACITORS
IC 1 IC PML002A
IC 2 IC PM4008A
IC 3 IC BR9010FV
Q 1 Transistor 2SC4081
Q 2 Transistor DTC124EU
Q 3 FET 3SK263
Q 51 Transistor 2SC4081
Q 201 FET 2SK932
Q 202 Transistor DTC124EU
Q 204 Transistor 2SC4081
D 1 Diode KV1410(23)
D 2 Diode 1SV248
D 6 Diode KV1410(23)
D 201 Diode MA143
D 202 Diode MA147
D 903 Diode KV1410(23)
D 904 Diode SVC253
L 1 Coil CTC1155
L 3 Inductor LCTB1R5K2125
L 4 Coil CTC1155
L 201 Inductor LCTB330K1608
L 202 Inductor CTF1287
L 203 Inductor LCTA121J3225
L 901 Coil CTC1154
L 902 Inductor LCTA3R3J3225
L 904 Inductor LCTBR47K1608
L 905 Inductor LCTBR47K1608
T 51 Coil CTE1132
CF 51 Ceramic Filter CTF1442
CF 52 Ceramic Filter CTF1442
CF 53 Ceramic Filter CTF1442
CF 202 Ceramic Filter CTF1348
X 901 Crystal Resonator 10.250MHz CSS1432
RESISTORS
R 1 RS1/16S183J
R 2 RS1/16S103J
R 5 RS1/16S0R0J
R 7 RS1/16S273J
R 8 RS1/16S473J
R 9 RS1/16S223J
R 10 RS1/16S473J
R 11 RS1/16S221J
R 12 RS1/16S103J
R 13 RS1/16S104J
R 16 RS1/16S223J
R 17 RS1/16S221J
R 18 RS1/16S221J
R 19 RS1/16S473J
R 20 RS1/16S470J
R 31 RS1/16S0R0J
R 51 RS1/16S470J
R 52 RS1/16S103J
R 53 RS1/16S103J
R 54 RS1/16S331J
R 55 RS1/16S331J
R 56 RS1/16S560J
R 57 RS1/16S560J
R 58 RS1/16S102J
R 59 RS1/16S225J
R 60 RS1/16S133J
R 61 RS1/16S433J
R 101 RS1/16S333J
R 102 RS1/16S103J
R 103 RS1/16S333J
R 104 RS1/16S562J
R 106 RS1/16S0R0J
R 108 RS1/16S0R0J
R 110 RS1/16S154J
R 111 RS1/16S273J
R 113 RS1/16S222J
R 114 RS1/16S333J
R 115 RS1/16S334J
R 116 RS1/16S473J
R 202 RS1/16S472J
R 203 RS1/16S225J
R 204 RS1/16S102J
R 205 RS1/16S220J
R 206 RS1/16S471J
R 208 RS1/16S104J
R 209 RS1/16S104J
R 210 RS1/16S563J
R 213 RS1/16S223J
R 902 RS1/16S103J
R 904 RS1/16S473J
R 907 RS1/16S103J
R 908 RS1/16S681J
R 909 RS1/16S473J
R 914 RS1/16S562J
CAPACITORS
C 1 CCSQCH4R0C50
C 6 CKSQYB105K10
C 8 CKSRYB222K50
C 10 CCSRCH220J50
C 11 CCSRCH150J50
C 12 CCSRCH8R0D50
C 14 CCSRCJ3R0C50
C 15 CKSRYB103K50
C 16 CKSRYB222K50
C 17 CKSRYB222K50
C 18 CCSRCJ3R0C50
C 19 CKSRYB103K50
C 20 CKSRYB103K50
C 21 CKSRYB103K50
C 24 CKSQYB334K16
C 26 CKSRYB472K50
C 30 CCSRCH220J50
C 32 CCSRCH470J50
C 35 CKSRYB103K50
C 51 CKSRYB103K50
C 52 CKSRYB473K16
C 53 CCSRCK2R0C50
C 54 CKSRYB103K50
C 55 CKSRYB104K16
C 56 CKSRYB104K16
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
B
42
DEH-1000,10,1050
C 58 CKSQYB224K16
C 101 CEALNP100M10
C 102 CCSRCH151J50
C 103 CKSRYB473K16
C 105 CKSRYB682K25
C 106 CEALR68M50
C 107 CKSRYB103K50
C 108 CKSQYB474K16
C 109 CKSQYB474K16
C 110 CKSRYB104K16
C 111 CKSRYB104K16
C 112 CKSRYB104K16
C 113 CKSRYB123K25
C 114 CEAL220M6R3
C 115 CKSRYB473K16
C 116 CEAL2R2M50
C 117 CKSRYB102K50
C 120 CKSRYB183K25
C 121 CKSRYB332K50
C 122 CKSRYB562K25
C 123 CKSRYB681K50
C 125 CKSRYB103K50
C 126 CKSRYB103K50
C 127 CEAL2R2M50
C 128 CKSRYB103K50
C 201 CCSRCH471J50
C 202 CCSRCH100D50
C 203 CKSRYB104K16
C 204 CKSRYB332K50
C 205 CKSRYB103K50
C 206 CKSRYB104K16
C 207 CKSRYB473K16
C 208 CCSRCH560J50
C 209 CEAL470M6R3
C 210 CKSRYB103K50
C 211 CKSRYB103K50
C 212 CCSRCH101J50
C 215 CKSRYB223K25
C 216 CKSQYB334K16
C 217 CKSRYB103K50
C 219 CKSQYB105K10
C 220 CKSRYB104K16
C 221 CKSRYB473K16
C 222 CKSQYB334K16
C 223 CKSQYB474K16
C 224 CKSRYB104K16
C 225 CKSRYB272K50
C 226 CKSRYB682K25
C 902 CCSRCH270J50
C 904 CKSRYB223K25
C 905 CKSRYB103K50
C 906 CCSRTH100D50
C 907 CCSRTH150J50
C 909 CCSRTH100D50
C 910 CKSRYB332K50
C 912 CKSQYB474K16
C 913 CKSRYB223K25
C 914 CKSRYB682K25
C 915 CKSQYB223K25
C 916 CKSQYB474K16
C 917 CKSYB475K10
C 918 CKSRYB223K25
C 919 CKSQYB225K10
C 920 CCSRCH270J50
C 921 CCSRCH270J50
C 922 CKSYB105K16
C 923 CKSRYB103K50
Unit Number : CWM6098(DEH-1000/X1N/UC,
DEH-1050/X1N/ES)
Unit Name : Keyboard Unit
MISCELLANEOUS
IC 1801 IC PD6294A
D 1801 Diode Network DA204U
D 1802 Diode Network DA204U
X 1801 Radiator 5.00MHz CSS1423
S 1801 Switch CSG1110
S 1802 Switch CSG1111
S 1803 Switch CSG1110
S 1804 Switch CSG1110
S 1805 Switch CSG1110
S 1806 Switch CSG1110
S 1807 Switch CSG1110
S 1808 Switch CSG1110
S 1809 Switch CSG1110
S 1810 Switch CSG1111
S 1811 Switch CSG1110
S 1812 Switch CSG1111
S 1813 Switch CSG1110
S 1814 Switch CSG1111
S 1815 Switch CSG1111
S 1816 Switch CSG1111
S 1817 Switch CSG1111
S 1818 Switch CSG1111
S 1819 Switch CSG1110
S 1820 Switch CSG1111
S 1821 Switch CSG1111
S 1822 Switch CSG1111
IL 1801 Lamp 14V 40mA CEL1549
IL 1802 Lamp 14V 40mA CEL1549
IL 1803 Lamp 14V 40mA CEL1549
IL 1804 Lamp 14V 40mA CEL1549
IL 1805 Lamp 14V 40mA CEL1549
LCD1801 LCD CAW1500
RESISTORS
R 1801 RS1/8S222J
R 1802 RS1/8S222J
R 1803 RS1/10S472J
R 1844 RS1/10S103J
CAPACITORS
C 1801 CKSQYB104K50
C 1802 CEH100M6R3
C 1803 CKSQYB104K50
C 1804 CKSQYB104K50
C 1805 CKSQYB104K50
C 1806 CKSQYB104K50
Unit Number : CWM6095(DEH-10/X1N/UC)
Unit Name : Keyboard Unit
MISCELLANEOUS
IC 1801 IC PD6294A
D 1801 Diode Network DA204U
D 1802 Diode Network DA204U
X 1801 Radiator 5.00MHz CSS1423
S 1801 Switch CSG1110
S 1802 Switch CSG1111
S 1803 Switch CSG1110
S 1804 Switch CSG1110
S 1805 Switch CSG1110
S 1806 Switch CSG1110
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
C
C
43
DEH-1000,10,1050
S 1807 Switch CSG1110
S 1808 Switch CSG1110
S 1809 Switch CSG1110
S 1810 Switch CSG1111
S 1811 Switch CSG1110
S 1812 Switch CSG1111
S 1813 Switch CSG1110
S 1814 Switch CSG1111
S 1815 Switch CSG1111
S 1816 Switch CSG1111
S 1817 Switch CSG1111
S 1818 Switch CSG1111
S 1819 Switch CSG1110
S 1820 Switch CSG1111
S 1821 Switch CSG1111
S 1822 Switch CSG1111
IL 1801 Lamp 14V 40mA CEL1508
IL 1802 Lamp 14V 40mA CEL1508
IL 1803 Lamp 14V 40mA CEL1508
IL 1804 Lamp 14V 40mA CEL1508
IL 1805 Lamp 14V 40mA CEL1508
LCD1801 LCD CAW1500
RESISTORS
R 1801 RS1/8S222J
R 1802 RS1/8S222J
R 1803 RS1/10S472J
R 1844 RS1/10S103J
CAPACITORS
C 1801 CKSQYB104K50
C 1802 CEH100M6R3
C 1803 CKSQYB104K50
C 1804 CKSQYB104K50
C 1805 CKSQYB104K50
C 1806 CKSQYB104K50
Unit Number : CWX2344
Unit Name : Control Unit
MISCELLANEOUS
IC 201 IC UPD63710GC
IC 301 IC BA5985FM
IC 601 IC TA2063F
IC 701 IC BA05SFP
Q 101 Transistor 2SB1132
D 801 LED CL200IRX
D 802 LED CL200IRX
X 201 Ceramic Oscillator 16.934MHz CSS1456
S 801 Spring Switch(HOME) CSN1051
S 802 Spring Switch(CLAMP) CSN1052
RESISTORS
R 101 RS1/8S120J
R 102 RS1/8S100J
R 103 RS1/16S222J
R 201 RS1/16S104J
R 205 RS1/16S103J
R 206 RS1/16S393J
R 207 RS1/16S182J
R 208 RS1/16S304J
R 210 RS1/16S0R0J
R 212 RS1/16S103J
R 213 RS1/16S103J
R 214 RS1/16S123J
R 215 RS1/16S273J
R 216 RS1/16S273J
R 309 RS1/16S473J
R 310 RS1/16S473J
R 503 RA4C681J
R 504 RS1/16S102J
R 601 RS1/16S102J
R 602 RS1/16S102J
R 603 RS1/16S223J
R 604 RS1/16S223J
R 801 RS1/8S751J
R 802 RS1/8S751J
CAPACITORS
C 101 CCSRCH102J25
C 102 CKSQYB104K16
C 103 CEV101M6R3
C 104 CEV470M6R3
C 105 CKSQYB334K16
C 106 CKSQYB334K16
C 107 CKSQYB334K16
C 201 CKSQYB104K16
C 202 CEV101M6R3
C 203 CKSQYB104K16
C 204 CKSRYB332K50
C 205 CKSQYB104K16
C 206 CKSRYB392K50
C 207 CKSQYB224K16
C 208 CCSRCH270J50
C 209 CCSRCJ3R0C50
C 210 CCSRCH221J50
C 211 CCSRCH101J50
C 212 CKSQYB682K50
C 213 CKSQYB104K16
C 214 CKSQYB104K16
C 215 CKSQYB104K16
C 216 CKSQYB104K16
C 217 CKSQYB104K16
C 218 CKSQYB104K16
C 219 CKSQYB104K16
C 220 CKSQYB104K16
C 301 CEV470M16
C 502 CKSRYB471K50
C 601 CEV4R7M35
C 602 CEV4R7M35
C 603 CCSQSL152J50
C 604 CCSQSL152J50
C 605 CEV220M6R3
C 701 CEV101M6R3
C 702 22µF/6.3V CCH1300
C 703 CKSQYB334K16
Unit Number :
Unit Name : Photo Unit
Q 1 Photo-transistor CPT230SX-TU
Q 2 Photo-transistor CPT230SX-TU
Miscellaneous Parts List
Pickup Unit(Service)(P8) CXX1285
M 1 Motor Unit(CARRIAGE) CXB2190
M 2 Motor Unit(LOADING) CXB2195
M 3 Motor Unit(SPINDLE) CXB2562
Fuse(10A) CEK1136
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
D
E
1) Precautions
• This unit uses a single power supply (+5V) for the regulator. The signal reference potential, therefore, is
connected to REFO(approx. 2.5V) instead of GND.
If REFO and GND are connected to each other by mistake during adjustments, not only will it be impossible to measure the potential correctly, but the servo
will malfunction and a severe shock will be applied to
the pick-up. To avoid this, take special note of the following.
Do not connect the negative probe of the measuring
equipment to REFO and GND together. It is especially
important not to connect the channel 1 negative
probe of the oscilloscope to REFO with the channel 2
negative probe connected to GND.
Since the frame of the measuring instrument is usually at the same potential as the negative probe, change
the frame of the measuring instrument to floating status.
If by accident REFO comes in contact with GND,
immediately switch the regulator or power OFF.
• Always make sure the regulator is OFF when connecting and disconnecting the various filters and wiring
required for measurements.
• Before proceeding to further adjustments and measurements after switching regulator ON, let the player
run for about one minute to allow the circuits to stabilize.
• Since the protective systems in the unit's software are
rendered inoperative in test mode, be very careful to
avoid mechanical and /or electrical shocks to the system when making adjustment.
• Disc detection during loading and eject operations is
performed by means of a photo transistor in this
unit.Consequently, if the inside of the unit is exposed
to a strong light source when the outer casing is
removed for repairs or adjustment, the following malfunctions may occur.
*During PLAY, even if the eject button is
pressed,the disc will not be ejected and the unit
will remain in the PLAY mode.
*The unit will not load a disc.
When the unit malfunctions this way, either re-position the light source, move the unit or cover the photo
transistor.
2) Test Mode
This mode is used for adjusting the CD mechanism
module of the device.
• Test mode starting procedure
Reset while pressing the 4 and 6 keys together.
• Test mode cancellation
Switch ACC, back-up OFF.
• After pressing the EJECT key, do not press any other
key until the disk is completely ejected.
• If the ] or [ key is pressed while focus search is in
progress, immediately turn the power off (otherwise
the actuator may be damaged due to adhesion of the
lenses).
• Jump operation of TRs other than 100TR continues
after releasing the key. CRG move and 100TR jump
operations are brought into the “Tracking close” status when the key is released.
• Powering Off/On resets the jump mode to “Single TR
(91)”, the RF AMP gain setting to 0 dB, and the automatic adjustment value to the initial value.
44
DEH-1000,10,1050
6. ADJUSTMENT
6.1 CD ADJUSTMENT
45
DEH-1000,10,1050
- Flow Chart
Focus Close*2S Curve Check
01 01 0100 00 00
(99 99 99)
Display
TYP
4
3
Reset
SOURCE
New test mode
6
[
BAND
BAND
BAND
BAND
BAND
3
*2
*1
+6dB +12dB
*4
*5
6
6
6
6
1
2
1
2]
][
06 06 06 12 12 12
Sourse CD
Single TR 32TRK
92(82)
CRG Move
94(84)
100TRK
93(83)
Focus Mode
Select
Focus Close/
S Curve Check
CRG-
Auto Adjustment
Display Select
<Tracking Servo Close> CRG+
RF AGC Coefficient Display/
Rough Servo and RF AGC
Tracking
Open
Display
Tracking
Open
T. Close and
Fit Servo
*3 F.Offset Display RF.Offset Display F.Cansel Display
*7
Single TR/32TR/100TR
Voltage of CRG Motor = 2 [V]
(F,T.AGC Gain = (Present Value/Initial Value) ¥ 20)
*6
][
1
3
Display
2
3
Display
or
8x 8x 8x
TRK SECMIN
9x 9x 9x
TRK SECMIN
or
CRG-CRG+
T.Balance
Adjustment
*7
F, T, RF AGC/
F.Bias Display Select
F, T AGC and
RF AGC
CRG Move, 100TR Jump Only
TRK, MIN, SEC F.AGC Gain
RF AGC Gain
T.AGC Gain
*8
Power ON
(Adjustment for T.Offset)
*5
*4 *4
*6
CRG/TR Jump NO.
Select
CRG+/TR Jump+
CRG-/TR Jump-
Power OFF
Display
Display
Display
T.Close and
F,T AGC and
RF AGC and
Fit Servo
Display
Power ON
(Not adjustment for T.Offset)
Display
Display
2
RF AMP Gain Select
2
Power OFF
Power OFF
Power OFF
8x 8x 8x
TRK SECMIN
9x 9x 9x
TRK SECMIN
8x 8x 8x
TRK SECMIN
9x 9x 9x
TRK SECMIN
or
8x 8x 8x
TRK SECMIN
9x 9x 9x
TRK SECMIN
or
00 00 00
TRK SECMIN
99 99 99
TRK SECMIN
or
00 00 00
TRK SECMIN
99 99 99
TRK SECMIN
or
00 00 00
TRK SECMIN
99 99 99
TRK SECMIN
or
91 91 91
TRK SECMIN
0x 0x 0x
TRK SECMIN
00 00 00
TRK SECMIN
99 99 99
TRK SECMIN
GG GG GG
TRK SECMIN
Test Mode In
*1
*8 *3*8
F.Cancel Value = {Top Rank 8bit of Set Value (7F [H] to 80 [H] ) + 128} / 4
= 63 [D] to (32 [D] ) to 00 [D]
9x(8x):91(81)
46
DEH-1000,10,1050
• Note :
The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mechanism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted
PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if
the PU unit must be changed, the grating should be checked using the procedure below.
• Purpose :
To check that the grating is within an acceptable range.
• Symptoms of Mal-adjustment :
If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform
track search operations, or track searching taking a long time, may appear.
• Method :
• Measuring Equipment • Oscilloscope, Two L.P.F.
• Measuring Points • E, F, REFOUT
• Disc • ABEX TCD-784
• Mode • TEST MODE
• Checking Procedure
1. In test mode, load the disc and switch the 5V regulator on.
2. Using the ] and [ buttons, move the PU unit to the innermost track.
3. Press key 3 to close focus, the display should read "91". Press key 2 to implement the tracking balance adjustment the display should now read "81". Press key 3 2 times. The display will change, returning to "81" on the
fourth press.
4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase difference is within 75° . Refer to the photographs supplied to determine the phase angle.
5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any
improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the
mechanism should be judged to be at fault.
• Note
Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be
seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the average angle.
• Hint
Reloading the disc changes the clamp position and may decrease the "wobble".
E
REFO
F
100kΩ
390pF
100kΩ
390pF
E
REFO
F
REFO
L.P.F.
L.P.F.
CONTROL UNIT
Xch Ych
Oscilloscope
6.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT
47
DEH-1000,10,1050
Grating waveform
Ech → Xch 20mV/div, AC
Fch → Ych 20mV/div, AC
45°
0°
75°
60°
30°
90°
48
DEH-1000,10,1050
7. GENERAL INFORMATION
7.1 PARTS
7.1.1 IC
- Pin Functions (PD4991A)
Pin No. Pin Name I/O Function and Operation
1,2 NC Not used
3 SYSPW O System power supply control output
4 NC Not used
5 TESTIN I Test program mode input
6–9 NC Not used
10 TUNPW O Tuner power control output
11 reset I Reset input
12 XT2 Not used (open)
13 XT1 Not used (GND)
14 VSS GND
15 X2 Crystal oscillator connection pin
16 X1 Crystal oscillator connection pin
17 REGOFF Connect to VSS
18 REGC Capacitor for regulator connect pin
19 VDD Power supply
20 GRNILM O Green illumination select output
21 NC Not used
22 adpw O A/D converter power supply output
23 AMBILM O Amber illumination select output
24 NC Not used
25 ASENB O Slave power supply control output
26,27 NC Not used
28 MUTE O System mute output
29 fm/AM O RDS decoder power select output
30 LOCL O LOCL output
31 LOCH O LOCH output
32 TUNPCE2 O PLL IC chip enable output
33 VCK O Clock output for electronic volume
34 VST O Strobe pulse output for electronic volume
35 VDT O Data output for electronic volume
36,37 NC Not used
38 SD I SD input
39 st I FM stereo input
40 VSS GND
41 VDD Power supply
42–44 NC Not used
45 currq O Tuner voltage FIX output
46–50 NC Not used
51 swvdd O Keyboard unit power supply control output
52 dsens I Grille detach sense input
53 CONT O CD server driver power control output
54 CD5VON O CD +5V power control output
55 NC Not used
56 VDCONT O CD VD power control output
57 CDMUTE O CD mute control output
58 CDEJET O CD eject control output
59 CDLOAD O CD LOAD motor loading control output
60 LOCK I CD spindle lock input
61 FOK I CD focus OK input
62 PCL O Clock adjustment output
63 MIRR I CD mirror detector input
49
DEH-1000,10,1050
IC's marked by* are MOS type.
Be careful in handling them because they are very
liable to be damaged by electrostatic induction.
*PD4991A
Pin No. Pin Name I/O Function and Operation
64 clamp I CD disc clamp sense input
65 xsck O CD LSI clock output
66 XSI I CD LSI data input
67 XSO O CD LSI data output
68 XA0 O CD LSI command/data control output
69 xrst O CD LSI reset output
70 xstb O CD LSI strobe output
71,72 NC Not used
73 TEST I Test terminal
74 SL I Tuner signal level input
75 MODEL1 I Model select input
76,77 NC Not used
78 EJTSNS I CD disc EJECT position detect
79 DSCSNS I CD disc detect input
80 VDSENS I CD VD over voltage / short-circuit sense input
81 TEMP I CD temperature sense input (CD)
82 (VDD) A/D converter power supply terminal
83 (VDD) A/D converter reference voltage terminal
84 (GND) A/D converter GND
85,86 NC Not used
87 GND GND
88 ldet I RDS PLL lock sense input
89–91 NC Not used
92 asens I ACC power sense input
93 bsens I Back up power sense input
94 TUNPDI I PLL IC data input
95 KEYDT I Key data input
96 DPDT O Display data output
97 TUNPCK O PLL IC clock output
98 TUNPDO O PLL IC data output
99 TUNPCE O PLL IC chip enable
100 PEE O Beep tone output
30
31
50
51
80
81
100
1
50
DEH-1000,10,1050
- Pin Functions (PD6294A)
Pin No. Pin Name I/O Function and Operation
1 VSS GND
2 X1 Crystal oscillator connection pin
3 X0 Crystal oscillator connection pin
4 NC Not used
5,6 MOD1,0 I Connect to GND
7 NC Not used
8 KYDT O Key data output
9 DPDT I Display data input
10 REMIN I Remote control pulse input
11,12 NC Not used
13-16 kd$-kd! I Key data input
17-22 KST6-KST1 O Key strobe output
23 VDD VDD
24-73 SEG49-0 O LCD segment output
74-77 COM3-0 O LCD common output
78 VLCD I LCD voltage input
79,80 V2,V1 Power supply terminal
*PD6294A
20
21
40
41
60
61
80
1
PAL005A
1 2
3 4 5
6
7
Mute
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24 25
Mute
Mute
Mute
STBY
Protector
Amp2
Amp1
Amp3
Amp4
TAB
P-GND2
OUT2-
OUT2+
STBY
VCC
OUT1-
OUT1+
P-GND1
P-GND3
P-GND4
Switch_out
MUTE
OUT4+
OUT4-
SVR
IN1
IN2
IN4
S-GND
IN3
Ac_gnd
OUT3+
OUT3-
VCC
BR9010FV
NC
VCC
CS
SK
WC
GND
DO
DI
1
2
3
4
8
7
6
5
CS
SK
DI
DO
WC
: Chip select input
: Serial data clock input
: Serial data input
: Serial data output
: Write control input
51
DEH-1000,10,1050
1 2 3 4 5 6 7 8 9 10 11 12
13
14
15
16
17
18
1920
21
22
23
24
25
2627
28
Vref IN1_L IN2_L IN3_L IN4+_L AGND
Loud out_L
SVin_L Front-
out_L
Rear out_L
FIE_L DGND
IN4-_L CLK
VCC IN1_R IN2_R IN3_R IN4+_R AGND
Loud out_R
SVin_R
Front out_R
Rear out_R
FIE_R STB
IN4-_R DATA
Isolator
circuit
Primary
volume
Anti Alias
filter
Treble
Anti radiation
filter
Middle Bass
Loudness
volume
FIE
Fader
volume
Secondary
volume
Zero cross
detect circuit
Primary
volume
Anti Alias
filter
Middle
Treble
Bass
Isolator
circuit
Anti radiation
filter
Loudness
volume
Zero cross
detect circuit
Fader
volume
Secondary
volume
FIE
Digital block
Auto-Zero
Auto-Zero
PML003AM
52
DEH-1000,10,1050
- Pin Functions (UPD63710GC)
Pin No. Pin Name I/O Function and Operation
1 GND Logic circuit GND
2 HOLD I/O Defect detection output
3 MIRR I/O MIRR output
4 FOK O RFOK signal output
5 rst I Reset signal input
6 A0 I Command/parameter identification signal input
7 stb I Data strobe signal input
8 sck I Clock signal input for serial data input/output
9 SO O Serial data and status signal output
10 SI I Serial data input
11 VDD Positive power supply terminal to logic circuit
12 DA.VDD Positive power supply terminal to D/A converter
13 NC Not used
14, 15 DA.GND D/A converter GND
16 NC Not used
17 DA.VDD Positive power supply terminal to D/A converter
18 R+ O Right channel audio data output
19 R- O Right channel audio data output
20 L- O Left channel audio data output
21 L+ O Left channel audio data output
22 X.VDD Positive power supply terminal to crystal oscillation circuit
23 xtal O Crystal oscillator connect pin
24 XTAL I Crystal oscillator connect pin
25 X.GND Crystal oscillation circuit GND
26 VDD Positive power supply terminal to logic circuit
27 EMPH O Output pin for the pre-emphasis data in the sub-Q code
28 FLAG O Flag output pin to indicate that audio data currently being output consists
of noncorrectable data
29 DIN I Serial data input to internal DAC
30 DOUT O Serial audio data output
31 SCKIN I Serial clock input to internal DAC
32 SCKO O Audio data that is output from DOUT changes at rising edge of this clock
33 LRCKIN I LRCK signal input to internal DAC
34 LRCK O Signals to distinguish the right and left channels of the audio data output
from DOUT
35 WDCK O Output double the frequency of LRCK
36 TX O Digital audio interface data output
37 GND Logic circuit GND
38 C16M O Oscillator clock buffering output
39 LIMIT I Status of the pin is output at Bit 5 of the status output
40 VDD Positive power supply terminal to logic circuit
41 LOCK O EFM synchronous detection signal
42 RFCK O Frame synchronous signal of XTAL-system
43 WFCK O Frame synchronous signal of PLL-system
44 PLCK O Monitor pin of bit clock
45 GND Logic circuit GND
46 C1D1 O Output pin for indicating the C1 error correction results
47 C1D2 O Output pin for indicating the C1 error correction results
48 C2D1 O Output pin for indicating the C2 error correction results
49 C2D2 O Output pin for indicating the C2 error correction results
50 C2D3 O Output pin for indicating the C2 error correction results
51 VDD Positive power supply terminal to logic circuit
52 PACK O CD-TEXT PACK synchronous signal
53 TSO O CD-TEXT data serial output
54 TSI I CD-TEXT control parameter serial input
55 tsck I CD-TEXT serial clock input
56 TSTB I CD-TEXT parameter strobe signal input
57 GND Logic circuit GND
58 TEST I Test pin
53
DEH-1000,10,1050
Pin No. Pin Name I/O Function and Operation
59 ATEST I/O Test pin
60 RFMODE I Use/not use select for internal RF amplifier
61 A.GND Analog circuit GND
62 FD O Focus drive output
63 TD O Tracking drive output
64 SD O Sled drive output
65 MD O Spindle drive output
66 DACO O DAC output for adjustment
67 FBAL O DAC output for adjustment
68 TBAL O DAC output for adjustment
69 TEVCA O DAC output for adjustment
70 A.VDD Power supply terminal to analog circuit
71 EFM O EFM signal output
72 ASY I EFM comparator reference voltage input
73 C3T 3T detection capacitor additional pin
74 RFI I RF signal input for EFM data regulation
75 AGCO O RF signal output of after gain adjustment
76 AGCI I RF-AGC amplifier input
77 RFO O RF summing amplifier output
78 EQ2 RF amplifier equalizer parts additional pin
79 EQ1 RF amplifier equalizer parts additional pin
80 RF- I RF summing amplifier inverted input
81 A.GND Analog circuit GND
82 A I Photo detector A input
83 C I Photo detector C input
84 B I Photo detector B input
85 D I Photo detector D input
86 F I Photo detector F input
87 E I Photo detector E input
88 A.VDD Positive power supply terminal to analog circuit
89 REFOUT O Reference electric potential output
90 FE- I Focus error amplifier inverted input
91 FEO I/O Focus error amplifier output
92 TE- I Tracking error amplifier inverted input
93 TEO I/O Tracking error amplifier output
94 TE2 I/O Tracking error output of after amplification
95 TEC I Tracking comparator input
96 A.GND Analog circuit GND
97 PD I PD detection signal input for LD output monitor
98 LD O LD control current output
99 PN I APC circuit control polarity set pin
100 A.VDD Positive power supply terminal to analog circuit
100
76
26
1
25
75
51
50
*UPD63710GC
20
21
40
41
1
80
61
60
54
DEH-1000,10,1050
- Pin Functions (BA5985FM)
Pin No. Pin Name I/O Function and Operation
1 FWD I Loading driver FWD input
2 OPIN1(+) I CH1 pre-amplifier input
3 OPIN1(−) I CH1 pre-amplifier inverted input
4 OPOUT1 O CH1 pre-amplifier output
5 OPIN2(+) I CH2 pre-amplifier input
6 OPIN2(−) I CH2 pre-amplifier inverted input
7 OPOUT2 O CH2 pre-amplifier output
8 VCC Power supply
9 VOL(−) O Loading driver negative output
10 VOL(+) O Loading driver positive output
11 VO2(−) O Driver CH2 negative output
12 VO2(+) O Driver CH2 positive output
13 VO1(−) O Driver CH1 negative output
14 VO1(+) O Driver CH1 positive output
15 VO4(+) O Driver CH4 positive output
16 VO4(−) O Driver CH4 negative output
17 VO3(+) O Driver CH3 positive output
18 VO3(−) O Driver CH3 negative output
19 GND GND
20 BIAS I Bias input
21 MUTE Mute control
22 OPOUT3 O CH3 pre-amplifier output
23 OPIN3(−) I CH3 pre-amplifier inverted input
24 OPIN3(+) I CH3 pre-amplifier input
25 OPOUT4 O CH4 pre-amplifier output
26 OPIN4(−) I CH4 pre-amplifier inverted input
27 OPIN4(+) I CH4 pre-amplifier input
28 REV I Loading driver REV input
BA5985FM
55
DEH-1000,10,1050
COMMON
SEGMENT
7.1.2 DISPLAY
- CAW1500
56
DEH-1000,10,1050
7.2 DIAGNOSIS
7.2.1 DISASSEMBLY
- Removing the Tuner Amp Unit(Fig.2)
Remove the two screws.
Remove the three screws.
Remove the screw.
Straighten the tabs at four locations indi-
cated.
Remove the Tuner Amp Unit.
-
Removing the Case Unit(not shown)
1.Remove the Case Unit.
- Removing the Panel Assy(Fig.1)
Disengage the stoppers at two locations.
Remove the Panel Assy.
- Removing the CD Mechanism Module
(not shown)
1.Remove the four screws.
2.Disconnect the connector, and then remove the
CD Mechanism Module.
Fig.1
Fig.2
Panel Assy
Tuner Amp Unit
57
DEH-1000,10,1050
7.2.2 TEST MODE
- Error Messages
If a CD is not operative or stopped during operation due to an error, the error mode is turned on and cause(s) of the
error is indicated with a corresponding number. This arrangement is intended at reducing nonsense calls from the
users and also for facilitating trouble analysis and repair work in servicing.
(1) Basic Indication Method
1) When SERRORM is selected for the CSMOD (CD mode area for the system), error codes are written to DMIN (minutes display area) and DSEC (seconds display area). The same data is written to DMIN and DSEC. DTNO remains
in blank as before.
2) Head unit display examples
Depending on display capability of LCD used, display will vary as shown below. xx contains the error number.
8-digit display 6-digit display 4-digit display
ERROR–xx ERR–xx E–xx
OR
Err–xx
(2) Error Code List
Code Class Displayed error code Description of the code and potential cause(s)
10 Electricity Carriage Home NG CRG can't be moved to inner diameter.
CRG can't be moved from inner diameter.
→ Failure on home switch or CRG move mechanism.
11 Electricity Focus Servo NG Focusing not available.
→ Stains on rear side of disc or excessive vibrations on REWRITABLE.
12 Electricity Spindle Lock NG Spindle not locked. Sub-code is strange (not readable).
→ Failure on spindle, stains or damages on disc, or excessive vibrations.
Subcode NG A disc not containing CD-R data is found. Turned over disc are found,
though rarely.
→ Failure on home switch or CRG move mechanism.
RF AMP NG An appropriate RF AMP gain can't be determined.
→ CD signal error.
17 Electricity Setup NG APC protection doesn't work. Focus can be easily lost.
→ Damages or stains on disc, or excessive vibrations.
30 Electricity Search Time Out Failed to reach target address.
→ CRG tracking error or damages on disc.
A0 System Power Supply NG Power (VD) is ground faulted.
→ Failure on SW transistor or power supply (failure on connector).
Remarks: Mechanical errors are not displayed (because a CD is turned off in these errors).
Unreadable TOC does not constitute an error. An intended operation continues in this case.
A newly designed head unit must conform to the example given above.
Upper digits of an error code are subdivided as shown below:
1x: Setup relevant errors, 3x: Search relevant errors, 3x: Search relevant errors, Ax: Other errors.
58
DEH-1000,10,1050
- New Test Mode
S-CD plays the same way as before.
If an error such as off focus, spindle unlocking, unreadable sub-code, or sound skipping occurs after setup, its
cause and time occurred (in absolute time) are displayed.
During setup, operational status of the control software (internal RAM: CPOINT) is displayed.
These displays and functions are prepared for enhancing aging in the servicing and efficiency of trouble analysis.
(1) Shifting to the New Test Mode
1 Turn on the current test mode by starting the reset from the key (it varies between the products).
2 Select S-CD for the source through the specified procedure including use of the [SOURCE] key, and inserting the
disc. Then, press the [Jump Mode Selector] key while maintaining the regulator turned off.
3 After the above operations, the new test mode remains on irrespective of whether the S-CD is turned on or off.
You can reset the new test mode by turning on the reset start.
* With some products, the new test mode can be reset through the same operations as that employed for shifting to
the STBY mode (while maintaining the Acc turned off).
(2) Key Correspondence
Key Test mode New test mode
(Example) Power Off Power On In-play Error Production
BAND To power on To power off – Time/Err.No. switching
(offset adjustment performed)
] – FWD-Kick FF/TR+ –
[ – REV-Kick REV/TR- –
1 – T.Close (AGC performed) Scan –
/parameter display switching
2 RF AMP gain switching Parameter display switching Mode –
/T.BAL adjustment/T.Open
3 To power on F.Close/RF AGC/F.T.AGC – –
(offset adjustment not performed)
6 – F.Mode switching Auto/Manu T.No./Time switching
/T.Close (no AGC)/Jump switching
Note: Eject and CD on/off is performed in the same procedure as that for the normal mode.
(3) Cause of Error and Error Code
Code Class Contents Description and cause
40 Electricity Off focus detected. FOK goes low.
→ Damages/stains on disc, vibrations or failure on servo.
41 Electricity Spindle unlocked. FOK = Low continued for 50 msec.
→ Damages/stains on disc, vibrations or failure on servo.
42 Electricity Sub-code unreadable. Sub-code was unreadable for 50 msec.
→ Damages/stains on disc, vibrations or failure on servo.
43 Electricity Sound skipping detected. Last address memory function was activated.
→ Damages/stains on disc, vibrations or failure on servo.
Note: Mechanical errors during aging are not displayed.
The error codes should be indicated in the same way as in the normal mode.
59
DEH-1000,10,1050
(4) Display of Operational Status (CPOINT) during Setup
Status No. Contents Protective action
00 CD+5V ON process in progress. None
01 Servo LSI initialization (1/3) in progress. None
02 Servo LSI CRAM initialization in progress. None
03 Servo LSI initialization (2/3) in progress. None
04 Offset adjustment (1/3) in progress. None
05 Offset adjustment (2/3) in progress. None
06 Offset adjustment (3/3) in progress. None
07 FZD adjustment in progress. None
08 Servo LSI initialization (3/3) in progress. None
10 Carriage move to home position started. None
11 Carriage move to home position started. None
12 Carriage is moving toward inner diameter. Specified 10 seconds has been passed or failure
on home switch.
13 Carriage is moving toward outer diameter. Specified 10 seconds has been passed or failure
on home switch.
14 Carriage outer kick in progress. None
15 Carriage outer diameter feed (1 second) in progress. None
20 Servo close started. None
21 Pre-processing for focus search started. None
22 Spindle rotation and focus search started. None
23 Waiting for focus close (XSI=Low). Specified focus search time has been passed.
24 Standing by after focus close is over. Specified focus search time has been passed.
25 Focus search preprocessing is in None
progress while setup protection is turned on.
26 Focus search preprocessing is in None
progress while focus recovery is turned on.
27 Wait time after focus close is set up. Off focus.
28 Standing by after focus close is over. Off focus.
29 Setup (1/2) before T balance adjustment is started. Off focus.
30 Setup (2/2) before T balance adjustment is started. Off focus.
31 T balance adjustment started. Off focus.
32 T balance adjustment (1/2). Off focus.
33 T balance adjustment (2/2). Off focus.
34 Waiting for spindle rotation to end. Off focus.
Spindle rough servo.
35 Standing by after spindle rough servo is over. Off focus.
36 RF AGC started. Off focus.
37 RF AGC started. Off focus.
38 RF AGC ending process in progress. Off focus.
39 Tracking close in progress. Off focus.
40 Standing by after tracking is closed. Off focus.
Carriage closing in progress.
41 Focus/tracking AGC started. Off focus.
42 Focus AGC started. Off focus.
43 Focus AGC in progress. Off focus.
44 Tracking AGC in progress. Off focus.
45 Standing by after focus/tracking AGC are over. Off focus.
46 Spindle processes applicable servo. Off focus.
47 Check for servo close is started. Off focus.
48 Check of LOCK pin started. Off focus or spindle not locked.
49 RF AGC started. Off focus.
50 RF AGC in progress. Off focus.
51 Standing by after RF AGC is over. Off focus.
60
DEH-1000,10,1050
(5) Display Examples
1) During Setup (When status no. = 11)
TRK No. MIN. SEC.
11 11' 11"
2) During Operation (TOC read, TRK search, Play, FF and REV)
The same as in the normal mode.
3) When a Protection Error Occurred
Switch to the following displays (A) and (B) using the [BAND] switch:
(A) Error occurrence timing display in absolute time.
An example: Error occurred in 12th tune at 34'56" in absolute time.
TRK No. MIN. SEC.
12 34' 56"
(B) Error No. display
An example: Error #40 (Off focus is detected)
ERROR-40
61
DEH-1000,10,1050
7.3 BLOCK DIAGRAM
A
TUNER AMP UNIT
B
FM/AM TUNER UNIT
D
CONTROL UNIT
PICKUP UNIT(SERVICE)
PHOTO UNIT
E
KEYBOARD UNIT
C
62
DEH-1000,10,1050
8. OPERATIONS AND SPECIFICATIONS
8.1 OPERATIONS
Key Finder
Head Unit
CLOCK button
Buttons 1 – 6
PGM button
EJECT button
Disc loading slot
AUDIO button
5/∞/2/3 buttons
FUNCTION button
SOURCE button
+/– button
BAND button
LOUD button
EQ button
63
DEH-1000,10,1050
Basic Operation
To Listen to Music
The following explains the initial operations required before you can listen to music.
Note:
• Loading a disc in this product.
1. Select the desired source (e.g. tuner).
7 Head Unit
Each press of the SOURCE button selects the desired source in the following order:
Built-in CD player = Tuner
Note:
• The sound source will not change if no disc is set in this product.
Each press changes the Source ...
2. Raise or lower the volume.
3. Source OFF.
Hold for 1 second or more
64
DEH-1000,10,1050
Basic Operation
Basic Operation of Tuner
Manual and Seek Tuning
• You can select the tuning method by changing the length of
time you press the 2/3 button.
Manual Tuning (step by step) 0.5 seconds or less
Seek Tuning 0.5 seconds or more
Note:
• If you continue pressing the button for longer than 0.5 seconds, you can
skip broadcasting stations. Seek Tuning starts as soon as you stop pressing
the button.
•“” stereo indicator lights when a stereo station is selected.
Preset Tuning
• You can memorize broadcast stations in buttons
1 through 6 for easy, one-touch station recall.
Preset station recall 2 seconds or less
Broadcast station preset memory 2 seconds or more
Note:
• Up to 18 FM stations (6 in FM1, FM2 and FM3) and 6 AM
stations can be stored in memory.
• You can also use the 5 or ∞ buttons to recall broadcast
stations memorized in buttons 1 through 6.
Preset Number Indicator
Band Indicator
Band
FM 1 = FM 2 = FM 3
= AM
Frequency Indicator
65
DEH-1000,10,1050
Basic Operation of Built-in CD Player
Track Search and Fast Forward/Reverse
• You can select between Track Search or Fast forward/Reverse by pressing
the 2/3 button for a different length of time.
Track Search 0.5 seconds or less
Fast forward/Reverse Continue pressing
Note:
• If a disc cannot be inserted fully or playback fails, make sure the recorded side is down. Push the
EJECT button and check the disc for damage before reinserting it.
• If a CD is inserted with the recorded side up, it will be ejected automatically after a few moments.
• If the built-in CD player cannot operate properly, an error message (such as “ERROR-14”) appears
on the display.
Disc Loading Slot
The built-in CD player plays one standard 12 cm or 8 cm (single)
CD at a time. Do not use an adapter when playing 8 cm CD.
Eject
Note:
• The CD function can be turned
ON/OFF with the disc remaining in
this product.
• Discs left partially inserted after ejection may incur damage or fall out.
Elapsed Play Time IndicatorTrack Number Indicator
66
DEH-1000,10,1050
Audio Adjustment
Selecting the Equalizer Curve
You can switch between Equalizer curves.
• Move the EQ button up or down to select the desired Equalizer curve.
POWERFUL += NATURAL += VOCAL += CUSTOM += EQ FLAT
+= SUPER BASS
Note:
• “CUSTOM” stores an equalizer curve you have made adjustments to.
• You can create different “CUSTOM” curves for different sources.
Entering the Audio Menu
With this Menu, you can adjust the sound quality.
Note:
• After entering the Audio Menu, if you do not perform an operation within about 30 seconds, the
Audio Menu is automatically canceled.
1. Select the desired mode in the Audio Menu.
2. Operate a mode.
3. Cancel the Audio Menu.
Each press changes the Mode ...
Equalizer curve
67
DEH-1000,10,1050
Audio Adjustment
Audio Menu Functions
The Audio Menu features the following functions.
Balance Adjustment (FADER)
This function allows you to select a Fader/Balance setting that provides ideal listening conditions in all occupied seats.
1. Press the AUDIO button and select Fader/Balance mode (FADER) in the
Audio Menu.
Note:
• “FADER 0” is the proper setting when 2 speakers are in use.
Equalizer Curve Adjustment (EQ-LOW/MID/HIGH)
You can adjust equalizer curve settings as desired. Adjusted equalizer curve settings are
memorized in “CUSTOM”.
1. Press the AUDIO button and select the Equalizer mode
(EQ-LOW/MID/HIGH) in the Audio Menu.
Note:
• If you make adjustments when a curve other than “CUSTOM” is selected, the adjusted curve is
stored in memory as a “CUSTOM” curve. Also, the displayed curve switches to that selected before
adjustments were made.
3. Boost or attenuate the selected
band with the 5/∞ buttons.
The display shows “+6” – “–6”.
2. Select the band you want to
adjust with the 2/3 buttons.
EQ-LOW += EQ-MID += EQ-HIGH
3. Adjust left/right speaker balance with the 2/3 buttons.
“BAL L 9” – “BAL R 9” is displayed
as it moves from left to right.
2. Adjust front/rear speaker balance with the 5/∞ buttons.
“FADER F15” – “FADER R15” is
displayed as it moves from front to
rear.
68
DEH-1000,10,1050
Audio Menu Functions
The Audio Menu features the following functions.
Balance Adjustment (FADER)
This function allows you to select a Fader/Balance setting that provides ideal listening conditions in all occupied seats.
1. Press the AUDIO button and select Fader/Balance mode (FADER) in the
Audio Menu.
Note:
• “FADER 0” is the proper setting when 2 speakers are in use.
Equalizer Curve Adjustment (EQ-LOW/MID/HIGH)
You can adjust equalizer curve settings as desired. Adjusted equalizer curve settings are
memorized in “CUSTOM”.
1. Press the AUDIO button and select the Equalizer mode
(EQ-LOW/MID/HIGH) in the Audio Menu.
Note:
• If you make adjustments when a curve other than “CUSTOM” is selected, the adjusted curve is
stored in memory as a “CUSTOM” curve. Also, the displayed curve switches to that selected before
adjustments were made.
3. Boost or attenuate the selected
band with the 5/∞ buttons.
The display shows “+6” – “–6”.
2. Select the band you want to
adjust with the 2/3 buttons.
EQ-LOW += EQ-MID += EQ-HIGH
3. Adjust left/right speaker balance with the 2/3 buttons.
“BAL L 9” – “BAL R 9” is displayed
as it moves from left to right.
2. Adjust front/rear speaker balance with the 5/∞ buttons.
“FADER F15” – “FADER R15” is
displayed as it moves from front to
rear.
69
DEH-1000,10,1050
Equalizer Curve Fine Adjustment
You can adjust the center frequency of each equalizer curve band (LOW/MID/HIGH) and
the Q factor (curve characteristics).
1. Press the AUDIO button for 2 or more seconds to select Equalizer Curve
Fine Adjustment.
Loudness Adjustment (LOUD)
The Loudness function compensates for deficiencies in the low and high sound ranges at
low volume. You can select a desired Loudness level.
1. Press the AUDIO button and select the Loudness mode (LOUD) in the Audio
Menu.
Note:
• You can also switch the Loudness function ON/OFF by pressing the LOUD button. However,
you cannot change the level.
3. Select the desired level with the
2/3 buttons.
LOW += MID += HI
2. Switch the Loudness function
ON/OFF with the 5/∞ buttons.
4. Select the desired Q factor with
the 5/∞ buttons.
2N += 1N += 1W += 2W
3. Select the desired frequency
with the 2/3 buttons.
LOW: 40 += 80 += 100 += 160 (Hz)
MID: 200 += 500 += 1K += 2K (Hz)
HIGH: 3K += 8K += 10K += 12K
(Hz)
2. Press the AUDIO button to
select the desired band for
adjustment.
Level (dB)
Q=2W
Q=2N
Center frequency
Frequency (Hz)
70
DEH-1000,10,1050
Audio Adjustment
Front Image Enhancer Function (FIE)
The F.I.E. (Front Image Enhancer) function is a simple method of enhancing front imaging
by cutting mid- and high-range frequency output from the rear speakers, limiting their output to low-range frequencies. You can select the frequency you want to cut.
1. Press the AUDIO button and select the F.I.E. mode (FIE) in the Audio Menu.
Note:
• After switching the F.I.E. function ON, select the Fader/Balance mode in the Audio Menu, and
adjust front and rear speaker volume levels until they are balanced.
• Switch the F.I.E. function OFF when using a 2-speaker system.
Source Level Adjustment (SLA)
The SLA (Source Level Ajustment) function prevents radical leaps in volume when
switching between sources. Settings are based on the FM volume, which remains
unchanged. (Since the FM volume is the control, SLA is not possible in the FM modes.)
The AM and CD levels can all be adjusted.
1. Compare the FM volume with the volume of the other source.
(e.g. Built-in CD player)
2. Press the AUDIO button, and select the SLA mode (SLA) in the Audio
Menu.
3. Increase or decrease the level
with the 5/∞ buttons.
The display shows “+4” – “–4”.
3. Select the desired frequency
with the 2/3 buttons.
100 += 160 += 250 (Hz)
2. Switch the F.I.E. function
ON/OFF with the 5/∞ buttons.
Precaution:
• When the F.I.E. function is deactivated, the rear speakers output sound of all frequencies, not just
bass sounds. Reduce the volume before disengaging F.I.E. to prevent a sudden increase in volume.
71
DEH-1000,10,1050
+
≠
+
≠
+
≠
+
≠
+
≠
+
≠
Rear output
This Product
Antenna jack
Blue/white
Tosystem control terminal of the power amp
or Auto-antenna relay control terminal.
(Max. 300 mA 12 VDC.)
Fuse
Connecting cords
with RCA pin plugs
(sold separately)
Fuse resistor
System remote control
Rear speakerRear speaker
Right
Front speaker
Rear speaker
White Gray
White/black
Green
Green/black
Gray/black
Violet
Violet/black
Front speaker
Rear speaker
Left
Perform these connections when using a
different amp (sold separately).
With a 2 speaker system, do not connect
anything to the speaker leads that are not
connected to speakers.
Note:
The electrical leads ofthis product may be different colors to the corresponding
leads (i.e. the leads that serve the same function) of other products. When
connecting this product to another product, please read the instruction
manual for each product carefully andthen connect eachlead of thisproduct
to the other product that serves the same function.
Yellow
Toterminal always supplied
with power regardless of
ignition switch position.
Black (ground)
Tovehicle (metal) body.
Red
Toelectric terminal controlled
by ignition switch (12 V DC)
ON/OFF.
Power amp
(sold separately)
72
DEH-1000,10,1050
8.2 SPECIFICATIONS
- DEH-1000/X1N/UC, DEH-10/X1N/UC
General
Power source .......... 14.4 V DC (10.8 – 15.1 V allowable)
Grounding system ........................................ Negative type
Max. current consumption ...................................... 10.0 A
Dimensions
(DIN) (chassis) ...... 178 (W) × 50 (H) × 159 (D) mm
[7 (W) × 2 (H) × 6-1/4 (D) in]
(nose) ............ 188 (W) × 58 (H) × 19 (D) mm
[7-3/8 (W) × 2-1/4 (H) × 3/4 (D) in]
(D) (chassis) ...... 178 (W) ×50 (H) × 164 (D) mm
[7 (W) × 2 (H) × 6-1/2 (D) in]
(nose) ............ 170 (W) × 46 (H) × 14 (D) mm
[6-3/4 (W) × 1-3/4 (H) × 5/8 (D) in]
Weight ........................................................ 1.4 kg (3.1 lbs)
Amplifier
Continuous power output is 22 W per channel min. into 4
ohms, both channels driven 50 to 15,000 Hz with no more
than 5% THD.
Maximum power output ...................................... 45 W ×4
Load impedance .......................... 4 Ω (4 – 8 Ωallowable)
Preout maximum output
level/output impedance ............................ 2.2 V/1 kΩ
Equalizer (3-Band Parametric Equalizer)
(Low) .......................... Frequency: 40/80/100/160 Hz
Q Factor: 0.35/0.59/0.95/1.15
(+6 dB when boosted)
Level: ±12 dB
(Mid) .......................... Frequency: 200/500/1k/2k Hz
Q Factor: 0.35/0.59/0.95/1.15
(+6 dB when boosted)
Level: ±12 dB
(High) ................ Frequency: 3.15k/8k/10k/12.5k Hz
Q Factor: 0.35/0.59/0.95/1.15
(+6 dB when boosted)
Level: ±12 dB
Loudness contour
(Low) .................. +3.5 dB (100 Hz), +3 dB (10 kHz)
(Mid) ................ +10 dB (100 Hz), +6.5 dB (10 kHz)
(High) ................ +11 dB (100 Hz), +11 dB (10 kHz)
(volume: –30 dB)
CD player
System .................................... Compact disc audio system
Usable discs .................................................. Compact disc
Signal format .................... Sampling frequency: 44.1 kHz
Number of quantization bits: 16; linear
Frequency characteristics .............. 5 – 20,000 Hz (±1 dB)
Signal-to-noise ratio ...... 94 dB (1 kHz) (IHF-A network)
Dynamic range ............................................ 92 dB (1 kHz)
Number of channels ............................................ 2 (stereo)
FM tuner
Frequency range .................................... 87.9 – 107.9 MHz
Usable sensitivity .................................................... 10 dBf
(1.0 µV/75 Ω, mono, S/N: 30 dB)
50 dB quieting sensitivity .... 15 dBf (1.7 µV/75 Ω, mono)
Signal-to-noise ratio ...................... 70 dB (IHF-A network)
Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo)
Frequency response ...................... 30 – 15,000 Hz (±3 dB)
Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz)
Selectivity .................................................... 70 dB (2ACA)
Three-signal intermodulation
(desired signal level) ........................................ 30 dBf
(two undesired signal level: 100 dBf)
AM tuner
Frequency range ...................................... 530 – 1,710 kHz
Usable sensitivity .............................. 18 µV (S/N: 20 dB)
Selectivity ................................................ 50 dB (±10 kHz)
Note:
• Specifications and the design are subject to possi-
ble modification without notice due to improvements.
73
DEH-1000,10,1050
- DEH-1050/X1N/ES
General
Power source .......... 14.4 V DC (10.8 – 15.1 V allowable)
Grounding system ........................................ Negative type
Max. current consumption ...................................... 10.0 A
Dimensions
(DIN) (chassis) ...... 178 (W) × 50 (H) × 159 (D) mm
(nose) ............ 188 (W) × 58 (H) × 19 (D) mm
(D) (chassis) ...... 178 (W) ×50 (H) × 164 (D) mm
(nose) ............ 170 (W) × 46 (H) × 14 (D) mm
Weight ...................................................................... 1.4 kg
Amplifier
Continuous power output is 22 W per channel min. into 4
ohms, both channels driven 50 to 15,000 Hz with no more
than 5% THD.
Maximum power output ...................................... 45 W ×4
Load impedance .......................... 4 Ω (4 – 8 Ωallowable)
Preout maximum output level/
output impedance .................................... 2.2 V/1 kΩ
Equalizer (3-Band Parametric Equalizer)
(Low) .......................... Frequency: 40/80/100/160 Hz
Q Factor: 0.35/0.59/0.95/1.15
(+6 dB when boosted)
Level: ±12 dB
(Mid) .......................... Frequency: 200/500/1k/2k Hz
Q Factor: 0.35/0.59/0.95/1.15
(+6 dB when boosted)
Level: ±12 dB
(High) ................ Frequency: 3.15k/8k/10k/12.5k Hz
Q Factor: 0.35/0.59/0.95/1.15
(+6 dB when boosted)
Level: ±12 dB
Loudness contour
(Low) ..................+3.5 dB (100 Hz), +3 dB (10 kHz)
(Mid) ..................+10 dB (100 Hz), +6.5 dB (10 kHz)
(High) ..................+11 dB (100 Hz), +11 dB (10 kHz)
(volume: –30 dB)
CD player
System .................................... Compact disc audio system
Usable discs .................................................. Compact disc
Signal format .................... Sampling frequency: 44.1 kHz
Number of quantization bits: 16; linear
Frequency characteristics .............. 5 – 20,000 Hz (±1 dB)
Signal-to-noise ratio ...... 94 dB (1 kHz) (IEC-A network)
Dynamic range ............................................ 92 dB (1 kHz)
Number of channels ............................................ 2 (stereo)
FM tuner
Frequency range ...................................... 87.5 – 108 MHz
Usable sensitivity
.................. 10 dBf (1.0 µV/75 Ω, mono, S/N: 30 dB)
50 dB quieting sensitivity .... 15 dBf (1.7 µV/75 Ω, mono)
Signal-to-noise ratio ...................... 70 dB (IEC-A network)
Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo)
Frequency response ...................... 30 – 15,000 Hz (±3 dB)
Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz)
AM tuner
Frequency range ........................ 531 – 1,602 kHz (9 kHz)
530 – 1,710 kHz (10 kHz)
Usable sensitivity .............................. 18 µV (S/N: 20 dB)
Selectivity .................................................. 50 dB (±9 kHz)
50 dB (±10 kHz)
Note:
• Specifications and the design are subject to possi-
ble modification without notice due to improvements.
Loading...
