Phonic PAA6 Overview
PAA6
Professional Audio Analyzer
PAA6
Digital 2-Channel Audio Analyzer with Color Touch LCD
Features
4Powerful dual channel palm-size professional audio analyzer |
4FFT with user-selectable range |
4480 x 272 color LCD touchscreen |
4Accurate THD+N measurement |
4Detailed graphical interface |
4Polarity for measuring speakers and wiring |
4Two built-in omnidirectional condenser microphones |
4Check phase between two signals |
4RTA function |
4Detailed oscilloscope |
o Selectable resolution between 1, 2/3, 1/3 and 1/6 octave |
4Measurements for most functions can be taken by dB SPL, dBu, |
o A, B, C and flat weightings |
dBV & volts |
o dB (SPL), dBu, dBV and voltage measurements possible |
4Tone generator with user adjustable frequencies and level |
o Add or subtract channels |
o Pink noise |
4LEQ |
o White noise |
o Time adjustable up to 2 days |
o Sine wave |
o 1 octave resolution |
o Triangle wave |
4Level meter |
o Square wave |
o Measures SPL, dBu, dBV and voltage |
o Sweep |
o Maximum level display with reset button |
o Polarity |
4RT-60 |
4Long-lasting rechargeable lithium-ion battery system |
o 13 frequency filters settings |
4USB port and SD card slot included for storing and retrieving data |
o A, B, C or flat weightings |
4Beta interface software now available |
o RT-60 chart and time |
4DC power supply included |
Description

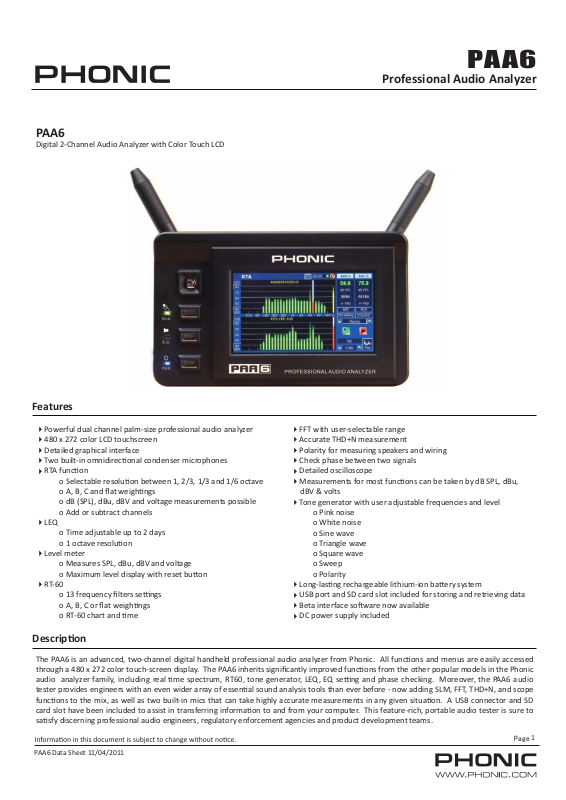

The PAA6 is an advanced, two-channel digital handheld professional audio analyzer from Phonic. All functions and menus are easily accessed through a 480 x 272 color touch-screen display. The PAA6 inherits significantly improved functions from the other popular models in the Phonic audio analyzer family, including real time spectrum, RT60, tone generator, LEQ, EQ setting and phase checking. Moreover, the PAA6 audio tester provides engineers with an even wider array of essential sound analysis tools than ever before - now adding SLM, FFT, THD+N, and scope functions to the mix, as well as two built-in mics that can take highly accurate measurements in any given situation. A USB connector and SD card slot have been included to assist in transferring information to and from your computer. This feature-rich, portable audio tester is sure to satisfy discerning professional audio engineers, regulatory enforcement agencies and product development teams.
Page
PAA6 Data Sheet 11/04/2011
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PAA6 |
|||||||||
Dimension |
|
|
|
|
|
|
|
Professional Audio Analyzer |
|||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
174.5 mm / 6.89" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
<![if ! IE]> <![endif]>57".1 / 40mm |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Specifications |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
Frequency |
|
|
|
|
|
|
20 Hz - 20 kHz, and All Frequency |
|
|||||||||||||
|
|
|
|
|
|
Unit |
|
|
|
|
|
|
dB SPL, dBu, dBV, Volt |
|
|||||||||||||
|
|
|
|
|
|
EQ Setting |
|
|
|
|
|
|
EQ Cut or Boost |
|
|||||||||||||
|
|
|
|
|
|
Subtract/Sum |
|
|
|
|
|
|
CH1+CH2, CH1-CH2,CH2-CH1 |
|
|||||||||||||
|
|
RTA |
|
Peak Hold |
|
|
|
|
|
|
Off, 0.5 ms, 1 Sec, 2 Sec, 4 Sec,Continue |
|
|||||||||||||||
|
|
|
Frequency Detect |
|
|
|
|
|
|
On, Off |
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
|
|
|
|
|
|
Dynamic Range |
|
|
|
|
|
30 ~ 130 dB. 60 dB display range, eg. 70 ~130, 60 ~ 120, 50 ~ 110 |
|
||||||||||||||
|
|
|
|
|
|
dB-scale setting |
|
|
|
|
|
|
+/- 5dB setps on Y-Axis |
|
|||||||||||||
|
|
|
|
|
|
Octave |
1/1,1/3,2/3,1/6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
Weighting |
|
|
|
|
|
|
A,B,C, Flat |
|
|||||||||||||
|
|
|
|
|
|
Frequency Range |
|
|
|
|
|
|
13 selectable bandwidths |
|
|||||||||||||
|
|
|
|
|
|
Unit |
|
|
|
|
|
|
dB SPL, dBu, dBV, Volt |
|
|||||||||||||
|
|
|
|
|
|
Subtract/Sum |
|
|
|
|
|
|
CH1+CH2, CH1-CH2,CH2-CH1 |
|
|||||||||||||
|
|
FFT |
|
Peak Hold |
|
|
|
|
|
|
Off, 0.5 ms, 1 Sec, 2 Sec, 4 Sec,Continue |
|
|||||||||||||||
|
|
|
|
|
|
Frequency Detect |
|
|
|
|
|
|
On, Off |
|
|||||||||||||
|
|
|
|
|
|
Octave |
1/1,1/3,2/3,1/6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
Weighting |
|
|
|
|
|
|
A,B,C, Flat |
|
|||||||||||||
|
|
|
|
|
|
Unit |
|
|
|
|
|
|
dB SPL, dBu, dBV, Volt |
|
|||||||||||||
|
|
RT-60 |
|
Trigger |
|
|
|
|
|
|
Internal, External |
|
|||||||||||||||
|
|
|
|
|
|
Weighting |
|
|
|
|
|
|
A,B,C, Flat |
|
|||||||||||||
|
|
THD+N |
Unit |
|
|
|
|
|
|
dB SPL, dBu, dBV, Volt |
|
||||||||||||||||
|
|
|
|
|
|
Level Range |
|
|
|
|
|
30 ~ 130 dB SPL, -85 ~ 25 dBu, -87.2 ~ 22.8 dBV, 0.0436mV ~ 13.8V |
|
||||||||||||||
|
|
Meter |
|
Unit |
|
|
|
|
|
|
dB SPL, dBu, dBV, Volt |
|
|||||||||||||||
|
|
|
|
|
|
Max |
|
|
|
|
|
|
Peak Hold |
|
|||||||||||||
|
|
Phase |
Phase Degree |
|
|
|
|
|
|
Phase Correlation (out of phase or in phase) |
|
||||||||||||||||
|
|
|
|
|
|
Trigger |
|
|
|
|
|
|
CH1+CH2, CH1-CH2,CH2-CH1 |
|
|||||||||||||
|
|
Oscillator Scope |
|
Mode |
|
|
|
|
|
|
Auto,Normal |
|
|||||||||||||||
|
|
|
|
|
|
Unit |
|
|
|
|
|
|
dB SPL, dBu, dBV, Volt |
|
|||||||||||||
|
|
Polarity |
|
Polarity checker |
|
|
|
|
|
|
Negative, Positive |
|
|||||||||||||||
|
|
|
Unit |
|
|
|
|
|
|
dB SPL, dBu, dBV, Volt |
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
|
|
LEQ |
|
Weighting |
|
|
|
|
|
|
A,B,C, Flat |
|
|||||||||||||||
|
|
|
Selectable Frequency |
|
|
|
|
|
31.5Hz,63Hz,125Hz,250Hz,500Hz,1KHz,2KHz,4KHz,8KHz,16Khz |
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||
|
|
Microphone |
|
|
|
|
|
|
Built-in condeser mic x 2 |
|
|||||||||||||||||
|
|
Input/Output |
|
XLR input x 2 (Balanced/Unbalanced), XLR output x 1 (servo Balanced) |
|
||||||||||||||||||||||
|
|
Interface |
|
|
|
|
|
|
USB High Speed 2.0 interface |
|
|||||||||||||||||
|
|
Display |
|
|
|
|
|
|
480 x 272,16-bit,full color touch screen |
|
|||||||||||||||||
|
|
Memory |
|
|
|
|
|
|
DC3.7V-2200mah |
|
|||||||||||||||||
|
|
Generator |
|
|
|
|
|
|
3 Hours |
|
|||||||||||||||||
|
|
THD+N |
|
|
|
|
|
|
3 Hours |
|
|||||||||||||||||
|
|
Input Impedance |
|
|
|
|
|
|
100 Kohm balanced, unbalanced |
|
|||||||||||||||||
|
|
Input RMS |
|
|
|
|
|
|
+25 dBu balanced,unbalanced |
|
|||||||||||||||||
|
|
DC Input |
|
|
|
|
|
|
|
5V |
|
||||||||||||||||
|
|
Display |
|
|
|
|
|
|
480 x 272,16-bit,full color touch screen |
|
|||||||||||||||||
|
|
Batteries |
|
|
|
|
|
|
DC3.7V-2200mah |
|
|||||||||||||||||
|
|
Batteries Life |
|
|
|
|
|
|
3 Hours |
|
|||||||||||||||||
|
|
Battery Charging Time |
|
|
|
|
|
|
3 Hours |
|
|||||||||||||||||
|
|
Dimensions (WxHxD) |
|
|
|
|
|
174.5 x 40 x 105.5mm (6.89" x 1.57" x 4.17") |
|
||||||||||||||||||
|
|
Weight |
|
|
|
|
|
|
460g (1 lbs) |
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Page |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PAA6 Data Sheet 11/04/2011 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
