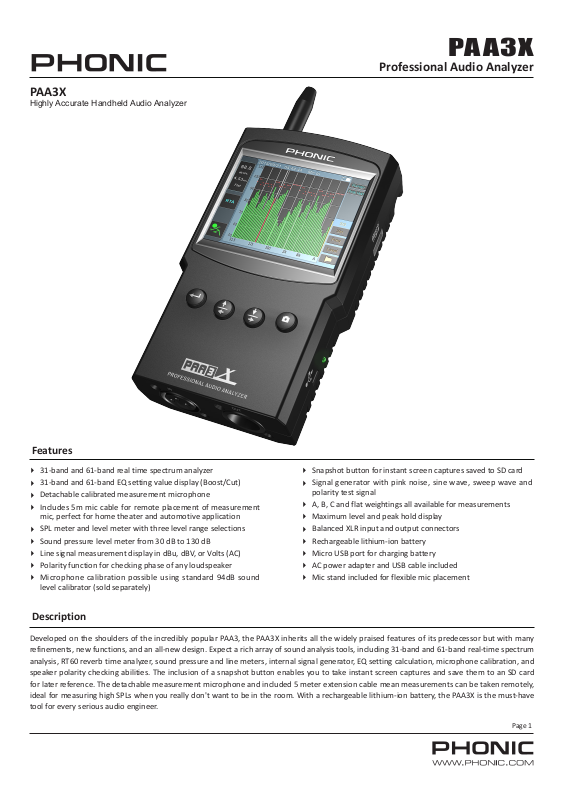

PAA3X
Highly Accurate Handheld Audio Analyzer
PAA3X
Professional Audio Analyzer
Features
31-band and 61-band real time spectrum analyzer
4
31-band and 61-band EQ setting value display (Boost/Cut)
4
Detachable calibrated measurement microphone
4
Includes 5m mic cable for remote placement of measurement
4
mic, perfect for home theater and automotive application
SPL meter and level meter with three level range selections
4
Sound pressure level meter from 30 dB to 130 dB
4
Line signal measurement display in dBu, dBV, or Volts (AC)
4
Polarity function for checking phase of any loudspeaker
4
Microphone calibration possible using standard 94dB sound
4
level calibrator (sold separately)
Snapshot button for instant screen captures saved to SD card
4
Signal generator with pink noise, sine wave, sweep wave and
4
polarity test signal
A, B, C and flat weightings all available for measurements
4
Maximum level and peak hold display
4
Balanced XLR input and output connectors
4
Rechargeable lithium-ion battery
4
Micro USB port for charging battery
4
AC power adapter and USB cable included
4
Mic stand included for flexible mic placement
4
Description
Developed on the shoulders of the incredibly popular PAA3, the PAA3X inherits all the widely praised features of its predecessor but with many
refinements, new functions, and an all-new design. Expect a rich array of sound analysis tools, including 31-band and 61-band real-time spectrum
analysis, RT60 reverb time analyzer, sound pressure and line meters, internal signal generator, EQ setting calculation, microphone calibration, and
speaker polarity checking abilities. The inclusion of a snapshot button enables you to take instant screen captures and save them to an SD card
for later reference. The detachable measurement microphone and included 5 meter extension cable mean measurements can be taken remotely,
ideal for measuring high SPLs when you really don't want to be in the room. With a rechargeable lithium-ion battery, the PAA3X is the must-have
tool for every serious audio engineer.
Page 1
Product Overview
Detachable Precision Mic
Phonic's famous precision
condenser microphone
Color LCD Display
View all functions
Jog Wheel Control
Adjust settings and functions
Top-mounted Power Button
Micro SD Card Slot
Snapshots are saved here
Standard Controls
↑/← , ↓/→ and enter buttons
Balanced XLR
Input Connectors
For taking measurements
Included Accessories
Highly Accurate Detachable
Measurement Microphone
Microphone Stand
Adapter for PAA3X
Snapshot Button
Instantly capture the screen
USB Charging Port
Charge the lithium-ion battery
Front
Balanced XLR
Bottom
Adjustable Microphone Stand Adapter
Allows Versatile Mic Placement
Output Connectors
For signal generator output
Page 2
5m Mic Signal
Extension Cable
SD Card and
Plastic Case
USB Charging
Cable and Adapter

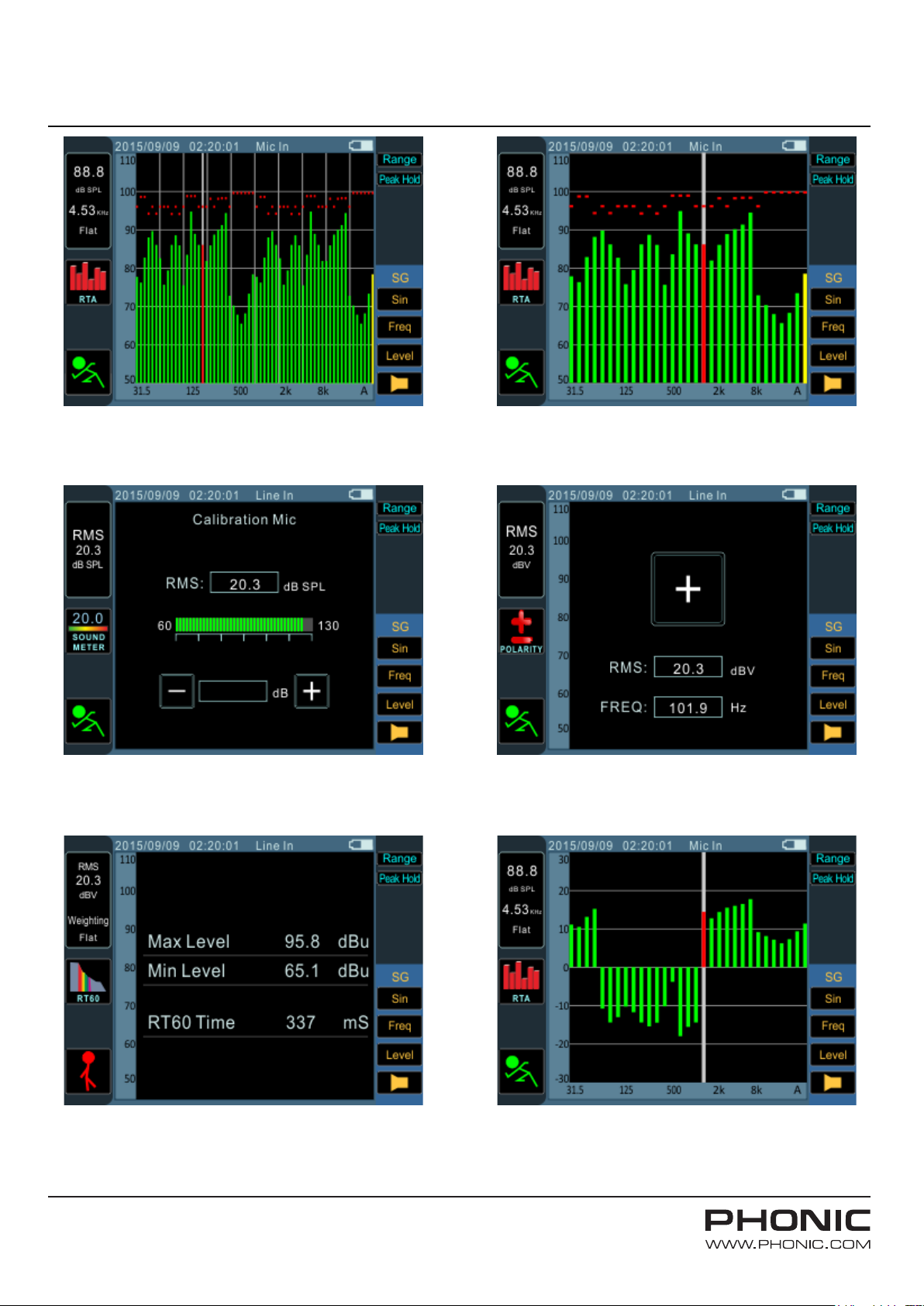

Software
PAA3X
Professional Audio Analyzer
61-BAND RTA
Use the 1/6th octave RTA to better understand the
subtle nuances of your audio; get a visual cue on
what you're hearing to better rene your live system.
LEVEL METER
31-BAND RTA
When you don't need the information overload
provided by the 1/6th octave RTA, this modest 1/3rd
octave analyzer is your new best friend.
POLARITY CHECKEQ CALCULATOR
The PAA3X includes a highly accurate sound pressure
level meter in addition to a line meter that measures in
dBu, dBV and voltage.
RT60 MEASUREMENT
Measure the reverb time of any room and see the decay
time to the nearest millisecond. Phonic also provides
maximum and minimum level information.
Simply check if your speakers are wired correctly by
running the polarity signal through your system and
using this function. It will tell you immediately.
View suggested EQ settings based on measurements
taken from the precision microphone and the internal
algorithm that knows sound better than the human ear.
Page 3

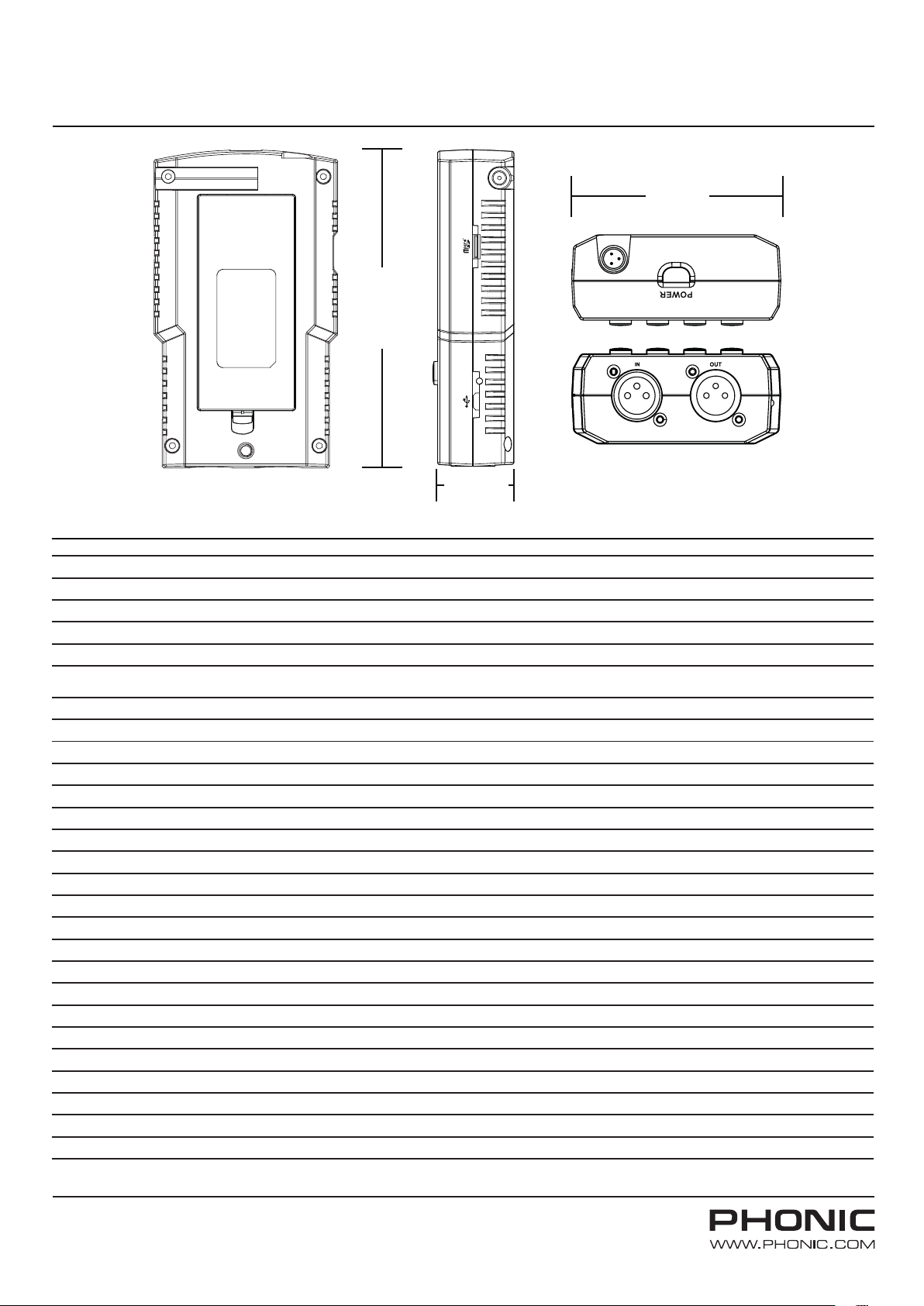

Dimensions
37.5mm/1.5”
90mm/3.54”
90mm/3.54”
Specifications
156mm/6.14”
37.5mm/1.5”
Professional Audio Analyzer
90mm/3.54”
PAA3X
Input/Output
Microphone Detachable miniature condenser microphone
Line Balanced XLR jacks for line input and output
Display 320 x 240 RGB LCD
SPL, dBu, dBV, Voltage Bar graph and digital display
RTA
Measured Range
SPL (Microphone Input) 30 to 130 dB SPL
dBu (Line Input) -50 to +40 dBu
dBV (Line Input) -52 to +38 dBV
Voltage (Line Input) 5mV to 80V
Sengs
Weighng A, B, C or Flat
Peak Hold ON/OFF
Maximum Level Display RESET
Response Time 35 ms, 125 ms, 250 ms, 1 second
Other Funcons
RT60 Reverb me display, up to 30 seconds
Memory Micro SD storage slot
EQ Seng Value Display 31-band / 61-band
Polarity Checker Posive or Negave (using polarity signal)
Signal Generator Pink noise, sine wave, sweep wave, polarity signal
Signal Generator Output Balanced XLR Output
Power Source Rechargeable Lithium-ion Baery
Charging Port Micro USB
Dimensions (H x W x D) 156 x 90 x 37.5 mm (6.14” x 3.54” x 1.5”)
Weight 325 g (0.7 lbs)
1/3rd octave and 1/6th octave, 0.5 dB resoluon
Center frequencies ISO standard from 20Hz to 20KHz
Information in this document is subject to change without notice.
PAA3X Data Sheet 08/19/2016
