Phonic Celeus 800 User’s Manual

User's Manual

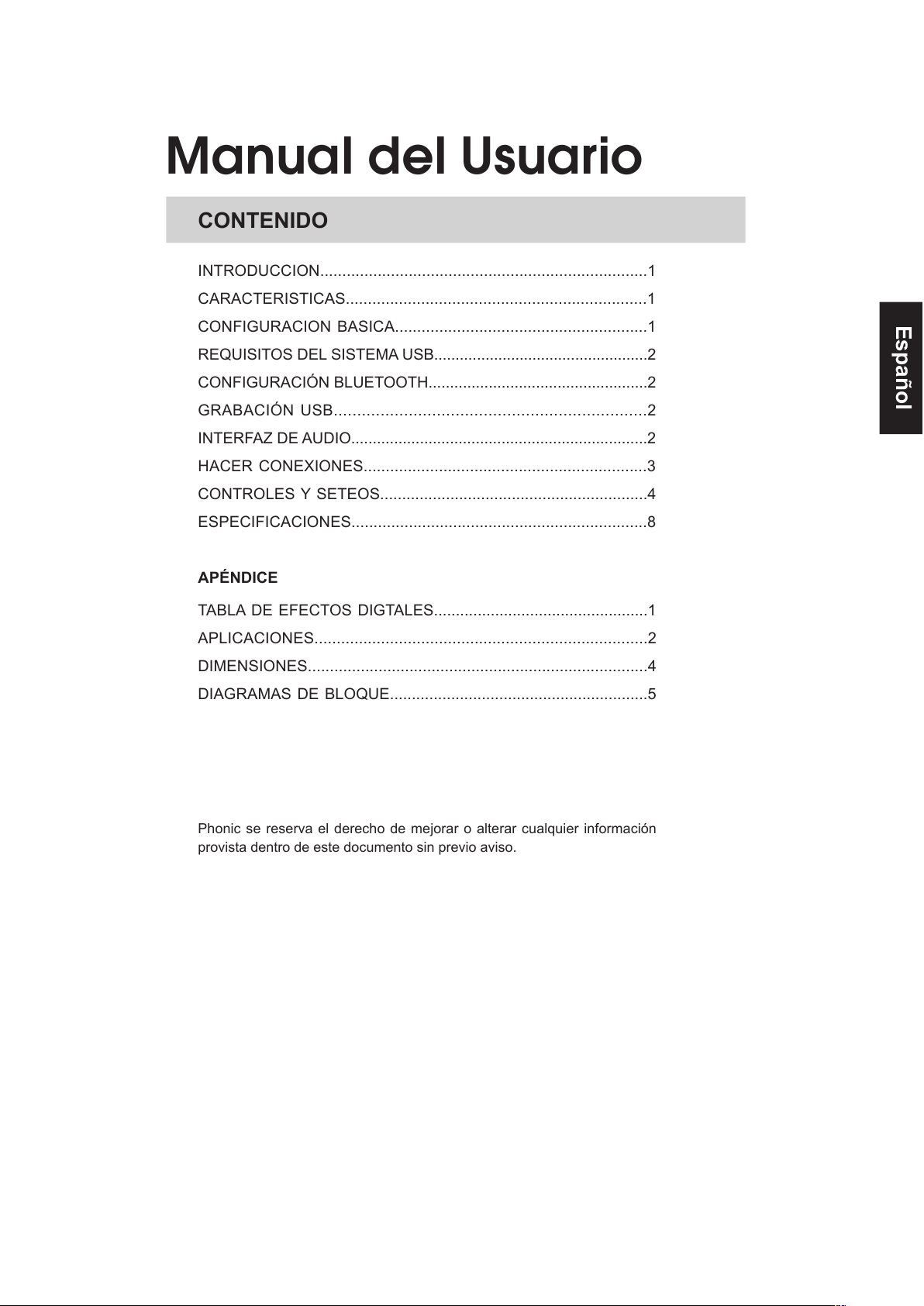

Manual del Usuario

CELEUS 800

ANALOG MIXERS

!"#$%&'()))))))))))))))))))))))))))))))))))))))))%(
!&*+,-$()))))))))))))))))))))))))))))))))))))%%((
+**!".%/()))))))))))))))))))))))))))))))))))))%%%

V1.0 08/21/2015

!012345((((((((((!467892(((((((((

CELEUS 800

1

CELEUS 800

English

INTRODUCTION......................................................................1

FEATURES...............................................................................1

BASIC SETUP...........................................................................1

USB SYSTEM REQUIREMENTS.......................................1

BLUETOOTH SETUP..................................................2

USB PLAYBACK.........................................................2

USB RECORDING...........................................................2

AUDIO INTERFACE..........................................................2

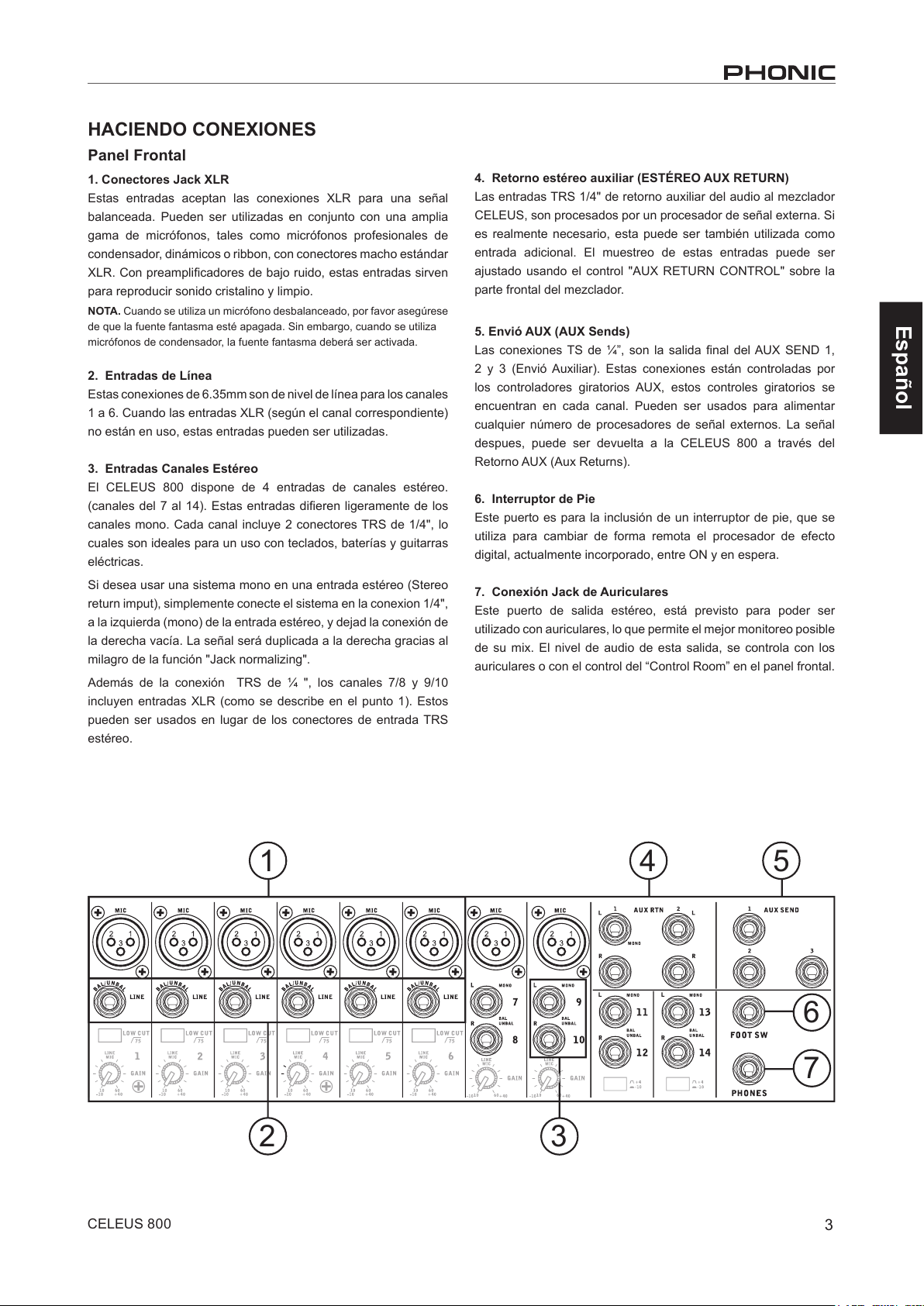

MAKING CONNECTIONS....................................................3

CONTROLS AND SETTINGS...................................................4

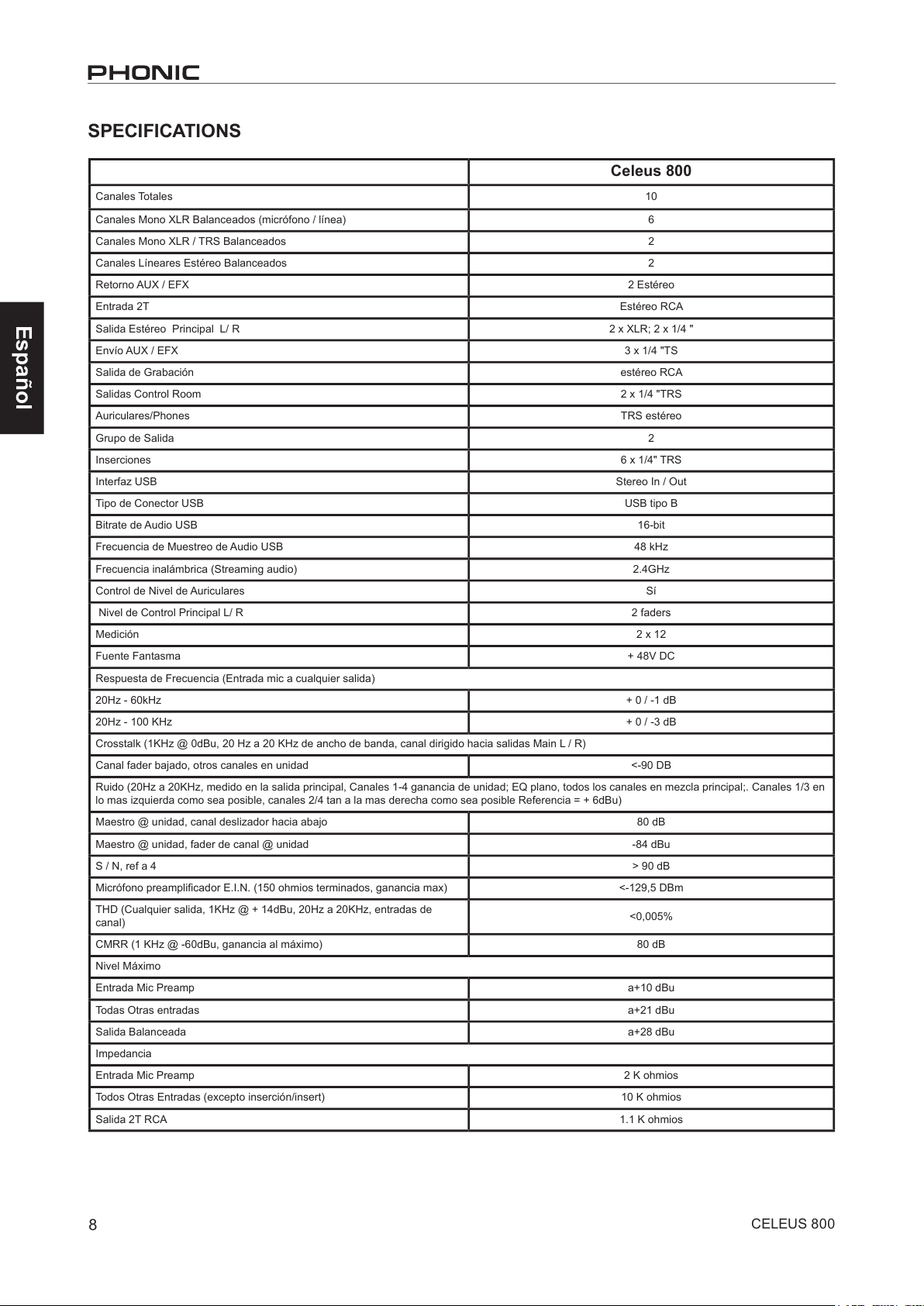

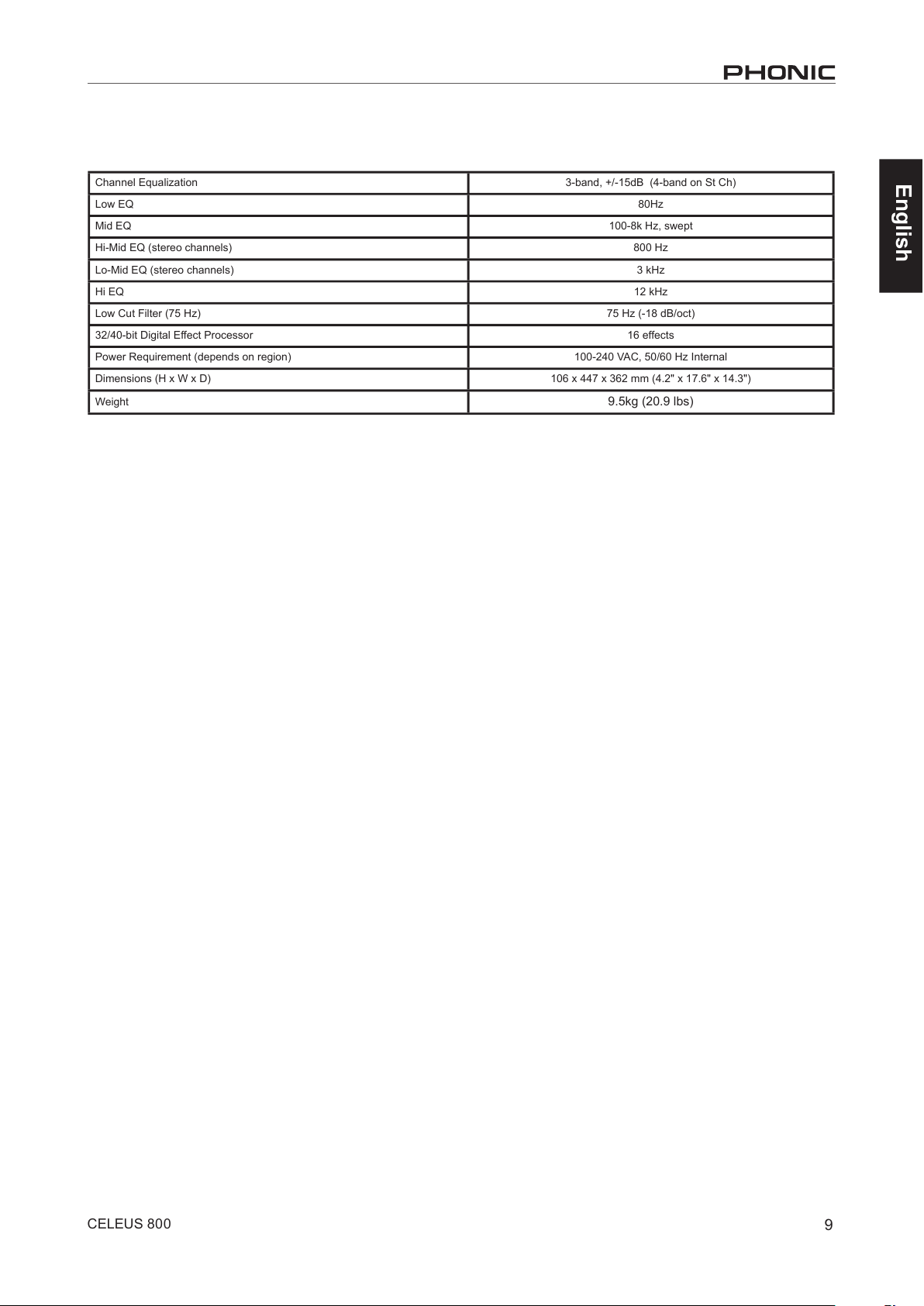

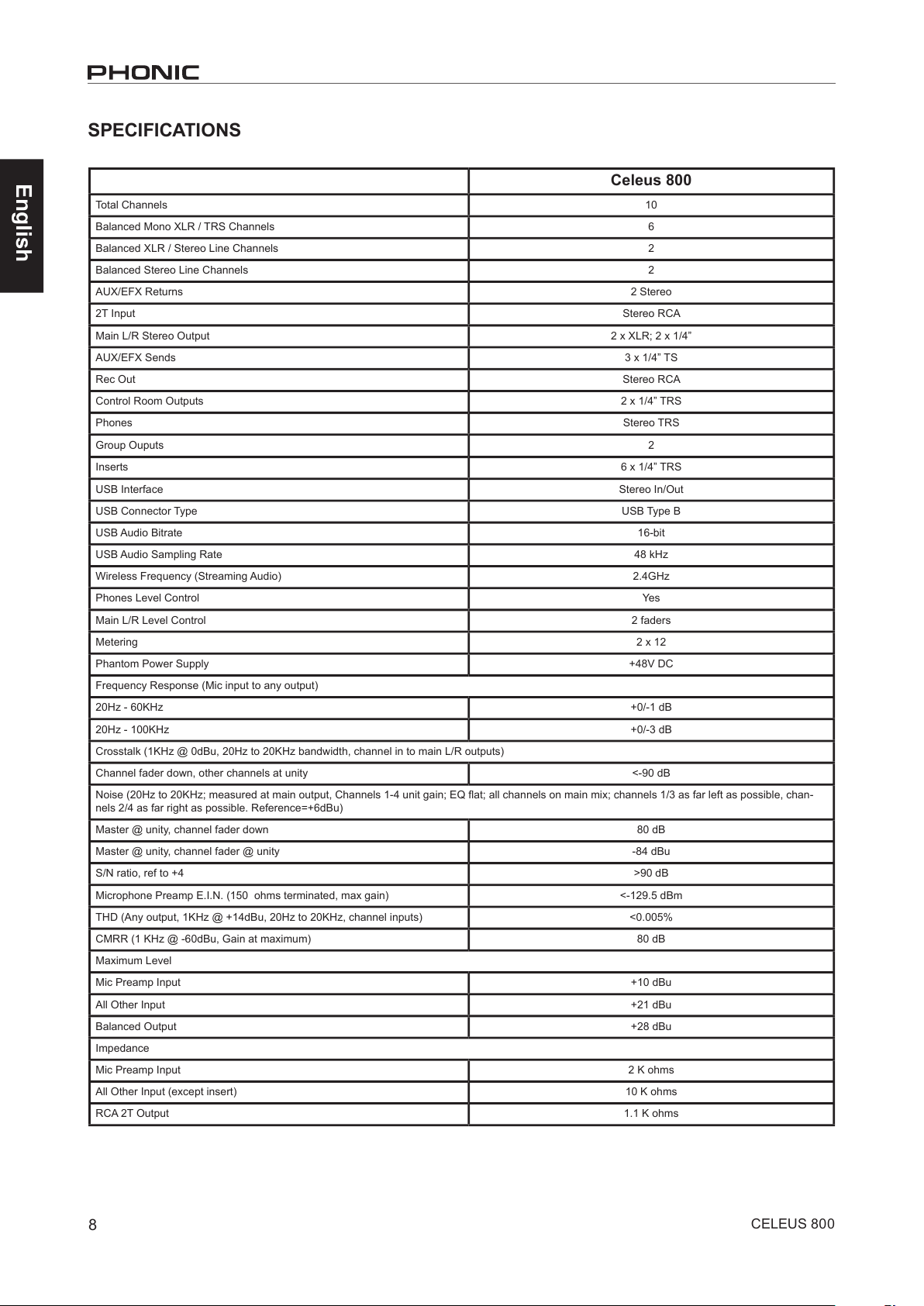

SPECIFICATIONS...................................................................8

+**!".%/

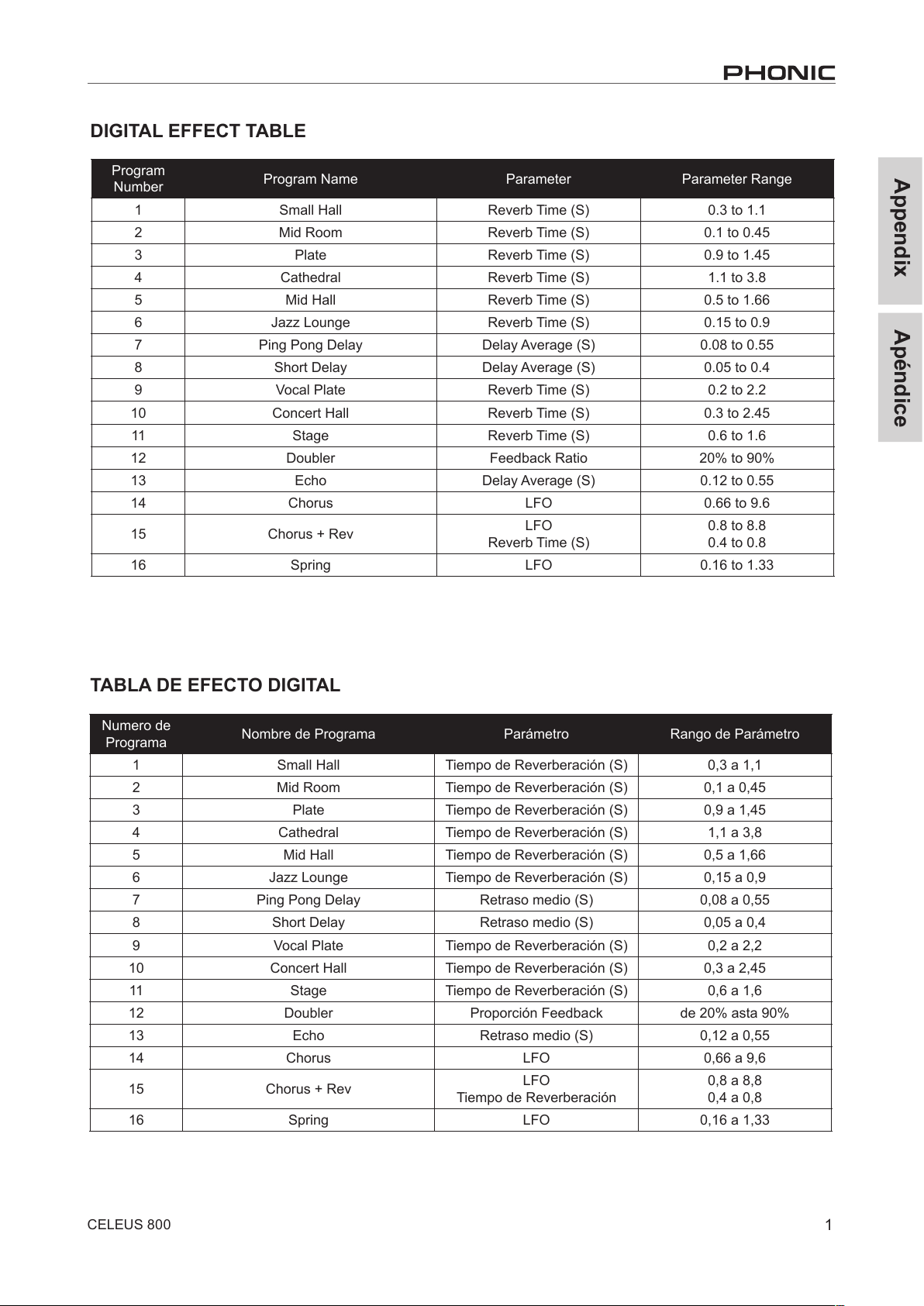

DIGITAL EFFECTS TABLE.......................................................1

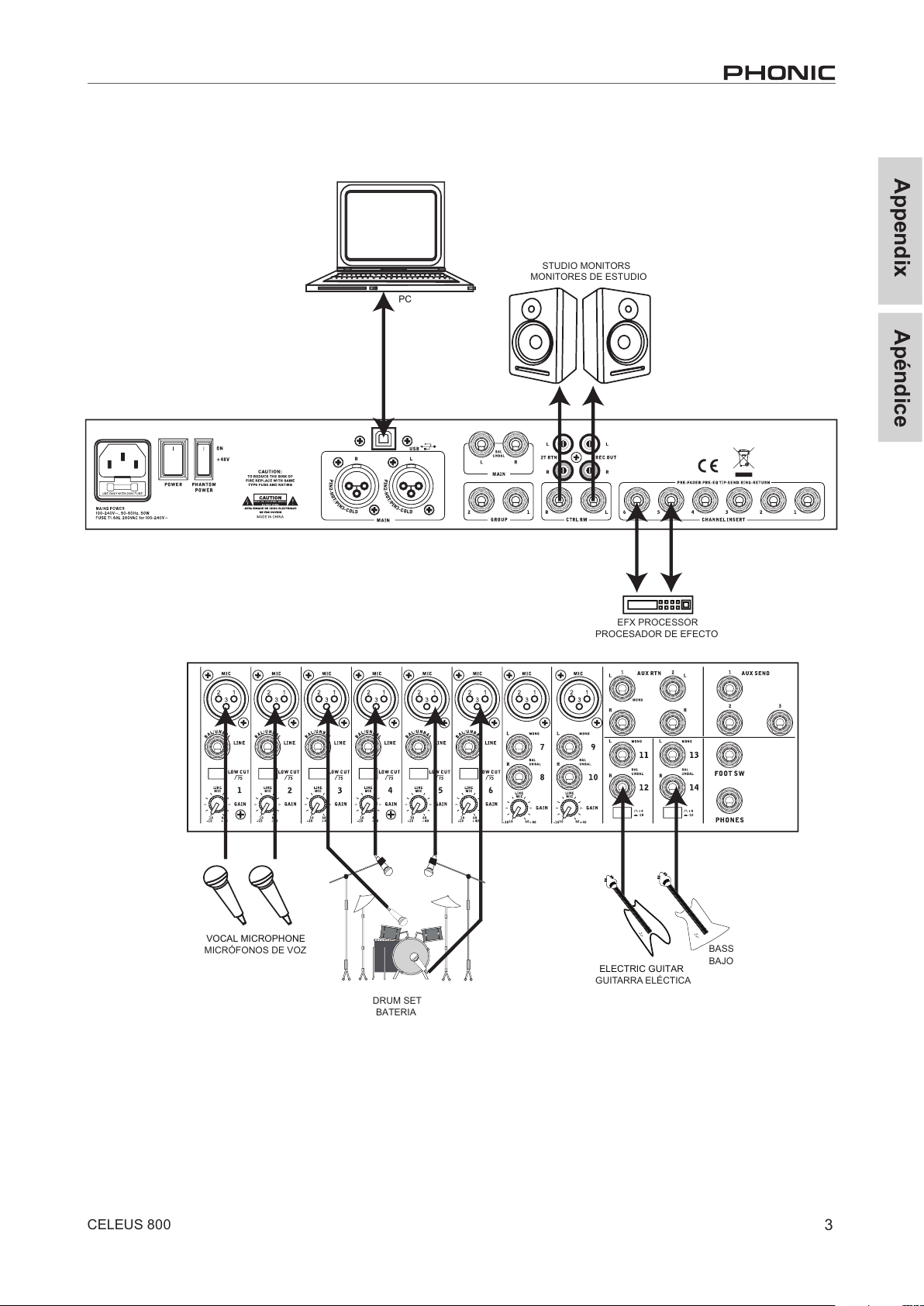

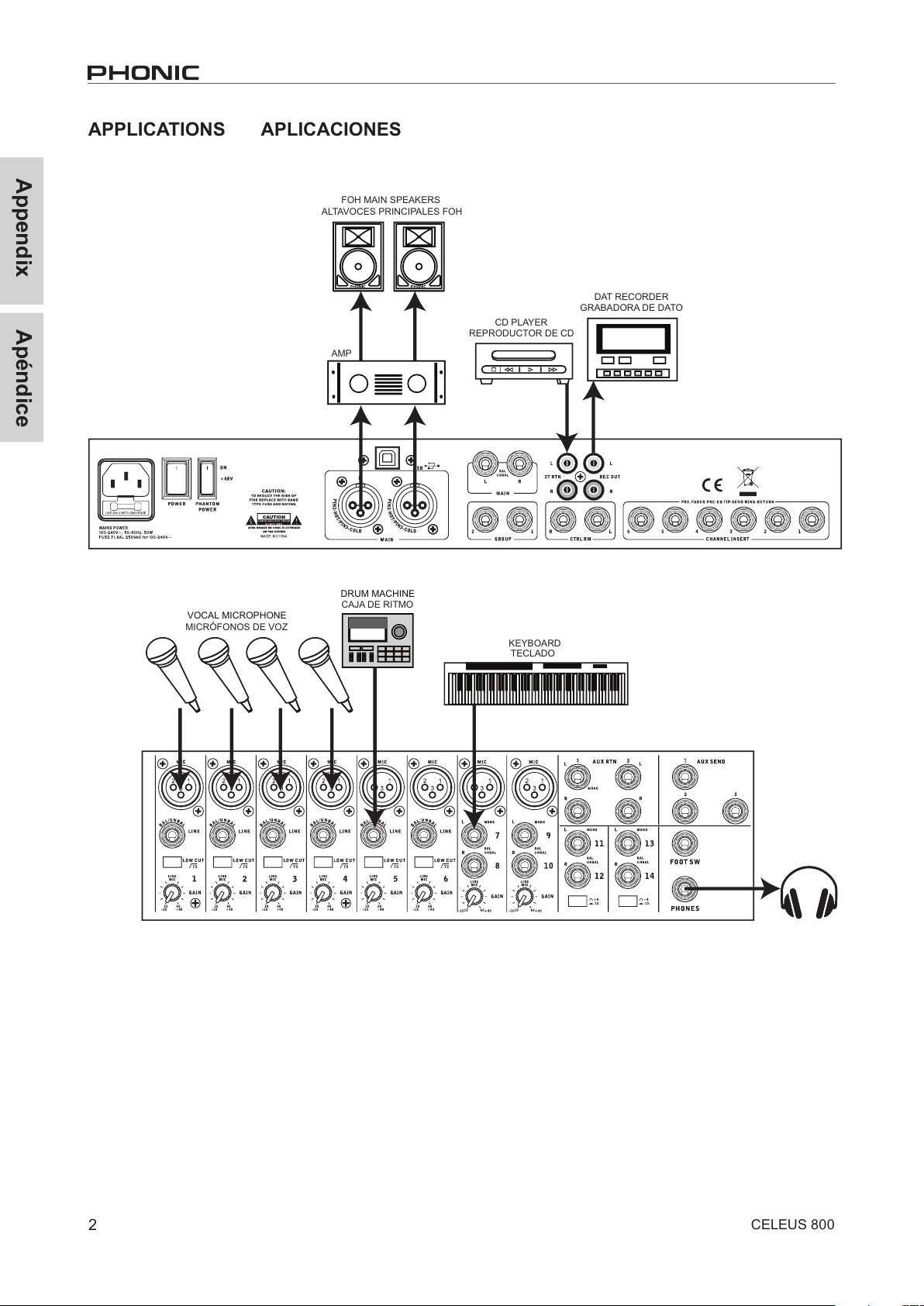

APPLICATION.........................................................................2

DIMENSIONS............................................................................4

BLOCK DIAGRAM....................................................................5

:-";!";&

USER'S MANUAL

Phonic reserves the right to improve or alter any information within this
document without prior notice.

2

CELEUS 800

English

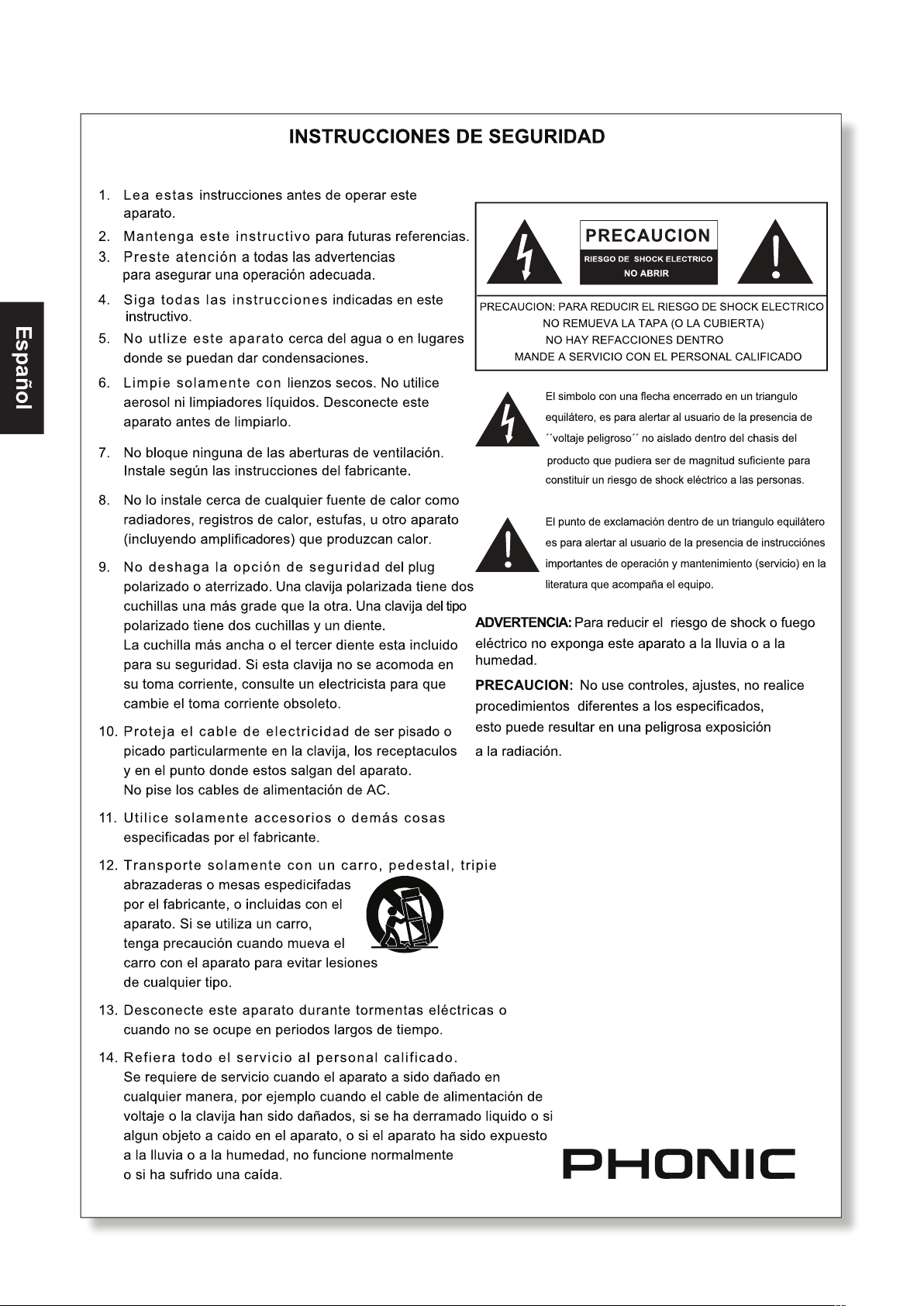

1. Read these instructions before operating this
apparatus.

2. Keep these instructions for future reference.

3. Heed all warnings to ensure safe operation.

4. Follow all instructions provided in this document.

5. Do not use this apparatus near water or in locations
where condensation may occur.

6. Clean only with dry cloth. Do not use aerosol or liquid
cleaners. Unplug this apparatus before cleaning.

7. Do not block any of the ventilation openings. Install
in accordance with the manufacturer

í

s instructions.

8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including

.

9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If
the provided plug does not

into your outlet, consult

an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or
pinched particularly at plug, convenience receptacles,
and the point where they exit from the apparatus.

11. Only use attachments/accessories

by the

manufacturer.

12. Use only with a cart, stand, tripod, bracket, or
table

by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus
combination to avoid injury from tip-
over.

13. Unplug this apparatus during lighting
storms or when unused for long
periods of time.

14. Refer all servicing to

service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED PERSONNEL

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated

ì

dangerous voltageî within the

product

í

magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is in-

tended to alert the user to the presence of important operat-

ing and maintenance (servicing) instructions in the literature

accompanying the appliance.

WARNING: To reduce the risk of or electric shock, do

not expose this apparatus to rain or moisture.

CAUTION: Use of controls or adjustments or performance

of procedures other than those

may result in

hazardous radiation exposure.

The apparatus shall not be exposed to dripping or splashing and that no objects

with liquids, such as vases,
shall be placed on the apparatus. The MAINS plug is used as the disconnect device, the disconnect device shall
remain readily operable.

Warning: the user shall not place this apparatus in the

area during the operation so that the mains switch

can be easily accessible.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

1

CELEUS 800

English

%";<-.=:;%-"

Thank you for choosing one of Phonic’s many quality compact
mixers. The CELEUS 800 compact mixers – designed by the
ingenious engineers that have created a variety of mixers fantastic

in style and performance in the past – displays similar prociency

that previous Phonic products have shown; with more than a few

renements, of course. The CELEUS 800 features full gain ranges,
amazingly low distortion levels, and incredibly wide dynamic
ranges, just showing the dominance these small machines will

have on the pro audio market.

We know how eager you are to get started – getting the mixer out
and hooking all your gear up is probably your number one priority

right now – but before you do, we strongly urge you to take a look
through this manual. Inside, you will nd important facts and gures
on the set up, use and applications of your brand new mixer. If you
do happen to be one of the many people who atly refuse to read
user manuals, then we just urge you to at least glance at the Basic

Setup section. After glancing at or reading through the manual (we

applaud you if you do read the entire manual), please store it in
a place that is easy for you to nd, because chances are there’s
something you missed the rst time around.

>!+;=<!&

● Audiophile-quality microphone preampliers

● 6 mono mic/line inputs, 2 stereo mic/line inputs and 2 stereo

line input channels

● Super musical 3-band equalizers on input channels, swept mid-

frequency control on channels 1 through 6

● 12-segment level meter for master or solo audio levels

● Bluetooth audio streaming from tablets and smartphones

● USB recording module for recording/playback of digital audio les

● USB connectivity for stereo streaming to and from the computer

● 32/40-bit digital effect processor with 16 preset programs each

with its own adjustable parameter

● Channel inserts available on mono inputs

● Flexible soloing of input sources for monitoring signals

● Three AUX sends available on each input channel

● Balanced stereo main out through XLR connectors

● Stereo headphone output jack with independent level control

● Stereo RCA 2T return inputs and record outputs

● Smartphone and tablet stand

=&?(&@&;!A(<!B=%<!A!";&

C30D9E4

• Windows™ XP SP2, Vista™, 7, 8 or 10

• Intel™ Pentium™ 4 processor or better

• 512 MB RAM (1 GB recommended)

A7F30G945

• Apple™ Mac™ OSX 10.5 or higher

• G4™ processor or better

• 512 MB RAM (1 GB recommended)

?+&%:(&!;=*

#HGG301(&G7IGHD

J)((Ensure all power is turned off on your mixer. To totally ensure

this, the power supply should not be connected to the unit.

K)((All faders and level controls should be set at the lowest level and

all channels switched off to ensure no sound is inadvertently
sent through the outputs when the device is switched on. All
levels can be altered to acceptable degrees after the device is
turned on using the channel setup instructions.

L)((Plug any necessary equipment into the device’s various

outputs. This could include ampliers and speakers, monitors,
signal processors, and/or recording devices.

M)((Plug the supplied power cable into the inlet on the back of the

device and then into a power outlet of a suitable voltage.

N)( Turn the power switch on and follow the channel setup

instructions to get the most out of your mixer.

:5700H2(&HGO6

J)( To ensure the correct audio level of the input channel is

selected, each of the level input controls of the mixer should be

turned counterclockwise or down as far as they will go.

K)( No input other than the one being set should have any device

plugged in. This will ensure the purest signal is used when
setting channels.

L) Set the level control of the channel you are setting to the 0 dB

mark.

M)( Ensure the channel has a signal sent to it similar to the signal

that will be sent when in common use. For example, if the
channel is using a microphone, then you should speak or

sing at the same level the performer normally would during a

performance; if a guitar is plugged into the channel, then the

guitar should also be strummed as it normally would be (and
so on). This ensures levels are completely accurate and avoids
having to reset them later.

N) Set the gain so the Level Meter indicates the audio level is

around 0 dB.

P)( This channel is now ready to be used; you can stop making the

audio signal.

Q)( You can repeat the same process for other channels.

2

CELEUS 800

English

?$=!;--;'(&!;=*

J) Push the Bluetooth button to turn the Bluetooth on
K) Enter your laptop, cell phone or tablet’s Bluetooth setup options

to nd the “Phonic.BT” Bluetooth device.

L) If requested, the password for the CELEUS 800’s Bluetooth

function is 0000. A lot of modern smartphones will enter this as
the default password.

M) Audio signals received through the Bluetooth interface will be

routed to channel 11/12 on the mixer.

N) To reset the connection, turn your laptop, cell phone or tablet’s

Bluetooth connection off and then on again.

P)( When using cell phones and tablets, it may be an idea to turn

“Airplane Mode” or “Flight Mode” on to stop phone calls or push
notications from interrupting your audio.

"9GHR Not all modern Bluetooth-enabled devices allow for use of external

audio playback. In the case of laptops in particular, Bluetooth may be used

for data transmission only - depending on the model. This is a limitation of
these devices and you will not be able to use the CELEUS 800’s Bluetooth
function with these devices.

=&?(*$+@?+:S

J)( Power on the device.
K)( Insert an appropriately formatted (FAT32) USB ash drive.
L)( Press the PLAY button to play the current track, or the << and

>> buttons to skip forward and backwards between tracks.

M) The CELEUS 800 can playback MP3 and WMA les.
N)( Use the level control for channel 13/14 to adjust the USB

player’s volume.

P) Press the STOP/MENU button to access the File Browser

(Folders) and Repeat Mode functions.

>92DHI4(– Freely navigate songs in each folder on USB ash disc
using the << and >> buttons. Press PLAY button to select, press

MENU button to go back.
<H6H7G(A9DH(– There 4 repeat modes available.
"9(<H6H7G(– Play each le in the current folder or root once.
<H6H7G(-0H – Continuously repeat selected song.
<H6H7G(>92DHI – Continuously repeat all the song in the current

folder or root directory.

( <70D9T(– Enables random playback of les in current folder or

root.

=&?(<!:-<.%"#

J)( Power on the device.
K) Insert an appropriately formatted (FAT32) USB ash drive.
L)( In the main menu, select “Record” and press the PLAY button

to enter recording mode.

M)( Select between the 128 kbit/s and 192 kbit/s WAV recording

modes and press the PLAY button.

N)( Record mode will begin in standby/pause. Push the Play/Pause

button to begin recording. The unit will save the recorded le

into the RECORD directory on the USB device.

P) Push the Play/Pause button to pause recording. Pushing

the Play/Pause button again will resume recording from the
position at which it was paused.

Q) Press the MENU button at any time to save the recording. Once

the recording is saved, additional audio cannot be recorded to
that le.

U) To exit record mode and return to the main menu, press and

hold MENU button for three seconds.

+=.%-(%";!<>+:!

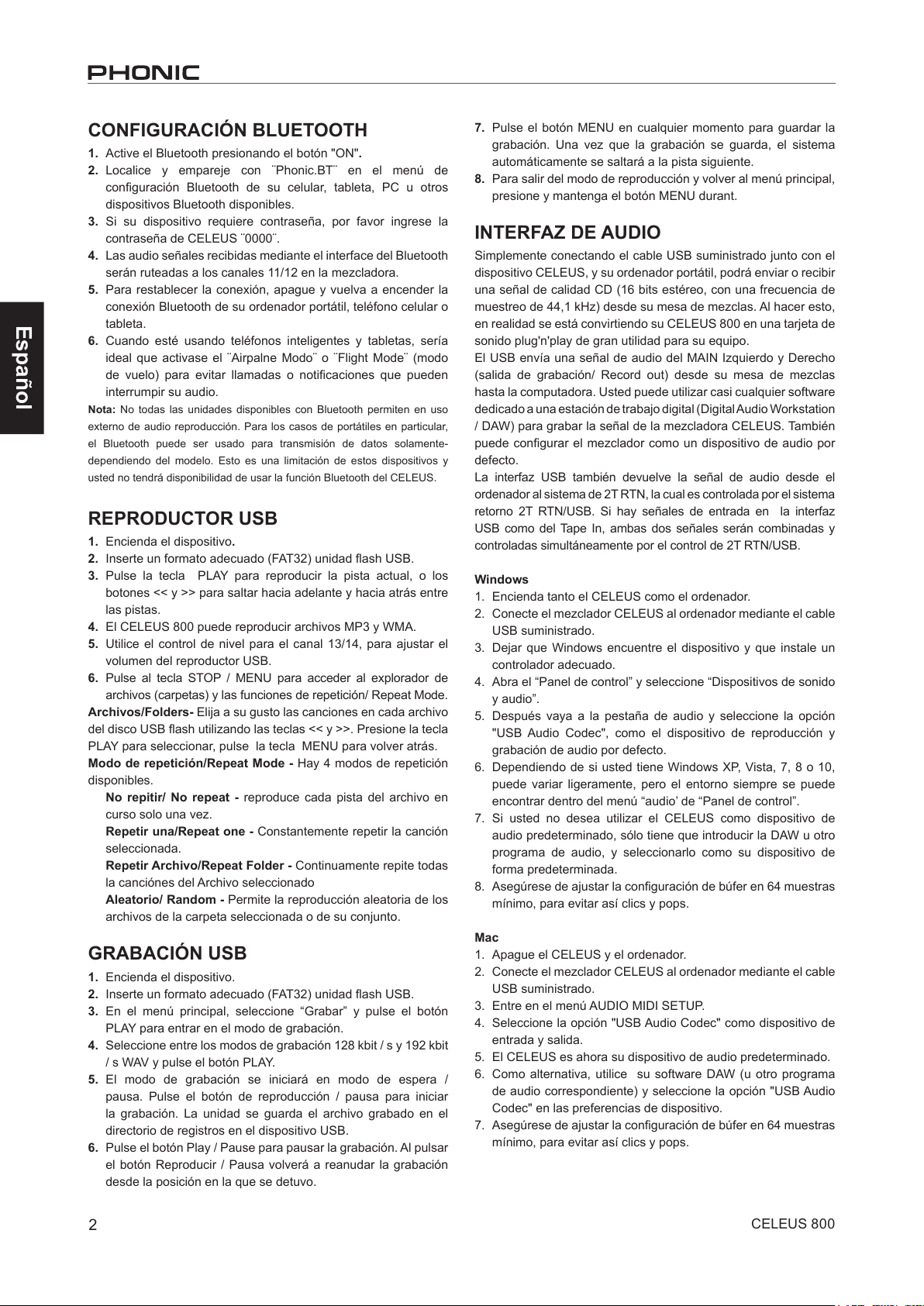

By simply connecting the USB cable provided along with your

CELEUS to the device and your personal computer or laptop,

you are able to send CD quality (16-bit stereo, with a 44.1 kHz

sampling rate) signal to and from your mixer. By doing this, you are

actually turning your CELEUS 800 into a highly useful plug’n’play
soundcard for your computer.
The USB sends an audio stream of the Main Left and Right (record
out) signal of your mixer to the computer. You can use almost any
dedicated Digital Audio Workstation (DAW) software to record the
signal from the CELEUS mixer. You can also set the mixer as your
default audio device.
The USB interface also returns the audio signal from your computer

back to the 2T Returns, the signal of which is controlled by the 2T

/ USB Return control. If there are input signals from both the USB

interface and the 2T Return, the two signals are combined and

controlled simultaneously by the 2T return control.

C30D9E4

1. Turn on both the CELEUS and the computer.

2. Connect the CELEUS mixer to the computer via the provided
USB cable.

3. Let Windows nd the device and install an appropriate driver.

4. Enter the Control Panel and select Sounds and Audio Devices.

5. When here, go to the Audio tab and select the “USB Audio

Codec” as your default sound recording and playback device.

6. Depending whether you have Windows XP, Vista, 7, 8 or 10,

this may differ slightly, but the setting can always be found

within the Control Panel’s audio menu.

7. If you don’t want to use the CELEUS as your default audio

device, you can simply enter your DAW or other audio program

and select it as your default device in the program only.

8. Be sure to set your minimum buffer settings to 64 samples as
to avoid clicks and pops.

A7F

1. Turn both the CELEUS and the computer on.

2. Connect the CELEUS mixer to the computer via the provided
USB cable.

3. Enter the AUDIO MIDI SETUP menu.

4. Select the “USB Audio Codec” as your input and output device.

5. The CELEUS is now your default audio device.

6. Alternatively, enter your DAW software (or other relevant audio

program) and select the “USB Audio Codec” in the device

preferences.

7. Be sure to set your minimum buffer settings to 64 samples as

to avoid clicks and pops.

3

CELEUS 800

English

A+S%"#(:-""!:;%-"&

>I90G(*70H2

J)((/$<(V7FW4

These jacks accept XLR inputs for balanced signals. They can

be used in conjunction with microphones – such as professional

condenser, dynamic or ribbon microphones – with standard XLR

male connectors. With low noise preampliers, these inputs serve

for crystal clear sound replication.

NB. When using an unbalanced microphone, please ensure phantom power
is switched off. However, when using condenser microphones the phantom

power should be activated.

K)((XY(;<&(%06OG(V7FW4

These ¼" phone jacks are the line-level input connections for

channels 1 through 6. When the XLR inputs on their corresponding

channels are not in use, these inputs can be utilized.

L)((&GHIH9(:5700H2(%06OG4

The CELEUS 800 features 4 stereo input channels (numbered

channels 7 through to 14), the inputs of which differ slightly to the

mono channels. Each channel includes two ¼" TRS phone jacks

ideal for use with keyboards, drum machines and electric guitars.

If you wish to use a mono device on a stereo return input, simply

plug the device’s ¼” phone jack into the left (mono) stereo input

and leave the right input bare. The signal will be duplicated to the

right due to the miracle of 'jack normalizing'.

In addition to the ¼" TRS phone jacks, channels 7/8 and 9/10

include XLR inputs (as described in point 1 above). These can be
used instead of the stereo TRS input connectors.

M)((&GHIH9(+=/(<HGOI0

The 1/4” TRS AUX Return inputs are for the return of audio to

the CELEUS mixer, processed by an external signal processor. If

really needed, they can also be used as additional inputs. The feed

from these inputs can be adjusted using the AUX Return controls

on the face of the mixer.

N)(+=/(&H0D4

These 1/4" TS phone jack is the nal output of the AUX SEND 1,

2 and 3 send mixes, as controlled by the individual AUX rotary

controls found on each channel. These can be used to feed any
number of external signal processors. The signal can then be
returned to the CELEUS 800 through the AUX Returns (point 4
above).

P)((>99G(&E3GF5(V7FW

This port is for the inclusion of a non-latching foot switch, used to

remotely switch the built-in Digital Effect processor between the on
and standby modes.

Q)(('H7D6590H4(V7FW

This stereo output port is suited for use with headphones, allowing

monitoring of the mix. The audio level of this output is controlled
using the Phones/Control Room control on the front panel.

1

3

2

4 5

6

7

4

CELEUS 800

English

<H7I(*70H2

U)(:5700H2(%04HIG4

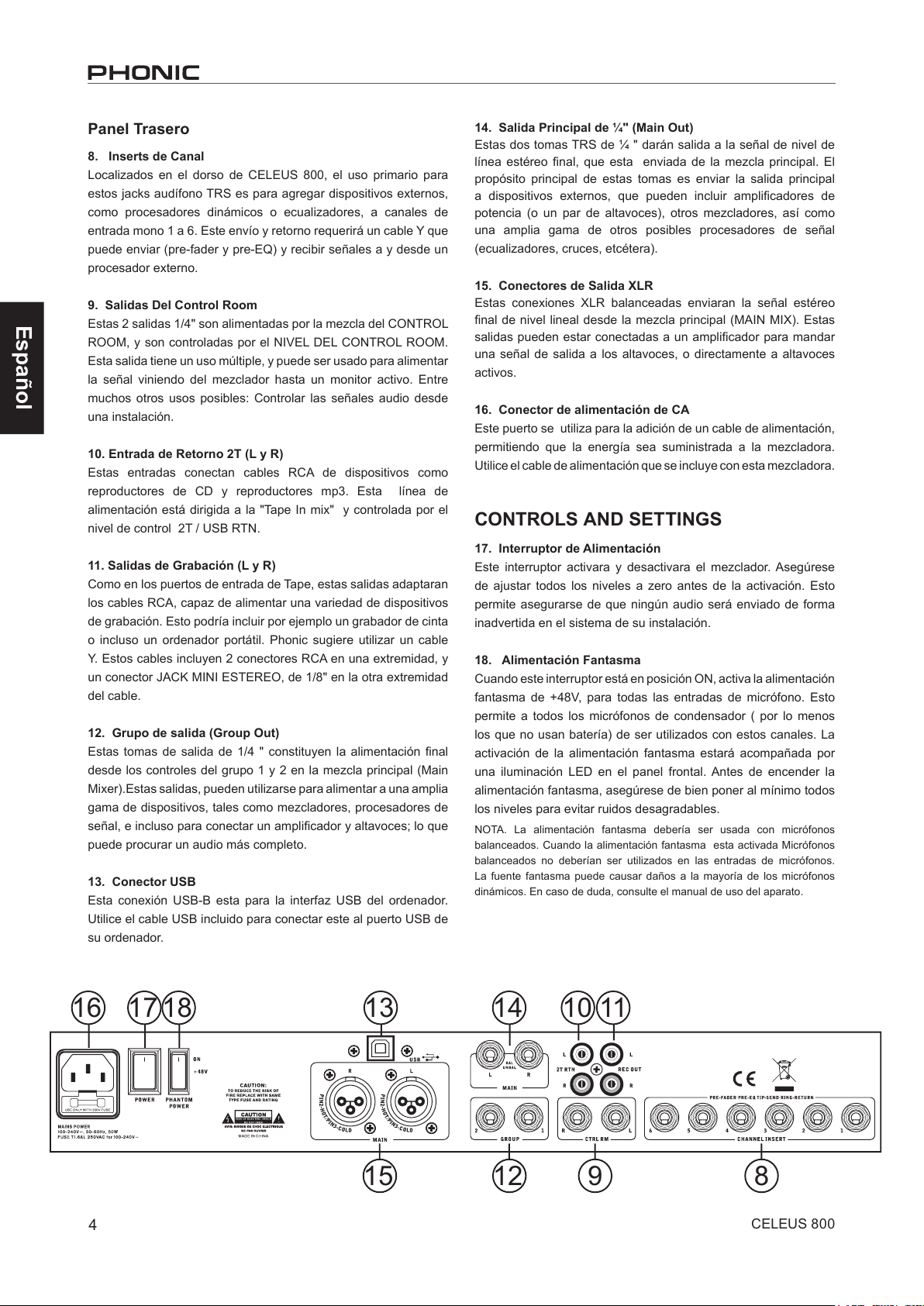

Located on the rear of the CELEUS 800, the primary use for

these TRS phone jacks is for the addition of external devices, such

as dynamic processors or equalizers, to mono input channels 1

through to 6. This send and return will require a Y cord that can
send (pre- fader and pre-EQ) and receive signals to and from an
external processor.

Z)((:90GI92(<99T(-OG6OG4

These two 1/4” phone jack outputs are fed from the Control Room

mix as controlled by the Control Room level control. This output

has extensive use, as it can be used to feed the signal from the

mixer to an active monitor, for the monitoring of the audio signal

from within a booth, among many other possible uses.

J[)(K;(<HGOI0(\$(70D(<]

These inputs accommodate RCA cables from such devices as

tape, CD and MP3 players. The line from this feed is directed to

the Tape In mix and controlled by the 2T / USB RTN level control.

JJ)(<HF9ID(-OG(\$(70D(<]

As with the Tape In ports, these outputs will accommodate RCA

cables, able to be fed to a variety of recording devices. This may

include cassette recorders or even laptop computers. Phonic
suggests the use of a y-cable. These cables include two RCA

connectors on one end and a single 1/8" mini-stereo jack on the

other end.

JK)((#I9O6(-OG

These 1/4” phone jacks output the nal feed from the Group 1 and

2 faders on the main mixer. These outputs can be used to feed

a wide range of devices, such as mixers, signal processors, and

even to connect an amplier and speakers, to be used along with

the main speakers for a more rounded audio experience.

JL)((=&?(:900HFG9I

This USB-B connection is for the USB computer interface. Use the
included USB cable to connect this to your computer's USB port.

JM)((X^(A730(-OG

These two ¼” TRS phone jacks will output the nal stereo line

level signal sent from the main mix. The primary purpose of these

jacks is to send the main output to external devices, which may

include power ampliers (and in-turn, a pair of speakers), other

mixers, as well as a wide range of other possible signal processors

(equalizers, crossovers, etcetera).

JN)((/$<(-O6OG(:900HFG9I4

These balanced XLR connections will send the nal stereo

line level signal sent from the main mix. These outputs can be

connected to an amplier for sending the signal out to speakers,

or directly to active speakers.

JP)((+:(*9EHI(:900HFG9I

This port is for the addition of a power cable, allowing power to be

supplied to the mixer. Please use the power cable that is included
with this mixer only.

:-";<-$&(+".(&!;;%"#&

JQ)((*9EHI(&E3GF5

This switch is used to turn the mixer on and off. Ensure you turn
all level controls down before activating. This ensures no audio is
inadvertently sent through your system.

18. Phantom Power Switch

When this switch is in the on position, it activates +48V of phantom

power for all microphone inputs, allowing condenser microphones

(well, the ones that don’t use batteries) to be used on these

channels. Activating Phantom Power will be accompanied by an
illuminated LED on the front panel. Before turning Phantom Power

on, turn all level controls to a minimum to avoid the possibility of a

ghastly popping sound from the speakers.

NB. Phantom Power should be used in conjunction with balanced
microphones. When Phantom Power is engaged, single ended (unbalanced)

microphones and instruments should not be used on the Mic inputs.

Phantom Power will not cause damage to most dynamic microphones,
however if unsure, the microphone’s user manual should be consulted.

11

9 81215

10141316 17 18

5

CELEUS 800

English

:5700H2(:90GI924

JZ)(($9E(:OG(>32GHI(\QN('_]

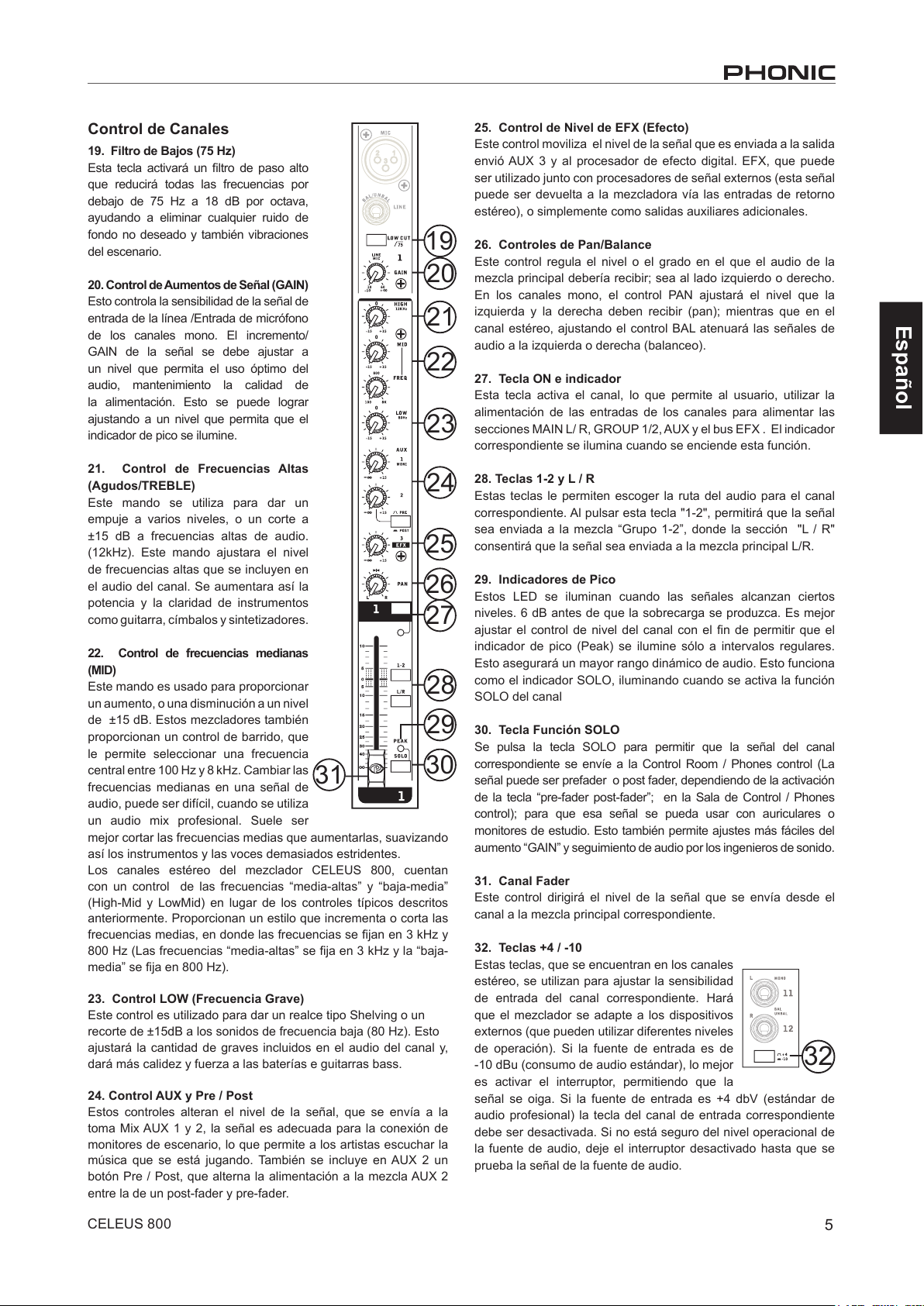

This button will activate a high-pass lter

that reduces all frequencies below 75 Hz

at 18 dB per Octave, helping to remove

any unwanted ground noise or stage
rumble.

K[)((#730(:90GI92(

This controls the sensitivity of the input
signal of the Line/Microphone input
of mono channels. The gain should

be adjusted to a level that allows the
maximum use of the audio, while still

maintaining the quality of the feed. This

can be accomplished by adjusting it to

a level that will allow the peak indicator
occasionally illuminate.

KJ)(('%#'(\'315(>IH`OH0Fa](:90GI92(

This control is used to give a shelving
boost or cut of ±15 dB to high frequency

(12 kHz) sounds. This will adjust the

amount of treble included in the audio

of the channel, adding strength and
crispness to sounds such as guitars,

cymbals and synthesizers.

KK)((A%.(\A3DD2H(>IH`OH0Fa](:90GI92

This control is used to provide a peaking
style of boost and cut to the level of
middle frequency sounds at a range of
±15 dB. These mixers also provide a

sweep control, allowing you to select a

center frequency between 100 Hz and 8
kHz. Changing middle frequencies of an

audio feed can be rather difcult when
used in a professional audio mix, as it is

sometimes more desirable to cut middle

frequency sounds rather than boost them, soothing overly harsh

vocal and instrument sounds in the audio.
Stereo channels of the CELEUS 800 mixers feature a High-Mid

and Low-Mid control instead of the typical controls described
above. They provide a peaking style of boost and cut to middle

frequencies, where the frequencies are set at 3 kHz and 800 Hz

(High-Mid is set at 3 kHz and Low-Mid is set at 800 Hz)

KL)(($-C(\$9E(>IH`OH0Fa](:90GI92

This control is used to give a shelving boost or cut of ±15 dB to

low frequency (80 Hz) sounds. This will adjust the amount of bass
included in the audio of the channel, and bring more warmth and

punch to drums and bass guitars.

KM)((+=/(:90GI92(70D(*IHb*94G(

These controls alter the signal level that is being sent to the AUX

1 and 2 mixes, the signal of which is suitable for connecting stage
monitors, allowing artists to listen to the music that is being playing.
Also included on AUX 2 is a Pre/Post button, which alternates the

feed to the AUX 2 mix between a post- and pre-fader feed.

KN)((!>/(:90GI92

This control alters the signal level that is sent to the AUX 3 send
output and the built-in digital effect processor. The EFX send

signal can be used in conjunction with external signal processors

(this signal of which can be returned to mixer via the AUX return

input), or simply as an additional auxiliary output.

KP)((*70(b(?7270FH(:90GI924

This alternates the degree or level of audio that the left and right

side of the main mix should receive. On mono channels, the PAN
control will adjust the level that the left and right should receive
(pan), where as on a stereo channel, adjusting the BAL control

will attenuate the left or right audio signals accordingly (balance).

KQ)((-0(?OGG90(70D(%0D3F7G9I

This turns the channel on, allowing the user to use the feed from
the channel’s inputs to supply the MAIN L/R, GROUP 1/2, AUX

and EFX mixes. The corresponding indicator will be illuminated
when turned on.

KU)(JcK(70D($b<(?OGG904

These handy buttons allow you to decide the audio path of the

corresponding channel. Pushing the “1-2” button allows the signal
to be sent to the Group 1-2 mix, where the “L/R” allows it to be sent

to the Main L/R mix.

KZ)((*H7W(%0D3F7G9I

This LED indicator will illuminate when the channel hits high

peaks, 6 dB before overload occurs. It is best to adjust the channel

level control so as to allow the PEAK indicator to light up on regular
intervals only. This will ensure a greater dynamic range of audio.

This doubles as the SOLO indicator, lighting up when the channel's

SOLO is activated.

L[)((&929(?OGG90

The Solo button is pushed to allow the signal of a corresponding
channel to be sent to the Control Room / Phones control (pre or

post fader, depending on the properties selected by the pre / post
button, located by the Control Room / Phones control), for use

with either headphones or studio monitors. This also allows easier
setting of the input gain and tracking of audio by sound engineers.

LJ)((:5700H2(>7DHI

This control will alter the signal level that is sent from the
corresponding channel to the main mix.

LK)((dM(b(cJ[(?OGG904

These buttons, located on stereo channels,

are used adjust the input sensitivity of the

corresponding channel, which will adapt the

mixer to external devices which may use
different operating levels. If the input source is

-10 dBu (consumer audio standard), it is best

to engage the switch, allowing the signal to be heard. If the input

source is +4 dbV (professional audio standard) the corresponding

input channel’s button should be disengaged. If you are unsure of

the source’s operating level, leave the switch disengaged until you

test the source’s signal.

19

20
21

22

23

24

27

26

25

28
29
30

31

32

6

CELEUS 800

English

MJ)((:90GI92(<99T(b(*590H4(:90GI924

This control is used to adjust the audio level of the phones feed,

as well as the signal sent to the Control Room output. This is for

use in monitoring, as side ll, or for the addition of additional audio

gear. The Pre/Post buttons alternates the Control Room / Phones
source signals between those of post-fader and pre-fader feeds.

The main mix will typically be sent to the Control Room / Phones

mix unless any SOLO buttons are pressed. In this instance, the

SOLO signal(s) will be sent to the Control Room / Phones mix.

MK)((+=/(&H0D(A74GHI(:90GI924

These controls adjust the nal level of the AUX mixes (as taken
from the AUX level controls on each channel strip), the audio of

which is sent to corresponding AUX send outputs. The SOLO
button that accompanies these controls allows you to send the
AUX Send signal to the Control Room / Phones mix. The AUX 1
send control is a fader while the AUX 2 send is a rotary control.

ML)((!>/(&H0D(A74GHI(:90GI92

This control adjusts the nal level of the EFX mix (as taken from
the EFX level controls on each channel strip), the audio of which is
sent to the AUX Send 3 outputs, as well as the built-in digital effect

processor. The corresponding SOLO button allows you to send the
signal to the Control Room / Phones mix.

MM)(+=/(<;"(:90GI924

This control adjusts the signal level of audio fed through to the
stereo AUX Return inputs, which will be added to the main mix.
The “To AUX 1” control adjusts the pre-fader level of the signal

from the AUX Return control to the AUX 1 mix (also known as
"EFX to Monitor").

.313G72(!eeHFG(*I9FH449I

LL)((*I91I7T(:90GI92

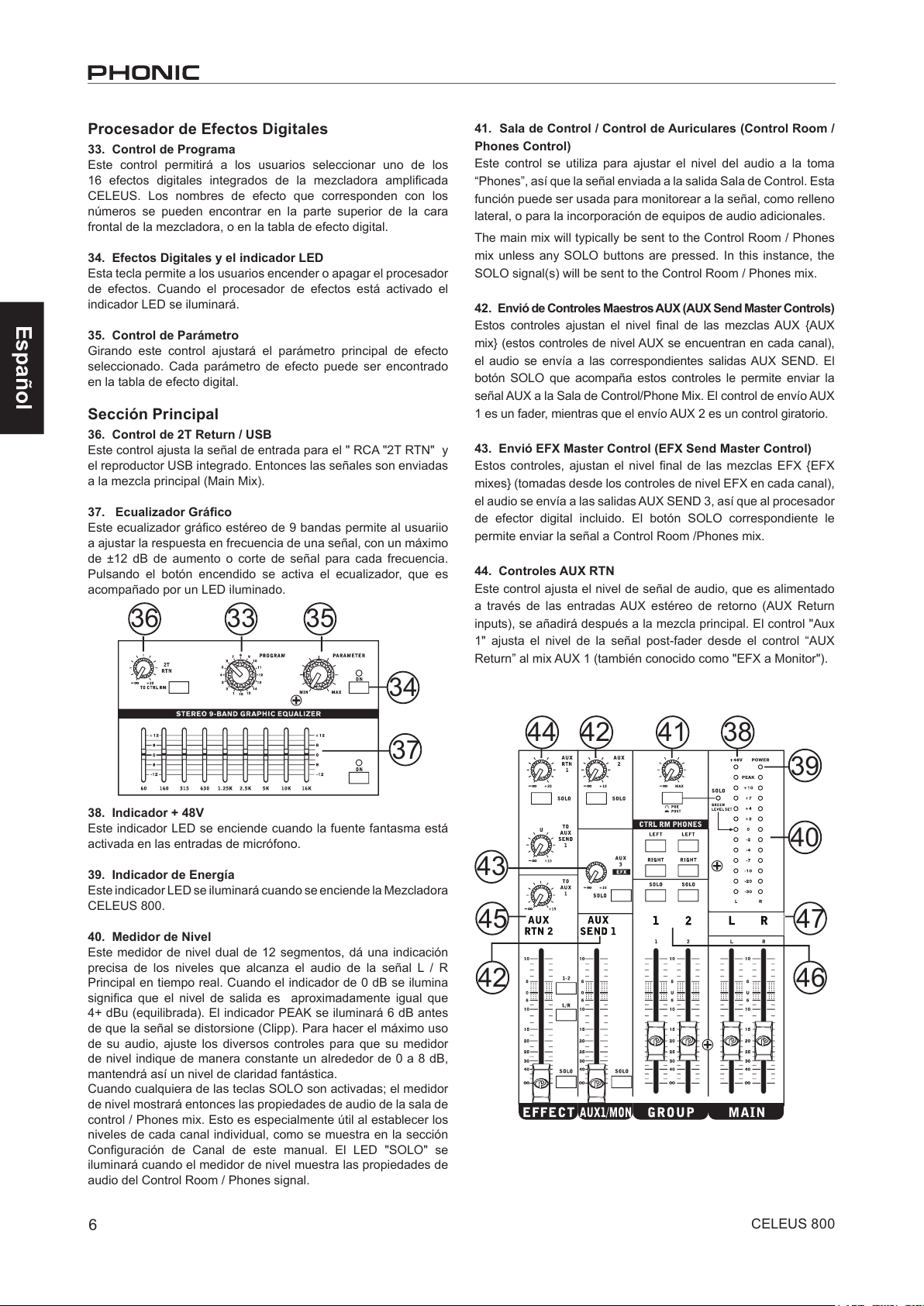

This control will allow users to select one of the 16 built-in digital
effects of the CELEUS. The effect names that correspond with the

numbers can be found on the top of the mixer’s face, or in the

digital effect table.

LM)((!eeHFG4(-0(?OGG90(f($!.

Pushing this button will turn the built-in effect processor on and off.

When the effect processor is activated, the corresponding LED will

light up to indicate so.

LN)((*7I7THGHI(:90GI92

Turning this control will adjust the one main parameter of the

selected effect. Each effect’s parameter can be found on the digital
effect table.

A74GHI(&HFG390

LP)((K;(<HGOI0b=&?(:90GI92

This control adjusts the incoming signal from both the RCA "2T
RTN" jacks and the onboard USB interface. The signals are then

sent to the main mix. The "To CTRL RM" button allows the signal
to be sent to the Control Room / Phones mix.

LQ)((#I7653F(!`O723_HI

This graphic equalizer allows you to adjust the frequency response
of your main signal, with a maximum of ±12 dB of signal boost or

cut for each of the 9 frequency bands. The button provided along
with the Graphic EQ allows it to be activated and deactivated.

LU)((dMUg(%0D3F7G9I

This LED indicator will light up when Phantom Power is activated
on microphone inputs.

LZ)((*9EHI(%0D3F7G9I

This LED indicator illuminates when power of your CELEUS 800
mixer is activated.

M[)(($HhH2(AHGHI

These dual 12-segment level meters give an accurate indication
of when audio levels of the Main L/R output signals reach certain
levels. The 0 dB indicator illuminates is approximately equal to an

output level of +4 dBu, and the PEAK indicator illuminates about 6

dB before the signal is dynamically clipped. It is suggested for the
maximum use of audio to set the various levels controls so that it

sits steadily between 0 and 8 dB to make full use of audio, while

still maintaining fantastic clarity.

When any of the solo buttons are pushed in, the level meter will

then display the audio properties of the Control Room / Phones
mix. This is especially helpful when setting the levels of each

individual channel, as is shown in the Channel Setup section of
this manual. The “Solo” LED will illuminate when the Level Meter

displays the audio properties of the Control Room / Phones signal.

353336

34

37

39

40

47

46

42

45

384144 42

43
