Philips MF1 IC S50 User Manual

INTEGRATED CIRCUITS

Functional Specification

Philips

Standard Card IC
MF1 IC S50

Revision 4.0

Semiconductors

July 1998Product Specification

Contents Rev. 4.0 1998-07-24

Contents

1 General Description....................................................................................................... 3



1.1 Features of the MIFARE

1.2 MF1 IC S50 Card IC: ............................................................................................................ 4

2 Functional Description .................................................................................................. 6

2.1 Block Description .................................................................................................................. 6

2.2 Antenna:................................................................................................................................ 6

2.3 Communication scheme RWD ↔ Card .................................................................................. 7

2.4 Data Integrity......................................................................................................................... 8

2.5 Security ................................................................................................................................. 9

2.6 Memory Organisation and Access Conditions ........................................................................11

2.6.1 Sector Trailer (Block 3):.................................................................................................12

2.6.2 Manufacturer Code (Block 0 of Sector 0) .......................................................................13

2.6.3 Data Block (Block 0 to 3 except "Block 0")....................................................................13

2.6.4 Key management and Multi-functionality.........................................................................15

2.7 Memory contents after IC test...............................................................................................15

2.7.1 Block 0 (manufacturer block):.........................................................................................15

2.7.2 Data Blocks:...................................................................................................................15

2.7.3 Sector Trailers:...............................................................................................................15

System.......................................................................................... 4

3 Release Notes .............................................................................................................. 16

3.1 Serial Numbers......................................................................................................................16

3.2 Answer to SELECT command (ATS Code)..........................................................................16

MIFARE

M01040.doc/RM Page 2 of 18



is a registered trademark of Philips Electronics N.V.

General Description Rev. 4.0 1998-07-24

1 General Description

The contactless MIFARE 1 S50 smart card IC has been especially tailored to meet the requirements
of a payment card which can be used for ticketing systems in public transport and comparable
applications. MIFARE 1 S50 IC is a true multi-application smart card IC with the functionality of a
processor realised with hardwired logic.
Special emphasis has been placed on user convenience, speed, reliability, security against fraud and
cost effectiveness.

User convenience and speed

A transaction between the card (card IC) and the reader defined by the system integrator or the
service provider takes place when the card holder approximates the card to the reader. The
permissible distance between antenna (target) and card is up to 100 mm free air. On the one hand,
this enables users to carry out the transaction fast and conveniently. On the other, card holders
decide in a distinct action whether they want a transaction to happen or not.
Philips has developed a high speed RF communication interface with 106 Kbaud data rate for

MIFARE®. Due to this high speed a complete ticketing transaction can be handled in less than 0.1
seconds. Thus, the MIFARE card user needs not to stop at the reader target (antenna) leading to a
high throughput at gates and reduced boarding times onto busses.
Additional user comfort is added, since MIFARE cards typically have the size of a credit card and
do not have to be taken out of the wallet during the transaction, even if there are coins in the wallet.

Anticollision

Basically, if more than one card enters the operating field, which is very likely to happen, the fast
anticollision algorithm prevents that data transmitted between the different cards and the target is
being confused. Cards can be selected individually. An ongoing transaction with a selected card is
not corrupted by cards remaining in the field or cards moved into or out of the field. Possible data
corruption caused by more than one card in the field or fraud are avoided.
For example, if MIFARE card users have more than one MIFARE card in their wallet, the
anticollision algorithm enables the system to select the appropriate card for the transaction.

Security

Mutual challenge and response authentication, data ciphering and message authentication checks
protect the system from any kind of fraud and make it attractive for electronic purse applications.
These mechanisms are carried out very fast and add only little to transaction time. Serial numbers
which can not be altered guarantee uniqueness of the cards.

Multi-functionality

The multifunctional memory structure of MIFARE 1 S50 cards IC allows the use of the card in
multi-application systems. The different applications are securely separated by user definable key sets
and access conditions.

Reliability

High reliability of the system is achieved by using solid state components without any moving
mechanical parts. The MIFARE cards are passive, i.e. they are working without battery. Further,
the extremely simple construction of a card which consist only of a coil with few turns and a chip
embedded in plastic does its share to accomplish this. In addition,
the contactless technology avoids that contacts become worn out and reduces risk and cost of
vandalism.

M01040.doc/RM Page 3 of 18

General Description Rev. 4.0 1998-07-24



1.1 Features of the MIFARE

• Operating frequency: 13.56 MHz

• High speed: Baudrate 106 kBaud

• Anticollision: The ability to handle more than one card in the field at the same

System

time.

• Operating distance: up to 100mm (depending on antenna geometry)

to allow convenient and fast transaction

• Half duplex communication protocol using handshake

• Data integrity via contactless communication link by

• Anticollision

• 16 Bit CRC per block

• 16 Bit Parity per block (one per Byte)

• Bit count checking

• Bit coding to distinguish between "1", "0", and no information

• Channel monitoring (Protocol sequence and bit stream analysis)

• Multi-Card-operation supporting:

• Anticollision: allows the handling of more than one card in the field at the same

time;
inhibits accidental read or write and data corruption due to more
than one card in the field

• Dynamic read + write: during communication with one card other cards may enter or

leave the RF field

• Fast anticollision protocol: an increase of only 1.0 ms of the total transaction time

for each additional card

1.2 MF1 IC S50 Card IC:

• State of the art chip technology: high speed CMOS EEPROM process

• Single chip construction with no external components besides a simple coil

is required for card.

• No battery Contactless energy and data transmission

Security

• Mutual three pass authentication (ISO/IEC DIS9798-2)

• Data encryption on RF-channel with replay attack protection

• Individual key set per sector (per application) to support

multi-application with key hierarchy

• Unique card serial number

• Transport key

M01040.doc/RM Page 4 of 18

General Description Rev. 4.0 1998-07-24

Multi-application memory

• 8 KBit EEPROM memory, no battery,

• Organised in securely separated 16 sectors supporting multi-application use.

• Each sector consists of 4 blocks.

• A block is the smallest part to be addressed and consists of 16 bytes.

• Each sector has its own secret file for a set of keys for systems using key hierarchies.

• Access to memory zones are flexible user definable by a variety of access conditions.

• Arithmetic capability: increase and decrease

• Data retention of 10 years.

• write endurance 100.000 cycles

Typical Transaction Time

• Identification of a card 3 ms (Start-up, Answer to Request, Anticollision, Select)

• Read Block (16 Bytes) 2.5 ms (excl. Authentication)

4.5 ms (incl. Authentication)

• Write Block + Control Read min 8.5 ms (excl. Authentication)

min 10.5 ms (incl. Authentication)

• Typical Ticketing Transaction < 100 ms

Identification of card +
6 Blocks read (768 bit, 2 Sector Authentication) +
2 Blocks write (256 bit) with Backup Management

• Transaction possible with moving card

Delivery options

The MIFARE 1 standard card IC (MF1 IC S50) is available as:

Delivery Option Related ADDENDUM

Chip Card Module

ADDENDUM MIFARE MF1MOA2S50
Contactless Chip Card Module Specification

Die on 5“ Wafer

ADDENDUM MIFARE Standard Card IC MF1ICS50 03
Wafer Specification

Die on 6“ Wafer

ADDENDUM MIFARE Standard Card IC MF1ICS50 04
Wafer Specification

M01040.doc/RM Page 5 of 18

Functional Description Rev. 4.0 1998-07-24

2 Functional Description

2.1 Block Description

MIFARE MF1ICS50 CARD IC

RF-Interface

Voltage

Regulator

Clock

Data

Modulator

Demodulator

POR

E²POR

Energy

ATR

Anti

Collision

Select

Application

Authentication

& Access Control

Digital Section

Control

&

Arithmetic

Unit

Crypto

Unit

E²

Inter
face

E²-Memory

The electronic unit of a card comprises just an antenna (coil) and the IC (MIFARE 1 MF1ICS50)
and no further external components.

2.2 Antenna:

The card antenna consists of a few windings and thus, it is very suitable for integration into an ISO
card. (refer to the document MIFARE Card IC Coil Design Guide).

M01040.doc/RM Page 6 of 18

Functional Description Rev. 4.0 1998-07-24

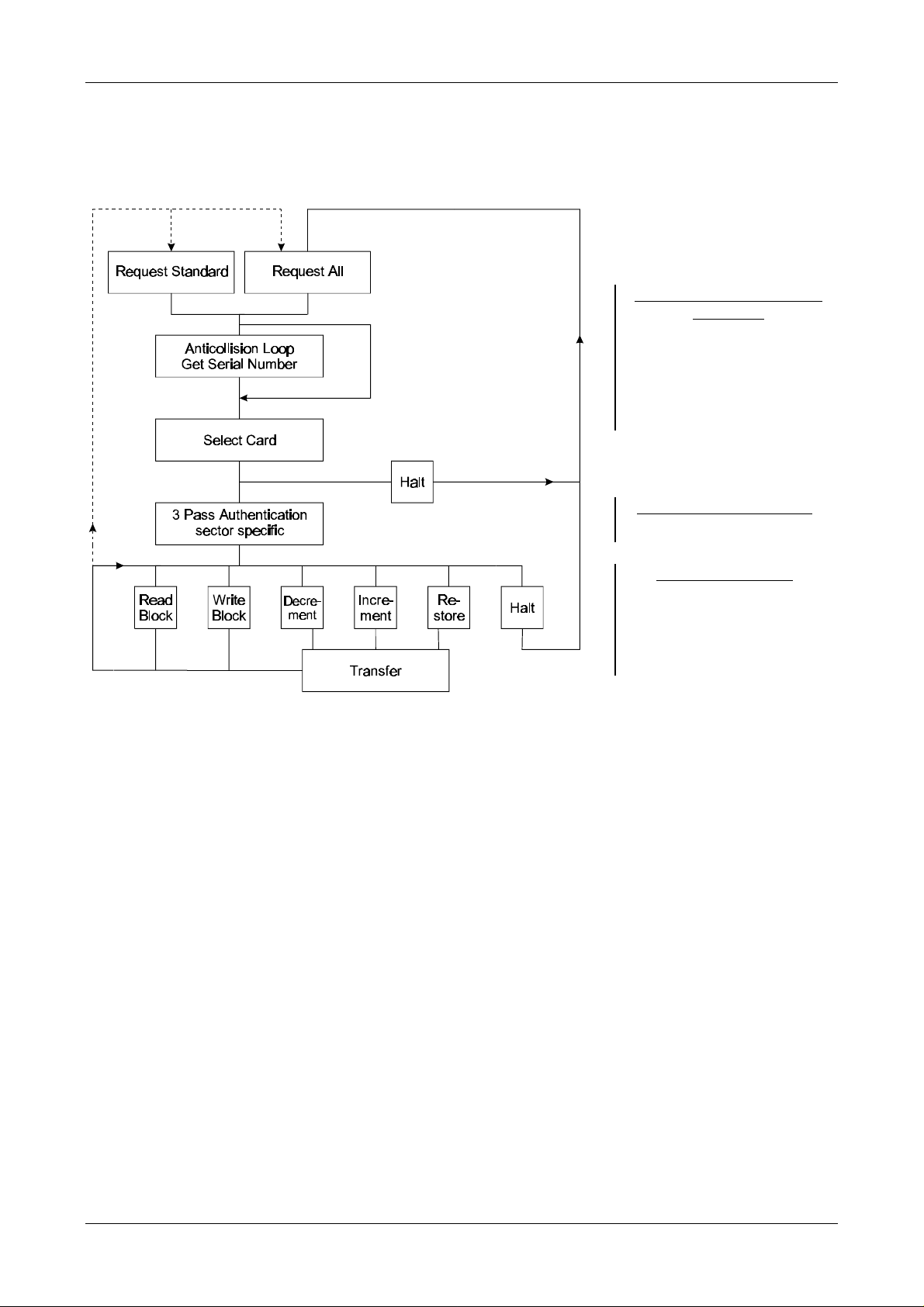

2.3 Communication scheme RWD ↔↔ Card

Transaction Sequence

Typical Transaction

Time

Identification and Selection

Procedure

3 ms without collision

+ 1 ms for each collision

Authentication Procedure

2 ms

Memory Operations

2.5 ms read block

6.0 ms write block

2.5 ms dec/increment

4.5 ms transfer

Answer to Request :

With the Answer to Request sequence the MIFARE RWD (Read Write Device) requests all
MIFARE cards in the antenna field. When a card is in the operating range of a RWD, the
RWD continues communication with the appropriate protocol.

Anticollision loop:

In the Anticollision loop the serial number of the card is read. If there are several cards in the
operating range of a RWD they can be distinguished by their different serial numbers and one
can be selected (Select card) for further transactions. The unselected cards return to the
standby mode and wait for a new Answer to Request and Anticollision loop.

Select Card:

With the Select Card command the RWD selects one individual card for further authentication
and memory related operations. The card returns the Answer to Select (ATS) code, which
determines the individual type of the selected card.

M01040.doc/RM Page 7 of 18

Functional Description Rev. 4.0 1998-07-24

Refer to the document MIFARE Standardised Card Type Identification Procedure for
further details.

Access Specification

After identification and selection of one card the RWD specifies the memory location of the
following access.

3 Pass Authentication

The appropriate access key for the previously specified access is used for 3 Pass
Authentication (see 2.5). Any communication after authentication is automatically encrypted at
the sender and decrypted by the receiver.

Read/Write

After authentication any of the following operations may be performed:

READ reads one block
WRITE writes one block
DECREMENT decrements the contents of one block

and stores the result in the data-register

INCREMENT increments the contents of one block

and stores the result in the data-register

TRANSFER writes the contents of the data-register

to one block

RESTORE stores the contents of one block in the data-register

2.4 Data Integrity

Following mechanisms are implemented in the contactless communication link between RWD and
card to ensure very reliable data transmission:

• Anticollision

• 16 Bit CRC per block

• 16 Bit Parity per block (one per Byte)

• Bit count checking

• Bit coding to distinguish between "1", "0", and no information

• Channel monitoring (Protocol sequence and bit stream analysis)

M01040.doc/RM Page 8 of 18

Functional Description Rev. 4.0 1998-07-24

2.5 Security

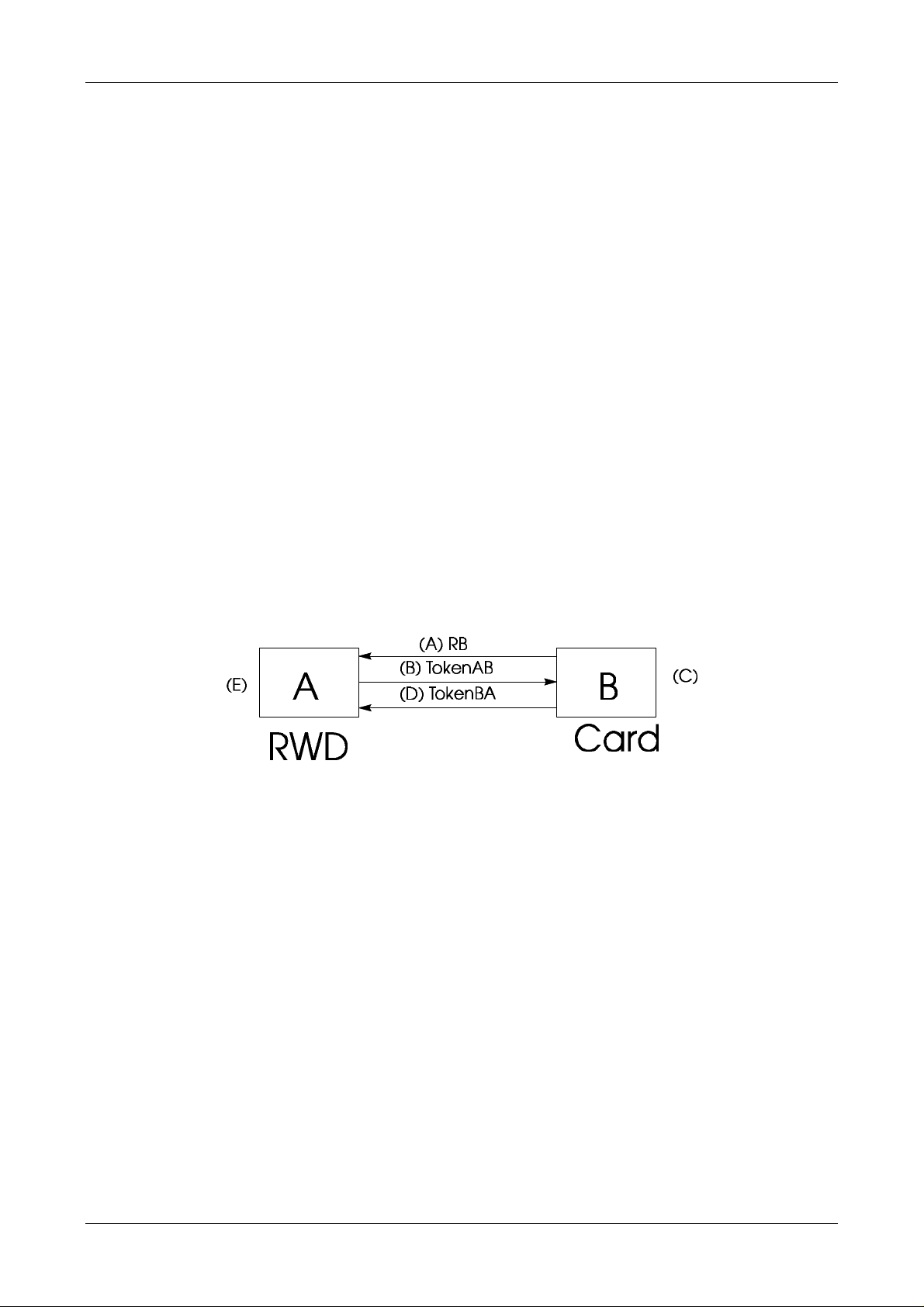

To provide a very high security level three pass authentication (according to ISO 9798-2) and
encryption based on a stream cipher algorithm with random generator, serial number and 48 Bit keys
are integrated in the RWD`s Interface ASIC and the cards. Keys in the cards are read protected but
can be altered, provided one knows the actual key. This gives the possibility to any system integrator
who knows the transport key of any card to program his own secret keys. Splitting the card's
memory into several sections with separate access keys makes the system open for multi­functionality (same cards for different applications).
Since there are two different keys (Key A and Key B) per sector available with corresponding access
conditions available MIFARE 1 S50 card IC provides the possibility of a system with key hierarchy.
Key A for example can be used for protecting the decrement function and Key B the usually more
sensible increment function.

Three pass authentication:

In this authentication mechanism uniqueness /timeliness is controlled by generating and checking
random numbers.

Illustration of the authentication mechanism:

The tokens are structured as follows:

TokenAB= eKAB(RA || RB || B || Text2).
TokenBA= eKAB(RB || RA || Text4).

NOTE - The inclusion of the parameter B in TokenAB is necessary to prevent a so called reflection

attack. Such an attack is characterised by the fact that an intruder "reflects" the challenge
RB to B pretending to be A.

(A) B sends a random number R

B

(B) A sends Token AB to B.

M01040.doc/RM Page 9 of 18

Functional Description Rev. 4.0 1998-07-24

(C)On receipt of the message containing Token AB, B verifies Token AB by deciphering the

enciphered part and checking the correctness of the distinguishing identifier B and that the
random number RB, sent to A in step (A), agrees with the random number contained in
TokenAB.

(D)B sends TokenBA to A.

(E)On receipt of the message containing Token BA , A verifies TokenBA by deciphering the

enciphered part and checking that the random number RB, received from A in step (A) agrees
with the random number contained in TokenBA and that the random number RA, sent to B in
step (B), agrees with the random number contained in TokenBA.

M01040.doc/RM Page 10 of 18

Functional Description Rev. 4.0 1998-07-24

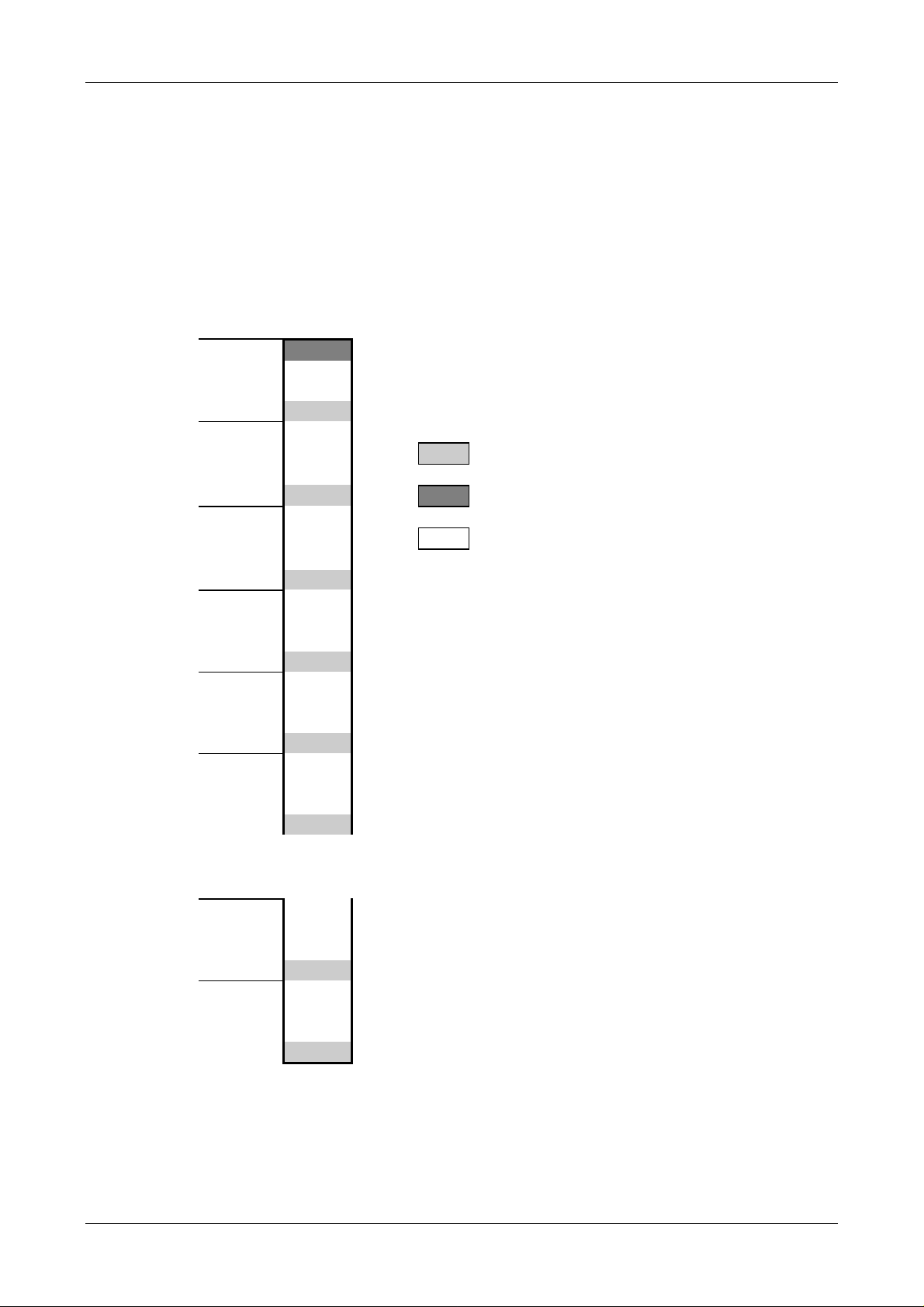

2.6 Memory Organisation and Access Conditions

The MF1ICS50 IC has integrated a 8192 Bit EEPROM which is split into 16 sectors with 4 blocks.
One block consists of 16 bytes (1 Byte = 8 Bit).

Memory Organisation:

Sector No. Block

No.

0

0 1

2
3
0

1 1 ... Sector Trailer

2
3 ... Manufacturer Code = "Block 0"
0

2 1 ... Data Block

2
3
0

3 1

2
3
0

4 1

2
3
0

5 1

2
3

. . .

0

14 1

2
3
0

15 1

2
3

M01040.doc/RM Page 11 of 18

Functional Description Rev. 4.0 1998-07-24

2.6.1 Sector Trailer (Block 3):

Bit No. 7 6 5 4 3 2 1 0 X ... Sector No. (0 to 15)

Byte

No.

0
1
2 KEYSECXA
3
4
5 bit# 7 6 5 4 3 2 1 0

6
7 ACCESS
8 CONDITIONS
9

10 _b stands for inversion; e.g. C1X0_b=INV(C1X0)
11
12 KEYSECXB
13 (optional)
14
15

C2X3_b C2X2_b C2X1_b C2X0_b C1X3_b C1X2_b C1X1_b C1X0_b

→

C1X3 C1X2 C1X1 C1X0 C3X3_b C3X2_b C3X1_b C3X0_b
C3X3 C3X2 C3X1 C3X0 C2X3 C2X2 C2X1 C2X0
BX7 BX6 BX5 BX4 BX3 BX2 BX1 BX0

→

Y ... Block No. (0 to 3)

The fourth block of any sector is the Sector Trailer. The Sector Trailer contains access Key A
(KEYSECXA) an optional Key B (KEYSECXB) and the access conditions for the four blocks of that
sector. If Key B is not needed, the last 6 Bytes of block 3 can be used as data bytes. The corresponding
access condition settings are marked grey below.
C1XY to C3XY which are stored twice for safety reasons define the access condition independently for
the sector's four blocks. The last byte of the access conditions may be used to store some specific
application data (e.g. location of the write backup block).

• Access condition for the Sector Trailer (Y = 3)

KEYSECXA ACCESS COND. KEYSECXB

C1X3 C2X3 C3X3 read write read write read write

0 0 0 never key A key A never key A key A
0 1 0 never never key A never key A never
1 0 0 never key B key A|B never never key B
1 1 0 never never key A|B never never never
0 0 1 never key A key A key A key A key A
0 1 1 never key B key A|B key B never key B
1 0 1 never never key A|B key B never never
1 1 1 never never key A|B never never never

incr, decr, transfer, restore : never

NOTE: Key A|B means key A or key B;

If key B may be read (all grey marked lines) the memory space for Key B is used for data
storage and it shall not be used for authentication because all further memory access
operations will fail.

M01040.doc/RM Page 12 of 18

Functional Description Rev. 4.0 1998-07-24

Since the transport access conditions (after chip manufacturing) equal to 001, new cards
must not be authenticated with Key B !

• Access condition for Data Blocks (Y = 0 to 2)

C1XY C2XY C3XY read write incr decr, transfer,

restore

0 0 0 keyA|B
0 1 0 keyA|B
1 0 0 keyA|B
1 1 0 keyA|B
0 0 1 keyA|B
0 1 1 key B
1 0 1 key B

1
1
1
1

1
1
1

key A|B

never never never
key B
key B

never never key A|B
key B

never never never

1

1
1

1

key A|B

never never

key B

never never

1

1

key A|B

key A|B

1

1
1

1 1 1 never never never never

The process of decrement and increment of a block's data is performed and controlled by the Card­IC.

• Transport code

For transportation, KEYSECXA and the access conditions are predefined by the manufacturer as
follows:

C1X0, C2X0, C3X0 = 0 0 0 block 0 (data block)
C1X1, C2X1, C3X1 = 0 0 0 block 1 (data block)
C1X2, C2X2, C3X2 = 0 0 0 block 2 (data block)
C1X3, C2X3, C3X3 = 0 0 1 block 3 (Sector Trailer)

KEYSECXA .secret key, known only by

the manufacturer and system integrator

2.6.2 Manufacturer Code (Block 0 of Sector 0)

The first block of the memory is reserved for manufacturer data like 32 bit serial number. This
is a read only block. In many documents it is named "Block 0".

2.6.3 Data Block (Block 0 to 3 except "Block 0")

Access conditions for the Data Blocks are defined in the Sector Trailers. According to these
conditions data can be read, written, incremented, decremented, transferred or restored either
with Key A, Key B or never.

1 if Key B may be read in the corresponding Sector Trailer it cannot serve for authentication (all grey marked lines in
previous table). Consequences: If the RWD tries to authenticate any block of a sector with key B using grey marked
access conditions, the card will refuse any subsequent memory access after authentication.

M01040.doc/RM Page 13 of 18

Functional Description Rev. 4.0 1998-07-24

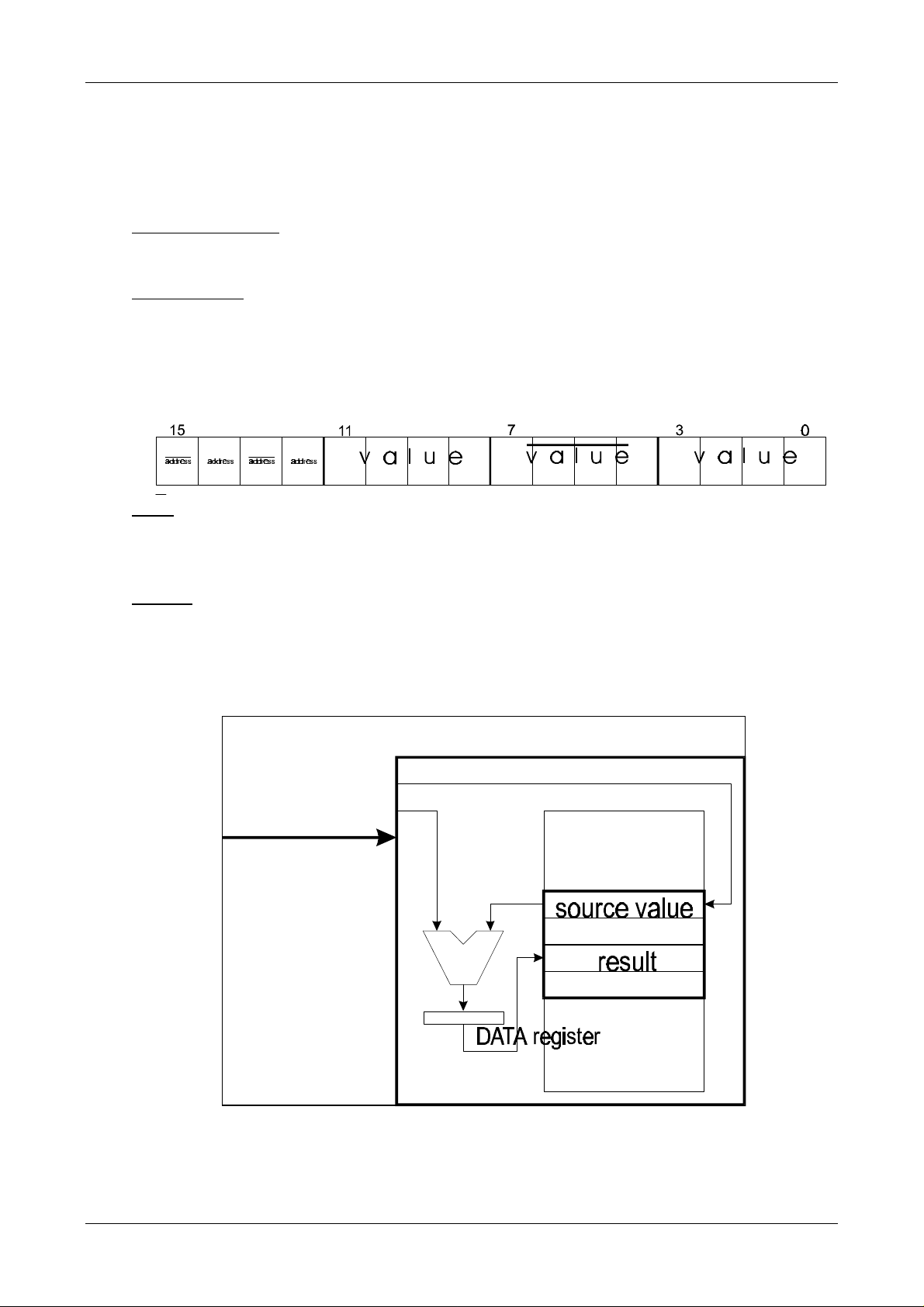

In the MF1ICS50 IC two types of Data Blocks are used:
a) read/write blocks

are used to read and write general 16 bytes of data.

b) value blocks
are used for electronic purse functions (read, increment, decrement, transfer, restore). The
maximum size of a value is 4 byte including sign bit, even when a complete 16 byte block has
to be reserved. To provide error detection and correction capability, any value is stored 3
times into one value block. The remaining 4 bytes are reserved to some extent for check bits.

value: 32 bit signed 2th complement format stored 3 times

(the consistency of the 3 occurrences of the value is internally checked
before the chip can perform any calculation)

address:8 bit arbitrary address byte stored 4 times

(this byte is not internally interpreted)

A value blocks is first time generated by a WRITE instruction to the desired address. The
value may be used for subsequent DECREMENT / INCREMENT / RESTORE instructions.

mif_restore,

mif_increment,

mif_decrement

(SOURCE_ADR,

DECR_VALUE)

MIF ARE MF1ICS50

chip memory

ALU

mif_transfer

(DEST_ADR)

The result of a calculation instruction is temporally stored in a buffer register. For updating the
memory with the calculation result the TRANSFER instruction has to be issued. The chip
refuses calculations if any error in the block format could be detected.

M01040.doc/RM Page 14 of 18

Functional Description Rev. 4.0 1998-07-24

2.6.4 Key management and Multi-functionality

The described memory organization makes it possible to appoint different sectors to different
applications and to prevent data corruption by using application specific secret keys. Keys can
only be altered by a RWD which has stored the actual Key A or Key B if this is allowed
according to access conditions. Otherwise the actual key cannot be changed anymore.

Note:

Before the execution of a command the correct format of the Access Conditions is checked by
the Card-IC. Thus, when programming the Sector Trailer the card needs to be fixed within the
operating range of a RWD's antenna to prevent interruption of the write operation because any
unsuccessful write operation may lead to blocking the whole sector.

2.7 Memory contents after IC test

2.7.1 Block 0 (manufacturer block):

byte byte

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Serial number CB manufacturer data

CB: “serial number check byte“ CB = byte 0 ^ byte 1 ^ byte 2 ^ byte 3 (^ ... XOR)

2.7.2 Data Blocks:

Data blocks: contain variable data.
(blocks 1,2 / 4,5,6 / 8,9,10 / 12,13,14 / 16,17,18 / 20,21,22 / 24,25,26 / 28,29,30 / 32,33,34 /
36,37,38 / 40,41,42 / 44,45,46 / 48,49,50 / 52,53,54 / 56,57,58 / 60,61,62)

2.7.3 Sector Trailers:

Note: The initial state of sector trailers after IC test can be modified depending on the

personalisation done e.g. at the card manufacturer.

default coding:
byte byte

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

transport key A FF 07 80 xx transport key B

(blocks 3 / 7 / 11 / 15 / 19 / 23 / 27 / 31 / 35 / 39 / 43 / 47 / 51 / 55 / 59 / 63)
Byte 9 of all sector trailers is not defined. Its memory contents after IC test can vary.

M01040.doc/RM Page 15 of 18

Release Notes Rev. 4.0 1998-07-24

3 Release Notes

This document refers to MIFARE 1 MF1ICS50 03 / 04 silicon (revision 03 and 04).
It comprises all MIFARE 1 S50 silicon delivered by PHILIPS Semiconductors since 1998.
For previous revisions of MIFARE 1 silicon the dedicated documents are available on request.

3.1 Serial Numbers

Unique serial number (4 Byte)

MF1 ICS50 03/04

xx xx xx x2 hex

3.2 Answer to SELECT command (ATS Code)

Answer to Select (ATS Code )

MF1 ICS50 03/04

0x08

Note: The ATS code may be used to identify the card IC type (for details refer to the document:

MIFARE Standardised Card IC Type Identification Procedure).

M01040.doc/RM Page 16 of 18

Definitions

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be

published later.

Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress
above one or more of the limiting values may cause permanent damage to the device. These are
stress ratings only and operation of the device at these or at any other conditions above those given
in the Characteristics section of the specification is not implied. Exposure to limiting values for
extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

Life support applications

These products are not designed for use in life support appliances, devices, or systems where
malfunction of these products can reasonably be expected to result in personal injury. Philips
customers using or selling these products for use in such applications do so on their own risk
and agree to fully indemnify Philips for any damages resulting from such improper use or sale.

Philips Semiconductors - a worldwide company

Philips

Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,
Australia: 34 Waterloo Road, NORTHRYDE, NSW 2113, Tel. [phone], Fax [phone]
Tel. [phone], Fax. [phone] New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,
Austria: Computerstraße 6, A-1101 WIEN, P.O.Box 213, Tel. [phone], Fax. [phone]
Tel. [phone], Fax. [phone] Norway: Box 1, Manglerud 0612, OSLO,
Belarus: Hotel Minsk Business Centre, Bld. 3, r.1211, Volodarski Str. 6, Tel. [phone], Fax. [phone]
220050 MINSK, Tel. [phone], Fax. [phone] Philippines: Philips Semiconductors Philippines Inc.,
Belgium: see The Netherlands 106 Valero St. Salcedo Village, P.O.Box 2108 MCC, MAKATI,
Brazil: see South America Metro MANILA, Tel. [phone], Fax. [phone]
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor, Poland: Ul. Lukiska 10, PL 04-123 WARSZWA,

51 James Bourchier Blvd., 1407 SOFIA Tel. [phone], Fax. [phone]
Tel. [phone], Fax. [phone] Portugal: see Spain
Canada: Philips Semiconductors/Components, Romania: see Italy
Tel. [phone] Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,
China/Hong Kong: 501 Hong Kong Industrial Technology Centre, Tel. [phone], Fax. [phone]
72 Tat Chee Avenue, Kowloon Tong, HONG KONG, Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,
Tel. [phone], Fax. [phone] Tel. [phone], Fax. [phone]

Colombia: see South America Slovakia: see Austria
Czech Republic: see Austria Slovenia: see Italy
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S, South Africa: S.A. Philips Pty Ltd., 195-215 Main Road Martindale,

Tel. [phone], Fax. [phone] JOHANNESBURG, P.O.Box 7430 Johannesburg 2000,
Finland: Sinikalliontie 3, FIN-02630 ESPOO, Tel. [phone], Fax. [phone]
Tel. [phone], Fax. [phone]/xxx South America: Rua do Rocio 220, 5th floor, Suite 51,
France: 4 Rue du Port-aux-Vins, BP 317, 92156 SURESNES Cedex, 04552-903 Sao Paulo, SAO PAULO - SP, Brazil,
Tel. [phone], Fax. [phone] Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG, Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone] Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS, Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone] Tel. [phone], Fax. [phone]

Hungary: see Austria Switzerland: Allmendstraße 140, CH-8027 ZÜRICH,
India: Philips INDIA Ltd., Shivsagar Estate, A Block, Dr. Annie Besant Rd. Tel. [phone], Fax. [phone]
Worli, MUMBAI 400018, Tel. [phone], Fax. [phone] Taiwan: Philips Taiwan Ltd., 2330F, 66,
Indonesia: see Singapore Chung Hsiao West Road, Sec. 1, P.O.Box 22978,
Ireland: Newstead, Clonskeagh, DUBLIN 14, TAIPEI 100, Tel. [phone], Fax. [phone]
Tel. [phone], Fax. [phone] Thailand: Philips Electronics (Thailand) Ltd.,
Israel: RAPAC Electronics, 7 Kehilat Saloniki St., TEL AVIV 61180, 209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,

Tel. [phone], Fax. [phone] Tel. [phone], Fax. [phone]
Italy: Philips Semiconductors, Piazza IV Novembre 3, Turkey: Talapasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
20124 MILANO, Tel. [phone], Fax. [phone] Tel. [phone], Fax. [phone]
Japan: Philips Bldg. 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108, Ukraine: Philips Ukraine, 4 Patrice Lumumba Str., Building B, Floor 7,
Tel. [phone],Fax. [phone] 252042 KIEV, Tel. [phone], Fax. [phone]
Korea: Philips House, 260-199, Itaewon-dong, Yonsan-ku, SEOUL, United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
Tel. [phone], Fax. [phone] MIDDLESEX UM3 5BX, Tel. [phone], Fax. [phone]
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, Selangor, United States: 811 Argues Avenue, SUNNYVALE, CA94088-3409,
Tel. [phone], Fax. [phone] Tel. [phone]
Mexico: 5900 Gateway East, Suite 200, EL PASO, Texas 79905, Uruguay: see South America
Tel. [phone] Vietnam: see Singapore
Middle East: see Italy Yugoslavia: Philips, Trg N. Pasica 5/v, 11000 BEOGRAD,

Published by:

Philips Semiconductors Gratkorn GmbH, Mikron-Weg 1, A-8101 Gratkorn, AustriaFax: [phone] - 270

Tel. [phone], Fax. [phone]

For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications, Internet: http://www.semiconductors.philips.com
Building BE-p, P.O.Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax: [phone]

© Philips Electronics N.V. 1997 SCB52
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without any

notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other
industrial or intellectual property rights.

Semiconductors
