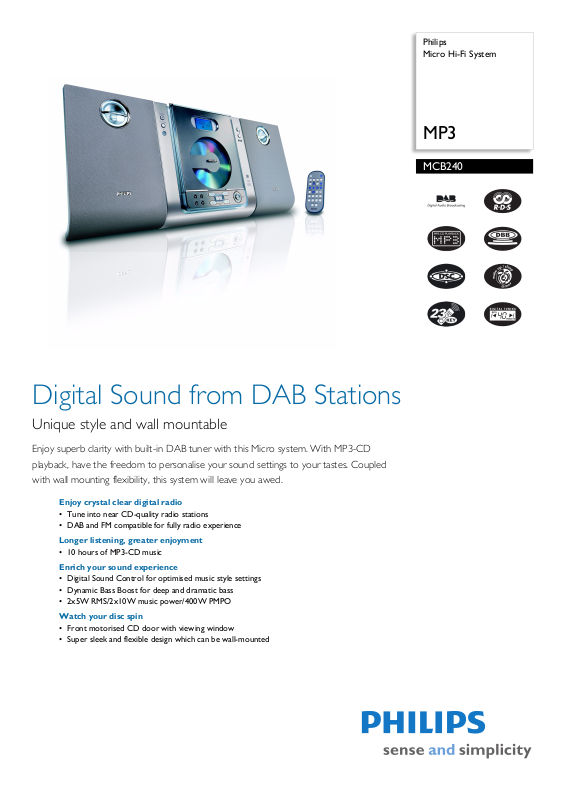

Philips MCB240-25 User Manual

Philips Micro Hi-Fi System

MP3

MCB240

Digital Sound from DAB Stations

Unique style and wall mountable

Enjoy superb clarity with built-in DAB tuner with this Micro system. With MP3-CD playback, have the freedom to personalise your sound settings to your tastes. Coupled with wall mounting flexibility, this system will leave you awed.

Enjoy crystal clear digital radio

• Tune into near CD-quality radio stations

• DAB and FM compatible for fully radio experience

Longer listening, greater enjoyment

• 10 hours of MP3-CD music

Enrich your sound experience

• Digital Sound Control for optimised music style settings

• Dynamic Bass Boost for deep and dramatic bass

• 2x5W RMS/2x10W music power/400W PMPO

Watch your disc spin

• Front motorised CD door with viewing window

• Super sleek and flexible design which can be wall-mounted

Micro Hi-Fi System

MCB240/25

MP3

Specifications Product highlights

Sound

• Output Power: 2x10 watts music power

• Sound Enhancement: Digital Sound Control 4 modes, Dynamic Bass Boost

Loudspeakers

• Main Speaker: 2 way, Bass Reflex Speaker System, 3" woofer, Piezo tweeter

Audio Playback

• Playback Media: CD, CD-R, CD-RW, MP3-CD

• Disc Playback Modes: Repeat/one/all/program, Shuffle Play, 20-Track Programmable

• ID3-tag support

• Loader Type: Front, Motorised

Tuner/Reception/Transmission

• DAB: Band III, Info display, Menu, Smart Scan

• Tuner Bands: FM Stereo

• Auto digital tuning

• RDS: Station Name, Program Type, Radio Text

• Station presets: 40

• Tuner Enhancements: Auto Store

• Antenna type: Dipole

Connectivity

• Aux in: Line in

• Headphone: 3.5 mm

• Other connections: Fixed FM & DAB T-shape antenna

Convenience

• Alarms: CD Alarm, Radio Alarm, Sleep timer

• Clock: On main display

• Backlight color: White

• Eco Power Standby: 1 watt

• Display Type: Dot Matrix LCD

Accessories

• Included Accessories: Screws for wall mounting x2

• Remote control: 23-key with battery

Dimensions

• Set dimensions (W x H x D): 250 x 245 x 96 mm

• Main speaker dimensions (W x H x D): 166

x 245 x 90 mm

• Packaging dimensions (W x H x D): 330

x 313 x 303 mm

• Weight incl. Packaging: 5.6 kg

•

DAB and FM compatible

DAB (Digital Audio Broadcasting) digital radio is, on top of FM analog transmission, a new way of broadcasting radio via a network of terrestrial transmitters. It provides listeners with more choices and information delivered in crystal clear, crackle-free sound quality. The technology al low s the r ece ive r to lock on to the str ong est si gna l it can be find. With DAB digital stations there are no frequencies to remember, and sets are tuned by station name, so there is no returning on the move.

10 hours of MP3-CD music

MP3 stands for "MPEG 1 Audio layer-3".MP3 is a revolutionary compression technology by which large digital music files can be made up to 10 times smaller without radically degrading their audio quality. MP3 has become the standard audio compression format used on the world wide web, allowing quick and easy audio file transfer.

Digital Sound Control

Digital Sound Control offers you a choice of pre-se t Jazz, Rock, Pop and Classic controls you can use to optimise the frequency ranges for different musical styles. Each mode uses graphic equalizing technology to automatically adjust the sound balance and enhance the most important sound frequencies in your chosen music style. Ultimately, Digital Sound Control makes it easy for you get the most out of your music by precisely adjusting the sound balance to match the type of music you are playing.

Dynamic Bass Boost

Dynamic Bass Boost maximizes your music enjoyment by emphasising the bass content of the music throughout the range of volume settings - from low to high – at the touch of a button! Bottom-end bass frequencies usually get lost when the volume is set at a low level. To counteract this, Dynamic Bass Boost can be switched on to boost bass levels, so you can enjoy consistent sound even when you turn down the volume.

Issue date 2008-10-14

Version: 3.0.6

12 NC: 9073 100 12875 EAN: 87 10895 90636 4

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
